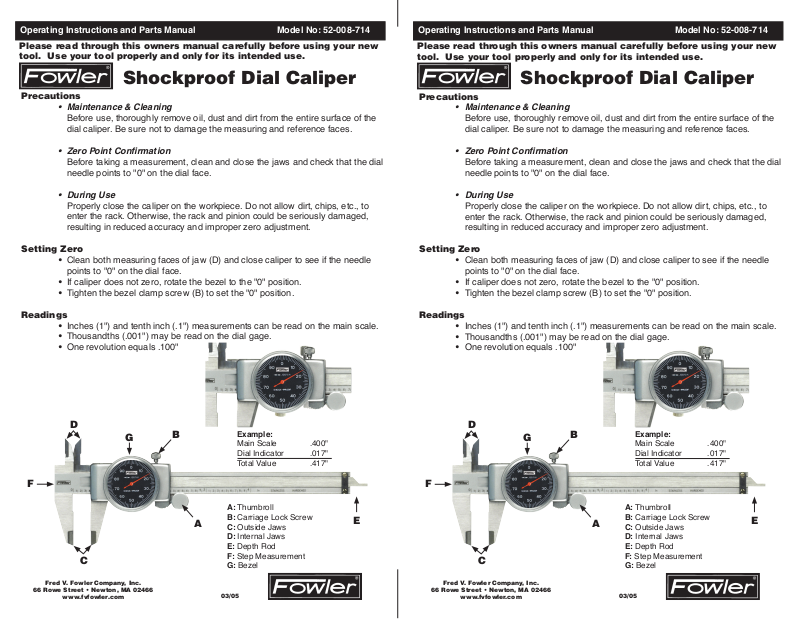

Operating Instructions and Parts Manual Model No: 52-008-714
Please read through this owners manual carefully before using your new
tool. Use your tool properly and only for its intended use.
Operating Instructions and Parts Manual Model No: 52-008-714
Please read through this owners manual carefully before using your new
tool. Use your tool properly and only for its intended use.
Shockproof Dial Caliper
Precautions
• Maintenance & Cleaning
Before use, thoroughly remove oil, dust and dirt from the entire surface of the
dial caliper. Be sure not to damage the measuring and reference faces.
• Zero Point Confirmation
Before taking a measurement, clean and close the jaws and check that the dial
needle points to "0" on the dial face.
• During Use
enter the rack. Otherwise, the rack and pinion could be seriously damaged,
resulting in reduced accuracy and improper zero adjustment.
Setting Zero
•
points to "0" on the dial face.
• If caliper does not zero, rotate the bezel to the "0" position.
• Tighten the bezel clamp screw (B) to set the "0" position.
Readings
•
• Thousandths (.001") may be read on the dial gage.
• One revolution equals .100"
Properly close the caliper on the workpiece. Do not allow dirt, chips, etc., to
Clean both measuring faces of jaw (D) and close caliper to see if the needle
Inches (1") and tenth inch (.1") measurements can be read on the main scale.
Shockproof Dial Caliper
Precautions
• Maintenance & Cleaning
Before use, thoroughly remove oil, dust and dirt from the entire surface of the
dial caliper. Be sure not to damage the measuring and reference faces.
• Zero Point Confirmation
Before taking a measurement, clean and close the jaws and check that the dial
needle points to "0" on the dial face.
• During Use
Properly close the caliper on the workpiece. Do not allow dirt, chips, etc., to
enter the rack. Otherwise, the rack and pinion could be seriously damaged,
resulting in reduced accuracy and improper zero adjustment.
Setting Zero
• Clean both measuring faces of jaw (D) and close caliper to see if the needle
points to "0" on the dial face.
• If caliper does not zero, rotate the bezel to the "0" position.
• Tighten the bezel clamp screw (B) to set the "0" position.
Readings
• Inches (1") and tenth inch (.1") measurements can be read on the main scale.
• Thousandths (.001") may be read on the dial gage.
• One revolution equals .100"
D
G
F
C
Fred V. Fowler Company, Inc.
66 Rowe Street • Newton, MA 02466
www.fvfowler.com
B
Example:
Main Scale .400"
Dial Indicator .017"
Total Value .417"
G
B
Example:
Main Scale .400"
Dial Indicator .017"
Total Value .417"
F
D

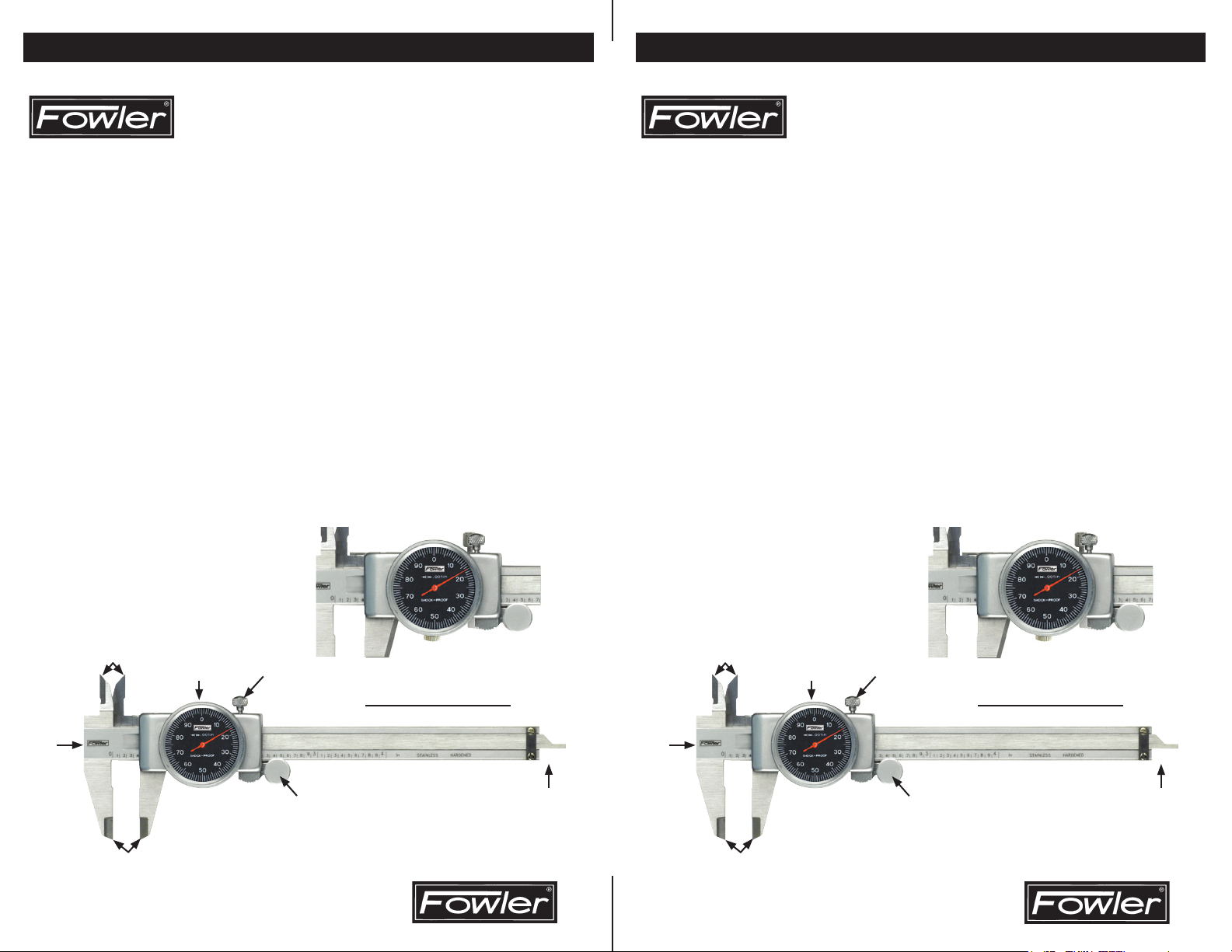

A: Thumbroll
A
B: Carriage Lock Screw
C: Outside Jaws
D: Internal Jaws
E: Depth Rod
F: Step Measurement
G: Bezel
03/05
E
A
C
Fred V. Fowler Company, Inc.
66 Rowe Street • Newton, MA 02466
www.fvfowler.com
A: Thumbroll
B: Carriage Lock Screw
C: Outside Jaws
D: Internal Jaws
E: Depth Rod
F: Step Measurement
G: Bezel
03/05
