Features
Ø128
Ø99
Ø95
Ø100
8 17 10 29.5
7.5
72
8-Ø5 hole
Ø115
♦100mm (4 in) cone type full range
♦8 ohm impedance
♦fo to 10kHz frequency response
♦86dB sensitivity at 1W/1m (3.3ft)
♦1.695kg (3.7373 lb) net weight

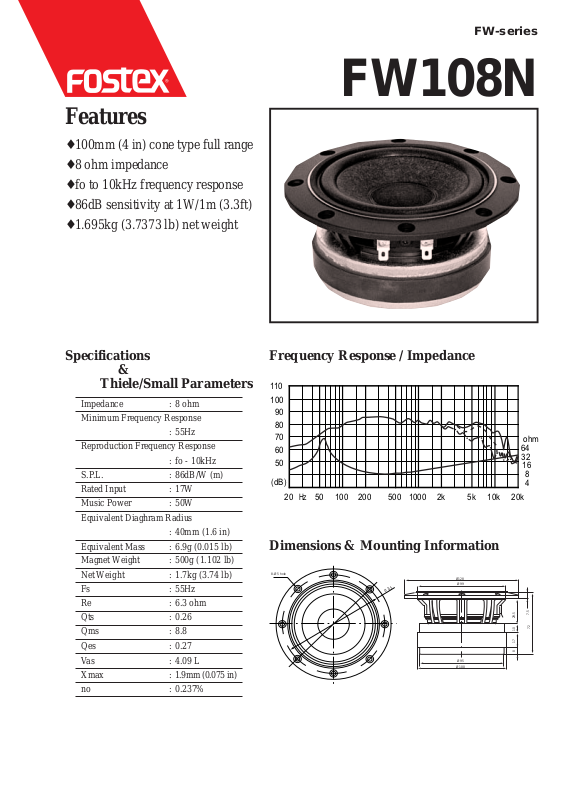

FW-series
FW108N
&
Thiele/Small Parameters
Impedance : 8 ohm
Minimum Frequency Response
: 55Hz
Reproduction Frequency Response
: fo - 10kHz
S.P.L. : 86dB/W (m)
Rated Input : 17W
Music Power : 50W
Equivalent Diaghram Radius
: 40mm (1.6 in)
Equivalent Mass : 6.9g (0.015 lb)
Magnet Weight : 500g (1.102 lb)
Net Weight : 1.7kg (3.74 lb)
Fs : 55Hz
Re : 6.3 ohm
Qts : 0.26
Qms : 8.8
Qes : 0.27
Vas : 4.09 L
Xmax : 1.9mm (0.075 in)
no : 0.237%
Frequency Response / ImpedanceSpecifications
110
100
90
80
70
60
50
(dB)
20 50 100 200 500
Hz
1000
2k 5k
Dimensions & Mounting Information
10k
ohm
64
32
16
8
4
20k
