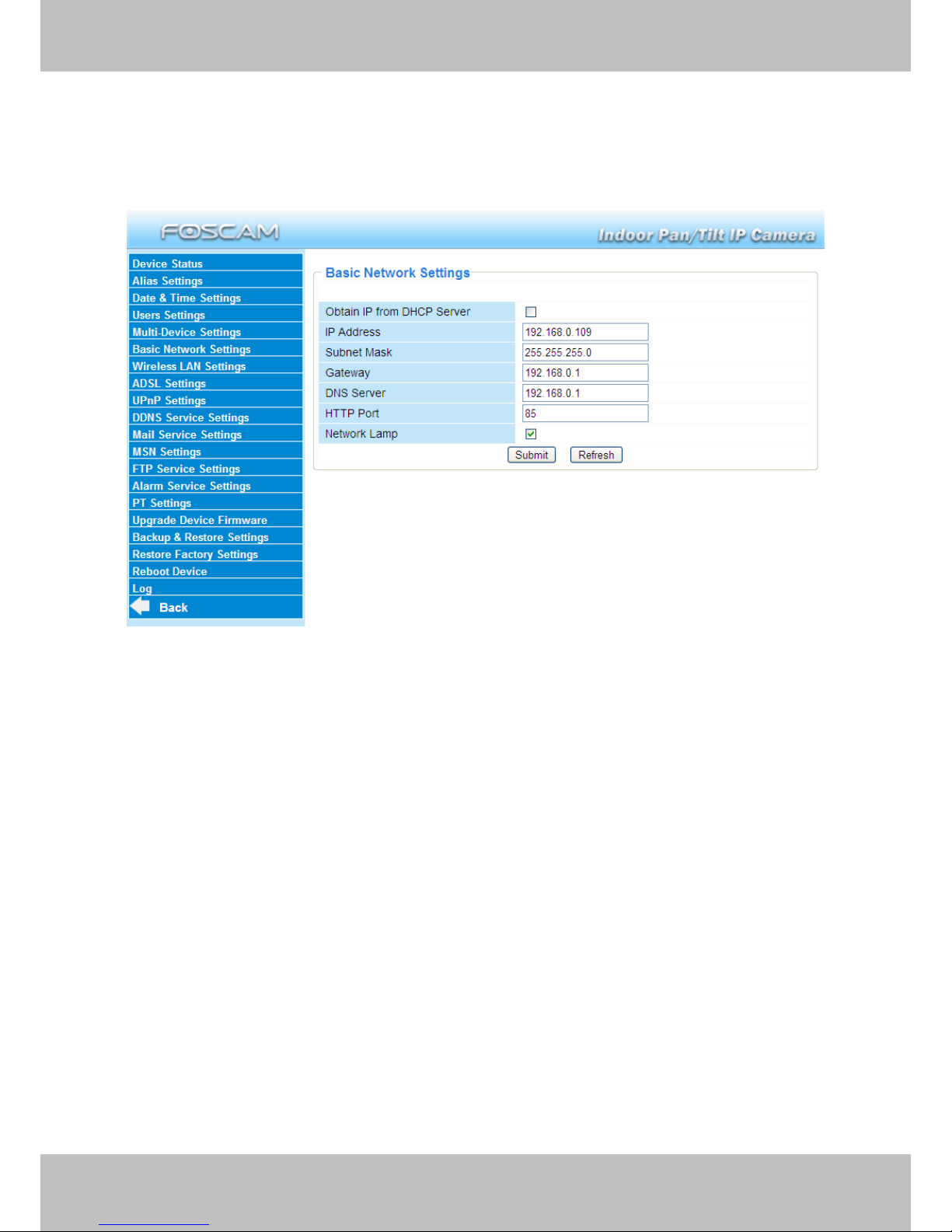

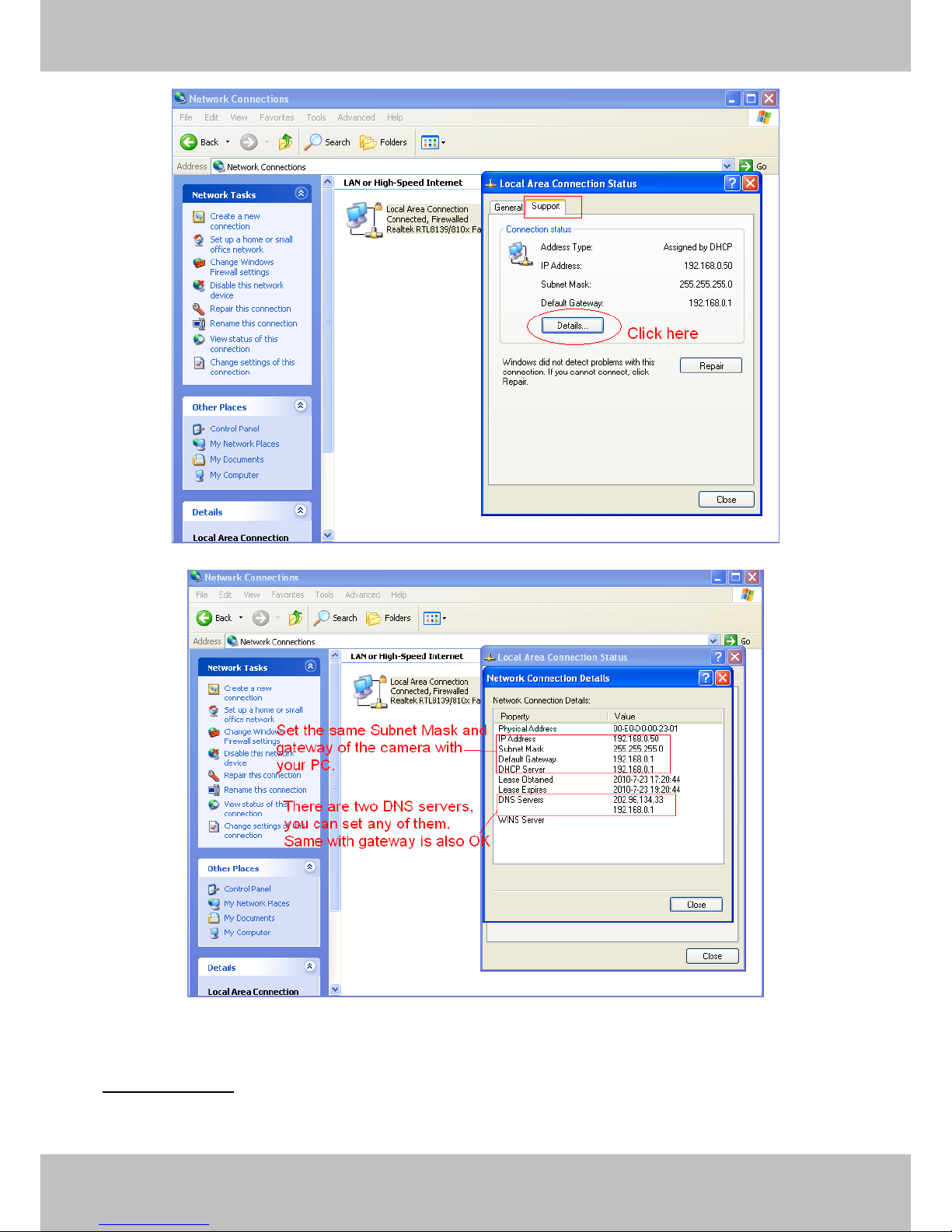

3.6 Basic Network Settings ..................................................................................................................................... 26

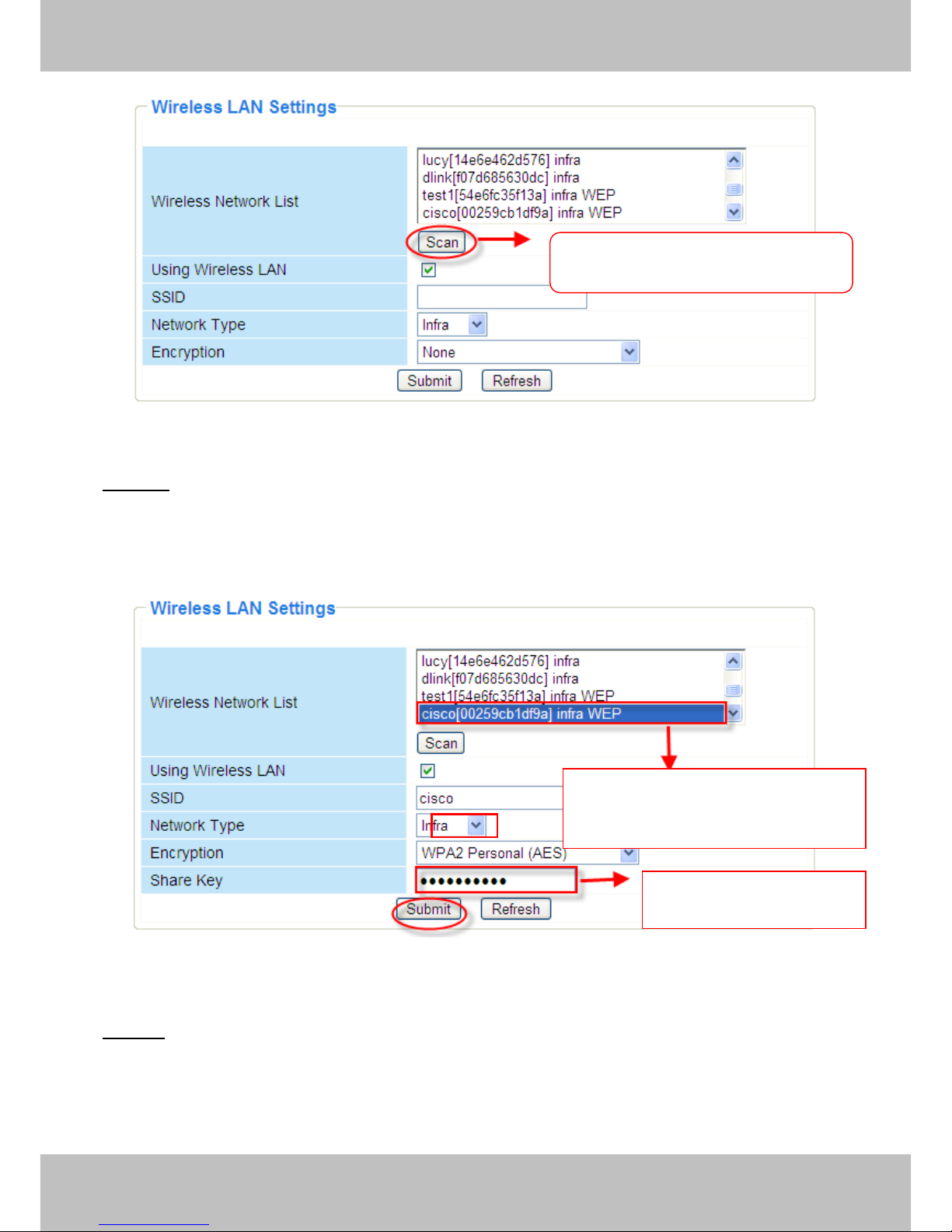

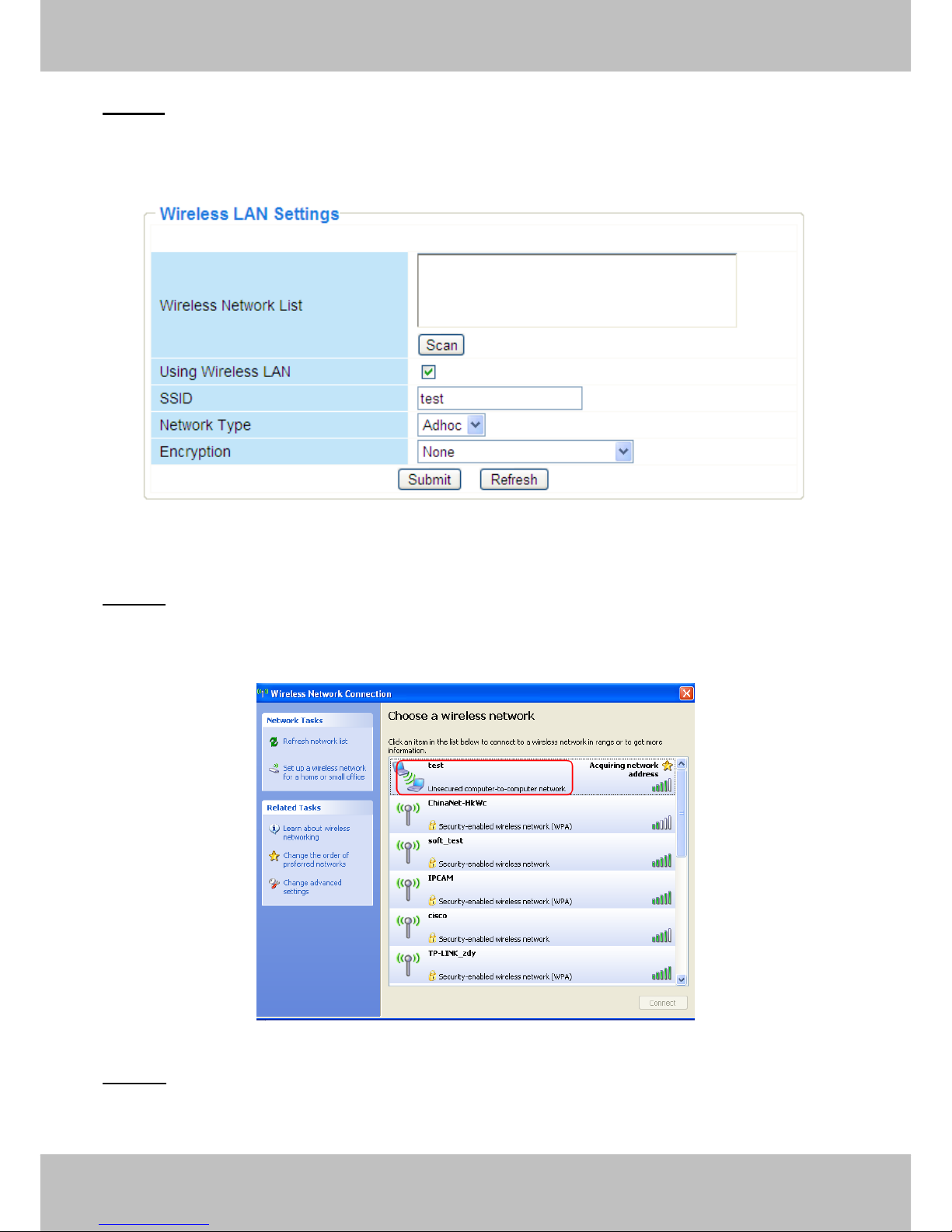

3.7 Wireless Settings .............................................................................................................................................. 29

3.8 ADSL ................................................................................................................................................................. 33

3.9 UPnP Settings ................................................................................................................................................... 34

3.10 DDNS Service Settings ................................................................................................................................... 35

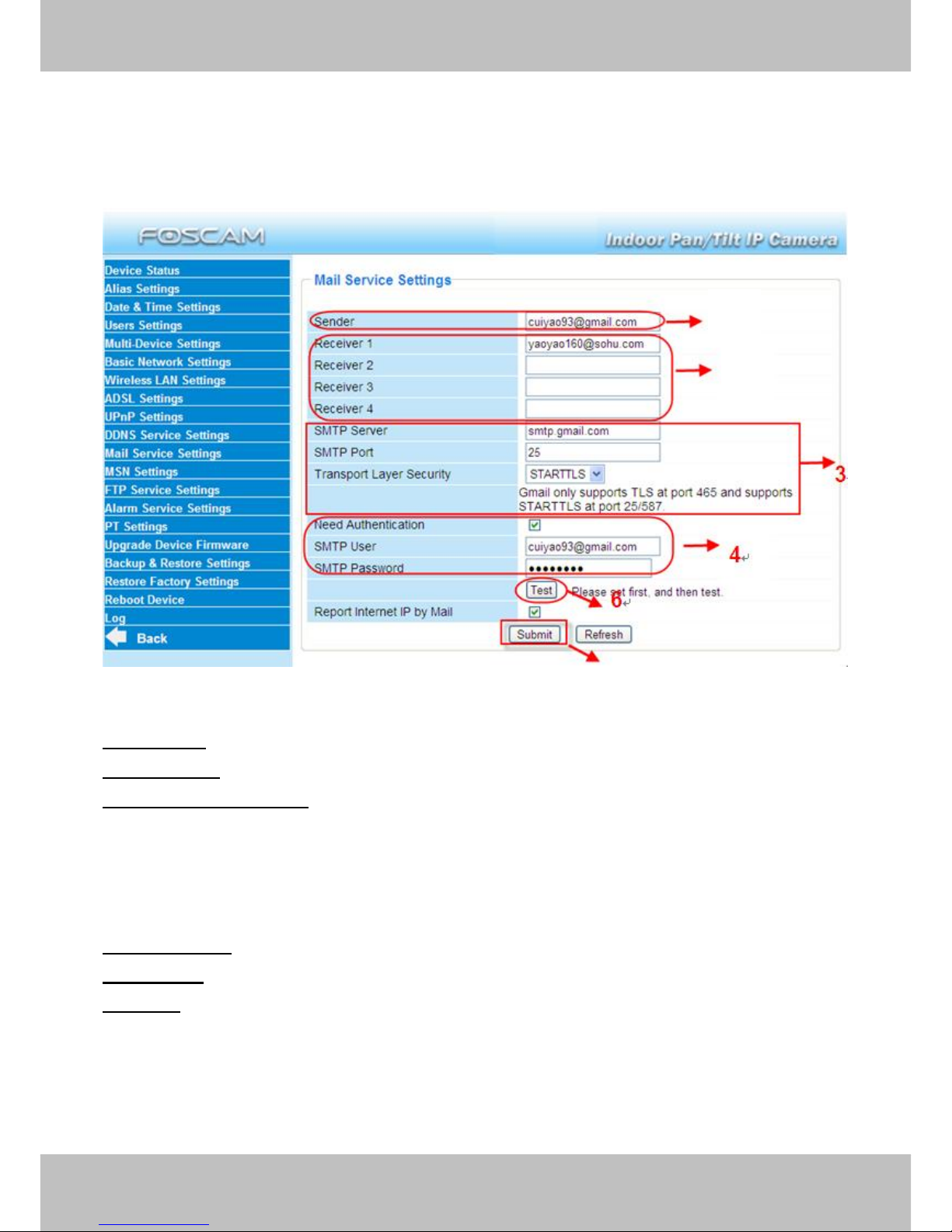

3.11 Mail Service Settings ....................................................................................................................................... 40

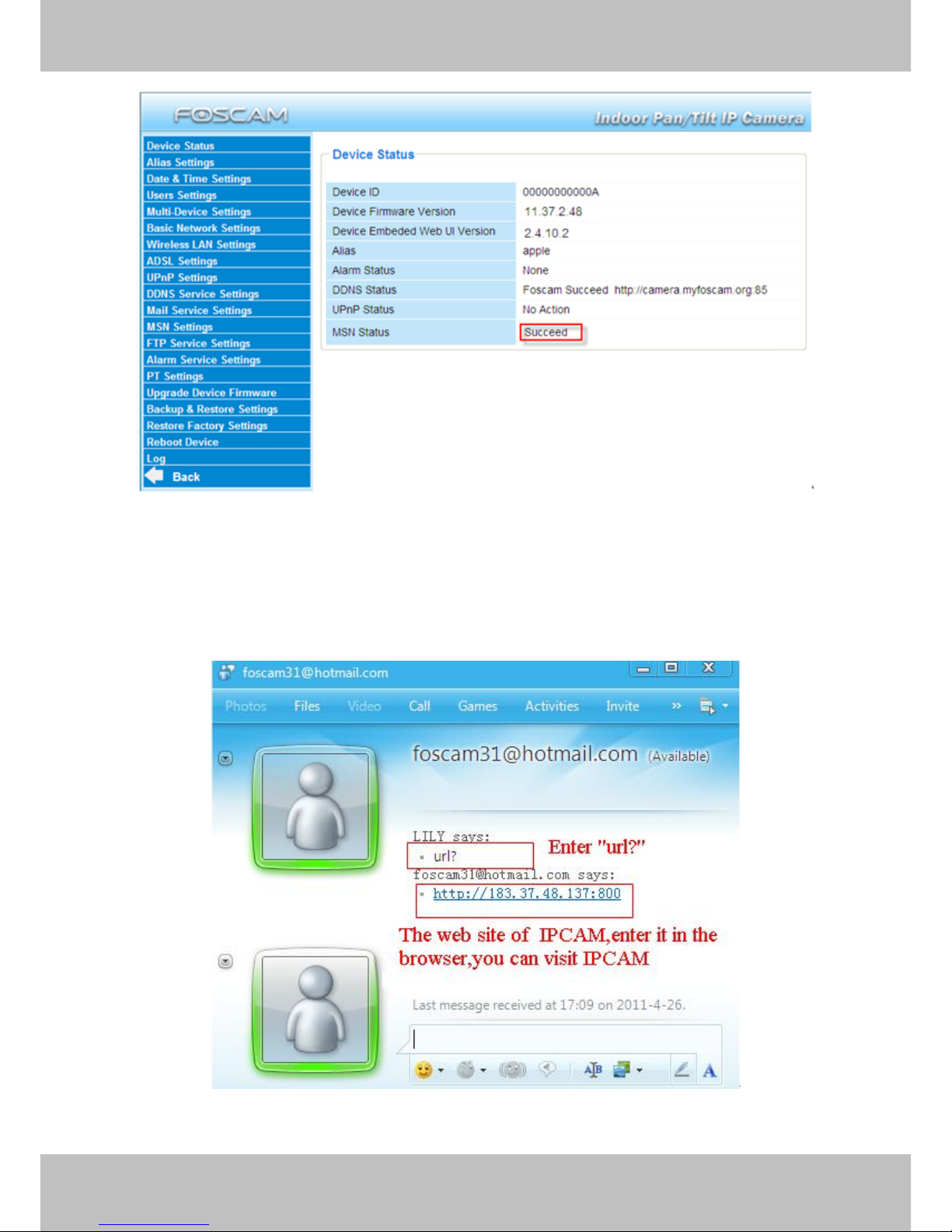

3.12 MSN Setting .................................................................................................................................................... 42

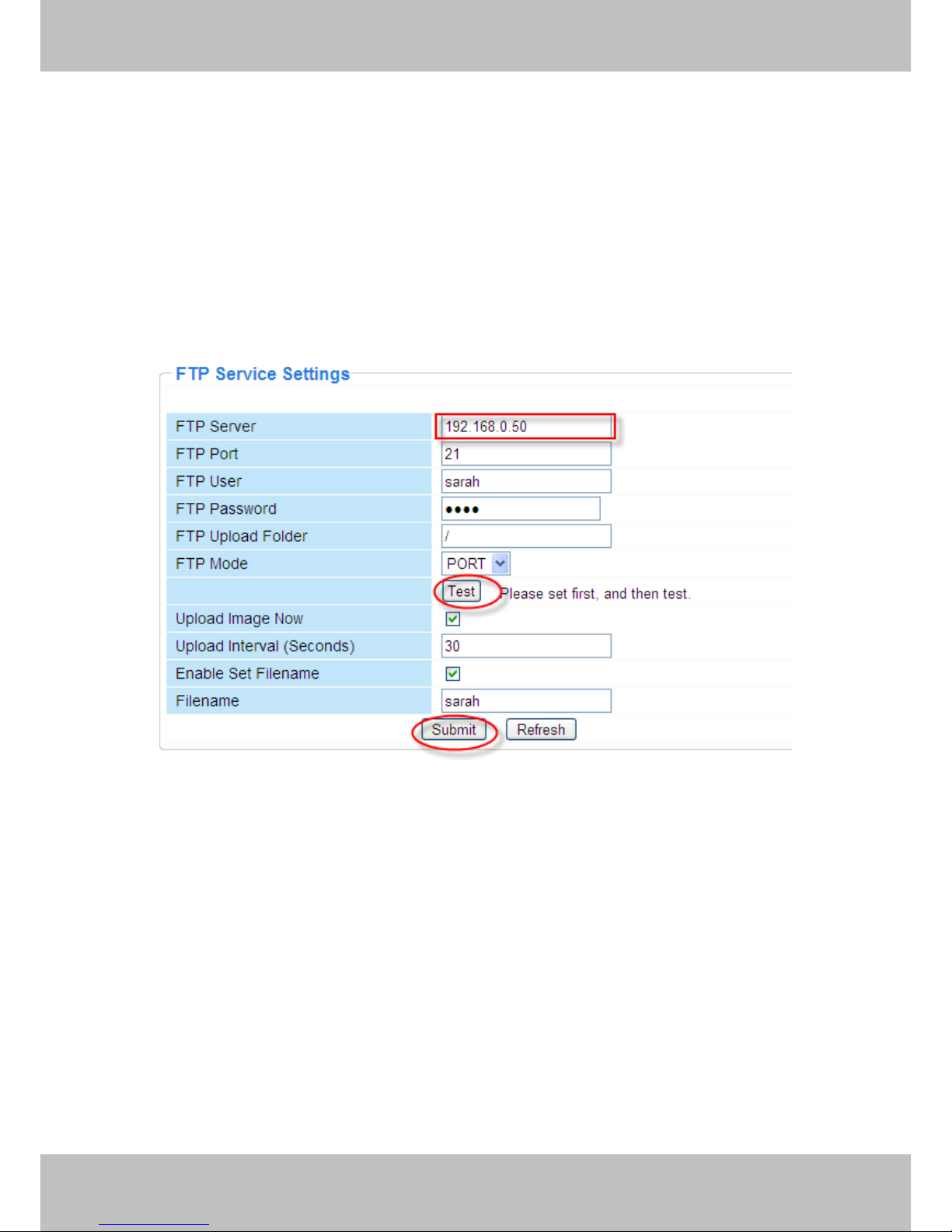

3.13 FTP Service Settings ...................................................................................................................................... 44

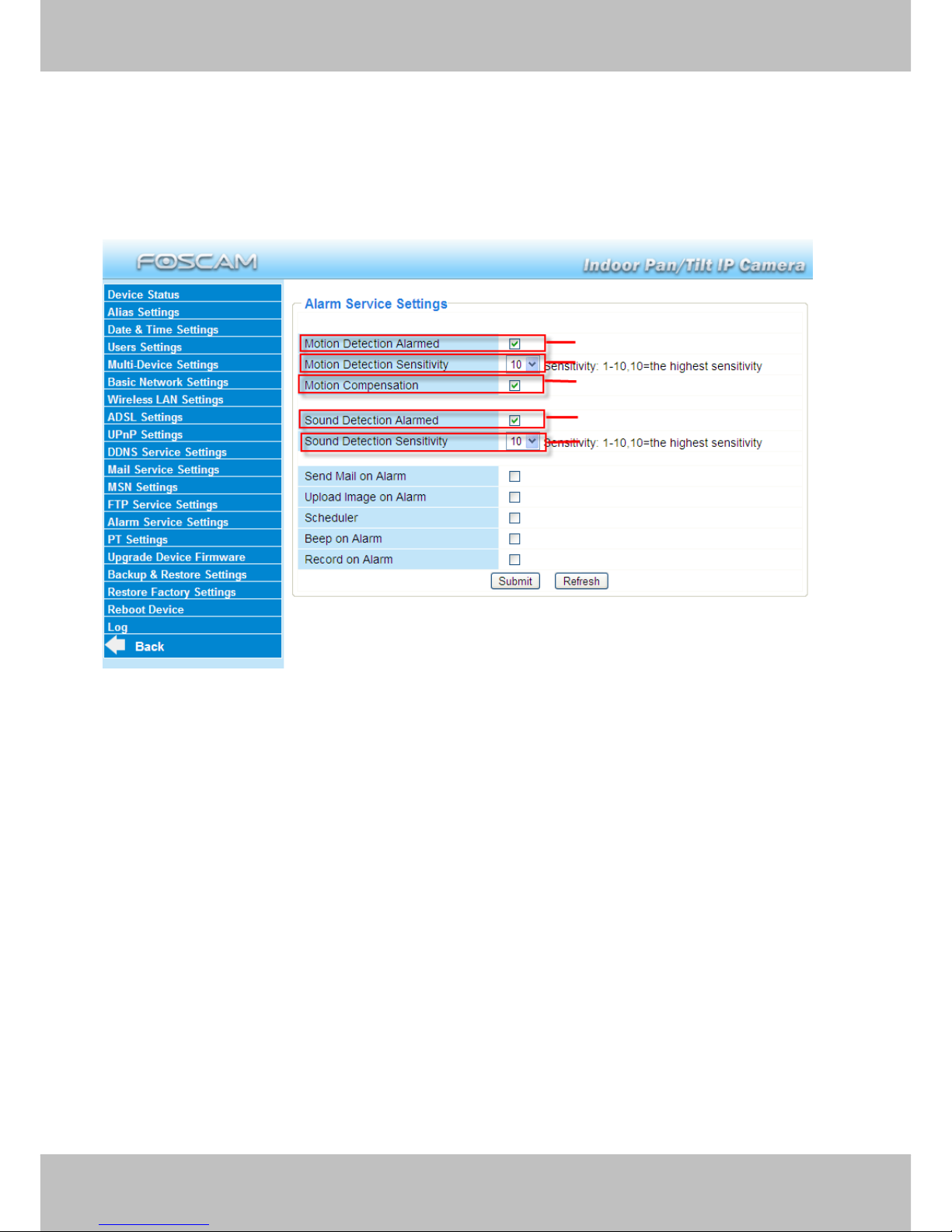

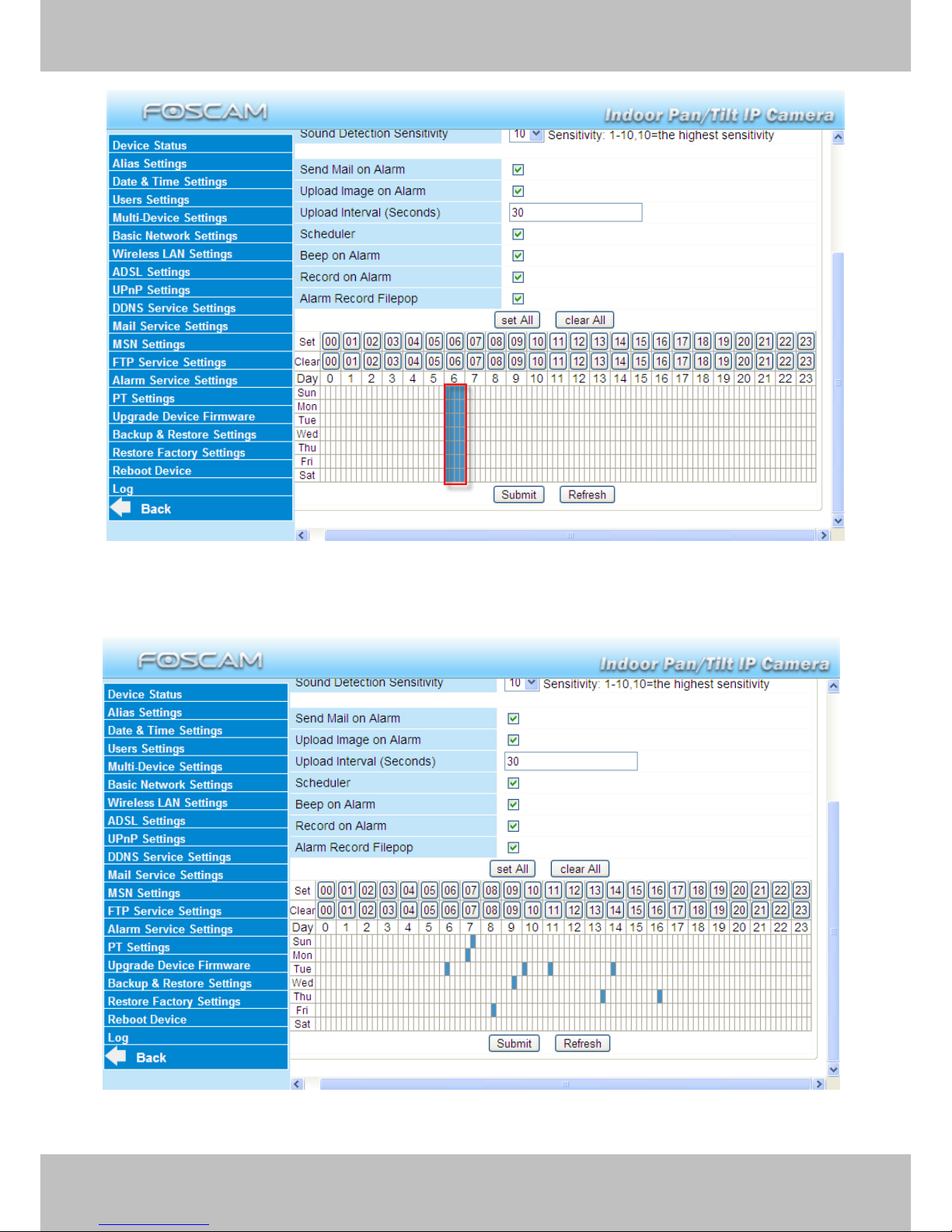

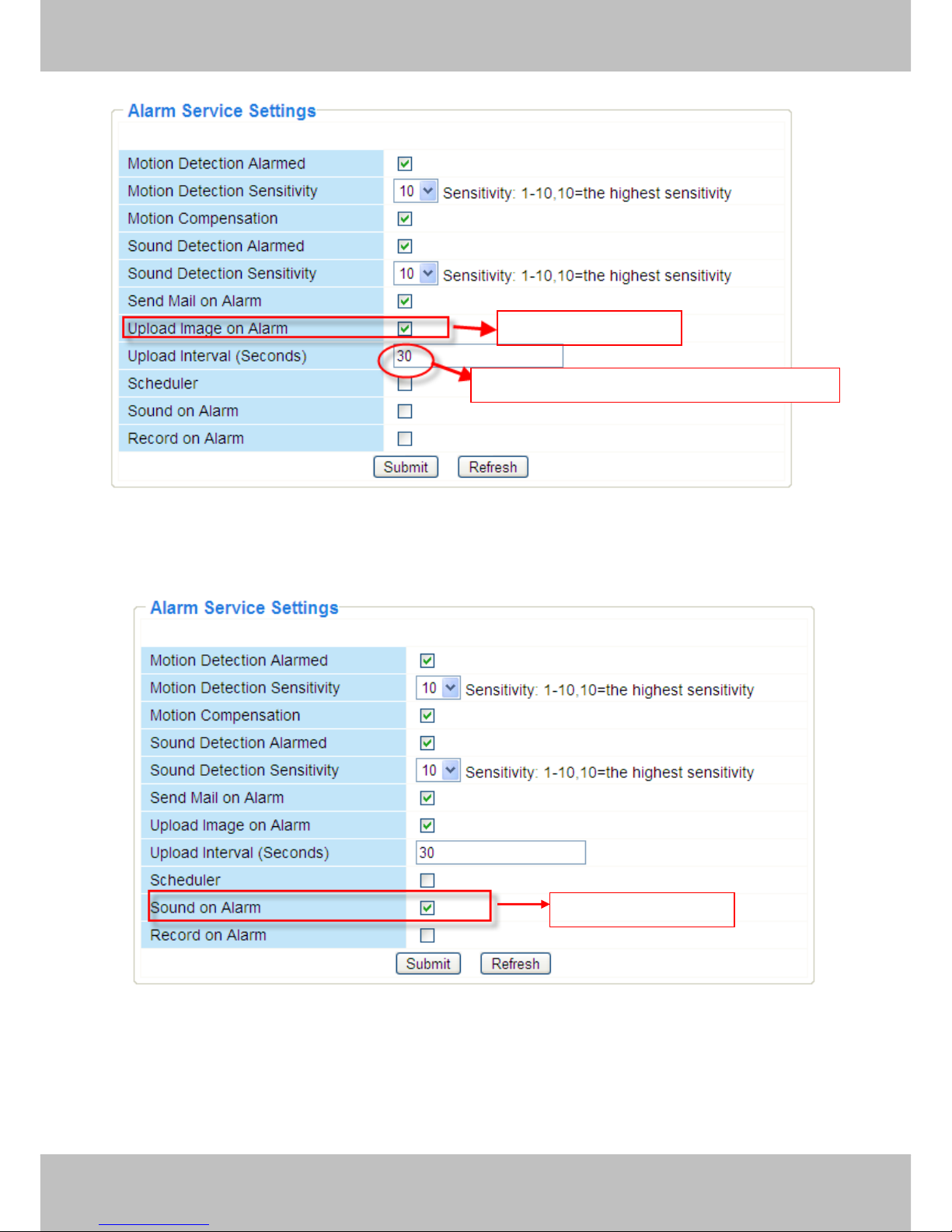

3.14 Alarm Service Settings .................................................................................................................................... 47

3.15 PT Settings...................................................................................................................................................... 53

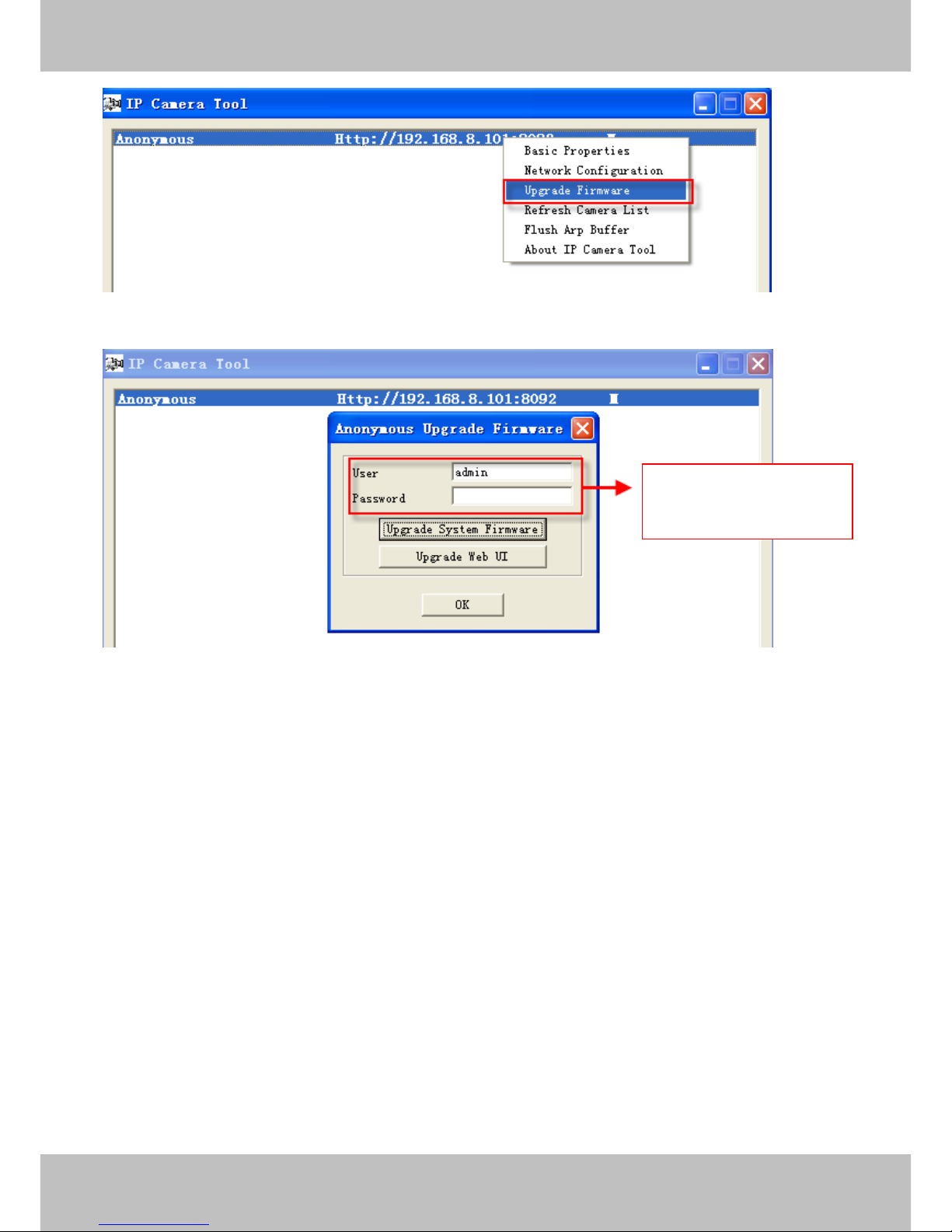

3.16 Upgrade Device Firmware .............................................................................................................................. 54

3.17 Backup & Restore Settings ............................................................................................................................. 56

3.18 Restore Factory Settings ................................................................................................................................ 56

3.19 Reboot Device ................................................................................................................................................ 57

3.20 Log .................................................................................................................................................................. 57

3.21 Back ................................................................................................................................................................ 57

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

4 APPENDIX ................................ ................................ .............................................................. 58

4.1 Frequently Asked Questions ............................................................................................................................. 58

4.2 Default Parameters ........................................................................................................................................... 62

4.3 Specifications .................................................................................................................................................... 62

5 OBTAINING TECHNICAL SUPPORT ..................................................................................... 63

11 OOvveerrvviieewwss

FOSCAM FI8910W is an integrated wireless IP Camera with a color CMOS sensor. It combines a high quality digital video camera, with a powerful web server, to bring clear video to your desktop from anywhere on your local network or over the Internet.

The basic function of IPCAM is transmitting remote video on the IP network. The high quality video image can be transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware compression technology.

With flexible 300-degree pan and 120-degree tilt, FI8910W gives users more comprehensive control over a monitored site. FI8910W supports IR-CUT, when light conditions turns poor, the IR cut filter will be automatically removed to accept IR illumination. Meanwhile, the camera switches itself automatically from color to black and white, assuring optimal image quality at all times.

The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support Internet Explore. Therefore the management and maintenance of your device is simplified by using the network to achieve the remote configuration, start-up and to upgrade the firmware. Controlling the IPCAM and managing images is simplified by using the provided web interface across the network utilising either wired or wireless connectivity.

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

11..11 KKeeyy FFeeaattuurrees

● Powerful high-speed video protocol processor

● High Definition Color CMOS Sensor

● 300K Pixels

● IR night vision (Range: 8m)

● Pan 300 degree, tilt 120 degree

● Optimized MJPEG video compression for transmission

● Multi-level users’ management and passwords definition

● Embedded Web Server for users to visit by IE

● Wi-Fi compliant with wireless standards IEEE 802.11b/g/n

● Supports IR_CUT and the filter change automatically

● Embedded FOSCAM DDNS(dynamic domain name service) Service

● Supports Dynamic IP (DDNS) and UPnP LAN and Internet (ADSL, Cable Modem)

● Motion and Sound detection activates alarm

● Supports image snapshot

● Supports multiple network protocols: HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP

● Supports WEP/WPA/WPA2 encryption

● Supports WPS(Wi-Fi Protected Set-up)

● Supports Daylight Saving Time

● Supports MSN

● Supports Gmail as sender on mail service settings

● Supports audio on Firefox, Google Chrome and Safari

● Providing Central Management Software to manage or monitor multi-cameras

11..22 RReeaadd BBeeffoorree UUssee

Please first verify that all contents received are complete according to the Package Contents listed below. Before the Network Camera is installed, please carefully read and follow the instructions in the Quick Installation Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

11..33 PPaacckkiinngg CCoonntteenntts

● IPCAM×1

● CD×1

● Wi-Fi Antenna×1 (only available for wireless

model)

● Quick Installation Guide×1

● DC Power Supply×1

● Warranty Card×1

● Mounting bracket×1(option)

● Network Cable×1

11..44 PPhhyyssiiccaall DDeessccrriippttiioonn

Front Panel

Figure 1.1

1 Speaker: Built-in speaker 2 LENS: CMOS sensor with fixed focus lens 3 Infrared LED: 11 IR LEDs 4 Microphone: Built-in microphone 5 WIFI Antenna: Wireless Antenna

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

Back View

Figure 1.2

LAN: RJ-45/10-100 Base T Power: DC 5V/2A Power supply Network Light: The LED will blink when power and network cable are plugged in Power Light: If the power adapter works well, the light will turn on Audio Input: This jack is used to plug an external microphone Audio Output: This jack is used to plug an external speaker

Bottom View

There are up to three labels located on the body of the camera; this is an important feature of original Foscam cameras. If your camera does not have labels as shown in Figure 1.3 ,it may be a clone one. Cloned Foscam cameras can not use original firmware and are not eligible for warranty or technical services.

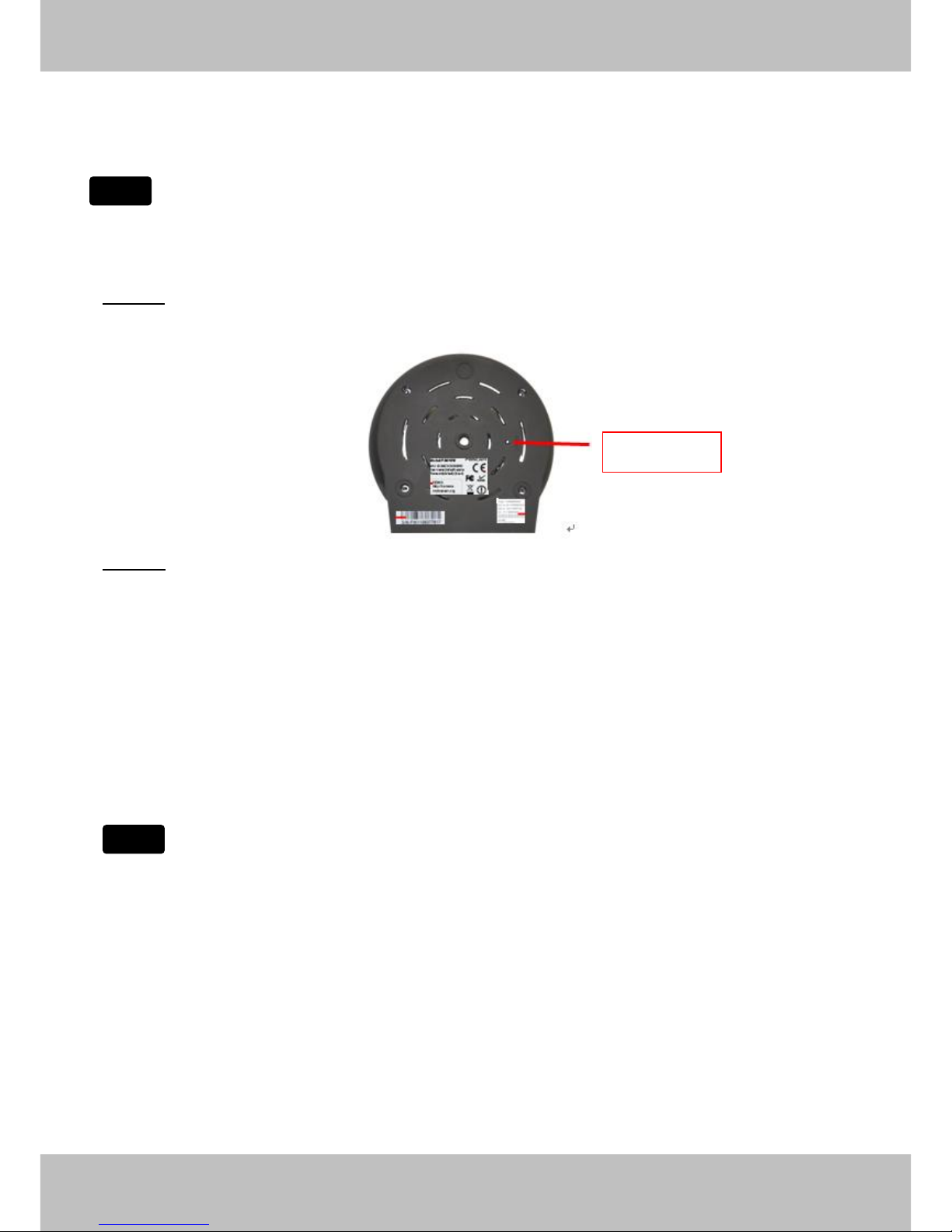

Figure 1.3

Reset button

1) Press and hold down the RESET BUTTON about 10 seconds. when released the IP camera will be reset back to factory default settings. You must power on the camera before reset.

2) Press and hold down the RESET BUTTON about 4 seconds, then press the WPS button on the router, then you can use the WPS function. (For more details: please read Wireless Settings in the User Manual)

Reset button

MAC address of wired connection

MAC address of wireless connection

S/N of FOSCAM

FOSCAM domain name

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

22 SSuurrvveeiillllaannccee SSooffttwwaarree GGUUII

Please refer to the Quick Installation Guide if you install the camera at first time. After finishing quick installation, you can take time to learn the operation of the software.

22..11 LLooggiinn WWiinnddooww

Figure 2.1

Please check the login window above, it was divided to 6 sections from no. 1 to 6.

Section1 Select Language

FOSCAM camera supports up to multi-languages, such as English, Spanish, Deutsch and so on. You can select the language you need via pull down the dropdown toolbar and click on the language to switch.

1 2 3

4 5 6

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

Section2 FOSCAM Website Link

There is an access link to Foscam website homepage, if you need tech support you can contact Foscam directly.

Section3 ActiveX Mode

If your PC is windows based OS, such as Windows XP, Windows7, Windows Vista and you are using IE-based browsers like IE6, IE7, IE8, please choose IE ActiveX Mode login mode. .

Section4 Server Push Mode

If you are using non-IE based browser, like Firefox, Safari, Google Chrome please choose Server Push Mode mode.

Section5 Mobile Phone

If you are using the Mobile to access the camera, here you need to select Mobile Phone login mode.

Section6 Note

Note that when you login the camera, please select the corresponding login mode.

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

2.2 Surveillance Window

Select the ActiveX mode and you will enter the surveillance window.

Figure 2.2

Section1 Device Name

Default device name is Anonymous. You can define a name for your camera as you like (Please go to chapter 3.1 and read how to set it)

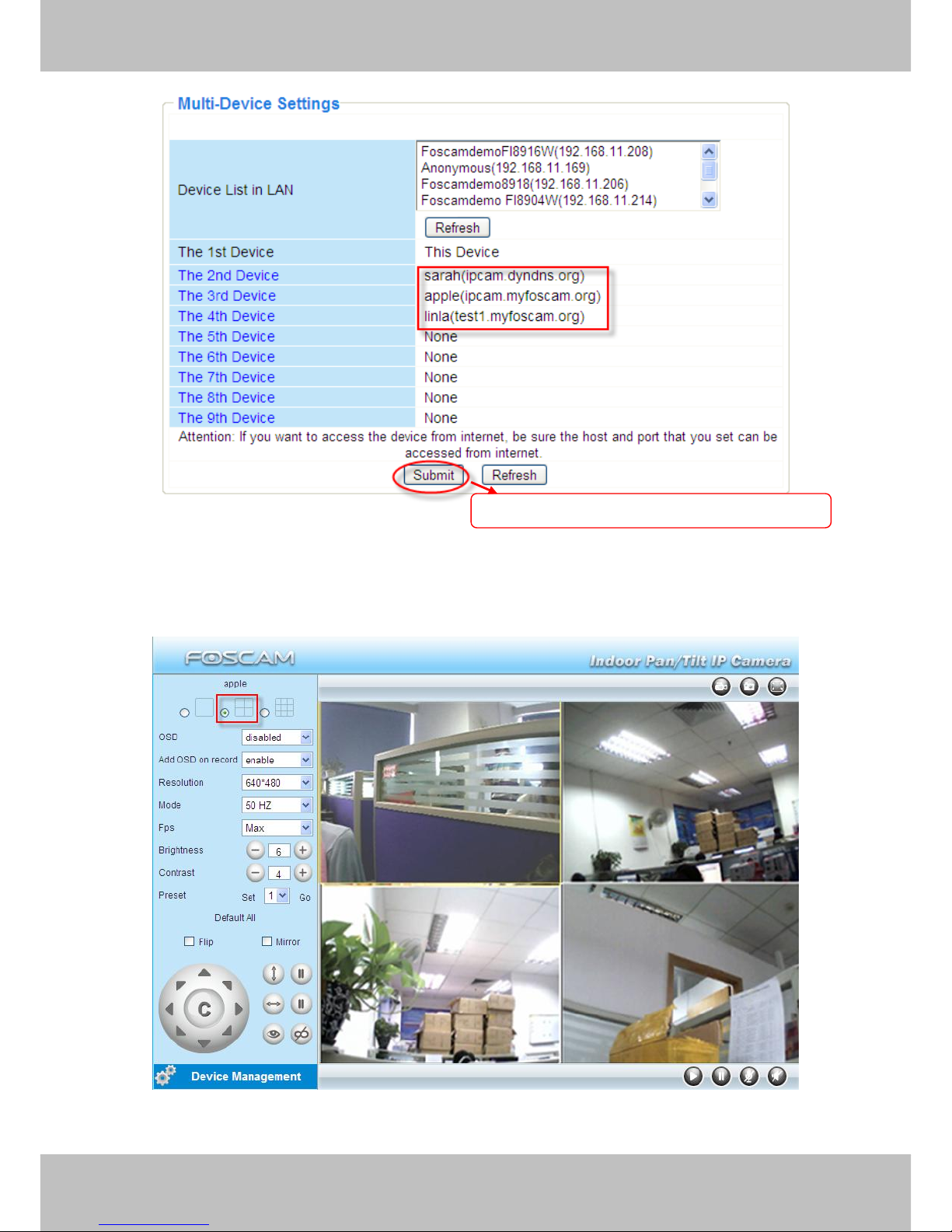

Section2 Multi-Device Window

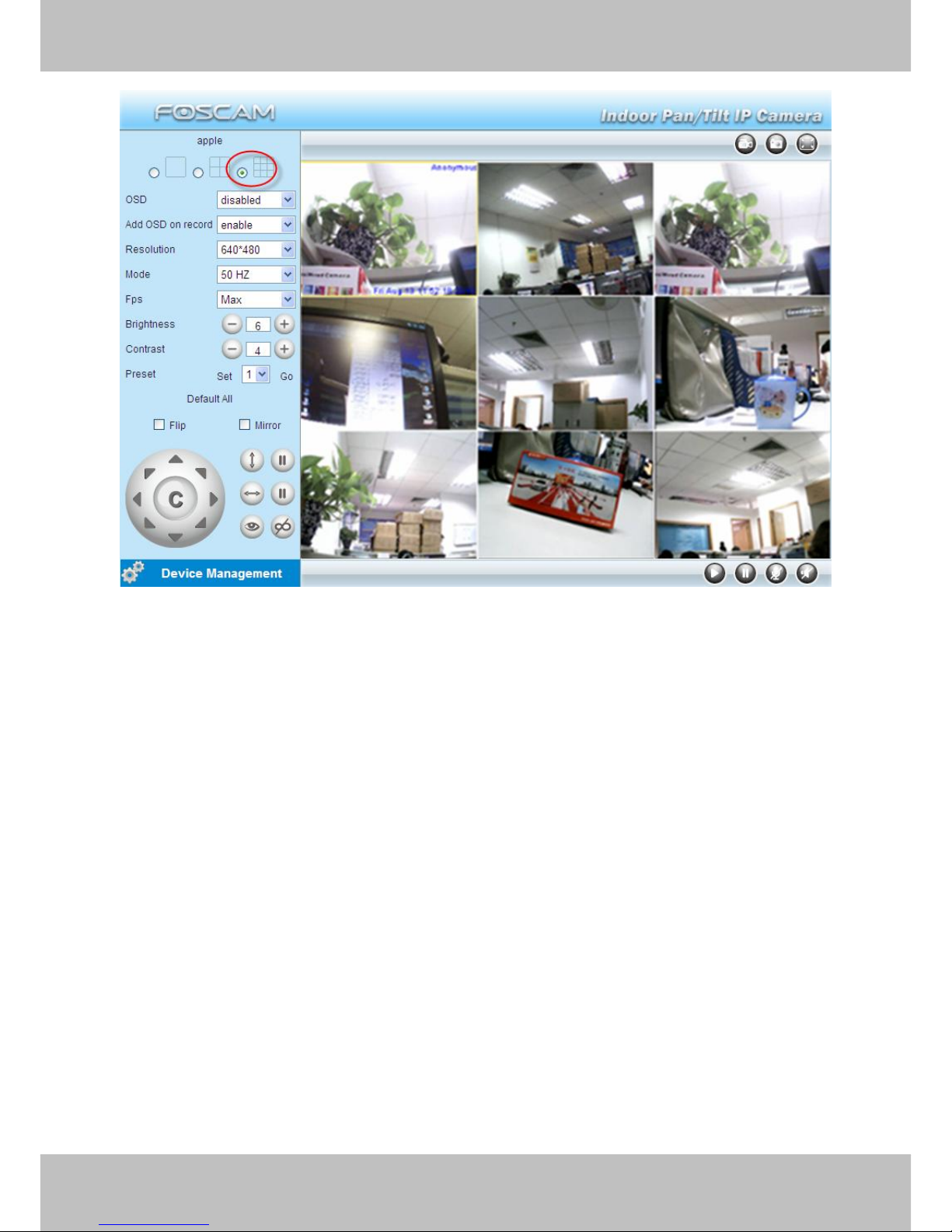

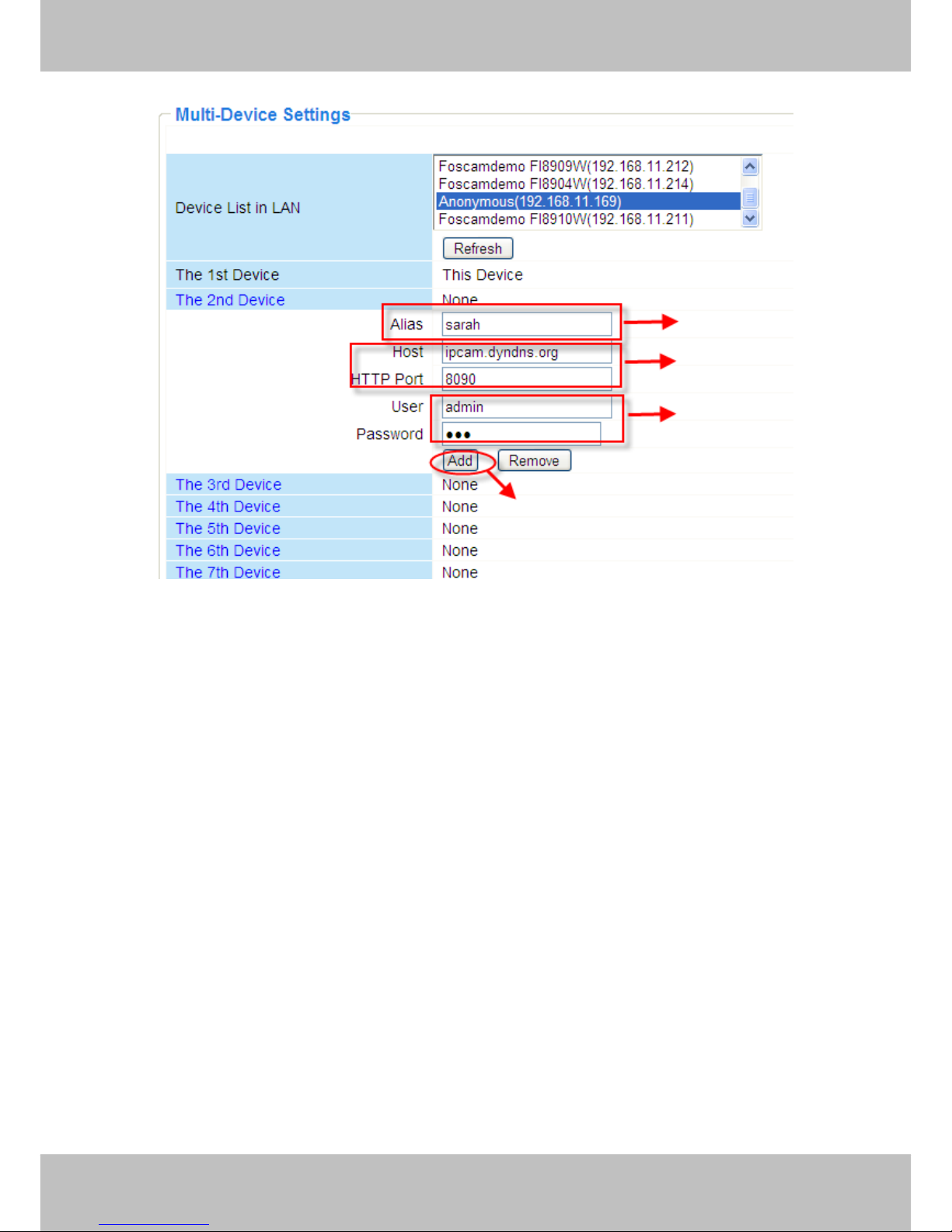

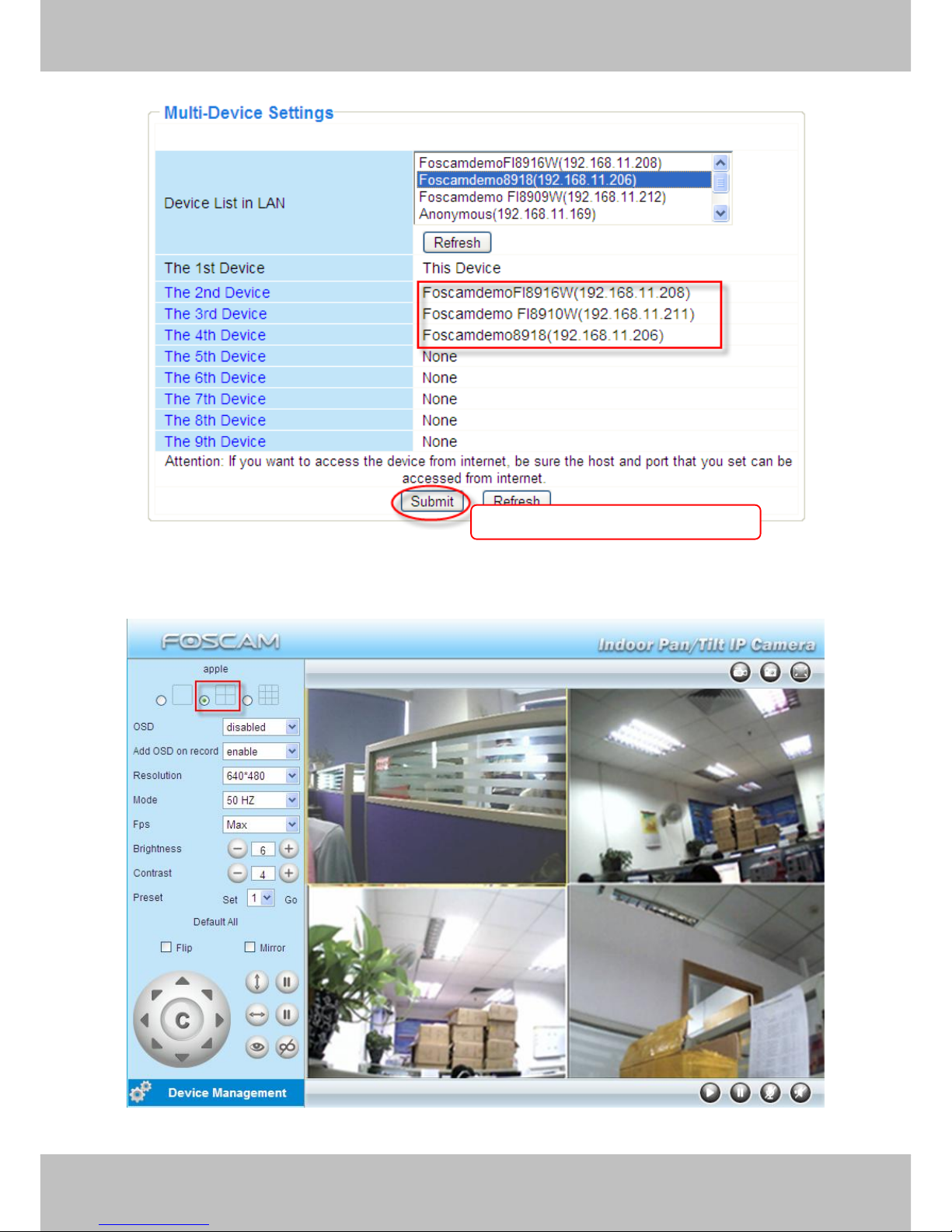

The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the same time. You can add other cameras in multi-device setting (read chapter 3.5).

1 2 3

6 4 5

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

. Figure 2.3

Section3 Image Parameters Settings

OSD

OSD is used to add timestamp on the video. There are five text colors to choose from: Black, red, yellow, white, blue.

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

Add OSD on record

Select this option if you want to add a timestamp to recordings.

Resolution

1) 320x240-------QVGA

2) 640x480-------VGA

There are two resolutions, the bigger one (VGA) is 640x480 pixels, and the smaller one (QVGA) is 320x240 pixels. The bigger the resolution, the better of the image quality is, but the lower the frame rate is. If you are accessing the camera via internet and want to get more fluent video streaming, please select resolution QVGA 320x240.

Mode

1) 50HZ ---------Indoor surveillance (Region: Europe, China)

2) 60HZ ---------Indoor surveillance (Region: USA, Canada)

3) Outdoor-------Outdoor surveillance (Region: All over the world)

There are three options within the menu of Mode: 50HZ, 60HZ and Outdoor. It depends on the frequency of the electricity and surveillance model (indoors & outdoor). Please choose outdoor mode, when the camera was installed outside.

Fps

1) Max---------- Maximum frame rate

2) 20fps, 15fps, 10fps, 5fps,4fps,3fps,2fps,1fps, 5fps, 1fps ,1/2fps,1/3fps,1/4fps,1/5fps------customized frame rate

You can choose option within the menu of Fps to adjust the frame rate. It is often used in LAN network when you want to lower the frame rate, so that you can save more bandwidth.

Brightness

Default parameter is 6, you can adjust the brightness of the image by clicking plus or minus button.

Contrast

Default parameter is 4, you can adjust the contrast of the image by clicking plus or minus button.

Preset/Go

1) Preset----------Support 8 preset position, which is considered enough for DIY home & small business surveillance market

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

2) Set----------- Click Set to save the position you need the camera to remember

3) Go----------- Click Go to make the camera move the preset position

4) Number button from 1 to 8--------You can click the number button with preset position, and the camera will go to the preset position.

How to do preset position?

We can start preset settings from position 1.

Firstly, select no. 1 within the menu of Preset on the panel. Secondly, move the camera and stop at a place where you want make preset position. Thirdly, click set button to save it as position 1 and you have done preset of position 1. After that, you can select no. 2 within the menu of Preset on the panel, and move the camera and stop at another place, and set as preset position 2. You can do all the 8 preset positions with this method. If you want to see the preset position you have set, such as the position 1, only select the set

no.1 ,and click go button, the camera will go to position no.1.

Flip & Mirror

You can flip the image by enabling Flip button, or mirror the image by enabling Mirror button.

Section4 Pan/Tilt Control

1------Up control button, 2------Down control button, 3------Left control button, 4------Right control button, 5----- Up-Left control button 6----- Up-Right control button 7----- Down-Left control button 8----- Down-Right control button 9------Go to center

1 2 3

5 6 7 8 9

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

: Click this icon; camera will rotate up and down. Click to stop.

: Click this icon; camera will rotate left and right. Click to stop.

: Click this icon, all the IR lights will turn on. Click to turn off them.

Section5 Device Management

Device Management ------Path to Administrator Control Panel, Click it, and it will lead to Administrator Control Panel.

Section6 Record & Snapshot & Full Screen Buttons

1------Record Button Click it and it pop-up a path-setting window, you can select the storage

path and the record file name. At the same time the record icon changes to ,, Click it again and stop recording. 2------Snapshot Click it to make snapshot and it pop-up a window which picture you snapshot, right click in the window and save the picture to anywhere you want. 3------Full Screen Click it to make full-screen, or you can double click the surveillance screen to make full-screen.

Section7 Play/Stop/ Talk and Audio Buttons

1------Play Click it to play the video of the camera 2------Stop Click it to stop the video of the camera 3------ Talk Button Click the talk icon , and the icon changes to , then talk through your

computer’s microphone which will transmit through the camera’s speaker. People will hear your talking through the camera’s built-in speaker. Click the icon again and stop talking.

4------Audio Button Click the audio icon , and it changes to , then you will hear sound captured by the camera’s built-in microphone. You may need to plug in earphones or enable the

1 2 3

2 3 4

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

computer speakers to hear from the camera’s microphone.

Onscreen Mouse Control

Double click right mouse on the surveillance window, then left click on the screen to indicate the camera move direction you prefer, press the left mouse and the camera’ Len will move to the corresponding direction.. Double click right mouse again, cancel onscreen mouse control.

For example, double click right mouse, then left click on the up corner of the screen, you can see the arrow, press the left mouse, and the camera’s lens will moving towards the up direction. Double click right mouse again, cancel onscreen mouse control.

Figure 2.4

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

Record and multi-device function are controlled by ActiveX controller, therefore Firefox or Google Chrome, Safari browsers will not allow these functions. For Firefox, Google Chrome, Safari, you should select the Server Push Mode and you can see the following screen:

Figure 2.5

For the first time using audio, you need to download and install VLC plugin, Click Audio, and you can see the download website.

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

Figure 2.6

During the installation, you must select Mozilla plugin as in Figure 2.7.

Figure 2.7

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

33 AAddvvaanncceedd CCaammeerraa SSeettttiinnggss

Click the bar “Device Management”, goes to Administrator Control Panel to make advanced camera settings.

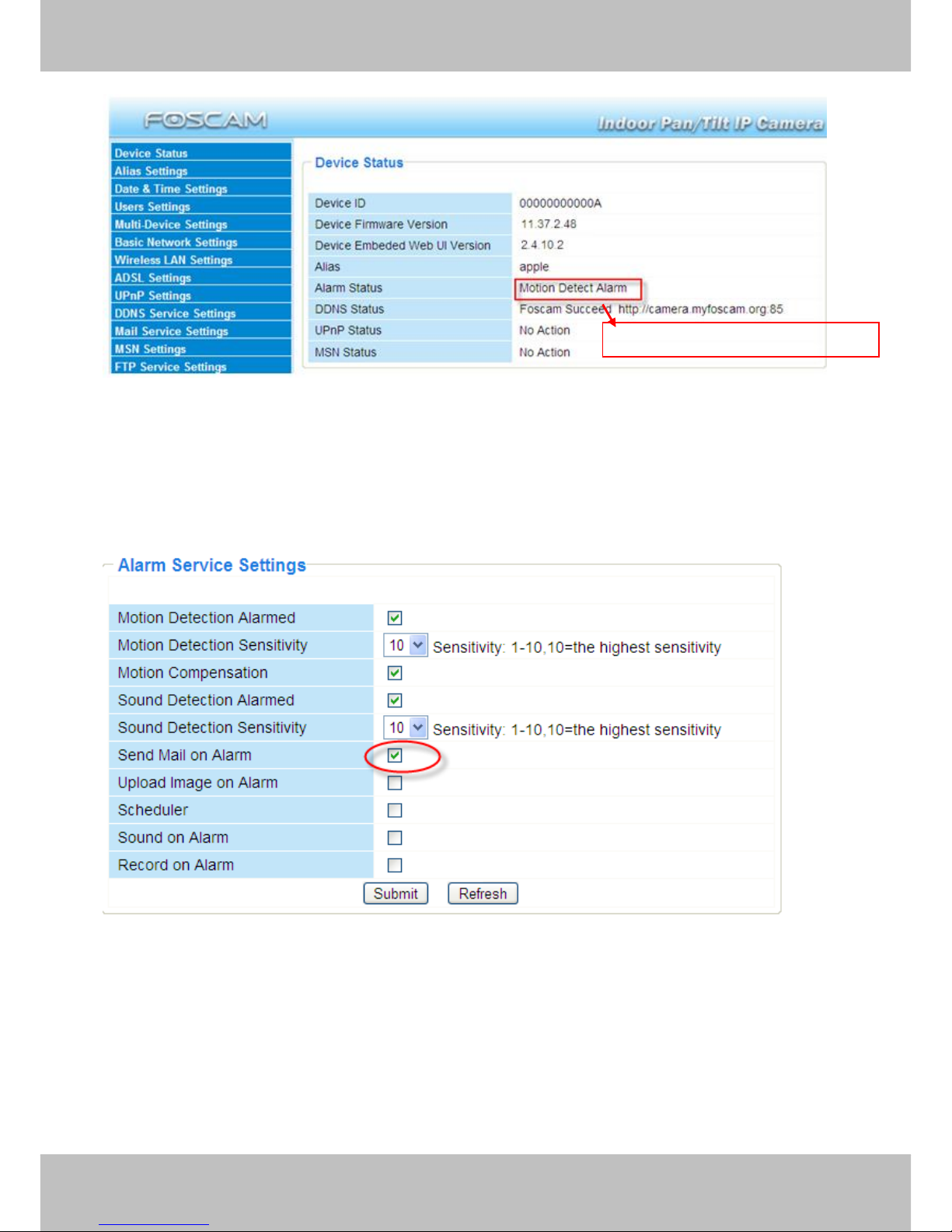

3.1 Device Status

Figure 3.1

1------Device ID MAC ID of the camera by wired connection 2-----Device Firmware Version System Firmware version of the camera 3-----Device Web UI Version Web UI firmware version of the camera 4-----Alias Name of the camera 5-----Alarm Status The status of Alarm Service Setting 6-----DDNS Status The status of DDNS Setting 7-----UPnP Status The status of UPnP Setting 8-----MSN Status The status of MSN Setting

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

Another Way:

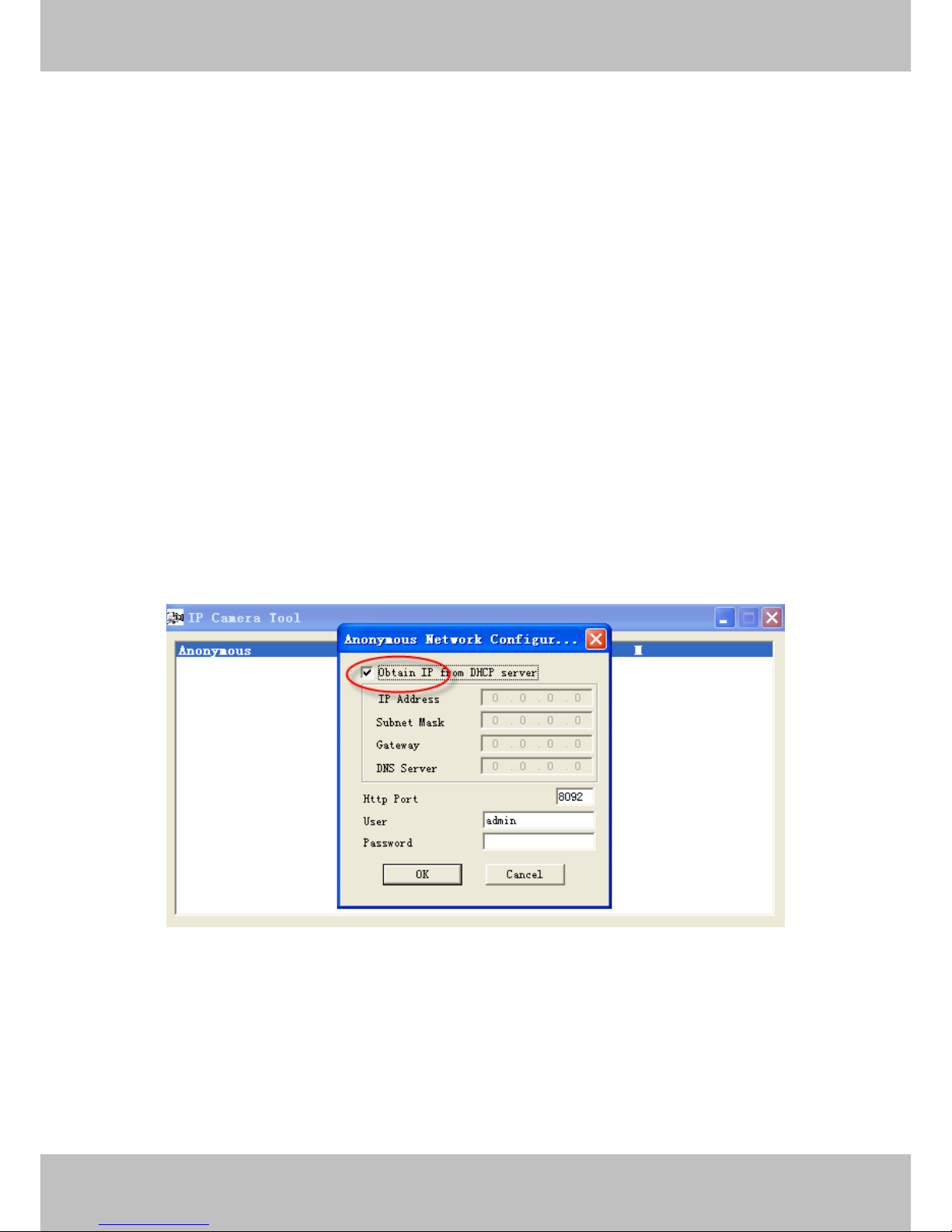

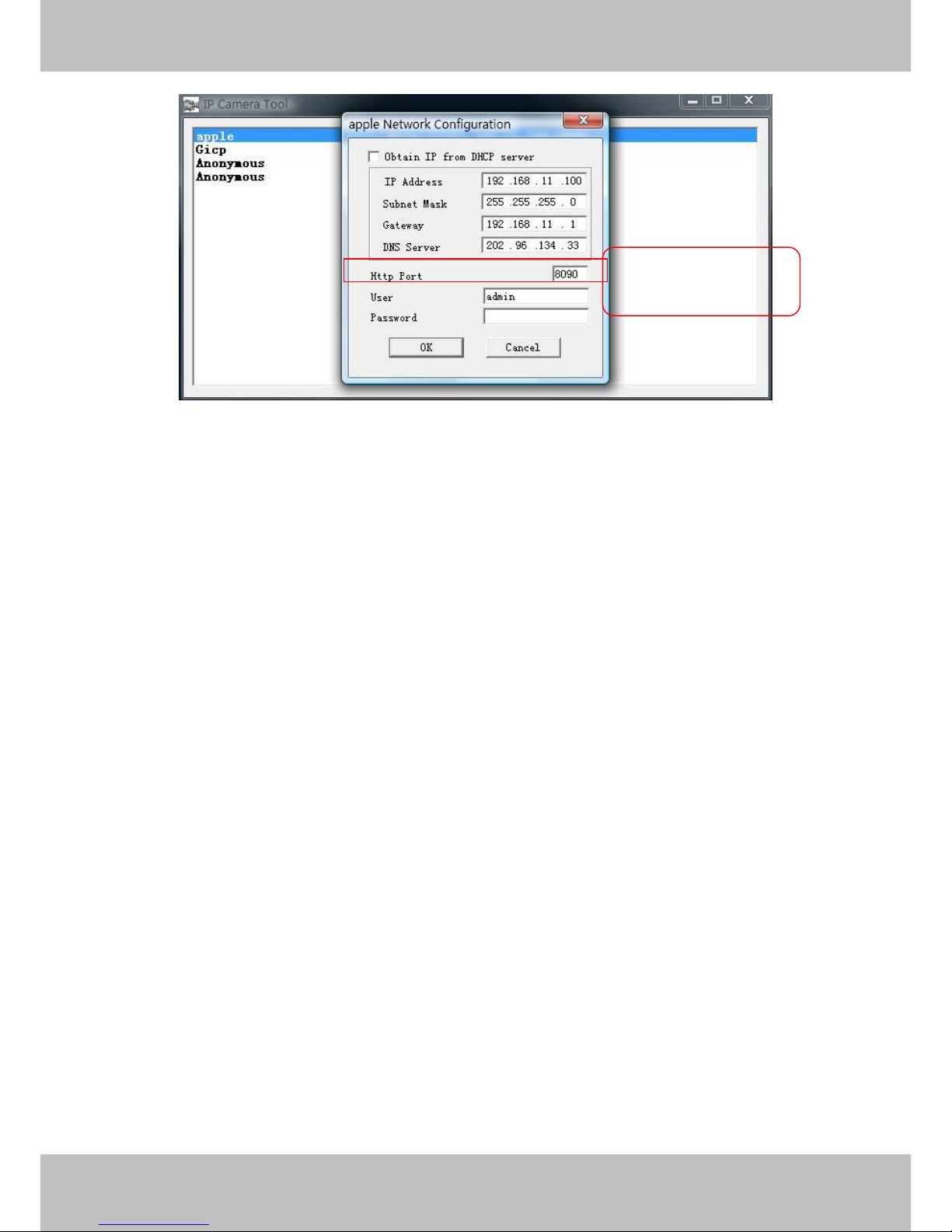

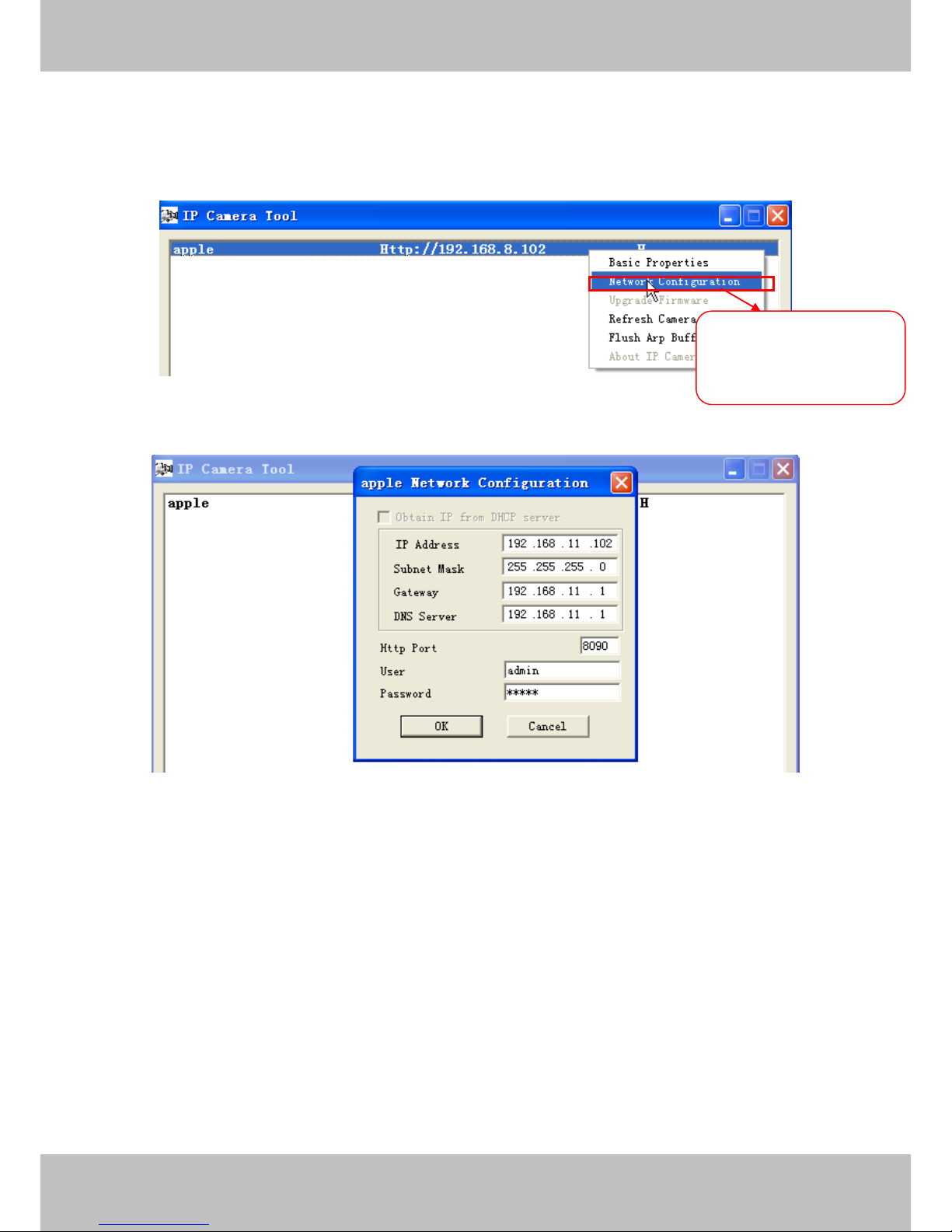

Double click the the icon “IP Camera.exe” , select the camera IP, right click and select the Basic Properties, you can also see the Firmware Version and MAC Address, such as the

following screen:

Figure 3.2

Figure 3.3

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

33..22

Alias Settings

Default alias is Anonymous. You can define a name for your camera here such as apple. Click Submit to save your changes. The alias name supports special characters.

Figure 3.4

33..33

Date & Time Settings

Choose the time zone of your country. You can choose Sync with NTP Server or Sync with PC Time. If your country implements the Daylight Saving Time, that option can also be selected.

Figure 3.5

Click the option here to modify the device name

Enter the device name as you like. Use different names to identify multi-cameras

Go to Data &Time Settings

Select the time zone belong to your region

wwwwww..ffoossccaamm..ccoomm

SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688

33..44 UUsseerr SSeettttiinnggss

Here you can create users and set permission levels, visitor, operator or administrator. Click Submit to save these settings. The camera will reboot.

Figure 3.6

Here you can also set one important file locations for the camera, the Alarm Record Path. Simply click Browse and choose the path to the required folder.

The Alarm Record Path location is used to store automatically recorded files when the camera is activated by motion or sound. (See set motion/sound alarm. Figure 3.39) The default path for

Alarm Record Path is C:\Documents and Settings\All Users\Documents.

NOTE: In Windows7 or Vista, if you cannot set the paths.:

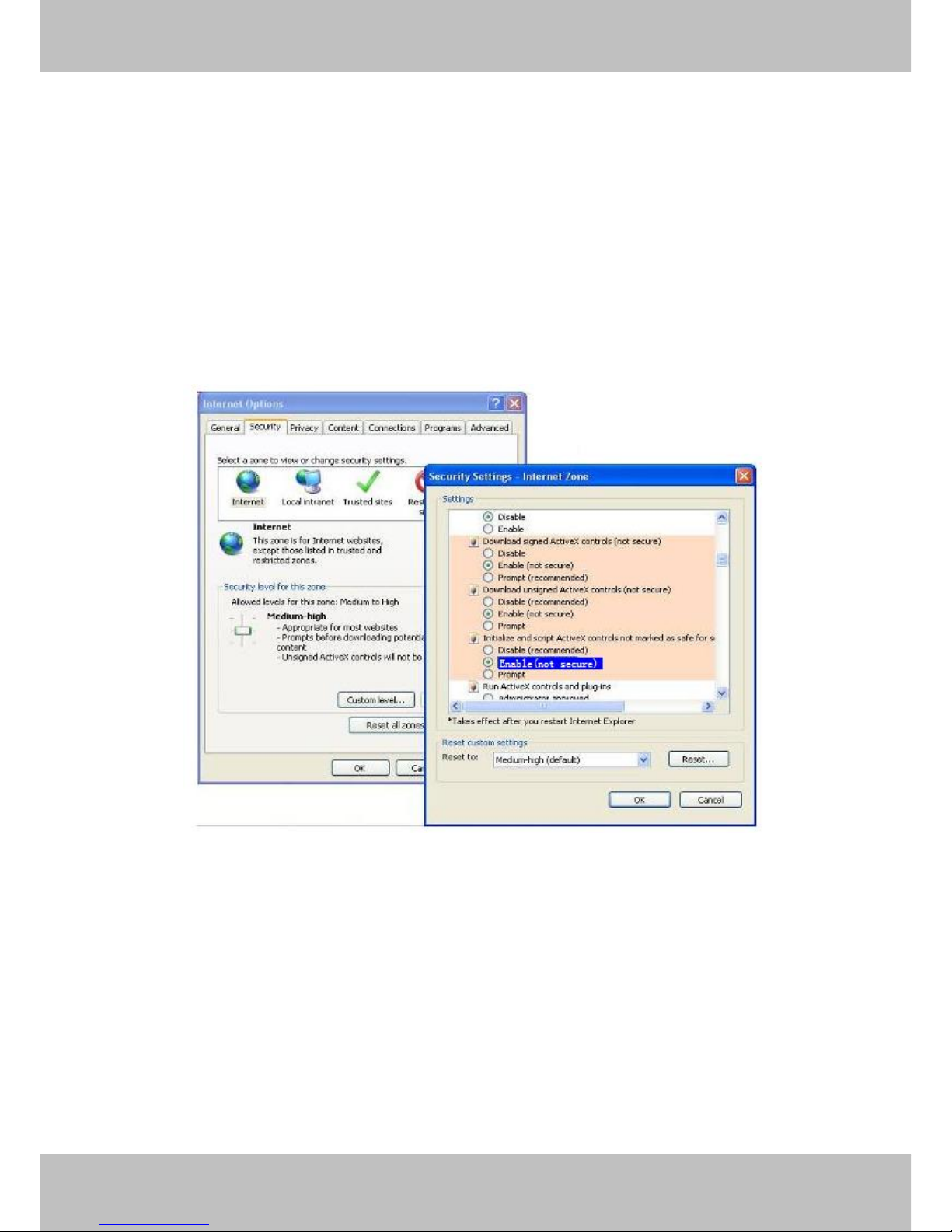

Windows7 or Vista's security level is higher than Windows XP/2000.For "set record path" function, user should add the Device IP address to the Internet Explorer's 'Trusted sites' first. The step is: IE browserToolInternet ProperSecurityTrusted sitesSitesAdd

You can set different permission levels, but at least one administrator

+ 44 hidden pages

Foscam FI8918W, FI8916W, FI8909W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
