FortiRecorder™ 2.4.2

Administration Guide

FortiRecorder 2.4.2 Administration Guide

November 4, 2016

1st Edition

Copyright © 2016 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that the identified product will perform according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable.

Technical Documentation http://help.fortinet.com

Knowledge Base http://kb.fortinet.com

Forums https://support.fortinet.com/forum

Customer Service & Support https://support.fortinet.com

Training Services http://training.fortinet.com

FortiGuard Threat Research & Response http://www.fortiguard.com

Document Feedback Email: techdocs@fortinet.com

Table of contents

Key concepts .................................................................................................... 7

FortiRecorder NVR................................................................................................... 7

Camera support ....................................................................................................... 7

Deployment scenarios and camera discovery......................................................... 8

Local camera deployments................................................................................ 8

Same network deployments ........................................................................ 8

Routed network deployments...................................................................... 8

Private network vs office network................................................................ 8

Remote camera deployments............................................................................ 9

Video clips ............................................................................................................... 9

Performance guidelines ........................................................................................... 9

NVR performance .............................................................................................. 9

Number of supported cameras.................................................................... 9

General performance factors ..................................................................... 10

Variable versus constant bit rate................................................................ 10

Bandwidth per camera or live view............................................................ 10

Storage capacity ........................................................................................ 11

Client Performance .......................................................................................... 12

GUI and CLI ........................................................................................................... 13

NVR configuration .......................................................................................... 14

Connecting to FortiRecorder web UI..................................................................... 14

Connecting to FortiRecorder CLI........................................................................... 15

Basic NVR configuration........................................................................................ 17

Setting the “admin” account password ........................................................... 17

Configuring the network settings..................................................................... 18

Configuring the DHCP server .......................................................................... 23

Setting the system time ................................................................................... 26

Configuring schedules ........................................................................................... 28

Setting the sunrise and sunset time................................................................. 29

Advanced/optional NVR configuration .................................................................. 29

Configuring system timeout, ports, and public access ................................... 29

About FortiRecorder logical interfaces ............................................................ 30

VLAN subinterfaces.................................................................................... 30

Redundant interfaces................................................................................. 31

Aggregate interfaces.................................................................................. 31

Loopback interfaces .................................................................................. 31

Configuring FortiRecorder system appearance............................................... 31

Configuring logging ......................................................................................... 31

Alert email ........................................................................................................ 34

Page 3

Camera settings ............................................................................................. 36

Camera configuration workflow............................................................................. 36

Configuring video profiles...................................................................................... 36

Configuring camera profiles................................................................................... 37

Camera groups ...................................................................................................... 39

Camera connection........................................................................................ 40

Camera discovery and DHCP service ................................................................... 40

Connecting FortiRecorder to the cameras ............................................................ 41

Configuring cameras.............................................................................................. 44

User management .......................................................................................... 53

User types.............................................................................................................. 53

User configuration workflow .................................................................................. 53

Configuring access profiles ................................................................................... 54

Configuring user profiles........................................................................................ 54

Configuring user accounts..................................................................................... 54

Configuring LDAP authentication .......................................................................... 60

Configuring RADIUS authentication ...................................................................... 66

Notifications.................................................................................................... 68

Notification configuration workflow ....................................................................... 68

Configuring FortiRecorder to send notification email ............................................ 68

Configuring FortiRecorder to send SMS messages .............................................. 70

Configuring cameras to send notifications ............................................................ 71

Video monitoring ............................................................................................ 73

Watching live video feeds ...................................................................................... 73

Video and image sharing ....................................................................................... 74

Watching recorded video clips .............................................................................. 77

Reviewing motion detection notifications.............................................................. 79

Video management ........................................................................................ 81

Local storage ......................................................................................................... 81

Configuring RAID levels ................................................................................... 81

Recommended HDD models and capacities................................................... 81

Adding a RAID disk .......................................................................................... 82

Replacing a RAID disk ..................................................................................... 82

Replacing all RAID disks .................................................................................. 83

External storage..................................................................................................... 84

System monitoring ......................................................................................... 86

The dashboard....................................................................................................... 86

SNMP traps & queries ........................................................................................... 86

Configuring an SNMP community ................................................................... 88

Configuring SNMP v3 users............................................................................. 90

MIB support ..................................................................................................... 91

Table of contents Page 4 FortiRecorder 2.4.2 Administration Guide

Logging ................................................................................................................. 92

About logs........................................................................................................ 92

Log types ................................................................................................... 92

Log severity levels...................................................................................... 93

Viewing log messages ..................................................................................... 93

Displaying & sorting log columns & rows......................................................... 95

Downloading log messages............................................................................. 96

Deleting log files............................................................................................... 96

Searching logs ................................................................................................. 97

Event Monitor......................................................................................................... 98

Secure connections and certificates............................................................ 99

Supported cipher suites & protocol versions................................................... 99

Replacing the default certificate for the web UI............................................. 100

Generating a certificate signing request .................................................. 103

Uploading & selecting to use a certificate ............................................... 105

Uploading trusted CAs’ certificates ............................................................... 107

Example: Downloading the CA’s certificate from

Microsoft Windows 2003 Server............................................................ 108

Revoking certificates...................................................................................... 109

Revoking certificates by OCSP query...................................................... 109

Updating the firmware ................................................................................. 111

Installing NVR firmware........................................................................................ 111

Installing alternate firmware ........................................................................... 114

Booting from the alternate partition ............................................................... 115

Upgrading/downgrading the camera firmware.................................................... 116

Fine-tuning & best practices ....................................................................... 118

Hardening security............................................................................................... 118

Topology ........................................................................................................ 118

Administrator access ..................................................................................... 119

Operator access............................................................................................. 120

Patches .......................................................................................................... 120

Improving performance........................................................................................ 121

Video performance......................................................................................... 121

System performance...................................................................................... 121

Logging & alert performance ......................................................................... 122

Packet capture performance ......................................................................... 122

Regular backups.................................................................................................. 122

Restoring a previous configuration ................................................................ 124

Troubleshooting ........................................................................................... 125

Solutions by issue type........................................................................................ 125

Video viewing issues...................................................................................... 125

Live feed delay ......................................................................................... 126

Video not being sent to the NVR.............................................................. 126

Snapshot notification issues .......................................................................... 126

Table of contents Page 5 FortiRecorder 2.4.2 Administration Guide

When an administrator account cannot log in from a specific IP ............ 127

Remote authentication query failures ...................................................... 127

Resetting passwords ............................................................................... 127

Connectivity issues ........................................................................................ 127

Checking hardware connections ............................................................. 128

Bringing up network interfaces ................................................................ 128

Examining the ARP table ......................................................................... 129

Checking routing...................................................................................... 129

Facilitating discovery ............................................................................... 133

DHCP issues ............................................................................................ 133

Unauthorized DHCP clients or DHCP pool exhaustion...................... 134

Establishing IP sessions........................................................................... 134

Resolving IP address conflicts................................................................. 136

Packet capture......................................................................................... 137

Resource issues............................................................................................. 142

Data storage issues ....................................................................................... 143

Resetting the configuration.................................................................................. 143

Restoring firmware (“clean install”)...................................................................... 144

Questions and answers ............................................................................... 147

How to connect cameras to FortiRecorder for the first time ............................... 147

Scenario 1: Direct connection........................................................................ 147

Scenario 2: Connection with a third party DHCP server................................ 150

How to use recorded video clips ......................................................................... 151

How to use DIDO terminal connectors on FortiCam MB13 cameras.................. 154

Appendix A: Port numbers........................................................................... 157

Appendix B: Maximum values ..................................................................... 159

Index .............................................................................................................. 161

Table of contents Page 6 FortiRecorder 2.4.2 Administration Guide

Key concepts

This chapter defines basic FortiRecorder concepts and terms.

If you are new to FortiRecorder, or new to digital video surveillance systems, this chapter can help you to quickly understand how to use your FortiRecorder system.

• FortiRecorder NVR

• Camera support

• Deployment scenarios and camera discovery

• Video clips

• Performance guidelines

FortiRecorder NVR

The FortiRecorder network video recorder (NVR) provides central management for:

• configuring your cameras

• recording your video feeds

• viewing recordings and live video feeds

Camera support

The FortiRecorder NVR supports FortiCam series cameras from Fortinet and third-party ONVIF-compliant cameras, although some of the third-party camera features may not be fully supported. Therefore, you may want to configure those features through its built-in camera web interface.

By default, every FortiRecorder or FortiRecorder-VM appliance supports one third-party camera. If you want to connect more than one, you must purchase licenses from Fortinet. For more information, please contact Fortinet or the resellers.

Page 7

Deployment scenarios and camera discovery

Cameras are deployed in two basic scenarios: local to the NVR and remote to the NVR. FortiCamera deployments can combine both scenarios.

Local camera deployments

Local cameras deployments have two specific scenarios:

• Cameras are installed on the same network as the NVR.

• Cameras are installed on a local network, but there are one or more routers between the NVR and the cameras.

Same network deployments

Installing the cameras on the same subnet as the NVR is the easiest deployment scenario since the NVR can automatically discover the cameras.

Routed network deployments

If there are routers between the cameras and the NVR, the routers must be configured to allow mDNS multicast packets between the camera network and the NVR network in order for the NVR to automatically discover the cameras. Once the cameras are discovered, you can leave the address mode as DHCP or change it to static.

If the routers are not configured to pass the mDNS packets, the cameras can be configured manually by selecting the static address mode on the camera configuration page.

Private network vs office network

You can install the NVR and cameras on your existing network, which saves your efforts and costs. You can also install the system on a dedicated private network only reachable by the

Key concepts Page 8 FortiRecorder 2.4.2 Administration Guide

Remote camera deployments

Video clips

NVR. Although this involves installing a new network and thus increasing the costs, there are some advantages of using a private network:

• the video streams are protected.

• the cameras are protected because they cannot be reached from outside the network.

• easier to determine bandwidth requirements.

• better quality of service since bandwidth is known.

See also

• Facilitating discovery

Remote camera deployments refer to scenarios where there is a firewall between the NVR and the cameras – i.e. camera discovery will not work and the cameras will likely have virtual IP addresses on the firewall. The cameras are configured by selecting the VIP address mode on the camera configuration page.

You can use FortiRecorder to:

• Manually record activities

• Continuously record activities by schedules

• Record sudden activities only (motion detection)

• Record audio activities (if the camera supports audio detection)

• Record on triggers from digital input (if the camera support DIDO)

• View live video

Motion detection will record a video clip up to about 40 seconds long each time the camera’s sensor detects movement. In contrast, continuous video records for the entire duration of the schedule, regardless of movement.

Performance guidelines

There are two components to consider when looking at FortiRecorder performance – the NVR (FortiRecorder) and the Client computer with FortiRecorder Central or a browser. Overall FortiRecorder performance is a combination of the video input (video compression, image quality level, complexity of the scene, video resolution, frame rate per second, number of cameras) and the video output (to the clients for live views and playback). The performance bottleneck in a FortiCamera deployment will likely be the network bandwidth to and from FortiRecorder and the CPU performance of the computer running the FortiRecorder Central or browser client, which must decode and render the video streams from the NVR. Displaying multiple video streams on the client is very CPU intensive.

NVR performance

Number of supported cameras

The FortiRecorder-100D can support 16 cameras, 200D and 400D can support up to 64 cameras depending on the camera configuration. VM version of FortiRecorder depends on the hardware performance.

Key concepts Page 9 FortiRecorder 2.4.2 Administration Guide

General performance factors

The following factors affect the input side of performance:

• Total number of video streams from the cameras (i.e. not just the number of cameras)

• The video recording types (motion only or continuous) per camera

• The video stream parameters per camera – i.e. video compression (constant or variable bit rate mode), image quality level, complexity of the scene, video resolution and frame rate per second.

The following factors affect the output side of performance:

• Number of administrator/operator/viewer sessions

• Peak number of simultaneous administrator/operator/viewer live views

• The video stream parameters per camera live view – i.e. video compression (constant or variable bit rate mode), image quality level, complexity of the scene, video resolution and frame rate per second.

Variable versus constant bit rate

The variable bit rate mode means the bandwidth used by the camera will vary according to what the camera is seeing and the video profile settings. The video profile settings for the variable bit rate mode are resolution, frame rate and image quality. High resolution creates more data than medium or low resolution (see following sections for more detail). The degree of motion present in a video stream also affects the amount of data created.

The constant bit rate mode means the bandwidth used by the camera will stay relatively constant regardless of what the camera is seeing. The constant bit rate mode is therefore more predictable in deployments where bandwidth and/or storage capacities are important considerations. The video profile settings for the constant bit rate mode are resolution, frame rate and bit rate. The bandwidth used by the stream is dictated by the bit rate setting.

In general, using the variable bit rate mode results in relatively consistent video quality but fluctuating bandwidth and using the constant bit rate mode results in varying video quality but predictable bandwidth. Choosing a high bandwidth constant bit rate mode avoids the video quality drop e.g. during high motion, but may use some unnecessary bandwidth during times of no activity.

However, in most cases the difference in video quality between the variable and constant bit modes is negligible (assuming the same resolution and frame rates) and the constant bit rate mode produces more reliable output from the cameras.

Bandwidth per camera or live view

Variable bit rate

Depending on resolution, frame rate and video quality a camera using H.264 compression may generate the following bit rates:

• 352 x 240 @ 30 FPS, high quality = 0.4 Mbps

• 720 x 576 @ 30 FPS, high quality = 1 Mbps

• 1280 x 720 @ 30 FPS, high quality = 2 Mbps

• 1920 x 1080 @ 30 FPS, high quality = 4 Mbps

• 1920 x 1080 @ 30 FPS, medium quality = 2.8 Mbps

• 1920 x 1080 @ 30 FPS, low quality = 2 Mbps

• 1920 x 1080 @ 10 FPS, high quality = 2.4 Mbps

• 1920 x 1080 @ 10 FPS, low quality = 1.2 Mbps

Key concepts Page 10 FortiRecorder 2.4.2 Administration Guide

Table 1: Bitrate table (H.264 estimate) in Mbps with high quality image (x0.7 = standard quality)

Frames/s 1 6 10 15 30

CIF

0.16 0.2 0.24 0.3 0.4

(352x240)

D1 0.4M

0.4 0.5 0.6 0.75 1

(720x576)

720p 1M 0.8 1 1.2 1.5 2

SXGA 1.3M

1 1.25 1.5 1.9 2.5

(1280x1024)

HD 2M

1.6 2 2.4 3 4

(1920x1080)

3M 2 2.5 3 3.75 5

5M 3.2 4 4.8 6 8

Please note that these are estimates providing a high quality image under most conditions. If the scene is less complex (indoors with little detail and not much motion) or the camera has very little noise (daylight, good DNR) the bit rate can be lowered further. Generally do not use less than half of the indicated values.

If video compression is set to lower quality or capped at a defined max bandwidth, the bit rate can be significantly lower at the cost of lower image quality. DNR can further reduce bandwidth, especially for grainy night images, but shows less detail during motion.

Storage capacity

We will use FortiRecorder 100D, 200D and 400D configuration with different camera parameters to demonstrate the video retention period.

FortiRecorder 100D has a built in 1 TB hard drive and it can connect up to 16 cameras. We configure 16 cameras with 1280 x 720 resolution using 30 FPS with high quality image in continuous recording. Each camera will generate an estimated bandwidth of 2 Mbps. Referring to the FortiRecorder Capacity calculator spreadsheet below, 100D can store approximately 3.2 days of video footage.

Table 2: Capacity Calculator

Bit rate

(Mbps)

Input 2 1 16 100 30

Resolve each for all other inputs as specified

Result 0.2 9.4 1.7 11 3.2

FortiRecorder 200D has 3 TB HD capacity. With the same configuration it can record 16 cameras for 10 days.

Capacity

(TB)

Cameras

(#)

Usage

(%)

Time

(days)

FortiRecorder 400D has 6 TB HD capacity. With the same configuration it can record 16 cameras for 19 days.

Key concepts Page 11 FortiRecorder 2.4.2 Administration Guide

The above examples use the same configuration for 16 cameras with different hard drive capacity per FortiRecorder model. The table below shows the number of days that one camera can be stored in different configurations.

Table 3: Video retention period in days for one camera

The same resolution and frame rate with different video quality

1920x1080@15 FPS

high quality video = 3

Mbps

1920x1080@15 FPS

medium quality video

= 2.1 Mbps

The same resolution and video quality with different frame rate

2048x1536@10 FPS

high quality video = 3

Mbps

2048x1536@30 FPS

high quality video = 5

Mbps

FortiRecorder

100D with 1 TB

34 102 645 204

49 145 921 291

34 102 645 204

20 61 387 122

FortiRecorder

200D with 3 TB

FortiRecorder

200D with 3 TB

HD plus 16 TB

remote

storage

FortiRicorder

400D with 6

TB HD

Use the following guideline for a quick bandwidth consumption calculation:

• 1 TB HD can store 1 camera configured to consume 1Mbps for approximately 100 days.

Therefore:

• 1 TB HD can store 1 camera configured to consume 2 Mbps for approximately 50 days.

• 6 TB HD can store 10 cameras configured to consume 2 Mbps each for approximately 30 days.

For more information about bandwidth consumption calculation, see the FortiCamera Bandwidth Calculator User Guide on

http://docs.fortinet.com/d/fortirecorder-forticamera-bandwidth-calculator-user-guide.

In practice Fortinet suggests to use the numbers provided in the bandwidth calculator as a starting point and then adjust them after installation to achieve the desired balance between quality and bandwidth.

Client Performance

If you need to display 8 or more camera live views, you may need to configure the second camera stream so that viewing is done at a lower frame rate or resolution, depending on how powerful the client PC is. RAM is less important than CPU for rendering video.

Video playback is very CPU intensive. If you are experiencing choppy video playback and cameras “freezing” during playback, you likely have a client performance problem. Use the diagnostic tools available on your client OS and look at the CPU usage when you are experiencing video problems. If possible, keep the CPU usage below 50%.

Key concepts Page 12 FortiRecorder 2.4.2 Administration Guide

GUI and CLI

To optimize client performance, use the video and camera profiles to define and assign a second video stream for each camera. To increase the number of live views the client computer can display, or to reduce the CPU requirement for a given number of live views, reduce the resolution, quality and/or frames per second of the second video streams.

Ten FPS is a good general setting for live views, which provides a reasonable frame rate for the live views, but significantly reduces the load on the client (compared to 30 FPS which is more ideal for higher traffic area surveillance).

This document only describes how to use the web UI. If you are familiar with the command line interface (CLI), go to Monitor > System Status > Console to use the CLI commands.

Key concepts Page 13 FortiRecorder 2.4.2 Administration Guide

NVR configuration

To be able to configure the FortiRecorder NVR appliance, you must connect to its management web UI or CLI console. This document mainly describes the web UI usage.

Connecting to FortiRecorder web UI

You can connect to the web UI using its default settings. (By default, HTTPS access to the web UI is enabled.)

Table 4: Default settings for connecting to the web UI

Network Interface port1

URL https://192.168.1.99/

Administrator Account

Password

Requirements

• a computer with an RJ-45 Ethernet network port

• a crossover Ethernet cable

• a web browser. For supported web browsers, see the release notes.

• If you are running FortiRecorder version 2.3 and older firmware, Apple QuickTime 7.1 or greater plug-in is required for video display. Note that starting from QuickTime 7.7.9,

QuickTime typical install does not install the web plugin by default. You have to use custom install and select the web plugin.

Starting from FortiRecorder version 2.4, HTML5 is supported. On most platforms, QuickTime plugin is not required anymore. For details, see the FortiRecorder version 2.4 release notes.

To connect to the web UI

1. On your management computer, configure the Ethernet port with the static IP address

192.168.1.2 with a netmask of 255.255.255.0.

2. Using the Ethernet cable, connect your computer’s Ethernet port to the FortiRecorder appliance’s port1.

3. Start your browser and enter the URL:

https://192.168.1.99/

(Remember to include the “s” in https://.)

Your browser connects the appliance.

admin

Page 14

4. In the Name field of the login page, type admin, then click Login. (In its default state, there is no password for this account.)

Login credentials entered are encrypted before they are sent to the FortiRecorder appliance. If your login is successful, the web UI appears.

See also

• Connectivity issues

• Login issues

Connecting to FortiRecorder CLI

For initial configuration, you can access the CLI from your management computer using either of these two ways:

• a local serial console connection

• an SSH connection, either local or through the network

To connect to the CLI using a local serial console connection, you must have:

• a computer with a serial communications (COM) port

• the RJ-45-to-DB-9 serial or null modem cable included in your FortiRecorder package

• terminal emulation software, such as HyperTerminal for Microsoft Windows

To connect to the CLI using an SSH connection, you must have:

• a computer with an Ethernet port

• a crossover Ethernet cable

• an SSH client, such as PuTTY

Table 5: Default settings for connecting to the CLI by SSH

Network Interface port1

IP Address 192.168.1.99

SSH Port Number 22

Administrator Account

Password (none)

NVR configuration Page 15 FortiRecorder 2.4.2 Administration Guide

admin

To connect to the CLI using a local serial console connection

The following procedure uses Microsoft HyperTerminal. Steps may vary with other terminal emulators.

1. Using the RJ-45-to-DB-9 or null modem cable, connect your computer’s serial communications (COM) port to the FortiRecorder unit’s console port.

2. Verify that the FortiRecorder unit is powered on.

3. On your management computer, start HyperTerminal.

4. On Connection Description, enter a Name for the connection, and select OK.

5. On Connect To, from Connect using, select the communications (COM) port where you

connected the FortiRecorder unit.

6. Select OK.

7. Select the following Port settings and select OK.

Bits per second 9600

Data bits 8

Parity None

Stop bits 1

Flow control None

8. Press Enter.

The terminal emulator connects to the CLI, and the CLI displays a login prompt.

9. Type admin and press Enter twice. (In its default state, there is no password for this account.)

To connect to the CLI using an SSH connection

The following procedure uses PuTTY. Steps may vary with other SSH clients.

1. On your management computer, configure the Ethernet port with the static IP address

192.168.1.2 with a netmask of 255.255.255.0.

2. Using the Ethernet cable, connect your computer’s Ethernet port to the FortiRecorder unit’s port1.

3. Verify that the FortiRecorder unit is powered on.

4. On your management computer, start your SSH client.

5. In Host Name (or IP Address), type 192.168.1.99.

6. In Port, type 22.

7. From Connection type, select SSH.

8. Select Open.

The SSH client connects to the FortiRecorder unit.

The SSH client may display a warning if this is the first time you are connecting to the FortiRecorder unit and its SSH key is not yet recognized by your SSH client, or if you have

NVR configuration Page 16 FortiRecorder 2.4.2 Administration Guide

previously connected to the FortiRecorder unit but it used a different IP address or SSH key. If your management computer is directly connected to the FortiRecorder unit with no network hosts between them, this is normal.

9. Click Yes to verify the fingerprint and accept the FortiRecorder unit’s SSH key. You will not be able to log in until you have accepted the key.

The CLI displays a login prompt.

10.Type admin and press Enter. (In its default state, there is no password for this account.)

Basic NVR configuration

Either to integrate the FortiRecorder NVR into your existing network or to set it up in its dedicated, private network, you must configure the following settings to have the appliance up and running:

• Setting the “admin” account password

• Configuring the network settings

• Configuring the DHCP server

• Setting the system time

Setting the “admin” account password

The default administrator account, named admin, initially has no password. Unlike other administrator accounts, the admin administrator account exists by default and

cannot be deleted. This administrator account always has full permission to view and change all FortiRecorder configuration options, including viewing and changing all other administrator accounts. Its name and permissions cannot be changed.

For security reasons, you must set a password for the admin account after you log on to FortiRecorder. Set a strong password for the admin administrator account, and change the password regularly.

To change the admin administrator password

1. Log in to the admin administrator account.

2. Go to System > Administrator > Administrator.

3. Change the password and log out.

The new password takes effect the next time that administrator account logs in.

See also

• Login issues

NVR configuration Page 17 FortiRecorder 2.4.2 Administration Guide

Configuring the network settings

When shipped, each of the FortiRecorder appliance’s physical network adapter ports has a default IP address and netmask. If these IP addresses and netmasks are not compatible with the design of your unique network, you must configure them.

Table 6: Default IP addresses and netmasks

Network Interface* IP Address Netmask

port1 192.168.1.99 255.255.255.0

port2 192.168.2.99 255.255.255.0

port3 192.168.3.99 255.255.255.0

port4 192.168.4.99 255.255.255.0

* The number of network interfaces may vary by model.

To connect to the CLI and web UI, you should configure the following FortiRecorder network settings:

• Interface: you Two configure at least one network interface on your FortiRecorder appliance (usually port1) with an IP address and netmask so that it can receive your connections.

• Static route: Depending on your network, you also usually must configure a static route so that the FortiRecorder can connect to the Internet, your computer, and FortiCam cameras.

• DNS server: FortiRecorder appliances require connectivity to DNS servers for DNS lookups. The appliance will query the DNS servers whenever it needs to resolve a domain name into an IP address, such as for NTP servers defined by their domain names.

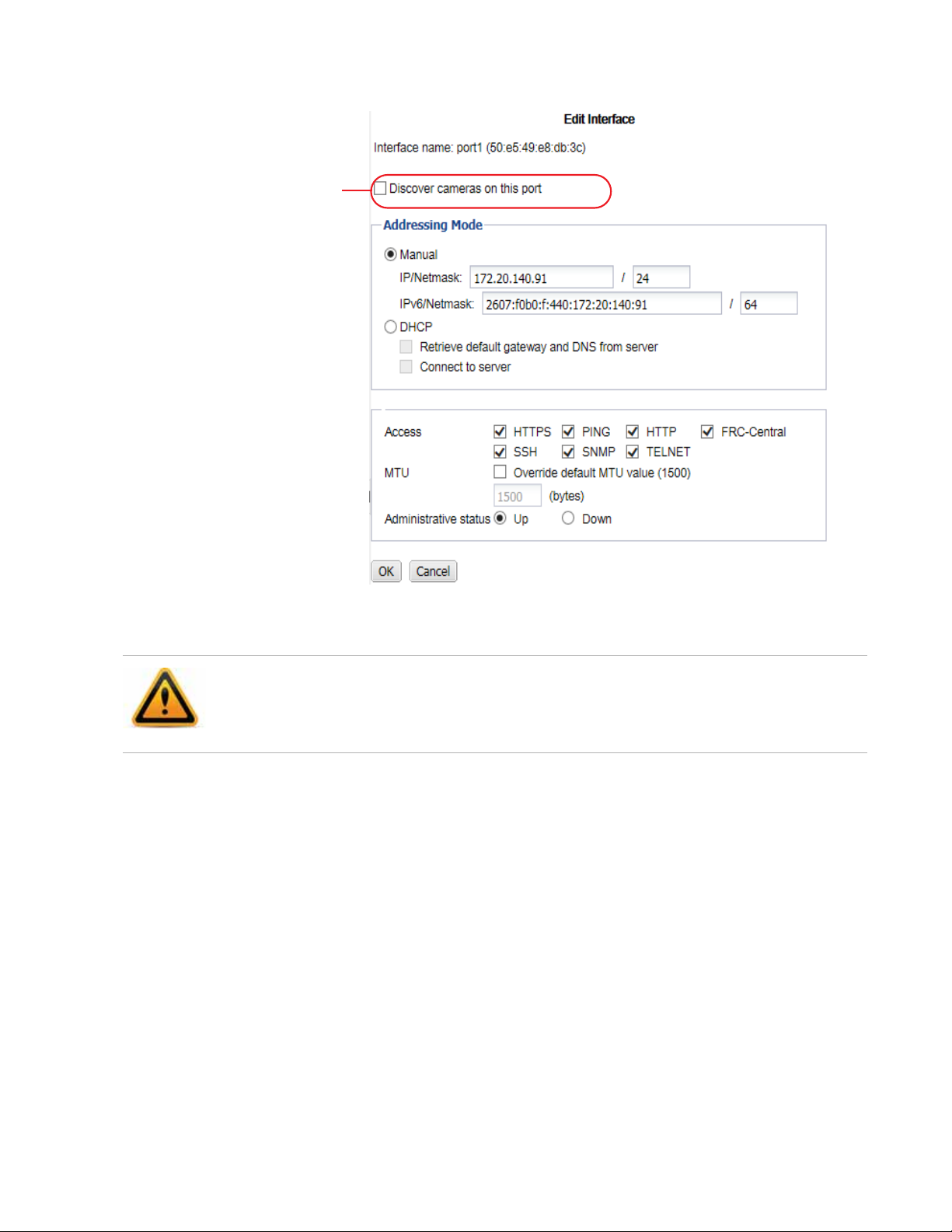

To configure a network interface’s IP address

1. Log in to the admin administrator account.

2. Go to System > Network > Interface.

3. Double-click the row to select the physical network interface that you want to modify.

4. If you want to manually assign an IP address and subnet mask to this network interface,

select Manual and then provide the IP address and netmask in IP/Netmask. IPv4 and IPv6 subnet masks should be provided in CIDR format, e.g. /24 instead of 255.255.255.0. The

IP address must be on the same subnet as the network to which the interface connects. Two

network interfaces cannot have IP addresses on the same subnet.

Otherwise, select DHCP and enable Connect to server to retrieve a DHCP lease when you

save this configuration. If you want the FortiRecorder appliance to also retrieve DNS and

default route (“gateway”) settings, also enable Retrieve default gateway and DNS from server.

If you use DHCP on an interface and there are cameras connected to the interface, you must make sure the IP address will ne change on that interface because the cameras need to communicate with the NVR and thus need to be aware of the IP address of the NVR.

NVR configuration Page 18 FortiRecorder 2.4.2 Administration Guide

Retrieve default gateway and DNS from server will overwrite the existing DNS and default route,

if any.

5. Configure these settings:

Setting name Description

Discover cameras on this port

Enable to send multicast camera discovery traffic from this network interface. For more information, see “Connecting FortiRecorder to the

cameras” on page 41.

Access Enable the types of administrative access that you want to permit to

this interface.

Caution: Enable administrative access only on network interfaces connected to trusted private networks or directly to your management computer. If possible, enable only secure administrative access protocols such as HTTPS or SSH. Failure to restrict administrative access could compromise the security of your FortiRecorder appliance.

HTTPS Enable to allow secure HTTPS connections to the web UI through this

network interface. To configure the listening port number, see

“Configuring system timeout, ports, and public access”. To upload a

certificate, see “Replacing the default certificate for the web UI”.

PING Enable to allow:

• ICMP type 8 (ECHO_REQUEST)

• UDP ports 33434 to 33534 for ping and traceroute to be received on this network interface.

When it receives an ECHO_REQUEST, FortiRecorder will reply with ICMP type 0 (ECHO_RESPONSE).

Note: Disabling PING only prevents FortiRecorder from receiving ICMP type 8 (ECHO_REQUEST) and traceroute-related UDP.

It does not disable FortiRecorder CLI commands such as execute ping or execute traceroute that send such traffic.

HTTP Enable to allow HTTP connections to the web UI through this network

interface. To configure the listening port number, see “Configuring

system timeout, ports, and public access”.

Caution: HTTP connections are not secure, and can be intercepted by a third party. If possible, enable this option only for network interfaces connected to a trusted private network, or directly to your management computer. Failure to restrict administrative access through this protocol could compromise the security of your FortiRecorder appliance.

SSH Enable to allow SSH connections to the CLI through this network

interface.

NVR configuration Page 19 FortiRecorder 2.4.2 Administration Guide

Setting name Description

SNMP Enable to allow SNMP queries to this network interface, if queries have

been configured and the sender is a configured SNMP manager. To configure the listening port number and configure queries and traps, see “SNMP traps & queries”.

TELNET Enable to allow Telnet connections to the CLI through this network

interface.

Caution: Telnet connections are not secure, and can be intercepted by a third party. If possible, enable this option only for network interfaces connected to a trusted private network, or directly to your management computer. Failure to restrict administrative access through this protocol could compromise the security of your FortiRecorder appliance.

FRC-

Enable to allow access from FortiRecorder Central.

Central

MTU Enable to change the maximum transmission unit (MTU) value, then

enter the maximum packet or Ethernet frame size in bytes.

If network devices between the FortiRecorder unit and its traffic destinations require smaller or larger units of traffic, packets may require additional processing at each node in the network to fragment or defragment the units, resulting in reduced network performance. Adjusting the MTU to match your network can improve network performance.

The default value is 1500 bytes. The MTU size must be between 576 and 1500 bytes. Change this if you need a lower value. For example, RFC 2516 prescribes a value of 1492 for PPPoE.

Administrative status

Select either:

• Up — Enable (that is, bring up) the network interface so that it can send and receive traffic.

• Down — Disable (that is, bring down) the network interface so that it cannot send or receive traffic.

6. Click OK.

If you were connected to the web UI through this network interface, you are now disconnected from it.

7. To access the web UI again, in your web browser, modify the URL to match the new IP address of the network interface. For example, if you configured the network interface with the IP address 10.10.10.5, you would browse to: https://10.10.10.5

If the new IP address is on a different subnet than the previous IP address, and your computer is directly connected to the FortiRecorder appliance, you may also need to modify the IP address and subnet of your computer to match the FortiRecorder appliance’s new IP address.

NVR configuration Page 20 FortiRecorder 2.4.2 Administration Guide

To add a static route

If you used DHCP and Retrieve default gateway and DNS from server when configuring your

network interfaces, skip this step — the default route was configured automatically.

1. Log in to the admin administrator account.

Other accounts may not have permissions necessary to change this setting.

2. Go to System > Network > Routing.

3. Click New.

4. Configure these settings:

Setting name Description

Destination IP/netmask

Type the destination IP address and network mask of packets that will be subject to this static route, separated by a slash ( / ).

The value 0.0.0.0/0 results in a default route, which matches all packets.

Gateway Type the IP address of the next-hop router where the FortiRecorder

appliance will forward packets subject to this static route. This router must know how to route packets to the destination IP addresses that you have specified in Destination IP/netmask, or forward packets to another router with this information.

For a direct Internet connection, this will be the router that forwards traffic towards the Internet, and could belong to your ISP.

Note: The gateway IP address must be in the same subnet as a network interface’s IP address.

5. Click OK.

The FortiRecorder appliance should now be reachable to connections with networks indicated by the mask. When you add a static route through the web UI, the FortiRecorder appliance evaluates the route to determine if it represents a different route compared to any other route already present in the list of static routes. If no route having the same destination exists in the list of static routes, the FortiRecorder appliance adds the static route, using the next unassigned route index number.

For small networks with only a few devices, often you will only need to configure one route: a default route that forwards packets to your router that is the gateway to the Internet.

If you have redundant gateway routers (e.g. dual Internet/ISP links), or a larger network with multiple routers (e.g. each of which should receive packets destined for a different subset of IP addresses), you may need to configure multiple static routes.

NVR configuration Page 21 FortiRecorder 2.4.2 Administration Guide

6. To verify connectivity, from a computer on the route’s network destination, attempt to ping one of FortiRecorder’s network interfaces that should be reachable from that location.

If the connectivity test fails, you can use the CLI commands: execute ping <destination_ipv4>

to determine if a complete route exists from the FortiRecorder to the host, and execute traceroute <destination_ipv4>

to determine the point of connectivity failure.

Also enable PING on the FortiRecorder’s network interface, then use the equivalent tracert or traceroute command on the computer (depending on its operating system) to test routability for traffic traveling in the opposite direction: from the host to the FortiRecorder.

• If these tests fail, or if you do not want to enable PING, first examine the static route

configuration on both the host and FortiRecorder.

To display the cached routing table, enter the CLI command:

diagnose netlink rtcache list

You may also need to verify that the physical cabling is reliable and not loose or broken, that there are no IP address or MAC address conflicts or blacklisting, and otherwise rule out problems at the physical, network, and transport layer.

• If these tests succeed, a route exists, but you cannot connect using HTTP or HTTPS, an

application-layer problem is preventing connectivity.

Verify that you have enabled HTTPS and/or HTTP on the network interface. Also examine routers and firewalls between the host and the FortiRecorder appliance to verify that they permit HTTP and/or HTTPS connectivity between them. Finally, you can also use the CLI command:

diagnose system top 5 30

to verify that the daemons for the web UI and CLI, such as sshd, newcli, and httpd are running and not overburdened.

To configure DNS settings

If you will use the settings DHCP and Retrieve default gateway and DNS from server when you configure your network interfaces, skip this — DNS is configured automatically.

1. Log in to the admin administrator account.

Other accounts may not have permissions necessary to change this setting.

2. Go to System > Network > DNS and enter the IP addresses of a primary and secondary DNS server. Your Internet service provider (ISP) may supply IP addresses of DNS servers, or you may want to use the IP addresses of your own DNS servers.

Incorrect DNS settings or unreliable DNS connectivity can cause issues with other features, including the NTP system time. For improved performance, use DNS servers on your local network.

3. Click Apply.

NVR configuration Page 22 FortiRecorder 2.4.2 Administration Guide

4. To verify your DNS settings, in the CLI, enter the following commands: execute traceroute www.fortinet.com

DNS tests may not succeed if you have not yet completed “To add a static route”.

If the DNS query for the domain name succeeds, you should see results that indicate that the host name resolved into an IP address, and the route from FortiRecorder to that IP address:

traceroute to www.fortinet.com (192.0.43.10), 30 hops max, 60 byte packets

1 172.20.130.2 (172.20.130.2) 0.426 ms 0.238 ms 0.374 ms 2 static-209-87-254-221.storm.ca (209.87.254.221) 2.223 ms 2.491

ms 2.552 ms 3 core-g0-0-1105.storm.ca (209.87.239.161) 3.079 ms 3.334 ms

3.357 ms ... 16 43-10.any.icann.org (192.0.43.10) 57.243 ms 57.146 ms 57.001

If the DNS query fails, you will see an error message such as:

www.fortinet.com: Temporary failure in name resolution Cannot handle "host" cmdline arg `www.fortinet.com' on position 1

(argc 3)

Verify your DNS server IPs, routing, and that your firewalls or routers do not block or proxy UDP port 53.

See also

• Connectivity issues

Configuring the DHCP server

If you need the FortiRecorder DHCP service to connect cameras to the NVR, you can configure the DHCP server on the interface that the cameras connect to. For information about DHCP service and camera connection, see “Camera connection” on page 40.

To configure FortiRecorder's DHCP server via the web UI

1. Go to System > Network > DHCP.

2. Click New.

3. Mark the check box for Enable DHCP server.

NVR configuration Page 23 FortiRecorder 2.4.2 Administration Guide

4. Configure these settings:

Setting name Description

Interface Select the name of the network interface where this DHCP server will

listen for requests from DHCP clients.

Gateway Type the IP address that DHCP clients will use as their next-hop

router.

On smaller networks, this is usually the same router that FortiRecorder uses. It could be your office’s router, or cable/DSL modem.

DNS options Select either:

• Default — Leave DHCP clients’ DNS settings at their default values.

• Specify — Configure DHCP clients with the DNS servers that you specify in DNS server 1 and DNS server 2.

DNS server 1 Type the IP address of a DNS server that DHCP clients can use to

resolve domain names. For performance reasons, if you have one, it is preferable to use a DNS server on your local network.

This setting is available only if DNS options is set to Specify.

DNS server 2 Type the IP address of an alternative DNS server that DHCP clients

can use to resolve domain names. For performance reasons, if you have one, it is preferable to use a DNS server on your local network.

This setting is available only if DNS options is set to Specify.

Domain Optional. Type the domain name, if any, that DHCP clients will use

when resolving host names on the local domain.

Netmask Type the subnet mask that DHCP clients will use in conjunction with

the IP address that is assigned by FortiRecorder’s DHCP server.

NVR configuration Page 24 FortiRecorder 2.4.2 Administration Guide

5. If you want to fine-tune the behavior, configure these settings:

Setting name Description

Conflicted IP timeout (Seconds)

Lease time (Seconds)

Type the maximum amount of time that the DHCP server will wait for an ICMP ECHO (ping) response from an IP before it determines that it is not used, and therefore safe to allocate to a DHCP client that is requesting an IP address. The default is 1,800 seconds (3 minutes).

To ensure that the DHCP server does not cause IP address conflicts with misconfigured computers that are accidentally using the pool of IP addresses used for DHCP, when a client request a new DHCP lease, the built-in DHCP server will ping an unused IP address in the pool first. If the ping test is successful, then a misconfigured computer is currently using that IP, and allocating it also to the DHCP client would cause an IP address conflict. To prevent this, the DHCP server will temporarily abandon that IP (mark it as used by a static host) and look for an other, available IP to give to the DHCP client. (It will not try abandoned IPs again until the pool is exhausted.) However, before the DHCP server can determine if the ping test is successful, the it must first wait to see if there is any reply. This slows down the search for an available IP address, and in rare cases, could cause a significant delay before the DHCP client receives its assigned IP address and other network settings. If your network is smaller or typically has low latency to ping replies, you can safely decrease this setting’s value to improve DHCP speed and performance. In most cases, 3 seconds is enough.

Type the maximum amount of time that the DHCP client can use the IP address assigned to it by the server. When the lease expires, the DHCP client must either request a new IP address from the DHCP server or renew its existing lease. Otherwise, the DHCP server may attempt to assign it to the next DHCP client that requests an IP. The default is 604,800 seconds (7 days).

If you have more or almost as many DHCP clients (cameras) as the number of IP addresses available to give to DHCP clients, you can decrease the lease. This will free up IP addresses from inactive clients so that IPs are available to give to clients that are currently in need of IP addresses. Keep in mind, however, that if the DHCP server is attached to your overall network rather than directly to cameras, this will slightly increase traffic volume and slightly decrease performance.

DHCP IP Range To configure the DHCP lease pool — the range of IP addresses that

the DHCP server can assign to its clients — click New and configure

the first and last IP address in the range. To avoid DHCP pool exhaustion that can occur in some cases, the pool should be slightly larger than the total number of clients.

If you need to exclude some IP addresses from this range (e.g. printers permanently occupy static IPs in the middle of the range), also configure DHCP Excluded Range.

Tip: The built-in DHCP server can provide IP addresses to the computers on your network too, not just to cameras.

NVR configuration Page 25 FortiRecorder 2.4.2 Administration Guide

Setting name Description

DHCP Excluded Range

Reserved IP Address

6. Click Create.

As cameras join the network, they should appear in the list of DHCP clients on Monitor > DHCP Status > DHCP.

See also

• DHCP issues

To configure IPs that should be omitted from the DHCP pool and never given to DHCP clients (such if there are printers with manually assigned static IP addresses in the middle of your DHCP range),

click New.

To bind specific MAC addresses to a specific DHCP lease, guaranteeing that the DHCP server will never assign it to another

DHCP client, click New.

Caution: Reserved leases cannot prevent misconfigured computers from taking the IP address, causing an IP address conflict, and breaking the FortiRecorder NVR’s connection with the camera. See

“Resolving IP address conflicts”.

Tip: To mimic a static IP address for your cameras, yet still provide the benefit that IP addresses are still centrally managed and configured on your DHCP server, configure reserved IP addresses.

Setting the system time

For many features to work, including camera synchronization, scheduling, logging, and SSL/TLS-dependent features, the FortiRecorder system time must be accurate.

You can either manually set the FortiRecorder system time or configure the FortiRecorder appliance to automatically keep its system time correct by synchronizing with a Network Time Protocol (NTP) server.

NTP is recommended to achieve better time accuracy. NTP requires that your FortiRecorder be able to connect to the Internet on UDP port 123. Adjust your firewall, if any, to allow these connections.

Later, when cameras are added to your surveillance system, your FortiRecorder NVR will synchronize the camera clocks with its own to keep them in agreement.

To configure the system time

1. Go to System > Configuration > Time.

2. Either manually set the date and time or select to synchronize with NTP server.

3. Click Apply.

If you manually configured the time, or if you enabled NTP and the NTP query for the current time succeeds, the new clock time should appear in System time. (If the query reply is slow,

NVR configuration Page 26 FortiRecorder 2.4.2 Administration Guide

you may need to wait a couple of seconds, then click Refresh to update the display in System time.)

If the NTP query fails, the system clock will continue without adjustment.

NTP on FortiRecorder complies with RFC 5905. If the current system time differs greatly from the actual time, NTP will adjust the clock slowly to avoid incongruous jumps in log message timestamps and other time-dependent features. If you want the time to be corrected immediately, set the time zone and time manually first, then switch to NTP.

If FortiRecorder’s time was 3 hours late, for example, and NTP fails, the time will still be exactly 3 hours late. Verify your DNS server IPs, your NTP server IP or name, routing, and that your firewalls or routers do not block or proxy UDP port 123.

NTP queries may fail until you have configured gateway and DNS settings. See “Configuring the

network settings”.

See also

• Connectivity issues

NVR configuration Page 27 FortiRecorder 2.4.2 Administration Guide

Configuring schedules

Schedules are used in several places:

• When configuring a user under System > Administrator > User Profile, schedules are used to specify when the users can access the camera. For details, see “Configuring user accounts”

on page 54.

Note: For user access, schedule gaps are allowed. If not scheduled, then access is denied. Scheduce overlaps are allowed. And one-time schedules take precedence over recurring schedules.

• When configuring camera video settings under Camera > Configuration > Camera Profile, schedules are used to specify when to use low or high quality video. For details, see

“Configuring camera profiles” on page 37.

Note: For video quality schedules, gaps and overlaps are not allowed. And one-time schedules take precedence over recurring schedules.

• When configuring camera recording settings under Camera > Configuration > Camera Profile, schedules are used to specify when to trigger the different types of recording. For details, see “Configuring camera profiles” on page 37.

Note: For cameral recording schedules, gaps and overlaps are allowed. And one-time schedules take precedence over recurring schedules.

• When configuring camera settings under Camera > Configuration > Camera, schedules are used to specify when to use different camera settings, such as DNR level, brightness, contrast, saturation, and sharpness. For details, see “Configuring cameras” on page 44.

Note: For cameral setting schedules, gaps are allowed. But overlaps are not allowed. And one-time schedules take precedence over recurring schedules.

• When configuring camera notifications under Camera > Notification > Camera Notification, schedules are used to control when to send out notifications. For details, see “Configuring

cameras to send notifications” on page 71.

Note: For camera notification schedules, overlaps are not allowed but gaps are allowed. And one-time schedules take precedence over recurring schedules.

The default schedule is used when no schedules are selected or the selected schedules conflict with each other.

You cannot create a recurring recording schedule where the hours vary by the day of the week, but you can achieve the same effect if you create multiple schedules.

To configure schedules

1. Go to Schedule > Schedule.

2. Select New and configure the following settings.

Setting name Description

Name Enter a name for the schedule.

Description Optionally enter a description.

Type Select a schedule type:

• Recurring: the schedule happens at specified times on selected days.

• One-time: the schedule happens only on a specific date and time.

NVR configuration Page 28 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Days and Time Select the days you want the camera to begin recording if you have

selected the Recurring schedule type.

All day Select this option if you want to record all day long.

Start time/End time

Select the start and end time for the recurring recording or the start and end date for the one-time recording.

You can use the sunrise and sunset time for the start and end time. The sunrise and sunset time is calculated by the FortiRecorder’s latitude and longitude location. For details, see “Setting the sunrise

and sunset time” on page 29.

When using sunrise and sunset time, you can a plus or minus two hour offset to compensate for lighting conditions specific locations.

Setting the sunrise and sunset time

When specifying schedules, you can use specific day and time, or the sunrise and sunset time.

To get the sunrise and sunset time

1. Go to Schedule > Schedule > Settings.

2. Enter the latitude and longitude values of the FortiRecorder and camera location.

3. Click Calculate to retrieve the sunrise and sunset time. A few days’ sunrise and sunset time

will be displayed.

When using a combination of sunrise/sunset and the specific time, if the time cross the boundary of sunrise/sunset, the schedule has no effect. For example, if the sunrise is at 8:00AM and you set the schedule from sunrise to 7:00AM, the schedule has no effect.

Advanced/optional NVR configuration

After you have a basic working setup, depending on your specific requirements, you may want to configure some advanced or optional settings.

• Configuring system timeout, ports, and public access

• Configuring FortiRecorder system appearance

• Configuring logging

• Alert email

Configuring system timeout, ports, and public access

Go to System > Configuration > Options to configure the system idle timeout, the HTTP, HTTPS, SSH, Telnet, and FortiRecorder Central access ports, and the host name for public/remote access.

If you want remote access — connecting from a home or a branch office through the Internet to your FortiRecorder NVR— for either using the web UI or snapshot notification video clips while you are out of the office, you must configure both your network and the NVR.

NVR configuration Page 29 FortiRecorder 2.4.2 Administration Guide

First, on your office’s firewall or Internet router, configure port forwarding and/or a virtual IP (VIP) to forward remote access connections from the Internet to your FortiRecorder NVR’s private network IP. (See “Appendix A: Port numbers”.)

Remote access opens ports and can weaken the strength of your network security. To prevent attackers on the Internet from gaining access to your surveillance system, configure your firewall or router to require authentication, restrict which IP addresses can use your port forward/virtual IP, and scan requests for viruses and hacking attempts.

If you are not sure what your network’s Internet address is, while connected to your office network, you can use an online utility such as:

http://ping.eu/

Next, go to System > Configuration > Options and configure these settings:

Setting name Description

Public Access

Host name Type either your network’s IP on the Internet, or its domain

name, such as www.example.com.

This is either your Internet router’s WAN IP, or a virtual IP (VIP) on your firewall whose NAT table will forward incoming connections from this public network IP to your FortiRecorder NVR’s private network IP.

HTTP/ HTTPS Port number

FortiRecorder supports live streaming (HLS) for mobile devices. You can use the FortiRecorder Mobile drop-down menu to enable live streaming over HTTP or HTTPS.

Type the port number, such as 8080, on your public IP that your Internet router or firewall will redirect to your FortiRecorder NVR’s listening port.

About FortiRecorder logical interfaces

In addition to the physical interfaces, you can create the following types of logical interfaces on FortiRecorder:

• VLAN subinterfaces

• Redundant interfaces

• Aggregate interfaces

• Loopback interfaces

VLAN subinterfaces

A Virtual LAN (VLAN) subinterface, also called a VLAN, is a virtual interface on a physical interface. The subinterface allows routing of VLAN tagged packets using that physical interface, but it is separate from any other traffic on the physical interface.

Virtual LANs (VLANs) use ID tags to logically separate devices on a network into smaller broadcast domains. These smaller domains forward packets only to devices that are part of that VLAN domain. This reduces traffic and increases network security.

NVR configuration Page 30 FortiRecorder 2.4.2 Administration Guide

One example of an application of VLANs is a company’s accounting department. Accounting computers may be located at both main and branch offices. However, accounting computers need to communicate with each other frequently and require increased security. VLANs allow the accounting network traffic to be sent only to accounting computers and to connect accounting computers in different locations as if they were on the same physical subnet.

Redundant interfaces

On the FortiRecorder unit, you can combine two or more physical interfaces to provide link redundancy. This feature allows you to connect to two or more switches to ensure connectivity in the event one physical interface or the equipment on that interface fails.

In a redundant interface, traffic is only going over one interface at any time. This differs from an aggregated interface where traffic is going over all interfaces for increased bandwidth. This difference means redundant interfaces can have more robust configurations with fewer possible points of failure. This is important in a fully-meshed HA configuration.

A physical interface is available to be in a redundant interface if:

• it is a physical interface, not a VLAN interface

• it is not already part of a redundant interface

• it has no defined IP address and is not configured for DHCP

• it does not have any VLAN subinterfaces

• it is not monitored by HA

When a physical interface is included in a redundant interface, it is not listed on the System > Network > Interface page. You cannot configure the interface anymore.

Aggregate interfaces

An aggregate interface is a logical interface which uses the Link Aggregation Control Protocol (LACP) (802.3ad) and combines several interfaces to increase throughput. It also provides redundancy in case one interface in the aggregation is down.

Loopback interfaces

A loopback interface is a logical interface that is always up (no physical link dependency) and the attached subnet is always present in the routing table.

The loopback IP address does not depend on one specific external port, and is therefore possible to access it through several physical or VLAN interfaces. In the current release, you can only add one loopback interface on the FortiRecorder unit.

The loopback interface is useful when you use a layer 2 load balancer in front of several FortiRecorder units. In this case, you can set the FortiRecorder loopback interface’s IP address the same as the load balancer’s IP address and thus the FortiRecorder unit can pick up the traffic forwarded to it from the load balancer.

Configuring FortiRecorder system appearance

To customize the logo and product name appearing on the FortiRecorder web UI, go to System > Customization > Appearance.

Configuring logging

To diagnose problems or to track actions that the FortiRecorder appliance does as it receives and processes video, configure the FortiRecorder appliance to record log messages. Log messages can record camera and/or FortiRecorder appliance events.

NVR configuration Page 31 FortiRecorder 2.4.2 Administration Guide

To view log messages, go to Monitor > Log Viewer > Event for the NVR log messages or go to Monitor > Log Viewer > Event for the camera log messages.

To configure logging

1. Go to either Logs and Alerts > Log Setting > Local Log Settings or Log > Log Setting >

Remote Log Settings (depending on whether you want logs to be stored on FortiRecorder’s hard drive, or remotely, on a Syslog server or FortiAnalyzer).

2. If configuring local log storage, configure the following settings:

Setting name Description

Log file size Type the file size limit of the current log file in megabytes (MB). The

log file size limit must be between 1 MB and 1000 MB.

Note: Large log files may decrease display and search performance.

Log time Type the time (in days) of the file age limit. If the log is older than

this limit, even if has not exceeded the maximum file size, a new current log file will be started.

Valid range is between 1 and 366 days.

At hour Select the hour of the day (24-hour format) when the file rotation

should start.

When a log file reaches either the age or size limit, the FortiRecorder appliance rotates the current log file: that is, it renames the current log file (elog.log) with a file name indicating its sequential relationship to other log files of that type (elog2.log, and so on), then creates a new current log file. For example, if you set the log time to 10 days at hour 23, the log file will be rotated at 23 o’clock of the 10th day.

Log level Select the severity level that a log message must equal or exceed

in order to be recorded to this storage location.

For information about severity levels, see “Log severity levels”.

Caution: Avoid recording log messages using low severity

thresholds such as Information or Notification to the local hard disk

for an extended period of time. A low log severity threshold is one possible cause of frequent logging. Excessive logging frequency can cause undue wear on the hard disk and may cause premature failure.

Log options when disk is full

Select what the FortiRecorder will do when the local disk is full and a new log message is caused, either:

• Do not log — Discard all new log messages.

• Overwrite — Delete the oldest log file in order to free disk space, and store the new log message.

Logging Policy Configuration

Select what type of NVR events and camera events you want to log.

3. If configuring remote log storage, click New, then configure the following settings:

NVR configuration Page 32 FortiRecorder 2.4.2 Administration Guide

Setting name Description

IP Type the IP address of a Syslog server or FortiAnalyzer.

Port Type the UDP port number on which the Syslog server listens for

log messages.

The default is 514.

Level Select the severity level that a log message must equal or exceed

in order to be recorded to this storage location.

For information about severity levels, see “Log severity levels”.

Caution: Avoid recording log messages using low severity

thresholds such as Information or Notification to the local hard disk

Facility Select the facility identifier the FortiRecorder will use to identify

itself to the Syslog server if it receives logs from multiple devices.

To easily identify log messages from the FortiRecorder when they are stored on a remote logging server, enter a unique facility identifier, and verify that no other network devices use the same facility identifier.

CSV format Enable if your Syslog server requires comma-separated values

(CSV).

Note: Do not enable this option if the remote host is a FortiAnalyzer. FortiAnalyzer does not support CSV-formatted log messages.

Logging Policy Configuration

Select what type of NVR events and camera events you want to log.

4. To verify logging connectivity, from FortiRecorder, trigger a log message that matches the type and severity levels that you have chosen to store on the remote Syslog server or FortiAnalyzer. Then, on the remote host, confirm that it has received that log message.

If you will be sending logs to a FortiAnalyzer appliance, you must add the FortiRecorder NVR to the FortiAnalyzer’s device list, and allocate enough disk space. Otherwise, depending on its configuration for unknown devices, FortiAnalyzer may ignore the logs. When the allocated disk space is full, it may drop subsequent logs.

If the remote host does not receive the log messages, verify the FortiRecorder’s static routes (see “NVR configuration”) and the policies on any intermediary firewalls or routers (they must allow Syslog traffic from the FortiRecorder network interface that is connected to the gateway between it and the Syslog server). To determine the point of connectivity failure along the network path, if the FortiAnalyzer or Syslog server is configured to respond to

NVR configuration Page 33 FortiRecorder 2.4.2 Administration Guide

See also

• Connectivity issues

• Data storage issues

Alert email

As the FortiRecorder system administrator, you can receive alert email whenever an important system event occurs, such as the hard disk being full and so on. Before you configure alert email, you must configure the mail server settings so that FortiRecorder can send out email. For details see “Configuring FortiRecorder to send notification email”.

You can configure up to 10 alert email addresses.

To configure alert email settings

1. Go to Logs and Alerts > Alert Email > Configuration.

2. Click New.

3. Type your email address, such as admin@example.com.

4. Click Create.

5. Go to Logs and Alerts > Alert Email > Categories. Mark the check boxes of all appliance

ICMP ECHO_REQUEST (ping), go to Monitor > System Status > Console and enter the

command: execute traceroute <syslog_ipv4> where <syslog_ipv4> is the IPv4 address of your FortiAnalyzer or Syslog server.

This setting is the recipient only for appliance-related notifications, such as the hard disk being full. It does not configure the recipient of camera-related notifications, such as motion detection. For this kind of video-related notifications, see “Notifications”.

events that you want to trigger an alert email to be sent, such as:

Setting name Description

Critical events Enable to notify when serious system events occur such as

daemon crashes. See also “Resource issues”.

Disk is full Enable to notify when the disk partition that stores log data is full.

Camera settings

Before connecting to your cameras, you must configure the settings that will be used by them. To reduce overhead, you don’t need to create settings for each camera. Instead, configure items such as schedules and video quality once, then re-use those same settings for all cameras that should be similarly configured.

Camera configuration workflow

Camera configuration involves the following steps:

1. Video profiles define video quality. Video profiles are used in camera profiles. To configure video profiles, go to Camera > Configuration > Video Profile. For details, see “Configuring

video profiles”.

2. Camera profiles define video storage options and recording schedules (either continuous or motion detection). Camera profiles will be used when you configure the discovered cameras. To configure camera profiles, go to Camera > Configuration > Camera Profile. For details, see “Configuring camera profiles”.

3. Connect the camera to the NVR. FortiRecorder NVR can discover the connected cameras automatically and display them under Camera > Configuration > Camera with Status as Not Configured. See “Connecting FortiRecorder to the cameras”.

4. After you configure the above settings, go to Camera > Configuration > Camera to configure all other camera settings, such as IP address, motion detection windows, and so on. See

“Configuring cameras”.

5. Go to Camera > Configuration > Camera Group to add individual camera to different groups to facilitate camera management. For details, see “Camera groups”. Camera groups are used in user profiles. For details, see “User configuration workflow”.

Configuring video profiles

Video profiles define the video quality that you want the camera to capture and stream to the NVR. Note that the higher the video quality, the more bandwidth it consumes.

The video profiles will be used in the camera profiles. For details, see “Configuring camera

profiles”.

To configure a video profile

1. Go to Camera > Configuration > Video Profile.

2. Click New.

Page 36

3. Configure the following, then click Create.

Setting name Description

Name Type a name (such as live-stream1) that can be referenced

by other parts of the configuration. Do not use spaces or special characters. The maximum length is 35 characters.

Resolution Select the amount of detail (the number of pixels) in the image.

from the dropdown menu.

Lower resolutions features less detail but are faster to transmit. Higher resolutions produce a clearer image but require more bandwidth. A higher resolution is preferable if the camera is recording a large space, such as a parking lot, where small details like faces and license plates could be important.

Note: Resolution greatly impacts performance, bandwidth, and the rate at which disk space is consumed. See “Video

performance”.

Frames per second Type the number of frames per second (FPS).

Conventional video is 24 frames per second. More frames per second may be useful if you need to record very fast motion, but increasing FPS will also increase disk usage and CPU usage.

Bit rate mode Select the bit rate.

Bit rate Type the bit rate that will be used.

Quality Select the degree of compression.

Configuring camera profiles

A camera profile defines the video profiles to use, video storage options, and recording schedules.

• Variable — Automatically adjust the stream to the minimum bit rate required by the current video frames while maintaining video quality.

• Fixed — Manually specify a constant bit rate in Bit rate. Specifying a bit rate that is too low may result in poor quality. Specifying a bit rate that is too high may needlessly consume extra bandwidth.

This setting appears and is applicable only if Bit rate mode is Fixed.

Greater compression reduces required network bandwidth but causes greater CPU usage.

To configure camera profiles

1. Go to Camera > Configuration > Camera Profile.

2. Click New.

Camera settings Page 37 FortiRecorder 2.4.2 Administration Guide

3. Configure the following, then click Create.

Setting name Description

Name Type a name (such as camera-settings1) that can be

referenced by other parts of the configuration. Do not use spaces or special characters. The maximum length is 35 characters.

Video Select the Recording stream profile used to determine the

video quality of the recorded video.

Select the Viewing stream profile used to determine the video quality of the streamed video when viewing.

Click Add schedule to specify when to use low or high quality video. For example, you could improve the camera’s night performance without sacrificing the quality of video during the day.

Note: The higher the quality, the more bandwidth the stream will use.

Recording Select the Recording type that will instruct the camera when

to begin filming.

• Continuous: records video for the entire duration of the schedule, regardless of movement or any other triggers.

• Motion detection: records a video clip up to about 40 seconds long each time the camera’s sensor detects movement.

• Digital input: records a video clip up to about 40 seconds long each time the camera receives a trigger from the digital input. For details about how to use digital input and output (DIDO), see “Configuring cameras” on page 44.

This option only takes effect if the camera supports DIDO.

• Audio detection: records a video clip up to about 40 seconds long each time the camera detects audio activities. You can define the audio sensitivity when configuring camera settings. For details, see “Configuring

cameras” on page 44.

• PIR detection: PIR based motion detection senses the movement of people, animals, and other objects that produce heat energy.

Note: Some recording types may not be available for your camera.

If you want to use different recording types at different times, click Add schedule to specify them. For example, you could instruct the camera to start recording for motion detection during the day and PIR detection at night.

Camera settings Page 38 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Storage Options You can select the storage options of both continuous

recordings and detection recordings.

• Keep — Retain video until all available disk space is consumed

• Delete — Remove video when it exceeds a maximum age.

• Move — Relocate video to external storage when it exceeds a maximum age. This option appears if you have configured network storage (see “External storage”).

If you choose to delete old video, also configure the maximum amount of time to keep video recording files from this camera. Files whose start time is older than this age will be deleted in order to free disk space for new video recordings.

Continuous recordings will be stored on the hard disk as multiple video files. In that case, the oldest part of the recording will be deleted first.

Compression Options Select whether or not FortiRecorder compresses continuous

recordings.

If compression is enabled, also configure the maximum amount of time to keep the files uncompressed. Files whose start time is older than the specified time will be compressed.

Camera groups

After you have configured the cameras, you can group them to facilitate the camera management. When you add administrators/operators/viewers later on, you can specify the camera group they can access, instead of single cameras. For details, see “User management”.

To configure camera groups, go to Camera > Configuration > Camera Group.

Note: Selecting Compress will save storage space at the cost of video quality.

Camera settings Page 39 FortiRecorder 2.4.2 Administration Guide

Camera connection

After you have configured the NVR and camera settings, you can install and connect cameras to the FortiRecorder NVR. For information about how to physically install a camera, see the camera’s QuickStart Guide.

Camera discovery and DHCP service

In order for the FortiRecorder NVR to be able to discover cameras and receive video, cameras Two first get their IP addresses and other network settings from either the FortiRecorder built-in DHCP server or any other third-party DHCP server on your network.

• FortiRecorder DHCP server — If you do not have a DHCP server in your network, or you are installing the FortiRecorder and the cameras in their dedicated network, you must configure the built-in DHCP server on the FortiRecorder. For example, if you configured the built-in DHCP server to provide DHCP service through port2, and port2 is connected to a PoE switch, you would connect the cameras to the PoE switch. The switch would supply power to the cameras, and through it, the cameras would be able to access the DHCP server. For information about FortiRecorder DHCP server configuration, see “Configuring the

DHCP server” on page 23.

• Other DHCP server — If you already have a DHCP server in your network and the FortiRecorder and cameras will be installed in the existing network, the cameras will get their

IP addresses from the DHCP server after you connect and power up the cameras.

If you connect a camera to FortiRecorder before any DHCP server is configured, the camera will assign itself a default IP address, which might not be working in your subnet. In this case, you must reboot the camera after you have configured a DHCP server, so that the camera can get network settings from the DHCP server.

Since you can configure the camera to use a static IP address, you only need the DHCP server for the initial camera discovery.

Later, after each camera has network settings from DHCP, you can either:

• Continue using DHCP— Leave the cameras plugged into their current network location. Configure the DHCP server to reserve a specific IP lease for each camera. This will mimic

Page 40

configuring the cameras with a static IP address, yet will provide the advantage that IP addresses remain centrally managed.

If you continue to let your cameras use DHCP, you should configure Reserved IP Address (or, on a third-party DHCP server, the equivalent setting). Failure to do this may appear to work initially, but eventually could periodically, temporarily interrupt connectivity with the NVR, resulting in lost video.

This can happen if either the DHCP pool is too small for the number of cameras, or if a misconfigured computer accidentally takes a camera’s DHCP lease: the DHCP server will ultimately be forced to assign the camera’s IP address to a different client. If this happens, when the camera next requests a lease, it will receive a new, different IP address, and the NVR will not be notified.

Connectivity interruptions are usually self-correcting: within a few minutes, the FortiRecorder NVR should detect the camera’s IP address change. To restore connectivity manually, either manually update the camera’s definition on the NVR to reflect the new IP, or discover the camera again.

• Switch the camera to a static IP — Use the FortiRecorder NVR to configure the camera with a static IP address. This removes the requirement of your cameras to remain within reach of the DHCP server, which provides 2 advantages:

• You can disable DHCP if not otherwise required (recommended for better security).

• You can move the cameras to a remote location on your network that would not ordinarily

be reachable by your DHCP server.

Connecting FortiRecorder to the cameras

After you configure the DHCP server (you do not have to if you already have one), you can connect and configure the cameras.

Once you connect the cameras to the NVR, the NVR can automatically discover the cameras. Then you can configure the discovered cameras.

Requirements

• On your computer, the Apple QuickTime 7.1 or greater plug-in installed for your web browsers

• At the camera’s location on the network, power over Ethernet (PoE)

This could be provided by a FortiSwitch-80-PoE or perhaps your ISP’s cable modem.

Camera connection Page 41 FortiRecorder 2.4.2 Administration Guide

To connect FortiRecorder to your cameras

1. If this is the first time you connect to FortiRecorder, change your PC’s IP address to be on

the same subnet as the FortiRecorder port1’s default IP address 192.168.1.99. For example, set your PC’s IP to 192.168.1.98.

2. Connect your PC and FortiRecorder’s port1to a PoE switch. Do ne connect the camera to the switch at this stage.

3. On your PC, open a web browser and connect to https://192.168.1.99. Log in to the admin administrator account with Name: admin and Password: (none).

4. If you want to use the FortiRecorder DHCP service, configure the DHCP server as described in the next step. If you already have a DHCP server to use on your network, skip the next step.

5. On the FortiRecorder web UI, go to System > Network > DHCP, and click New to create a new DHCP server on port1.

Make sure to enable

DHCP server

Make sure to select

port1

Camera connection Page 42 FortiRecorder 2.4.2 Administration Guide

6. Go to System > Network > Interface. Select port1 and click Edit.

Make sure to enable it

7. Make sure Discover cameras on this port is enabled.

8. Connect the camera to the PoE switch now.

If you connect the camera to the switch before you have configured and enabled the DHCP server on FortiRecorder, the camera will use its default IP address, which might not be working on your network. Therefore, you must reboot the camera to get an IP address from the FortiRecorder DHCP server by unplugging the camera from the switch and plugging it back.

Camera connection Page 43 FortiRecorder 2.4.2 Administration Guide

9. Go to Camera > Configuration > Camera, and click Discover. After several seconds, a list of discovered cameras should appear. Newly discovered cameras will be highlighted in yellow, and their Status column will contain Not Configured.

Discover button

Yellow: discovered but not configured cameras

10.Double click on the discovered camera to configure the camera settings. For details, see

“Configuring cameras” on page 44.

11.Go to Monitor > Video Monitor to view the live feed from the camera.

Configuring cameras

After you have connected the cameras to FortiRecorder, you can start to configure the discovered cameras. Because most of the camera information has been retrieved from the camera, you do not have to change the settings. But if you are adding a remote camera or adding a new camera before connecting it to FortiRecorder, you must specify all the camera settings.

1. Go to Camera > Configuration > Camera. For each discovered camera, click its row to select it, click Configure, then configure these settings:

Setting name Description

Enable Mark this check box to enable the FortiRecorder NVR to

Configured cameras

communicate with this IP address. Communications are required to trigger scheduled recordings and other camera commands.

Name Type a name (such as front-door1) that can be referenced

by other parts of the configuration. Do not use spaces or special characters. The maximum length is 35 characters.

Location Optional. Type a description of the camera’s physical location

that can be used if the camera is hidden, in case it is forgotten or lost.

Camera connection Page 44 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Vendor/Camera FortiRecorder supports Fortinet cameras (FortiCam series)

and third-party, ONVIF-compliant cameras.

If you are configuring a discovered camera, most of the camera information has been retrieved and displayed. You can also click the Camera detail button to refresh the camera information.

If you are adding a remote camera, or adding a new camera before it is connected, you must specify all the settings. For the Fortinet FortiCam cameras, you must specify the models; for the non-Fortinet cameras, you must specify the camera’s login credentials (user name and password) for FortiRecorder to access it.

Model Select the name of the camera model, such as FCM-20A for a

FortiCam 20A.

Address mode Select either:

• Wired — Select this option if you want to keep the camera connected with the Ethernet cable on the same subnet.

• Wireless — Select this option if you want to change the camera connection from wired to wireless. Also configure the WiFi settings on the WiFi tab.

• VIP — Allow the camera to continue using DHCP to determine its IP address, but the camera will be on a remote network, and therefore the FortiRecorder NVR will not connect to the camera’s DHCP address. Instead, the NVR will connect through the static external, usually public network IP address and port numbers (called a virtual IP or VIP on FortiGate firewalls) specified in Address, (HTTPS)

Port, and (RTSP) Port. The router or firewall will translate

and forward connections to the camera’s private network address. Likewise, communications in the other direction — from the camera to the FortiRecorder NVR — are also affected: the camera will use the public IP setting as its destination (see “Configuring system timeout, ports, and public

access”), not the private network address of port1, for

example, which it would use if you select DHCP or Static. Tip: Use this option if the camera is not located on the same private network as the FortiRecorder NVR due to NAT/ port forwarding, especially if the camera and NVR are separated by the Internet.

Address If you want to deploy the camera to a different subnet, you can

specify its new IP address or the VIP that it will be using.

(HTTPS) Port Type the port number of configuration communications from

the FortiRecorder that the firewall or router will forward to the camera. If using only a WAN/virtual IP without port forwarding/translation, leave this setting at its default value,

443.

This setting is available only when Address mode is set to VIP.

Camera connection Page 45 FortiRecorder 2.4.2 Administration Guide

Setting name Description

(RTSP) Port Type the port number of video streaming commands (RTSP)

from the FortiRecorder that the firewall or router will forward to the camera, such as when beginning a continuous recording schedule. If using only a WAN/virtual IP without port forwarding/translation, leave this setting at its default value,

554.

This setting is available only when Address mode is set to VIP.

Transport Type Normally RTSP is used for video streaming, which is UDP. If

you want to use TCP, you can use HTTP tunnelling. If you want the communication to be secure/encrypted, you can use HTTPS tunnelling.

The tunnel is between the camera and the NVR.

Profile Select the camera profile that indicates the recording

schedule, video quality, and other settings that will be used by this camera (see “Connecting FortiRecorder to the cameras”). Or click New to create a new camera profile.

If a camera is disabled while you change its settings, or while it would normally be scheduled to begin continuous or motion detection recording, the FortiRecorder NVR will not connect to the camera.

This can break communications between them: if you reconfigure the IP while the camera is disabled, your FortiRecorder NVR may later attempt to communicate with the camera at the new address/gateway, but the camera will still be using the old address/gateway. It can also cause cameras to become out-of-sync, because they will not receive time setting changes while disabled. To fix this, disable the camera definition, revert the settings, enable the camera definition again, then apply your changes while the camera definition is enabled.

2. Click the Preview button to retrieve a single still image from the camera. Then click Use As Icon to use the captured image as the icon for the camera in the camera list. When you

select the camera from the list, the icon will pop up.

3. Depending on the camera model you are configuring, different tabs appear.

Camera connection Page 46 FortiRecorder 2.4.2 Administration Guide

4. If the address mode is wired or wireless, under the network tab, configure the following:

Setting name Description

Wired settings Select DHCP if you want the camera to continue using DHCP to

dynamically determine its IP address. The FortiRecorder NVR will attempt to keep track of any DHCP-related IP address changes automatically using periodic mDNS probes. This requires that the camera remain on the same subnet as the NVR.

Select Static to re-configure the camera with a static private network IP address that you specify in Address. It will no longer use DHCP. This option requires that the camera and NVR not be separated by NAT.

Caution: It is strongly recommended to either:

• configure your cameras with a static IP, or

• configure your DHCP server with lease reservations (see

“Configuring the DHCP server”).

Without reservations, the IP address provided by the DHCP server may appear to work initially, but later, in some cases, the DHCP server could change the IP address lease. If this happens, the DHCP server will not update the list of known cameras with the camera’s new dynamic IP. Until the appliance discovers that the IP address has changed, FortiRecorder will still be trying to control the camera’s old address, which no longer works. Connections with that camera will be broken and all video from that camera will be lost during that interruption.

Wireless settings This area displays the wireless DHCP settings for the camera. You can

change the camera to use a static IP address. For more information about wireless connection, see the following WiFi section.

5. If the camera has wireless function and you want it to connect to FortiRecorder through a wireless router, you can specify the WiFi settings on the WiFi tab. After you configure the WiFi settings, you can disconnect the discovered camera and connect it to the router.

Setting name Description

Enable Select to Enable the WiFi function of the camera.

SSID Specify the wireless router’s SSID that the camera will connect to.

Security Specify the security settings.

6. If the camera supports infra red recording or LED lighting, configure the settings on the Light

or Infrared tab.

Setting name Description

Mode Either off or auto. Auto means to turn on infra red mode at the

threshold.

LED Either off or auto. Auto means to turn on the LED lights when the infra

red mode is turned on.

Enable threshold Enter the light level when infra red mode should turn on.

Camera connection Page 47 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Disable threshold Enter the light level when infra red mode should turn off.

Threshold time Enter the time interval (in seconds) when the camera should wait to turn

on or off the infra red mode after the threshold is reached.

Current light level Display the current light level that the camera detects.

Refresh Click to get instant light level reading.

7. Configure the video and audio settings on the Video/Audio tab. Available setting vary on

different camera models. If the setting is greyed out, the setting is not supported on the selected model.

Setting name Description

Horizontal flip Enable if the camera is positioned looking at a mirror or on a ceiling,

and the preview image appears to be reversed left to right.

Vertical flip Enable if the camera is positioned on a ceiling, and the preview image

appears to be upside down.

WDR If the camera supports WDR (wide dynamic range), enable it if there is

intense backlight in the camera view.

Environment Select if the camera is installed indoor or outdoor.

View angle Select the view angle if the camera support it.

Get feed/Stop

Click to view or stop the live video feed.

feed

(Other settings) Configure the brightness, contrast, saturation, sharpness, zoom level,

and audio input level as required.

8. In some cases, you may want to mask an area and do not want to show a certain portion of the image. For example, for privacy reason, you may want to mask the area where an employee sits. To do this, on the Privacy Mask tab, click the plus sign beside Mask Window and tweak the window size. To add another mask window, click the plus sign again.

9. All FortiCam cameras are capable of detecting motion. Some camera models also supports audio surveillance and digital input and output (DIDO).

By default, while using motion detection, cameras will be triggered to record if any motion occurs within their entire field of vision. If some parts of the view, such as a fan, traffic, or strobe light, would inadvertently trigger motion detection, in the Motion detection windows area on the Detection tab, click the plus sign. A rectangle with a thick, white border will appear over the preview image, indicating the area that will be monitored for movement. To resize it to your intended area, click and drag the edges of the rectangle. To move it, hold

Camera connection Page 48 FortiRecorder 2.4.2 Administration Guide

down the Shift key while you click and drag it. To add another motion detection area, click the plus sign again.

For audio detection and DIDO, configure the following settings:

Setting name Description

Audio Sensitivity If the camera supports audio surveillance, specify the sensitivity level

that the camera recording will be triggered. You may need to tweak the sensitivity level, for example, when there are some background noises.

Camera connection Page 49 FortiRecorder 2.4.2 Administration Guide

Setting name Description

PIR Sensitivity

Digital input/output

Some cameras come with DIDO terminals and support digital input and output. For example, on the FortiCam MB13 camera, according to your configuration, power signal from the digital input can trigger the camera to record a video clip. You can also optionally connect other devices to the digital output, such as a relay to turn on/off another device.

DIDO connection diagram on FortiCam MB13

4. Power output +5V

3. Digital output

2. Digital input

1. Ground

The digital input (DI) can be configured to trigger when the signal is:

• LOW (ground)

• HIGH (+5V)

• Rising (transitioning from LOW to HIGH)

• or Falling (transitioning from HIGH to LOW)

If not connected, the camera will see the digital input as HIGH.

The digital output (DO) can be configured to either be grounded or open when in the triggered state. When not triggered it will be in the opposite state.

For example, if opening a door causes a sensor switch to open, then the switch could be wired between DI and ground. DI will be grounded (LOW) while the door is closed and will go HIGH when the door opens. DI could then be configured to trigger on the rising edge. When the door opens, DO would be set to its triggered state and a video clip will also be recorded.

Triggering on the rising or falling edge can be useful if the DI might be held in the triggered state for a long period. In the example above, if DI were set to trigger on HIGH and the door is left open for a long period then the camera would trigger repeatedly.

Camera connection Page 50 FortiRecorder 2.4.2 Administration Guide

10.On the Miscellaneous tab, configure the following settings:

Setting name Description

Privacy button FortiCam MB13 has a privacy button on it. If enabled, you can press

the privacy button on the camera to stop and resume video and audio monitoring.

To enable the functionality of the privacy button on the camera, select the Privacy button checkbox.

To disable the functionality of the privacy button on the camera, clear the Privacy button checkbox.

Status LEDs Most cameras come with LED indicators (for details, see the LED

description section in the camera’s QuickStart Guides). You can enable or disable the LEDs by selecting or deselecting the Status LEDS checkbox.

11.Click OK.

If you kept the Enabled check box marked, at this time, FortiRecorder connects to the camera’s discovered IP address. FortiRecorder configures the camera with:

• the camera’s new Address and other network settings (if Address mode is set to Static)

• NTP settings (if you configured them for FortiRecorder during “Setting the system time”)

Afterwards, in order to control the camera according to your selected schedules, FortiRecorder will periodically connect to the camera’s configured IP address. It will also keep video recordings sent by that camera from its new IP address.

12.To confirm that FortiRecorder can receive video from the camera at its new IP address, go to Monitor > Video Monitor.

If no video is available from that camera, verify that:

• Other video software such as Windows Media Player or VLC has not stolen the RTSP file

type association from QuickTime (Installing other video software after QuickTime is a common cause of changes to media file type associations.)

• A route exists to the camera’s new IP address and, if applicable, its virtual IP/port forward

To confirm, go to Monitor > System Status > Console and enter the command: execute ping <camera_ipv4> where <camera_ipv4> is the camera’s IP address or virtual IP/port forward. If you

receive messages such as Timeout..., to locate the point of failure on the network, enter the command:

execute traceroute <camera_ipv4>

• Firewalls and routers, if any, allow both RTSP and RTCP components of the RTP

streaming video protocol between FortiRecorder and the camera and between your computer and FortiRecorder (see “Appendix A: Port numbers”)

• Web proxies or firewalls, if any, support streaming video

If you did not discover the camera but instead manually configured FortiRecorder with the camera’s IP address, confirm that the camera is actually located at that address.

To receive notifications if the camera’s connection with the FortiRecorder NVR is interrupted, see “Alert email”.

Camera connection Page 51 FortiRecorder 2.4.2 Administration Guide

13.If desired, you can specify different camera settings, such as brightness and contrast, for the camera to use as different times. For details, see “Configuring schedules” on page 28.

See also

• Watching live video feeds

• Connectivity issues

Camera connection Page 52 FortiRecorder 2.4.2 Administration Guide

User management

In its factory default configuration, FortiRecorder has one administrator account named admin. This administrator has permissions that grant full access to FortiRecorder’s settings and features.

To prevent accidental changes to the configuration, it’s best if only network administrators — and if possible, only a single person — use the admin account. You can use the admin administrator account to configure more accounts for other people.

User types

To serve different purposes, you can configure the following three user types:

• Administrator — Suited to network technicians or administrators. Depending on the access privileges, the administrator account can have full or partial access to configure all FortiRecorder NVR network and camera settings, create accounts, receive all notifications via email, and view live video feeds and previous recordings from all cameras.

• Operator — Suited to an office manager or perhaps security guard. The account can view assigned live camera feeds and associated previous recordings, including camera-based notifications via email (“snapshot notifications”). It can change its own password, but otherwise trnne change the FortiRecorder NVR or camera configuration, reducing risk of accidental misconfiguration.

• Viewer — Suited to a security guard. Only assigned live camera feeds. It cannot view previous recordings, and therefore cannot receive snapshot notifications. It can change its own password, but otherwise cannot change the FortiRecorder NVR or camera configuration.

Multiple administrators should not be logged in simultaneously. If configuring the same item at the same time, the administrators could inadvertently overwrite each others’ changes.

For user authentication, FortiRecorder supports local user authentication, LDAP authentication and RADIUS authentication. Fort details, see “Configuring LDAP authentication” and

“Configuring RADIUS authentication”.

User configuration workflow

Administrators user type can access all the cameras all the time. For operator and viewer user types, you can specify when and which cameras the users can access. To achieve this, you must configure access schedules and user profiles first.

1. Go to System > Administrator > Access Profile to configure the access privileges for the administrator accounts. The access profile will be used in the administrator settings. For details, see “Configuring access profiles” on page 54.

2. Go to System > Administrator > User Profile to configure which camera group the user is allowed to access. For details, see “Configuring user profiles” on page 54.

Page 53

3. Go to System > Administrator > Administrator to configure all other user settings. For details, see “Configuring user accounts” on page 54.

Configuring access profiles

Access profiles control which FortiRecorder funtions the users are allowed to access. Before you configure user accounts, you must configure the access profiles, which will be used in the user account settings.

To configure an access profile

1. Go to System > Administrator > Access Profile.

2. Click New.

3. Enter a profile name.

4. Specify the access privileges.

5. Click Create.

Configuring user profiles

User profiles controls which camera groups users are allowed to access and when users are allowed to access the cameras. The user profiles will be used in the user settings you need to

configure in the next step. For details about configuring camera groups, see “Camera groups”.

If no camera group is specified, then the user can access all cameras.

If no access schedule is specified, then the user is allowed to access the video all the time.

To configure a user profile

1. Go to System > Administrator > User Profile.

2. Click New.

3. Enter a profile name.

4. Specify a camera group the user is allowed to access.

5. Add an access schedule.

6. Click Create.

Configuring user accounts

After you configure access profiles and user profiles, you can start to add user accounts.

To configure an account

1. Go to System > Administrator > Administrator.

To access this part of the web UI, your account’s Type must be Administrator.

2. Click New.

A dialog appears.

User management Page 54 FortiRecorder 2.4.2 Administration Guide

3. Configure these settings:

Setting name Description

Username Type the name of the account, such as IT, that can be referenced in

other parts of the configuration.

Do not use spaces or special characters. The maximum length is 35 characters.

Note: This is the entire user name that the person must provide when logging in to the CLI or web UI. Depending on Authentication, your external authentication server may require that you enter both the user name and the domain part, such as guard@example.com.

Display name Type a name for the recipient, such as FortiRecorder admin, as

you want it to appear in snapshot notifications, if any, sent by FortiRecorder.

Email address Type the person’s email address or an email alias, such as

all-admins@example.com, that will receive snapshot notifications, if any, sent by FortiRecorder (see “Configuring FortiRecorder to send

notification email”).

If you do not know the email address and cannot provide it, don’t worry. The person still will be able to view camera-related notifications whenever he or she logs in to the FortiRecorder NVR. Additionally, the person can configure his or her own email address later, when he or she logs in.

Note: This is not used by accounts whose Type is Viewer; they cannot receive snapshot notifications.

Message method Select either Email or SMS to send notification messages to this user.

For detailed about notifications, see “Notifications”.

Password Type a password for the account.

This field is available only when Authentication is Local or RADIUS +

Local.

Tip: For improved security, the password should be at least eight characters long, be sufficiently complex, and be changed regularly. To check the strength of your password, you can use a utility such as

Microsoft’s password strength meter.

Confirm Password Re-enter the password to confirm its spelling.

This field is available only when Authentication is Local or RADIUS +

Local.

User management Page 55 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Trusted hosts Type the IP address and netmask from which the account is allowed to

log in to the FortiRecorder appliance. You can specify up to 10 trusted network areas. Each area can be a single computer, a whole subnet, or a mixture.

To allow login attempts from any IP address, enter 0.0.0.0/0.

To allow logins only from a single computer, enter its IP address and a 32-bit netmask, such as:

172.168.1.50/32

Caution: If you configure trusted hosts, do so for all accounts. Failure to do so means that all accounts are still exposed to the risk of brute force login attacks. This is because if you leave even one account unrestricted (i.e. 0.0.0.0/0), the FortiRecorder appliance must allow login attempts on all network interfaces where remote administrative protocols are enabled, and wait until after a login attempt has been received in order to check that user name’s trusted hosts list.

Tip: If you allow login from the Internet, set a longer and more complex

Password, and enable only secure administrative access protocols

(HTTPS and SSH) to minimize the security risk. For information on administrative access protocols, see “NVR configuration”.

Tip: For improved security, restrict all trusted host addresses to single IP addresses of computer(s) from which only this administrator will log in.

Type Select either:

• Administrator — Suited to network technicians or administrators. The account has full access to configure all FortiRecorder NVR network and camera settings, create accounts, receive all notifications via email, and view live video feeds and previous recordings from all cameras.

• Operator — Suited to an office manager or perhaps security guard. The account can view assigned live camera feeds and associated previous recordings, including camera-based notifications via email (“snapshot notifications”). It can change its own password, but otherwise cannot change the FortiRecorder NVR or camera configuration, reducing risk of accidental misconfiguration.

This option does not appear for the admin administrator account, which by definition is always an administrator.

User management Page 56 FortiRecorder 2.4.2 Administration Guide

Setting name Description

User profile With a user profile, you can specify which group of camera video feeds

and recordings the account will be able to access. You can also use schedules to control when the user is allowed to access the video. For details, see “Configuring schedules” on page 28.

To configure a user profile, click New or go to System > Administrator > User Profile.

kifnefwoacfsceihvafhofosathihaIPf danf dafwoacftrnfrttaoofrvvfeif daf trTacrofrvvf daf hTa .

Access profile If you are creating an administrator account, you can specify an

access profile to grant the account certain access privileges.

To configure an access profile, go to System > Administrator > Access Profile.

The administrator account can have read-only, read-write, or no access rights to the following administrative categories:

• System Access — Controls settings critical to network accessibility of FortiRecorder

• System Status page

• GUI console

• Network

• Administrator

• Authentication and certificates

• System — Controls other system settings

• Time

• Remote storage

• Log settings

• Alert email

• Camera Config — Controls camera installation and configuration

• Camera View — Monitor page with video, timeline and camera control

• Other — Everything else

User management Page 57 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Authentication Select one of:

• Local — Authenticate using an account whose name, password, and other settings are stored locally, in the FortiRecorder NVR’s configuration.

• RADIUS — Authenticate by querying the remote RADIUS server that stores the account’s name and password. Also configure

RADIUS profile and Check permission attribute on RADIUS server.

• RADIUS+Local — Authenticate either by querying the remote RADIUS server that stores the account’s name and password, or by querying the accounts stored locally, in the FortiRecorder appliance’s configuration. Also configure RADIUS profile and

Check permission attribute on RADIUS server.

• LDAP — Authenticate by querying a remote LDAP server that stores the account’s name and password. Also configure LDAP

profile.

RADIUS profile Select a RADIUS authentication profile that defines the RADIUS

connection settings. See “To configure a RADIUS query”.

This field appears only when Authentication is RADIUS or RADIUS+Local.

Caution: Secure your authentication server and, if possible, all query traffic to it. Compromise of the authentication server could allow attackers to gain administrative access to your FortiRecorder appliance.

User management Page 58 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Check permission attribute on RADIUS server

Enable to let the RADIUS server override Type when it replies to authentication queries, so that the RADIUS server can specify the account’s permissions. Also configure Vendor ID and Subtype ID.

This option requires that:

• Your RADIUS server must support vendor-specific attributes (VSAs) similar to RFC 2548. (If your server does not support them, it may reply with an “attribute not supported” error.)

• Your RADIUS server’s dictionary must have:

• a vendor ID for Fortinet/FortiRecorder

• an attribute ID for user types (“access profile” names)

• Each FortiRecorder account on your RADIUS server must have a user type attribute with a value that specifies which Type to apply. e.g. Fortinet-Access-Profile = Administrator or

Fortinet-Access-Profile = Operator

Some RADIUS servers already include the Fortinet vendor ID and subtype ID in their default dictionaries. In this case, no server-side configuration is necessary. Otherwise, you must configure your server. Methods varies by vendor — FreeRADIUS and Internet Authentication Services for Microsoft Windows 2008 Server, for example, are configured differently. For instructions, consult its documentation. For an example VSA dictionary, see the article FortiGate RADIUS VSA

Dictionary.

This field appears only when Authentication is RADIUS or RADIUS+Local.

Vendor ID Type the vendor ID for Fortinet, as it is defined on your RADIUS server,

in decimal. On many RADIUS servers, Fortinet’s default vendor ID is

12356.

The vendor ID is an ID for the Fortinet client types. It should be present in Access-Request packets from FortiRecorder, telling your RADIUS server which settings are supported by accounts on FortiRecorder. It should also be present when the RADIUS server replies with an Access-Accept packet.

The default value is 0.

User management Page 59 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Subtype IDType the subtype ID for account permissions as it is defined on your

RADIUS server. On many RADIUS servers, Fortinet’s default subtype ID for access profiles is 6.

The subtype ID is an ID for the user type (permissions) attribute. It should be, but is not required to be, present in Access-Accept reply packets from your RADIUS server to FortiRecorder.

Packets from your RADIUS server should use this attribute’s value to refer to the name of a Type (e.g. Administrator) on FortiRecorder. If the packet does not have this attribute-value pair, FortiRecorder will use whichever permissions you defined locally for the account in Type. If the packet does not contain the attribute-value pair and you have not configured Type, when the person attempts to authenticate, even if successfully authenticated, authorization will be null, and he or she will receive a “permission denied” error message:

you do not have rights to view this page

The default value is 0.

LDAP profile Select an LDAP authentication profile that defines the connection

settings. See “To configure an LDAP query”.

Theme Select this administrator account’s preference for the initial web UI

color scheme or click Use Current to choose the theme currently in effect for your own web UI session.

The administrator may switch the theme at any time after he or she logs in by clicking Next Theme in the top right corner.

4. Click Create.

The account should now be able to log in.

Configuring LDAP authentication

FortiRecorder supports LDAP user authentication. You will use the LDAP authentication profiles when you add user accounts.

To configure an LDAP query

1. Go to System > Authentication > LDAP.

2. Click New.

A dialog appears.

User management Page 60 FortiRecorder 2.4.2 Administration Guide

3. Configure these settings:

Setting name Description

Profile name Type a name (such as LDAP-query) that can be referenced by other

parts of the configuration. Do not use spaces or special characters. The maximum length is 35 characters.

Server name/IP Type the fully qualified domain name (FQDN) or IP address of the

LDAP or Active Directory server that will be queried when an account referencing this profile attempts to authenticate.

Fallback server name/IP

Type the fully qualified domain name (FQDN) or IP address of a secondary LDAP or Active Directory server, if any, that can be queried if the primary server fails to respond according to the threshold configured in “Timeout” on page 64.

Port Type the port number on which the authentication server listens for

queries.

The IANA standard port number for LDAP is 389. LDAPS (SSL/TLS-secured LDAP) is 636.

Use secure connection

If your directory server uses SSL to encrypt query connections, select SSL then upload the certificate of the CA that signed the LDAP server’s certificate (see “Uploading trusted CAs’ certificates”).

Allow unauthenticated bind

Enable to perform the query without authenticating.

Disable to authenticate when querying. Also configure Bind DN, Bind

password, and User Authentication Options.

Many LDAP servers require LDAP queries to be authenticated (“bound”) by supplying a bind DN and password to determine the scope of permissions for the directory search. However, if your LDAP server does not require binding, you can enable this option to improve performance.

4. If your directory does not use OpenLDAP’s default schema, or if you need to configure a query string, query cache, LDAP protocol version, or how the query will be authenticated

User management Page 61 FortiRecorder 2.4.2 Administration Guide

(the bind DN), click the arrows to expand User Query Options, User Authentication Options, and Advanced Options, then configure:

Setting name Description

Schema If your LDAP directory’s user objects uses one of these common

schema style:

• InetOrgPerson

• InetLocalMailRecipient

• Active Directory

• Lotus Domino

select the schema style. This automatically configures the query string to match that schema style.

Otherwise, select User Defined, then manually configure the query string in LDAP user query.

Base DN Enter the distinguished name (DN) of the part of the LDAP directory

tree within which FortiRecorder will search for user objects, such as ou=People,dc=example,dc=com.

User objects should be child nodes of this location.

Bind DN Enter the bind DN, such as

cn=FortiRecorderA,dc=example,dc=com, of an LDAP user account with permissions to query the Base DN.

Leave this field blank if you have enabled Allow unauthenticated bind.

Bind password Enter the password of the Bind DN.

Click Browse to locate the LDAP directory from the location that you specified in Base DN, or, if you have not yet entered a Base DN, beginning from the root of the LDAP directory tree.

Browsing the LDAP tree can be useful if you need to locate your Base

DN, or need to look up attribute names. For example, if the Base DN is

unknown, browsing can help you to locate it.

Before using, first configure Server name/IP, Use secure connection,

Bind DN, Bind password, and , then click Create or OK. These fields

provide minimum information required to establish the directory browsing connection.

User management Page 62 FortiRecorder 2.4.2 Administration Guide

Setting name Description

LDAP user query Enter an LDAP query filter that selects a set of user objects from the

LDAP directory.

The query string filters the result set, and should be based upon any attributes that are common to all user objects but also exclude non-user objects.

For example, if user objects in your directory have two distinguishing characteristics, their objectClass and mail attributes, the query filter might be:

(& (objectClass=inetOrgPerson) (mail=$m))

where $m is the FortiRecorder variable for a user's email address.

This option is preconfigured and read-only if you have selected from

Schema any schema style other than User Defined.

For details on query syntax, refer to any standard LDAP query filter reference manual.

Scope Select which level of depth to query, starting from Base DN.

• One level — Query only the one level directly below the Base DN in the LDAP directory tree.

• Subtree — Query recursively all levels below the Base DN in the LDAP directory tree.

Derefer Select when, if ever, to dereference attributes whose values are

references.

• Never — Do not dereference.

• Always — Always dereference.

• Search — Dereference only when searching.

• Find — Dereference only when finding the base search object.

User Authentication Options

Select how, if the query requires authentication, the FortiRecorder appliance will form the bind DN. The default setting is the third option: Search user and try bind DN.

• Try UPN or email address as bind DN — Select to form the user’s bind DN by prepending the user name portion of the email address ($u) to the User Principle Name (UPN, such as example.com).

By default, the FortiRecorder appliance will use the mail domain as the UPN. If you want to use a UPN other than the mail domain, enter that UPN in the field named Alternative UPN suffix. This can be useful if users authenticate with a domain other than the mail server’s principal domain name.

• Try common name with base DN as bind DN — Select to form the user’s bind DN by prepending a common name to the base DN. Also enter the name of the user objects’ common name attribute, such as cn or uid into the field.

• Search user and try bind DN — Select to form the user’s bind DN by using the DN retrieved for that user by User Query Options.

User management Page 63 FortiRecorder 2.4.2 Administration Guide

Setting name Description

User Type Attribute

User Profile Attribute

Access Profile Attribute

Notification Options

Select this option to define the user’s type.

Valid entries for this field are: admin, operator, and viewer.

Select this option to define the user’s profile.

The entry for this field must match the profile name configured in FortiRecorder.

The access profile attribute can only be set if the user is an administrator.

Selecting this option will set the administrator user’s access profile.

The entry for this field must match the name of an access profile configured in FortiRecorder.

Select the “Allow notification attributes” option to enable notifications.

FortiRecorder supports the following notifications:

• Email attribute: This attribute specifies the user’s email address for notifications.

• SMS profile attribute: This attribute specifies which SMS profile the user will use. The SMS profile attribute must match the name of the profile configured in FortiRecorder.

• SMS number attribute: This attribute specifies the user SMS number for notifaction.The number format must be the same as the number in the user entry settings.

• Method attribute: This attribute specifies the method used to notify a user. The two valid entries are “email” and “sms”.

• Embedded email images attribute: This attribute specifies whether images are included in email messages to the user. The two valid entries are “yes” and “no”.

Timeout Type the number of seconds that the FortiRecorder appliance will wait

for a reply to the query before assuming that the primary LDAP server has failed, and will therefore query the secondary LDAP server.

The default value is 20.

Select the LDAP protocol version (either 2 or 3) used by the LDAP server.

Protocol version

User management Page 64 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Enable to cache LDAP query results.

Enable cache

Caching LDAP queries can introduce a delay between when you update LDAP directory information and when the FortiRecorder appliance begins using that new information, but also has the benefit of reducing the amount of LDAP network traffic associated with frequent queries for information that does not change frequently.

If this option is enabled but queries are not being cached, inspect the value of TTL. Entering a TTL value of 0 effectively disables caching.

TTL Enter the amount of time, in minutes, that the FortiRecorder unit will

cache query results. After the TTL has elapsed, cached results expire, and any subsequent request for that information causes the FortiRecorder appliance to query the LDAP server, refreshing the cache.

The default TTL value is 1440 minutes (one day). The maximum value is 10080 minutes (one week). Entering a value of 0 effectively disables caching.

This option is applicable only if is enabled.

5. Click Create.

6. To test the query, configure an account where this profile is used (“To configure an account”),

then attempt to authenticate using that account’s credentials.

Alternatively, click the row to select the query, click Edit, then click Test LDAP Query. From the Select query type drop-down list, choose Authentication, then complete the Password and Mail address fields that appear. Click Test. After a few seconds, a dialog should appear to let you know that either the query succeeded, or the reason for its failure, such as a connectivity error.

User management Page 65 FortiRecorder 2.4.2 Administration Guide

Configuring RADIUS authentication

Except for local users, FortiRecorder also support RADIUS user authentication. You will use the RADIUS authentication profiles when you add user accounts.

To configure a RADIUS query

1. Go to System > Authentication > RADIUS.

2. Click New.

A dialog appears.

3. Configure these settings:

Setting name Description

Profile name Type a name (such as RADIUS-query) that can be referenced by

other parts of the configuration. Do not use spaces or special characters. The maximum length is 35 characters.

Server name/IP Type the fully qualified domain name (FQDN) or IP address of the

RADIUS server that will be queried when an account referencing this profile attempts to authenticate.

Server port Type the port number on which the authentication server listens for

queries.

The IANA standard port number for RADIUS is 1812.

Protocol Select which authentication method is used by the RADIUS server:

• Password Authentication

• Challenge Handshake Authentication (CHAP)

• Microsoft Challenge Handshake Authentication (CHAP)

• Microsoft Challenge Handshake Authentication V2 (CHAP version 2)

• Default Authentication Scheme

NAS IP/Called station ID

Server secret Type the secret required by the RADIUS server. It must be the same as

Server requires domain

Type the NAS IP address or Called Station ID (for more information about RADIUS Attribute 31, see RFC 2548 Microsoft Vendor-specific RADIUS Attributes). If you do not enter an IP address, the IP address of the FortiRecorder network interface used to communicate with the RADIUS server will be applied.

the secret that is configured on the RADIUS server.

Enable if the authentication server requires that users authenticate using their full email address (such as user1@example.com) and not just the user name (such as user1).

4. Click OK.

To test the query, select this profile when configuring an account (“To configure an account”), then attempt to authenticate using that account’s credentials.

User management Page 66 FortiRecorder 2.4.2 Administration Guide

See also

• NVR configuration

• Connectivity issues

• Login issues

User management Page 67 FortiRecorder 2.4.2 Administration Guide

Notifications

When a significant event happens, such as motion-triggered video recording or the hard disk being full, your FortiRecorder NVR can notify you, either by email or SMS messages.

Notification configuration workflow

To configure the notifications, follow these steps:

1. Configure the SMTP mail server settings so that FortiRecorder can send out notification email. See “Configuring FortiRecorder to send notification email”.

2. Configure the SMS server settings so that FortiRecorder can send out SMS messages. See

“Configuring FortiRecorder to send SMS messages”.

3. Configure the camera settings about what, when and to whom the notifications should be sent. See “Configuring cameras to send notifications”.

4. Monitor the record of notification events by going to Monitor > Camera Notifications > Notification Events.

Configuring FortiRecorder to send notification email

For FortiRecorder to send email, you must specify an SMTP server to use.

1. Go to System > Configuration > Mail Server Settings.

Page 68

2. Configure these settings:

Setting name Description

Host name Type the host name for the appliance. By default, it uses its serial

number.

The host name can be up to 35 characters in length. It can include US-ASCII letters, numbers, hyphens, and underscores, but ne spaces and special characters.

The host name of the FortiRecorder appliance is used in multiple places.

• It is used in the command prompt of the CLI.

• It is used as the SNMP system name. For information about SNMP, see “SNMP traps & queries”.

The get system status CLI command displays the full host name. If the host name is longer than 16 characters, the name may be truncated elsewhere and end with a tilde ( ~ ) to indicate that additional characters exist, but are not displayed.

For example, if the host name is FortiRecorder1234567890, the CLI prompt would be:

FortiRecorder123~#

Mail server name Type the fully-qualified domain name (FQDN) of your SMTP server,

such as mail.example.com.

If you do not have your own email server, this is often the name of your ISP’s SMTP relay, or a 3rd-party email server such as Yahoo! or Gmail.

Ensure that the DNS settings are configured. See “Configuring the

network settings”.

Mail server port Type the port number on which your email server or SMTP relay

listens for connections from clients.

The default varies by whether you enable Use SMTPS: disabled, it is port 25; enabled, it is port 465.

Use SMTPS Enable to initiate SSL- and TLS-secured connections to the email

server if it supports SSL/TLS.

When disabled, SMTP connections from the FortiRecorder appliance’s built-in email client to the SMTP server will occur as clear text, unencrypted.

This option must be enabled to initiate SMTPS-secured connections.

Notifications Page 69 FortiRecorder 2.4.2 Administration Guide

3. If the email server requires SMTP authentication (i.e. it uses the SMTP AUTH command), also

enable Authentication Required, then configure these settings:

Setting name Description

User name Type the name of the account, such as jdoe or

fortirecorder@example.com, that FortiRecorder will use to log in to the SMTP server.

Password Type the password for the account on the SMTP server.

Authentication type Select one of the following authentication methods:

• AUTO — Automatically detect and use the most secure SMTP authentication type supported by the email server.

• PLAIN — Provides an unencrypted, scrambled password.

• LOGIN — Provides an unencrypted, scrambled password.

• DIGEST-MD5 — Provides an encrypted MD5 hash of the password.

• CRAM-MD5 — Provides an encrypted MD5 hash of the password, with hash replay prevention, combined with a challenge and response mechanism.

4. If you want to customize the FortiRecorder’s sender email address so that, for example, replies are sent to the network administrators rather than the appliance, then configure these settings:

Setting name Description

Sender display name Type the display name, such as Surveillance System, that will

be displayed in the From field or column by email clients such as Outlook and Thunderbird. Leaving this setting empty will cause FortiRecorder to use the default value, postmaster.

Sender address Type the sender email address (From:), such as

donotreply@example.com, that will appear in the SMTP

header. Leaving this setting empty will cause FortiRecorder to use the default value, postmaster@example.com.

Unlike the display name, depending on the client and its settings, this may not be visible.

Configuring FortiRecorder to send SMS messages

For FortiRecorder to send SMS messages, you must specify the SMS service providers.

1. Go to System > Configuration > SMS.

2. Configure the following:

Setting name Description

Service provider Enter the SMS service provider name.

Notifications Page 70 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Description Enter a short description of the provider.

Type Select an SMS type: either SMTP or HTTP.

For SMTP, enter the Email to, Email subject, and Email body information.

You can use the following tags when filing the fields:

• {{:country_code}} represents the country code portion of the SMS number field in the user's configuration.

• {{:mobile_number}} represents the phone number portion of the SMS number field in the user's configuration.

• {{:message}} represents the text of the message.

For HTTP, enter the following information:

• HTTP URL: the HTTP or HTTPS URL to contact to send SMS messages, for example, https://myprovider.com/sendsms).

• HTTP method: either Get or Post.

• HTTP/S Parameters: configure all the parameters and values required by the provider to send the SMS message. You can use the same tags that were available above for SMTP. If you select the Encrypt check-box in a parameter then the value will not be displayed in clear-text when viewing the configuration. The value will be sent as entered to the remote server which is why using HTTPS is recommended.

For example, if your provider indicates that to send a message the syntax should look like the following:

https://smsserver.com:8080/sendsms?api_id=1234&user=user &to=<phone_number>&text=<message>&password=<passwd >

Then the settings might be:

HTTP URL: https://smsserver.com:8080/sendsms

HTTP Method: Get

Parameters:

api_id id

user user

to {{:country_code}}{{:mobile_number}}

text {{:message}}

password password (the encrypt checkbox should be selected so this will not show in clear-text when viewing the configuration)

Configuring cameras to send notifications

After you have set up the SMTP server and SMS service provider, you can configure the detailed notification settings, such as when and how the notifications should be sent.

1. Go to Camera > Notification > Camera Notification.

Notifications Page 71 FortiRecorder 2.4.2 Administration Guide

2. Click New.

3. Configure the following setting and then click Create.

Setting name Description

Name Enter a name for the notification entry.

Description Optionally enter a descriptive comment.

Enable Select to enable this notification entry.

Trigger number Specify how many times the motion event should happen before

the notification is sent out.

Trigger period Specify the period in which these motion events occur.

Message method Select how the notification should be sent out: either Email or

SMS. At least one method should be selected.

Notification Period Specify when notifications should be sent out. For details, see

“Configuring schedules” on page 28.

Select Camera Specify which camera’s motion events should be notified.

Select User Specify which user should be notified.

4. To verify email connectivity, from FortiRecorder, trigger an alert event that matches the type

and severity levels that you have chosen. Then, check your email.

If you do not receive an alert email within a few minutes, verify that you have configured an email address for the account. Next, verify the FortiRecorder NVR’s static routes (see

“Configuring the network settings”) and the policies on any firewalls or routers between the

appliance and the SMTP relay. (They must allow SMTP traffic from the FortiRecorder network interface that is connected to the gateway between it and the email server.) To determine the point of connectivity failure along the network path, if the SMTP server is

configured to respond to ICMP ECHO_REQUEST (ping), go to Monitor > System Status > Console and enter the CLI command:

execute traceroute <syslog_ipv4> where <syslog_ipv4> is the IPv4 address of your email server.

If that connectivity succeeds, verify that your alert email has not been classified as spam by checking your junk mail folder.

To prevent classification as spam, it usually helps to add the FortiRecorder NVR’s email address to your address book.

See also

• Connectivity issues

Notifications Page 72 FortiRecorder 2.4.2 Administration Guide

Video monitoring

To get the most value out of your FortiRecorder system, use it to monitor your property — not just to analyze after-the-fact. Your FortiRecorder NVR has a variety of monitoring tools for the appliance itself, but administrators can also view the live video feeds from cameras.

You can use the tools in this section to monitor your FortiRecorder NVR and surveillance cameras.

Watching live video feeds

Once the cameras are connected and configured, administrators can use the web UI to view live video feeds from the cameras.

Administrators will use the surveillance system slightly differently than other users (“operators” or “viewers”) such as security guards. Operators and viewers can only watch the live video and do not have the privilege to configure the system settings.

Quality of live video feeds may be different for administrators than it is for operator or viewer accounts, which use the camera’s settings in “Configuring video profiles” on page 36.

Page 73

To view live video from your cameras as an administrator

1. Go to Monitor > Video Monitor

Buffering (a blue “Q” appears, with an oscillating dotted line underneath) may take a few seconds, depending on the network, the Resolution of the camera, and your computer. When buffering is done, the current live video feed should appear.

Live video feed Panel expansion arrows

2. There are very thin arrows at the bottom and (for administrators) right of the video viewer frame. If you are an administrator, click the arrow on the right to expand the image adjustment control panels.

3. If you logged in as an administrator, on the right pane, in the Selection area, choose which cameras you want to view.

4. If you logged in using a non-administrator account, your cameras have already been selected for you. If they are not correct, ask an administrator to reconfigure your account.

See also

• Watching recorded video clips

Video and image sharing

FortiRecorder supports video and image sharing on the web sites. Using FortirRecorder, administrators can configure FortiRecorder and a third-party web site to allow users to access a live feed of an established camera or an image from a camera without directly accessing FortiRecorder.

Video monitoring Page 74 FortiRecorder 2.4.2 Administration Guide

To allow users to access video sharing, you must first insert the video in your web page.

For example, if your FortiRecorder runs v2.3 and older firmware, you can insert the following code in your web page:

src="https://172.20.110.94/api?request=FRC_LiveView&id=FD20&width= 640&height=480&view_mode=3&hostName=172.20.110.94&username=videoSe rvice&password=1234">

<p>iframes are not supported by your browser.</p> </iframe><br/>

Starting from v2.4, if your web browser supports HTML5, you can use the following code:

src="https://172.20.110.94/api?request=FRC_LiveView&id=FD20&width= 640&height=480&view_mode=3&hostName=172.20.110.94&username=videoSe

rvice&password=1234"> <p>iframes are not supported by your browser.</p> </iframe><br/> <script> setInterval(function() { var req = new XMLHttpRequest(); req.open('GET',

"https://172.20.110.94/api?request=FRC_LiveView&id=20A-b5fc&userna

me=videoService&password=1234&heartbeat=1", true); req.send(); }, 10000); </script>

The IP address at the beginning of the code is the IP of the FortiRecorder. The attribute ID is the name of the camera as defined on the FRC. The attribute dimensions should match the size of the iframe. The username and password values should match the configuration you specify below.

Once you have entered the code into your web page, configure the FortiRecorder unit to allow your web page to access the camera group via HTTPS.

If you want to share the video stream via RTSP, the user can use a RTSP client to access the video at:

rtsp://<username>:<password>@<fortirecorder_ip>/camera=<id>

For example:

rtsp://videoService:1234@172.20.110.94/camera=FD20

To configure video sharing on FortiRecorder

1. Go to Service > Video > Stream.

2. Select the Status checkbox.

3. Enter your username and password.

4. Add the camera group you wish the user to view by selecting the group from the Camera

Group List and then selecting the right arrow button.

5. Select the HTTPS or RTSP protocol.

6. Select OK.

You can configure your FortiRecorder unit to upload images from a camera group. Using the image service your cameras will capture a snapshot image at specified intervals. and upload the image to a FTP site.

Similar to the shared video, you will need to upload the image to your web site. Once you have finished that, configure image sharing in FortiRecorder.

Video monitoring Page 75 FortiRecorder 2.4.2 Administration Guide

To configure image sharing on FortiRecorder

1. Go to Service > Video > Image.

2. Select the Status checkbox.

3. Enter the number of seconds in the Interval section that will dictate how often the cameras

capture a picture.

4. Enter the necessary FTP information.

5. Add the camera group you wish the user to view by selecting the group from the Camera

Group List and then selecting the right arrow button.

6. Select OK.

Watching recorded video clips

In addition to live video feeds, you can also watch the recorded video clips, which include the scheduled recording, motion detection recording, and manual recording.

Color-coded video clips

Video monitoring Page 76 FortiRecorder 2.4.2 Administration Guide

Time line panel

Camera selection

and image control panel

Time periods in the time line panel are color-coded:

• Yellow — A system event such as a software update, system reboot, or camera reboot. Recordings cannot be stored while FortiRecorder is unavailable.

• Light blue — The lightest blue denotes previously recorded clips, the darker blue denotes temporary recording (see descriptions below), the darkest blue denotes manually initiated recording. If a camera is not currently recording a continuous or motion detection-triggered video, operators can manually trigger the camera to record video using the Control pane. Bright blue — A bright blue tag over a video clip represents recording with an attached annotation/marker. While a camera is recording, you can insert markers with notes about what is currently being seen. If the camera is not recording, after you enter the marker and click Insert Marker, the camera will start to record.

• Red — A motion detection-based recording that was not initiated by schedule.

• A white/blank space means there is no recording at that period of time.

About temporary recording

If the camera is not scheduled to record, but you are watching live feed from the camera, the video feed from the camera will be temporarily recorded in memory but not saved on the hard drive. When you stop watching the live feed from that camera, the temporary recording will be deleted. However, if you initiate manual recording while watching the live feed from the camera, the temporary recording will be saved on the hard drive.

To watch the recorded video

1. Go to Monitor > Video Monitor. The recorded video clips are in the Event Monitor area and

the video clips for each camera appears as a time line.

2. Be default, the time frame is minimized. To easily select a video clip, use the scroll wheel on your mouse to zoom in a time frame. Ensure that the mouse cursor is centered in the area that you want to zoom in. See the following pictures:

Video monitoring Page 77 FortiRecorder 2.4.2 Administration Guide

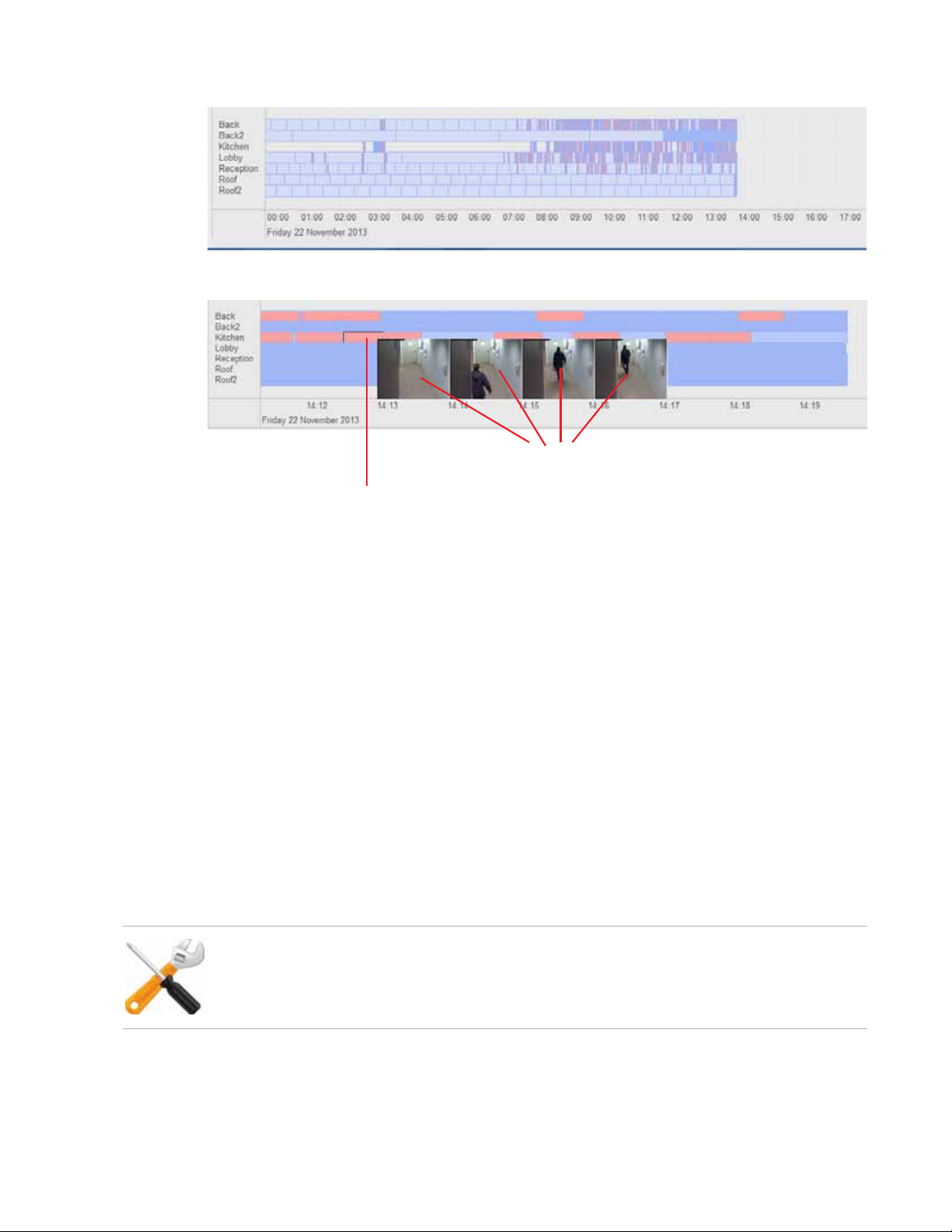

Figure 1: Time line zoomed out

Figure 2: Time line zoomed in

Preview frames

After zooming in, double-click the enlarged segment to view the clip

3. After you select the segment (if it is a motion-detection clip, a few key frames will appear for preview purpose), you can do the following:

• Click the Show button to view clip.

• Click the Download button to download the clip for archival or viewing on another

computer. If your cameras have recorded a crime or other incident, you may need to provide the video clip to the police or other authorities. Your FortiRecorder NVR uses the .mp4 file format with the H.264 video codec, which can be viewed on Windows, Mac OS X, Linux, and other platforms using QuickTime, VLC or other compatible players. All video files are signed with an RSA 2048-bit signature to provide tamper protection. This applies to files stored locally, remotely, and downloaded. Quality of previously recorded video depends on the camera’s settings in “Configuring video profiles” on page 36.

• Click the Lock button to lock the clip so that the operators and viewers will not be able to

view it.

4. To scroll through the time line, use your mouse to click and drag.

5. To set the time span of the time line, from Start date, select the beginning date of the

recording.

6. To manually control the camera to pause or start recording, in the pane on the right side, click the Control bar to expand it, then click the buttons to pause or record.

You can’t stop a scheduled continuous or motion detection-based recording schedule. You can only start/stop manual recording.

7. To adjust the image quality, in the pane on the right side, click the Control bar to expand it, then click the + or - buttons to adjust Brightness, Contrast, Saturation, and Sharpness. Only

Video monitoring Page 78 FortiRecorder 2.4.2 Administration Guide

administrators can use these controls, to prevent operators from accidentally or maliciously blacking-out the view.

Set these settings with care. After video is recorded, it won’t be possible to adjust the image quality again unless you download the file and use video editing software. Video editing software may not be able to successfully correct for excessively bad image quality

8. To add a note to the video (e.g. “Suspicious light”), in the pane on the right side, click the Control bar to expand it, type your note in the text area, then click the Insert Marker button. A bright blue marker will appear on the clip and the added note will appear as mouse over text. Note that you must zoom in to see the marker. Otherwise it is very small on the time line. See the following picture.

Figure 3: Inserted marker

See also

• Watching live video feeds

Reviewing motion detection notifications

If you have configured camera-based notifications (see “Notifications”), accounts configured to be notified can log in to the web UI in order to review the video clips. If you have configured email settings, these accounts will also receive an email when a camera-based event occurs. Notifications contain snapshot images from the video clip of the detected motion or, depending on your configuration, a link directly to the video clip. In this way, recipients can quickly assess whether or not the event is serious, or just a false alarm.

Occasionally, as an administrator, you may sometimes be required to review these notifications if, for example, the usual recipient is on vacation. You can do this from the web UI, without logging in to a separate operator account. Alternatively, you can add yourself to the list of people that will receive a notification via email (see “Notifications”).

To review camera-based notifications

1. Go to Monitor > Camera Notifications > Notification Events.

2. From Select recipient, select either All (any recipient) or the name of an account that should

have received the notification.

The list of notifications will be filtered by the recipient criteria. Only matching notifications will appear.

3. In the Message column, click the link to view the corresponding notification.

A pop-up window displays the notification that was included in the email body, if any. The notification includes some images that are key frames from the motion detection video clip.

Inserted text marker in bright blue

Video monitoring Page 79 FortiRecorder 2.4.2 Administration Guide

4. To view a video clip from the notification, click its key frame image.

The notification window will be replaced with a video clip player.

Video monitoring Page 80 FortiRecorder 2.4.2 Administration Guide

Video management

If you need to store video for longer periods of time, you can extended your FortiRecorder appliance’s built-in storage.

Local storage

Initially, your FortiRecorder appliance will store video data on its internal hard disk drive. By default, it will continue to do so, regardless of the video clip’s age, until all available space is consumed. By storing files locally first, your FortiRecorder appliance’s system resources are not continuously consumed by transferring video that may not be needed, nor by transferring them while it is recording (which is itself bandwidth-intensive). But on a per-camera basis, you can configure your FortiRecorder appliance to either delete old videos, or to move older videos to an external location.

Configuring RAID levels

FortiRecorder 400D model comes with two pre-installed hard drives in its four HDD bays and supports software RAID. This means that you can add two more hard drives if required.

Table 7: FortiRecorder 400D supported RAID levels

Number of Installed Hard Disk Drives

100

2 0, 1 1

3 0, 1 + hot spare, 5 5

4 5 + hot spare, 10 10

To configure RAID levels

Back up data on the HDD before beginning this procedure. Changing the device’s RAID level temporarily suspends all data processing and erases all data on the HDD.

1. Connect to the CLI console.

2. Enter the following command:

execute raidlevel <level>

The FortiRecorder unit changes the RAID level and reboots.

Available RAID Levels Default RAID Level

Recommended HDD models and capacities

Use surveillance grade rated models, such as Western Digital WD40PURX and Seagate ST4000VX000, with storage capacity between 2 to 4 TB.

Page 81

If you are using old disks from another system (RAID or LVM), make sure to erase all the metadata on the drives.

Adding a RAID disk

If desired, you can add one or two more hard disk drives to the FortiRecorder 400D unit.

Figure 4: Hard disk bays on FortiRecorder 400D unit

To add a disk to the RAID array

1. Remove the hard disk bay from the unit.

2. Install the hard disk in the bay.

3. Insert the bay into the unit.

4. Go to System > Storage > Local Storage.

5. Click Refresh.

6. The newly added disk will appear under Drives.

7. Add the disk to an array.

8. Click Refresh again. The new array will appear under RAID Arrays.

9. Select the new array, and adjust the portions you want to allocate to log and video storage.

10.Click Add To Logical Disks.

Replacing a RAID disk

When replacing a disk in the RAID array, the new disk must have the same or greater storage capacity than the existing disks in the array. If the new disk has a larger capacity than the other disks in the array, only the amount equal to the smallest hard disk will be used. For example, if

Video management Page 82 FortiRecorder 2.4.2 Administration Guide

the RAID has 400 GB disks, and you replace one with a 500 GB disk, to be consistent with the other disks, only 400 GB of the new disk will be used.

FortiRecorder units support hot swap; shutting down the unit during hard disk replacement is not required.

To replace a disk in the array

1. Go to System > Storage > Local Storage.

2. In the row corresponding to the hard disk that you want to replace (for example, p4), select

the hard disk and click Delete.

The RAID controller removes the hard disk from the list.

3. Protect the FortiRecorder unit from static electricity by using measures such as applying an antistatic wrist strap.

4. Physically remove the hard disk that corresponds to the one you removed in the web UI from its drive bay.

5. Replace the hard disk with a new hard disk, inserting it into its drive bay.

6. Click Refresh.

The RAID controller will scan for available hard disks and should locate the new hard disk. Depending on the RAID level, the FortiRecorder unit may either automatically add the new hard disk to the RAID unit or allocate it as a spare that will be automatically added to the array if one of the hard disks in the array fails.

The FortiRecorder unit rebuilds the RAID array with the new hard disk. Time required varies by the size of the array.

Replacing all RAID disks

If you want to replace both of the pre-installed hard drives with your own on FortiRecorder 400B and build the RAID array from scratch, follow these instructions.

Because the HTTPs certificates are stored on the hard drive, if you still need them, you must back up the configuration first. The certificates will be backed up in the configuration file. After you install the new hard drives, restore the configuration. But if you're not using the factory certificates and you're planning to import your own certificate later on, you don't have to back up the configuration/certificates.

To replace all disks in the array

1. Shut down the FortiRecorder unit.

2. Remove the hard disks.

3. Install the new hard disks.

4. Boot up the system.

5. Enter the following CLI command to rebuild the disks.

execute factoryreset disk

This command will use the default RAID level based on the number of drives used. You can also use the following command to rebuild the disks with the specified RAID level. For the supported RAID levels, see “Configuring RAID levels” on page 81.

execute raidlevel <level>

6. The system will reboot.

Video management Page 83 FortiRecorder 2.4.2 Administration Guide

External storage

To extend your local storage, you can use an external USB storage device if your FortiRecorder model has USB ports.

To safeguard your surveillance video in the event that your FortiRecorder appliance is destroyed by fire, flood, intrusion, or other event that it is recording, configure your FortiRecorder appliance to store its video at a remote location such as a branch office or cloud storage

provider.

It is recommended to connect the remote storage devices on a different interface than the cameras.

To configure external storage

1. Go to System > Storage > External Storage.

2. Select the Enable check box.

3. Configure these settings:

Setting name Description

Protocol Select one of the following types of storage media:

• External USB — External USB device.

• iSCSI Server — An iSCSI (Internet Small Computer System Interface), server.

• NFS — A network file system (NFS) server.

Note: Support for NFS varies. Many Linux-based NAS solutions have been tested and are supported. Windows 2003 R2 and Windows 2008 Service for NFS are not supported.

Maximum size Specify the maximum video file size that is allowed to be

stored on the external storage device.

You can view the remote storage usage information on the Status page under Monitor > System Status.

Username Type the user name of the FortiRecorder’s account on the

server.

Alternatively, if using iSCSI, select Initiator name as username

to authenticate using a name that follows RFC 3721.

Password Type the password corresponding to the user name.

Hostname/IP Address Type either the IP address or fully-qualified domain name

(such as nas.example.com) of the server.

Port Type the port number on which the server listens for

connections.

The default is 2049 for NFS and 3260 for iSCSI.

Video management Page 84 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Directory Enter the path of the folder on the server, relative to the mount

point or user’s login directory, where the FortiRecorder appliance will store the data.

This setting appears only if Protocol is NFS.

Note: Do not use special characters such as a tilde ( ~ ). This will cause the storage to fail.

Encryption Key Enter the private key that will be used to encrypt data stored

on this location. Valid key lengths are between 6 and 64 single-byte characters.

This setting appears only if Protocol is ISCSI Server

iSCSI ID Enter the iSCSI identifier in the format expected by the iSCSI

server, such as an iSCSI Qualified Name (IQN), Extended Unique Identifier (EUI), or T11 Network Address Authority (NAA).

This setting appears only if Protocol is ISCSI Server.

4. Click Apply.

If the remote iSCSI device has not been formatted, before you can use it, you must format it with the following CLI command: execute storage format

5. Go to Camera > Configuration > Camera, then click to select a camera’s row, then click Edit.

6. For Profile, click New or Edit.

7. From Storage Options, select Move. In the After n options that appear, select the age

threshold that will cause FortiRecorder to move the video clips to external storage. Note that the Move option only appears after you have configured and enabled external storage.

8. Click Create.

See also

• Camera settings

Video management Page 85 FortiRecorder 2.4.2 Administration Guide

System monitoring

FortiRecorder provides several methods, such as SNMP traps, system logs, and realtime dashboard, for you to monitor the system status and diagnose system problems.

The dashboard

Monitor > System Status > Status appears when you log in to the web UI. It contains a dashboard with widgets that each indicates performance level or other system statuses.

The Sessions tab displays the active TCP/UDP sessions to and from FortiRecorder.

The Console tab allows you to use the CLI commands.

To access the dashboard, you must have an administrator account. Operator accounts do not have permission. For details, see “User types”.

SNMP traps & queries

You can configure the FortiRecorder appliance’s simple network management protocol (SNMP) agent to allow queries for system information and to send traps (alarms or event messages) to the computer that you designate as its SNMP manager. In this way you can use an SNMP manager to monitor the FortiRecorder appliance.

Before you can use SNMP, you must activate the FortiRecorder appliance’s SNMP agent and add it as a member of at least one community. You must also enable SNMP access on the network interface through which the SNMP manager connects. (See “SNMP”.)

On the SNMP manager, you must also verify that the SNMP manager is a member of the community to which the FortiRecorder appliance belongs, and compile the necessary Fortinet-proprietary management information blocks (MIBs) and Fortinet-supported standard MIBs. For information on MIBs, see “MIB support”.

Failure to configure the SNMP manager as a host in a community to which the FortiRecorder appliance belongs, or to supply it with required MIBs, will make the SNMP monitor unable to query or receive traps from the FortiRecorder appliance.

To configure the SNMP agent via the web UI

1. Add the MIBs to your SNMP manager so that you will be able to receive traps and perform queries. For instructions, see the documentation for your SNMP manager.

2. Go to System > Configuration > SNMP.

Page 86

3. Configure the following:

Setting name Description

SNMP agent enable Enable to activate the SNMP agent, so that the FortiRecorder

appliance can send traps for the communities in which you enabled queries and traps. To receive queries, also SNMP on a network interface.

For more information on communities, see “Configuring an SNMP

community”.

Description Type a comment about the FortiRecorder appliance, such as

dont-reboot. The description can be up to 35 characters long, and can contain only letters (a-z, A-Z), numbers, hyphens ( - ) and underscores ( _ ).

Location Type the physical location of the FortiRecorder appliance, such as

floor2. The location can be up to 35 characters long, and can contain only letters (a-z, A-Z), numbers, hyphens ( - ) and underscores ( _ ).

Contact Type the contact information for the administrator or other person

responsible for this FortiRecorder appliance, such as a phone number (555-5555) or name (jdoe). The contact information can be up to 35 characters long, and can contain only letters (a-z, A-Z), numbers, hyphens ( - ) and underscores ( _ ).

4. If you want to use non-default thresholds to trigger SNMP traps such as high CPU usage, memory (RAM) usage, or disk/partition usage, click the disclosure arrow next to SNMP Threshold to expand the area, then configure these settings for each trap type:

Setting name Description

Trigger Click to edit, then type the percentage that when met or exceeded

will be considered an event.

Threshold Click to edit, then type the number of events that must be exceeded

during the sample period in order to cause the SNMP trap.

Sample Period (s) Click to edit, then type the amount of time in seconds during which

the appliance will count the number of trigger-exceeding events. If the count exceeds the threshold number, the SNMP trap will be sent.

Note: This must be equal to or greater than Sample Freq (s), so that one or more samples are taken per time period.

Sample Freq (s) Click to edit, then type the interval in seconds between

measurements of the trap condition. If the trigger value is exceeded, this counts as an event. You will not receive traps faster than this rate, depending on the selected sample period.

Note: This must be equal to or less than Sample Period (s), so that one or more samples are taken per time period.

5. Click Apply.

System monitoring Page 87 FortiRecorder 2.4.2 Administration Guide

6. Create at least one SNMP community to define which hosts are allowed to query, and which hosts will receive traps. See “Configuring an SNMP community”.

7. If using SNMPv3, see “Configuring SNMP v3 users”.

See also

• Configuring an SNMP community

• Configuring SNMP v3 users

Configuring an SNMP community

An SNMP community is a grouping of equipment for network administration purposes. You must configure your FortiRecorder appliance to belong to at least one SNMP community so that community’s SNMP managers can query the FortiRecorder appliance’s system information and receive SNMP traps from the FortiRecorder appliance.

On FortiRecorder, SNMP communities are also where you enable the traps that will be sent to that group of hosts.

You can add up to three SNMP communities. Each community can have a different configuration for queries and traps, and the set of events that trigger a trap. You can also add the IP addresses of up to 8 SNMP managers to each community to designate the destination of traps and which IP addresses are permitted to query the FortiRecorder appliance.

To add an SNMP community via the web UI

1. Go to System > Configuration > SNMP.

2. If you have not already configured the agent, do so before continuing. See “To configure the

SNMP agent via the web UI”.

3. Under Community, click New.

A dialog appears.

4. Configure these settings:

Setting name Description

Name Type the name of the SNMP community to which the FortiRecorder

appliance and at least one SNMP manager belongs, such as public.

The FortiRecorder appliance will not respond to SNMP managers whose query packets do not contain a matching community name. Similarly, trap packets from the FortiRecorder appliance will include community name, and an SNMP manager may not accept the trap if its community name does not match.

Caution: Fortinet strongly recommends that you do ne add FortiRecorder to the community named public. This popular default name is well-known, and attackers that gain access to your network will often try this name first.

Enable Enable this community entry.

System monitoring Page 88 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Community Hosts

IP Address Type the IP address of the SNMP manager that, if traps or queries are

enabled in this community:

• will receive traps from the FortiRecorder appliance

• will be permitted to query the FortiRecorder appliance

SNMP managers have read-only access. You can add up to 8.

To allow any IP address using this SNMP community name to query the FortiRecorder appliance, enter 0.0.0.0. For security best practice reasons, however, this is not recommended.

Caution: FortiRecorder sends security-sensitive traps, which should be sent only over a trusted network, and only to administrative equipment.

Note: If there are no other host IP entries, entering only 0.0.0.0 effectively disables traps because there is no specific destination for trap packets. If you do not want to disable traps, you must add at least one other entry that specifies the IP address of an SNMP manager.

Queries

Type each port number (161 by default) on which the FortiRecorder appliance listens for SNMP queries from the SNMP managers in this community, then enable it. Port numbers vary by SNMP v1 and SNMP v2c.

Traps Type each port number (162 by default) that will be the source (Local)

port number and destination (Remote) port number for trap packets sent to SNMP managers in this community, then enable it. Port numbers vary by SNMP v1 and SNMP v2c.

SNMP Event

Enable the types of SNMP traps that you want the FortiRecorder appliance to send to the SNMP managers in this community.

• System events (system reboot, system reload, system upgrade, log disk formatting, and video disk formatting)

• Remote storage event

• Interface IP change

• Camera events (enabling, disabling, communication failure, recording failure, IP change, and camera reboot)

While most trap events are described by their names, the following events occur when a threshold has been exceeded:

• CPU Overusage

• Memory Low

• Log Disk Usage Threshold

• Video Disk Usage Threshold

To configure their thresholds, see “To configure the SNMP agent via the

web UI”. For more information on supported traps and queries, see “MIB support”.

5. Click OK.

System monitoring Page 89 FortiRecorder 2.4.2 Administration Guide

6. To verify your SNMP configuration and network connectivity between your SNMP manager and your FortiRecorder appliance, be sure to test both traps and queries (assuming you have enabled both). Traps and queries typically occur on different port numbers, and therefore verifying one does not necessarily verify that the other is also functional. To test queries, from your SNMP manager, query the FortiRecorder appliance. To test traps, cause one of the events that should trigger a trap.

See also

• Configuring SNMP v3 users

• SNMP traps & queries

Configuring SNMP v3 users

If your SNMP manager supports SNMP v3, you can specify which of its user accounts is permitted to access information about your FortiRecorder appliance. This provides greater granularity of control over who can access potentially sensitive system information.

To specify access for an SNMP user via the web UI

1. Go to System > Configuration > SNMP.

2. If you have not already configured the agent, do so before continuing. See “To configure the

SNMP agent via the web UI”.

3. Under User, click New.

A dialog appears.

4. Configure these settings:

Setting name Description

User name Type the name of the SNMP user. This must match the name of the

account as it is configured on your SNMP manager.

You can add up to 16 users.

Enable Enable this user entry.

Security level Choose one of the three security levels:

• No authentication, no privacy — Causes SNMP v3 to behave similar to SNMP v1 and v2, which provides neither secrecy nor guarantees authenticity, and therefore is not secure. This option should only be used on private management networks.

• Authentication, no privacy — Enables authentication only, guaranteeing the authenticity of the message, but not safeguarding it from eavesdropping. Also configure Authentication protocol.

• Authentication, privacy — Enables both authentication and encryption, guaranteeing authenticity as well as secrecy. Also configure Privacy protocol.

Authentication protocol

Select either SHA-1 or MD5 hashes for authentication. Also configure a salt in Password. Both the protocols and passwords on the SNMP manager and FortiRecorder must match.

Privacy protocol

System monitoring Page 90 FortiRecorder 2.4.2 Administration Guide

Select either AES or DES encryption algorithms. Also configure a salt in Password. Both the protocols and passwords on the SNMP manager and FortiRecorder must match.

5. Similar to configuring the SNMP community, configure the other settings to specify the trap recipient IP, allowed query source IPs, and trap events (see “Configuring an SNMP

community”).

6. Click OK.

7. To verify your SNMP configuration and network connectivity between your SNMP manager

and your FortiRecorder appliance, be sure to test both traps and queries (assuming you have enabled both). Traps and queries typically occur on different port numbers, and therefore verifying one does not necessarily verify that the other is also functional. To test queries, from your SNMP manager, query the FortiRecorder appliance. To test traps, cause one of the events that should trigger a trap.

See also

• Configuring an SNMP community

• SNMP traps & queries

MIB support

The FortiRecorder SNMP agent supports the following management information blocks (MIBs):

Table 8: Supported MIBs

MIB or RFC Description

Fortinet Core MIB This Fortinet-proprietary MIB enables your SNMP manager to query for

FortiRecorder MIB This Fortinet-proprietary MIB enables your SNMP manager to query for

RFC-1213 (MIB II) The FortiRecorder SNMP agent supports MIB II groups, except:

system information and to receive traps that are common to multiple Fortinet devices.

FortiRecorder-specific information and to receive FortiRecorder-specific traps.

• There is no support for the EGP group from MIB II (RFC 1213, section 3.11 and 6.10).

• Protocol statistics returned for MIB II groups (IP, ICMP, TCP, UDP, and so on.) do not accurately capture all FortiRecorder traffic activity. More accurate information can be obtained from the information reported by the FortiRecorder MIB.

RFC-2665 (Ethernet-like MIB)

You can obtain these MIB files from the Fortinet Technical Support web site, https://support.fortinet.com/.

To communicate with your FortiRecorder appliance’s SNMP agent, you must first compile these MIBs into your SNMP manager. If the standard MIBs used by the SNMP agent are already compiled into your SNMP manager, you do not have to compile them again.

To view a trap or query’s name, object identifier (OID), and description, open its MIB file in a plain text editor.

All traps sent include the message, the FortiRecorder appliance’s serial number, and host name.

For instructions on how to configure traps and queries, see “SNMP traps & queries”.

See also

• SNMP traps & queries

The FortiRecorder SNMP agent supports Ethernet-like MIB information, except the dot3Tests and dot3Errors groups.

System monitoring Page 91 FortiRecorder 2.4.2 Administration Guide

Logging

About logs

Log messages, if you configured them (see “Configuring logging”), record important events on your FortiRecorder system.

FortiRecorder appliances can log many different activities including:

• camera recording events

• administrator-triggered events including logouts and configuration changes

• system-triggered events including system failures

For more information about log types, see “Log types”.

You can select a priority level that log messages must meet in order to be recorded. For more information, see “Log severity levels”.

The FortiRecorder appliance can save log messages to its memory, or to a remote location such as a Syslog server or FortiAnalyzer appliance. For more information, see “Configuring logging”.

See also

• Log types

• Log severity levels

Log types

Each log message contains a Type (type) field that indicates its category, and in which log file it is stored.

FortiRecorder appliances can record the following categories of log messages:

Table 9: Log types

Log type Description

Event Displays administrative events, such as downloading a backup copy of the

configuration, and hardware failures.

Camera Displays start/stop recording events, factory reset, and other camera events.

Avoid recording highly frequent log types such as traffic logs to the local hard disk for an extended period of time. Excessive logging frequency can cause undue wear on the hard disk and may cause premature failure.

System monitoring Page 92 FortiRecorder 2.4.2 Administration Guide

Log severity levels

Each log message contains a Severity (pri) field that indicates the severity of the event that caused the log message, such as pri=warning.

Table 10:Log severity levels

Level

(0 is greatest)

0 Emergency The system has become unusable.

1 Alert Immediate action is required.

2 Critical Functionality is affected.

3 Error An error condition exists and functionality could be

4 Warning Functionality could be affected.

5 Notification Information about normal events.

6 Information General information about system operations.

For each location where the FortiRecorder appliance can store log files (disk, Syslog or FortiAnalyzer), you can define a severity threshold. The FortiRecorder appliance will store all log messages equal to or exceeding the log severity level you select.

For example, if you select Error, the FortiRecorder appliance will store log messages whose log severity level is Error, Critical, Alert, and Emergency.

Name Description

affected.

Avoid recording log messages using low log severity thresholds such as information or notification to the local hard disk for an extended period of time. A low log severity threshold is one possible cause of frequent logging. Excessive logging frequency can cause undue wear on the hard disk and may cause premature failure.

Viewing log messages

You can use the web UI to view and download locally stored log messages. (You cannot use the web UI to view log messages that are stored remotely on Syslog or FortiAnalyzer devices.) Log messages are in human-readable format, where each log field’s name, such as Message (msg field when viewing a raw, downloaded log file), indicates its contents.

To view log messages

1. Go to either Monitor > Log Viewer > Event (to view event logs about the appliance itself) or

Monitor > Log Viewer > Camera (to view logs about connected cameras).

Columns and appearance varies slightly by the log type.

Initially, the page displays a list of log files of that type.

2. Double-click the row of a log file to view the log messages that it contains.

System monitoring Page 93 FortiRecorder 2.4.2 Administration Guide

Table 11: Monitor > Video Monitor > Event (viewing the contents of a log file)

Setting name Description

Level Select a severity level to hide log messages that are below this

threshold (see “Log severity levels”).

Subtype Select a subcategory (corresponding to the Subtype column) to hide

log messages whose subtype field does not match.

Go to line Type the index number of the log message (corresponding to the #

column) that you want to jump to in the display.

Search Click to find log messages matching specific criteria (see “Searching

logs”).

Back Click to return to the list of log files stored on FortiRecorder’s hard

drive.

Save View Click to keep your current log view settings for subsequent views and

sessions (see “Displaying & sorting log columns & rows”).

# The index number of the log message within the log file, not the order

of rows in the web UI.

By default, the rows are sorted by timestamp in descending order, the same as they are within the log file, so the rows are in sequential order, starting with the most recent log message, number 1, in the top row. If you change the row sorting criteria (see “Displaying & sorting

log columns & rows”), these index numbers won’t be in the same

order as the rows.

For example, when sorting by the Message column’s contents, the index numbers of the first 3 rows could be 14, 15, 9.

Note: In the current log file, each log’s index number changes as new log messages are added, pushing older logs further down the stack. To find the same log message later, remember its timestamp and Message, not its #.

Date The date on which the log message was recorded.

When in raw format, this is the log’s date field.

Time The time at which the log message was recorded.

When in raw format, this is the log’s time field.

System monitoring Page 94 FortiRecorder 2.4.2 Administration Guide

Setting name Description

Subtype The category of the log message, such as admin for events such as

authentication or configuration changes, or system for events such as disk consumption or connection failures.

When in raw format, this is the log’s subtype field.

Log ID A dynamic log identifier within the system, not predictable, indicative

of the cause nor necessarily a unique identifier. When in raw format, this is the log’s log_id field.

Message The log message that describes the specific occurrence of a

recordable event. For example, all logout events follow a format similar to User admin

logout from GUI(172.16.1.5). but the exact message varies if the account name, connection method, and IP address are different.

When in raw format, this is the log’s msg field.

3. To return to the list of log files, click the Back button.

See also

• Displaying & sorting log columns & rows

• Searching logs

Displaying & sorting log columns & rows

You can display, hide and re-order most columns — each column corresponds to a field in the log messages — to display only relevant categories of information, in your preferred order.

If you need to sort and filter the log messages based on more complex criteria, you can download the log file as a raw or CSV-formatted file for loading into external log or spreadsheet software (see “Downloading log messages”).

To display or hide columns

1. Go to one of the log types, such as Monitor > Log Viewer > Event.

2. Double-click the row of a log file to view the log messages that it contains.

3. Hover your mouse cursor over one of the column headings. An arrow will appear on the right

side of the heading. Click the arrow to display a drop-down menu, then hover your mouse cursor over the Columns item in the menu to display a list of check boxes — one for each column.

4. Select which columns to hide or display:

System monitoring Page 95 FortiRecorder 2.4.2 Administration Guide

5. To display a column such as Time, mark the check box next to its name. To disable the display of a column, clear its check box.

The page refreshes immediately, displaying the columns that you selected.

6. Column settings will not usually persist when changing pages, nor from session to session. If you want to keep the settings, you must click Save View. The log view settings will not apply to other accounts. Each administrator must configure their own settings.

To arrange the columns & rows

1. Hover your mouse cursor over the column heading.

2. Click and drag the column into the position where you want it to be.

3. Hover your mouse cursor over one of the column headings. An arrow will appear on the right

side of the heading. Click the arrow to display a drop-down menu, then click either Sort Ascending or Sort Descending to cause the rows to be sorted from either first to last, or last

to first, based upon the contents of that column.

4. Column settings will not usually persist when changing pages, nor from session to session. If you want to keep the settings, you must click Save View.

See also

• Logging

• Searching logs

• About logs

Downloading log messages

You can download logs that are stored locally (i.e., on the FortiRecorder appliance’s hard drive) to your computer.

To download a log file

1. Go to one of the log types, such as Monitor > Log Viewer > Event.

2. In the list of log files, mark the check box of the log message that you want to download.

(You can only download one log file at a time.)

3. Click Download.

A drop-down menu appears.

4. Select either:

• Normal Format — A plain text .log file.

• CSV Format — A comma-separated values (CSV) file that can be opened in spreadsheet

software such as Microsoft Excel or OpenOffice Calc.

• Compressed Format — A plain text .log file in a .gz compressed archive.

5. If a file download dialog appears, choose the directory where you want to save the file.

Your browser downloads the log file. Time required varies by the size of the file and the speed of the network connection.

See also

• Deleting log files

Deleting log files

If you have downloaded log files to an external backup, or if you no longer require them, you can delete one or more locally stored log files to free disk space.

System monitoring Page 96 FortiRecorder 2.4.2 Administration Guide

To delete a log file

1. Go to one of the log types, such as Monitor > Log Viewer > Event.

2. Either:

• To delete all log files, mark the check box in the column heading. All rows’ check boxes

will become marked.

• To delete some log files, mark the check box next to each file that you want to delete.

3. Click Delete.

See also

• Downloading log messages

Searching logs

When viewing attack logs, you can locate a specific log using the event log search function.

To search an attack log

1. Go to one of the log types, such as Monitor > Log Viewer > Event.

2. Click Search.

A dialog appears.

3. Configure these settings:

Setting name Description

Keyword Type all or part of the exact word or phrase you want to search for.

The word may appear in any of the fields of the log message (e.g. Action and/or Message), in any part of that field’s value. If entering multiple words, they must occur uninterrupted in that exact order.

For example, entering admin as a keyword will include results such as User admin2 logout from GUI(172.16.1.15) where part of the word appears in the middle of the log message. However, entering User logout would not yield any results, because in the log messages, those two words are always interrupted by the name of the account, and therefore do not exactly match your search key phrase.

Depending on your setting of Match condition, you may be able to use asterisks as wild cards to match multiple words.

This setting is optional.

Message Type all or part of the exact value of the Message (msg) field of the log

messages that you want to find.

This setting is optional.

Log ID Type all or part of the ID number of the log messages that you want to

find.

This setting is optional.

System monitoring Page 97 FortiRecorder 2.4.2 Administration Guide

4. Click Apply to initiate the search.

Event Monitor

Although in the Video Monitor, you can view both the live video and motion detection events on the timeline, the event monitor allows you to view the motion detection events only without loading the live video stream. This will save bandwidth when the bandwidth is a concern.

To view the motion detection events

1. Go to Monitor > Event Monitor.

2. On the right side, select the cameras you want to view.

3. Be default, the time frame is minimized. To easily select a video clip, use the scroll wheel on

4. After you select the segment (if it is a motion-detection clip, a few key frames will appear for

5. To scroll through the time line, use your mouse to click and drag.

6. To set the time span of the time line, from Start date, select the beginning date of the

Setting name Description

Time Select the date and time range that contains the attack log that you

are searching for.

This setting is optional.

Note: The date fields default to the current date. Ensure the date fields are set to the actual date range that you want to search.

Match condition Select whether your match criteria are specified exactly (Contain) or

you have indicated multiple possible matches using an asterisk in

Keyword (Wildcard).

The web UI displays log messages that match your search on a new tab.

your mouse to zoom in a time frame. Ensure that the mouse cursor is centered in the area that you want to zoom in. See the following pictures:

preview purpose), you can do the following:

• Click the Show button to view clip.

• Click the Download button to download the clip for archival or viewing on another

• Click the Lock button to lock the clip so that the operators and viewers will not be able to

view it.

recording.

System monitoring Page 98 FortiRecorder 2.4.2 Administration Guide

Secure connections and certificates

When a FortiRecorder appliance initiates or receives an SSL or TLS connection, it will use certificates. Certificates can be used in secure connections for:

• encryption

• authentication of servers

FortiRecorder may require you to upload certificates and CRLs even if you do not use HTTPS.

For example, when sending alert email via SMTPS, or querying an authentication server via LDAPS, FortiRecorder will validate the server’s certificate by comparing the server certificate’s CA signature with the certificates of CAs that are known and trusted by the FortiRecorder appliance. See “Uploading trusted CAs’ certificates” and “Revoking certificates”.

Supported cipher suites & protocol versions

How secure is an HTTPS connection?

A secure connection’s protocol version and cipher suite, including encryption bit strength and encryption algorithms, is negotiated between the client and the SSL terminator during the handshake. (When you connect to the web UI via HTTPS, your FortiRecorder appliance is the SSL terminator.) matrwoafoatwch ufoa hnbofTwo frbcaaPf dafcaowv fIasanIof.e dfenf daf

rssvhrntafrnIfuewcfga.f.cegoac lf

Page 99

FortiRecorder supports:

• SSL 2.0

• RC4-MD5 — 40-bit & 128-bit

• SSL 3.0

• AES-SHA — 256-bit & 128-bit

• CAMELLIA-SHA — 128-bit & 256-bit

• DES-CBC3-SHA — 168-bit

• DES-CBC-SHA — 40-bit & 56-bit

• DHE-RSA-AES-SHA — 256-bit & 128-bit

• DHE-RSA-CAMELLIA-SHA — 256-bit & 128-bit

• DHE-RSA-SEED-SHA — 128-bit

• EDH-RSA-DES-CBC3-SHA — 168-bit

• EDH-RSA-DES-CBC-SHA — 40-bit & 56-bit

• RC4-SHA — 128-bit

• RC4-MD5 — 40-bit & 128-bit

• SEED-SHA — 128-bit

• TLS 1.0

• AES-SHA — 256-bit & 128-bit

• CAMELLIA-SHA — 128-bit & 256-bit

• DES-CBC3-SHA — 168-bit

• DES-CBC-SHA — 40-bit & 56-bit

• DHE-RSA-AES-SHA — 256-bit & 128-bit

• DHE-RSA-CAMELLIA-SHA — 256-bit & 128-bit

• DHE-RSA-SEED-SHA — 128-bit

• EDH-RSA-DES-CBC3-SHA — 168-bit

• EDH-RSA-DES-CBC-SHA — 40-bit & 56-bit

• RC4-SHA — 128-bit

• RC4-MD5 — 40-bit & 128-bit

• SEED-SHA — 128-bit

AES-256 and SHA-1 are preferable. Generally speaking, for security reasons, avoid using:

• SSL 2.0

• TLS 1.0

• Older hash algorithms, such as MD5. (On modern computers, these can be cracked quickly.)

• Ciphers with known vulnerabilities, such as some implementations of RC4, AES and DES (e.g. To protect clients with incorrect CBC implementations for AES and DES, prioritize RC4.)

• Encryption bit strengths less than 128

• Older styles of re-negotiation (These are vulnerable to man-in-the-middle (MITM) attacks.)

Replacing the default certificate for the web UI
