> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P0500-P05ZZ > P0500 - P0504, ( P0501 P0502 P0503 0500 0501 0502 0503 0504 ) > System Information > System Diagnosis > P0500 ( P 0500 )

P0500 - P0504: Testing and InspectionP0500 ( P 0500 )

For diagnosis of refer to the system experiencing the problem.P0500

Computers and Control Systems or Transmission Control System

Refer to pinpoint test DF1. See: Powertrain Management/Computers and Control Systems/Testing and Inspection/Pinpoint Tests/DF - Vehicle SpeedCircuit Check

For complete Engine Control diagnostic information, See: Powertrain Management/Computers and Control Systems/Testing and Inspection

Transfer Case

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P0500-P05ZZ > P0500 - P0504, ( P0501 P0502 P0503 0500 0501 0502 0503 0504 ) > System Information

> System Diagnosis > P0500 ( P 0500 ) > Page 9

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P0500-P05ZZ > P0500 - P0504, ( P0501 P0502 P0503 0500 0501 0502 0503 0504 ) > System Information

> System Diagnosis > P0500 ( P 0500 ) > Page 10

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

For complete Transfer Case diagnostic information, See: Transmission and Drivetrain/Transfer Case/Testing and Inspection

Windshield Wiper

Part 3 Of 4

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P0500-P05ZZ > P0500 - P0504, ( P0501 P0502 P0503 0500 0501 0502 0503 0504 ) > System Information

> System Diagnosis > P0500 ( P 0500 ) > Page 11

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

For complete Windshield Wiper diagnostic information, See: Wiper and Washer Systems/Testing and Inspection

Audible Warning Device

Part 4 Of 5

For complete Audible Warning Device diagnostic information, See: Instrument Panel, Gauges and Warning Indicators/Audible WarningDevice/Testing and Inspection

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P0700-P07ZZ > P0720 - P0724, ( P0721 P0722 P0723 0720 0721 0722 0723 0724 ) > System Information > System Diagnosis > P0720 ( P 0720 )

P0720 - P0724: Testing and InspectionP0720 ( P 0720 )

Manual Transmission (M.T.)

For diagnosis of P0720 refer to chart

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P0700-P07ZZ > P0720 - P0724, ( P0721 P0722 P0723 0720 0721 0722 0723 0724 ) > System Information

> System Diagnosis > P0720 ( P 0720 ) > Page 17

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P0700-P07ZZ > P0720 - P0724, ( P0721 P0722 P0723 0720 0721 0722 0723 0724 ) > System Information

> System Diagnosis > P0720 ( P 0720 ) > Page 18

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

For complete Engine Control diagnostic information, See: Powertrain Management/Computers and Control Systems/Testing and Inspection

Automatic Transmission (A.T.)

For diagnosis of P0720 refer to chart

For complete Transmission Control diagnostic information, See: Powertrain Management/Transmission Control Systems/Testing and Inspection
For complete Engine Control diagnostic information, See: Powertrain Management/Computers and Control Systems/Testing and Inspection

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P0700-P07ZZ > P0720 - P0724, ( P0721 P0722 P0723 0720 0721 0722 0723 0724 ) > System Information > System Diagnosis > P0720 ( P 0720 ) > Page 19

P0720 - P0724: Testing and InspectionP0721 ( P 0721 )

Manual Transmission (M.T.)

For diagnosis of P0721 refer to chart

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P0700-P07ZZ > P0720 - P0724, ( P0721 P0722 P0723 0720 0721 0722 0723 0724 ) > System Information

> System Diagnosis > P0720 ( P 0720 ) > Page 20

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P0700-P07ZZ > P0720 - P0724, ( P0721 P0722 P0723 0720 0721 0722 0723 0724 ) > System Information

> System Diagnosis > P0720 ( P 0720 ) > Page 21

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

For complete Engine Control diagnostic information, See: Powertrain Management/Computers and Control Systems/Testing and Inspection

Automatic Transmission (A.T.)

For diagnosis of P0721 refer to chart

For complete Transmission Control diagnostic information, See: Powertrain Management/Transmission Control Systems/Testing and Inspection
For complete Engine Control diagnostic information, See: Powertrain Management/Computers and Control Systems/Testing and Inspection

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P1400-P14ZZ > P1460 - P1464, ( P1461 P1462 P1463 1460 1461 1462 1463 1464 ) > System Information > System Diagnosis > P1464

P1460 - P1464: Testing and InspectionP1464

For diagnosis of refer to the system experiencing the problem.P1464

Computers and Control Systems or Transmission Control System

Refer to pinpoint test KM19. See: Powertrain Management/Computers and Control Systems/Testing and Inspection/Pinpoint Tests/KM - WideOpen Throttle (WOT) A/C Cutoff Relay, A/C Circuits/KM19 - KM21
For complete Engine Control diagnostic information, See: Powertrain Management/Computers and Control Systems/Testing and Inspection

Heating and Air Conditioning

For complete Heating and Air Conditioning diagnostic information, See: Heating and Air Conditioning/Testing and Inspection

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P1800-P18ZZ > P1800 - P1804, ( P1801 P1802 P1803 1800 1801 1802 1803 1804 ) > System Information > System Diagnosis

P1800 - P1804: Testing and Inspection

For diagnosis of refer to the system experiencing the problem.P1804

Transfer Case

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P1800-P18ZZ > P1800 - P1804, ( P1801 P1802 P1803 1800 1801 1802 1803 1804 ) > System Information

> System Diagnosis > Page 31

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

For complete Transfer Case diagnostic information, See: Transmission and Drivetrain/Transfer Case/Testing and Inspection

Instrument Panel

Part 3 Of 4

For complete Instrument Panel diagnostic information, See: Instrument Panel, Gauges and Warning Indicators/Instrument Cluster/Testing andInspection

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P1800-P18ZZ > P1805 - P1809, ( P1806 P1807 P1808 1805 1806 1807 1808 1809 ) > System Information > System Diagnosis > P1806

P1805 - P1809: Testing and InspectionP1806

For diagnosis of refer to the system experiencing the problem.P1806

Transfer Case

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P1800-P18ZZ > P1805 - P1809, ( P1806 P1807 P1808 1805 1806 1807 1808 1809 ) > System Information

> System Diagnosis > P1806 > Page 36

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

For complete Transfer Case diagnostic information, See: Transmission and Drivetrain/Transfer Case/Testing and Inspection

Instrument Panel

Part 3 Of 4

For complete Instrument Panel diagnostic information, See: Instrument Panel, Gauges and Warning Indicators/Instrument Cluster/Testing andInspection

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P1800-P18ZZ > P1805 - P1809, ( P1806 P1807 P1808 1805 1806 1807 1808 1809 ) > System Information > System Diagnosis > P1806 > Page 37

P1805 - P1809: Testing and InspectionP1808

For diagnosis of refer to the system experiencing the problem.P1808

Transfer Case

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P1800-P18ZZ > P1805 - P1809, ( P1806 P1807 P1808 1805 1806 1807 1808 1809 ) > System Information

> System Diagnosis > P1806 > Page 38

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

For complete Transfer Case diagnostic information, See: Transmission and Drivetrain/Transfer Case/Testing and Inspection

Instrument Panel

Part 3 Of 4

For complete Instrument Panel diagnostic information, See: Instrument Panel, Gauges and Warning Indicators/Instrument Cluster/Testing andInspection

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P1800-P18ZZ > P1810 - P1814, ( P1811 P1812 P1813 1810 1811 1812 1813 1814 ) > System Information > System Diagnosis > P1810

P1810 - P1814: Testing and InspectionP1810

For diagnosis of refer to the system experiencing the problem.P1810

Transfer Case

> A L L Diagnostic Trouble Codes ( DTC ) > Codes by Number > P1800-P18ZZ > P1810 - P1814, ( P1811 P1812 P1813 1810 1811 1812 1813 1814 ) > System Information

> System Diagnosis > P1810 > Page 43

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

For complete Transfer Case diagnostic information, See: Transmission and Drivetrain/Transfer Case/Testing and Inspection

Instrument Panel

Part 3 Of 4

For complete Instrument Panel diagnostic information, See: Instrument Panel, Gauges and Warning Indicators/Instrument Cluster/Testing andInspection

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Accessory Delay Module > Accessory Delay Relay > Component Information > Diagrams

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Accessory Delay Module > Accessory Delay Relay > Component Information > Diagrams> Page 50

Accessory Delay Relay: Testing and Inspection

Component Testing Procedure

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Accessory Delay Module > Accessory Delay Relay > Component Information >

Diagrams > Page 51

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

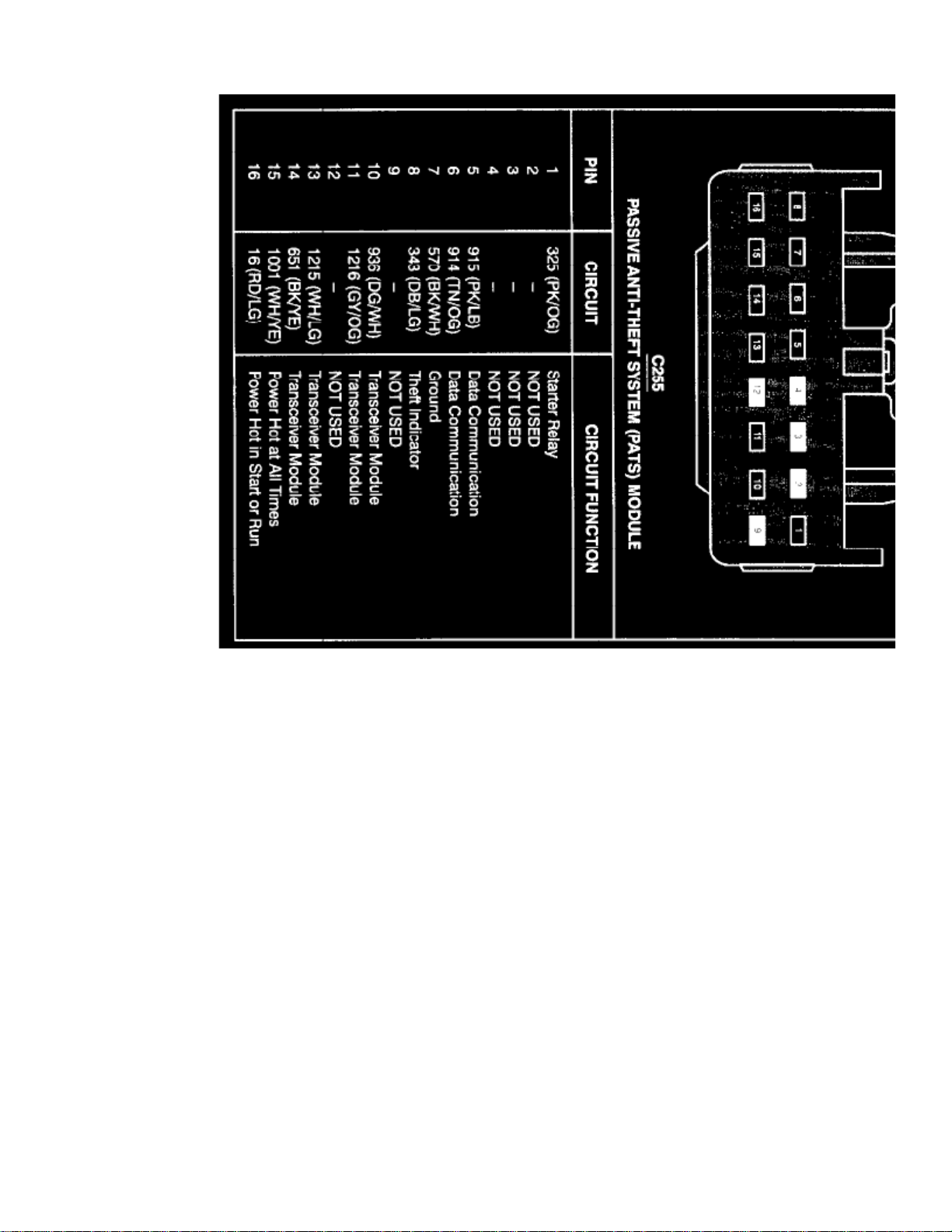

Terminals

Schematic

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Specifications

Alarm Module: Specifications

Passive Anti-Theft Transceiver Module Screw1.8-2.6 Nm

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Specifications > Page 55

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Service and Repair > Module - Passive Anti-Theft System (PATS)

Alarm Module: Service and RepairModule - Passive Anti-Theft System (PATS)
REMOVAL

1. Remove the passenger side air bag module.

2. Remove the Passive Anti-Theft System module and bracket.(PATS)

1 Remove the bolts.
2 Disconnect the electrical connector.

3. Release the retainer tabs and remove the PATS module from the bracket.

INSTALLATION

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Service and Repair >

Module - Passive Anti-Theft System (PATS) > Page 58

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

1. To install, reverse the removal procedure.

Once the new module is installed, it is necessary to configure the module.CAUTION:

^NOTE:

Prior to starting the vehicle, check for PATS DTCs. Perform the appropriate pinpoint test.

^

when the PATS module is replaced, both ignition keys must be relearned and stored in memory. Insert each key in the ignition and turn toRUN for automatic programming.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Service and Repair > Module - Passive Anti-Theft System (PATS) > Page

59

Alarm Module: Service and RepairModule - Passive Anti-Theft Transceiver
REMOVAL

1. Disconnect the battery ground cable.

Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.CAUTION:

2. Remove the ignition switch lock cylinder.
1 Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.
2 Push the ignition switch lock cylinder release tab with a punch while pulling out the ignition switch lock cylinder.

3. Twist the tilt wheel handle and shank and remove.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Service and Repair >

Module - Passive Anti-Theft System (PATS) > Page 60

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

4. Remove the upper and lower steering column shrouds.

1 Remove the screws.
2 Remove the upper and lower steering column shrouds.

5. Remove the hood latch release handle.
1 Remove the screws
2 Remove the hood latch release handle.

6. Remove the lower instrument panel steering column cover.
1 Remove the screws.
2 Remove the lower instrument panel steering column cover.

7. Remove the instrument panel steering column opening cover reinforcement.
1 Remove the screws.
2 Remove the instrument panel steering column opening cover reinforcement.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Service and Repair >

Module - Passive Anti-Theft System (PATS) > Page 61

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

8. Remove the transceiver assembly.

1 Remove the screw.
2 Locate the rib on the steering column lock cylinder housing, and gently release the anti-theft transceiver over the rib.

Only apply pressure or leverage below the key cylinder lower rib.NOTE:

3 Disconnect the electrical connector.

The steering wheel is shown removed for clarity.NOTE:

INSTALLATION

1. To install, reverse the removal procedure.

6NOTE:

When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy.The vehicle may need to be driven or more to relearn the strategy.16 km (10 mi)

6 No key replacement or re-initialization needs to occur with the removal or installation of a new PATS Transceiver.
^ The steering wheel is shown removed for clarity.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Service and Repair > Module - Passive Anti-Theft System (PATS) > Page

62

Alarm Module: Service and RepairRemote Anti-Theft Personality Module
REMOVAL

1. Disconnect the battery ground cable.

Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.CAUTION:

2. Remove the rear inner trim panel.

3. Remove the RAP module.
1 Disconnect electrical connectors.
2 Remove the bolts.

INSTALLATION

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Service and Repair >

Module - Passive Anti-Theft System (PATS) > Page 63

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

1. To install, reverse the removal procedure.

NOTE:

When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptivestrategy. The vehicle may need to be driven or more to relearn the strategy.10 miles (16 km)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component Information > Technical Service Bulletins > Customer

Interest for Multifunction Electronic Control Module: > 99-26-4 > Dec > 99 > Speedometer/Odometer - Inaccurate/Inoperative

Multifunction Electronic Control Module: Customer InterestSpeedometer/Odometer - Inaccurate/Inoperative

Article No.99-26-4
12/27/99

SPEEDOMETER - INACCURATE SPEEDOMETER READINGS

FORD:1998-2000 EXPLORER, MOUNTAINEER, RANGER
This TSB article is being republished in its entirety to include 2000 model year vehicles.

ISSUEThe vehicle odometer/speedometer may be inoperative or inaccurate as well as Malfunction Indicator Lamp (MIL) illuminated after the GenericElectronic Module (GEM), Central Timer Module (CTM), or the 4-Wheel Anti-lock Brake System (4WABS) Module has been replaced. This may becaused by either the GEM, CTM, or the 4WABS Module tire and axle size calibration.

ACTIONReprogram the GEM, CTM, or 4WABS Module to match the vehicle attributes. Refer to the following Service Procedure for details.
SERVICE PROCEDURE

In the event a 1998 through 2000 Ranger GEM/CTM/4WABS or a 1998 through 2000 Explorer/Mountaineer 4WABS/C TM component requiresservice or replacement, the module(s) must be configured for proper operation using a New Generation Star (NGS) Tester and version 6.0 Servicefunction card. If you do not have version 6.0 loaded, use the latest version Service Bay Technical System (SBTS) CD to download NGS ServiceFunction Card Version 6.0 software to the green NGS service card for configuring modules. To configure modules, follow these instructions:

1. SELECT: SERVICE BAY FUNCTIONS

2. SELECT: GEM, CTM or ABS

3. For ABS, proceed to Step 4. For GEM or CTM,
SELECT: CUSTOMER PREFERENCES

4.
SELECT: TIRE SIZE/AXLE RATIOCONFIGURE

a. The NGS Tester will display "DETERMINING MODULE PROTOCOL, PLEASE WAIT"
b. When NGS Tester is ready, press {TRIGGER} to continue.

5. ENTER TIRE SIZE/REVOLUTIONS PER MILE (REV/MILE)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Technical Service Bulletins > Customer Interest for Multifunction Electronic Control Module: > 99-26-4 > Dec > 99 > Speedometer/Odometer - Inaccurate/

Inoperative > Page 72

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

NOTE

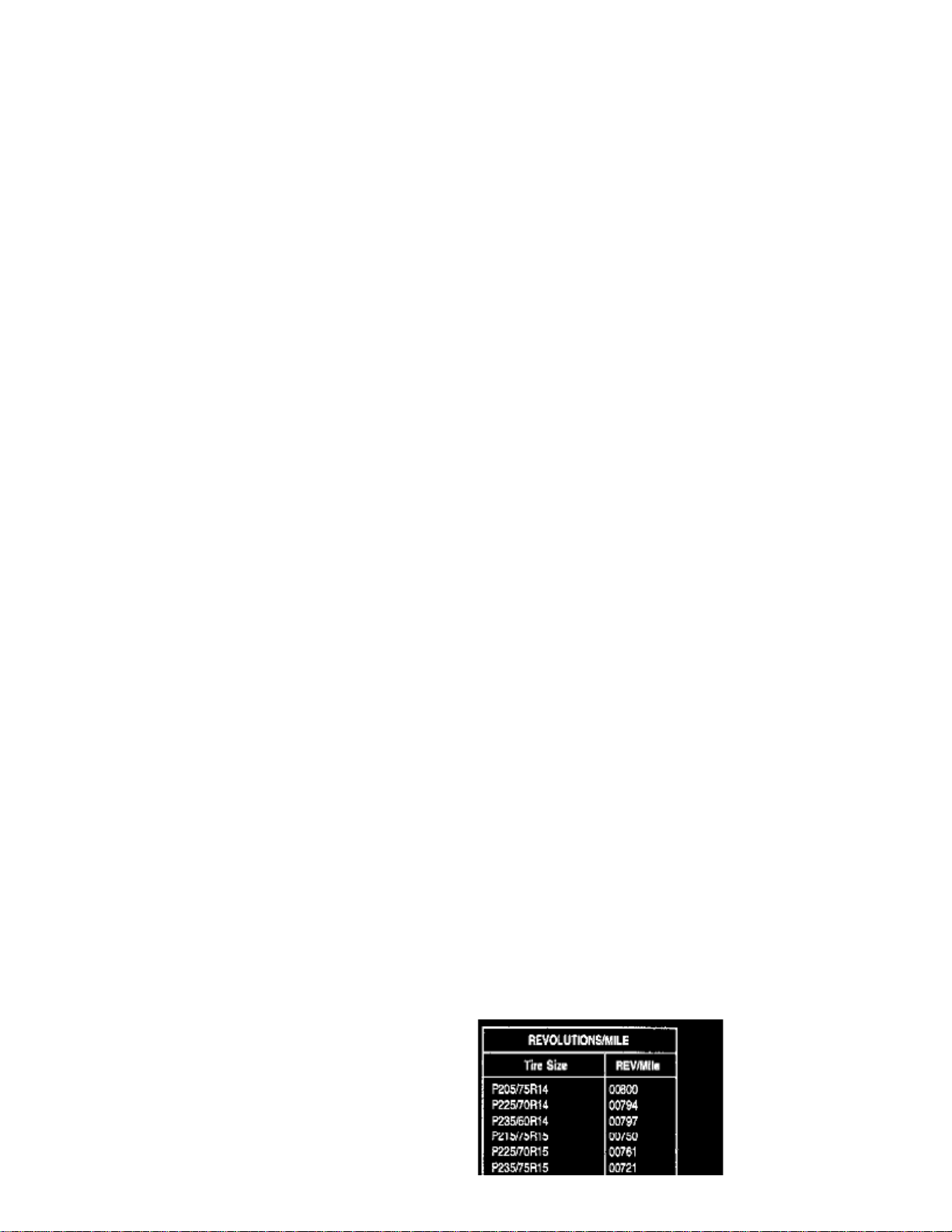

THE TIRE SIZE MUST BE ENTERED AS A REV/MILE CALCULATION. REFER TO THE REV/MILE CHART FOR THE CORRECTCALCULATION.

6. ENTER AXLE/TONE RING SIZE

NOTE

4X2 RANGERS EQUIPPED WITH A 2.5L OR 3.0L ENGINE HAVE A 7.5" AXLE. 4X4 AND 4.0L RANGERS HAVE AN 8.8" AXLE. ALLEXPLORERS/MOUNTAINEERS HAVE AN 8.8" AXLE. IF THE SPECIFIC AXLE CANNOT BE SELECTED, ENTER THE AXLE TONERING TOOTH SIZE USING (00102) FOR 7.5" AXLES AND (00108) FOR 8.8" AXLES.

7. ENTER OPTIONS

NOTE

SELECT 4WABS, RABS, OR NA (IF NOT EQUIPPED).

8. ENTER VEHICLE

9.
SELECT: DONE - The NGS Tester will display "MODULE CONFIGURATION COMPLETE." The module is now properly configured. Press{TRIGGER} to exit.

10. Verify with road test.

OTHER APPLICABLE ARTICLES: NONE
SUPERSEDES: 99-18-13
WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage And Emissions Warranty Coverage
OPERATION DESCRIPTION TIME

992604A Reprogram Generic 0.7 Hr.

Electronic Module (GEM),Central Timer Module(CTM), Or 4-WheelAnti-Lock Brake System(4WABS) Module

DEALER CODING

CONDITION
BASIC PART NO. CODE
14B205 42
2C219 42

OASIS CODES: 201000, 201100, 202000, 204000, 204200, 205000, 206000, 290000, 301000, 508000

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component Information > Technical Service Bulletins > All Technical

Service Bulletins for Multifunction Electronic Control Module: > 99-26-4 > Dec > 99 > Speedometer/Odometer - Inaccurate/Inoperative

Multifunction Electronic Control Module: All Technical Service BulletinsSpeedometer/Odometer - Inaccurate/Inoperative

Article No.99-26-4
12/27/99

SPEEDOMETER - INACCURATE SPEEDOMETER READINGS

FORD:1998-2000 EXPLORER, MOUNTAINEER, RANGER
This TSB article is being republished in its entirety to include 2000 model year vehicles.

ISSUEThe vehicle odometer/speedometer may be inoperative or inaccurate as well as Malfunction Indicator Lamp (MIL) illuminated after the GenericElectronic Module (GEM), Central Timer Module (CTM), or the 4-Wheel Anti-lock Brake System (4WABS) Module has been replaced. This may becaused by either the GEM, CTM, or the 4WABS Module tire and axle size calibration.

ACTIONReprogram the GEM, CTM, or 4WABS Module to match the vehicle attributes. Refer to the following Service Procedure for details.
SERVICE PROCEDURE

In the event a 1998 through 2000 Ranger GEM/CTM/4WABS or a 1998 through 2000 Explorer/Mountaineer 4WABS/C TM component requiresservice or replacement, the module(s) must be configured for proper operation using a New Generation Star (NGS) Tester and version 6.0 Servicefunction card. If you do not have version 6.0 loaded, use the latest version Service Bay Technical System (SBTS) CD to download NGS ServiceFunction Card Version 6.0 software to the green NGS service card for configuring modules. To configure modules, follow these instructions:

1. SELECT: SERVICE BAY FUNCTIONS

2. SELECT: GEM, CTM or ABS

3. For ABS, proceed to Step 4. For GEM or CTM,

SELECT: CUSTOMER PREFERENCES

4.

SELECT: TIRE SIZE/AXLE RATIOCONFIGURE
a. The NGS Tester will display "DETERMINING MODULE PROTOCOL, PLEASE WAIT"
b. When NGS Tester is ready, press {TRIGGER} to continue.

5. ENTER TIRE SIZE/REVOLUTIONS PER MILE (REV/MILE)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Multifunction Electronic Control Module: > 99-26-4 > Dec > 99 > Speedometer/Odometer -

Inaccurate/Inoperative > Page 78

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

NOTE

THE TIRE SIZE MUST BE ENTERED AS A REV/MILE CALCULATION. REFER TO THE REV/MILE CHART FOR THE CORRECTCALCULATION.

6. ENTER AXLE/TONE RING SIZE

NOTE

4X2 RANGERS EQUIPPED WITH A 2.5L OR 3.0L ENGINE HAVE A 7.5" AXLE. 4X4 AND 4.0L RANGERS HAVE AN 8.8" AXLE. ALLEXPLORERS/MOUNTAINEERS HAVE AN 8.8" AXLE. IF THE SPECIFIC AXLE CANNOT BE SELECTED, ENTER THE AXLE TONERING TOOTH SIZE USING (00102) FOR 7.5" AXLES AND (00108) FOR 8.8" AXLES.

7. ENTER OPTIONS

NOTE

SELECT 4WABS, RABS, OR NA (IF NOT EQUIPPED).

8. ENTER VEHICLE

9.

SELECT: DONE - The NGS Tester will display "MODULE CONFIGURATION COMPLETE." The module is now properly configured. Press{TRIGGER} to exit.

10. Verify with road test.
OTHER APPLICABLE ARTICLES: NONE
SUPERSEDES: 99-18-13
WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage And Emissions Warranty Coverage
OPERATION DESCRIPTION TIME

992604A Reprogram Generic 0.7 Hr.

Electronic Module (GEM),Central Timer Module(CTM), Or 4-WheelAnti-Lock Brake System(4WABS) Module

DEALER CODING

CONDITION
BASIC PART NO. CODE
14B205 42
2C219 42

OASIS CODES: 201000, 201100, 202000, 204000, 204200, 205000, 206000, 290000, 301000, 508000

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component Information > Technical Service Bulletins > Page 79

Multifunction Electronic Control Module: Locations

The Generic Electronic Module is located behind center of instrument panel.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information and

Instructions

Multifunction Electronic Control Module: Diagram Information and Instructions

How to Find and Use These Diagrams

Diagrams are presented in three main categories:

- Power Distribution Diagrams

- System Diagrams

- Grounds Diagrams

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 82

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 83

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

Diagram 13-7 (Sample Power Distribution Diagram Page)

Power Distribution Diagrams

Provide the circuit details of how the system diagrams are powered. The power distribution source is shown at the top of a diagram page. All wires,connectors, and splices are shown in the same manner that the current flows, ending at the component/system being powered near the bottom of adiagram page. Circuits that go from one diagram page to another will be marked with large arrow heads indicating which diagram page the circuit wentto/came from.
The power distribution diagrams can be found at Starting and Charging/Power and Ground Distribution, or by following the hyperlinks at the top of the

diagram pages within the system diagrams.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 84

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

Diagram 85-1 (Sample System Diagram Page)

System Diagrams

Components that work together are shown together in a system/subsystem diagram or set of diagrams. The system feed (circuit breaker, fuse, etc.) isshown at the top of a diagram page. All wires, connectors, components, and splices are shown in the same manner that the current flows, ending at theground at the bottom of a diagram page. Circuits that go from one diagram page to another will be marked with large arrow heads indicating whichdiagram page the circuit went to/came from.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 85

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

Diagram 10-1 (Sample Grounds Diagram Page)

Grounds Diagrams

Provide the circuit details of how the system diagrams are grounded. This information is useful for checking interconnections of the grounding circuitsof different systems. The components/systems being grounded are shown at the top of a diagram page. All wires, connectors, and splices are shown in thesame manner that the current flows, ending at the ground at the bottom of a diagram page. Circuits that go from one diagram page to another will bemarked with large arrow heads indicating which diagram page the circuit went to/came from.

The grounds diagrams can be found at Starting and Charging/Power and Ground Distribution, or by following the hyperlinks at the bottom of thediagram pages within the system diagrams.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 86

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 87

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

Electrical Symbols

Wire Color Code Identification

Wire and connector colors are listed as follows (standard Ford color abbreviations are used):

BUCOLOR ABBREVIATIONS

Blue NA Natural

BK Black OG Orange

BN Brown PK Pink
DB Dark Blue VT Purple
DG Dark Green RD Red
GN Green SR Silver
GY Gray TN Tan
LB Light Blue WH White
LG Light Green YE Yellow

Note:

Whenever a wire is labeled with two colors, the first color listed is the basic color of the wire, and the second color listed is the stripemarking of the wire.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information and

Instructions > Page 88

Multifunction Electronic Control Module: Diagnostic Aids

HOW TO FIND ELECTRICAL CONCERNS

TROUBLESHOOTING STEPS

These six steps present an orderly method of troubleshooting.

Step 1. Verify the concern.

- Operate the complete system to check the accuracy and completeness of the customer's complaint.

Step 2. Narrow the concern.

- Using the wiring diagrams, narrow down the possible causes and locations of the concern to pinpoint the exact cause.

­Read the description notes at the components and study the wiring schematic. You should then know enough about the circuit operation todetermine where to check for the trouble.

Step 3. Test the suspected cause.

- Use electrical test procedures to find the specific cause of the symptoms.

­The component location reference bars and the pictures will help you find components. Component location information for connectors,diodes, resistors, splices and grounds can be found at Vehicle Locations.

Step 4. Verify the cause.

­Confirm that you have found the correct cause by connecting jumper wires and/or temporarily installing a known good component andoperating the circuit.

Step 5. Make the repair.

- Repair or replace the inoperative component.

Step 6. Verify the repair.

- Operate the system as in Step 1 and check that your repair has removed all symptoms without creating any new symptoms.

Some engine circuits may need special test equipment and special procedures. See Testing and Inspection for the specific component, system, orsub-system in question.

NOTE:

Most Ford testing and inspection procedures will be found at the system/sub-system level; only a few component tests are provided byOE.

TROUBLESHOOTING TOOLS

JUMPER WIRE

This is a test lead used to connect two points of a circuit. A Jumper Wire can bypass an open to complete a circuit.

WARNING: Never use a jumper wire across loads (motors,etc.) connected between hot and ground. This direct battery short may causeinjury or fire.

VOLTMETER

A DC Voltmeter measures circuit voltage. Connect negative (- or black) lead to ground, and positive (+ or red) lead to voltage measuring point.

OHMMETER

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 89

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

An Ohmmeter shows the resistance between two connected points.

TEST LAMP

12-volt

A Test Light is a bulb with two test leads. Voltage Check, Short Check.Uses:

SELF-POWERED TEST LAMP

CAUTION: When using a self -powered test lamp or ohmmeter; be sure power is off in circuit during testing. Hot circuits can causeequipment damage and false readings.

In an inoperative circuit with a switch in series with the load, jumper the terminals of the switch to power the load. If jumpering the terminalspowers the circuit, the switch is inoperative.

CONTINUITY CHECK(Locating open circuits)

Connect one lead of Self-Powered Test Lamp or Ohmmeter to each end of circuit. Lamp will glow if circuit is closed. Switches and fuses can bechecked in the same way.

VOLTAGE CHECK

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 90

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

The Self-Powered Test Lamp is a bulb, battery and set of test leads wired in series. When connected to two points of a continuous circuit, the bulbglows. Continuity Check, Ground Check.Uses:

Connect one lead of test lamp to a known good ground or the negative (-) battery terminal. Test for voltage by touching the other lead to the test

point. Bulb goes on when the test point has voltage.

SHORT CHECK

A fuse that repeatedly blows is usually caused by a short to ground. It's important to be able to locate such a short quickly.1. Turn off everything powered through the fuse.2. Disconnect other loads powered through the fuse:

- Motors: disconnect motor connector (Connector C4).

- Lights: remove bulbs.

3. Turn Ignition Switch to RUN (if necessary) to power fuse.4. Connect one Test Lamp lead to hot end of blown fuse. Connect other lead to ground. Bulb should glow, showing power to fuse. This step is
just a check to be sure you have power to the circuit)

5. Disconnect the test lamp lead that is connected to ground, and reconnect it to the load side of the fuse at the connector of the disconnected
component. (Connect the test lamp lead to connector C4).-

If the Test Lamp is off, the short is in the disconnected component.

-

GROUND CHECK

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 91

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

If the Test Lamp goes on, the short is in the wiring. You must find the short by disconnecting the circuit connectors, one at a time, until theTest Lamp goes out. For example, with a ground at X, the bulb goes out when C1 or C2 is disconnected, but not after disconnecting C3.This means the short is between C2 and C3.

Turn on power to the circuit. Perform a Voltage Check between the suspected inoperative ground and the frame. Any indicated voltage means that theground is inoperative.

Turn off power to the circuit. Connect one lead of a Self-Powered Test Lamp or Ohmmeter to the wire in question and the other lead to a knownground. If the bulb glows, the circuit ground is OK.

DIAGRAMS

These diagrams make it easy to identify common points in circuits. This knowledge can help narrow the concern to a specific area. For example, ifseveral circuits fail at the same time, check for a common power or ground connection (see Power and Ground Distribution Diagrams). If part of a

circuit fails, check the connections between the part that works and the part that doesn't work.

For example, if the lo beam headlamps work, but the high beams and the indicator lamp don't work, then power and ground paths must be good. Sincethe dimmer switch is the component that switches this power to the high beam lights and indicator, it is most likely the cause of failure.

TROUBLESHOOTING WIRING HARNESS AND CONNECTOR HIDDEN CONCERNS

The following illustrations are known examples of wiring harness, splices and connectors that will create intermittent electrical concerns. The concernsare hidden and can only be discovered by a physical evaluation as shown in each illustration.

NOTE:

Several components, such as the PCM, utilize gold plated terminals in their connections to the wiring harness. If those terminals need to bereplaced, they must be replaced with a gold plated terminal.

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 92

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 93

Ranger 4WD V6-245 4.0L VIN X SFI (1999)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multifunction Electronic Control Module <--> [General Module] > Component

Information > Diagrams > Diagram Information and Instructions > Page 94

Ranger 4WD V6-245 4.0L VIN X SFI (1999)
