Ford Ranger User Manual

Download
RANGER/DRIFTER.RHD.EWD
Thi s Manual has been prepared to pro vide in formati on co vering normal service repairs and maintenan ce for the RANGER / DRIFTER SERIES.
As all info rmat ion in t his manual was the best avai lable at th e t ime of printin g, vehicle specification and ot her information will be updated in Service Information.
Ford/Mazda Motor Company
Servicing a vehicl e can be dan gerous. If you have not recei ved service-related t raining, t he risks of inj ury, property damage, and f ailure of servi cing in crease. The recommended servicing procedures for the vehi cle in this workshop manual were developed with Ford/Mazda-trained technicians in mind. This manual may be useful to non-Ford/Mazda trained technicians, but a technician with our service-related training and experience will be at less risk when performing service operations. However, all users of this manual are excepted at l east t o know g eneral safety pro cedures.
Thi s manu al co ntain s "Warn ings" and "Cau tion s" appl icabl e to risks n ot no rmally en countered in a general technician's experience. They should be followed to reduce the risk of injury and the risk that improper service or repair may damage the vehicle or render it unsafe. It is also important to understand that the "Warnings" and "Cautions" are not exhaustive. It is impossible to warn of all the hazardous consequences that might result from failure to follow the procedures.
The procedu res recommended and described in this manual are effective methods of performing service and repair. Some require tools specifically designed for a specific purpose. Persons using procedures and tools, which are not recommended by Fo rd/Mazda Motor Corporation, must satisfy t hemselves thoroughly that neither personal safety nor safety of the vehicle will be jeopardized.
The contents of this manu al, includ ing drawi ngs and specifi cations, are the l atest available at the t ime of printi ng, and F ord/Mazda Mo tor Corporati on reserves the rig ht to chang e the vehicle desi gns and alter t he contents of this manual without notice and without incurring obligation.
Parts should be replaced with genu ine F ord/M azda repl acement part s or wit h parts, whi ch match the qual ity of genuine Ford/Mazda replacement parts. Persons using replacement parts of lesser quality than that of genui ne Ford/ Mazda replacemen t parts must sat isfy themselves th oroughly that neither personal safety nor safety of the vehicle will be jeopardized.
Ford/Mazda Motor Corporation is not responsible for any problems, which may arise from the use of this manual. The cause of such problems in cludes bu t is not limited to insuffi cient service relat ed training, use of improper tools, use of replacement parts of lesser quality than that of genuine Ford/Mazda replacement parts, or not being aware of any revision of this manual.
VIEW MAIN INDEX
TO MODEL INDEX
Ranger/Drifter
Wiring Diagram RHD
FOREWORD
WARNING
TO. MODEL .INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
BACK TO FOREWORD & MAIN INDEX
Ranger/Drifter
Wiring Diagram RHD
CONTENTS
TITLE Section
GENERAL INFORMATION OF WIRING DIAGRAMS
GROUND POINTS
ELECTRICAL WIRING SCHEMATIC W
SYSTEM CIRCUIT DIAGRAM/ CONNECTOR LOCATIONS
COMMON CONNECTORS X
GI
Y
A~U
APPLICATION: This manual applies to vehicles beginning with the Vehicle Identification Numbers (VIN) on the following page.
PARTS INDEX PI
© 1999 Mazda Motor C or por ation
PRINTED IN JAPAN, JAN . 1999 5450-10-99A
BACK.TO.MAIN.INDEX
RANGER/DRIFTER.RHD.EWD
VEHICLE IDENTIFICATION NUMBERS (VIN)
(CHASSIS NUMBER)
U.K. specs.
JMZ UN1B320W 100001­JMZ UN8B320W 100001­JMZ UN8F420W 100001-
General specs. (R.H.D.)
MM6 UNY02100 100001­MM6 UNY0W100 100001-
WIRING COLOR CODE
Color Code Color Code
Blue L Orange O Black B Pink P Brown BR Red R Dark Blue DL Purple PU Dark Green DG Sky Blue SB Green G Tan T Gray GY White W Light Blue LB Yellow Y Light Green LG Violet V Natural N
PAGES. FROM. MANUAL
TO. MODEL .INDEX
CONTINUED
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
TO. MODEL .INDEX
BACK.TO.MAIN.INDEX
RANGER/DRIFTER-RHD-EWD
SYSTEM INDEX
GENERAL INFORMATION....................................Z-2/11
GROUND POINTS-WL,WL TURBO ....... ...........Z-12/13
F2 CARB
ELECTRICAL WIRING SCHEMATIC.....................Z-16
WL,WL TURBO.................... Z16
ENGINE-RELATED SYSTEMS
STARTING SYSTEM
CHARGING SYSTEM
POWERTRAIN CONTROL SYSTEM
F2 CARB..............................................................Z-32/33
QUICK-START SYSTEM
GLOW SYSTEM
IGNITION SYSTEM.............................................Z-30/31
FUEL CONTROL SYSTEM.................................Z-34/35
CHASSIS-RELATED SYSTEMS
REMOTE FREEWHEEL CONTROL SYSTEM
INSTRUMENT CLUSTER-RELATED SYSTEMS
INSTRUMENT CLUSTER
..................................................
.. ...................................Z-17
.F2 CARB ...................
WL, WL Turbo..................................................Z-18/19
F2 CARB..........................................................Z-20/21
WL, WL Turbo..................................................Z-18/19
F2 CARB..........................................................Z-20/21
WL:GENERAL SPECS.....................................Z-22/25
WL:U.K. SPECS...............................................Z-26/29
WL Turbo..........................................................Z-26/29
WL....................................................................Z-22/25
WL, WL Turbo..................................................Z-26/29
WL, WL Turbo..................................................Z-36/41
F2 CARB..........................................................Z-42/45
..................
..................................
Z-14/15
.....Z-62/63
INTERIOR LIGHTING SYSTEMS
ILLUMINATION LIGHTS......................................Z-64/65
INTERIOR LIGHT................................................Z-68/69
EXTERIOR LIGHTING SYSTEMS
HEADLIGHTS
WITHOUT HEADLIGHT LEVELING SYSTEM
WITH HEADLIGHT LEVELING SYSTEM........Z-50/51
LICENSE PLATE LIGHTS...................................Z-52/53
PARKING LIGHTS...............................................Z-52/53
TAILLIGHTS........................................................Z-52/53
REAR FOG LIGHT...............................................Z-52/53
TURN AND HAZARD WARNING LIGHTS..........Z-54/55
BACK-UP LIGHTS...............................................Z-56/57
BRAKE LIGHTS...................................................Z-56/57
AIR CONDITIONING-RELATED SYSTEMS
HEATER AND AIR CONDITIONER
WL, WL Turbo..................................................Z-58/59
F2 CARB..........................................................Z-60/61
ACCESSORIES
CIGARETTE LIGHTER........................................Z-66/67
CLOCK.................................................................Z-66/67
OUTLET...............................................................Z-66/67
AUDIO SYSTEM..................................................Z-70/71
OTHERS
DATA LINK CONNECTOR..................................Z-88/89
COMMON CONNECTOR LIST..............................Z-90/91
PARTS INDEX........................................................Z-92/93
.Z-48/49
BODY-RELATED SYSTEMS
WINDSHIELD WIPER AND WASHER................Z-46/47
HORN..................................................................Z-56/57
REAR WINDOW DEFROSTER...........................Z-66/67
POWER WINDOWS
REGULAR CAB,STRETCH CAB.....................Z-72/73
DOUBLE CAB..................................................Z-74/75
POWER DOOR LOCKS......................................Z-76/77
POWER OUTSIDE MIRRORS............................Z-78/79
CONTINUED
CONTINUED
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
CONTINUED
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
CONTINUED
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
CONTINUED
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
CONTINUED
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
CONTINUED
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
CONTINUED
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
CONTINUED
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
CONTINUED
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
CONTINUED
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
B/R
B/R
B/R
B/R
B
B
B
B(F)
11
3
HARNESS
FRONT
WIHT FUEL INJECTION PUMP
WITH IMMOBILZER UNIT
WITH AIR BAG
B/R(F)
B/R(F) 16
UNIT
IMMOBILIZER
WITH
16
HARNESS
FLOOR
B(FR) 17
SHORT CORDB15
PUMP
INJECTION
WITH FUEL
15
17
B(F)
10
FILAMENTB14
B/R(F)
B(R2) 11
B(R2)
10
UNIT
EACH
TO
B(R2)
HARNESS
NO.2
REAR
B(F)
B(F) 9
8B(F)
B(F) 7
6B/R(F)
B(F) 5
4B(F)
2
B(F)
B(F) 3
1
B(F)
8
9
14
1
7
5
4
2
HARNESS
FRONT
UNIT
EACH
TO
6
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED

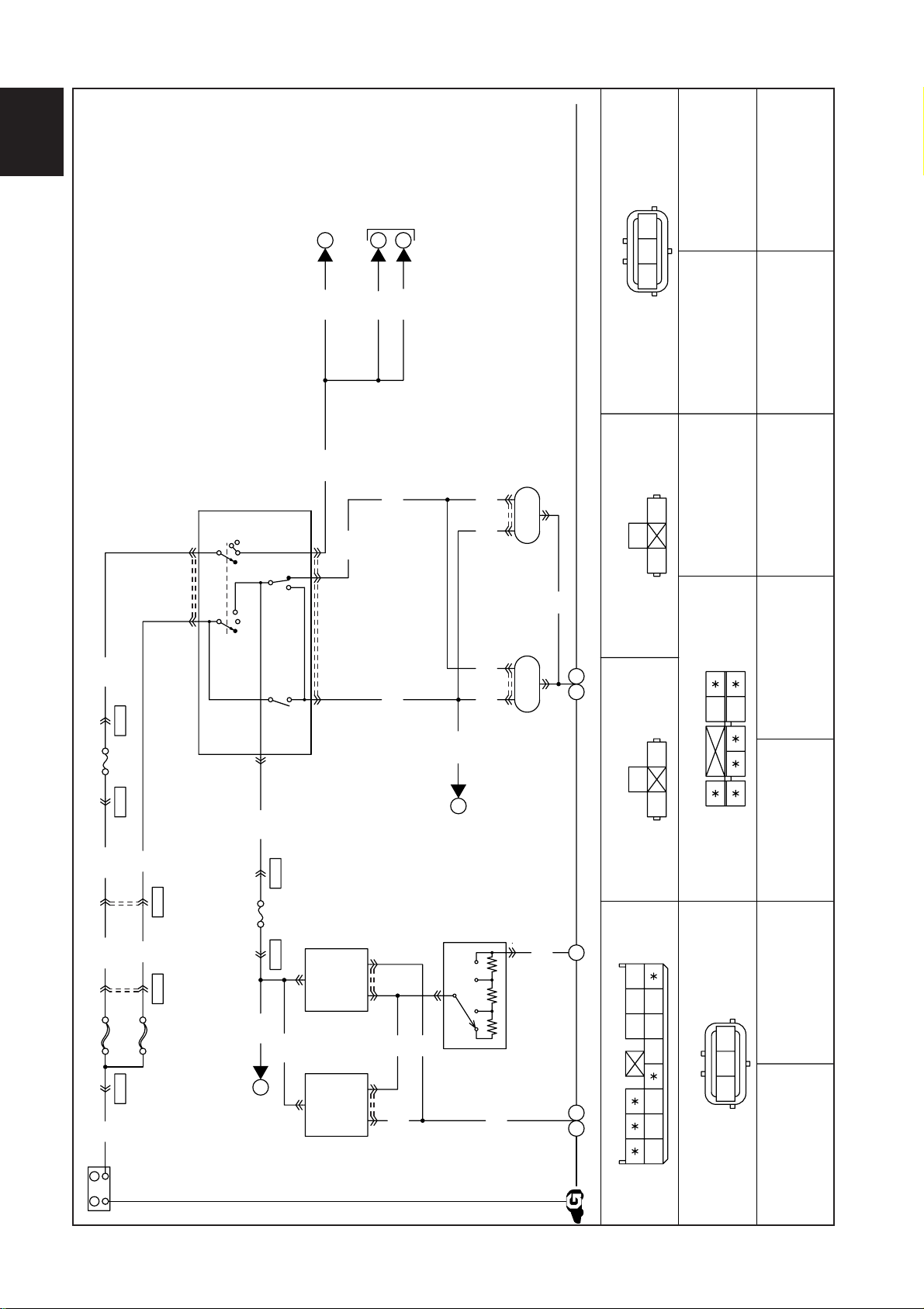

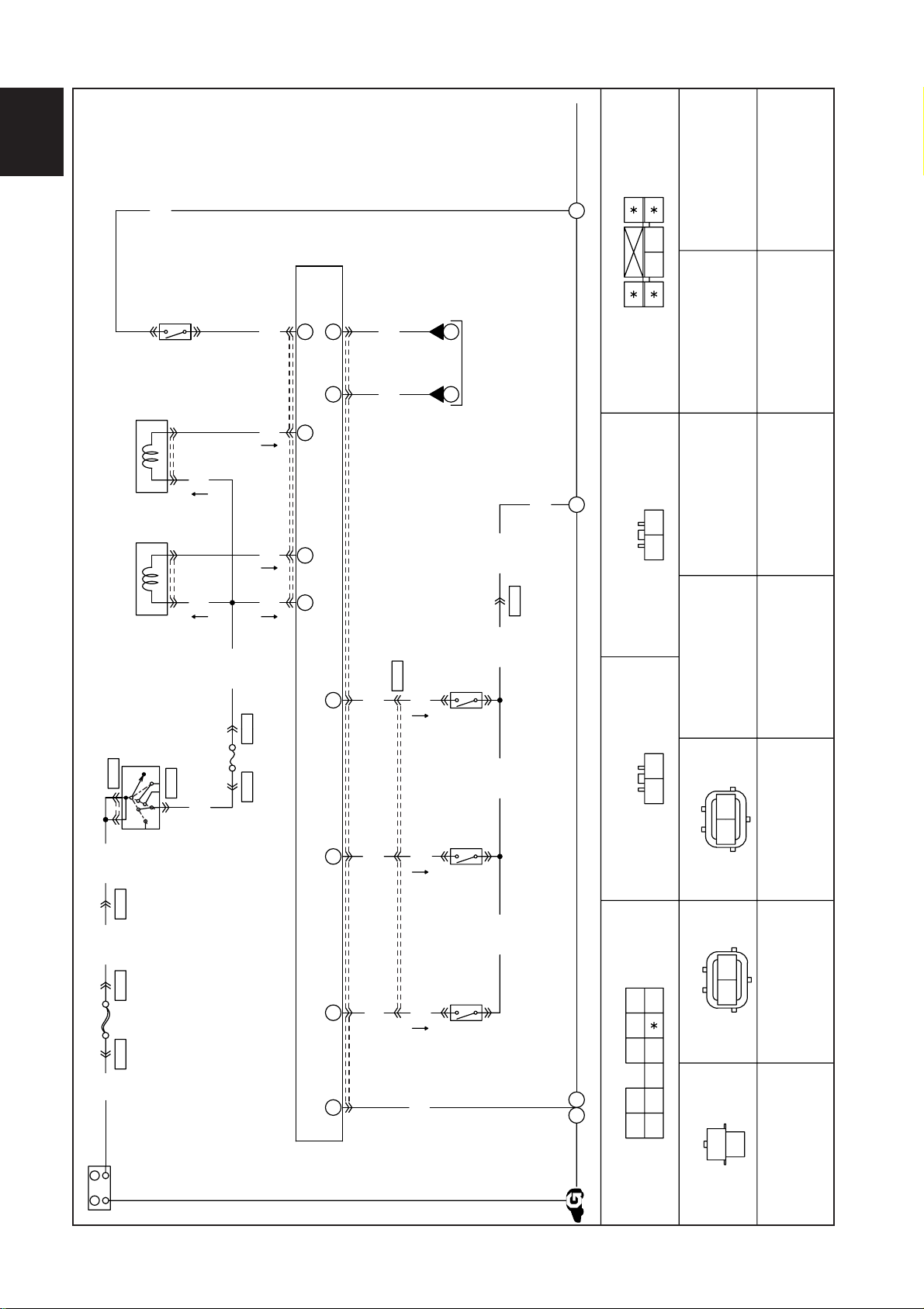

Z WIRING DIAGRAM
Y-1
GROUND POINTS (WL, WL Turbo)
Z-12
Z-13
(F) (R)(E)
HARNESS SYMBOL :
Y-1
WIRING DIAGRAM Z
DOUBLE CAB
REGULAR CAB,STRETCH CAB
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
11
11
10
14
14
17
10
5
2
6
16
1
3
7
4
15
8
9
B/O
B
B
B
B
B/O(F)
3114
B(F)
SHORT CORDB15
5
B(R2) 11
B(R2)
10
UNIT
EACH
TO
B(R2)
HARNESS
NO.2
REAR
FILAMENT
B(F)
14B
B(F) 5
4B(F)
2
B(F)
B(F) 3
1
B(F)
101514
2
1
HARNESS
FRONT
UNIT
EACH
TO
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
Y-2
GROUND POINTS (F2 CARB)
Z-14
Z-15
(F) (R)(E)
HARNESS SYMBOL :
Y-2
WIRING DIAGRAM Z
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
11
14
10
5
15
3
2
4
1
IG1
ST
OFF
ACC
IG2
BATTERY
+-
L/Y
HAZARD
10A
R/L
15A
60A
R/G
R
R/W
R/Y
R/G
R.FOG
10A
POWER DOOR LOCKSK-3
D
AND WASHER
WINDSHIELD WIPER
E-3REAR FOG LIGHT
LEVELING SYSTEM)
(WITH HEADLIGHT
HEADLIGHTS
E-2
B/W
ENGINE
15A
SYSTEM
THEFT-DETERRENT
T-2
T-1 IMMOBILIZER SYSTEM
B-2b
B-2a
GLOW SYSTEM
SYSTEM/
POWERTRAIN CONTROL
B/W
W
R.DEF
20A
DEFROSTER
REAR WINDOW
I-2
B/Y
W/R
W/R
40A
OUTLETI-2
JAUDIO SYSTEM
L/Y
U
CONNECTOR
DATA LINK
LG/R
(A/C)
10A
W/G
30A
(D/L)
B
L
R/L
(P.WIND)
30A
OF ENGINE SWITCH
CURRENT FROM ACC TERMINAL
OF ENGINE SWITCH
CURRENT FROM IG2 TERMINAL
B/Y
METER
R/B
B/Y
SWITCH
HEADLIGHT
R/W
R/L
R/B
L/W
TAIL
10A
10A
CLOCKI-2
CIGARETTE LIGHTERI-2
B-1b
B-1a
SYSTEM
QUICK-START
SYSTEM/
POWERTRAIN CONTROL
CONTROL SYSTEM
REMOTE FREEWHEEL
H
C-1c
C-1b
C-1a
SYSTEM CIRCUIT
TION
SEC-
OTHERS
OF ENGINE SWITCH
CURRENT FROM IG1 TERMINAL
CURRENT FROM BATTERY
F-2HORN
F-2BRAKE LIGHTS
S-1 AIR BAG SYSTEM
CHARGING SYSTEM
STARTING SYSTEM/
L
MIRRORS
POWER OUTSIDE
G-1
CONDITIONER
HEATER AND AIR
K-2
K-1
F-1
WARNING LIGHTS
TURN AND HAZARD
F-2BACK-UP LIGHTS
LEVELING SYSTEM)
(WITHOUT HEADLIGHT
HEADLIGHTS
B
I-1
POWER WINDOWS
LIGHTS
ILLUMINATION
INSTRUMENT CLUSTER
INTERIOR LIGHTI-3
TAILLIGHTS
PARKING LIGHTS/
LIGHTS/
LICENCE PLATE
E-1
E-3
A-1
WIPER
15A
ROOM
W
B/W
R
B/R
L
L
Y/R
G/W
L/R
W/R
B/W
MAIN
STOP
15A
SWITCH
ENGINE
(HEATER)
CIGAR
15A
BTN
GLOW
HEAD
30A
80A
30A
60A
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
W-1
ELECTRICAL WIRING SCHEMATIC (WL, WL Turbo)
Z-16
W-2
WIRING DIAGRAM Z
Z-17
BATTERY
+-
IG1
ST
OFF
ACC
IG2
L/Y
10A
HAZARD
L
MIRRORS
POWER OUTSIDE
POWER DOOR LOCKS K-3
K-1POWER WINDOWS
I-2
DEFROSTER
REAR WINDOW
(P.WIND)
30A
R/L
(D/L)
W/G
30A
20A
R.DEF
W
B/W
I-2 OUTLET
(HEATER)
(WIPER)
W/R
10A
(A/C)
LG/R
METER
15A
B/Y
OTHERS
OF IGNITION SWITCH
CURRENT FROM ACC TERMINAL
OF IGNITION SWITCH
CURRENT FROM IG2 TERMINAL
G-2
B/Y
SYSTEM
POWERTRAIN CONTROL
IGNITION SYSTEM/
SWITCH
HEADLIGHT
R/W
TAIL
10A
R/L
INTERIOR LIGHTI-3
L/W
B-4
B-3
R/B
AIR CONDITIONER
HEATER AND
CLUSTER
INSTRUMENT
L/R
TAILLIGHTS
PARKING LIGHTS/
LIGHTS/
LICENCE PLATE
SYSTEM
FUEL CONTROL
B-5
A-2
CHARGING SYSTEM
STARTING SYSTEM/
40A
I-2 CIGARETTE LIGHTER
L
15A
LEVELING SYSTEM)
(WITHOUT HEADLIGHT
HEADLIGHTS
B
D
CIGAR
I-1
LIGHTS
ILLUMINATION
C-2b
C-2a
SYSTEM CIRCUIT
TION
SEC-
OF IGNITION SWITCH
CURRENT FROM IG1 TERMINAL
CURRENT FROM BATTERY
F-2BRAKE LIGHTS
10A
30A
80A
30A
HEAD
BTN
15A
AND WASHER
WINDSHIELD WIPER
ENGINE
F-2HORN
SWITCH
IGNITION
15A
STOP
JAUDIO SYSTEM
MAIN
B
W/R
B/W
G/W
Y/R
B/W
L
L
B/R
R
B/W
W
I-2CLOCK
F-1
WARNING LIGHTS
TURN AND HAZARD
F-2BACK-UP LIGHTS
W
15A
ROOM
E-1
E-3
ELECTRICAL WIRING SCHEMATIC (F2 CARB)
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
ST
IG2IG1 ACC
OFF
BATTERY
+
-
B/YB
1B
2A
W/B RW/R B/W
W/R
A1-02
2A1B
(E)
W/R
(E)
W/R
X-07
BA
B/Y(F)
2
(SECTION C-1a)
CLUSTER
INSTRUMENT
(F)
W/B
X-09
(E)
R
REGULATOR
VOLTAGE GENERATOR
A1-02
1
(SECTION B-1b,2b)
PCM
(E)
W/B
A
X-02
SWITCH
ENGINE
(E)
B/W
M
B(E)
X-01
80A
MAIN
30A
HEAD
MAIN FUSE BLOCK
R(E)
B/W(E)
(F)
B/Y
B/W(F)
B/Y(E)
(E)
B
X-08
A1-02 GENERATOR(E)A1-01 STARTER(E)
A1-01
A1-01
STARTER
X-01
X-02
B(E)
(E)
B/W
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
A-1
STARTING SYSTEM (WL, WL Turbo) / CHARGING SYSTEM (WL, WL Turbo)
Z-18
Z-19
(F) (R)(E)
HARNESS SYMBOL :
A-1
WIRING DIAGRAM Z
A1-01
STARTER
A1-02
GENERATOR
[BLACK]
(F)-(E)
X-08
[BLACK]
(F)-(E)
X-09
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
X-02
ENGINE SWITCH
[BLUE]
X-02
ENGINE SWITCH
[WHITE]
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
B/W W/BR
B/YB
ST
IG2IG1 ACC
OFF
BATTERY
+-
B/Y(E)
(E)
B/Y
(F)
B/Y
X-08
GENERATOR
REGULATOR
VOLTAGE
A2-02
B/Y(F)
X-07
BA
2
(SECTION C-2a)
CLUSTER
INSTRUMENT
(F)
W/B
X-09
(E)
R
(E)
W/B
A
X-02
SWITCH
IGNITION
(E)
B/W
M
B(E)
X-01
80A
MAIN
30A
HEAD
MAIN FUSE BLOCK
R(E)
B/W(E)
B/W(F)
(E)
B
A2-02 GENERATOR(E)A2-01 STARTER(E)
A2-01
A2-01
STARTER
X-01
X-02
B(E)
(E)
B/W
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
A-2
STARTING SYSTEM (F2 CARB) / CHARGING SYSTEM (F2 CARB)
Z-20
Z-21
(F) (R)(E)
HARNESS SYMBOL :
A-2
WIRING DIAGRAM Z
X-02
IGNITION SWITCH
[BLUE]
X-02
IGNITION SWITCH
[WHITE]
MAIN FUSE BLOCK
X-01
A2-01
STARTER
A2-02
GENERATOR
[GRAY]
X-07
(F)-(E)
[BLACK]
X-08
(F)-(E)
[BLACK]
A2-02
GENERATOR
[BLACK]
(F)-(E)
X-09
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
B/W
ST
IG2IG1 ACC
OFF
R
R/W
R/B B/Y
D
C
G
W
F
E
G/R
H
G
B/W
J
I
R
L
K
W/L
N
M
GY
P
P
O
BR
B
B/R
A
B/R W
R/B
G/RB/RB/WP
B/WG
B
BR
R
BATTERY
+
-
PUMP
INJECTION
FUEL
AB
X-02
SWITCH
ENGINE
No.2
SOLENOID VALVE
FICD
ENGINE
A
X-02
MAIN
R(F)
X-03
B/R(E)
B/R(E)
(F)
R
(F)
G/R
X-01
X-03
B1-01
B1-04 GLOW PLUG(F)
6
B1-08
NE SENSOR
(F)
B/R
B/R(F)
(E)
B/R
B
(E)
W
(F)
W
F
(E)
G/R
(F)
BR
E
SENSOR
TEMPERATURE
ENGINE COOLANT
B1-07
B1-07
(F)
B/R
I
B1-01
(F)
B/W
B/W(F)
B1-03
15A
(F)
G
C
(E)
R/B
No.2(F)
B1-06 FICD SOLENOID VALVE
X-01
X-09
X-01
(F)
P
(F)
B/W
B1-09
B/W(E)
MAIN FUSE BLOCK
80A
GLOW
60A
B1-02 GLOW PLUG RELAY(F)
B1-07 ENGINE COOLANT TEMPERATURE SENSOR(E) B1-08 NE SENSOR(E)
No.1(F)
B1-05 FICD SOLENOID VALVE
B1-09 FUEL INJECTION PUMP(F)
B1-03 GLOW PLUG RELAY(E)B1-01 PCM(F)
(F)
B/W
(F)
B/W
(F)
B/W
B1-06
B1-06
VALVE
CUT
FUEL
No.1
SOLENOID VALVE
FICD
B1-05
B1-05
PCM
P
No.3
No.2
No.1
No.4
B1-04
GLOW PLUG
R(F)
(F)
B
RELAY
GLOW PLUG
B1-02
B1-02
5
O
J
B(E)
FUSE BLOCK
B/W(F)
X-07
(F)
W
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
B-1a
POWERTRAIN CONTROL SYSTEM (WL: GENERAL SPECS.) / QUICK-START SYSTEM (WL)
Z-22
Z-23
(F) (R)(E)
HARNESS SYMBOL :
B-1a
WIRING DIAGRAM Z
B1-01
PCM
GLOW PLUG
RELAY
B1-02
[BROWN]
GLOW PLUG RELAY
B1-02
[BROWN]
GLOW PLUG RELAY
B1-03
B1-04
GLOW PLUG
[BLACK]
FICD SOLENOID
VALVE No.1
B1-05
FICD SOLENOID
VALVE No.2
B1-06
ENGINE COOLANT
TEMPERATURE SENSOR
B1-07
B1-08
NE SENSOR
[GRAY]
B1-09
FUEL INJECTION PUMP
[BLACK]
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
[BLACK]
(F)-(E)
X-09
X-03
FUSE BLOCK
X-02
ENGINE SWITCH
[BLUE]
X-02
ENGINE SWITCH
[WHITE]
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
6
R/W
R/B B/Y
D
C
G
W
F
E
G/R
H
G
B/W
J
I
R
L
K
W/L
N
M
GY
P
P
O
BR
B
B/R
A
(SECTION C-1a)
INSTRUMENT CLUSTER
L
7
(SECTION G-1)
A/C RELAY No.1
(F)
R/B
(SECTION C-1c)
INSTRUMENT CLUSTER
1
D
B1-01
B1-01
54
(F)
GY
M
(F)
W/L
K
(SECTION G-1)
THERMOSWITCH
(SECTION A-1)
ENGINE SWITCH
6
(F)
B/Y
(F)
R/W
B1-01 PCM(F)
PCM
G
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
B-1b
POWERTRAIN CONTROL SYSTEM (WL: GENERAL SPECS.) / QUICK-START SYSTEM (WL)
Z-24
Z-25
(F) (R)(E)
HARNESS SYMBOL :
B-1b
WIRING DIAGRAM Z
B1-01
PCM
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
C
F
V/W
B/WG/W
B/R
BR/W
L/B
R/L B/R
ST
IG2IG1 ACC
OFF
R
G/W
<Y>
G
Y/B
T
S
BR/R
R
Q
L/B
BR/W
B/W B/Y
D
C
G
W
F
E
G/R
H
I
R/L
J
K
R
L
W/L
N
M
GY
P
P
O
BR
B
B/R
A
B/R W
R/B
G/RB/RB/WP
B/WG
B
BR
R
BATTERY
+-
C
VALVE
CONTROL
TIMER
SWITCH
IDLE
POSITION SENSOR
CONTROL LEVER
(F)
B/W
49
(SECTION T-1)
UNIT
IMMOBILIZER
PUMP
INJECTION
FUEL
B/R(F)
B/R(F)
B2-09
6
(F)
B/R
B2-09
(F)
L/B
QH
(F)
G/W
(F)
R/L
J
(F)
BR/W
A
< >...WL-T
AB
X-02
SWITCH
ENGINE
No.2
SOLENOID VALVE
FICD
ENGINE
A
X-02
MAIN
X-03
B/R(E)
B/R(E)
(F)
R
(F)
G/R
X-01
X-03
B2-01
B2-04 GLOW PLUG(F)
B2-08
NE SENSOR
(F)
B/R
(E)
B/R
B
(E)
W
(F)
W
F
(E)
G/R
(F)
BR
E
SENSOR
TEMPERATURE
ENGINE COOLANT
B2-07
B2-07
(F)
B/R
I
B2-01
(F)
B/W
B/W(F)
B2-03
15A
(F)
G
C
(E)
R/B
No.2(F)
B2-06 FICD SOLENOID VALVE
X-01
X-09
X-01
(F)
P
(F)
B/W
B/W(E)
MAIN FUSE BLOCK
80A
GLOW
60A
B2-02 GLOW PLUG RELAY(F)
B2-07 ENGINE COOLANT TEMPERATURE SENSOR(E) B2-08 NE SENSOR(E)
No.1(F)
B2-05 FICD SOLENOID VALVE
B2-09 FUEL INJECTION PUMP(F)
B2-03 GLOW PLUG RELAY(E)B2-01 PCM(F)
(F)
B/W
(F)
B/W
B2-06
B2-06
No.1
SOLENOID VALVE
FICD
B2-05
B2-05
PCM
P
No.3
No.2
No.1
No.4
B2-04 GLOW PLUG
R(F)
(F)
B
RELAY
GLOW PLUG
B2-02
B2-02
5
O
L
B(E)
FUSE BLOCK
B/W(F)
X-07
(F)
W
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
B-2a
POWERTRAIN CONTROL SYSTEM (WL: U.K. SPECS., WL Turbo) / GLOW SYSTEM (WL, WL Turbo)
Z-26
(F) (R)(E)
HARNESS SYMBOL :
B-2a
WIRING DIAGRAM Z
Z-27
GLOW PLUG
RELAY
B2-02
[BROWN]
GLOW PLUG RELAY
B2-02
[BROWN]
GLOW PLUG RELAY
B2-03
B2-04
GLOW PLUG
[BLACK]
FICD SOLENOID
VALVE No.1
B2-05
FICD SOLENOID
VALVE No.2
B2-06
ENGINE COOLANT
TEMPERATURE SENSOR
B2-07
B2-08
NE SENSOR
[GRAY]
B2-09
FUEL INJECTION
PUMP
[GRAY]
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
[BLACK]
(F)-(E)
X-09
B2-01
PCM
[BLACK]
X-03
FUSE BLOCK
X-02
ENGINE SWITCH
[BLUE]
X-02
ENGINE SWITCH
[WHITE]
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
6
G/W
<Y>
G
Y/B
T
S
BR/R
R
Q
L/B
BR/W
B/W B/Y
D
C
G
W
F
E
G/R
H
I
R/L
J
K
R
L
W/L
N
M
GY
P
P
O
BR
B
B/R
A
YB/R
< >...WL Turbo
T
(F)
Y/B
1012
S
(SECTION U)
DATA LINK CONNECTOR
(F)
BR/R
B2-10 EGR SOLENOID VALVE(F)
WL Turbo
(F)
B/R
6
VALVE
EGR SOLENOID
(F)
Y
B2-10
R
(SECTION C-1a)
INSTRUMENT CLUSTER
(SECTION C-1c)
INSTRUMENT CLUSTER
1
D
B2-01
B2-01
54
(F)
GY
M
(F)
W/L
K
(SECTION A-1)
ENGINE SWITCH
(F)
B/Y
B2-01 PCM(F)
PCM
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
B-2b
POWERTRAIN CONTROL SYSTEM (WL: U.K. SPECS., WL Turbo) / GLOW SYSTEM (WL, WL Turbo)
Z-28
B-2b
WIRING DIAGRAM Z
Z-29
B2-01
PCM
[BLACK]
[GRAY]
EGR SOLENOID VALVE
B2-10
6
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
(F) (R)(E)
HARNESS SYMBOL :
ST
IG2IG1 ACC
OFF
(NOISE FILTER)
W
(F)
Y/G
(SHORT CORD)
W
BATTERY
+-
(SHORT CORD)
W
CORD)
(SHORT
(F) W
B
AB
X-02
SWITCH
IGNITION
X-02
(TACHOMETER)(F)
B3-03 CHECK CONNECTOR
B3-03 (TACHOMETER)
CONNECTOR
CHECK
(SECTION B-4)
PCM
54
A
W(F)
W(F)
W
X-01 X-07X-01
Y/G
B3-01 B3-02
B3-02 IGNITION COILB3-01 IGNITION COIL
W(F)
B3-04
FILTER
NOISE
(F)
W
80A
MAIN
MAIN FUSE BLOCK
CONDENSER
B3-04 FRONT(F)-NOISE FILTER
W(F)
B/W(F)B/W(E)
B
COIL
IGNITION
-+
B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
B-3
IGNITION SYSTEM (F2 CARB)
Z-30
Z-31
(F) (R)(E)
HARNESS SYMBOL :
B-3
WIRING DIAGRAM Z
X-02
IGNITION SWITCH
[BLUE]
X-02
IGNITION SWITCH
[WHITE]
MAIN FUSE BLOCK
X-01
IGNITION COIL
B3-01
X-07
(F)-(E)
[BLACK]
B3-02
IGNITION COIL
B3-03
CHECK CONNECTOR
(TACHOMETER)
B3-04
(F)-NOISE FILTER
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
X-03
ST
IG2IG1 ACC
OFF
ACGI
BWB/WY/RY/R
BDFHJ
B/L B/Y
B/WB/Y
R/L
CA
Y/RR/L
B/W B/W
B/L
B/O
BATTERY
+-
F
A
B/W
B/W
AC
X-09
IJ
FUSE BLOCK
Y/R(F)
X-08
(E)
R/L
B/W(F)B/W(F)B/W(F)
AB
X-02
SWITCH
IGNITION
X-02
CARBURETOR
B/W(F)
A
B4-06
HEATER
COEFFICIENT
TEMPERATURE
POSITIVE
55
(SECTION B-5)
RELAY
FUEL PUMP
THERMOSWITCH
WATER
B4-04
B4-04
(F)
Y/R
(F)
B/W
(F)
Y/R
(F)
B/W
(F)
B/Y
SOLENOID VALVE
CAM BREAKER
FAST IDLE
B4-02
B4-02
(F)
Y/R
(E)
B/O
X-09
B/L(E)
(F)
B
X-09
5
(F)
B
(F)
B/L
IH
CD
W(F)
X-03
15A
ENGINE
B4-05 POSITIVE TEMPERATURE COEFFICIENT HEATER RELAY(F)
B4-04 WATER THERMOSWITCH(E)B4-01 PCM(F)
(E)
B/W
VALVE
SOLENOID
CUT
FUEL
SLOW
A
B4-06 POSITIVE TEMPERATURE COEFFICIENT HEATER(F)
B4-02 FAST IDLE CAM BREAKER SOLENOID VALVE(F) B4-03 CARBURETOR(E)
(F)
B/W
(F)
R/L
HEATER RELAY
COEFFICIENT
TEMPERATURE
POSITIVE
B4-05
B4-05
4
(F)
W
PCM
J
B
B4-01
B4-01
F
54
(SECTION B-3)
COIL
IGNITION
(F)
B/W
B4-03
VALVE
SOLENOID
VENT
AIR
F
X-07X-01X-01
(E)
B/W
80A
MAIN
MAIN FUSE BLOCK
B/W(F)B/W(E)B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
B-4
POWERTRAIN CONTROL SYSTEM (F2 CARB)
Z-32
Z-33
(F) (R)(E)
HARNESS SYMBOL :
B-4
WIRING DIAGRAM Z
B4-01
PCM
CARBURETOR
B4-03
[BLACK]
(F)-(E)
X-09
B4-06
POSITIVE TEMPERATURE
COEFFICIENT
HEATER
B4-04
WATER THERMOSWITCH
[BLACK]
(F)-(E)
X-07
MAIN FUSE BLOCK
X-01
[GREEN]
FAST IDLE CAM BREAKER
SOLENOID VALVE
B4-02
X-02
IGNITION SWITCH
[BLUE]
X-03
FUSE BLOCK
POSITIVE TEMPERATURE
COEFFICIENT
HEATER RELAY
B4-05
[WHITE]
IGNITION SWITCH
X-02
X-08
(F)-(E)
[BLACK]
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
5
4
ST
IG2IG1 ACC
OFF
WL Turbo
WL,
B/R Y B
B/R
G/R
Y
F2 CARB
BATTERY
+-
B/W
B/W
D
G/R
Y/R
A
X-18
B/R(R) B/R(F)
X-04
16
(R2)
B
B/R(R2) B/O(F)
X-04X-18
1110
X-02
AB
SWITCH
IGNITION
X-02
B5-01 FUEL GAUGE SENDER UNIT(R2)
B5-01
B5-01
48
UNIT
SENDER
FUEL GAUGE
WL Turbo
(R2)
B/R
(F)
Y
X-18
X-04
(R)
Y
(R2)
Y
(SECTION C-1a)
CLUSTER
INSTRUMENT
55
B-4)
(SECTION
PCM
B/W(F)
A
B5-01
(F)
Y
X-18
X-04
(R)
Y
(R2)
Y
(SECTION C-2a)
CLUSTER
INSTRUMENT
19
F2 CARB
(R2)
G/R
(R)
G/R
B5-02
UNIT
SENDER
GAUGE
FUEL
P
GAUGE
FUEL
PUMP
FUEL
B5-01
(F)
G/R
5
B/R(R)
(F)
Y/R
AD
(F)
B/W
RELAY
PUMP
FUEL
(F)
B/W
B5-02
W(F)
B5-02 FUEL PUMP RELAY(F)
MAIN FUSE BLOCK
FUSE BLOCK
ENGINE
15A
MAIN
80A
X-03 X-03
X-01
B/W(F)B/W(E)B(E)
X-07X-01
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
B-5
FUEL CONTROL SYSTEM
Z-34
Z-35
(F) (R)(E)
HARNESS SYMBOL :
B-5
WIRING DIAGRAM Z
16
WL,WL Turbo
X-07
(F)-(E)
[BLACK]
F2 CARB
B5-02
FUEL PUMP RELAY
(F)-(R)
X-04
X-04
(F)-(R)
MAIN FUSE BLOCK
X-01
B5-01
FUEL GAUGE
SENDER UNIT
X-02
IGNITION SWITCH
[WHITE]
X-02
IGNITION SWITCH
[BLUE]
X-03
FUSE BLOCK
(R)-(R2)
X-18
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
10
11
5
< > ...U.K. SPECS.
L/Y L/R
BW
4X4
EXCEPT 4X4
LL/WL L/W
<R /L> BR< >
BR/B WB/LR/GB/RW/L
1P
L/W
1O
L/R GY
(Y/G) <BR>
[GY/R]
R/W
O
G/WB/YLBR/B G/B
<LG/R>
Y/B L/Y Y/R
2N 2M 2L 2K 2J 2I 2H 2G 2F 2E 2D 2C 2B 2A
W/B
1N 1M 1L 1K 1J 1I 1H 1G 1F 1E 1D 1C 1B 1A
R/Y Y
ST
IG2IG1 ACC
OFF
Y/B
BATTERY
+-
C1-04 KEY REMINDER SWITCH(F)
58
56
WITH THEFT-DETERRENT SYSTEM
L/R(F)L/Y(F)
(SECTION T-2)
CONTROL MODULE
THEFT-DETERRENT
C1-10
SWITCH
KEY REMINDER
C1-10
W/R(F)
X-08
T-2)
(SECTION
MODULE
CONTROL
DETERRENT
THEFT-
(F)
BR/B
SYSTEM
DETERRENT
THEFT-
WITH
...NOT USED
51
2K
(F)
BR/B
(SECTION T-1)
UNIT
IMMOBILIZER
1.4W
SECURITY
(SECTION B-4)
SENDER UNIT
FUEL GAUGE
(SECTION A-1)
GENERATOR
(SECTION A-1)
GENERATOR
(F)
W/B
2
1.4W
CHARGE
(F)
Y
1I 1F
GAUGE
FUEL
GAUGE
TEMPERATURE
WATER
48
SENSOR
SPEEDOMETER
VEHICLE
4X4
SENSOR
SPEEDOMETER
VEHICLE
(E)
L/W
(E)
L
METER
SPEEDO-
METER
TACHO
C1-04 SEDIMENTOR SWITCH(F)C1-03 VEHICLE SPEEDOMETER SENSOR(E)
W/R(E)
EXCEPT 4X4
C1-03 C1-03
(E)
L
X-09
(E)
L/W
(F)
L
1L
(F)
L/W
1P
I-3)
(SECTION
SWITCHES
DOOR
(F)
R/Y
21
1N
(F)
B
5
C1-04
(F)
W
1K
L/R(F)
X-03 X-03
ROOM
10A
FUSE BLOCK
X-01
30A
BTN
X-02
AB
X-02
SWITCH
ENGINE
( ) ...WITH AIR BAG
[ ] ...4X4 WITHOUT REMOTE FREEWHEEL CONTROL SYSTEM
5
A
(F)
Y/B
B-1b,2b)
(SECTION
PCM
(F)
W/L
SWITCH
SEDIMENTOR
C1-04
(F)
B/Y
C1-01
(F)
B/R
< >...4X4 WITH REMOTE FREEWHEEL CONTROL SYSTEM
C1-02 WATER TEMPERATURE SENDER UNIT(F)
1M1G 2C 2I
B/Y(F)
X-03X-03
METER
15A
W(F)
B/W(F)
FUSE BLOCK
B/W(E)
X-01
X-07
B(E)
MAIN FUSE BLOCK
80A
MAIN
C1-02
SENDER UNIT
TEMPERATURE
WATER
1J
16
INSTRUMENT CLUSTER
C1-01
1.4W
SEDIMENTOR
(SECTION C-1b)
CLUSTER
INSTRUMENT
22
MICROCOMPUTER
C1-01 INSTRUMENT CLUSTER(F)
< >
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
C-1a
INSTRUMENT CLUSTER (WL, WL Turbo)
Z-36
Z-37
(F) (R)(E)
HARNESS SYMBOL :
C-1a
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
[BLACK]
(F)-(E)
X-09
X-03
FUSE BLOCK
X-02
ENGINE SWITCH
[BLUE]
X-02
ENGINE SWITCH
[WHITE]
[BLACK]
(F)-(E)
X-08
C1-04
SEDIMENTOR SWITCH
C1-02
WATER TEMPERATURE
SENDER UNIT
[GRAY]
VEHICLE SPEEDOMETER SENSOR
C1-03
KEY REMINDER SWITCH
C1-10
[BLACK]
INSTRUMENT CLUSTER
C1-01
WL,WL Turbo
INSTRUMENT CLUSTER
C1-01
5
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
16
<R/L> BR< >
BR/B WB/LR/GB/RW/L
1P
L/W
1O
L/R GY
(Y/G) <BR>
[GY/R]
R/W
O
G/WB/YLBR/B G/B
<LG/R>
Y/B L/Y Y/R
2N 2M 2L 2K 2J 2I 2H 2G 2F 2E 2D 2C 2B 2A
W/B
1N 1M 1L 1K 1J 1I 1H 1G 1F 1E 1D 1C 1B 1A
R/Y Y
B/R
GY/R
L/Y
Y/R
L/Y
<L/Y>< >
B
O
U.K. SPECS.
EXCEPT
U.K. SPECS.
1.4W
R.FOG
2M
52
5
(F)
L/Y
C1-06
SENSOR
LEVEL
FLUID
BRAKE
C1-06
(F)
B
U.K. SPECS.
(F)
L/Y
SWITCH
VACUUM
C1-08
5
(F)
R/L
E-3)
(SECTION
SWITCH
LIGHT
REAR FOG
(F)
B/R
X-09
6
SWITCH(E)
C1-09 4X4 INDICATOR
(SECTION C-1c)
CLUSTER
INSTRUMENT
26
C1-01
S-1)
(SECTION
SAS UNIT
AIR BAG
WITH
2J
1.4W
AIR BAG
(F)
Y/G
25
2E
SYSTEM
CONTROL
FREEWHEEL
REMOTE
WITHOUT
4X4
SWITCH
INDICATOR
4X4
C1-09
C1-09
(E)
B/R
X-09
(E)
GY/R
(F)
GY/R
(F)
LG/R
1.4W
4WD
2G
CONTROL SYSTEM
FREEWHEEL
4X4 WITH REMOTE
24
1.4W
4WD
23
2G
22
(SECTION C-1a)
CLUSTER
INSTRUMENT
(SECTION H)
CONTROL MODULE
RFW
(F)
BR
1.4W
LOCK
RFW
2H
C1-06
(E)
Y/R
X-09
(F)
L/Y
C1-07
SWITCH
BRAKE
PARKING
(F)
O
C1-05
(F)
B
2D 2M
(F)
Y/R
SWITCH
PRESSURE
OIL
C1-06
SENSOR
LEVEL
FLUID
BRAKE
1.4W
OIL
1.4W
BRAKE
(E)
C1-05 OIL PRESSURE SWITCH
SWITCH(F)
C1-07 PARKING BRAKE
SENSOR(F)
C1-06 BRAKE FLUID LEVEL
C1-08 VACUUM SWITCH(F)
INSTRUMENT CLUSTER
C1-01 INSTRUMENT CLUSTER(F)
< > ...U.K. SPECS.
...NOT USED
( ) ...WITH AIR BAG
[ ] ...4X4 WITHOUT REMOTE FREEWHEEL CONTROL SYSTEM
< >...4X4 WITH REMOTE FREEWHEEL CONTROL SYSTEM
< >
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
C-1b
INSTRUMENT CLUSTER (WL, WL Turbo)
Z-38
(F) (R)(E)
HARNESS SYMBOL :
C-1b
WIRING DIAGRAM Z
Z-39
BRAKE FLUID
LEVEL SENSOR
C1-06
[BLACK]
VACUUM SWITCH
C1-08
4X4 INDICATOR
SWITCH
C1-09
6
C1-05
OIL PRESSURE SWITCH
X-09
(F)-(E)
[BLACK]
[BLACK]
INSTRUMENT CLUSTER
C1-01
INSTRUMENT CLUSTER
C1-01
5
C1-07
PARKING BRAKE SWITCH
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
<R/L><
> BR
BR/B WB/LR/GB/RW/L
1P
L/W
1O
L/R GY
(Y/G) <BR>
[GY/R]
R/W
O
G/WB/YLBR/B G/B
<LG/R>
Y/B L/Y Y/R
2N 2M 2L 2K 2J 2I 2H 2G 2F 2E 2D 2C 2B 2A
W/B
1N 1M 1L 1K 1J 1I 1H 1G 1F 1E 1D 1C 1B 1A
R/Y Y
(F)
GY
4
(SECTION B-1b,2b)
PCM
2L
1.4W
GLOW
(SECTION I-1)
CONTROL SWITCH
PANEL LIGHT
38
1C
C1-01
(F)
R/G
(F)
B/L
45
(SECTION I-2)
RELAY
DEFROSRTER
REAR WINDOW
2N
1.4W
R.DEF
(F)
R/W
28
(SECTION E-1,2)
SWITCH
HEADLIGHT
3.4X4
ILLUMI
1E
C1-01
5
(F)
B
(F)
G/W
(F)
G/B
(F)
R/B
27
C-01 INSTRUMENT CLUSTER(F)
2A
(SECTION I-1)
SWITCH
HEADLIGHT
1B
29
1.4W
BEAM
INSTRUMENT CLUSTER
26
(SECTION C-1b)
CLUSTER
INSTRUMENT
30
(SECTION F-1)
TURN SWITCH
1A
1D
1.4W
LH
TURN
1.4W
RH
TURN
< > ...U.K. SPECS.
...NOT USED
( ) ...WITH AIR BAG
[ ] ...4X4 WITHOUT REMOTE
< >...4X4 WITH REMOTE FREEWHEEL
< >
FREEWHEEL CONTROL SYSTEM
CONTROL SYSTEM
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
C-1c
INSTRUMENT CLUSTER (WL, WL Turbo)
Z-40
Z-41
(F) (R)(E)
HARNESS SYMBOL :
C-1c
WIRING DIAGRAM Z
INSTRUMENT CLUSTER
C1-01
[BLACK]
INSTRUMENT CLUSTER
C1-01
5
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
L L/W
OB/O B/LR/G
1P
L/W
1O
L/R R/WG/WB/YLBR/B G/BY/B L/Y Y/R
2N 2M 2L 2K 2J 2I 2H 2G 2F 2E 2D 2C 2B 2A
W/B
1N 1M 1L 1K 1J 1I 1H 1G 1F 1E 1D 1C 1B 1A
R/Y Y
ST
IG2IG1 ACC
OFF
Y/B
BATTERY
+-
(E)
Y/B
X-09
C2-01
(SECTION I-3)
DOOR SWITCHES
(F)
R/Y
21
(F)
Y
1I 1F
GAUGE
FUEL
GAUGE
TEMPERATURE
WATER
(F)
B/O
(SECTION B-4)
SENDER UNIT
FUEL GAUGE
19
5
SENSOR
SPEEDOMETER
VEHICLE
METER
SPEEDO-
METER
TACHO
C2-03 VEHICLE SPEEDOMETER SENSOR(E)
W/R(E)
(F)
W/R
C2-03
(E)
L
X-09
(E)
L/W
(F)
L
1L
(F)
L/W
1P 1N
2
(F)
W/B
(SECTION A-2)
GENERATOR
1K
L/R(F)
X-03X-03
ROOM
10A
X-08
FUSE BLOCK
X-01
30A
BTN
X-02
AB
X-02
SWITCH
IGNITION
A
(F)
Y/B
(F)
B/Y
C2-01
C2-02 WATER TEMPERATURE SENDER UNIT(E)
1G 2C
B/Y(F)
X-03X-03
METER
15A
W(F)
B/W(F)
FUSE BLOCK
B/W(E)
X-01 X-07
B(E)
MAIN FUSE BLOCK
80A
MAIN
C2-02
SENDER UNIT
TEMPERATURE
WATER
1J
INSTRUMENT CLUSTER
1.4W
CHARGE
1.4W
SEDIMENTOR
(SECTION C-2b)
CLUSTER
INSTRUMENT
22
MICROCOMPUTER
C2-01 INSTRUMENT CLUSTER(F)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
C-2a
INSTRUMENT CLUSTER (F2 CARB)
Z-42
Z-43
(F) (R)(E)
HARNESS SYMBOL :
C-2a
WIRING DIAGRAM Z
X-03
FUSE BLOCK
X-02
IGNITION SWITCH
[WHITE]
MAIN FUSE BLOCK
X-01
[GRAY]
VEHICLE SPEEDOMETER SENSOR
C2-03
X-07
(F)-(E)
[BLACK]
C2-02
WATER TEMPERATURE
SENDER UNIT
[BLACK]
(F)-(E)
X-09
X-08
(F)-(E)
[BLACK]
X-02
IGNITION SWITCH
[BLUE]
[BLACK]
INSTRUMENT CLUSTER
C2-01
INSTRUMENT CLUSTER
C2-01
5
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
OB/O B/LR/G
1P
L/W
1O
L/R R/WG/WB/YLBR/B G/BY/B L/Y Y/R
2N 2M 2L 2K 2J 2I 2H 2G 2F 2E 2D 2C 2B 2A
W/B
1N 1M 1L 1K 1J 1I 1H 1G 1F 1E 1D 1C 1B 1A
R/Y Y
Y/R
L/YO
B
38
(SECTION I-1)
CONTROL SWITCH
PANEL LIGHT
(F)
B/L
45
(SECTION I-2)
RELAY
DEFROSRTER
REAR WINDOW
2N
1.4W
R.DEF
(F)
R/G
1C
(F)
R/W
28
(SECTION E-1)
SWITCH
HEADLIGHT
3.4X4
ILLUMI
1E
C2-01
4
30
(F)
R/B
(SECTION F-1)
TURN SWITCH
29
(SECTION I-1)
SWITCH
HEADLIGHT
2A 1B
27
(F)
G/B
(F)
G/W
1D
1.4W
LH
TURN
1.4W
RH
TURN
1A
1.4W
BEAM
(F)
B
2E
(F)
O
5
C2-01
22
(SECTION C-2a)
CLUSTER
INSTRUMENT
C2-05
(E)
Y/R
X-08
(F)
L/Y
C2-06
SWITCH
BRAKE
PARKING
C2-04
(F)
B
2D 2M
(F)
Y/R
SWITCH
PRESSURE
OIL
C2-05
SENSOR
LEVEL
FLUID
BRAKE
1.4W
OIL
1.4W
BRAKE
C2-04 OIL PRESSURE SWITCH(E)
SWITCH(F)
C2-06 PARKING BRAKE
SENSOR(F)
C2-05 BRAKE FLUID LEVEL
INSTRUMENT CLUSTER
C2-01 INSTRUMENT CLUSTER(F)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
C-2b
INSTRUMENT CLUSTER (F2 CARB)
Z-44
Z-45
(F) (R)(E)
HARNESS SYMBOL :
C-2b
WIRING DIAGRAM Z
BRAKE FLUID
LEVEL SENSOR
C2-05
C2-04
OIL PRESSURE SWITCH
X-08
(F)-(E)
[BLACK]
[BLACK]
INSTRUMENT CLUSTER
C2-01
INSTRUMENT CLUSTER
C2-01
5
4
C2-06
PARKING BRAKE
SWITCH
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
ST
IG2IG1 ACC
OFF
BATTERY
+
-
L/BL
L/W L/Y
B
<L><L/B>< ><B>< >< >
L/B
(G/R)<L/W>< ><L/O> <L/Y>
L
L/W L/OL/Y
L/O
B
2
< >...F2 CARB
L(F)
(F)
L
SWITCH
AUTOSTOP
D-02
BREAKER
CIRCUIT
SWITCH
ONE-TOUCH
RELAY
INT
HIGH OFF
LOW INT
HIGH
OFF
LOW INT
M
SWITCH
WASHER
1
L(F)
(F)
L
( )...WITHOUT AIR BAG
A
X-02
AB
(WL,WL Turbo)
ENGINE SWITCH
(F2 CARB)
IGNITION SWITCH
(F)
B
(F)
L
4
(F)
L/W
(F)
L/Y
(F)
L/B
X-02
D-01
D-01
MOTOR
WASHER
WINDSHIELD
M
FUSE BLOCK
X-03 X-03
WIPER
15A
B/R(F)
WINDSHIELD WIPER AND WASHER SWITCH
MAIN FUSE BLOCK
80A
MAIN
B/W(F)B/W(E)
X-01 X-01
D-03 WINDSHIELD WIPER MOTOR(F)D-02 WINDSHIELD WIPER AND WASHER SWITCH(F)
MOTOR(F)
D-01 WINDSHIELD WASHER
(F)
B
X-07
(F)
L/O
WINDSHIELD WIPER MOTOR
D-02
D-03
B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
D
WINDSHIELD WIPER AND WASHER
Z-46
Z-47
(F) (R)(E)
HARNESS SYMBOL :
D
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
X-02
ENGINE SWITCH (WL,WL Turbo)
[BLUE]
IGNITION SWITCH (F2 CARB)
[BLUE]
WINDSHIELD
WASHER MOTOR
D-01
WINDSHIELD
WIPER MOTOR
D-03
4
D-02
WINDSHIELD WIPER AND
WASHER SWITCH
X-03
FUSE BLOCK
X-02
ENGINE SWITCH (WL,WL Turbo)
[WHITE]
IGNITION SWITCH (F2 CARB)
[WHITE]
X-07
(F)-(E)
[BLACK]
MAIN FUSE BLOCK
X-01
D-03
WINDSHILD
WIPER MOTOR
WL,WL Turbo
F2 CARB
1
1
D-01
WINDSHILD
WASHER MOTOR
2
2
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
R/L
R/WB
R/L
R/WB
RR/WY/R
G/O
R/L
G/BG/W
R/B
BATTERY
+-
R(E) R(F)
X-08
W/R(E)
2
X-03
R/B(F) 41
HEADLIGHTS
R/B(F)
W/R(F)
40
39
SWITCH
HEADLIGHT
SWITCH
LIGHT
LOHI
SWITCH
DIMMER
TO-PASS
FLASH-
OFF
TNS
LIGHT
HEAD
R/B(F) R/B(F)
(SECTION E-3)
TAILLIGHTS
PARKING LIGHTS,
LICENSE PLATE LIGHTS,
X-03
60/55W60/55W
B(F)
(SECTION I-1)
ILLUMINATION LIGHTS
FUSE BLOCK
10A
E1-03 HEADLIGHT RH(F)E1-02 HEADLIGHT LH(F)E1-01 HEADLIGHT SWITCH(F)
X-01
X-01
MAIN FUSE BLOCK
30A
30A
R/W(F)
(F)
R/L
(F)
R/W
TAIL
Y/R(F)
E1-01
BTN
HEAD
B(E)
28
(SECTION C-1c,2b)
CLUSTER
INSTRUMENT
(F)
R/L
E1-03
1
(F)
R/L
(F)
R/W
(F)
R/W
LH
E1-03E1-02
E1-02
E1-01
RH
E1-01
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
E-1
HEADLIGHTS (WITHOUT HEADLIGHT LEVELING SYSTEM)
Z-48
Z-49
(F) (R)(E)
HARNESS SYMBOL :
E-1
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
X-03
FUSE BLOCK
[BLACK]
(F)-(E)
X-08
E1-02
HEADLIGHT LH
[BLACK]
E1-03
HEADLIGHT RH
[BLACK]
E1-01
HEADLIGHT SWITCH
E1-02
HEADLIGHT LH
[BLACK]
X-08
(F)-(E)
[BLACK]
E1-03
HEADLIGHT RH
[BLACK]
1
MAIN FUSE BLOCK
X-01
WL,WL Turbo
F2 CARB
2
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
2
1
G
B
G R/GB
G R/GB
R/L
R/WB
R/L
R/WB
R/Y RR/WR/L
G/OG/W
R/B Y/R
G/B
BATTERY
+
-
R/B(F)
(F)
R/L
53
E2-05 HEADLIGHT LEVELING ACTUATOR LH(F)
E2-04 HEADLIGHT LEVELING ACTUATOR RH(F)
E2-06 HEADLIGHT LEVELING SWITCH(F)
3210
(F)
B
R/G(F)
(F)
B
B(F)
G(F)
(F)
B
214
RH
E2-04
E2-04
LH
E2-05
ACTUATOR
LEVELING
HEADLIGHT
E2-05
E2-06
SWITCH
LEVELING
HEADLIGHT
E2-06
X-03X-03
10A
FUSE BLOCK
R.FOG
R/Y(F)
ACTUATOR
LEVELING
HEADLIGHT
E2-01
R/G(F)
(SECTION E-3)
SWITCH
REAR FOG LIGHT
40R/B(F)
41R/B(F)
(SECTION E-3)
TAILLIGHTS
PARKING LIGHTS,
LIGHTS,
LICENSE PLATE
R/L(F)
X-01
R(E) R(F)
X-08
W/R(E)
2
X-03
HEADLIGHTS
W/R(F)
39
HEADLIGHT SWITCH
SWITCH
LIGHT
LOHI
SWITCH
DIMMER
TO-PASS
FLASH-
OFF
TNS
LIGHT
HEAD
R/B(F)
X-03
60/55W60/55W
B(F)
(SECTION I-1)
LIGHTS
ILLUMINATION
FUSE BLOCK
10A
E2-03 HEADLIGHT RH(F)E2-02 HEADLIGHT LH(F)E2-01 HEADLIGHT SWITCH(F)
X-01
MAIN FUSE BLOCK
30A
30A
R/W(F)
(F)
R/W
TAIL
Y/R(F)
BTN
HEAD
B(E)
28
C-1c)
(SECTION
CLUSTER
INSTRUMENT
(F)
R/L
E2-03
1
(F)
R/L
(F)
R/W
(F)
R/W
LH
E2-03E2-02
E2-02
E2-01
RH
E2-01
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
E-2
HEADLIGHTS (WITH HEADLIGHT LEVELING SYSTEM)
Z-50
Z-51
(F) (R)(E)
HARNESS SYMBOL :
E-2
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
X-03
FUSE BLOCK
[BLACK]
(F)-(E)
X-08
E2-02
HEADLIGHT LH
[BLACK]
E2-03
HEADLIGHT RH
[BLACK]
E2-01
HEADLIGHT SWITCH
E2-05
HEADLIGHT
LEVELING ACTUATOR LH
[GRAY]
E2-04
HEADLIGHT
LEVELING ACTUATOR RH
[GRAY]
E2-06
HEADLIGHT LEVELING
SWITCH
1
2
4
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
R/B
B
R/WR/L
R/G
B
R/L
R/WR/G
BR/L
B
R/B
B
R/B
R/B
B
B R/B
R/W
W/G
G/B
B R/B
R/W
W/G
G/W
U.K. SPECS.
E3-08
E3-09
E3-08
E3-09
B(F)
53
52
X-04
R/L(R)R/L(F)R/L(F)
(SECTION E-2)
HEADLIGHT SWITCH
R/G(F)
R/G(F)R/G(F)
(F)
R/G
(F)
R/W
(F)
R/L
R/L(F) R/L(F)
C-1b)
(SECTION
CLUSTER
INSTRUMENT
LIGHT SWITCH
REAR FOG
LIGHT RELAY
REAR FOG
X-18
X-04
43
(F)
B
11
(R2)
B
21W
E3-07
E3-07
LIGHT
REAR FOG
(R2)
R/L
E3-09 REAR FOG LIGHT SWITCH(F)E3-08 REAR FOG LIGHT RELAY(F)E3-07 REAR FOG LIGHT(R2)
1110
5W
E3-04
E3-04
RH
PLATE LIGHT
LICENSE
(R2)
R/B
(R2)
B
E3-04 LICENSE PLATE LIGHT RH(R2)
(F)
B
10 11112
R/B(F)40
R/B(F)41
111
(SECTION E-1,2)
SWITCH
HEADLIGHT
(R2)
B
(R2)
B
(R2)
R/B
(F)
B
(F)
R/B
(F)
B
(F)
R/B
(R2)
B
(R2)
R/B
X-18
(R)
R/B
5W
E3-06
E3-06
RH
TAILLIGHT
5W
E3-05
E3-05
LH
TAILLIGHT
(R2)
R/B
5W
E3-03
E3-03
LH
PLATE LIGHT
LICENSE
5W
E3-02
E3-02
RH
LIGHT
PARKING
5W
E3-01
E3-01
LH
LIGHT
PARKING
E3-01 PARKING LIGHT LH(F) E3-03 LICENSE PLATE LIGHT LH(R2)
E3-06 TAILLIGHT RH(R2)
E3-05 TAILLIGHT LH(R2)E3-02 PARKING LIGHT RH(F)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
E-3
LICENSE PLATE LIGHTS / PARKING LIGHTS / TAILLIGHTS / REAR FOG LIGHT
Z-52
Z-53
(F) (R)(E)
HARNESS SYMBOL :
E-3
WIRING DIAGRAM Z
1
2
3
4
E3-01
PARKING LIGHT LH
E3-02
PARKING LIGHT RH
10
(R)-(R2)
X-18
[BLACK]
LICENSE PLATE LIGHT RH
E3-04
TAILLIGHT LH
E3-05
TAILLIGHT RH
E3-06
11
[BLACK]
LICENSE PLATE LIGHT LH
E3-03
(R)-(R2)
X-18
TAILLIGHT RH
E3-06
[BLACK]
LICENSE PLATE LIGHT RH
E3-04
[BLACK]
LICENSE PLATE LIGHT LH
E3-03
TAILLIGHT LH
E3-05
11
E3-07
REAR FOG LIGHT LH
(F)-(R)
X-04
X-04
(F)-(R)
REAR FOG
LIGHT RELAY
E3-08
E3-09
REAR FOG
LIGHT SWITCH
E3-07
REAR FOG LIGHT LH
DOUBLE CAB
REGULAR CAB,
STRETCH CAB
BACK.TO.CHAPTER.INDEX
CONTINUED
10
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
G/WB
G/BB
ST
IG2IG1 ACC
OFF
<G/B><G/O><G/W>
<Y/R>
R/B
<R><R/W>
R/LR
< >
Y/R
<R/B>
G/W G/O G/B
<R/L>
R/W
<R/Y>
G/BG/W
L/Y G/RB/YR/BR/G
G/O
B
G/W
B
G/B
BATTERY
+
-
W/GR/BB
R/W G/W
W/GR/BB
G/BR/W
(G/Y)
G/R
B
G/O
6059
636261
SYSTEM
THEFT-DETERRENT
WITH
G/W(F)
G/B(F)
(SECTION T-2)
CONTROL MODULE
THEFT-DETERRENT
WITH THEFT-DETERRENT SYSTEM
(SECTION T-2)
RELAY
THEFT-DETERRENT
(SECTION T-2)
CONTROL MODULE
THEFT-DETERRENT
G/O(F)
SYSTEM
THEFT-DETERRENT
WITHOUT
(F)
G/R
(F)
G/Y
...WITH THEFT-DETERRENT SYSTEM
11
34 12 1011
< >...WITH HEADLIGHT LEVELING SYSTEM
F1-05 FRONT SIDE TURN LIGHT LH(F) F1-06 FRONT SIDE TURN LIGHT RH (F)
G/W(F)
(F)
B
RH
TURN LIGHT
FRONT SIDE
F1-06
F1-06
(F)
G/W
5W
G/B(F)
F1-05
F1-05
LH
TURN LIGHT
FRONT SIDE
5W
2
(F)
B
(F)
G/B
1
(F)
G/O
G/W(F)
G/B(F)
(F)
G/W
(F)
G/B
TURN SWITCH
(F)
G/O
G/O(F)
G/R(F)
F1-04
F1-04
UNIT
FLASHER
<E2-01>
E1-01
<E2-01>
E1-01
F1-03
SWITCH
WARNING
HAZARD
F1-03
RH
LH
A
B
B/W(E)
AB
X-02
(WL,WL Turbo)
ENGINE SWITCH
(F2 CARB)
IGNITION SWITCH
2
<E2-01>
E1-01 TURN SWITCH(F)F1-03 HAZARD WARNING SWITCH(F) F1-04 FLASHER UNIT(F)
G/W(F)
(F)
B
3
X-02
(F)
F1-02 FRONT TURN LIGHT RH
E3-05 REAR TURN LIGHT LH(R2)
(F)
G/W
F1-02
F1-02
21W
(F)
B
RH
TURN LIGHT
FRONT
4
X-04
G/W(F)
G/B(F)
X-04
G/B(R)
X-18
1
X-03X-03
X-01
LH
TURN LIGHT
FRONT
FUSE BLOCK
METER
HAZARD
10A
15A
LH
TURN LIGHT
REAR
21W
RH
TURN LIGHT
REAR
W(F)
L/Y(F)B/W(F)
B/Y(F)
21W 21W
G/W(R)
(R2)
G/W
(F)
G/W
F1-03
E3-06
E3-06F1-01
F1-01
C-1c,2b)
(SECTION
CLUSTER
INSTRUMENT
3029
E3-05
E3-05
(R2)
B
(F)
B
(R2)
B
(R2)
G/B
(F)
G/B
(F)
G/B
G/B(F)
E3-06 REAR TURN LIGHT RH(R2)
(F)
F1-01 FRONT TURN LIGHT LH
X-01
X-18
X-07
MAIN FUSE BLOCK
MAIN
80A
B/W(F)B/W(E)
B(E)
(
(
< >< >
< >
< >
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
F-1
TURN AND HAZARD WARNING LIGHTS
Z-54
Z-55
(F) (R)(E)
HARNESS SYMBOL :
F-1
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
X-03
FUSE BLOCK
[BLACK]
(F)-(E)
X-07
X-02
ENGINE SWITCH (WL,WL Turbo)
[WHITE]
IGNITION SWITCH (F2 CARB)
[WHITE]
F1-01
FRONT TURN LIGHT LH
[BLACK]
F1-02
FRONT TURN LIGHT RH
[BLACK]
11
10
X-02
ENGINE SWITCH (WL,WL Turbo)
[BLUE]
IGNITION SWITCH (F2 CARB)
[BLUE]
X-04
(F)-(R)
(F)-(R)
X-04
(R)-(R2)
X-18
REAR TURN LIGHT LH
E3-05
REAR TURN LIGHT RH
E3-06
TURN SWITCH
E2-01(WITH HEADLIGHT
LEVELING SYSTEM)
E1-01(WITHOUT HEADLIGHT
LEVELING SYSTEM)
HAZARD WARNING
SWITCH
F1-03
FLASHER UNIT
F1-04
3
4
FRONT SIDE
TURN LIGHT RH
F1-06
WL,WL Turbo
FRONT SIDE
TURN LIGHT LH
F1-05
1
MAIN FUSE BLOCK
X-01
FRONT SIDE
TURN LIGHT RH
F1-06
FRONT SIDE
TURN LIGHT LH
F1-05
F1-01
FRONT TURN LIGHT LH
[BLACK]
F1-02
FRONT TURN LIGHT RH
[BLACK]
2
X-07
(F)-(E)
[BLACK]
F2 CARB
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
2
1
B/RB/R
G/R
(WITHOUT AIR BAG)
L/B
L/O L/W
L
L/Y
B
(WITH AIR BAG)
(CLOCK SPRING)
G/R
B/WR/G
Y/G G/R
B/Y
G/R Y/G
R/GB/WB/Y
ST
IG2IG1 ACC
OFF
G/W
G/W
G/W
G/RB/R
CA
B/R
R/W
B/Y
BATTERY
+-
G/W
W/G
R/W
R/BB
R/W
B R/B
G/B
W/G
W/G
G/W
F2-04 HORN(F)
HORNS
WL,WL TurboF2 CARB
(F)
B/R
HORN
F2-04
R/W(E)R/W(F)
X-08
(R)
R/W
F2-03 HORN RH(F)
F2-02
LH
HORN
(F)
B/R
G/W(F)
R/W(E)
(R2)
W/G
(R2)
R/W
(F)
G/W
S1-02 SHORT CONNECTOR(F)
F2-07 HORN SWITCH(F)
D-02 HORN SWITCH(F)
SPRING
CLOCK
(F)
G/R
WITHOUT AIR BAGWITH AIR BAG
S1-02
(F)
G/R
F2-07
G/R
(F)
G/R
SWITCH
HORN
W/R(E)
X-01
AB
X-02
(WL,WL Turbo)
ENGINE SWITCH
(F2 CARB)
IGNITION SWITCH
X-02
B/Y(F)
A
B/Y(E)
X-09
1011 11
F2-02 HORN LH(F)
X-03
R/W(F)
(R)
W/G
X-18
X-03
X-03
W/R(F)
X-08
BRAKE LIGHT LH(R2)
E3-05 BACK-UP LIGHT LH/
BRAKE LIGHT RH(R2)
E3-06 BACK-UP LIGHT RH/
(R2)
R/W
D-02
(F)
G/W
15A
X-03
RH
LIGHT
BRAKE
E3-06E3-05
LH
LIGHT
BRAKE
21W
(R2)
W/G
(R2)
W/G
21W
SWITCH
BRAKE
(F)
W/G
F2-05
F2-05
RH
LIGHT
BACK-UP
LH
LIGHT
BACK-UP
E3-06E3-05
(R2)
B
(R2)
B
(R2)
R/W
X-04
21W 21W
F2-01 HORN RELAY(F) F2-05 BRAKE SWITCH(F)
SWITCH(E)
F2-06 BACK-UP LIGHT
(F)
G/R
SWITCH
HORN
F2-03
(F)
B/R
RH
HORN
G/W(F)
B/W(E)
FUSE BLOCK
X-07
SWITCH
LIGHT
BACK-UP
F2-06
F2-06
CA
RELAY
HORN
F2-01
F2-01
MAIN FUSE BLOCK
15A
STOP
FUSE BLOCK
METER
BTN
MAIN
X-01
W(F)
B/W(F)
30A
B(E)
80A
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
F-2
BACK-UP LIGHTS / BRAKE LIGHTS / HORN
Z-56
Z-57
(F) (R)(E)
HARNESS SYMBOL :
F-2
WIRING DIAGRAM Z
10
(F)-(R)
X-04
(R)-(R2)
X-18
BACK-UP LIGHT LH /
BRAKE LIGHT LH
E3-05
BACK-UP LIGHT RH /
BRAKE LIGHT RH
E3-06
X-03
FUSE BLOCK
X-02
ENGINE SWITCH (WL,WL Turbo)
[WHITE]
IGNITION SWITCH (F2 CARB)
[WHITE]
X-02
ENGINE SWITCH (WL,WL Turbo)
[BLUE]
IGNITION SWITCH (F2 CARB)
[BLUE]
X-04
(F)-(R)
D-02
HORN SWITCH
SHORT CONNECTOR
S1-02
HORN RELAY
F2-01
F2-05
BRAKE SWITVCH
[BLACK]
F2-07
HORN SWITCH
MAIN FUSE BLOCK
X-01
BACK-UP LIGHT SWITCH
F2-06
F2-04
HORN
X-07
(F)-(E)
[BLACK]
F2 CARB
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-09
F2-03
HORN RH
BACK-UP LIGHT SWITCH
F2-06
[BLACK]
(F)-(E)
X-07
[BLACK]
(F)-(E)
X-08
X-08
(F)-(E)
[BLACK]
X-09
(F)-(E)
[BLACK]
WL,WL Turbo
F2-02
HORN LH
11
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
L/WL L/Y
E
B
E
B
(BLOWER UNIT)
(F)
L/Y
L
L/B
L/R
LL/Y
L
L/B
L/R
L
L/W LR/W
ST
IG2IG1 ACC
OFF
L/R
B
L/Y
L L/B
(SHORT CORD)
L
L/B
(SHORT CORD)
L/BL/Y
L L/R
(SHORT CORD)
L/B
R/G
LG/B
R/G
LG/B
LG/R
R/B
L
BATTERY
+-
WITH AIR CONDITIONER
B
E
L(F)
G1-10 A/C SWITCH(F)
THERMOSWITCH
AMP
SWITCH
A/C
(F)
L
(F)
L
(F)
R/W
G1-09
L(F)
(F)
L/W
(F)
L/Y
G1-10
L
G1-02
L(F)
80A
X-09
(E)
R/G
L/B
MOTOR
BLOWER
M
B/R(F)L(F)
WIPER
15A
B
A
B/W(F)B/W(E)
BA
X-02
SWITCH
ENGINE
X-02
76
(SECTION B-1b)
PCM
(F)
B
4
L/B
G1-05
G1-05
G1-05 BLOWER MOTORG1-04 RESISTOR
G1-04
L/BL/RLL/Y
G1-03
BLOWER UNIT
(F)
R/G
LG/R(F)
X-03
G1-06
G1-08
G1-08
SWITCH
PRESSURE
REFRIGERANT
(A/C)
10A
X-03
(F)
LG/B
(F)
R/B
(F)
L
G1-07
CLUTCH
MAGNETIC
X-01
(F)
LG/R
G1-09 THERMOSWITCH(F)
G1-06
G1-01
RESISTOR
CLIMATE CONTROL UNIT
(HEATER)
X-07
B/R(F)
40A
FUSE BLOCK
G1-01 CLIMATE CONTROL UNIT(F)
MAIN FUSE BLOCK
G1-07 MAGNETIC CLUTCH(E) G1-08 REFRIGERANT PRESSURE SWITCH(F)G1-06 A/C RELAY No.1(F)
G1-03 RESISTORG1-02 FRONT(F)-BLOWER UNIT
G1-02
SWITCH
FAN
RELAY No.1
A/C
(F)
L/B
(F)
L/R
(F)
L
(F)
L/Y
B/W(E)
OFF
4
3
2
1
B/W(F)
X-01
MAIN
B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
G-1
HEATER AND AIR CONDITIONER (WL, WL Turbo)
Z-58
Z-59
(F) (R)(E)
HARNESS SYMBOL :
G-1
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
X-02
ENGINE SWITCH
[BLUE]
X-02
ENGINE SWITCH
[WHITE]
X-03
FUSE BLOCK
[BLACK]
(F)-(E)
X-09
A/C RELAY No.1
G1-06
G1-08
REFRIGERANT
PRESSURE SWITCH
[BLACK]
G1-07
MAGNETIC CLUTCH
G1-01
CLIMATE CONTROL UNIT
(F)-BLOWER UNIT
G1-02
G1-03
RESISTOR
G1-05
BLOWER MOTOR
G1-04
RESISTOR
G1-09
THERMOSWITCH
G1-10
A/C SWITCH
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
4
LG B/W
D
C
LG
B
B
R/G
L/WL L/Y
E
B
E
B
(BLOWER UNIT)
(F)
L/Y
L
L/B
L/R
LL/Y
L
L/B
L/R
L
L/W LR/W
ST
IG2IG1 ACC
OFF
L/R
B
L/Y
L L/B
(SHORT CORD)
L
L/B
(SHORT CORD)
L/BL/Y
L L/R
(SHORT CORD)
L/B
R/G
LG/B
R/G
LG/B
LG/R
R/W
L
BATTERY
+-
(F)
G2-12 FICD SOLENOID VALVE
G2-11 A/C RELAY No.2(F)
G2-12
G2-12
VALVE
SOLENOID
FICD
R/G(F)
DC
2
R/W(F)
(F)
R/W
(F)
B/W
(F)
LG
B(F)
1
(F)
B
(F)
LG
G2-11
No.2
A/C
G2-11
15A
W(F)
ENGINE
B/W(F)
B
E
L(F)
SWITCH
PRESSURE
REFRIGERANT
G2-10 A/C SWITCH(F)
THERMOSWITCH
AMP
SWITCH
A/C
(F)
L
(F)
L
(F)
R/W
G2-09
L(F)
(F)
L/W
(F)
L/Y
G2-10
L
G2-02
L(F)
80A
L/B
MOTOR
BLOWER
M
B/R(F)L(F)
WIPER
15A
B
A
B/W(F)B/W(E)
BA
X-02
SWITCH
IGNITION
X-02
(F)
B
5
L/B
G2-05
G2-05
G2-05 BLOWER MOTORG2-04 RESISTOR
G2-04
L/BL/RLL/Y
G2-03
BLOWER UNIT
LG/R(F)
X-03
G2-06
G2-08
G2-08
(A/C)
10A
X-03
(F)
LG/B
(F)
L
G2-07
CLUTCH
MAGNETIC
X-01
(F)
LG/R
G2-09 THERMOSWITCH(F)
G2-06
G2-01
RESISTOR
CLIMATE CONTROL UNIT
(HEATER)
X-07
B/R(F)
40A
FUSE BLOCK
G2-01 CLIMATE CONTROL UNIT(F)
MAIN FUSE BLOCK
G2-07 MAGNETIC CLUTCH(E) G2-08 REFRIGERANT PRESSURE SWITCH(F)G2-06 A/C RELAY No.1(F)
G2-03 RESISTORG2-02 FRONT(F)-BLOWER UNIT
G2-02
SWITCH
FAN
RELAY No.1
A/C
(F)
L/B
(F)
L/R
(F)
L
(F)
L/Y
B/W(E)
OFF
4
3
2
1
B/W(F)
X-01
MAIN
B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
G-2
HEATER AND AIR CONDITIONER (F2 CARB)
Z-60
Z-61
(F) (R)(E)
HARNESS SYMBOL :
G-2
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
FICD SOLENOID VALVE
G2-12
G2-06
A/C RELAY No.1
G2-08
PEFRIGERANT
PRESSURE SWITCH
[BLACK]
X-07
(F)-(E)
[BLACK]
(F)-BLOWER UNIT
G2-02
G2-03
RESISTOR
G2-04
RESISTOR
G2-05
BLOWER MOTOR
G2-09
THERMOSWITCH
G2-10
A/C SWITCH
G2-01
CLIMATE CONTROL UNIT
X-03
FUSE BLOCK
X-02
IGNITION SWITCH
[BLUE]
X-02
IGNITION SWITCH
[WHITE]
A/C RELAY No.2
G2-11
G2-07
MAGNETIC CLUTCH
2
1
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
5
ST
IG2IG1 ACC
OFF
BG/O
BATTERY
+
-
B/R
GY/R
LG/B
B/R
B/R
R/G
LG B/WR B/WBR
K
J
I
HF
E
D
C
B
A
LG/B
R/G B/W B
RLG
LG/R
G/O
GY/R
L
B/R(E)B/R(E)B/R(E)
(F)
B/R
4
B
X-02
SWITCH
ENGINE
X-02
A
B/W(F)
ENGINE
A
24
5
A
(F)
R
X-03
6
C
H
(F)
LG
(F)
B/W
(F)
B/W
SOLENOID
FREE
SOLENOID
LOCK
(F)
B/W
H-03H-02
(F)
W
23
(SECTION C-1b)
CLUSTER
INSTRUMENT
(F)
LG/R
E
X-09
(F)
B
X-03
X-09
X-07X-01
H-01
H-01
(F)
GY/R
MAIN FUSE BLOCK
FUSE BLOCK
15A
80A
MAIN
LKJ
I
FB
B/W(F)B/W(E)B(E)
(F)
BR
SWITCH
MAIN
RFW
(F)
G/O
H-04
H-04
H-05
H-05
(E)
LG/B
(E)
GY/R
(F)
LG/B
(E)
R/G
(F)
B
3
RFW CONTROL MODULE
SWITCH
RFW
(F)
R/G
B/R(E)
H-06
H-06
SWITCH
INDICATOR
4X4
H-07
H-07
SWITCH
NEUTRAL
H-07 NEUTRAL SWITCH(E)
H-03 FREE SOLENOID(F)H-02 LOCK SOLENOID(F) H-04 RFW MAIN SWITCH(F)
SWITCH(E)
H-06 4X4 INDICATORH-05 RFW SWITCH(E)
H-01 RFW CONTROL MODULE(F)
X-01
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
H
REMOTE FREEWHEEL CONTROL SYSTEM
Z-62
Z-63
(F) (R)(E)
HARNESS SYMBOL :
H
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
X-02
ENGINE SWITCH
[BLUE]
X-02
ENGINE SWITCH
[WHITE]
X-03
FUSE BLOCK
[BLUE]
LOCK SOLENOID
H-02
H-06
4X4 INDICATOR SWITCH
[BLACK]
[BLACK]
NEUTRAL SWITCH
H-07
H-05
RFW SWITCH
[BLACK]
[YELLOW]
FREE SOLENOID
H-03
6
[BLACK]
(F)-(E)
X-09
RFW MAIN SWITCH
H-04
H-01
RFW CONTROL MODULE
5
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
3
4
B
R/B
R/G
1B1D1F1H1J1L1N
1A1C1E1K1M
L/WL/R
R/G
R/B
L/W
LL/R
L/Y
G/BG/W
L/Y G/RB/YR/BR/G
G/O
R/BR/G
1F
1E
PANEL LIGHT CONTROL SWITCH
R/B(F)
R/B(F)
OSC
I1-01
(F)
R/G
R/G(F) R/G(F) R/G(F)
(F)
R/G
(SECTION C-1c,2b)
CLUSTER
INSTRUMENT
38
4
(F)
B
J-01
(F)
R/B
(F)
R/G
J-01
ILLUMINATION
AUDIO
I1-01 PANEL LIGHT CONTROL SWITCH(F)
J-01 AUDIO ILLUMINATION(F)
(F)
R/B
27
(SECTION C-1c,2b)
CLUSTER
INSTRUMENT
(SECTION I-2)
CLOCK
(F)
R/B
44
G2-13(F2 CARB)
ILLUMINATION(F)
G1-11(WL,WL Turbo) CLIMATE CONTROL UNIT
F1-03 HAZARD WARNING SWITCH ILLUMINATION(F)
G1-11(WL,WL Turbo)
G2-13(F2 CARB)
G1-11(WL,WL Turbo)
G2-13(F2 CARB)
39
(SECTION E-1,2)
SWITCH
HEADLIGHT
ILLUMINATION
SWITCH
WARNING
HAZARD
F1-03
F1-03
(F)
R/B
(F)
R/G
ILLUMINATION
CONTROL UNIT
CLIMATE
(F)
R/B
(F)
R/G
R/B(F)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
I-1
ILLUMINATION LIGHTS
Z-64
Z-65
(F) (R)(E)
HARNESS SYMBOL :
I-1
WIRING DIAGRAM Z
4
HAZARD WARNING
SWITCH ILLUMINATION
F1-03
G1-11
(WL,WL Turbo)
G2-13(F2 CARB)
CLIMATE CONTROL UNIT
ILLUMINATION
AUDIO
ILLUMINATION
J-01
I1-01
PANEL LIGHT CONTROL SWITCH
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
B/L
B/L
W B/Y
G
B
G
(SHORT CORD)
B
B/L
L/W
B
L/R
B
R/B
L/W
ST
IG2IG1 ACC
OFF
BATTERY
+
-
L/W
B
WITH OUTLET
CLOCK
B/Y(F)
B/W(E)
B/W(E)
B
B/W(F)
B/W(F)W(F)
20A
FUSE BLOCK
X-03
R.DEF
X-03
(F)
B/L
45
(SECTION C-1c,2b)
INSTRUMENT CLUSTER
FILAMENT
B/L(R)
I2-07 I2-06
B
14
X-04
(F)
B/L
(F)
B
4
(F)
G
SWITCH
DEFROSTER
REAR WINDOW
I2-05
I2-05
I2-04
I2-04
RELAY
DEFROSTER
REAR WINDOW
X-03
METER
X-03
FUSE BLOCK
15A
(F)
W
I2-07 FILAMENTI2-06 FILAMENT(R)
DEFROSTER SWITCH(F)
I2-05 REAR WINDOW
DEFROSTER RELAY(F)
I2-04 REAR WINDOWI2-03 OUTLET(F)
(F)
L/W
(F)
B
4
I2-03
OUTLET
I2-03
X-08
W/R(E)
(F)
R/B
I2-01
X-03
X-03
BA
X-02
(WL,WL Turbo)
ENGINE SWITCH
(F2 CARB)
IGNITION SWITCH
X-02
4
A
44
L/W(F)
(F)
B
I2-01
(SECTION I-1)
LIGHTS
ILLUMINATION
(F)
L/W
X-03
X-03
30A
BTN
MAIN FUSE BLOCK
10A
ROOM
80A
BLOCK
FUSE
W/R(F)
(F)
L
B/W(E) B/W(F)
(F)
L/R
(F)
L/W
(F)
B
MAIN
15A
CIGAR
4
I2-02
LIGHTER
CIGARETTE
I2-02
X-01
X-07
(F)
I2-02 CIGARETTE LIGHTERI2-01 CLOCK(F)
X-01
B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
I-2
CIGARETTE LIGHTER / CLOCK / OUTLET / REAR WINDOW DEFROSTER
Z-66
(F)-(R)
X-04
Z-67
(F) (R)(E)
HARNESS SYMBOL :
I-2
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
X-02
ENGINE SWITCH (WL,WL Turbo)
[BLUE]
IGNITION SWITCH (F2 CARB)
[BLUE]
[WHITE]
ENGINE SWITCH (WL,WL Turbo)
[WHITE]
IGNITION SWITCH (F2 CARB)
X-02
X-03
FUSE BLOCK
I2-02
CIGARETTE LIGHTER
[BLACK]
(F)-(E)
X-08
CLOCK
I2-01
I2-03
OUTLET
MAIN FUSE BLOCK
X-01
X-07
(F)-(E)
[BLACK]
X-08
(F)-(E)
[BLACK]
X-04
(F)-(R)
[BLACK]
REAR WINDOW
DEFROSTER RELAY
I2-04
REAR WINDOW
DEFROSTER SWITCH
I2-05
FILAMENT
I2-06
FILAMENT
I2-07
WL,WL Turbo
F2 CARB
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
14
4
(DOUBLE CAB)
(STRETCH CAB)
(REGULAR CAB)
L/R
R/Y
L/RR/Y
(FR) (SHORT CORD)
R/Y R/Y
R/YR/YR/YR/Y
BATTERY
+
-
WITH THEFT-DETERRENT SYSTEM
R/Y(F)
(F)
R/Y
(SECTION T-2)
CONTROL MODULE
THEFT-DETERRENT
65
R/Y(F)
(SHORT CORD)
WITH DOOR SWITCH
X-01
I3-06 FLOOR(FR)-SHORT CORD
I3-05 DOOR SWITCH LR(R)I3-04 DOOR SWITCH RR(R)I3-03 DOOR SWITCH LF(FR)
I3-06
R/Y(FR) R/Y(FR)
R/Y(F)
X-19
R/Y(F)
R/Y(R)
I3-05
R/Y
LR
SWITCH
DOOR
I3-03
(FR)
R/Y
LF
SWITCH
DOOR
I3-04
(R)
R/Y
RR
SWITCH
DOOR
(SECTION C-1a,2a)
CLUSTER
INSTRUMENT
(F)
R/Y
21
X-11
X-04
(IN)
R/Y
(F)
R/Y
X-11
(F)
L/R
RF
SWITCH
DOOR
ON
DOOR
OFF
(R)
R/Y
LIGHT
INTERIOR
I3-01
(IN)
L/R
I3-01
I3-02
I3-01 INTERIOR LIGHT(IN) I3-02 DOOR SWITCH RF(R)
FUSE BLOCKMAIN FUSE BLOCK
10A30A
W/R(F)W/R(E)
BTN ROOM
X-03
X-08
X-03
X-01
B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
I-3
INTERIOR LIGHT
Z-68
Z-69
(F) (R)(E)
HARNESS SYMBOL :
I-3
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
X-03
FUSE BLOCK
X-04
(F)-(R)
(F)-(R)
X-04
[BLACK]
(F)-(E)
X-08
(F)-(IN)
X-11
INTERIOR LIGHT
I3-01
[BLACK]
DOOR SWITCH RF
I3-02
(F)-(IN)
X-11
X-19
(F)-(FR)
(F)-(FR)
X-19
I3-03
DOOR SWITCH LF
[BLACK]
(F)-(R)
X-04
(F)-(IN)
X-11
[BLACK]
DOOR SWITCH RF
I3-02
(F)-(FR)
X-19
I3-03
DOOR SWITCH LF
[BLACK]
I3-06
(FR)-SHORT CORD
I3-05
DOOR SWITCH LR
[BLACK]
[BLACK]
DOOR SWITCH RR
I3-04
INTERIOR LIGHT
I3-01
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
L/R
L/Y
(SHORT CORD)
3A
B
ST
IG2IG1 ACC
OFF
L
L/W
BATTERY
+
-
1L 1J 1H 1F 1D 1B
1A1C1E1K1M
L/R
R/G
L/WL/RR/B
L/W
L
1N
L/Y
AUDIO UNIT
J-04 AUDIO UNIT
B
15
3A
J-04
X-12X-15
(DR2)
L/W
(DR1)
L/Y
(DR1)
L/R
(DR2)
L
1N1M1L1K
J-02
LH
SPEAKERS
RH
J-03
(F)
L/Y
(F)
L/R
(F)
L/W
(F)
L
J-01
(F)
W/R
X-08
B
X-02
(WL,WL Turbo)
ENGINE SWITCH
(F2 CARB)
IGNITION SWITCH
X-02
A
A
1A1C
(F)
L/R
FUSE BLOCK
MAIN FUSE BLOCK
15A
10A
30A
80A
(F)
L
W/R(E)
B/W(F)B/W(E)
BTN
MAIN
CIGAR
ROOM
L/R(F)
L/W(F)
X-03
X-07
X-01
(F)
L/W
J-03 SPEAKER RH(DR1)J-02 SPEAKER LH(DR2)J-01 AUDIO UNIT(F)
X-03
J-01
X-01
B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
J
AUDIO SYSTEM
Z-70
Z-71
(F) (R)(E)
HARNESS SYMBOL :
J
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
[BLACK]
(F)-(E)
X-08
X-03
FUSE BLOCK
X-02
ENGINE SWITCH (WL,WL Turbo)
[WHITE]
IGNITION SWITCH (F2 CARB)
[WHITE]
X-02
ENGINE SWITCH (WL,WL Turbo)
[BLUE]
IGNITION SWITCH (F2 CARB)
[BLUE]
X-15
(F)-(DR2)
[GREEN]
[GREEN]
(F)-(DR1)
X-12
J-02
SPEAKER LH
SPEAKER RH
J-03
AUDIO UNIT
J-01
[GREEN]
(F)-(DR1)
X-12
[GREEN]
(F)-(DR2)
X-15
AUDIO UNIT
J-04
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
15
ST
IG2IG1 ACC
OFF
BR/L R/WR/B
G/W
G/B
R/L
R/W
G/BG/W
R/B
G/B
R/B
G/B
R/B
BATTERY
+
-
(F)
R/L
OPEN
LH
REGULATOR
POWER WINDOW
M
CLOSE
OPEN
OPENCLOSE
X-17
X-14
3
B
X-02
A
X-02
(WL,WL Turbo)
ENGINE SWITCH
(F2 CARB)
IGNITION SWITCH
A
(F)
R/W
(F)
G/W
X-13
K1-01
(F)
R/L
(DR1)
R/L
W(F)
(DR2)
R/W
(DR1)
G/W
K1-02 POWER WINDOW SUBSWITCH (DR2)K1-01 POWER WINDOW MAIN SWITCH(DR1)
X-03 X-03
(F)
R/L
K1-01
CIRCUIT
AUTO
X-14
K1-03 POWER WINDOW REGULATOR RH(DR1) K1-04 POWER WINDOW REGULATOR LH(DR2)
B/W(F)
X-01
CLOSE
OPENCLOSE
(DR1)
R/W
POWER WINDOW MAIN SWITCH
(DR1)
B
FUSE BLOCK
30A
80A
MAIN
MAIN FUSE BLOCK
(P.WIND)
(DR2)
G/W
K1-02
X-16
B/W(E)
POWER-CUT SWITCH
X-07
OPENCLOSE
K1-04
(DR2)
R/L
(DR2)
R/B
(DR2)
G/B
SUBSWITCH
WINDOW
POWER
K1-02
K1-03
(DR1)
R/B
(DR1)
G/B
(F)
B
RH
REGULATOR
POWER WINDOW
M
X-01
B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
K-1
POWER WINDOWS (REGULAR CAB, STRETCH CAB)
Z-72
Z-73
(F) (R)(E)
HARNESS SYMBOL :
K-1
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
X-03
FUSE BLOCK
X-02
ENGINE SWITCH (WL,WL Turbo)
[WHITE]
IGNITION SWITCH (F2 CARB)
[WHITE]
X-02
ENGINE SWITCH (WL,WL Turbo)
[BLUE]
IGNITION SWITCH (F2 CARB)
[BLUE]
POWER WINDOW
MAIN SWITCH
K1-01
K1-02
POWER WINDOW
SUBSWITCH LH
[BLUE]
POWER WINDOW
REGULATOR RH
K1-03
K1-04
POWER WINDOW
REGULATOR LH
[BLUE]
X-14
(F)-(DR1)
X-16
(F)-(DR2)
X-17
(F)-(DR2)
(F)-(DR1)
X-13
(F)-(DR1)
X-13
X-14
(F)-(DR1)
(F)-(DR2)
X-16
X-17
(F)-(DR2)
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
3
PAGES. FROM. MANUAL
TO. MODEL .INDEX
W G/B R/L R/BL/W
ST
IG2IG1 ACC
OFF
R/L
R/W
G/BG/W
R/B
F
A
R/L
R/L
G/B
L/WWG/Y
R/W R/BBG/W
W/R
R/B
G/B
G/B
R/B
G/B
R/B
R/B
G/B
W G/B R/L R/BL/W
BATTERY
+
-
C
A
(DR1)
R/L
F
R/L(F)
X-20X-06
(F)
R/L
X-14
X-17
OPENOPENOPENOPEN
3
X-13
BA
X-02
CIRCUIT
AUTO
K2-01
OPENCLOSE
(DR1)
R/L
A
(DR1)
R/W
R/L(F)
B(E)
X-01
80A
MAIN
MAIN FUSE BLOCK
X-01
(F)
W
R/L(F)
(F)
R/W
(DR2)
R/W
(F)
G/W
(DR1)
G/W
X-02
K2-02 POWER WINDOW SUBSWITCH LF(DR2)K2-01 POWER WINDOW MAIN SWITCH(DR1)
(DR1)
W/R
R/L(F)
K2-01
X-14
K2-05 POWER WINDOW SUBSWITCH RR(DR3)
K2-03 POWER WINDOW REGULATOR RF(DR1)
K2-07 POWER WINDOW REGULATOR RR(DR3)
K2-04 POWER WINDOW REGULATOR LF(DR2)
K2-06 POWER WINDOW SUBSWITCH LR(DR4)
(FR)
G/Y
(DR1)
G/Y
B/W(F)
X-03
CLOSE CLOSECLOSECLOSE
OPENCLOSE OPENCLOSE CLOSE OPEN
(F)
R/L
POWER WINDOW MAIN SWITCH
(DR1)
B
(DR1)
W
(DR1)
L/W
X-14
K2-08 POWER WINDOW REGULATOR LR(DR4)
30A
(P.WIND)
FUSE BLOCK
(F)
G/Y
SWITCH
ENGINE
(DR2)
G/W
X-22
K2-06K2-02
X-16
B/W(E)
LR
SUBSWITCH
WINDOW
POWER
SWITCH
POWER-CUT
X-07
(R)
R/L
(R)
W
OPENCLOSE
K2-07
K2-05
(DR3)
L/W
(DR3)
W
(FR)
R/L
(DR3)
R/B
(DR3)
G/B
(R)
L/W
(F)
L/W
RR
REGULATOR
POWER WINDOW
M
RR
SUBSWITCH
WINDOW
POWER
(DR3)
R/L
X-21
K2-05
OPENCLOSE
K2-04
(DR2)
R/L
(DR2)
R/B
(DR2)
G/B
LF
REGULATOR
POWER WINDOW
M
LF
SUBSWITCH
WINDOW
POWER
K2-02
K2-03
OPENCLOSE
(DR1)
G/B
(DR1)
R/B
K2-08
(DR4)
L/W
(DR4)
W
(FR)
W/R
(F)
W/R
(DR4)
R/B
(DR4)
G/B
(F)
B
LR
REGULATOR
POWER WINDOW
M
RF
REGULATOR
POWER WINDOW
M
(DR4)
R/L
X-03
W(F)R/L(F)
K2-06
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
K-2
POWER WINDOWS (DOUBLE CAB)
Z-74
Z-75
(F) (R)(E)
HARNESS SYMBOL :
K-2
WIRING DIAGRAM Z
(F)-(DR1)
X-13
[BLUE]
POWER WINDOW
REGULATOR RF
K2-03
POWER WINDOW
MAIN SWITCH
K2-01
(R)-(DR3)
X-21
POWER WINDOW
SUBSWITCH RR
K2-05
POWER WINDOW
REGULATOR RR
K2-07
X-22
(FR)-(DR4)
X-20
(F)-(FR)
X-17
(F)-(DR2)
K2-04
POWER WINDOW
REGULATOR LF
[BLUE]
K2-02
POWER WINDOW
SUBSWITCH LF
K2-06
POWER WINDOW
SUBSWITCH LR
K2-08
POWER WINDOW
REGULATOR LR
X-16
(F)-(DR2)
(F)-(DR1)
X-14
X-03
FUSE BLOCK
X-02
ENGINE SWITCH (WL,WL Turbo)
[WHITE]
X-02
ENGINE SWITCH (WL,WL Turbo)
[BLUE]
(F)-(DR1)
X-13
X-14
(F)-(DR1)
(F)-(DR2)
X-16
X-17
(F)-(DR2)
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
X-06
(F)-(R)
(F)-(R)
X-06
X-20
(F)-(FR)
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
3
RG
SYSTEM)
THEFT-DETERRENT
(WITH
SYSTEM)
THEFT-DETERRENT
(WITHOUT
G
LG/R
BR
RG
SYSTEM)
THEFT-DETERRENT
(WITH
SYSTEM)
THEFT-DETERRENT
(WITHOUT
G
LG/R
BR
RG
G/R
G/YG/O
BATTERY
+
-
G/Y
G/O
G/R
G
R W/G
B
K
64
SYSTEM
WITH THEFT-DETERRENT
(SECTION T-2)
CONTROL MODULE
THEFT-DETERRENT
(F)
G/O
MM
DOUBLE CAB
K3-05 DOOR LOCK ACTUATOR LR(DR4)
K3-04 DOOR LOCK ACTUATOR RR(DR3)
G(F)G(F)
(F)
G
(F)
G
X-19X-04
(F)
R
(F)
R
X-19X-04
R(F)R(F)
(FR)
G
X-22
(DR4)
R
(FR)
R
(DR4)
G
K3-05
K3-05
UNLOCK
LOCK
LR
ACTUATOR
DOOR LOCK
X-22
(R)
G
X-21
(DR3)
R
(R)
R
(DR3)
G
K3-04
K3-04
UNLOCK
LOCK
RR
ACTUATOR
DOOR LOCK
X-21
B
43
(F)
B
B/W(E) B/W(F)
X-07 X-03
30A
(D/L)
FUSE BLOCK
X-03
G/Y(F)
(F)
W/G
(F)
G
(F)
G/Y
(F)
R
(DR2)
R
X-17
(F)
G
X-01
G/O(F)
(DR1)
G/O
LOCKLOCK
UN-
G/R(F)
(DR2)
G
K3-03
K3-03
80A
LF(DR2)
K3-03 DOOR LOCK ACTUATORK3-02 DOOR LOCK-LINK SWITCH(DR1)K3-01 DOOR LOCK TIMER UNIT(F)
X-14
(F)
G/Y
(DR1)
G/Y
(F)
R
(DR1)
G/R
SWITCH
LOCK-LINK
DOOR
K3-01
K3-01
TIMER UNIT
DOOR LOCK
UNLOCK
LOCK
LF
ACTUATOR
DOOR LOCK
M
X-17
K3-02
K3-02
X-14
MAIN
MAIN FUSE BLOCK
X-01
B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
K-3
POWER DOOR LOCKS
Z-76
Z-77
(F) (R)(E)
HARNESS SYMBOL :
K-3
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
X-03
FUSE BLOCK
X-17
(F)-(DR2)
X-14
(F)-(DR1)
X-17
(F)-(DR2)
(F)-(R)
X-04
K3-03
DOOR LOCK
ACTUATOR LF
DOOR LOCK TIMER UNIT
K3-01
DOOR LOCK-LINK
SWITCH
K3-02
X-04
(F)-(R)
X-19
(F)-(FR)
DOOR LOCK
ACTUATOR RR
K3-04
X-22
(FR)-(DR4)
X-14
(F)-(DR1)
X-19
(F)-(FR)
(R)-(DR3)
X-21
K3-05
DOOR LOCK
ACTUATOR LR
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
3
PAGES. FROM. MANUAL
TO. MODEL .INDEX
4
L/B BR
BR/YBR/B
BR
LG/B
ST
IG2IG1 ACC
OFF
BR/Y BR/B
LG/B
L/BL/W
B
BR
BATTERY
+
-
DOWN
UP
LEFT
RIGHT
(F)
BR
B
X-02
(WL,WL Turbo)
ENGINE SWITCH
(F2 CARB)
IGNITION SWITCH
X-02
A
A
X-16
RHLH
X-13
(DR1)
LG/B
(F)
LG/B
(DR1)
BR
(F)
BR
(F)
BR
4
(F)
L
X-03X-03
CIGAR
FUSE BLOCK
15A
(F)
L/W
(DR2)
BR/Y
(F)
BR/Y
(DR1)
BR/B
(F)
BR/B
L-02
(DR2)
BR
LH
MIRROR
OUTSIDE
POWER
MM
(F)
L/B
DOWN
UP
M
RIGHT
LEFT
RIGHT
LEFT
M
L-01
SWITCH
MIRROR
OUTSIDE
POWER
UP
LEFT
DOWN
RHLH
RIGHT
(DR2)
L/B
(F)
B
L-03
DOWN
UP RH
MIRROR
OUTSIDE
POWER
X-01
MAIN FUSE BLOCK
X-07X-01
80A
L-03 POWER OUTSIDE MIRROR LH(DR2)L-02 POWER OUTSIDE MIRROR RH(DR1)L-01 POWER OUTSIDE MIRROR SWITCH(F)
MAIN
B/W(F)B/W(E)B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
L
POWER OUTSIDE MIRRORS
Z-78
Z-79
(F) (R)(E)
HARNESS SYMBOL :
L
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
(F)-(DR1)
X-13
X-16
(F)-(DR2)
POWER OUTSIDE
MIRROR RH
L-02
L-03
POWER OUTSIDE
MIRROR LH
X-03
FUSE BLOCK
X-02
ENGINE SWITCH (WL,WL Turbo)
[WHITE]
IGNITION SWITCH (F2 CARB)
[WHITE]
X-02
ENGINE SWITCH (WL,WL Turbo)
[BLUE]
IGNITION SWITCH (F2 CARB)
[BLUE]
(F)-(DR1)
X-13
(F)-(DR2)
X-16
L-01
POWER OUTSIDE
MIRROR SWITCH
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
4
(CLOCK SPRING)
LLG
(F)
LG L
ST
IG2IG1 ACC
OFF
Y/R R
B Y/RL
R
C
EGIKMOQSUW
Y
DFVXZAB
A
R/G
B/Y B/W B
LGY/GB
AA
B
B/WR/G
Y/G G/R
B/Y
G/R Y/G
R/GB/WB/Y
(CLOCK SPRING)
LLG
BATTERY
+
-
A
9
U
(F)
B
SHORT BAR
INFLATOR
BAR
SHORT
INFLATOR
BAR
SHORT
SHORT BAR
< >...WITH PASSENGER-SIDE AIR BAG MODULE
S1-01
AIR BAG MODULE
PASSENGER-SIDE
WITH
S1-05 DRIVER-SIDE AIR BAG MODULE
25
(SECTION C-1b)
INSTRUMENT CLUSTER
(F)
Y/G
(SECTION U)
DATA LINK CONNECTOR
46 47
(F)
Y/G
(F)
Y/G
(F)
R/G
Q
(F)
Y/G
AA
(F)
R/G
S1-02
SPRING
CLOCK
LG
LG
L
L
S1-03
AIR BAG MODULE
DRIVER-SIDE
S1-05
(F)
L
M
(F)
LG
O
AIR BAG MODULE
PASSENGER-SIDE
S1-04
(F)
R
I
(F)
Y/R
K
S
8
(F)
B
7
(F)
B
X
S1-01
ABZ
B/W(F)
X-07
B/W(E)
S1-02
B/Y(F)
B/W(F)
B/Y(F)
B/W(F)
FUSE BLOCK
15A
15A
ENGINE
METER
W(F)
X-03
X-03
SWITCH
ENGINE
X-02
AB
X-02
S1-04 PASSENGER-SIDE AIR BAG MODULE(F)
S1-03 FRONT(F)-CLOCK SPRINGS1-02 SHORT CONNECTOR(F)
X-01
S1-01 SAS UNIT(F)
MAIN FUSE BLOCK
80A
SAS UNIT
MAIN
B(E)
X-01
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
S-1
AIR BAG SYSTEM
Z-82
Z-83
(F) (R)(E)
HARNESS SYMBOL :
S-1
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
X-02
ENGINE SWITCH (WL,WL Turbo)
[BLUE]
IGNITION SWITCH (F2 CARB)
[BLUE]
X-02
ENGINE SWITCH (WL,WL Turbo)
[WHITE]
IGNITION SWITCH (F2 CARB)
[WHITE]
X-03
FUSE BLOCK
S1-05
DRIVER-SIDE
AIR BAG MODULE
PASSENGER-SIDE
AIR BAG MODULE
S1-04
(F)-(CLOCK SPRING)
S1-03
SHORT CONNECTOR
S1-02
S1-01
SAS UNIT
9
8
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
7
C
F
V/W
B/WG/W
B/R
BR/W
L/B
R/L B/R
ST
IG2IG1 ACC
OFF
YGY
ACEGIKM
DFHLJ
L/R
V/WB/R
GYY
BN
B/W
BR/B
BATTERY
+
-
F
B2-09 FUEL INJECTION PUMP(F)
B/W(F)
PUMP
INJECTION
FUEL
B2-09
B2-09
DDS1
16
(F)
B/R
(F)
V/W
49
(SECTION B-2a)
PCM
BA
51
6
X-03 X-03
X-03X-03
FUSE BLOCK
FUSE BLOCK
10A
15A
A
X-08
ROOM
W/R(F)
W(F)
ENGINE
T1-01
JM
CA FD
L
(F)
B/R
(SECTION C-1a)
CLUSTER
INSTRUMENT
X-07
L/R(F)
B/W(F)
80A
MAIN
B/W(F)
T1-02 COIL(F)
T1-02
COIL
T1-01 IMMOBILIZER UNIT(F)
X-02
IMMOBILIZER UNIT
(F)
BR/B
Y(F)
GY(F)
T1-01
(F)
L/R
(F)
B/W
W/R(F)
X-01
30A
BTN
MAIN FUSE BLOCK
SWITCH
ENGINE
W/R(E)
X-01
X-02
B(E)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
T-1
IMMOBILIZER SYSTEM
Z-84
Z-85
(F) (R)(E)
HARNESS SYMBOL :
T-1
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
COIL
T1-02
X-02
ENGINE SWITCH
[BLUE]
X-02
ENGINE SWITCH
[WHITE]
X-03
FUSE BLOCK
T1-01
IMMOBILIZER UNIT
B2-09
FUEL INJECTION PUMP
[GRAY]
X-07
(F)-(E)
[BLACK]
X-08
(F)-(E)
[BLACK]
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
6
16
B
BR/R
LG/R
G
RB
G
LG/R
RB
BR/R
B
GY/BBR/W
B
BR/R
G/O P/L
L/Y
BR/W
R/Y
(LG/R)
BR/B
Y/R
2T
2S
2R
2Q
2P
2O
2N
2M
2L
2K
2J
2I
2H
2G
2F
2E
2D
2C
2B
2A
1C1D
1E1F 1B 1A
G/OG/BG/WB L/R B/W
ST
IG2IG1 ACC
OFF
G/W
G/W
G/W
P/L
GY/B
CA
BATTERY
+
-
EA
L/Y G/Y
G/R
L/Y
Y/R
(F)
R/Y
(SECTION I-3)
DOOR SWITCHS
65
T2-01
B
2D
C-1a)
(SECTION
SWITCH
KEY LEMINDER
(F)
L/Y
58
(E)
B/W
62
G/R(F)
F-1)
(SECTION
SWITCH
WARNING
HAZARD
61
SWITCH LF(DR2)
T2-07 DOOR KEY CYLINDER
2R
63
1C
(SECTION F-1)
FLASHER UNIT
(F)
G/O
DOUBLE CAB
4
T2-06
T2-06
(DR1)
B
RF
SWITCH
CCYLINDER
DOOR KEY
(DR1)
BR/R
3
X-14
X-14
(F)
B
BR/R(F)
T2-07
T2-07
(DR2)
B
LF
SWITCH
CCYLINDER
DOOR KEY
2O
(DR2)
BR/R
3
X-17
X-17
(F)
B
(SECTION F-1)
FLASHER UNIT
P/L(F)
Y/R(F)
(F)
G/Y
LG/R(F)
X-04
(R)
LG/R
43
X-04
B(F)B(R)
K3-04
K3-04
(DR3)
B
SWITCH RR
LOCK-LINK
DOOR
(DR3)
LG/R
X-23
X-23
2M
(F)
B
(F)
B
(DR4)
LG/R
17
SWITCH LR
LOCK-LINK
DOOR
(DR4)
B
K3-05
K3-05
T2-01
4
2N
X-19
(FR)
LG/R
5
(F)
BR/W
X-24
E
(F)
L/Y
(F)
L/Y
A
RELAY
DETERRENT
THEFT-
T2-02
T2-02
60
1D
(F)
G/B
1E
(SECTION F-1)
TURN SWITCH
(F)
G/W
59
(F)
W/R
(F)
B/W
64
(F)
G/O
K-3)
(SECTION
TIMER UNIT
DOOR LOCK
2K
X-03 X-03
15A
FUSE BLOCK
HAZARD
L/Y(F)
X-07
2S
2C
W/R(E)
(F)
W/R
G/W(F)
X-03 X-03
15A
FUSE BLOCK
STOP
(F)
L/R
1B
(F)
B/W
1A
56
3
2Q
1F
C-1a)
(SECTION
CLUSTER
INTSRUMENT
T2-01
(F)
BR/B
THEFT-DETERRENT CONTROL MODULE
( )...DOUBLE CAB
HORN(F)
T2-05 THEFT-DETERRENT
(F)
GY/B
HORN
THEFT-DETERRENT
T2-05
(F)
G/W
T2-04 BONNET SWITCH(F)
SWITCH RF(DR1)
T2-06 DOOR KEY CYLINDER
W/R(F)
X-01
AB
X-02
SWITCH
ENGINE
X-02
A
X-03
(FR)
B
X-03
X-03
X-08
SWITCH RR(DR3)
K3-04 DOOR LOCK-LINK
SWITCH LR(DR4)
K3-05 DOOR LOCK-LINK
15A
X-03
SWITCH
BONNET
T2-04
T2-04
X-24
T2-01 THEFT-DETERRENT CONTROL MODULE(F)
RELAY(F)
T2-02 THEFT-DETERRENT
HORN RELAY(F)
T2-03 THEFT-DETERRENT
B/W(E)
FUSE BLOCK
X-07
CA
HORN RELAY
DETERRENT
THEFT-
T2-03
T2-03
MAIN FUSE BLOCK
10A
ROOM
BLOCK
FUSE
ENGINE
BTN
MAIN
X-01
W(F)
B/W(F)
30A
B(E)
80A
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
T-2
THEFT-DETERRENT SYSTEM
Z-86
Z-87
(F) (R)(E)
HARNESS SYMBOL :
T-2
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
X-02
ENGINE SWITCH
[BLUE]
X-02
ENGINE SWITCH
[WHITE]
X-03
FUSE BLOCK
T2-01
THEFT-DETERRENT
CONTROL MODULE
K3-05
DOOR LOCK-LINK
SWITCH LR
DOOR LOCK-LINK
SWITCH RR
K3-04
T2-07
DOOR KEY CYLINDER
SWITCH LF
5
17
3
X-07
(F)-(E)
[BLACK]
X-08
(F)-(E)
[BLACK]
[BLACK]
BONNET
SWITCH
T2-04
THEFT-DETERRENT
HORN RELAY
T2-03
T2-05
THEFT-DETERRENT HORN
X-14
(F)-(DR1)
X-19
(F)-(FR)
X-17
(F)-(DR2)
X-24
(FR)-(DR4)
(R)-(DR3)
X-23
THEFT-DETERRENT
RELAY
T2-02
X-19
(F)-(FR)
X-17
(F)-(DR2)
X-04
(F)-(R)
(F)-(DR1)
X-14
[BLACK]
THEFT-DETERRENT
CONTROL MODULE
T2-01
DOOR KEY CYLINDER
SWITCH RF
T2-06
(F)-(R)
X-04
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
4
ST
IG2IG1 ACC
OFF
WL,WL Turbo
Y/G
Y/B
B R/G
B/R
BR/R
B/Y
TAB
FEN TEN
NOTE:THIS IS THE CONNECTOR AS SEEN FROM THE TERMINAL SIDE.
GND
FAB GND
+B
BATTERY
+-
BR/R(F)12
Y/B(F)10
(SECTION B-2b)
PCM
B/Y(F)
(F)
B/R
X-03
A
B/W(E)
FUSE BLOCK
15A
METER
W(F)
X-03
X-07
SWITCH
ENGINE
X-02
AB
X-02
B/W(F)
X-01
MAIN FUSE BLOCK
MAIN
80A
B(E)
X-01
16
R/G(F) 46
(SECTION S-1)
SAS UNIT
Y/G(F) 47
(F)
B
2
CONNECTOR
DATA LINK
U-01
U-01 DATA LINK CONNECTOR(F)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
U
DATA LINK CONNECTOR
Z-88
Z-89
(F) (R)(E)
HARNESS SYMBOL :
U
WIRING DIAGRAM Z
MAIN FUSE BLOCK
X-01
[BLACK]
(F)-(E)
X-07
X-02
ENGINE SWITCH
[BLUE]
X-02
ENGINE SWITCH
[WHITE]
X-03
FUSE BLOCK
DATA LINK CONNECTOR
U-01
6
1
2
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
WW
(R)
R/L
L/W
(F)
R/L
L/W
(Y/R) (R/L)(Y/R)
R/W
(R/W) (R/W)
R
(R/L)
R/W
B/YW/R
R
W/R
(E)(F)
B/Y
B/W
B
B/W
B
(E) B/WB/W(F)
A
A
R/Y
(LG/R)
(LG/R)
F2 CARBWL,WL Turbo
( )
G/R
B/L
G/R
B/R
B/O
BR
(F)
(R)
B Y G/B G/W R/B
W/GR/WR/Y
B/L
YG/BG/W
R/WW/G
R/B
]
R/L]
[R/L] (B)
R/B
B/R
B/R
B/LB
BR
<G><R>
<R><G>
B/L
(BR)
(F)
(R)
Y G/B G/W R/B
W/GR/WR/Y
Y
R/Y
G/BG/W
R/WW/G
AIR CONDITIONER
WITH
10A
1
LG/R
B/W
R/G
-
R.DEF
W
20A
B/W
REAR FOG LIGHT
WITH
R/Y
10A
21
R/LW
30A
W/G
B/R
W/R
B/W
R.FOG
21-209
WIPER
-
19
CIGAR
18
(HEATER)
17
10
2
NOTE: THIS IS THE CONNECTOR AS SEEN FROM THE TERMINAL SIDE.
15A
L
22
16
10A
L/Y
3
30A
11
12
4
8
7
6
10A
10A
15A
L/R
Y/R
G/W
B/R
17
5
40A
L
L
20
15A
L/W
21
9
18
1
15
14
13
19
15A
15A
B/W
B/Y
W
(D/L)
16
15
ENGINE
14
METER
13-12
-
11-10
-8ROOM
7
TAIL
6
STOP
5-4
3
HAZARD
2
(A/C)
1
(P.WIND)
22
30A
(R)
FROM THE TERMINAL SIDE.
NOTE: THIS IS THE CONNECTOR AS SEEN
HEAD
B
5
432
1
60A80A30A 30A
R/BW/R
R
R
BTN2
3 MAIN
GLOW41
5 -
B/W
WABL B/R
B/Y
B/WB/W
( )...WITH THEFT-DETERRENT SYSTEM
< >...DOUBLE CAB
( )( )...NOT USED
X-08 FRONT(F)-ENGINE(E)X-07 FRONT(F)-ENGINE(E)
( )...F2 CARB
]
]...U.K. SPECS.
(F2 CARB)
IGNITION SWITCH(F)
( )...F2 CARB
X-06 FRONT(F)-REAR(R)
X-01 MAIN FUSE BLOCK(E)
X-04 FRONT(F)-REAR(R)
(WL,WL Turbo)
X-02 ENGINE SWITCH(F) X-03 FUSE BLOCK(F)
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
PAGES. FROM. MANUAL
RANGER/DRIFTER.RHD.EWD
CONTINUED
Z WIRING DIAGRAM
X-1
COMMON CONNECTOR LIST
Z-90
Z-91
X-2
B
LG/R
LG/R
B
(FR)
(DR4)(DR3)
(R)
B
LG/R
LG/R
B
R/L
R/L
(FR)
G/Y
W/R
(F)
G/Y
W/R
R/L
(DR4)
(FR)
G/Y
R
G
R/L
W
L/W
R
W/RG
DOUBLE CAB
R/L
(DR3)
(R)
L/W
R
G
R/L
W
L/W
R
WG
DOUBLE CAB
(F)
(IN)
L/R
R/Y
L/R
R/Y
(R/G)
WB/YW/B
(R/G)
J
I
J
I
B/L B
B/LB/O
(E) (E)(E)
(F)(F)(F)
Y/R
Y/R
B/W
B/W
B/W
B/W
Y/R
Y/R
<GY/R>
F2 CARB
L
W/B
L/W
W/B
Y/BL
B/Y
L/W
B/Y
Y/B
<GY/R>
G/R
GY/R
GY/R
LG/B
R/G
B/R
WL,WL-T,WITH RFWWL,WL-T.WITHOUT RFW
L
L
B/Y
L/W
W/B
G/R
WB/R
L/W
R/G
LG/B
G/R
B/Y
L
B/Y
L/W
W/B
G/R
WB/R
L
B/RWW/B
L/W
( )
[LG/R]
[LG/R]( R/Y )
R/Y
(FR)
<G>
<R>
<R>
<G>
(F)
(DR2)
(F)
L
L/W
L
L/W
(R/L)
(F)
(DR2)
L/BBR
BR/Y
BR
BR/Y
L/B
R/L
KC
CK
[BR/R]
[BR/R]
<W/R>
<G/Y>
B
(R/W)(G/W)
<W>
<L/W>
<W>
<L/W>
<W/R>
<G/Y>
(DR1)
G/OG/R
G/Y
(F)
G/R
G/Y
G/OG/WR/W
B
(R/L)
(F)
(DR1)
LG/B
BR
BR/B
BR
BR/B
LG/B
R/L
L/Y
L/R
(DR1)
(F)
L/R
L/Y
[BR/R][B]
]
[B] BR/R]
(R/W)(G/W)
(F)
GRG/WR/W
(DR2)
GR
(R/L)
(R/L)
B/R
B/R
<G/R>
<G/R>
(R2)
W/GR/BR/WG/W
G/B
Y
(R)
W/G R/B R/W G/W Y
G/B
( )...WITH AIR CONDITIONER < >...4X4
( )
X-24 FLOOR(FR)-DOOR No.4(DR4)X-23 REAR(R)-DOOR No.3(DR3)
[ ]...U.K. SPECS.
X-11 FRONT(F)-INTERIOR LIGHT(IN)X-09 FRONT(F)-ENGINE(E)
< >...DOUBLE CAB WITH POWER WINDOWS
X-22 FLOOR(FR)-DOOR NO.4(DR4)X-20 FRONT(F)-FLOOR(FR) X-21 REAR(R)-DOOR NO.3(DR3)
[ ]...U.K.SPECS. < >...DOUBLE CAB
( )...WITH DOOR SWITCH
( )...WITH POWER WINDOWS
( )...WITH POWER WINDOWS
( )...WITH POWER WINDOWS
X-16 FRONT(F)-DOOR NO.2(DR2)
( )...U.K. SPECS. < >...F2 CARB
X-15 FRONT(F)-DOOR NO.2(DR2)
[ ]...U.K.SPECS. ( )...WITH POWER WINDOWS
X-12 FRONT(F)-DOOR NO.1(DR1)
X-18 REAR(R)-REAR NO.2(R2)
X-14 FRONT(F)-DOOR NO.1(DR1)
X-19 FRONT(F)-FLOOR(FR)
X-13 FRONT(F)-DOOR NO.1(DR1)
X-17 FRONT(F)-DOOR NO.2(DR2)
WIRING DIAGRAM Z
COMMON CONNECTOR LIST
BACK.TO.CHAPTER.INDEX
CONTINUED
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
BACK.TO.CHAPTER.INDEX
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
PARTS INDEX
PAGE 1 OF 2
TO. MODEL .INDEX
4
4X4 INDICATOR SWITCH ...............................Z-38,62
A
A/C RELAY.......................................................Z-58,60
A/C SWITCH.....................................................Z-58,60
AUDIO ILLUMINATION.........................................Z-64
AUDIO UNIT..........................................................Z-70
B
BACK-UP LIGHTS.................................................Z-56
BACK-UP LIGHT SWITCH....................................Z-56
BLOWER MOTOR............................................Z-58,60
BONNET SWITCH.................................................Z-86
BRAKE FLUID LEVEL SENSOR......................Z-38,44
BRAKE LIGHTS.....................................................Z-56
BRACK SWITCH...................................................Z-56
C
CARBURETOR......................................................Z-32
CHECK CONNECTOR..........................................Z-30
CIGARETTE LIGHTER..........................................Z-66
CLIMATE CONTROL UNIT..............................Z-58,60
CLIMATE CONTORL UNIT ILLUMINATION.........Z-64
CLOCK ..................................................................Z-66
CLOCK SPRING....................................................Z-82
COIL ......................................................................Z-84
D
DATA LINK CONNECTOR....................................Z-88
DOOR KEY CYLINDER SWITCH..........................Z-86
DOOR LOCK ACTUATORS..................................Z-76
DOOR LOCK TIMER UNIT....................................Z-76
DOOR LOCK-LINK SWITCH............................Z-76,86
DOOR SWITCHES................................................Z-68
DRIVER-SIDE AIR BAG MODULE........................Z-82
E
EGR SOLENOID VALVE.......................................Z-28
ENGINE COOLANT TEMPERATURE SENSOR
F
FAST IDLE CAM BREAKER SOLENOID VALVE
...............................................................................Z-32
FICD SOLENOID VALVES..........................Z-22,26,60
FILAMENT.............................................................Z-66
FLASHER UNIT.....................................................Z-54
FREE SOLENOID..................................................Z-62
FRONT SIDE TURN LIGHTS................................Z-54
FRONT TURN LIGHTS .........................................Z-54
FUEL GAUGE SENDER UNIT..............................Z-34
FUEL INJECTION PUMP............................Z-22,26,84
FUEL PUMP RELAY .............................................Z-34
G
GENERATOR...................................................Z-18,20
GLOW PLUG....................................................Z-22,26
GLOW PLUG RELAY.......................................Z-22,26
.....Z-22,26
H
HAZARD WARNING SWITCH .............................Z-54
HAZARD WARNING SWITCH ILLUMINATION
HEADLIGHTS...................................................Z-48,50
HEADLIGHT LEVELING ACTUATOR...................Z-50
HEADLIGHT LEVELING SWITCH ........................Z-50
HEADLIGHT SWITCH......................................Z-48,50
HORN....................................................................Z-56
HORN RELAY .......................................................Z-56
HORN SWITCH.....................................................Z-56
I
IGNITION COIL .....................................................Z-30
IMMOBILIZER UNIT..............................................Z-84
INSTRUMENT CLUSTER .................Z-36,38,40,42,44
INTERIOR LIGHT..................................................Z-68
K
KEY REMINDER SWITCH....................................Z-36
L
LICENSE PLATE LIGHTS.....................................Z-52
LOCK SOLENOID .................................................Z-62
M
MAGNETIC CLUTCH.......................................Z-58,60
N
NE SENSOR.....................................................Z-22,26
NEUTRAL SWITCH...............................................Z-62
NOISE FILTER......................................................Z-30
O
OIL PRESSURE SWITCH................................Z-36,44
OUTLET.................................................................Z-66
P
PANEL LIGHT CONTROL SWITCH......................Z-64
PARKING BRAKE SWITCH.............................Z-38,44
PARKING LIGHTS.................................................Z-52
PASSENGER-SIDE AIR BAG MODULE...............Z-82
PCM...................................................Z-22,24,26,28,32
POSITIVE TEMPERATURE COEFF ICIENT HEATER POSITIVE TEMPERATURE COEFF ICIENT HEATER
RELAY...................................................................Z-32
POWER OUTSIDE MIRRORS ..............................Z-78
POWER OUTSIDE MIRROR SWITCH .................Z-78
POWER WINDOW MAIN SWITCH..................Z-72,74
POWER WINDOW REGULATORS..................Z-72,74
POWER WINDOW SUBSWITCH.....................Z-72,74
R
REAR FOG LIGHT ................................................Z-52
REAR FOG LIGHT RELAY....................................Z-52
REAR FOG LIGHT SWITCH.................................Z-52
REAR TURN LIGHT..............................................Z-54
....Z-64
....Z-32
CONTINUED
Z-92
BACK.TO.CHAPTER.INDEX
PARTS INDEX
PAGE 2 OF 2
REAR WINDOW DEFROSTER RELAY................Z-66
REAR WINDOW DEFROSTER SWITCH..............Z-66
REFRIGERANT PRESSURE SWITCH............Z-58,60
RESISTOR........................................................Z-58,60
RFW CONTROL MODULE....................................Z-62
RFW MAIN SWITCH .............................................Z-62
RFW SWITCH .......................................................Z-62
S
SAS UNIT..............................................................Z-82
SEDIMENTOR SWITCH........................................Z-36
SHORT CONNECTOR ....................................Z-56,82
SPEAKERS ...........................................................Z-70
STARTER.........................................................Z-18,20
T
TAILLIGHTS..........................................................Z-52
THEFT-DETERRENT CONTROL MODULE.........Z-86
THEFT-DETERRENT HORN ................................Z-86
THEFT-DETERRENT HORN RELAY....................Z-86
THEFT-DETERRENT RELAY...............................Z-86
THEFT-DETERRENT UNIT...................................Z-86
THERMOSWITCH............................................Z-58,60
TURN SWITCH......................................................Z-54
RANGER/DRIFTER.RHD.EWD
PAGES. FROM. MANUAL
TO. MODEL .INDEX
V
VACUUM SWITCH................................................Z-38
VEHICLE SPEEDOMETER SENSOR..............Z-36,42
W
WATER TEMPERATURE SENDER UNIT.......Z-36,42
WATER THERMOSWITCH...................................Z-32
WINDSHIELD WASHER MOTOR.........................Z-46
WINDSHIELD WIPER AND WASHER SWITCH ...
WINDSHIELD WIPER MOTOR.............................Z-46
Z-46
Z-93
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
