Page 1

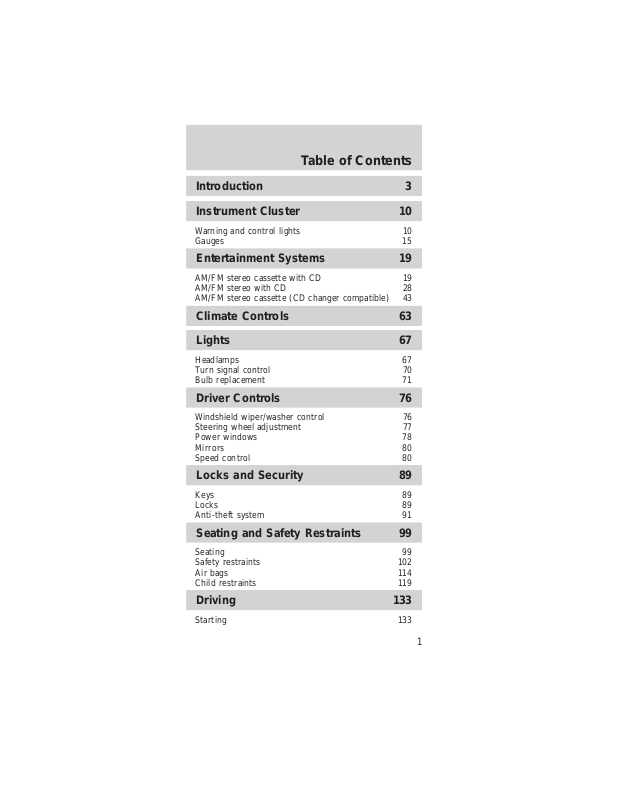

Table of Contents

Introduction 3 Instrument Cluster 10

Warning and control lights 10 Gauges 15

Entertainment Systems 19

AM/FM stereo cassette with CD 19 AM/FM stereo with CD 28 AM/FM stereo cassette (CD changer compatible) 43

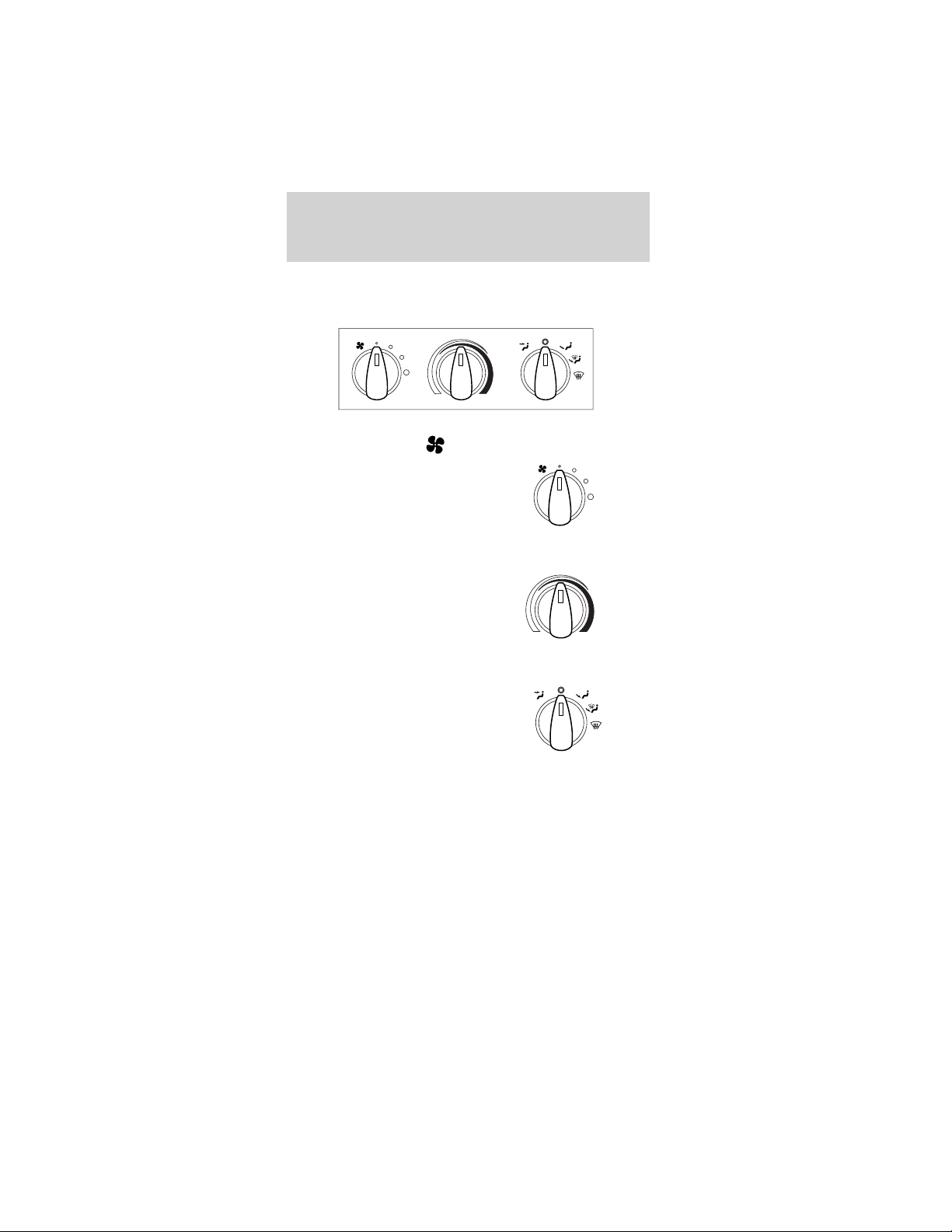

Climate Controls 63 Lights 67

Headlamps 67 Turn signal control 70 Bulb replacement 71

Driver Controls 76

Windshield wiper/washer control 76 Steering wheel adjustment 77 Power windows 78 Mirrors 80 Speed control 80

Locks and Security 89

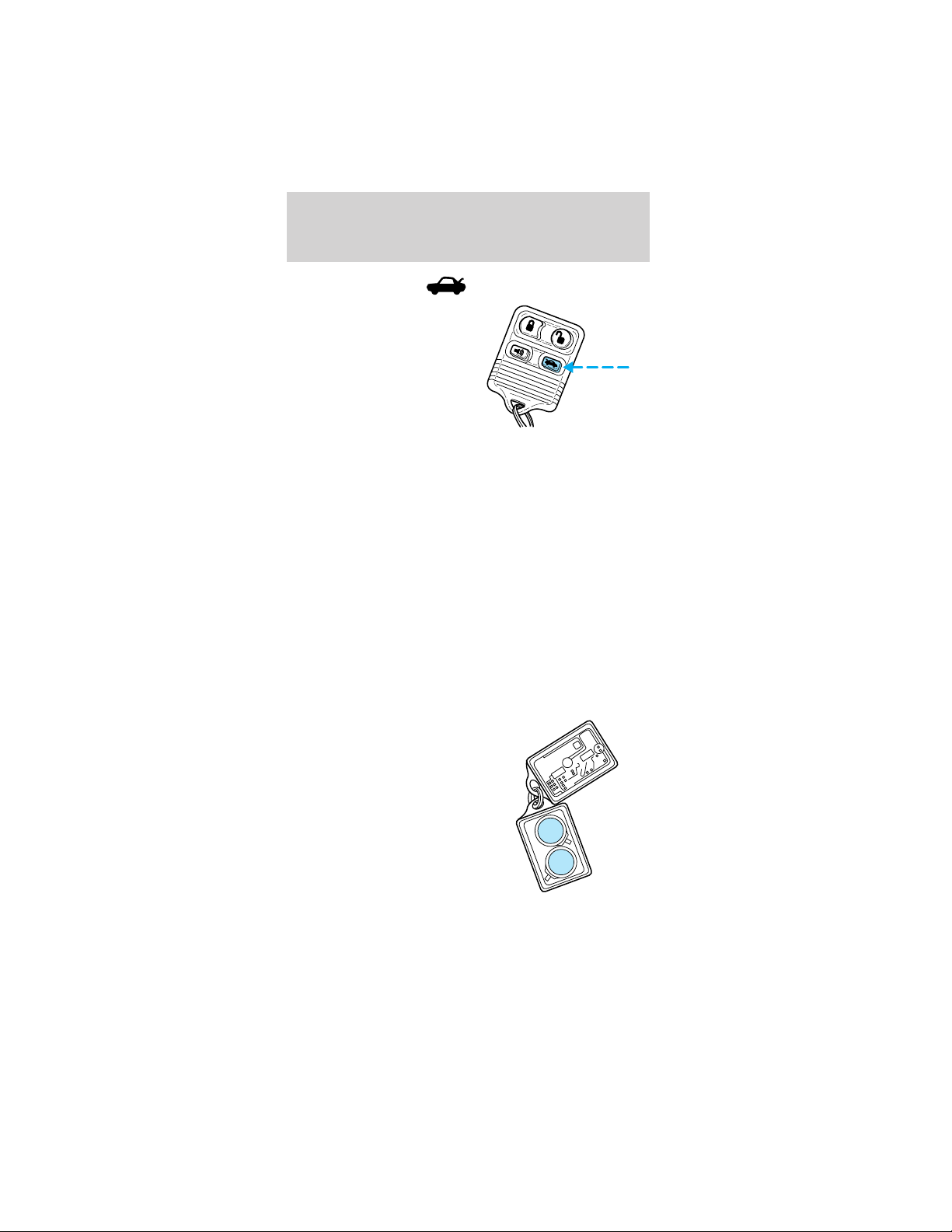

Keys 89 Locks 89 Anti-theft system 91

Seating and Safety Restraints 99

Seating 99 Safety restraints 102 Air bags 114 Child restraints 119

Driving 133

Starting 133

Page 2

Table of Contents

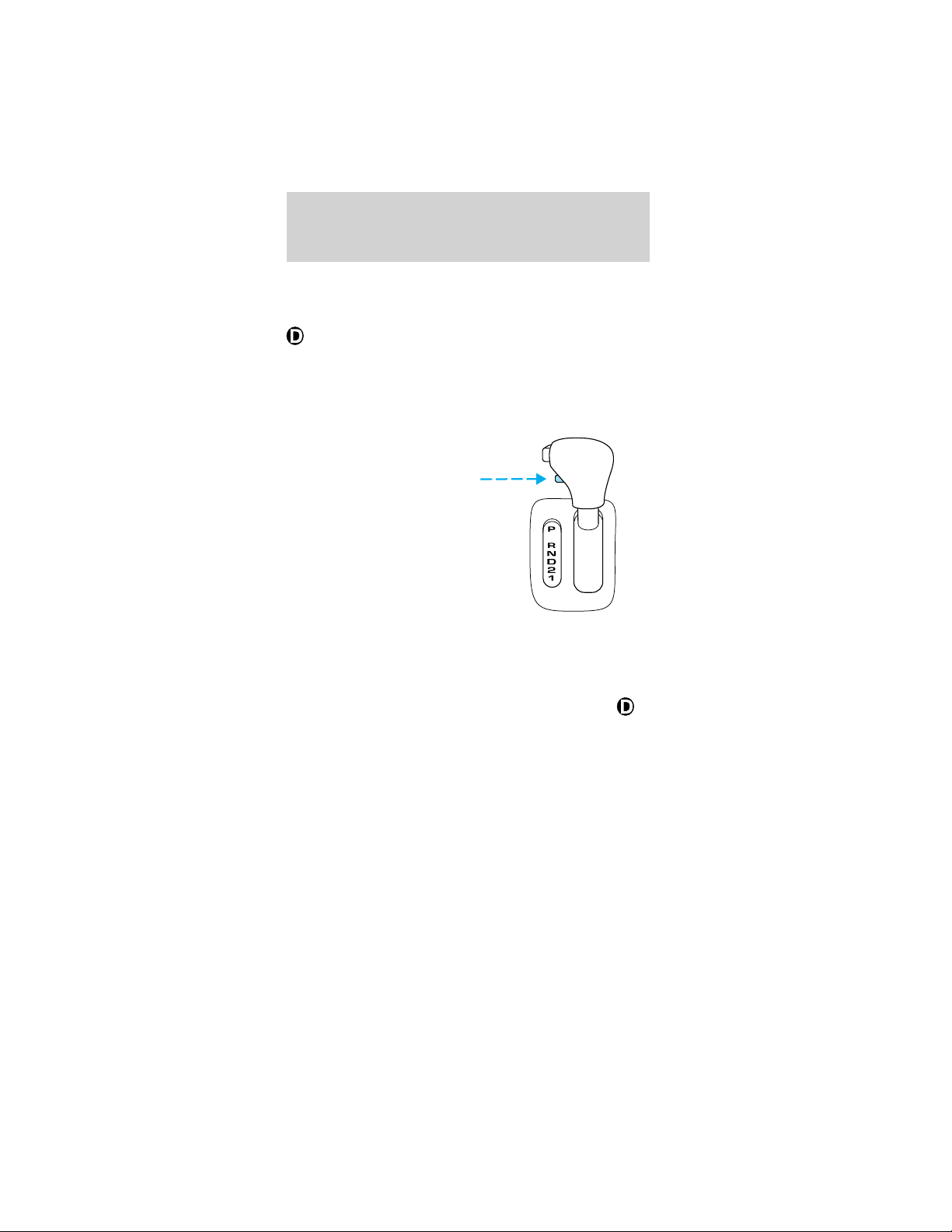

Brakes 138 Traction control/AdvanceTrac 142 Transmission operation 144 Vehicle loading 154 Trailer towing 156

Roadside Emergencies 157

Getting roadside assistance 157 Hazard flasher switch 158 Fuel pump shut-off switch 159 Fuses and relays 160 Changing tires 165 Jump starting 170 Wrecker towing 175

Customer Assistance 176

Reporting safety defects (U.S. only) 186

Cleaning 187 Maintenance and Specifications 194

Engine compartment 197 Engine oil 199 Battery 203 Fuel information 214 Part numbers 237 Refill capacities 238 Lubricant specifications 240

Accessories 245 Index 248

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Page 3

Introduction

The following warning may be required by California law:

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its

constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications.

Page 4

Introduction

This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch In the event of

an accident the safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Page 5

Introduction

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

There are no particular guidelines for breaking-in your vehicle. During the first 1,600 km (1,000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in.

Page 6

Introduction

SPECIAL NOTICES Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

By operating other electronic equipment

(e.g. mobile telephone without exterior aerial) electromagnetic fields can occur which can cause malfunctions of the vehicle electronics. Therefore you should observe the instructions of the equipment manufacturers.

Please read the section Air bag in the

Seating and safety restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or

infant seats should NEVER be used in front of a passenger side air bag.

Page 7

Introduction

Notice to owners of Cobra vehicles

Before you drive your vehicle, be sure to read the “SVT Cobra Owner’s Guide Supplement.” This book contains important operation and maintenance information.

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle.

Refer to this Owner Guide for all other required information and warnings.

Page 8

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Brake System

Brake Fluid Non-Petroleum Based

AdvanceTrac

Hazard Warning Flasher

Fuse Compartment Fuel Pump Reset

Windshield Wash/Wipe

See Owner’s Guide

Child Seat Tether Anchorage

Anti-Lock Brake System

Traction Control

Master Lighting Switch

Fog Lamps-Front

Windshield Defrost/Demist

Rear Window Defrost/Demist

Power Window Lockout

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Page 9

Introduction

Vehicle Symbol Glossary

Interior Luggage Compartment

Panic Alarm

Release Symbol

Engine Oil Engine Coolant

Engine Coolant Temperature

Battery

Do Not Open When Hot

Avoid Smoking, Flames, or Sparks

Battery Acid Explosive Gas

Fan Warning

Maintain Correct Fluid Level

Power Steering Fluid

MAX MIN

Emission System

Passenger

Engine Air Filter

Compartment Air Filter

Jack Check fuel cap

Low tire warning

Page 10

Instrument Cluster

WARNING LIGHTS AND CHIMES Base instrument cluster

60 70

100

120

140

AIR

BAG

MPH km/h

FUEL DOOR

THEFT

SERVICE ENGINE

SOON

100

160 180

110

120

LOW FUEL

RPMX1000

SELECT/RESET

00000 00

O/D OFF

BRAKE

ABS

CHECK

FUEL

CAP

Optional instrument cluster

70 90

100

120 140

110

100

160

180 60 40

MPH km/h

FUEL DOOR

THEFT

SERVICE ENGINE

SOON

120

200

130

220

140

240

150

LOW

FUEL

AIR

BAG

RPMX1000

SELECT/RESET

00000 00

O/D OFF

BRAKE

ABS

CHECK

FUEL

CAP

Turn signals

Illuminates when the turn signals or the hazard lights are turned on. If the lights stay on continuously or flash faster, check for a burned-out bulb.

High beams

Illuminates when the high beam headlamps are turned on.

Safety belt

Illuminates to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Page 11

Instrument Cluster

Charging system

Illuminates when the battery is not charging properly.

Air bag readiness

Illuminates to confirm that the air bags (front or side) are operational. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Anti-theft system

Illuminates when the SecuriLocky Passive Anti-theft System is armed. If the light fails to illuminate, continues to flash or remains on, have the system serviced.

Service engine soon

Illuminates briefly to ensure the system is functional. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.

Light turns on solid:

Temporary malfunctions may cause the light to illuminate. Examples are:

1. The vehicle has run out of fuel.

2. Poor fuel quality or water in the fuel.

3. The fuel cap may not have been properly installed and securely tightened.

These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the

AIR

BAG

SERVICE

ENGINE

SOON

Page 12

Instrument Cluster

recommended octane and/or properly installing and securely tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

If the light remains on, have your vehicle serviced at the first available opportunity.

Light is blinking:

Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive

exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap

Illuminates when the fuel cap is not installed correctly. Check the fuel cap for proper installation. When the fuel filler cap is properly re-installed, the light(s) will turn off after a period of normal driving. Continuing to operate the vehicle with the check fuel cap light on, or a mis-installed fuel cap can activate the Service Engine Soon/Check Engine warning light.

It may take a long period of time for the system to detect an improperly installed fuel filler cap.

For more information, refer to Fuel filler cap in the Maintenance and specifications chapter.

CHECK

FUEL

CAP

Page 13

Instrument Cluster

Low fuel

Illuminates when the fuel level in the fuel tank is at, or near, empty (refer to Fuel gauge in this chapter for more information).

O/D off (if equipped)

Illuminates when the overdrive function has been turned OFF using the transmission control switch (TCS) on the gearshift. If the light does not come on or the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.

Traction ControlY active

Illuminates when the Traction Controly system is active. It will be lit for a minimum of four seconds or for the duration of the Traction Controly event.

For more information, refer to the Driving chapter.

LOW

FUEL

O/D

OFF

Anti-lock brake system (ABS)

To confirm the anti-lock brake system (ABS) warning light is functional it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON position to the START position, the light will momentarily illuminate just prior to reaching the START position). If the light remains on, continues to flash or fails to illuminate, have the ABS serviced immediately. If the ABS light remains on, it means the anti-lock brake system has malfunctioned and is disabled, however, the normal brake system will still function unless the brake warning light also remains

ABS

Page 14

Instrument Cluster

illuminated and parking brake is off. Refer to Brakes in the Driving chapter for more information.

Brake system warning

To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON position to START position, the light will momentarily illuminate prior to reaching the START position). It also illuminates if the parking brake is engaged. If the brake system warning light does not illuminate as described, seek service immediately. Illumination after the parking brake is released indicates low brake fluid level or a brake system malfunction and the brake system should be serviced immediately by a qualified technician. Refer to Brakes in the Driving chapter for more information.

Safety belt warning chime

Sounds to remind you to fasten your safety belts.

BRAKE

BeltMinderYchime

Sounds intermittently to remind you to fasten your safety belts.

Supplemental restraint system (SRS) warning chime

Sounds when a malfunction in the supplemental restraint system (front or side airbags) has been detected. Have the supplemental restraint system inspected immediately.

Key-in-ignition warning chime

Sounds when the key is left in the ignition and the driver’s door is opened.

Page 15

Instrument Cluster

Headlamps on warning chime

Sounds when the headlamps or parking lamps are on, the key is removed from the ignition and the driver’s door is opened.

GAUGES Base instrument cluster gauges

60 70

100

120

140

AIR BAG

MPH km/h

FUEL DOOR

THEFT

SERVICE

ENGINE

SOON

100

160 180

110

120

LOW FUEL

RPMX1000

SELECT/RESET

00000 00

O/D

OFF

BRAKE

ABS

CHECK

FUEL

CAP

Optional instrument cluster gauges

70 90

100

120 140

110

100

160

180 60 40

MPH km/h

FUEL DOOR

THEFT

SERVICE ENGINE

SOON

120

200

130

220

140

240

150

LOW FUEL

AIR

BAG

RPMX1000

SELECT/RESET

00000 00

O/D OFF

ABS

CHECK

BRAKE

FUEL

CAP

Engine coolant temperature gauge

Indicates the temperature of the

C H

engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to

Engine coolant in the Maintenance and specifications chapter.

Page 16

Instrument Cluster

Never remove the coolant reservoir cap

while the engine is running or hot. Steam and scalding liquid from a hot cooling system can burn you badly.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate.

Engine oil pressure gauge

Indicates engine oil pressure. At normal operating temperature, the needle will be in the normal range (the area between the “L” and “H”); if the needle goes below the normal range, stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level. Add oil if needed (refer to Engine oil in the Maintenance and specifications chapter). If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.

L H

Battery voltage gauge

Indicates battery voltage. If the pointer

moves and stays outside the normal operating range, have the vehicle’s electrical system checked as soon as possible.

Fuel gauge

Displays approximately how much fuel is in the

fuel tank. The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

Page 17

Instrument Cluster

When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

The FUEL DOOR icon and arrow indicates which side of the vehicle the fuel filler door is located.

Speedometer

Indicates the current vehicle speed.

• Base instrument cluster gauge

• Optional instrument cluster gauge

Odometer

Registers the total kilometers (miles) of the vehicle.

Tachometer

Indicates the engine speed in revolutions per minute.

Driving with your tachometer pointer at the top of the scale or in the red zone may damage the engine.

Page 18

Instrument Cluster

• Base instrument cluster gauge

• Optional instrument cluster gauge

Trip odometer

Registers the kilometers (miles) of individual journeys. Press and release the reset button until a ’T’ appears in the display (this represents the trip mode). Press and hold the button for three seconds to reset.

RPMX1000

SELECT/RESET

00000 00

Page 19

Entertainment Systems

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD

VOL PUSH ON

AM FM

SEEK TUNE

REW FF

123456

DOLBY B NR

SCAN

BASS TREB SEL BAL

DISC

FM 1 AMC

BL RF

SIDE 1-2 COMP SHUFFLE

TAPE

EJ CD

FADE

MUTE

AUTO

CLK

Volume/power control

Press the control to turn the audio system

VOL - PUSH ON

on or off. Audio power can also

be turned on by pressing the AM/FM select control or the TAPE/CD select control.

Turn control to raise or lower volume.

VOL - PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

BASS TREB

Page 20

Entertainment Systems

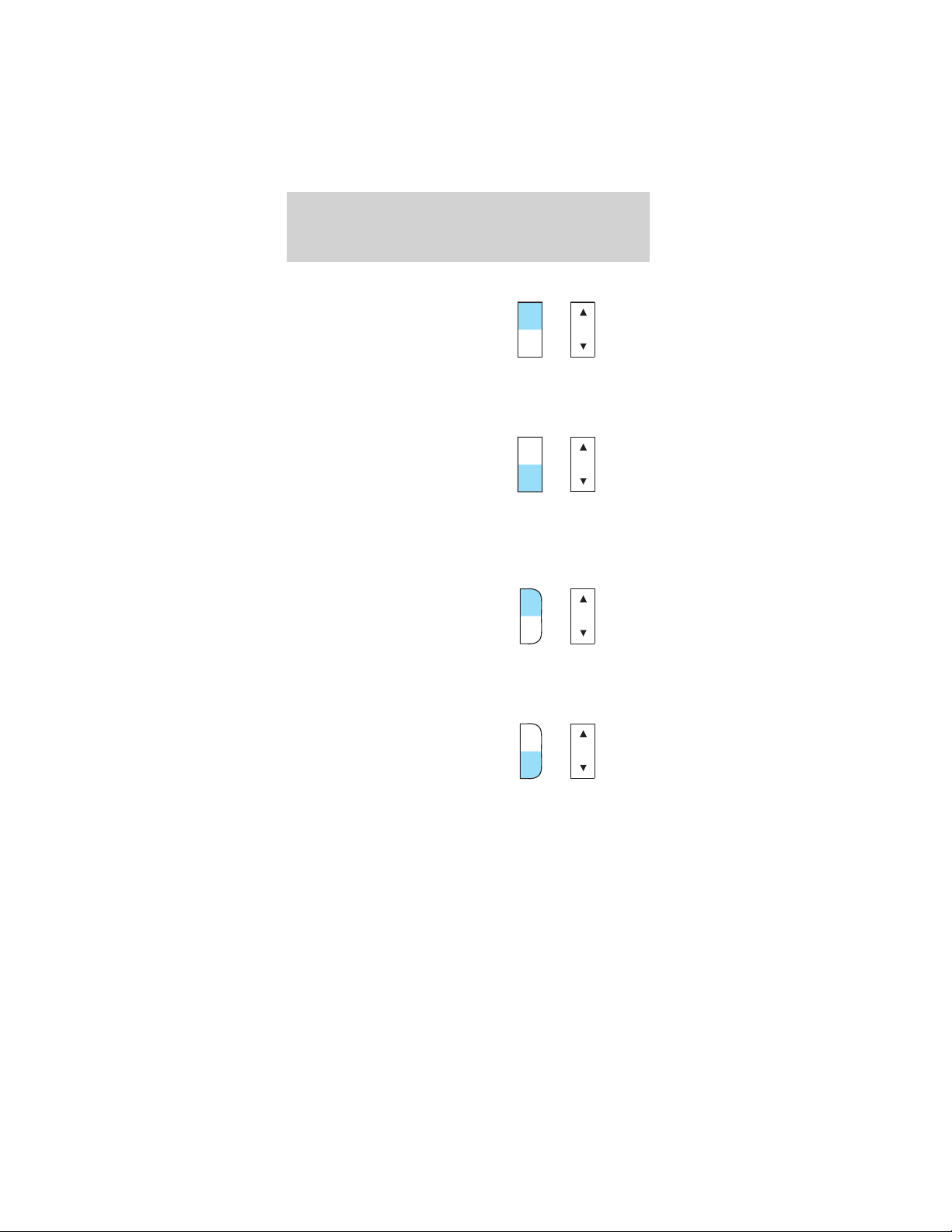

Press the BASS control then press:

•

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control then press:

•

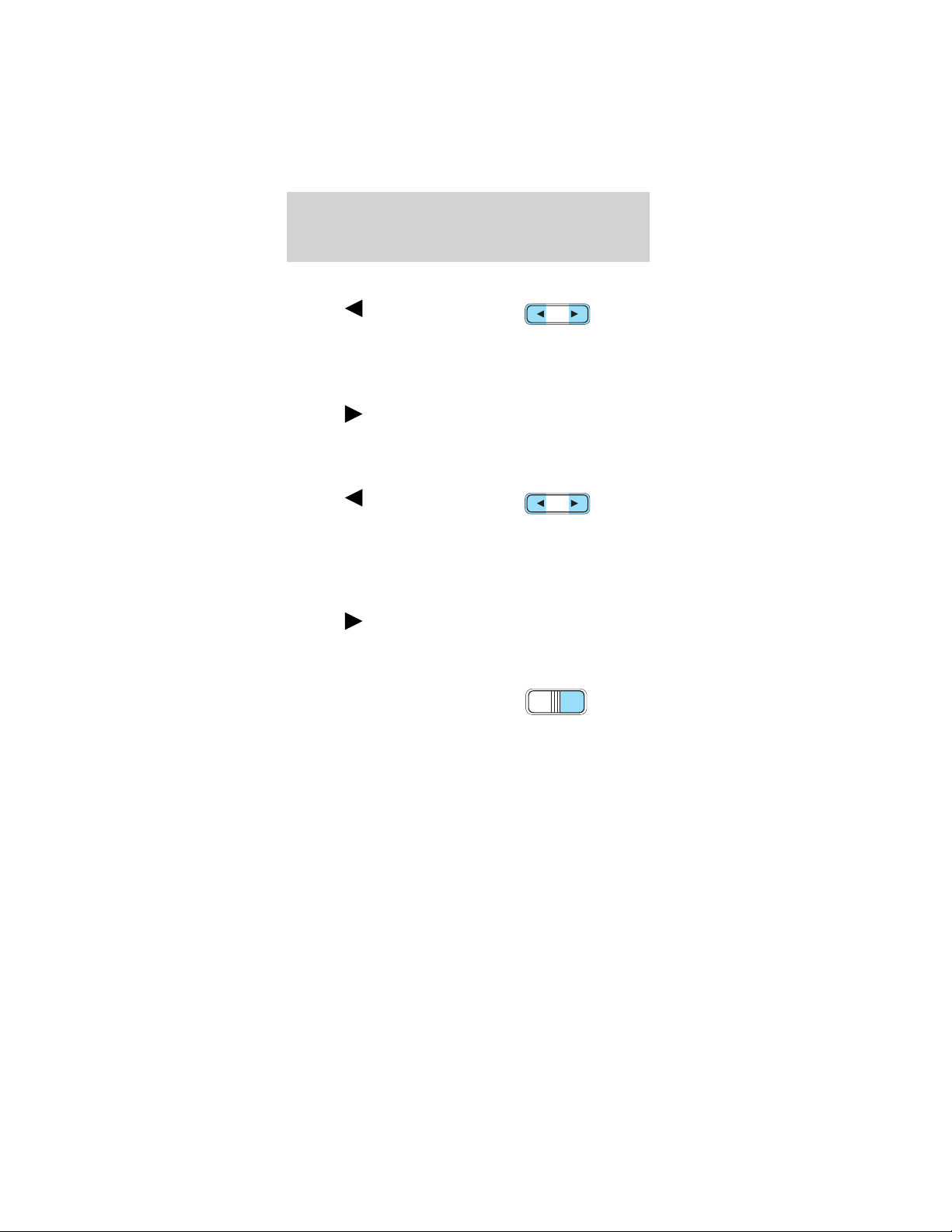

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control then press:

•

to decrease the

bass output and

to increase the

bass output.

BASS TREB

to decrease the

treble output and

to increase the

treble output.

to shift sound to

the left and

to shift sound to

the right.

BAL FADE

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

BAL FADE

Page 21

Entertainment Systems

Press the FADE control then press:

•

to shift the sound to the front and

•

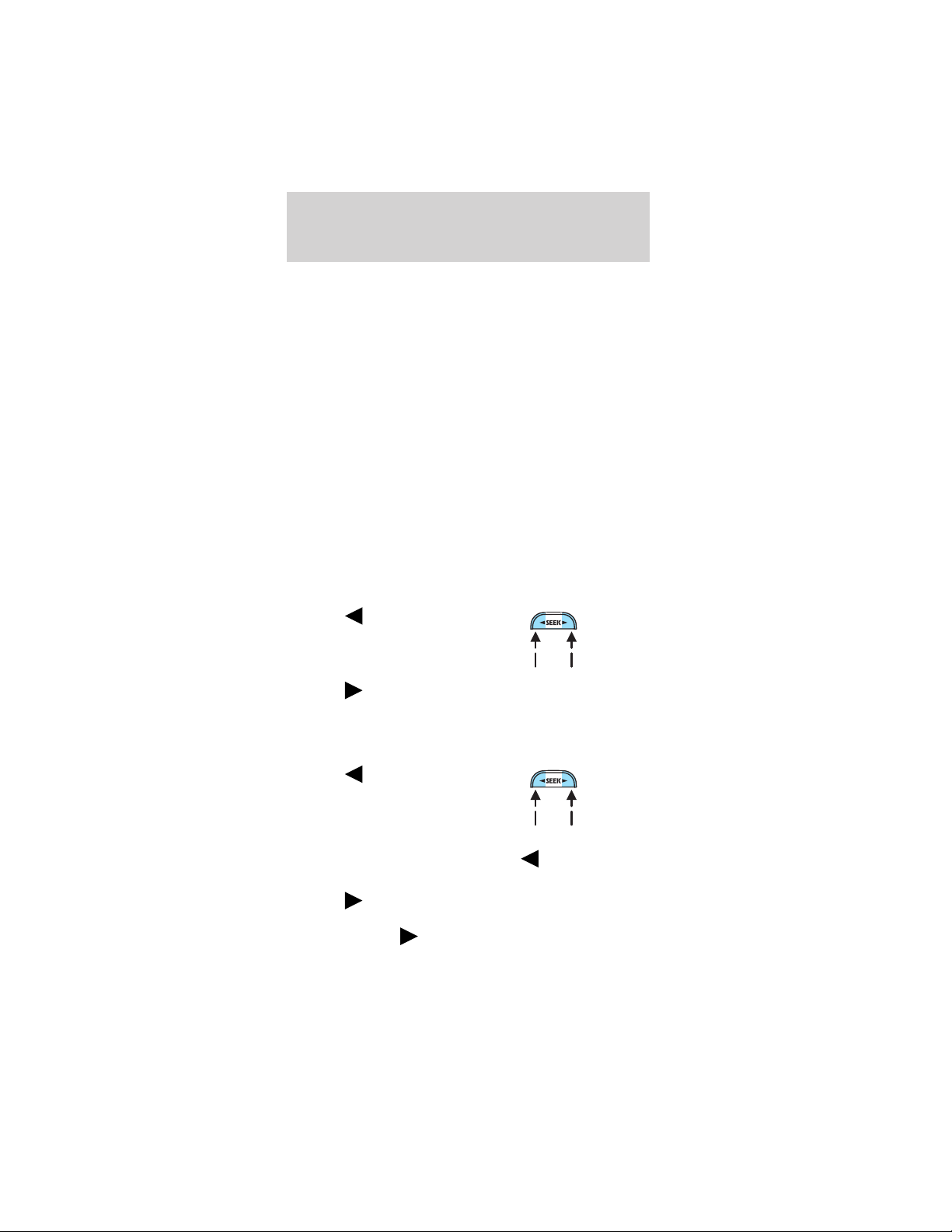

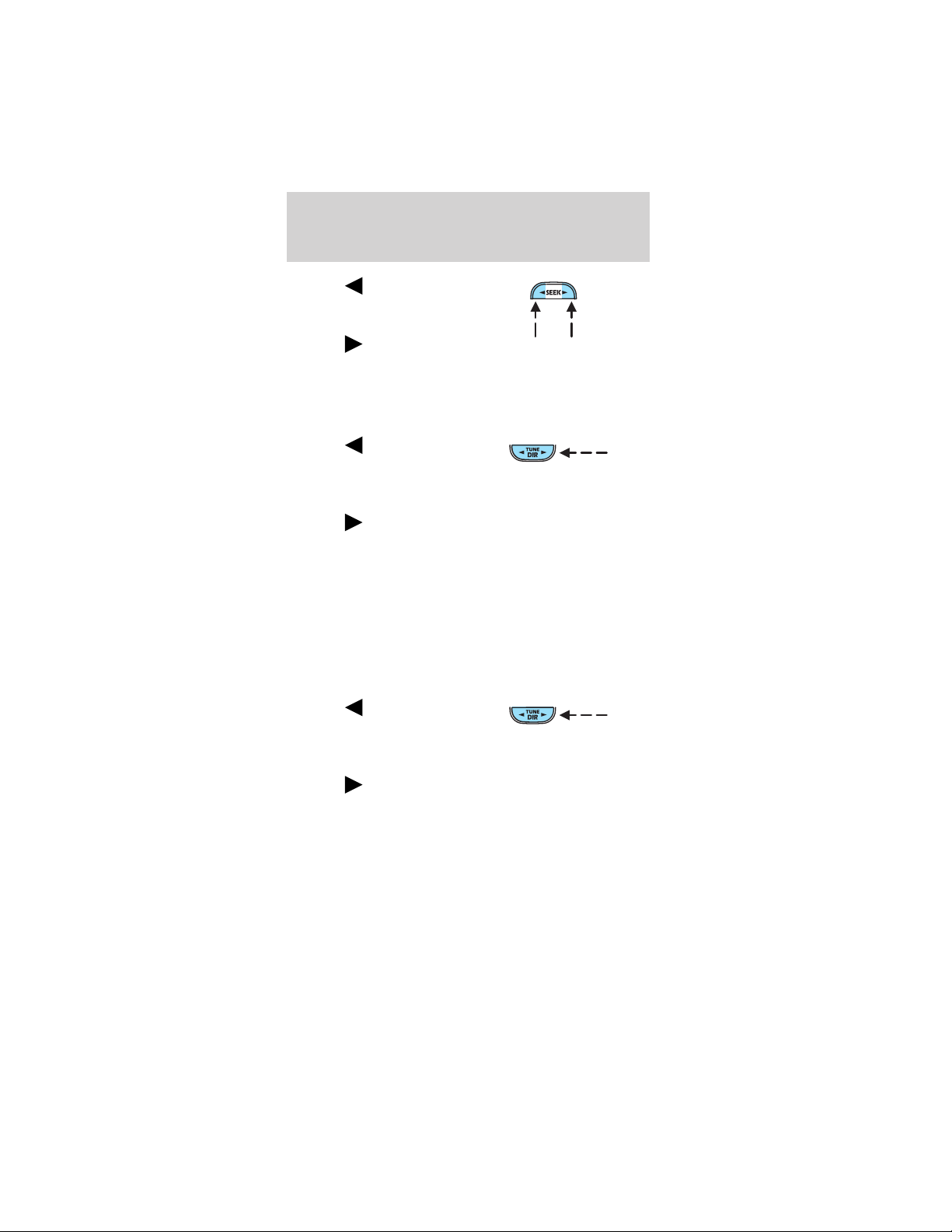

Seek function

The seek function control works in radio, tape or CD mode.

to shift the sound to the rear.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press the frequency band.

to find the next listenable station up

Seek function in tape mode

• Press to listen to the previous selection on the tape.

• Press tape.

to listen to the next selection on the

Seek function for CD or CD changer (if equipped)

• Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press replay that selection from the beginning.

• Press current disc. After the last track has been completed, the first track of the current disc will automatically replay.

to seek forward to the next track of the

, the CD changer will

Page 22

Entertainment Systems

Scan function

The scan function works in radio, tape or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode.

Scan function in tape mode

Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.

Scan function in CD or CD changer mode (if equipped)

Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

AM/FM select

The AM/FM select control works in radio, tape and CD modes.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

AM/FM select in CD or CD changer mode (if equipped)

Press this control to stop CD play and begin radio play.

SCAN

AM FM

Page 23

Entertainment Systems

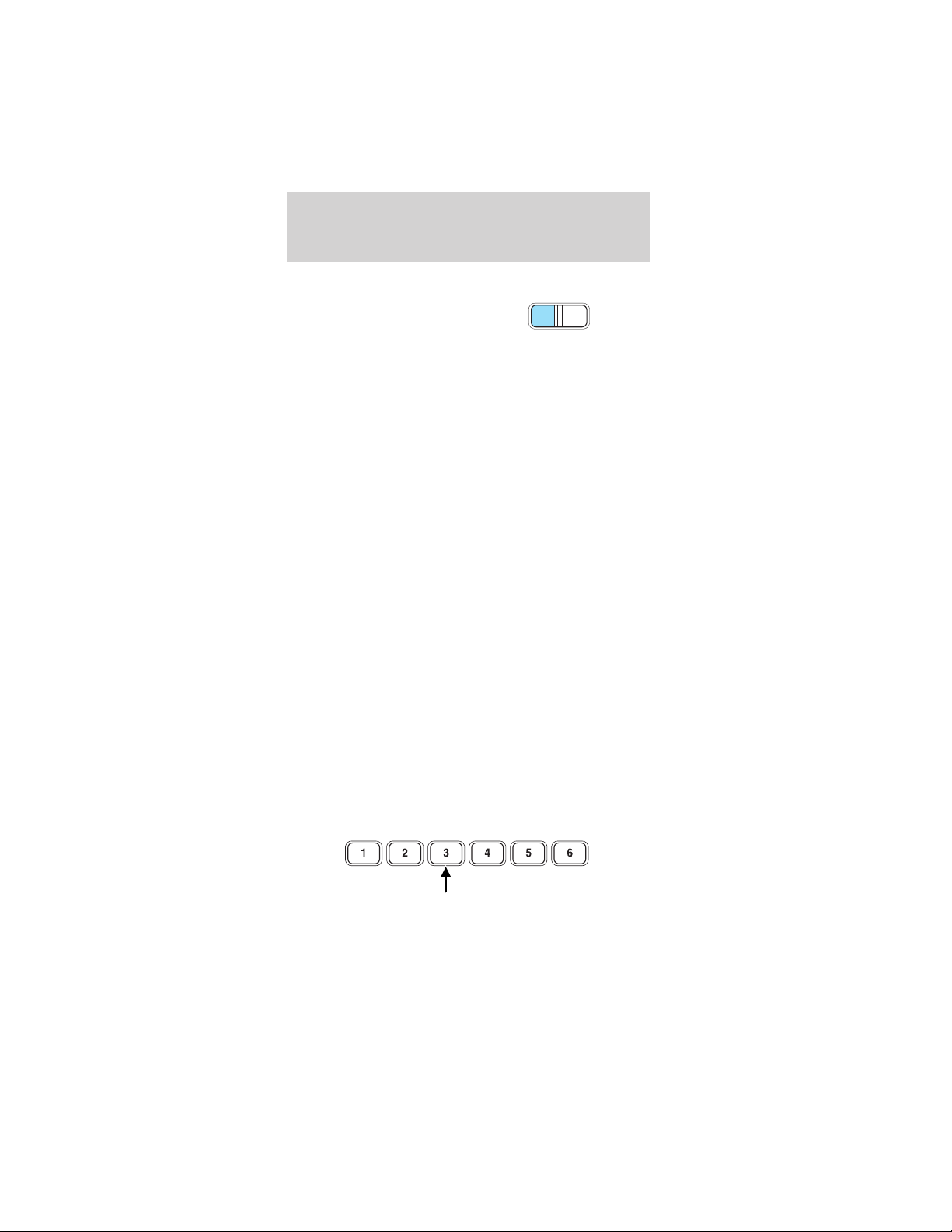

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

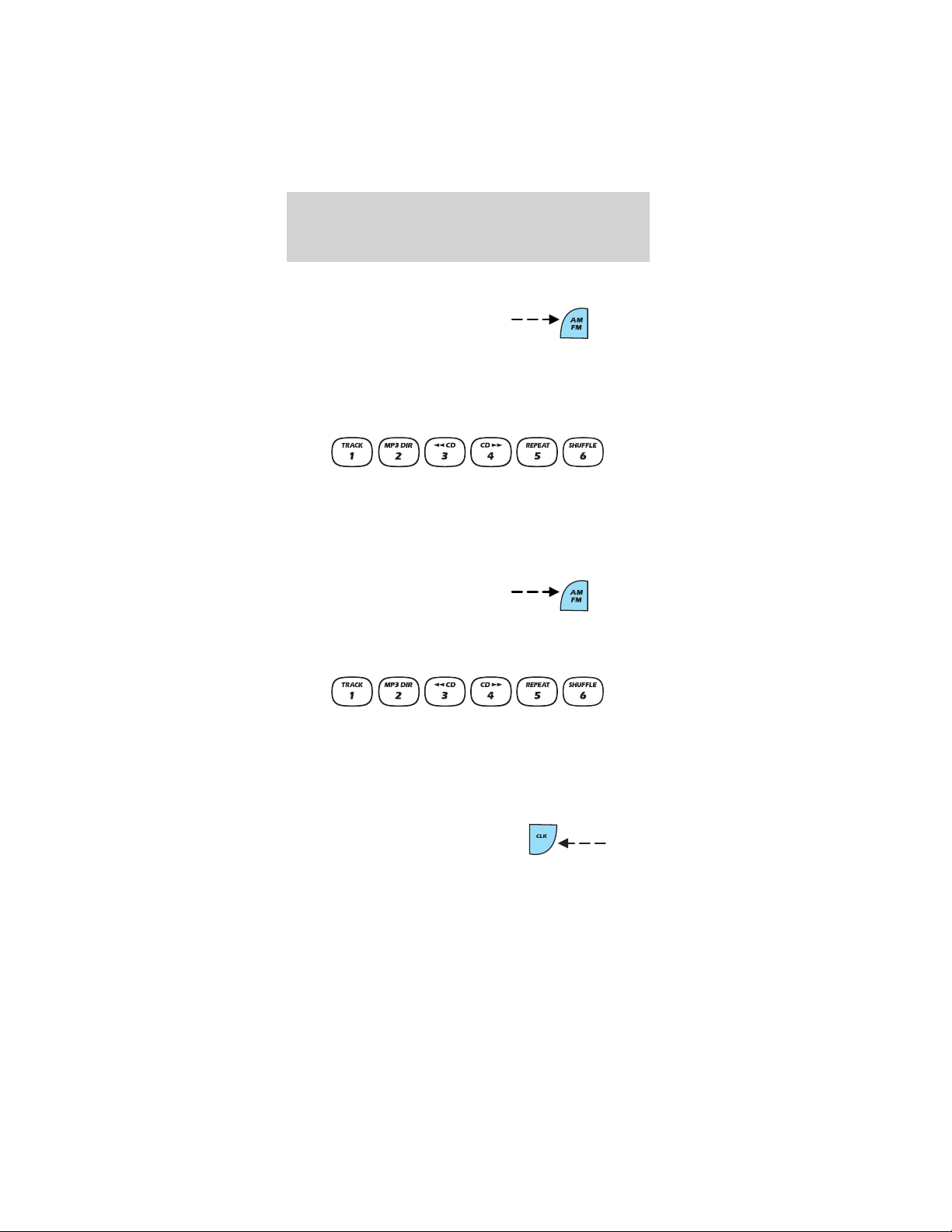

Setting memory preset stations

1. Select the frequency

band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek

function for more information on selecting a station.

3. Press and hold a memory preset control until the

sound returns, indicating the station is held in memory of the control you selected.

Autoset memory preset

Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autoset memory preset

1. Select a frequency using the AM/FM select

controls.

2. Press the control.

3. When the first six

strong stations are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

AM FM

AUTO

CLK

Page 24

Entertainment Systems

These stations are temporarily stored in the memory preset controls (until deactivated) and are accessed in the same manner as your original presets.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

Setting the clock

To set the hour, press and hold the CLK control and press SEEK:

AUTO

CLK

•

To set the minute, press and hold the CLK control and press TUNE:

•

If your vehicle has a separate clock, (other than the digital radio display), the CLK control will not function in the above manner.

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in

to decrease

hours and

to increase

hours.

AUTO

CLK

to decrease

minutes and

to increase

minutes.

AUTO

CLK

Page 25

Entertainment Systems

clock mode, the media information will display for 10 seconds, when the radio is turned on, and then revert to clock information. Any time that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed.

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press band (whether or not a listenable station is located there). Hold for quick movement.

Tape/CD select

• To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press again during rewind or fast forward to stop the rewind or fast forward function.

• To begin CD play (if CD(s) are loaded), press the CD control. The first track of the disc will begin playing. If returning from radio or tape mode, CD play will begin where it stopped last.

Press the CD control to toggle between single CD and CD changer (if equipped).

to move to the next frequency up the

TAPE CD

Page 26

Entertainment Systems

Rewind

The rewind control works in tape and CD modes.

• In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

• In CD mode, pressing the REW control rewinds the CD within the current track.

Fast forward

The fast forward control works in tape and CD modes.

• In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the FF control fast forwards the CD within the current track.

Tape direction select

Press to play the alternate side of the tape.

REW

SIDE 1-2

Eject function

Press the EJ control to stop and eject a tape.

Press the EJ control to stop and eject a CD.

Page 27

Entertainment Systems

DolbyT noise reduction

Dolbyt noise reduction operates in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback.

Press the

control to activate (and deactivate)

the Dolbyt noise reduction. Dolbyt noise reduction is manufactured under

license from Dolbyt Laboratories Licensing Corporation. “Dolbyt” and the double-D symbol are registered trademarks of Dolbyt Laboratories Licensing Corporation.

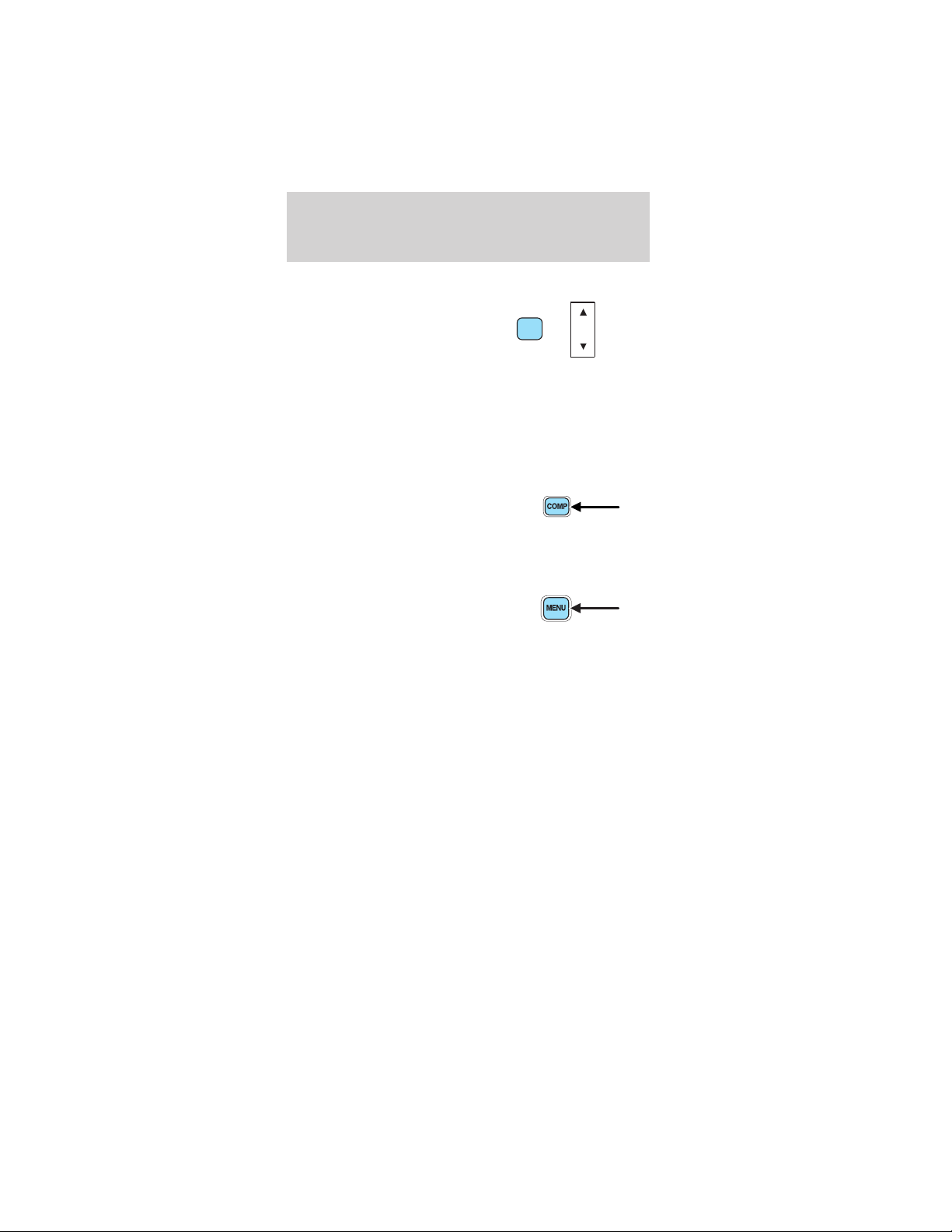

Compression adjust

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

Shuffle feature

The shuffle feature operates in CD mode and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks on the current disc are played.

Press to start this feature. Random order play will continue until the control is pressed again.

COMP

SHUFFLE

Page 28

Entertainment Systems

Mute mode

Press the MUTE control to mute the playing media. Press the MUTE control again to return to the playing media.

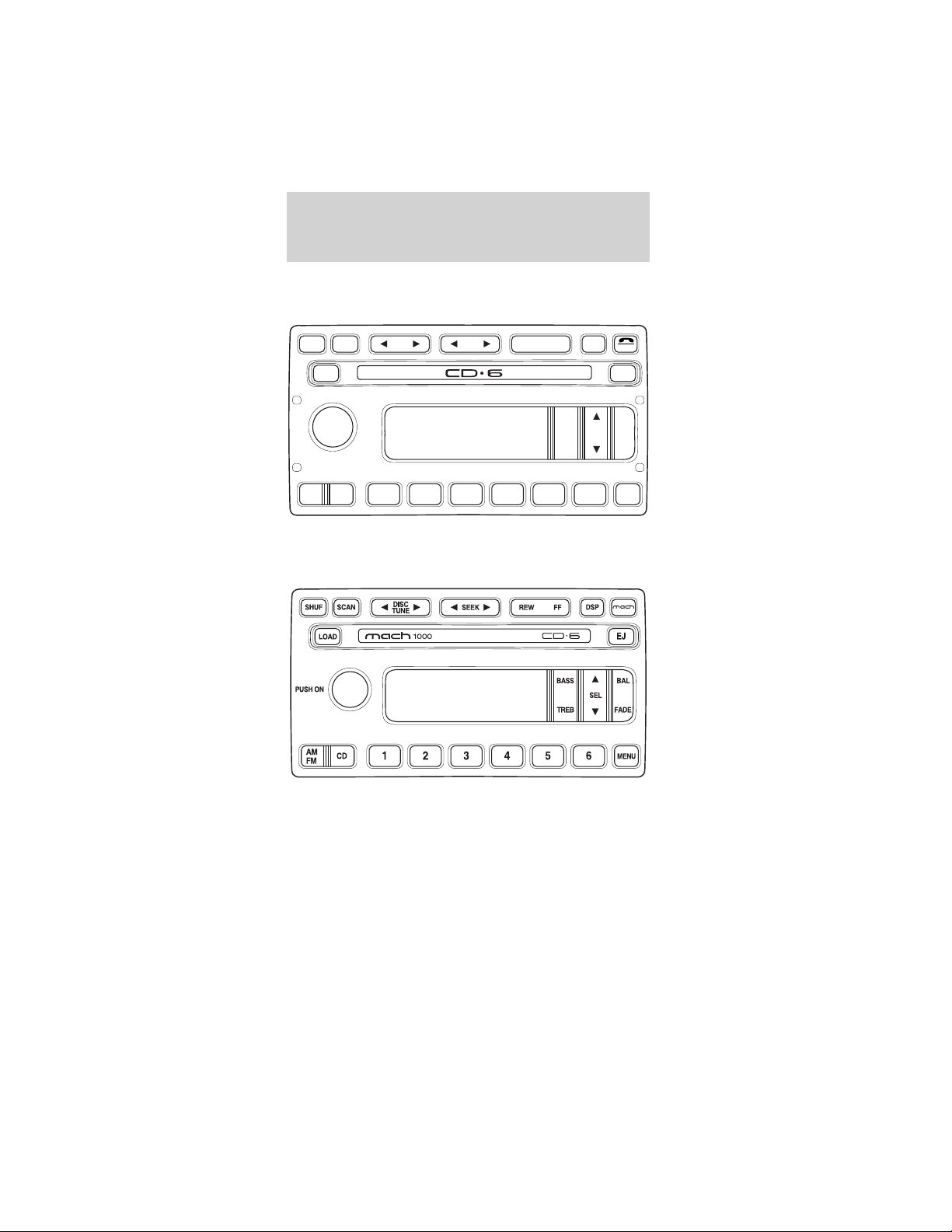

MACHT MP3 MUSIC SYSTEM

MUTE

1. ON/OFF and volume

control

2. AM/FM control

3. Bass control

4. Treble control

5. Fade control

6. Balance control

7. Seek control

8. Scan control

9. Clock control

10. Tune/Directory

control

11. CD control

12. MP3 directory control

13. Eject control

14. CD rewind control

15. CD fast forward control

16. Shuffle control

17. Compression control

18. Track control

19. Repeat control

Page 29

Entertainment Systems

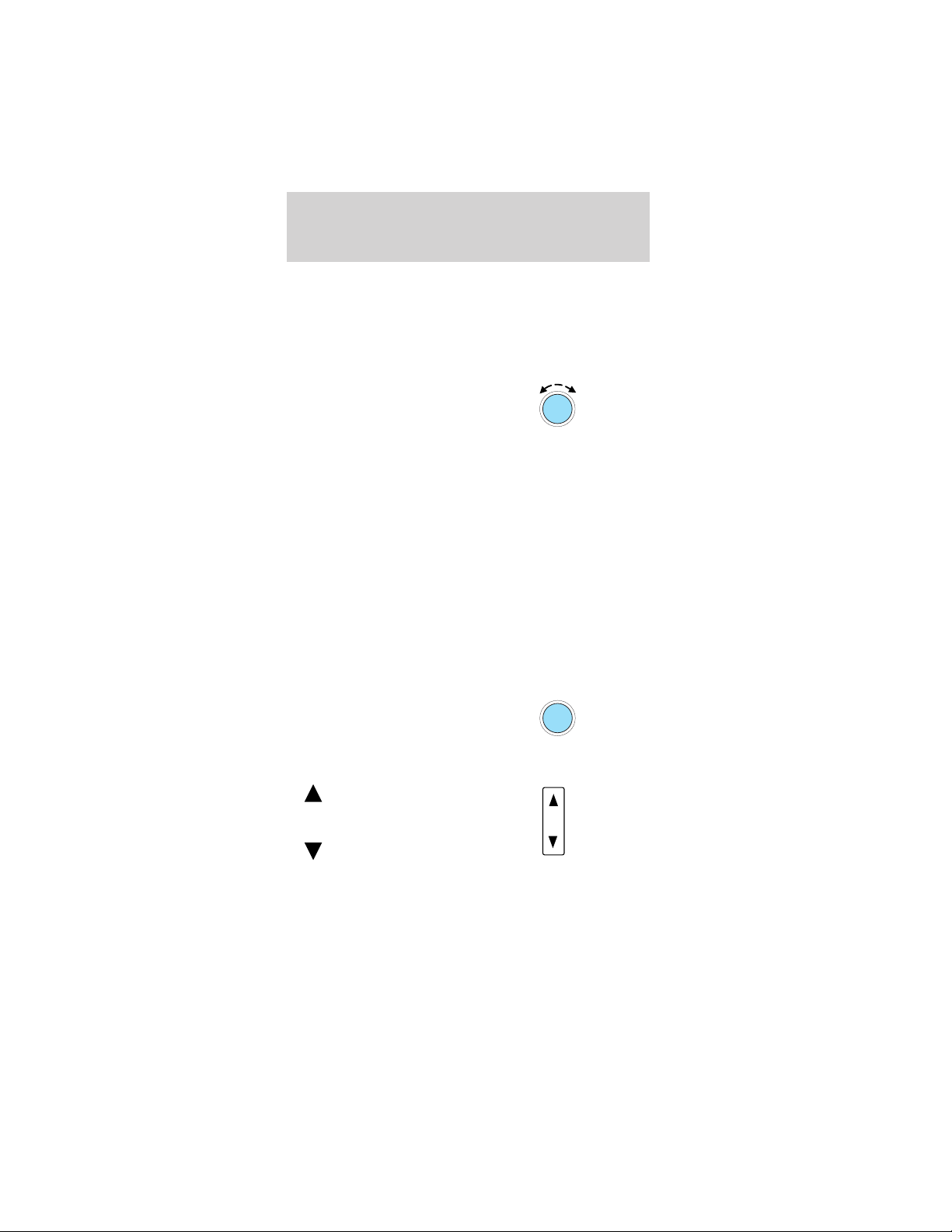

Volume/power control

Press the control to turn the audio system on or off.

Turn the control to raise or lower the volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

AM/FM select

The AM/FM select control works in radio mode.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Page 30

Entertainment Systems

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

MP3 functions

Your audio system is equipped with MP3 capability which allows you to listen to songs in MP3 flat file mode and MP3 directory mode.

To engage MP3 flat file mode, insert an MP3 disc. If an MP3 disc is already present in the player, press the CD control. The MP3 icon will display while the player is in MP3 mode.

While in MP3 flat file mode, press the MP3 DIR control to enter into MP3 directory mode. The MP3 icon and the DIR icon will display while the player is in directory mode.

Your MACHt MP3 player is also equipped with an anti-shock buffer for MP3 discs.

MP3 file directory structure

The MACHt MP3 music system recognizes MP3 disc file and directory (folder) structure as follows:

• There are two different modes for MP3 disc playback: MP3 flat file mode (default) and MP3 directory mode.

• MP3 flat file mode ignores any directory structure present on the MP3 disc. The player sequentially

Page 31

Entertainment Systems

numbers each MP3 track on the disc (denoted by the .mp3 file extension) from T001 to T255.

• MP3 directory mode represents a directory structure consisting of one level of directories (folders). The CD player sequentially numbers all MP3 tracks on the disc (denoted by .mp3 extension) and all directories containing MP3 files, from 01–01 to 99–99. The first two digits denote the directory number and the last two digits denote the track number within that directory.

• Creating discs with only one level of subdirectories will help with navigation through the disc files.

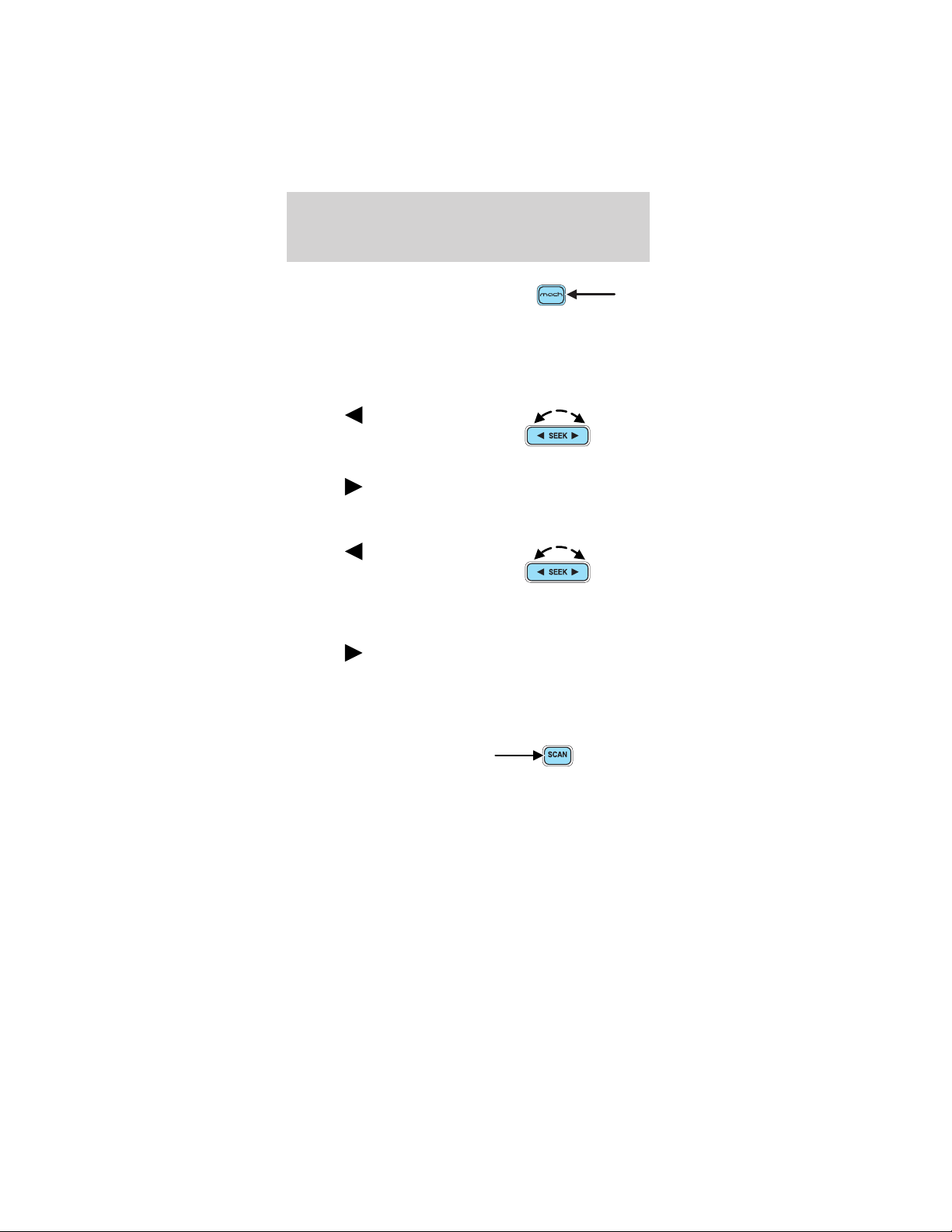

Seek function

The seek function control works in radio, CD, MP3 flat file mode and MP3 directory modes.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press next listenable station up the frequency band.

Seek function in CD, MP3 flat file and MP3 directory modes

• Press to select and play the previous track on the disc. If the current track is the first track on the disc, pressing last track on the disc.

• Press disc. If the current track is the last track on the disc, pressing disc.

to find the

will select the

to select and play the next track on the

will select the first track on the

Page 32

Entertainment Systems

Press and hold the SEEK control to quickly seek through all tracks in MP3 flat file mode or all tracks in the current MP3 directory.

Note: If a track has been playing for three seconds or more and you press player will replay that track from the beginning.

Scan function

The scan function works in radio, CD, MP3 flat file and MP3 directory modes.

Scan function in radio mode

Press SCN to engage scan mode and to hear a brief sampling of all listenable stations on the frequency band. When the top of the band is reached, the tuner will continue to scan from the lowest frequency upward.

Press SCN again to disengage scan mode.

Scan function in CD mode

Press SCN to engage scan mode and to hear a brief sampling of all tracks on the disc. The track number in the display will blink while the scan function is enabled. When the end of the disc is reached, the player will continue to scan from the first track forward.

Press SCN again to disengage scan mode.

Scan function in MP3 flat file mode

The scan function in MP3 flat file mode allows you to briefly audition all tracks on the MP3 disc.

Press SCN to engage scan mode and to hear a brief sampling of all tracks on the MP3 disc. The track number in the display will blink while the

on the SEEK control, the

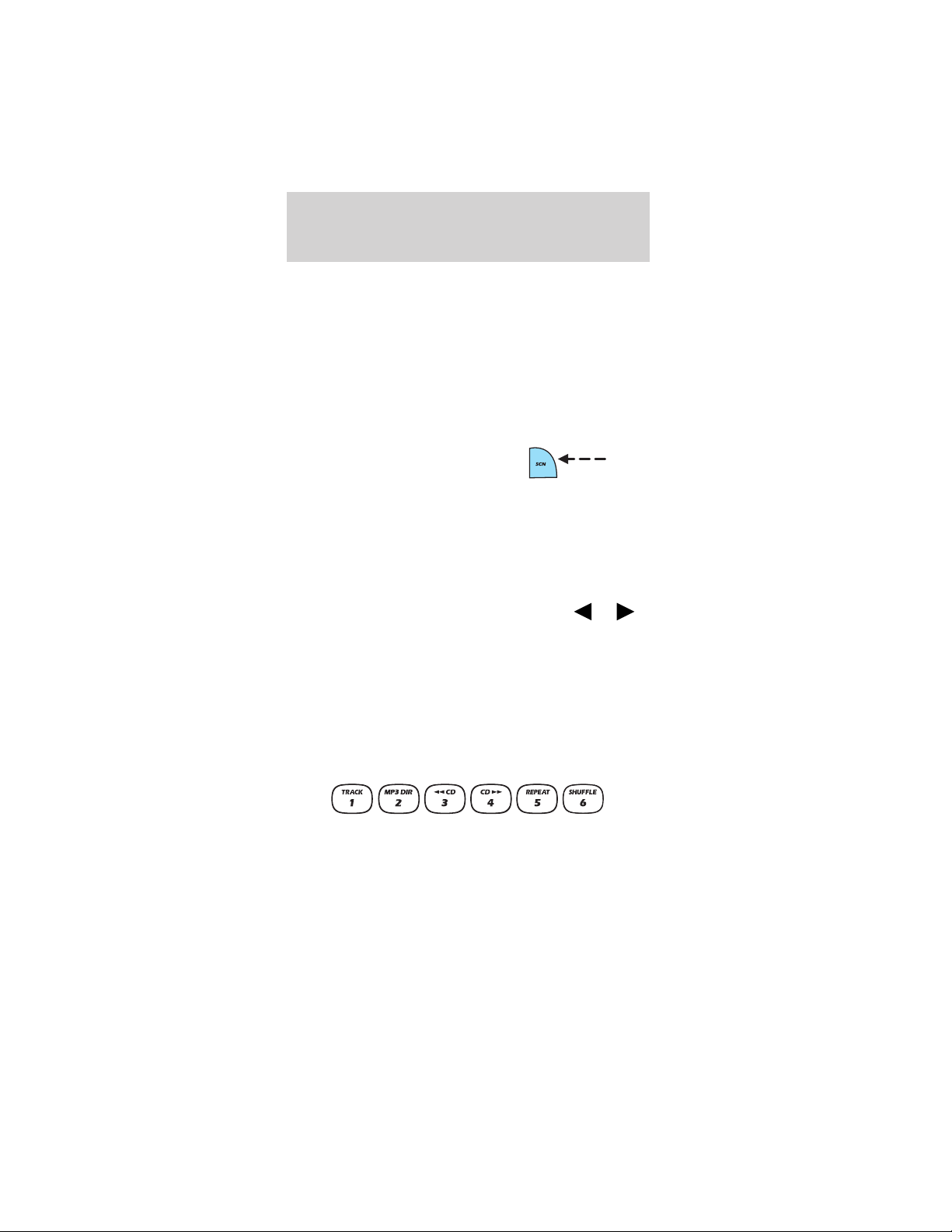

Page 33

Entertainment Systems

scan function is enabled. When the end of the disc is reached, the player will continue to scan from the first track forward.

Press SCN again to disengage scan mode.

Scan function in MP3 directory mode

The scan function in MP3 directory mode allows you to briefly audition all tracks within the current directory on the MP3 disc.

Press SCN to engage scan mode and to hear a brief sampling of all tracks in the current directory. The track number in the display will blink while the scan function is enabled. When the last track is reached, the player will continue to scan from the first track in the current directory forward.

Press SCN again to disengage scan mode. To scan tracks in another directory, press

on the TUNE DIR control to select the desired directory. The scan function will be disabled when you change directories.

Press the SCN control again to enable the scan function for the selected directory.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Page 34

Entertainment Systems

Setting memory preset stations

1. Select the frequency

band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek

function for more information on selecting a station.

3. Press and hold a memory preset control until the

sound returns, indicating the station is held in memory on the control you selected.

Accessing memory preset stations

1. Select the desired

frequency band with the AM/FM select control.

2. Press the preset control which contains the

desired station frequency. The desired station will begin to play.

Setting the clock

To set the hour, press and hold the CLK control while performing the following functions:

Page 35

Entertainment Systems

• Press on the SEEK control to decrease the hours.

• Press SEEK control to increase the hours.

To set the minutes, press and hold the CLK control while performing the following functions:

• Press TUNE DIR control to decrease the minutes.

• Press the minutes.

Release the CLK control to save the clock settings. Press the CLK control again to return the display to radio mode.

Tune adjust

The tune adjust control works in radio mode.

Tune adjust in radio mode

• Press to move to the next frequency down the band. Hold for quick movement through the frequencies.

• Press band. Hold for quick movement through the

frequencies. When the top of the band is reached, the tuner will continue to select from the lowest frequency upward.

When a radio frequency is in tune, the ST icon will appear in the display for stereo broadcasts.

on the

on the TUNE DIR control to increase

to move to the next frequency up the

CD select

The CD select function allows you to play CDs.

Page 36

Entertainment Systems

Playing a CD

• If a CD is already loaded, press the CD control. CD play will begin where it stopped last.

• If a CD is not already loaded, insert the CD into the system. CD will briefly appear in the display and then the first track on the disc will begin playing.

Playing an MP3 disc in MP3 flat file mode and MP3 directory mode

• Insert an MP3 disc into the player. CD and LOAD will appear in the display. Initialization may take up to two minutes for discs containing complex file directories.

• The display will briefly show the total number of tracks on the disc as TXXX (XXX= number of tracks).

• If an MP3 disc is already present in the player, press the CD control to begin play.

• Press the MP3 DIR control to engage MP3 directory mode, if desired. The track number format on the display will change from TXXX (XXX=current track number) to XX-XX (directory —track number).

Note: If the car’s ignition is turned off and on again, play will begin at the beginning of the last song played. If the radio was powered off by the VOL control, play will start where it last left off.

• To stop MP3 disc play, eject the disc or press the AM/FM control. The player will return to radio mode.

Page 37

Entertainment Systems

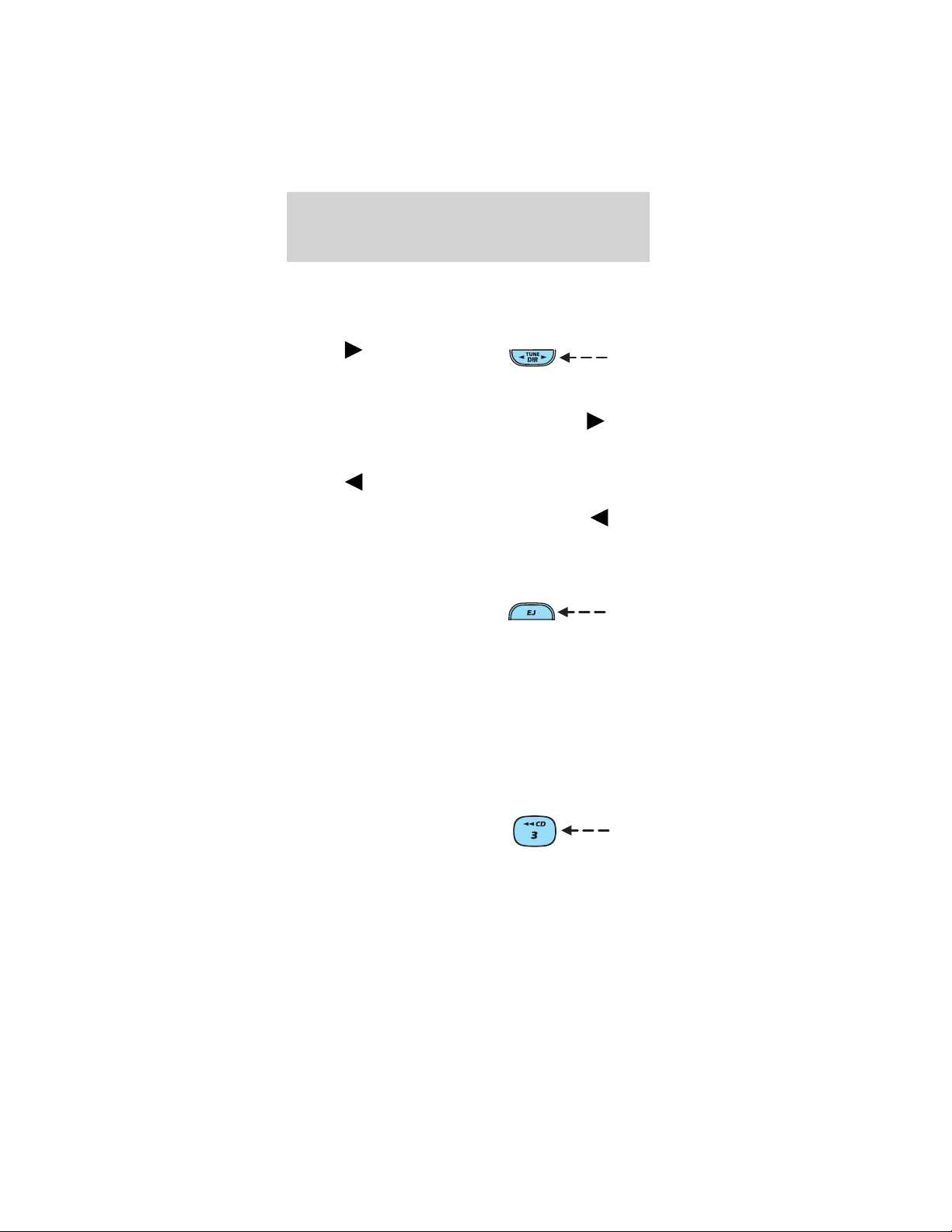

Selecting a directory in MP3 directory mode

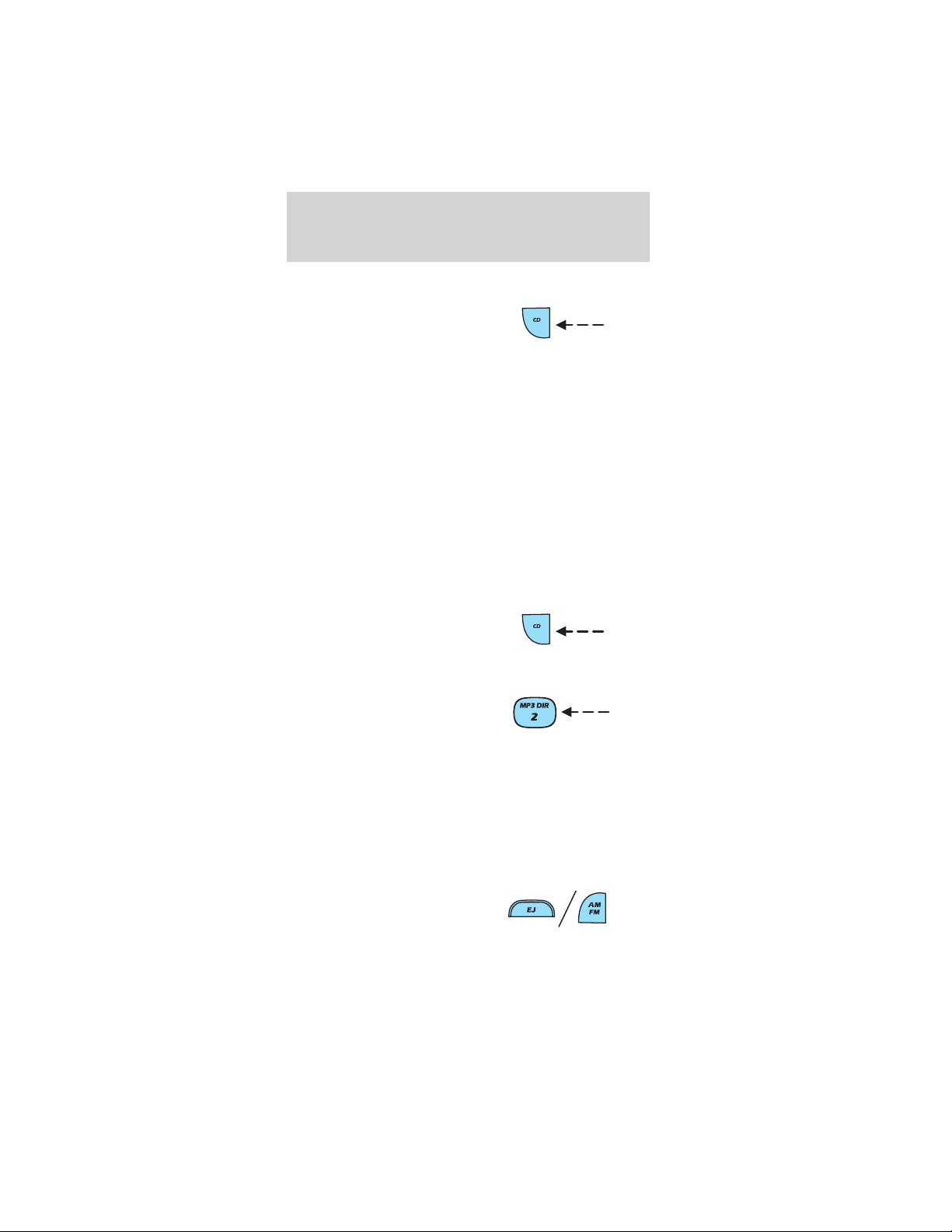

The TUNE DIR control allows you to select a different directory to play on the MP3 disc.

• Press TUNE DIR control to advance to the next directory on the MP3 disc. If the current directory is the last directory on the disc, pressing select the first directory on the disc. Press and hold for fast selection.

• Press directory on the MP3 disc. If the current directory is the first directory on the disc, pressing select the last directory on the disc. Press and hold for fast selection.

Eject function

Press the control to stop and eject a disc.

If a disc is ejected and not removed from the player, the player will automatically reload the disc and return to radio mode. This feature will operate when the ignition is on or off.

on the

will

on TUNE DIR to revert to the previous

will

Rewind

The rewind control works in CD mode. It is not enabled in MP3 flat file mode or MP3 directory mode.

Press and hold the rewind control until the desired selection point is reached. The display will show the elapsed time for each track as you reverse through it. When the beginning of the disc is reached, the first track on the disc will begin to play.

Release the rewind control again to disengage rewind mode.

Page 38

Entertainment Systems

Fast forward

The fast forward control works in CD mode. It is not enabled in MP3 flat file mode or MP3 directory mode.

Press and hold the control until the desired selection point is reached. The display will show the elapsed time for each track as you fast-forward through it. When the end of the disc is reached, the player will continue fast-forwarding from the first track forward.

Release the control to disengage fast-forwarding.

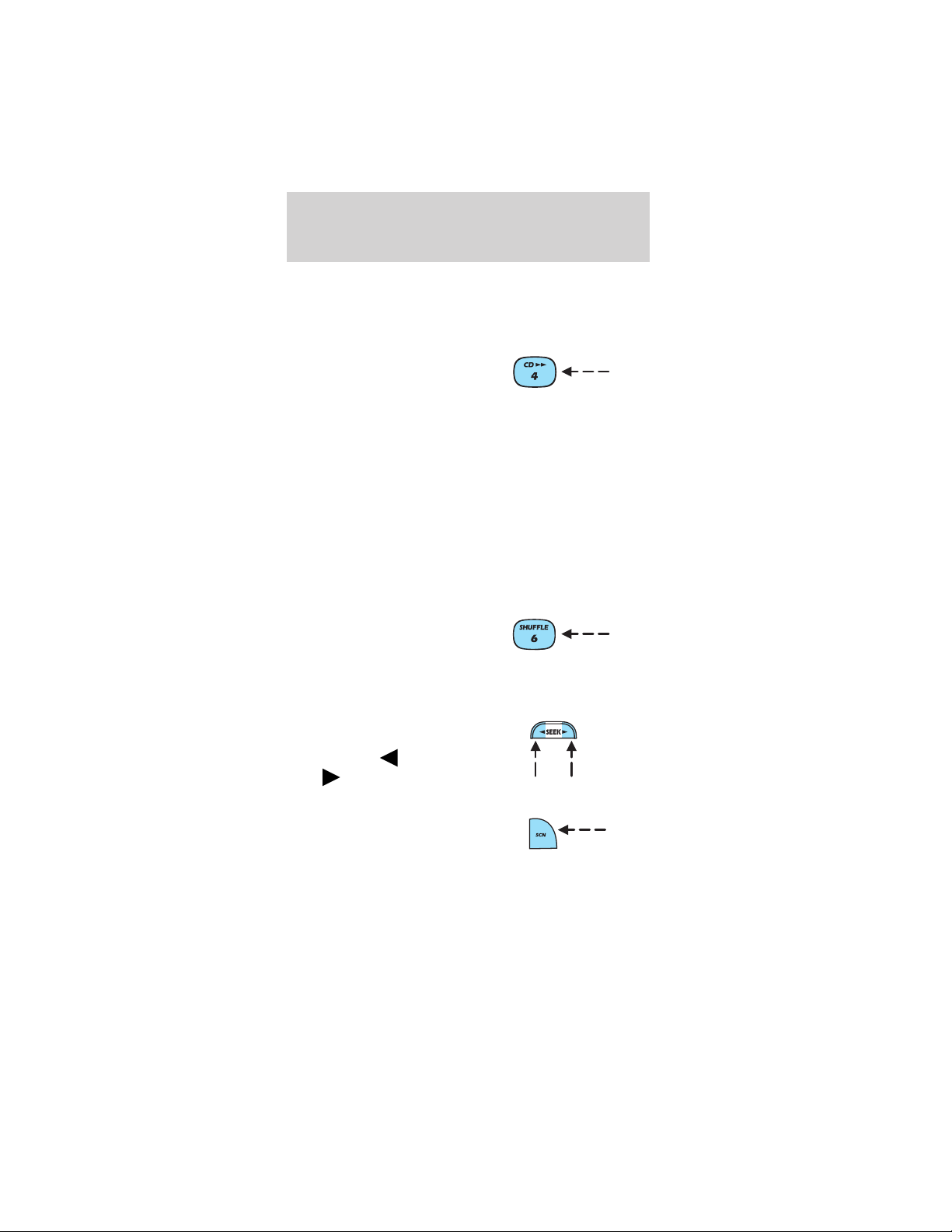

Shuffle feature

The shuffle feature works in CD mode, MP3 flat file mode and MP3 directory mode.

Shuffle feature in CD mode

The shuffle feature plays all tracks on the current disc in random order.

• Press the SHUFFLE control to engage random play. SHF and then ON will briefly appear in the display. The player will then begin random play.

• To select another random track on the disc, press

or on the SEEK control.

• Press the SCN control to scan through random tracks. The track number will flash in the display. The shuffle feature will remain enabled.

Press the SHUFFLE control again to disable the shuffle function. SHF and then OFF will briefly appear in the display.

Page 39

Entertainment Systems

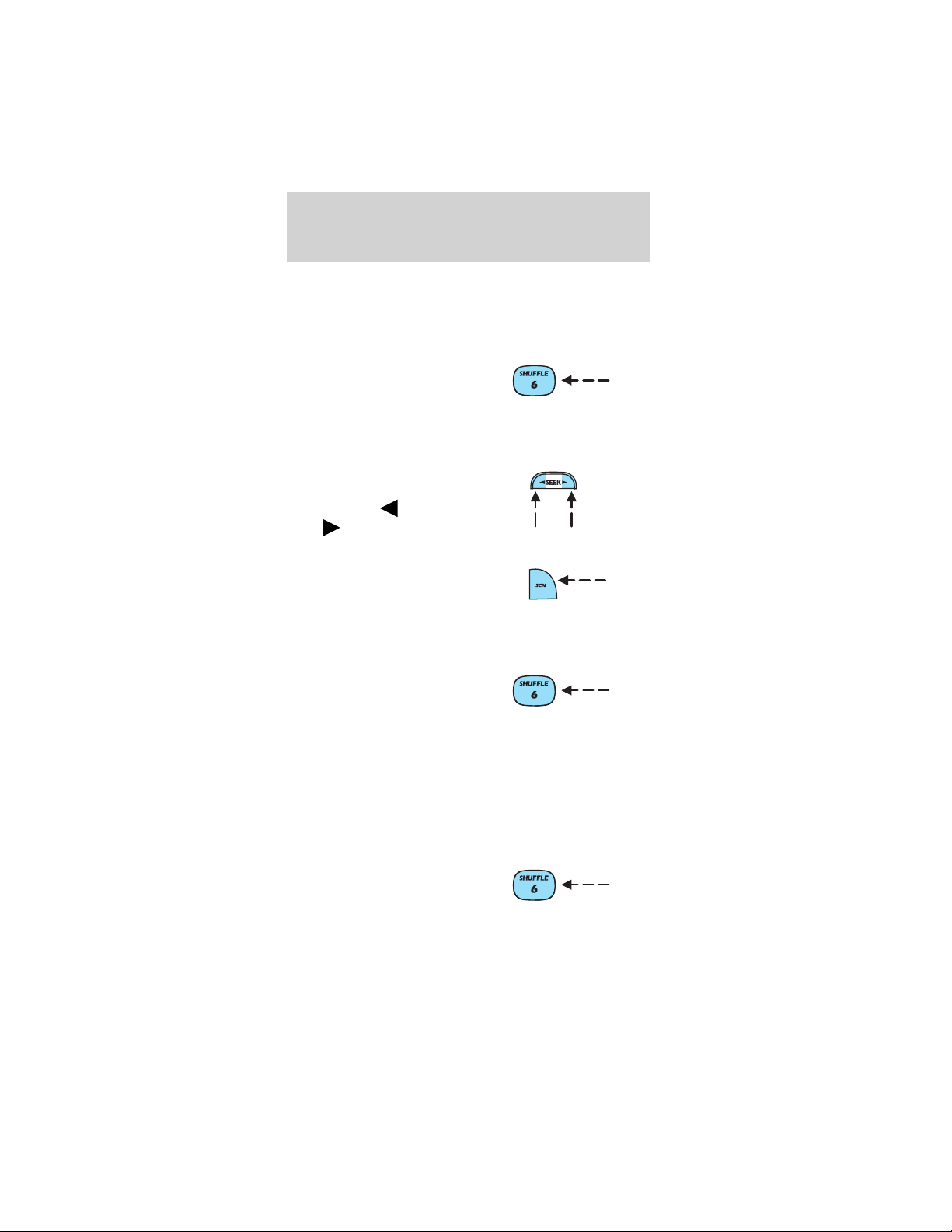

Shuffle feature in MP3 flat file mode

The shuffle feature in MP3 flat file mode allows you to play all the tracks on the MP3 disc in random order.

• Press the SHUFFLE control to engage random play. SHF and then ON will briefly appear in the display. The player will then begin random play.

• To select another random track on the disc, press

or on the SEEK control.

• Press SCN to scan through random tracks. The track number will flash in the display. The shuffle function will remain enabled.

• Press SHUFFLE again to disengage the shuffle feature. SHF and then OFF will briefly display and the current track will continue to play.

Shuffle feature in MP3 directory mode

The shuffle feature in MP3 directory mode allows you to play all the tracks in the current directory in random order.

• Press the SHUFFLE control to engage random play in the current directory. SHF and then ON will briefly appear in the display. The player will then begin random play.

Page 40

Entertainment Systems

• To select another random track in the current directory,

press the SEEK control.

• Press the SCN control to scan through random tracks in the current directory. The track number will flash in the display. The shuffle feature will remain enabled.

To shuffle tracks in another directory,

press TUNE DIR control to select the desired directory.

The shuffle function still remains enabled. Press the SHUFFLE control again to disengage the

SHUFFLE feature. SHUF and OFF will briefly display and the current track will continue to play.

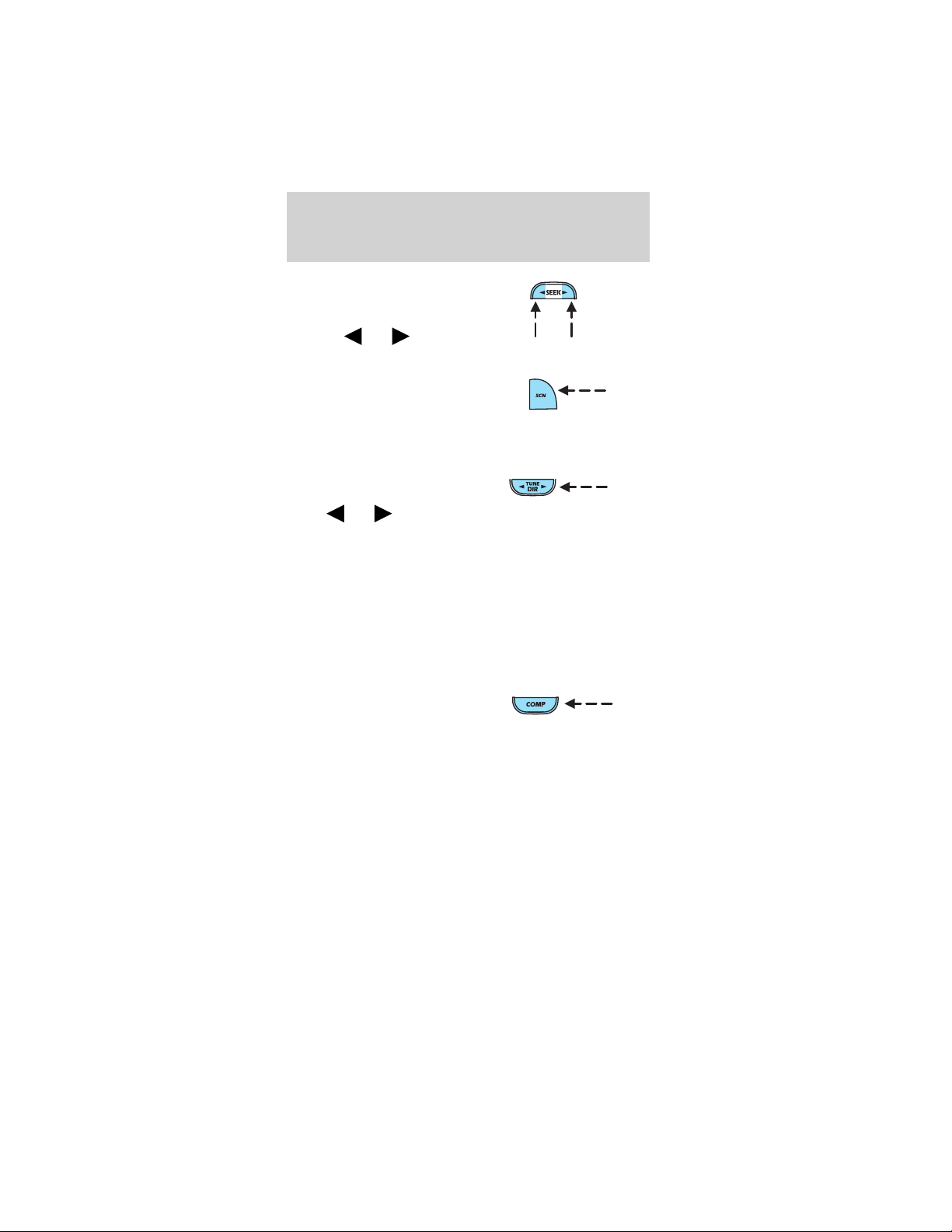

Compression feature

The compression feature works in CD, MP3 flat file mode and MP3 directory mode.

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate compression adjust. The compression icon (c) will illuminate in the display while the compression function is enabled.

Press the COMP control again to disengage the feature.

or on

or on the

MACHT Track function

The MACHt track function allows you to quickly search through a large number of tracks or directories on the MP3 disc. The function works in MP3 flat file mode and MP3 directory mode.

Page 41

Entertainment Systems

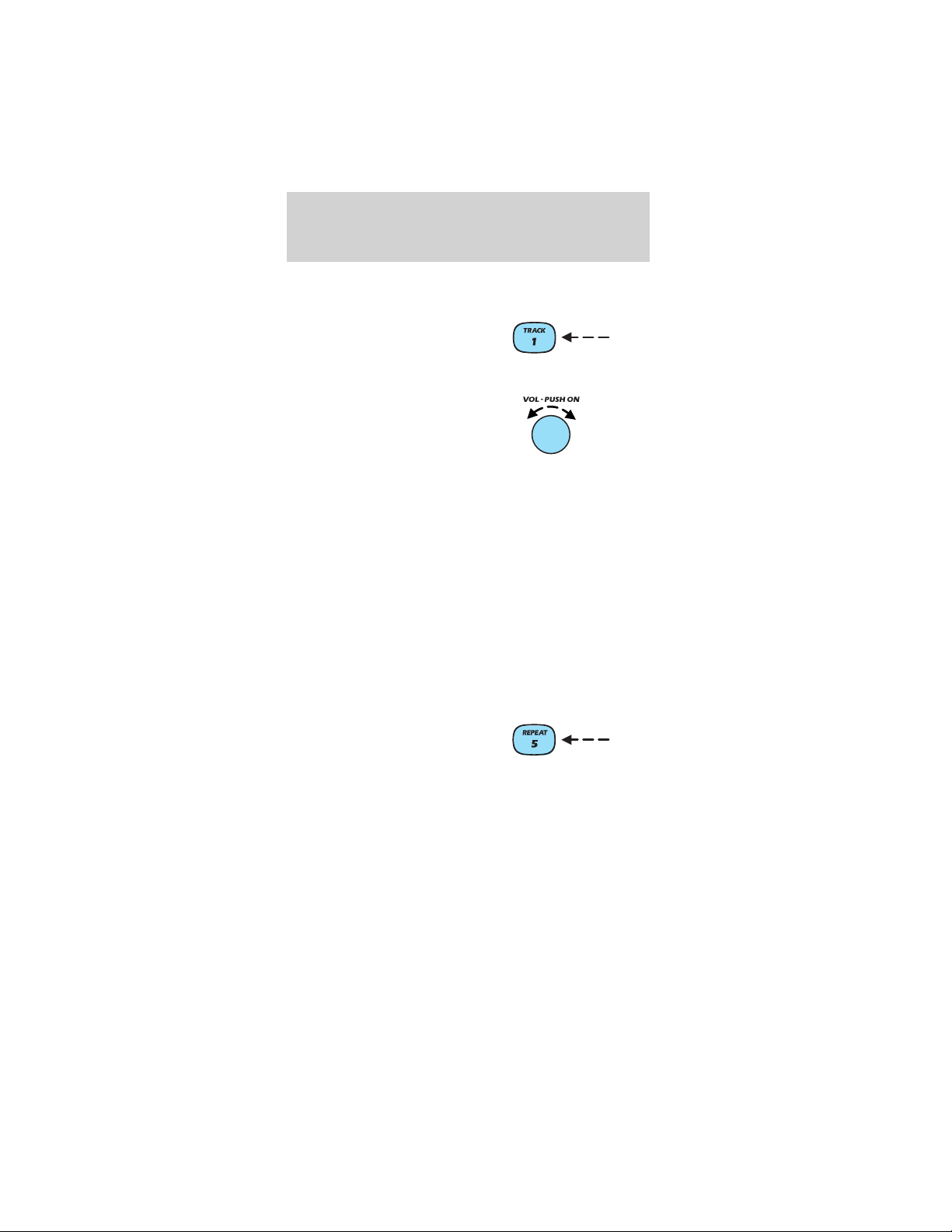

Track function in MP3 flat file mode and MP3 directory mode

• Press the TRACK control. TRAC will appear in the display.

• Rotate the volume control to advance or reverse through the tracks.

The MP3 icon will blink in the display while the MACHt track function is enabled.

When the desired track is reached, the selected track will begin play after a two second delay.

To disengage the MACHt track function, press the TRACK control again.

Repeat track function

This function works in MP3 flat file mode or MP3 directory mode and allows you repeat the current track on the MP3 disc.

Repeat track function in MP3 flat file mode and MP3 directory mode.

Press the REPEAT control to repeat the current track. The repeat icon will display and the current track will continue to repeat until the repeat function is disengaged.

Press the REPEAT control again to disengage the feature.

Page 42

Entertainment Systems

Error messages

You may experience an error message for the following situations:

• NO DISC when the CD control is pressed and there is not a CD present.

• DISC ERR when there is a damaged or unreadable disc. Such as, data discs containing no .mp3 files, or for data discs containing more than 255 files or directories.

• CD ERR for any other disc malfunction.

Saving and naming MP3 files

• Your MACHt MP3 music system supports discs containing up to 255 files in 255 directories. Discs containing more than 255 files will not play.

• Always save MP3 files with the .mp3 extension. The player recognizes an MP3 file by the .mp3 extension, so MP3 files saved with different extensions will not be played. Never save a

non-MP3 file with the .mp3 extension as the file will not play properly and damage may occur to the player or your sound system.

• The player supports multi session discs. However, be sure to import the previous session of the disc before you add new files. If you do not import the previous session, only the last session will be played.

• When burning a disc, ensure that you close/finalize the disc before playback, or the disc may not play properly or an error message may appear.

• The player supports DAM (Digital Automatic Music) discs.

Page 43

Entertainment Systems

MACHT 460 SOUND SYSTEM RADIO (CD CHANGER COMPATIBLE)

SHUF DSP

SCAN

LOAD

PUSH ON

DISC TUNE

SEEK REW FF

1 2 3 4 5 6

MACHT 1000 SOUND SYSTEM RADIO (CD CHANGER COMPATIBLE)

MUTE

BALBASS

SEL

FADETREB

MACH 1000T AUDIO SYSTEM

Your vehicle may be equipped with the MACH 1000t audio system. This system is equipped with a

rack of amplifiers in the trunk of the vehicle. Do not store or rest items on the amplifier rack, as this could cause damage to the amplifiers and void your warranty.

The MACH 1000t audio system is capable of producing very high sound pressure levels. For your

Page 44

Entertainment Systems

listening comfort and protection, it is not recommended to listen to the MACH 1000t audio system at high volume levels for extended periods of time.

Volume/power control

Press the control to turn the audio system on or off. Turn the control to raise or lower volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Speed sensitive volume

With this feature, radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise.

The recommended level for speed sensitive volume is from level 1 through level 3. Level 0 turns the speed sensitive volume off and level 7 is the maximum setting.

To engage the speed sensitive volume feature, press and hold the volume control for five seconds (with the radio on), then press:

•

to increase volume compensation.

•

to decrease or shut off the volume compensation.

The selected level will appear in the display.

PUSH ON

SEL

Page 45

Entertainment Systems

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control. Use the SEL control to increase or decrease the amount of bass.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control. Use the SEL control to increase or decrease the amount of treble.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control. Use the SEL control to adjust the sound between the left and right speakers.

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers.

MACH mode (if equipped)

MACH mode is available with the MACH 1000 Sound System. This mode allows you to toggle between occupancy modes (DRIVER SEAT, ALL SEATS) and MACH 1000 mode. MACH 1000 mode engages the extra speakers and amplifiers that are included in this package.

BASS

TREB

BASS

TREB

BAL

FADE

BAL

FADE

SEL

Page 46

Entertainment Systems

Press the MACH control to toggle between occupancy modes.

Seek function

The seek function works in radio or CD mode.

Seek function in radio mode

• Press to find the next listenable station down the

frequency band. SEEK DOWN will display.

• Press the frequency band. SEEK UP will display.

Seek function in CD mode

• Press to seek to the previous track of the current disc. If

the beginning of the disc is reached, the CD player seeks to the beginning of the last track on the current disc and begins playing.

• Press current disc. After the last track has been completed, the first track of the current disc will automatically replay.

to find the next listenable station up

to seek forward to the next track of the

Scan function

The scan function works in radio or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

Scan function in CD mode

Page 47

Entertainment Systems

AM/FM select

The AM/FM select control works in radio and CD modes.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select

control. Press the AM/FM control to toggle between AM, FM1, or FM2.

2. Press the SEEK control to access the next

listenable station up or down the frequency band. Press the TUNE control to go up or down the listening band in individual increments.

3. Select a station. Refer to Seek function for more

information on selecting a station.

4. Press and hold a memory preset control. The

playing media will mute momentarily. When the sound returns, the station is held in memory on the control you selected. The display will read SAVED.

AM FM

Autostore

Autostore allows you to set the strongest local radio stations without losing your original manually set

Page 48

Entertainment Systems

preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autostore

1. Press and momentarily hold the AM/FM control.

2. AUTOSET will flash

in the display as the frequency band is scrolled through.

3. When the six strongest stations are filled, the

station stored in memory preset control 1 will start playing.

If there are fewer than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AM/FM control again.

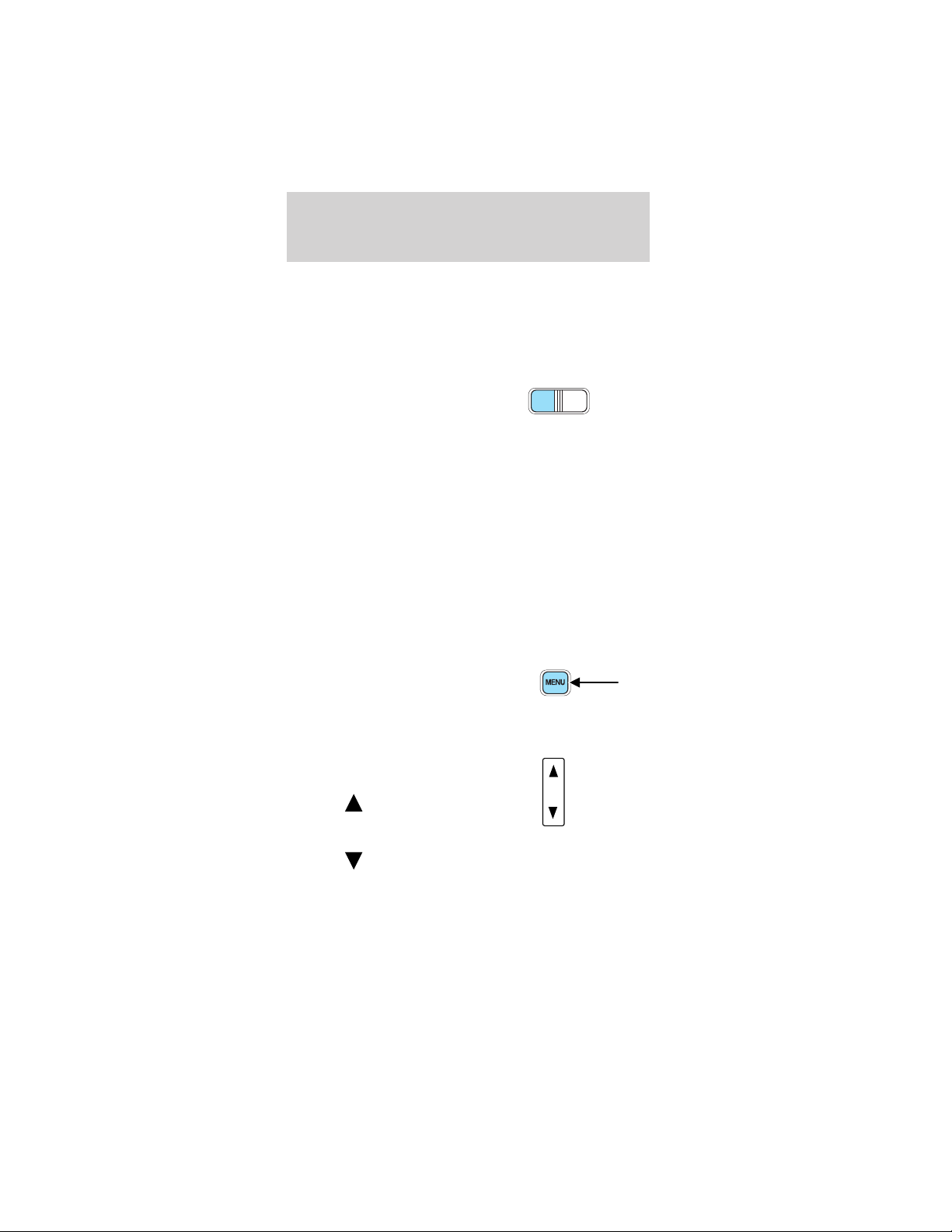

Setting the clock

Press the MENU control until SELECT HOUR or SELECT MINUTE is displayed. (The menu mode must be engaged to enable clock mode).

Use the SEL control to manually set the time.

• Press

to increase hours/minutes.

• Press

to decrease hours/minutes.

Press the MENU control again to disengage the clock mode.

AM FM

SEL

Tune/disc adjust

The tune control works in radio or CD mode. 48

Page 49

Entertainment Systems

Tune adjust in radio mode

AM FM

DISC TUNE

• Press to move to the next frequency down the band

(whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

Disc adjust for CD mode

• Press to select the previous disc. (Play will begin on the first track of the disc unless shuffle mode is engaged.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

• Press

to select the next disc. Hold the control

to fast-forward through the remaining discs.

CD select

CD mode may be entered by pressing the CD control and the LOAD control. Load the CD into the audio system. The first track of the disc will begin playing. After that, CD play will begin where it stopped last.

If an alternative CD is desired, press the corresponding preset control (1–6) of a loaded CD, or press the TUNE control to access the other loaded CDs.

NO CD will display if the CD control is activated when there is not a CD present in the audio system.

NO CD will illuminate in the display if the CD control and a present number (that is currently empty) are pressed. The system will play the next available disc.

Page 50

Entertainment Systems

If your vehicle is equipped with a CD changer, pressing the CD control again will allow you to toggle between accessing the multi disc system and the CD changer. The display will read CD or CDDJ.

Display description

Six circles are always lit in the digital display. These signify the six CD slots in the audio system. When a disc is loaded into a particular slot (1–6), the number inside that specific circle lights. If the circle is empty, there is no CD in that particular slot.

Rewind

The rewind control works in CD modes.

Press and hold the REW control until the desired selection is reached. If the beginning of the disc is reached, the CD will begin play at the first track. Release the control to disengage rewind mode.

When in rewind mode, your audio system will automatically lower the volume level of the playing media.

Fast forward

The fast forward control works in CD modes.

Press and hold the FF control until the desired selection is reached. If the end of the disc is reached, the CD will return to the first track. Release the control to disengage fast forward mode.

When in fast forward mode, your audio system will automatically lower the volume level of the playing media.

REW FF

Page 51

Entertainment Systems

Load

The load feature allows you to load single CDs into the player internal to the radio.

This six disc CD player is equipped with a CD door. Compact discs should only be inserted into the player after the CD door has been opened by the player. Do not attempt to force the door open. Compact discs should only be loaded by pressing the LOAD control.

Press the LOAD control. (You can choose which slot will be loaded by pressing the desired preset number. If you do not choose a slot, the system will choose the next available one.) Wait until the CD door opens. Load the CD into the player. LOADING CD# is displayed. When the CD has been loaded, the door will close and the CD will begin to play. For example, to load a CD into slot 2, press the LOAD control and then press preset 2.

Auto load

This feature allows you to autoload up to 6 discs into the multi disc CD player internal to the radio.

Press and hold the LOAD control until AUTOLOAD # is displayed. The CD door will open. Load the desired discs, one at a time. The CD is loaded into position and the audio system will display CD#. Each time the CD door opens, INSERT CD# is displayed. The door will close and the player will move to the next slot after each disc has been loaded. The process is repeated until all 6 slots are full. The audio system plays the last CD loaded and the display is updated. If some slots are already full and autoload is activated, the system will fill all empty slots.

LOAD

Page 52

Entertainment Systems

Eject

Press the EJ control to stop and eject a CD. You can choose which CD will be ejected by pressing the EJ control and the desired preset number (1–6). For example, to eject CD 2, press the EJ control and then press the preset 2 control. If you do not choose a specific CD, the player will eject the current CD.

If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Auto eject

Press and momentarily hold the EJ control to engage auto eject. All CDs which are present in the player will be ejected one at a time. If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Shuffle feature

Press the SHUF control until the desired shuffle mode is displayed. The audio system will then engage the desired shuffle mode.

When engaged, the shuffle feature has two different modes: SHUFFLE DISC and SHUFFLE TRK.

SHUFFLE DISC randomly plays tracks from all the discs presently in the audio system.

SHUFFLE TRK plays all the tracks on the current disc in random order.

Page 53

Entertainment Systems

Compression feature (if equipped)

The compression feature operates in CD mode and brings soft and loud CD passages together for a more consistent listening level.

On Audiophile audios, press the MENU control until compression status is displayed. Press the SEL control to enable the compression feature when COMP OFF is displayed. Press the SEL control again to disable the feature when COMP ON is displayed.

On Premium audios, press the COMP control until COMP ON is displayed.

Menu mode

The MENU control allows you to access many different features within your audio system. There are three sets of menus available depending upon which mode or feature is activated.

While in FM mode, two menus are available. If RDS is turned OFF, you can access the following:

• SELECT HOURS — Refer to Setting the clock.

• SELECT MINUTES — Refer to Setting the clock.

• RDS OFF — Refer to Radio data system feature.

If RDS is turned ON, you can access the following:

• TRAFFIC ON/OFF-Refer to Traffic announcements.

• FIND type-Refer to Program type.

• SHOW (NAME, TYPE, NONE)- Refer to Radio

data system feature.

• RDS ON— Refer to Radio data system feature.

SEL

Page 54

Entertainment Systems

• SELECT HOURS — Refer to Setting the clock.

• SELECT MINUTES —Refer to Setting the clock.

When in CD mode, you can access: SELECT HOURS, SELECT MINUTES or COMP ON/OFF.

SELECT HOURS, SELECT MINUTES— Allows you to adjust the hours and minutes. Refer to Setting

the clock.

TRAFFIC ON/OFF— Traffic announcements can be programmed as local or distant. Refer to Traffic

announcements.

RDS ON/OFF— This feature allows your audio system to receive text information from RDS-equipped FM radio stations. Refer to Radio

Data System feature.

FIND type — Allows you to select your desired FM program type and search for that selection.

SHOW — Allows you to select from NAME (displays the name of the radio station), TYPE (displays the RDS program type: rock, jazz, etc.), or NONE (deactivates the RDS display).

Radio data system (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations.

To activate RDS:

• When in FM mode, press the MENU control until RDS OFF displays.

• Press the SEL control to engage this feature (RDS ON).

SEL

Page 55

Entertainment Systems

RDS features:

Once the RDS feature is on, press the MENU control to scroll through the following selections:

Traffic announcements

This feature allows you to hear traffic announcements while in CD mode. These announcements are broadcast by traffic capable RDS stations.

When in this mode, traffic announcements will interrupt radio and CD play.

• Press the MENU control until TRAFFIC is displayed.

• Press the SEL control to engage the feature. The display will read TRAFFIC ON.

This feature also allows you to control the volume of traffic announcements. With the display reading TRAFFIC ON, adjust the volume using the volume control to the desired level. The volume level will show at the bottom of the display. Interrupting traffic announcements will be at the selected volume level.

To disengage the feature, press the MENU control until TRAFFIC ON displays. Press the SEL control. The display will read TRAFFIC OFF.

Traffic announcements are not available in most U.S. markets.

Program type

This feature allows you to search for RDS stations selectively by their program type.

Press the MENU control until FIND program type is displayed.

SEL

Page 56

Entertainment Systems

Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic

• Country

• Info

• Jazz

• Oldies

Show

This feature allows you to select the type of RDS broadcast information the radio will regularly show in the display.

With RDS activated, press the MENU control until SHOW is displayed.

Use the SEL control to select TYPE (displays the RDS program type: rock, jazz, etc), NAME (displays the name of the radio station) or NONE (deactivates the RDS display).

• R&B

• Religious

• Rock

• Soft

• Top 40

SEL

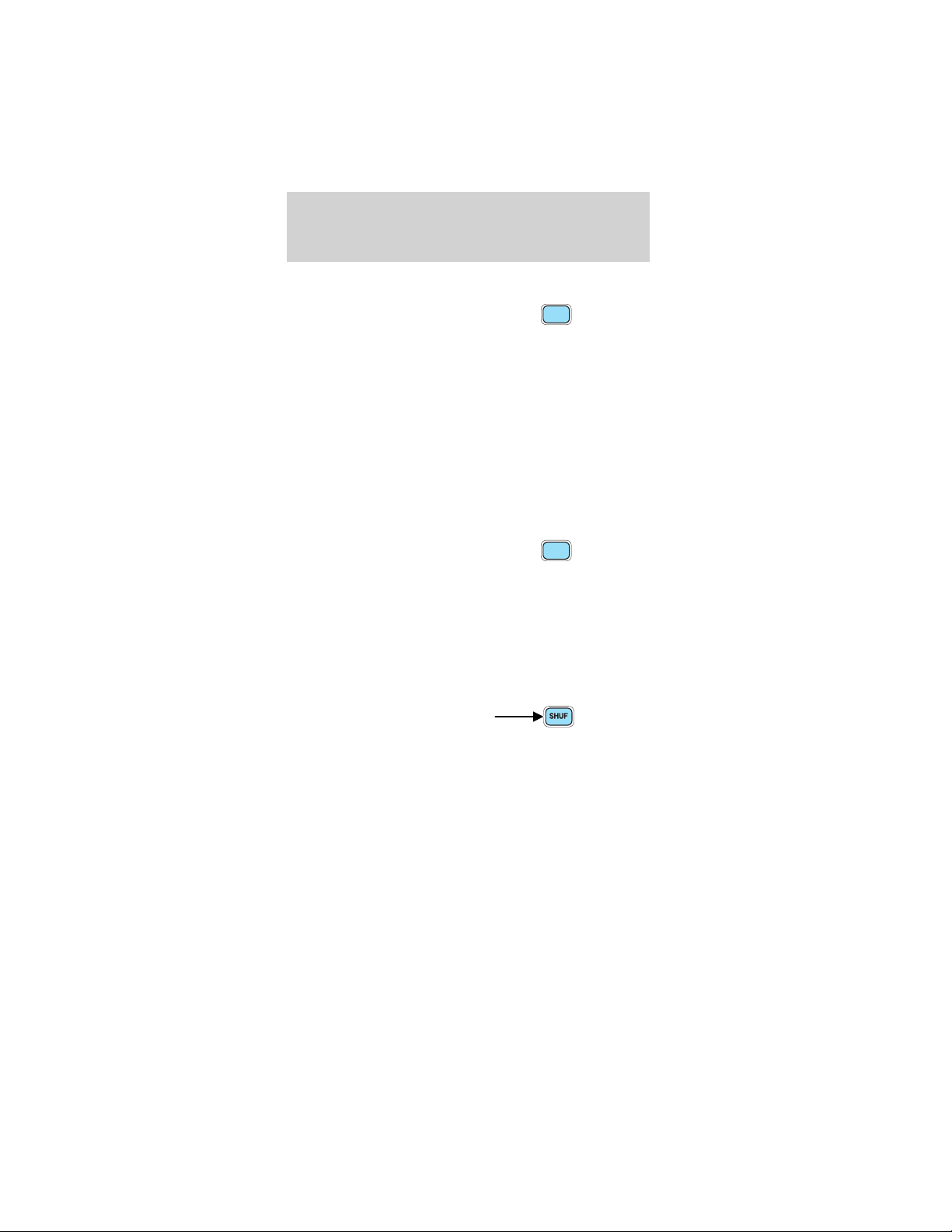

Digital signal processing

The digital signal processing (DSP) feature allows you to change the signal mode to suit your listening tastes.

Press the DSP control to access the DSP

DSP

SEL

menu.

Page 57

Entertainment Systems

Use the SEL control to select the desired signal mode (the selected mode will appear in the display). The following can be selected:

• DSP OFF—disengages the feature

• STADIUM—outdoor stadium with a capacity of about 30 000

• CHURCH—church with a high vault

• HALL—rectangular concert hall capacity of about

2 000

• JAZZ CLUB—jazz club with clearly reflected sounds

• NEWS—”voice-only” type of sound with a limited audio band

Press the DSP control again to access the occupancy modes. Use the SEL control to optimize the sound based upon the occupants in the vehicle.

The following occupancy modes can be selected for the MACH 460 Sound System:

• ALL SEATS

• DRIVER SEAT

• REAR SEATS

The following occupancy modes can be selected for the MACH 1000 Sound System:

• ALL SEATS

• DRIVER SEAT

• MACH 1000

MACH 1000 mode raises the bass response of the trunk mounted subwoofers.

Mute mode

Press the control to mute the playing media. Press the control again to return to the playing media.

SEL

Page 58

Entertainment Systems

CD CARE

CD units are designed to play commercially pressed 12cm audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent marker rather than adhesive labels. Please contact your dealer for further information.

TROUBLESHOOTING THE CD PLAYER (IF EQUIPPED)

The laser beam used in the compact disc player is harmful to the eyes. Do not

attempt to disassemble the case.

If sound skips:

• You may be traveling on a rough road, playing badly scratched discs or the disc may be dirty. Skipping will not scratch the discs or damage the player.

If your changer does not work, it may be that:

• A disc is already loaded where you want to insert a disc.

• The disc is inserted with the label surface downward.

• The disc is dusty or defective.

• The player’s internal temperature is above 60°C

(140°F). Allow the player to cool down before operating.

• A disc with format and dimensions not within industry standards is inserted.

Page 59

Entertainment Systems

MP3 DISC QUALITY FACTORS

The MACHt MP3 music system is designed for use with CD-DA (regular audio discs), CD-R and CD-RW discs. Discs must comply with ISO 9660 and Joliet standards.

Several factors can effect disc playback quality:

• Disc capacity — Each disc contains about 650 MB of storage capacity. We do not recommend using high capacity discs containing 700MB of storage.

• Disc type — Some CD-RW discs may operate inconsistently and may cause an error message to appear. We recommend burning MP3 files onto CD-R discs.

• Disc finalization — The disc may be left open for the purpose of adding sessions to it at a later time, but be sure to close each session or the disc will not play.

• Bit rate — The player supports bit rates from 56–320 kbps, as well as variable bit rate MP3 files, but lower bit rates will have a noticeable effect on sound quality and are recommended only for speech or low fidelity music material. We recommend that you encode MP3 files using a high quality encoder.

• PC configuration — Encoding MP3 files requires intensive use of your computer’s resources. Follow the PC configuration recommendations of the encoder software vendor. We recommend that you avoid running other software applications on your PC during MP3 encoding to avoid undesirable noise and distortion.

CLEANING COMPACT DISCS

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.

Page 60

Entertainment Systems

CD, MP3 AND CD PLAYER CARE

• Handle discs by their edges only. Never touch the playing surface.

• Do not expose discs to direct sunlight or heat sources for extended periods of time.

• Do not insert more than one disc into the slot of the CD player (if equipped).

• Always store discs out of direct sunlight. Excessive heat may damage or warp discs.

• Use care when handling and playing CD-R and CD-RW discs, which are more susceptible to damage from heat, light and stress than are regular CDs.

• Always insert and remove a disc by holding the disc flat, with the playing surface facing down, in order to prevent damage to the disc or the player.

• Never insert any object other than a compact disc into the player, as doing so may damage the player and may cause injury to you.

• Do not disassemble the player. The laser used in disc playback is extremely harmful to the eyes.

CLEANING CASSETTE PLAYER (IF EQUIPPED)

Clean the tape player head with a cassette cleaning cartridge after 10 to 12 hours of play in order to maintain the best sound and operation.

Page 61

Entertainment Systems

CASSETTE AND CASSETTE PLAYER CARE

• Use only cassettes that are 90 minutes long or less.

• Do not expose tapes to direct sunlight, high humidity, extreme heat or extreme cold. Allow tapes that may have been exposed to extreme temperatures to reach a moderate temperature before playing.

• Tighten very loose tapes by inserting a finger or pencil into the hole and turning the hub.

• Remove loose labels before inserting tapes.

• Do not leave tapes in the cassette player for a

long time when not being played.

RADIO FREQUENCY INFORMATION

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are:

AM 530, 540–1600, 1610 kHz FM 87.7, 87.9–107.7, 107.9 MHz Not all frequencies are used in a given area.

Page 62

Entertainment Systems

RADIO RECEPTION FACTORS

Three factors can affect radio reception:

• Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.

AUDIO SYSTEM WARRANTIES AND SERVICE

Refer to the Warranty Guide for audio system warranty information.

If service is necessary, see your dealer or a qualified technician.

Page 63

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM

A/C

MAX

A/C

Fan speed control

Controls the volume of air circulated in the vehicle.

Temperature control knob

Controls the temperature of the airflow inside the vehicle.

Mode selector control

Controls the direction of the airflow to the inside of the vehicle.

MAX

A/C

• MAX A/C – Distributes recirculated air through the instrument panel registers. The A/C compressor will only function if the outside temperature is above approximately 6°C (43°F). MAX A/C is noisier than A/C, but more economical and efficient. This mode may prevent undesirable odors from entering the vehicle.

• A/C – Distributes outside air through the instrument panel registers. The A/C compressor will only function if the outside temperature is above approximately 6°C (43°F) .

Page 64

Climate Controls

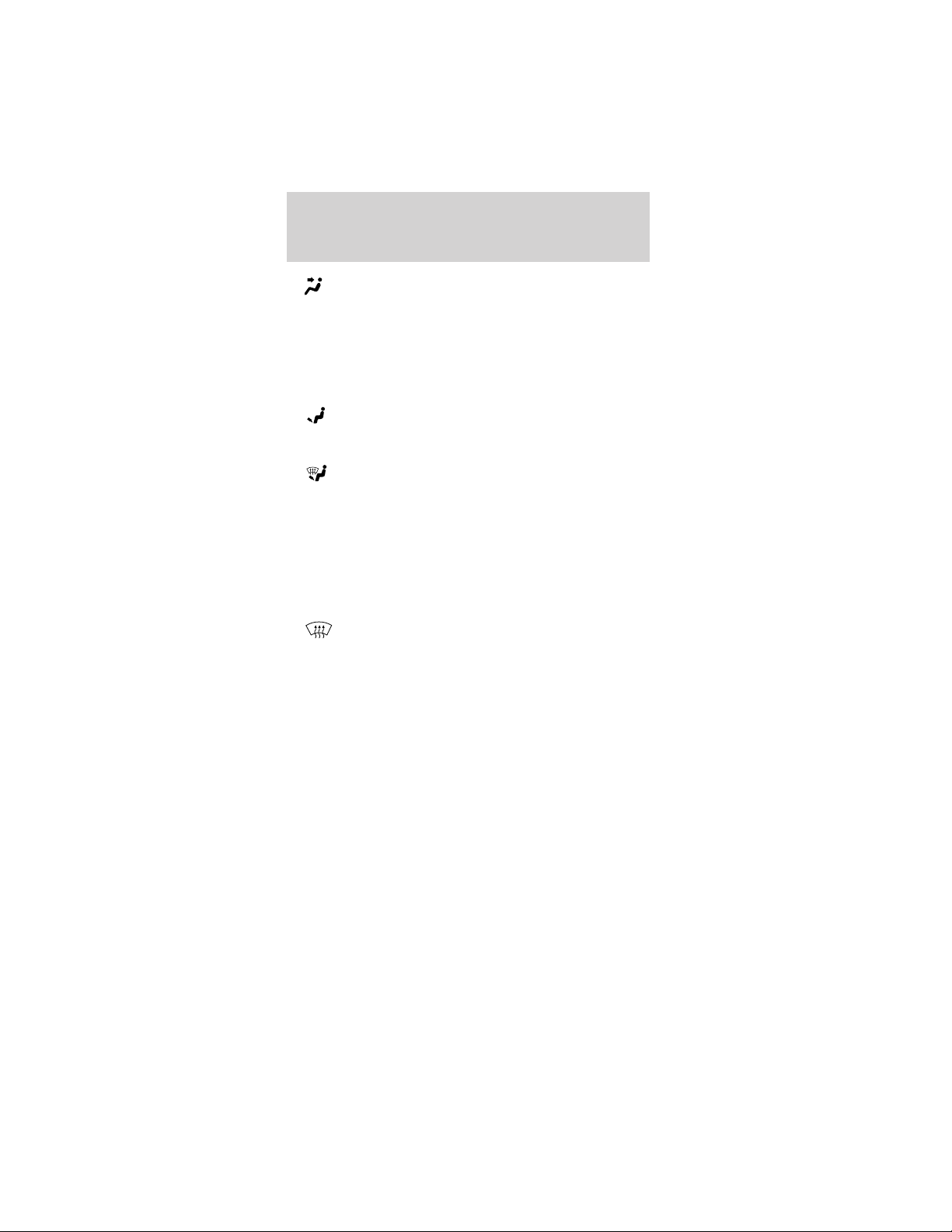

• (Panel) – Distributes outside air through the instrument panel registers. The air can not be cooled below the outside temperature.

• O (Off) – Outside air is shut out and the fan will not operate. This mode may reduce undesirable odors from entering the vehicle but may increase the possibility of interior window fogging.

•

Since the air conditioner removes moisture from the air, it is considered normal operation if water drips on the ground under the air conditioner drain.

(Floor) – Distributes outside air through the floor ducts. The air cannot be cooled below the outside temperature.

(Floor and defrost) – Distributes outside air through the windshield defroster ducts and the floor duct and the side window demisters. The A/C compressor will operate automatically if the outside temperature is above approximately 6°C (43°F) . The air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defrost ducts and the side window demisters.

(Defrost) – Distributes outside air through the windshield defroster ducts and the side window demisters. The A/C compressor will operate automatically if the outside temperature is above approximately 6°C (43°F). This mode will clear ice and fog from the windshield.

Page 65

Climate Controls

Operating tips

• To reduce fogging in humid weather, place the climate control system in Defrost and Rear Defrost mode (if equipped) before driving.

• To reduce humidity buildup inside the vehicle under warm weather conditions, do not drive with the climate control system in the Off mode.

• To reduce humidity buildup inside the vehicle under cold weather conditions, do not drive with he climate control system in Max A/C (if equipped), recirculation mode (if equipped) or Off mode.

• Under normal weather conditions, do not leave your vehicle in the Max A/C (if equipped), recirculation mode (if equipped) or Off mode when turning off the vehicle.

• Under snowy or dirty weather conditions, leave your vehicle in the Max A/C (if equipped), recirculation mode (if equipped) or Off mode when turning off the ignition.

• Remove any snow, ice or leaves from the exterior base of the windshield.

To increase the efficiency of the A/C (if equipped),

•

drive with the windows slightly open for two to three minutes. or until the vehicle has been “aired out”.

• Do not place objects under the front seat or over the defroster ducts. They may reduce visibility, fall into the ducts, or degrade the performance of your climate control system.

Do not place objects on top of the instrument panel, as these objects may

become projectiles in a collision or sudden stop.

Page 66

Climate Controls

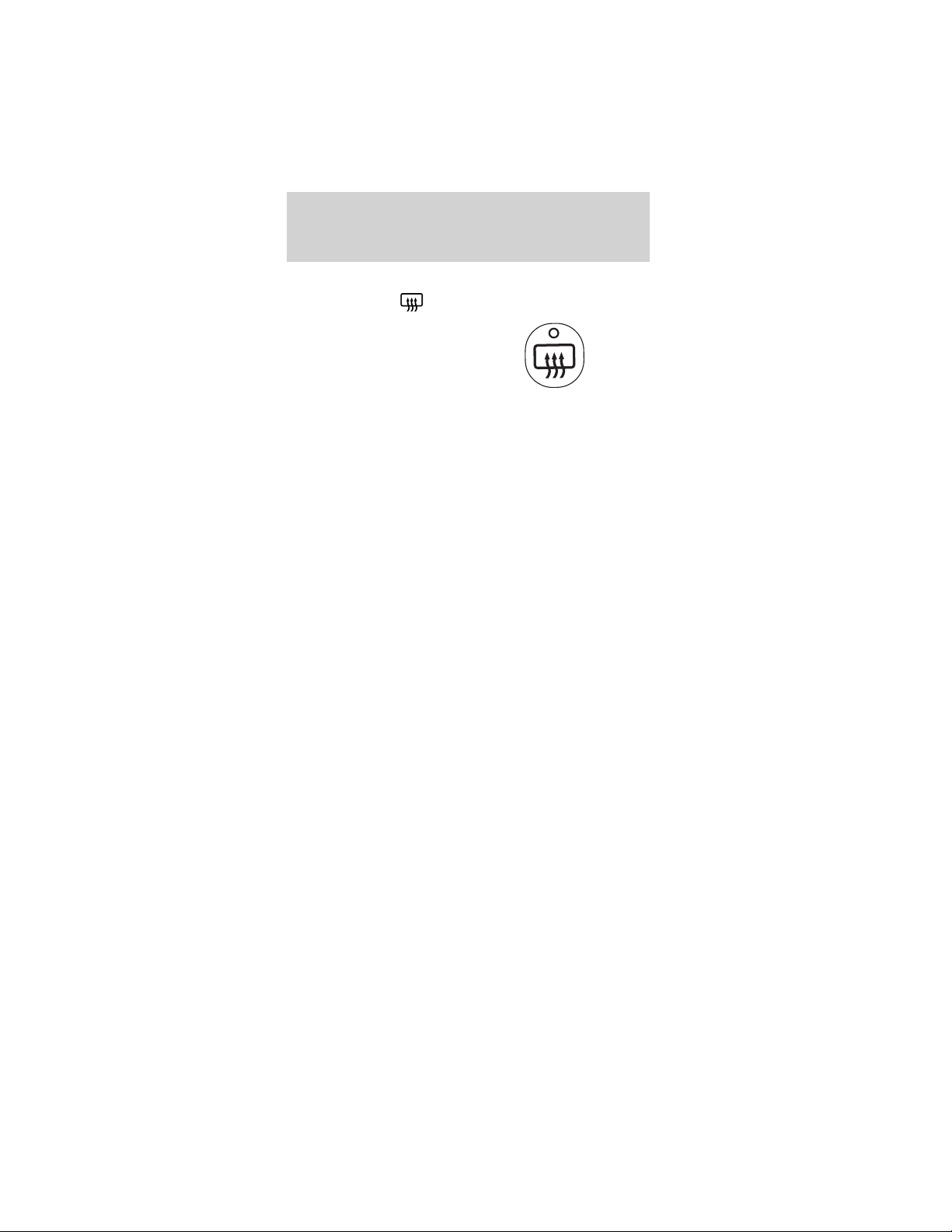

REAR WINDOW DEFROSTER (IF EQUIPPED)

The rear defroster control is located on the instrument panel.

Press the rear defroster control to clear the rear window of thin ice and fog.

• A small LED will illuminate when the rear defroster is activated.

The ignition must be in the ON position to operate the rear window defroster.

The defroster turns off automatically after 10 minutes or when the ignition is turned to the OFF position. To manually turn off the defroster before 10 minutes have passed, push the control again.

Page 67

Lights

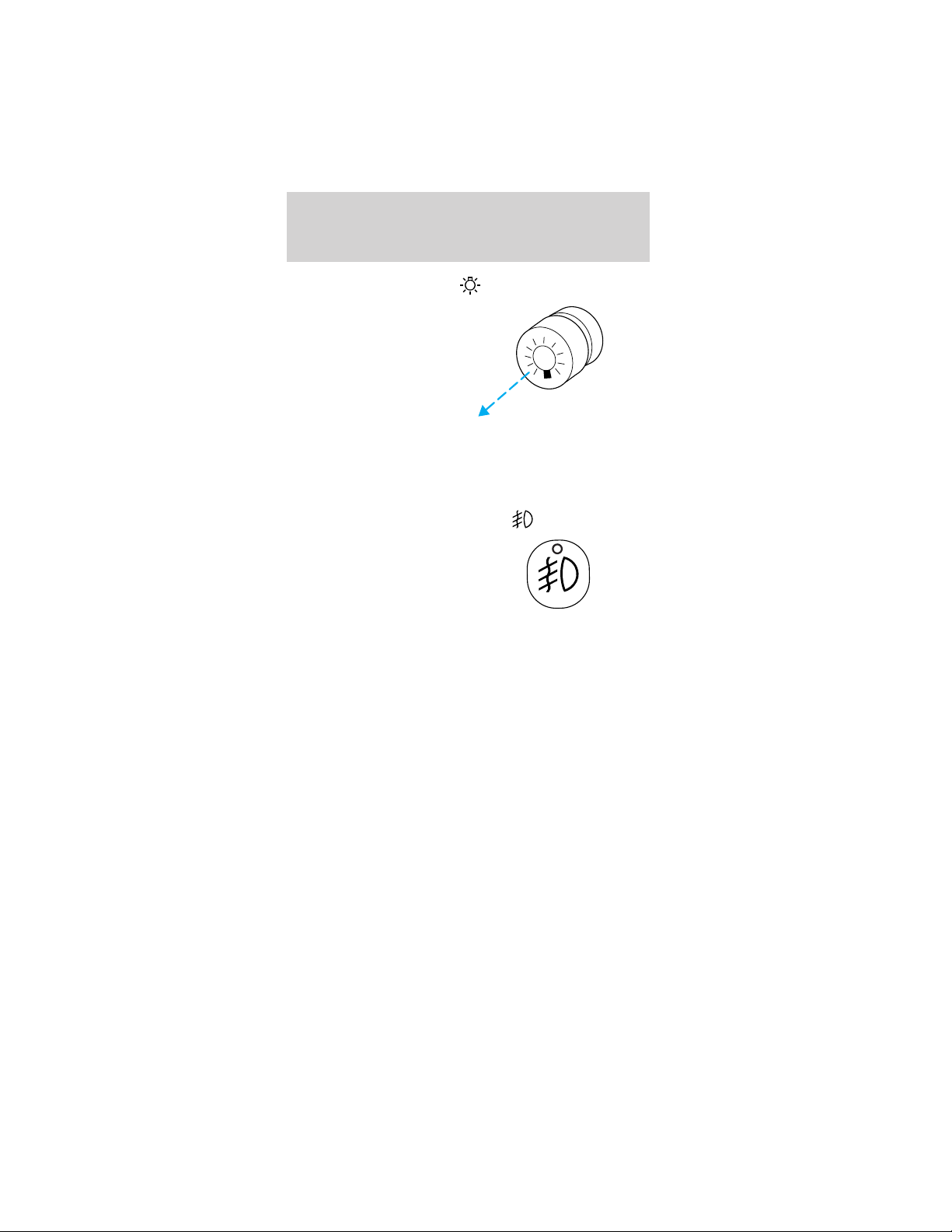

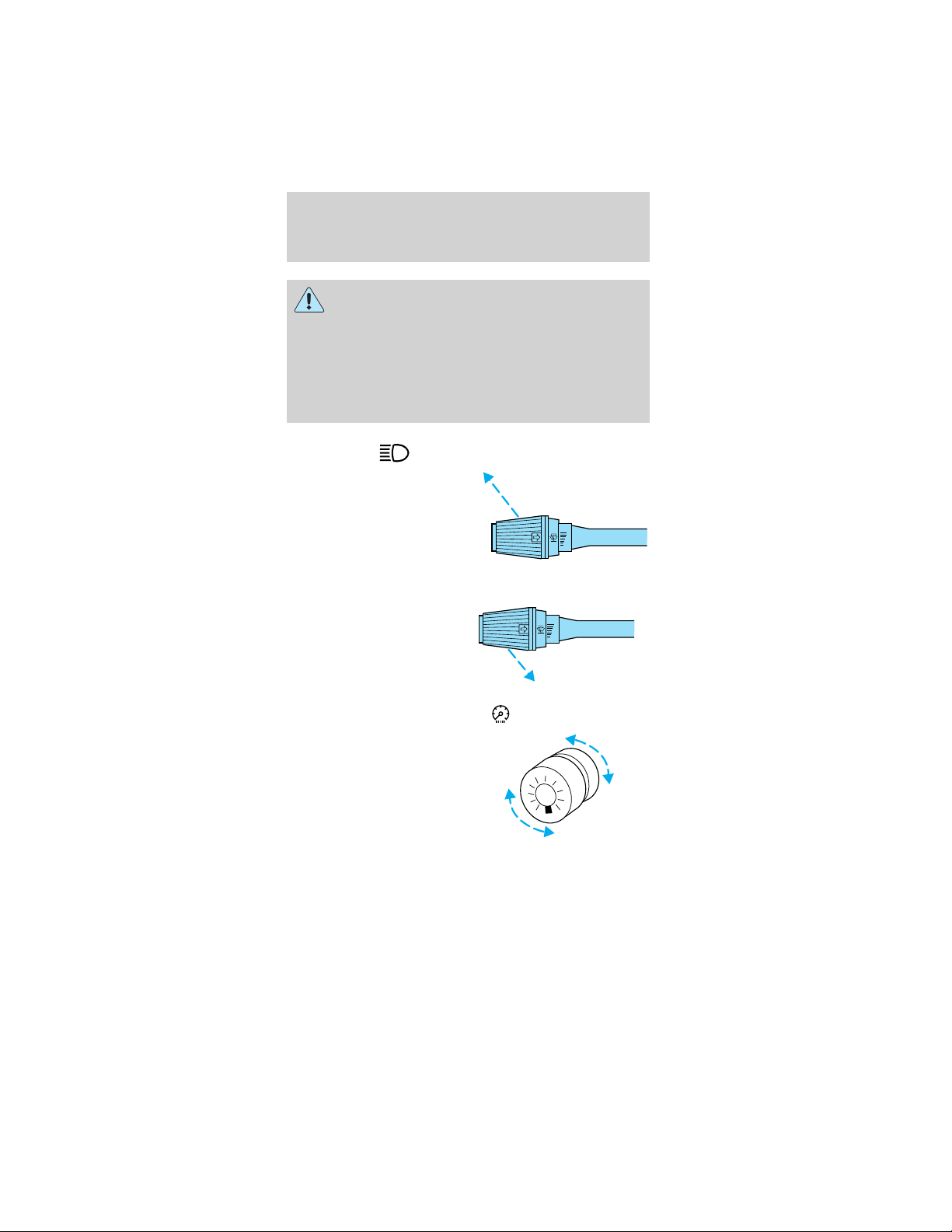

HEADLAMP CONTROL

• Pull the headlamp control toward you to the first position to turn on the parking lamps, tail lamps, license plate lamps and marker lamps.

• Pull the headlamp control toward you to the outer position to turn on the headlamps (in addition to the previous lamps).

Foglamp control (if equipped)

The foglamps can be turned on when the headlamp control is in either of the following positions:

• Parking lamps

• Low beams

Press the foglamp control to activate the foglamps. Press the foglamp control again to deactivate the

foglamps. When the highbeams are activated, the foglamps will

not operate.

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output. To activate:

• the ignition must be turned on

• the headlamp control is in the OFF or Parking

lamps position

• the high beam headlamps must be turned off

• the parking brake is released

Page 68

Lights

Always remember to turn on your

headlamps at dusk or during inclement weather. The Daytime Running Light (DRL) System does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass

Pull toward you slightly to activate and release to deactivate.

HI LO

OFF

HI LO

OFF

PANEL DIMMER CONTROL

To adjust the brightness of the instrument panel:

• Rotate clockwise/ ounterclockwise when the headlamp control is in the parking lamp or low-beam position.

To turn on the courtesy lamps:

• Rotate fully counterclockwise.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant.

Page 69

Lights

If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician.

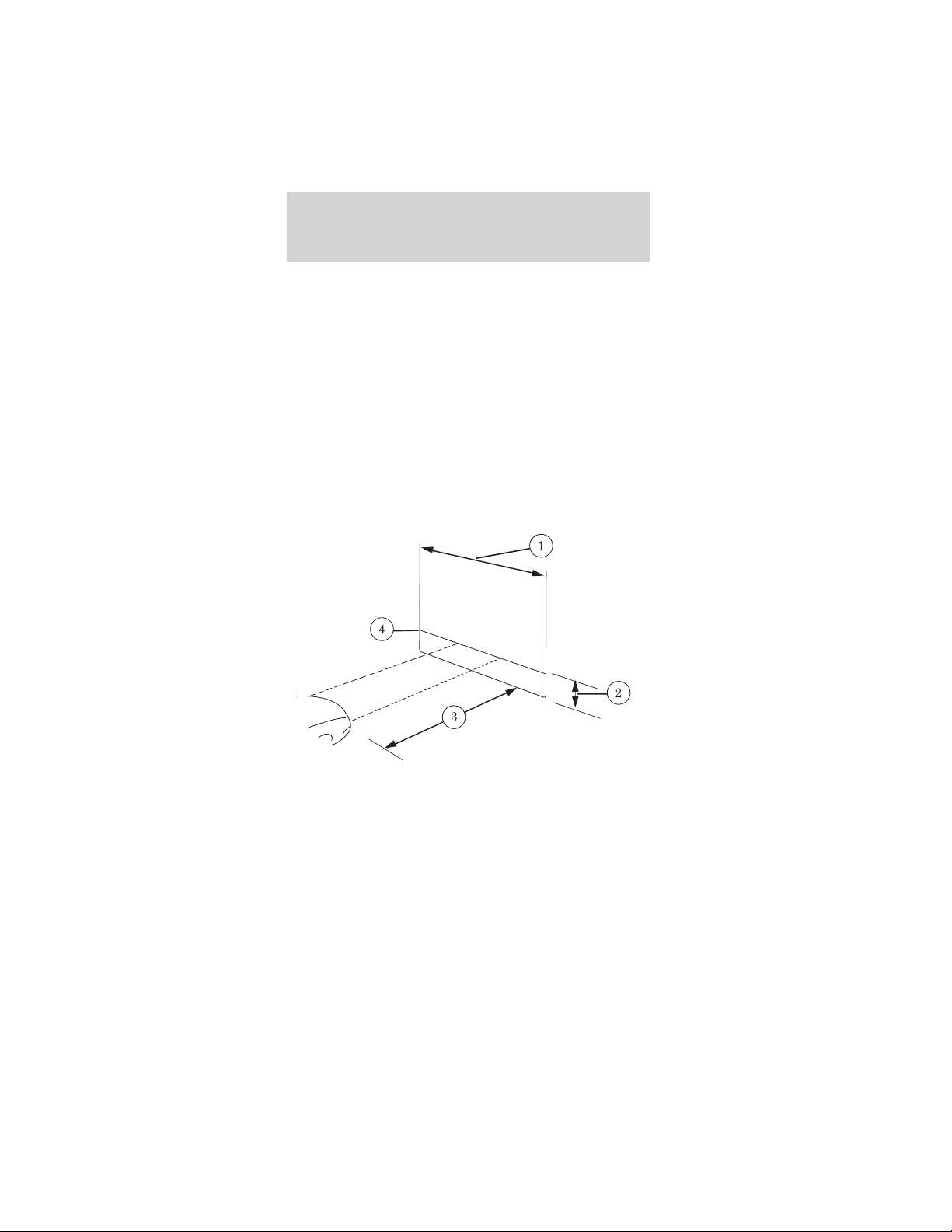

Headlamp vertical aim adjustment

1. Park the vehicle on a level surface approximately

7.6 meters (25 feet) from a vertical wall or screen

directly in front of it.

• (1) Eight feet

• (2) Center height of lamp to ground

• (3) Twenty five feet

• (4) Horizontal reference line

2. Measure the height from the center of your

headlamp to the ground and mark a 2.4 meter (8 foot) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). The center of the lamp is marked by a

3.0 mm circle on the headlamp lens.

3. Turn on the low beam headlamps to illuminate the

wall or screen and open the hood.

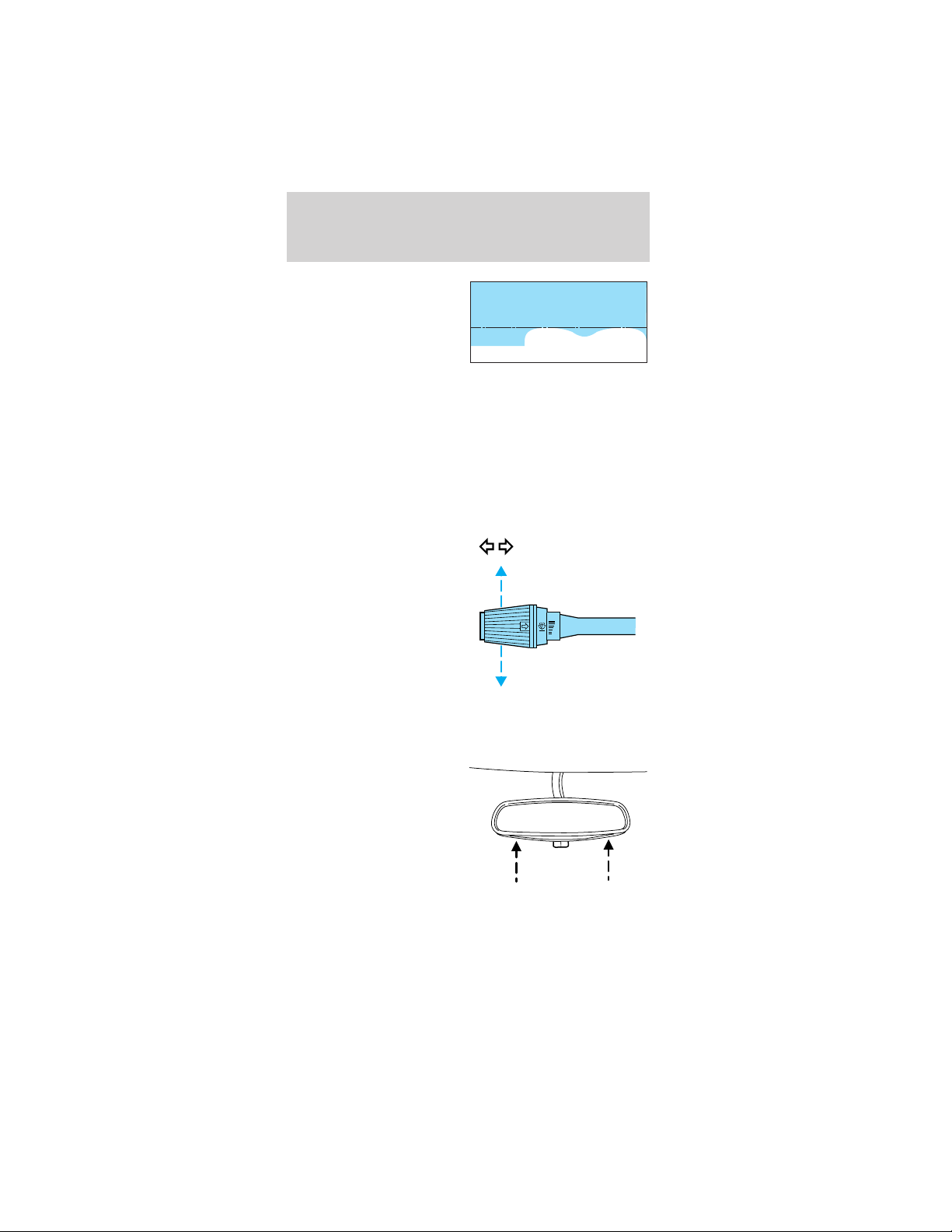

Page 70

Lights

4. On the wall or

screen you will observe a light pattern with flat edges at the top of the beam pattern. If the flat edges are not at the horizontal reference line, the beam will need to be adjusted.

5. Locate the vertical adjuster on each headlamp,

then usea6mmallen wrench or screwdriver to adjust the headlamp up or down.

6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS

VEHICLE AND IS NON-ADJUSTABLE.

7. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

HI LO

OFF

INTERIOR LAMPS Map lamps (if equipped)

If equipped with a convertible top the map lamps and controls are located on the rearview mirror. Press the controls on the bottom of the mirror to activate the lamps.

Page 71

Lights

BULBS Replacing exterior bulbs

Check the operation of the following lamps frequently:

• Headlamps

• Tail lamps

• Brakelamps

• High-mount brakelamp

Do not remove lamp bulbs unless they will be replaced immediately. If a bulb is removed for an extended period of time, contaminants may enter the lamp housings and affect performance.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Trade Number

Tail lamp, brakelamp, turn lamp 3157K Park lamp, turn lamp, side marker (front) 3157 AK (amber) Backup lamp 3156K License plate lamp 168 High-mount brakelamp 906 Headlamps 9007 Luggage compartment lamp 906 Dome lamp 575 Map lamp 575 Visor vanity lamp 74 Glove compartment 194 Rearview mirror map lamps 192 Fog lamp 899 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer.

• Turn signal lamps

• Backup lamps

• License plate lamp

Page 72

Lights

Interior bulbs

Check the operation of the following interior bulbs frequently:

• interior overhead lamp

• map lamp

For bulb replacement, see a dealer or qualified technician.

Map lamps

For bulb replacement, see a qualified service technician or your dealer.

Replacing headlamp bulbs

To remove the headlamp bulb:

1. Make sure headlamp switch is in OFF position,

then open the hood.

2. At the back of the

headlamp, pull two retainer pins up to release the headlamp assembly.

3. Pull headlamp

assembly forward disengaging the lamp from the rear hidden snap retainers to expose the back of the bulb.

4. Disconnect the

electrical connector from the bulb by pulling rearward.

5. Remove the bulb

retaining ring by rotating it counterclockwise (when viewed from the rear) to free it from the bulb socket, and slide the ring off the plastic base. Keep the ring to retain the new bulb.

Page 73

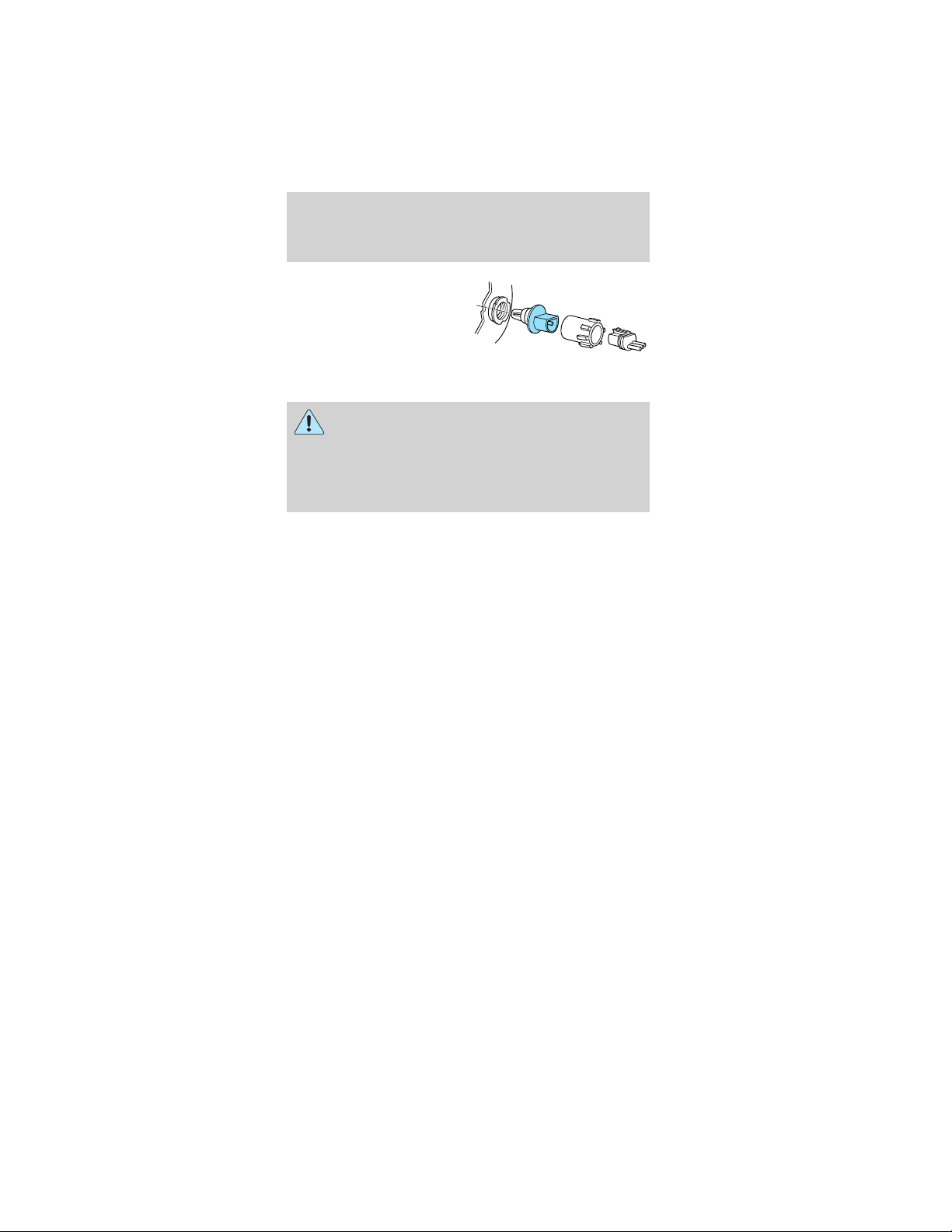

Lights

6. Without turning,

remove the old bulb from the lamp assembly by gently pulling it straight out of the lamp assembly.

To install the new bulb:

Handle a halogen headlamp bulb carefully

and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

1. With the flat side of the new bulb’s plastic base facing upward, insert the glass end of the bulb into the lamp assembly. You may need to turn the bulb left or right to align the grooves in the plastic base with the tabs in the lamp assembly. When the grooves are aligned, push the bulb into the lamp assembly until the plastic base contacts the rear of the lamp assembly.

2. Install the bulb retaining ring over the plastic base until it contacts the rear of the socket by rotating clockwise until you feel a “stop.”

3. Connect the electrical connector into the plastic base until it snaps, locking it into position.

4. Install the headlamp on vehicle by aligning the lamp with the rear snap retainers, push to seat and secure with two retainer pins.

5. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

Replacing front parking lamp/turn signal bulbs

1. Make sure the headlamp control is in the OFF position.

2. Open the hood. 73

Page 74

Lights

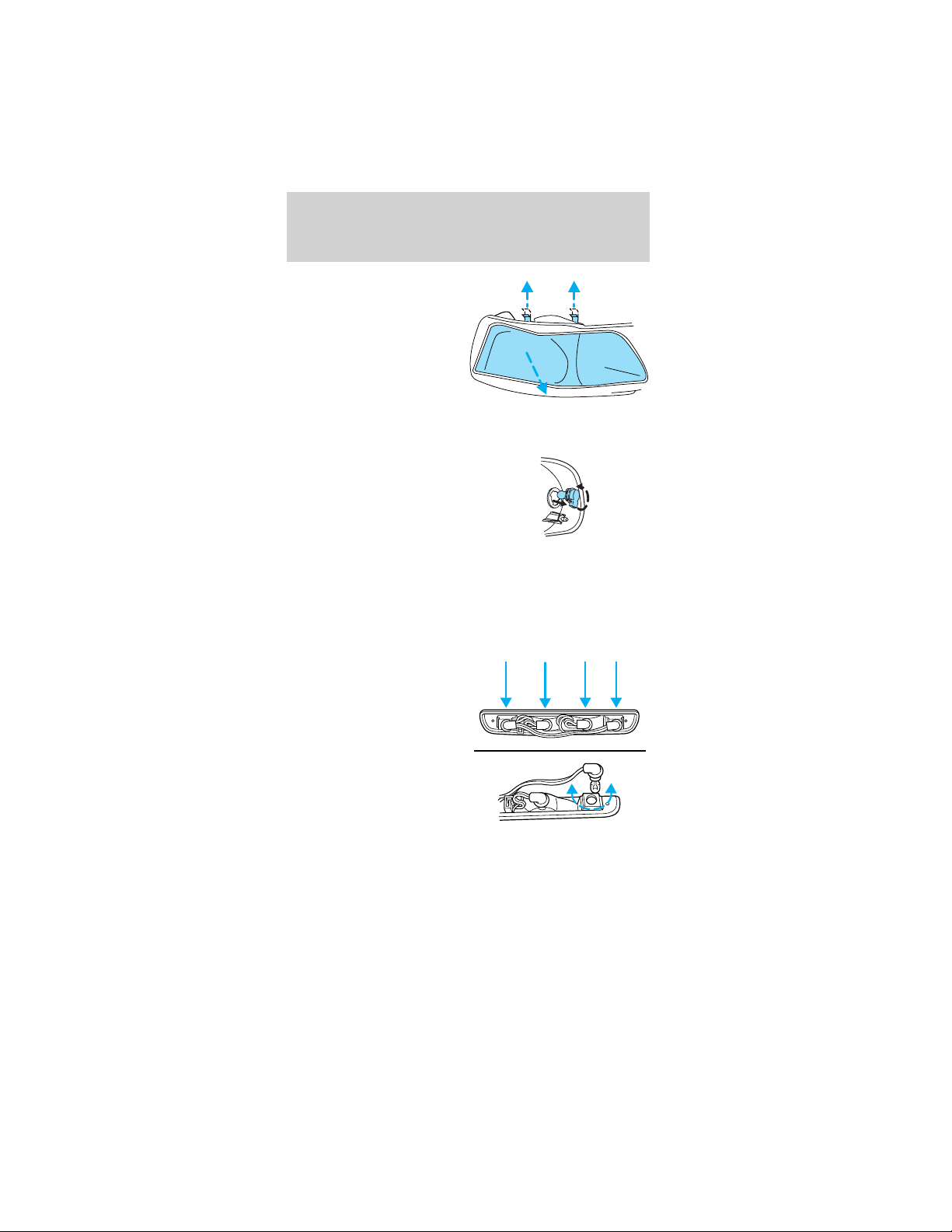

3. At the back of the

headlamp, pull two retainer pins up to release the headlamp assembly.

4. Pull headlamp

assembly forward disengaging the lamp from the rear snap retainers to expose the back of the bulb.

5. Rotate the bulb

socket counterclockwise and remove from lamp assembly.

6. Carefully pull the

bulb straight out from the socket and push in the new bulb.

7. To complete installation, follow the removal

procedure in reverse orer.

Replacing high-mount brakelamp bulbs

1. Open trunk.

2. Inside trunk, locate

access hole under the rear decklid.

3. Remove the bulb

socket by rotating it 45 degrees and pulling it out of the lamp assembly.

4. Carefully pull bulb

straight out of socket and push in new bulb.

5. To complete installation, follow the removal

procedure in reverse order.

Page 75

Lights

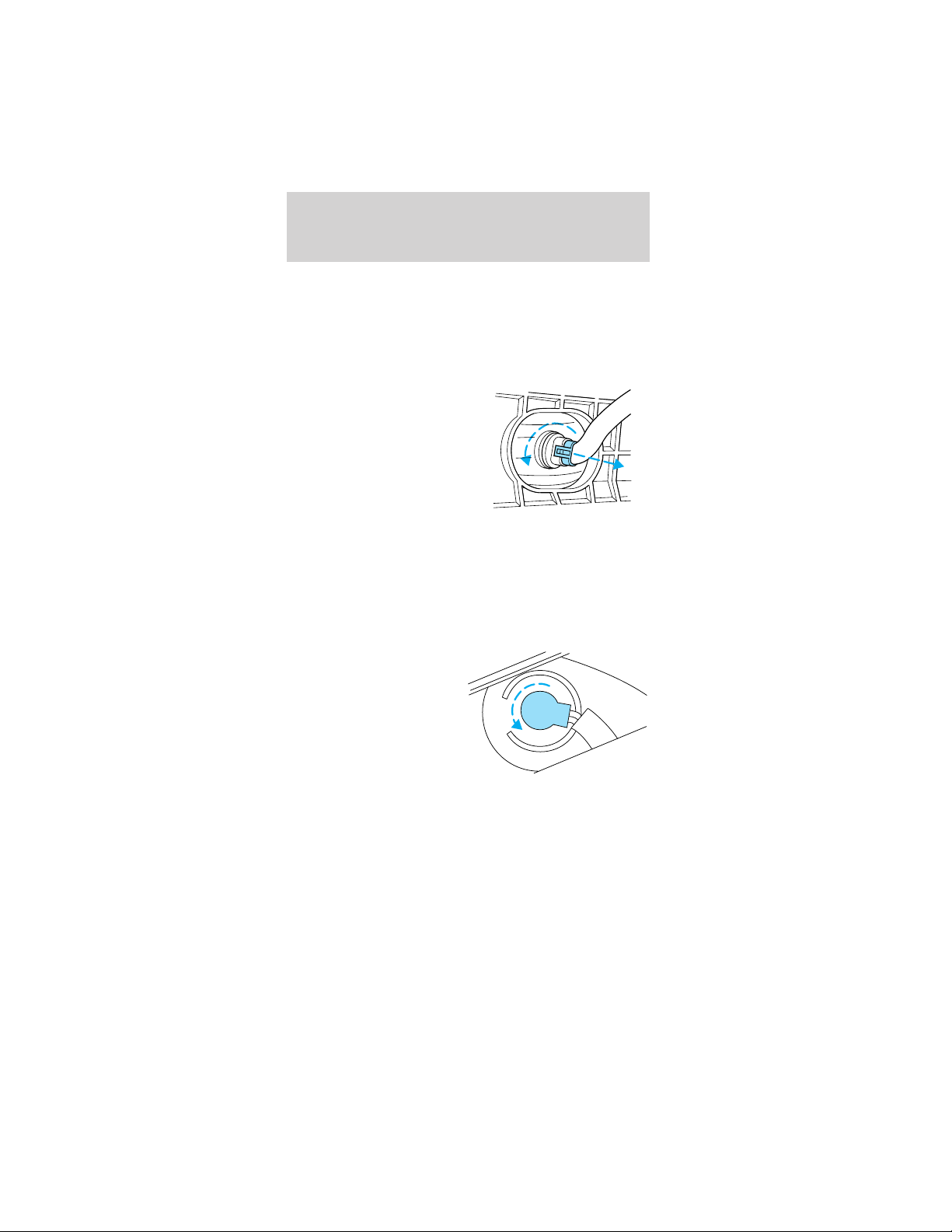

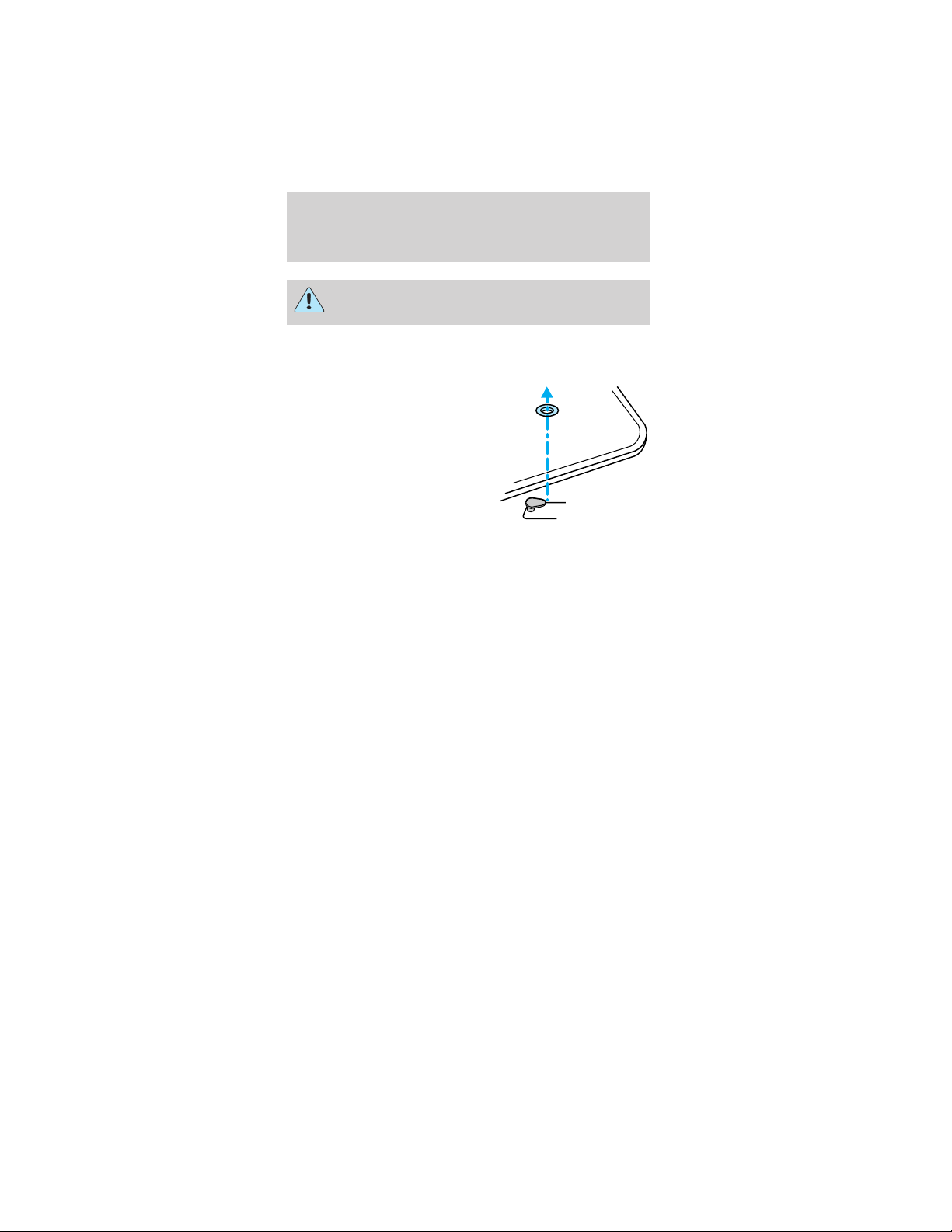

Replacing foglamp bulbs

The halogen bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb carefully. Grasp the bulb only by its base. Avoid touching the glass envelope.

1. Rotate the foglamp

bulb counterclockwise and remove from foglamp (the rear side of the foglamp is shown).

2. Disconnect the

electrical connector from the foglamp bulb.

3. Connect the electrical connector to the new

foglamp bulb.

4. Install the foglamp bulb in foglamp by rotating

clockwise.

Replacing license plate lamp bulbs

1. Open trunk and

remove bulb socket from the trunk lid by turning counterclockwise.

2. Pull the bulb straight

out of the socket. Install the new bulb in reverse order.

Replacing tail lamp/backup bulbs

For bulb replacement, see a dealer or qualified technician.

Page 76

Driver Controls

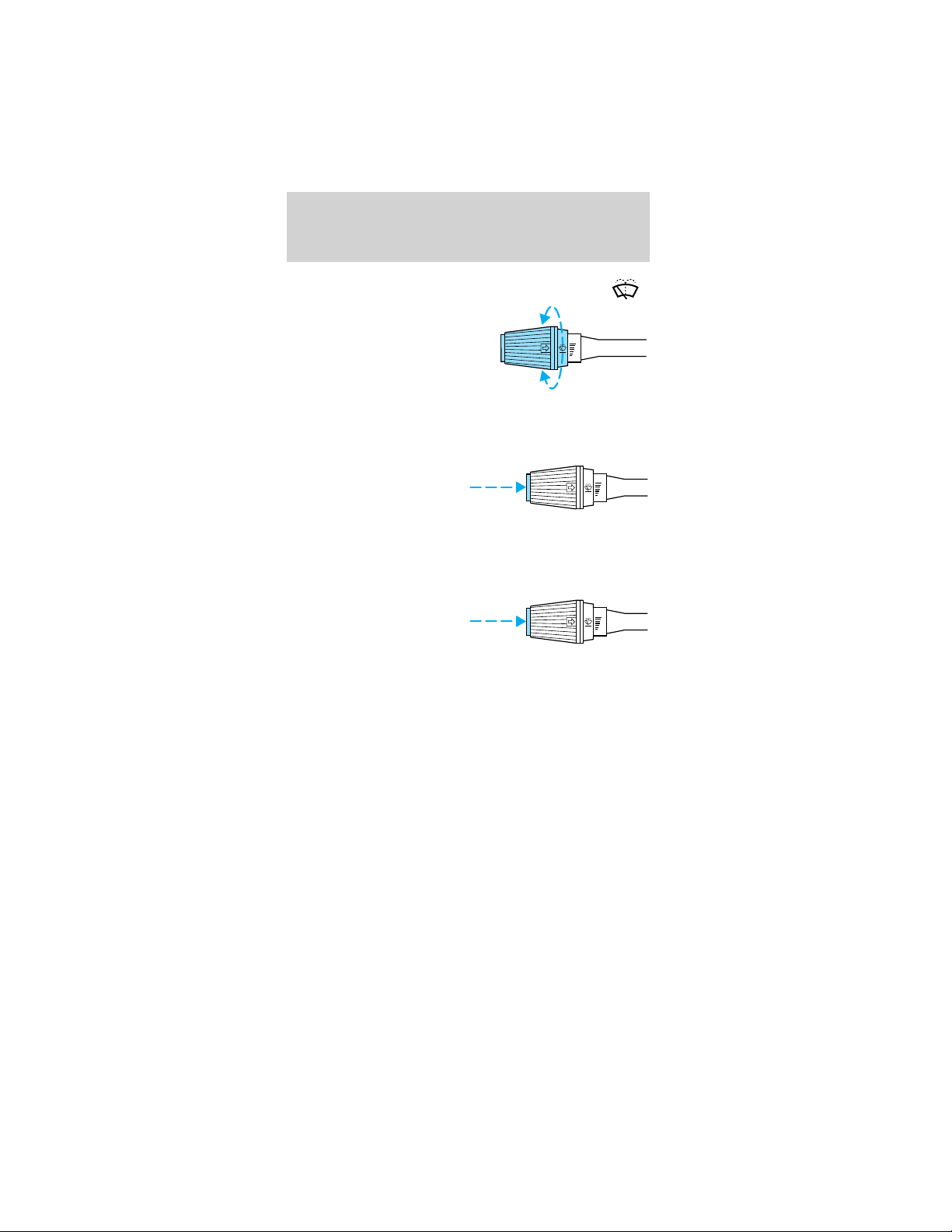

WINDSHIELD WIPER/WASHER CONTROLS

Rotate the windshield wiper control to the desired interval, low or high speed position.

The bars of varying length are for intermittent wipers. When in this position rotate the control upward for fast intervals and downward for slow intervals.

Push the control on the end of the stalk to activate washer. Push and hold for a longer wash cycle. The washer will automatically shut off after ten seconds of continuous use.

Mist Function

To operate the Mist function of the windshield wipers, push and release the windshield washer control quickly. The wipers will cycle one or two times.

HI LO

OFF

HI LO

OFF

HI LO

OFF

Windshield wiper blades

Check the wiper blades for wear at least twice a year or when they seem less effective. Substances such as tree sap and some hot wax treatments used by commercial car washes reduce the effectiveness of wiper blades.

Checking the wiper blades

If the wiper blades do not wipe properly, clean both the windshield and wiper blades using undiluted windshield wiper solution or a mild detergent. Rinse thoroughly with clean water. To avoid damaging the blades, do not use fuel, kerosene, paint thinner or other solvents.

Page 77

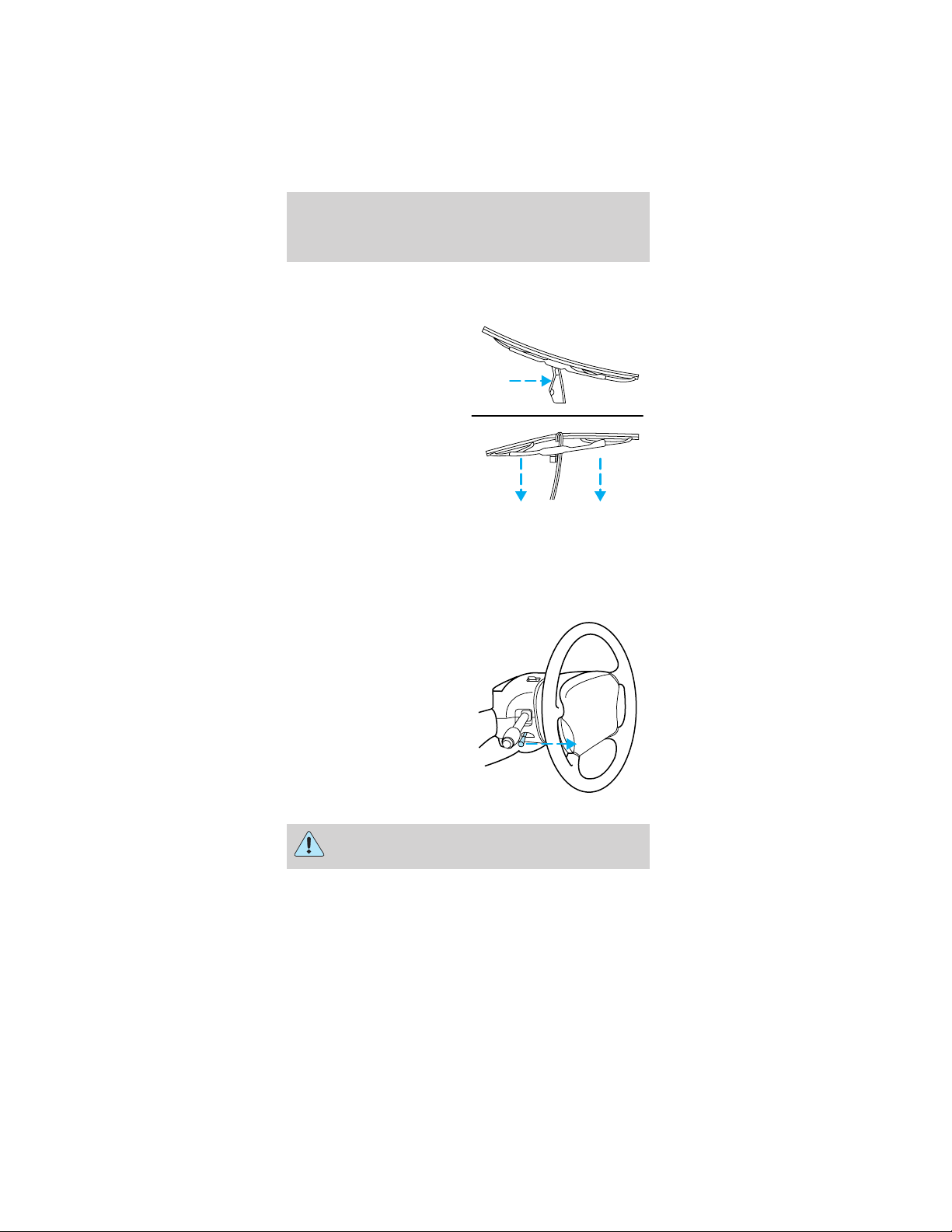

Driver Controls

Changing the wiper blades

To replace the wiper blades:

1. Pull the wiper arm

away from the windshield and lock into the service position.

2. Turn the blade at an

angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.

3. Attach the new wiper to the wiper arm and press

it into place until a click is heard.

TILT STEERING WHEEL (IF EQUIPPED)

Pull the tilt steering control toward you to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then release the control to lock the steering wheel in position.

Never adjust the steering wheel when the vehicle is moving.

Page 78

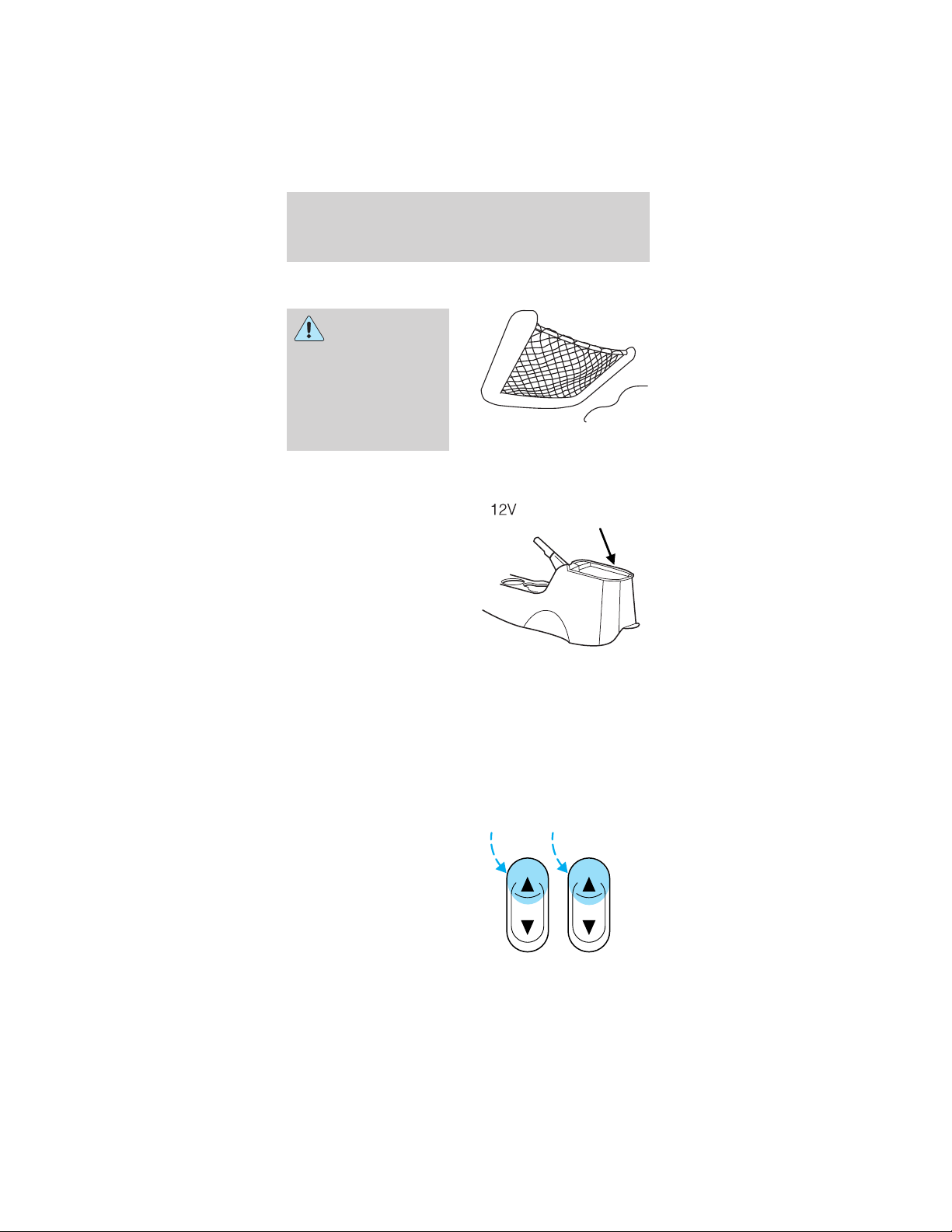

Driver Controls

OVERHEAD STORAGE NET (IF EQUIPPED)

Be sure to

secure objects when placed in the storage net in order to help reduce the risk that they become projectiles in the event of a collision.

AUXILIARY POWER POINT

The power point is an additional power source for electrical accessories.

Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

A power point is located inside the center console storage bin.

POWER WINDOWS

Press and hold the rocker switches to open and close windows.

• Press the top portion of the rocker switch to close.

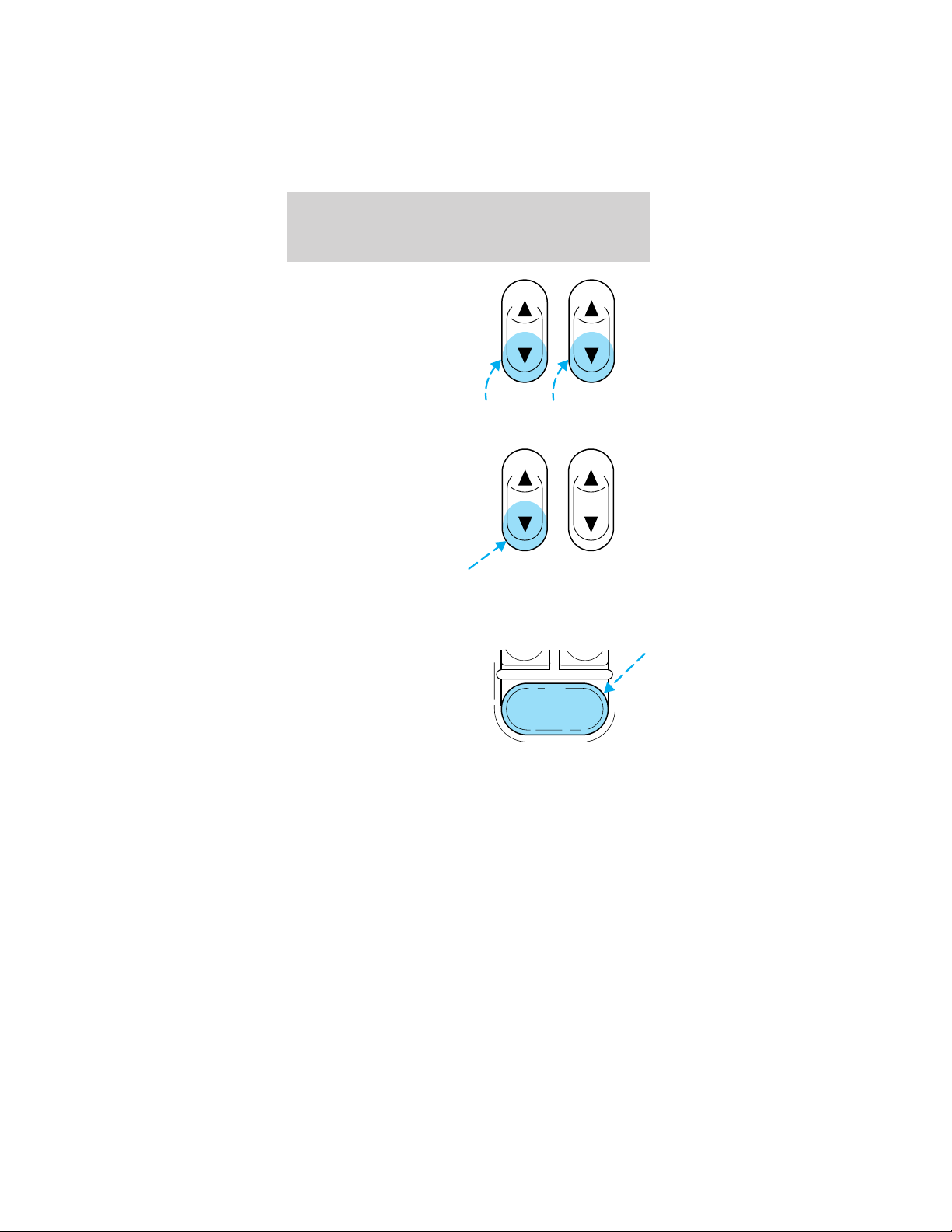

Page 79

Driver Controls

• Press the bottom portion of the rocker switch to open.

Express down

To make the driver window open fully without holding the window control, press the bottom portion of the driver window control completely down and release quickly. Depress again to stop window operation.

Window lock (if equipped)

The window lock feature allows only the driver to operate the power windows.

To lock out all the window controls except for the driver’s press the control. Press the control again to restore the window controls.

LOCK

Page 80

Driver Controls

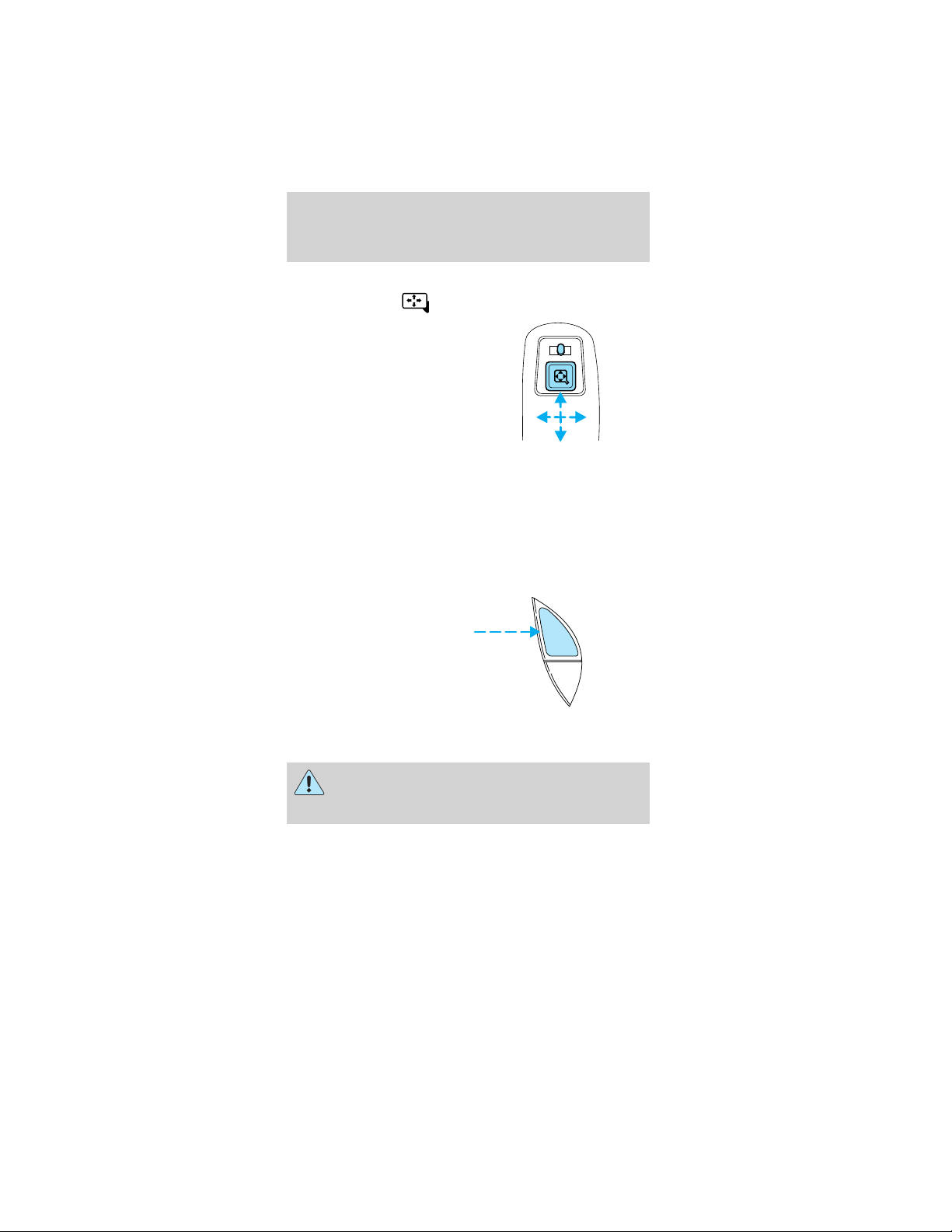

POWER SIDE VIEW MIRRORS (IF EQUIPPED)

To adjust your mirrors:

1. Move the mirror

selector control all the way to the left to adjust the left mirror or all the way to the right to adjust the right mirror.

2. Move the control in the direction you wish to tilt

the mirror.

3. Return the control to the center position.

SPEED CONTROL To turn speed control on

• Press ON.

Vehicle speed cannot be controlled until the vehicle is traveling at or above 48 km/h (30 mph).

Do not shift the gearshift lever into N (Neutral) with the speed control on.

OFF

unpaved.

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or

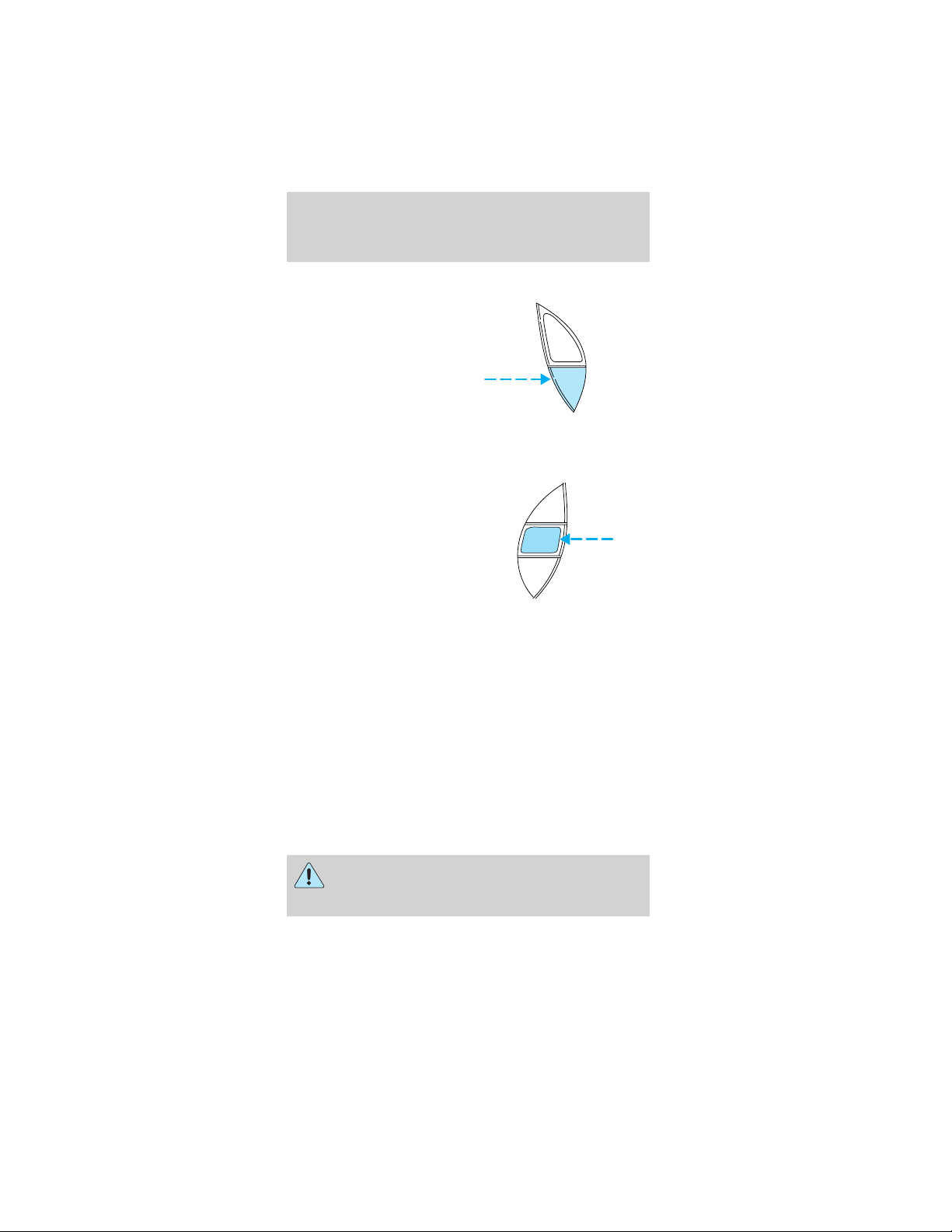

Page 81

Driver Controls

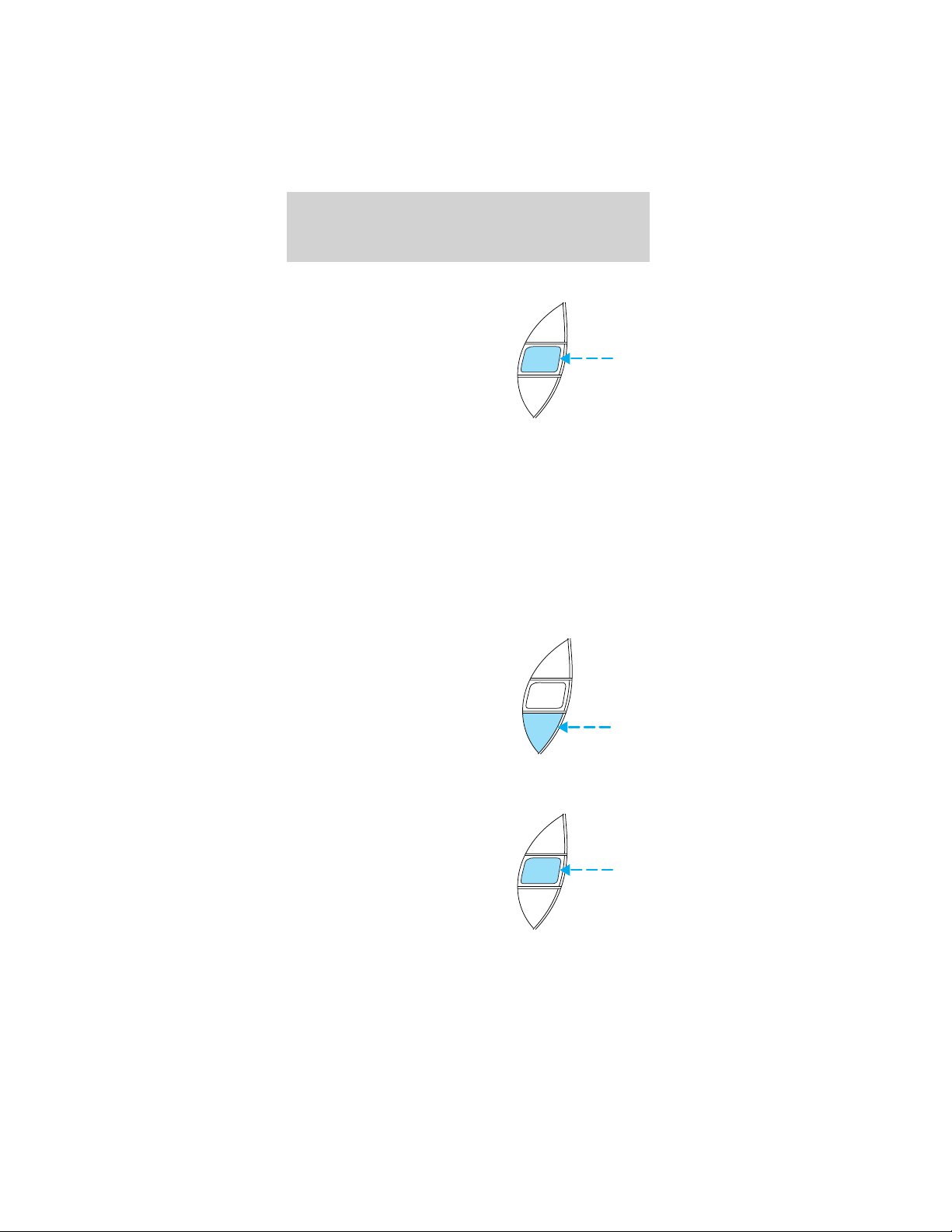

To turn speed control off

• Press OFF or

• Turn off the vehicle

ignition.

Once speed control is switched off, the previously programmed set speed will be erased.

To set a speed

• Press SET ACCEL. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph).

If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed. This is normal.

Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.

If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RESUME will re-engage it.

RESUME

SET

ACCEL

COAST

OFF

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or

unpaved.

Page 82

Driver Controls

To set a higher set speed

• Press and hold SET ACCEL. Release the control when the desired vehicle speed is reached or

• Press and release SET ACCEL to operate the Tap-Up function. Each press will increase the set speed by 1.6 km/h (1 mph) or

• Accelerate with your accelerator pedal. When the desired vehicle speed is reached, press and release SET ACCEL.

You can accelerate with the accelerator pedal at any time during speed control usage. Releasing the accelerator pedal will return your vehicle to the previously programmed set speed.

To set a lower set speed

• Press and hold COAST. Release the control when the desired speed is reached or

• Press and release COAST to operate the Tap-Down function. Each press will decrease the set speed by 1.6 km/h (1 mph) or

• Depress the brake pedal. When the desired vehicle speed is reached, press SET ACCEL.

RESUME

SET

ACCEL

COAST

ACCEL

COAST

RESUME

SET

ACCEL

COAST

RESUME

SET

Page 83

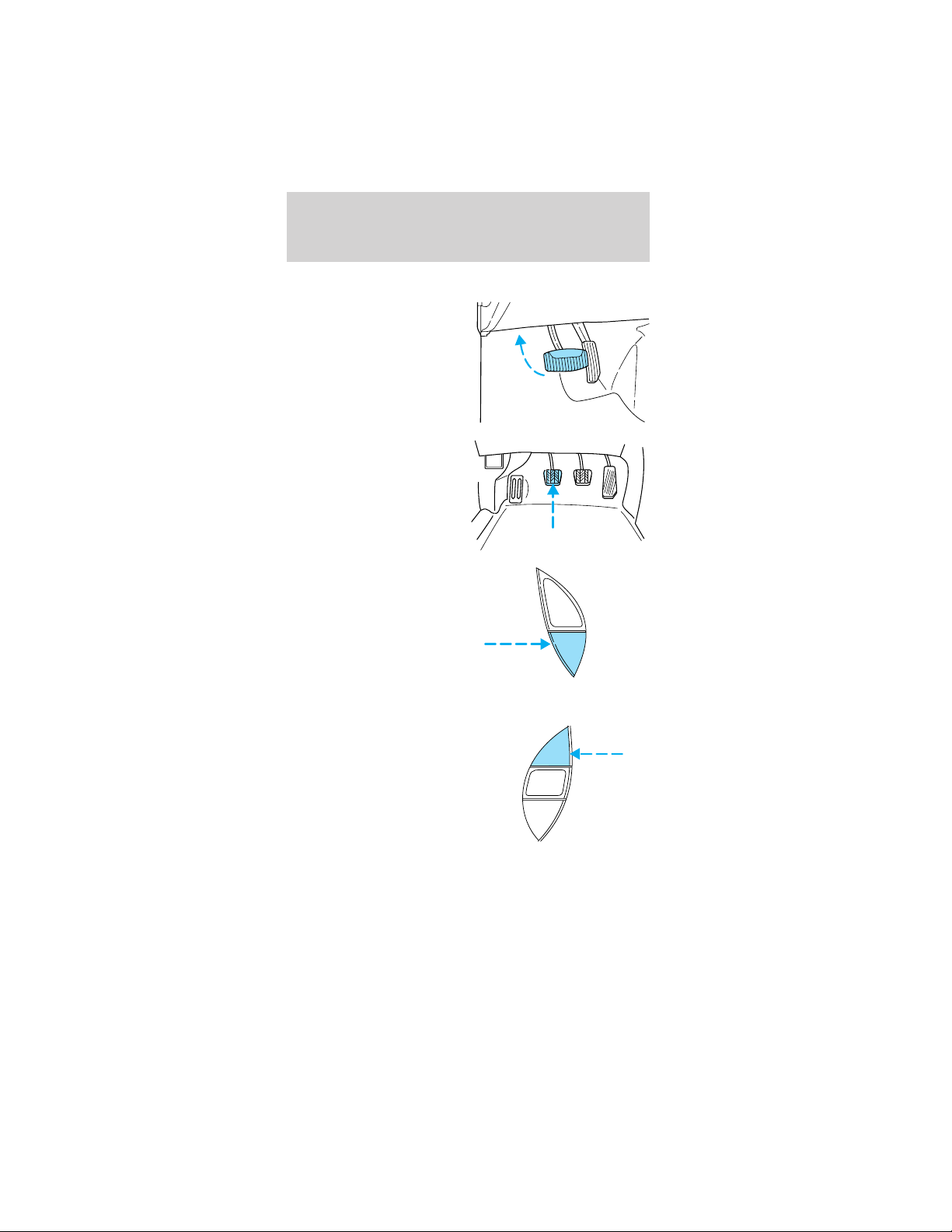

To disengage speed control

• Depress the brake pedal or

• Depress the clutch pedal (if equipped).

Disengaging the speed control will not erase the previously programmed set speed.

Pressing OFF will erase the previously programmed set speed.

Driver Controls

OFF

To return to a previously set speed

• Press RESUME. For RESUME to operate, the vehicle speed must be faster than 48 km/h (30 mph).

COAST

RESUME

SET

ACCEL

Page 84

Driver Controls

OVERDRIVE CONTROL (IF EQUIPPED) Activating overdrive

(Overdrive) is the normal drive position for the

best fuel economy. The overdrive function allows automatic upshifts and

downshifts through all available gears.

Deactivating overdrive

Press the Transmission Control Switch (TCS) located on the gearshift. The O/D OFF indicator light will illuminate on the instrument cluster. The transmission will operate in all gears except overdrive.

To return to normal overdrive mode, press the Transmission Control Switch again. The O/D OFF indicator light will no longer be illuminated.

When you shut off and re-start your vehicle, the transmission will automatically return to normal (Overdrive) mode.

For additional information about the gearshift and the transmission control switch operation refer to the Automatic Transmission Operation section of the Driving chapter.

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

• Dual cupholders

• Auxiliary power point

• Coin holder slots (if equipped)

• Convertible top control (if equipped)

Page 85

Driver Controls

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

POSITIVE RETENTION FLOOR MAT (IF EQUIPPED)

Position the floor mat so that the eyelet is over the pointed end of the retention post and rotate forward to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal. To remove the floor mat, reverse the installation procedure.

TRUNK REMOTE CONTROL

The remote trunk release control is located in the glove compartment. Press to open trunk.

CONVERTIBLE (IF EQUIPPED)

Do not store articles behind rear seat. Articles stored in the convertible top stowage compartment may break the rear glass window when the top is lowered.

Lowering the convertible top

The convertible top can be lowered with the side windows either up or down.

The convertible top will not operate unless the parking brake is engaged. Do not lower the top while the vehicle is moving because the top may be severely damaged. Also, do not lower the top when the top material is wet.

To lower the convertible top:

1. Bring vehicle to a complete stop. Engage the

parking brake. Key must be in the ON position.

2. Check the convertible top stowage compartment

behind the rear seat to be sure it is empty and ready to receive the top.

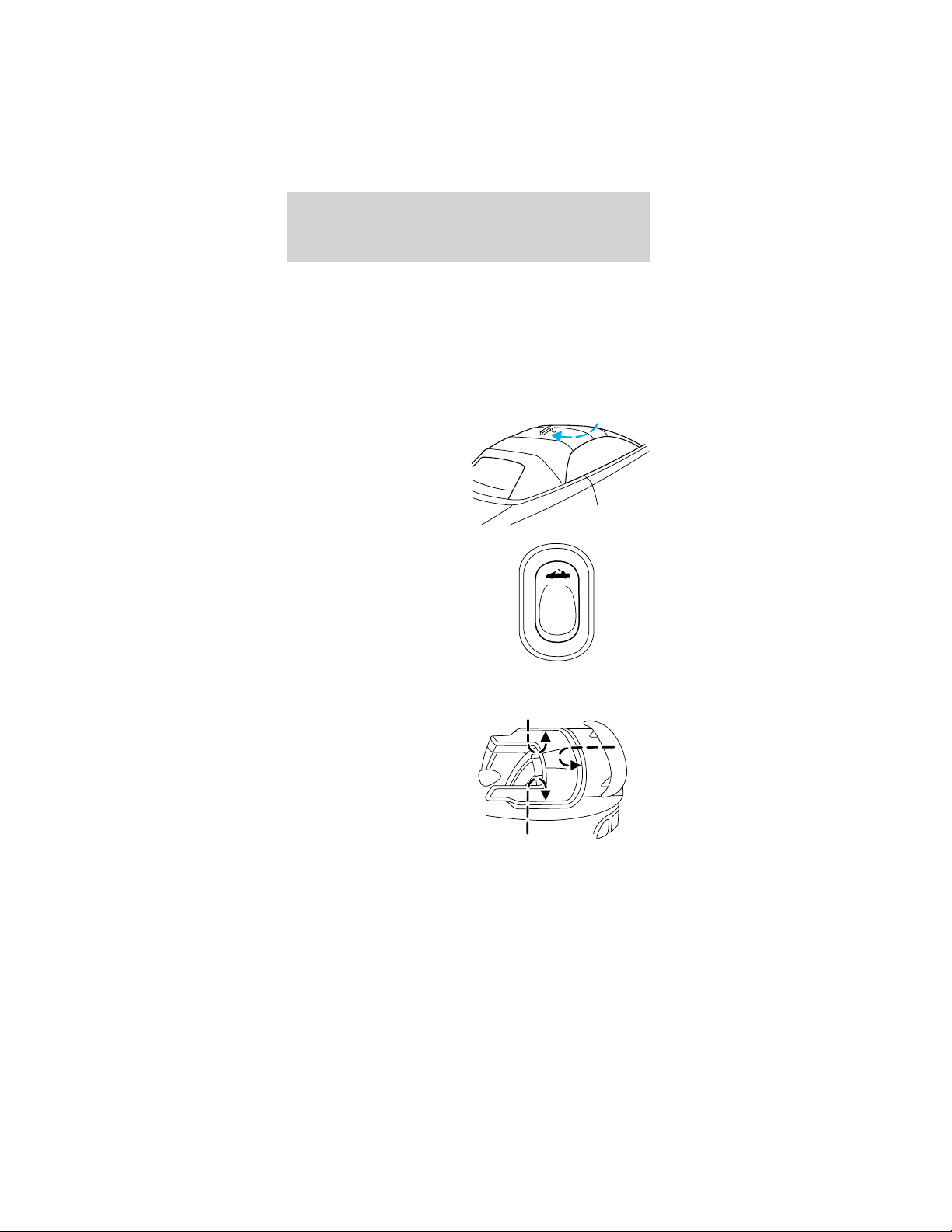

Page 86

Driver Controls

3. Unclamp the top from the windshield header at

both the right and left sides by pulling each clamp rearward until the hook in the windshield header is free. The clamps are flush with the header when in the closed position.

4. Close the windshield header clamps immediately

after disengagement, to avoid cutting the top material and to permit installation of the vinyl boot.

5. If the top has not

been lowered for some time and sticks to the windshield header, push the front of the top up slightly with your hand to loosen it.

6. Push the convertible

top switch on the console in front of the armrest and hold until the top is completely stored.

7. Disengage the

parking brake.

Installation of the boot

1. Push boot rearward

and engage boot under the body molding at the rear and sides.

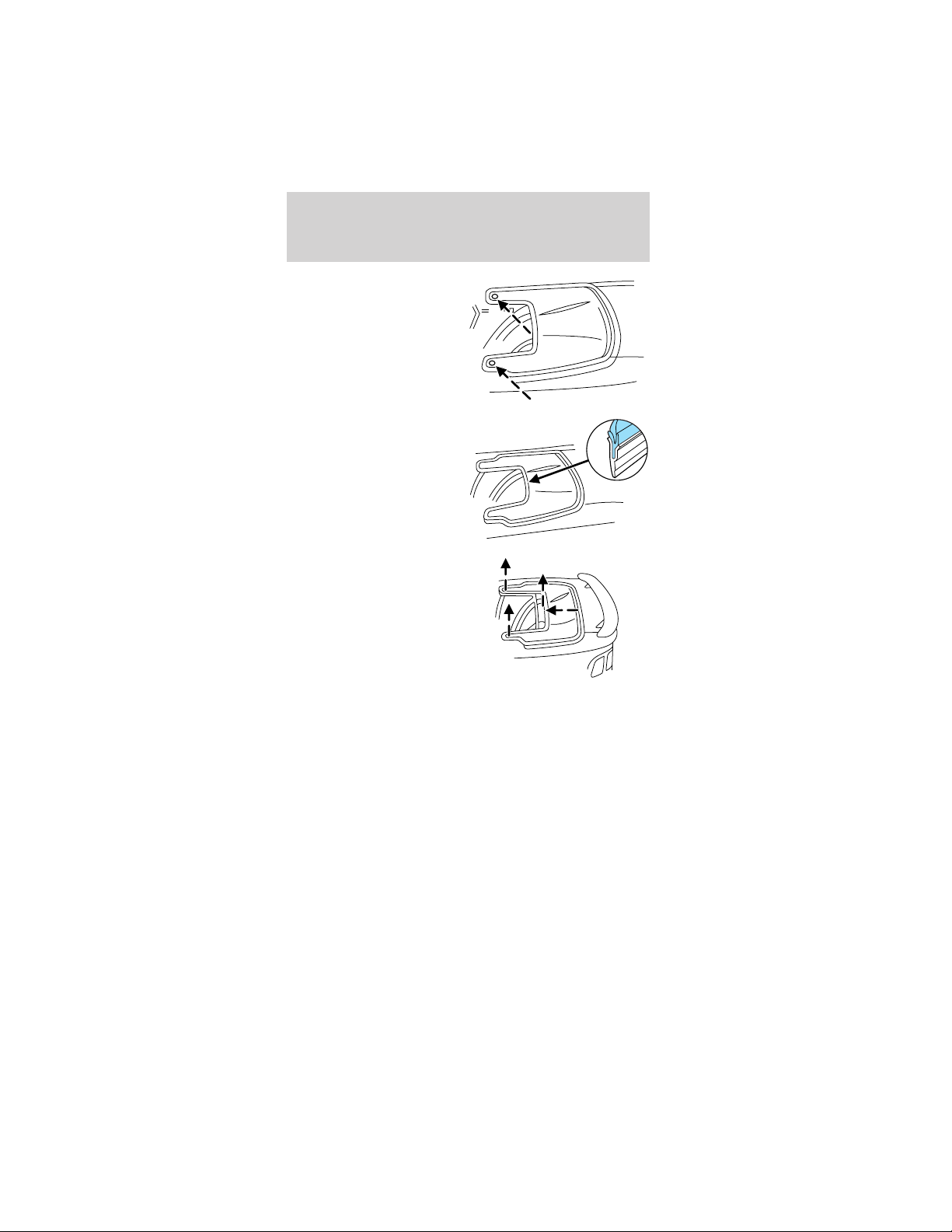

Page 87

2. Fasten snap on boot

to quarter trim panel on both sides of the vehicle.

3. Insert boot tongue

into groove located on rear of seat.

4. To remove, unfasten

the snaps and the boot tongue.

5. Pull forward and lift

off.

Driver Controls

Raising the convertible top

The convertible top will not operate unless the parking brake is engaged. Do not raise the top while the vehicle is moving because the top may be severely damaged.

To raise the convertible top:

1. Bring the vehicle to a complete stop. Engage the

parking brake. Key must be in the ON position.

2. Remove the boot cover and store it in the luggage

compartment.

3. Lower the front and rear side windows.

4. Push the convertible top button, holding it until

the top unfolds and moves forward toward the windshield header.

Page 88

Driver Controls

5. Open both top clamps before the top meets the

windshield header

6. Continue to use the top motor to raise the top

until it has reached the fully closed position flush to the header.

7. The two pins under the forward edge of the top

should seat themselves in the matching holes in the header.

8. To fasten both clamps securely, push the clamp

handles into the header on the top until they are flush with the header. Pulling down on the header at the center grip while closing the latches may assist in fastening the clamps.

9. Raise the front and rear side windows.

10. Disengage the parking brake.

Page 89

Locks and Security

KEYS

The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer.

You should always carry a second key with you in a safe place in case you require it in an emergency.

Refer to SecuriLocky Passive Anti-Theft System for more information.

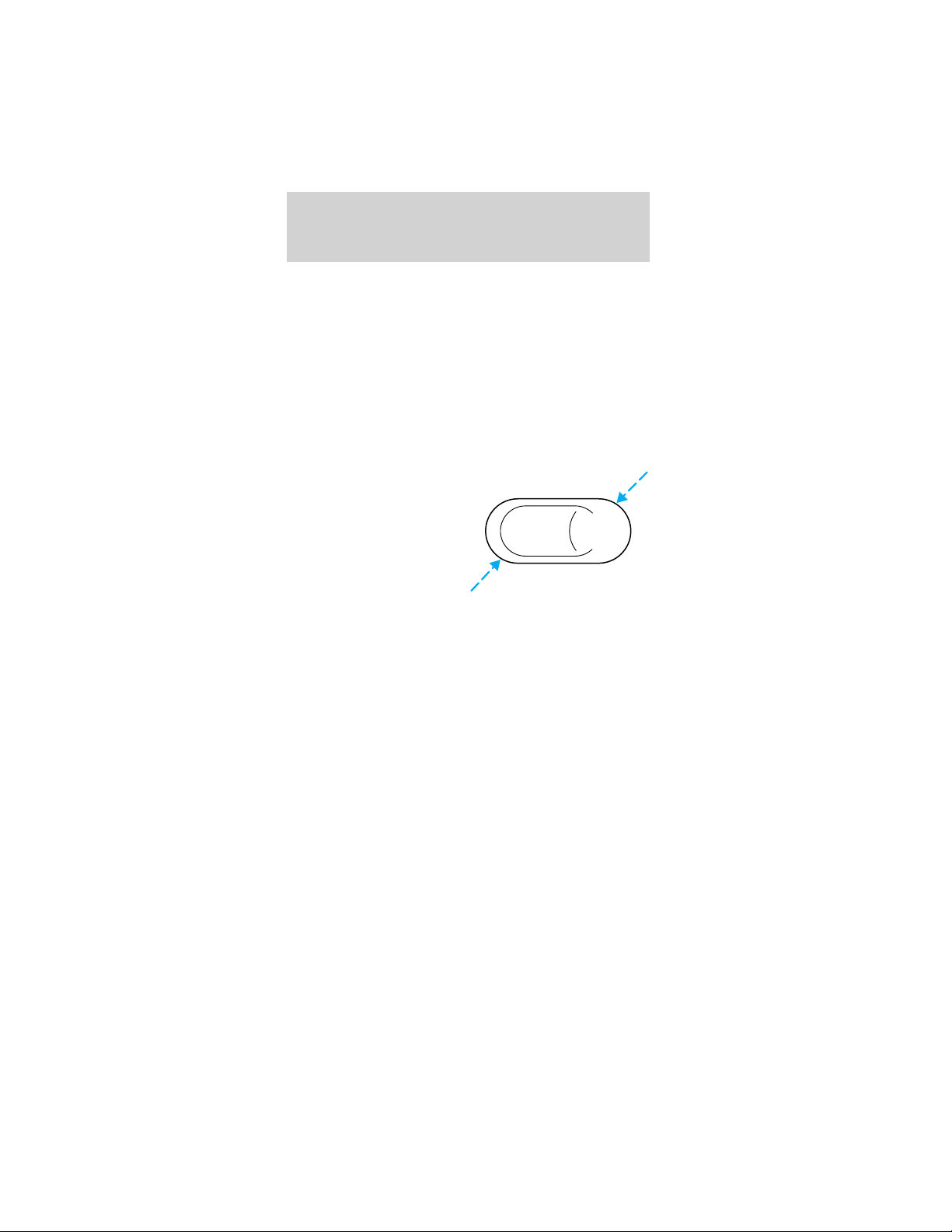

POWER DOOR LOCKS

Press U to unlock all doors and L to lock all doors.

U L

INTERIOR LUGGAGE COMPARTMENT RELEASE

Your vehicle is equipped with a mechanical interior luggage compartment release handle that provides a means of escape for children and adults in the event they become locked inside the luggage compartment.

Adults are advised to familiarize themselves with the operation and location of the release handle.

Page 90

Locks and Security

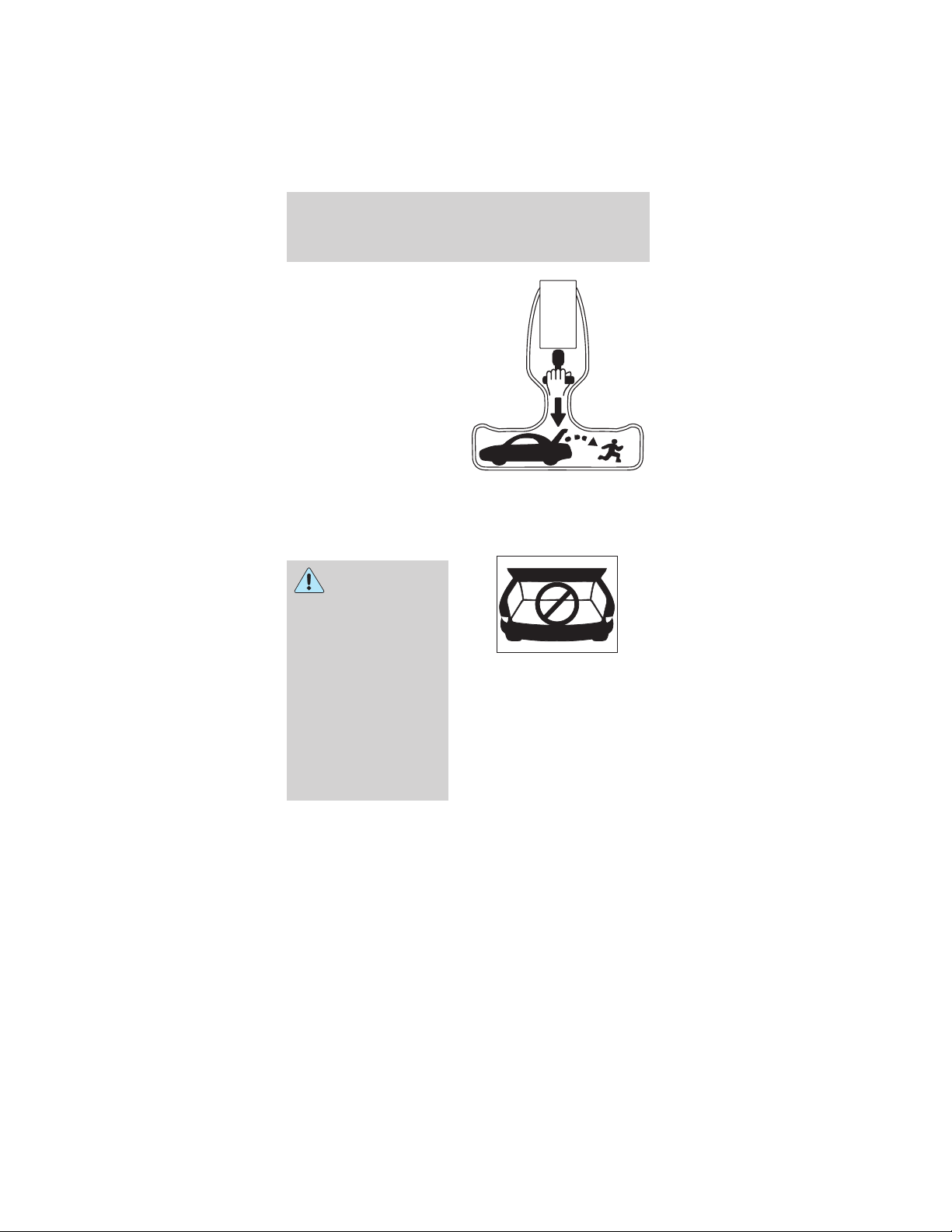

To open the luggage compartment door (lid) from within the luggage compartment, pull the illuminated “T” shaped handle and push up on the trunk lid. The handle is composed of a material that will glow for hours in darkness following brief exposure to ambient light.

The “T” shaped handle will be located either on the luggage compartment door (lid) or inside the luggage compartment near the tail lamps.

Keep vehicle

doors and luggage compartment locked and keep keys and remote transmitters out of a child’s reach. Unsupervised children could lock themselves in an open trunk and risk injury. Children should be taught not to play in vehicles.

Page 91

Locks and Security

On hot days, the temperature in the trunk

or vehicle interior can rise very quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat-related injuries, including brain damage. Small children are particularly at risk.

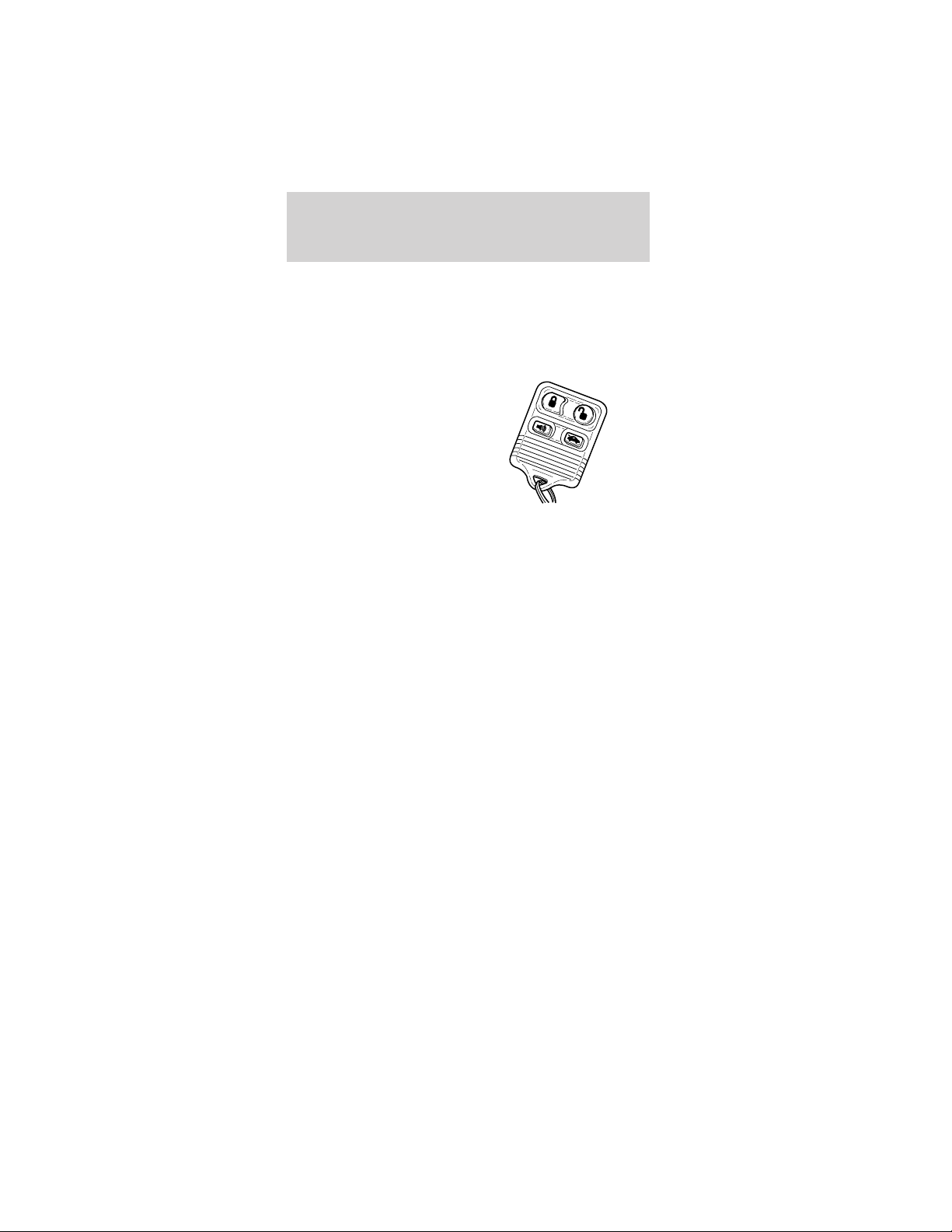

REMOTE ENTRY SYSTEM

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The remote entry system allows you to:

• lock or unlock all vehicle doors without a key

• open the trunk

• activate the panic alarm

• confirms that the vehicle is locked with a short

“beep” from the horn.

The remote entry features only operate with the ignition in the LOCK position.

If there is any potential remote keyless entry problem with your vehicle, ensure ALL remote entry transmitters are brought to the dealership, to aid in troubleshooting.

Page 92

Locks and Security

Unlocking the doors

Press this control to unlock the driver’s door. The interior lamps will illuminate.

With the all-door remote entry system, press the control a second time within three seconds to unlock the passenger door.

Locking the doors

Press this control to lock all doors.

To confirm all doors are closed and locked, press the control a second time within three seconds. The doors will lock again, the horn will chirp and the lamps will flash.

If any of the doors are ajar, the horn will make two quick chirps and the chime may sound, reminding you to properly close all doors.

Sounding a panic alarm

Press this control to activate the alarm.

To deactivate the alarm, press the control again or turn the ignition to ACC or ON.

Panic alarm will only operate with the ignition in the OFF position.

Page 93

Locks and Security

Opening the trunk

Press the control once to open the trunk.

Ensure that the trunk is closed and latched before driving your vehicle. Failure to latch the trunk may cause objects to fall out of the trunk or block the rear view. This feature will not work with the transmission out of P (Park) or N (Neutral) if the ignition is in either the ACC or ON position.

Replacing the batteries

The transmitter is powered by two coin type three-volt lithium batteries. Typical operating range will allow you to be up to 10 meters (33 feet) away from your vehicle. A decrease in operating range can be caused by:

• Weather conditions

• Nearby radio towers

• Structures around the vehicle

• Other vehicles parked next to the vehicle

To replace the batteries:

1. Twist a thin coin between the two halves of the transmitter near the key ring. DO NOT TAKE THE FRONT PART OF THE TRANSMITTER APART.

2. Place the positive (+) side of new batteries down. Refer to the diagram inside the transmitter unit.

3. Snap the two halves back together. 93

Page 94

Locks and Security

Replacement of the battery will not cause the remote transmitter to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

Replacing lost transmitters

• Take all your

vehicle’s transmitters to your dealer if service is required.

• If you purchase

additional transmitters (up to four may be programmed into memory), perform the following procedure.

To reprogram the transmitters yourself, place the key in the ignition and turn from LOCK to OFF and cycle between OFF and ON eight times in rapid succession (within 10 seconds) ending in ON. After doors lock/unlock, press any control on all transmitters (up to four). With each control press of the transmitters, the door should cycle (lock/unlock) to confirm programming. When completed, turn the ignition to OFF. The door locks should cycle (lock/unlock) one last time to confirm completion of programming.

All transmitters must be programmed at the same time.

Illuminated entry

The interior lamps illuminate when the remote entry system is used to unlock the door(s) or sound the personal alarm.

The system automatically turns off after 25 seconds or when the ignition is turned to the START/RUN or ACC position. The dome lamp control (if equipped) must not be set to the OFF position for the illuminated entry system to operate.

Page 95

Locks and Security

The inside lights will not turn off if:

• they have been turned on with the dimmer

control, or

• any door is open.

The battery saver will shut off the interior lamps 30 minutes after the ignition has been turned to the OFF position, 10 minutes after if the door is left open, and 30 minutes after if the trunk is left open or the dome lamp control is left on.

SECURILOCKY PASSIVE ANTI-THEFT SYSTEM

SecuriLocky passive anti-theft system is an engine immobilization system. This system is designed to prevent the engine from being started unless a coded key programmed to your vehicle is used.

The SecuriLocky passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.

THEFT INDICATOR

The theft indicator is the flashing red indicator located on top of the instrument panel.

• When the ignition is in the OFF position, the

indicator will flash once every 2 seconds to indicate the SecuriLocky system is functioning as a theft deterrent.

• When the ignition is in the ON position, the

indicator will glow for 3 seconds to indicate normal system functionality.

If a problem occurs with the SecuriLocky system, the indicator will flash rapidly or glow steadily when the ignition is in the ON position. If this occurs, the vehicle should be taken to an authorized dealer for service.

Page 96

Locks and Security

Automatic arming

The vehicle is armed immediately after switching the ignition to the 3 (OFF) position. The

THEFT

indicator in the instrument cluster will flash every two seconds when the vehicle is armed.

Automatic disarming

Switching the ignition to the 4 (ON) position with a coded key disarms the vehicle. The indicator will illuminate for three seconds and then go out. If the

THEFT

indicator stays on for an extended period of time or flashes rapidly, have the system serviced by your dealership or a qualified technician.

Key information

Your vehicle is supplied with two coded keys. Only a coded key will start your vehicle. Spare coded keys can be purchased from your dealership. Your dealership can program your key or you can “do it yourself.” Refer to Programming spare keys.

The following items may prevent the vehicle from starting:

• Large metallic objects

• Electronic devices on the key chain that can be

used to purchase gasoline or similar items

• A second key on the same key ring as the coded

key

If any of these items are present, you need to keep these objects from touching the coded key while starting the engine. These objects and devices cannot damage the coded key, but can cause a momentary “no start” condition if they are too close to the key during engine start. If a problem occurs,

THEFT

Page 97

Locks and Security

turn ignition OFF and restart the engine with all other objects on the key ring held away from the ignition key. Check to make sure the coded key is an approved Ford coded key.

If your keys are lost or stolen you will need to do the following:

• Use your spare key to start the vehicle, or

• Have your vehicle towed to a dealership or a

locksmith. The key codes will need to be erased from your vehicle and new key codes will need to be re-coded.

Replacing coded keys can be very costly and you may want to store an extra programmed key away from the vehicle in a safe place to prevent an unforeseen inconvenience.

The correct coded key must be used for your vehicle. The use of the wrong type of coded key may lead to a “no start” condition.

If an unprogrammed key is used in the ignition it will cause a “no start” condition.

Programming spare keys

A maximum of eight keys can be coded to your vehicle. Only SecuriLocky keys can be used. To program a coded key yourself, you will need two previously programmed coded keys (keys that already operate your vehicle’s engine) and the new unprogrammed key(s) readily accessible for timely implementation of each step in the procedure.

If two previously programmed coded keys are not available, you must bring your vehicle to your dealership to have the spare coded key(s) programmed.

Please read and understand the entire procedure before you begin.

Page 98

Locks and Security

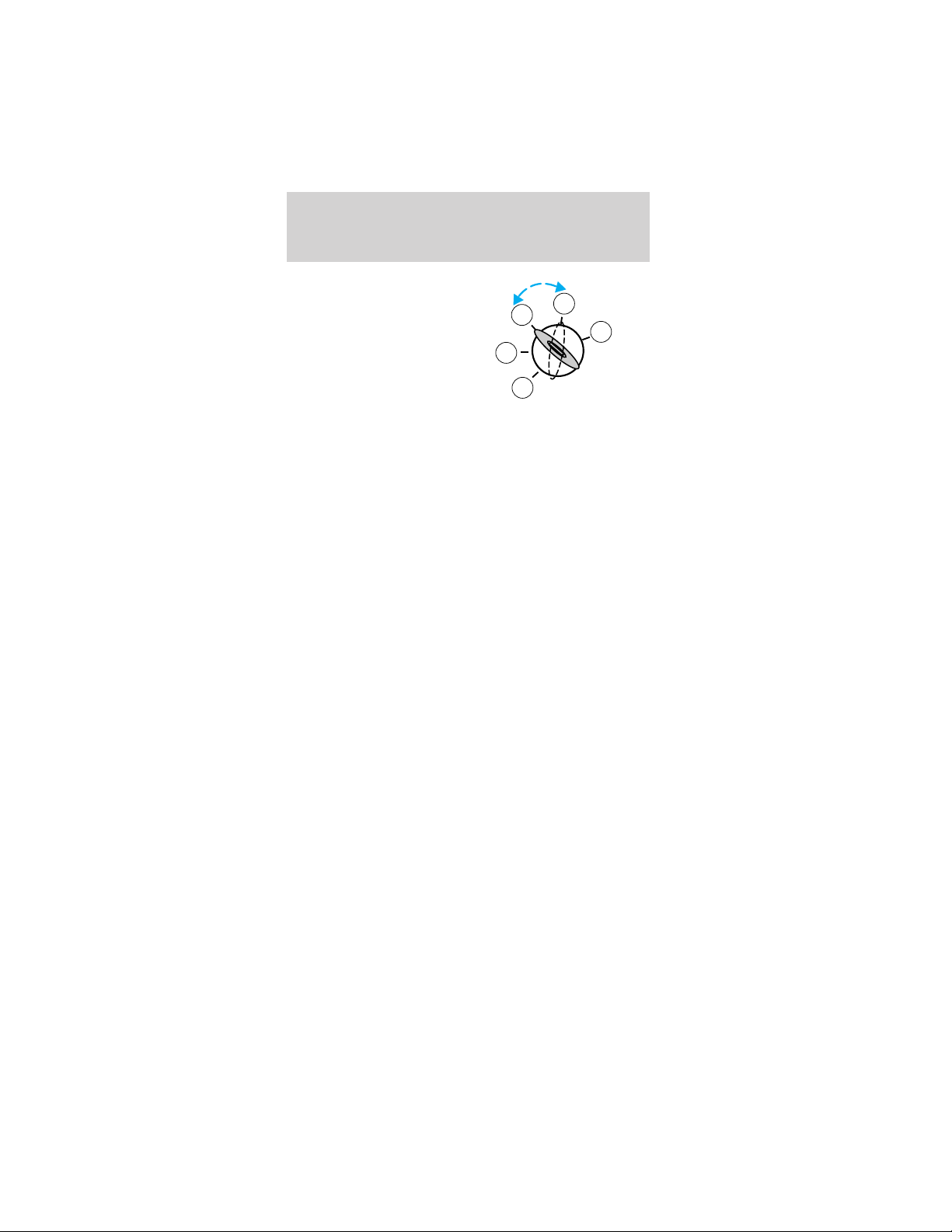

1. Insert the first previously programmed coded key into the ignition and turn the ignition from 3 (OFF)

to 4 (ON) (maintain ignition in 4 (ON) for at least one second).

2. Turn ignition to 3 (OFF) then 2 (LOCK) and remove the first coded key from the ignition.

3. Within ten seconds of removing the first coded

key, insert the second previously programmed coded key into the ignition and turn the ignition

from 3 (OFF) to 4 (ON) (maintain ignition in 4 (ON) for at least one second but no more than ten seconds).

4. Turn the ignition to 3 (OFF) then 2 (LOCK) and remove the second coded key from the ignition.

5. Within 20 seconds of removing the second coded key, insert the new unprogrammed key (new key/valet key) into the ignition and turn the ignition from 3 (OFF) to 4 (ON) (maintain ignition in 4 (ON) for at least one second). This step will program your new key to a coded key.

6. To program additional new unprogrammed key(s), repeat this procedure from step 1.

If successful, the new coded key(s) will start the vehicle’s engine and the theft indicator will illuminate for three seconds and then go out.

If not successful, the new coded key(s) will not start the vehicle’s engine and the theft indicator will flash on and off and you may repeat steps 1 through 6. If failure repeats, bring your vehicle to your dealership to have the new spare key(s) programmed.

Page 99

Seating and Safety Restraints

SEATING

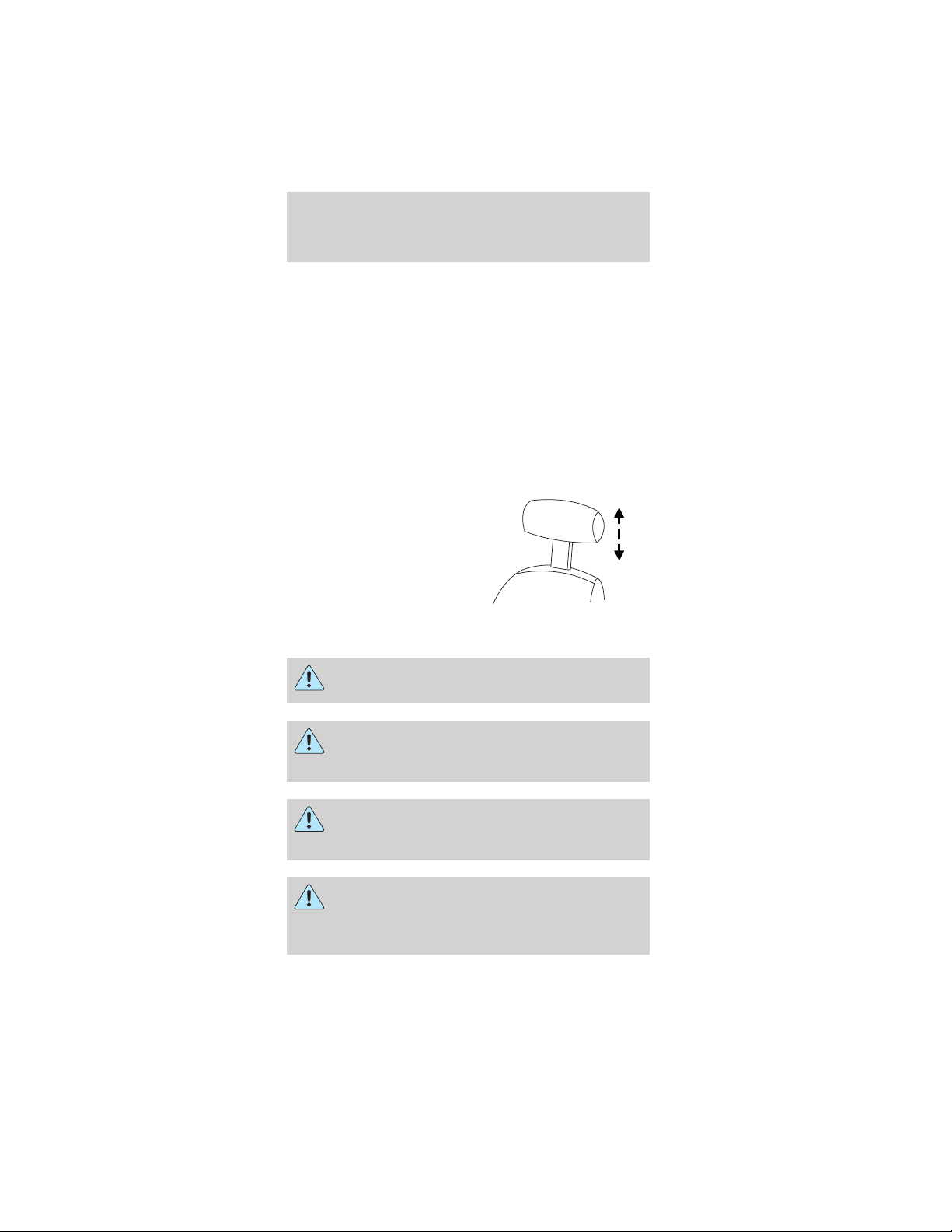

Adjustable head restraints (if equipped)

Your vehicle’s seats may be equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of a rear collision. To properly adjust your head restraints, lift the head restraint so that it is located directly behind your head or as close to that position as possible. Refer to the following to raise and lower the head restraints.

The head restraints can be moved up and down.

Adjusting the front manual seat

Never adjust the driver’s seat or seatback when the vehicle is moving.

Do not pile cargo higher than the seatbacks to reduce the risk of injuring people in a

collision or sudden stop.

Always drive and ride with your seatback upright and the lap belt snug and low across

the hips.

Reclining the seatback can cause an

occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the event of a collision.

Page 100

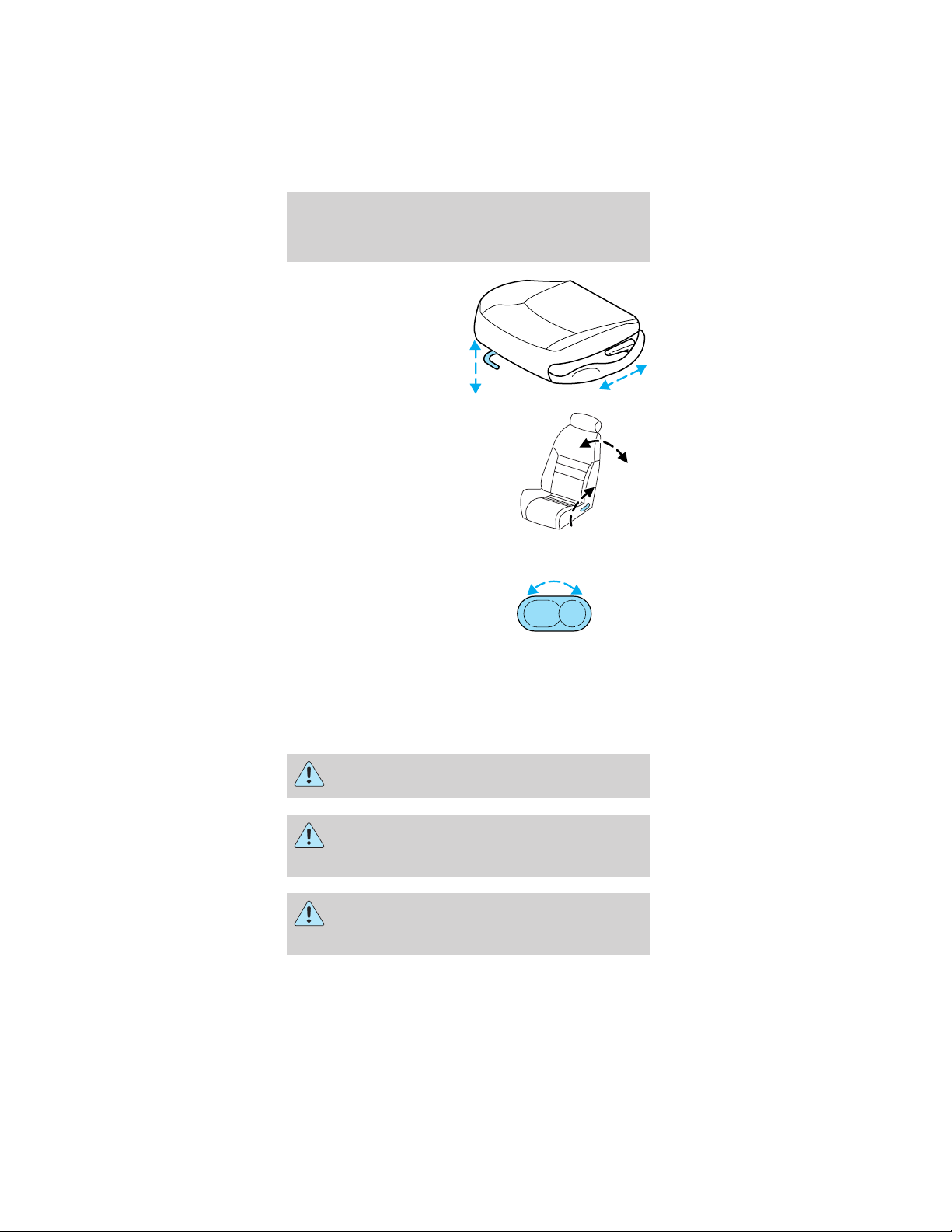

Seating and Safety Restraints

Lift handle to move seat forward or backward.

Pull lever up to adjust seatback.

Using the power lumbar support (if equipped)

The power lumbar control is located on the outboard side of the seat.

Press one side of the control to adjust firmness. Press the other side of the control to adjust

softness.

Adjusting the front power seat (if equipped)

Never adjust the driver’s seat or seatback

when the vehicle is moving.

Do not pile cargo higher than the seatbacks

to avoid injuring people in a collision or sudden stop.

Always drive and ride with your seatback

upright and the lap belt snug and low across the hips.

100

Ford Mustang 2002 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
