Ford Focus 1 2015 Owner's Manual

fordowner.com ford.ca

2015 FOCUS Owner’s Manual

March 2015

Second Printing

Owner’s Manual

Focus

Litho in U.S.A.

FM5J 19A321 AA

Preproduction model shown

The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted.

Part Number: 20150227215346

Introduction

About This Manual...........................................7

Symbols Glossary.............................................7

Data Recording..................................................9

California Proposition 65..............................11

Perchlorate.........................................................11

Ford Credit..........................................................11

Replacement Parts

Recommendation........................................11

Special Notices................................................12

Mobile Communications

Equipment.....................................................12

Export Unique Options..................................13

Environment

Protecting the Environment........................14

At a Glance

Front Exterior Overview................................15

Rear Exterior Overview..................................16

Vehicle Interior Overview..............................17

Instrument Panel Overview........................18

Child Safety

General Information......................................20

Installing Child Seats.....................................21

Booster Seats..................................................28

Child Seat Positioning..................................30

Child Safety Locks...........................................31

Safety Belts

Principle of Operation...................................33

Fastening the Safety Belts..........................34

Safety Belt Height Adjustment.................36

Safety Belt Warning Lamp and Indicator

Chime..............................................................37

Safety Belt Minder..........................................37

Child Restraint and Safety Belt

Maintenance................................................39

Personal Safety System™

Personal Safety System™.........................40

Supplementary Restraints

System

Principle of Operation...................................41

Driver and Passenger Airbags....................42

Front Passenger Sensing System............43

Side Airbags.....................................................45

Driver Knee Airbag.........................................46

Side Curtain Airbags......................................47

Crash Sensors and Airbag Indicator.......48

Airbag Disposal..............................................49

Keys and Remote Controls

General Information on Radio

Frequencies.................................................50

Remote Control - Vehicles With:

Integrated Key Transmitter....................50

Remote Control - Vehicles With: Keyless

Entry................................................................52

Remote Control - Vehicles With: Keyless

Entry with Remote Start.........................54

Replacing a Lost Key or Remote

Control............................................................57

MyKey™

Principle of Operation..................................58

Creating a MyKey...........................................59

Clearing All MyKeys......................................60

Checking MyKey System Status................61

Using MyKey With Remote Start

Systems.........................................................62

MyKey Troubleshooting...............................62

Locks

Locking and Unlocking.................................63

Manual Liftgate...............................................67

Keyless Entry...................................................68

Interior Luggage Compartment Release

- 4-Door.........................................................69

Table of Contents

Focus (CDH) Canada/United States of America, enUSA

Security

Passive Anti-Theft System..........................71

Anti-Theft Alarm............................................73

Steering Wheel

Adjusting the Steering Wheel....................74

Audio Control...................................................74

Voice Control....................................................75

Cruise Control..................................................75

Information Display Control.......................75

Heated Steering Wheel................................75

Wipers and Washers

Windshield Wipers.........................................77

Windshield Washers......................................77

Rear Window Wiper and Washers...........78

Lighting

General Information......................................79

Lighting Control..............................................79

Autolamps.......................................................80

Instrument Lighting Dimmer......................81

Headlamp Exit Delay.....................................81

Daytime Running Lamps..............................81

Automatic High Beam Control..................82

Front Fog Lamps............................................83

Direction Indicators.......................................83

Interior Lamps.................................................84

Ambient Lighting...........................................84

Windows and Mirrors

Power Windows.............................................86

Exterior Mirrors................................................87

Interior Mirror...................................................88

Sun Visors.........................................................89

Moonroof..........................................................89

Instrument Cluster

Gauges................................................................91

Warning Lamps and Indicators.................93

Audible Warnings and Indicators.............95

Information Displays

General Information......................................97

Trip Computer...............................................100

Information Messages...............................100

Climate Control

Manual Climate Control............................109

Automatic Climate Control.......................110

Hints on Controlling the Interior

Climate..........................................................112

Heated Windows and Mirrors...................114

Cabin Air Filter.................................................114

Remote Start...................................................115

Seats

Sitting in the Correct Position...................116

Head Restraints.............................................116

Manual Seats..................................................118

Power Seats....................................................118

Rear Seats........................................................119

Heated Seats...................................................121

Auxiliary Power Points

Auxiliary Power Points................................122

Storage Compartments

Center Console..............................................123

Overhead Console........................................123

Starting and Stopping the

Engine

General Information....................................124

Ignition Switch...............................................124

Keyless Starting.............................................124

Starting a Gasoline Engine........................127

Engine Block Heater....................................130

Table of Contents

Focus (CDH) Canada/United States of America, enUSA

Unique Driving Character-

istics

Auto-Start-Stop............................................132

Fuel and Refueling

Safety Precautions.......................................134

Fuel Quality - Gasoline...............................135

Fuel Quality - E85.........................................135

Fuel Filler Funnel Location........................136

Running Out of Fuel....................................136

Refueling..........................................................137

Fuel Consumption........................................139

Emission Control System..........................140

Transmission

Manual Transmission - 2.0L Duratec-HE

(MI4).............................................................143

Manual Transmission - 1.0L

EcoBoost™................................................144

Automatic Transmission............................145

Brakes

General Information....................................150

Hints on Driving With Anti-Lock

Brakes...........................................................150

Parking Brake..................................................151

Hill Start Assist...............................................151

Traction Control

Principle of Operation.................................153

Using Traction Control................................153

Stability Control

Principle of Operation.................................154

Using Stability Control...............................154

Parking Aids

Rear Parking Aid............................................155

Front Parking Aid..........................................155

Active Park Assist.........................................156

Rear View Camera.......................................160

Cruise Control

Principle of Operation.................................163

Using Cruise Control....................................163

Driving Aids

Lane Keeping System.................................165

Blind Spot Information System..............168

Eco Mode..........................................................172

Steering.............................................................173

Load Carrying

Rear Under Floor Storage..........................175

Luggage Covers.............................................175

Load Limit........................................................175

Towing

Towing a Trailer.............................................184

Transporting the Vehicle...........................184

Towing the Vehicle on Four Wheels -

Manual Transmission.............................184

Towing the Vehicle on Four Wheels -

Automatic Transmission.......................185

Driving Hints

Breaking-In......................................................187

Economical Driving......................................187

Cold Weather Precautions........................187

Driving Through Water................................187

Floor Mats.......................................................188

Roadside Emergencies

Roadside Assistance..................................190

Hazard Warning Flashers...........................191

Fuel Shutoff.....................................................191

Jump Starting the Vehicle.........................192

Post-Crash Alert System...........................194

Table of Contents

Focus (CDH) Canada/United States of America, enUSA

Customer Assistance

Getting the Services You Need...............195

In California (U.S. Only).............................196

The Better Business Bureau (BBB) Auto

Line Program (U.S. Only).......................197

Utilizing the Mediation/Arbitration

Program (Canada Only)........................197

Getting Assistance Outside the U.S. and

Canada........................................................198

Ordering Additional Owner's

Literature.....................................................199

Reporting Safety Defects (U.S.

Only).............................................................199

Reporting Safety Defects (Canada

Only)............................................................200

Fuses

Fuse Specification Chart...........................201

Changing a Fuse...........................................210

Maintenance

General Information.....................................211

Opening and Closing the Hood................211

Under Hood Overview - 1.0L

EcoBoost™.................................................212

Under Hood Overview - 2.0L Duratec-HE

(MI4)..............................................................213

Engine Oil Dipstick - 1.0L

EcoBoost™.................................................214

Engine Oil Dipstick - 2.0L Duratec-HE

(MI4).............................................................214

Engine Oil Check...........................................214

Engine Coolant Check.................................215

Automatic Transmission Fluid

Check.............................................................217

Brake Fluid Check..........................................217

Clutch Fluid Check - Manual

Transmission..............................................218

Washer Fluid Check.....................................218

Fuel Filter.........................................................218

Changing the 12V Battery..........................218

Checking the Wiper Blades.....................220

Changing the Wiper Blades.....................220

Adjusting the Headlamps..........................221

Removing a Headlamp..............................223

Changing a Bulb...........................................223

Bulb Specification Chart...........................228

Changing the Engine Air Filter................230

Vehicle Care

General Information....................................231

Cleaning Products........................................231

Cleaning the Exterior...................................231

Waxing.............................................................232

Cleaning the Engine....................................232

Cleaning the Windows and Wiper

Blades..........................................................233

Cleaning the Interior...................................233

Cleaning the Instrument Panel and

Instrument Cluster Lens.......................234

Cleaning Leather Seats.............................234

Repairing Minor Paint Damage...............235

Cleaning the Alloy Wheels.......................235

Vehicle Storage.............................................235

Wheels and Tires

Tire Care..........................................................238

Using Snow Chains.....................................253

Tire Pressure Monitoring System...........254

Changing a Road Wheel............................257

Driving at High Speed................................260

Lug Nuts...........................................................261

Capacities and Specific-

ations

Engine Specifications - 1.0L

EcoBoost™................................................262

Engine Specifications - 2.0L Duratec-HE

(MI4)............................................................262

Motorcraft Parts - 1.0L EcoBoost™......263

Motorcraft Parts - 2.0L Duratec-HE

(MI4)............................................................264

Vehicle Identification Number................265

Table of Contents

Focus (CDH) Canada/United States of America, enUSA

Vehicle Certification Label.......................265

Transmission Code Designation............266

Capacities and Specifications - 1.0L

EcoBoost™................................................267

Capacities and Specifications - 2.0L

Duratec-HE (MI4)....................................270

Audio System

General Information....................................274

Audio Unit - Vehicles With: SYNC.........276

Audio Unit - Vehicles With: Satellite

Radio............................................................278

Audio Unit - Vehicles With: Sony Audio

System..........................................................281

Digital Radio..................................................284

Satellite Radio...............................................287

Audio Input Jack..........................................289

USB Port.........................................................290

Media Hub......................................................290

SYNC™

General Information....................................291

Using Voice Recognition...........................293

Using SYNC™ With Your Phone............295

SYNC™ Applications and Services......307

Using SYNC™ With Your Media

Player.............................................................312

SYNC™ Troubleshooting...........................321

MyFord Touch™

General Information...................................329

Settings............................................................337

Entertainment..............................................350

Phone..............................................................366

Information.....................................................373

Climate............................................................383

Navigation......................................................385

MyFord Touch™ Troubleshooting........394

Accessories

Accessories.....................................................401

Extended Service Plan

(ESP)

Extended Service Plan (ESP).................403

Scheduled Maintenance

General Maintenance Information.......405

Normal Scheduled Maintenance.........408

Special Operating Conditions Scheduled

Maintenance...............................................411

Scheduled Maintenance Record............413

Appendices

End User License Agreement.................420

Type Approvals.............................................441

Table of Contents

Focus (CDH) Canada/United States of America, enUSA

ABOUT THIS MANUAL

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.

WARNING

Driving while distracted can result in loss of vehicle control, crash and

injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Note: This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options not fitted to the vehicle you have purchased.

Note: Some of the illustrations in this manual may show features as used in different models, so may appear different to you on your vehicle.

Note: Always use and operate your vehicle in line with all applicable laws and regulations.

Note: Pass on this manual when selling your vehicle. It is an integral part of your vehicle.

This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.

E154903

Right-hand side.A Left-hand side.B

SYMBOLS GLOSSARY

These are some of the symbols you may see on your vehicle.

Safety alert

See Owner's Manual

Air conditioning system

Anti-lock braking system

Avoid smoking, flames or sparks

Battery

Battery acid

Brake fluid - non petroleum based

Introduction

Focus (CDH) Canada/United States of America, enUSA

Brake system

Cabin air filter

Check fuel cap

Child safety door lock or unlock

Child seat lower anchor

Child seat tether anchor

E71340

Cruise control

Do not open when hot

Engine air filter

Engine coolant

Engine coolant temperature

Engine oil

Explosive gas

Fan warning

Fasten safety belt

Front airbag

Front fog lamps

Fuel pump reset

Fuse compartment

Hazard warning flashers

Heated rear window

Heated windshield

Interior luggage compartment release

Jack

Keep out of reach of children

Lighting control

Low tire pressure warning

Maintain correct fluid level

Note operating instructions

Introduction

Focus (CDH) Canada/United States of America, enUSA

Panic alarm

E139213

Parking aid

Parking brake

Power steering fluid

Power windows front/rear

Power window lockout

Service engine soon

Side airbag

Shield the eyes

E138639

Stability control

Windshield wash and wipe

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake

systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. Additionally, when your vehicle is in for service or repair, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them data for vehicle improvement purposes. For U.S. only (if equipped), if you choose to use the SYNC Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See SYNC™ (page 291).

Event Data Recording

This vehicle is equipped with an event data recorder. The main purpose of an event data recorder is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The event data recorder is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.

The event data recorder in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or the brake pedal; and

Introduction

Focus (CDH) Canada/United States of America, enUSA

• How fast the vehicle was traveling; and

• Where the driver was positioning the steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

Note: Event data recorder data is

recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the event data recorder under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the event data recorder data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an event data recorder, special equipment is required, and access to the vehicle or the event data recorder is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the event data recorder. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Note: Including to the extent that any

law pertaining to Event Data Recorders applies to SYNC or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See SYNC™ (page 291).

Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want Ford or its vendors to receive this information, do not activate the service. For more information, see Traffic, Directions and Information, Terms and Conditions. See SYNC™

(page 291).

Introduction

Focus (CDH) Canada/United States of America, enUSA

CALIFORNIA PROPOSITION 65

WARNING

Some constituents of engine exhaust, certain vehicle components,

certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE

Certain components in your vehicle such as airbag modules, safety belt pretensioners and remote control batteries may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal.

For more information visit:

Web Address

www.dtsc.ca.gov/hazardouswaste/

perchlorate

FORD CREDIT

(U.S. Only)

Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business.

For your convenience we offer a number of ways to contact us, as well as to help manage your account.

Phone: 1-800-727-7000 For more information regarding Ford Credit,

as well as to access Account Manager, please go to www.fordcredit.com.

REPLACEMENT PARTS RECOMMENDATION

Your vehicle has been built to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging.

Scheduled Maintenance and Mechanical Repairs

One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this Owner’s Manual. Genuine Ford and Motorcraft parts meet or exceed these specifications.

Collision Repairs

We hope that you never experience a collision, but accidents do happen. Genuine Ford replacement collision parts meet our stringent requirements for fit, finish, structural integrity, corrosion protection and dent resistance. During vehicle development we validate these parts deliver the intended level of protection as a whole system. A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts.

Introduction

Focus (CDH) Canada/United States of America, enUSA

Warranty on Replacement Parts

Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. Damage caused to your vehicle as a result of the failure of non-Ford parts may not be covered by the Ford Warranty. For additional information, refer to the terms and conditions of the Ford Warranty.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Manual that is provided to you along with your Owner’s Manual.

Special Instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNINGS

You risk death or serious injury to yourself and others if you do not

follow the instruction highlighted by the warning symbol. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child

or infant seats should NEVER be

placed in front of an active passenger airbag.

On-board Diagnostics (OBD-II)

Your vehicle’s On-board Diagnostics (OBD-II) system has a data port for diagnostics, repair and reprogramming services with diagnostic scan tools. Installing a non-Ford-approved aftermarket OBD plug-in device that uses the port during normal driving, for example

remote insurance company monitoring, remote vehicle diagnostics, telematics or engine reprogramming, may cause interference or damage to vehicle systems. We do not recommend or endorse the use of any non-Ford-approved aftermarket OBD plug-in devices. The vehicle Warranty may not cover damage caused by any non-Ford-approved aftermarket OBD plug-in device.

MOBILE COMMUNICATIONS EQUIPMENT

Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

WARNING

Driving while distracted can result in loss of vehicle control, crash and

Introduction

Focus (CDH) Canada/United States of America, enUSA

EXPORT UNIQUE OPTIONS

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Manual. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Manual is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s

Manual for all other required information and warnings.

Introduction

Focus (CDH) Canada/United States of America, enUSA

PROTECTING THE ENVIRONMENT

You must play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim.

Environment

Focus (CDH) Canada/United States of America, enUSA

FRONT EXTERIOR OVERVIEW

E187236

See Fuel and Refueling (page 134).A See Locking and Unlocking (page 63).B See Changing the Wiper Blades (page 220).C See Maintenance (page 211).D See Changing a Bulb (page 223).E

At a Glance

Focus (CDH) Canada/United States of America, enUSA

REAR EXTERIOR OVERVIEW

E187237

See Changing a Bulb (page 223).A See Changing the Wiper Blades (page 220).B See Changing a Bulb (page 223).C See Changing a Road Wheel (page 257).D See Wheels and Tires (page 238).E

At a Glance

Focus (CDH) Canada/United States of America, enUSA

VEHICLE INTERIOR OVERVIEW

E187238

See Transmission (page 143).A See Locking and Unlocking (page 63).B See Power Windows (page 86).C See Head Restraints (page 116).D See Fastening the Safety Belts (page 34).E See Rear Seats (page 119).F See Manual Seats (page 118). See Power Seats (page 118).G See Parking Brake (page 151).H See Opening and Closing the Hood (page 211).I

At a Glance

Focus (CDH) Canada/United States of America, enUSA

INSTRUMENT PANEL OVERVIEW

E187239

Air vents.A Direction indicators. See Direction Indicators (page 83).B Information display control. See Information Display Control (page 75).C Instrument cluster. See Instrument Cluster (page 91).D Voice control. See Voice Control (page 75).E Wiper lever. See Wipers and Washers (page 77).F Information and entertainment display. See MyFord Touch™ (page 329).G Hazard flasher switch. See Hazard Warning Flashers (page 191).H Audio unit. See Audio Unit (page 276).I Climate controls. See Climate Control (page 109).J Parking aid switch. See Parking Aids (page 155).K Auxiliary power point. See Auxiliary Power Points (page 122).L USB port. See USB Port (page 290).M

At a Glance

Focus (CDH) Canada/United States of America, enUSA

Keyless start button. See Keyless Starting (page 124).N Ignition switch. See Ignition Switch (page 124).O Steering wheel adjustment. See Adjusting the Steering Wheel (page 74).P Cruise control switches. See Using Cruise Control (page 163).Q Lighting control. See Lighting (page 79).R

At a Glance

Focus (CDH) Canada/United States of America, enUSA

GENERAL INFORMATION

See the following sections for directions on how to properly use safety restraints for children.

WARNINGS

Always make sure your child is secured properly in a device that is

appropriate for their height, age and weight. Child safety restraints must be bought separately from your vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.

All children are shaped differently.

The recommendations for safety

restraints are based on probable child height, age and weight thresholds from National Highway Traffic Safety Administration and other safety organizations, or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consult your pediatrician to make sure your child seat is appropriate for your child, and

WARNINGS

is compatible with and properly installed in your vehicle. To locate a child seat fitting station and CPST, contact the NHTSA toll free at 1-888-327-4236 or go to http://www.nhtsa.dot.gov. In Canada, check with your local St. John Ambulance office for referral to a CPST or for further information, contact your provincial ministry of transportation, locate your local St. John Ambulance office by searching for St. John Ambulance on the internet, or Transport Canada at 1-800-333-0371 (http://www.tc.gc.ca). Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.

Do not leave children or animals unattended in the vehicle. On hot

days, the temperature in the trunk or vehicle interior can rise very quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat-related injuries, including brain damage. Small children are particularly at risk.

Child Safety

Focus (CDH) Canada/United States of America, enUSA

Recommendations for Safety Restraints for Children

Recommended restraint

type

Child size, height, weight, or ageChild

Use a child safety seat

(sometimes called an

infant carrier, convertible

seat, or toddler seat).

Children weighing 40 lb (18 kg) or less

(generally age four or younger).

Infants or

toddlers

Use a belt-positioning

booster seat.

Children who have outgrown or no longer

properly fit in a child safety seat (gener-

ally children who are less than 4 ft. 9 in.

(1.45 m) tall, are greater than age four

and less than age 12, and between 40 lb

(18 kg) and 80 lb (36 kg) and upward to

100 lb (45 kg) if recommended by your

child restraint manufacturer).

Small children

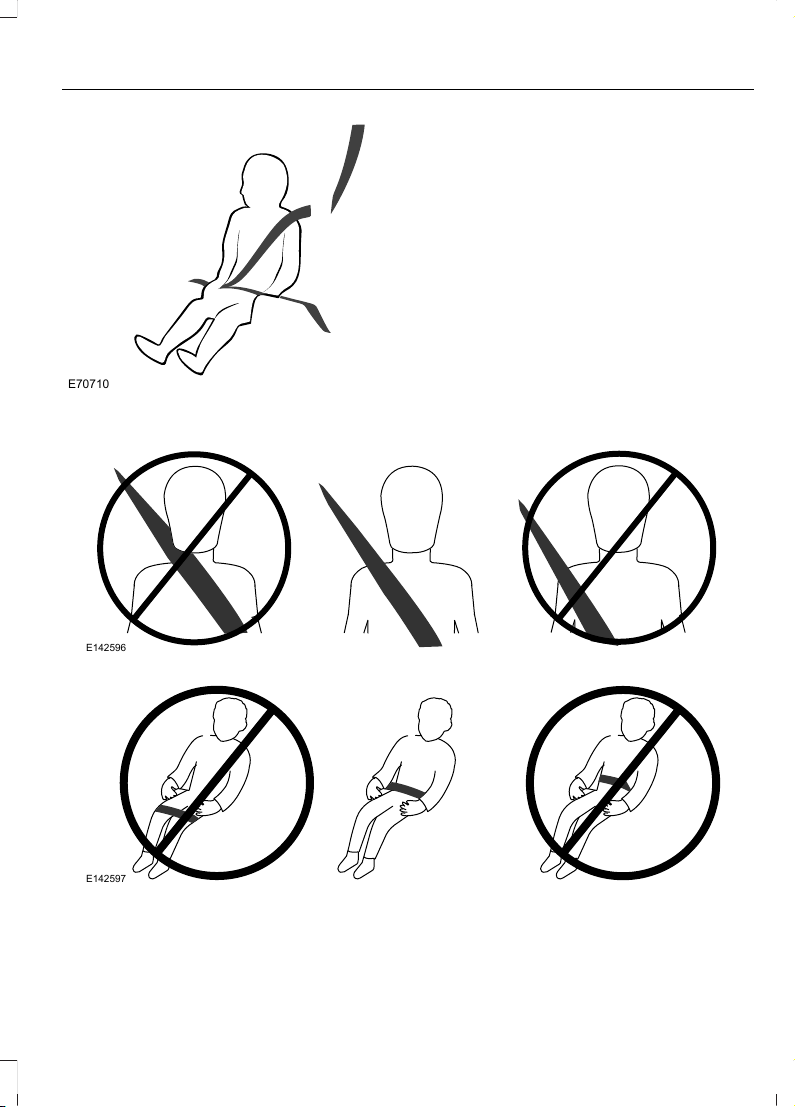

Use a vehicle safety belt having the lap belt snug and low across the hips,

shoulder belt centered

across the shoulder and

chest, and seat back

upright.

Children who have outgrown or no longer

properly fit in a belt-positioning booster seat (generally children who are at least 4 ft. 9 in. (1.45 m) tall or greater than 80

lb (36 kg) or 100 lb (45 kg) if recom-

mended by child restraint manufacturer).

Larger children

• You are required by law to properly use safety seats for infants and toddlers in the United States and Canada.

• Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms). Check your local and state or provincial laws for specific requirements about the safety of children in your vehicle.

• When possible, always properly restrain children 12 years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position. See

Front Passenger Sensing System

(page 43).

INSTALLING CHILD SEATS

Child Seats

E142594

Child Safety

Focus (CDH) Canada/United States of America, enUSA

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers, or children weighing 40 pounds (18 kilograms) or less (generally age four or younger).

Using Lap and Shoulder Belts

WARNINGS

Airbags can kill or injure a child in a child seat. Never place a rear-facing

child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat upon which the child seat is installed all the way back.

Airbags can kill or injure a child in a

child seat. Children 12 and under

should be properly restrained in the rear seat whenever possible.

Depending on where you secure a

child restraint, and depending on the

child restraint design, you may block access to certain safety belt buckle assemblies and LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.

When installing a child safety seat with combination lap and shoulder belts:

• Use the correct safety belt buckle for

that seating position.

• Insert the belt tongue into the proper

buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button

pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.

• Place the vehicle seat upon which the child seat will be installed in the upright position.

• Put the safety belt in the automatic locking mode. See Step 5. This vehicle does not require the use of a locking clip.

Perform the following steps when installing the child seat with combination lap and shoulder belts:

Note: Although the child seat illustrated is a forward facing child seat, the steps are the same for installing a rear facing child seat.

E142528

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

E142529

2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.

Child Safety

Focus (CDH) Canada/United States of America, enUSA

E142530

3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer's instructions. Be sure the belt webbing is not twisted.

E142531

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

E142875

5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out.

Note: The automatic locking mode is available on the front passenger and rear seats.

6. Allow the belt to retract to remove slack. The belt will click as it retracts to indicate it is in the automatic locking mode.

7. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat Steps 5 and 6.

E142533

Child Safety

Focus (CDH) Canada/United States of America, enUSA

8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that will exist once the extra weight of the child is added to the child restraint. It also helps to achieve the proper snugness of the child seat to your vehicle. Sometimes, a slight lean toward the buckle will additionally help to remove remaining slack from the belt.

9. Attach the tether strap (if the child seat is equipped).

E142534

10. Before placing the child in the seat,

forcibly move the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 inch (2.5 centimeters) of movement for proper installation.

Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a Certified Passenger Seat Technician.

Using Lower Anchors and Tethers for Children (LATCH)

WARNINGS

Never attach two child safety seats to the same anchor. In a crash, one

anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death.

Depending on where you secure a

child restraint, and depending on the

child restraint design, you may block access to certain safety belt buckle assemblies or LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.

The LATCH system is composed of three vehicle anchor points: two lower anchors located where the seatback and seat cushion meet (called the seat bight) and one top tether anchor located behind that seating position.

LATCH compatible child safety seats have two rigid or webbing mounted attachments that connect to the two lower anchors at the LATCH equipped seating positions in your vehicle. This type of attachment method eliminates the need to use safety belts to attach the child seat, however the safety belt can still be used to attach the child seat. For forward-facing child seats, the top tether strap must also be attached to the proper top tether anchor, if a top tether strap has been provided with your child seat.

Child Safety

Focus (CDH) Canada/United States of America, enUSA

E142535

Your vehicle has LATCH lower anchors for child seat installation at the seating positions marked with the child seat symbol.

E169083

The LATCH anchors are located at the rear section of the rear seat between the cushion and seatback above the symbols as shown. Follow the child seat manufacturer's instructions to properly install a child seat with LATCH attachments. Follow the instructions on attaching child safety seats with tether straps.

Attach LATCH lower attachments of the child seat only to the anchors shown.

Use of Inboard Lower Anchors from the Outboard Seating Positions (Center Seating Use)

WARNING

The standardized spacing for LATCH lower anchors is 11 inches (28

centimeters) center to center. Do not use LATCH lower anchors for the center seating position unless the child seat manufacturer's instructions permit and specify using anchors spaced at least as far apart as those in this vehicle.

The lower anchors at the center of the second row rear seat are spaced 18 inches (46 centimeters) apart. A child seat with rigid LATCH attachments cannot be installed at the center seating position. LATCH compatible child seats (with attachments on belt webbing) can only be used at this seating position provided that the child seat manufacturer's instructions permit use with the anchor spacing stated. Do not attach a child seat to any lower anchor if an adjacent child seat is attached to that anchor.

Each time you use the safety seat, check that the seat is properly attached to the lower anchors and tether anchor, if applicable. Tug the child seat from side to side and forward and back where it is secured to your vehicle. The seat should move less than one inch when you do this for a proper installation.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

Child Safety

Focus (CDH) Canada/United States of America, enUSA

Combining Safety Belt and LATCH Lower Anchors for Attaching Child Safety Seats

When used in combination, either the safety belt or the LATCH lower anchors may be attached first, provided a proper installation is achieved. Attach the tether strap afterward, if included with the child seat.

Using Tether Straps

Many forward-facing child safety seats include a tether strap

which extends from the back of the child safety seat and hooks to an anchoring point called the top tether anchor. Tether straps are available as an accessory for many older safety seats.

Contact the manufacturer of your child seat for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in your vehicle.

The rear seats of your vehicle are equipped with built-in tether strap anchors located behind the seats as described below.

Four door: The tether anchors in your vehicle are located under a cover marked with the tether anchor symbol (shown with title).

Five door: The tether anchors in your vehicle are located on the back panel of the rear seat.

E142537

The tether strap anchors in your vehicle are in the following positions (shown from top view):

Perform the following steps to install a child safety seat with tether anchors:

Note: If you install a child seat with rigid LATCH attachments, do not tighten the tether strap enough to lift the child seat off your vehicle seat cushion when the child is seated in it. Keep the tether strap just snug without lifting the front of the child seat. Keeping the child seat just touching your vehicle seat gives the best protection in a severe crash.

Four Door

1. Route the child safety seat tether strap over the back of the seat. For outboard seating positions, route the tether strap under the head restraint and between the head restraint posts. For the center seating positions, route the tether strap over the top of the head restraint.

E144274

Child Safety

Focus (CDH) Canada/United States of America, enUSA

2. Locate the correct anchor for the selected seating position.

3. Open the tether anchor cover.

E144275

4. Clip the tether strap to the anchor as shown. If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a crash.

5. Tighten the child safety seat tether strap according to the manufacturer's instructions. If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, we also recommend its use.

Five Door

1. Route the child safety seat tether strap over the back of the seat. For outboard seating positions, route the tether strap under the head restraint and between the head restraint posts. For the center seating position, route the tether strap over the top of the head restraint.

E164077

2. Locate the correct anchor for the selected seating position.

E142539

3. Clip the tether strap to the anchor as shown. If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a crash.

4. Tighten the child safety seat tether strap according to the manufacturer’s instructions.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use.

Child Safety

Focus (CDH) Canada/United States of America, enUSA
