FORD Flex 2009 User Manual v.1

Introduction 4

Instrument Cluster 10

Warning lights and chimes 10 Gauges 14

Entertainment Systems 16

AM/FM stereo with CD/MP3 16 Auxiliary input jack (Line in) 25 USB port 27 Satellite radio information 31 Family entertainment system 34 Navigation system 63 SYNC 63

Climate Controls 64

Manual heating and air conditioning 64 Dual electronic automatic temperature control 67 Navigation system based climate control 70 Rear window defroster 75

Lights 76

Headlamps 76 Turn signal control 80 Bulb replacement 82

Driver Controls 86

Windshield wiper/washer control 86 Steering wheel adjustment 87 Power windows 96 Mirrors 98 Speed control 101 Moon roof 106 Message center 110

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Table of Contents

Locks and Security 125

Keys 125 Locks 127 Anti-theft system 142

Seating and Safety Restraints 148

Seating 148 Safety restraints 168 Airbags 181 Child restraints 196

Tires, Wheels and Loading 216

Tire information 218 Tire inflation 220 Tire Pressure Monitoring System (TPMS) 233 Vehicle loading 239 Trailer towing 244 Recreational towing 249

Driving 250

Starting 250 Brakes 255 Traction Control™/AdvanceTrac威 257 Transmission operation 262 Reverse camera 269 All wheel drive 271

Roadside Emergencies 278

Getting roadside assistance 278 Hazard flasher switch 279 Fuses and relays 280 Changing tires 289 Temporary mobility kit 296 Wheel lug nut torque 306 Jump starting 307 Wrecker towing 312

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Table of Contents

Customer Assistance 314

Reporting safety defects (U.S. only) 320 Reporting safety defects (Canada only) 321

Cleaning 322

Maintenance and Specifications 329

Engine compartment 331 Engine oil 333 Battery 336 Engine coolant 339 Fuel information 345 Air filter(s) 359 Part numbers 361 Maintenance product specifications and capacities 362 Engine data 364

Accessories 367

Index 369

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CONGRATULATIONS

Congratulations on acquiring your new Ford Motor Company product. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Mexico: www.ford.com.mx

• In Australia: www.ford.com.au

Additional owner information is given in separate publications.

This vehicle’s Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on this vehicle’s Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.

Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the section Airbag Supplemental

Restraint System (SRS) in the Seating and Safety Restraints

chapter. Failure to follow the specific warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats

should NEVER be placed in front of an active passenger airbag.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Introduction

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Export unique (Non–United States/Canada) vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required

information and warnings.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Anti-Lock Brake System Parking Brake System

Brake Fluid Non-Petroleum Based

Stability Control System Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Parking Aid System

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Service Engine Soon Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Jack

Low Tire Pressure Warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

Service engine soon: The Service engine soon indicator light

illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Service engine soon⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Service engine soon⬙ light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.

Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING: Under engine misfire conditions, excessive exhaust

temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Powertrain malfunction/reduced power: Illuminates when a

powertrain or a AWD fault has been detected. Contact your authorized dealer as soon as possible.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction and the brake system should be inspected immediately by your authorized dealer.

WARNING: Driving a vehicle with the brake system warning

light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

BRAKE

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.

Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, have the system

ABS

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature.

Charging system: Illuminates when the battery is not charging properly.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter.

Engine coolant temperature:

Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

WARNING: Never remove the coolant reservoir cap while the

engine is running or hot.

Traction Control™/AdvanceTrac威 active:

Illuminates when the Traction Control™ is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information.

Low tire pressure warning:

Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on or begins to flash, have the system inspected by your authorized dealer. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter.

Speed control: Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.

Overdrive cancel and grade assist: Illuminates when the

overdrive function of the transmission has been turned off and the grade assist function has been turned on, refer to the Driving chapter.

Anti-theft system (if equipped):

Flashes when the SecuriLock™ Passive Anti-theft System has been activated.

Door ajar: Illuminates when the ignition is in the on position and any door is open.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Parking brake on chime: Sounds when the parking brake is left on and the vehicle is driven. If the warning stays on after the park brake is off, contact your authorized dealer as soon as possible.

Message center activation chime: Sounds when some warning messages appear in the message center display for the first time.

Overspeed chime (if equipped): Sounds when the vehicle speed reaches 75 mph (120 km/h) or higher.

GAUGES

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If the needle moves close

to the “H” range, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING: Never remove the coolant reservoir cap while the

engine is running or hot.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located.

Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Odometer: Registers the total miles (kilometers) of the vehicle. Refer to

Message center in the Driver Controls chapter on how to switch

the display from Metric to English. Trip odometer: Registers the miles

(kilometers) of individual journeys. Press and release the message center INFO button until “TRIP” appears in the display (this represents the trip mode). Press the control again to select Trip A and Trip B features. Press and hold the RESET button for two seconds to reset.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM CD/MP3 satellite compatible sound system

WARNING: Driving while distracted can result in loss of vehicle

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the radio and other electrical accessories may be used for up to ten minutes after the ignition is turned off or until either front door is opened.

Note: Your vehicle is equipped with a unique audio system. If your display shows six small circles in the display, your audio system is a CD6 system (six disc changer). If not, your system is a single CD system.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Setting the clock

To set the time, press CLOCK. The display will read SET TIME. Use the memory preset numbers (0–9) to enter in the desired time–hours and minutes. The clock will then begin from that time.

If your vehicle is equipped with an in-dash clock, refer to Clock in the Driver Controls chapter for instructions on how to set the time.

AM/FM Radio

/ VOL (Power/Volume): Press to turn the radio on/off. Turn the knob to increase/decrease volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a nominal listening level when the ignition switch is turned back on.

AM/FM: Press repeatedly to select AM/FM1/FM2 frequency band.

TUNE: Turn the knob to go up/down the frequency band in individual increments.

DIRECT: Press DIRECT and then select the desired radio frequency (i.e. 93.9) using the memory preset numbers (0–9).

SEEK: Press access the previous/next strong

radio station.

SCAN: Press for a brief sampling of all strong radio stations.

SEEK to

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

MEMORY PRESETS (0–9): When tuned to any station, press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 30 stations, 10 in AM, 10 in FM1 and FM2.

Saving presets automatically: Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2.

To activate the autoset feature: Press MENU repeatedly until AUTO PRESET ON/OFF appears in the display. Use AUTO PRESET to ON, and either wait five seconds for the search to

initiate or press OK to immediately initiate the search. If you press another control within those five seconds, the search will not initiate. The 10 strongest stations will be filled and the station stored in preset 1 will begin playing.

If there are fewer than 10 strong stations, the system will store the last one in the remaining presets.

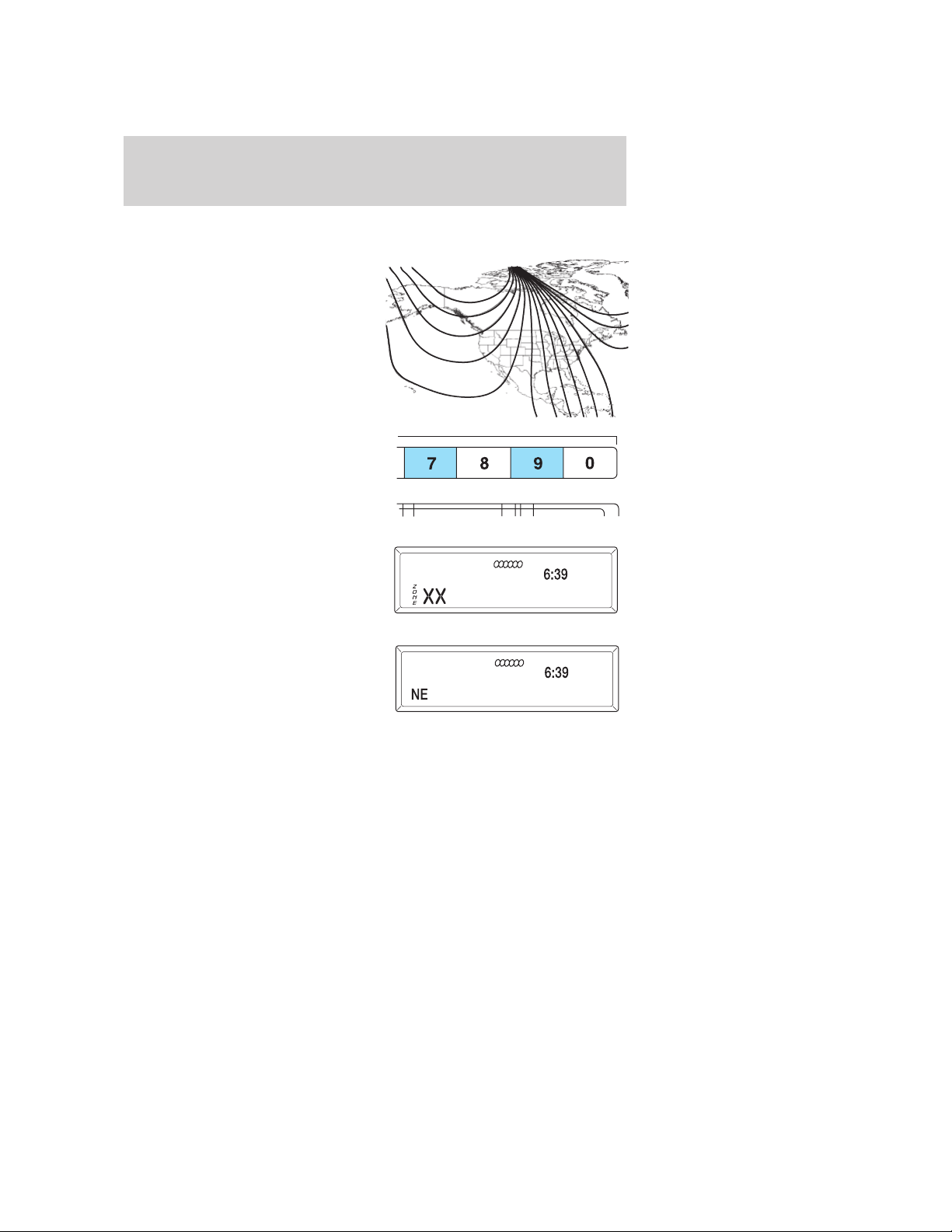

RDS Radio

Available only in FM mode. This feature allows you to search RDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, JAZZ/RB, ROCK, etc.

To activate: Press MENU repeatedly until RDS (ON/OFF) appears in the display. Use you will not be able to search for RDS equipped stations or view the

station name or type.

CAT/FOLD(Category/Folder):

This feature allows you to select from various music categories.

To change RDS categories: Press MENU repeatedly until RDS ON/OFF appears in the display. Use ON/OFF. Press CAT. PRESS UP OR DOWN TO CHANGE RDS CATEGORY will appear in the display. Press through all possible categories. When the desired category appears in the display, press selection or press SCAN for a brief sampling of all stations playing that

category of music.

SEEK to toggle RDS ON/OFF. When RDS is OFF,

SEEK to toggle RDS between

SEEK to find the next station playing that

SEEK to toggle

SEEK to scroll

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD/MP3 Player

CD: Press to enter CD/MP3 mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display.

LOAD: For a single CD system– This

control is not operational. To load a CD, simply insert the disc, label side up, into the CD slot. For a CD6 system– Press LOAD. When the display reads SELECT SLOT, choose the desired slot number using memory presets 1–6. When the display reads LOAD CD #, load the desired disc, label side up. If you do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play.

To auto load up to six discs– Press and hold LOAD until the display reads AUTOLOAD #. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the disc in preset #1 will begin to play.

Press the number preset buttons (1–6) to choose the disc you want to play.

/ Play/Pause: Press to play/pause a track when playing a

CD.

EJECT: For a single CD system– press

EJECT to eject the CD. For a CD6 system– press EJECT and select the desired CD slot by pressing the corresponding memory preset number. The display will read EJECTING #. When the system has ejected the CD, the display will read REMOVE CD #. Remove the CD. If you do not remove the CD, the system will reload the disc. To auto eject all loaded discs– Press and hold EJECT. The system will eject all discs and prompt you when to remove them.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEEK: Press SEEK to access the previous/next track.

CAT (Category) / FOLD (Folder):

In MP3 mode only– Press CAT/FOLD and then

press SCAN: Press for a brief sampling of

all tracks on the current disc or MP3 folder.

DIRECT:

In CD mode– Press DIRECT. The display will read DIRECT TRACK MODE SELECT TRACK. Enter the desired track number using the memory preset buttons (0–9). The system will then begin playing that track.

In MP3 folder mode– Press DIRECT and the memory preset buttons (0–9) of the desired folder. The system will advance to that specific folder.

TEXT:

In MP3 mode only– Press TEXT repeatedly to view Album (AL), Folder (FL), Song (SO) and Artist (AR) in the display, if available.

In TEXT MODE: Sometimes the display requires additional text to be displayed. When the</>indicator is active, press TEXT and then

press

COMPRESSION: Press MENU repeatedly until COMPRESSION ON/OFF appears in the display. Use When COMPRESSION is ON, the system will bring the soft and loud CD

passages together for a more consistent listening level. SHUFFLE: Press MENU repeatedly until SHUFFLE ON/OFF appears in

the display. Use engage shuffle mode right away, press

play. Otherwise, random play will begin when the current track is finished playing. The system will only shuffle the disc currently playing.

SEEK to access the previous/next folder.

SEEK to view the additional display text.

SEEK to toggle between ON/OFF.

SEEK to toggle between ON/OFF. If you wish to

SEEK to begin random

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Satellite Radio (if equipped)

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

SIRIUS: Press repeatedly to access satellite radio mode, if equipped. Press repeatedly to cycle through SAT1, SAT2 and SAT3 modes.

TUNE: Turn to go to the next / previous available SIRIUS satellite station.

DIRECT: Press DIRECT then enter the desired channel (i.e. 002) using the memory preset buttons (0–9). If you only enter one digit, press OK and the system will go to that satellite channel. If you enter three digits, the system will automatically go to that channel, if available. You may cancel your entry by pressing DIRECT. If an invalid station number is entered, INVALID CHANNEL will appear in the display and the system will continue playing the current station.

SEEK: Press to the previous/next channel. If a

specific category is selected, (Jazz, Rock, News, etc.),

press category. Press and hold

previous/next channels. SCAN: Press SCAN for a brief

sampling of all available SIRIUS satellite channels. If a specific category is selected, (Jazz, Rock, News, etc.) press SCAN for a brief sampling of all available SIRIUS satellite channels within the selected category.

MEMORY PRESETS (0–9): There are 30 available presets, 10 each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a memory preset number (0–9) until sound returns.

SEEK to seek to the previous/next channel in the selected

SEEK to seek

SEEK to fast seek through the

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

TEXT: Press and release to display the artist and song title. While in TEXT MODE, press again to scroll through the Artist (AR), Song (SO), Channel (CH) and Category (CA).

In TEXT MODE: Sometimes the display requires additional text to be displayed. When the</>indicator is active, press TEXT and then

press

CAT (Category) / FOLD (Folder): Press to toggle between

turning the most recently selected satellite radio category on or off. The category icon (CAT) will illuminate in the display when a specific category is selected (the icon will not illuminate during CATEGORY ALL). If no category has ever been selected, NO CATEGORY SELECTED will display.

Note: Separate categories can be set for SAT1, SAT2 or SAT3. Refer to Satellite radio menu for further information on selecting a satellite radio category.

SATELLITE RADIO MENU: Press MENU when satellite radio mode is active to access. Press OK to enter

into the satellite radio menu. Press following options:

• CATEGORY MENU- Press OK to enter category mode.

Press channel Categories (Pop, Rock, News, etc.) Press OK when the

desired category appears in the display. After a category is selected, press only (i.e. ROCK). You may also select CATEGORY ALL to seek all

available SIRIUS categories and channels. Press OK to close and return to the main menu.

• SONG SEEK MENU- Press OK to enter song seek menu.

Press a. SAVE THIS SONG: Press OK to save the currently playing song’s

title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You

SEEK to view the additional display text.

SEEK to cycle through the

SEEK to scroll through the list of available SIRIUS

SEEK to search for that specific category of channels

SEEK to scroll through the following options:

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the

saved titles and press When the song title appears in the display that you would like to

replace, press OK. SONG REPLACED will appear in the display. b. DELETE A SONG: Press OK to delete a song from the system’s

memory. Press the song appears in the display that you would like to delete, press

OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want

to delete the currently listed song, press RETURN or CANCEL.

Note: If there are no songs presently saved, the display will read NO SONGS. c. DELETE ALL SONGS: Press OK to delete all song’s from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS. d. DISABLE ALERTS/ENABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

• CHANNEL LOCKOUT MENU- Press OK to enter the Channel

Lockout menu. Press the options:

a. LOCK/UNLOCK THIS CHANNEL: Press OK when LOCK/UNLOCK THIS CHANNEL is displayed and the display will read ENTER PIN. Enter your four-digit PIN number (initial PIN is 1234) and the system will lock/unlock the channel and CHANNEL LOCKED or UNLOCKED will be displayed. Note: you must be tuned to the specific channel you want to lock/unlock when using this feature.

SEEK to cycle through the saved songs. When

SEEK to cycle through the saved titles.

SEEK to select either

SEEK to scroll through the following

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

b. CHANGE PIN: Press OK when CHANGE PIN is displayed. The display will read ENTER OLD PIN. Enter your current (old) PIN number and when the system accepts your entry it will display ENTER NEW PIN. Enter your new four-digit PIN and the system will save the new PIN and PIN SAVED will display. c. UNLOCK ALL CHANNELS: Press OK when UNLOCK ALL CHANNELS is displayed and the display will read ENTER PIN. Enter your four-digit PIN and the system will unlock all channels and the display will read CHANNEL UNLOCKED. d. RESET PIN: Press OK when RESET PIN is displayed. The display will read ARE YOUR SURE. Press OK again to automatically reset the PIN number to its initial password setting (1234). PIN RESET TO DEFAULT PIN will be displayed. e. RETURN: Press OK when RETURN is displayed and the system will exit back to the satellite radio menu.

Sound Adjustments

Press SOUND repeatedly to cycle through the following features:

BASS: Press adjust the level of bass.

TREBLE: Press

SEEK to

SEEK to adjust the level of treble.

BALANCE: Press (L) and right (R) speakers.

FADE: Press and front (F) speakers.

SPEED COMPENSATED VOLUME: With this feature on, radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

The default setting is off.

Use Increasing the level from 1 (lowest setting) to 7 (highest setting) allows

the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

DSP MODE (if equipped)): Press STEREO SURROUND mode and STEREO mode.

SEEK to adjust between SPEED OFF and levels 1–7:

SEEK to adjust the audio between the left

SEEK to adjust the audio between the back (B)

SEEK to choose between

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Extra Features

AUX: Press repeatedly to cycle through LINE (auxiliary audio mode), SYNC (if equipped) and FES modes (if equipped).

For location and further information on auxiliary audio mode, refer to Auxiliary input jack later in this chapter.

If your vehicle is equipped with SYNC, please refer to the SYNC supplement for further information.

/ Play/Pause:

In CD/DVD mode (if equipped)–

When a CD or DVD is playing in the family entertainment system, press this control to play or pause the current CD/DVD. The CD/DVD status will display in the radio display.

OK: Your vehicle may be equipped with special phone and media features which will require you to confirm commands by pressing OK. For further information, refer to the SYNC supplement.

PHONE: If your vehicle is equipped with SYNC, press to access SYNC PHONE features. For further information, please refer to the SYNC supplement. If your vehicle is not equipped with SYNC, the display will read NO PHONE.

Audio system–Navigation system based (if equipped)

If your vehicle is equipped with the navigation system, it will have an integrated navigation/audio system. See the Navigation system supplement for operating instructions on using this audio system.

Auxiliary input jack (Line in)

WARNING: Driving while distracted can result in loss of vehicle

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

The Auxiliary Input Jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. If your vehicle is equipped with a navigation system, refer to Auxiliary

input jack section in the Audio features chapter of your Navigation system supplement.

Required equipment:

1. Any portable music player designed to be used with headphones

2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end

To play your portable music player using the auxiliary input jack:

1. Begin with the vehicle parked and the radio turned off.

2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off.

3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle.

4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level.

5. Turn the portable music player on and adjust the volume to 1/2 the volume.

6. Press AUX on the vehicle radio repeatedly until LINE in or SYNC LINE in appears in the display. You should hear audio from your portable music player although it may be low.

7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Troubleshooting:

1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control.

2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume.

3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player.

4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.

5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

USB port (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

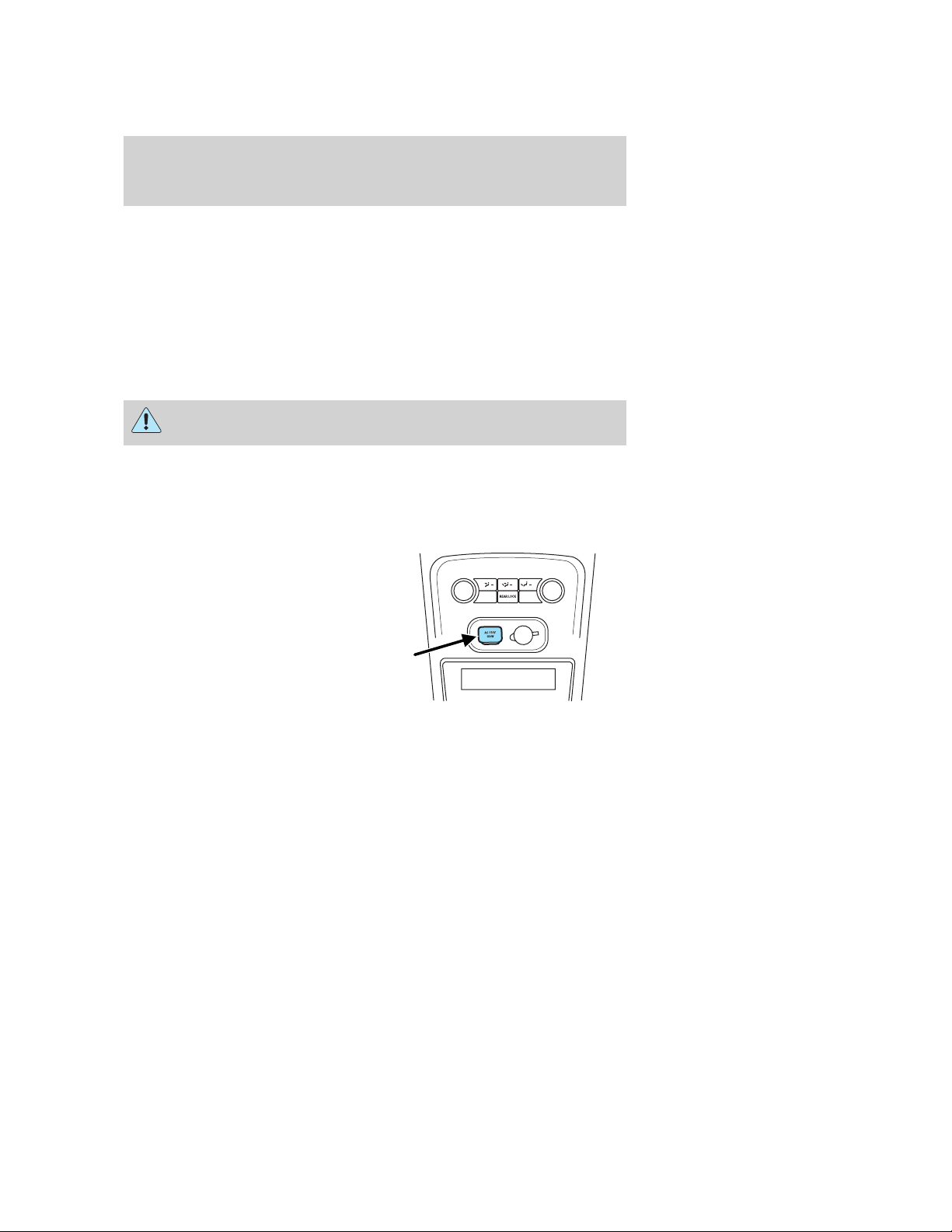

Your vehicle may be equipped with a USB port inside your center console. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC supplement or Navigation system supplement.

GENERAL AUDIO INFORMATION

Radio frequencies:

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM: 530, 540–1700, 1710 kHz

FM: 87.7, 87.9–107.7, 107.9 MHz

Radio reception factors:

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CD/CD player care

Do:

• Handle discs by their edges only. (Never touch the playing surface).

• Inspect discs before playing.

• Clean only with an approved CD

cleaner.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

• Wipe discs from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Clean using a circular motion.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players.

Do not use any irregular shaped CDs or discs with a scratch protection film attached.

CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

Audio system warranty and service

Refer to the Warranty Guide/Customer Information Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

MP3 track and folder structure

Your MP3 system recognizes MP3 individual tracks and folder structure as follows:

• There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section.

• MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255.

The maximum number of playable MP3 files may be less

Note:

depending on the structure of the CD and exact model of radio present.

• MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255.

• Creating discs with only one level of folders will help with navigation through the disc files.

Sample MP3 structure

If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.

.mp3

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

.doc

.ppt

.xls

Entertainment Systems

In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder.

Satellite radio information (if equipped)

Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474.

Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance:

• Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.

• Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.

SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include:

• Hardware and limited subscription term, which begins on the date of sale or lease of the vehicle.

• Use of online media player providing access to all SIRIUS music channels over the internet using any computer connected to the internet (U.S. customers only)

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

For information on extended subscription terms, contact SIRIUS at 1–888–539–7474.

Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.

Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing SIRIUS and Preset 1 control simultaneously.

Radio Display Condition Action Required

ACQUIRING Radio requires more

than two seconds to

produce audio for

the selected

channel.

SAT FAULT Internal module or

system failure

present.

INVALID CHNL Channel no longer

available.

No action required. This

message should disappear

shortly.

If this message does not clear within a short period of time, or with an ignition

key cycle, your receiver

may have a fault. See your

authorized dealer for

service.

This previously available

channel is no longer

available. Tune to another

channel. If the channel was one of your presets, you may choose another

channel for that preset

button.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Radio Display Condition Action Required

UNSUBSCRIBED Subscription not

available for this

channel.

NO TEXT Artist information

not available.

NO TEXT Song title

information not

available.

NO TEXT Category

information not

available.

NO SIGNAL Loss of signal from

the SIRIUS satellite

or SIRIUS tower to

the vehicle antenna.

UPDATING Update of channel

programming in

progress.

CALL SIRIUS 1–888–539–7474

Satellite service has

been deactivated by

SIRIUS Satellite

Radio.

Contact SIRIUS at

1–888–539–7474 to

subscribe to the channel

or tune to another

channel.

Artist information not

available at this time on

this channel. The system is

working properly.

Song title information not

available at this time on

this channel. The system is

working properly.

Category information not

available at this time on

this channel. The system is

working properly.

You are in a location that

is blocking the SIRIUS

signal (i.e., tunnel, under

an overpass, dense foliage,

etc). The system is

working properly. When

you move into an open

area, the signal should

return.

No action required. The process may take up to

three minutes. Call SIRIUS at

1–888–539–7474 to

re-activate or resolve

subscription issues.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)

WARNING: Driving while distracted can result in loss of vehicle

Your vehicle may be equipped with a Family Entertainment System (FES) which allows you to listen to audio CDs, MP3 discs, watch DVDs and to plug in and play a variety of standard video game systems. The DVD player is capable of playing standard DVDs, CDs, MP3s and is compatible with CD-R/W, CD-R and certain CD-ROM media.

Please review this material to become familiar with the FES features and controls as well as the very important safety information.

Quick start

Your Family Entertainment System includes a DVD system, two sets of wireless infrared (IR) headphones and a wireless infrared (IR) remote control.

To play a DVD in the DVD system:

The DVD system can play DVD-Video, DVD-R, DVD-R/W discs as well as audio CDs and video CDs. To ensure proper disc operation, check the disc for finger prints, scratches and cleanliness. Clean with a soft cloth, wiping from center to edge.

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Insert a DVD into the system, label-side up to turn on the system. It will load automatically.

3. Press the power button on the DVD player, then press Play begin to play the disc.

If a DVD is already loaded into the system, press PLAY on the DVD player.

Note: If sound can be heard, but no video is present, press VIDEO to select the video source (DVD or aux-inputs).

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Note (navigation based radio systems only): When a disc is

inserted, the FES switches to dual-play mode–rear speakers turn off, and headphones turn on. To switch back to all four speakers on, press the headphone button.

Press VIDEO to change the source displayed on the screen. Press repeatedly to cycle through: DVD-DISC, DVD-AUX, NON-DVD, OFF.

Press the power button to turn the system off. The indicator light will turn off indicating the system is off.

Note: The audio from the DVD system will play over all vehicle speakers and can be adjusted by the radio volume control.

To play a CD in the DVD system:

The DVD system can play audio CDs, CD-R and CD-R/W, CD-ROM and video CDs. To ensure proper disc operation, check the disc for finger prints and scratches. Clean the disc with a soft cloth, wiping from the center to the edge.

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Insert a CD into the system, label-side up to turn on the DVD system. It will load and automatically begin to play. If there is already a CD in the system, press PLAY on the DVD player.

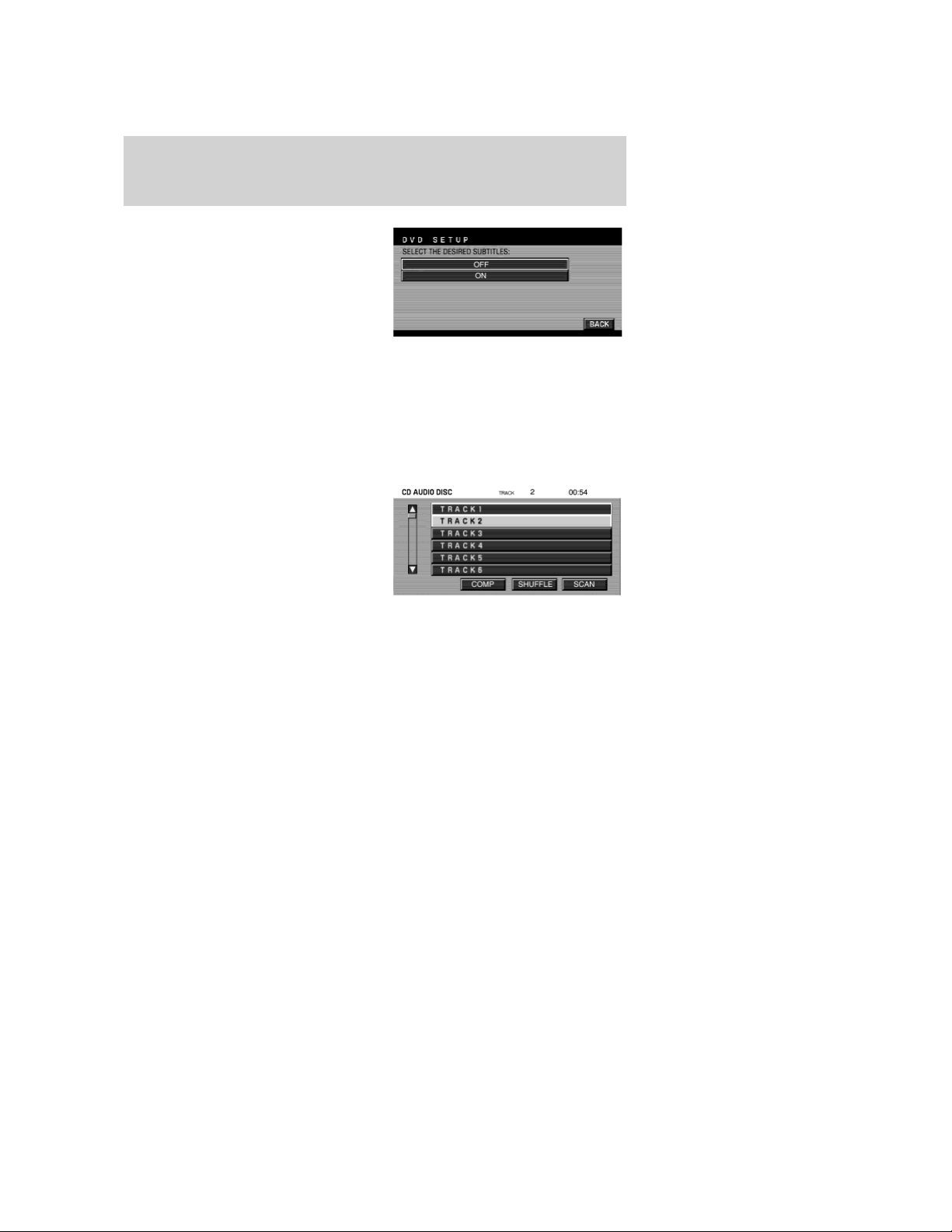

3. The disc will begin to play and the ‘CD Audio Disc’ screen will display. From this screen, you can also select from COMPRESSION, SHUFFLE and SCAN features.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Note (navigation based radio systems only): When a disc is

inserted, the FES switches to dual-play mode–rear speakers turn off, and headphones turn on. To switch back to all four speakers on, press the headphone button.

To play an MP3 disc in the DVD system:

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Insert an MP3 disc into the system, label-side up to turn on the DVD system. It will load and automatically begin to play. If there is already a disc in the system, press PLAY on the DVD player.

3. The disc will begin to play and the ‘MP3 Audio Disc’ screen will display and allow you to access the COMPRESSION, SHUFFLE, SCAN and FOLDER MODE features.

Note (navigation based radio systems only): When a disc is

inserted, the FES switches to dual-play mode–rear speakers turn off, and headphones turn on. To switch back to all four speakers on, press the headphone button.

To play an auxiliary source through the DVD system

The DVD system can be used to connect and play auxiliary electronic devices such as game systems, personal camcorders, video cassette recorders, etc.

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Press the power button to turn the DVD system on. The indicator light next to the power button will illuminate.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

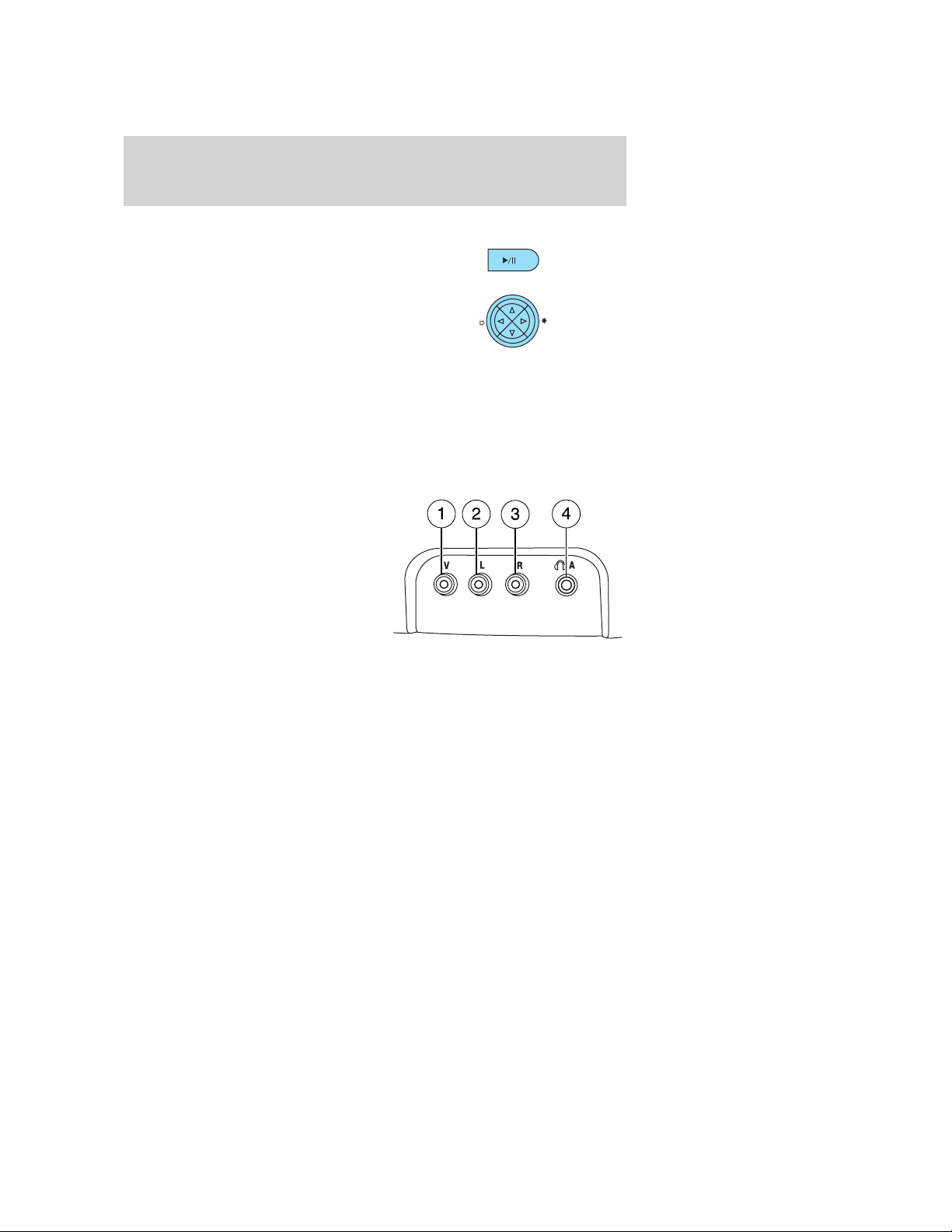

3. Connect an auxiliary audio/video source by connecting RCA cords (not included) to the RCA jacks on the left hand side of the system.

• Yellow (1) — video input

• White (2) — left channel audio

input

• Red (3) — right channel audio input

4. Press MEDIA on the DVD system to change the media source to AUX.

5. Press VIDEO on the DVD system to change the video source to

DVD-AUX. If your source is properly plugged in, it will appear on the LCD (Liquid Crystal Display) screen. If your auxiliary source does not have a video signal, or if the DVD system does not detect a video signal from the auxiliary source, the screen will remain black. If the video source is set to DVD-AUX, the display will automatically turn on if a video signal is detected.

To listen to audio over the headphones— Dual play mode (Navigation based radio systems only):

You may listen to channels A and B over wired or wireless headphones. Refer to Using the infrared wireless headphones and Using wired headphones for further information.

• Black (4) — wired headphone output (wired headphones not included)

There are two ways to get into dual play mode:

1. After initially switching ignition

on, when a is disc inserted, the FES immediately switches to dual-play mode.

2. Press the headphone/speaker

navigation radio touch screen.

3. Press the 2 and 4 memory presets on the radio at the same time.

Repeating each of these actions will switch back to single play mode, all speakers playing and headphones off.

A green light will illuminate next to either the A or B Headphone Control Button to indicate which channel is active (able to be controlled).

/ button on the DVD player or

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

4. Press MEDIA to change the audio source of the active channel (A or

B). The audio source will be shown on the display. You may change the active channel by pressing the A or B headphone control button.

Note: Channel A can access any possible media source (AM, FM1, FM2, SAT (if equipped), CD, DVD, AUX). Channel B can only access DVD and AUX sources.

Note: Refer to Single play/Dual play for more information.

To listen to audio over the headphones— Dual play mode (Non-navigation based radio systems):

You may listen to channels A and B over wired or wireless headphones. Refer to Using the infrared wireless headphones and Using wired headphones for further information.

• Black (4) — wired headphone output (wired headphones not included)

1. Press the

headphone/speaker on the DVD player or press the 2

and 4 memory presets on the radio at the same time.

A green light will illuminate next to either the A or B Headphone Control Button to indicate which channel is active (able to be controlled).

2. Press MEDIA to change the audio source of the active channel (A or

B). The audio source will be shown on the display. You may change the active channel by pressing the A or B headphone control button.

Note: Channel A can access any possible media source (AM, FM1, FM2, SAT (if equipped), CD, DVD, AUX). Channel B can only access DVD and AUX sources.

Note: Refer to Single play/Dual play for more information.

/ button

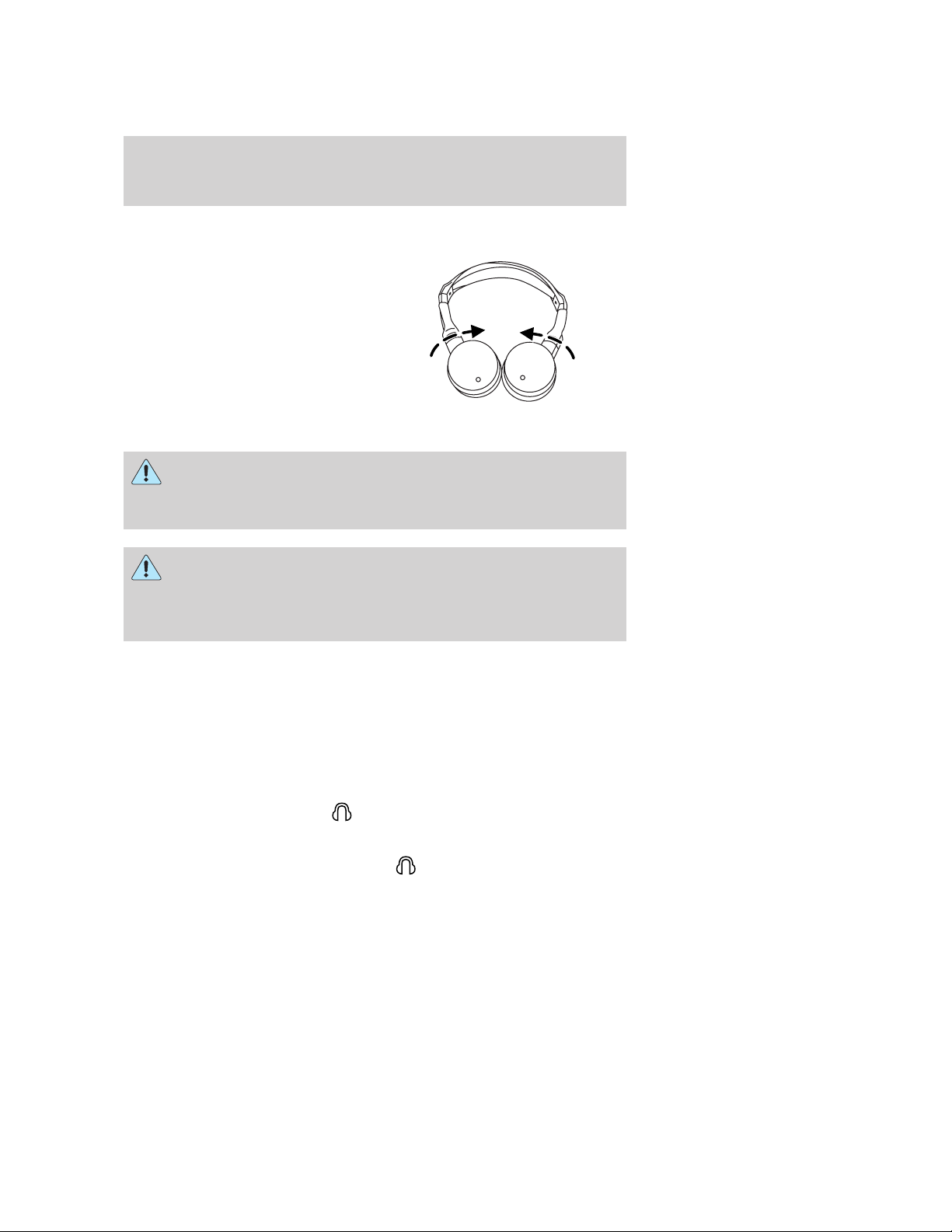

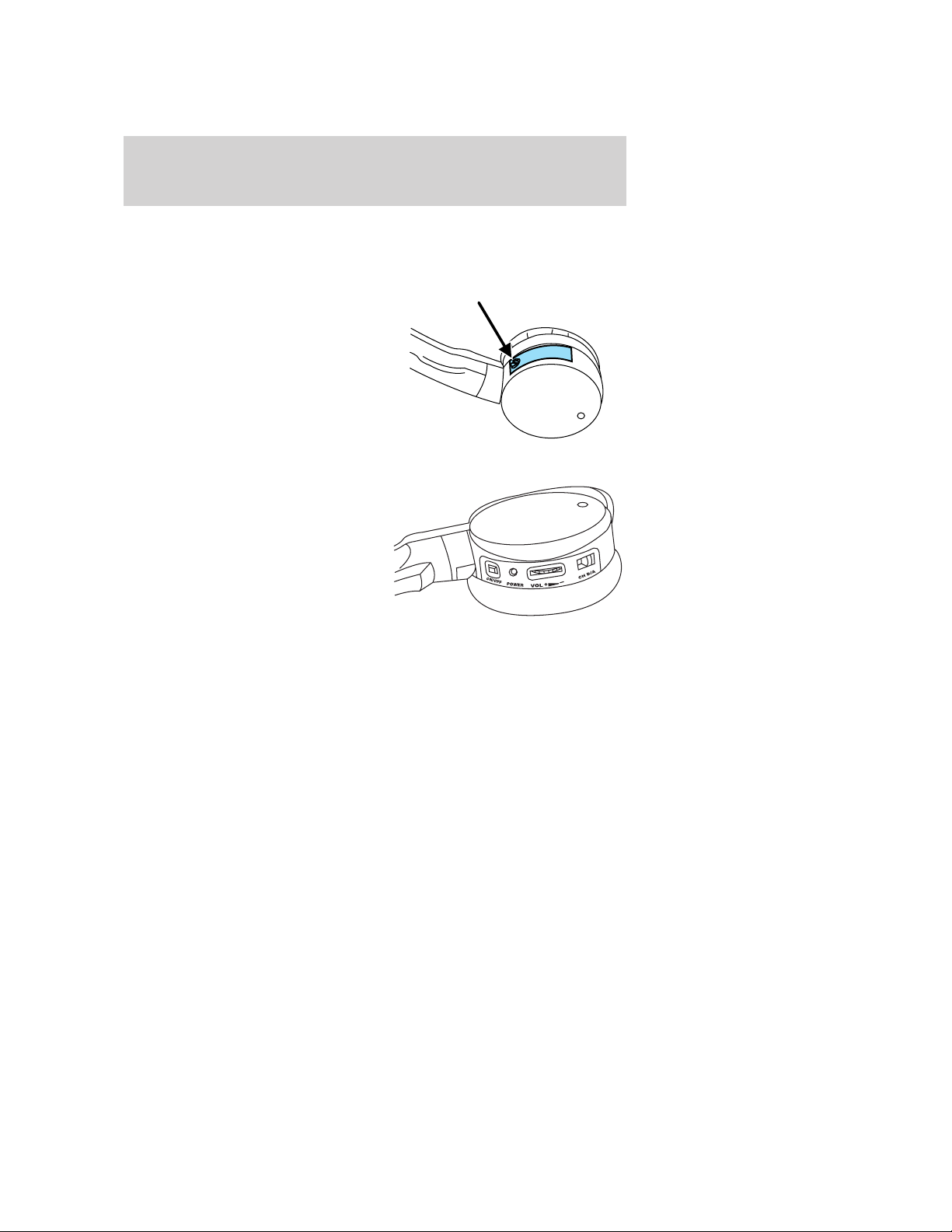

Using the infrared (IR) wireless headphones:

1. Press the power control on the earpiece to turn the headphones ON.

2. Select Channel A or B for each set of wireless headphones by using

the A/B control on the ear piece.

3. Adjust the headphone volume using the rotary dial on the earpiece.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Using wired headphones (not included):

WARNING: Do not leave children unattended in the vehicle and

do not let children operate the system while unsupervised. If wired headphones or auxiliary systems are used, children may become entangled in the cords and seriously injure themselves.

1. Connect the wired headphones in to the headphone jacks on either side of the DVD system. Each side is labeled plugged into jack A will listen to Channel A and headphones plugged into

jack B will listen to Channel B.

2. Adjust the volume levels using the volume controls on the DVD system.

To adjust display brightness:

To decrease/increase the brightness level on the display screen, press the brightness control on the DVD system. A display will appear at the bottom of the screen indicating the brightness level. The brightness display will only appear when the menu is not displayed.

Aor B. Headphones

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

DVD player controls

ENTER

RETURN

MEDIA

VOLUME

VIDEO

1. Headphone control A/B: Press to select either the A or B headphone source. Then press MEDIA to select the desired playing media for that headset. When a headphone channel has been selected (A or B), selections will affect the source on that channel only. Note: Headphone A can access any possible media (AM, FM1, FM2, SAT (if equipped), CD, DVD, DVD-AUX). Headphone B can only access DVD and DVD-AUX. For further information, refer to Single play/Dual play later in this section.

/ (Stop/Eject): Press

2. once to stop and press a second

time to eject a disc from the DVD system.

(Reverse): Press and release for the previous chapter or track. Press and hold to reverse search a DVD, Video CD, or FES CD in DVD/CD mode.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

4. (Fast forward): Press and release for the next chapter or track. Press and hold to forward

search a DVD, Video CD, or FES CD in DVD/CD mode.

/ (Play/Pause): Press

(Play) to select DVD mode (and to turn the DVD system on if it is off). If a disc is present, it will resume or begin to play. Press (Pause) while playing a disc to pause a DVD or CD.

6. On/Off: Press to turn the DVD system On/Off.

7. VIDEO: Press repeatedly to cycle through the following video state options which will be indicated on the bottom right hand corner of the display: DVD DISC, DVD-AUX, NON-DVD and Off (no indicator). If you select the DVD-AUX video source, the display will turn off if there is no video signal detected. When a video signal is detected on the auxiliary video input, and the display is in the DVD-AUX video mode, the display will automatically turn on.

8. Infrared (IR) Receiver & Transmitter: System sensor which reads the signals from the remote control and sends audio signals to the infrared (IR) wireless headphones.

9. LCD screen: The eight inch diagonal screen rotates down to view and up into housing to store when not in use. Ensure that the screen is latched into the housing when being stored.

10. Volume: When in Single Play, press to increase (

( ) the volume over all speakers. When in Dual Play, press to increase

) or decrease ( ) the volume

( for the wired headphones. (Wireless headphone volume is controlled

with the rotary dial on the right ear piece.)

11. (Headphone mode- the rear speakers are muted) and press again for

Single Play (same media playing through all speakers). You can also

/ (Headphones/Speakers): Press once for Dual Play

) or decrease

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

press the 2 and 4 memory preset buttons on the audio system at the same time to perform the same function. For further interaction information, refer to Single Play/Dual play under Operation later in this section.

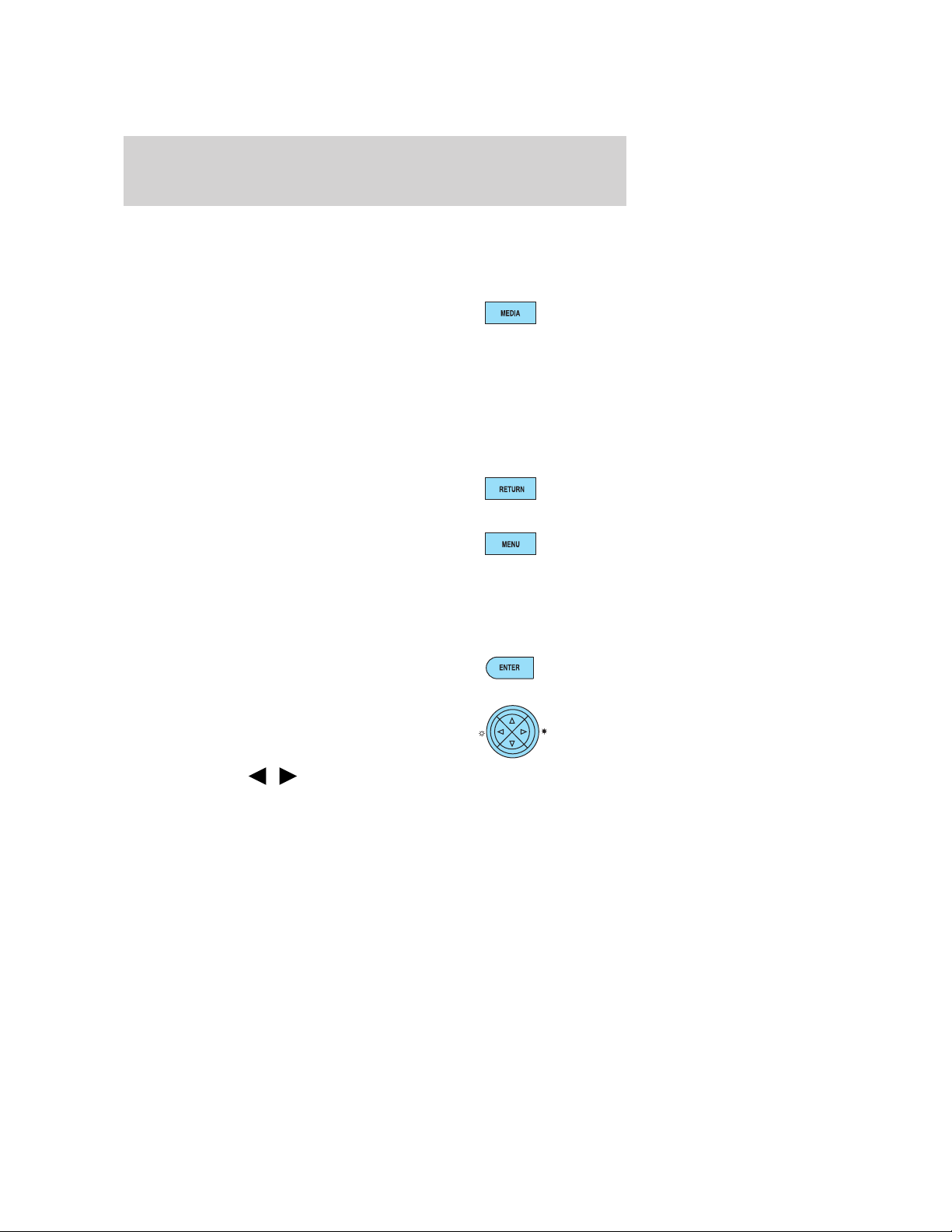

12. MEDIA: Press repeatedly to select from the various possible playing media sources (AM, FM1, FM2, SAT (if equipped), CD, DVD, DVD-AUX). The media will show in the status display on the top of the screen when in Dual Play mode. When in Single Play mode, the media source will be displayed on the radio. Note: Channel A can access any possible media source (AM, FM1, FM2, SAT (if equipped), CD, DVD, DVD-AUX). Channel B can only access DVD and DVD-AUX sources.

13. RETURN: Press to return to the playing media or to resume playback.

14. MENU: When playing a DVD, press MENU once to enter the DVD disc menu (if available) and press twice to enter the system set-up menu. From the set-up menu, you may select from Angle, Aspect Ratio, Language, Subtitles, Disc resume, Compression, Restore Defaults and Back. For more detailed information, refer to Menu mode.

15. ENTER: Press to select/confirm the current selection.

16. Cursor /Brightness controls: Use the cursor controls to make various selections when in any menu. When not in a menu, and in

DVD mode, press the brightness. A display bar will appear at the bottom of the screen

indicating the brightness levels.

Remote control

Unless otherwise stated, all operations can be carried out with the remote control. Always point the remote control directly at the player. Ensure that there are no obstructions between the remote and player.

/ to adjust

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

1. Power control: Press to turn the FES (Family Entertainment System) ON/OFF.

2. Cursor controls: Use in various active menus to advance the cursor up/down/left/right. When not in a Menu, the left and right cursor controls decrease and increase the display brightness.

3. DISPLAY: Press to access the on-screen display of the FES functions and adjustments.

4. RETURN: Press to return to the previous menu screen.

5. ANGLE

6. Channel A/B: the MEDIA control to select the desired playing media for the headphones.

7. VOL (Volume): When in Single Play, press to increase ( )or decrease (

increase ( ) or decrease ( ) the volume for the wired headphones. (Wireless headphone volume is controlled with the rotary dial on the

right ear piece.)

(DVD dependent): Press to select the angle to view the scene.

Press to select either A or B headphones and then use

) the volume over all speakers. When in Dual Play, press to

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

8. Fast Forward/Next: In DVD mode, press and hold for a quick advance within the DVD. Press and release to advance to the next chapter. In CD/MP3 mode, press to access the next track.

9. Play/Pause: Press to play or pause a DVD.

10. SHUFFLE: Press to play all tracks on the current CD/MP3 disc in random order.

11. STOP: Press to stop the current DVD or CD/MP3.

12.

/ Speaker/Headphone (Single/Dual Play): Press to toggle

between Single Play (same media playing through all speakers) and Dual Play (headphone mode — the rear speakers are muted). You can also press the 2 and 4 memory presets on the audio system at the same time to perform the same function.

13. Numeric Keypad: Use the numeric controls to enter in a specific CD/MP3 track or DVD chapter to be played.

14. C (Cancel): Press to cancel/clear the numeric input (i.e. chapter number).

15. MEDIA: Press to cycle through the possible media sources: AM, FM1, FM2, SAT (if equipped), CD, DVD, LINE IN (if equipped), DVD-AUX. Channel B can only access DVD and AUX sources.

16. VIDEO: Press to cycle through video states: DVD-DISC, DVD-AUX, NON-DVD, Off.

17. EJECT: Press to eject a disc from the FES.

18. Fast reverse/Previous: When a DVD is playing, press and hold for a quick reverse within the DVD. Press and release for the previous chapter. Press PLAY to resume normal playback speed and volume. In CD/MP3 mode, press to access the previous track.

19. MENU: Press to access the DVD disc menu for selections. Press MENU again when in the DVD disc menu to access the system set-up menu.

20. SUBTITLE (DVD dependent): Press to turn the subtitle feature ON or OFF.

21. LANGUAGE (DVD dependent): Press to select the desired language.

22. ENTER: Press to select the highlighted menu option.

23. ILLUMINATION: Press to illuminate the remote control and backlight all of the buttons.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Battery replacement

Batteries are supplied with the remote control unit. Since all batteries have a limited shelf life, replace them when the unit fails to control the DVD player.

Remove the screw and unlatch the battery cover to access the batteries. The remote control unit uses two AAA batteries which are supplied with

the unit.

Headphones

Wireless headphones

WARNING: The driver should never use the headphones while

driving the vehicle. Using headphones may prevent the driver from hearing audible warnings such as horns or emergency sirens, which could result in a crash causing serious injury. Give your full attention to driving and to the road.

Your FES system is equipped with two sets of battery powered, infrared wireless headphones. Two AAA batteries are needed to operate the headphones. (Batteries are included.)

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Additional infrared wireless headphones may be purchased for use with the system. Also, wired headphones may be purchased and plugged in where indicated on the left and right hand sides of the system. Refer to Wired Headphones following.

To install the batteries, remove the screw on the cover and remove the cover.

When replacing the batteries, use two new batteries (alkaline recommended) and install them with the correct orientation as indicated in the battery housing.

To operate the headphones:

• Press POWER on the ear piece to turn on the headphones. A red indicator light will illuminate indicating the headphones are ON. Press POWER again to turn the headphones off.

• Adjust the headphones to comfortably fit your head using the headband adjustment.

• Select the desired audio source (Channel A or B) for each set of wireless headphones by using the A/B selection switch on the ear piece.

• Adjust the volume control to the desired listening level.

Ensure that the headphones are turned off when not in use. After approximately one minute of not being in use (no infrared signal is received), the wireless headphones will automatically turn off. They will also turn off after two hours of continuous use as a power save feature. If this happens, simply turn the headphones on again and continue use.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Headphone storage

Twist the earphones as shown to fold them flat for compact storage.

Wired headphones

WARNING: Do not leave children unattended in the vehicle and

do not let children operate the system while unsupervised. If wired headphones or auxiliary systems are used, children may become entangled in the cords and seriously injure themselves.

WARNING: The driver should never use the headphones while

You may purchase wired headphones for your FES (Family Entertainment System). Plug them into the 3.5 mm headphone jack(s) located on the left and right sides of the system. (Channel A is located on the left side and Channel B is located on the right side.) These headphones will be active when in Dual Play mode.

To listen to the audio on wired headphones (not included), connect the wired headphones into the headphone jacks on the sides of the DVD system. The wired headphone jack for Channel A is located on the left side of the FES and is labeled headphone jack will hear audio from the audio source selected to be the Channel A source. The wired headphone jack for Channel B is located on the right side of the FES and is labeled this headphone jack will hear audio from the audio source selected to be the Channel B source.

A. Headphones plugged into this

B. Headphones plugged into

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Adjust the headphone volume using the volume control on the DVD system.

Operation

Single play/Dual play

Your DVD and audio system work together with the infrared headphones and wired headphones (not included) to allow the rear seat passengers to listen to the radio (and other media sources) over the headphones. This enables the front and rear seat passengers to listen to a variety of sources a variety of ways.

Single Play: Single play consists of all occupants in the vehicle listening to the same playing media over the front and rear speakers. When the DVD system is on, and the same source is playing through the front and rear speakers, SINGLE PLAY will appear in the front radio display.

Dual Play (navigation based radio systems only): Dual play is when the rear seat passengers choose to listen to a different playing media than the front seat passengers. With the DVD and Rear Seat Controls turned ON, the rear seat passengers may choose to listen to the radio, CD, MP3, SYNC, DVD, or DVD-AUX media sources over headphones while the front speakers play the chosen selection for the front audio system, they may listen to another over the headphones. DUAL PLAY will appear in the radio display.

When both the front seat passengers and the rear seat passengers listen to the same audio source, SHARED MODE will appear on the radio.

Note: If the front seat passengers are listening to the radio, the rear seat passengers can also listen to the radio; however, they will be limited to listening to the same radio channel.

There are two ways to get into dual play mode:

1. After initially turning ignition on, when a disc is inserted, the FES immediately switches to dual-play mode.

2. Press the button on the DVD player or

navigation radio touch screen.

3. Press the 2 and 4 memory presets on the radio at the same time. Repeating each of these actions will switch back to single play mode, all speakers playing and headphones off.

/ headphone/speaker

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

The headphone control will now be active and a green light next to the A or B headphone control buttons will illuminate. The system can output two different audio sources over the headphones. These are called Channel A and Channel B. Both Channel A and Channel B can be listened to on the wired headphones (not included) or on the infrared (IR) wireless headphones.

Press the Headphone Control button A to change the audio source for Channel A.

Press MEDIA to change the audio source for Channel A. This information will display on the DVD system screen.

Press the Headphone Control button B to change the audio source for Channel B.

Press MEDIA to change the audio source for Channel B. This information will display on the DVD system screen. Channel B can listen to either the DVD media or the DVD system auxiliary inputs (DVD-AUX).

Dual Play (non-navigation based radio systems): Dual play is when the rear seat passengers choose to listen to a different playing media than the front seat passengers. With the DVD and Rear Seat Controls turned ON, the rear seat passengers may choose to listen to the radio, CD, MP3, DVD, or DVD-AUX media sources over headphones while the front speakers play the chosen selection for the front audio system, they may listen to another over the headphones. DUAL PLAY will appear in the radio display.

When both the front seat passengers and the rear seat passengers listen to the same audio source, SHARED MODE will appear on the radio.

Note: If the front seat passengers are listening to the radio, the rear seat passengers can also listen to the radio; however, they will be limited to listening to the same radio channel.

Press the button on the DVD player or

navigation radio touch screen.

/ headphone/speaker

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Press the Headphone Control button A to change the audio source for Channel A.

Press MEDIA to change the audio source for Channel A. This information will display on the DVD system screen.

Press the Headphone Control button B to change the audio source for Channel B.

Operation with an aftermarket audio system (Headphone only mode)

When the Family Entertainment System (FES) detects that the original radio supplied by Ford Motor Company has been removed from the vehicle, the Family Entertainment System will work in a state referred to as “Headphone Only Mode”.

While operating in Headphone Only Mode, the system will have limited functionality.

• The system will only output audio to the headphones. It will not be capable of providing audio to the speakers.

• The available sources in FES Headphone Only Mode are DVD-DISC and DVD-AUX, regardless of headphone channel (A or B).

• When a disc is inserted into the FES while in Headphone Only Mode, both headphone channels (A&B) will be connected to FES-DISC.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

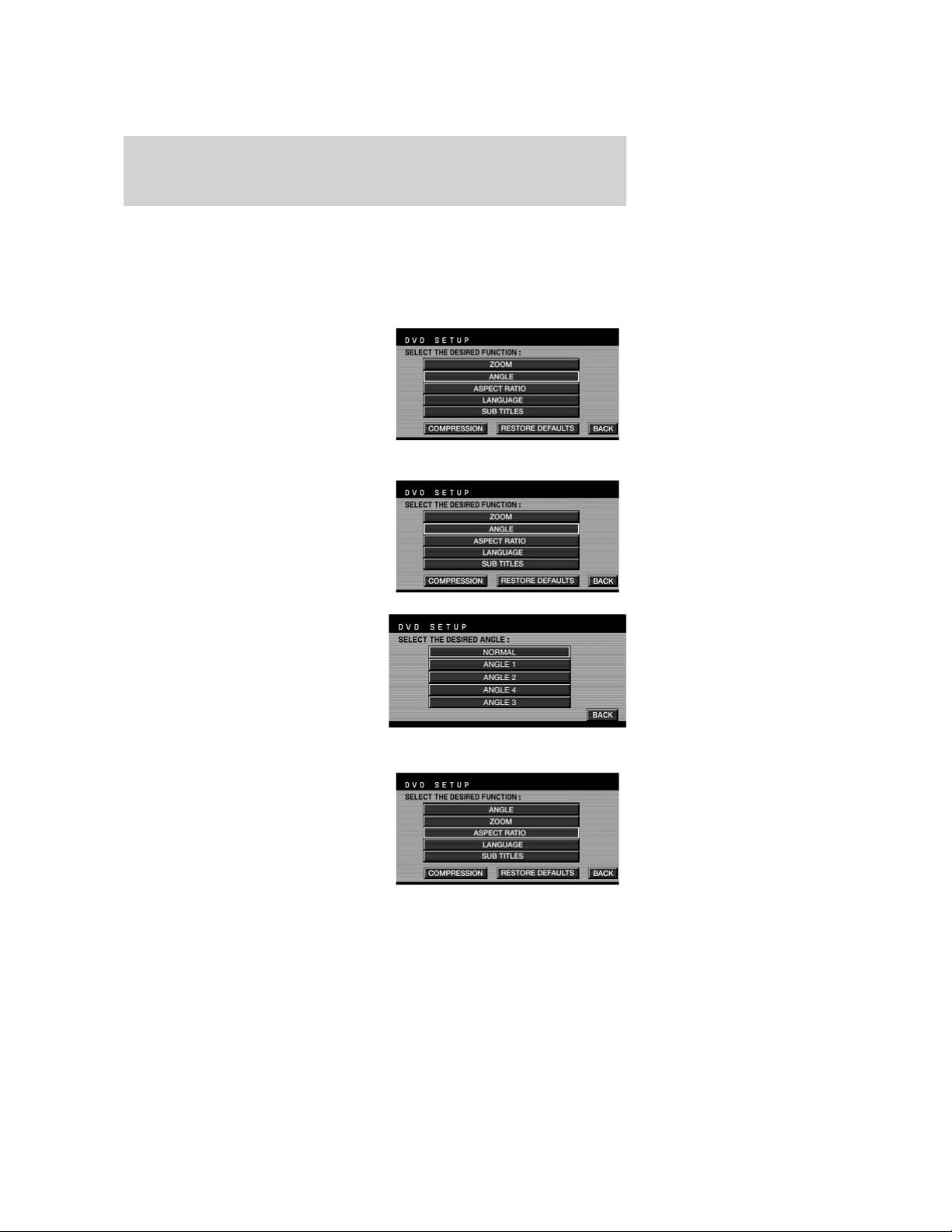

Menu mode

Press MENU once on the DVD system to access the DVD disc menu if available.

Press MENU twice to access the DVD set-up menu and the following features:

1. ZOOM

2. ANGLE

3. ASPECT RATIO

4. LANGUAGE

5. SUB TITLES

Angle mode

Select ANGLE to select various angles of view for the DVD.

This is disc dependent — some DVD discs may have more viewing angles to select from. Once you have made your selection, press ENTER to confirm. The system default is Angle 1.

Aspect ratio

Select ASPECT RATIO to select the viewing size and shape of the video displayed on the LCD screen. This is disc dependent.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

You can select from: WIDE, LETTER BOX or PAN SCAN. Once you have made your selection, press ENTER to confirm. The LCD screen display will immediately change to your selection after the system resumes playback of the DVD. The system default is WIDE (16:9).

Language

Select LANGUAGE to select the language you would like to use for audio output (English, Spanish, French). This is disc dependent.

Once you have made your selection, press ENTER to confirm. The system default is English.

Subtitles

Select SUBTITLES to turn the subtitle option on or off. The system default is OFF.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Once you have made your selection, press ENTER to confirm. This is disc dependent.

Audio CDs

To play audio CDs on your DVD system:

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Ensure that the DVD system is on.

3. Insert an audio CD into the DVD system, label side up.

4. The track and elapsed time will

appear in the status bar. Use the DVD cursor controls on the bezel to highlight which track you would like to play. You can also use the cursor controls to highlight COMPRESSION, SHUFFLE or SCAN. Once you have highlighted the desired track or function, press ENTER on the DVD bezel to confirm your selection.

COMP (Compression): Compression brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press to turn the feature on/off.

SHUFFLE: Press to hear all tracks on the current CD in random order. Press again to stop.

SCAN: Press for a brief sampling of all tracks on the current CD. Press again to stop.

Playing MP3 discs

To play an MP3 disc on your DVD system:

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Ensure that the DVD system is on.

3. Insert the MP3 disc into the DVD system, label side up.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

4. The folder, track and elapsed

time will appear in the status bar. The screen will list the Artist, Title, Album and File Name.

COMP (Compression):

Compression brings soft and loud CD/MP3 passages together for a more consistent listening level when in CD mode. Press to turn the feature on/off.

SHUFFLE: Press to hear all tracks on the current MP3 folder in random order. Press again to stop.

SCAN: Press for a brief sampling of all tracks on the current MP3 folder. Press again to stop.

FOLDER LIST: Press access folder mode and to go to the previous/next folder in the MP3 disc.

MP3 disc quality factors

Several factors can effect disc playback quality:

• Disc capacity — Each disc contains about 650 MB of storage capacity. We do not recommend using high capacity discs containing 700MB of storage.

• Disc type — Some CD-RW discs may operate inconsistently and may cause an error message to appear. We recommend burning MP3 files onto CD-R discs.

• Disc finalization — The disc may be left open for the purpose of adding sessions to it at a later time, but be sure to close each session or the disc will not play.

• Bit rate — The player supports bit rates from 32–320 kbps, as well as variable bit rate MP3 files, but lower bit rates will have a noticeable effect on sound quality and are recommended only for speech or low fidelity music material. We recommend that you encode MP3 files using a high quality encoder.

• PC configuration — Encoding MP3 files requires intensive use of your computer’s resources. Follow the PC configuration recommendations of the encoder software vendor. We recommend that you avoid running other software applications on your PC during MP3 encoding to avoid undesirable noise and distortion.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD, MP3 and CD player care

• Handle discs by their edges only. Never touch the playing surface.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• Do not insert more than one disc into the slot of the CD player (if equipped).

• Always store discs out of direct sunlight. Excessive heat may damage or warp discs.

• Use care when handling and playing CD-R and CD-RW discs, which are more susceptible to damage from heat, light and stress than are regular CDs.

• Always insert and remove a disc by holding the disc flat, with the playing surface facing down, in order to prevent damage to the disc or the player.

• Never insert any object other than a compact disc (CD) or digital versatile disc (DVD) into the player, as doing so may damage the player and may cause injury to you.

• Do not disassemble the player. The laser used in disc playback is extremely harmful to the eyes.

The FES DVD system is designed to play commercially pressed 12 cm (4.75 in) audio compact discs and digital versatile discs (DVD), DVD-R and R/W discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD and DVD players. Irregular shaped CDs or DVDs, CDs or DVDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the FES DVD system. The label may peel and cause the CD or DVD to become jammed. It is recommended that homemade CDs or DVDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs or DVDs. Please contact your authorized dealer for further information.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Playing a DVD

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Ensure that the navigation system is on.

3. Insert a DVD label-side up into the system.

4. Use the DVD bezel controls to:

Press to play or pause a DVD.

Press to stop or eject a DVD.

Press and release to go to the previous chapter. Press and hold for a fast reverse search.

Press and release to go to the next chapter. Press and hold for a fast forward search.

Press when not in menu mode to adjust brightness, or when in menu mode to navigate through the menu selections.

Press to adjust volume levels.

Slow play

1. With a DVD playing, press pause.

2. Press and hold the reverse or

advance button to enter into slow play mode. Once in slow play mode, press and release the reverse or advance button repeatedly to cycle through 1/4 and 1/2. These will display on the status bar on top of the screen as the screens cycle through at this rate.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Frame by frame

1. With a DVD playing, press pause.

2. Press the right cursor button. The

DVD will advance one frame. Each press of the right cursor button will advance the DVD video by one frame.

Headphone/auxiliary jacks

There are wired headphones (not included) and auxiliary jacks on the left and right side of your DVD system. They can be used to plug in wired headphones or to connect and play auxiliary electronic devices such as game systems, personal camcorders, video cassette recorders, etc.

On the left side of the system is the Headphone A input jack. This headphone will listen to the media selected on the Channel A source. When you need to make any adjustments to the media, volume, etc, ensure that the Channel A source is highlighted.

Also located here are the various auxiliary jacks which can be used to plug in a VCR, camcorder, video games, etc. The specific jacks are as follows:

1. Yellow: video input

2. White: left channel audio input

3. Red: right channel audio input

4. Black: wired headphone jack (not included)

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

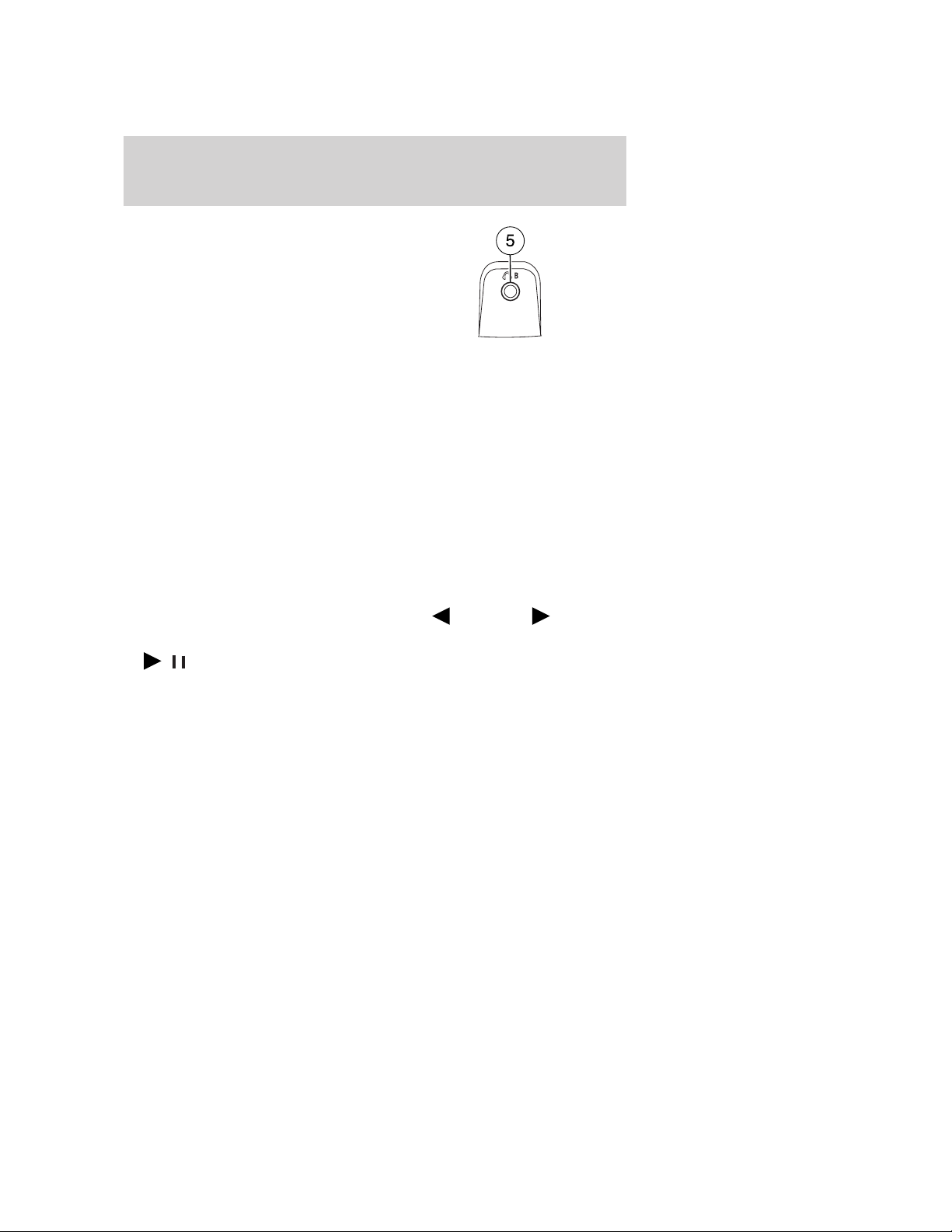

The B headphone jack (5) is located on the right side of the DVD system. Plug in wired headphones (not included) here.

Note: The B headphones can only access DVD and AUX modes. They cannot access radio sources.

Audio displays

Your DVD system interacts closely with the front audio system. Status messages will appear in the radio display showing the DVD status. Some possible radio display messages:

• SINGLE PLAY or DUAL PLAY

• DVD LOAD

• DVD MENU

• DVD STOP

Audio interaction

You can then also use the front audio controls to advance, reverse, play and pause a DVD. While a DVD is playing you may use the following controls on the front radio:

• SEEK: Press to advance to the previous ( chapters.

•

When the radio displays “DVD MENU”, press PLAY on the radio (memory preset #6), to play the disc.

Parental control for the DVD system

Your Family Entertainment System (FES) allows you to have control over the rear seat controls in a few different ways. The DVD system is automatically activated when the vehicle ignition is ON, which allows the rear seat passengers to use the DVD system.

: Press to play a DVD or to pause the DVD.

) or next ( ) DVD

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

There are three levels of control of the FES buttons. The states are FULL (enabled), LOCAL or LOCKED (disabled). To change the level of control, press the memory preset controls 3 and 5 simultaneously on the front audio controls. The control level will cycle each time the buttons are pressed simultaneously. The three states are described as:

FULL (enabled): The FES has control over the primary (speaker) and secondary (headphone) audio sources.

LOCAL: The FES has control over the secondary source (headphones) only. The radio will ignore button presses that affect the primary (speaker) audio source.

LOCKED (disabled): The FES buttons are locked and all FES button presses are ignored by the radio and the FES except for load and eject.

When the DVD system is ON, you can then press the memory preset controls 2 and 4 simultaneously to toggle between Single Play and Dual Play. In Single Play mode, all speakers listen to the same media. In Dual Play mode, rear seat passengers can use the infrared wireless, or wired (not included) headphones to listen to a different playing media than the front seat passengers.

General information

Note: DVDs are formatted by regions. US and Canada systems can only play region 1 DVDs and Mexico systems can only play region 4 DVDs. Systems sold in vehicles targeted for other parts of the world would have different regions. If a playback problem is encountered, please ensure that you are using a disc designed for your vehicle. The region coding can be found stamped on the disc or on the box, and can say ‘region-1’ or ‘region 4’, etc. They may also be marked by a numerical symbol.

Macrovision: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other

1 2 3 4 5 6

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

MP3: Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue generating) real time broadcasting (terrestrial, satellite, cable and /or any other media) broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http:// www.mp3licensing.com.

Safety information

WARNING: Driving while distracted can result in loss of vehicle

Read all of the safety and operating instructions before operating the system and retain for future reference.

Do not attempt to service, repair or modify the Family Entertainment System (FES). See your dealer.

Do not insert foreign objects into the DVD compartment.

WARNING: Do not leave children unattended in the vehicle and

do not let children operate the system while unsupervised. If wired headphones or auxiliary systems are used, children may become entangled in the cords and seriously injure themselves.

WARNING: The front glass on the liquid crystal display (LCD)

flip-down screen may break when hit with a hard surface. If the glass breaks, do not touch the liquid crystalline material. In case of contact with skin, wash immediately with soap and water.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

WARNING: The driver should not attempt to operate any

function of the DVD system while the vehicle is in motion. Give full attention to driving and to the road. Pull off the road in a safe place before inserting or extracting DVDs from the system. A remote control is included in the system to allow the rear seat occupants to operate the FES functions without distracting the driver.

Do not expose the liquid crystal display (LCD) flip-down screen to direct sunlight or intensive ultraviolet rays for extensive periods of time. Ultraviolet rays deteriorate the liquid crystal.

Be sure to review User Manuals for video games and video game equipment when used as auxiliary inputs for your Family Entertainment System (FES).

Do not operate video games or video equipment if the power cords and/or cables are broken, split or damaged. Carefully place cords and/or cables where they will not be stepped on or interfere with the operation of seats and/or compartments.

Disconnect video games and video equipment power cords and/or cables when not in use.

Avoid touching auxiliary input jacks with your fingers. Do not blow on them or allow them to get wet or dirty.

Do not clean any part of the DVD player with benzene, paint thinner, or any other solvent.

Federal Communication Commission (FCC) Compliance

Changes or modifications not approved by Ford Lincoln-Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference and radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Care and service of the DVD player

Environmental extremes

DVD players which are subjected to harsh environmental conditions may be damaged or perform at less than maximum capability. To avoid these outcomes, whenever possible avoid exposing your DVD player to:

• extremely hot or cold temperatures.

• direct sunlight.

• high humidity.

• a dusty environment.

• locations where strong magnetic fields are generated.

Temperature extremes

When the vehicle is parked under direct sunlight or in an extremely cold place for a long period of time, wait until the cabin temperature of the vehicle is at normal temperature before operating the system.

Humidity and moisture condensation

Moisture in the air will condense in the DVD player under extremely humid conditions or when moving from a cold place to a warm one. Moisture condensation may cause damage to the DVD and/or player. If moisture condensation occurs, do not insert a CD or DVD into the player. If one is already in the player, remove it. Turn the DVD player ON to dry the moisture before inserting a DVD. This could take an hour or more.

Foreign substances

Exercise care to prevent dirt and foreign objects from entering the DVD player compartment. Be especially careful not to spill liquids of any kind onto the media controls or into the system. If liquid is accidentally spilled onto the system, immediately turn the system OFF and consult a qualified service technician.

Cleaning the liquid crystal display (LCD) flip-down screen

Clean the display screen by applying a small amount of water or any ammonia-based household glass cleaner directly to a soft cloth. Rub the screen gently until the dust, dirt or fingerprints are removed. Do not spray the screen directly with water or glass cleaning solvents. Overspray from these fluids could drip down into the internal electronics of the screen and cause damage. Do not apply excessive pressure while cleaning the screen.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Cleaning DVD and CD discs

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved DVD and CD cleaner and wipe from the center out to the edge. Do not use circular motion.

Compatibility with aftermarket audio systems (headphone only mode)

When the Family Entertainment System (FES) detects that the original radio supplied by Ford Motor Company has been removed from the vehicle, the FES will work in a state referred to as “Headphone Only Mode.” This mode allows the FES to operate as a standalone system, without interface to the radio.

While operating in Headphone Only Mode, the system will have limited functionality.

• The system will only output audio to the headphones. It will not be capable of providing audio to the speakers.

• The available sources in FES Headphone Only Mode are DVD-DISC and DVD-AUX, regardless of headphone channel (A or B).

• When a disc is inserted into the FES while in Headphone Only Mode, both headphone channels (A and B) will be connected to FES-DISC.

NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a navigation system. Refer to the Navigation system supplement for further information.

SYNC (IF EQUIPPED)

Your vehicle may be equipped with SYNC, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNC supplement or to the SYNC section in the Navigation system supplement (if equipped).

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

SINGLE ZONE CLIMATE CONTROL WITH REAR PASSENGER COMPARTMENT CLIMATE CONTROL

vents and demister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.

defroster. Refer to Rear window defroster later in this chapter for more information.

settings to choose:

•

• : Distributes air through the instrument panel vents, floor vents,

Defrost: Distributes outside air through the windshield defroster

Rear defroster: Press to activate/deactivate the rear window

Multifunction control: Press repeatedly to toggle through the

: Distributes air through the windshield defroster vents, de-mister

vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

: Distributes air through the instrument panel vents.

rear seat floor vents and de-mister vents.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

• : Distributes air through the floor vents and rear seat floor vents.

4. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, (floor/defrost).

any airflow mode except turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air

distribution selection is either

6. MAX A/C: Distributes recirculated air through the instrument panel

vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.

7. Temperature control: Controls the temperature of the airflow in the

vehicle.

the vehicle.

When the system is off, outside air is prevented from entering the vehicle.

10.

system.

11. REAR CTRL: Press to change control of the rear climate system

from the front to the rear controls.

12. Temp–:Press to lower the temperature for the rear climate area.

13. Temp+:Press to increase the temperature for the rear climate area.

14.

the rear climate area.

15.

the rear climate area.

Recirculated air: Press to activate/deactivate air recirculation in

(defrost). When the ignition switch is

Fan speed adjustment: Controls the volume of air circulated in

Power: Press to activate/deactivate the climate control system.

Power: Press to activate/deactivate the rear climate control

– Rear fan speed control: Press to decrease the fan speed for

+ Rear fan speed control: Press to increase the fan speed for

(defrost) and

(panel) or (panel/floor).

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

Operating tips

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the system off or with recirculated air engaged.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, turn off the rear A/C unit (if equipped), reduce blower fan speed from the highest setting and put the vehicle’s transmission into the PARK gear position to continue to receive cool air from your A/C system.

For maximum cooling performance in the MAX A/C mode:

• Press MAX A/C.

• Adjust the temperature to the coldest setting.

• Set the fan to the highest speed initially, then adjust to maintain

passenger comfort.

position.

For maximum cooling performance in the

• Adjust the temperature to the coldest setting.

• Select A/C and recirculated air

• Set the fan to the highest speed initially, then adjust to maintain

passenger comfort.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature to the warmest setting.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents toward the side windows.

and modes:

to provide colder airflow.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH HEATED SEATS AND REAR PASSENGER COMPARTMENT CLIMATE CONTROL (IF EQUIPPED)

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Driver Controls chapter.

+ Front fan speed control: Press to increase the fan speed for

the front climate area.

vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.

airflow is directed. To return to full automatic control, press AUTO. When choosing to control airflow manually, press repeatedly to toggle through the settings to choose:

•

Defrost: Distributes outside air through the windshield defroster

Manual override control: Allows you to manually select where

: Distributes air through the windshield defroster vents, de-mister

vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

• : Distributes air through the instrument panel vents.

•

4. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, (floor/defrost).

5. AUTO: Press to engage automatic temperature control. Select the

desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

6. MAX A/C: Distributes recirculated air through the instrument panel

the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air

distribution selection is either

setting (2 indicator lights), press again to activate low heat setting (1 indicator light), and press again to deactivate the passenger heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.

9. PASS TEMP: Press to activate separate passenger temperature

control and turn the dial to increase/decrease the airflow temperature for the passenger side of the vehicle.

: Distributes air through the instrument panel vents, floor vents

and rear seat floor vents.

: Distributes air through the floor vents and rear seat floor vents.

(defrost) and

Recirculated air: Press to activate/deactivate air recirculation in

(defrost). When the ignition switch is

(panel) or (panel/floor).

Recirculation may turn off automatically in all airflow modes, except MAX A/C.

Passenger heated seat control: Press once to activate high heat

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

10. Power/Cabin temperature: Press to activate/deactivate the

climate control system. When the system is off, outside air is prevented from entering the vehicle.

Turn the dial to increase/decrease the airflow temperature on the driver side of the vehicle. This control also adjusts the passenger side temperature when PASS TEMP is off.

11.

once to activate high heat (two indicator lights). Press again to activate low heat (one indicator light). Press again to deactivate the driver heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.

12.

the rear window defroster and heated outside mirrors (if equipped). Refer to Rear window defroster later in this chapter and Heated outside mirrors in the Driver controls chapter for more information.

13.

the front climate area.

14.

rear climate control system.

15. REAR CTRL: Press to change control of the rear climate system

from the front to the rear controls.

16. TEMP– Rear temperature control: Press to decrease the

temperature for the rear climate area.

17. TEMP+ Rear temperature control: Press to increase the

temperature for the rear climate area.

18.

the rear climate area.

19.

the rear climate area.

Driver heated seat control: Press to heat the driver seat. Press

Rear defroster/Heated mirrors: Press to activate/deactivate

– Front fan speed control: Press to decrease the fan speed for

Rear climate system power: Press to activate/deactivate the

– Rear fan speed control: Press to decrease the fan speed for

+ Rear fan speed control: Press to increase the fan speed for

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL (NAVIGATION BASED–IF EQUIPPED)

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Driver Controls chapter.

1. Climate: Press to control the climate control system through the

touch display screen. See Touchscreen functions later in this section.

Rear defroster: Press to activate/deactivate the rear window

defroster. Refer to Rear window defroster later in this chapter for more information. If your vehicle is equipped with heated mirrors, the same button will activate both.

3. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, (floor/defrost).

4. Passenger temperature: Press to activate separate passenger

temperature control and increase/decrease the air temperature on the passenger side of the vehicle.

(defrost) and

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

5. Passenger heated seat (if equipped): Press to control the

passenger heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.

the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle when used with A/C and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except

7. –

8. AUTO: Press to engage full automatic operation. Select the desired

temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

9. Driver temperature: Press to increase/decrease the air temperature

for the driver side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged.

10.

heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.

11.

When the system is off, outside air is prevented from entering the vehicle. The climate status in the touchscreen will also be turned off.

12.

defroster vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.

Recirculated air: Press to activate/deactivate air recirculation in

(defrost).

Recirculation may turn off automatically in all airflow selections except MAX A/C.

+ Fan speed control: Press to decrease/increase the fan speed.

Driver heated seat (if equipped): Press to control the driver

Power: Press to activate/deactivate the climate control system.

Defrost: Distributes outside air through the windshield

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

TOUCHSCREEN FUNCTIONS

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Driver Controls chapter.

Front Zone – Press to activate the touchscreen controls for the front climate system.

Temperature – Press the up and down arrows on the left side of the screen to increase/decrease the airflow temperature for the driver side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged. Press the up and down arrows on the right side of the screen to increase/decrease the airflow temperature for the passenger side of the vehicle.

- Distributes air through the instrument panel vents.

•

Fan Speed – Press to decrease/increase the fan speed. Dual – Press to activate/deactivate separate driver and passenger

temperature controls.

- Distributes air through the instrument panel vents, floor vents,

rear seat floor vents and de-mister vents.

- Distributes air through the floor vents, rear seat floor vents.

- Distributes air through the windshield defroster vents, de-mister

vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

To return to full automatic control, press AUTO on the main bezel.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

Max A/C – Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press MAX A/C again for normal operation.

Rear Zone Power – Press to activate/deactivate the rear climate system.

Rear Zone – Press to activate the touchscreen controls for the rear climate system.

Rear Control – Press to allow the rear passengers to control the rear climate system using the rear mounted controls.

Temperature – Press up/down to increase/decrease the rear climate temperature.

Fan Speed – Press to decrease/increase the fan speed.

VOICE COMMANDS IN CLIMATE MODE

Please refer to the Voice commands in climate mode section of the Navigation supplement for more information on using voice commands

with the climate control system.

Operating tips

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the system off or with recirculated air engaged.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

position.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

• For maximum cooling performance (MAX A/C):

In AUTO mode, press AUTO control and set to desired temperature.

In manual override mode, select air

highest speed initially, then adjust to maintain passenger comfort.

• To improve the A/C cool down, drive with the windows slightly open for 2–3 minutes after starting the vehicle or until the vehicle has “aired out.”

In extremely cold temperatures, to maximize overall heater performance it is suggested to not operate the auxiliary system (if equipped) until the engine temperature gauge crosses into the normal operating range.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan to the highest speed.

5. Direct the outer instrument panel vents toward the side windows.

AUXILIARY CLIMATE CONTROL

and set the temperature to 60°F (16°C). Set the fan to the

or , A/C and recirculated

Fan speed: Turn to select the desired fan speed.

: Distributes air through the rear vents.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

3. : Distributes air through the rear vents and rear-seat floor vents.

: Distributes air through the rear floor vents.

5. Temperature selection: Turn to select air temperature for comfort.

Rear Passenger side heated seat control (if equipped): Press

once to activate high heat setting (2 indicator lights), press again to activate low heat setting (1 indicator light), and press again to deactivate the heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.

7. REAR LOCK: Illuminates when the rear (auxiliary) climate system is

being controlled by the front controls. The rear (auxiliary) climate controls will not work when this is lit.

Rear driver side heated seat control (if equipped): Press to

heat the driver seat. Press once to activate high heat (two indicator lights). Press again to activate low heat (one indicator light). Press again to deactivate the heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.

REAR WINDOW DEFROSTER

The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice.

The ignition must be on to operate the rear window defroster. The rear defroster turns off automatically after 10 minutes or when the

ignition is turned off. To manually turn off the defroster before 10 minutes have passed, push the control again.

Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

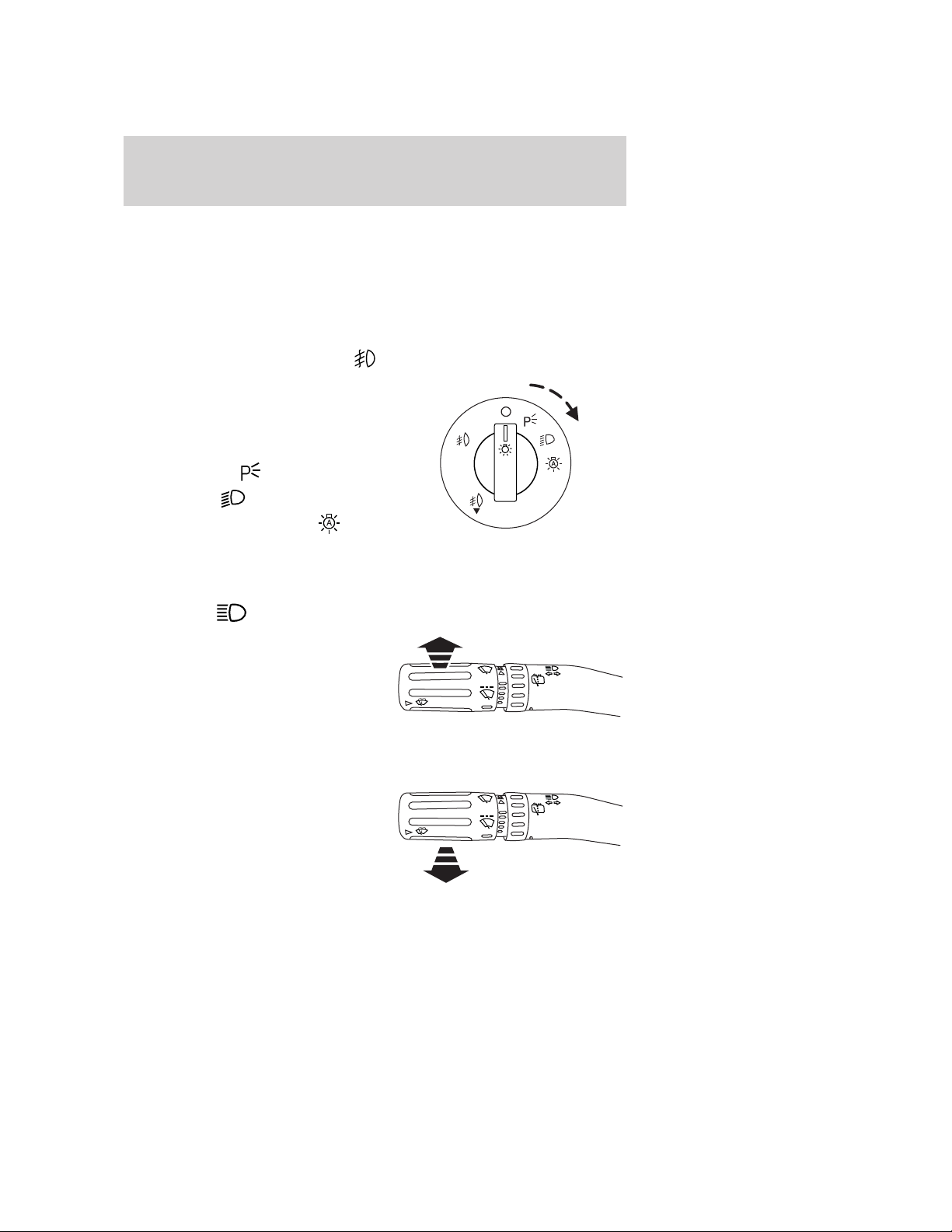

Lights

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the low beam headlamps

on.

Autolamp control (if equipped)

The autolamp system provides light sensitive automatic on/off control of the exterior lights normally controlled by the headlamp control.

• To turn autolamps on, rotate the

control clockwise to

• To turn autolamps off, rotate the

control counterclockwise to

The autolamp system also keeps the lights on for a predetermined amount of time after the ignition switch is turned to off. You can change the amount of time the lamps stay on by using the programming procedure that follows:

Note: If the vehicle is equipped with autolamps it will have the headlamps on with windshield wipers feature. If the windshield wipers are turned on for a brief period of time, the exterior lamps will turn on with the headlamp control in the Autolamp position.

Autolamps - Programmable exit delay

Programmable exit delay allows the length of the autolamp exit delay to be changed.

To program the auto lamp exit time delay:

1. Start with the ignition in the off position and the headlamp control in the autolamp position.

2. Turn the headlamp switch to off.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Lights

3. Turn the ignition switch to on and then back to off.

4. Turn the headlamp switch to the autolamp position. The headlamps will turn on.

5. Wait the desired amount of time for the exit delay you want (up to three minutes), then turn the headlamp switch to off. The headlamps will turn off.

Fog lamp control (if equipped)

With the ignition on, the fog lamps can be turned on when the headlamp control is pulled toward you and is in any of the following positions:

• Parking lamps

• Low beams

• Autolamps (when active)

The fog lamp indicator light will illuminate when the fog lamps have been turned on. The fog lamps will not operate when the high beams are active.

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass

Pull toward you to activate and release to deactivate.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Lights

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output. To activate:

• the ignition must be in the on position,

• the headlamp control is in the off, autolamps or parking lamp position

and

• the transmission must be out of the P (Park) position.

WARNING: Always remember to turn on your headlamps at

dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

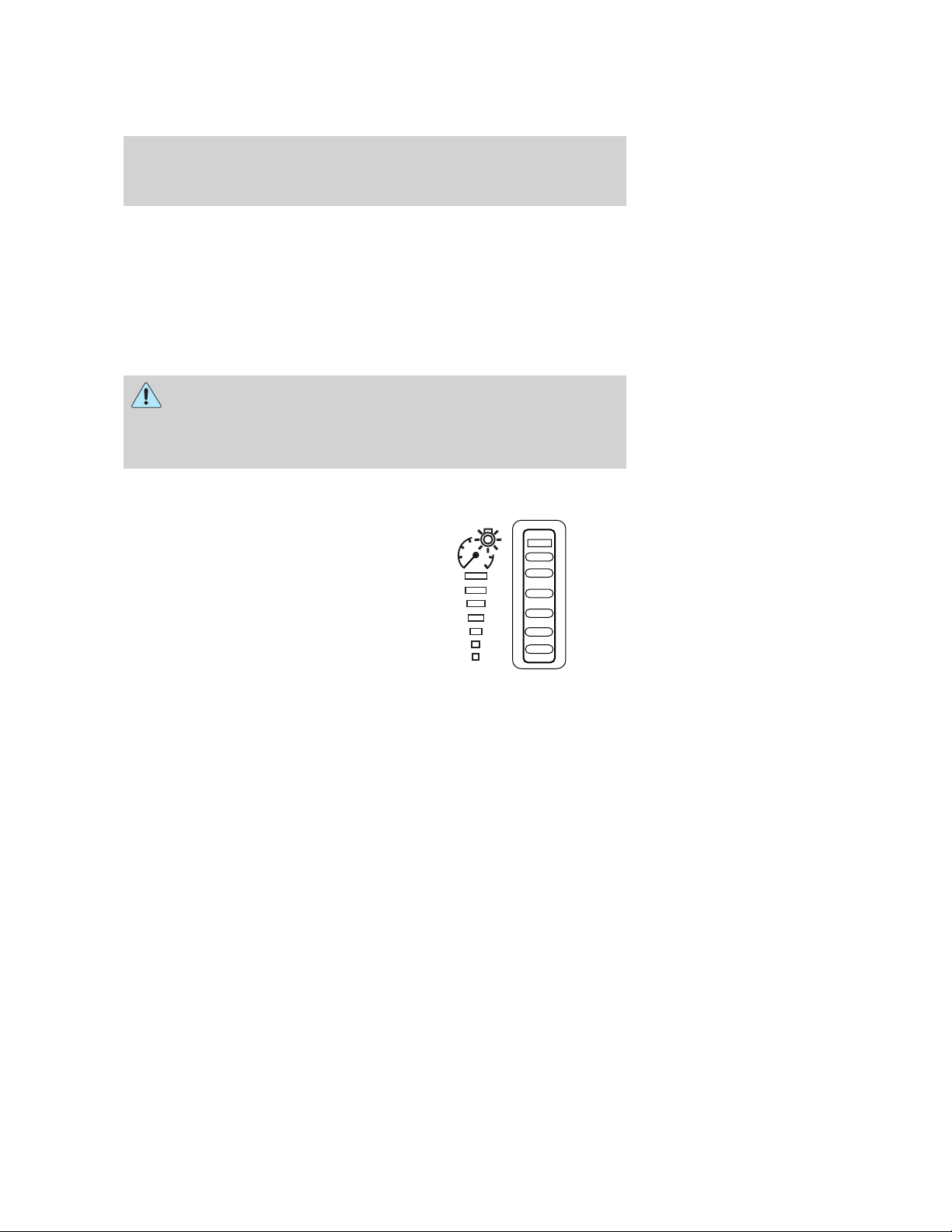

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parking lamp operation.

Move the control to the full upright position, past detent, to turn on the interior lamps.

Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer switch requires re-calibration. Rotate the dimmer switch from the full dim position to the full dome/on position to reset. This will ensure that your displays are visible under all lighting conditions.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident, the alignment of your headlamps should be checked by your authorized dealer.

Vertical aim adjustment

1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away.

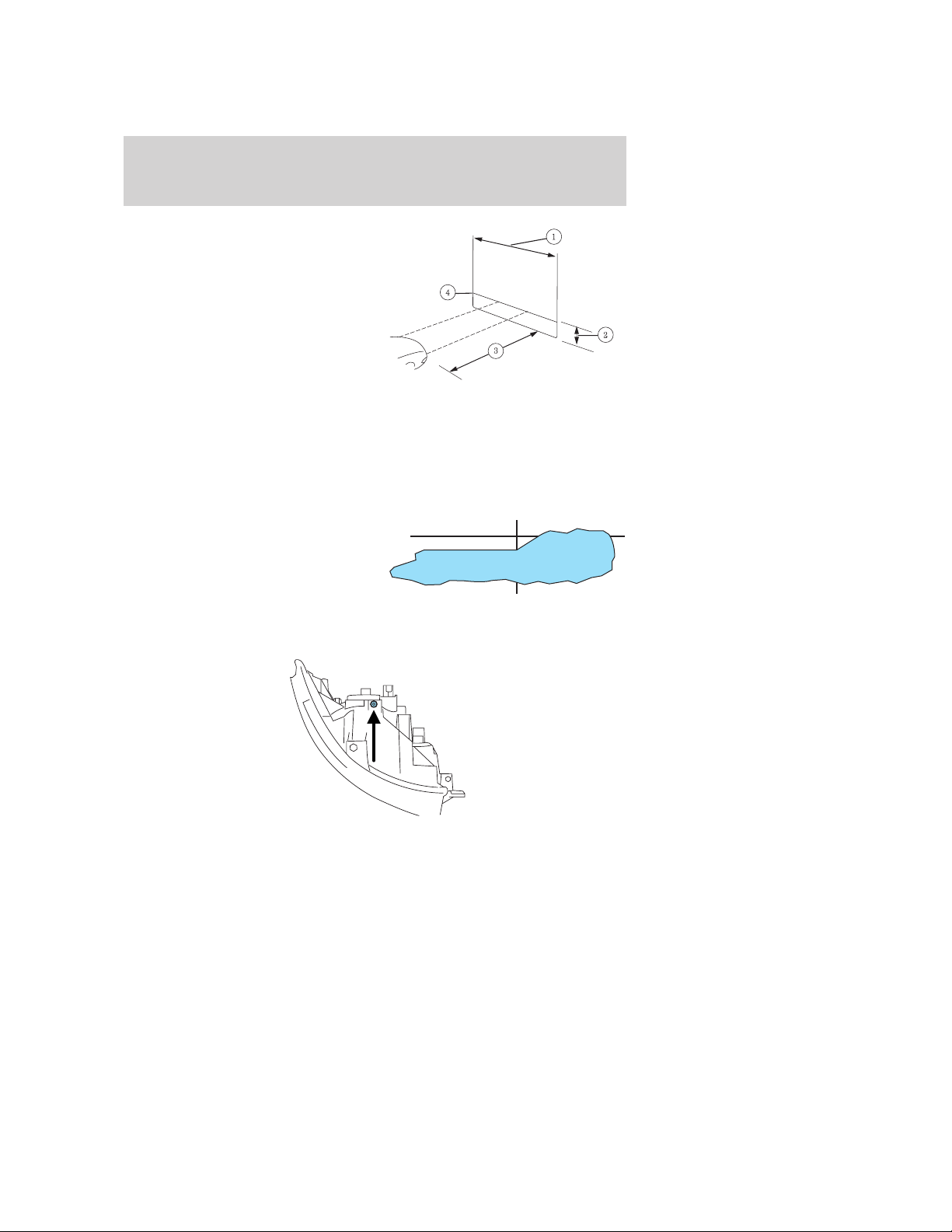

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Lights

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).

3. Turn on the headlamps to illuminate the wall or screen and open the hood.

To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.

4. There is a distinct cut-off (change from light to dark) in the left portion of the beam pattern. The top edge of this cut-off should be positioned two inches (50.8 mm) below the horizontal reference line.

HID headlamp

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Lights

Halogen headlamp

5. Locate the vertical adjuster on each headlamp. Using a Phillips #2 screwdriver, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line.

6. Close the hood and turn off the lamps.

HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

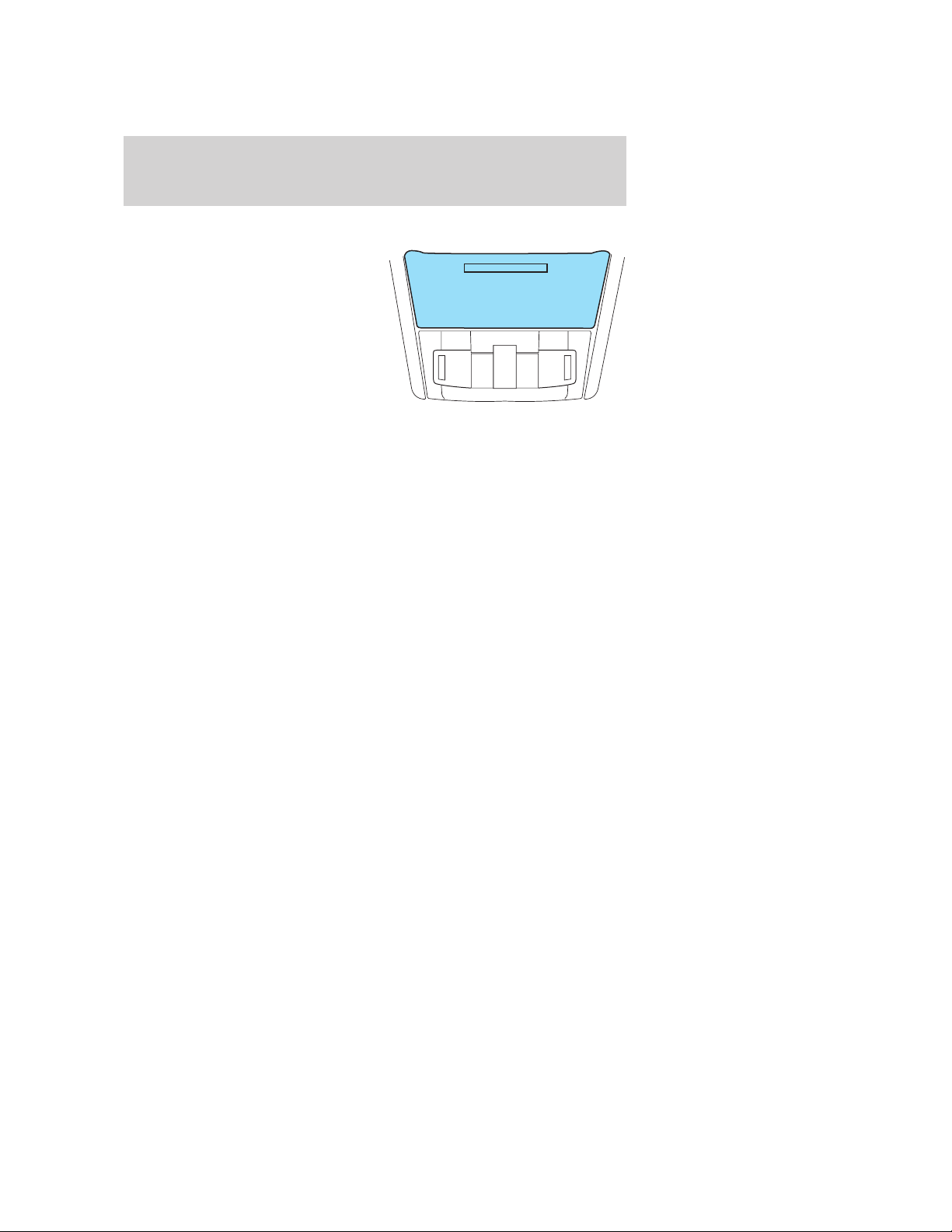

INTERIOR LAMPS Dome lamps and map lamps

The map lamps are located on the overhead console. Press the controls on either side of each map lamp to turn on the lamps.

Your vehicle may have reading lamps within the rear dome lamp(s). Press the switches on either side of the dome lamp to turn on the lamps.

Your vehicle may have second row lamps located within the grab handles. Press the lens up to turn on the lamps.

Lights

Ambient/Mood lighting (if equipped)

Illuminates footwells and cupholders with a choice of seven colors. The ambient lighting control switch is located in the center console storage area. To activate, press and release the control switch to cycle through the seven color choices plus the off state.

The lights come on whenever the ignition is in either the on or accessory position.

Note: The ambient lights will stay on until after the ignition is placed in the off position and either of the front doors are opened or the delay accessory timer expires.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Lights

BULB REPLACEMENT

Headlamp condensation

Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, condensation can occur when the temperature is cold. When normal condensation occurs, a thin film of mist can form on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions.

Examples of acceptable condensation are:

• Presence of thin mist (no streaks, drip marks or droplets)

• Fine mist covers less than 50% of the lens

Examples of unacceptable moisture (usually caused by a lamp water leak) are:

• Water puddle inside the lamp

• Large water droplets, drip marks or streaks present on the interior of

the lens

Take your vehicle to dealer for service if any of the above conditions of unacceptable moisture are present.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Number of bulbs Trade number

Front park/turn lamp 2 3157NA *Front sidemarker lamp N/A LED

2 9008 H13

Headlamp

*Tail/brake/turn signal lamp

Supplemental taillamp 2 194

*Rear sidemarker

Backup lamp 2 921

2 3057K

N/A LED (optional)

2 194

N/A LED (optional)

D3 HID

(optional)

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Lights

Function Number of bulbs Trade number

License plate lamp 2 C5WL *High-mount brake lamp N/A LED Fog lamp (if equipped) 2 H11 Map lamp 2 12V6W Dome/reading lamps 6 578 To replace all instrument panel lights - see your authorized dealer.

*To replace these lamps - see your authorized dealer.

Replacing the interior bulbs

Check the operation of all bulbs frequently.

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Replacing headlamp (high beam/low beam) halogen bulbs

1. Make sure headlamp switch is in the off position, then open the hood.

2. Reach in behind the headlamp assembly to access the bulb sockets

and connectors.

3. Locate the high beam/low beam

electrical connector and remove it by releasing the locking tab and pulling it straight down.

4. Remove the bulb socket by

turning it counterclockwise and pulling it straight out.

WARNING: Handle a halogen headlamp bulb carefully and keep

out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Install the new bulb(s) in reverse order.

Replacing HID headlamp bulbs (if equipped)

The headlamps on your vehicle use a “high intensity discharge” source. These lamps operate at a high voltage. When the bulb is burned out, the bulb and starter capsule assembly must be replaced by your authorized dealer.

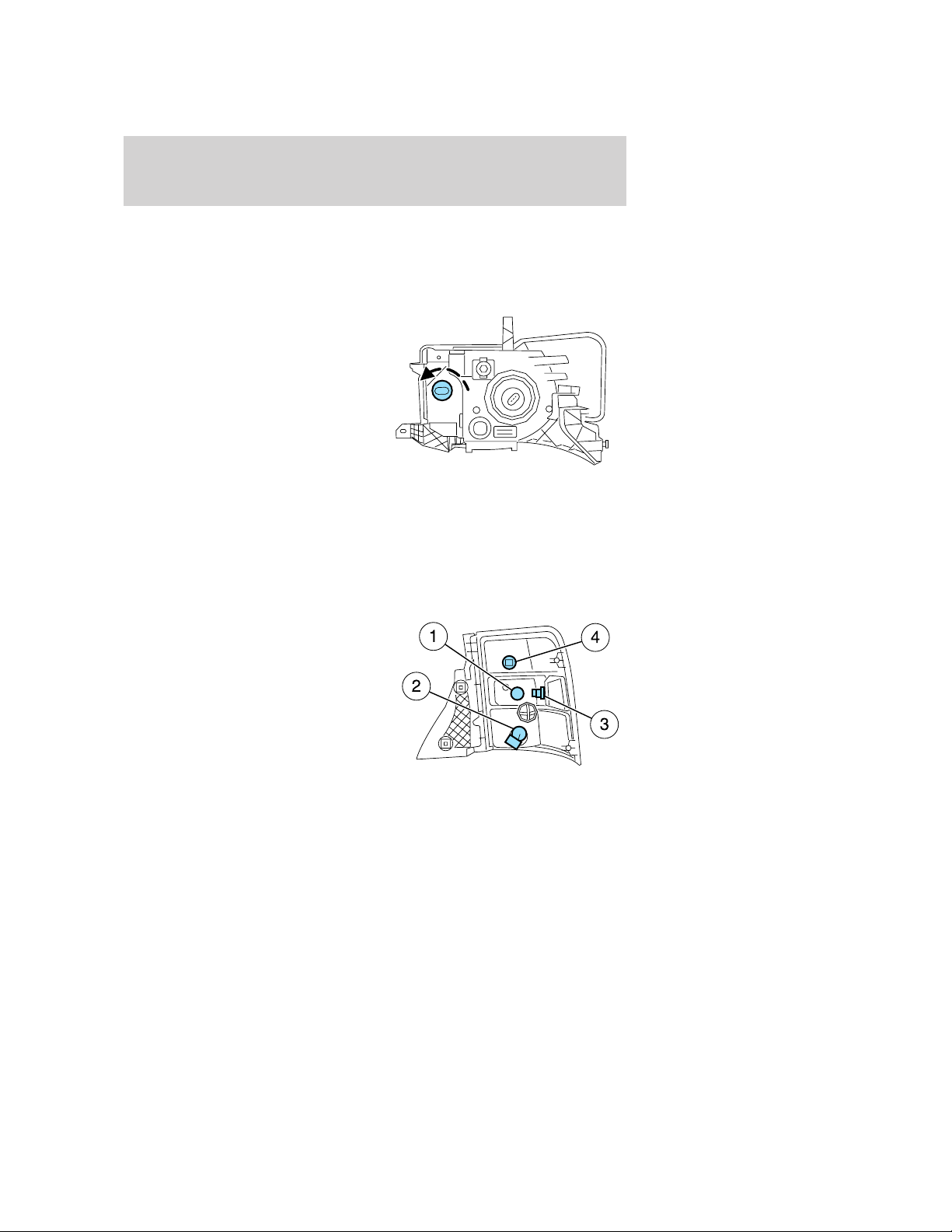

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Lights

Replacing front parking lamp/turn signal bulbs

1. Make sure headlamp switch is in the off position, then open the hood.

2. Reach behind the headlamp assembly to access the bulb sockets and connectors.

3. Remove the bulb socket by turning it counterclockwise and pulling it straight out.

4. To remove the bulb, pull it straight out of the bulb socket.

Install the new bulb(s) in reverse order.

Replacing rear stop/park/turn/backup and side marker lamp bulbs (non LED)

The stop/tail/turn/backup and side marker lamp bulbs are located in the tail lamp assembly.

Note: Your vehicle may be equipped with a stop/park/turn and side marker lamp assemblies containing integral multiple light emitting diodes (LED). If replacement is required, see your authorized dealer.

• (1) Backup lamp

• (2) Stop/park/turn signal lamp

• (3) Side marker lamp

• (4) Supplemental taillamp

1. Make sure the headlamp switch is in the off position and open the liftgate.

2. Remove the hex screws in the liftgate opening, then pull the lamp assembly away from the vehicle. This will disengage two snap attachments along the side of the vehicle.

3. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly.

4. Pull the bulb straight from the socket. Install new bulb(s) in reverse order.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Lights

Replacing license plate lamp bulbs

1. Make sure the headlamp switch is in the off position.

2. Remove the two screws from the license plate lamp assembly and pull it down.

3. Carefully pull the bulb out from the contacts.

Install new bulb(s) in reverse order.

Replacing fog lamp bulbs (if equipped)

1. Make sure the fog lamp switch is in the off position.

2. From underneath the vehicle, partially remove the tire splash shield by removing four drive screws.

After removing to allow free access to the front fog lamp bulb and electrical wire harness, the splash shield flap should be able to be repositioned.

3. Rotate the harness/bulb assembly counterclockwise, to remove from the fog lamp.

4. Carefully disconnect the bulb from the harness assembly by releasing the two snap clips.

Install the new bulb in reverse order.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

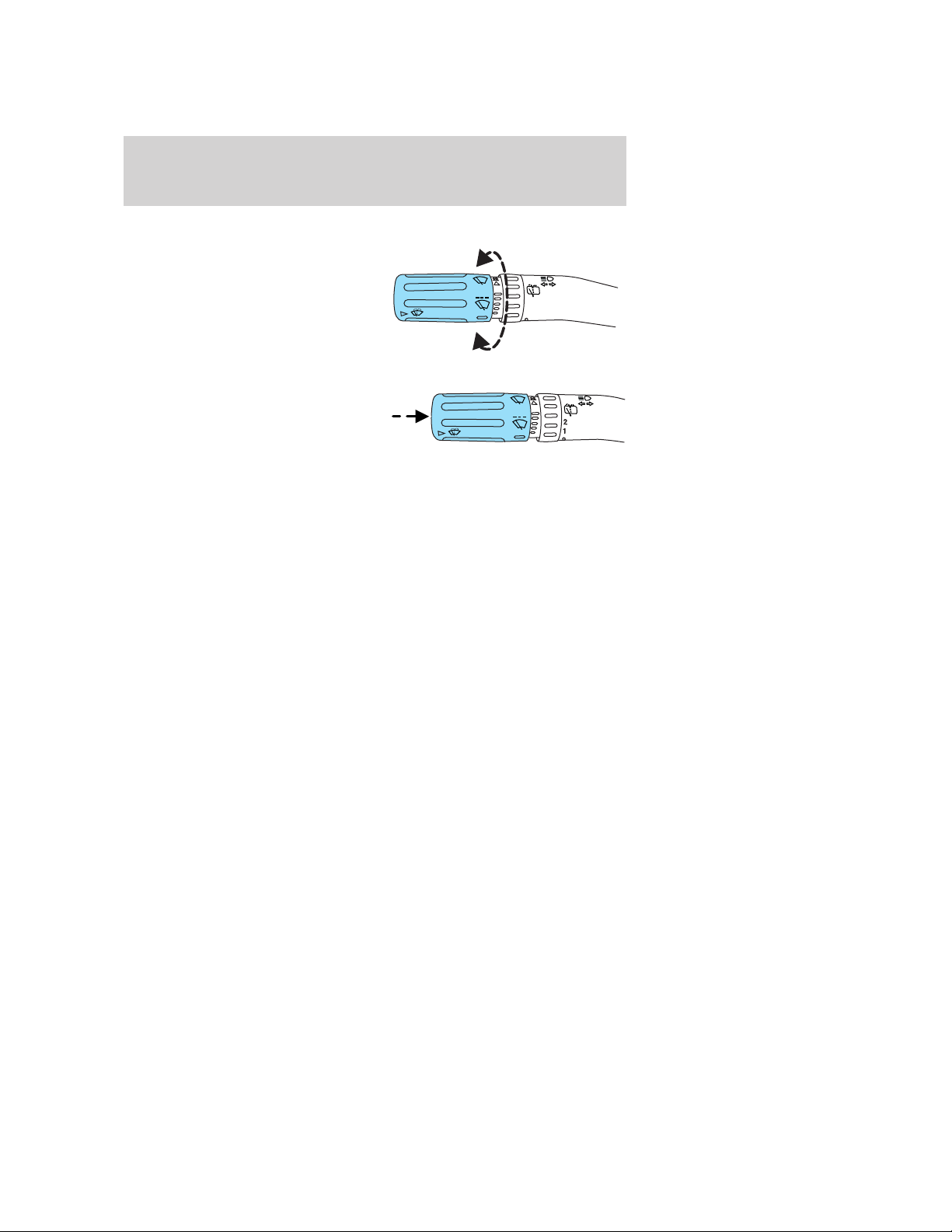

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Windshield washer: Push the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick push and hold: the wipers will swipe three times with washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.

Courtesy wipe feature: One extra wipe will occur a few seconds after washing the front window to clear any excess washer fluid remaining on the windshield.

Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.

Windshield wiper rainlamp feature (if equipped with Autolamp)

When the windshield wipers are turned on during daylight, and the headlamp control is in the autolamp position, the exterior lamps will turn on after a brief delay and will remain on until the wipers are turned off.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Rear window wiper/washer controls

For rear wiper operation, rotate the rear window wiper and washer control to the desired position. Select:

2 — Normal speed operation of rear wiper.

1 — Intermittent operation of rear wiper.

0 (off) — Rear wiper and washer off.

For rear wash cycle, rotate (and hold as desired) the rear wiper/washer control to either

position.

From either position, the control will automatically return to the INT 2 or 0 (off) position.

TILT STEERING WHEEL

To adjust the steering wheel:

1. Pull down and hold the steering

wheel release control.

2. Move the steering wheel up or

down until you find the desired location.

3. Pull the steering wheel release

control up. This will lock the steering wheel in position.

WARNING: Never adjust the steering wheel when the vehicle is moving.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the visor mirror lamp.

Slide on rod feature

The visor will slide back and forth on the rod for increased sunlight coverage. Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.

Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.

CLOCK (IF EQUIPPED)

Press the right (+) control to move the time display forwards.

Press the left (-) control to move the time display backwards.

OVERHEAD CONSOLE

The appearance of your vehicle’s overhead console will vary according to your option package.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Storage compartment

The storage compartment may be used to store a pair of sunglasses. Press the release area on the rear edge of the bin door to open the storage compartment. The door will open to full open position.

ELECTRONIC COMPASS

The compass heading is displayed as one of N, NE, E, SE, S, SW, W and NW in the Center Integrated Display (CID).

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.

Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass zone adjustment.

Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass calibration adjustment.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Compass zone adjustment

1. Determine which magnetic zone

you are in for your geographic location by referring to the zone map.

2. Turn ignition to the on position.

3. Press and hold the 7 and 9 button

simultaneously for approximately five seconds until ZONE XX appears in the CID.

4. Press and release the buttons

simultaneously until the correct zone appears in the CID.

123

6 7 8 9 1011

14 13

5. The direction will display after

the buttons are released. The zone is now updated.

Compass calibration adjustment

Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.

1. Start the vehicle.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

2. To calibrate, press and hold the 7

and 9 buttons simultaneously for approximately 10 seconds until CAL appears. Release the buttons.

3. Slowly drive the vehicle in a

circle (less than 3 mph [5 km/h]) until the CAL display changes to the direction value. It may take up to five circles to complete calibration.

4. The compass is now calibrated.

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

1. Cupholders

2. Utility compartment with coin

holder, audio input jack, USB port and power point

3. Storage drawer with cupholders

4. Rear power point outlet, 110 Volt

power point outlet and rear climate controls (if equipped).

5. Basic storage

WARNING: Use only soft cups in the cupholder. Hard objects can injure you in a collision.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Second row center console features (if equipped)

The second row center console incorporates the following features:

• Flip forward armrest to provide a flat load floor

• Utility compartment

• Cupholders

• Refrigerator unit (if equipped) in

the utility compartment. Refer to

Console refrigerator/freezer.

WARNING: Use only soft cups in the cupholder. Hard objects can injure you in a collision.

Console refrigerator/freezer (if equipped)

Your vehicle may be equipped with a refrigerator/freezer for keeping items cool/frozen.

The refrigerator/freezer will operate when the vehicle is on or the ignition is in the accessory mode. Ford recommends only using the refrigerator/freezer when the vehicle’s engine is running.

If there is a need to use the refrigerator/freezer when the engine is off, turn the ignition to the accessory mode and limit the time the refrigerator is running to avoid draining the vehicle’s battery.

To open the refrigerator/freezer, flip the console lid forward and then lift off the refrigerator/freezer cover. Be sure to replace the cover after you are done using the refrigerator/freezer. This will help it maintain a more consistent cooling temperature.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Refrigerator: Press the COOL side of the control and the indicator light on the cool side of the switch will glow when the refrigerator is active. When in cool mode the temperature will cool to approximately 41°F (5°C). Press COOL again to turn off the refrigerator or press FREEZE to switch over to freezer mode.

Freezer: Press the FREEZE side of the control and the indicator light on the freeze side of the switch will glow when the freezer is active. When in freeze mode the temperature will cool to approximately 23°F (-5°C). Press FREEZE again to turn off the freezer or press COOL to switch over to refrigerator mode.

When the vehicle is turned off, the refrigerator/freezer will also turn off and will turn back on to the last used mode (freeze or cool) once the vehicle is restarted.

Cleaning and maintenance

The refrigerator/freezer is maintenance free, but you can clean the inside of the unit and the cover with a mild soap and water solution when needed.

Note: Under certain conditions, condensation on the inside walls of the refrigerator is normal.

AUXILIARY POWER POINT (12VDC)

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

An auxiliary power point is located by the passenger’s ankle near the floor in the front console bin. A second one is located in the center console utility compartment.

A third rear auxiliary power point is located on the rear of the center console which is accessible from the second row seat.

A fourth auxiliary power point is located on the right trim panel in the rear cargo area.

Do not use the power point for operating the cigarette lighter element (if equipped).

To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.

To have full capacity usage of your power point, the engine is required to be running to avoid unintentional discharge of the battery. To prevent the battery from being discharged:

• do not use the power point longer than necessary when the engine is not running,

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

• do not leave battery chargers, video game adapters, computers and other devices plugged in overnight or when the vehicle is parked for extended periods.

Always keep the power point caps closed when not being used.

Cigar/Cigarette lighter (if equipped)

Do not plug optional electrical accessories into the cigarette lighter socket. Do not hold the lighter in with your hand while it is heating, this will

damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used.

WARNING: Improper use of the lighter can cause damage not covered by your warranty, and can result in fire or serious injury.

Power point (110 VAC) (if equipped)

The 110 VAC power point outlet is used for powering electrical devices that require up to 150W. Exceeding the 150W limit will cause the power point to cut off the power temporarily to provide overload protection.

Note: The 110 VAC power point is equipped with a safety cap and a safety twist tab. They both provide protection from inserting any object into the power point other than the 110 VAC electrical device plug. The safety cap should always be in a closed position whenever the power point outlet is not in use.

The 110 VAC power point is located on the back of the center console.

The power outlet is not designed for the following electric appliances; they may not work properly:

• Cathode ray tube type televisions.

• Motor loads, such as vacuum cleaners, electric saws and other electric

power tools, compressor-driven refrigerators, etc.

• Measuring devices, which process precise data, such as medical equipment, measuring equipment, etc.

• Other appliances requiring an extremely stable power supply: microcomputer-controlled electric blankets, touch sensor lamps, etc.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

WARNING: Do not keep electrical devices plugged in the power

point whenever the device is not in use. Do not use any extension cord with the 110 VAC power point, since it will defeat the safety protection design provided by the cap and twist tab. Doing so my cause the power point to overload due to powering multiple devices that can reach beyond the 150W load limit and could result in fire or serious injury.

The power point can switch to a fault mode when it is overloaded, overheated, or shorted. For overloading and shorting conditions, unplug your device and turn the ignition key off then on. For an overheating condition, let the system cool off, then turn the ignition key off then on.

The 110 VAC power point can provide power whenever the vehicle ignition is in the run position and the power point green indicator light located in the top left corner is turned on. Refer to the indicator light code below for the power point status.

Indicator light Code

Green light is On — Power point is ready to supply power

Green light is Off — Power point power supply is off. Ignition is not in RUN position

Green light is blinking — Power point is in fault mode

POWER WINDOWS

WARNING: Do not leave children unattended in the vehicle and

do not let children play with the power windows. They may seriously injure themselves.

WARNING: When closing the power windows, you should verify

they are free of obstructions and ensure that children and/or pets are not in the proximity of the window openings.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

Press and pull the window switches to open and close windows.

• Push down (to the first detent) and hold the switch to open.

• Pull up (to the first detent) and hold the switch to close.

Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise. This noise can be alleviated by lowering a front window approximately two to three inches.

One touch up or down (Driver’s window only)

This feature allows the driver’s window to open or close fully without holding the control down.

To operate ONE TOUCH DOWN:

• Press the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation.

If the switch is pressed and held to the normal close or ONE TOUCH UP position during a ONE TOUCH DOWN event, the window will stop. If, after 1/2 second the switch is still held, the window will perform a normal close or ONE TOUCH UP.

To operate ONE TOUCH UP:

• Pull the switch completely up to the second detent and release quickly. The window will close fully. Momentarily press the switch to any position to stop the window operation.

If the switch is pressed and held to the normal open or ONE TOUCH DOWN position during a ONE TOUCH UP event, the window will stop. If, after 1/2 second the switch is still held, the window will perform a normal open or ONE TOUCH DOWN.

AUTO

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

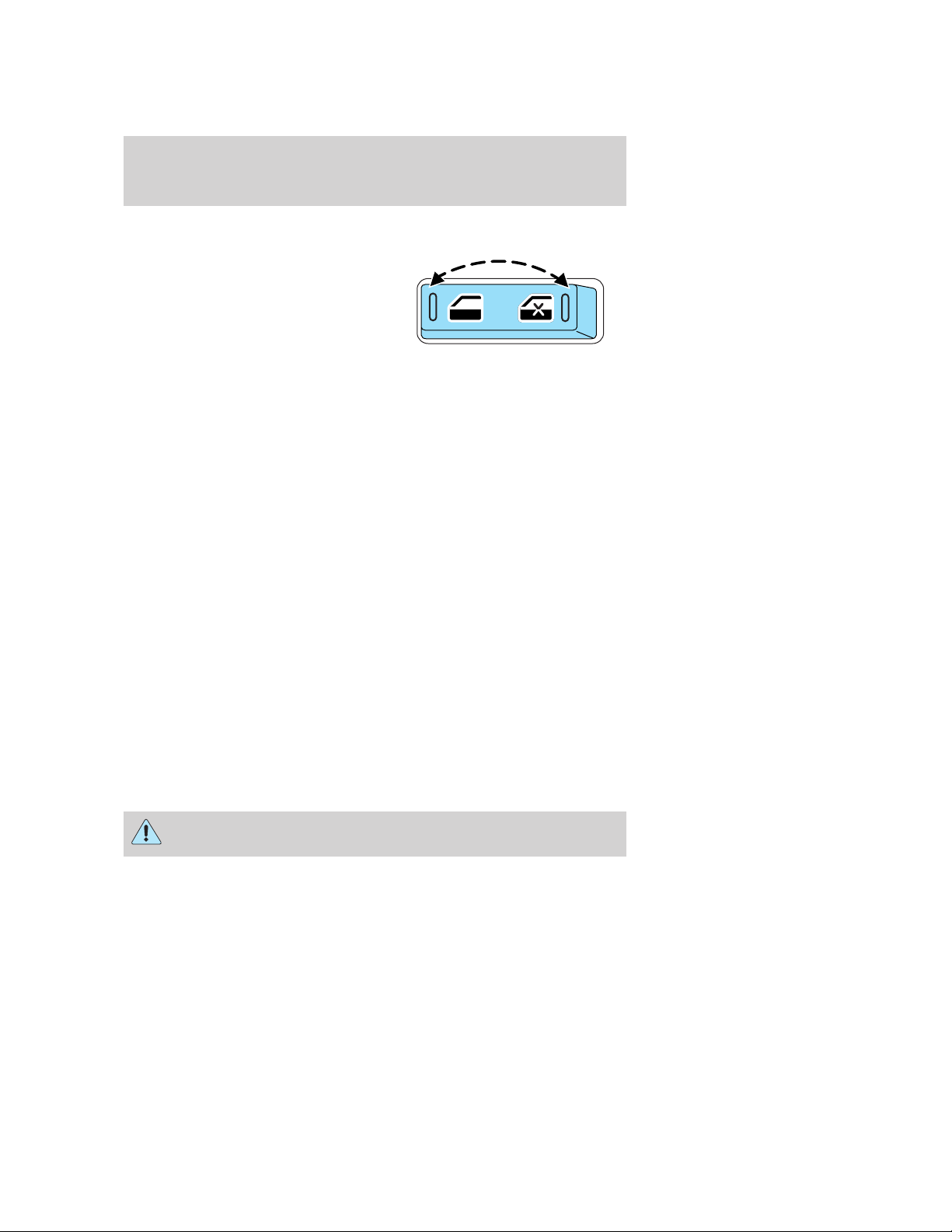

Window lock

The window lock feature allows only the driver to operate the power windows.

To lock out all the window controls (except for the driver’s) press the right side of the control. Press the left side to restore the window controls.

Bounce-Back (Driver’s window only)

When an obstacle has been detected in the window opening as the window is moving upward, the window will automatically reverse direction and move down. This is known as “bounce-back”. If the ignition is turned off (without accessory delay being active) during bounce-back, the window will move down until the bounce-back position is reached.

Security Override

To override a bounce-back condition, within two seconds after the window reaches the bounce-back position, pull and hold the switch up and the window will travel up with no bounce-back or pinch protection. If the switch is released before the window is fully closed, the window will stop. For example, this can be used to overcome the resistance of ice on the window or seals.

Accessory delay

With accessory delay, the radio, Family Entertainment DVD System (if equipped), power windows, and moon roof (if equipped) operate for up to 10 minutes after the ignition switch is turned from on to off or until one of the front doors are opened.

INTERIOR MIRROR

The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.

WARNING: Do not adjust the mirror while the vehicle is in motion.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

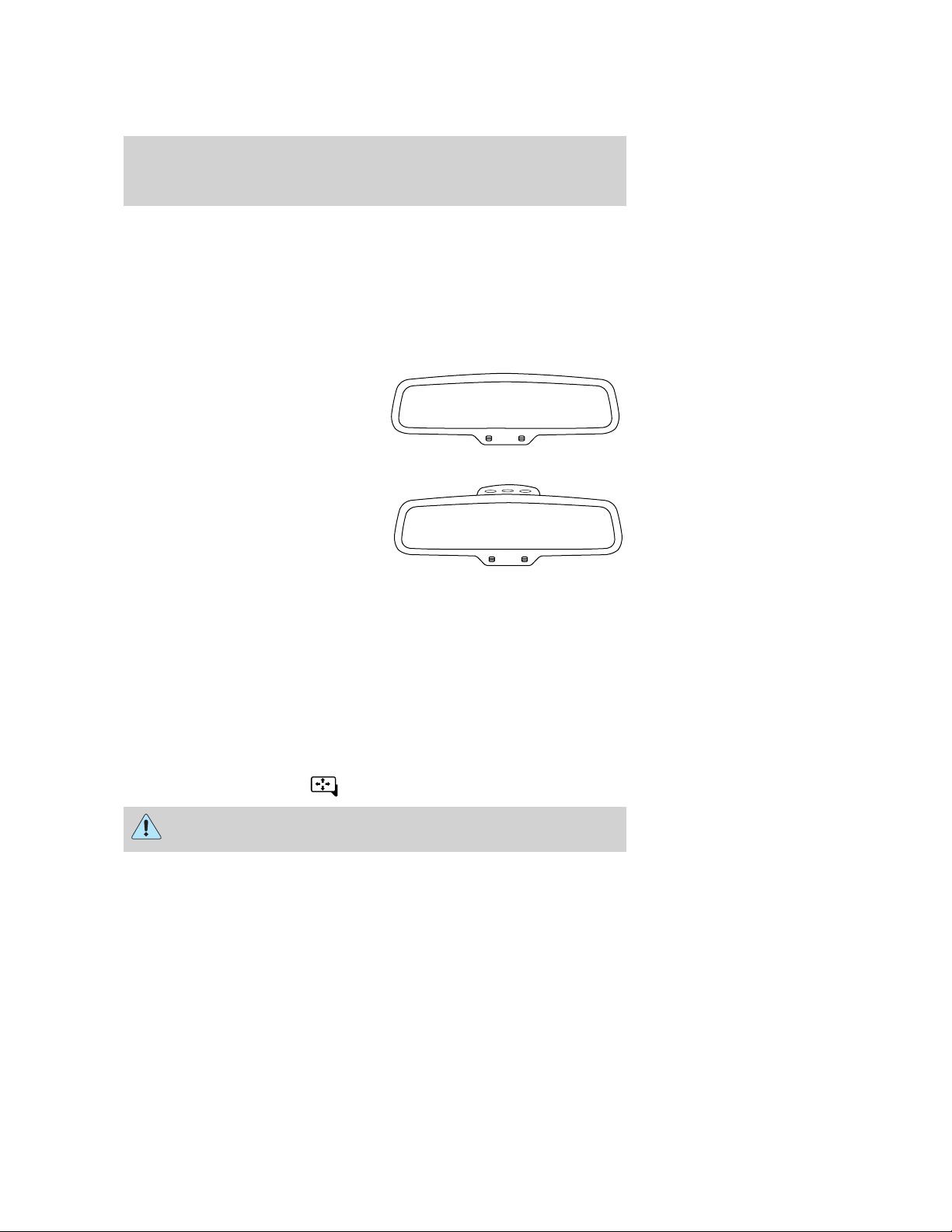

Automatic dimming interior rear view mirror

Your vehicle is equipped with an interior rear view mirror that has an auto-dimming function. The electronic day/night mirror will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the mirror. When the mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare.

Without microphone

With microphone

The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up.

Do not block the sensors on the front and back of the interior rear view mirror since this may impair proper mirror performance.

Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

EXTERIOR MIRRORS

Power side view mirrors

WARNING: Do not adjust the mirror while the vehicle is in motion.

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

To adjust your mirrors:

1. Rotate the control clockwise to

adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

Heated outside mirrors

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)

The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position.

Press and hold the rocker control to adjust accelerator and brake pedal.

• Press the back of the control to adjust the pedals toward you.

• Press the front of the control to adjust the pedals away from you.

WARNING: Never adjust the accelerator and brake pedal with feet on the pedals while the vehicle is moving.

(if equipped)

100

2009 Flex (471) Owners Guide (post-2002-fmt) USA (fus)

FORD Flex 2009 User Manual v.1

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

CONGRATULATIONS

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

Warning symbols on your vehicle

Protecting the environment

PERCHLORATE MATERIAL

BREAKING-IN YOUR VEHICLE

Special instructions

Service Data Recording

Event Data Recording

Cell phone use

Export unique (Non–United States/Canada) vehicle specific information

Instrument Cluster

WARNING LIGHTS AND CHIMES

GAUGES

Entertainment Systems

AUDIO SYSTEMS

AM/FM CD/MP3 satellite compatible sound system

Setting the clock

AM/FM Radio

RDS Radio

CD/MP3 Player

Satellite Radio (if equipped)

Sound Adjustments

Extra Features

Audio system–Navigation system based (if equipped)

Auxiliary input jack (Line in)

USB port (if equipped)

GENERAL AUDIO INFORMATION

FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)

Quick start

To play a DVD in the DVD system:

To play a CD in the DVD system:

To play an MP3 disc in the DVD system:

To play an auxiliary source through the DVD system

To listen to audio over the headphones— Dual play mode (Navigation based radio systems only):

To listen to audio over the headphones— Dual play mode (Non-navigation based radio systems):

Using the infrared (IR) wireless headphones:

Using wired headphones (not included):

To adjust display brightness:

DVD player controls

Remote control

Battery replacement

Headphones

Wireless headphones

Headphone storage

Wired headphones

Operation

Single play/Dual play

Operation with an aftermarket audio system (Headphone only mode)

Menu mode

Angle mode

Aspect ratio

Language

Subtitles

Audio CDs

Playing MP3 discs

MP3 disc quality factors

CD, MP3 and CD player care

Playing a DVD

Slow play

Frame by frame

Headphone/auxiliary jacks

Audio displays

Audio interaction

Parental control for the DVD system

General information

Safety information

Federal Communication Commission (FCC) Compliance

Care and service of the DVD player

Environmental extremes

Temperature extremes

Humidity and moisture condensation

Foreign substances
