FordFiesta Owner's handbook

The information contained in this publication was correct at the time of going to print. In the interest of development the right is reserved to change specifications, design or equipment at any time without notice and without incurring any obligations. This publication, or part thereof, may not be reproduced nor translated without our approval. Errors and omissions excepted.

Part number: 9V2J-19A321-ADA (CG3545en) 05/2008 20080618134945

Introduction

About this handbook................................5

Symbols glossary......................................5

Parts and accessories..............................5

Quick start

Quick start..................................................8

Child safety

Child seats................................................15

Child seat positioning..............................16

Booster cushions.....................................18

ISOFIX anchor points...............................19

Child safety locks.....................................21

Occupant protection

Principle of operation..............................22

Fastening the seat belts........................24

Seat belt height adjustment..................24

Seat belt reminder..................................25

Using seat belts during pregnancy......25

Disabling the passenger airbag............25

Keys and remote

controls

General information on radio

frequencies...........................................27

Using the key...........................................27

Programming the remote control........27

Changing the remote control

battery...................................................27

Locks

Locking and unlocking...........................29

Keyless entry............................................31

Engine immobiliser

Principle of operation..............................34

Coded keys.............................................34

Arming the engine immobiliser.............34

Disarming the engine immobiliser........34

Alarm

Principle of operation..............................35

Arming the alarm.....................................35

Disarming the alarm................................35

Steering wheel

Adjusting the steering wheel.................36

Audio control...........................................36

Voice control............................................37

Wipers and washers

Windscreen wipers.................................38

Windscreen washers.............................39

Rear window wiper and washers.........40

Adjusting the windscreen washer

jets..........................................................41

Checking the wiper blades....................41

Changing the wiper blades....................41

Lighting

Lighting control........................................43

Autolamps................................................44

Front fog lamps.......................................44

Rear fog lamps........................................44

Headlamp levelling..................................45

Hazard warning flashers........................46

Direction indicators.................................46

Interior lamps...........................................46

Removing a headlamp...........................47

Changing a bulb......................................47

Bulb specification chart...........................51

Windows and mirrors

Electric windows.....................................53

Exterior mirrors........................................54

Electric exterior mirrors..........................55

Interior mirror...........................................55

Auto-dimming mirror..............................55

Instruments

Gauges.....................................................56

Warning lamps and indicators..............56

Audible warnings and indicators..........60

Information displays

General information.................................61

Trip computer..........................................65

Personalised settings.............................65

Information messages...........................66

Climate control

Principle of operation..............................70

Air vents....................................................70

Manual climate control...........................70

Automatic climate control......................73

Heated windows and mirrors................75

Seats

Sitting in the correct position.................76

Head restraints........................................76

Manual seats............................................77

Rear seats................................................78

Convenience features

Sun visors.................................................79

Clock.........................................................79

Cup holders..............................................79

Cigar lighter..............................................79

Storage compartments.........................79

Map pockets............................................80

Glasses holder.........................................80

Toll reader.................................................80

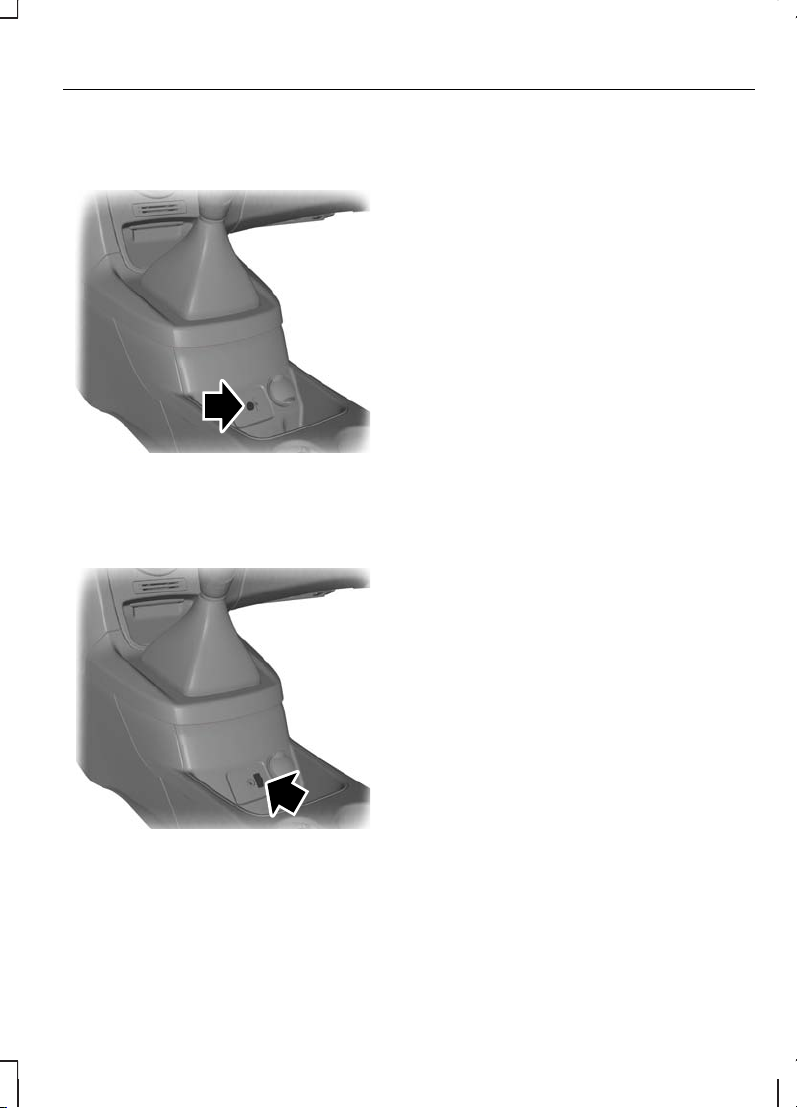

Auxiliary input (AUX IN) socket...............81

USB port....................................................81

Starting the engine

General information................................82

Keyless starting.......................................82

Steering wheel lock................................83

Starting a petrol engine..........................83

Starting a diesel engine..........................84

Diesel particulate filter (DPF).................85

Fuel and refuelling

Safety precautions..................................86

Fuel quality - Petrol.................................86

Fuel quality - Diesel.................................86

Fuel filler flap.............................................86

Catalytic converter..................................87

Refuelling..................................................87

Fuel consumption...................................87

Technical specifications.........................88

Transmission

Manual transmission...............................89

Automatic transmission.........................89

Brakes

Principle of operation..............................92

Hints on driving with ABS.......................92

Parking brake...........................................92

Stability control

Principle of operation..............................93

Using stability control..............................93

Parking aid

Principle of operation..............................94

Using the parking aid - Rear Parking

Aid..........................................................94

Using the parking aid - Front and Rear

Parking Aid............................................95

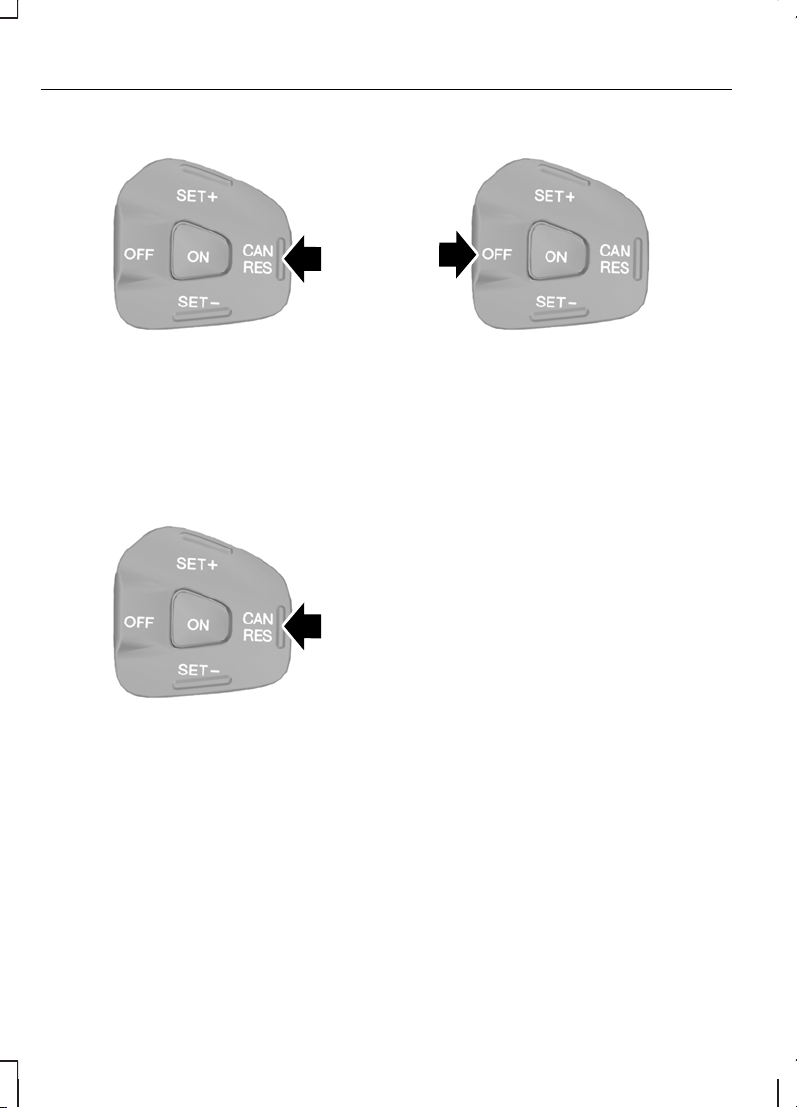

Cruise control

Principle of operation..............................97

Table of contents

Using cruise control................................97

Load carrying

General information................................99

Luggage covers......................................99

Roof racks and load carriers.................99

Towing

Towing a trailer.......................................100

Driving hints

Running-in...............................................101

Emergency equipment

First aid kit...............................................102

Warning triangle.....................................102

Status after a collision

Inspecting safety system

components.......................................103

Fuses

Fuse box locations................................104

Changing a fuse....................................104

Fuse specification chart.......................105

Vehicle recovery

Towing points..........................................112

Towing the vehicle on four wheels......112

Maintenance

General information...............................114

Opening and closing the bonnet.........114

Engine compartment overview - 1.25L

Duratec-16V (Sigma)/1.4L

Duratec-16V (Sigma)..........................116

Engine compartment overview - 1.6L

Duratec-16V Ti-VCT (Sigma).............117

Engine compartment overview - 1.4L

Duratorq-TDCi (DV) Diesel................118

Engine compartment overview - 1.6L

Duratorq-TDCi (DV) Diesel...............120

Engine oil dipstick - 1.25L Duratec-16V

(Sigma)/1.4L Duratec-16V

(Sigma)/1.6L Duratec-16V Ti-VCT

(Sigma).................................................121

Engine oil dipstick - 1.4L Duratorq-TDCi

(DV) Diesel/1.6L Duratorq-TDCi (DV)

Diesel....................................................121

Engine oil check.....................................121

Engine coolant check...........................122

Washer fluid check................................122

Brake and clutch fluid check...............122

Technical specifications........................123

Vehicle care

Cleaning the exterior.............................127

Cleaning the interior..............................127

Repairing minor paint damage............128

Vehicle battery

Using booster cables............................129

Battery connection points...................130

Wheels and tyres

General information...............................131

Changing a road wheel.........................131

Tyre repair kit..........................................135

Tyre care.................................................139

Using winter tyres..................................139

Using snow chains................................139

Technical specifications........................140

Vehicle identification

Vehicle identification plate....................142

Vehicle identification number (VIN).....142

Technical specifications

Technical specifications........................143

Table of contents

Audio introduction

Important audio information................147

Audio unit overview

Audio unit overview...............................148

Audio system security

Security code.........................................152

Audio unit operation

On/off control.........................................153

Bass/treble control................................153

Balance/fade control............................153

Waveband button.................................153

Station tuning control............................153

Station preset buttons..........................154

Autostore control..................................154

Traffic information control....................154

Audio unit menus

Automatic volume control....................156

Regional mode (REG)...........................156

Alternative frequencies.........................156

News broadcasts..................................157

Compact disc player

Compact disc playback.......................158

Track selection.......................................158

Fast forward/reverse............................158

Shuffle/random......................................158

Repeat compact disc tracks...............158

Compact disc track scanning.............159

MP3 file playback..................................159

MP3 display options..............................161

Ending compact disc playback...........161

Auxiliary input (AUX IN)

socket

Auxiliary input (AUX IN) socket............162

Audio troubleshooting

Audio troubleshooting..........................163

Telephone

General information..............................164

Telephone setup...................................164

Bluetooth setup.....................................165

Telephone controls...............................165

Using the telephone..............................166

Voice control

Principle of operation............................168

Using voice control...............................168

Audio unit commands..........................169

Telephone commands.........................176

Climate control commands..................181

Connectivity

General information..............................184

Connecting an external device...........185

Using a USB device...............................185

Using an iPod.........................................186

Appendices

Type approvals......................................188

Electromagnetic compatibility.............188

Table of contents

ABOUT THIS HANDBOOK

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this handbook. The more that you know about it, the greater the safety and pleasure you will get from driving it.

Note:

This handbook describes product features and options available throughout the range, sometimes even before they are generally available. It may describe options not fitted to your vehicle.

Note:

Always use and operate your vehicle in line with all applicable laws and regulations.

Note:

Pass on this handbook when selling your vehicle. It is an integral part of the vehicle.

SYMBOLS GLOSSARY

Symbols in this handbook

WARNING

You risk death or serious injury to yourself and others if you do not follow the instructions highlighted

by the warning symbol.

CAUTION

You risk damaging your vehicle if you do not follow the instructions highlighted by the caution symbol.

Symbols on your vehicle

When you see these symbols, read and follow the relevant instructions in this handbook before touching or attempting adjustment of any kind.

PARTS AND ACCESSORIES

Now you can be sure that your Ford parts are Ford parts

Your Ford has been built to the highest standards using high quality Ford Original Parts. As a result, you can enjoy driving it for many years.

Should the unexpected occur and a major part needs replacing, we recommend that you accept nothing less than Ford Original Parts.

The use of Ford Original Parts ensures that your vehicle is repaired to its pre-accident condition and maintains its maximum residual value.

Ford Original Parts match Ford's stringent safety requirements and high standards of fit, finish and reliability. Quite simply, they represent the best overall repair value, including parts and labour costs.

Now it is easier to tell if you have really been given Ford Original Parts. The Ford logo is clearly visible on the following parts if they are Ford Original Parts. If your vehicle has to be repaired, look for the clearly visible Ford branding and make sure that only Ford Original Parts have been used.

Look for the Ford logo on the following parts

Sheet metal

•

Bonnet

•

Wing

•

Doors

•

Luggage compartment lid

Introduction

E102435

Bumper and radiator grille

•

Radiator grille

•

Front and rear bumper

E102436

Exterior mirror

E102437

Glass

•

Rear window

•

Side glass

•

Windscreen

Introduction

E89939

Lighting

•

Rear lamps

•

Headlamp

E102438

Introduction

QUICK START

Instrument panel overview

Left-hand drive

E102562

HGFEDCBA

S R Q P O N M L JK I

Quick start

Right-hand drive

E102559

AECDBFGH

I J L K Q O

NM SR

Air vents. See Air vents (page 70).

Multi-function lever: Direction indicators. See Direction indicators (page

46). Main beam. See Lighting control (page 43). See Voice control (page 37). See Trip computer (page 65).

Instrument cluster. See Gauges (page 56). See Warning lamps and indicators (page 56).

Start button. See Keyless starting (page 82).

Wiper lever. See Wipers and washers (page 38).

Multi functional display.F

Audio unit. See Audio unit overview (page 148).

Quick start

Door lock button. See Locking and unlocking (page 29).

Hazard warning flasher switch. See Hazard warning flashers (page 46).

Climate controls. See Climate control (page 70).

Parking aid warning lamp. See Using the parking aid (page 95).

Passenger airbag deactivation warning lamp. See Disabling the passenger airbag (page 25).

Ignition switch.M

Cruise control. See Using cruise control (page 97).

Horn.O

Steering wheel adjustment. See Adjusting the steering wheel (page

36).

Audio control. See Audio control (page 36).

Bonnet release lever. See Opening and closing the bonnet (page 114).

Lighting control. See Lighting control (page 43). Front fog lamps. See Front fog lamps (page 44). Rear fog lamp. See Rear fog lamps (page

44).

Locking and unlocking

Unlocking the vehicle

E71963

UnlockA

LockB

Luggage compartment lid unlock

Press the unlock button once to unlock the vehicle. See Programming the remote control (page 27).

Press the lock button once to activate central locking.

Press the lock button twice within three seconds to activate double locking.

Press the luggage compartment lid unlock button twice within three seconds to unlock the luggage compartment.

See Locking and unlocking (page

29).

Quick start

Keyless entry

E78276

Passive locking and unlocking requires a valid passive key to be located within one of the three external detection ranges.

Locking the vehicle

E87384

Locking buttons are located on each of the front doors.

Press a locking button once.

Unlocking the vehicle

E87384

Press a locking button once.

See Keyless entry (page 31).

Keyless starting

E85766

Press the start button once.

Starting with automatic transmission

Note:

Releasing the brake pedal during engine start will stop the engine cranking and return to ignition on.

Make sure the transmission is in P or N.

2. Fully depress the brake pedal.

3. Briefly press the start button.

Starting with manual transmission

Note:

Releasing the clutch pedal during engine start will stop the engine cranking and return to ignition on.

Quick start

1. Fully depress the clutch pedal.

2. Briefly press the start button.

See Keyless starting (page 82).

Soot overload warning lamp

E95449

It will illuminate when a regeneration is due. See

Diesel particulate filter

(DPF) (page 85).

CAUTIONS

If it illuminates with the malfunction indicator lamp, it indicates an

overload of soot. Have this checked by a properly trained technician as soon as possible.

If it illuminates with the powertrain

warning lamp, your diesel particulate

filter may need replacing. Have this checked by a properly trained technician immediately.

Adjusting the steering wheel

WARNING

Never adjust the steering wheel when the vehicle is moving.

E95178

WARNING

Make sure that you fully engage the locking lever when returning it to its original position.

E95179

See Adjusting the steering wheel (page 36).

Manual climate control

Defrosting and demisting the windscreen

E102397

Quick start

Heating the interior quickly

E102393

Cooling the interior quickly

E102396

See Manual climate control (page

70).

Automatic climate control

Windscreen defrosting and demisting

E91392

Press the windscreen defrosting and demisting button.

See Automatic climate control (page 73).

Autolamps

E70719

The headlamps will come on and go off automatically depending on the ambient light.

See Lighting control (page 43).

Direction indicators

E102016

If the lever is tapped up or down, the direction indicators will flash three times.

See Direction indicators (page 46).

Quick start

Autowipers

E102034

Move the lever up one position.

The rain sensor will continuously measure the amount of water on the windscreen and adjust the speed of the front wipers automatically.

Adjust the sensitivity of the rain sensor using the rotary control.

See Windscreen wipers (page 38).

Airbag

E69213

WARNING

To avoid the risk of death or serious injury, never use a rearward facing child restraint in the front, unless the

air bag is off.

See Child safety (page 15).

See Disabling the passenger airbag (page 25).

Quick start

CHILD SEATS

E68916

WARNINGS

Secure children that are less than 150 centimetres tall or less than 12 years of age in a suitable, approved

child restraint, in the rear seat.

Original text according to ECE R94.01: Extreme Hazard! Do not use

a rearward facing child restraint on a seat protected by an air bag in front of it!

Read and follow the manufacturer’s

instructions when you are fitting a

child restraint.

Do not modify child restraints in any

way.

Do not hold a child on your lap when

the vehicle is moving.

Do not leave unattended children in

your vehicle.

If your vehicle has been involved in

an accident, have the child restraints

checked by properly trained technicians.

Note:

Mandatory use of child restraints

varies from country to country.

Only child restraints certified to ECE-R44.03 (or later) have been tested and approved for use in your vehicle. A choice of these are available from your Dealer.

Child restraints for different mass groups

Use the correct child restraint as follows:

Baby safety seat

E68918

Secure children that weigh less than 13 kilograms in a rearward facing baby safety seat (Group 0+) in the rear seat.

Child safety

Child safety seat

E68920

Secure children that weigh between 13 and 18 kilograms in a child safety seat (Group 1) in the rear seat.

CHILD SEAT POSITIONING

WARNINGS

When using a child seat with a support leg, the support leg must rest securely on the floor.

When using a child seat with a seat belt, make sure that the seat belt is not slack or twisted.

CAUTION

The child seat must rest tightly against the vehicle seat. It may be necessary to lift or remove the head

restraint. See Head restraints (page

76).

Note:

When using a child seat on a front seat, it may prove difficult to tighten the lap section of the seat belt without slack remaining. If this is the case, adjust the seatback to the fully upright position and raise the height of the seat. See Seats (page 76).

Mass group categoriesSeating positions

3210+0

22 - 36 kg15 - 25

9 - 18 kgUp to 13

Up to 10

UF¹UF¹UF¹XXFront passenger seat

with airbag ON

U¹U¹U¹U¹U¹Front passenger seat

with airbag OFF

UUUUURear seats

X Not suitable for children in this mass group.

U Suitable for universal category child seats approved for use in this mass group.

U¹ Suitable for universal category child seats approved for use in this mass group.

However, we recommend that you secure children in a government approved child seat, in the rear seat.

Child safety

UF¹ Suitable for universal category forward facing child seats approved for use in this

mass group. However, we recommend that you secure children in a government approved child seat, in the rear seat.

ISOFIX child seats

Mass group categoriesSeating positions

3210+0

22 - 36 kg15 - 25

9 - 18 kgUp to 13

Up to 10

XXIL, IUF**ILILRear seat ISOFIX seats

XXB, B1EERear seat ISOFIX

classes*

X Not suitable for children in this mass group.

IUF Suitable for universal category ISOFIX child seats approved for use in this mass

group.

IL Suitable for the following ISOFIX child seats: Roemer Duo ISOFIX (group 1), Roemer Babysafe ISOFIX (group 0+). In addition, any semi-universal ISOFIX child seat may be used if indicated in the child seat manufacturers vehicle list.

Note:

* As defined by ECE-R16.

Note:

** When you are purchasing an ISOFIX seat, make sure that you know the correct

mass group and ISOFIX size class for the intended seating locations.

Note:

** Make sure that the top tether mechanism does not interfere with the luggage

cover.

Child safety

BOOSTER CUSHIONS

WARNINGS

Do not install a booster seat or a booster cushion with only the lap strap of the seat belt.

Do not install a booster seat or a booster cushion with a seat belt that is slack or twisted.

Do not put the seat belt under your child’s arm or behind its back.

Do not use pillows, books or towels to boost your child’s height.

Make sure that your children sit in an upright position.

Secure children that weigh more than 15 kilograms but are less than 150 centimetres tall in a booster

seat or a booster cushion.

CAUTION

When using a child seat on a rear seat, make sure that the child seat rests tightly against the vehicle seat.

It may be necessary to lift or remove the head restraint. See Head restraints (page 76).

Booster seat (Group 2)

E70710

We recommend that you use a booster seat that combines a cushion with a backrest instead of a booster cushion only. The raised seating position will allow you to position the shoulder strap of the adult seat belt over the centre of your child’s shoulder and the lap strap tightly across its hips.

Booster cushion (Group 3)

E68924

Child safety

ISOFIX ANCHOR POINTS

WARNING

Use an anti-rotation device when using the ISOFIX system. We recommend the use of a top tether

or support leg.

Your vehicle is fitted with ISOFIX anchor points that accommodate universally approved ISOFIX child seats.

The ISOFIX system comprises of two rigid attachment arms on the child seat that attach to anchor points on the outboard rear seats, where the cushion and backrest meet. Tether anchor points are fitted behind the outboard rear seats for child seats with a top tether.

Top tether anchor points

E87146

Attaching a child seat with top tethers

WARNING

Do not attach a tether strap to anything other than the correct tether anchor point.

Note:

Where applicable, remove the

luggage cover to ease installation. See Luggage covers (page 99).

E87591

1. Place the child seat on the back seat cushion and fold the relevant seatback forwards. See Rear seats (page

78).

2. Remove the head restraint. See

Head restraints (page 76).

WARNING

Make sure the top tether strap is not slack or twisted and is properly located on the anchor point.

3. Route the tether strap to the anchor point.

WARNING

Make sure that the seatback is secure and fully engaged in the catch.

4. Push the seatback to the upright position.

Child safety

E87145

5. Push the child seat back firmly to engage the ISOFIX lower anchor points.

6. Tighten the tether strap in line with the child seat manufacturer's instructions.

Child safety

CHILD SAFETY LOCKS

WARNING

You cannot open the doors from inside if you have put the child safety locks on.

E73697

LockA

UnlockB

Child safety

PRINCIPLE OF OPERATION

Airbags

WARNINGS

Do not modify the front of your vehicle in any way. This could adversely affect deployment of the

airbags.

Original text according to ECE R94.01: Extreme Hazard! Do not use

a rearward facing child restraint on a seat protected by an airbag in front of it!

Wear a seat belt and keep sufficient

distance between yourself and the

steering wheel. Only when you use the seat belt properly, can it hold you in a position that allows the airbag to achieve its optimum effect. See Sitting in the correct position (page 76).

Have repairs to the steering wheel,

steering column, seats, airbags and

seat belts carried out by a properly trained technician.

Keep the areas in front of the

airbags free from obstruction. Do

not affix anything to or over the airbag covers.

Do not poke sharp objects into

areas where airbags are fitted. This

could damage and adversely affect deployment of the airbags.

Use seat covers designed for seats

with side airbags. Have these fitted

by a properly trained technician.

Note:

You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal.

Note:

Only wipe airbag covers with a damp cloth.

Driver and front passenger airbags

E74302

The driver and front passenger airbags will deploy during significant frontal collisions or collisions that are up to 30 degrees from the left or the right. The airbags will inflate within a few thousandths of a second and deflate on contact with the occupants, thus cushioning forward body movement. During minor frontal collisions, overturns, rear collisions and side collisions, the driver and front passenger airbags will not deploy.

Driver knee airbag

CAUTION

Do not attempt to open the driver knee airbag cover.

The driver knee airbag will deploy during frontal collisions or collisions that are up to 30 degrees from the left or the right. The airbag will inflate within a few thousandths of a second and deflate on contact with the occupants, thus providing a cushion between the driver’s knees and the steering column. During overturns, rear collisions and side collisions, the knee airbag will not deploy.

Occupant protection

For item location: See Quick start (page 8).

Note:

The knee airbag has a lower deployment threshold than the front airbags. During a minor collision, it is possible that only the knee airbag deploys.

Side airbags

E72658

Side airbags are fitted inside the seatback of the front seats. A label indicates that side airbags are fitted to your vehicle.

The side airbags will deploy during significant lateral collisions. The airbags will inflate within a few thousandths of a second and deflate on contact with the occupants, thus providing protection for the chest and shoulder areas. During minor lateral collisions, overturns, front collisions and rear collisions, the side airbags will not deploy.

Curtain airbags

E75004

Curtain airbags are fitted inside the trim panels over the front and rear side windows. Moulded badges in the B-pillar trim panels indicate that curtain airbags are fitted to your vehicle.

The curtain airbags will deploy during significant lateral collisions. The airbag will inflate within a few thousandths of a second and deflate on contact with the occupants, thus providing protection for the head. During minor lateral collisions, front collisions, rear collisions, or overturns the curtain airbags will not deploy.

Seat belts

WARNINGS

Wear a seat belt and keep sufficient distance between yourself and the

steering wheel. Only when you use the seat belt properly, can it hold you in a position to achieve its optimum effect. See Sitting in the correct position (page 76).

Never use a seat belt for more than

one person.

Use the correct buckle for each seat

belt.

Occupant protection

WARNINGS

Do not use a seat belt that is slack or twisted.

Do not wear thick clothing. The seat belt must fit tightly around your body to achieve its optimum effect.

Position the shoulder strap of the seat belt over the centre of your shoulder and position the lap strap

tightly across your hips.

The driver and front passenger seat belt retractors are fitted with a seat belt pretensioner. Seat belt pretensioners have a lower deployment threshold than the airbags. During minor collisions, it is possible that only the seat belt pretensioners will deploy.

FASTENING THE SEAT BELTS

WARNING

Insert the tongue into the buckle until you hear a distinct click. You have not fastened the seat belt

properly if you do not hear a click.

E74124

E85817

Pull the belt out steadily. It may lock if you pull it sharply or if the vehicle is on a slope.

Press the red button on the buckle to release the belt. Let it retract completely and smoothly.

SEAT BELT HEIGHT ADJUSTMENT

E104440

Note:

Lifting the slider slightly while pressing the locking button makes it easier to release the locking mechanism.

To raise or lower, press the locking button on the adjuster and move as necessary.

Occupant protection

SEAT BELT REMINDER

WARNING

Do not sit on top of a fastened seat belt to prevent the seat belt

reminder from coming on. The occupant protection system will only provide optimum protection when you use the seat belt properly.

The seat belt reminder warning lamp illuminates and an audible

warning will sound if you or your front seat passenger have not fastened your seat belts and the vehicle exceeds 25 km/h (16 mph). It will also illuminate if your seat belts are unfastened when the vehicle is moving. The audible warning will go off after five minutes but the seat belt reminder warning lamp will remain on until you fasten your seat belts.

Deactivating the seat belt reminder

See your dealer.

USING SEAT BELTS DURING PREGNANCY

E68587

WARNING

Position the seat belt correctly for your safety and that of your unborn child. Do not use only the lap strap

or the shoulder strap.

Position the lap strap comfortably across your hips and low beneath your pregnant abdomen. Position the shoulder strap between your breasts, above and to the side of your pregnant abdomen.

DISABLING THE PASSENGER AIRBAG

WARNING

Make sure that the passenger airbag is disabled when using a rearward facing child restraint on the

front passenger seat.

E71313

Occupant protection

Fitting the passenger airbag deactivation switch

WARNING

If you need to fit a child restraint on a seat protected by an operational

airbag in front of it, have a passenger airbag deactivation switch fitted. Ask your dealer for further information.

Note:

The key switch is located in the glove compartment with an airbag deactivation lamp in the instrument panel.

If the airbag warning lamp illuminates or flashes when you are driving, this indicates a malfunction. See Warning lamps and indicators (page 56). Remove the child restraint and have the system checked immediately.

Disabling the passenger airbag

A B

E71312

DisabledA

EnabledB

Turn the switch to position A.

When you switch the ignition on, check that the passenger airbag deactivation warning lamp illuminates.

Enabling the passenger airbag

WARNING

Make sure that the passenger airbag is enabled when you are not using a child restraint on the front

passenger seat.

Turn the switch to position B.

Occupant protection

GENERAL INFORMATION ON RADIO FREQUENCIES

CAUTION

The radio frequency used by your remote control can also be used by

other short distance radio transmissions (e.g. amateur radios, medical equipment, wireless headphones, remote controls and alarm systems). If the frequencies are jammed, you will not be able to use your remote control. You can lock and unlock the doors with the key.

Note:

You could unlock the doors if you press the buttons on the remote control unintentionally.

The operating range between your remote control and your vehicle varies depending on the environment.

USING THE KEY

Remote control with flip key blade

E74382

PROGRAMMING THE REMOTE CONTROL

You can programme a maximum of eight remote controls to use with your vehicle (including any supplied with your vehicle). Ask your dealer for instructions.

CHANGING THE REMOTE CONTROL BATTERY

Remote control with a folding key blade

E74383

1. Insert a screwdriver as far as possible into the slot on the side of the remote control, push it towards the key blade and remove the key blade.

E74384

2. Twist the screwdriver in the position shown to start separating the two halves of the remote control.

Keys and remote controls

E74385

3. Twist the screwdriver in the position shown to separate the two halves of the remote control.

CAUTION

Do not touch the battery contacts or the printed circuit board with the screwdriver.

4. Carefully prise out the battery with the screwdriver.

5. Install a new battery (3V CR 2032) with the + facing downwards.

6. Assemble the two halves of the remote control.

7. Install the key blade.

Remote control without a folding key blade

E74386

1. Insert a screwdriver into the recess on the back of the key and remove the key blade.

2. Release the retaining clips with the screwdriver and separate the two halves of the remote control.

CAUTION

Do not touch the battery contacts or the printed circuit board with the screwdriver.

3. Carefully prise out the battery with the screwdriver.

4. Install a new battery (3V CR 2032) with the + facing upwards.

5. Assemble the two halves of the remote control.

6. Install the key blade.

Keys and remote controls

+ 172 hidden pages
