Ford F650 750 2011 Owner's Manual

Download

Page 1

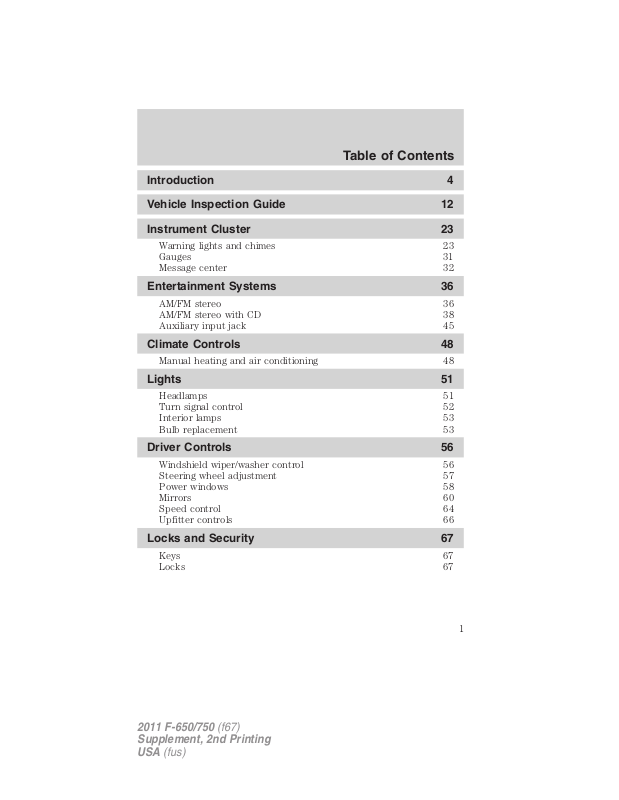

Introduction 4

Vehicle Inspection Guide 12

Instrument Cluster 23

Warning lights and chimes 23 Gauges 31 Message center 32

Entertainment Systems 36

AM/FM stereo 36 AM/FM stereo with CD 38 Auxiliary input jack 45

Climate Controls 48

Manual heating and air conditioning 48

Lights 51

Headlamps 51 Turn signal control 52 Interior lamps 53 Bulb replacement 53

Driver Controls 56

Windshield wiper/washer control 56 Steering wheel adjustment 57 Power windows 58 Mirrors 60 Speed control 64 Upfitter controls 66

Locks and Security 67

Keys 67 Locks 67

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 2

Table of Contents

Seating and Safety Restraints 69

Seating 69 Safety restraints 80 Child restraints 88

Driving 104

Starting 104 Brakes 111 Air suspension 132 Transmission operation 134 Vehicle loading 147

Roadside Emergencies 153

Hazard flasher switch 154 Fuses and relays 154 Jump starting 162 Wrecker towing 166

Customer Assistance 170

Getting assistance outside the U.S. and Canada 172 Reporting safety defects (U.S. only) 174 Reporting safety defects (Canada only) 174

Cleaning 175

Underbody preservation 181

Maintenance and Specifications 182

Hood 190 Engine oil 193 Battery 193 Engine coolant 196 Fuel information 197 Diesel Exhaust Fluid (DEF) 201 Wheel lug nut torque 229 Tire information 229 Lubricant specifications 237 Refill capacities 250

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 3

Table of Contents

Scheduled Maintenance Guide 254

Index 286

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 4

Introduction

CONGRATULATIONS

Congratulations on acquiring your new Ford Motor Company product. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Mexico: www.ford.com.mx

• In Australia: www.ford.com.au

Additional owner information is given in separate publications.

This vehicle’s Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on this vehicle’s Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 5

Introduction

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 6

Introduction

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.

Event Data Recording

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger seatbelts were

buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or the brake pedal; and

• How fast the vehicle was travelling; and

• Where the driver was positioning the steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 7

Introduction

limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC威 supplement for more information.

Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only) the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”) only to help provide you with the directions, traffic reports, or business searches your request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 8

Introduction

CELL PHONE USE

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.

FEDERAL HIGHWAY ADMINISTRATION REGULATION

Regulations such as those issued by the Federal Highway Administration or issued pursuant to the Occupational Safety and Health Act (OSHA), and/or state and local laws and regulations may require additional equipment for the way you intend to use the vehicle. It is the responsibility of the registered owner to determine the applicability of such laws and regulations to your intended use for the vehicle, and to arrange for the installation of required equipment. Your dealer has information about the availability of equipment which may be ordered for your vehicle.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 9

Introduction

ENTERING, EXITING AND/OR CLIMBING ON THIS VEHICLE

You must be careful and deliberate to minimize the possibility of personal injury from a slip and fall when entering, exiting and/or climbing on this vehicle. Always use the steps and assist handles before climbing. Do not skip any steps or assist handles. Use three point contact at all times with at least two feet and one hand or two hands and one foot firmly placed during all phases of entering, exiting and/or climbing. Always keep your shoe soles and hands clean. Keep the steps and assist handles free of snow, ice, oil, grease, substances or debris. Be sure to use extra care in bad weather. Avoid wearing thick gloves. Always perform trailer hook-up while standing on the ground.

WARNING: Do not carry items while entering, exiting, and/or

climbing. Make sure you keep a firm grip. Always FACE the VEHICLE STEP and HANDLE SYSTEM while climbing up and down. Do not climb behind the cab unless you have three point contact with a step and handle system at all times.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 10

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Anti-Lock Brake System Parking Brake System

Brake Fluid Non-Petroleum Based

Stability Control System Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Parking Aid System

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 11

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Service Engine Soon Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Jack

Low Tire Pressure Warning

Page 12

Vehicle Inspection Guide

To be sure your vehicle is ready to operate, conduct a pre-trip inspection at the beginning of each work period. Follow the steps listed in this section to ensure a proper vehicle inspection procedure. The pages in this section may be produced locally and used on a regular basis.

VEHICLE INSPECTION INFORMATION

Note: Always make sure the parking brake is applied before starting the engine.

Engine compartment (with engine stopped)

Engine oil level: Use the engine oil dipstick to verify that the

engine oil level is between the ADD and OPERATING RANGE marks.

Engine coolant level:

Power steering fluid: Verify that the fluid level is in the proper

Brake fluid (master cylinder):

Hydraulic clutch fluid:

Belts (Fan, alternator, water pump and A/C compressor):

Look through the plastic reservoir or the clear sight glass on the reservoir, depending upon vehicle equipment, and make sure the fluid is within the minimum and maximum fluid level range as marked on the reservoir. Do not

remove pressure cap until the coolant has cooled.

operating range. Refer to Power steering fluid in the Maintenance and Specifications

chapter. Remove the master cylinder caps and inspect

the fluid level. The full mark is at the bottom of the opening of the fluid ports.

Check for adequate amount of hydraulic clutch fluid. Fluid level should be at the step of the reservoir; refer to Clutch fluid/linkage

adjustments in the Maintenance and Specifications chapter.

Check for glazing, fraying or cracking. There should be no more than five-seven cracks per rib, per inch (2.5 cm).

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 13

Vehicle Inspection Guide

Engine compartment (with engine stopped)

Any leaks: Check for signs of fluid puddles, dripping fluid

on the ground under the engine or the underside of the engine.

HVAC air inlet: Check for debris, leaves, etc. that may have

collected on the HVAC air inlet grille or inside the exterior module as this may cause reduced system performance.

WARNING: Exercise great caution when working on vehicle

equipped with an automatic fan clutch. The fan starts in motion only after the engine coolant reaches a predetermined temperature or the refrigerant pressure (if equipped with air conditioning) reaches a predetermined setting. The fan will start at this point with no advance warning. Never reach near, or permit objects to protrude into, the fan blade radius while the engine is running as this could result in vehicle damage, personal injury or death.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 14

Vehicle Inspection Guide

Engine starting (parking brake applied)

Safety/Emergency equipment:

Starting the engine: Verify the parking brake is set. Press the

Oil pressure builds: Make sure engine oil pressure is building to

Air chime sounds (if equipped with air compressor):

Prior to entering the cab, verify that the vehicle is equipped with spare electrical fuses (if used), three red reflective triangles, a properly charged and rated fire extinguisher and wheel chocks. Walk around the vehicle and check that all steps and grab handles, inside and out as well as behind, are tight and clean. Use extreme caution and a three-point stance at all times. Check door latches for positive closing, latching and locking.

clutch (if equipped with a manual transmission) and verify the transmission is in neutral. Vehicles equipped with an automatic transmission should be in N (Neutral) or P (Park) if equipped with a park position. Turn the key to the on position. When the indicator light in the instrument cluster turns off, turn the key to start.

normal operating range. The low air pressure warning chime should

sound immediately after the engine starts but before the compressor has built up pressure. The low air pressure warning chime should stop when the air pressure reaches 70 psi (483 kPa) (or more). Let the air pressure build to governed cut-out pressure, which should occur between 115–130 psi (793–896 kPa).

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 15

Vehicle Inspection Guide

Engine starting (parking brake applied)

Accelerator: Press the accelerator and verify that it

operates smoothly without any binding or irregular feel. Remove your foot from the pedal and make sure the engine returns to idle speed immediately.

Ammeter/Voltmeter: Check the gauge to see if the alternator is

charging.

Steering linkage free play:

Full Power Hydraulic brake check:

Parking brake: Check that the parking brake will hold the

Check for excessive free play in the steering linkages. The steering wheel should have less than two inches (five cm) of free play at rim of steering wheel.

With the ignition off or in the run position, pump the brake pedal several times, the motor/pumps will be heard momentarily replenishing the accumulators.

vehicle by gently trying to pull forward with the parking brake applied.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 16

Vehicle Inspection Guide

Engine starting (parking brake applied)

Air brake check: Check the air brakes in the following manner

(Chock the wheels, if necessary. Push in the parking brake and on tractors, also push in the tractor parking brake knob):

1. Check that the air compressor or governor cut-out pressure is approximately 120 psi (827 kPa).

2. Turn off the engine, then turn the key back to the on position, without starting the engine.

3. Without the brake pedal applied, note the air pressure drop for one minute. It should be less than 2 psi (14 kPa) for single vehicles and 3 psi (21 kPa) for combination vehicles.

4. Press and hold the brake pedal with 90 psi (621 kPa) or more and make sure there is no more than a 3 psi (21 kPa) per minute leak; for combination vehicles, no more than 4 psi (28 kPa) per minute.

5. Pump the brake pedal to deplete the system of air pressure. The warning light and chime should activate at 57 psi (393 kPa).

6. Pump the brake pedal and make sure the parking brake and trailer parking brake knobs pop out at 20 psi (138 kPa) or higher.

Automatic transmission fluid:

With the engine idling at normal operating temperature and the parking brake applied, check the automatic transmission fluid. If fluid needs to be added, place the transmission in the appropriate gear as specified in the transmission operator’s manual and refer to

Transmission fluid in the Maintenance and Specifications chapter.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 17

Vehicle Inspection Guide

Front of vehicle

Lights: Make sure all lights illuminate and are clean.

Make sure headlights function on both high and low beam. Make sure reflectors are clean, unbroken and of proper color (red on rear, amber elsewhere). Make sure the running lights are also clean and unbroken.

Steering gear: Look for missing or loose fasteners, power

steering fluid leaks and damage to power steering hoses.

Steering linkage: Make sure connecting links, arms and rods are

not worn or cracked; joints, sockets and boot seals are not worn or loose and that there are no loose or missing cotter keys, nuts or bolts.

Tow hooks: Front and rear tow hooks should be inspected

for damage or loose mounting. This is particularly important on vehicles where tow hooks are frequently used.

Front suspension

Springs: Inspect for missing, broken or shifted leaves or

leaves that are in contact, or nearly contacting a tire, rim, brake drum, frame or body component.

Spring mounts: Inspect spring hangers, bolts, bushings, axle

mounting bolts and nuts for cracks, breaks, wear, damage and tightness.

Shock absorbers: Inspect for cracks, leaks and missing or broken

bolts or bushings.

Note: Never apply grease to spring pads.

WARNING: Do not operate the vehicle if any suspension

conditions listed in the Front suspension chart are evident. Loss of steering or suspension could result in property damage, personal injury or death.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 18

Vehicle Inspection Guide

Front brakes

Hoses: Check for cracked, worn or frayed hoses. Make

sure all couplings are secured.

Chambers: Make sure brake chambers are not cracked or

dented and that they are securely mounted.

Slack adjusters: Check for broken, loose or missing parts. The

angle between the push rod and adjuster arm should be approximately 90° when the brakes are applied. When pulled by hand, the push rod should not move more than approximately one inch (2.5 cm).

Drums: Make sure there are no cracks, dents or holes

and no loose or missing bolts. Make sure brake linings are not worn, dangerously thin or contaminated by lubricant.

Front wheels

Rims: Check for damaged or bent rims. Rims should

not have welding repairs and no rust trails that indicate it is loose on the wheel.

Lug nuts: Make sure all lug nuts are present and not

loose (look for rust trails around the lug nuts). There should be no cracks radiating from the lug bolt holes or distortion of the bolt holes.

Hub oil seals: Check wheel hub oil seal for leaks, and if sight

glass if present, check to see that the oil level is adequate.

Oil-lubricated front wheel bearings:

If the hubcap has a transparent window, check for proper lubrication level. If the hubcap does not have a transparent window, remove the rubber fill-plug and check for proper level.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 19

Vehicle Inspection Guide

WARNING: If a wheel must be changed, obtain expert tire

service help. Mounting and un-mounting of tires should only be performed by a qualified technician using necessary safety procedures and equipment, otherwise the result could be property damage, personal injury or death.

Driver/Fuel area

Fuel tank(s): Make sure the fuel tank(s) and cap(s) are

secure. Make sure there is no damage to the tank(s).

Leaks: Check for any leaks from the fuel tank(s).

DEF area

DEF tanks: Make sure the DEF tanks and caps are secure.

Make sure there is no damage to the tanks.

Leaks: Check for any leaks from the DEF tanks.

Underbody of vehicle

Driveshaft: Make sure that the driveshaft is not bent or

cracked. Ensure all driveshaft couplings are secure.

Exhaust system: Make sure the visible outside parts are

securely mounted. Make sure there are no cracks, holes or severe dents.

Frame: Check for cracks or bends in longitudinal

frame members. Make sure there are no loose, cracked, bent, broken or missing crossmembers or crossmember fasteners.

WARNING: Maintain adequate clearance between all parts of

the exhaust system and all hoses, wires and lines for engine cooling, brake system, fuel system, power steering system and electrical system, Heat damage to hoses, wires or lines may cause vehicle malfunction that could result in property damage, personal injury or death.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 20

Vehicle Inspection Guide

Rear of vehicle

Air/Electric lines: Make sure that air hoses are not cut, cracked,

chafed or worn. Listen for audible air leaks. Make sure air and electrical lines are not tangled, crimped or pinched or being dragged against any truck parts. Electrical line insulation should not be cut, cracked, chafed or worn. None of the air or electrical line should be spliced or taped. Check for corrosion on pins and in electrical sockets to ensure continuity and reduced heat build-up potential.

Deck plate: Make sure deck plate is clean, securely bolted

to the frame and clear of loose objects.

Signal/Brake lights: Make sure both brake lights illuminate when

the brake pedal is applied. Also, make sure each signal flashes. Make sure that four-way flashers work properly.

Lights, reflectors: Make sure all lights illuminate and are clean.

Make sure reflectors are clean, unbroken and of proper color (red on rear, amber elsewhere). Make sure the running lights are also clean and unbroken. Rear running lights must be checked separately from signal, flasher and brake lights.

Tractor - coupling system

Mounting bolts: Check for loose or missing mounting brackets,

clamps, bolts or nuts. Both fifth-wheel and slide mounting must be solidly attached.

Platform: Check for cracks or breaks in the platform

structure.

Safety latch: Make sure safety latch is engaged. Release arm: Make sure safety latch is in the engaged

position and that any safety latch is in place.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 21

Vehicle Inspection Guide

Tractor - coupling system

Kingpin/Apron: Make sure kingpin is not bent or worn. Also

make sure that the apron lies flat on the fifth-wheel skid plate and that the visible part of the apron is not bent, worn, cracked or broken.

Rear suspension

Springs: Check for broken or shifted leaves or leaves

that are in contact, or nearly contacting a tire, rim, brake drum, frame or body component. Check for missing or broken leaves in the leaf spring.

Spring mounts: Check for cracked or broken spring hangers,

broken, missing or loose bolts, missing or damaged bushings, broken, loose or missing axle mounting parts.

Torsion, shocks: Make sure torsion arm is not cracked, broken

or missing. Check the shock absorber for cracks or leaks; there should be no missing or broken mounting bolts or worn bushings.

Rear brakes

Hoses: Check for cracked, worn or frayed hoses. Make

sure all couplings are secured.

Chambers: Make sure brake chambers are not cracked or

dented and that they are securely mounted.

Slack adjuster: Check for broken, loose or missing parts. The

angle between the push rod and adjuster arm should be approximately 90° when the brakes are applied. When pulled by hand, the push rod should not move more than approximately one inch (2.5 cm).

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 22

Vehicle Inspection Guide

Rear brakes

Drum: Make sure there are no cracks, dents or holes

and no loose or missing bolts. Make sure brake linings are not worn, dangerously thin or contaminated by lubricant.

Rear wheels

Spacers: Make sure dual wheels are evenly separated

and that tires are not touching one another.

Rims: Check for damaged or bent rims. Rims should

not have welding repairs and no rust trails that indicate it is loose on the wheel.

Lug nuts: Make sure all lug nuts are present and not

loose (look for rust trails around the lug nuts). There should be no cracks radiating from the lug bolt holes or distortion of the bolt holes.

Trailer

If you are pulling a trailer, an inspection of the trailer similar to that of the tractor should be done. Such an inspection should follow trailer manufacturer recommendations and should include at a minimum: general condition, landing gear, doors, sides, lights, reflectors, suspension, brakes, tires, wheels, cargo placement, stability and tie-downs.

Transmission

If your vehicle is equipped with an automatic transmission, regularly check the transmission’s neutral start switch. The engine should only start in the N (Neutral) or P (Park) positions.

WARNING: If the unit starts in gear and/or the neutral start switch is not functioning correctly, the vehicle may inadvertently

move which could result in property damage, personal injury or death.

Check the transmission fluid level and shift linkage for proper operation.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 23

Instrument Cluster

WARNING LIGHTS AND CHIMES

Base instrument cluster with standard measure shown; metric similar

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

Note: Some warning lights are reconfigurable telltale (RTT) indicator lights and will illuminate in the message center. These lights function the same as the other warning lights.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 24

Instrument Cluster

Wait to start: Indicates the air intake heater is in operation and special starting procedures are required. Refer to Starting in the Driving chapter.

WARNING: If equipped with an air intake heater, DO NOT use

ether or any other starting fluids. The use of starting fluids (ether) in an engine equipped with an air intake heater could result in damage and/or personal injury.

Service engine soon: The service engine soon indicator illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing.

Solid illumination after the engine is started indicates the On-Board Diagnostics System (OBD-II) has detected a malfunction.

WARNING: Under engine misfire conditions, excessive exhaust

temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 25

Instrument Cluster

Stop engine: This light is used in

conjunction with the electronic engine control. When illuminated, the safely done.

If the take place in as little as 20 seconds.

to returning to the road. Failure to remove the vehicle from the road could result in an accident, causing serious injury or death.

Refer to your engine operator’s manual for specific information regarding this feature.

If the engine shuts down, it can be restarted and operated for 30 seconds at a time or until the problem is corrected. For more information, refer to Engine automatic shutdown warning light or chime in the Driving chapter of this owner guide and/or your engine operator’s manual.

Drivers of electronically-controlled engines should know the extent of warning engine shutdown system before operating the vehicle.

lamp indicates the need to stop the engine as soon as it can be

lamp begins flashing, automatic engine shutdown may

WARNING: In the event of engine shutdown, make sure the

vehicle is safely off the road and the problem is remedied prior

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 26

Instrument Cluster

Water in fuel: During refueling, it is possible for water-contaminated diesel fuel to be pumped into your tank. Your vehicle fuel system is equipped with a fuel filter/water separator to remove water from the fuel. The has a significant quantity of water in it.

If the light illuminates when the engine is running, stop the vehicle as soon as safely possible, shut off the engine, then drain the fuel filter/water separator. Refer to your engine operator’s manual for the drain procedure. Allowing water to stay in the system could result in extensive damage to, or failure of, the fuel injection system.

WARNING: Do not drain water separator while engine is

running. Fuel may ignite if separator is drained while engine is running or vehicle is moving.

Diesel exhaust fluid: Illuminates when the diesel exhaust fluid level falls below 0.5 gallon (1.9L) in the 5 gallon (19.0L) tank or 1 gallon (3.8L) in the 9 gallon (34.0L) tank. Refill the tank or, at a minimum, add at least 1 gallon (3.8L) in the 5 gallon (19.0L) tank or 2 gallons (7.6L) in the 9 gallon (34.0L) tank to turn off the light.

Diesel particulate filter:

Illuminates if the soot in the DPF has reached a level where it requires operator assistance. Refer to Diesel particulate filter in the

Maintenance and Specifications

chapter and your engine operator’s manual, for more details.

light will illuminate when the fuel filter/water separator

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 27

Instrument Cluster

Do not shift (Allison Automatic transmission only): The lamp will

illuminate for several seconds after the ignition is turned to the on position. Illumination of this light while driving indicates that a problem has been detected and shifting may be restricted. Depending upon the severity of the problem, the read-out digit on the shifter display may be blank. Operation may continue in order to reach service assistance. The ECU may not respond to shift selector requests, since operating limitations are being placed on the transmission, i.e. upshifts and downshifts may be restricted. Direction changes will not occur.

Refer to your transmission operator’s manual for more information.

Check trans (Allison automatic transmission only): The lamp will

illuminate for several seconds after the ignition is turned to the on position. Illumination of this light while driving indicates that a problem has been detected and shifting may be restricted. Depending upon the severity of the problem, the read-out digit on the shifter display may be blank. On MD 3000 series transmissions only: Operation may continue in order to reach service assistance. The ECU may not respond to shift selector requests, since operating limitations are being placed on the transmission, i.e. upshifts and downshifts may be restricted. Direction changes will not occur. Refer to your transmission operator’s manual for more information.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 28

Instrument Cluster

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position.

If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

WARNING: Driving a vehicle with the brake system warning

light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Parking brake warning:

Momentarily illuminates when the ignition is turned to the on position and the engine is off. Also illuminates when the parking brake is engaged. If the parking brake warning lamp does not illuminate at these times, seek service immediately.

Vehicles equipped with the Power Park Parking Brake option: If after setting the parking brake on your vehicle the park brake warning lamp begins to blink, this may indicate a failure in the parking brake system. Seek service from your dealer immediately.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 29

Instrument Cluster

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.

Trailer anti-lock brake system (ABS): Illuminates briefly when the

engine is powered-up and only when a PLC trailer or a PLC diagnostic tool is connected. If the light remains on after the vehicle is started, continues to flash or fails to illuminate, have the system serviced immediately.

Traction control (if equipped):

Illuminates and flashes slowly if the Off Road or Mud/Snow mode is selected and flashes rapidly during a traction control event.

Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature.

Charging system: Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component.

Check suspension (if equipped):

Illuminates when the air suspension dump switch has been activated.

ABS

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 30

Instrument Cluster

Electronic locking differential (if equipped): Displays when using

the electronic locking differential.

Speed control (if equipped):

Illuminates when the speed control system is engaged. Turns off when the speed control system is disengaged.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

High beams: Illuminates when the high-beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 31

Instrument Cluster

GAUGES

Base cluster with automatic transmission shown. Metric similar.

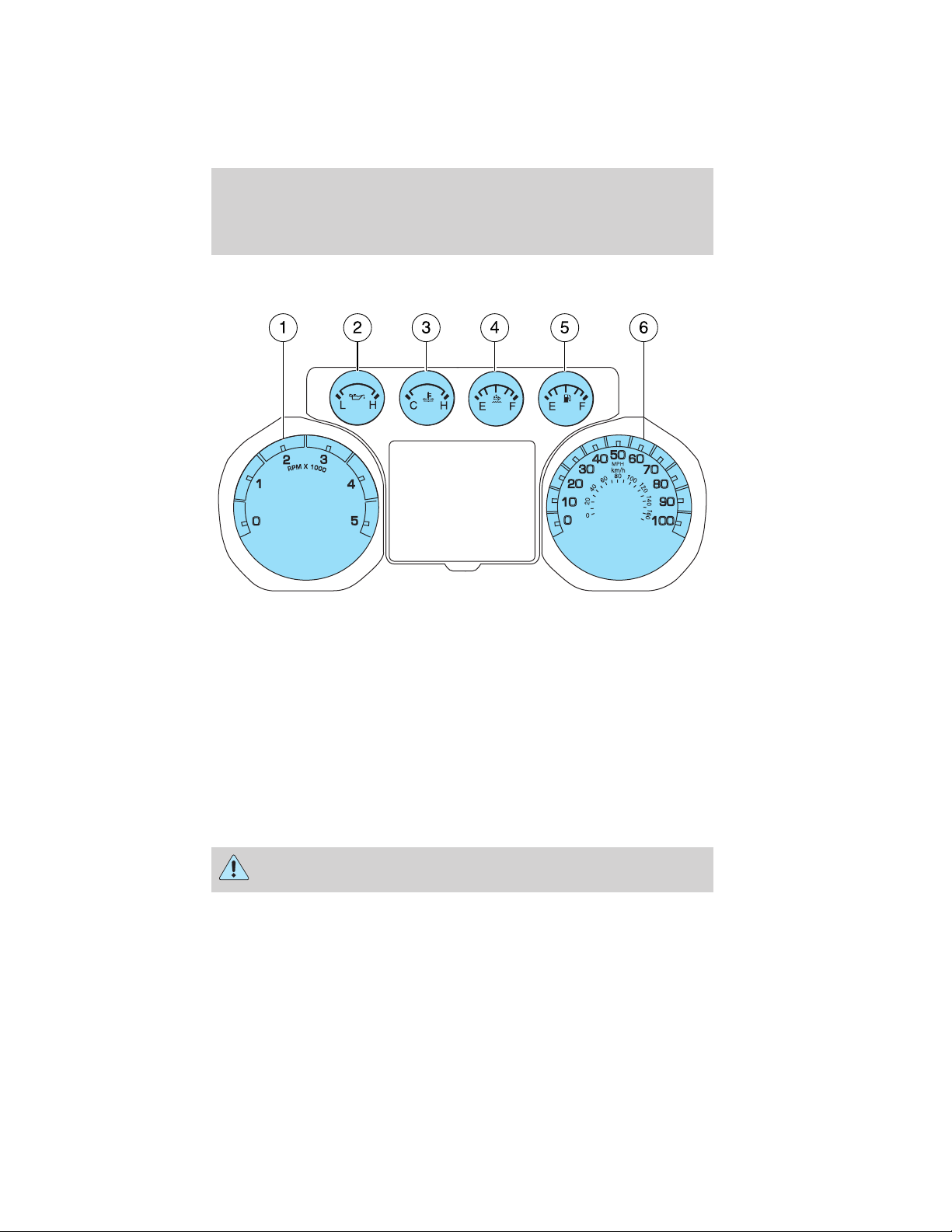

1. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

2. Engine oil pressure gauge: Indicates engine oil pressure. The needle should stay in the normal operating range (between L and H). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your authorized dealer.

3. Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between H and C). If it enters the red section, the

engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

WARNING: Never remove the coolant reservoir cap while the

engine is running or hot.

4. Diesel exhaust fluid (DEF) gauge: Shows fluid level in DEF tank.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 32

Instrument Cluster

5. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

6. Speedometer: Indicates the current vehicle speed. Odometer and trip odometer: The odometer is displayed on the lower

line in the message center and registers the total accumulated distance the vehicle has traveled. For trip odometer information, refer to Message center in this chapter.

MESSAGE CENTER

Your vehicle’s message center is capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with an informational message followed by a long indicator chime.

The message center display is located in the instrument cluster and the controls are located on the instrument panel.

Selectable features

Info (information menu)

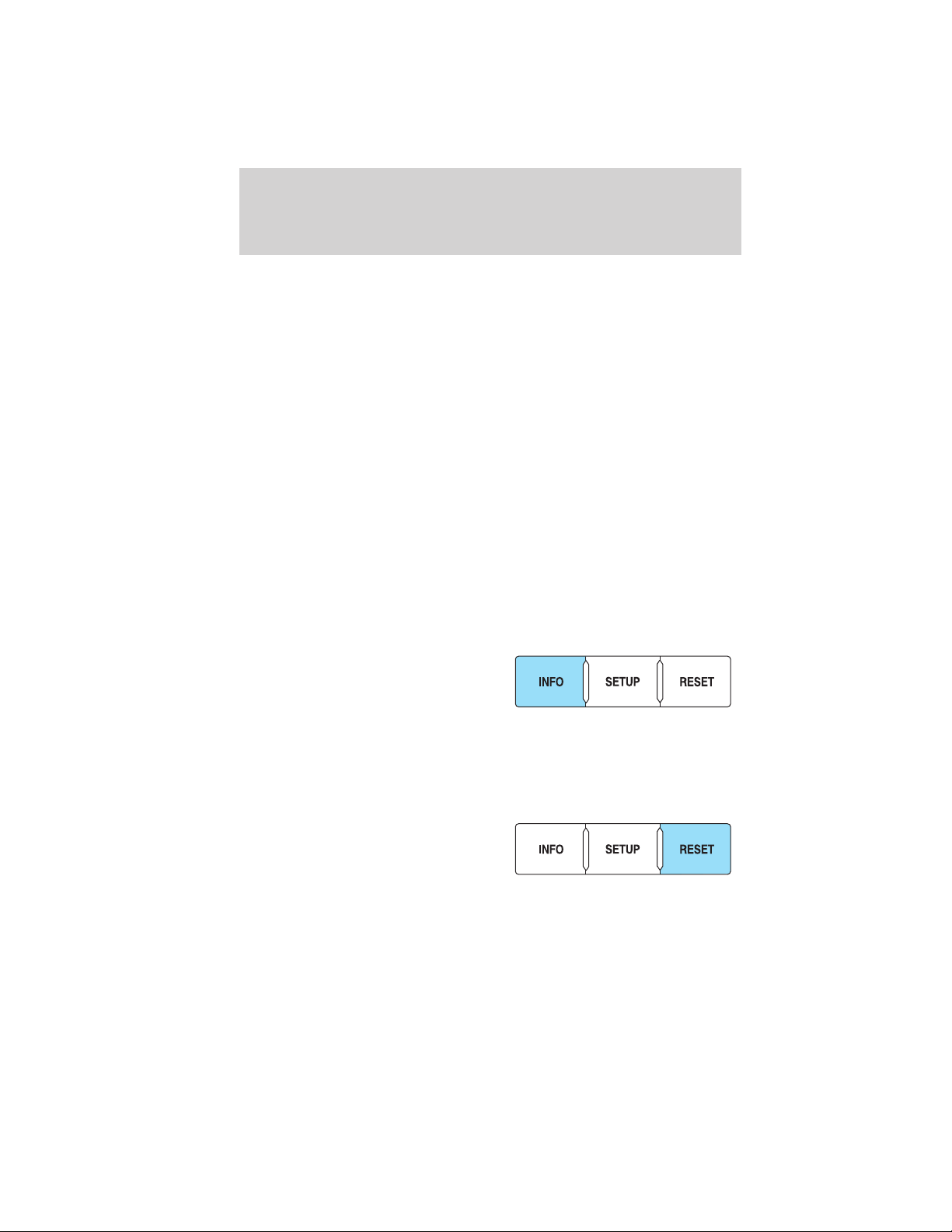

Press the INFO button repeatedly to cycle through the following features:

TRIP A/B

Registers the distance of individual journeys. Press and release the INFO button until the TRIP A/B appear in the display (this represents the trip mode).

Press RESET to switch between English and metric. Press and hold RESET for two seconds to reset the trip odometer.

MILES (km) TO E

This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 33

Instrument Cluster

Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel.

The low fuel indicator will display when the fuel level is at approximately 1/16 of the tank.

DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is re-initialized to a factory default value if the battery is disconnected.

XX.X MPG (L/100km)

Average fuel economy displays your average fuel economy in miles/gallon or liters/100 km.

If you calculate your average fuel economy by dividing distance traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons:

• Your vehicle was not perfectly level during fill-up

• Differences in the automatic shut-off points on the fuel pumps at

service stations

• Variations in top-off procedure from one fill-up to another

• Rounding of the displayed values to the nearest 0.1 gallon (liter)

1. Drive the vehicle at least 5 miles (8 km) with the speed control system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to press the RESET button (press and hold RESET for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings.

TIMER

Timer displays the trip elapsed drive time.

To operate, do the following:

1. Press and release RESET in order to start the timer.

2. Press and release RESET to pause the timer.

3. Press and hold RESET until the timer resets. 33

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 34

Instrument Cluster

System check and vehicle feature customization

Press the SETUP button repeatedly to cycle the message center through features.

Note: When returning to the SETUP menu and a non-English language has been selected, HOLD RESET FOR ENGLISH will be displayed to change back to English. Press and hold the RESET button to change back to ENGLISH.

RESET FOR SYSTEM CHECK

When this message appears, press the RESET button and the message center will begin to cycle through different systems and provide a status if needed.

UNITS

Displays the current units in English or Metric. Press RESET to switch between English and Metric.

LANGUAGE = ENGLISH / SPANISH / FRENCH

Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, or French. Waiting four seconds or pressing RESET cycles the message center through each of the language choices. Press and hold RESET for two seconds to set the language choice.

System warnings

System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.

In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds.

The message center will display the last selected feature if there are no more warning messages.

Types of messages and warnings:

• Some messages will appear briefly to inform you of something you may need to take action on or be informed of.

• Some messages will appear once and then again when the vehicle is restarted.

• Some messages will reappear after clearing or being reset if a problem or condition is still present and needs your attention.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 35

Instrument Cluster

• Some messages can be acknowledged and reset by pressing RESET. This allows you to use the full message center functionality by clearing the message.

PARK BRAKE ENGAGED — Displayed when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible.

CHECK BRAKE SYSTEM — Displayed when a fault has been detected by the ABS module.

CHECK CHARGING SYSTEM— Displayed when the electrical system is not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, contact your authorized dealer as soon as possible.

BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 36

Entertainment Systems

AUDIO SYSTEMS

AM/FM stereo system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.

The AM/FM stereo system does not contain rear speakers; only front driver side and passenger side speakers.

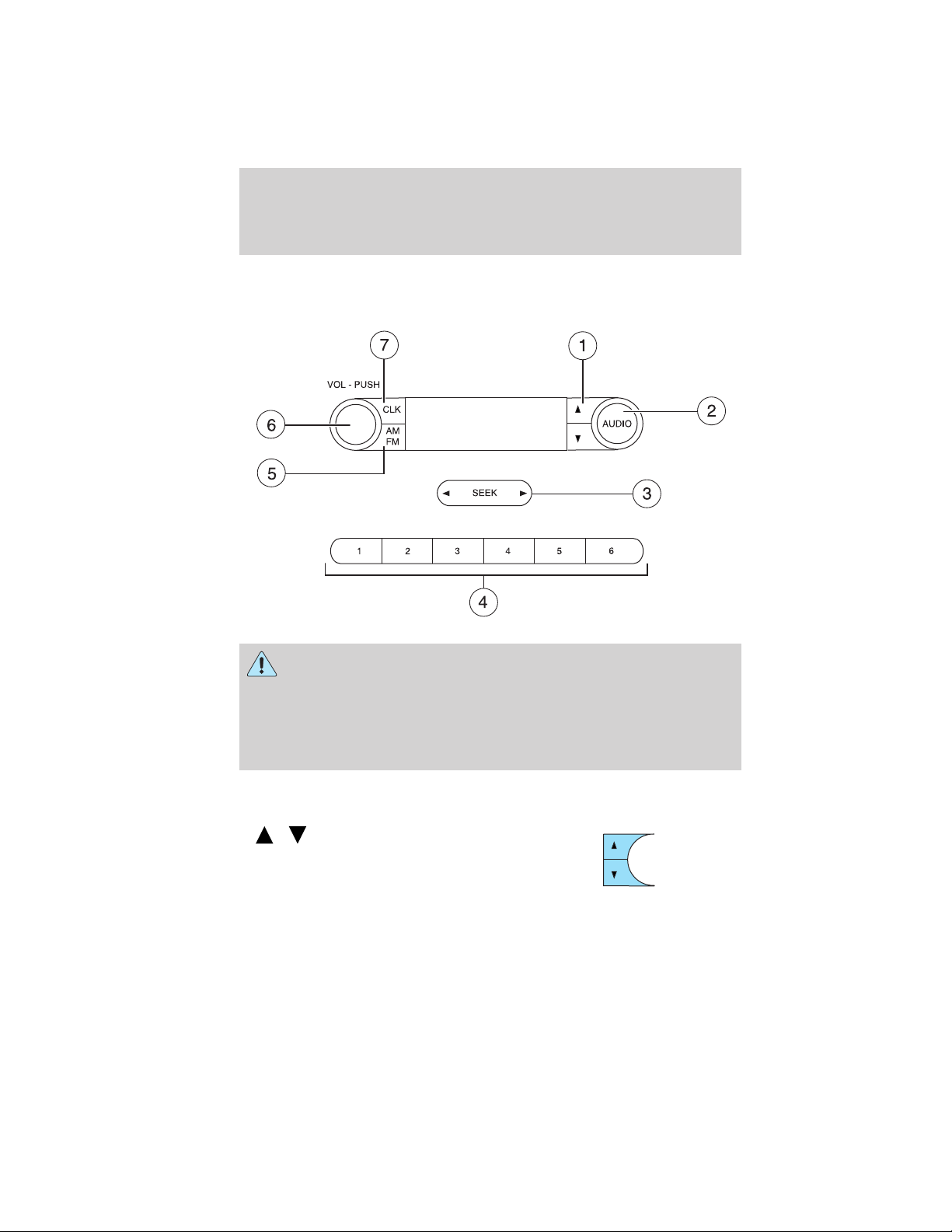

/ (Tuner): Press to

1. manually go up or down the radio

frequency. Press and hold for a fast advance through radio frequencies. Also use in AUDIO mode to gain access to various settings.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 37

Entertainment Systems

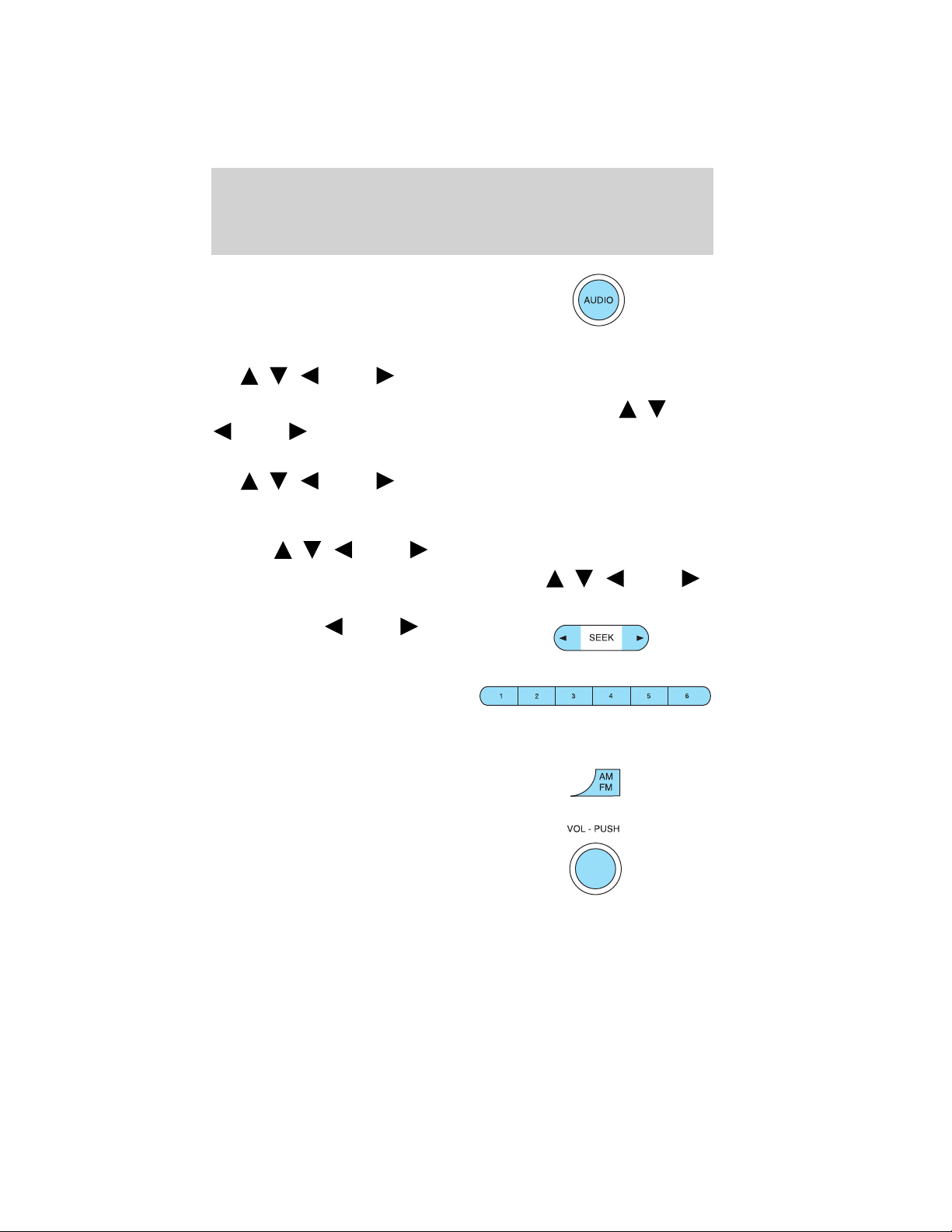

2. AUDIO: Press AUDIO repeatedly to gain access to the following settings:

TREB (Treble): Press AUDIO to reach the treble setting. Use

/ / SEEK .

BASS (Bass): Press AUDIO to reach the bass setting. Use

SEEK .

BAL (Balance): Press AUDIO to reach the balance setting. Use speakers.

Setting the clock: Press and hold CLK until the hours start to flash, then use

again to make the minutes start to flash and use to adjust. Press CLK again to exit the clock setting mode.

3. SEEK: Press access the previous/next strong

station.

4. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. You may store up to six stations in each frequency band for a total of 18.

5. AM/FM: Press AM/FM to select AM/FM1/FM2 frequency band.

6. ON/OFF/Volume: Press VOL PUSH to turn ON/OFF. Turn VOL PUSH to increase/decrease volume.

/ / SEEK to adjust between the left and right

/ / SEEK to adjust. To adjust minutes, press CLK

/ / SEEK

SEEK to

/ /

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 38

Entertainment Systems

7. CLK (Clock): Press CLK to toggle between the clock and radio frequency.

AM/FM stereo single CD/satellite-compatible sound system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 39

Entertainment Systems

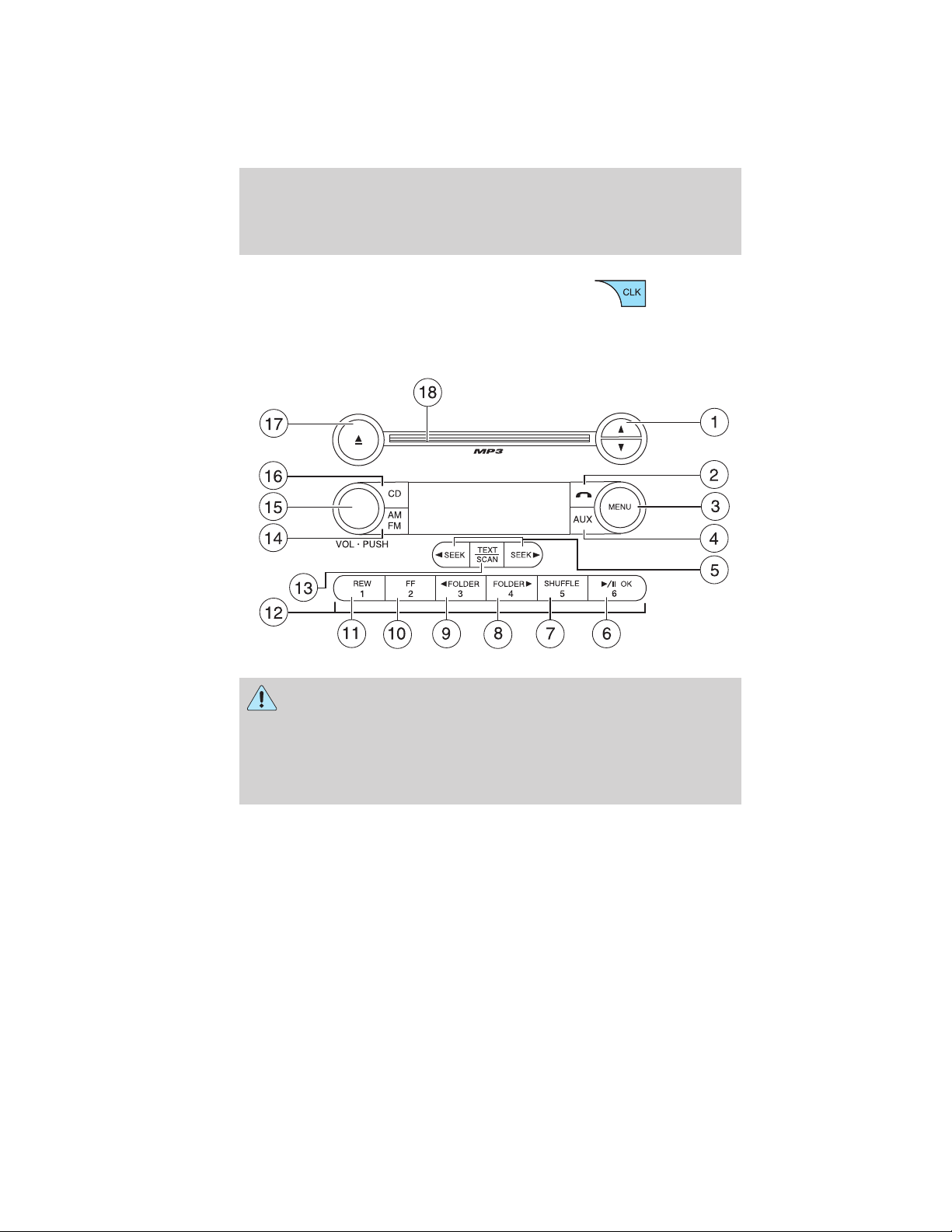

1. / : Press / to manually go up or down the radio

frequency. Press and hold for a fast advance through radio frequencies.

In satellite radio mode (if equipped), press next/previous channel.

Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability.

(Phone): If your vehicle is equipped with SYNC威, press to access SYNC PHONE features. For

further information, please refer to your SYNC威 supplement. If your vehicle is not equipped with SYNC威, the display will read NO PHONE.

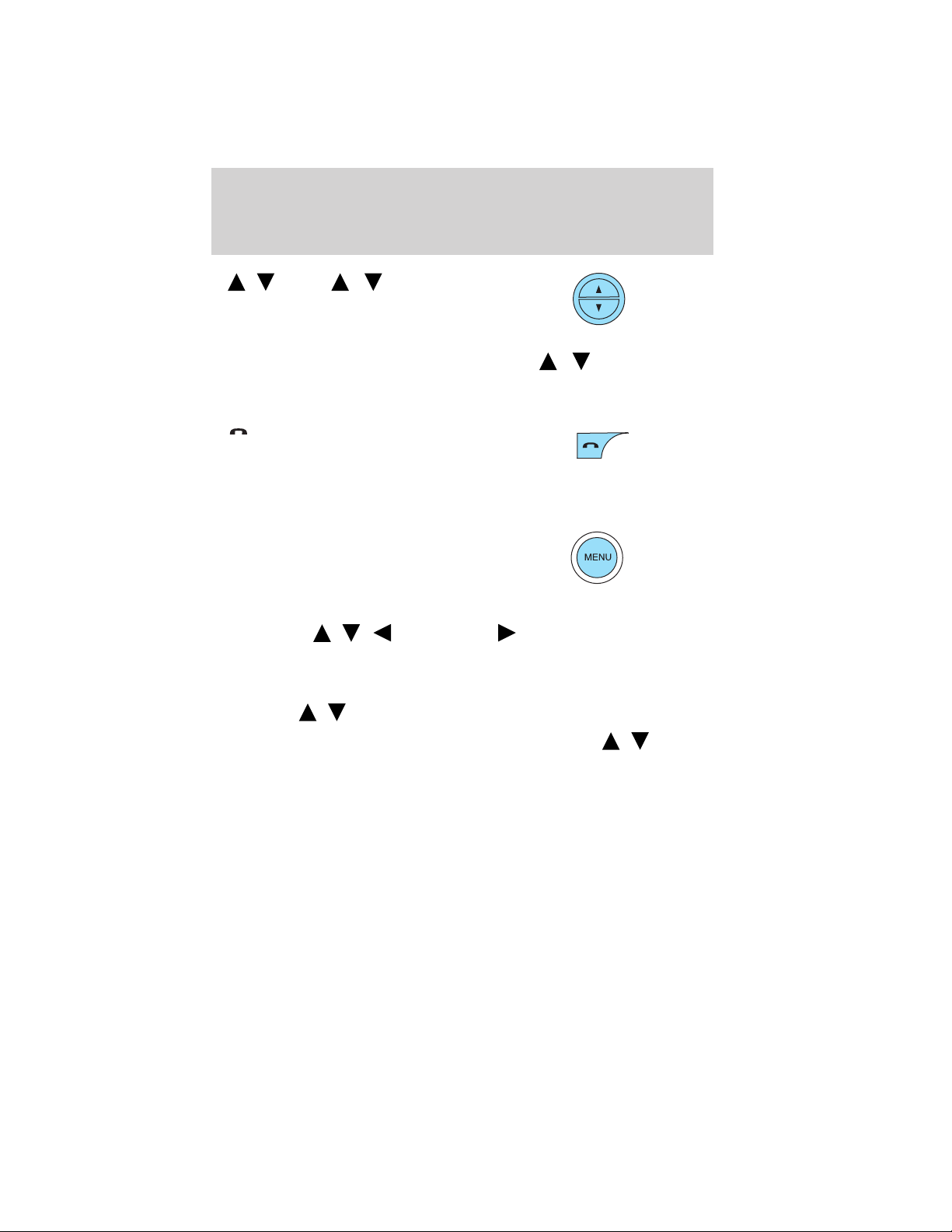

3. MENU: Press MENU repeatedly to access to the following settings:

Setting the clock: Press MENU until SET HOUR or SET MINUTES is displayed. Use hours/minutes. SATELLITE RADIO MENU (if equipped): Press MENU when satellite

radio mode is active to access. Press OK to enter into the satellite radio menu. Press

/ / SEEK, SEEK to adjust the

/ to cycle through the following options:

/ to tune to the

• CATEGORY: Press OK to enter category mode. Press

scroll through the list of available SIRIUS威 channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS威 categories and channels. Press OK to close and return to the main menu.

• SAVE SONG: Press OK to save the currently playing song title in the

system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You

/ to

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 40

Entertainment Systems

can save up to 20 song titles. If you attempt to save a song when the system is full, the display will read REPLACE SONG? Press OK to

access the saved songs and press songs. When the song appears in the display that you would like to

replace, press OK. SONG REPLACED will appear in the display.

• DELETE SONG: Press OK to delete a song title from the system’s memory. Press song title appears in the display that you would like to delete, press

OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want

to delete the currently listed song, press RETURN or CANCEL.

Note: If there are no songs presently saved, the display will read NO SONGS.

• DELETE ALL SONGS: Press OK to delete all songs from the system’s memory. The display will read ARE YOU SURE? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.

• ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability.

AUTOSET: Press MENU until the display reads AUTOSET. Autoset allows you to set the strongest local radio stations without losing your

original manually set preset stations for AM/FM1/FM2. Use

SEEK, SEEK to turn on/off.

When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

BASS: Press MENU to reach the bass setting. Use

SEEK, SEEK to adjust.

/ to cycle through the saved songs. When the

/ to cycle through the saved

/ to select either

/ /

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 41

Entertainment Systems

TREB (Treble): Press MENU to reach the treble setting.

Use

BAL (Balance): Press MENU to reach the balance setting.

Use

(L) and right (R) speakers.

/ / SEEK, SEEK to adjust.

/ / SEEK, SEEK to adjust the audio between the left

FADE: Press MENU to reach the fade setting. Use

SEEK, SEEK to adjust the audio between the back (B) and

front (F) speakers.

SPEEDVOL (Speed sensitive volume, if equipped): Press MENU to reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

Use

The default setting is off; increasing your vehicle speed will not change the volume level.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

Track/Folder mode: Available only on MP3 discs in CD mode. In Track mode, pressing disc In Folder mode, pressing tracks within the selected folder. Press available).

COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display.

Use is ON, the system will bring the soft and loud CD passages together for a

more consistent listening level.

/ / SEEK, SEEK to adjust.

SEEK, SEEK will scroll through all tracks on the

SEEK, SEEK will scroll only through

FOLDER, FOLDER to access the previous/next folder (if

/ / SEEK, SEEK to toggle ON/OFF. When COMPRESS

/ /

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 42

Entertainment Systems

4. AUX: Press repeatedly to cycle

through LINE IN (auxiliary audio mode, if equipped) and SAT1, SAT2 and SAT3 modes (satellite radio, if equipped). For location and further information on auxiliary audio mode, refer to

Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability.

5. SEEK: In radio mode,

press previous/next strong station.

In CD/MP3 mode, press to access the previous/next CD/MP3 track.

/ to access the

In satellite radio mode (if equipped), press seek to the previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press previous/next channel in the selected category. Press and hold

SEEK, SEEK to fast seek through the previous /next channels.

In TEXT MODE, press SEEK, SEEK to view the previous/additional display text. In CATEGORY MODE, press

Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability.

/ OK (Play/Pause): This

control is operational in CD/MP3 mode. When a CD/MP3 is playing, press to pause or play the current CD/MP3. The CD/MP3 status will display in the radio display.

OK: Use in various menu selections.

If your vehicle is equipped with a Family Entertainment System (FES) please refer to the Family entertainment DVD system section later in this chapter.

SEEK, SEEK to seek to the

SEEK, SEEK to select a category.

SEEK, SEEK to

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 43

Entertainment Systems

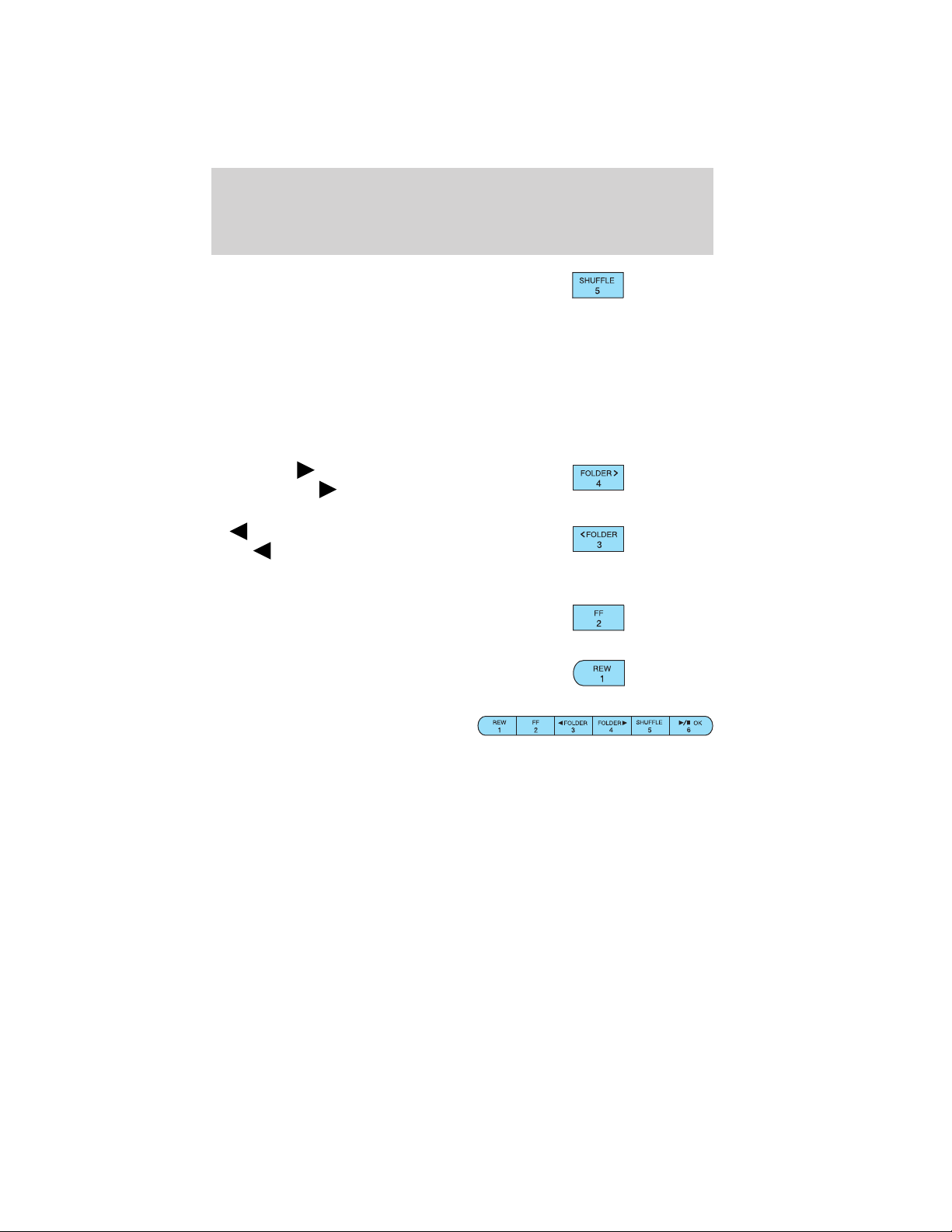

7. SHUFFLE: In CD/MP3 mode, press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display.

Note: In CD/MP3 mode, press SHUFFLE to play the tracks in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.

8. FOLDER press FOLDER

folder on MP3 discs, if available.

FOLDER: In folder mode,

9. press

previous folder on MP3 discs, if available.

10. FF (Fast forward): Press FF to manually advance in a CD/MP3 track.

11. REW (Rewind): Press REW to manually reverse in a CD/MP3 track.

: In folder mode,

to access next

FOLDER to access the

12. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset control until sound returns. You may store up to six stations in each frequency band for a total of 18.

In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns.

Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 44

Entertainment Systems

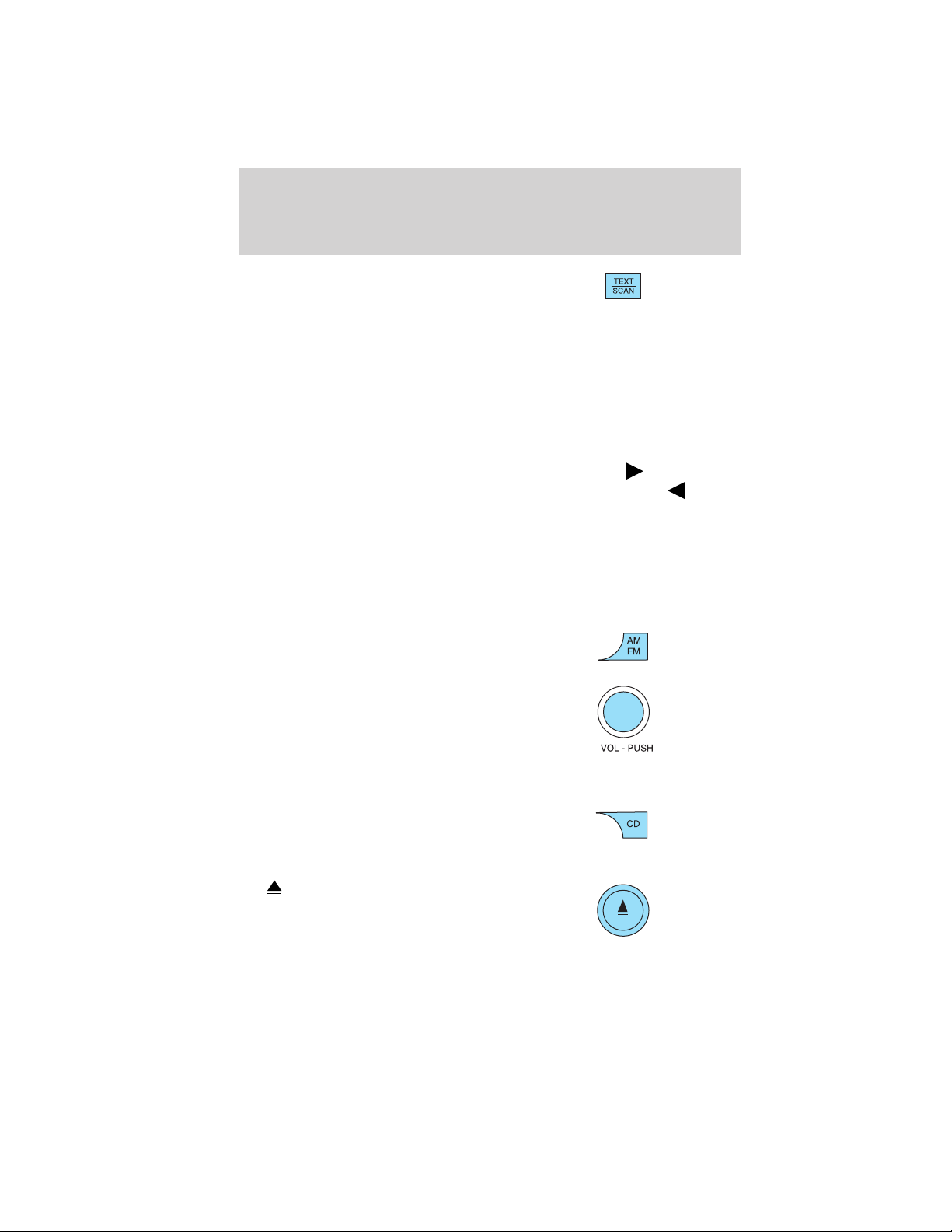

13. TEXT/SCAN: In radio and

CD/MP3 mode, press and hold for

a brief sampling of radio stations or CD tracks. Press again to stop. In CD/MP3 mode, press and release to display track title, artist name, and disc title.

In satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS威 long channel name.

In TEXT MODE sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK

additional display text. When the “<” indicator is active, press SEEK to view the previous display text.

In satellite radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop.

Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability.

14. AM/FM: Press AM/FM to select

AM/FM1/FM2 frequency band.

15. ON/OFF/Volume: Press

VOL-PUSH to turn on/off. Turn VOL-PUSH to increase/decrease volume.

Note:If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

16. CD: Press to enter CD/MP3

mode. If a CD is already loaded into the system, CD/MP3 play will begin where it ended last.

17.

CD.

(CD eject): Press to eject a

to view the

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 45

Entertainment Systems

18. CD slot: Insert a CD label side up in the CD slot.

Auxiliary input jack (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

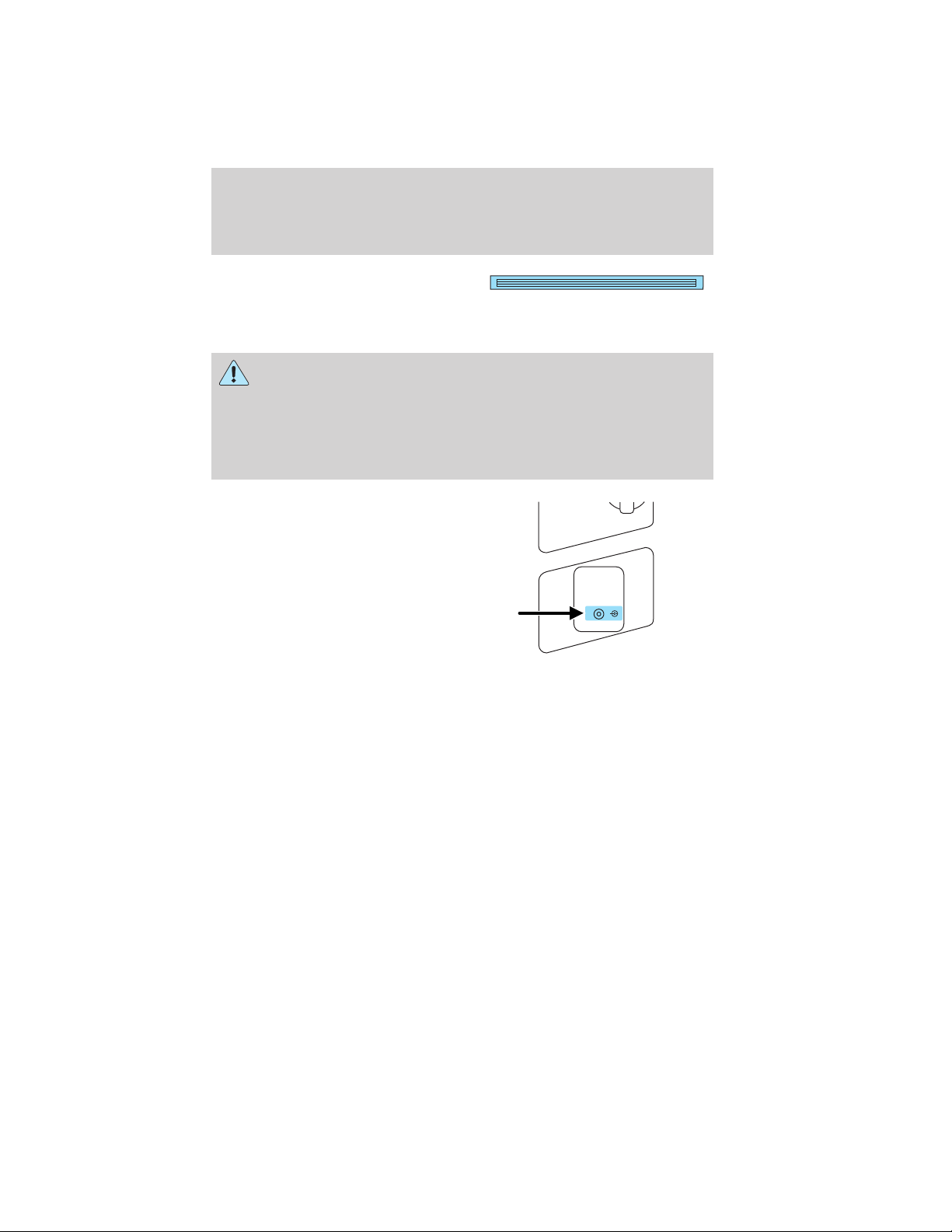

Your vehicle may be equipped with an auxiliary input jack (AIJ). The auxiliary input jack, located on the instrument panel below the power point, provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system.

Required equipment:

1. Any portable music player designed to be used with headphones

2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end

To play your portable music player using the auxiliary input jack:

1. Begin with the vehicle parked and the radio turned off.

2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off.

3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle.

4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to your normal listening level.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 46

Entertainment Systems

5. Turn the portable music player on and adjust the volume to1⁄2level normally used for the portable player.

6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player although it may be low.

7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.

Troubleshooting:

1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control.

2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume.

3. If the music sounds loud and/or distorted, turn the portable music player volume down. If the problems persist, replace or recharge the batteries in the portable music player. If the music is loud, but not distorted, turn down the volume on the vehicle’s audio system.

4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.

5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

GENERAL AUDIO INFORMATION

Radio frequencies

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM - 530, 540–1700, 1710 kHz 46

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 47

Entertainment Systems

FM- 87.7, 87.9–107.7, 107.9 MHz

Radio reception factors

There are three factors that can effect radio reception:

• Distance/Strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CD/CD player care

Do:

• Handle discs by their edges only. Never touch the playing surface.

• Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Insert more than one disc into each slot of the CD changer magazine.

• Clean using a circular motion.

CD units are designed to play commercially pressed 4.75 inch (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

Audio system warranty and service

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 48

Climate Controls

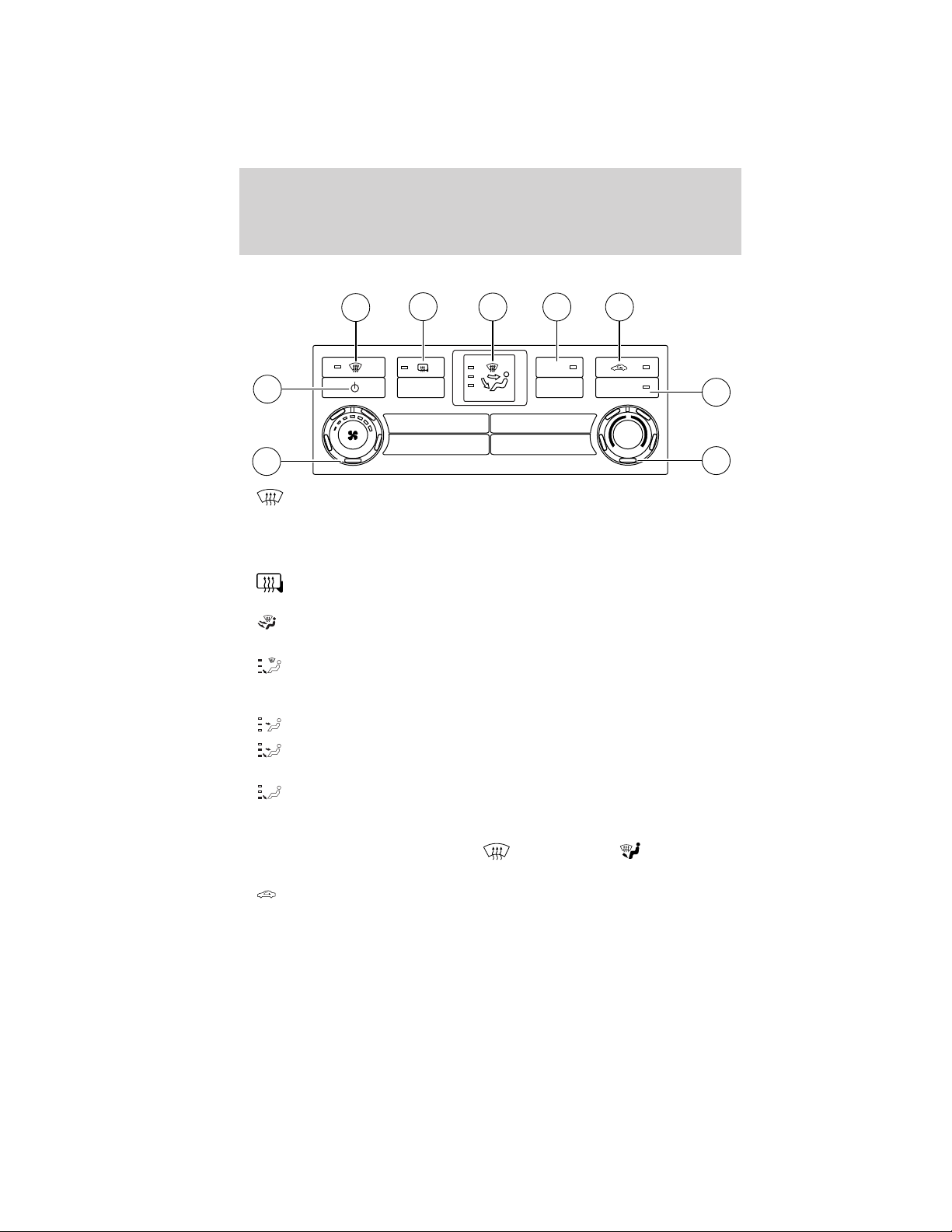

SINGLE ZONE CLIMATE CONTROL

1. vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.

2. This feature will remove ice and snow from the side view mirrors.

3. settings to choose:

•

4. A/C (if equipped): Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C

engages automatically in MAX A/C, (floor/defrost).

5. recirculation in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle.

Defrost: Distributes outside air through the windshield defroster

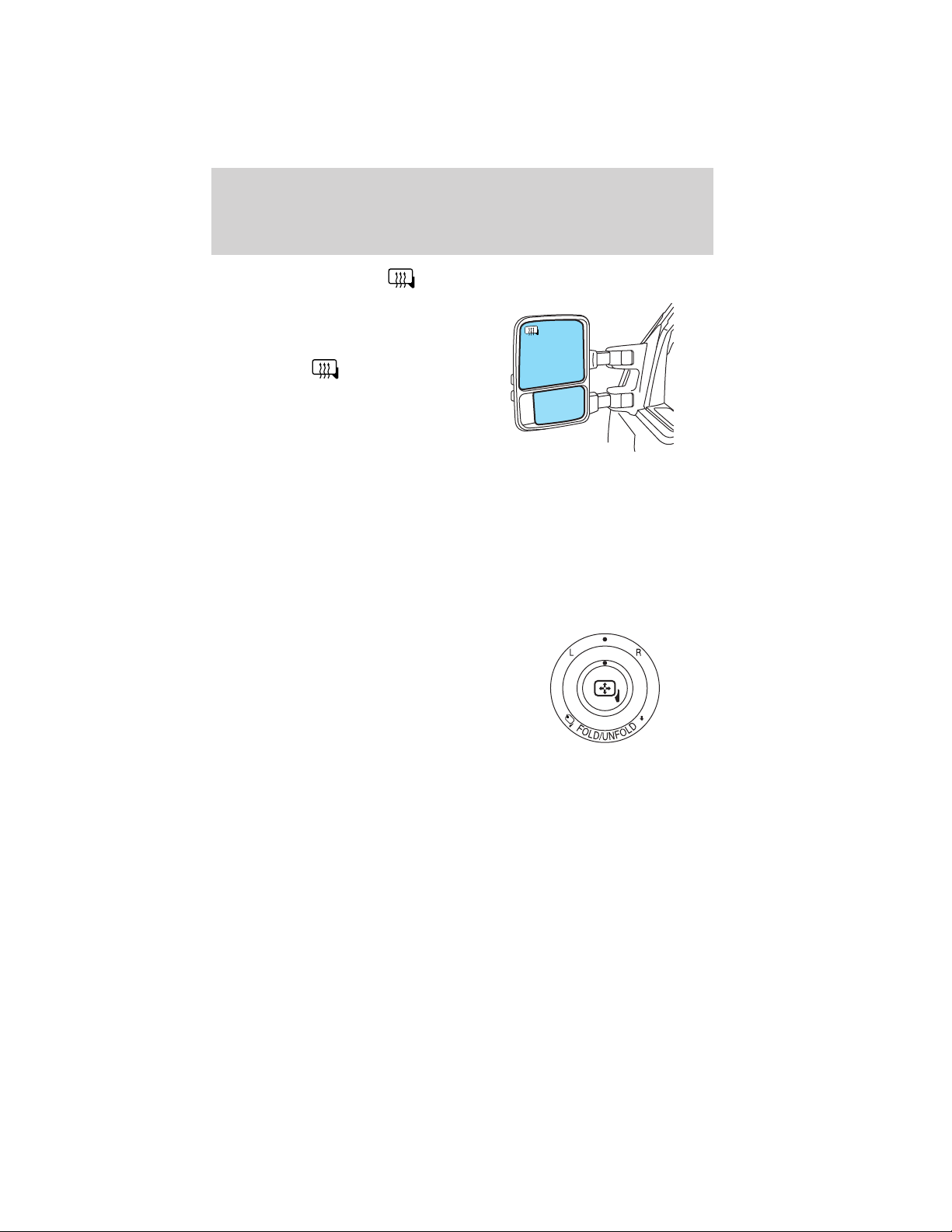

Heated mirrors (if equipped): Press to activate/deactivate.

Multifunction control: Press repeatedly to cycle through the

: Distributes air through the windshield defroster vents, de-mister

vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

: Distributes air through the instrument panel vents.

: Distributes air through the instrument panel vents, floor vents,

rear seat floor vents and de-mister vents.

: Distributes air through the floor vents and rear seat floor vents.

Recirculated air (if equipped): Press to activate/deactivate air

3 4 5

A/C

MAX A/C

(defrost) and

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 49

Climate Controls

Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except the ignition switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air distribution selection is either

6. MAX A/C (if equipped): Distributes recirculated air through the

instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient than normal A/C mode. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.

7. Temperature control: Controls the temperature of the airflow in the

vehicle.

the vehicle.

When the system is off, outside air is prevented from entering the vehicle.

Operating tips

• To reduce fog build-up on the windshield during humid weather,

• To reduce humidity build-up inside the vehicle: do not drive with the

• Do not put objects under the front seats that will interfere with the

• Remove any snow, ice or leaves from the air intake area at the base of

• To improve the A/C cool down, drive with the windows slightly open

• A small amount of air may be felt from the floor vent regardless of the

If you are driving during extreme high ambient temperatures and idling for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, adjust the blower fan speed to the lowest setting and put the vehicle’s transmission into the P (Park) position to continue to receive cool air from your A/C system.

(panel/floor).

Fan speed adjustment: Controls the volume of air circulated in

Power: Press to activate/deactivate the climate control system.

select speed can also be increased to improve clearing.

system off or with recirculated air engaged and A/C off.

airflow to the back seats.

the windshield.

for 2-3 minutes after start up or until the vehicle has been “aired out.”

air distribution setting that is selected.

(defrost) or (floor/defrost). Temperature and/or fan

(defrost). When

(panel)

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 50

Climate Controls

For maximum cooling performance (MAX A/C):

• Select MAX A/C.

(Panel) and (panel/floor) modes:

• Move the temperature control to the coolest setting.

• Select A/C and

to provide colder airflow.

• Set the fan to the highest speed initially, then adjust to maintain comfort.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

(panel/floor).

(recirculated air). Use recirculated air with A/C

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 51

HEADLAMP CONTROL

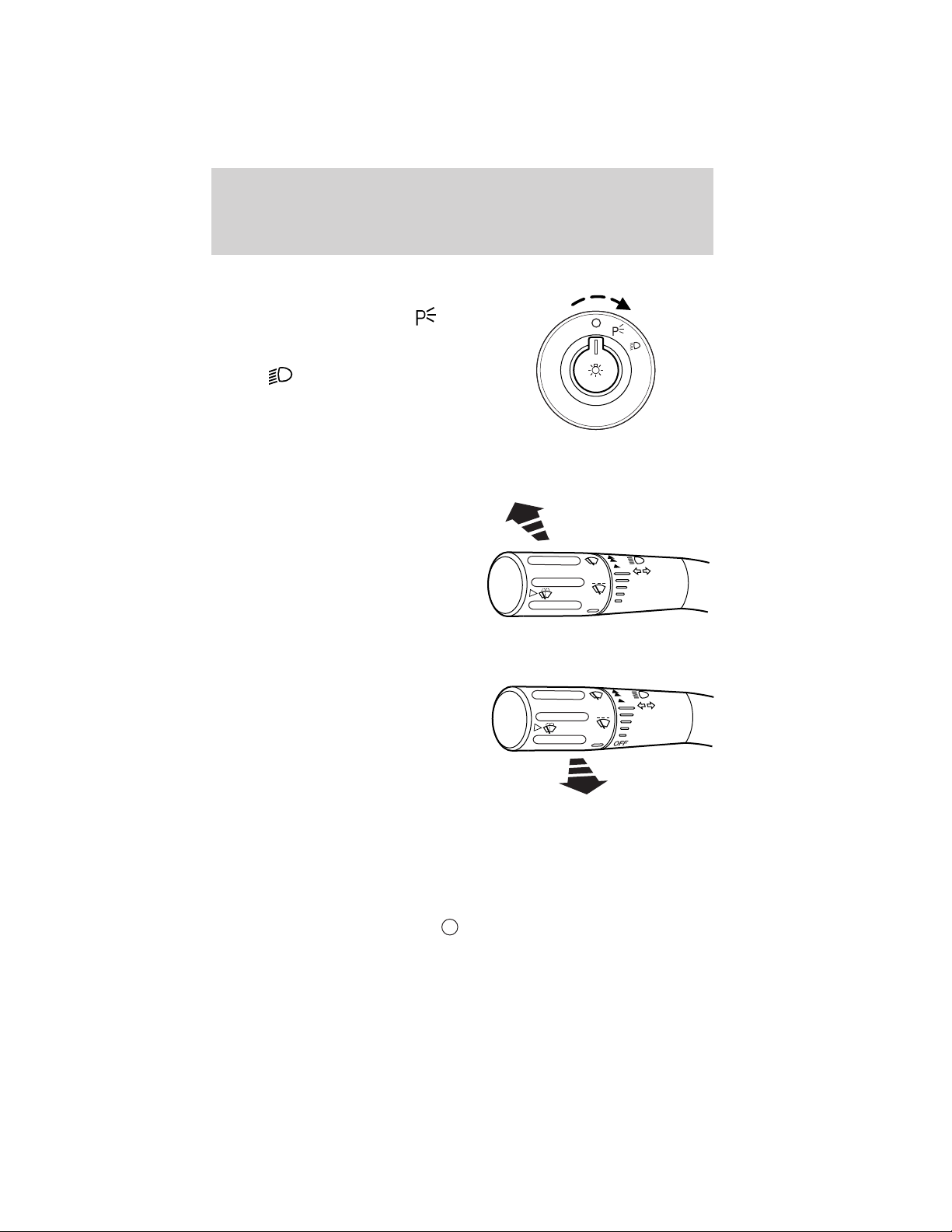

Rotate the headlamp control clockwise to the first position turn on the parking lamps.

Rotate clockwise to the second position headlamps.

High beams/Flash-to-pass

High beams:

Push the lever toward the instrument panel to activate. Pull the lever toward you to deactivate.

Flash-to-pass:

Pull toward you slightly to activate and release to deactivate.

to also turn on the

Lights

OFF

Daytime Running Lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output. To activate:

• the ignition must be turned to the on position and

• the headlamp control is in the

position.

position, parking lamp or autolamp

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 52

Lights

WARNING: Always remember to turn on your headlamps at

dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable lit components in the vehicle during headlamp and parking lamp operation.

• Tap the top or bottom of the control to brighten/dim all interior lit components incrementally, or

• Press and hold at the first position the top or bottom of the control until the desired lighting level is reached.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

If your vehicle is a tractor, the turn signals may not shut off when a turn is completed; this is normal. Please see your dealer if there are any questions on the options your vehicle has been equipped with.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 53

INTERIOR LAMPS

Map lamps (if equipped)

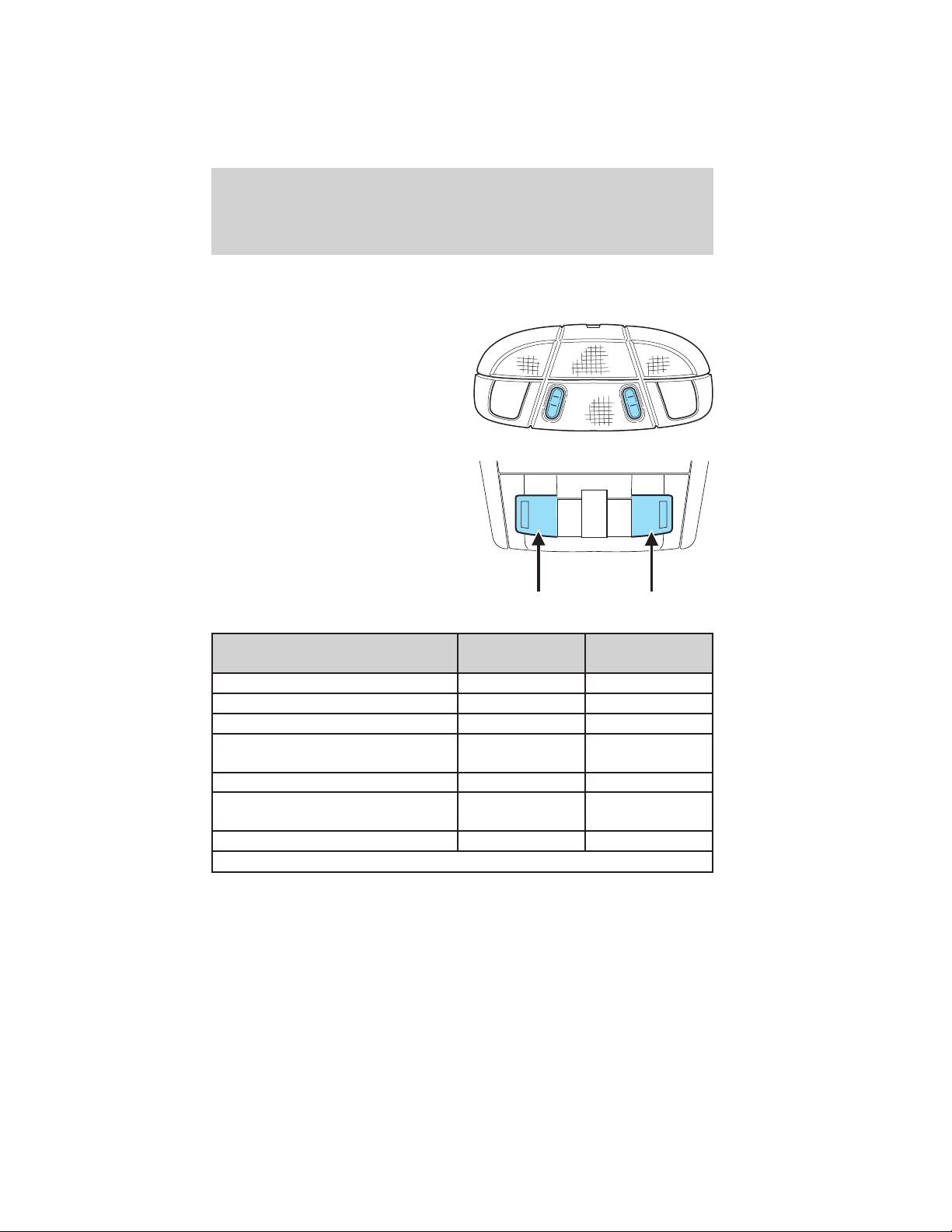

To turn on the map lamps, press the control next to each lamp. The dome lamp turns on when:

• any door is opened,

• any of the remote entry controls

are pressed and the ignition is off.

EXTERIOR LAMPS

Bulb inspection

It is a good safety practice to check operation of headlamps, parking lamps, turn signals, clearance and marker lamps, instrument panel and control lamps each day.

Using the right bulbs

Lights

Function Number of

bulbs

Headlamps 2 H6054 Front turn signal lamps 2 1157 Front sidemarker/Park lamps 2 (amber) 194 Brake/Tail/Stop/Rear turn

signal/License lamps Back-up lamps 2 1156 Front clearance and identification

lamps Dome lamp 1 105 To replace all instrument panel lights - see your dealer

1 bulb each side 1157

5 194

Trade number

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 54

Lights

Bulb replacement

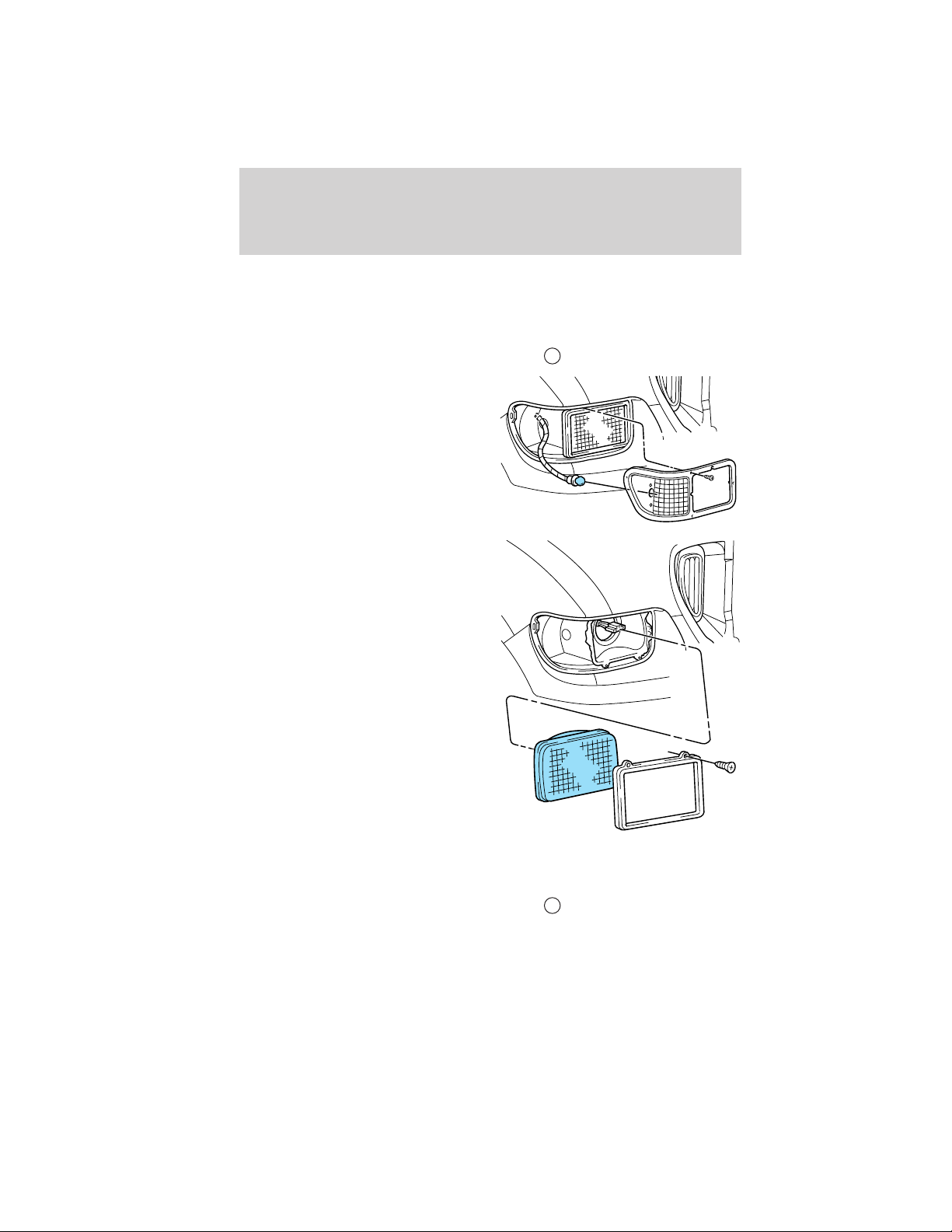

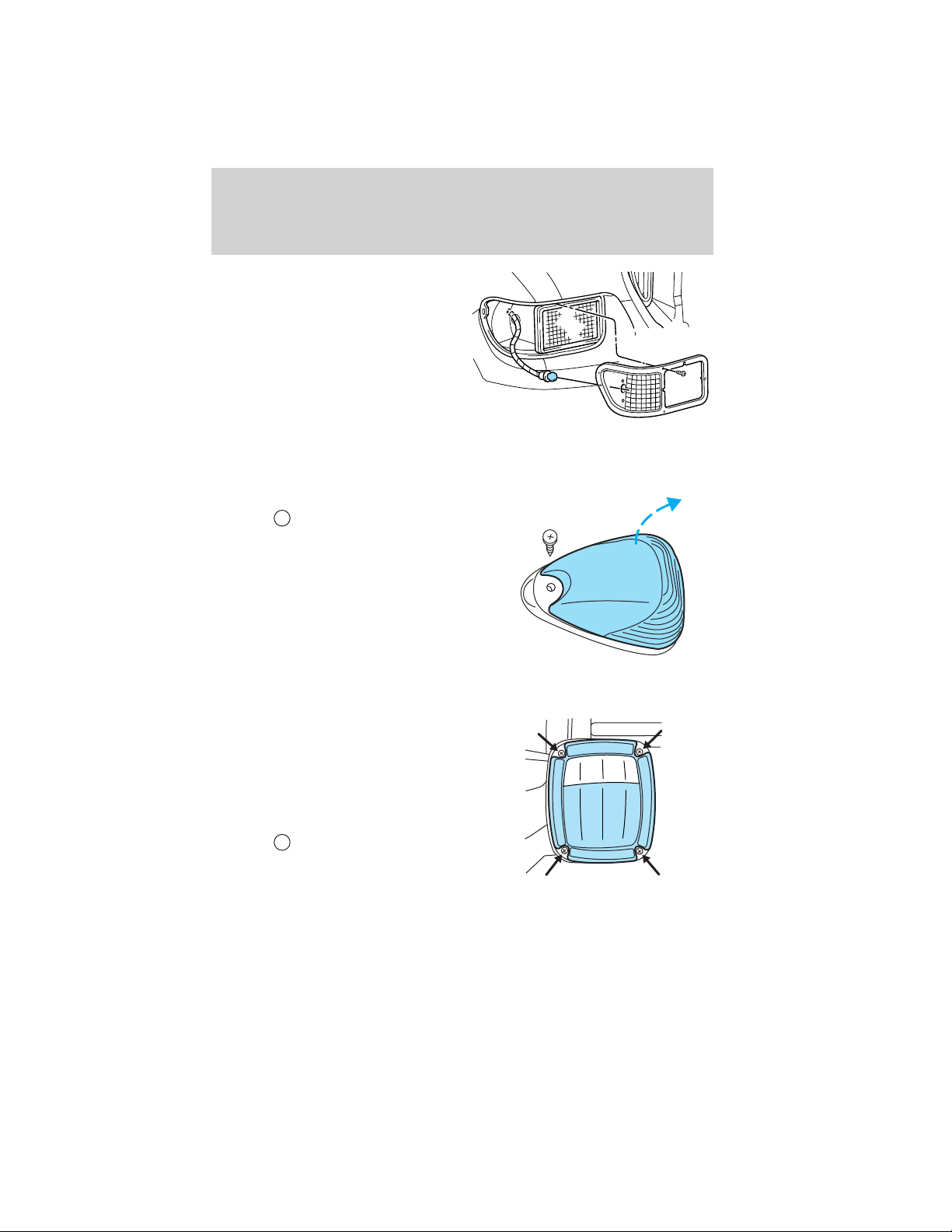

Replacing headlamp bulbs

To remove the headlamp bulbs:

1. Make sure the headlamp control is in the

2. Remove the four screws and

move the parking lamp assembly away from the headlamp bulb.

3. Remove the four screws and the

retaining bracket from the headlamp bulb.

4. Pull the headlamp bulb out of the

housing, disconnect the electrical connector and remove the headlamp bulb.

5. To complete installation, follow

the removal procedure in reverse order.

position.

Replacing front parking lamp/turn signal/side marker bulbs

To remove the parking lamp/turn signal bulbs:

1. Make sure the headlamp control is in the

signals are off.

position and the turn

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 55

Lights

2. Remove the four screws from the lamp assembly.

3. Carefully lower the lamp assembly and pull the bulb socket straight out of the lamp assembly.

4. Carefully pull the bulb straight out of the socket and push in the new bulb.

5. To complete installation, follow the removal procedure in reverse order.

Replacing front clearance and identification lamp bulbs

To change the cab marker bulbs:

1. Make sure the headlamp control is in the the screw and lens from the lamp assembly.

2. Carefully pull the bulb straight out of the socket and push in the new bulb.

3. Install the lens on lamp assembly with screw.

Replacing brake/tail/rear turn signal/back-up/license plate lamp bulbs

The brake/tail/turn signal/back-up/license plate lamp bulbs are located in the same portion of the tail lamp assembly. Follow the same steps to replace any of these bulbs:

1. Make sure the headlamp control is in the signals are off, then remove the four screws and the lamp lens from lamp assembly.

2. Carefully pull the bulb straight out of the socket and push in the new bulb.

3. Install the lens on the lamp assembly with the four screws.

position, then remove

position and the turn

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 56

Driver Controls

MULTI-FUNCTION LEVER

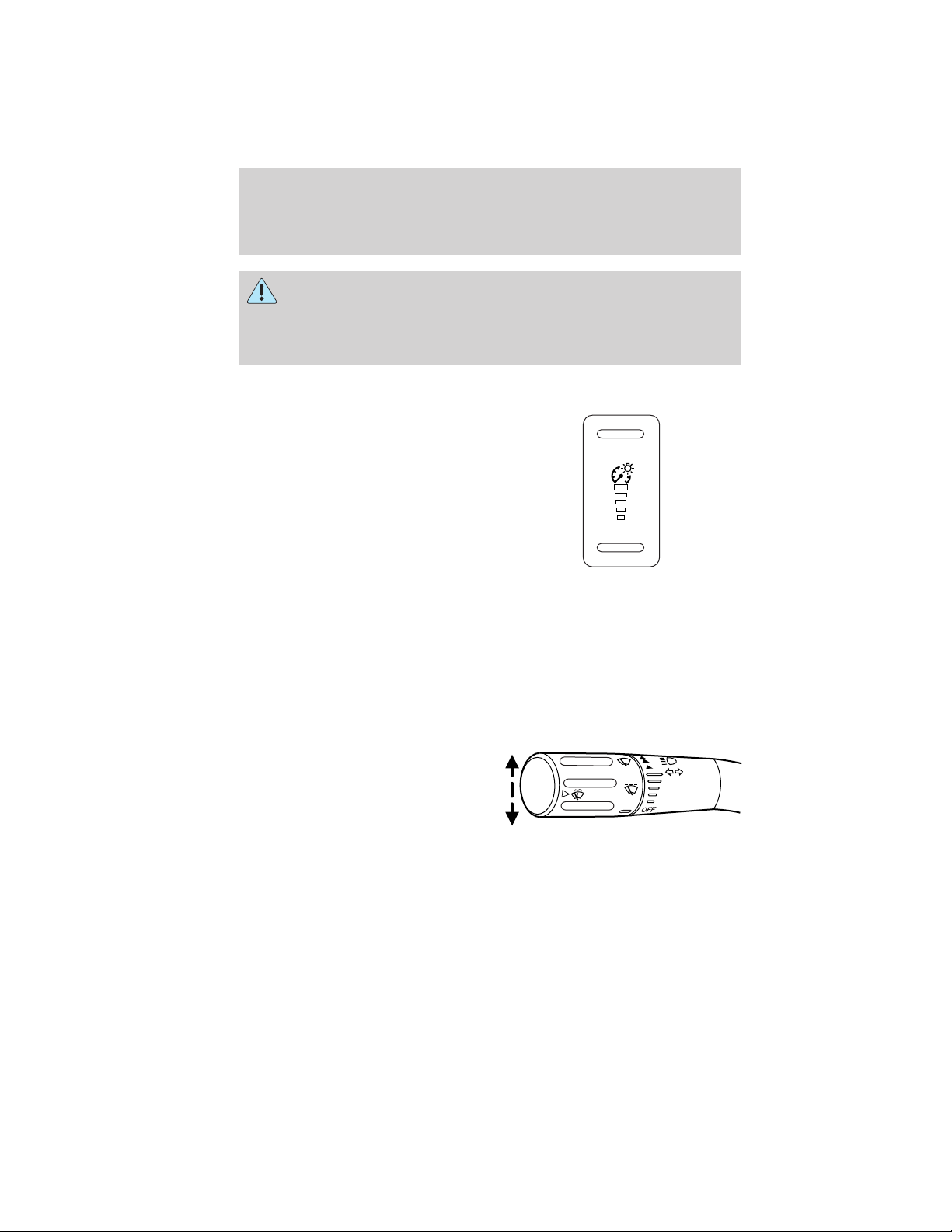

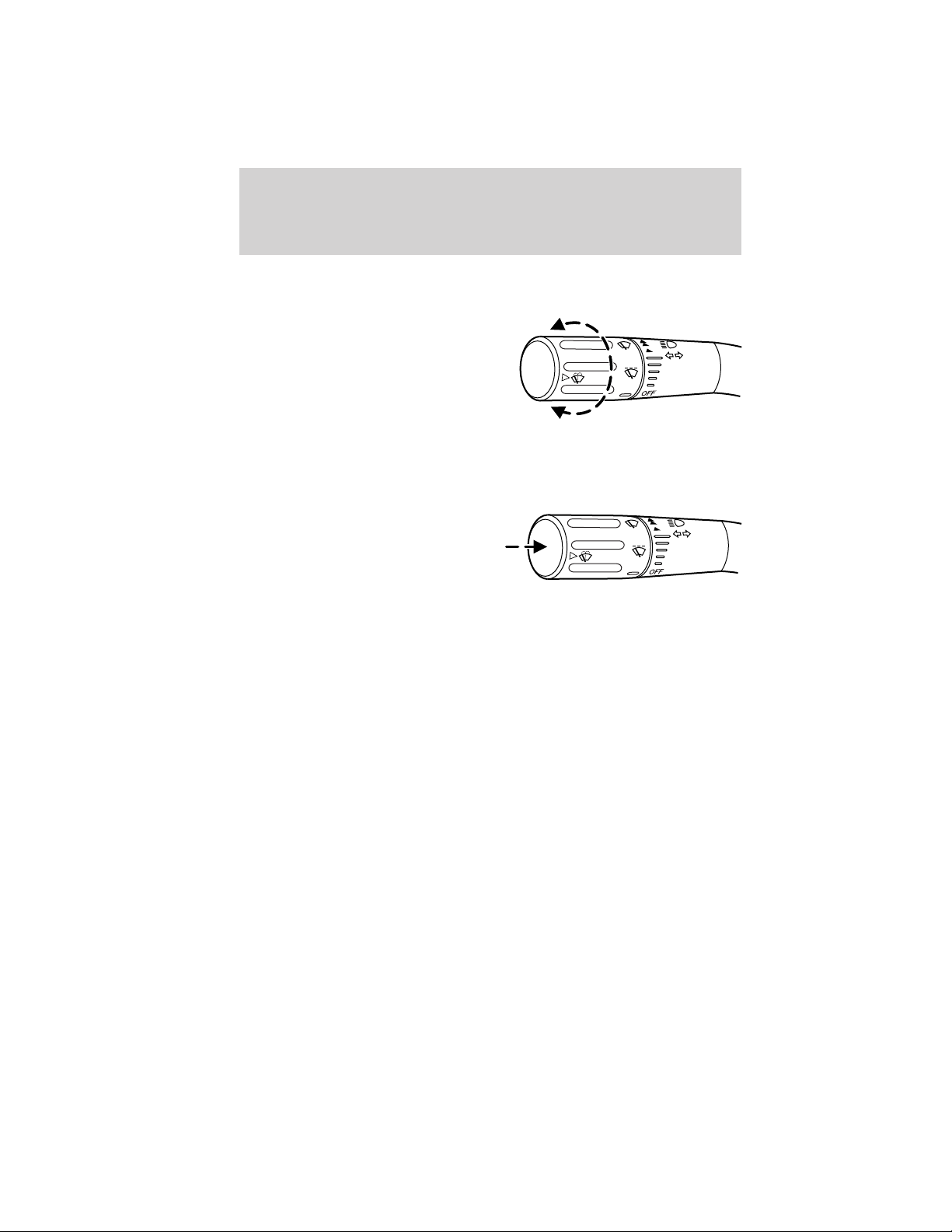

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Windshield washer: Press the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick press and hold: the wipers will swipe three times with washer fluid.

• a long press and hold: the wipers and washer fluid will be activated for up to 10 seconds.

Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

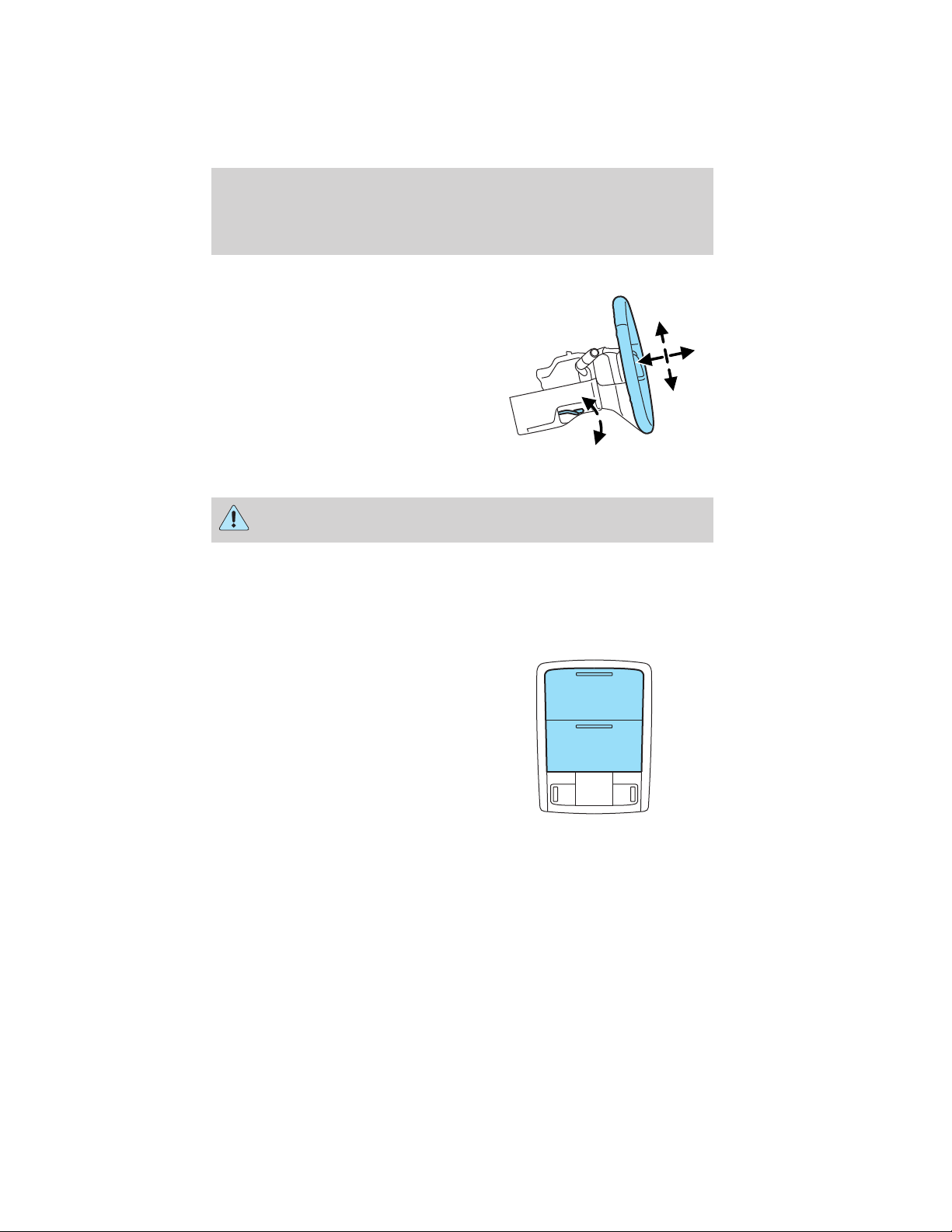

Page 57

Driver Controls

TILT STEERING

To adjust the steering wheel:

1. Pull the lever down to unlock the steering column.

2. While the lever is in the down position, move the steering wheel up or down and in or out until you find the desired position.

3. While holding the steering wheel in place, pull the lever up to its original position to lock the steering column.

WARNING: WARNING: Never adjust the steering wheel when the vehicle is moving.

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package.

Storage compartment (if equipped)

Press the release tab on the rear edge of the bin door to open the storage compartment. The door will open to the full open position.

The storage compartment may be used to secure sunglasses or a similar object.

AUXILIARY POWER POINT

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet for this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 58

Driver Controls

Auxiliary power points can be found in the following locations:

• On the instrument panel (two locations)

• Inside the center console storage compartment (if equipped)

• On the rear of the center console (if equipped)

• Inside the 20-percent front seat console (if equipped)

• Inside the rear under seat storage compartment (if equipped)

Do not use the power point for operating the cigarette lighter element (if equipped).

To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.

To have full capacity usage of your power point, the engine is required to be running to avoid unintentional discharge of the battery. To prevent the battery from being discharged:

• do not use the power point longer than necessary when the engine is not running,

• do not leave battery chargers, video game adapters, computers and other devices plugged in overnight or when the vehicle is parked for extended periods.

Always keep the power point caps closed when not being used.

POWER WINDOWS (IF EQUIPPED)

WARNING: Do not leave children unattended in the vehicle and do not let children play with the power windows. They may

seriously injure themselves.

WARNING: When closing the power windows, you should verify they are free of obstructions and ensure that children and/or

pets are not in the proximity of the window openings.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 59

Driver Controls

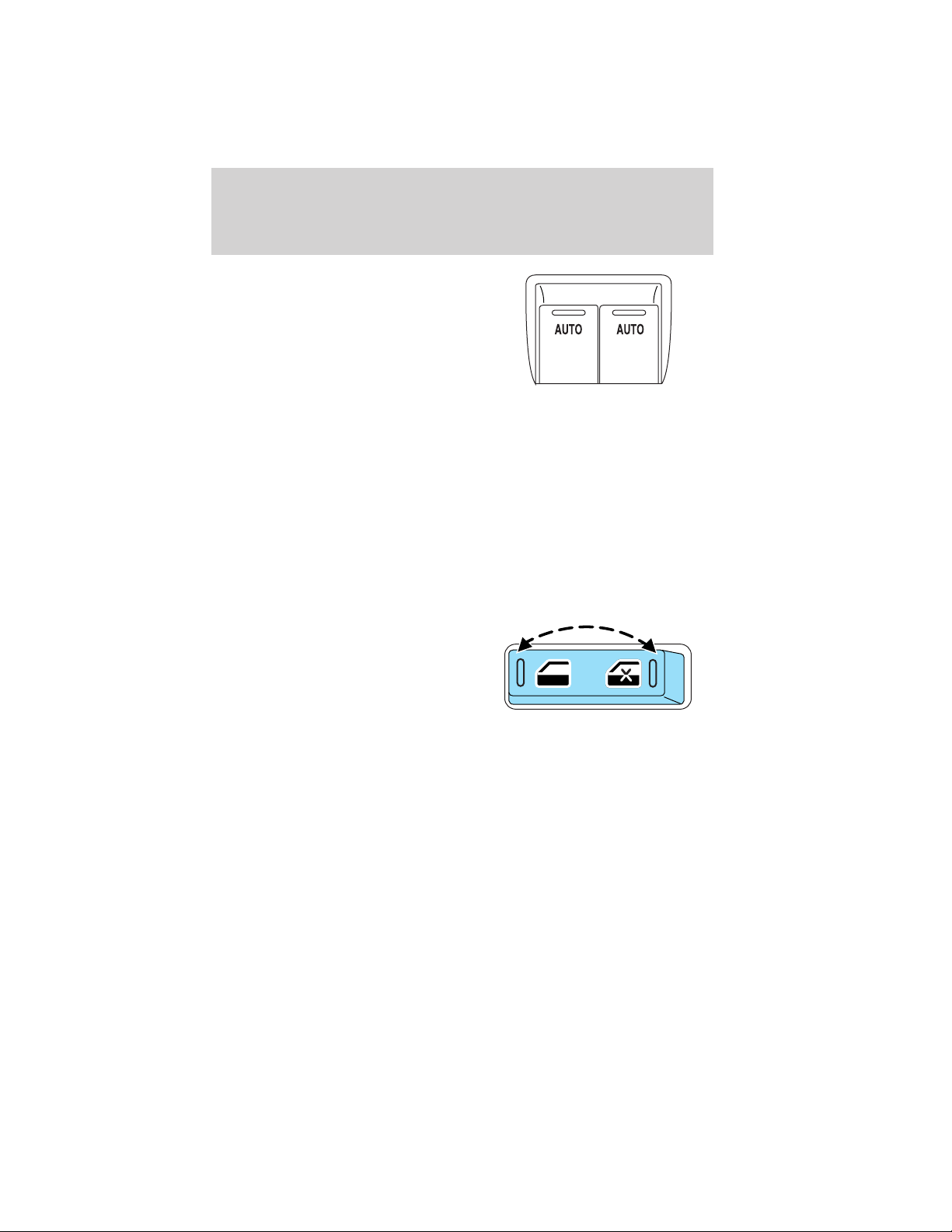

Press and pull the window switches to open and close windows.

• Press down (to the first detent) and hold the switch to open.

• Pull up (to the first detent) and hold the switch to close.

Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise. This noise can be alleviated by lowering a front window approximately 2–3 in. (5–8 cm).

One-touch down

Allows the driver’s window to open fully without holding the control down. Press the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation.

Window lock (if equipped)

The window lock feature allows only the driver to operate the power windows.

To lock out all the window controls (except for the driver’s) press the right side of the control. Press the left side to restore the window controls.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

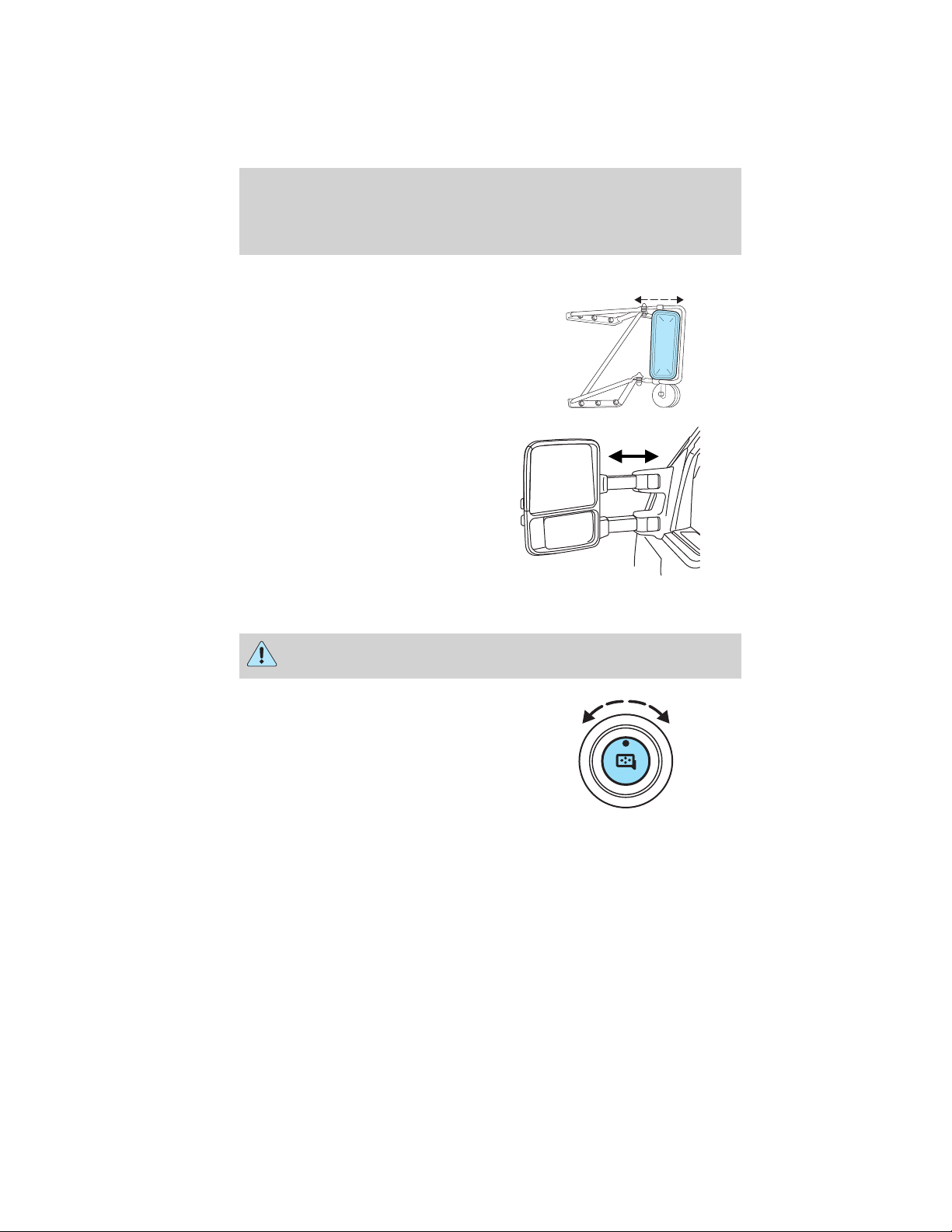

Page 60

Driver Controls

EXTERIOR MIRRORS

With the doors closed and the seat adjusted for proper comfort, move the mirrors to maximize rear viewing area by adjusting the western mirrors left or right as required.

Adjust the auxiliary convex mirrors. Convex mirrors are a ball-stud design for precise adjustment to maximize viewing area.

Power side view mirrors (if equipped)

WARNING: Do not adjust the mirror while the vehicle is in motion.

To adjust your mirrors:

1. Rotate the control clockwise to adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.

2. Move the control in the direction you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

The spotter mirror below the main glass (if equipped) must be adjusted manually.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 61

Driver Controls

Heated outside mirrors (if equipped)

The main mirror glass and lower convex spotter mirror are heated to remove ice, mist and fog. To activate the heated mirrors, press the heated mirror control climate control panel.

Do not remove ice from the mirrors with a scraper or attempt to re-adjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

Fold-away mirrors

Fold the side mirrors in carefully before driving through a narrow space, like an automatic car wash.

Powerfold mirrors (if equipped)

You can fold the side mirrors simultaneously using the power mirror switch.

located on the

To operate the powerfold mirrors:

1. Rotate the switch to the center/neutral position.

2. Momentarily pull the switch rearward to auto fold in.

3. Momentarily pull the switch rearward again to fold back to design

position.

Note: When powerfolding the mirrors, it is normal to hear the sound of the motors.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

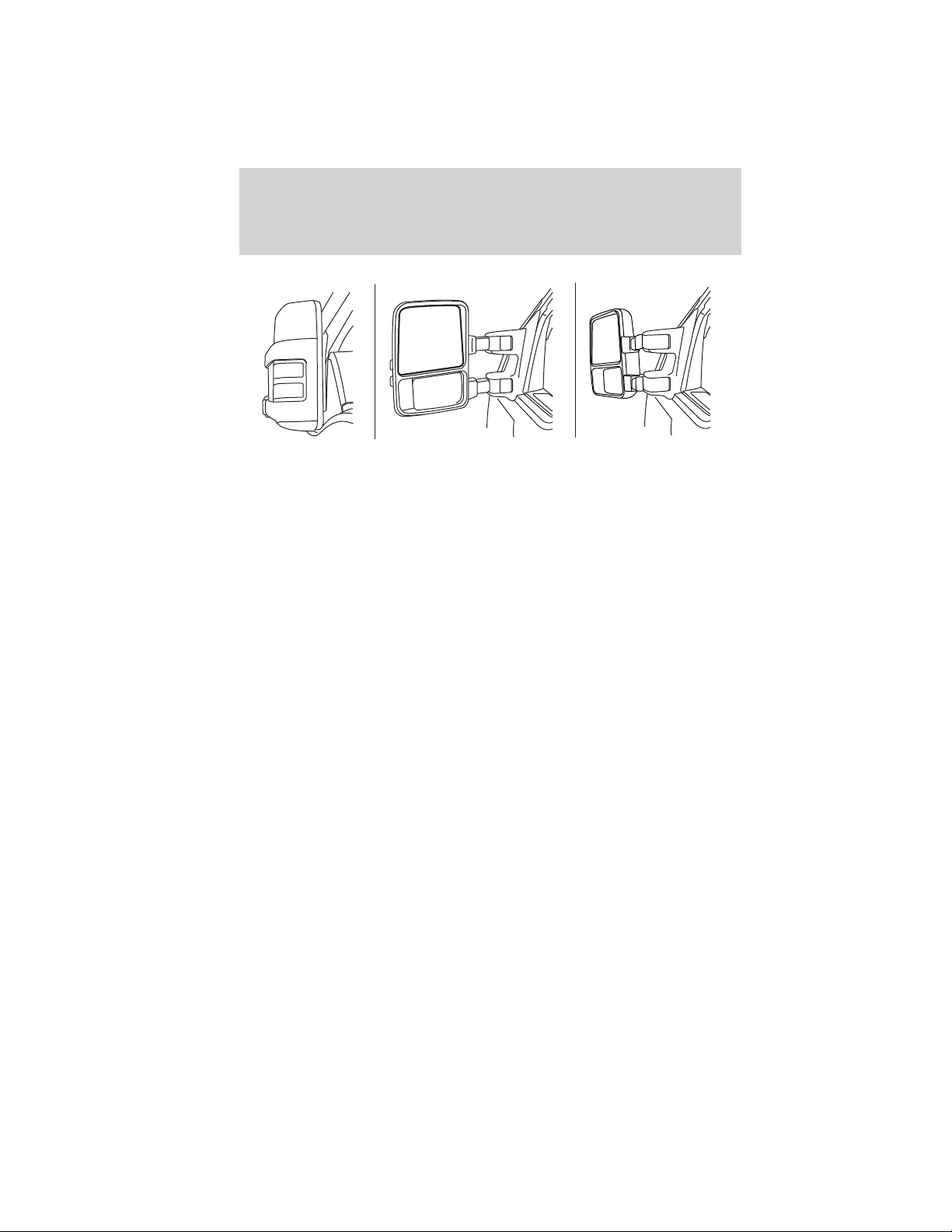

Page 62

Driver Controls

Powerfold mirror positions, from left to right: Position 1, Position 2, Position 3

The powerfold mirrors may be folded forward/rearward manually to any of the three positions shown and electrically to positions 1 and 2 only. If a mirror is folded manually forward to position 3, you must manually fold it back to position 1 or 2 in order for the powerfold function to continue functioning. Note: Although it is possible to electrically fold the mirror from position 3 to 2, it was not designed for this functionality and may not always work under all conditions.

Note: Ten or more switch activations within one minute, or repeated fold/unfolding of the mirrors while holding the switch rearward during the full travel may cause the system to disable the fold/unfold function to protect the motors from overheating. Should this occur, wait approximately 3 to normal.

Note: The powerfold mirrors are designed to operate while the vehicle is stationary or traveling at moderate speeds. If you attempt to powerfold the mirrors at high speeds, they may not fully fold forward/rearward slow down and powerfold or manually fold the mirrors in order to complete the fold operation.

Note: If the power fold/telescope mirror glass appears loose or vibrates when driving, it is possible that the mirrors have been manually folded or telescoped. To minimize the vibration, ensure that the mirrors are electronically folded and telescoped in/out with the switches on the door trim panel. If the power fold mirrors are out of sync, electronically powerfold the mirrors to re-sync the motors. This will cause a loud “click” and the mirrors will jerk during re-synchronization. This is normal.

⁄2minutes for the system to reset and function to return

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 63

Driver Controls

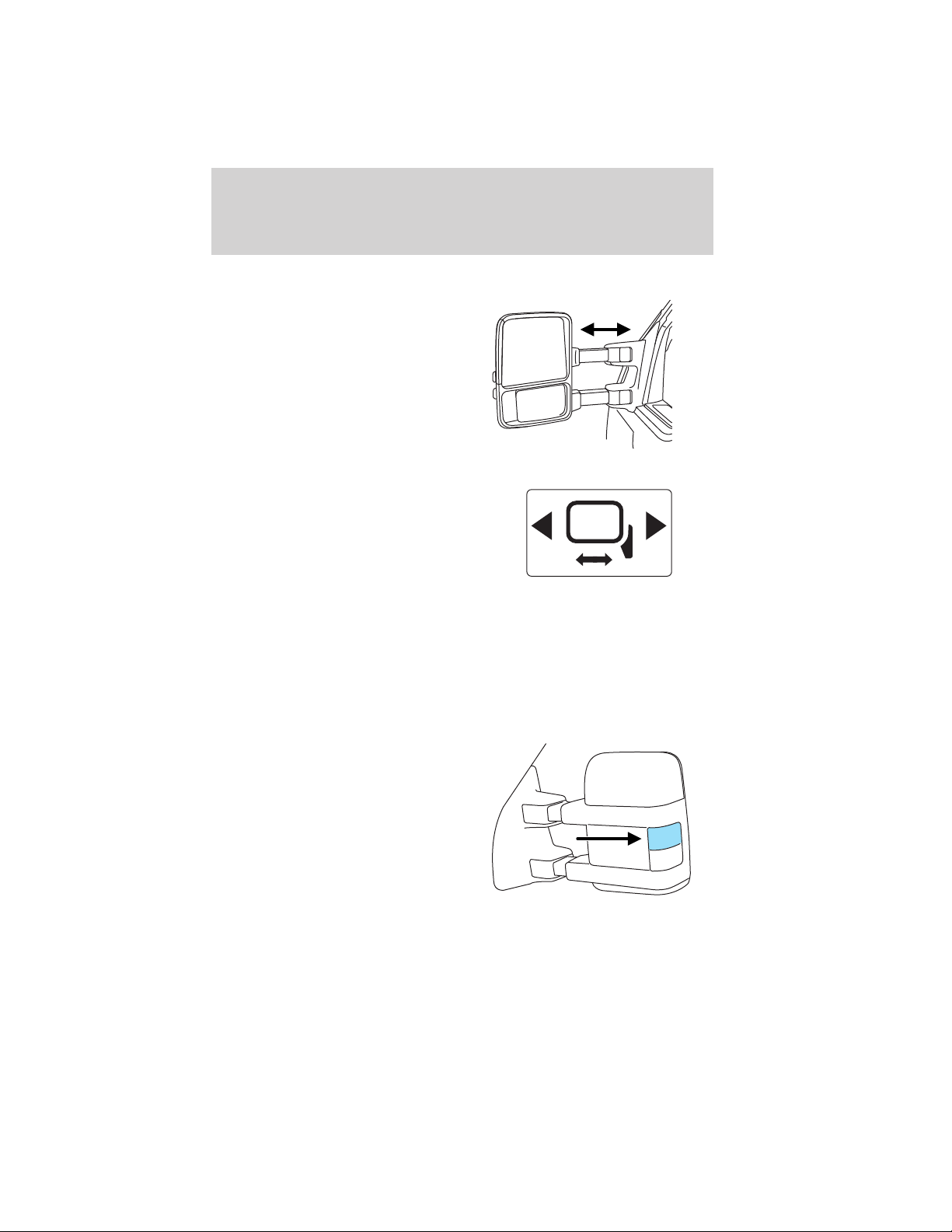

Telescoping mirrors (if equipped)

The telescoping feature allows the mirror to extend approximately

2.75 inches (70 mm). This feature is

especially useful to the driver when towing a trailer. Mirrors can be manually pulled out or pushed in to the desired telescopic position.

If equipped with PowerScope™ power telescoping mirrors, you can simultaneously position both mirrors using the power telescope switch found on the door trim panel.

• To telescope the mirrors outboard, press and hold the left side of the power telescope switch until the mirrors reach their desired position. When the end of travel is reached, it is normal to hear the power telescoping motors running as long as you continue to hold the switch.

• To telescope the mirrors inboard, press and hold the right side of the power telescope switch until the mirrors reach their desired position.

Mirror-mounted side turn signal indicator (if equipped)

When the vehicle turn signals are activated, the outer portion of the mirror housing will blink amber.

The turn signal feature can be seen by other drivers who may approach from the rear of the vehicle.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 64

Driver Controls

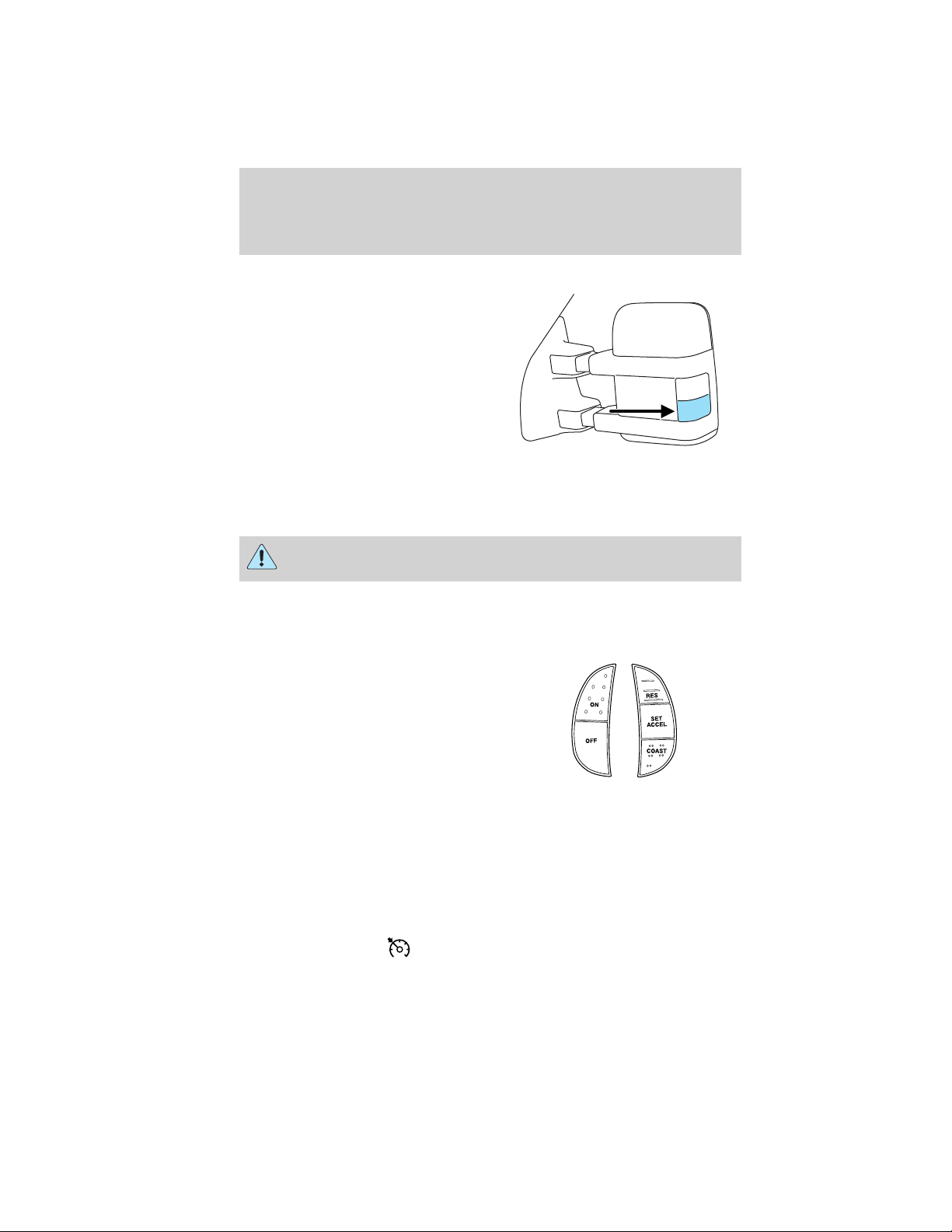

Clearance lamps (if equipped)

Illuminates when the headlamps or parking lamps are switched on.

This provides additional visibility of your vehicle to other drivers on the road.

SPEED CONTROL

With speed control set, you can maintain a set speed without keeping your foot on the accelerator pedal.

WARNING: Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.

Using speed control

The speed controls are located on the steering wheel. The following buttons work with speed control:

ON: Press to turn system on. OFF: Press to turn system off. RES (Resume): Press to resume a

set speed. SET/ACCEL: Press to set the

speed or increase the set speed. COAST: Press to decrease the set

speed.

Setting speed control

1. Press and release ON.

2. Accelerate to the desired speed.

3. Press and release SET/ACCEL.

4. Take your foot off the accelerator pedal.

5. The indicator light 64

on the instrument cluster will turn on.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 65

Driver Controls

Note:

• Vehicle speed may vary momentarily when driving up and down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.

Disengaging speed control

To disengage speed control, press the brake pedal. Disengaging speed control will not erase the previous set speed.

Resuming a set speed

Press and release RES. This will automatically return the vehicle to the previously set speed.

Increasing speed while using speed control

To increase the set speed:

• Press and hold SET/ACCEL until you get to the desired speed, then release. You can also use SET/ACCEL to operate the tap-up function. Press and release SET/ACCEL to increase the vehicle set speed in 1 mph (1.6 km/h) increments.

• Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed, press and release SET/ACCEL.

Reducing speed while using speed control

To reduce the set speed:

• Press and hold COAST until you get to the desired speed, then release. You can also use COAST to operate the tap-down function. Press and release COAST to decrease the vehicle set speed in 1 mph (1.6 km/h) increments.

• Press the brake pedal until the desired vehicle speed is reached, then press and release SET/ACCEL.

Turning off speed control

To turn off the speed control, press OFF or turn off the ignition. Note: When you turn off the speed control or the ignition, your speed

control set speed memory is erased.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 66

Driver Controls

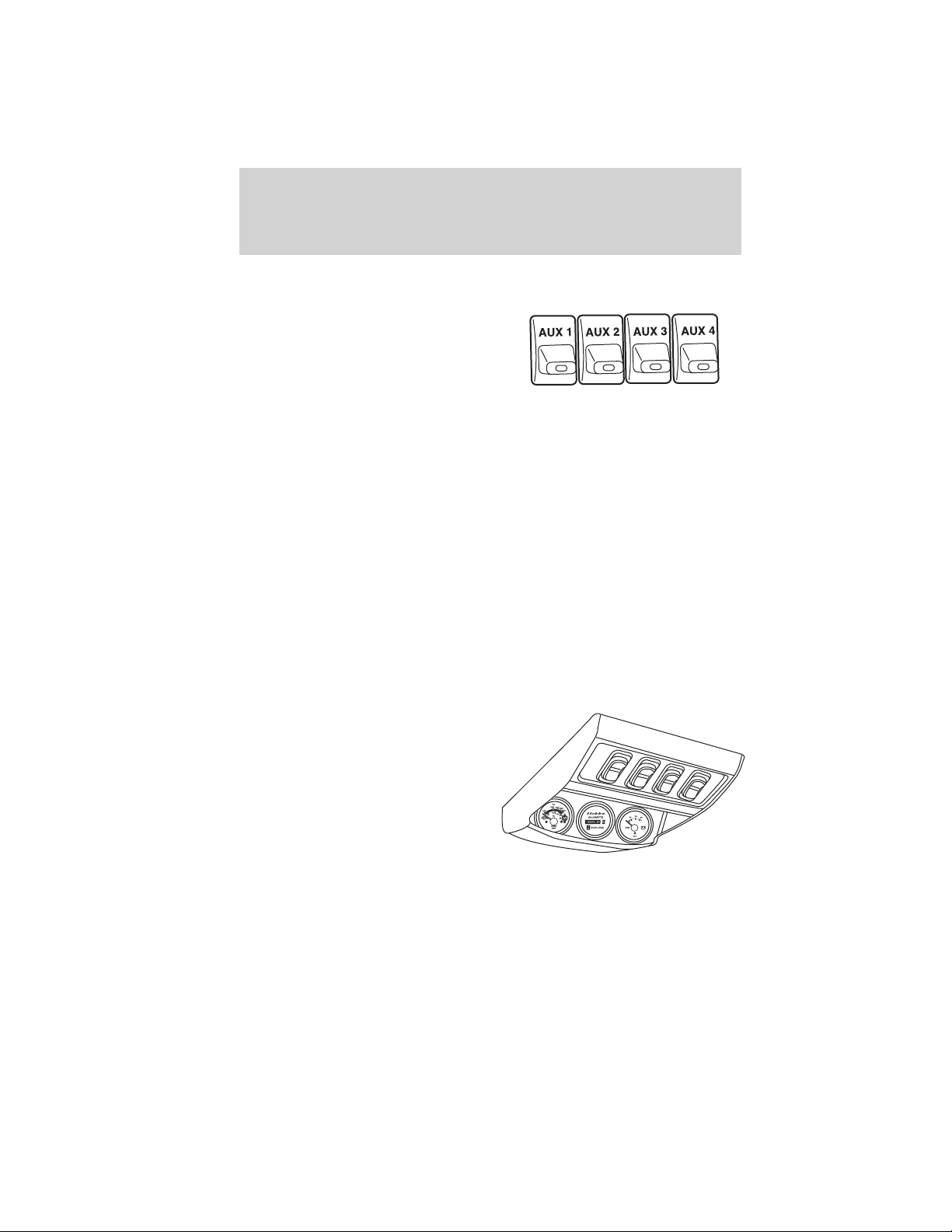

UPFITTER CONTROLS (IF EQUIPPED)

Your vehicle may be equipped with the Upfitter option package which will provide four switches, mounted in the center of the instrument panel, labeled AUX 1, AUX 2, AUX 3 and AUX 4. These switches will only operate while the ignition is in the on position, whether the engine is running or not. It is, however, recommended that the engine remain running to maintain battery charge when using the Upfitter switches for extended duration or higher current draws. (This is even more important for vehicles with diesel engines since the glow plugs are also draining battery power when the ignition key is in the on position.) Each switch provides 10 amps of power.

If your vehicle is equipped with this option, there will also be a relay box located on the driver side end of the instrument panel. See your authorized dealer for service.

Switch access location is in a connector located in the engine compartment More detailed information can be found at https://www.fleet.ford.com/truck/bbas/.

GAUGE PACKAGE (IF EQUIPPED)

Your vehicle may be equipped with an optional gauge package. It will have one of the following configurations:

Overhead gauge package: This will contain the following gauges:

1. Transmission temperature gauge: displays the transmission temperature at the transmission sump.

2. Hourmeter: displays the hours of engine run time.

3. Voltmeter: displays electrical system voltage.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 67

Locks and Security

KEYS

The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer.

You should always carry a second key with you in a safe place in case you require it in an emergency.

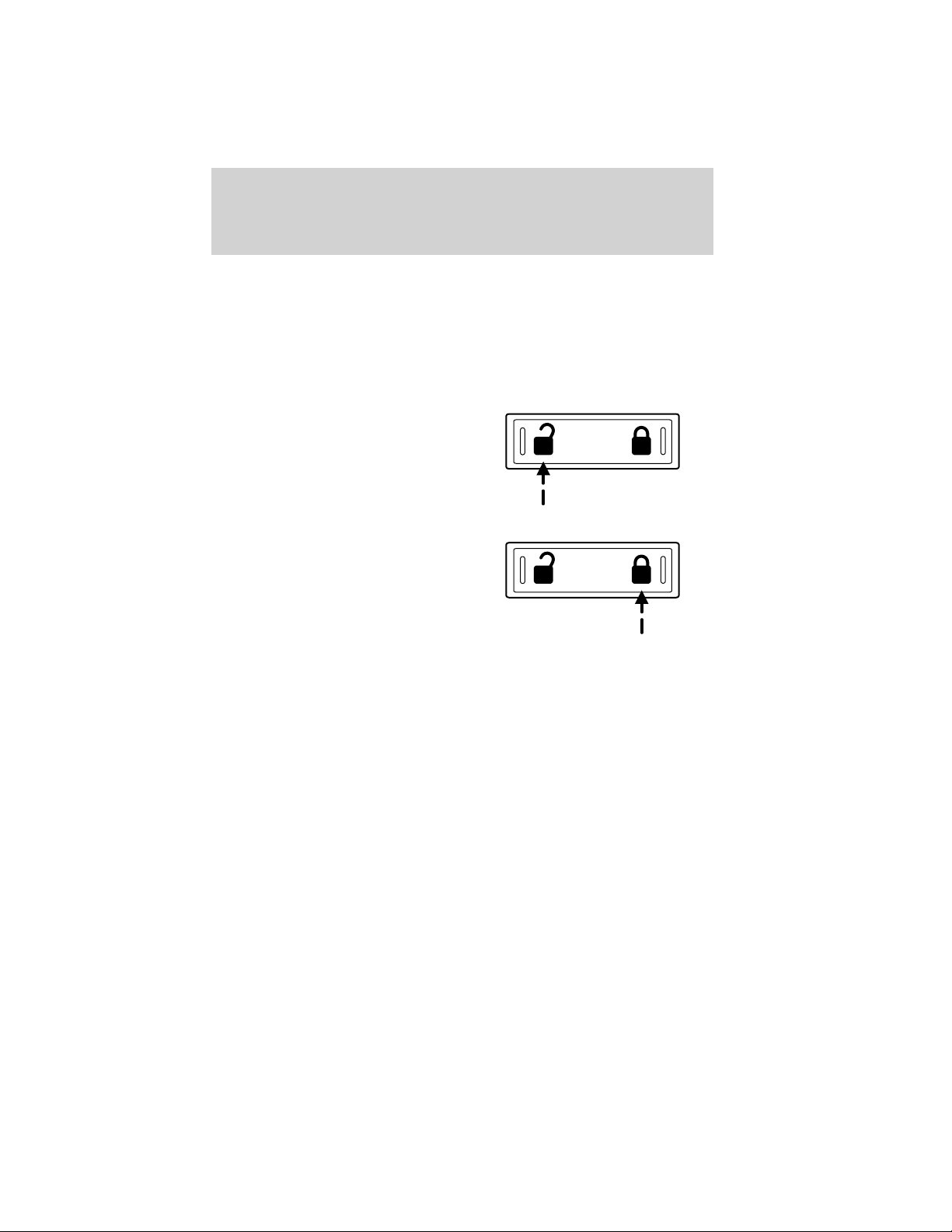

POWER DOOR LOCKS (IF EQUIPPED)

Press control to unlock all doors.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

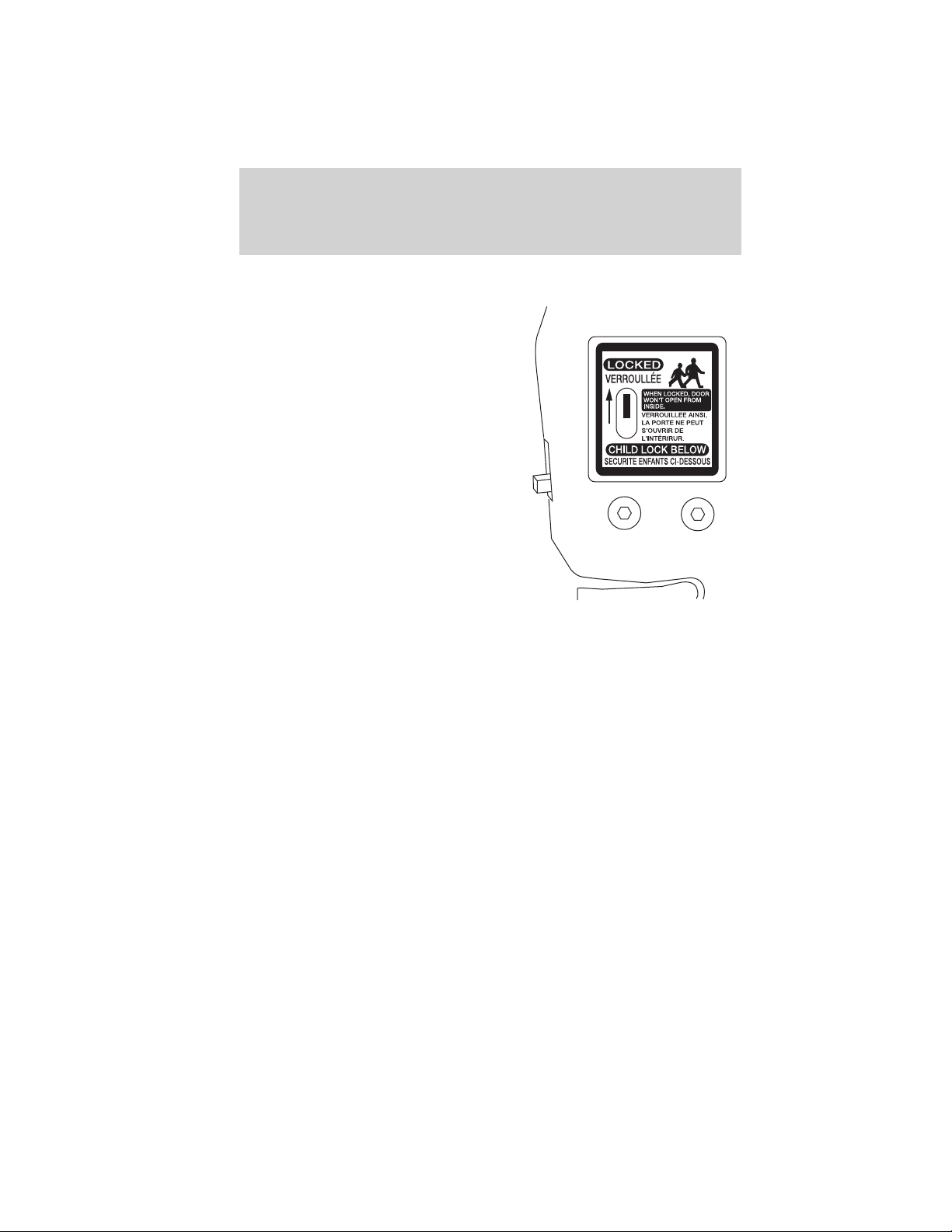

Page 68

Locks and Security

CHILDPROOF DOOR LOCKS (IF EQUIPPED)

When these locks are set, the rear doors cannot be opened from the inside. The rear doors can be opened from the outside when the doors are unlocked.

The childproof locks are located on rear edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

Move lock control up to engage the childproof lock. Move control down to disengage childproof locks.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

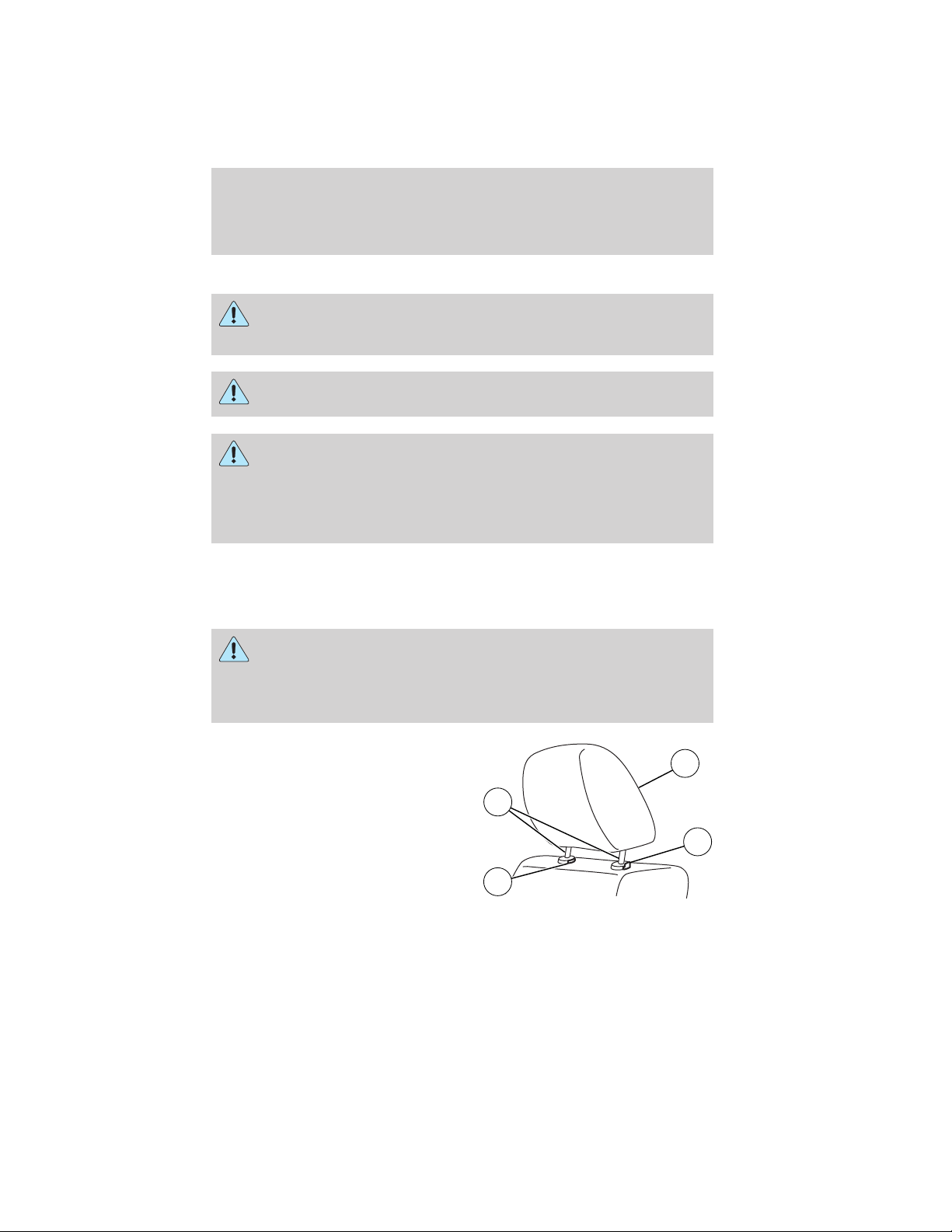

Page 69

Seating and Safety Restraints

FRONT SEATING

WARNING: Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal

injuries in the event of a collision.

WARNING: Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop.

WARNING: Before returning the seatback to its original

position, make sure that cargo or any objects are not trapped behind the seatback. After returning the seatback to its original position, pull on the seatback to ensure that it has fully latched. An unlatched seat may become dangerous in the event of a sudden stop or collision.

Adjustable head restraints (if equipped)

Your vehicle is equipped with front row outboard head restraints that are vertically adjustable.

WARNING: To minimize the risk of neck injury in the event of a

crash, the driver and passenger occupants should not sit in and/or operate the vehicle, until the head restraint is placed in its proper position. The driver should never adjust the head restraint while the vehicle is in motion.

The adjustable head restraints consist of:

• a trimmed energy absorbing foam and structure (1),

• two steel stems (2),

• a guide sleeve adjust/release

button (3),

• and a guide sleeve unlock/remove button (4).

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 70

Seating and Safety Restraints

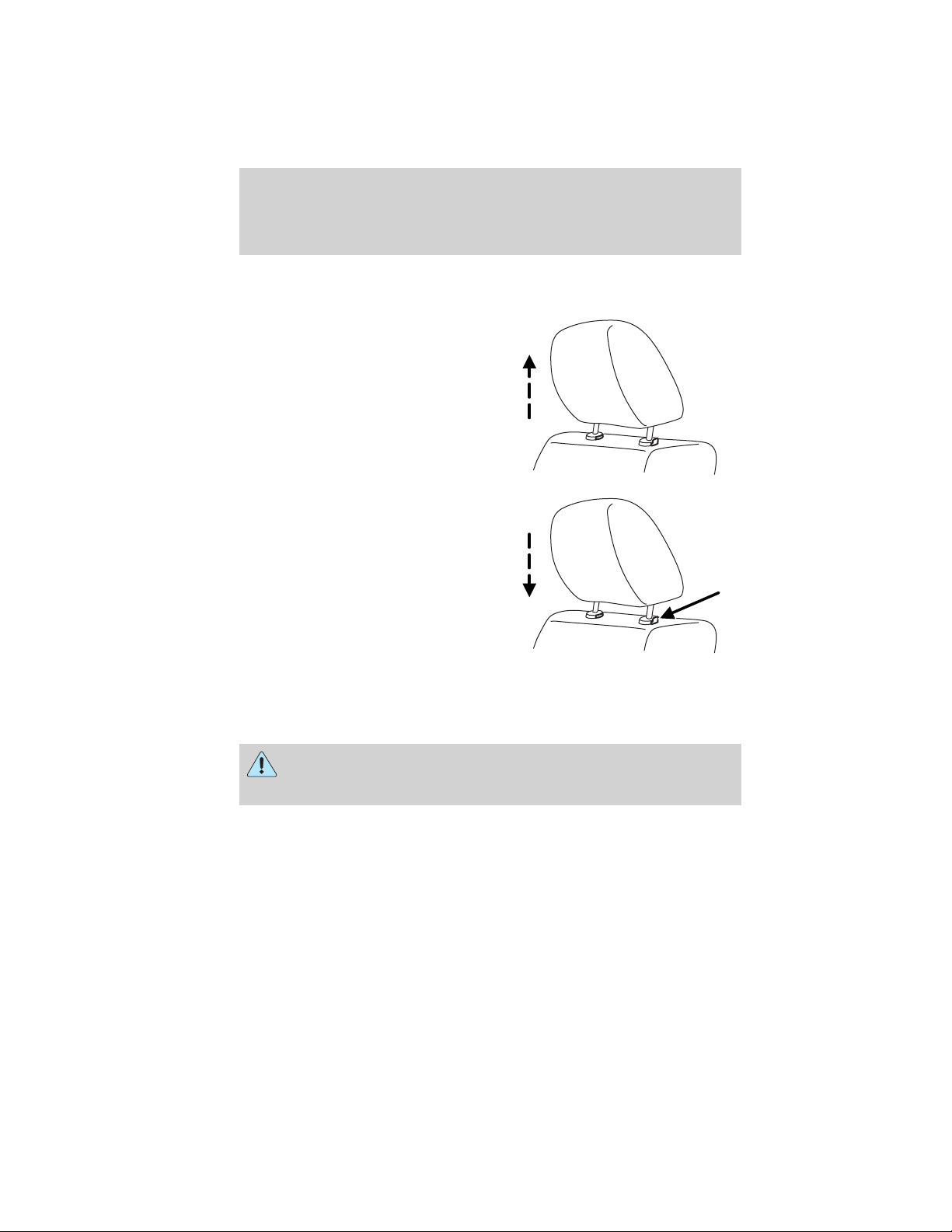

To adjust the head restraint, do the following:

1. Adjust the seatback to an upright driving/riding position.

2. Raise the head restraint by pulling up on the head restraint.

3. Lower the head restraint by pressing and holding the guide sleeve adjust/release button and pushing down on the head restraint.

Properly adjust the head restraint so that the top of the head restraint is even with the top of your head and positioned as close as possible to the back of your head. For occupants of extremely tall stature, adjust the head restraint to its full up position.

WARNING: The adjustable head restraint is a safety device. Whenever possible it should be installed and properly adjusted

when the seat is occupied.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 71

Seating and Safety Restraints

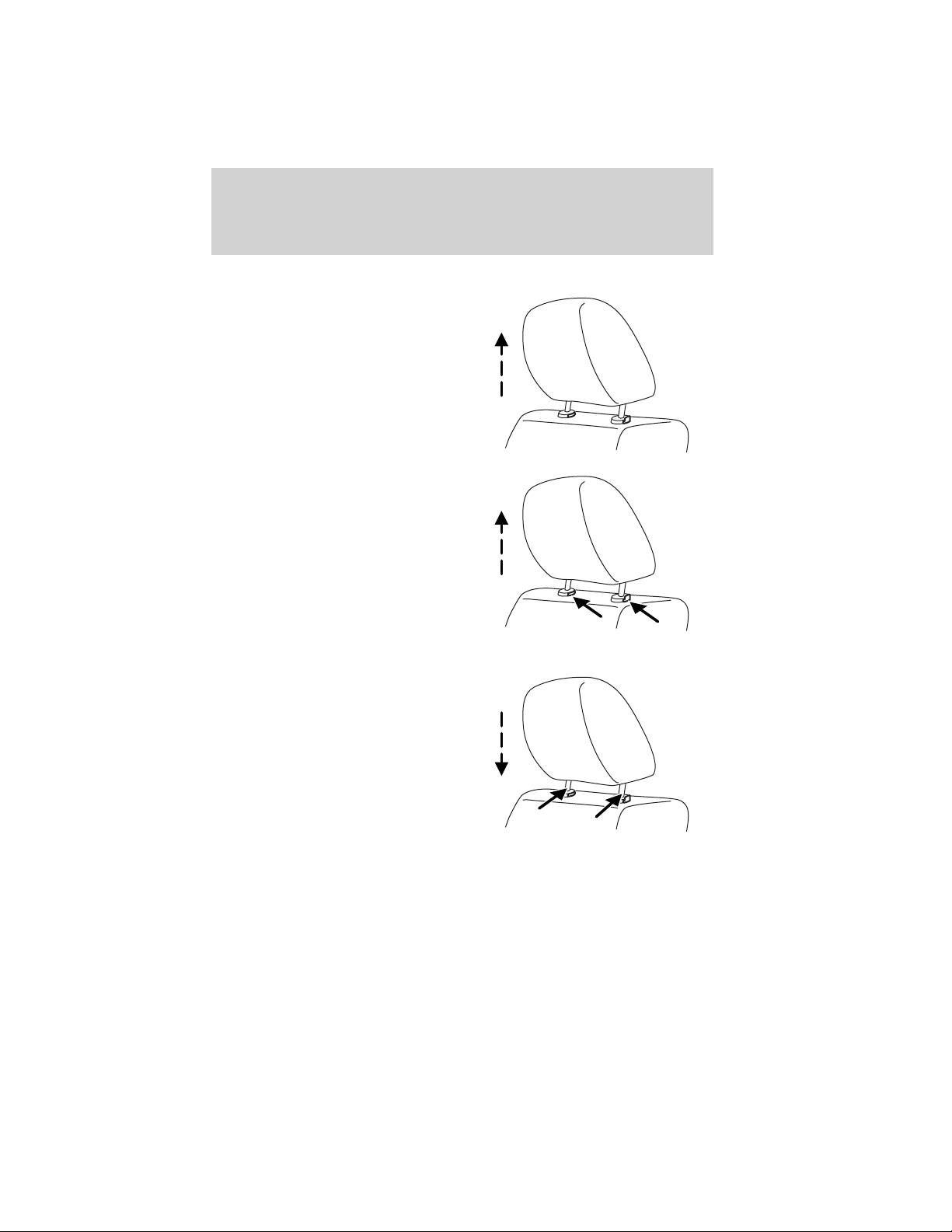

To remove the adjustable head restraint, do the following:

1. Pull up the head restraint until it

reaches the highest adjustment position.

2. Simultaneously press and hold

both the adjust/release button and the unlock/remove button, then pull up on the head restraint.

To reinstall the adjustable head restraint, do the following:

1. Insert the two stems into the

guide sleeve collars.

2. Push the head restraint down

until it locks.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 72

Seating and Safety Restraints

WARNING: To minimize the risk of neck injury in the event of a crash, head restraints must be installed properly.

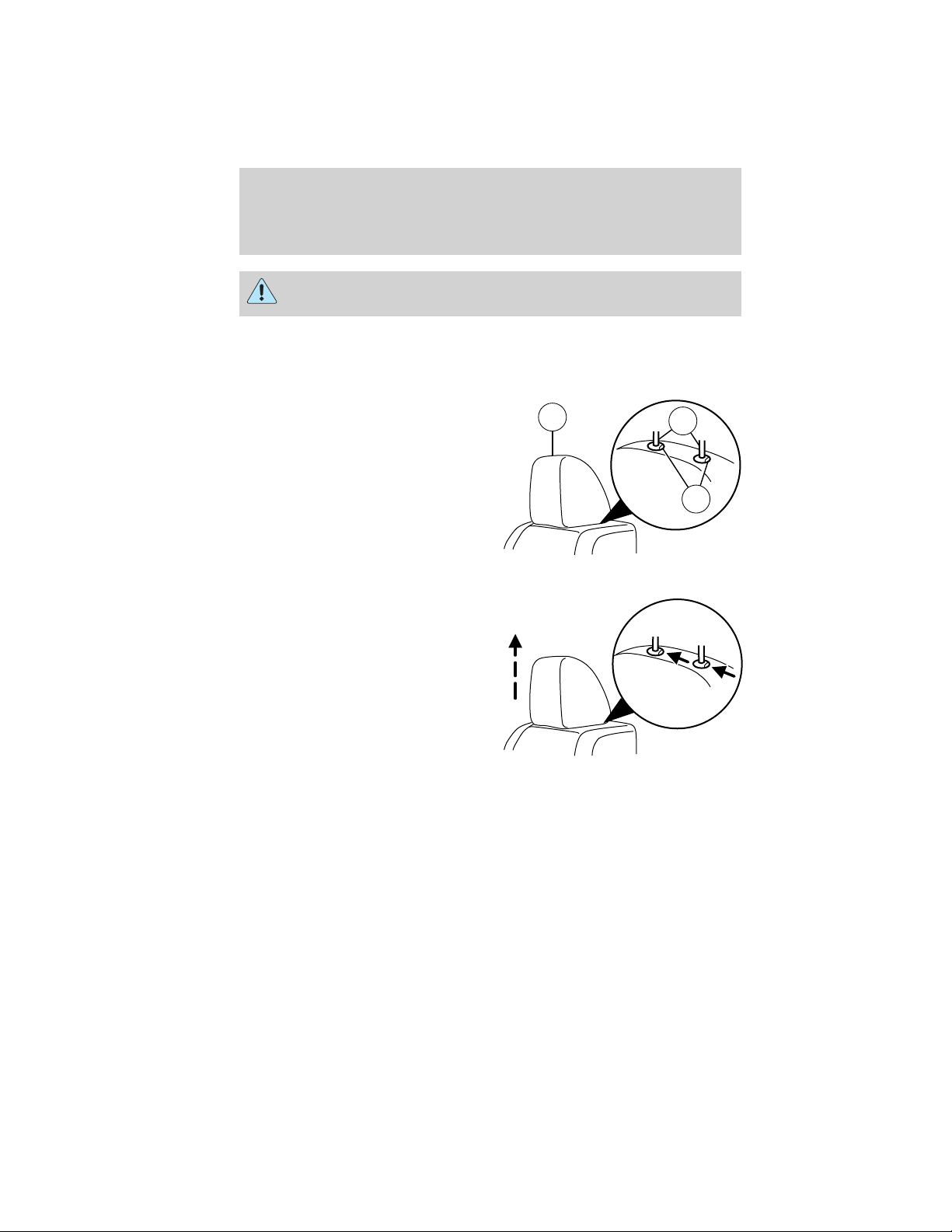

Front row center non-adjustable head restraint (if equipped)

Vehicles equipped with a front center seat will have a head restraint that is non-adjustable.

The non-adjustable head restraint consists of:

• a trimmed energy absorbing foam and structure (1),

• two steel stems (2),

• and two guide sleeve

unlock/remove buttons (3).

To remove the non-adjustable head restraint, do the following: Simultaneously press and hold both

unlock/remove buttons, then pull up on the head restraint.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 73

Seating and Safety Restraints

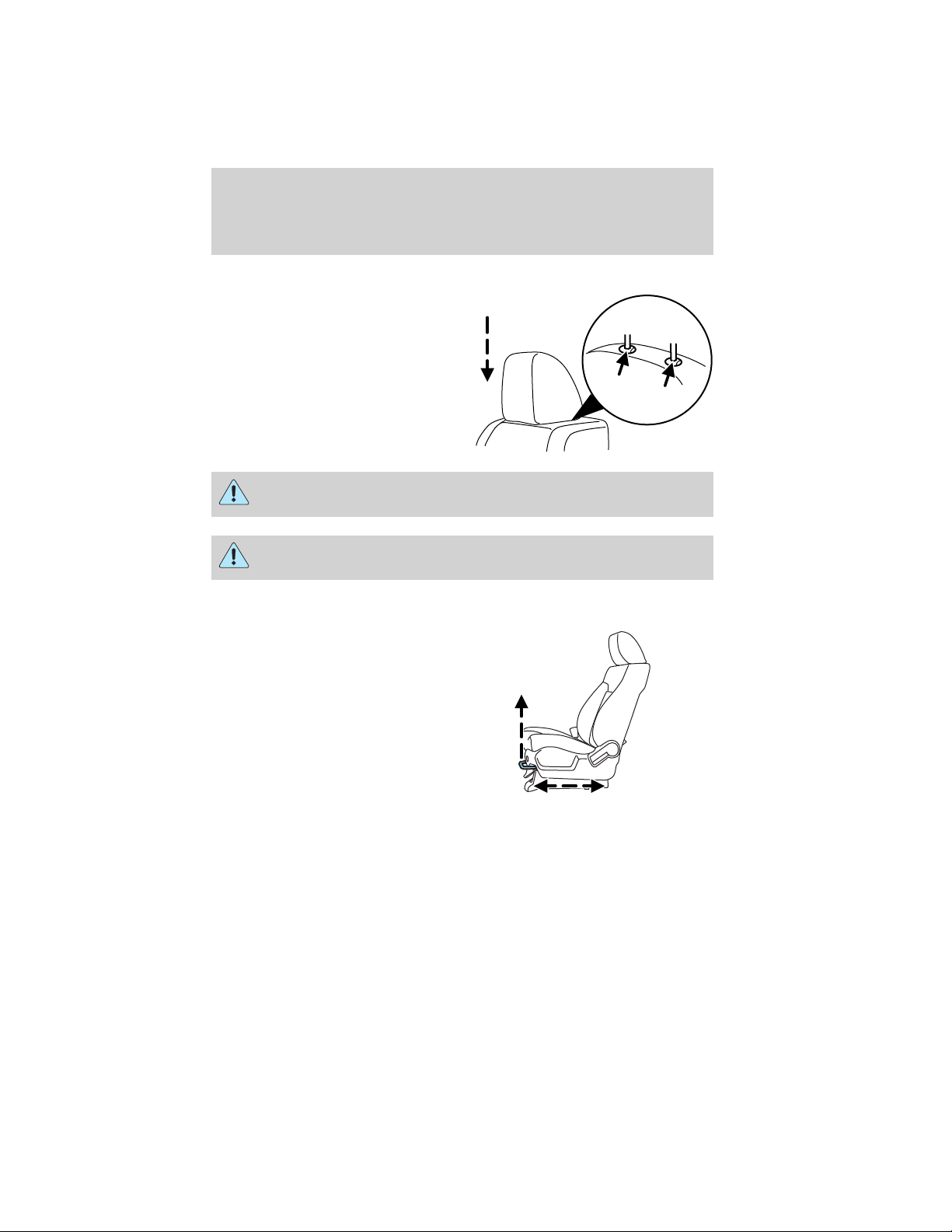

To reinstall the non-adjustable head restraint, do the following:

1. Insert the two stems into the guide sleeve collars.

2. Push the head restraint down until it locks.

WARNING: The non-adjustable head restraint is a safety device. It should be installed whenever the seat is occupied.

WARNING: To minimize the risk of neck injury in the event of a crash, head restraints must be installed properly.

40/20/40 front seats (if equipped)

• Lift the track release bar to move the seat forward or rearward. Make sure that the seat is relatched into place.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

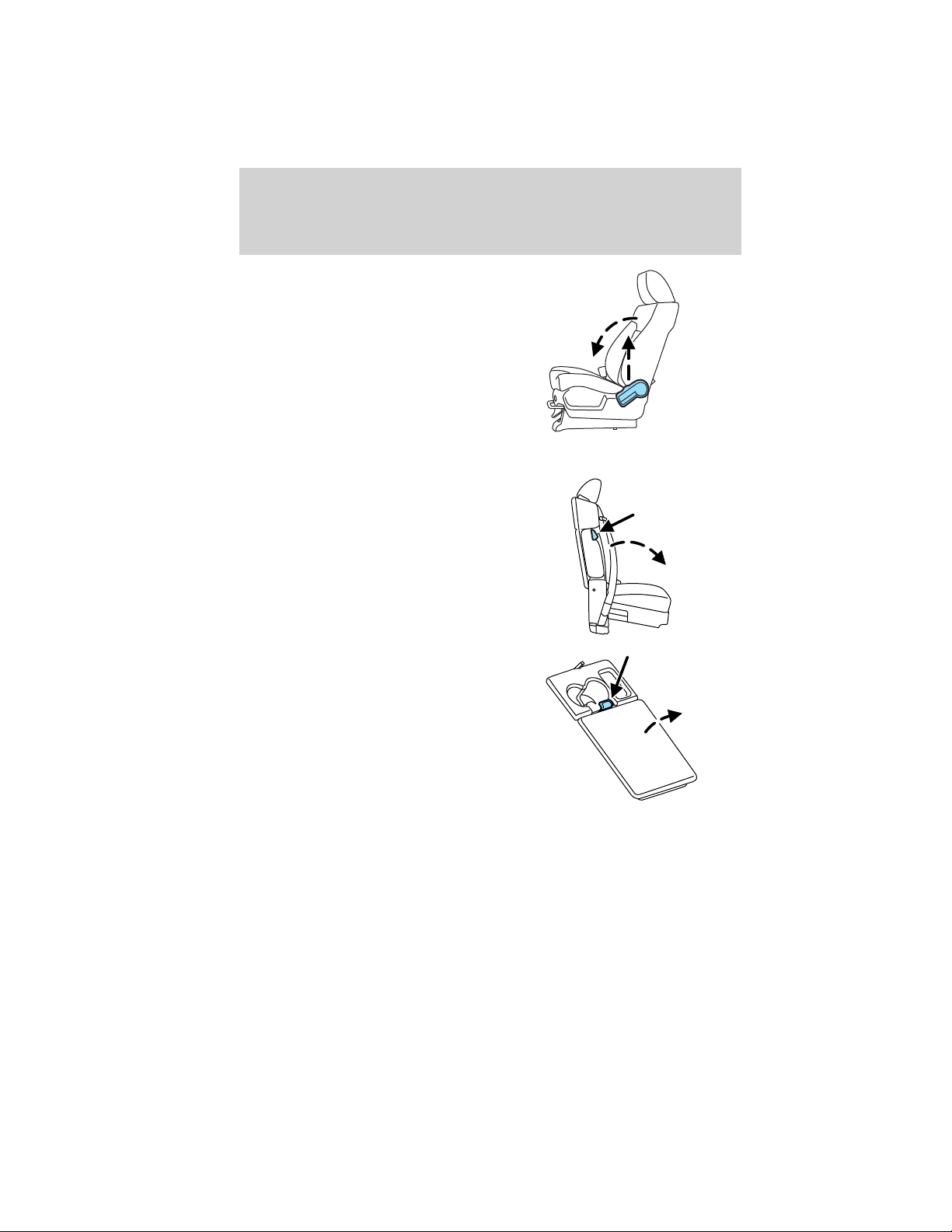

Page 74

Seating and Safety Restraints

• Pull the release lever handle located on the side of the seat up to move the seatback forward or backward.

20% front seat armrest and console (if equipped)

To release the armrest and gain access to the cupholders and seatback storage bin, push the button on the right-hand side of the seat and pull the seatback down.

Pull up on the tab to open the storage bin.

Lift up on the seatback to return it to the upright position.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

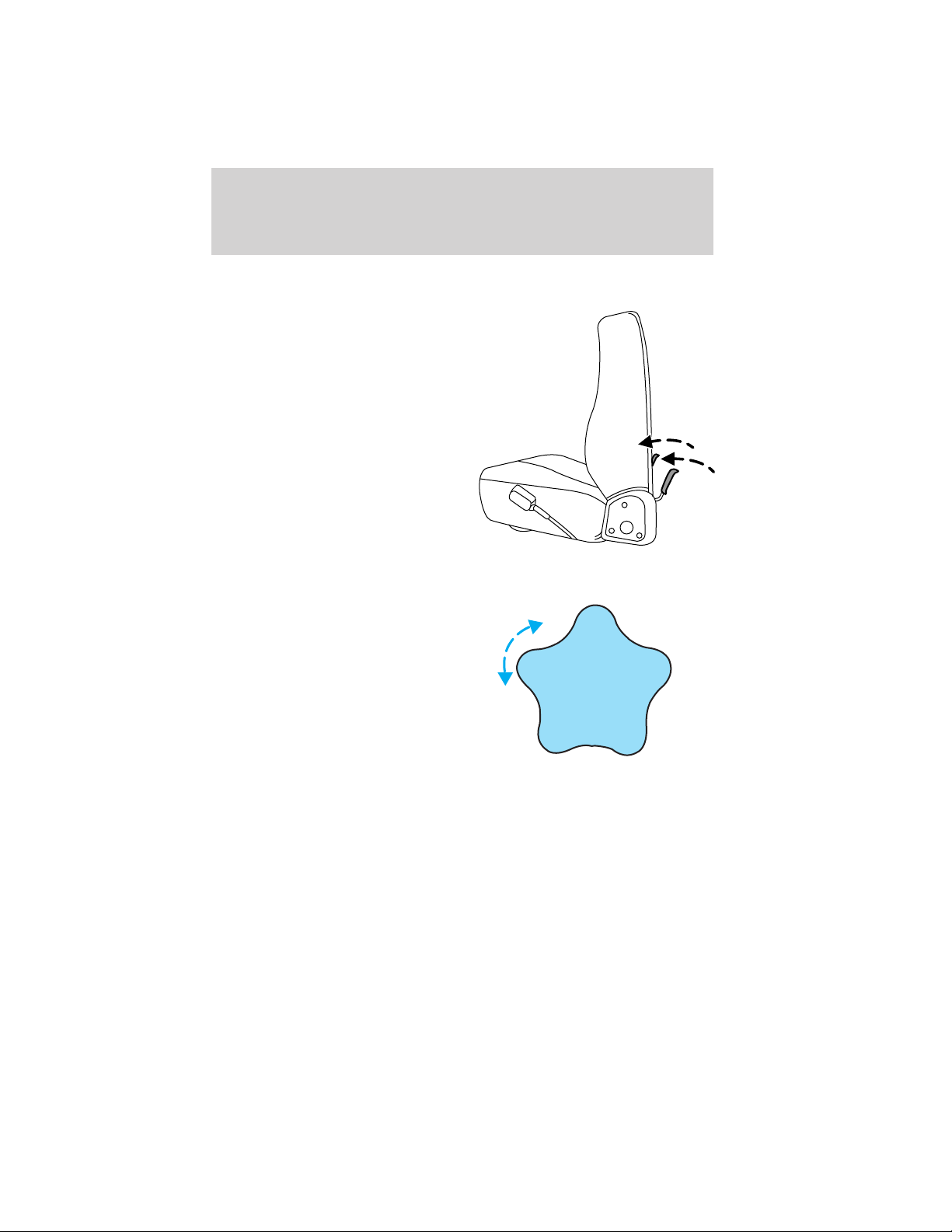

Page 75

Seating and Safety Restraints

70% two-person passenger bench seat (if equipped)

Lift the handle on the seatback to tilt the seatback forward.

Using the manual lumbar support (if equipped)

The lumbar support control is located on the outboard side of the seat

Turn the lumbar support forward toward the front of the vehicle for more support.

Turn the lumbar support backward toward the rear of the vehicle for less support.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 76

Seating and Safety Restraints

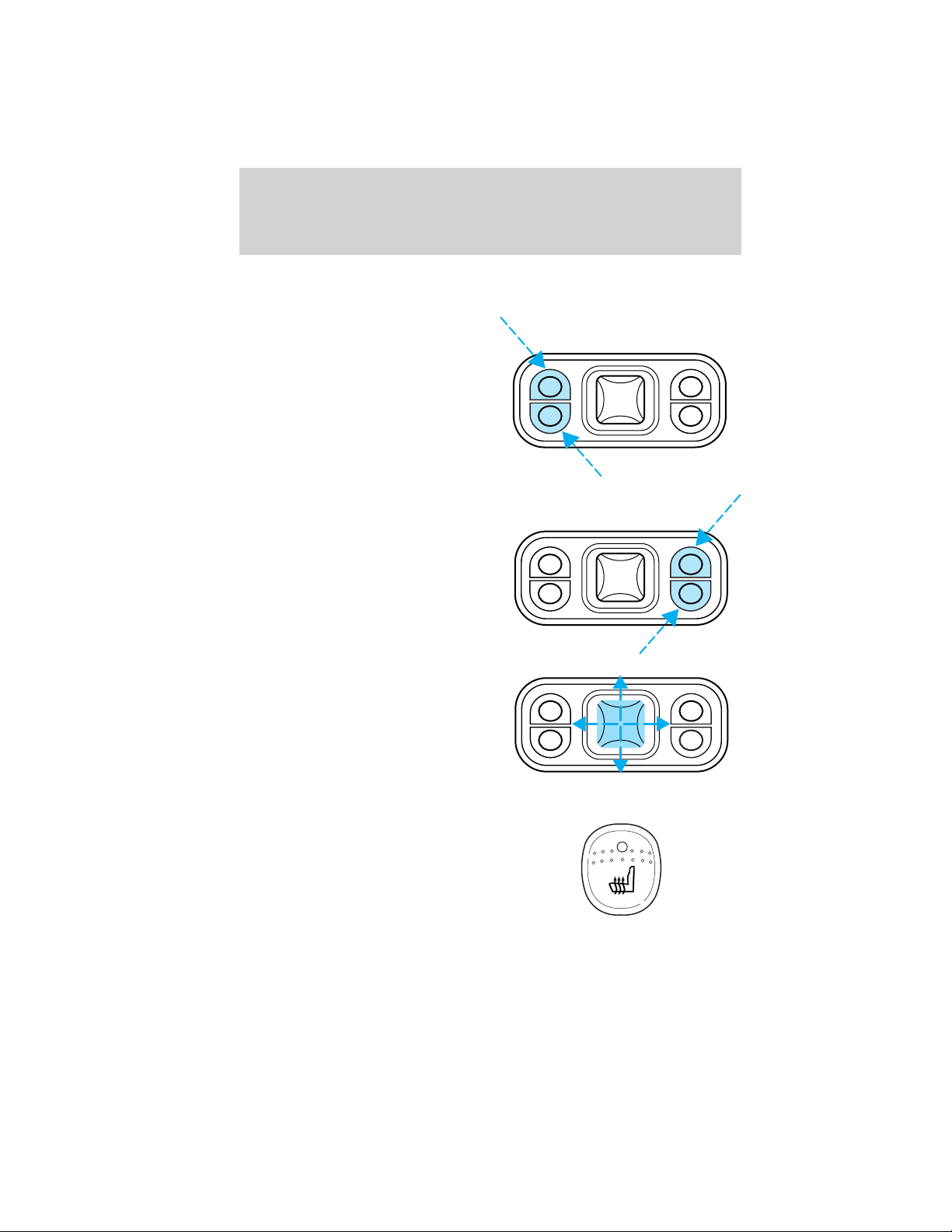

Adjusting the front power seat (if equipped)

The control is located on the outboard side of the seat cushion. Press to raise or lower the front

portion of the seat cushion.

Press to raise or lower the rear portion of the seat cushion.

Press the control to move the seat forward, backward, up or down.

Heated seats (if equipped)

Press the control to turn the heated seats on and off.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

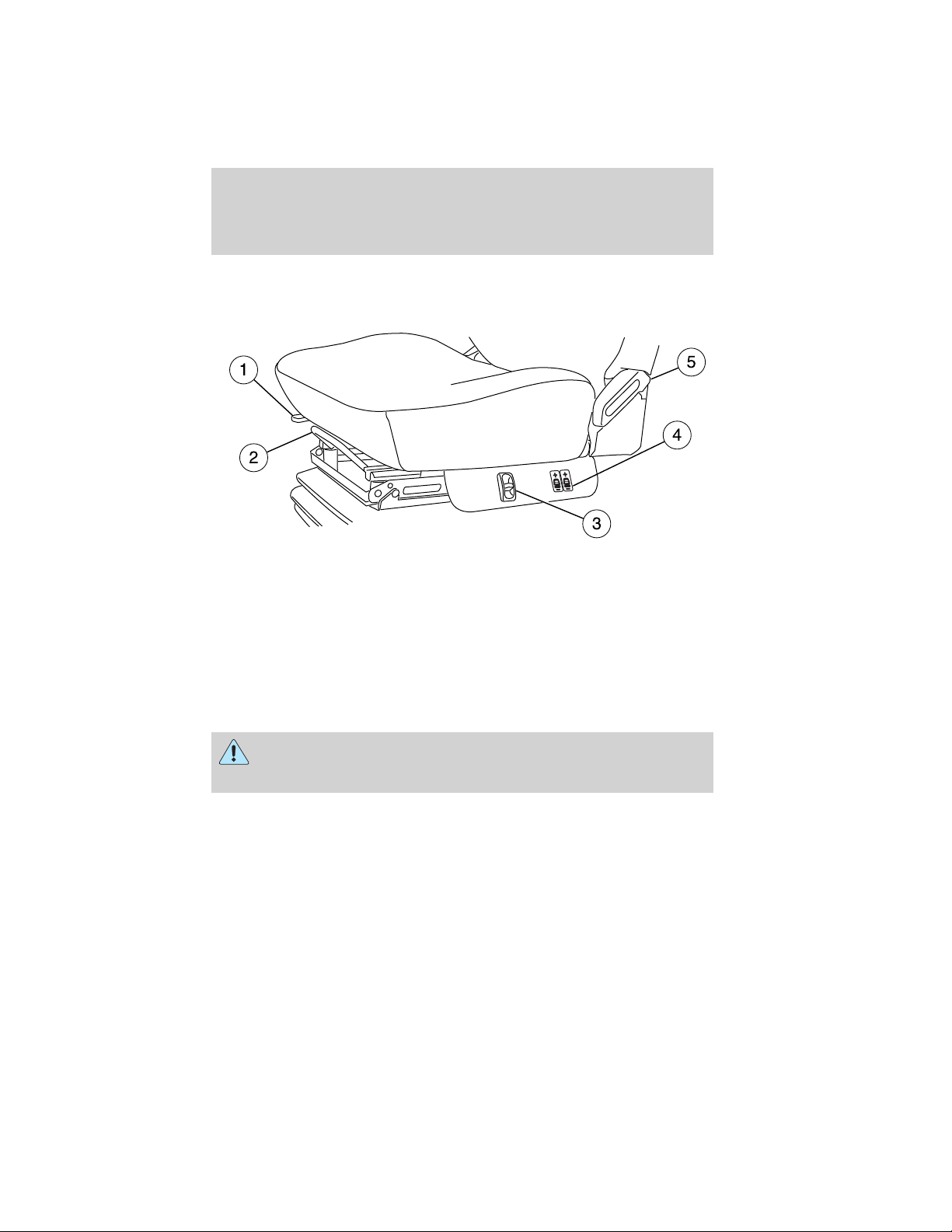

Page 77

Seating and Safety Restraints

Air-Ride seat (if equipped)

1. Chugger option: Dampens road vibrations and allows the seat to move with the driver when unlocked. To unlock, sit in the seat and slide the tab away from the seat (to the right) To lock, sit in the seat and slide the tab toward the seat (to the left).

2. Seat adjuster: Lift up to move the seat forward or backward. Release the bar to lock the seat in position.

3. Seat height adjuster: Pull the control up to raise the seat, push it down to lower the seat.

WARNING: To reduce the risk of excess slack in the belt system, always adjust the seat height before fastening the seat

belt.

4. Power lumbar: Press the top of the forward control to inflate the lower lumbar support; press the bottom of the forward control to deflate the lower lumbar support. Press the top of the rear control to inflate the upper lumbar support; press the bottom of the rear control to deflate the upper lumbar support.

5. Recline: Lift the handle to adjust the angle of the seatback.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

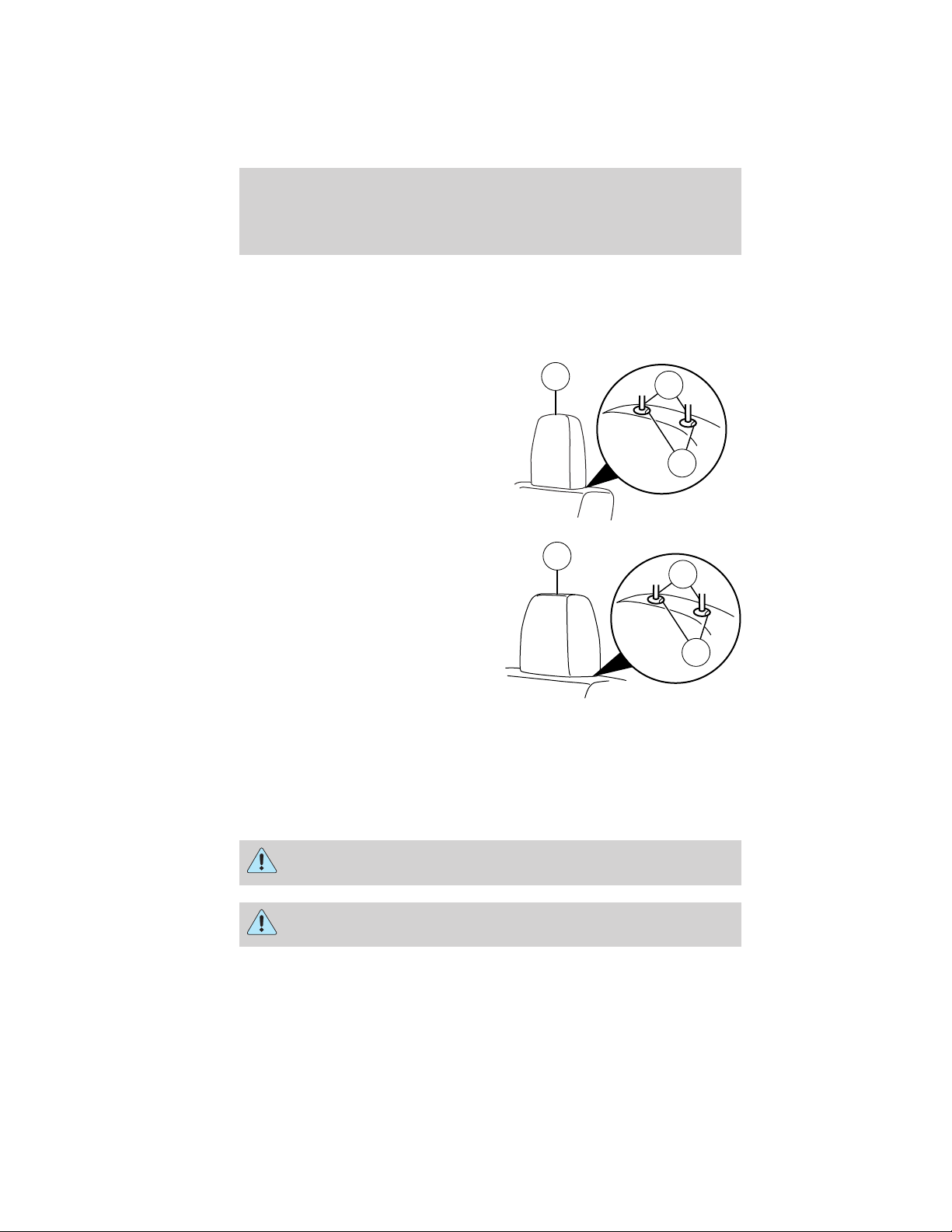

Page 78

Seating and Safety Restraints

REAR SEATS

Non-adjustable second-row head restraints

Your vehicle is equipped with second row outboard head restraints that are non-adjustable.

Outboard head restraints (Crew Cab)

Center head restraint (Crew Cab)

The non-adjustable second row head restraints consist of :

• a trimmed energy absorbing foam and structure (1),

• two steel stems (2),

• and two guide sleeve unlock/remove buttons (3).

Removal of the second-row non-adjustable head restraints is the same as the front row center head restraint.

WARNING: The non-adjustable head restraint is a safety device. It should be installed whenever the seat is occupied.

WARNING: To minimize the risk of neck injury in the event of a crash, head restraints must be installed properly.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 79

Seating and Safety Restraints

Note: The SuperCab has rear outboard head restraints that are not removable and are bolted to the back wall.

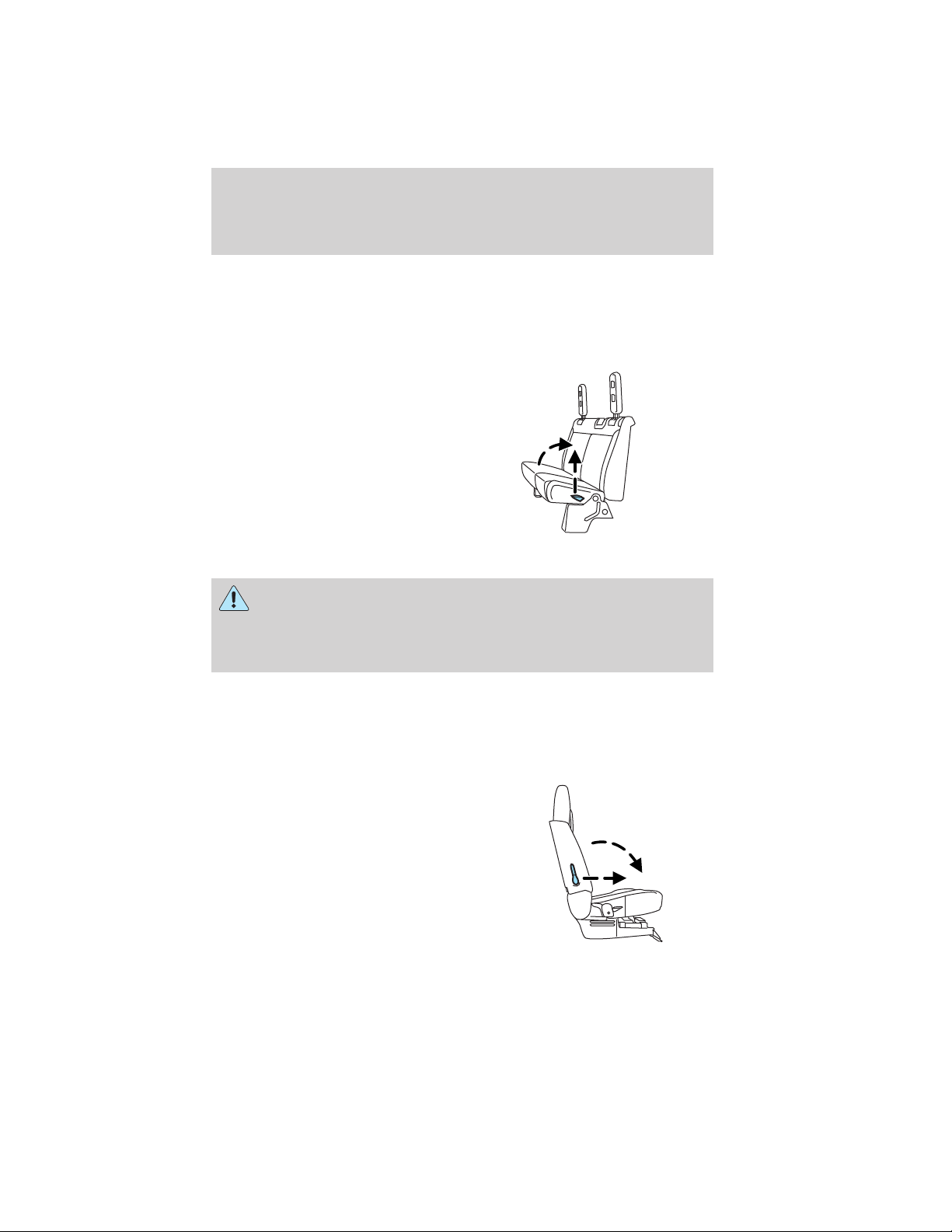

Rear flip-up seat (if equipped)

Folding up the rear seats (SuperCab)

1. Pull control to release seat cushion.

2. Rotate seat cushion up until it locks into vertical storage position.

Returning the seat to seating position

WARNING: Make sure that cargo or any objects are not trapped

underneath the seat cushion before returning the seat cushion to its original position, and that the seat cushion locks into place. Failure to do so may prevent the seat from operating properly in the event of a crash, which could increase the risk of serious injury.

1. Pull control on the side of the seat to release seat cushion from storage position.

2. Push seat cushion down until it locks into horizontal position.

Folding the rear seatback (Crew Cab)

1. Pull forward on the control to fold down the seatback.

2. Pull down on the handle and lift up on the seatback to return it to the original position.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

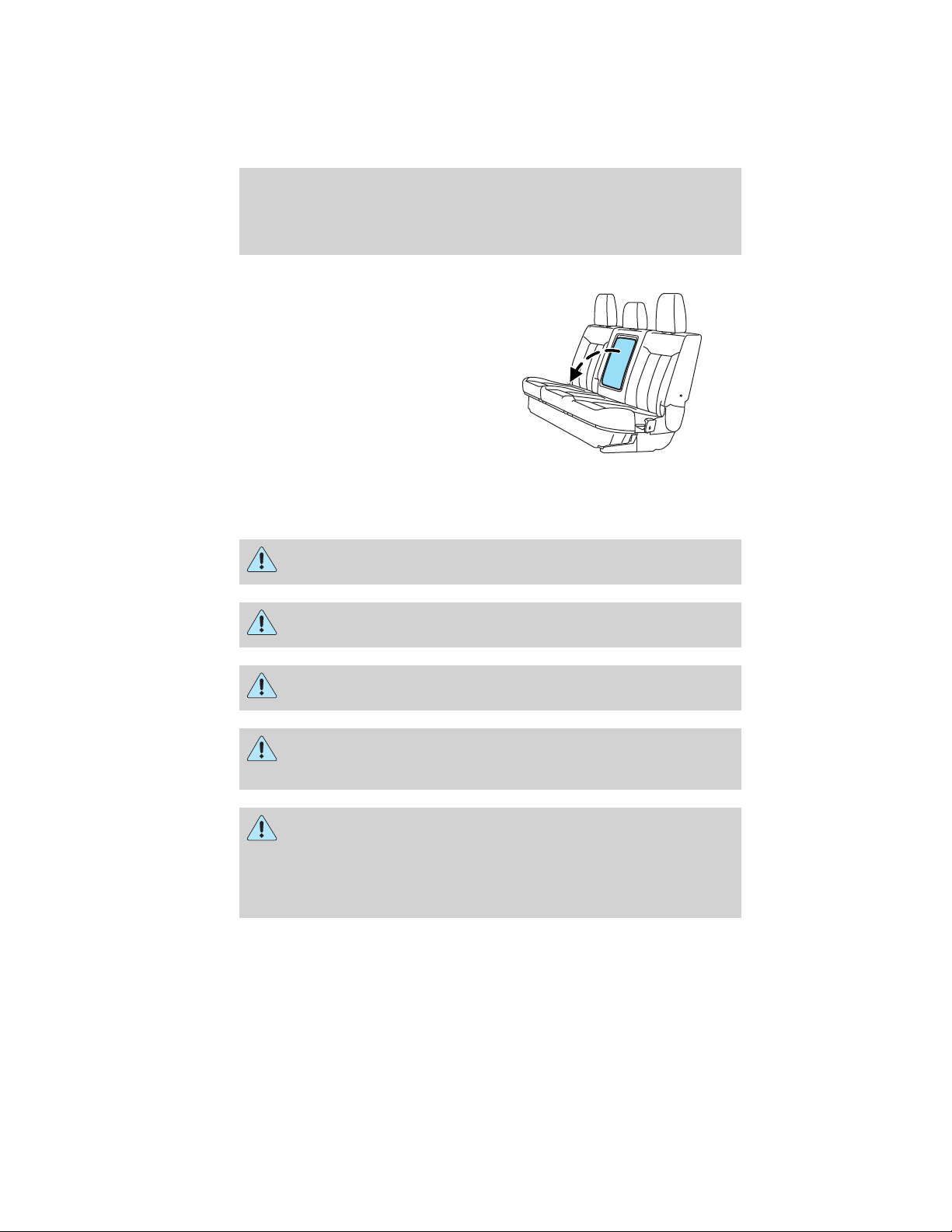

Page 80

Seating and Safety Restraints

Rear center armrest (if equipped)

To use the armrest simply rotate it forward from the seatback.

SAFETY RESTRAINTS

Safety restraints precautions

WARNING: Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

WARNING: To reduce the risk of injury, make sure children sit where they can be properly restrained.

WARNING: All occupants of the vehicle, including the driver, should always properly wear their safety belts.

WARNING: Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the

child from injury in a collision.

WARNING: It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

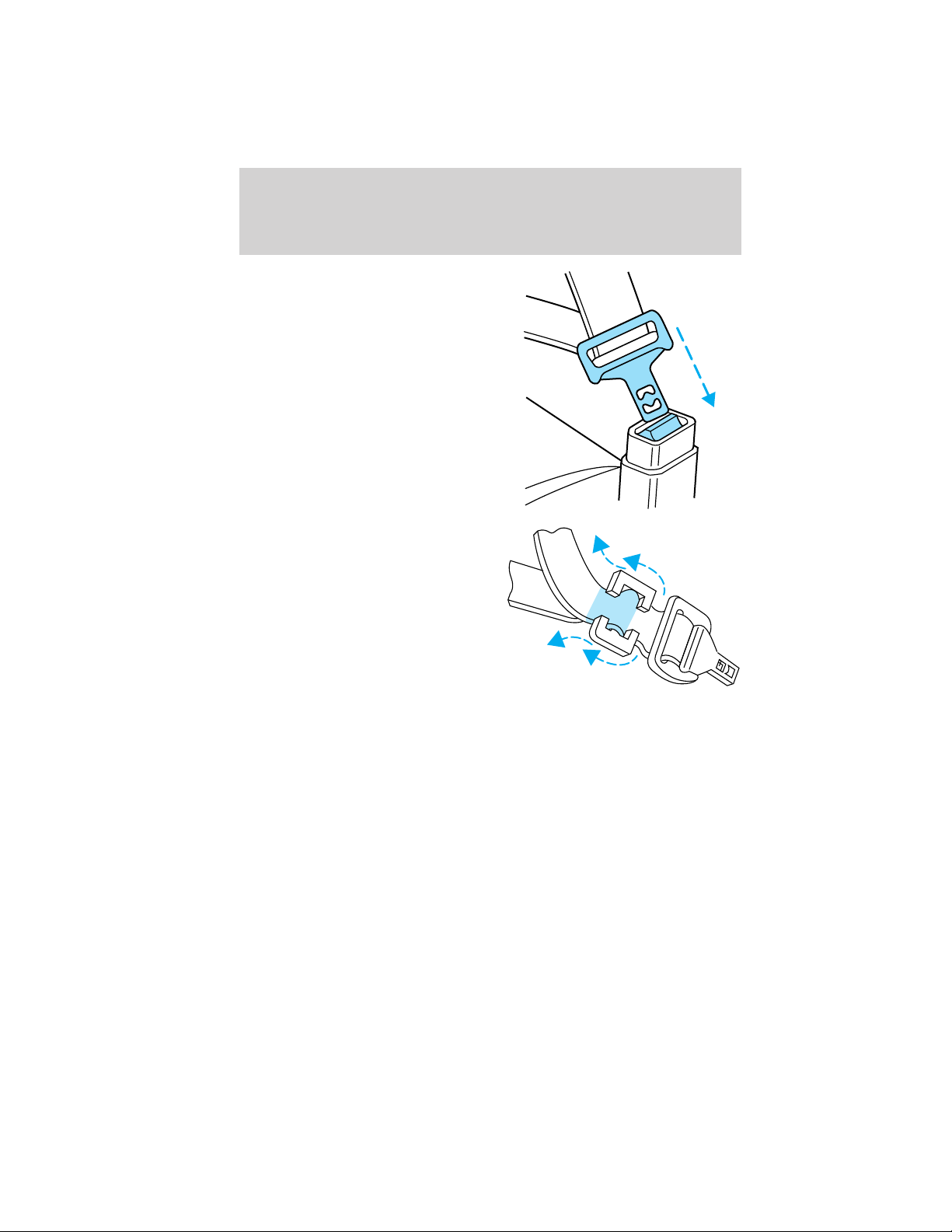

Page 81

Seating and Safety Restraints

WARNING: In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a safety

belt.

WARNING: Each seating position in your vehicle has a specific

safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder. 3) Never use a single belt for more than one person.

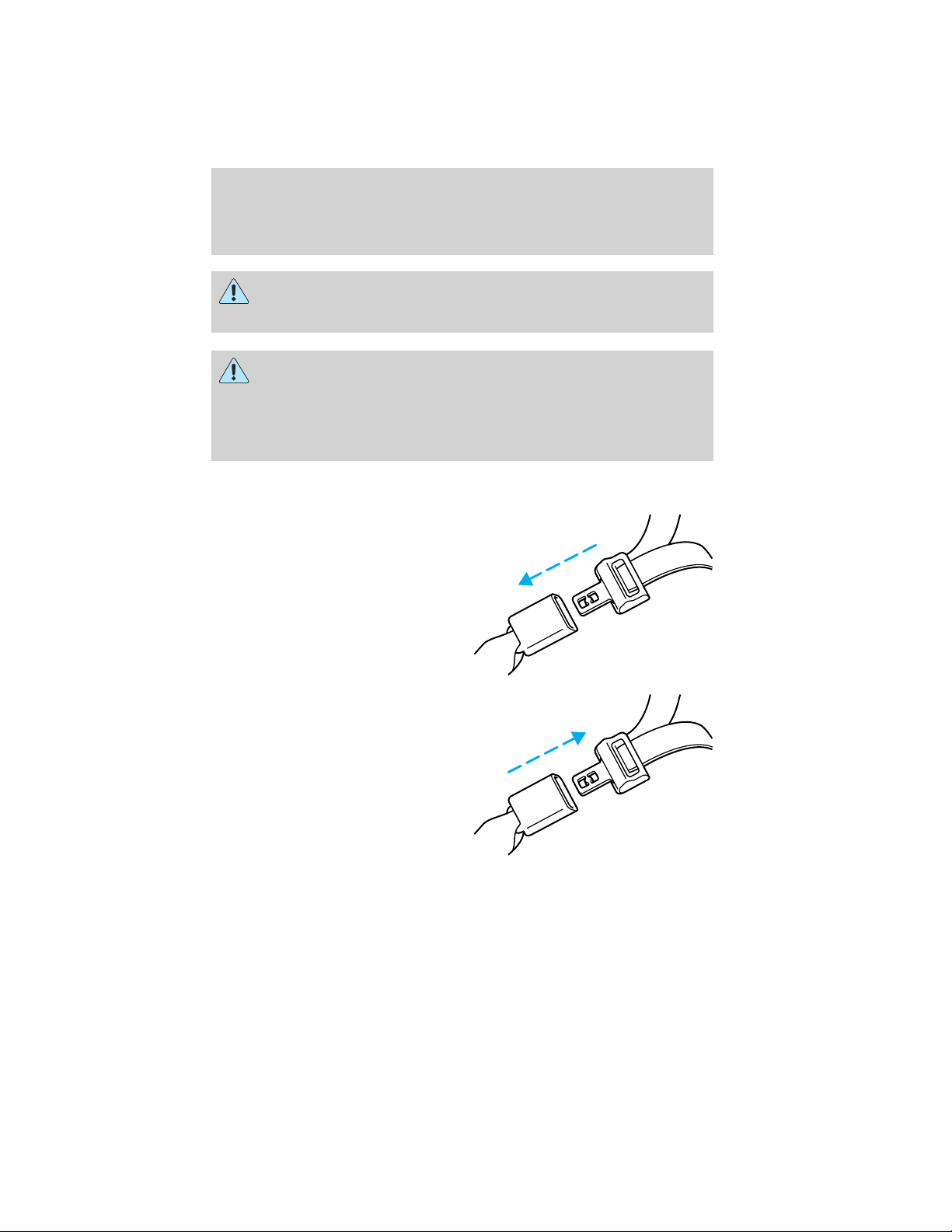

Combination lap and shoulder belts

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

2. To unfasten, press the release button and remove the tongue from the buckle.

The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front and rear seat passenger outboard safety belts have vehicle sensitive emergency locking retractors.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

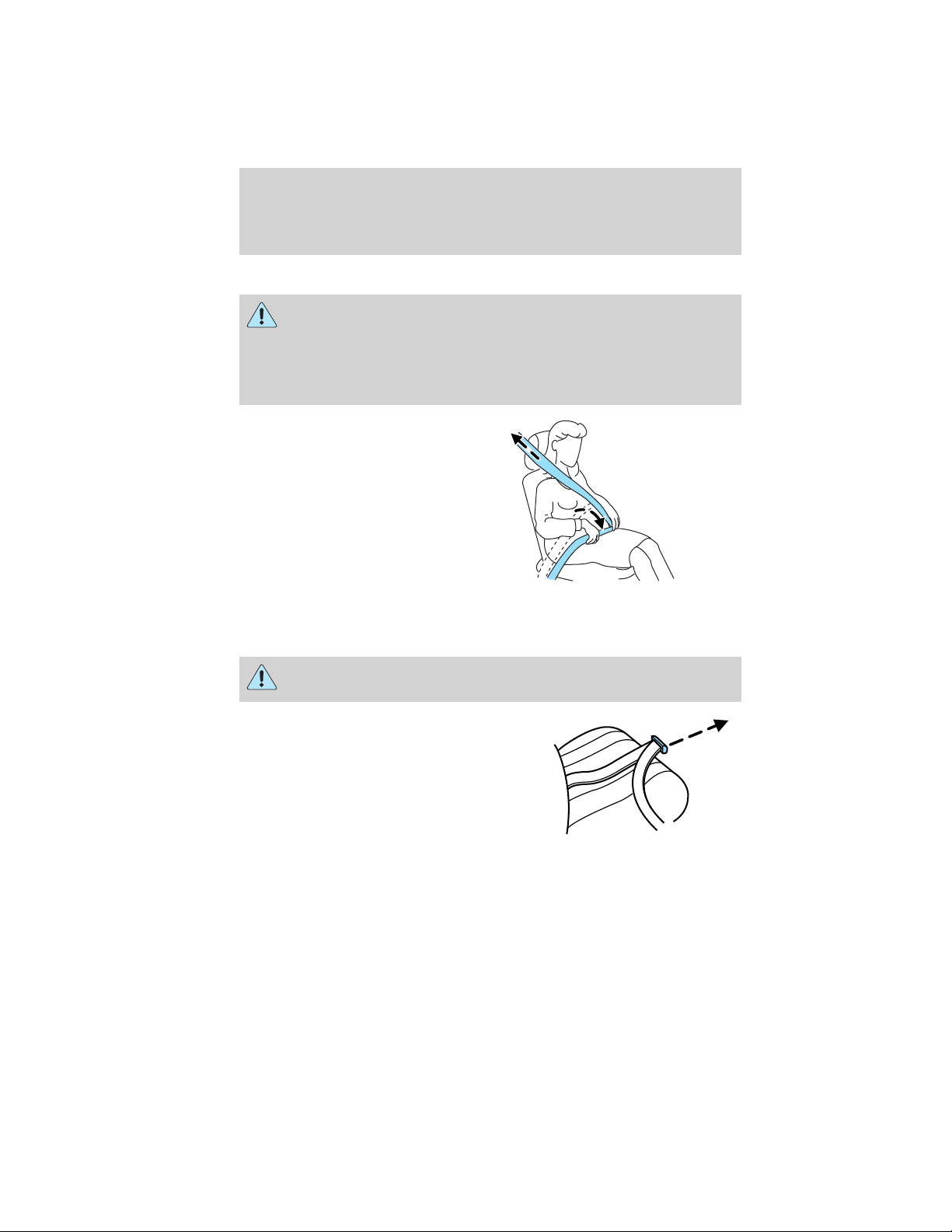

Page 82

Seating and Safety Restraints

Restraint of pregnant women

WARNING: Always ride and drive with your seatback upright

and the safety belt properly fastened. The lap portion of the safety belt should fit snug and be positioned low across the hips. The shoulder portion of the safety belt should be positioned across the chest. Pregnant women should also follow this practice. See figure below.

Pregnant women should always wear their safety belt. The lap belt portion of a combination lap and shoulder belt should be positioned low across the hips below the belly and worn as tight as comfort will allow. The shoulder belt should be positioned to cross the middle of the shoulder and the center of the chest.

Lap belts

The front center and rear center lap belts do not adjust automatically.

WARNING: The lap belt should fit snugly and as low as possible

around the hips, not across the waist.

Insert the tongue into the correct buckle (the buckle closest to the direction the tongue is coming from). To lengthen the belt, turn the tongue at a right angle to the belt and pull across your lap until it reaches the buckle. To tighten the belt, pull the loose end of the belt through the tongue until it fits snugly across the hips.

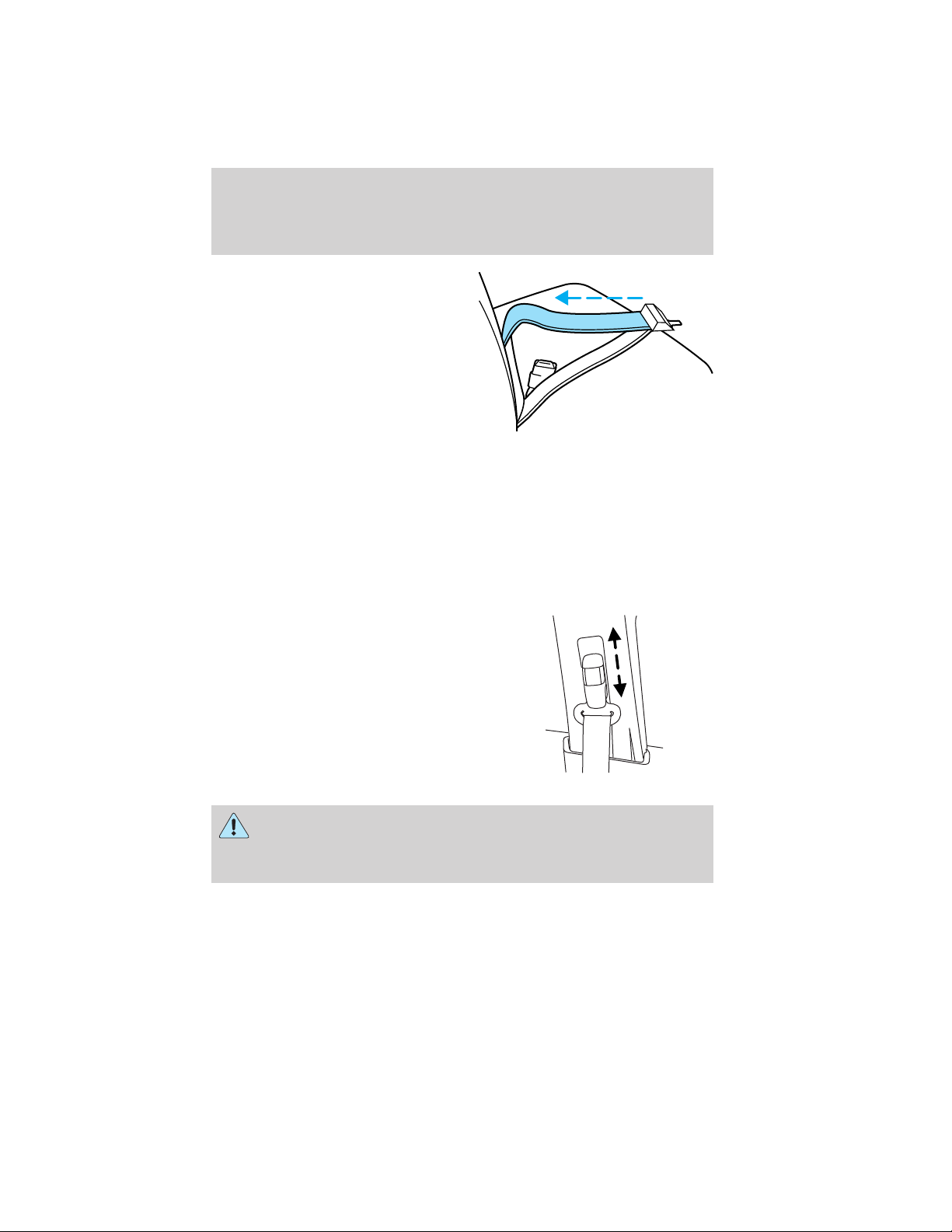

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 83

Seating and Safety Restraints

Shorten and fasten the belt when not in use.

Vehicle sensitive mode

The vehicle sensitive retractor allows free shoulder belt length adjustment to your movements and locks in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of approximately 5 mph (8 km/h) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.

Front safety belt height adjustment

Your vehicle has safety belt height adjustments at the front outboard seating positions. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

To adjust the shoulder belt height, pull on the center button and slide the height adjuster up or down. Release the button and pull down on the height adjuster to make sure it is locked in place.

WARNING: Position the safety belt height adjusters so that the

belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the safety belt and increase the risk of injury in a collision.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 84

Seating and Safety Restraints

Safety belt extension assembly

If the safety belt is too short when fully extended, there is an eight inch (20 cm) safety belt extension assembly that can be added (part number 611C22). This assembly can be obtained from your dealer at no cost.

Use only extensions manufactured by the same supplier as the safety belt. Manufacturer identification is located at the end of the webbing on the label. Also, use the safety belt extension only if the safety belt is too short for you when fully extended.

WARNING: Do not use extensions to change the fit of the shoulder belt across the torso.

Safety belt warning light and indicator chime

The safety belt warning light illuminates in the instrument cluster and a chime sounds to remind the occupants to fasten their safety belts.

Conditions of operation

If... Then...

The driver’s safety belt is not buckled before the ignition switch has been turned to on...

The driver’s safety belt is buckled while the indicator light is illuminated and the warning chime is sounding...

The driver’s safety belt is buckled before the ignition switch has been turned to on...

The safety belt warning light illuminates 1-2 minutes and the warning chime sounds 4-8 seconds.

The safety belt warning light and warning chime turn off.

The safety belt warning light and indicator chime remain off.

Belt-Minder姞

The Belt-Minder威 feature is a supplemental warning to the safety belt warning function. This feature provides additional reminders to the driver that the driver’s safety belt is unbuckled by intermittently sounding a chime and illuminating the safety belt warning lamp in the instrument cluster.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 85

Seating and Safety Restraints

If... Then...

The driver’s safety belt is not buckled before the vehicle has reached at least 3 mph (5 km/h) and 1-2 minutes have elapsed since the ignition switch has been turned to on...

The driver’s safety belt is buckled while the safety belt indicator light is illuminated and the safety belt warning chime is sounding...

The driver’s safety belt is buckled before the ignition switch is turned to the on position...

The following are reasons most often given for not wearing safety belts: (All statistics based on U.S. data)

Reasons given... Consider...

“Crashes are rare events” 36700 crashes occur every day. The

“I’m not going far” 3of4fatal crashes occur within 25

“Belts are uncomfortable” We design our safety belts to enhance

The Belt-Minder威 feature is activated

- the safety belt warning light illuminates and the warning chime sounds for six seconds every 30 seconds, repeating for approximately five minutes or until safety belt is buckled.

The Belt-Minder威 feature will not activate.

more we drive, the more we are exposed to “rare” events, even for good drivers. 1 in 4 of us will be

seriously injured in a crash during our lifetime.

miles (40 km) of home.

comfort. If you are uncomfortable try different positions for the safety belt upper anchorage and seatback which should be as upright as possible; this can improve comfort.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 86

Seating and Safety Restraints

Reasons given... Consider...

“I was in a hurry” Prime time for an accident.

Belt-Minder威 reminds us to take a few seconds to buckle up.

“Seat belts don’t work” Safety belts, when used properly,

reduce risk of death to front seat occupants by 45% in cars, and by

60% in light trucks.

“Traffic is light” Nearly 1 of 2 deaths occur in

single-vehicle crashes, many when

no other vehicles are around.

“Belts wrinkle my clothes” Possibly, but a serious crash can do

much more than wrinkle your clothes, particularly if you are unbelted.

“The people I’m with don’t wear belts”

“I have an air bag” Air bags offer greater protection when

“I’d rather be thrown clear” Not a good idea. People who are

Set the example, teen deaths occur 4 times more often in vehicles with TWO or MORE people. Children and younger brothers/sisters imitate behavior they see.

used with safety belts. Frontal air bags are not designed to inflate in rear and side crashes or rollovers.

ejected are 40 times more likely to DIE. Safety belts help prevent

ejection, WE CAN’T “PICK OUR CRASH”.

WARNING: Do not sit on top of a buckled safety belt or insert a

latchplate into the buckle to avoid the Belt-Minder威 chime. To do so may adversely affect the performance of the vehicle’s air bag system

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 87

Seating and Safety Restraints

One-time disable

Any time the safety belt is buckled and then unbuckled during an ignition ON cycle, Belt-Minder威 will be disabled for that ignition cycle only.

Deactivating/Activating the Belt-Minder姞 feature

Read Steps 1-9 thoroughly before proceeding with the deactivation/activation programming procedure.

The Belt-Minder威 feature can be deactivated/activated by performing the following procedure:

Before following the procedure, make sure that:

• The parking brake is set.

• The gearshift is in P (Park) (if equipped) or N (Neutral) (automatic

transmissions) or the neutral position (manual transmission).

• The ignition switch is in the off position.

• All vehicle doors are closed.

• The driver’s safety belt is unbuckled.

• The headlamp control is in the

WARNING: While the design allows you to deactivate your

Belt-Minder威, this system is designed to improve your chances of being safely belted and surviving an accident. We recommend you leave the Belt-Minder威 system activated for yourself and others who may use the vehicle. To reduce the risk of injury, do not deactivate/activate the Belt-Minder威 feature while driving the vehicle.

position.

Belt-Minder威 activation and deactivation procedure

1. Turn the ignition switch to the on position. (DO NOT START THE ENGINE.)

2. Wait until the safety belt warning light turns off. (Approximately 1–2 minutes.)

• Steps 3–5 must be completed within 60 seconds or the procedure will have to be repeated.

3. Buckle then unbuckle the safety belt three times, ending with the

safety belt unbuckled. This can be done before or during Belt-Minder威 warning activation.

4. Turn on the parklamps/headlamps, turn off the parklamps/headlamps.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 88

Seating and Safety Restraints

5. Buckle then unbuckle the safety belt three times, ending with the safety belt unbuckled.

• After Step 5 the safety belt warning light will be turned on for three seconds.

6. Within seven seconds of the safety belt warning light turning off,

buckle then unbuckle the safety belt.

• This will disable Belt-Minder威 if it is currently enabled, or enable Belt-Minder威 if it is currently disabled.

7. Confirmation of disabling Belt-Minder威 is provided by the safety belt

warning light flashing four times per second for three seconds.

8. Confirmation of enabling Belt-Minder威 is provided by:

• The safety belt warning light flashing four times per second for three seconds.

• Followed by three seconds with the safety belt warning light off.

• Once again, the safety belt warning light will flash four times per

second for three seconds.

9. After receiving confirmation, the deactivation/activation procedure is

complete.

SAFETY RESTRAINTS FOR CHILDREN

Important child restraint precautions

WARNING: Always make sure your child is secured properly in

a device that is appropriate for their height, age and weight. Child safety restraints must be purchased separately from the vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 89

Seating and Safety Restraints

WARNING: All children are shaped differently. The

Recommendations for Safety Restraints are based on probable child height, age and weight thresholds from NHTSA and other safety organizations or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consult your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in the vehicle. To locate a child seat fitting station and CPST contact the NHTSA toll free at 1-888-327-4236 or on the internet at http://www.nhtsa.dot.gov. In Canada, check with your local St. John Ambulance office for referral to a CPST or for further information, contact your provincial ministry of transportation, your local St. John Ambulance office at http://www.sfa.ca, or Transport Canada at 1–800–333–0371 (http://www.tc.gc.ca). Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.

Recommendations for Safety Restraints for Children

Recommended restraint type

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat).

Use a belt-positioning booster seat.

Infants or toddlers

Small children

Child size, height, weight, or age

Children weighing 40 lb (18 kg) or less (generally age four or younger)

Children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 feet 9 inches (1.45 meters) tall, are greater than age four (4) and less than age twelve (12), and between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb (45 kg) if recommended by your child restraint manufacturer)

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 90

Seating and Safety Restraints

Recommendations for Safety Restraints for Children

Child size, height, weight, or age

Larger children

• You are required by law to properly use safety seats for infants and toddlers in the U.S. and Canada.

• Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 4 ft 9 in. (1.45 meters) tall, or 80 lb (36 kg). Check your local and state or provincial laws for specific requirements regarding the safety of children in your vehicle.

• When possible, always properly restrain children twelve (12) years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position.

Children who have outgrown or no longer properly fit in a belt-positioning booster seat (generally children who are at least 4 feet 9 inches (1.45 meters) tall or greater than 80 lb (36 kg) or 100 lb (45 kg) if recommended by child restraint manufacturer)

Recommended restraint type

Use a vehicle safety belt having the lap belt snug and low across the hips, shoulder belt centered across the shoulder and chest, and seatback upright.

WARNING: Airbags can kill or injure a child in a child seat.

NEVER place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat all the way back. When possible, all children age 12 and under should be properly restrained in a rear seating position. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 91

Seating and Safety Restraints

WARNING: Always carefully follow the instructions and

warnings provided by the manufacturer of any child restraint to determine if the restraint device is appropriate for your child’s size, height, weight, or age. Follow the child restraint manufacturer’s instructions and warnings provided for installation and use in conjunction with the instructions and warnings provided by the vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child’s height, age, or weight or does not properly fit the child may increase the risk of serious injury or death.

WARNING: Never let a passenger hold a child on his or her lap

while the vehicle is moving. The passenger cannot protect the child from injury in a collision, which may result in serious injury or death.

WARNING: Never use pillows, books, or towels to boost a child.

They can slide around and increase the likelihood of injury or death in a collision.

WARNING: Always restrain an unoccupied child seat or booster

seat. These objects may become projectiles in a collision or sudden stop, which may increase the risk of serious injury.

WARNING: Never place, or allow a child to place, the shoulder

belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a collision.

WARNING: Do not leave children, unreliable adults, or pets

unattended in your vehicle.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 92

Seating and Safety Restraints

SAFETY SEATS FOR CHILDREN

Child and infant or child safety seats

Use a safety seat that is recommended for the size and weight of the child. Carefully follow all of the manufacturer’s instructions with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.

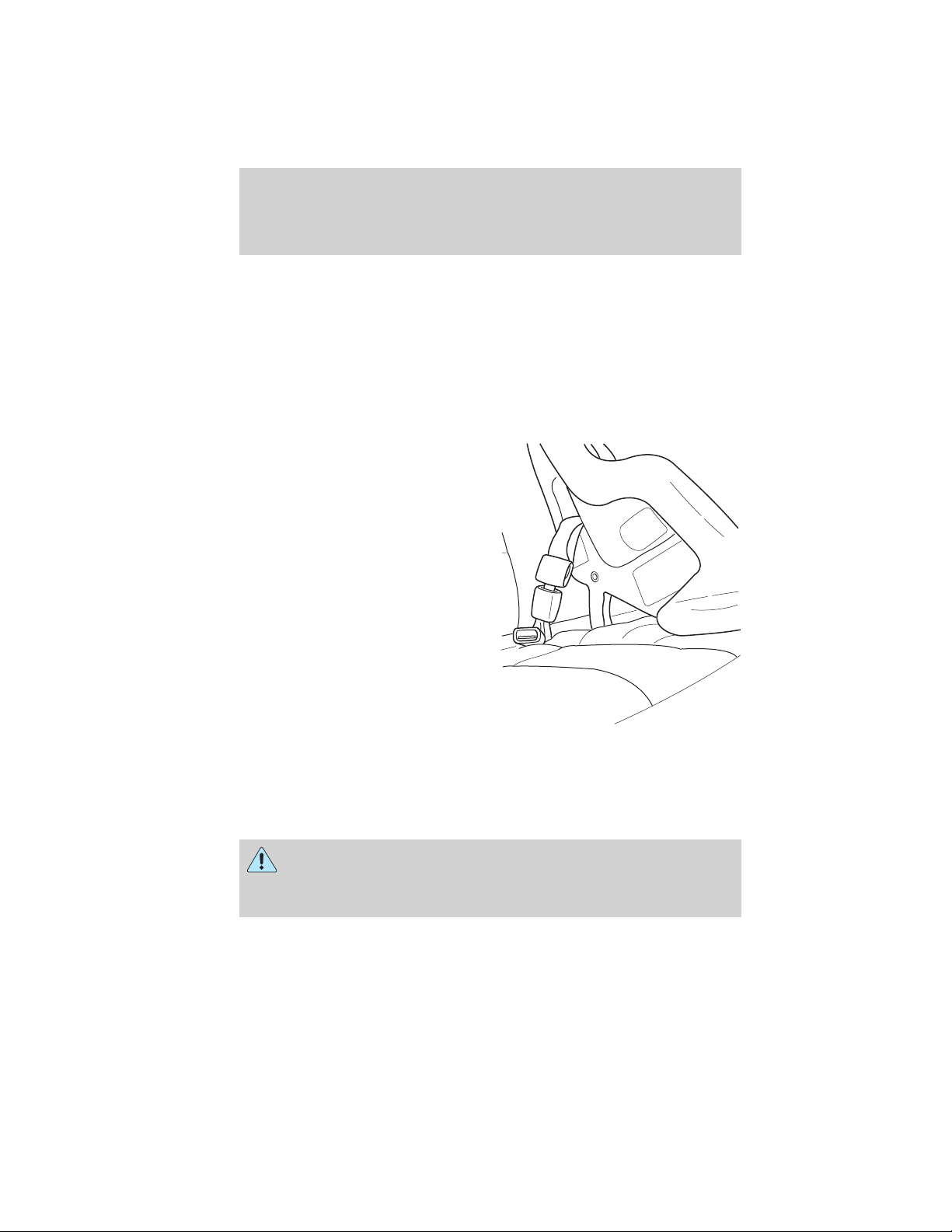

When installing a child safety seat:

• Use the correct safety belt buckle for that seating position.

• Insert the belt tongue into the proper buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.

• Place seat back in upright position.

Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position with a tether anchor. For more information on top tether straps and anchors, refer to

Attaching child safety seats with tether straps.

WARNING: Carefully follow all of the manufacturer’s

instructions included with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 93

Seating and Safety Restraints

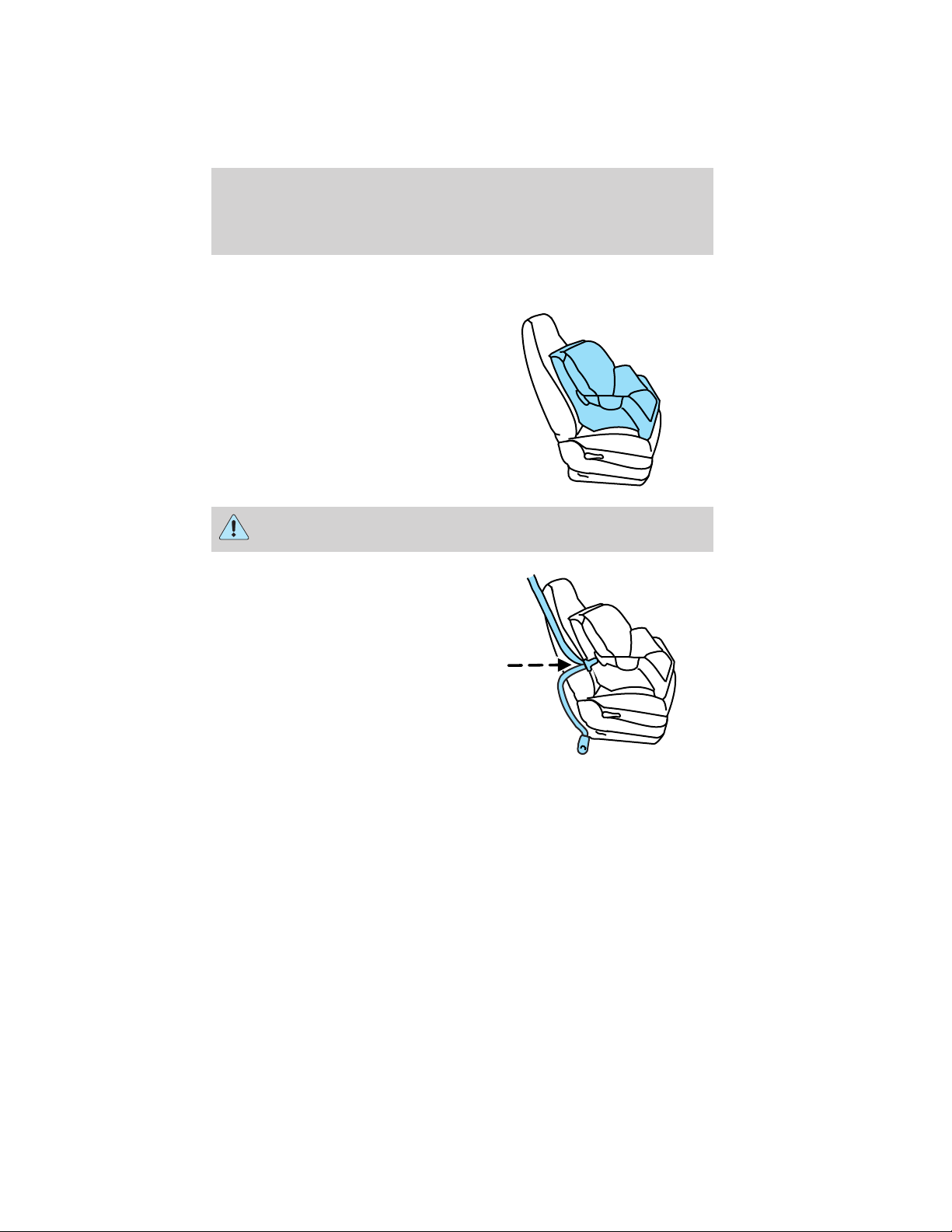

Installing child safety seats with combination lap and shoulder belts

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

WARNING: Children under 12 are safer when properly restrained in the rear seat, to the extent this is possible.

2. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 94

Seating and Safety Restraints

3. Buckle the seat belt. Push down on the child seat and pull on the shoulder portion of the belt to snug the lap belt. Hold the lap and shoulder belts next to the tongue and unbuckle the belt.

4. Install a locking clip over both lap and shoulder belt portions next to the sliding tongue. Rebuckle the belt. Obtain the locking clip kit (part number FO3Z-5461248–A) at no charge from an authorized dealer. A locking clip may also have been provided with your child safety seat.

5. Before placing the child in the seat, forcibly tilt the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than one inch of movement for proper installation.

6. If the child seat is not tight enough, unbuckle the seat belt, move the tongue and locking clip to shorten the lap portion and push down hard on the child seat while you rebuckle the belt.

7. Check to make sure the child seat is properly secured before each use.

8. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 95

Seating and Safety Restraints

Installing child safety seats in the lap belt seating positions

1. Lengthen the lap belt. To lengthen the belt, hold the tongue so that its bottom is perpendicular to the direction of webbing while sliding the tongue up the webbing.

2. Place the child safety seat in the center seating position.

3. Route the tongue and webbing through the child seat according to the child seat manufacturer’s instructions.

4. Insert the belt tongue into the proper buckle for the center seating position until you hear a snap and feel it latch. Make sure the tongue is securely fastened to the buckle by pulling on tongue.

5. Push down on the child seat while pulling on the loose end of the lap belt webbing to remove slack from and tighten the belt.

6. Before placing the child into the child seat, forcibly tilt the child seat from side to side and in forward direction to make sure that the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than one inch of movement for proper installation.

7. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed.

Attaching child safety seats with LATCH (Lower Anchors and Tethers for CHildren) attachments

The LATCH system is composed of three vehicle anchor points: two (2) lower anchors located where the vehicle seat back and seat cushion meet (called the “seat bight”) and one (1) top tether anchor located behind that seating position. This vehicle is not LATCH compatible. The vehicle is not equipped with the two (2) lower anchors in the seat bight. For forward-facing child seats, the top tether strap must also be attached to the proper top tether anchor, if a top tether strap has been provided with your child seat. Ford Motor Company recommends the use of a child safety seat having a top tether strap. See Attaching child safety

seats with tether straps and Recommendations for attaching safety restraints for children in this chapter for more information.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 96

Seating and Safety Restraints

Tether anchorage hardware

A tethered seat can be installed in the front seat. Put the tether strap over the seatback and attach it to an anchor bracket.

An anchor bracket can be installed to the inside of the back panel of your vehicle.

The anchor bracket must be installed using the instructions provided with the tether anchorage hardware kit.

Tether anchorage hardware kits (part number 613D74) including instructions, may be obtained at no charge from any Ford or Lincoln Mercury dealer.

If you have a Crew Cab, Ford recommends you attach tether safety seats in the rear seating position (if possible) with the tether strap attached to the tether anchorage bracket as shown in the instructions provided with the tether anchor kit.

WARNING: Tighten the anchor according to specifications.

Otherwise, the safety seat may not be properly secured and the child may be injured in a sudden stop or collision.

Attaching child safety seats with tether straps

Many forward-facing child safety seats include a tether strap which extends from the back of the child safety seat and hooks to an anchoring point called the top tether anchor. Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in the vehicle.

The passenger seats of your vehicle may be equipped with built-in tether strap anchors located behind the seats as described below.

The tether anchors in your vehicle may be straps on the seatback or an anchor bracket mounted to the body shell on the back panel.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 97

Seating and Safety Restraints

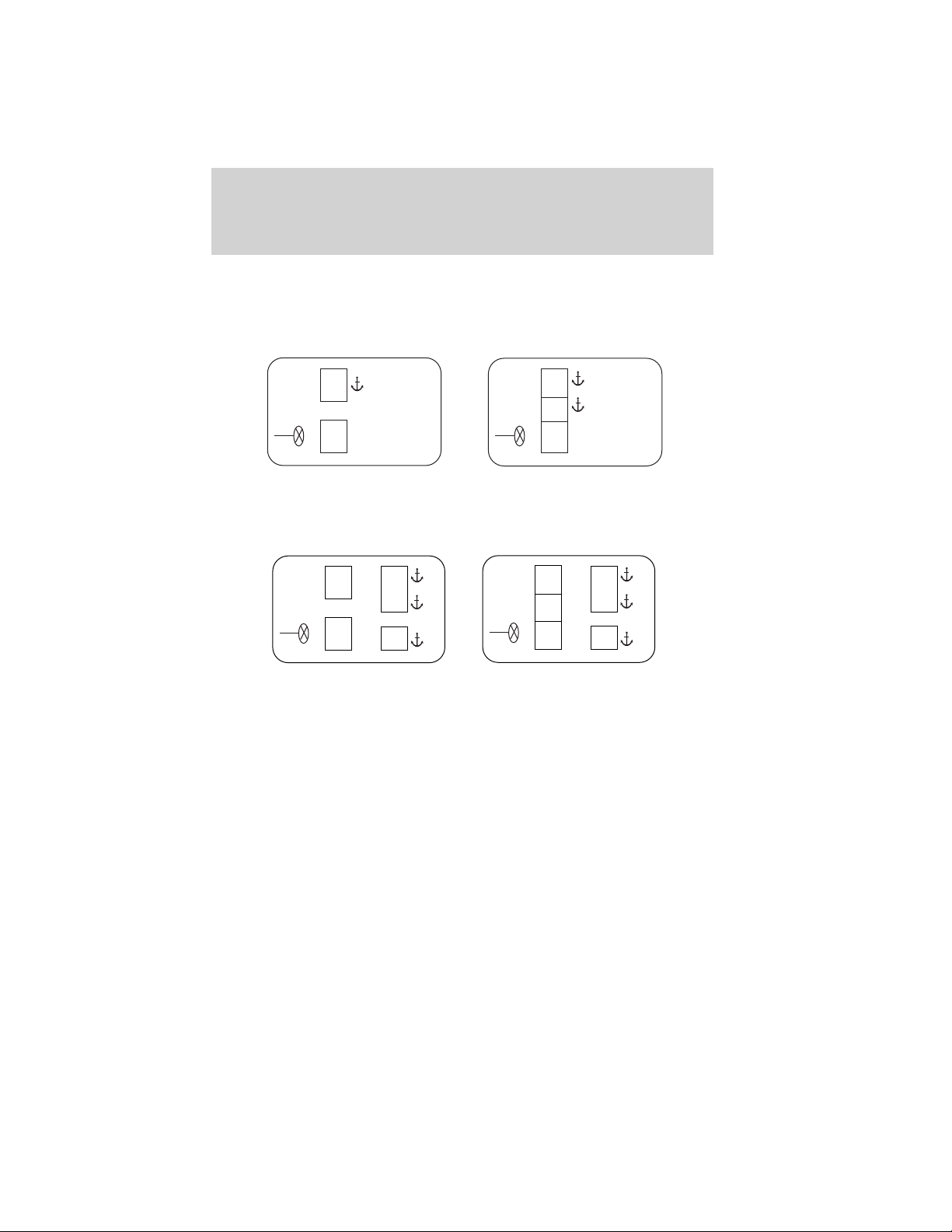

The tether strap anchors in your vehicle are in the following positions (shown from top view):

• F-Series Regular Cab

• F-Series Crew Cab

Attach the tether strap only to the appropriate tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor.

Once the child safety seat has been installed using the safety belt, you can attach the top tether strap.

Tether strap attachment

1. Route the child safety seat tether strap over the back of the seat. For vehicles with adjustable head restraints, route the tether strap under

the head restraint and between the head restraint posts, otherwise route the tether strap over the top of the seatback. If the top of the safety seat hits the head restraint, raise the head restraint to let the child seat fit further rearward.

2. Locate the correct anchor for the selected seating position. 97

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 98

Seating and Safety Restraints

3. You may need to pull the seatback forward to access the tether anchors. Make sure the seat is locked in the upright position before installing the child seat. Refer to the Folding the rear seat back (Crew Cab) section in this chapter for information on how to operate the rear seats.

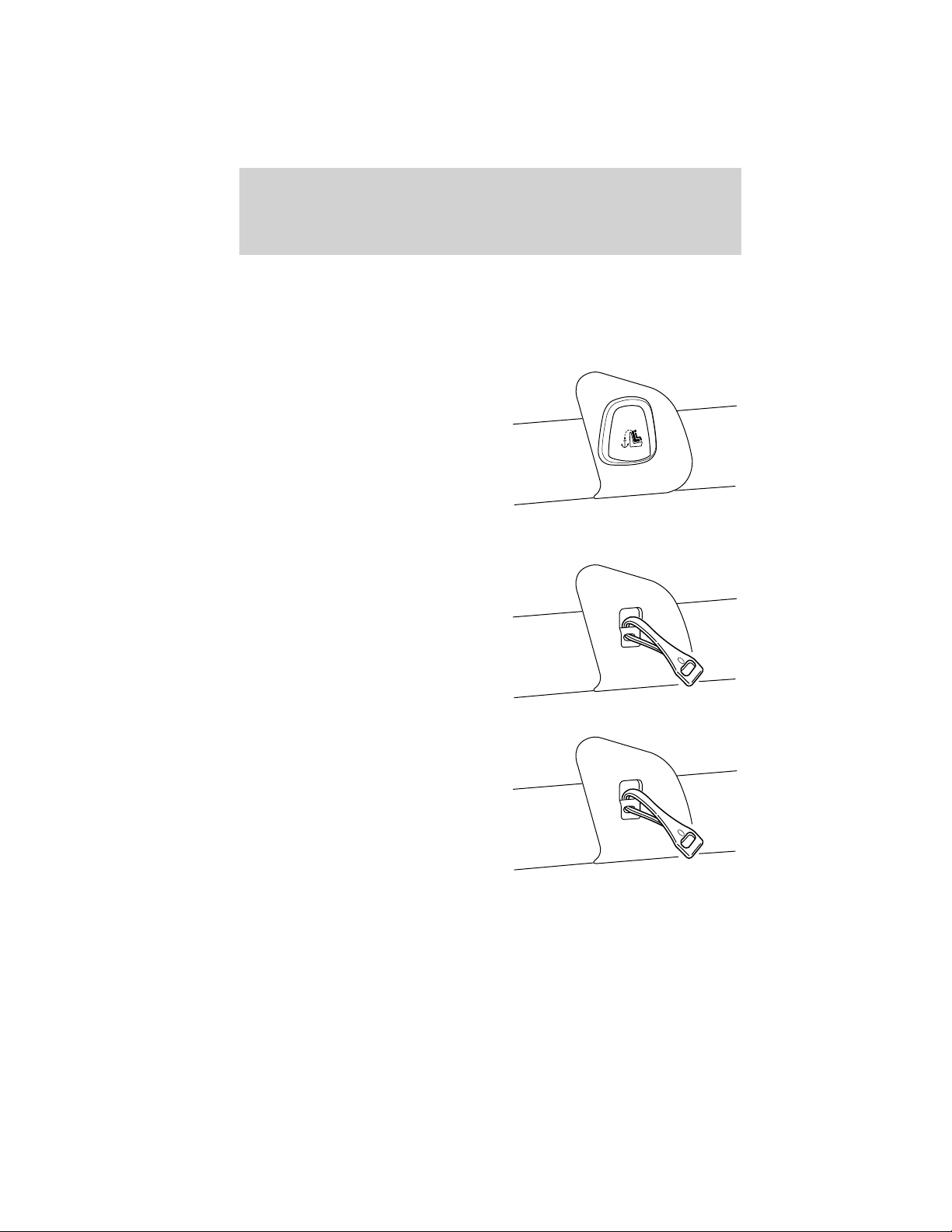

4. Remove tether cover.

5. Clip the tether strap to the anchor as shown.

• Front seats (Regular Cab)

• Rear seats (Crew Cab)

If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a collision.

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 99

Seating and Safety Restraints

6. Refer to the Installing child safety seats with combination lap and

shoulder belts and Installing child safety seats in lap belt seating positions sections of this chapter for further instructions to secure the

child safety seat.

7. Tighten the child safety seat tether strap according to the

manufacturer’s instructions. If the safety seat is not anchored properly, the risk of a child being

injured in a collision greatly increases. If your child restraint system is equipped with a tether strap, and the

child restraint manufacturer recommends its use, Ford also recommends its use.

Child booster seats

The belt-positioning booster (booster seat) is used to improve the fit of the vehicle safety belt. Children outgrow a typical child seat (e.g., convertible or toddler seat) when they weigh about 40 lb (18 kg) and are around four (4) years of age. Consult your child safety seat owner guide for the weight, height, and age limits specific to your child safety seat. Keep your child in the child safety seat if it properly fits the child, remains appropriate for their weight, height and age AND if properly secured to the vehicle.

Although the lap/shoulder belt will provide some protection, children who have outgrown a typical child seat are still too small for lap/shoulder belts to fit properly, and wearing an improperly fitted vehicle safety belt could increase the risk of serious injury in a crash. To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster.

Booster seats position a child so that vehicle lap/shoulder safety belts fit better. They lift the child up so that the lap belt rests low across the hips and the knees bend comfortably at the edge of the cushion, while minimizing slouching. Booster seats may also make the shoulder belt fit better and more comfortably. Try to keep the belt near the middle of the shoulder and across the center of the chest. Moving the child closer (a few centimeters or inches) to the center of the vehicle, but remaining in the same seating position, may help provide a good shoulder belt fit.

When children should use booster seats

Children need to use booster seats from the time they outgrow the toddler seat until they are big enough for the vehicle seat and lap/shoulder belt to fit properly. Generally this is when they reach a

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)

Page 100

Seating and Safety Restraints

height of at least 4 feet 9 inches (1.45 meters) tall (around age eight to age twelve and between 40 lb (18 kg) and 80 lb (36 kg) or upward to 100 lb (45 kg) if recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 lb (36 kg).

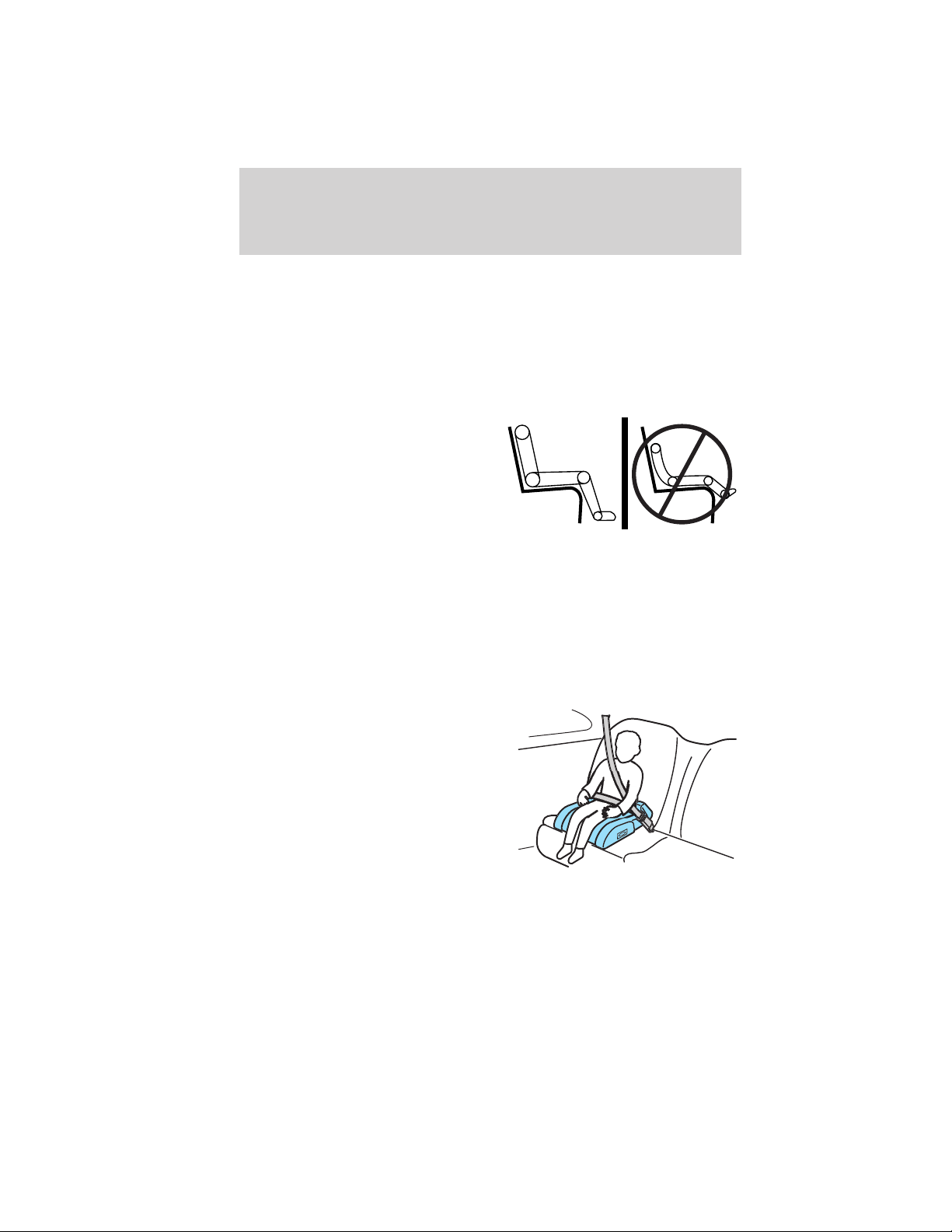

Booster seats should be used until you can answer YES to ALL of these questions when seated without a booster seat:

• Can the child sit all the way back against the vehicle seat back with knees bent comfortably at the edge of the seat cushion?

• Can the child sit without slouching?

• Does the lap belt rest low across the hips?

• Is the shoulder belt centered on the shoulder and chest?

• Can the child stay seated like this for the whole trip?

Types of booster seats

There are generally two types of belt-positioning booster seats: backless and high back. Always use booster seats in conjunction with the vehicle lap/shoulder belt.

• Backless booster seats

If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child’s head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat back or head restraint and lap/shoulder belts, or consider using a high back booster seat.

100

2011 F-650/750 (f67) Supplement, 2nd Printing USA (fus)
