Ford Expedition 2007 User Manual

Page 1

Introduction 4

Instrument Cluster 12

Warning lights and chimes 12 Gauges 18

Entertainment Systems 21

How to get going 21 AM/FM stereo with CD 25 AM/FM stereo with in-dash six CD 31 Auxiliary input jack (Line in) 38 Rear seat controls 39 Satellite radio information 44 Family entertainment system 47 Navigation system 73

Climate Controls 74

Manual heating and air conditioning 74 Dual automatic temperature control 77 Rear window defroster 82

Lights 83

Headlamps 83 Turn signal control 86 Bulb replacement 88

Driver Controls 95

Windshield wiper/washer control 95 Steering wheel adjustment 96 Power windows 101 Mirrors 103 Speed control 105 Moon roof 110 Message center 115

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 2

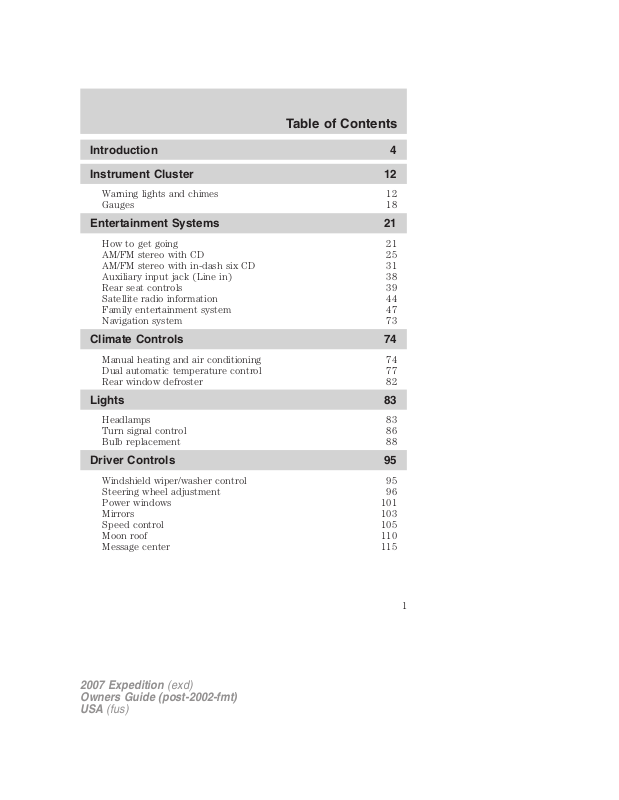

Table of Contents

Locks and Security 145

Keys 145 Locks 145

Seating and Safety Restraints 161

Seating 161 Safety restraints 178 Airbags 192 Child restraints 201

Tires, Wheels and Loading 217

Tire information 219 Tire inflation 221 Tire Pressure Monitoring System (TPMS) 234 Vehicle loading 238 Trailer towing 244 Recreational towing 251

Driving 253

Starting 253 Brakes 257 Traction Control™/AdvanceTrac威 260 Air suspension 265 Transmission operation 266

Roadside Emergencies 285

Getting roadside assistance 285 Hazard flasher switch 286 Fuel pump shut-off switch 287 Fuses and relays 288 Changing tires 295 Lug nut torque 305 Jump starting 305 Wrecker towing 312

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 3

Table of Contents

Customer Assistance 314

Reporting safety defects (U.S. only) 321 Reporting safety defects (Canada only) 321

Cleaning 322

Maintenance and Specifications 329

Engine compartment 331 Engine oil 334 Battery 337 Engine coolant 339 Fuel information 345 Air filter(s) 357 Part numbers 360 Maintenance product specifications and capacities 362 Engine data 366

Accessories 369

Index 371

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 4

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 5

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 6

Introduction

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Drive your new vehicle at least 500 miles (800 km) before towing a trailer. Additionally, during the first 500 miles (800 km) that you tow a trailer, do not drive over 70 mph (112 km/h) and do not make starts at full throttle. This style of driving will help the engine and other parts of your vehicle break in at the heavier loads. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.

Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Airbag supplemental restraint system

(SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger airbag.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 7

Introduction

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 8

Introduction

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Your vehicle is not equipped with a snowplowing package.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than

other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

Driving while distracted can result in loss of vehicle control,

accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 9

Introduction

Export unique (Non–United States/Canada) vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required

information and warnings.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 10

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Powertrain Malfunction Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 11

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Jack

Low Tire Pressure Warning

Page 12

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

Note: Some Warning Lights are reconfigurable telltale (RTT) indicator lights and will illuminate in the Message Center Display and function the same as the warning light.

Service engine soon: The Service engine soon indicator light

illuminates when the ignition is first turned to the ON position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Service engine soon⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Service engine soon⬙ light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.

Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 13

Instrument Cluster

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Powertrain malfunction/reduced power (RTT) (if equipped):

Displays when the engine has defaulted to a ’limp-home’ operation. Report the fault to a dealer at the earliest opportunity.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

BRAKE

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.

ABS

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 14

Instrument Cluster

Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and safety restraints chapter to activate/deactivate the Belt-Minder威 chime feature.

Charging system (RTT): Displays when the battery is not charging properly.

Security/Anti-theft system:

Flashes when the SecuriLock娂 Passive Anti-theft System has been activated.

Engine oil pressure (RTT):

Displays when the oil pressure falls below the normal range. Refer to

Engine oil in the Maintenance and Specifications chapter.

Engine coolant temperature (RTT): Displays when the engine

coolant temperature is high. Stop the vehicle as soon as safely possible, switch off the engine and let it cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

Never remove the coolant reservoir cap while the engine is

running or hot.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 15

Instrument Cluster

Low tire pressure warning (if equipped): Illuminates when your

tire pressure is low. If the light remains ON at start up or while driving, the tire pressure should be checked. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to ON, the light will illuminate for 3 seconds to ensure the bulb is working. If the light does not turn ON or begins to flash, have the system inspected by your authorized dealer. For more information on this system, refer to

Understanding Your Tire Pressure Monitoring System in the Tires, Wheels and Loading chapter.

Low fuel (RTT) (if equipped):

Displays when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

Check fuel cap (RTT) (if equipped): Displays when the fuel

cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter.

Low washer fluid (RTT) (if equipped): Displays when the

windshield washer fluid is low.

O/D off: Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light does not illuminate, have the transmission serviced soon, or damage may occur.

AdvanceTrac威 (RTT) (if equipped): Displays when the

AdvanceTrac威 with RSC system is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information.

O/D

OFF

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 16

Instrument Cluster

Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Four wheel drive low (RTT) (if equipped): Displays when

four-wheel drive low is engaged. If the light fails to illuminate when the ignition is turned ON, or remains on, have the system serviced immediately by your authorized dealer.

Four wheel drive (RTT) (if equipped): Displays when

four-wheel drive is engaged. If the light fails to illuminate when the ignition is turned ON, or remains on, have the system serviced immediately by your authorized dealer.

Four wheel drive auto (RTT) (if equipped): Displays when

four-wheel drive automatic mode is engaged. If the light fails to illuminate when the ignition is turned ON, or remains on, have the system serviced immediately by your authorized dealer.

Door ajar (RTT) (if equipped):

Displays when the ignition is in the ON position and any door, liftgate or the liftgate glass is open.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 17

Instrument Cluster

High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime (if equipped): Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

Parking brake ON warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h).

Turn signal chime: Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 1.5 miles (2.4 km).

Message center activation chime: Sounds when some warning messages appear in the message center display for the first time.

Overspeed chime (if equipped): Sounds when the vehicle speed reaches 120 km/h (75 mph) or higher.

Reverse warning chime (if equipped): Sounds when the vehicle is in reverse. Refer to the Driving chapter for more information.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 18

Instrument Cluster

GAUGES

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is

running or hot.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 19

Instrument Cluster

Odometer: Registers the total miles (kilometers) of the vehicle.

• With Standard Message Center

• With Optional Message Center

Refer to Message Center in the Driver Controls chapter on how to

switch the display from Metric to English.

Trip odometer: Registers the miles (kilometers) of individual journeys.

• With Standard Message Center Press the RESET stem once to

switch from the odometer to the trip odometer. Press the stem again to select Trip A and Trip B features. To reset the trip, press and hold the stem again until the trip reading is 0.0 miles.

• With Optional Message Center Press and release the message

center INFO button until TRIP mode appears in the display. Press the control again to select Trip A and Trip B features. Press the RESET button to reset.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 20

Instrument Cluster

Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked by your authorized dealer as soon as possible.

Engine oil pressure gauge:

Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked by your authorized dealer.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

Refer to Filling the tank in the

Maintenance and Specifications

chapter for more information. The FUEL icon and arrow indicates which side of the vehicle the fuel

door is located.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 21

AUDIO SYSTEMS

Quick start — How to get going

Listening to the radio

1. If the audio system is off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.

Note: The system may take a few moments to turn on.

2. Press AM/FM repeatedly to choose between AM/FM1/FM2 frequency bands.

3. Press up/down the frequency band.

/ to manually go

Entertainment Systems

Press down/up the chosen frequency band

for the next strongest station. To disengage SEEK mode,

press

4. Once you are tuned to the desired station, press and hold a memory preset (1–6) to save the station. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six stations in each frequency band — six in AM, six in FM1 and six in FM2.

To access your saved stations, press the corresponding memory preset. The memory preset # and the station frequency will appear on the display.

SEEK to search

/ .

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 22

Entertainment Systems

Listening to satellite radio (if equipped)

1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.

Note: The system may take a few moments to turn on.

2. Press AUX repeatedly to cycle through auxiliary audio sources. Select SAT1, SAT2 or SAT3 to listen to satellite radio.

3. Press access the previous or next satellite

channel. You may also seek by music

category. For further information, refer to CATEGORY listing under the MENU control on your specific audio system.

4. Once you are tuned to the desired channel, press and hold a memory preset (1–6) to save the channel. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six channels in each — six in SAT1, six in SAT2, and six in SAT3.

To access your saved channels, press the corresponding memory preset. The memory preset # and the channel name will appear on the display.

SEEK, SEEK to

Listening to a CD/MP3 (if equipped)

1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.

Note: The system may take a few moments to turn on.

2. Press CD to enter CD mode. If a disc is already loaded into the system, CD play will begin where it ended last.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 23

Entertainment Systems

For a single CD system, if a disc is not already loaded, insert only one, label side up into the CD slot. LOADING CD and READING DISC will appear in the display. The first track on the disc will begin playing.

For an in-dash six CD system, if a disc is not already loaded, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within 5 seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to 6 discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the last loaded disc will begin to play.

Note: An MP3 disc with folders will show F001 (folder #) T001 (track #) in the display. An MP3 disc without folders will show T001 (track#) in the display. Refer to MP3 folder structure later in this chapter for further information.

3. In CD/MP3 mode, you can access the following features:

Press access the previous/next tracks.

SEEK, SEEK to

Press and hold REW to manually reverse in a CD/MP3 track.

Press and hold FF to manually advance in a CD/MP3 track.

While in folder mode, press

FOLDER to access the previous

folder on MP3 discs, if available. While in folder mode, press

FOLDER folder on MP3 discs, if available.

to access the next

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 24

Entertainment Systems

Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display.

Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.

Press CD/MP3 is playing to pause the disc.

CD PAUSE will appear in the display. Press again to resume play.

4. For a single cd system, press The display will read CD EJECT.

For an in-dash six CD system,

press number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. To auto eject up to 6 discs, press and hold begins ejecting all loaded discs. If the discs are not removed, the system will reload the discs.

/ (play/pause) when a

to eject the current disc.

. Select the correct slot

until the system

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 25

Entertainment Systems

AM/FM single CD/MP3 satellite compatible sound system (if equipped)

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened.

/ (Tuner):

1. In radio mode, press to manually go up ( radio frequency. Press and hold for

a fast advance through radio frequencies.

In menu mode, use to select various settings. In CATEGORY mode (if equipped), press to scroll through the list of

available SIRIUS channel categories.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

2. MUTE/ playing media. Press again to return to the playing media.

) or down ( ) the

: Press to mute the

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 26

Entertainment Systems

3. MENU: Press repeatedly to access the following settings:

CATEGORY (satellite radio if equipped): When satellite radio mode is active, press MENU until the currently active category appears in the

display (CATEGORY MODE). In CATEGORY MODE, press scroll through the list of available SIRIUS channel Categories (Pop, Rock,

News, etc.) Once your desired category appears in the display, press

SEEK to search for the next available channel playing that

category of music or press and hold SCAN to hear a brief sampling of the Satellite Radio channels in the selected category. Set category to CATEGORY ALL to seek or scan through all available SIRIUS satellite radio channels. Satellite radio is available only with a valid SIRIUS

subscription. Check with your authorized dealer for availability.

Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Use

AUTOSET: In radio mode, press MENU until the display reads AUTOSET. Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for

AM/FM1/FM2. Use When the six strongest stations are filled, the station stored in preset 1

will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

BASS: Press MENU to reach the bass setting. Use

/ / SEEK, SEEK to adjust.

/ to adjust hours/minutes.

/ / SEEK, SEEK to turn on/off.

/ to

TREB (Treble): Press MENU to reach the treble setting. Use

BAL (Balance): Press MENU to reach the balance setting. Use (L) and right (R) speakers. FADE: Press MENU to reach the fade setting. Use (B) and front (F) speakers.

/ / SEEK, SEEK to adjust.

/ / SEEK, SEEK to adjust the audio between the left

/ / SEEK, SEEK to adjust the audio between the back

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 27

Entertainment Systems

SPEEDVOL (Speed sensitive volume): Press MENU to reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

Use

The default setting is off; increasing your vehicle speed will not change the volume level.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

Track/Folder mode: Available only on MP3 discs in CD mode. In Track mode, pressing disc In Folder mode, pressing tracks within the selected folder. Press available).

COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display.

Use is ON, the system will bring the soft and loud CD passages together for a

more consistent listening level.

SINGLE PLAY / DUAL PLAY: If Single Play is ON, press Dual Play. For further information on Single Play/Dual Play, refer to Rear

seat controls later in this chapter. FES (FULL/LOCKED): Your vehicle is equipped with a Family

Entertainment DVD system. For further information on the DVD system, refer to Family Entertainment DVD system later in this section.

4. AUX: Press repeatedly to cycle through FES/DVD (if equipped) LINE IN (Auxiliary audio mode) and SAT1, SAT2, SAT3 (Satellite radio modes, if equipped). To return to radio mode, press AM/FM. For location and further information on auxiliary audio mode, refer to

Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.

/ / SEEK, SEEK to adjust.

SEEK, SEEK will scroll through all tracks on the

SEEK, SEEK will scroll only through

FOLDER, FOLDER to access the previous/next folder (if

/ / SEEK, SEEK to toggle ON/OFF. When COMPRESS

/ for

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 28

Entertainment Systems

5. SEEK: In radio mode, press / to access the

previous/next strong station.

In CD/MP3 mode, press to access the previous/next CD/MP3 track.

In satellite radio mode (if equipped), press seek to the previous/next channel. In CATEGORY MODE, press (Jazz, Rock, News, etc.). Once the desired category is in the display, press

selected category. Press and hold through the previous /next channels. In TEXT MODE, press previous/additional display text.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

6. Play/Pause: This control is

operational in CD and DVD mode (if equipped). When a CD or DVD is playing in the FES system, press this control to play or pause the current CD or DVD. The CD/DVD status will display in the radio display.

For further information on the Family Entertainment System (FES) please refer to Family Entertainment DVD system later in this section.

7. SHUFFLE: In CD/MP3 mode,

press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display.

Note: In CD/MP3 mode, press SHUFFLE to play the tracks in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.

SEEK, SEEK to seek to the previous/next channel in the

SEEK, SEEK to select a category

SEEK, SEEK to fast seek

SEEK, SEEK to view the

SEEK, SEEK to

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 29

Entertainment Systems

8. FOLDER : In folder mode,

press FOLDER folder on MP3 discs, if available.

FOLDER: In folder mode,

press FOLDER to access the previous folder on MP3 discs, if available.

10. FF (Fast forward): Press FF

to manually advance in a CD/MP3 track.

11. REW (Rewind): Press REW to

manually reverse in a CD/MP3 track.

12. Memory presets: To set a

station, select the desired frequency band, AM, FM1 or FM2. Tune to the desired station. Press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2.

In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

13. TEXT/SCAN: In radio and

CD/MP3 mode, press and hold for

a brief sampling of radio stations or CD tracks. Press again to stop. In CD/MP3 mode, press and release to display song title, artist name, and album title.

In TEXT MODE sometimes the display requires additional text to be displayed. When the “>” indicator is active, press TEXT and then SEEK

active, press TEXT and then

to view the additional display text. When the “<” indicator is

to access next

SEEK to view the previous display text.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 30

Entertainment Systems

In satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name. Press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

14. AM/FM: Press to select

AM/FM1/FM2 frequency band.

15. ON/OFF/Volume: Press

VOL-PUSH to turn ON/OFF. Turn VOL-PUSH to increase/decrease volume.

Note:If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

16. CD: Press to enter CD mode. If

a CD is already loaded into the system, CD play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display.

17. CD eject: Press to eject a

CD/MP3.

18. CD slot: Insert a CD label side

up.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 31

Entertainment Systems

Premium/Audiophile AM/FM in-dash six CD/MP3 satellite compatible sound system (if equipped)

/ (Tune/Disc selector):

In radio mode, press to manually go up ( radio frequency. Press and hold for

a fast advance through radio frequencies.

In menu mode, use to select various settings. In CD/MP3 mode, press to select the desired disc. In satellite radio mode (if equipped), press to scroll through the

SIRIUS channel categories.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

2. MUTE/

playing media. Press again to return to the playing media.

) or down ( ) the

: Press to mute the

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 32

Entertainment Systems

3. MENU: Press repeatedly to

access to the following settings:

CATEGORY (satellite radio if equipped): When satellite radio is active, press MENU until the currently active category appears in the

display (CATEGORY MODE). In CATEGORY MODE, press scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press desired category of music or SCAN for a brief sampling of all channels

playing the desired category of music. To select a different category, press MENU until the current category appears in the display.

Press CATEGORY ALL to seek all available SIRIUS categories and channels.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

Setting the clock: Press until SELECT HOURS or SELECT MINUTES is displayed. Press

AUTOSET: In radio mode, press MENU until the display reads AUTOSET. Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for

AM/FM1/FM2. Use When the six strongest stations are filled, the station stored in preset 1

will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

RBDS: Available only on the Audiophile system in FM mode. This feature allows you to display text transmitted by RBDS-equipped stations and to search for a certain category of music format: t: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc. To activate, press MENU repeatedly until RBDS (ON/OFF) appears in

the display. Use RBDS is OFF, you will not be able to search for RBDS equipped stations

or view the station name or type. To search for specific RBDS music categories: When the desired

category appears in the display, press then press and release

begin the search.

/ to select a different category. You may also select

SEEK to seek to the next channel playing the

/ to adjust the hours/minutes.

/ to turn on/off.

/ / SEEK to toggle RBDS ON/OFF. When

/ to find the desired type,

SEEK, SEEK or press and hold SCAN to

/ to

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 33

Entertainment Systems

To view the station name or type: With RBDS ON, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYZ, etc.).

BASS: Press MENU to reach the bass setting. Use

TREB (Treble): Press MENU to reach the treble setting. Use

BAL (Balance): Press MENU to reach the balance setting. Use (L) and right (R) speakers. FADE: Press MENU to reach the fade setting. Use (B) and front (F) speakers. ALL SEATS (Occupancy mode) (Available on Audiophile radios only): Press MENU repeatedly to access. Press optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS. SPEEDVOL (Speed sensitive volume): Press MENU to reach the

SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

Use

/ / SEEK, SEEK to adjust.

/ / SEEK, SEEK to adjust the audio between the left

/ / SEEK, SEEK to adjust the audio between the back

/ / SEEK to

/ / SEEK, SEEK to adjust.

The default setting is off; increasing your vehicle speed will not change the volume level.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

Track/Folder Mode: Available only on MP3 discs in CD mode. In Track Mode, pressing

In Folder mode, pressing SEEK will scroll only through tracks within the selected folder. Press available).

FOLDER, FOLDER to access the previous/next folder (if

SEEK will scroll through all tracks on the disc.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 34

Entertainment Systems

COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display.

Use

is ON, the system will bring soft and loud CD passages together for a more consistent listening level.

Single Play/Dual Play: If Single Play is ON, press For further information on Single Play/Dual Play, refer to Rear seat

controls later in this chapter. FES (FULL/LOCKED): Your vehicle is equipped with a Family

Entertaiment DVD system. For further information on the DVD system, refer to Family entertainment DVD system later in this section.

4. AUX: Press repeatedly to cycle

through FES/DVD (if equipped) LINE IN (Auxiliary audio) and SAT1, SAT2, SAT3 (Satellite radio modes, if equipped). To return to radio mode, press AM/FM. For location and further information on the auxiliary audio mode, refer to Auxiliary input jack later in this chapter.

Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.

5. Seek: In radio mode,

press previous/next strong station.

In CD mode, press access the previous/next CD track.

In satellite radio mode (if equipped), press seek to the previous/next channel. In CATEGORY MODE, press (Jazz, Rock, News, etc.). Once the desired category is in the display, press selected category. Press and hold SCAN for a brief sampling of all

channels in the selected category. In TEXT MODE, press previous/additional display text.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

/ / SEEK, SEEK to toggle ON/OFF. When COMPRESS

/ for Dual Play.

/ to access the

/ to

SEEK, SEEK to

/ to select a specific category

SEEK, SEEK to seek to the previous/next channel in the

SEEK, SEEK to view the

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 35

Entertainment Systems

6. (Play/Pause): This

control is operational in CD and DVD mode (if equipped). When a CD or DVD is playing in the FES system, press this control to play or pause the current CD/DVD. The CD/DVD status will display in the radio display.

If your vehicle is equipped with a Family Entertainment System (FES), please refer to Family entertainment DVD system later in this section for further information.

7. SHUFFLE: In CD/MP3 mode,

Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.

8. FOLDER

press FOLDER to access next folder on MP3 discs, if available.

FOLDER: In folder mode,

press FOLDER to access the previous folder on MP3 discs, if available.

10. FF (Fast forward): Press FF

to manually advance in a CD/MP3 track.

11. REW (Rewind): Press REW to

manually reverse in a CD/MP3 track.

: In folder mode,

12. Memory presets: To set a

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 36

Entertainment Systems

Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.

13. TEXT/SCAN: In radio and

CD/MP3 mode, press and hold to

hear a brief sampling of radio stations or CD tracks. Press again to stop.

In CD/MP3 mode, press and release to display song title, artist name, and album title.

In satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name. In TEXT MODE, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press TEXT and then SEEK

active, press TEXT and then Press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of channels in the selected category. Press again to stop.

Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.

14. AM/FM: Press to select

to view the additional display text. When the “<” indicator is

SEEK to view the previous display text.

AM/FM1/FM2 frequency band.

15. ON/OFF/Volume: Press to turn

ON/OFF. Turn to increase/decrease volume.

Note: If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

16. CD: Press to enter CD/MP3

mode. If a CD/MP3 is already loaded into the system, CD/MP3 play will begin where it ended last.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 37

Entertainment Systems

17. LOAD: To load a disc into the

system, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within 5 seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to 6 discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the last disc loaded will begin to play.

18.

from the system, press . Select the correct slot number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. To auto eject up to 6 CDs, press and hold ejecting all loaded discs. If the discs are not removed, the system will reload the discs.

19. CD slot: Insert a CD/MP3 label

side up.

(CD eject): To eject a disc

until the system begins

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 38

Entertainment Systems

Auxiliary input jack (Line in)

Your vehicle is equipped with an Auxiliary Input Jack (AIJ). The Auxiliary Input Jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system.

Required equipment:

1. Any portable music player designed to be used with headphones

2. An audio extension cable with stereo male 1/8 in. (3.5 mm)

connectors at each end

To play your portable music player using the auxiliary input jack:

1. Begin with the vehicle parked and the radio turned off.

2. Ensure that the battery in your portable music player is new or fully

charged and that the device is turned off.

3. Attach one end of the audio extension cable to the headphone output

of your player and the other end of the audio extension cable to the AIJ in your vehicle.

4. Turn the radio on, using either a tuned FM station or a CD loaded into

the system. Adjust the volume to a comfortable listening level.

5. Turn the portable music player on and adjust the volume to 1/2 the

volume.

6. Press AUX on the vehicle radio repeatedly until LINE IN appears in

the display. You should hear audio from your portable music player although it may be low.

7. Adjust the sound on your portable music player until it reaches the

level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.

Troubleshooting:

1. Do not connect the audio input jack to a line level output. Line level

outputs are intended for connection to a home stereo and are not

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 39

Entertainment Systems

compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control.

2. Do not set the portable music player’s volume level higher than is

necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume.

3. If the music sounds distorted at lower listening levels, turn the

portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player.

4. The portable music player must be controlled in the same way manner

when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.

5. For safety reasons, connecting or adjusting the settings on your

portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

Rear seat radio controls (if equipped)

Your vehicle is equipped with rear seat radio controls. This feature allows front and middle seat passengers to listen to different media sources (radio, CD or DVD) simultaneously. (However, the front and middle-seat passengers cannot listen to two different radio stations at the same time.)

1. MEDIA: Push repeatedly to cycle

through available playing medias such as AM, FM1, FM2, CD, SAT1, SAT2, SAT3 (Satellite radio if equipped), or DVD (if equipped). If in Dual Play mode, SHARED illuminates in the radio display when the front and rear modes are set to the same media.

2. VOLUME: Press to increase

(

) or decrease ( ) the volume

level in the headphones. From the rear seat controls, volume control can be set no higher than the current radio setting unless the speakers are turned off.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 40

Entertainment Systems

3. : In radio mode, press and release to scroll through memory

presets. Press and hold to seek to the next station. In CD mode, press and release to advance to the next track. Press and hold to fast forward within that track.

4. Wired headphone jacks

presets. Press and hold to seek to the next station. In CD mode, press and release to advance to the next track. Press and hold for a fast reverse within that track.

6. Auxiliary audio input jack: Use to plug in and play auxiliary audio

sources.

7. -: In CD mode, press to access the previous CD.

8. +: In CD mode, press to access the next CD.

(Dual Play mode). When the rear seat controls are activated, rear seat passengers can use

the controls to change the playing media for all passengers (Single Play mode). In this mode, all speakers will play audio from the same media source for all passengers to hear. To activate the rear seat radio controls:

• Press the memory preset controls

• Press memory preset controls 3 and 5 a second time to deactivate the

If there is a discrepancy between the rear seat controls and the front audio controls (such as both trying to listen to the same playing media), the front audio system will receive the desired selection.

To activate Dual Play mode (rear seat passengers listen to a different playing media than the front seat passengers):

• Press the speaker/headphone control.

• Press the MEDIA Control to change audio sources (for headphone

: In radio mode, press and release to scroll through memory

/ : Press to turn the rear speakers on (Single Play mode) or off

3 and 5 at the same time. A headphone icon in the radio display, indicating the rear seat radio controls are active.

rear seat controls. The headphone icon display.

mode only)

will illuminate

will turn off in the radio

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 41

Entertainment Systems

• Use the other controls to make adjustments to the playing media.

• Dual Play mode may also be

activated by pressing memory presets 2 and 4 simultaneously on the front audio controls.

The rear speakers mute and rear seat passengers have audio (for their selected media) available through their headphones.

Using headphones/Dual Play mode

Do not leave children unattended in the vehicle and do not let

children operate the system while unsupervised. If wired headphones or auxiliary systems are used, children may become entangled in the cords and seriously injure themselves.

1 2 3 4 5 6

Plug a 3.5 mm headphone (not included) into the speaker on/off control to operate the headphones. DUAL PLAY illuminates in the radio display and the fade control is disabled, signaling that Dual Play has been activated.

The rear speakers will cut out once the speaker on/off control is pressed. The front speaker will remain playing for the front passengers. Press the control again to deactivate the headphones. SINGLE PLAY illuminates in the radio display and the fade control is enabled, signaling that Dual Play mode has been deactivated.

To enable Dual Play, the rear seat controls must be active and

Parental control

Press the memory preset controls 3 and 5 simultaneously on the front audio controls to disable the rear seat controls. They will remain disabled until the front seat passengers “enable” them again by simultaneously pressing the 3 and 5 preset controls. The settings of the front seat controls will always override those of the rear seat controls.

illuminated in the radio display.

jack. Press the

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 42

Entertainment Systems

GENERAL AUDIO INFORMATION

Radio frequencies:

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz

Radio reception factors:

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CD/CD player care

Do:

• Handle discs by their edges only. (Never touch the playing surface).

• Inspect discs before playing.

• Clean only with an approved CD

cleaner.

• Wipe discs from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Clean using a circular motion.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 43

Entertainment Systems

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players.

Do not use any irregular shaped CDs or discs with a scratch protection film attached.

CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

Audio system warranty and service

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

MP3 track and folder structure

Your MP3 system recognizes MP3 individual tracks and folder structure as follows:

• There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section.

• MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to T255.

• MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 44

Entertainment Systems

• Creating discs with only one level of folders will help with navigation through the disc files.

Sample MP3 structure

If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.

In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder.

.mp3

.doc

.ppt

.xls

.mp3

Satellite radio information (if equipped)

Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474.

Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance:

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 45

Entertainment Systems

• Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.

• Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.

SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include:

• Hardware and limited subscription term, which begins on the date of sale or lease of the vehicle.

• Online media player providing access to all 65 SIRIUS music channels over the internet (U.S. customers only).

For information on extended subscription terms, contact SIRIUS at 1–888–539–7474.

Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.

Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 46

Entertainment Systems

Radio Display Condition Action Required

ACQUIRING Radio requires more

than two seconds to

produce audio for the

selected channel.

SAT FAULT Internal module or

system failure

present.

INVALID CHNL Channel no longer

available.

UNSUBSCRIBED Subscription not

available for this

channel.

NO TEXT Artist information not

available.

No action required.

This message should

disappear shortly.

If this message does

not clear within a short

period of time, or with

an ignition key cycle,

your receiver may have

a fault. See your

authorized dealer for

service.

This previously

available channel is no

longer available. Tune to another channel. If

the channel was one of

your presets, you may

choose another channel

for that preset button.

Contact SIRIUS at

1–888–539–7474 to

subscribe to the

channel or tune to

another channel.

Artist information not

available at this time on

this channel. The

system is working

properly.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 47

Entertainment Systems

Radio Display Condition Action Required

NO TEXT Song title information

not available.

NO TEXT Category information

not available.

NO SIGNAL Loss of signal from

the SIRIUS satellite or

SIRIUS tower to the

vehicle antenna.

UPDATING Update of channel

programming in

progress.

CALL SIRIUS 1–888–539–7474

Satellite service has

been deactivated by

SIRIUS Satellite

Radio.

Song title information

not available at this

time on this channel.

The system is working

properly.

Category information

not available at this

time on this channel.

The system is working

properly.

You are in a location

that is blocking the

SIRIUS signal (i.e.,

tunnel, under an

overpass, dense foliage,

etc). The system is

working properly. When

you move into an open

area, the signal should

return.

No action required. The

process may take up to

three minutes. Call SIRIUS at

1–888–539–7474 to

re-activate or resolve

subscription issues.

FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a Family Entertainment System (FES) which allows you to listen to audio CDs, MP3 discs, watch DVDs and to plug in and play a variety of standard video game systems. The DVD player is capable of playing standard DVDs, CDs, MP3s and is compatible with CD-R/W, CD-R and certain CD-ROM media.

Please review this material to become familiar with the FES features and controls as well as the very important safety information.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 48

Entertainment Systems

Quick start

Your Family Entertainment System includes a DVD system, two sets of wireless infrared (IR) headphones and a wireless infrared (IR) remote control.

To play a DVD in the DVD system:

The DVD system can play DVD-Video, DVD-R, DVD-R/W discs as well as audio CDs and video CDs. To ensure proper disc operation, check the disc for finger prints, scratches and cleanliness. Clean with a soft cloth, wiping from center to edge.

1. Ensure that the vehicle ignition is in the RUN or ACCESSORY

position.

2. Insert a DVD into the system,

label-side up to turn on the system. It will load automatically and begin to play. If a DVD is already loaded in the system, press PLAY on the DVD player.

The power indicator will turn on automatically indicating the DVD system is ON.

Press VIDEO to change the source displayed on the screen. Press repeatedly to cycle through: DVD-DISC, DVD-AUX, NON-DVD, OFF.

Press the power button to turn the system OFF. The indicator light will turn off indicating the system is off.

Note: The audio from the DVD system will play over all vehicle speakers and can be adjusted by the radio volume control.

To play a CD in the DVD system:

The DVD system can play audio CDs, CD-R and CD-R/W, CD-ROM and video CDs. To ensure proper disc operation, check the disc for finger prints and scratches. Clean the disc with a soft cloth, wiping from the center to the edge.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 49

Entertainment Systems

1. Ensure that the vehicle ignition is in the RUN or ACCESSORY

position.

2. Insert a CD into the system,

label-side up to turn on the DVD system. It will load and automatically begin to play. If there is already a CD in the system, press PLAY on the DVD player.

3. The disc will begin to play and

the ’CD Audio Disc’ screen will display. From this screen, you can also select from COMPRESSION, SHUFFLE and SCAN features.

To play an MP3 disc in the DVD system:

1. Ensure that the vehicle ignition is in the RUN or ACCESSORY

position.

2. Insert an MP3 disc into the

system, label-side up to turn on the DVD system. It will load and automatically begin to play. If there is already a disc in the system, press PLAY on the DVD player.

3. The disc will begin to play and

the ’MP3 Audio Disc’ screen will display and allow you to access the COMPRESSION, SHUFFLE, SCAN and FOLDER MODE features.

To play an auxiliary source through the DVD system

The DVD system can be used to connect and play auxiliary electronic devices such as game systems, personal camcorders, video cassette recorders, etc.

1. Ensure that the vehicle ignition is in the RUN or ACCESSORY

position.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 50

Entertainment Systems

2. Press the power button to turn

the DVD system on. The indicator light next to the power button will illuminate.

3. Connect an auxiliary audio/video

source by connecting RCA cords (not included) to the RCA jacks on the left hand side of the system.

• Yellow (1) — video input

• White (2) — left channel audio

input

• Red (3) — right channel audio input

4. Press MEDIA on the DVD system to change the media source to AUX.

5. Press VIDEO on the DVD system to change the video source to

DVD-AUX. If your source is properly plugged in, it will appear on the LCD (Liquid Crystal Display) screen. If your auxiliary source does not have a video signal, or if the DVD system does not detect a video signal from the auxiliary source, the screen will remain black. If the video source is set to DVD-AUX, the display will automatically turn on if a video signal is detected.

To listen to audio over the headphones (Dual play mode):

1. You may listen to channels A and B over wired or wireless

headphones. Refer to Using the infrared wireless headphones and Using wired headphones for further information.

• Black (4) — wired headphone output (wired headphones not included)

2. Press the headphone/speaker

button on the DVD player. A green light will illuminate next to

either the A or B Headphone Control Button to indicate which channel is active (able to be controlled).

3. Press MEDIA to change the audio source of the active channel (A or

B). The audio source will be shown on the display. You may change the active channel by pressing the A or B headphone control button.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 51

Entertainment Systems

Note: Channel A can access any possible media source (AM, FM1, FM2, SAT (if equipped), CD, DVD, AUX). Channel B can only access DVD and AUX sources.

Note: Refer to Single play/Dual play for more information.

Using the infrared (IR) wireless headphones:

1. Press the power control on the earpiece to turn the headphones ON.

2. Select Channel A or B for each set of wireless headphones by using

the A/B control on the ear piece.

3. Adjust the headphone volume using the rotary dial on the earpiece.

Using wired headphones (not included):

Do not leave children unattended in the vehicle and do not let

children operate the system while unsupervised. If wired headphones or auxiliary systems are used, children may become entangled in the cords and seriously injure themselves.

1. Connect the wired headphones in to the headphone jacks on either side of the DVD system. Each side is labeled plugged into jack A will listen to Channel A and headphones plugged into

jack B will listen to Channel B.

2. Adjust the volume levels using the volume controls on the DVD system.

Aor B. Headphones

To adjust display brightness:

To decrease/increase the brightness level on the display screen, press the brightness control on the DVD system. A display will appear at the bottom of the screen indicating the brightness level. The brightness display will only appear when the menu is not displayed.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 52

Entertainment Systems

DVD player controls

ENTER

RETURN

MEDIA

VOLUME

VIDEO

1. Headphone control A/B: Press to select either the A or B headphone source. Then press MEDIA to select the desired playing media for that headset. When a headphone channel has been selected (A or B), selections will affect the source on that channel only. Note: Headphone A can access any possible media (AM, FM1, FM2, SAT (if equipped), CD, CASSETTE, DVD, DVD-AUX). Headphone B can only access DVD and DVD-AUX. For further information, refer to Single play/Dual play later in this section.

/ (Stop/Eject): Press once

2. to stop and press a second time to

eject a disc from the DVD system.

(Reverse): Press and release for the previous chapter or track. Press and hold to reverse search a DVD, Video CD, or FES CD in DVD/CD mode.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 53

Entertainment Systems

4. (Fast forward): Press and release for the next chapter or track. Press and hold to forward search a DVD, Video CD, or FES CD in DVD/CD mode.

/ (Play/Pause): Press

5. (Play) to select DVD mode (and to

turn the DVD system on if it is off). If a disc is present, it will resume or begin to play. Press (Pause) while playing a disc to pause a DVD or CD.

6. On/Off: Press to turn the DVD system On/Off.

7. VIDEO: Press repeatedly to cycle through the following video state options which will be indicated on the bottom right hand corner of the display: DVD DISC, DVD-AUX, NON-DVD and Off (no indicator). If you select the DVD-AUX video source, the display will turn off if there is no video signal detected. When a video signal is detected on the auxiliary video input, and the display is in the DVD-AUX video mode, the display will automatically turn on.

8. Infrared (IR) Receiver & Transmitter: System sensor which reads the signals from the remote control and sends audio signals to the infrared (IR) wireless headphones.

9. LCD screen: The eight inch diagonal screen rotates down to view and up into housing to store when not in use. Ensure that the screen is latched into the housing when being stored.

10. Volume: When in Single Play, press to increase (

) the volume over all speakers.

( When in Dual Play, press to increase

) or decrease ( ) the volume

( for the wired headphones. (Wireless headphone volume is controlled

with the rotary dial on the right ear piece.)

) or decrease

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 54

Entertainment Systems

11. / (Headphones/Speakers): Press once for Dual Play (Headphone mode- the rear speakers are muted) and press again for

Single Play (same media playing through all speakers). For further interaction information, refer to Single Play/Dual play.

12. MEDIA: Press repeatedly to select from the various possible playing media sources (AM, FM1, FM2, SAT (if equipped), CD, CASSETTE, DVD, DVD-AUX). The media will show in the status display on the top of the screen when in Dual Play mode. When in Single Play mode, the media source will be displayed on the radio. Note: Channel A can access any possible media source (AM, FM1, FM2, SAT (if equipped), CD, CASSETTE, DVD, DVD-AUX). Channel B can only access DVD and DVD-AUX sources.

13. RETURN: Press to return to the playing media or to resume playback.

14. MENU: When playing a DVD, press MENU once to enter the DVD disc menu (if available) and press twice to enter the system set-up menu. From the set-up menu, you may select from Angle, Aspect Ratio, Language, Subtitles, Disc resume, Compression, Restore Defaults and Back. For more detailed information, refer to Menu mode.

15. ENTER: Press to select/confirm the current selection.

16. Cursor /Brightness controls: Use the cursor controls to make various selections when in any menu. When not in a menu, and in

DVD mode, press the brightness. A display bar will appear at the bottom of the screen

indicating the brightness levels.

/ to adjust

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 55

Entertainment Systems

Remote control

Unless otherwise stated, all operations can be carried out with the remote control. Always point the remote control directly at the player. Ensure that there are no obstructions between the remote and player.

1. Power control: Press to turn the FES (Family Entertainment System) ON/OFF.

2. Cursor controls: Use in various active menus to advance the cursor up/down/left/right. When not in a Menu, the left and right cursor controls decrease and increase the display brightness.

3. DISPLAY: Press to access the on-screen display of the FES functions and adjustments.

4. RETURN: Press to return to the previous menu screen.

5. ANGLE (DVD dependent): Press to select the angle to view the scene.

6. Channel A/B: Press to select either A or B headphones and then use the MEDIA control to select the desired playing media for the headphones.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 56

Entertainment Systems

7. VOL (Volume): When in Single Play, press to increase ( )or decrease (

increase ( (Wireless headphone volume is controlled with the rotary dial on the

right ear piece.)

8. Fast Forward/Next: In DVD mode, press and hold for a quick advance within the DVD. Press and release to advance to the next chapter. In CD/MP3 mode, press to access the next track.

9. Play/Pause: Press to play or pause a DVD.

10. SHUFFLE: Press to play all tracks on the current CD/MP3 disc in random order.

11. STOP: Press to stop the current DVD or CD/MP3.

12.

/ Speaker/Headphone (Single/Dual Play): Press to toggle

between Single Play (same media playing through all speakers) and Dual Play (headphone mode — the rear speakers are muted).

13. Keypad: Use the numeric controls to enter in a specific CD/MP3 track or DVD chapter to be played.

14. C (Cancel): Press to cancel/clear the numeric input (i.e. chapter number).

15. MEDIA: Press to cycle through the possible media sources: AM, FM1, FM2, SAT (if equipped), CD, CASSETTE, DVD, LINE IN (if equipped), DVD-AUX. Channel B can only access DVD and AUX sources.

16. VIDEO: Press to cycle through video states: DVD-DISC, DVD-AUX, NON-DVD, Off.

17. EJECT: Press to eject a disc from the FES.

18. Fast reverse/Previous: When a DVD is playing, press and hold for a quick reverse within the DVD. Press and release for the previous chapter. Press PLAY to resume normal playback speed and volume. In CD/MP3 mode, press to access the previous track.

19. MENU: Press to access the DVD disc menu for selections. Press MENU again when in the DVD disc menu to access the system set-up menu.

20. SUBTITLE (DVD dependent): Press to turn the subtitle feature ON or OFF.

21. LANGUAGE (DVD dependent): Press to select the desired language.

) the volume over all speakers. When in Dual Play, press to

) or decrease ( ) the volume for the wired headphones.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 57

Entertainment Systems

22. ENTER: Press to select the highlighted menu option.

23. ILLUMINATION: Press to illuminate the remote control and backlight all of the buttons.

Battery replacement

Batteries are supplied with the remote control unit. Since all batteries have a limited shelf life, replace them when the unit fails to control the DVD player.

Remove the screw and unlatch the battery cover to access the batteries.

The remote control unit uses two AAA batteries which are supplied with the unit.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 58

Entertainment Systems

Headphones

Wireless headphones

Your FES system is equipped with two sets of battery powered, infrared wireless headphones. Two AAA batteries are needed to operate the headphones. (Batteries are included.)

Additional infrared wireless headphones may be purchased for use with the system. Also, wired headphones may be purchased and plugged in where indicated on the left and right hand sides of the system. Refer to Wired Headphones below.

To install the batteries, remove the screw at the bottom of the cover. Then, lightly press down on top and slide the cover off.

When replacing the batteries, use two new batteries (alkaline recommended) and install them with the correct orientation as indicated in the battery housing.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 59

Entertainment Systems

To operate the headphones:

• Press ON/OFF on the ear piece to

turn on the headphones. A red indicator light will illuminate indicating the headphones are ON. Press ON/OFF again to turn the headphones off.

• Adjust the headphones to

comfortably fit your head using the headband adjustment.

• Select the desired audio source

(Channel A or B) for each set of wireless headphones by using the A/B selection switch on the ear piece.

• Adjust the volume control to the

desired listening level.

Ensure that the headphones are turned off when not in use. After approximately one minute of not being in use (no infrared signal is received), the wireless headphones will automatically turn off. They will also turn off after two hours of continuous use as a power save feature. If this happens, simply turn the headphones on again and continue use.

Wired headphones

Do not leave children unattended in the vehicle and do not let

children operate the system while unsupervised. If wired headphones or auxiliary systems are used, children may become entangled in the cords and seriously injure themselves.

You may purchase wired headphones for your FES (Family Entertainment System). Plug them into the 3.5 mm headphone jack(s) located on the left and right sides of the system. (Channel A is located on the left side and Channel B is located on the right side.) These headphones will be active when in Dual Play mode.

To listen to the audio on wired headphones (not included), connect the wired headphones into the headphone jacks on the sides of the DVD system. The wired headphone jack for Channel A is located on the left side of the FES and is labeled headphone jack will hear audio from the audio source selected to be the

A. Headphones plugged into this

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 60

Entertainment Systems

Channel A source. The wired headphone jack for Channel B is located on the right side of the FES and is labeled this headphone jack will hear audio from the audio source selected to be the Channel B source.

Adjust the headphone volume using the volume control on the DVD system.

Operation

Single play/Dual play

Your DVD and audio system work together with the infrared headphones and wired headphones (not included) to enable the front and rear seat passengers to listen to a variety of sources a variety of ways.

Single Play: Single play consists of all occupants in the vehicle listening to the same playing media over the front and rear speakers. When the DVD system is on, and the same source is playing through the front and rear speakers, SINGLE PLAY will appear in the front radio display.

Dual Play: Dual play is when the rear seat passengers choose to listen to a different playing media than the front seat passengers. With the DVD and Rear Seat Controls turned ON, the rear seat passengers may choose to listen to the radio, CD, MP3, DVD, or DVD-AUX media sources over headphones while the front speakers play the chosen selection for the front audio system, they may listen to another over the headphones. DUAL PLAY will appear in the radio display.

When both the front seat passengers and the rear seat passengers listen to the same audio source, SHARED MODE will appear on the radio.

Note: If the front seat passengers are listening to the radio, the rear seat passengers can also listen to the radio, however they will be limited to listening to the same radio channel.

Press listen to audio over the headphones.

/ on the DVD player to

B. Headphones plugged into

The headphone control will now be active and a green light next to the A or B headphone control buttons will illuminate. The system can output two different audio sources over the headphones. These are called Channel A and Channel B. Both Channel A and Channel B can be listened to on the wired headphones (not included) or on the infrared (IR) wireless headphones.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 61

Entertainment Systems

Press the Headphone Control button A to change the audio source for Channel A.

Press MEDIA to change the audio source for Channel A. This information will display on the DVD system screen.

Press the Headphone Control button B to change the audio source for Channel B.

Press MEDIA to change the audio source for Channel B. This information will display on the DVD system screen. Channel B can listen to either the DVD media or the DVD system auxiliary inputs (DVD-AUX).

Operation with an aftermarket audio system (Headphone only mode)

When the Family Entertainment System (FES) detects that the original radio supplied by Ford Motor Company has been removed from the vehicle, the Family Entertainment System will work in a state referred to as “Headphone Only Mode”.

While operating in Headphone Only Mode, the system will have limited functionality.

• The system will only output audio to the headphones. It will not be capable of providing audio to the speakers.

• The available sources in FES Headphone Only Mode are DVD-DISC and DVD-AUX, regardless of headphone channel (A or B).

• When a disc is inserted into the FES while in Headphone Only Mode, both headphone channels (A&B) will be connected to FES-DISC.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 62

Entertainment Systems

Menu mode

Press MENU once on the DVD system to access the DVD disc menu if available.

Press MENU twice to access the DVD set-up menu and the following features:

1. ZOOM

2. ANGLE

3. ASPECT RATIO

4. LANGUAGE

5. SUB TITLES

Angle mode

Select ANGLE to select various angles of view for the DVD.

This is disc dependent — some DVD discs may have more viewing angles to select from. Once you have made your selection, press ENTER to confirm. The system default is Angle 1.

Aspect ratio

Select ASPECT RATIO to select the viewing size and shape of the video displayed on the LCD screen. This is disc dependent.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 63

You can select from: WIDE, LETTER BOX or PAN SCAN. Once you have made your selection, press ENTER to confirm. The LCD screen display will immediately change to your selection after the system resumes playback of the DVD. The system default is WIDE (16:9). This is disc dependent.

Language

Select LANGUAGE to select the language you would like to use for audio output (English, Spanish, French). This is disc dependent.

Once you have made your selection, press ENTER to confirm. The system default is English.

Entertainment Systems

Subtitles

Select SUBTITLES to turn the subtitle option on or off. The system default is OFF.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 64

Entertainment Systems

Once you have made your selection, press ENTER to confirm. This is disc dependent.

Audio CDs

To play audio CDs on your DVD system:

1. Ensure that the vehicle ignition is in the RUN or ACCESSORY

position.

2. Ensure that the DVD system is ON.

3. Insert an audio CD into the DVD system, label side up.

4. The track and elapsed time will

appear in the status bar. Use the DVD cursor controls on the bezel to highlight which track you would like to play. You can also use the cursor controls to highlight COMPRESSION, SHUFFLE or SCAN. Once you have highlighted the desired track or function, press ENTER on the DVD bezel to confirm your selection.

COMP (Compression): Compression brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press to turn the feature ON/OFF

SHUFFLE: Press to hear all tracks on the current CD in random order. Press again to stop.

SCAN: Press for a brief sampling of all tracks on the current CD. Press again to stop.

Playing MP3 discs

To play an MP3 disc on your DVD system:

1. Ensure that the vehicle ignition is in the RUN or ACCESSORY

position.

2. Ensure that the DVD system is ON.

3. Insert the MP3 disc into the DVD system, label side up.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 65

Entertainment Systems

4. The folder, track and elapsed

time will appear in the status bar. The screen will list the Artist, Title, Album and File Name.

COMP (Compression):

Compression brings soft and loud CD/MP3 passages together for a more consistent listening level when in CD mode. Press to turn the feature ON/OFF

SHUFFLE: Press to hear all tracks on the current MP3 folder in random order. Press again to stop.

SCAN: Press for a brief sampling of all tracks on the current MP3 folder. Press again to stop.

FOLDER LIST: Press access folder mode and to go to the previous/next folder in the MP3 disc.

MP3 disc quality factors

Several factors can effect disc playback quality:

• Disc capacity — Each disc contains about 650 MB of storage capacity. We do not recommend using high capacity discs containing 700MB of storage.

• Disc type — Some CD-RW discs may operate inconsistently and may cause an error message to appear. We recommend burning MP3 files onto CD-R discs.

• Disc finalization — The disc may be left open for the purpose of adding sessions to it at a later time, but be sure to close each session or the disc will not play.

• Bit rate — The player supports bit rates from 32–320 kbps, as well as variable bit rate MP3 files, but lower bit rates will have a noticeable effect on sound quality and are recommended only for speech or low fidelity music material. We recommend that you encode MP3 files using a high quality encoder.

• PC configuration — Encoding MP3 files requires intensive use of your computer’s resources. Follow the PC configuration recommendations of the encoder software vendor. We recommend that you avoid running other software applications on your PC during MP3 encoding to avoid undesirable noise and distortion.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 66

Entertainment Systems

CD, MP3 and CD player care

• Handle discs by their edges only. Never touch the playing surface.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• Do not insert more than one disc into the slot of the CD player (if equipped).

• Always store discs out of direct sunlight. Excessive heat may damage or warp discs.

• Use care when handling and playing CD-R and CD-RW discs, which are more susceptible to damage from heat, light and stress than are regular CDs.

• Always insert and remove a disc by holding the disc flat, with the playing surface facing down, in order to prevent damage to the disc or the player.

• Never insert any object other than a compact disc (CD) or digital versatile disc (DVD) into the player, as doing so may damage the player and may cause injury to you.

• Do not disassemble the player. The laser used in disc playback is extremely harmful to the eyes.

The FES DVD system is designed to play commercially pressed 12 cm (4.75 in) audio compact discs and digital versatile discs (DVD) only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD and DVD players. Irregular shaped CDs or DVDs, CDs or DVDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the FES DVD system. The label may peel and cause the CD or DVD to become jammed. It is recommended that homemade CDs or DVDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs or DVDs. Please contact your authorized dealer for further information.

Playing a DVD

1. Ensure that the vehicle ignition is in the RUN or ACCESSORY

position.

2. Ensure that the navigation system is on.

3. Insert a DVD label-side up into the system.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 67

4. Use the DVD bezel controls to:

Press to play or pause a DVD.

Press to stop or eject a DVD.

Press and release to go to the previous chapter. Press and hold for a fast reverse search.

Press and release to go to the next chapter. Press and hold for a fast forward search.

Press when not in menu mode to adjust brightness, or when in menu mode to navigate through the menu selections.

Press to adjust volume levels.

Slow play

1. With a DVD playing, press pause.

Entertainment Systems

2. Press and hold the reverse or

advance button to enter into slow play mode. Once in slow play mode, press and release the reverse or advance button repeatedly to cycle through 1/4 and 1/2. These will display on the status bar on top of the screen as the screens cycle through at this rate.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 68

Entertainment Systems

Frame by frame

1. With a DVD playing, press pause.

2. Press the right cursor button. The

DVD will advance one frame. Each press of the right cursor button will advance the DVD video by one frame.

Headphone/auxiliary jacks

There are wired headphones (not included) and auxiliary jacks on the left and right side of your DVD system. They can be used to plug in wired headphones or to connect and play auxiliary electronic devices such as game systems, personal camcorders, video cassette recorders, etc.

On the left side of the system is the Headphone A input jack. This headphone will listen to the media selected on the Channel A source. When you need to make any adjustments to the media, volume, etc, ensure that the Channel A source is highlighted. For more information, refer to Headphone

adjustments.

Also located here are the various auxiliary jacks which can be used to plug in a VCR, camcorder, video games, etc. The specific jacks are as follows:

1. Yellow: video input

2. White: left channel audio input

3. Red: right channel audio input

4. Black: wired headphone jack ( not included)

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 69

Entertainment Systems

The B headphone jack (5) is located on the right side of the DVD system. Plug in wired headphones (not included) here.

Note: The B headphones can only access DVD and AUX modes. They cannot access radio sources.

Audio displays

Your DVD system interacts closely with the front audio system. Status messages will appear in the radio display showing the DVD status. Some possible radio display messages:

• SINGLE PLAY or DUAL PLAY

• DVD LOAD

• DVD MENU

• DVD STOP

Audio interaction

You can then also use the front audio controls to advance, reverse, play and pause a DVD. While a DVD is playing you may use the following controls on the front radio:

• SEEK: Press to advance to the previous ( chapters.

•

When the radio displays “DVD MENU”, press PLAY on the radio (memory preset #6), to play the disc.

Parental control for the DVD system

Your Family Entertainment System (FES) allows you to have control over the rear seat controls in a few different ways. The DVD system is automatically activated when the vehicle ignition is ON, which allows the rear seat passengers to use the DVD system.

There are three levels of control of the FES buttons. The states are FULL (enabled), LOCAL or LOCKED (disabled). To change the level of control, press the memory preset controls 3 and 5 simultaneously on the front audio controls. The control level will cycle each time the buttons are pressed simultaneously.

: Press to play a DVD or to pause the DVD.

) or next ( ) DVD

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 70

Entertainment Systems

The three states are described as: FULL (enabled): The FES has control over the primary (speaker) and

secondary (headphone) audio sources. LOCAL: The FES has control over the secondary source (headphones)

only. The radio will ignore button presses that affect the primary (speaker) audio source.

LOCKED (disabled): The FES buttons are locked and all FES button presses are ignored by the radio and the FES except for load and eject.

When the DVD system is ON, you can then press the memory preset controls 2 and 4 simultaneously to toggle between Single Play and Dual Play. In Single Play mode, all speakers listen to the same media. In Dual Play mode, rear seat passengers can use the infrared wireless, or wired (not included) headphones to listen to a different playing media than the front seat passengers.

General information

Macrovision: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

MP3: Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue generating) real time broadcasting (terrestrial, satellite, cable and /or any other media) broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http:// www.mp3licensing.com.

1 2 3 4 5 6

Safety information

Read all of the safety and operating instructions before operating the system and retain for future reference.

Do not attempt to service, repair or modify the Family Entertainment System (FES). See your dealer.

Do not insert foreign objects into the DVD compartment.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 71

Entertainment Systems

Do not leave children unattended in the vehicle and do not let

children operate the system while unsupervised. If wired headphones or auxiliary systems are used, children may become entangled in the cords and seriously injure themselves.

The front glass on the liquid crystal display (LCD) flip-down

screen may break when hit with a hard surface. If the glass breaks, do not touch the liquid crystalline material. In case of contact with skin, wash immediately with soap and water.

The driver should not attempt to operate any function of the

DVD system while the vehicle is in motion. Give full attention to driving and to the road. Pull off the road in a safe place before inserting or extracting DVDs from the system. A remote control is included in the system to allow the rear seat occupants to operate the FES functions without distracting the driver.

Do not expose the liquid crystal display (LCD) flip-down screen to direct sunlight or intensive ultraviolet rays for extensive periods of time. Ultraviolet rays deteriorate the liquid crystal.

Be sure to review User Manuals for video games and video game equipment when used as auxiliary inputs for your Family Entertainment System (FES).

Do not operate video games or video equipment if the power cords and/or cables are broken, split or damaged. Carefully place cords and/or cables where they will not be stepped on or interfere with the operation of seats and/or compartments.

Disconnect video games and video equipment power cords and/or cables when not in use.

Avoid touching auxiliary input jacks with your fingers. Do not blow on them or allow them to get wet or dirty.

Do not clean any part of the DVD player with benzene, paint thinner or any other solvent.

Federal Communication Commission (FCC) Compliance

Changes or modifications not approved by Ford Lincoln-Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device,

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 72

Entertainment Systems

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference and radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

Care and service of the DVD player

Environmental extremes

DVD players which are subjected to harsh environmental conditions may be damaged or perform at less than maximum capability. To avoid these outcomes, whenever possible avoid exposing your DVD player to:

• extremely hot or cold temperatures.

• direct sunlight.

• high humidity.

• a dusty environment.

• locations where strong magnetic fields are generated.

Temperature extremes

When the vehicle is parked under direct sunlight or in an extremely cold place for a long period of time, wait until the cabin temperature of the vehicle is at normal temperature before operating the system.

Humidity and moisture condensation

Moisture in the air will condense in the DVD player under extremely humid conditions or when moving from a cold place to a warm one. Moisture condensation may cause damage to the DVD and/or player. If moisture condensation occurs, do not insert a CD or DVD into the player. If one is already in the player, remove it. Turn the DVD player ON to dry the moisture before inserting a DVD. This could take an hour or more.

Foreign substances

Exercise care to prevent dirt and foreign objects from entering the DVD player compartment. Be especially careful not to spill liquids of any kind

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 73

Entertainment Systems

onto the media controls or into the system. If liquid is accidentally spilled onto the system, immediately turn the system OFF and consult a qualified service technician.

Cleaning the liquid crystal display (LCD) flip-down screen

Clean the display screen by applying a small amount of water or any ammonia-based household glass cleaner directly to a soft cloth. Rub the screen gently until the dust, dirt or fingerprints are removed. Do not spray the screen directly with water or glass cleaning solvents. Overspray from these fluids could drip down into the internal electronics of the screen and cause damage. Do not apply excessive pressure while cleaning the screen.

Cleaning DVD and CD discs

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved DVD and CD cleaner and wipe from the center out to the edge. Do not use circular motion.

Compatibility with aftermarket audio systems (headphone only mode)

When the Family Entertainment System (FES) detects that the original radio supplied by Ford Motor Company has been removed from the vehicle, the FES will work in a state referred to as “Headphone Only Mode.” This mode allows the FES to operate as a standalone system, without interface to the radio.

While operating in Headphone Only Mode, the system will have limited functionality.

• The system will only output audio to the headphones. It will not be capable of providing audio to the speakers.

• The available sources in FES Headphone Only Mode are DVD-DISC and DVD-AUX, regardless of headphone channel (A or B).

• When a disc is inserted into the FES while in Headphone Only Mode, both headphone channels (A and B) will be connected to FES-DISC.

NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a Navigation System. Refer to the Navigation supplement for further information.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 74

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

1. Temperature selection:

Controls the temperature of the airflow in the vehicle.

2. Air flow selections: Controls

the direction of the airflow in the vehicle. See the following for a brief description on each control.

MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.

: Distributes air through the instrument panel vents.

: Distributes air through the instrument panel vents and the floor

vents.

O (OFF): Outside air is shut out and the climate system is turned off.

: Distributes air through the floor vents. You may notice a small

amount of air flowing from the defroster vents and demister vents.

: Distributes air through the windshield defroster vents, demister

vents and floor vents.

: Distributes outside air through the windshield defroster vents and

demister vents. Can be used to clear thin ice or fog from the windshield.

in the vehicle cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation engages automatically with selection of MAX A/C or can be engaged manually in any other airflow selection except defrost. Recirculation may turn off automatically in all airflow selections except MAX A/C.

defroster. Refer to Rear window defroster later in this chapter for more information.

5. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages automatically in MAX A/C,

Recirculated air: Press to activate/deactivate air recirculation

Rear defroster: Press to activate/deactive the rear window

(defrost) and (floor/defrost).

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 75

Climate Controls

6. Fan speed adjustment: Controls the volume of air circulated in the

vehicle.

Manual heating and air conditioning system with rear passenger compartment climate control (if equipped)

1. Air flow selections: Controls

the direction of the airflow in the vehicle. See the following for a brief description on each control.

: Distributes air through the instrument panel vents.

: Distributes air through the instrument panel vents and the floor

vents.

O (OFF): Outside air is shut out and the climate system is turned off.

: Distributes air through the floor vents. You may notice a small

amount of air flowing from the defroster vents and demister vents

: Distributes air through the windshield defroster vents, demister

vents and floor vents.

: Distributes outside air through the windshield defroster vents and

demister vents. Can be used to clear thin ice or fog from the windshield. Auxiliary climate control operation: Turn the front air flow control

(1) to any position except O (OFF).

2. R

or to adjust the rear fan speed from the front control. The rear fan speed settings available are 4, 3, 2, 1 and O (OFF).

3. REAR: Press to enable the control located in the rear of the floor

console (if equipped), or to activate the auxiliary A/C system per the settings on the front control. Press again to turn the auxiliary system off.

auxiliary system and to set the desired rear cabin airflow temperature

Rear fan speed control: Press to enable the auxiliary system

REAR Rear temperature control: Press to enable the

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 76

Climate Controls

with the front control. The rear cabin airflow temperature will match the driver airflow temperature setting when only the center rear temperature

light ( will be warmer or cooler than the driver airflow temperature setting when more than one rear temperature light ( illuminated.

defroster. Refer to Rear window defroster later in this chapter for more information.

in the vehicle cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation engages automatically with selection of MAX A/C or can be engaged manually in any other airflow selection except automatically in all airflow selections except MAX A/C.

7. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages automatically in MAX A/C,

8. Fan speed adjustment: Controls the volume of air circulated in the

vehicle.

9. Temperature selection: Controls the temperature of the airflow to

the driver in the front of the vehicle.

REAR ) is illuminated. The rear cabin airflow temperature

REAR )is

Rear defroster: Press to activate/deactivate rear window

Recirculated air: Press to activate/deactivate air recirculation

. Recirculation may turn off

(defrost) and (floor/defrost).

Operating tips

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the air flow selector in the O (OFF) or (in cold weather) MAX A/C position.

• Under normal weather conditions, do not leave the air flow selector in MAX A/C or O (OFF) when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

position.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 77

Climate Controls

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH REAR PASSENGER COMPARTMENT CLIMATE CONTROL (IF EQUIPPED)

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

vents and demister vents. Can be used to clear thin ice or fog from the windshield.

2. Rear temperature control: Press to enable the auxiliary system and

set the desired rear cabin airflow temperature with the front control. The rear cabin airflow temperature will match the driver airflow temperature setting when only the center rear temperature bar (REAR)is illuminated. The rear cabin airflow temperature will be warmer or cooler

Defrost: Distributes outside air through the windshield defroster

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 78

Climate Controls

than the driver airflow temperature setting when more than one rear temperature bar (REAR) is illuminated.

3. Passenger temperature control: Press to increase/decrease the

temperature for the passenger in the front of the vehicle.

defroster. Refer to Rear window defroster later in this chapter for more information.

5. R

or to adjust the rear fan speed from the front control. The rear fan speed settings available are 4, 3, 2, 1 and O (OFF).

may turn off automatically in all airflow selections.

7. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO,

Rear defroster: Press to activate/deactivate the rear window

Rear fan speed control: Press to enable the auxiliary system

Recirculated air: Press to activate/deactivate air recirculation

. Recirculated air

(defrost), and (floor/defrost).

vents and floor vents.

10.

vents.

11.

12. Manual override controls: Allows you to manually select where

airflow is distributed. To return to full automatic control, press AUTO.

13. F

decrease the fan speed. To return to full automatic control, press AUTO.

14. OFF: Outside air is shut out and the climate system is turned off.

15. Driver temperature control: Press to increase or decrease the

temperature on the driver side of the cabin. Sets the passenger side temperature also when DUAL is disengaged. Note: The recommended vehicle cabin setting is between 72°F (22°C) and 75°F (24°C).

• Dual temperature control: Press and hold AUTO to

: Distributes air through the windshield defroster vents, demister

: Distributes air through the floor vents.

: Distributes air through the instrument panel vents and the floor

: Distributes air through the instrument panel vents.

Front fan speed control: Press to manually increase or

engage/disengage separate passenger side temperature control.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 79

Climate Controls

16. AUTO: Press to engage full automatic operation, and select the

desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

17. EXT: Press to display the outside temperature. Press again to display

the cabin temperature settings. Note: Exterior readings are more accurate when the vehicle is moving.

18. REAR: Press to enable the control located in the rear of the floor

console. Press again to turn the auxiliary system off.

Dual automatic temperature control with heated and cooled seats and rear passenger compartment climate control (if equipped)

vents and demister vents. Can be used to clear thin ice or fog from the windshield.

2. Rear temperature control: Press to enable the auxiliary system and

3. Passenger temperature control: Press to increase/decrease the

temperature for the passenger in the front of the vehicle.

Defrost: Distributes outside air through the windshield defroster

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 80

Climate Controls

defroster. Refer to Rear window defroster later in this chapter for more information.

5. R

or to adjust the rear fan speed from the front control. The rear fan speed settings available are 4, 3, 2, 1 and O (OFF).

heat setting (2 indicator lights). Press again to activate the low heat setting (1 indicator light). Press again to deactivate the passenger heated seat.

cool setting (2 indicator lights). Press again to activate the low cool setting (1 indicator light). Press again to deactivate the passenger cooled seat.

8. REAR: Press to enable the control located in the rear seat. Press

again to turn the auxiliary system off.

distribution modes listed below. The selected mode will be shown in the display.

vents and the floor vents.

10.

heat setting (2 indicator lights). Press again to activate the low heat setting (1 indicator light). Press again to deactivate the passenger heated seat.

11.

cool setting (2 indicator lights). Press again to activate the low cool setting (1 indicator light). Press again to deactivate the passenger cooled seat.

12. F

decrease the fan speed. To return to full automatic control, press AUTO.

13. OFF: Outside air is shut out and the climate system is turned off.

Rear defroster: Press to activate/deactivate the rear window

Rear fan speed control: Press to enable the auxiliary system

Passenger heated seat control: Press once to activate the high

Passenger cooled seat control: Press once to activate the high

Airflow direction control: Press to toggle through the air

: Distributes air through the instrument panel vents.

: Distributes air through the instrument panel and the floor vents.

: Distributes air through the floor vents.

: Distributes air through the windshield defroster vents, demister

Driver heated seat control: Press once to activate the high

Driver cooled seat control: Press once to activate the high

Front fan speed control: Press to manually increase or

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 81

Climate Controls

14. Driver temperature control: Press to increase or decrease the

temperature on the driver side of the cabin. Sets the passenger side temperature also when DUAL is disengaged. Note: The recommended vehicle cabin setting is between 72°F (22°C) and 75°F (24°C).

15. AUTO: Press to engage full automatic operation, and select the

16. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO, (defrost), and (floor/defrost).

17. EXT: Press to display the outside temperature. Press again to display

cabin temperature settings. Note: Exterior readings are more accurate when the vehicle is moving.

18.

recirculation in the vehicle cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air can be engaged manually in any airflow selection except selections.

Operating tips

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the air flow selector in the O (OFF) or (in cold weather) MAX A/C position.

• Under normal weather conditions, do not leave the air flow selector in MAX A/C or O (OFF) when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

Recirculated air: Press to activate/deactivate air

. Recirculated air may turn off automatically in all airflow

position.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 82

Climate Controls

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

AUXILIARY CLIMATE CONTROL (IF EQUIPPED)

1. Fan speed: Turn to select the

desired fan speed.

2. Temperature/mode selection:

The distribution of air from the overhead and floor registers is based on the temperature selected. Turn to select for comfort.

To use the rear climate controls, ensure that REAR is pressed on the main climate control face.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

1 2

3 4

REAR WINDOW DEFROSTER

The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice.

The engine must be running in order to operate the rear window defroster.

The rear defroster turns off automatically after 15 minutes or when the ignition is turned to the 1 (LOCK) position. To manually turn off the defroster before 15 minutes have passed, push the control again.

Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 83

HEADLAMP CONTROL

Rotate the headlamp control to the first position parking lamps. Rotate to the second position headlamps.

Autolamp control

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

The autolamp system also keeps the lights on for approximately 20 seconds or, if equipped with a message center, you can select a delay from 0–180 seconds, after the ignition switch is turned to OFF.

• To turn autolamps on, rotate the control counterclockwise.

• To turn autolamps off, rotate the control clockwise to OFF.

to turn on the

Lights

Foglamp control (if equipped)

The headlamp control also operates the foglamps. The foglamps can be turned on when the headlamp

control is in the positions and the high beams are

not turned on. Pull headlamp control towards you

to turn foglamps on. The foglamp indicator light

, or

will illuminate.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 84

Lights

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass

Pull toward you slightly to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped)

Turns the foglamps on at full intensity output. To activate:

• the ignition must be in the ON position and

• the headlamp control must be in the OFF, parking lamps or autolamp

position.

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 85

Lights

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation.

Move the control to the full upright position, past detent, to turn on the interior lamps.

Move the control to the full down position, past detent, to prevent the interior lights from illuminating when the doors are opened.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant.

If your vehicle has been in an accident the alignment of your headlamps should be checked by your authorized dealer.

Vertical aim adjustment

Before aim adjustment, disable the air suspension system. Refer to Message center in the Driver Controls chapter.

1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

2. Measure the height from the center of your headlamp (indicated by a 3.0 mm circle on the lens) to the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).

3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. Cover one of the headlamps so no light from that lamp hits the wall.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 86

Lights

4. On the wall or screen you will observe a light pattern with a distinct horizontal edge towards the right. If this edge is not at the horizontal reference line, the beam will need to be adjusted so the edge is at the same height as the horizontal reference line.

5. Locate the vertical adjuster on each headlamp, then use a Phillips #2 screwdriver to turn the adjuster either counterclockwise (to adjust down) or clockwise (to adjust up) aligning the upper edge of the light pattern up to the horizontal line.

6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

7. Repeat Steps 3–5 for the other headlamp.

8. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 87

Lights

INTERIOR LAMPS

Front row map lamps (if equipped)

To turn on the map lamps, press the outer edge of the clear lens. The front row map lamp lights when:

• any door is opened.

• the instrument panel dimmer

switch is rotated until the courtesy lamps come on.

• the remote entry controls are pressed and the ignition is OFF.

Front row map/dome lamp (if equipped)

The dome lamp lights when:

• any door is opened,

• the instrument panel dimmer

switch is rotated up until the courtesy lamps come on, and

• any of the remote entry controls are pressed and the ignition is OFF.

The map lamps are activated by pressing the controls on either side of the lens.

Second row map lamps (if equipped)

The second row map lamps are located in the headliner above the second row seats.

The second row map lamp lights when:

• any door is opened,

• the instrument panel dimmer

switch is rotated up until the courtesy lamps come on, and

• any of the remote entry controls are pressed and the ignition is OFF.

Press the controls to activate the lamps.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 88

Lights

Rear cargo lamp

The dome lamp lights when:

• any door is opened, and the switch is in the middle position.

• the instrument panel dimmer switch is rotated until the courtesy lamps come on.

• any of the remote entry controls are pressed and ignition is OFF (and switch is in the middle position).

With the ignition key in the ACC or ON position, the rear dome lamp can be turned ON or OFF by sliding the control.

Battery saver

The battery saver will shut off the exterior lamps and interior lamps, except the hazard warning lamps if activated, 10 minutes after the ignition control has been turned off. The system will not turn off the parking lamps if the headlamp control is in the PARK position.

BULB REPLACEMENT

Headlamp Condensation

The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Number of bulbs Trade number

Headlamps (low and high-beam)

Front sidemarker 2 194

2 H13/9008

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 89

Lights

Function Number of bulbs Trade number

Front park/turn lamps 2 3157 A Foglamps 2 9145 Front row map lamps 2 W5W Front row map/dome

lamps Rear cargo lamp 1 578 2nd row reading lamp 2 W5W Turn/tail/brake/

sidemarker lamps Backup lamp 2 921 Approach/mirror turn

signal lamps (if equipped)

Mirror approach lamps – non turn signal (if equipped)

License lamp 2 168 High-mount brake

lamp All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer * To obtain replacement approach lamp assembly bulbs, see your

authorized dealer and reference Ford part no. 2L1Z–13B374–BB for the passenger side mirror and 2L1Z–13B375–BB for the driver side mirror.

3 578

2 3157K or 4157K

2 906

2 *See your dealer

5 W5W

Replacing the interior bulbs

Check the operation of all bulbs frequently.

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Replacing headlamp bulbs

1. Make sure that the headlamp control is in the OFF position.

2. Open the hood.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 90

Lights

3. At the back of the headlamp,

remove the two headlamp assembly retainer bolts.

4. Slide headlamp assembly forward

and off the retaining tab to expose the back of the bulb and electrical connector.

5. Disconnect the electrical

connector.

6. Remove the bulb by turning it

counterclockwise and then pulling it straight out.

Handle a halogen headlamp bulb carefully and keep out of

children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

7. Insert the glass end of the new bulb into the headlamp assembly. When the grooves in the plastic base are aligned, turn the new bulb clockwise to install.

8. Connect the electrical connector.

9. Install the headlamp assembly and secure with two retainer bolts.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 91

Replacing front parking lamp/turn/sidemarker signal bulbs

1. Make sure that the headlamp control is in the OFF position.

2. Open the hood.

3. At the back of the headlamp, remove the two headlamp assembly retainer bolts.

4. Slide headlamp assembly forward and off the retaining tab to expose the back of the headlamp assembly.

5. Rotate the bulb socket counterclockwise and remove from the lamp assembly.

6. Carefully pull the bulb out of the socket and push in the new bulb.

7. Install the bulb socket into the lamp assembly and rotate clockwise.

8. Install the headlamp assembly and secure with two retainer bolts.

Lights

Replacing tail/stop/turn/sidemarker/backup lamp bulbs

The tail/stop/turn/sidemarker/backup lamp bulbs are located in the same portion of the tail lamp assembly, one just below the other. Follow the same steps to replace either bulb:

1. Make sure the headlamp switch is in the OFF position and then open the liftgate to expose the lamp assembly screws.

2. Remove the two torx screws from the lamp assembly.

3. Carefully remove the lamp assembly away from the vehicle by pulling the assembly straight out to expose the bulb socket. DO NOT TIP THE LAMP ASSEMBLY SIDEWAYS.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 92

Lights

4. Rotate the bulb socket counterclockwise and remove from lamp assembly.

5. Pull bulb straight out of socket and snap in the new bulb.

6. Install the bulb socket into the lamp assembly and rotate clockwise.

7. Carefully install the tail lamp assembly on the vehicle by securing the lamp assembly with two torx screws.

High-mount brakelamp

To change the high-mount brakelamp bulbs:

1. Remove the two screws holding the lamp assembly in place.

2. Pull the lamp assembly straight out.

3. Disconnect the wire harness.

4. Depress the four tabs that hold the light assembly on, one at a time, and pull the black bulb carrier away from the lamp.

5. Pull the old bulb out and replace with the new bulb.

6. Snap the black bulb carrier into the lamp assembly.

7. Connect the wire harness.

8. Install the lamp assembly with two screws.

Replacing foglamp bulbs

1. From underneath the vehicle, rotate the harness/bulb assembly counterclockwise, to remove from the fog lamp assembly.

2. Carefully disconnect the bulb from the harness assembly via the two snap clips.

Install the new bulb in reverse order.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 93

Lights

Replacing license plate lamp bulb

The license plate bulbs are located in the license plate housing assembly on the liftgate. To change the license plate bulbs:

1. Make sure the headlamp switch is in the OFF position.

2. Remove the license lamp screw from the assembly.

3. Pull the lamp down and twist the bulb socket counterclockwise. Remove the bulb socket from the lamp.

4. Pull out the old bulb and push in the new bulb.

5. Install the bulb socket in the lamp assembly by turning it clockwise.

6. Install the lamp assembly and secure it with the retaining screw.

Approach lamp/mirror turn signal bulb removal (if equipped)

To change the bulbs:

1. Make sure the headlamp switch is in the OFF position and then fold the mirror forward.

2. Press the clip and pull the turn signal lens down to remove it from the mirror assembly.

3. Disconnect the bulb assembly from the lens.

4. Remove and replace the bulb.

5. Align the turn signal lens clip with the slot in the mirror assembly and carefully press the lens in.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 94

Lights

Approach lamp bulb removal (if equipped)

To change the bulbs:

1. Make sure that all the doors are closed and the interior lights have automatically turned off or the opposite mirror approach lamp has turned off.

2. With a small flat tipped screwdriver, insert the tip into the approach light module slot located on the outboard corner of the lens to release the clip.

3. While holding the clip in the release position, pull the approach light module down.

4. Remove the two wires from the module and replace the module with a new one.

5. Reverse the order to reassemble the approach light module.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 95

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Speed dependent wipers: When the wiper control is on, the speed of the wipers will automatically adjust with the vehicle speed. The faster your vehicle is travelling the faster the wipers will go.

Windshield washer: Push the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick push and hold: the wipers will swipe three times with washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.

Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.

Rear window wiper/washer controls

For rear wiper operation, rotate the rear window wiper and washer control to the desired position. Select:

2 — Normal speed operation of rear wiper.

1 — Intermittent operation of rear wiper.

OFF — Rear wiper and washer off.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 96

Driver Controls

For rear wash cycle, rotate (and hold as desired) the rear wiper/washer control to either

From either position, the control will automatically return to the INT 2 or OFF position.

TILT STEERING WHEEL

1. Pull and hold the steering wheel

release control toward you.

2. Move the steering up or down

until you find the desired location.

3. Release the steering wheel

release control. This will lock the steering wheel in position.

Never adjust the steering column when the vehicle is moving.

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the visor mirror lamp.

position.

Slide on rod feature (if equipped)

Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.

Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 97

Driver Controls

OVERHEAD CONSOLE

The appearance of your vehicle’s overhead console will vary according to your option package.

Forward storage bin (if equipped)

The storage compartment may be used to store a pair of sunglasses. Press the release area on the rear edge of the bin door to open the storage compartment. The door will open to full open position.

Conversation mirror (if equipped)

On double bin overhead consoles, the conversation mirror allows the driver to view the rear seating area.

This does not replace the rear view mirror.

Press the release area on the rear edge of the bin door to open the conversation mirror. The door will open to full open position.

The rear view mirror may have to be adjusted to its lower arm position to prevent interference when the conversation mirror is extended down.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 98

Driver Controls

Power quarter rear windows (if equipped)

Press the control to open the power rear quarter windows.

Press the left portion of the control to close the power rear quarter windows.

Do not leave children unattended in the vehicle and do not let children play with the power rear quarter windows. They may

seriously injure themselves.

When closing the power rear quarter windows, you should verify that it is free of obstructions and ensure that children and/or

pets are not in the proximity of the window opening.

CENTER CONSOLE (IF EQUIPPED)

Your vehicle may be equipped with a variety of console features. These include:

1. Cupholders

2. Utility compartment, Coin holder

slots, Tissue box holder

3. Power point and Rear audio

controls (if equipped)

4. Rear Cupholders

portion of the

Use only soft cups in the cupholder. Hard objects can

injure you in a collision.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 99

Driver Controls

AUXILIARY POWER POINT (12VDC)

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

The auxiliary power point is located on the instrument panel.

Do not use the power point for operating the cigarette lighter element (if equipped).

To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and Relays in the Roadside Emergencies chapter for information on checking and replacing fuses.

To prevent the battery from being discharged, do not use the power point longer than necessary when the engine is not running.

Always keep the power point caps closed when not being used. A second auxiliary power point is

located on the rear side of the center console. The power point is accessible from the rear seats.

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Page 100

Driver Controls

The rear auxiliary power point is located on the right rear quarter panel. The power point is accessible from the liftgate or the third row seat.

Equipped with rear climate control

Not equipped with rear climate control

Cigar/Cigarette lighter (if equipped)

Do not plug optional electrical accessories into the cigarette lighter socket.

Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used.

Improper use of the lighter can cause damage not covered by your warranty.

100

2007 Expedition (exd) Owners Guide (post-2002-fmt) USA (fus)

Ford Expedition 2007 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

PERCHLORATE MATERIAL

CONGRATULATIONS

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

Warning symbols on your vehicle

Protecting the environment

BREAKING-IN YOUR VEHICLE

SPECIAL NOTICES

New Vehicle Limited Warranty

Special instructions

Service Data Recording

Event Data Recording

Using your vehicle with a snowplow

Notice to owners of pickup trucks and utility type vehicles

Cell phone use

Export unique (Non–United States/Canada) vehicle specific information

Instrument Cluster

WARNING LIGHTS AND CHIMES

GAUGES

AUDIO SYSTEMS

Quick start — How to get going

Listening to the radio

Entertainment Systems

Listening to satellite radio (if equipped)

Listening to a CD/MP3 (if equipped)

AM/FM single CD/MP3 satellite compatible sound system (if equipped)

Premium/Audiophile AM/FM in-dash six CD/MP3 satellite compatible sound system (if equipped)

Auxiliary input jack (Line in)

Rear seat radio controls (if equipped)

GENERAL AUDIO INFORMATION

Satellite radio information (if equipped)

FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)

Quick start

To play a DVD in the DVD system:

To play a CD in the DVD system:

To play an MP3 disc in the DVD system:

To play an auxiliary source through the DVD system

To listen to audio over the headphones (Dual play mode):

Using the infrared (IR) wireless headphones:

Using wired headphones (not included):

To adjust display brightness:

DVD player controls

Remote control

Battery replacement

Headphones

Wireless headphones

Wired headphones

Operation

Single play/Dual play

Operation with an aftermarket audio system (Headphone only mode)

Menu mode

Angle mode

Aspect ratio

Language

Subtitles

Audio CDs

Playing MP3 discs

MP3 disc quality factors

CD, MP3 and CD player care

Playing a DVD

Slow play

Frame by frame

Headphone/auxiliary jacks

Audio displays

Audio interaction

Parental control for the DVD system

General information

Safety information

Federal Communication Commission (FCC) Compliance

Care and service of the DVD player

Environmental extremes

Temperature extremes

Humidity and moisture condensation

Foreign substances
