Page 1

Introduction 4

Congratulations 4 Safety and environment protection 5 Symbol glossary 8

Instrument cluster 10

Warning and control lights 10 Gauges 14

Entertainment systems 18

AM/FM stereo cassette (CD changer compatible) 18 AM/FM stereo with CD 30 Rear seat controls 39 CD changer 42

Climate controls 47

Manual heating and air conditioning 47 Electronic automatic temperature control 50

Lights 59

Headlamps 59 Bulb replacement 62

Driver controls 69

Steering wheel adjustment 71 Power windows 79 Mirrors 80

Locks and security 95

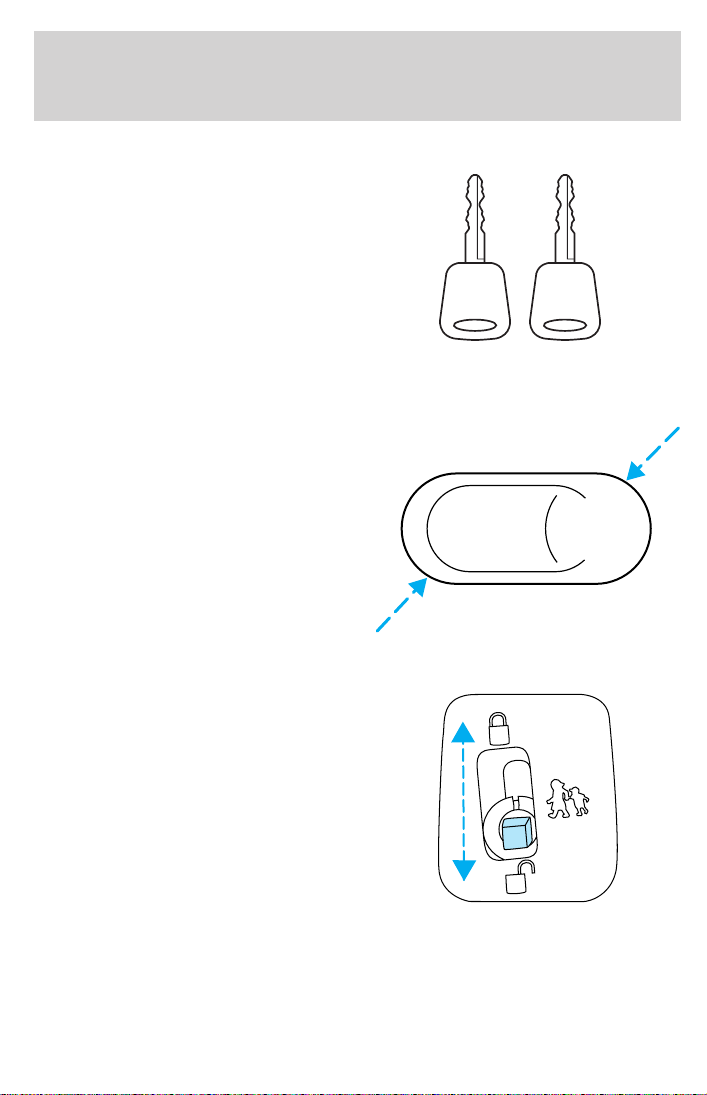

Keys 95 Locks 95 Anti-theft system 96

Page 2

Table of contents

Seating and safety restraints 108

Seating 108 Safety restraints 120 Air bags 132 Child restraints 140

Driving 150

Starting 150 Brakes 154 Transmission operation 161 Vehicle loading 177 Trailer towing 180 Recreational towing 185

Roadside emergencies 186

Hazard flasher switch 187 Fuses and relays 189 Changing tires 196 Jump starting 202 Wrecker towing 207

Customer assistance 208

The dispute settlement board 211 Utilizing the mediation/arbitration 214 Getting assistance outside the U.S. and Canada 214 Ordering additional owner’s literature 215 Reporting safety defects (U.S. only) 217

Cleaning 218

Cleaning your vehicle 218 Underbody preservation 223

Page 3

Table of contents

Maintenance and specifications 225

Hood 226 Engine compartment 227 Engine oil 228 Battery 231 Fuel information 240 Air filter(s) 254 Part numbers 259 Refill capacities 260 Lubricant specifications 263 Engine data 265 Vehicle dimensions 266

Accessories 269 Index 273

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Page 4

Introduction

The following warning may be required by California law:

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

In the United States: www.ford.com In Canada: www.ford.ca In Australia: www.ford.com.au In Mexico: www.ford.com.mx Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant

available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the

vehicle. It is an integral part of the vehicle.

Page 5

Introduction

Fuel pump shut-off switch In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

There are no particular guidelines for breaking-in your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in.

Page 6

Introduction

SPECIAL NOTICES Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your safety, your vehicle is fitted with sophisticated electronic controls.

By operating other electronic equipment (e.g. mobile telephone

without exterior aerial) electromagnetic fields can occur which can cause malfunctions of the vehicle electronics. Therefore you should observe the instructions of the equipment manufacturers.

Please read the section Air bag in the Seating and safety

restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Rear facing child or baby seats should NEVER be used in front

of a passenger side air bag.

Page 7

Introduction

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than

other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident.

Page 8

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Brake System Anti-Lock Brake System

Brake Fluid Non-Petroleum Based

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

Fuel Pump Reset Windshield Wash/Wipe

See Owner’s Guide

Child Seat Tether Anchorage

Traction Control

Windshield Defrost/Demist

Power Windows Front/Rear

Rear Window Defrost/Demist

Power Window Lockout

Page 9

Vehicle Symbol Glossary

MAX

MIN

Introduction

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap Low tire warning

Page 10

Instrument cluster

WARNING LIGHTS AND CHIMES

DOOR AJAR

THEFT

4X4

LOW

RANGE

SUSP

LOW FUEL

SERVICE

ENGINE

SOON

FUEL DOOR

MPH

km/h

PRND2

RPMX1000

SELECT/RESET

BRAKE

CRUISE

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have

the respective system inspected immediately.

Service engine soon

Illuminates briefly to ensure the system is functional. If it comes on after the engine is started, one of the engine’s emission control

SERVICE

ENGINE

SOON

systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.

Light turns on solid:

Temporary malfunctions may cause the light to illuminate. Examples are:

1. The vehicle has run out of fuel.

2. Poor fuel quality or water in the fuel.

3. The fuel cap may not have been properly installed and securely tightened.

These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

Page 11

Instrument cluster

If the light remains on, have your vehicle serviced at the first available opportunity.

Light is blinking:

Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Brake system warning

Illuminates if the parking brake is engaged. Also momentarily illuminates at start up to ensure the circuit is functional. If the brake warning lamp does not illuminate at these times, or illuminates after releasing the parking brake, seek service immediately. Refer to Brakes in the Driving chapter for more information.

Anti-lock brake system (ABS)

Momentarily illuminates at start up to ensure the circuit is functional. If the light does not illuminate, remains on or continues to flash, the ABS needs to be serviced (refer to Brakes in the Driving chapter for more information). With the ABS light on, the ABS is disabled and normal braking is still functional.

BRAKE

ABS

Safety belt

Illuminates to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Page 12

Instrument cluster

Air bag readiness

Illuminates to confirm that the air bags (front or side) are operational. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Charging system

Illuminates when the battery is not charging properly.

Check air suspension

Illuminates momentarily when the ignition is turned to the ON position and the engine is OFF. The light also illuminates when the air suspension switch is turned OFF or the air suspension system requires servicing.

For information on the air suspension system, refer to the Driving chapter.

Low fuel

Illuminates when the fuel level in the fuel tank is at, or near, empty (refer to Fuel gauge in this chapter for more information).

SUSP

LOW

FUEL

Low washer fluid

Illuminates when the windshield washer fluid is low.

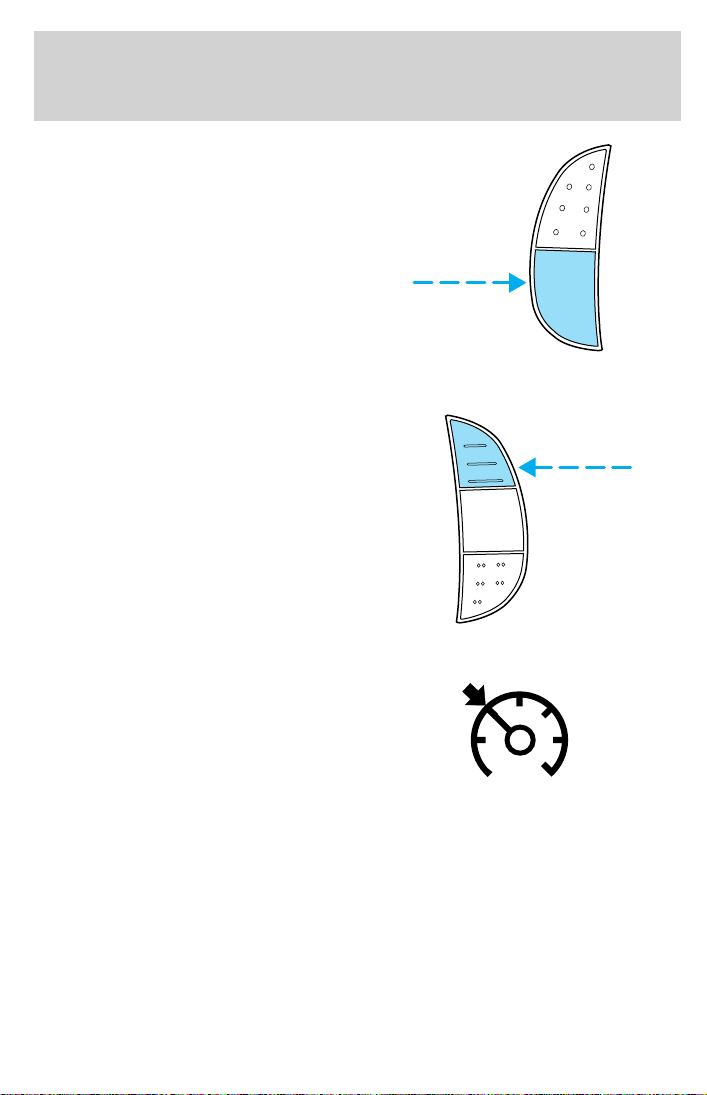

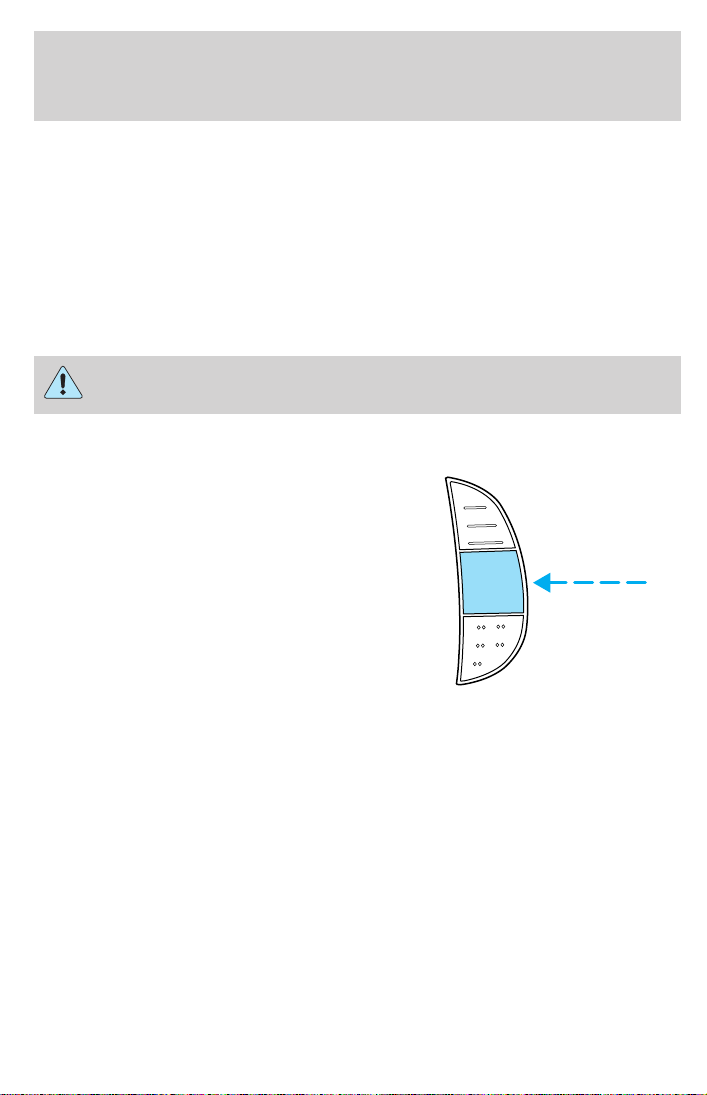

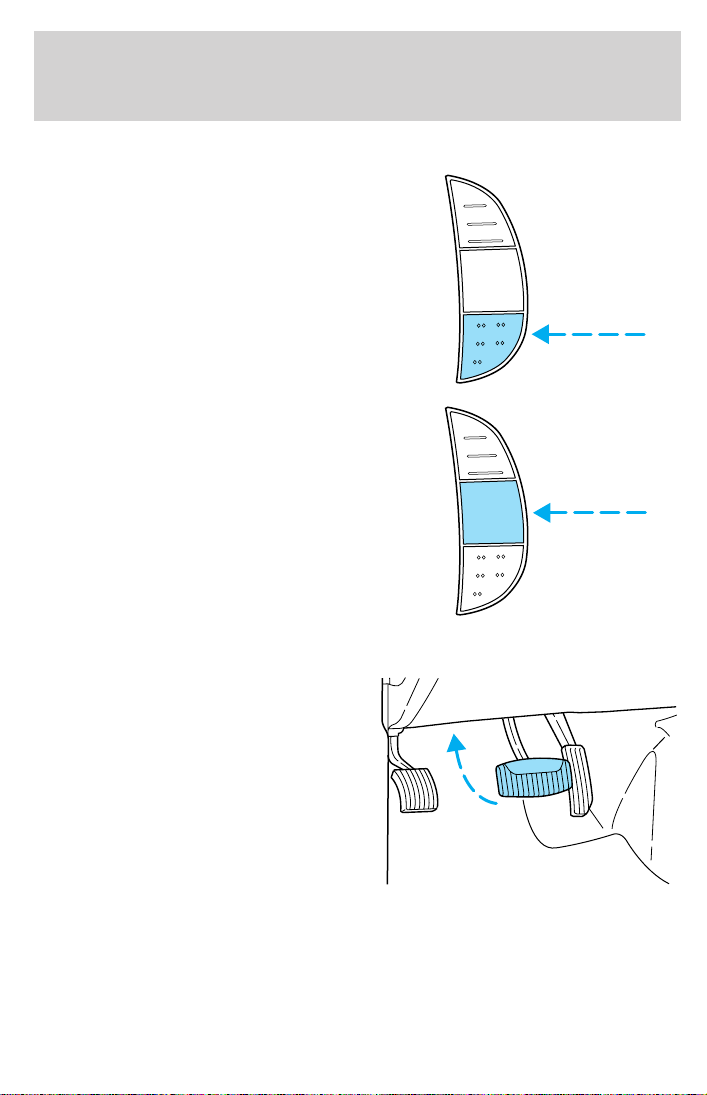

Speed control

Illuminates when the speed control is activated.

Page 13

Instrument cluster

Oil pressure/Engine coolant

Illuminates when the engine coolant temperature is above the normal range or the engine oil pressure is below normal range. Check the engine oil and coolant level refer to

Adding engine oil and Adding coolant in the Maintenance and specifications chapter.

Turn signals

Illuminates when the turn signals or the hazard lights are turned on. If the lights stay on continuously or flash faster, check for a burned-out bulb.

High beams

Illuminates when the high beam headlamps are turned on.

Door ajar

Illuminates when any door is open (or not fully closed).

DOOR

AJAR

SecuriLockY anti-theft system

Illuminates when the anti-theft alarm system is armed. If the light fails to illuminate, continues to flash or remains on, have the system serviced.

Refer to SecuriLocky passive anti-theft system in the Locks and Security chapter.

THEFT

Page 14

Instrument cluster

Four wheel drive low (if equipped)

Illuminates when four-wheel drive low is is engaged. If the light continues to flash have the system serviced.

Four wheel drive indicator (if equipped)

Illuminates when the four-wheel drive is engaged. If the light continues to flash have the system serviced.

Safety belt warning chime

Sounds to remind you to fasten your safety belts.

BeltMinder chime

Sounds intermittently to remind you to fasten your safety belts.

Supplemental restraint system (SRS) warning chime

Sounds when a malfunction in the supplemental restraint system (front or side airbags) has been detected. Have the supplemental restraint system inspected immediately.

Headlamps on warning chime

Sounds when the headlamps or parking lamps are on, the key is removed from the ignition and the driver’s door is opened.

LOW

RANGE

4x4

Key-in-ignition warning chime

Sounds when the key is left in the ignition and the driver’s door is opened.

GAUGES

LOW FUEL

SERVICE

ENGINE

SOON

FUEL DOOR

DOOR AJAR

MPH

km/h

PRND2

THEFT

4X4

BRAKE

CRUISE

LOW

RANGE

SUSP

RPMX1000

SELECT/RESET

Page 15

Instrument cluster

Engine coolant temperature gauge

Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine

coolant in the Maintenance and specifications chapter.

Never remove the coolant reservoir cap while the engine is

running or hot. Steam and scalding liquid from a hot cooling system can burn you badly.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate. If the gauge enters the red section, the oil pressure/engine coolant and Check Engine/Service Engine Soon indicators illuminate, refer to What you should know about fail-safe cooling in the Maintenance and specifications chapter.

Engine oil pressure gauge

Indicates engine oil pressure. At normal operating temperature, the needle will be in the normal range (the area between the “L” and “H”); if the needle goes below the normal range, stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level. Add oil if needed (refer to

Engine oil in the Maintenance and specifications chapter). If the oil level is correct, have your vehicle

checked at your dealership or by a qualified technician.

Page 16

Instrument cluster

Battery voltage gauge

Indicates battery voltage. If the pointer moves and stays outside the normal operating range (as indicated by the arrows), have the vehicle’s electrical system checked as soon as possible.

Fuel gauge

Displays approximately how much fuel is in the fuel tank. The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

FUEL DOOR

A minimum of 22.2 L (six gallons) must be added or removed from the fuel tank in order for the gauge to instantaneously update. If less than six gallons is the change, the gauge will take between five to twenty minutes to update.

Speedometer

Indicates the current vehicle speed.

MPH

km/h

Page 17

Odometer

Registers the total kilometers (miles) of the vehicle.

Trip odometer

Registers the kilometers (miles) of individual journeys. Press and release the reset button until a “T” appears in the display (this represents the trip mode). Press and hold the button for three seconds to reset.

Tachometer

Indicates the engine speed in revolutions per minute.

Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Instrument cluster

PRND2

RPMX1000

Page 18

Entertainment systems

PREMIUM AM/FM STEREO/CASSETTE (CD CHANGER COMPATIBLE)

VOL PUSH ON

CD TAPE

MUTE

FMAM

REW

SEEK

TUNE

SIDE 1.2

3 4

AUDIOPHILE AM/FM STEREO/CASSETTE (CD CHANGER COMPATIBLE)

VOL PUSH ON

CD TAPE

BASS

TREB

SCAN

COMP5SHUFF

BASS

TREB

RDS

BAL

SEL

FADE

RDS

AUTO

BAL

SEL

FADE

DSP

MUTE

FMAM

REW

SEEK

TUNE

SIDE 1.2

3 4

SCAN

COMP5SHUFF

AUTO

Page 19

Entertainment systems

Your audio system is equipped with selective lighting, a unique lighting strategy. This lighting feature is operable when the headlamps are illuminated. During the operation of any selected mode, lighting for the individual function controls will either illuminate or turn off. Those controls which have a function for the specific mode of operation selected will be lit, while the controls which have no function for that mode will be turned off.

Volume/power control

Press the control to turn the audio system on or off.

VOL PUSH ON

Turn the control to raise or lower volume.

VOL PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Speed sensitive volume (if equipped)

With this feature, radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise.

The recommended level for speed sensitive volume is from level 1 through level 3. Level 0 turns the speed sensitive volume off and level 7 is the maximum setting.

With the radio on, press and hold the volume control for five seconds, until the display reads SPEED VOL, then press:

VOL PUSH ON

Page 20

Entertainment systems

• to increase volume compensation

• to decrease or shut off the volume compensation

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control. Use the SEL control to increase or decrease the amount of bass.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control. Use the SEL control to increase or decrease the amount of treble.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control. Use the SEL control to adjust the sound between the speakers.

SEL

BASS

SEL

TREB

BASS

SEL

TREB

BAL

SEL

FADE

Page 21

Entertainment systems

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers.

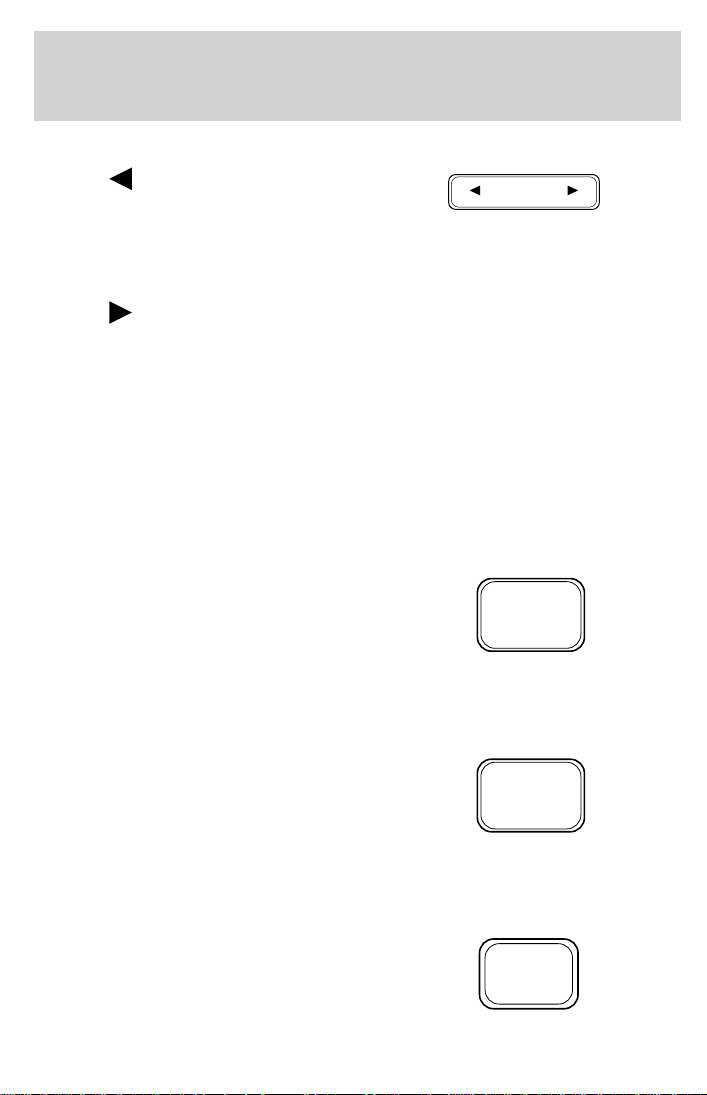

Seek function

The seek function control works in radio, tape or CD mode (if equipped).

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press

to find the next listenable station up the frequency band.

Seek function in tape mode

• Press to listen to the previous selection on the tape or return to the beginning of the current selection.

• Press

to listen to the next selection on the tape.

Seek function for CD changer

• Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press that selection from the beginning.

• Press to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

BAL

SEL

FADE

SEEK

, the CD changer will replay

Page 22

Entertainment systems

Scan function

The scan function works in radio, tape or CD mode (if equipped).

Scan function in radio mode

Press the SCAN control to activate scan mode and to hear a brief sampling of all listenable stations on the frequency band.

Press the SCAN control again to disengage scan mode.

Scan function in tape mode

Press the SCAN control to hear a short sampling of all selections on the tape. The tape will scan in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.

To stop on a particular selection, press the SCAN control again.

Scan function in CD mode

Press the SCAN control to hear a short sampling of all selections on the CD. The CD will scan in a forward direction, wrapping back to the first track at the end of the CD.

To stop on a particular selection, press the control again.

SCAN

AM/FM select

The AM/FM select control works in radio, tape and CD modes (if equipped).

AM/FM select in radio mode

The AM/FM control allows you to select AM or FM frequency bands. Press the control to toggle between AM, FM1 or FM2 memory preset

stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

FMAM

Page 23

Entertainment systems

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

REW

Autoset memory preset

Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autoset memory preset

1. Select a frequency using the AM/FM select controls.

2. Press the AUTO control.

3. When the first six strong stations

are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the control again.

SIDE 1.2

3 4

COMP

AUTO

SHUFF

Page 24

Entertainment systems

Setting the clock with radio data system (RDS) feature

Press the RDS control until SELECT HOUR or SELECT MINS is displayed.

Use the SEL control to manually set the time.

• Press hours/minutes.

• Press to decrease hours/minutes.

Tune adjust

The tune control works in radio or CD mode (if equipped).

to increase

RDS

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press a listenable station is located there). Hold for quick movement.

to move to the next frequency up the band (whether or not

Tune adjust for CD changer

• Press to select the previous disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

• Press to fast-forward through the remaining discs.

to select the next disc in the CD changer. Hold the control

DSP

SEL

TUNE

Page 25

Entertainment systems

Tape/CD select

• To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

• To begin CD play (if equipped with CD changer), ensure that the CDs are loaded. Press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last.

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

Rewind

The rewind control works in tape and CD modes.

• In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

• In CD mode, pressing the REW control for less than three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

CD TAPE

REW

Fast forward

The fast forward control works in tape and CD modes (if equipped).

• In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

Page 26

Entertainment systems

Tape direction select

Press SIDE 1–2 to play the alternate side of a tape.

SIDE 1-2

Eject function

Press the control to stop and eject a tape.

DolbyT noise reduction

Dolbyt noise reduction operates only in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback.

Press the reduction.

The Dolbyt noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolbyt and the double-D symbol are registered trademarks of Dolbyt Labratories Licensing Corporation.

control to activate (and deactivate) Dolbyt noise

Compression feature

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

The effect of the feature varies with the music content.

COMP

Page 27

Entertainment systems

Shuffle feature

The shuffle feature operates in CD mode and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks are played.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

Mute mode

Press the control to mute the playing media. Press the control again to return to the playing media.

Radio data system (RDS) feature

This feature allows your audio system to receive station identification or program type from RDS-equipped FM radio stations.

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend FM radio broadcasters to use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired.

Press the RDS control until RDS ON or RDS OFF appears in the display.

SHUFF

MUTE

RDS

Use the SEL control to enable (ON) or disable (OFF) the feature. With the RDS activated, press the SEL control to scroll through the following selections:

Traffic

• Press the RDS control until TRAFFIC is displayed.

SEL

RDS

Page 28

Entertainment systems

• Use the SEL control to select ON or OFF. With the feature on, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

Traffic information is not available in most U.S. markets.

Program type

• Press the RDS control until the FIND program type is displayed.

• Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic

• Country

• Info

• Jazz

• Oldies

• R&B

• Religious

• Rock

• Soft

• Top 40

Show

• With RDS activated, press the RDS control until SHOW is displayed.

SEL

RDS

SEL

RDS

Page 29

Entertainment systems

• Use the SEL control to select TYPE (the display shows the program type), NAME (the display shows the call letters of the station) or NONE.

Digital signal processing (if equipped)

The digital signal processing (DSP) feature allows you to change the signal mode to suit your listening tastes.

These effects will change the sound quality and may need to be adjusted based upon the program material to suit your listening needs.

Press the control to turn the feature on or off. Use the SEL control to select the

desired signal mode (the selected mode will appear in the display). The following signal modes can be selected:

• JAZZ CLUB—jazz club with clearly reflected sounds.

• HALL—rectangular concert hall capacity of about 2 000

• CHURCH—church with a high vault.

• STADIUM—outdoor stadium with a capacity of about 30 000.

• NEWS—“voice-only” type of sound with a limited audio band.

Press the DSP control until one of the following appears:

• ALL SEATS

• DRIVER SEAT

• REAR SEATS

RDS

SEL

DSP

SEL

DSP

Page 30

Entertainment systems

Use the SELECT control to change the equalization to the desired mode.

PREMIUM AM/FM STEREO/SINGLE CD RADIO

SEL

VOL PUSH ON

MUTE

SCAN

FMAM

REW

SEEK

2 3 4

TUNE

BASS

TREB

AUTO

COMP5SHUFF

BAL

SEL

FADE

RDS

Page 31

Entertainment systems

Volume/power control

Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

VOL PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Speed sensitive volume (if equipped)

With this feature, radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise.

The recommended level for speed sensitive volume is from level 1 through level 3. Level 0 turns the speed sensitive volume off and level 7 is the maximum setting.

With the radio on, press and hold the volume control for five seconds, then press:

Page 32

Entertainment systems

• to increase volume compensation

• to decrease or shut off the volume compensation

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

SEL

BASS

SEL

TREB

BASS

SEL

TREB

BAL

SEL

FADE

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

BAL

SEL

FADE

Page 33

Entertainment systems

Seek function

The seek function control works in radio, CD and CD changer mode (if equipped).

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press

to find the next listenable station up the frequency band.

Seek function for CD or CD changer (if equipped)

• Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press

, the CD changer will replay

that selection from the beginning.

• Press to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

Scan function

The scan function works in radio, CD and CD changer mode (if equipped).

SEEK

SCAN

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

Scan function in CD mode

Press the SCAN control to hear a short sampling of all selections on the CD (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.). To stop on a particular selection, press the control again.

Page 34

Entertainment systems

AM/FM select

The AM/FM select control works in radio, tape and CD changer modes (if equipped).

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in CD or CD changer mode (if equipped)

Press this control to stop CD play and begin radio play.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

FMAM

REW

Autoset memory preset

2 3 4

COMP

SHUFF

Page 35

Entertainment systems

Starting autoset memory preset

1. Select a frequency using the AM/FM select controls.

2. Press the AUTO control.

3. When the first six strong stations

are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

Setting the clock

Press the RDS control until SELECT HOUR or SELECT MINS is displayed.

Use the SEL control to manually set the time.

• Press minutes.

• Press to decrease hours/ minutes.

to increase hours/

AUTO

RDS

SEL

Tune adjust

The tune control works in radio or CD changer mode (if equipped).

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press a listenable station is located there). Hold for quick movement.

to move to the next frequency up the band (whether or not

TUNE

Page 36

Entertainment systems

Tune adjust for CD changer

• Press to fast-forward through the remaining discs.

CD select

To begin CD play (if CD[s] are loaded), press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last. Press the CD control again to toggle between CD and CD changer mode (if equipped).

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

Rewind

The rewind control works in CD mode.

• In CD mode, pressing the REW control for less than three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

to select the next disc in the CD changer. Hold the control

TUNE

REW

Fast forward

The fast forward control works in CD mode.

• In CD mode, pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

Eject function

Press the control to stop and eject a CD.

Page 37

Entertainment systems

Compression feature (if equipped)

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

Shuffle feature (if equipped)

The shuffle feature operates in CD changer mode and plays all tracks on the current disc in random order. The shuffle feature continues to the next disc after all tracks are played.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

Mute mode

Press the control to mute the playing media. Press the control again to return to the playing media.

Radio data system (RDS) feature

This feature allows your audio system to receive station identification or program type from RDS-equipped FM radio station.

Press the RDS control until RDS ON or RDS OFF appear in the display. Use the SEL control to enable (ON) or disable (OFF) the feature. Once activated, you can choose from the following items:

COMP

SHUFF

MUTE

RDS

Page 38

Entertainment systems

Traffic

• Press the RDS control until TRAFFIC is displayed.

• Use the SEL control to select ON or OFF. With the feature on, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

Program type

• Press the RDS control until FIND program type is displayed.

• Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic

• Country

• Info

• Jazz

• Oldies

• R&B

• Religious

• Rock

• Soft

• Top 40

RDS

SEL

RDS

SEL

Page 39

Entertainment systems

Show

• With RDS activated, press the RDS control until SHOW is displayed.

• Use the SEL control to select TYPE, NAME or NONE.

REAR SEAT CONTROLS (IF EQUIPPED)

The Personal Audio System, allows front and middle seat passengers to listen to different media sources (radio, cassette or CD) simultaneously. However, the front and middle-seat passengers cannot listen to two different radio stations at the same time.

RDS

SEL

VOLUME +MODE

SEEK MEMORY

REW

To turn on the rear seat controls, press the memory preset controls 3 and 5 at the same time. The

Pressing 3 and 5 at the same time again will turn the rear seat controls off.

If there is a discrepancy between the rear seat and the front audio controls, (such as both trying to listen to the same playing media), the front audio system will receive the desired selection.

SIDE 1.2

3 4

will appear in the display.

COMP

SHUFF

Page 40

Entertainment systems

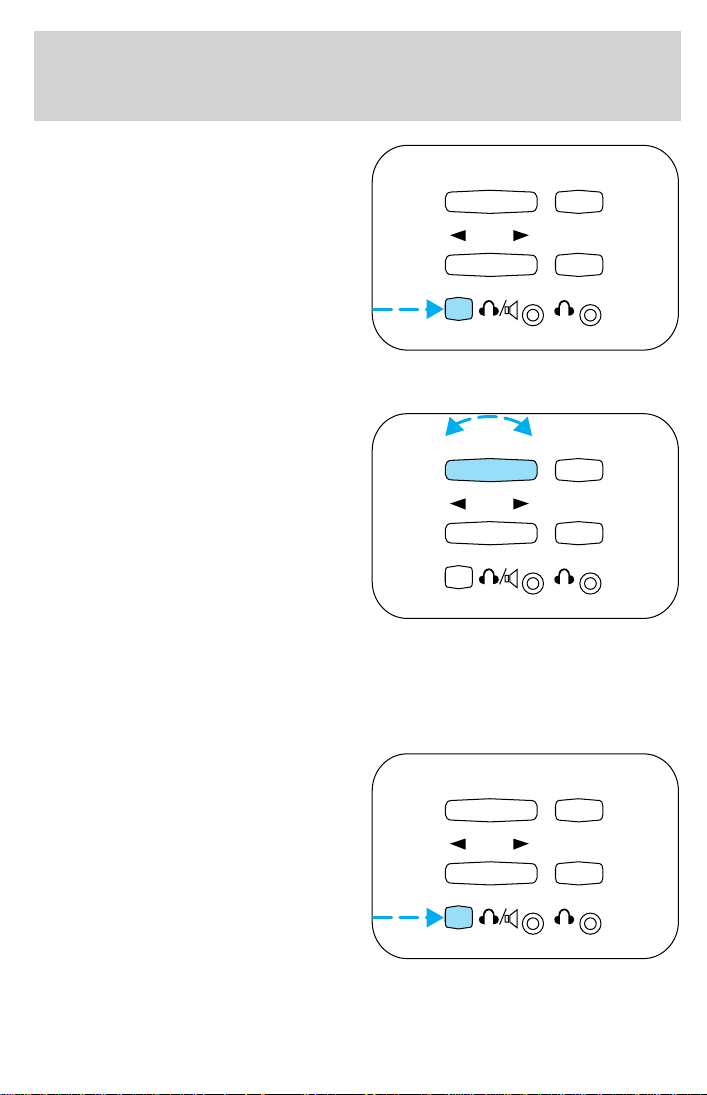

To activate the Personal Audio

System, press the

VOLUME +MODE

speaker/headphone control. Press the MODE control to change audio sources (for headphone mode only).

SEEK MEMORY

Use the SEEK, VOLUME and MEMORY controls to make adjustments to the playing media.

ADJUSTING THE VOLUME

Press the + control to increase

volume.

VOLUME +MODE

Press the - control to decrease volume.

SEEK MEMORY

From the rear seat controls, volume control can be set no higher than the current radio setting unless the speakers are turned off. Refer to

Turning the rear speakers on and off.

TURNING THE REAR SPEAKERS ON AND OFF

Press to turn the rear speakers on

or off.

VOLUME +MODE

SEEK MEMORY

Page 41

Entertainment systems

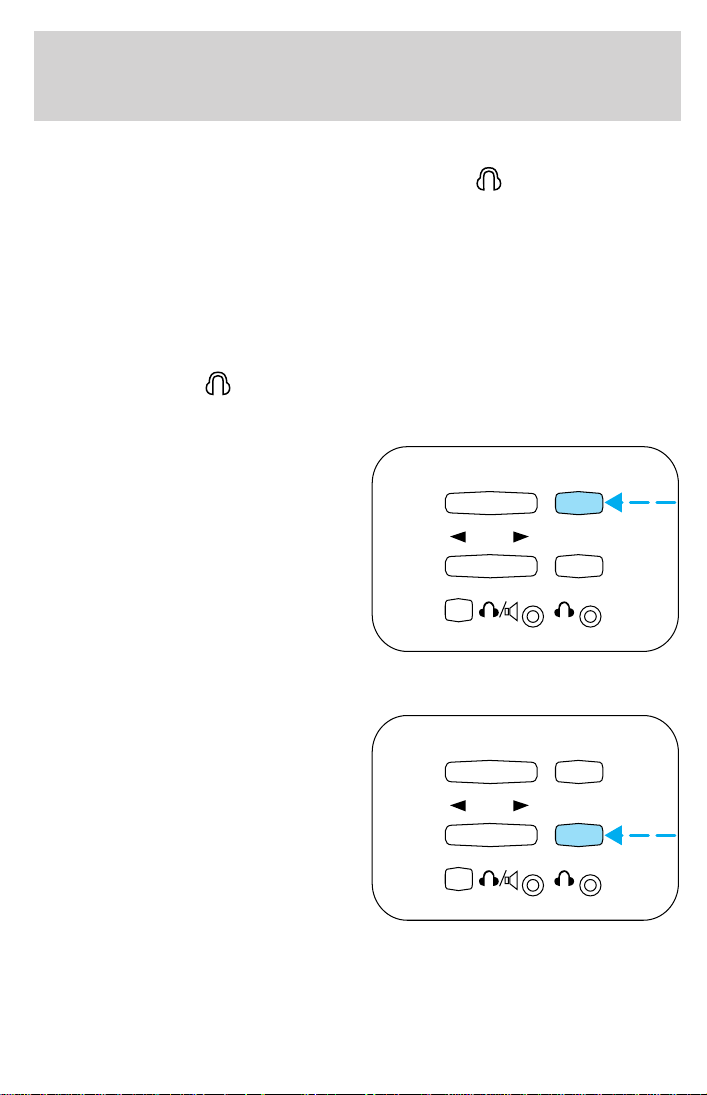

USING HEADPHONES/PERSONAL AUDIO SYSTEM

Plug a 3.5 mm headphone (not included) into the speaker on/off control to operate the headphones. DUAL PLAY illuminates in the radio display and the fade control is disabled.

The rear speakers will cut out once the speaker on/off control is pressed. The front speaker will remain playing for the front passengers. Press the control again to deactivate the headphones (Personal Audio System). SINGLE PLAY illuminates in the radio display and the fade control is enabled.

For the Personal Audio System to be enabled, the rear seat controls must be active and

illuminated in the radio display.

MODE SELECT

Push the MODE control to toggle

between AM, FM1, FM2, tape, CD or

VOLUME +MODE

CD changer (if equipped). If in the Personal Audio System mode, SHARED illuminates in the radio display when the front and rear modes are set to the same media.

jack. Press the

SEEK MEMORY

MEMORY PRESET CONTROL

Push the MEMORY control successively to allow rear seat passengers to scroll through the 6 memory presets in AM, FM1 or FM2.

Push the MEMORY control in CD changer mode (if equipped) to advance to the next disc.

VOLUME +MODE

SEEK MEMORY

Page 42

Entertainment systems

SEEK FUNCTION

• In radio mode, press the next listenable station down the frequency band.

• In radio mode, press the next listenable station up the frequency band.

• In tape mode, use the SEEK function to access the next previous

selection.

• In CD mode (if equipped), use the SEEK function to access the next

CD CHANGER (IF EQUIPPED)

Your CD changer is located in the center console. Slide the door to access the CD

changer magazine.

to find

or previous selection.

VOLUME +MODE

SEEK MEMORY

Press

to eject the magazine.

Page 43

1. Pull the lever to remove a CD

tray from the magazine.

2. Insert one disc into each CD tray

of the magazine (up to 6 discs). Ensure that the label side is facing up.

If you pull too hard on the disc holder, the disc holder may come completely out of the magazine. If this happens, reinsert the disc holder back into the magazine.

3. Insert each CD tray, with the disc

loaded, all the way into the CD magazine.

Entertainment systems

4. Insert the CD magazine into the

changer.

Page 44

Entertainment systems

5. Slide the door to the left to close.

Use only compact discs containing this mark.

The magazine does not need to be full for the changer to operate. Radio power must be turned on to play the CDs in the changer. The

magazine may be stored in the glove compartment when not being used. The CD magazine may be inserted or ejected with the radio power off. Keep the CD changer door closed. Coins and foreign objects will damage

the CD player and void your audio system warranty.

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

TROUBLESHOOTING THE CD CHANGER (IF EQUIPPED)

The laser beam used in the compact disc player is harmful to the eyes. Do not attempt to disassemble the case.

If sound skips:

• You may be traveling on a rough road, playing badly scratched discs or the disc may be dirty. Skipping will not scratch the discs or damage the player.

If your changer does not work, it may be that:

• A disc is already loaded where you want to insert a disc.

• The disc is inserted with the label surface downward.

• The disc is dusty or defective.

• A disc with format and dimensions not within industry standards is

inserted.

Page 45

Entertainment systems

CLEANING COMPACT DISCS

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.

CD AND CD CHANGER CARE

• Handle discs by their edges only. Never touch the playing surface.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• Do not insert more than one disc into each slot of the CD changer magazine.

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

CLEANING CASSETTE PLAYER (IF EQUIPPED)

Clean the tape player head with a cassette cleaning cartridge after 10 to 12 hours of play in order to maintain the best sound and operation.

CASSETTE AND CASSETTE PLAYER CARE

• Use only cassettes that are 90 minutes long or less.

• Do not expose tapes to direct sunlight, high humidity, extreme heat or

extreme cold. Allow tapes that may have been exposed to extreme temperatures to reach a moderate temperature before playing.

• Tighten very loose tapes by inserting a finger or pencil into the hole and turning the hub.

• Remove loose labels before inserting tapes.

• Do not leave tapes in the cassette player for a long time when not

being played.

Page 46

Entertainment systems

RADIO FREQUENCY INFORMATION

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are:

AM 530, 540–1600, 1610 kHz FM 87.7, 87.9–107.7, 107.9 MHz Not all frequencies are used in a given area.

RADIO RECEPTION FACTORS

Three factors can affect radio reception:

• Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.

AUDIO SYSTEM WARRANTIES AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or a qualified technician.

Page 47

Climate controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

COOL WARM

Fan speed control

Controls the volume of air circulated in the vehicle.

Temperature control knob

Controls the temperature of the airflow inside the vehicle.

Mode Selector Control

Controls the direction of the airflow to the inside of the vehicle.

The air conditioning compressor can operate in all modes except PANEL and FLOOR. However, the air conditioning will only function if the outside temperature is about 6°C (43°F) or higher.

Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.

• MAX A/C – Uses recirculated air to cool the vehicle. MAX A/C is noisier than A/C but more economical and will cool the inside of the vehicle faster. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle.

PANEL

OFF

PANEL &

FLOOR

FLR

& DEF

DEF

COOL WARM

PANEL

A/C

MAX A/C

OFF

PANEL &

FLOOR

FLR

& DEF

DEF

Page 48

Climate controls

• A/C – Uses outside air to cool the vehicle. It is quieter than MAX A/C but not as economical. Airflow will be from the instrument panel registers.

• PANEL – Distributes outside air through the instrument panel registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

• OFF – Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

• PANEL & FLOOR – Distributes outside air through the instrument panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.

• FLOOR – Allows for maximum heating by distributing outside air through the floor ducts. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

• FLR & DEF – Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defroster ducts. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

• DEF ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

– Distributes outside air through the windshield defroster

Operating tips

• In humid weather conditions, place the climate control system in Defrost mode before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, operate the climate control system as desired.

Page 49

Climate controls

• To reduce humidity buildup inside the vehicle in cold weather conditions, don’t drive with the climate control system in the OFF or MAX A/C position.

• To reduce humidity buildup inside the vehicle in warm weather conditions, don’t drive with the climate control system in the OFF position.

• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than the MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.

• Under snowy or dirty weather conditions, your vehicle’s climate control system should be left in the OFF position when the vehicle is parked. This allows the climate control system to be free from contamination of outside pollutants.

• If your vehicle has been parked with the windows closed during warm weather conditions, the air conditioner will perform more efficiently in cooling the vehicle if driven for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Once the vehicle has been “aired out”, operate the climate control system as desired.

• Do not put objects under the front seat which may interfere with the airflow to the rear seats (if equipped).

• Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield and underneath the hood).

• Do not place objects over the defroster outlets. These objects can block airflow and reduce visibility through your windshield. Avoid placing small objects on top of the instrument panel. These objects may fall down into the defroster outlets and block airflow, in addition to, damaging the climate control system.

To aid in side window defogging/demisting in cold weather conditions:

1. Select the position that distributes air through the Panel and Floor.

2. Set the temperature control to full heat.

3. Set the fan speed to full fan.

4. Direct the outer panel vents towards the side windows.

5. To increase airflow to the outer panel vents, close the central panel

vents.

Page 50

Climate controls

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) SYSTEM (IF EQUIPPED)

The EATC system will maintain a selected temperature and automatically control airflow. You can override automatic operation with any of the override controls, the fan speed control or the steering wheel controls (if equipped).

Turning the EATC on

Press AUTOMATIC, any of the override controls or the fan speed control. The EATC will only operate when the vehicle is running.

Turning the EATC system off

Press OFF. The outside temperature function will continue to operate until the ignition is turned off.

OFF

AUTO

OUTSIDE TEMP AUTOMATIC

VENT PNL • FLR FLOOR FLR • DEF DEF

MAX A/C

OUTSIDE TEMP AUTOMATIC

VENT PNL • FLR FLOOR FLR • DEF DEF

MAX A/C

OFF

AUTOMATIC

FLR • DEF DEF

Automatic operation

Press AUTOMATIC and select the desired temperature. The selected temperature and the word AUTO will appear in the display window. The EATC system will either heat or cool to achieve the selected temperature. The system will automatically determine fan speed, airflow location and if outside air or recirculated air is required. Fan speed remains automatic unless the fan speed thumbwheel is turned or the steering wheel fan speed control (if equipped) is pressed.

Page 51

Climate controls

When in AUTOMATIC and weather conditions require heat, air will be sent to the floor. However, if the engine is not warm enough to provide heat, the fan will be at a low speed and the air will be directed to the windshield. In approximately 3 to increase and the airflow location will change to the floor area.

If unusual conditions exist (i.e.-window fogging, etc.), the manual override controls allow you to select airflow locations and the fan control allows you to adjust fan speed as necessary.

Temperature selection

The display window indicates the selected temperature, function (AUTO or one of the override controls) and manual control of fan speed (

) if automatic fan speed is not desired.

To control the temperature, select any temperature between 18°C (65°F) and 29°C (85°F) by pressing the blue (cooler) or red (warmer) buttons.

⁄2minutes or less, the fan speed will start

AUTO

OUTSIDE TEMP

VENT PNL • FLRMAX A/C

For continuous maximum cooling, push the blue button until 16°C (60°F) is shown in the display window. The EATC will continue maximum cooling (disregarding the displayed temperature) until a warmer temperature is selected by pressing the red control.

For continuous maximum heating, push the red button until 32°C (90°F) is shown in the display window. The EATC will continue maximum heating (disregarding the displayed temperature) until a cooler temperature is selected by pressing the blue control.

Page 52

Climate controls

Temperature conversion

Press MAX A/C and DEF the same time (for one second) to switch between Fahrenheit and Celsius.

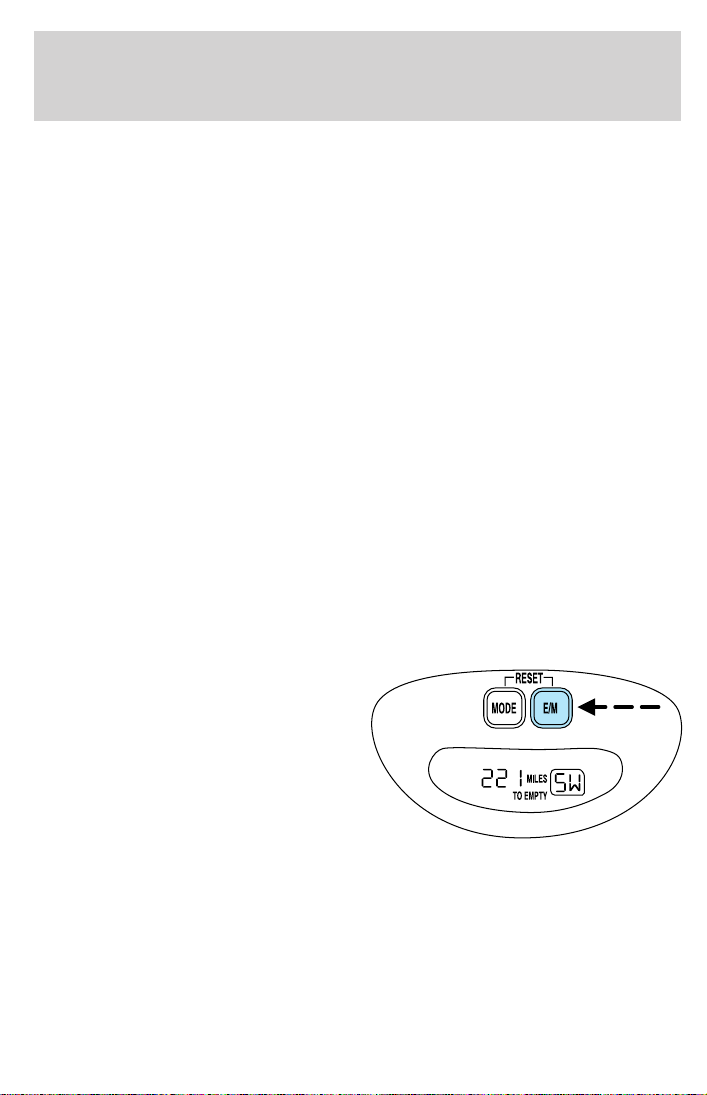

The English/Metric (E/M) control on the trip computer and message center (if equipped) will not change temperature display.

OUTSIDE TEMP AUTOMATIC

VENT PNL • FLR FLOOR FLR • DEF DEF

MAX A/C

AUTO

OFF

Fan speed (

)

When AUTOMATIC is pressed, fan speed is adjusted automatically for existing conditions. You can override fan speed at any time. To control fan speed manually, use the thumbwheel to cancel automatic fan speed operation. Rotate the thumbwheel or press the steering wheel controls (if equipped) up for higher fan speed or down for lower fan speed.

The display will show indicate manual fan operation.

AUTO

To return to automatic fan operation, press AUTOMATIC.

Manual override controls

The manual override controls allow you to determine where airflow is directed. To return to full automatic control, press AUTOMATIC.

OUTSIDE TEMP AUTOMATIC

VENT PNL • FLR FLOOR FLR • DEF DEF

MAX A/C

AUTO

OFF

The air conditioning compressor can operate in all modes except FLOOR and VENT. It will also operate only when required when AUTOMATIC has been selected. However, the air conditioning will only function if the outside temperature is about 6°C (43°F) or higher.

Page 53

Climate controls

• MAX A/C-Uses recirculated air to cool the vehicle. The temperature will display 16°C (60°F). To exit, press AUTOMATIC or any other override controls. MAX A/C is louder than normal A/C but more economical and will cool the inside of the vehicle faster. Airflow is from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle.

• VENT-Distributes outside air through the instrument panel registers. However, the air cannot be cooled below the outside temperature because the air conditioning does not operate in this mode.

• PNL•FLR-Distributes outside air through the instrument panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. The air will be heated or cooled based on the temperature selection. For added customer comfort, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.

• FLOOR-Distributes outside air through the floor ducts. However, the air cannot be cooled below the outside temperature because the air conditioning does not operate in this mode.

• FLR•DEF-Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. The air will be heated or cooled based on the temperature selection. For added customer comfort, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defroster ducts. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

• DEF ducts. It can be used to clear ice or fog from the windshield. If the outside air temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

• OFF-Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to reduce undesirable odors from entering the vehicle.

-Distributes outside air through the windshield defroster

Page 54

Climate controls

Displaying outside temperature

Press OUTSIDE TEMP to display the outside air temperature. It will be displayed until OUTSIDE TEMP is pressed again.

OUTSIDE TEMP

VENT PNL • FLRMAX A/C

If the selected temperature is changed while the outside temperature is displayed, the new temperature will be displayed for four seconds after it is changed, then the outside temperature will return to the window.

If a manual override function is selected while the outside temperature is displayed, the new function will be displayed for four seconds after it is changed, then the outside temperature will return to the window along with the override selection.

The outside temperature reading is most accurate when the vehicle is moving. Higher readings may be obtained when the vehicle is not moving. The readings that you get may not agree with temperatures given on the radio due to differences in vehicle and station locations.

Operating tips

• In humid weather conditions, place the climate control system in DEF before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, operate the climate control system as desired.

• To reduce humidity buildup inside the vehicle in cold weather conditions, don’t drive with the climate control system in the OFF or MAX A/C position.

• To reduce humidity buildup inside the vehicle in warm weather conditions, don’t drive with the climate control system in the OFF position.

• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.

Page 55

Climate controls

• Don’t put objects under the front seat that will interfere with the airflow to the rear seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

• Do not place objects over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Avoid placing small objects on top of the instrument panel. These objects may fall down into the defroster outlets and block airflow, in addition to damaging the climate control system.

To aid in side window defogging/demisting in cold weather conditions:

1. Select PNL • FLR

2. Set the temperature control to full heat

3. Set the fan speed control to HI

4. Direct the outer panel vents towards the side windows.

To increase airflow to the outer panel vents, close the central panel vents.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

AUXILIARY A/C-HEATER CONTROLS (IF EQUIPPED)

Depending on your equipment package, your vehicle may be equipped with auxiliary A/C-heater controls. The auxiliary A/C-heater feature provides increased capacity to quickly heat or cool the vehicle. Besides the driver’s control panel for the front seat occupants, the second row auxiliary A/C-heater controls allow the rear passengers to control the

Page 56

Climate controls

temperature in the rear of the vehicle through a second control panel above the second row, or in the floor console.

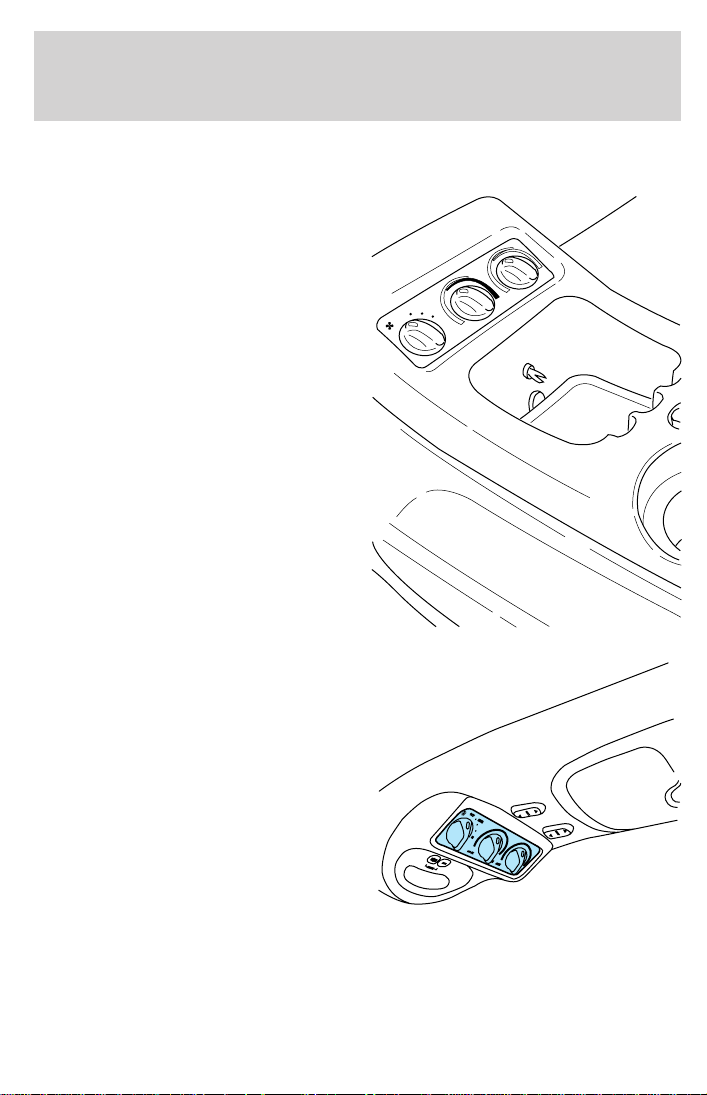

If your vehicle is equipped with auxiliary A/C controls, they may be located in the floor console,

FLOOR

PANEL

WARM

COOL

or located in the overhead console. If your vehicle is equipped with a

moon roof and a navigation system, you will not have a front auxiliary A/C- heater control console. All operation is obtained through the rear auxiliary A/C-heater control console.

REAR

OFF

Page 57

Climate controls

In order for the auxiliary A/C-heater controls (if equipped) to function, the driver’s auxiliary A/C-heater control must be set to REAR, unless your vehicle is equipped with a

OFF

REAR

WARM PANEL FLOORCOOL

moonroof and a navigation system. In which case, the rear auxiliary A/C-heater control console serves as the main control for the auxiliary climate control system.

The instrument panel climate controls must be on in order for the auxiliary A/C-heater to operate.

COOL WARM

OFF

PANEL &

PANEL

A/C

MAX

A/C

FLOOR

& DEF

DEF

When the auxiliary A/C-heater control is set to FLOOR, airflow only occurs from the third row seat floor vent located in the driver’s side rear quarter trim panel.

When the auxiliary A/C-heater control is set to PANEL, airflow occurs from the overhead 2nd and 3rd row vents.

Turn the fan speed control knob to the desired speed.

OFF

Turn the temperature control to the desired temperature.

You can get warm or cool air through either the overhead registers or floor vent by turning the

WARMCOOL

auxiliary mode selector:

• Far left for airflow to the overhead registers.

• Far right for airflow to the rear floor vent.

• Anywhere between PANEL and

FLOOR to vary airflow between the outlets.

FLR

FLOORPANEL

Page 58

Climate controls

REAR WINDOW DEFROSTER

The rear defroster control is located on the instrument panel.

Press the rear defroster control to clear the rear window of thin ice and fog.

• A small LED will illuminate when the rear defroster is activated.

The ignition must be in the ON position to operate the rear window defroster.

The defroster turns off automatically after 10 minutes or when the ignition is turned to the OFF position. To manually turn off the defroster before 10 minutes have passed, push the control again.

Page 59

Lights

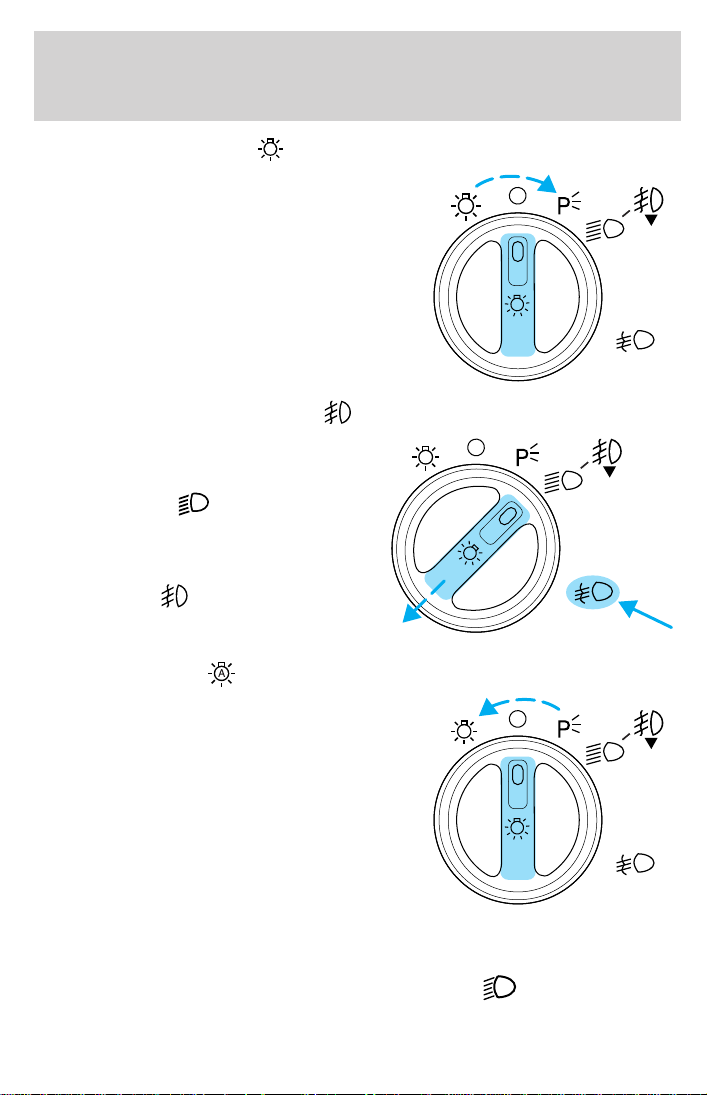

HEADLAMP CONTROL

Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps.

Foglamp control (if equipped)

The headlamp control also operates the foglamps. The foglamps can be turned on only when the headlamp control is in the

position and

the high beams are not turned on. Pull headlamp control towards you

to turn foglamps on. The foglamp indicator light

will illuminate.

Autolamp control

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

The autolamp system also keeps the lights on for approximately 20 seconds after the ignition switch is turned to OFF.

• To turn autolamps on, rotate the control counterclockwise.

• To turn autolamps off, rotate the control clockwise to OFF.

• Foglamps are not controlled by the autolamps. In order to turn on the

foglamps, you must turn the lamp switch to the pull toward you for foglamps.

position and

Page 60

Lights

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output. To activate:

• the ignition must be in the ON position and

• the headlamp control is in the OFF or Parking lamps position.

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Lamp (DRL) system does not activate with your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

• Push forward to activate.

• Pull toward you to deactivate.

Flash to pass

Pull toward you to activate and release to deactivate.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel during headlamp and parklamp operation.

• Rotate up to brighten.

• Rotate down to dim.

• Rotate to full up position (past

detent) to turn on interior lamps.

• Rotate to full down position (past detent) to turn off interior lamps.

Page 61

Lights

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps

should be checked by a qualified service technician.

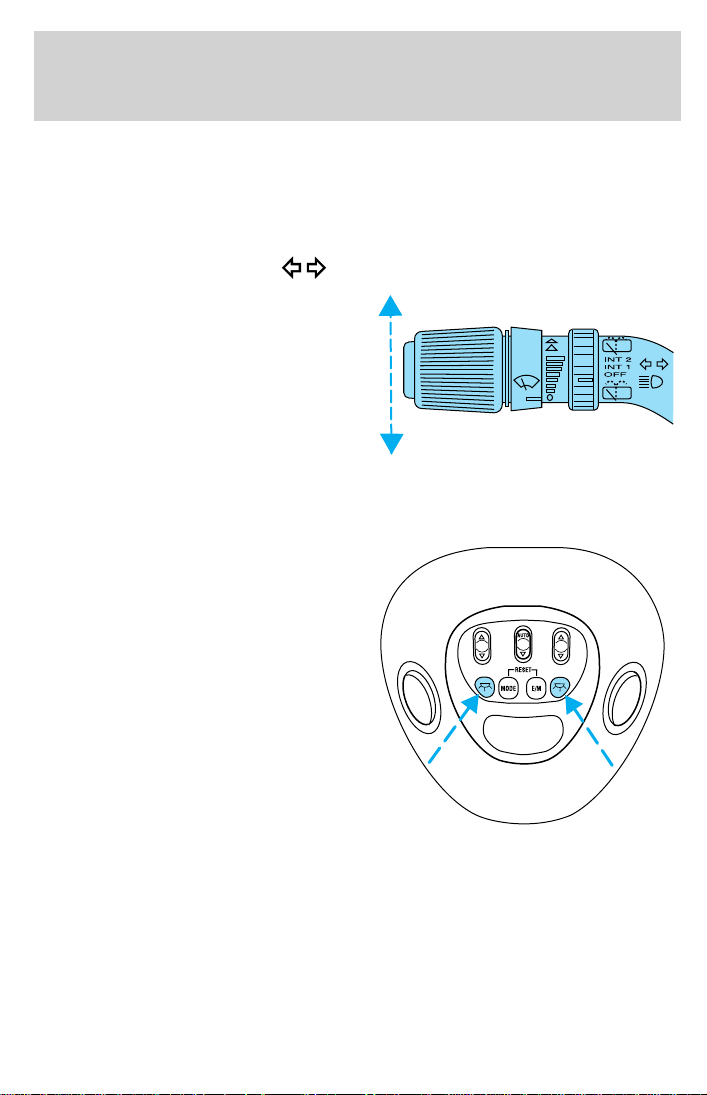

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

INTERIOR LAMPS Map lamps

With trip computer

ROOF

VENT

Page 62

Lights

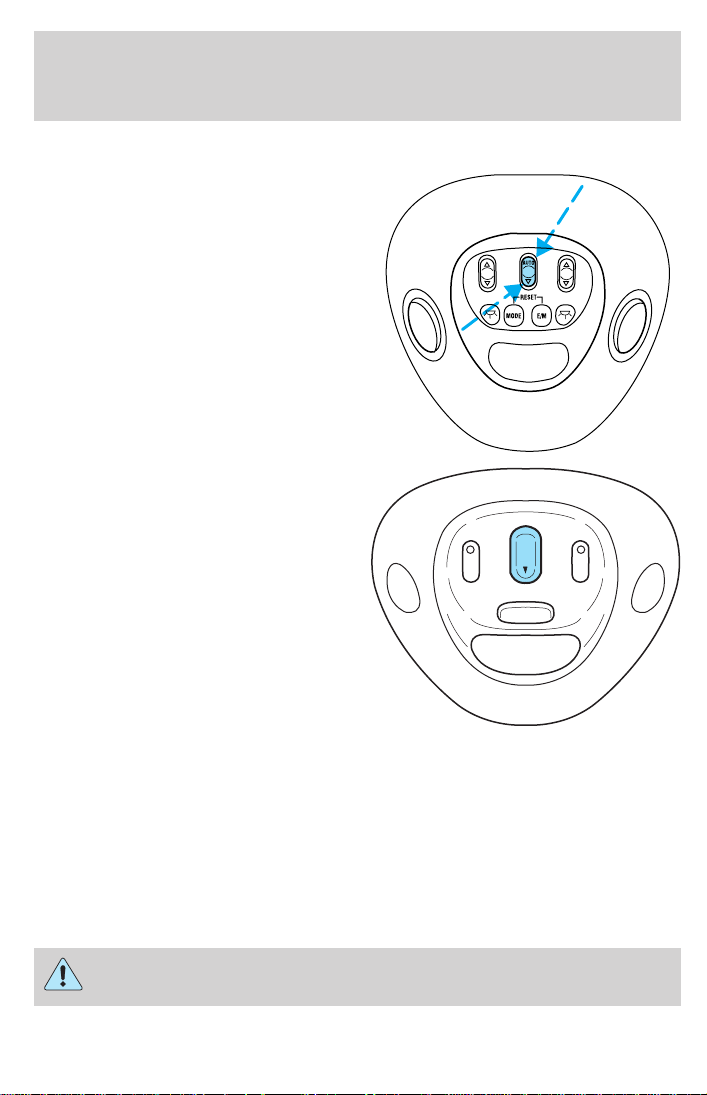

Without trip computer

AUTO ROOF

To turn on the map lamps, press the control next to each lamp.

Rear dome lamp

The dome lamp lights when:

• any door is opened.

• the instrument panel dimmer

switch is held up until the courtesy lamps come on.

• any of the remote entry controls are pressed and the ignition is OFF.

With the ignition key in the ACC or ON position, the rear dome lamp can be turned ON or OFF by sliding the control.

BULBS Replacing exterior bulbs

Check the operation of the following lamps frequently:

• Headlamps

• Foglamps

• High-mount brakelamp

• Brakelamps

• Parking lamps

• Turn signals

Page 63

Lights

• License plate lamp

• Tail lamps

• Back-up lamps

Do not remove lamp bulbs unless they can be replaced immediately with new ones. If a bulb is removed for an extended period of time, contaminants may enter the lamp housings and affect lamp performance.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Number of bulbs Trade number

Headlamps (low-beam)

Headlamps (high-beam)

Front park/turn lamps 2 3457 K Foglamps 2 899 Dome/map lamps 2 579 Turn/tail/brake lamps 2 3157 Liftgate lamp 2 916 Backup lamp 2 3156 License lamp 2 168 High-mount brake

lamp Running board lamp

(if equipped) All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer

2 9006

2 9005

1 W5W

2 168

Page 64

Lights

Replacing the interior bulbs

Check the operation of the following interior bulbs frequently:

• interior overhead lamp

• map lamp

For bulb replacement, see a dealer or qualified technician.

Map lamps

To change the map lamp bulbs:

1. Use a small screwdriver to

remove the map lamp lens.

⁄

2. To remove the old bulb, twist

turn and pull it out.

3. Twist in a new bulb.

4. Align and press the map lamp

lens back on and test the lamp operation.

Replacing headlamp bulbs

1. Make sure that the headlamp control is in the OFF position.

2. Open the hood.

3. At the back of the headlamp, pull

clips rearward and up to release the headlamp assembly.

4. Slide headlamp assembly forward

and off of guide ribs to expose the back of the bulb and wiring connector.

Page 65

Lights

5. Disconnect the electrical

connector from the bulb by pulling rearward.

6. Remove bulb retainer ring by

turning it counterclockwise, then slide the ring off the plastic base.

7. Without turning, carefully pull

bulb assembly out of headlamp assembly.

Handle a halogen headlamp bulb carefully and keep out of

children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

8. Insert the glass end of the new bulb into the headlamp assembly. When the grooves in the plastic base are aligned, push the bulb into the lamp assembly until the plastic base contacts the rear of the lamp assembly.

9. Install bulb retaining ring over the plastic base and lock the ring into the socket by turning it clockwise until you feel a “stop.”

10. Connect the electrical connector into the plastic base until it “snaps.”

11. Straighten alignment pins, making them parallel with the outer edges of the attachment standoff.

12. Carefully insert the headlamp assembly into the vehicle making sure the alignment pins are inserted into the proper holes and into the guide ribs.

13. Hold the headlamp assembly snugly against the vehicle and push down on the clips to lock the lamp into place.

Page 66

Lights

Replacing front parking lamp/turn signal bulbs

1. Make sure that the headlamp control is in the OFF position.

2. Open the hood.

3. Remove the screw and lamp assembly from the vehicle.

4. Rotate the bulb socket counterclockwise and remove from the lamp assembly.

5. Carefully pull the bulb out of the socket and push in the new bulb.

6. Install the bulb socket into the lamp assembly and rotate clockwise.

7. Install parking lamp assembly on vehicle.

8. Push gently until parking lamp assembly seats.

9. Install screw on the lamp assembly.

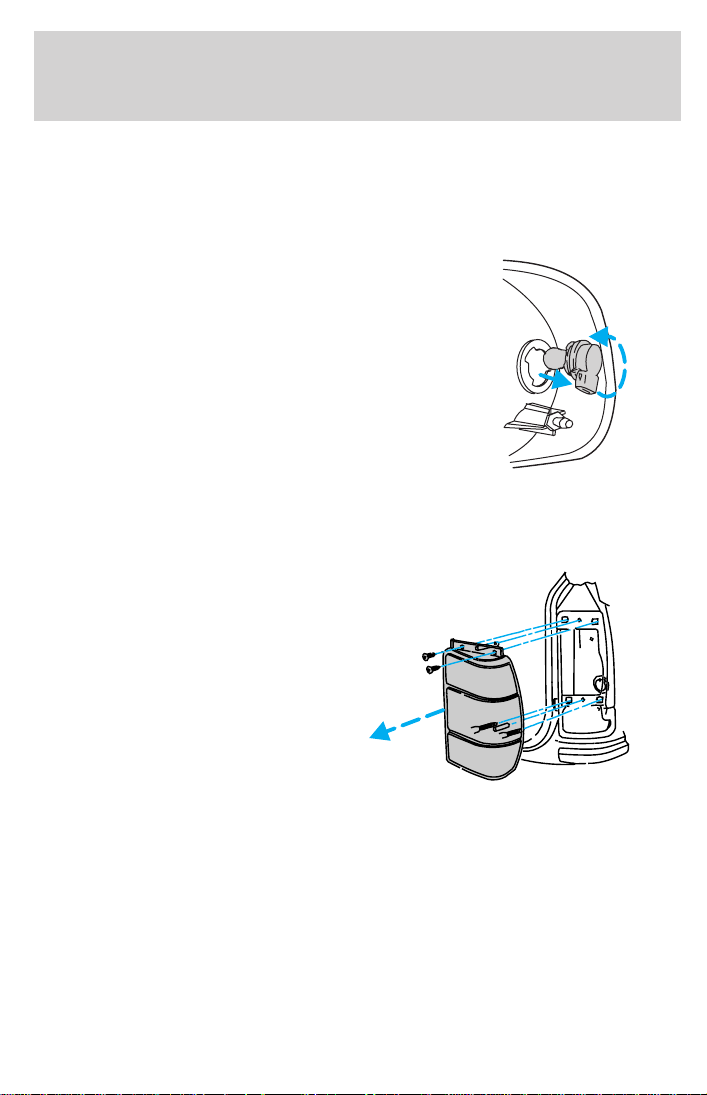

Replacing tail lamp/backup lamp bulbs

The tail lamp/backup lamp bulbs are located in the same portion of the tail lamp assembly, one just below the other. Follow the same steps to replace either bulb:

1. Open the liftgate to expose the lamp assembly screws.

2. Remove the two screws from the lamp assembly.

3. Carefully pry the lamp assembly away from the vehicle to expose the bulb sockets.

4. Rotate the bulb socket counterclockwise and remove from lamp assembly.

5. Pull bulb straight out of socket and push in the new bulb.

6. Install the bulb socket into the lamp assembly and rotate clockwise.

7. Carefully install the tail lamp assembly on the vehicle snapping the three retaining tabs into place.

8. Secure the lamp assembly with two screws.

Page 67

Replacing foglamp bulbs

1. Remove the bulb socket from the foglamp by turning counterclockwise.

2. Disconnect the electrical connector from the foglamp bulb.

3. Connect the new foglamp bulb to the electrical connector.

4. Install the bulb socket in the foglamp turning clockwise.

Replacing running board lamp bulbs

For bulb replacement, see a dealer or qualified technician.

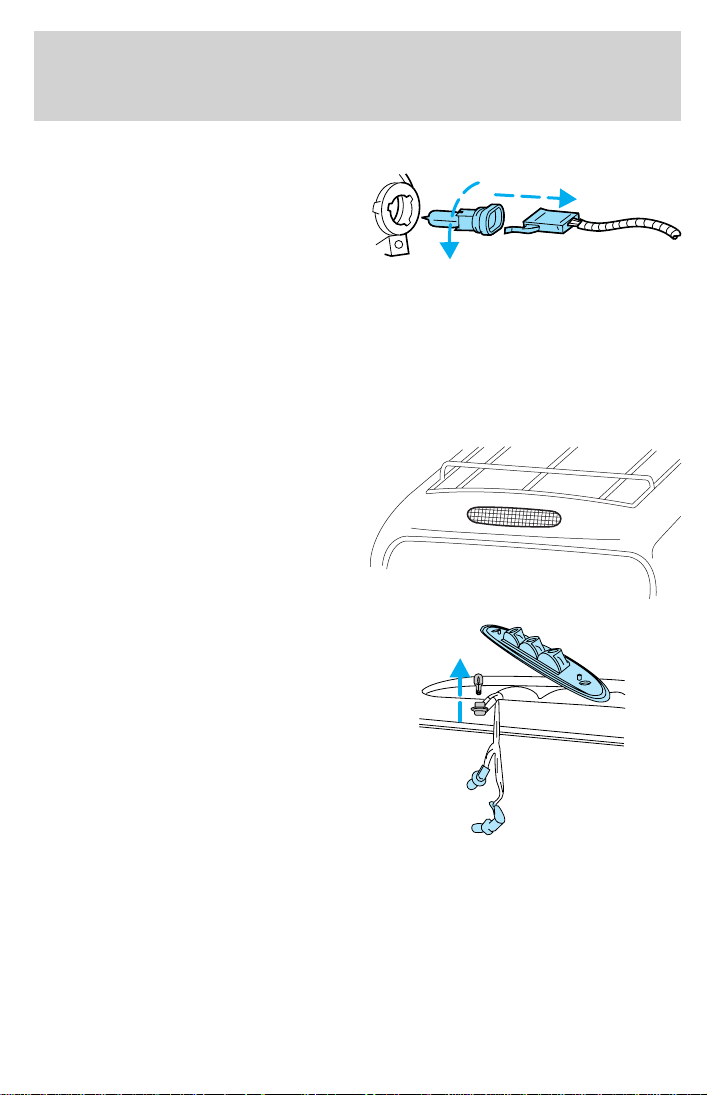

High-mount brakelamp

To change the high-mount brakelamp bulbs:

1. Remove the four screws from the high-mount brakelamp assembly.

2. Carefully pull the lamp assembly away from the vehicle to access the bulbs.

3. Remove the bulb socket by turning counterclockwise and a careful pull.

4. Pull the bulb straight out of the socket and push in the new bulb.

5. Replace the bulbs as needed and install the high-mount brakelamp assembly.

Lights

Page 68

Lights

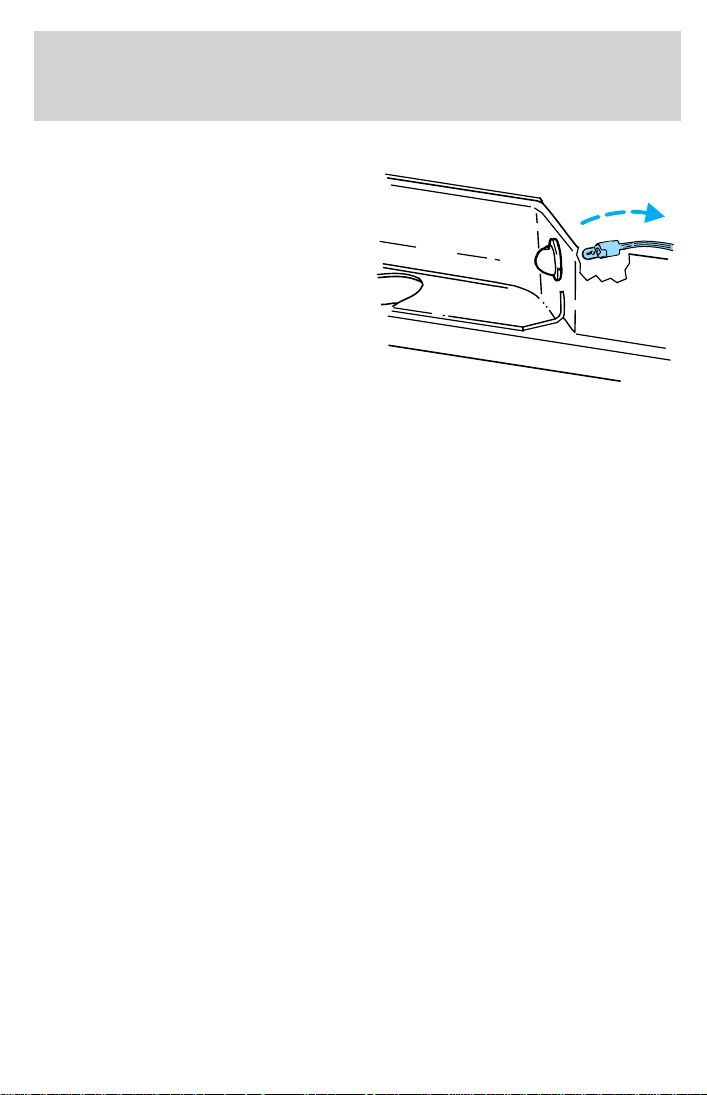

Replacing license plate lamp bulbs

The license plate bulbs are located behind the rear bumper. To change the license plate lamp bulbs:

1. Reach behind the rear bumper to locate the bulb.

2. Twist the bulb socket counterclockwise and carefully pull to remove it from the lamp assembly.

3. Pull out the old bulb from the socket and push in the new bulb.

4. Install the bulb socket in lamp assembly by turning it clockwise.

Page 69

Driver controls

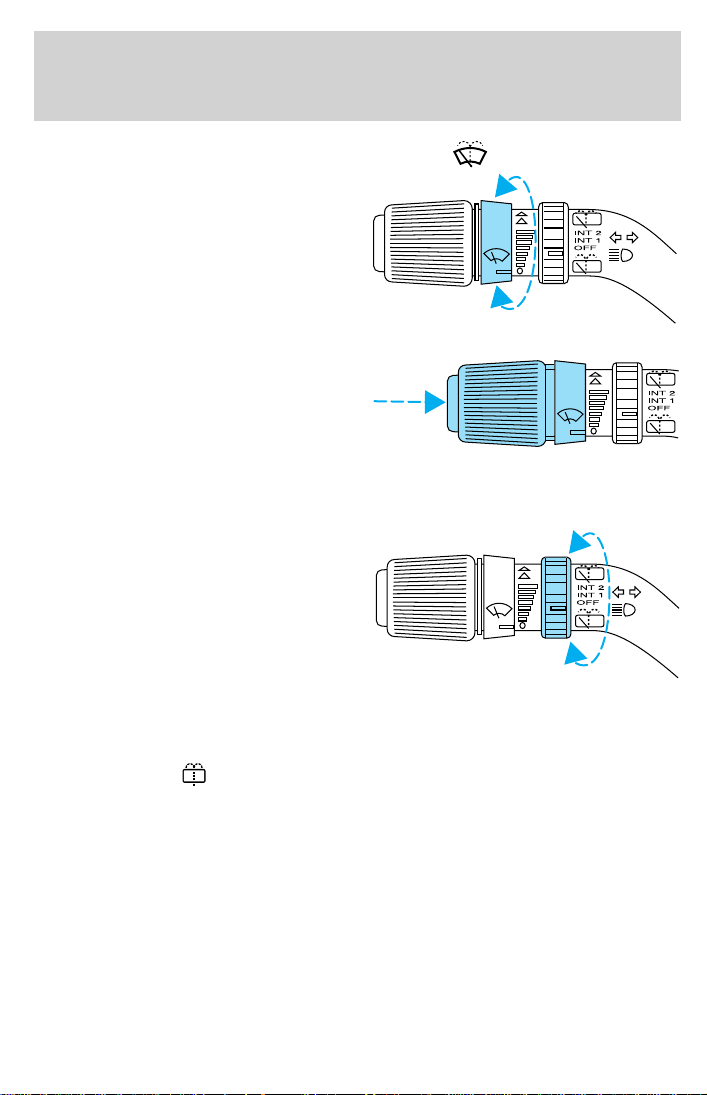

WINDSHIELD WIPER/WASHER CONTROLS

Rotate the windshield wiper control to the desired interval, low or high speed position.

The bars of varying length are for intermittent wipers. When in this position rotate the control upward for fast intervals and downward for slow intervals.

Push (tap) the end of the stalk briefly for a single swipe (no wash). Push and hold for three swipes with wash. Push and hold for a longer wash (up to ten seconds).

Rear window wiper/washer controls

For rear wiper operation, rotate the rear window wiper and washer control to the desired position. Select:

INT 1 — 3.5 second interval rear wiper.

INT 2 — 10.5 second interval rear wiper.

OFF — Rear wiper and washer off. For rear wash cycle, rotate (and hold as desired) the rear wiper/washer

control to either From either position, the control will automatically return to the INT2 or

OFF position.

position.

Speed dependent wipers

When the windshield wiper control is set on the intermittent settings, speed-sensitive front wipers automatically adjust as the vehicle’s speed changes.

Page 70

Driver controls

Windshield wiper blades

Check the wiper blades at least twice a year or when they seem less effective. Substances such as tree sap and some hot wax treatments used by commercial car washes reduce the effectiveness of wiper blades.

Checking the wiper blades

If the wiper blades do not wipe properly, clean both the windshield and wiper blades using undiluted windshield wiper solution or a mild detergent. Rinse thoroughly with clean water. To avoid damaging the blades, do not use fuel, kerosene, paint thinner or other solvents.

Changing the wiper blades

To replace the wiper blades:

1. Pull the wiper arm away from the windshield and lock into the service position.

2. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.

3. Attach the new wiper to the wiper arm and press it into place until a click is heard.

Rear window wiper blades

Refer to Windshield wiper blades in this section for more information on rear wiper blades.

Page 71

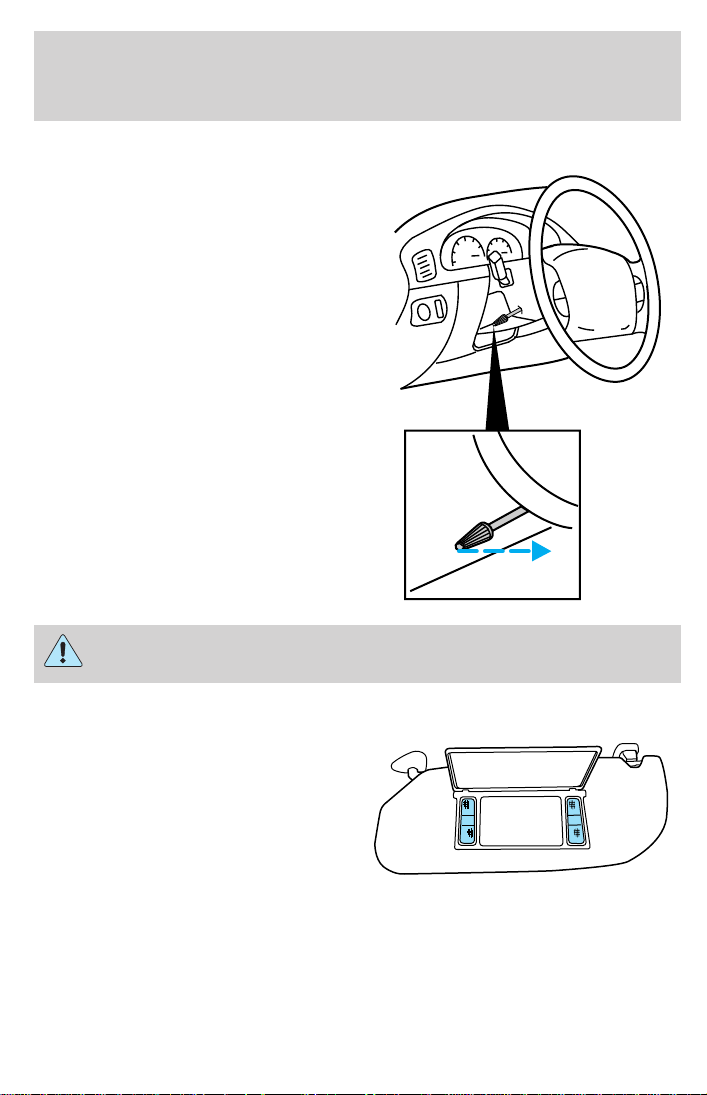

TILT STEERING

Pull the tilt steering control toward you to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then release the control.

Never adjust the steering wheel when the vehicle is moving.

Driver controls

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

To turn on the visor mirror lamps, lift the mirror cover open.

OVERHEAD CONSOLE

The appearance of your vehicle’s overhead console will vary according to your option package.

Page 72

Driver controls

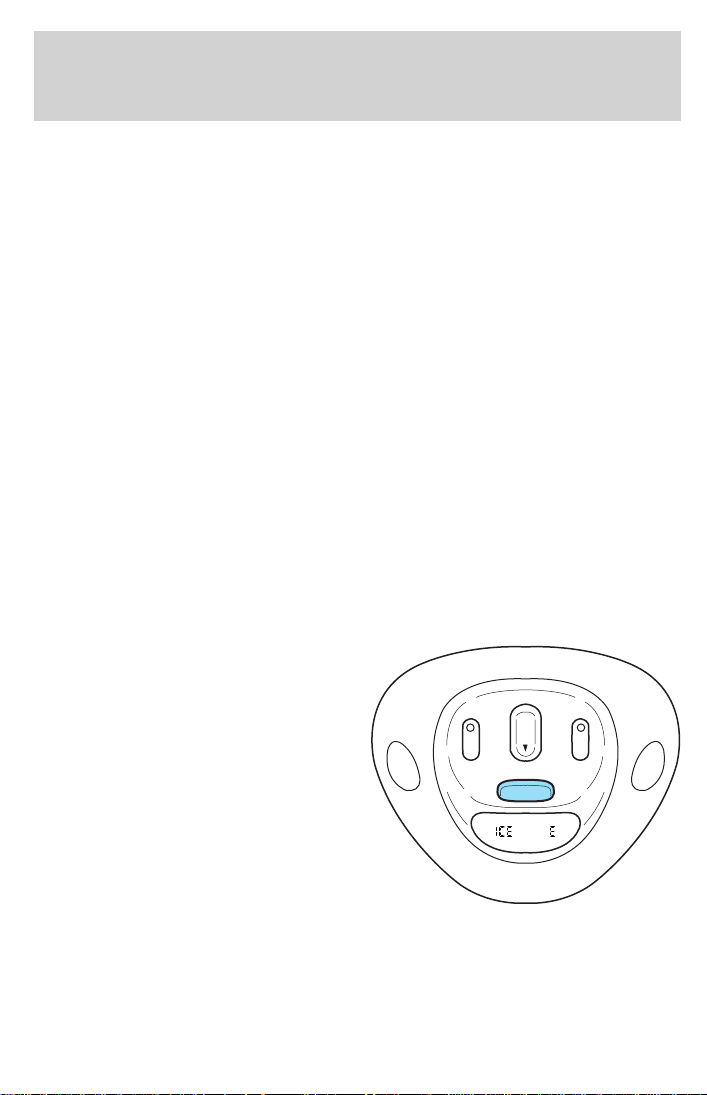

Forward storage bin (if equipped)

Press the release control to open the storage compartment. The door will open slightly and can be moved to full open.

The storage compartment may be used to secure sunglasses or a similar object.

Installing a garage door opener (if equipped)

The storage compartment can be converted to accommodate a variety of aftermarket garage door openers:

• Place Velcro hook onto back side of aftermarket transmitter opposite of actuator control.

• Place transmitter into storage compartment, control down.

• Place the provided height adaptors onto the back of the storage bin

door as needed.

• Press the storage compartment door to activate the transmitter.

Page 73

One-touch moon roof (if equipped)

With trip computer

Without trip computer

Driver controls

ROOF

VENT

AUTO ROOF

VENT

• Press and release the rear portion of the moon roof control to open.

• Press and hold (as desired) the front portion of the moon roof control

to close.

• To halt motion at any point during one-touch opening, press the control a second time.

• The moon roof has a sliding shade that can be manually opened or closed when the glass panel is shut.

• To close the shade, pull it toward the front of the vehicle.

Do not let children play with the moon roof. They may seriously hurt themselves.

Page 74

Driver controls

Trip computer

For information on the trip computer, refer to Trip computer this chapter.

Electronic compass (if equipped)

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antennas. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.

Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass calibration

adjustment.

Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone adjustment.

Electronic compass/temperature display (without trip computer) Outside air temperature

The temperature display can be turned off and on by pressing the SELECT control on the overhead console. The temperature can be displayed in Centigrade or Fahrenheit by pressing the SELECT control.

If the outside temperature falls below 3°C (38°F), the display will alternate from “ICE” to the outside temperature at a two second rate for one minute.

AUTO ROOF

CAL

Page 75

Driver controls

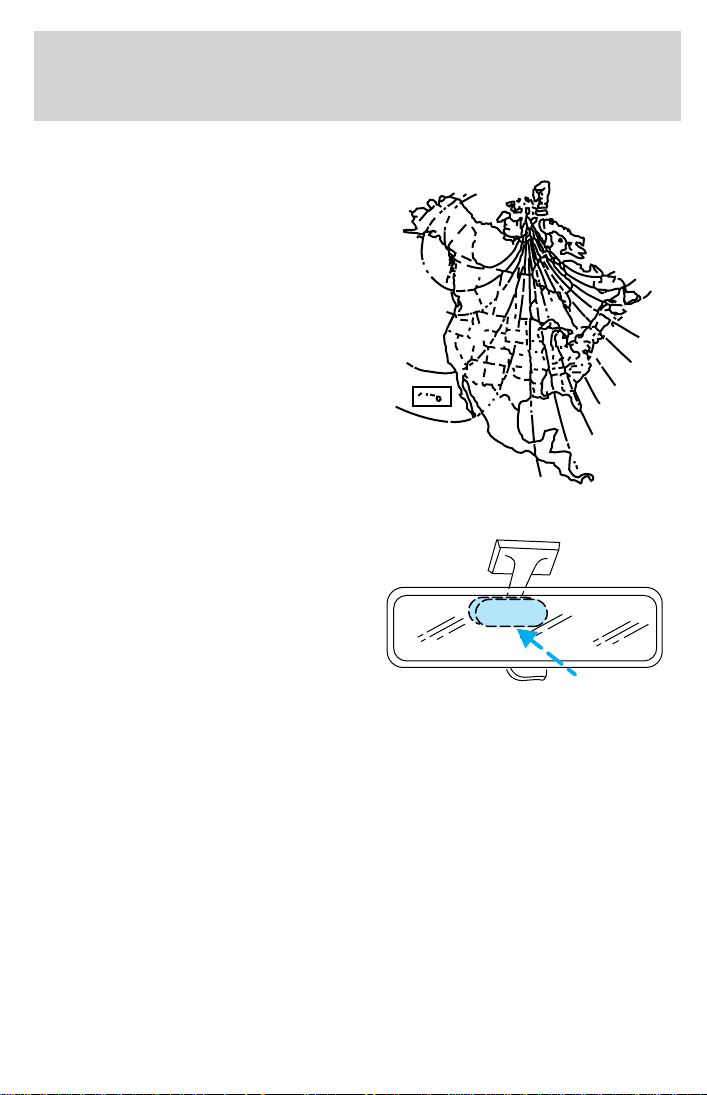

Compass zone adjustment

1. Determine which magnetic zone

you are in for your geographic location by referring to the zone map.

With trip computer

2. Locate the compass module

mounted on the center rear view mirror post.

3. Turn ignition to the ON position.

4. Press and hold the RESET button

on top of the compass module until the message display in the trip computer shows the current zone setting.

5. Release the RESET button.

6. Press the RESET button until the correct zone is displayed on the trip

computer.

Page 76

Driver controls

Without trip computer

1. Press and hold the SELECT

control until VAR appears in the display, then release. The display should show the current zone number.

2. Press the SELECT control until

the desired zone number appears. The display will flash and then return to normal operation. The zone is now updated.

Compass calibration adjustment

Perform this adjustment in an open area free from steel structures and high voltage lines.

For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.

1. Start the vehicle.

With trip computer

2. Press and hold the RESET button

on the compass module until CAL indicator is displayed in the trip computer.

3. Release pressure from the RESET

button.

4. Slowly drive the vehicle in a

circle (less than 5 km/h [3 mph]) until the CAL indicator turns off. This will take three to five circles to complete calibration.

5. The compass is now calibrated.

AUTO ROOF

CAL

Page 77

Without trip computer

1. Press and hold the SELECT

control until CAL appears in the display (approximately eight seconds) and release.

2. Drive the vehicle slowly (less

than 5 km/h [3 mph]) in circles until CAL indicator turns off in about 2–3 complete circles.

3. The compass is now calibrated.

Power quarter rear windows (if equipped)

• With out a moon roof

Driver controls

AUTO ROOF

CAL

VENT

MODE E/M

RESET

• With a moon roof

VENT

ROOF

VENT

Page 78

Driver controls

Press the portion of the VENT control to open the power rear quarter windows.

Press the portion of the VENT control to close the power rear quarter windows.

AUXILIARY POWER POINT

Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

The auxiliary power point is located on the instrument panel.

Do not plug optional electrical accessories into the cigarette lighter. Use the power point.

A second auxiliary power point is located on the lower rear side of the console. The power point is accessible from the rear seats.

Page 79

Driver controls

POWER WINDOWS

Press and hold the rocker switches to open and close windows.

• Press the top portion of the rocker switch to close.

AUTO

• Press the bottom portion of the rocker switch to open.

AUTO

One touch down

• Press AUTO completely down and release quickly. The driver’s window will open fully. Depress again to stop window operation.

One touch down can be deactivated during operation by pushing down on the top part of the driver power window control.

AUTO

Page 80

Driver controls

Window lock

The window lock feature allows only the driver to operate the power windows.

To lock out all the window controls except for the driver’s press the left side of the control. Press the right side to restore the window controls.

Accessory delay

With accessory delay, the window switches may be used for up to ten minutes after the ignition switch is turned to the OFF position or until any door is opened.

MIRRORS Automatic dimming rear view mirrors (if equipped)

Your vehicle is equipped with an inside rear view mirror with an auto-dimming function. The electronic day/night mirror will change from the normal state to the non-glare state when bright lights (glare) reach the inside rear view mirror. When the inside rear view mirror detects bright light from in front of or behind the vehicle, the inside rear view mirror will automatically adjust (darken) to minimize glare.

Do not block the sensor on the backside of the inside rear view mirror since this may impair proper system performance.

Press the control to turn the mirror OFF or AUTO.

The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse)(when the mirror is on) to ensure a bright clear view when backing up.

WINDOW LOCK

OFF AUTO

Power side view mirrors

The ignition can be in any position to adjust the power side view mirrors. To adjust your mirrors:

Page 81

Driver controls

1. Select L to adjust the left mirror

or R to adjust the right mirror.

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

4. Adjust spotter mirrors (if equipped) manually.

Heated outside mirrors (if equipped)

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

MIRRORS L R

MIRRORS

L R

Page 82

Driver controls

Signal mirrors (if equipped)

When the turn signal is activated, the outer portion of the appropriate mirror housing will blink red.

This provides an additional warning to other drivers that your vehicle is about to turn.

Fold-away mirrors

Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.

POWER ADJUSTABLE FOOT PEDALS

The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P(Park) position.

Press and hold the rocker control to adjust accelerator and brake pedal toward you or away from you.

The adjustment allows for approximately 76 mm (3 inches) of maximum travel.

PEDALS

Never adjust the accelerator and brake pedal with feet on pedals or while the vehicle is moving.

Page 83

SPEED CONTROL To turn speed control on

• Press ON.

Vehicle speed cannot be controlled until the vehicle is traveling at or above 48 km/h (30 mph).

Do not shift the gearshift lever into N (Neutral) with the speed control on.

Do not use the speed

control in heavy traffic or on roads that are winding, slippery, or unpaved.

To turn speed control off

• Press OFF or

• Turn off the vehicle ignition.

Once speed control is switched off, the previously programmed set speed will be erased.

Driver controls

OFF

To set a speed

• Press SET ACCEL. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph).

RES

SET

ACCEL

COAST

Page 84

Driver controls

If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed. This is normal.

Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.

If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RES will re-engage it.

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

To set a higher set speed

• Press and hold SET ACCEL. Release the control when the desired vehicle speed is reached or

• Press and release SET ACCEL to operate the Tap-Up function. Each press will increase the set speed by 1.6 km/h (1 mph) or

• Accelerate with your accelerator pedal. When the desired vehicle speed is reached, press and release SET ACCEL.

You can accelerate with the accelerator pedal at any time during speed control usage. Releasing the accelerator pedal will return your vehicle to the previously programmed set speed.

RES

SET

ACCEL

COAST

Page 85

To set a lower set speed

• Press and hold COAST. Release the control when the desired speed is reached or

• Press and release COAST to operate the Tap-Down function. Each press will decrease the set speed by 1.6 km/h (1 mph) or

• Depress the brake pedal. When the desired vehicle speed is reached, press SET ACCEL.

To disengage speed control

• Depress the brake pedal.

Disengaging the speed control will not erase the previously programmed set speed.

Driver controls

RES

SET

ACCEL

COAST

RES

SET

ACCEL

COAST

Page 86

Driver controls

Pressing OFF will erase the previously programmed set speed.

OFF

To return to a previously set speed

• Press RES. For RES to operate, the vehicle speed must be faster than 48 km/h (30 mph).

Indicator light

This light comes on when either the SET ACCEL or RES controls are pressed. The vehicle speed must be at or above 48 km/h (30 mph). It turns off when the speed control OFF control is pressed, the brake or clutch is applied, or the ignition is turned to the OFF position.

RES

SET

ACCEL

COAST

HOMELINKT UNIVERSAL TRANSCEIVER (IF EQUIPPED)

The HomeLinkt Universal Transceiver, located on the driver’s visor, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most current transmitters to operate garage doors, entry gates, security systems, entry door locks, and home or office lighting.

Page 87

Driver controls

When programming your HomeLinkt Universal Transceiver, to a garage door or gate be sure that people and objects are out of

the way to prevent potential harm or damage.

Do not use the HomeLinkt Universal Transceiver with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information on this matter, call toll-free: 1–800–355–3515 or on the Internet at HomeLink.jci.com.

Programming

Do not program the HomeLinkt Universal Transceiver with the vehicle parked in the garage.

1. Prepare for programming the

HomeLinkt Universal Transceiver by erasing the three factory default codes by holding down the two outside buttons until the red light begins to flash after 20 seconds. Release both buttons.

2. Hold the end of your hand-held

transmitter 5–14 cm (2–5 inches) away from the HomeLinkt Universal Transceiver surface (located on your visor) while keeping the red light in view.

3. Using both hands simultaneously

press and hold the hand-held transmitter button and the desired HomeLinkt button. Do not release the buttons until step 4 has been completed.

Some entry gates and garage door openers may require you to replace step 3 with the procedure in the “Canadian Programing” section.

4. The red light will flash slowly and then rapidly. Release both buttons

when the red light flashes rapidly.

5. Follow steps 2 through 4 to program the remaining two buttons.

Page 88

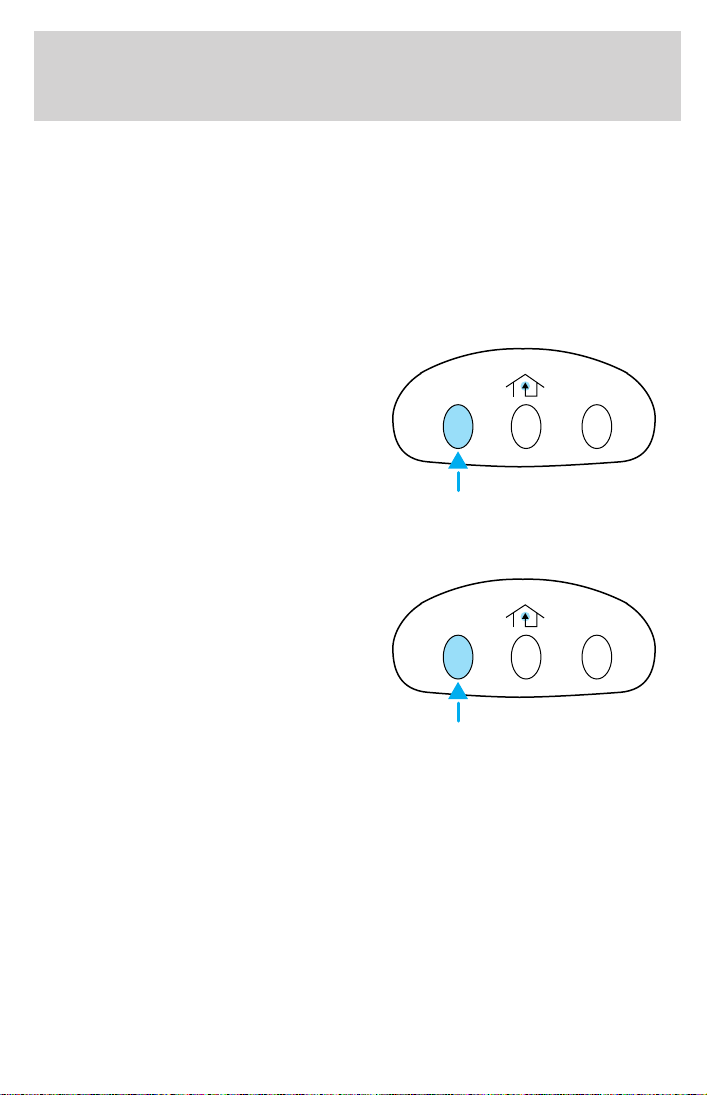

Driver controls

If you do not successfully program the HomeLinkt Universal Transceiver after repeated attempts, refer to Rolling code programing which follows, or call toll-free customer assistance: 1–800–355–3515 or on the Internet at HomeLink.jci.com.

Canadian Programming

During programming, your hand-held transmitter may automatically stop transmitting after two seconds which may not be long enough to program the HomeLinkt Universal Transceiver.

To program your hand-held transmitters:

• Continue to hold the button on the HomeLinkt Universal Transceiver.

• Press and re-press the hand-held transmitter button every two seconds until the red light changes from a slow to a fast flash.

Operating the HomeLinkT Universal Transceiver

Once programmed, the HomeLinkt Universal Transceiver can be used in place of hand-held transmitters. To operate, simply press and release the appropriate HomeLinkt button (the red light will illuminate, indicating the signal is being transmitted).

Rolling code programming

Rolling code garage door openers (or other rolling code devices) which are “code protected” and manufactured after 1996, may be determined by the following:

• Reference the device owner’s manual for verification

• The hand-held transmitter appears to program the HomeLinkt

Universal Transceiver but does not activate the device.

• Press and hold the trained HomeLinkt button. The device has the rolling code feature if the indicator light flashes rapidly and then turns solid after two seconds.

Page 89

Driver controls

After completing the “Programming” functions, follow these steps to train a garage door opener with the rolling code feature:

1. Locate the training button on the garage door motor head unit.

Refer to the garage door opener manual or call 1–800–355–3515 or on the Internet at HomeLink.jci.com. if there is difficulty locating the training button.

2. Press the training button on the garage door motor head unit (which

will activate the “training” light).

3. Press and release the

programmed HomeLinkt button. Press and release the HomeLinkt button a second time to complete the training process. (Some garage door openers may require this procedure to be done a third time to complete the training.)

The 2nd or 3rd press from step 3 will activate the door. The HomeLinkt Universal Transceiver has now been trained to the receiver. The remaining two buttons may now be programmed if this has not previously been done.

Erasing HomeLinkT buttons

Individual buttons cannot be erased, however, to erase the three programmed buttons:

1. Hold down the two outside

buttons until the red light begins to flash after 20 seconds.

2. Release both buttons.

Reprogramming a single HomeLinkTbutton

To program a device to HomeLinkt using a HomeLinkt button previously trained, follow these steps:

1. Press and hold the desired HomeLinkt button. Do NOT release until

step 4 has been completed.

Page 90

Driver controls

2. When the indicator light begins to flash slowly (after 20 seconds),

position the hand-held transmitter 5–14 cm (2 to 5 inches) away from the HomeLinkt surface.

3. Press and hold the hand-held transmitter button.

4. The HomeLinkt indicator light will flash, first slowly and then rapidly.

When the indicator light begins to flash rapidly, release both buttons. The previous device has now been erased and the new device can be

activated by pushing the HomeLinkt button that has just been programmed.

TRIP COMPUTER (IF EQUIPPED)

The trip computer tells you about the condition of your vehicle through a constant monitor of vehicle systems. You may select display features on the trip computer for a display of status.

The appearance of your vehicle’s trip computer may differ depending on your vehicle’s option package, but the functions are the same.

The trip computer only works when the ignition is in the ON position. Trip computer features follow:

Selectable features English/metric display

Press this control to change the trip computer display from metric to English units. Press again to change from English to metric units.

Page 91

Driver controls

Mode control

Each press of the MODE control will display a different feature as follows:

Fuel range. This displays the approximate number of kilometers (miles) left to drive before the fuel tank is empty. The indicated distance to empty may be inaccurate:

• with sustained, drastic changes in fuel economy (such as trailer towing), but will eventually recover.

• if the vehicle is started while parked on an incline.

• if less than 27 liters (6 gallons) of fuel is added to the fuel tank.

The fuel range function will flash for 5 seconds when you have approximately the following distance you can drive before the fuel tank is empty:

• 80 km (50 miles)

• 40 km (25 miles)

• 16 km (10 miles)

Average fuel economy. The display will indicate the vehicle’s average fuel economy in liters/100 km (or miles/gallon) since last reset.

• To reset the average fuel economy:

1. Press the MODE control

repeatedly until AVG F/ECON is displayed (no other display is resettable).

2. Press the E/M and MODE

controls simultaneously.

Compass display. Refer to Electronic compass in the Controls and features chapter for more information.

Off. In this mode the display will go blank indicating the system is off.

Page 92

Driver controls

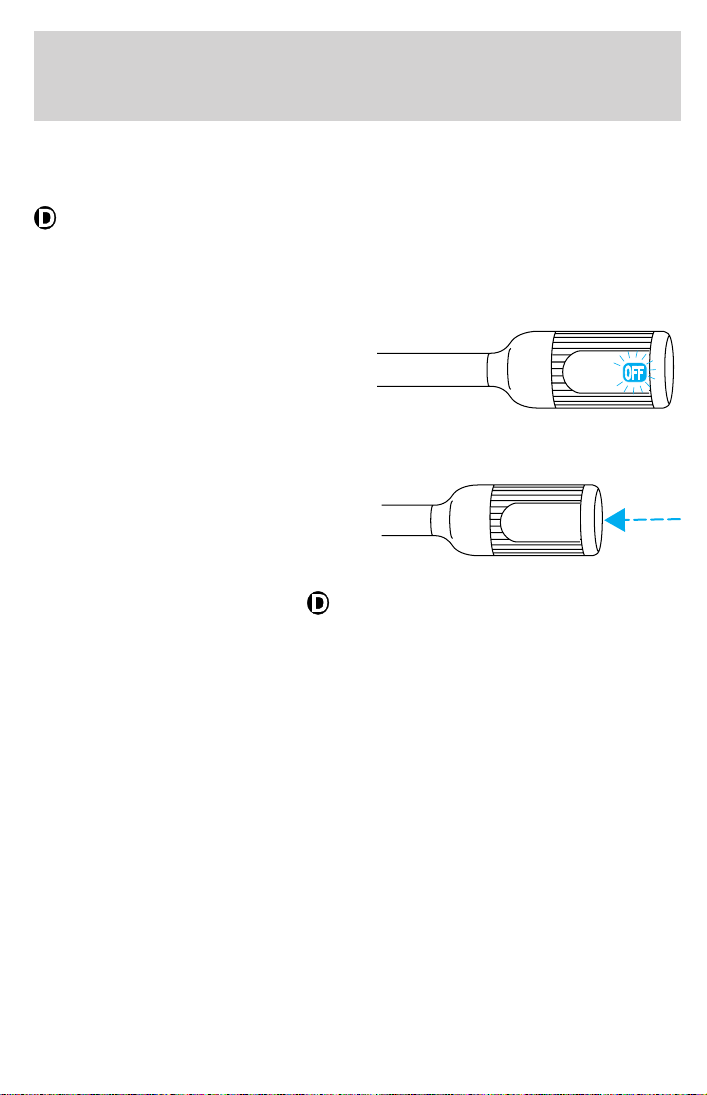

OVERDRIVE CONTROL Activating overdrive

(Overdrive) is the normal drive position for the best fuel economy.

The overdrive function allows automatic upshifts and downshifts through all available gears.

Deactivating overdrive

Press the Transmission Control Switch (TCS) located on the end of the gearshift lever. The Transmission Control Indicator Light (TCIL) (the word OFF) will illuminate on the end of the gearshift lever. The transmission will operate in all gears except overdrive.

To return to normal overdrive mode, press the Transmission Control Switch again. The TCIL (the word OFF) will no longer be illuminated.

When you shut off and re-start your vehicle, the transmission will automatically return to normal

For additional information about the gearshift lever and the transmission control switch operation refer to the Automatic Transmission Operation section of the Driving chapter.

(Overdrive) mode.

OVERDRIVE OFF

OVERDRIVE

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

• Utility compartment

• Cupholders

• Coin holder slots

• Compact disc changer (if equipped)

• Rear audio controls

• Power point

Page 93

Driver controls

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

Rear center console features (if equipped)

The rear center console incorporates the following features:

• utility compartment

• cupholders

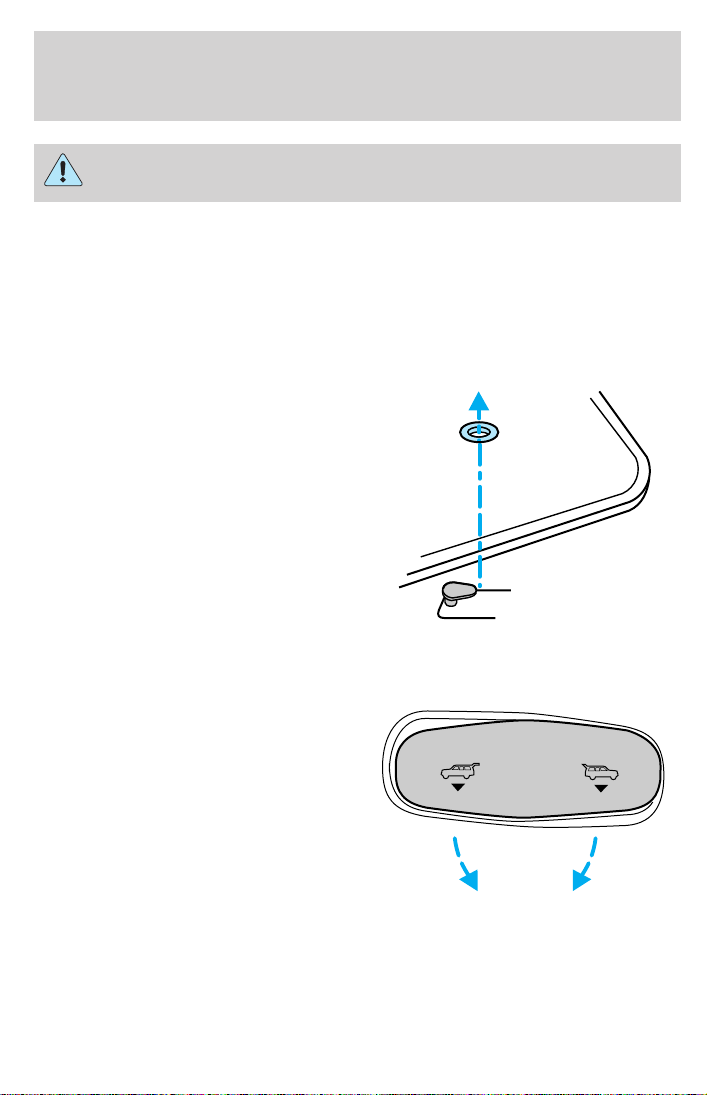

POSITIVE RETENTION FLOOR MAT (IF EQUIPPED)

Position the floor mat so that the eyelet is over the pointed end of the retention post and rotate forward to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal. To remove the floor mat, reverse the installation procedure.

LIFTGATE

To open the rear window, turn the liftgate handle to the right.

To open the liftgate, turn the liftgate handle to the left.

• Do not open the liftgate or liftgate glass in a garage or other enclosed area with a low ceiling. If the liftgate glass is raised and the liftgate is also opened, both liftgate and glass could be damaged against a low ceiling.

• Do not leave the liftgate or liftgate glass open while driving. Doing so could cause serious damage to the liftgate and its components as well as allowing carbon monoxide to enter the vehicle.

DOOR

GLASS

Page 94

Driver controls

Make sure that the liftgate door and/or window are closed to

prevent exhaust fumes from being drawn into the vehicle. This will also prevent passengers and cargo from falling out. If you must drive with the liftgate door or window open, keep the vents open so outside air comes into the vehicle.

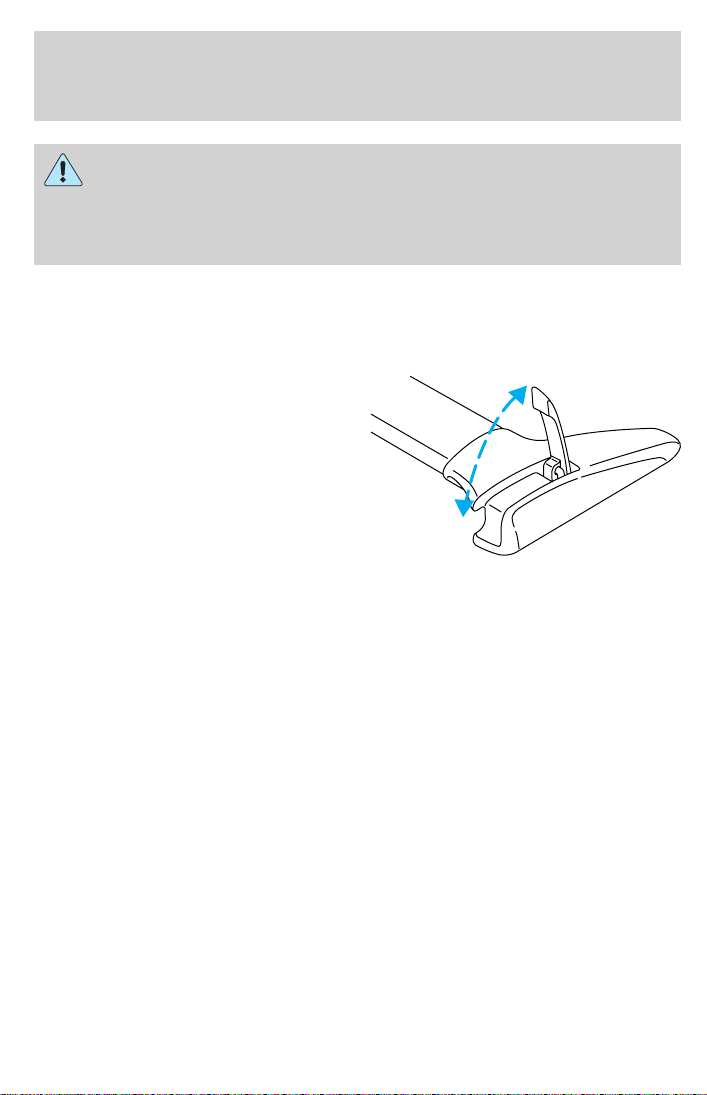

LUGGAGE RACK (IF EQUIPPED)

The rear cross-bar can be adjusted to fit the item being carried. The front cross-bar does not move.

To adjust the luggage rack, push the adjustment lever forward (toward the front of the vehicle), then slide the cross-bar forward and lock the adjusting levers by pushing them down (toward the back of the vehicle). Pull the cross-bar rearward to ensure that it is locked in place.

Load luggage at the front cross-bar and adjust the rearcross-bar as necessary.

• Do not exceed 90.7 kg (200 lb) of luggage if the weight is placed directly on the cross-bars.

• Do not exceed 68 kg (150 lb) if the weight is resting directly on the roof.

Use adjustable tie down loops to secure the load.

Page 95

Locks and security

KEYS

The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer.

You should always carry a second key with you in a safe place in case you require it in an emergency.

Refer to SecuriLocky Passive Anti-Theft System for more information.

POWER DOOR LOCKS

If the door does not unlock when the U is pressed, see Power door

disable feature in the Remote entry section in this chapter.

Press U to unlock all doors and L to lock all doors.

Childproof door locks

When these locks are set, the rear doors cannot be opened from the inside. The rear doors can be opened from the outside when the doors are unlocked.

The childproof locks are located on rear edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

Move lock control up to engage the childproof lock. Move control down to disengage childproof locks.

U L

Page 96

Locks and security

REMOTE ENTRY SYSTEM

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Your vehicle is equipped with a remote entry system which allows you to:

• unlock the vehicle doors without a key.

• lock all the vehicle doors without a key.

• activate the personal alarm.

The remote entry features only operate with the ignition in the LOCK position.

This system will disable the power door lock controls. These will not work until the vehicle is disarmed. Refer to Power door locks in the Driver Controls chapter for more information.

If there is any potential remote keyless entry problem with your vehicle, ensure ALL key fobs (remote entry transmitters) are brought to the dealership, to aid in troubleshooting.

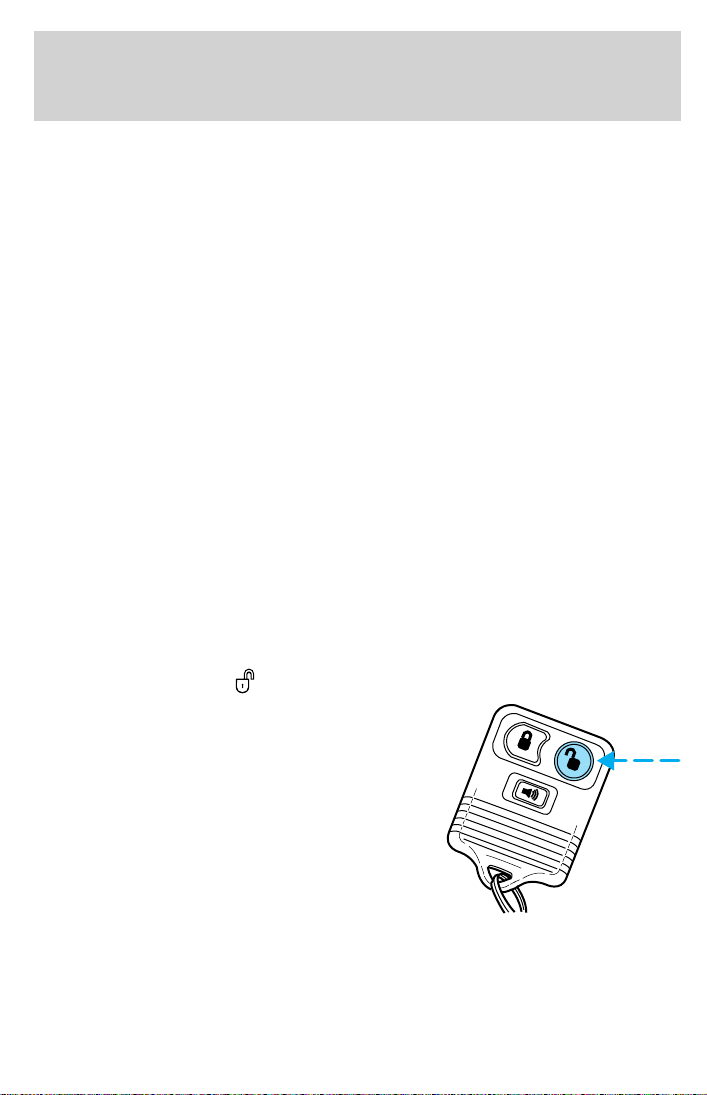

Unlocking the doors

Press this control to unlock the driver door. The interior lamps and running board lamps (if equipped) will illuminate.

The memory mirrors/seat (if equipped) will also be moved to position 1, 2 or 3 depending upon which remote entry transmitter (1, 2 or 3) is used.

Press the control a second time within three seconds to unlock all doors.

Page 97

Locks and security

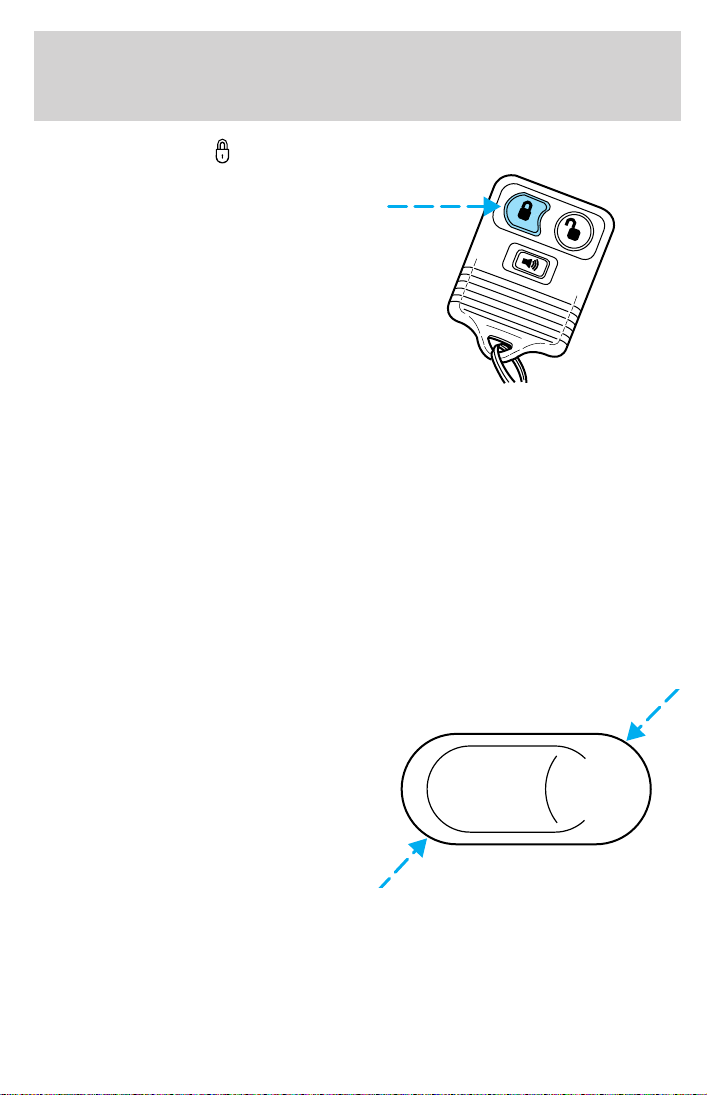

Locking the doors

Press this control to lock all doors. The doors will lock and the lamps will flash.

To confirm doors are closed and locked, press this control a second time within three seconds. The door(s) will lock again, the horn will chirp once and the lamps will flash.

If any of the doors are open or ajar, the horn will make two quick chirps, reminding you to properly close the doors.

Power door lock disable feature

This feature will help protect your vehicle from unauthorized entry. The UNLOCK function on the power door switch will not operate with

the ignition OFF and twenty seconds after the doors are closed and electronically locked by the key fob, key pad, or power door switch (if pressed while the door was open).

The UNLOCK function will operate again after you unlock the vehicle using the key fob or key pad, turn the ignition to ON, or open the door from inside of the vehicle.

Deactivating/activating power door lock disable feature

1. Turn the ignition key to ON, then

press the UNLOCK button 3 times.

2. Turn the ignition key to OFF,

then press the UNLOCK button 3 times.

3. Turn the ignition key to ON,

within five seconds press the LOCK button 2 times.

The user should receive 2 horn chirps to indicate the system has been disabled or 2 chirps followed by a honk to indicate the system has been enabled.

Pressing the power door LOCK button 2 times again will toggle the trim switch inhibit states.

Turn ignition to OFF to exit programming.

U L

Page 98

Locks and security

Sounding a panic alarm

Press this control to activate the alarm.

To deactivate the alarm, press the control again or turn the ignition to ACC or ON.

Panic alarm will only operate with the ignition in the OFF position.

Replacing the battery

The remote transmitter is powered by one coin type three-volt lithium battery CR2032 or equivalent. Typical operating range will allow you to be up to 10 meters (33 feet) away from your vehicle. A decrease in operating range can be caused by:

• weather conditions

• nearby radio towers

• structures around the vehicle

• other vehicles parked next to the vehicle

To replace the battery:

1. Twist a thin coin between the two

halves of the transmitter near the key ring. DO NOT TAKE THE FRONT PART OF THE TRANSMITTER APART.

2. Place the positive (+) side of new

battery in the same orientation. Refer to the diagram inside the transmitter unit.

3. Snap the two halves back

together. Replacement of the battery will not cause the remote transmitter to

become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

Page 99

Locks and security

Replacing lost transmitters

If a remote transmitter has been lost and you would like to remove it from the vehicle’s memory, or you would like to purchase additional remote transmitters and have them programmed to your vehicle:

• Take all your vehicle’s transmitters to your dealer for programming, or

• Perform the programming procedure yourself

Programming remote transmitters

It is necessary to have all (maximum of four — original and/or new) of your remote transmitters available prior to beginning this procedure.

To program the transmitters yourself:

• Place the key in the ignition and turn from 2 (LOCK) to 3 (OFF) and cycle between 3 (OFF) and 4(ON) eight times in rapid succession (within 10 seconds) with the eighth turn ending in the 4 (ON) position. The doors will lock/unlock to confirm that programming mode has been entered.

• Within 20 seconds, program a remote transmitter by pressing any button on a transmitter. The doors will lock/unlock to confirm that the remote transmitter has been programmed. (If more than 20 seconds pass before pressing a remote transmitter button, the programming mode will exit and the procedure will have to be repeated.)

• Repeat the previous step to program additional remote transmitters. The doors will lock/unlock to confirm that each remote transmitter has been programmed.

• When you have completed programming the remote transmitters, turn the ignition to 3 (OFF). Again the doors will lock/unlock to confirm programming has been completed.

Page 100

Locks and security

Illuminated entry

The illuminated entry system will turn on the interior lights when the remote transmitter unlock control is pressed.

The illuminated entry system will turn off the interior lights if the ignition switch is turned to the ON position, or if the remote transmitter lock control is pressed, or after 25 seconds of illumination.

The inside lights will not turn off if:

• they have been turned on with the dimmer control or

• any door is open

The battery save feature will turn off the interior lights 45 minutes after the last door is closed, even if the dimmer control is on.

Memory seat/mirrors/adjustable pedal feature (if equipped)

The memory feature allows automatic positioning of the driver seat, side mirrors and adjustable pedals to three programmable positions.

• To program position one, move the driver seat, both side mirrors, and adjustable pedals to the desired positions. Press the SET control. The SET control indicator light will briefly illuminate. While the light is illuminated, press control 1.

• To program position two, repeat the previous procedure using control

• To program position three, repeat the previous procedure but press controls 1 and 2 simultaneously.

The memory feature also allows you to recall previously stored positions with your remote transmitter(s). Up to three remote transmitters can be activated to utilize the memory recall positions.

Press the memory feature control to move to the previously stored seat/mirror/adjustable pedal positions.

Activating/deactivating the memory feature on your remote transmitter

The memory feature from the remote transmitter can be turned off/on, however, the memory control buttons will continue to operate. Before following the procedure, make sure that the ignition is OFF and all doors and the liftgate window are closed. You must complete steps 1–7 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait 30 seconds.

100

FORD Expedition 2002 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of contents

Introduction

Instrument cluster

Entertainment systems

Climate controls

Lights

Driver controls

Locks and security
