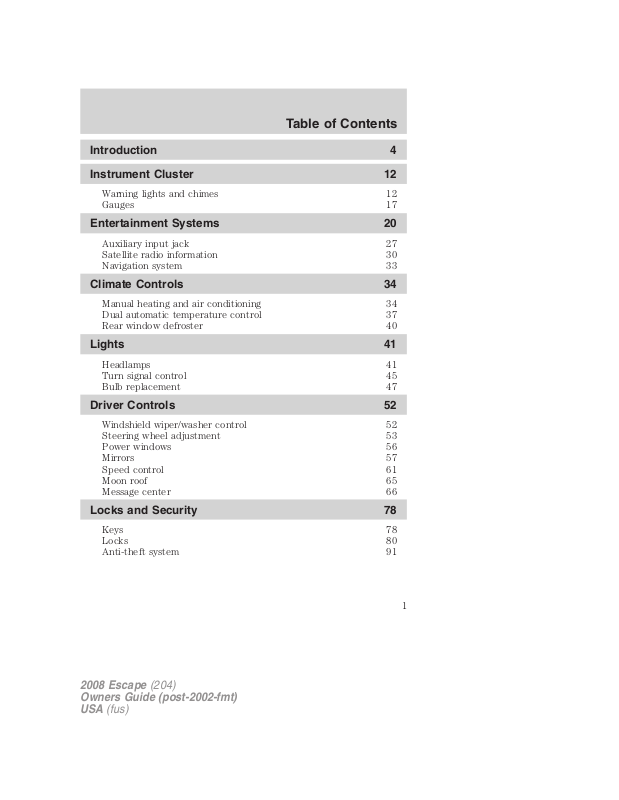

Ford Escape 2008 Owners Guide

Table of Contents

Introduction 4

Instrument Cluster 12

Warning lights and chimes 12
Gauges 17

Entertainment Systems 20

Auxiliary input jack 27
Satellite radio information 30
Navigation system 33

Climate Controls 34

Manual heating and air conditioning 34
Dual automatic temperature control 37
Rear window defroster 40

Lights 41

Headlamps 41
Turn signal control 45
Bulb replacement 47

Driver Controls 52

Windshield wiper/washer control 52
Steering wheel adjustment 53
Power windows 56
Mirrors 57
Speed control 61
Moon roof 65
Message center 66

Locks and Security 78

Keys 78
Locks 80
Anti-theft system 91

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

1

Table of Contents

Seating and Safety Restraints 95

Seating 95
Safety restraints 103
Airbags 116
Child restraints 131

Tires, Wheels and Loading 143

Tire information 146
Tire inflation 148
Tire Pressure Monitoring System (TPMS) 161
Vehicle loading 166
Trailer towing 172
Recreational towing 177

Driving 178

Starting 178
Brakes 182
Traction Control™/AdvanceTrac威 184
Transmission operation 190

Roadside Emergencies 206

Getting roadside assistance 206
Hazard flasher switch 208
Fuel pump shut-off switch 208
Fuses and relays 209
Changing tires 216
Lug nut torque 226
Jump starting 227
Wrecker towing 232

Customer Assistance 234

Reporting safety defects (U.S. only) 241
Reporting safety defects (Canada only) 241

Cleaning 242

2

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Table of Contents

Maintenance and Specifications 249

Engine compartment 251
Engine oil 255
Battery 259
Engine coolant 261
Fuel information 267
Air filter(s) 280
Part numbers 282
Maintenance product specifications and capacities 283
Engine data 286

Accessories 289

Index 291

All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.

Copyright © 2006 Ford Motor Company

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

3

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as air bag modules, seat belt
pretensioners, and button cell batteries may contain Perchlorate Material
– Special handling may apply for service or vehicle end of life disposal.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get
well acquainted with your vehicle by reading this handbook. The more
you know and understand about your vehicle, the greater the safety and
pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the
following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications.

4

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Introduction

This Owner’s Guide describes every option and model variant available
and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.

Remember to pass on this Owner’s Guide when reselling the vehicle. It
is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the
engine. The switch can also be activated through sudden vibration
(e.g. collision when parking). To reset the switch, refer to the Fuel
pump shut-off switch in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In
this guide, answers to such questions are contained in comments
highlighted by the warning triangle symbol. These comments should be
read and observed.

Warning symbols on your vehicle

When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

5

Introduction

Protecting the environment

We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.

Drive your new vehicle at least 500 miles (800 km) before towing a
trailer. For more detailed information about towing a trailer, refer to
Trailer towing in the Tires, Wheels and Loading chapter.

Do not add friction modifier compounds or special break-in oils since
these additives may prevent piston ring seating. See Engine oil in the
Maintenance and Specifications chapter for more information on oil
usage.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by
your vehicle’s New Vehicle Limited Warranty, refer to the Warranty
Guide that is provided to you along with your Owner’s Guide.

6

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic
controls.

Please read the section Airbag supplemental restraint system

(SRS) in the Seating and Safety Restraints chapter. Failure to
follow the specific warnings and instructions could result in personal
injury.

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger airbag.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access vehicle diagnostic information through a direct connection to your
vehicle when diagnosing or servicing your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of
collecting and storing data during a crash or near crash event. The
recorded information may assist in the investigation of such an event.
The modules may record information about both the vehicle and the
occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

7

Introduction

To access this information, special equipment must be directly connected
to the recording modules. Ford Motor Company and Ford of Canada do
not access event data recorder information without obtaining consent,
unless pursuant to court order or where required by law enforcement,
other government authorities or other third parties acting with lawful
authority. Other parties may seek to access the information
independently of Ford Motor Company and Ford of Canada.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than

other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully.
Your vehicle is not a passenger car. As with other vehicles of this type,
failure to operate this vehicle correctly may result in loss of vehicle
control, vehicle rollover, personal injury or death.

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Your vehicle is not equipped with a snowplowing package.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation
Package.

8

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Introduction

Cell phone use

The use of Mobile Communications Equipment has become increasingly
important in the conduct of business and personal affairs. However,
drivers must not compromise their own or others’ safety when using
such equipment. Mobile Communications can enhance personal safety
and security when appropriately used, particularly in emergency
situations. Safety must be paramount when using mobile communications
equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular
phones, pagers, portable email devices, in-vehicle communications
systems, telematics devices and portable two-way radios.

Driving while distracted can result in loss of vehicle control,

accident and injury. Ford strongly recommends that drivers use
extreme caution when using any device that may take their focus off
the road. The drivers primary responsibility is the safe operation of
their vehicle. Only use cell phones and other devices not essential to
the driving task when it is safe to do so.

Export Unique (Non United States / Canada) vehicle specific information

For your particular global region, your vehicle may be equipped with
features and options that are different from the ones that are described
in this Owner’s Guide; A market unique supplement may be supplied
that complements this book. By referring to the market unique
supplement, if provided, you can properly identify those features,
recommendations and specifications that are unique to your vehicle. This
Owner’s Guide is written primarily for the U.S. and Canadian Markets.
Features or equipment listed as standard may be different on units built
for Export. Refer to this Owner’s Guide for all other required

information and warnings.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

9

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side

Child Seat Tether
Anchor

Anti-Lock Brake System Parking Brake System

Brake Fluid ­Non-Petroleum Based

Stability Control System Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower
Anchor

Brake System

Parking Aid System

Fuel Pump Reset Windshield Wash/Wipe

Windshield
Defrost/Demist

10

Rear Window
Defrost/Demist

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Vehicle Symbol Glossary

Introduction

Power Windows
Front/Rear

Child Safety Door
Lock/Unlock

Power Window Lockout

Interior Luggage
Compartment Release

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant
Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames,
or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid
Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment
Air Filter

Check Fuel Cap

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Jack

Low Tire Pressure
Warning

11

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster

Optional instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.

12

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Instrument Cluster

Check engine: The Check Engine
indicator light illuminates when the
ignition is first turned to the RUN
position to check the bulb and to
indicate whether the vehicle is ready for Inspection/Maintenance (I/M)
testing. Normally, the ⬙Check Engine⬙ light will stay on until the engine is
cranked, then turn itself off if no malfunctions are present. However, if
after 15 seconds the ⬙Check Engine⬙ light blinks eight times, it means
that the vehicle is not ready for I/M testing. See the Readiness for

Inspection/Maintenance (I/M) testing in the Maintenance and
Specifications chapter.

Solid illumination after the engine is started indicates the On Board
Diagnostics System (OBD-II) has detected a malfunction. Refer to On
board diagnostics (OBD-II) in the Maintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap: Illuminates when
the fuel cap may not be properly
installed. Continued driving with
this light on may cause the Check
engine warning light to come on,
refer to Fuel filler cap in the
Maintenance and Specification chapter.

Brake system warning light: To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the RUN
position when the engine is not running, or in a position between RUN
and START, or by applying the parking brake when the ignition is turned
to the RUN position. If the brake system warning light does not
illuminate at this time, seek service immediately from your authorized
dealer. Illumination after releasing the parking brake indicates low brake

BRAKE

P!

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

13

Instrument Cluster

fluid level or a brake system malfunction and the brake system should be
inspected immediately by your authorized dealer.

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle
checked by your authorized dealer. Driving extended distances with
the parking brake engaged can cause brake failure and the risk of
personal injury.

Anti-lock brake system: If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.

Airbag readiness: If this light fails
to illuminate when ignition is turned
to RUN, continues to flash or
remains on, have the system
serviced immediately by your authorized dealer. A chime will also sound
when a malfunction in the supplemental restraint system has been
detected.

Safety belt: Reminds you to fasten
your safety belt. A Belt-Minder威
chime will also sound to remind you
to fasten your safety belt. Refer to
the Seating and safety restraints
chapter to activate/deactivate the Belt-Minder威 chime feature.

Charging system: Illuminates when
the battery is not charging properly.

ABS

Engine oil pressure: Illuminates
when the oil pressure falls below the
normal range, refer to Engine oil in
the Maintenance and
Specifications chapter.

14

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Instrument Cluster

Traction Control娂: Illuminates
when the Traction Control娂 is
active. If the light remains on, have
the system serviced immediately,
refer to the Driving chapter for
more information.

Low tire pressure warning:

Illuminates when your tire pressure
is low. If the light remains ON at
start up or while driving, the tire
pressure should be checked. Refer
to Inspecting and Inflating Your Tires in the Tires, Wheels and
Loading chapter. When the ignition is first turned to RUN, the light will
illuminate for 3 seconds to ensure the bulb is working. If the light does
not turn ON or begins to flash, have the system inspected by your
authorized dealer. For more information on this system, refer to

Understanding Your Tire Pressure Monitoring System in the Tires,
Wheels and Loading chapter.

Low fuel: Illuminates when the fuel
level in the fuel tank is at or near
empty (refer to Fuel gauge in this
chapter).

Speed control: Illuminates when
the speed control is engaged. Turns
off when the speed control system
is disengaged.

O/D off: Illuminates when the
overdrive function of the
transmission has been turned OFF.
Refer to the Driving chapter for
transmission function and operation. If the light flashes steadily, have the
transmission serviced immediately or damage to the transmission could
occur.

Anti-theft system: Flashes when
the SecuriLock娂 Passive Anti-theft
System has been activated.

O/D

OFF

15

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Instrument Cluster

Throttle control/Powertrain:

Illuminates when a powertrain fault
has been detected. Contact your
authorized dealer as soon as
possible.

Door ajar: Illuminates when the
ignition is in the RUN position and
any door is open.

Turn signal: Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.

High beams: Illuminates when the
high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver’s door
is opened.

Headlamps on warning chime: Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.

Parking brake ON chime: Sounds when the parking brake is left ON
and the vehicle is driven. If the warning stays on after the park brake is
off, contact your authorized dealer as soon as possible.

Message center activation chime (if equipped): Sounds when a
warning message (except PARKING BRAKE ENGAGED while parked)
appears in the message center display for the first time.

16

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

GAUGES

Standard instrument cluster gauges

Optional instrument cluster gauges

Instrument Cluster

Speedometer: Indicates the
current vehicle speed.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

17

Instrument Cluster

Engine coolant temperature
gauge: Indicates engine coolant

temperature. At normal operating
temperature, the needle will be in
the normal range (between “H” and
“C”). If it enters the red section,

the engine is overheating. Stop
the vehicle as soon as safely
possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is

running or hot.

Fuel gauge: Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the ON position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.

The FUEL icon and arrow indicates
which side of the vehicle the fuel
filler door is located.

Refer to Filling the tank in the Maintenance and Specifications
chapter for more information.

Tachometer: Indicates the engine
speed in revolutions per minute.
Driving with your tachometer
pointer continuously at the top of
the scale may damage the engine.

Odometer: Registers the total miles
(kilometers) of the vehicle.

If equipped with a message center,
refer to Message Center in the
Driver Controls chapter on how to
switch the display from Metric to English.

18

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Instrument Cluster

Trip odometer: Registers the miles (kilometers) of individual journeys.

• Standard instrument cluster:

Press the SELECT/RESET control
once to switch from the odometer to
the TRIP A feature. Press the
control again to select the TRIP B
feature. To reset the trip, press and
hold the control again until the trip reading is 0.0 miles.

• Optional instrument cluster:

Press and release the message
center INFO button until TRIP A
mode appears in the display. Press
the control again to select the TRIP
B feature. Press and hold the
RESET button to reset.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

19

Entertainment Systems

AUDIO SYSTEMS

AM/FM/single CD/in-dash CD6/MP3 satellite compatible sound system

Accessory delay: Your vehicle is equipped with accessory delay. With
this feature, the window switches, radio and moon roof (if equipped)
may be used for up to ten minutes after the ignition is turned off or until
either front door is opened.

Note: Your vehicle is equipped with
a unique audio system. If your
display shows six small circles in the
display, your audio system is a CD6
system. If not, your system is a
Single CD system.

1. EJECT: For a single CD
system, press EJECT to eject the
CD.
For a CD6 system, press EJECT and select the desired CD slot by
pressing the corresponding memory preset #. The display will read
EJECTING #. When the system has ejected the CD, the display will read

20

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

REMOVE CD #. Remove the CD. If you do not remove the CD the
system will reload the disc.
To auto eject all loaded discs, press and hold EJECT. The system will
eject all discs and prompt you when to remove them.

2. MEMORY PRESETS:In radio
mode, to set a station, select the
desired frequency band, AM, FM1 or
FM2. Tune to the desired station.
Press and hold a preset button until
sound returns and PRESET # SAVED appears in the display. You can
save up to 30 stations, 10 in AM, 10 in FM1 and FM2.

In CD/MP3 mode, press to select tracks or desired folders.
In satellite radio mode (if equipped), there are 30 available presets,

10 each for SAT1, SAT2 and SAT3. To save satellite channels in your
memory presets, tune to the desired channel then press and hold a
preset control until sound returns.

Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.

3. CLOCK: To set the time, press
CLOCK. The display will read SET
TIME. Use the memory preset #s to
enter in the desired time, hours and minutes. The clock will then begin
from that time.

4. SOUND: Press repeatedly to
cycle through the following features:

BASS: Press SOUND repeatedly to reach the bass setting. Press

SEEK/TRACK to adjust the level of bass.

TREBLE: Press SOUND repeatedly to reach the treble setting. Press

SEEK/TRACK to adjust the level of treble.

BALANCE: Press SOUND repeatedly to reach the balance setting.
Press
right (R) speakers.

FADE: Press SOUND repeatedly to reach the bass setting. Press

front (F) speakers.

SEEK/TRACK to adjust the audio between the left (L) and

SEEK/TRACK to adjust the audio between the back (B) and

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

21

Entertainment Systems

SPEED COMPENSATED VOLUME (if equipped): Press SOUND
repeatedly to reach the SPEED COMPENSATED VOLUME setting. Radio
volume automatically gets louder with increasing vehicle speed to

compensate for road and wind noise. Use
adjust.

The default setting is off; increasing your vehicle speed will not change
the volume level.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest
setting) allows the radio volume to automatically change slightly with
vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; SPEED OFF turns the feature off and level 7
is the maximum setting.

ALL SEATS (Occupancy mode, if equipped): Press SOUND
repeatedly to reach the Occupancy mode setting. Press

SEEK/TRACK to select and optimize sound for ALL SEATS,

DRIVERS SEAT or REAR SEATS.

5. TUNE: In radio mode, turn
right / left to go up / down the
frequency band in individual
increments.

In satellite radio mode
(if equipped), turn right / left to

go to the next / previous available
SIRIUS satellite station.

6. MENU: Press repeatedly to
access the following features:

SEEK/TRACK to

AUTO PRESET ON/OFF: Press
between ON/OFF. Autoset allows you to set the strongest local radio

stations without losing your original manually set preset stations for
AM/FM1/FM2. To activate the autoset feature, toggle AUTOSET to ON,
and either wait five seconds for the search to initiate or press OK to
immediately initiate the search. (If you press another control within
those five seconds, the search will not initiate. ) The 10 strongest
stations will be filled and the station stored in preset 1 will begin playing.
If there are less than 10 strong stations, the system will store the last
one in the remaining presets.

22

SEEK/TRACK to toggle

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

RDS ON/OFF: Available only in FM mode. This feature allows you to
search RDS-equipped stations for a certain category of music format:
CLASSIC, COUNTRY, JAZZ/RB, ROCK, etc.
To activate, press MENU repeatedly until RDS (ON/OFF) appears in

the display. Use
RDS is OFF, you will not be able to search for RDS equipped stations or

view the station name or type.

To change categories: Press MENU until RDS ON appears in the
display. Press CAT. Press

the display. Then press
playing that category of music or SCAN for a brief sampling of all

stations playing that category of music.

COMPRESSION: Available only in CD/MP3 mode. Press MENU until
COMPRESSION ON/OFF appears in the display. Use

SEEK/TRACK to toggle ON/OFF. When COMPRESSION is ON,

the system will bring the soft and loud CD passages together for a more
consistent listening level.

7. TEXT: In MP3 mode, press
TEXT repeatedly to view Album
(AL), Folder (FL), Song (SO) and
Artist (AR) in the display, if available.

In satellite radio mode (if equipped), press and release to display
the artist and song title. While in TEXT MODE, press again to scroll
through the Artist (AR), Song (SO), Channel (CH) and Category (CA).

In TEXT MODE, sometimes the display requires additional text to be
displayed. When the</>indicatorisactive,press TEXT and then

press

8. AUX: Press AUX to access LINE
(auxiliary audio mode).
For location and further information
on auxiliary audio mode, refer to Auxiliary input jack later in this
chapter.

9. SAT (Satellite Radio, if equipped): Press SAT to access satellite
radio mode, if equipped. Press repeatedly to cycle through SAT1, SAT2
and SAT3 modes.

SEEK/TRACK to view the additional display text.

SEEK/TRACK to toggle RDS ON/OFF. When

/ until the desired category appears in

SEEK/TRACK to find the next station

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

23

Entertainment Systems

10. CD: Press to enter CD/MP3
mode. If a disc is already loaded
into the system, CD/MP3 play will
begin where it ended last. If no CD is loaded, NO DISC will appear in the
display.

11. AM/FM: Press repeatedly to
select AM/FM1/FM2 frequency band.

12. SEEK/TRACK: In radio mode,
press
access the previous/next strong

radio station.
In CD/MP3 mode, press

previous/next track.

In satellite radio mode (if equipped), press
seek to the previous/next channel. If a specific category is selected,
(Jazz, Rock, News, etc.), press
previous/next channel in the selected category. Press and hold

SEEK/TRACK to

SEEK/TRACK to access the

SEEK/TRACK to

SEEK/TRACK to seek to the

SEEK/TRACK to fast seek through the previous/next channels.

In Category mode, press

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.

13. CAT (Category) / FOLD
(Folder):
In Category mode, use to select

from various music categories. To change RDS categories, ensure that
RDS is ON in the Menu listing. Press MENU again until RDS ON appears
in the display. Press CAT. PRESS UP OR DOWN TO CHANGE RDS

CATEGORY will appear in the display. Press
scroll through all possible categories. When the desired category appears
in the display, press
playing that selection or press SCAN for a brief sampling of all stations

playing that category of music.

In MP3 mode, press FOLD and then press
previous/next folder.

24

SEEK/TRACK to select a category.

SEEK/TRACK to

SEEK/TRACK to find the next station

/ to access the

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

In satellite radio mode (if equipped), use to select from various
satellite radio categories. To change categories in satellite radio mode,
press CAT/FOLD. The active category will appear in the display.

Press
through the available categories. Press and hold SCAN for a brief

sampling of all channels in that category or press SEEK to seek to the
next channel in that category.

14. ON/OFF/VOL (Volume): Press
to turn ON/OFF. Turn to
increase/decrease volume.

Note: If the volume is set above a
certain level and the ignition is
turned off, the volume will come
back on at a “nominal” listening
level when the ignition switch is
turned back on.

15. SHUFFLE:
In CD and MP3 mode,press
SHUFFLE to engage shuffle mode.
SHUFFLE ON will appear in the display. If you wish to engage shuffle

mode right away, press
Otherwise, random play will begin when the current track is finished

playing. SHUFFLE and the track # will appear in the display.
To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the
display.

For a single CD system, the system will shuffle within the current
disc.

For a CDX6 system, the system will shuffle between all loaded discs.
The disc # will appear in the top left hand corner of the display.

16. SCAN: In radio mode, press
for a brief sampling of all strong
radio stations.
In CD/MP3 mode, press for a brief sampling of all tracks on the current
disc or folder.

In satellite radio mode (if equipped), press SCAN for a brief
sampling of all available SIRIUS satellite channels. If a specific category
is selected, (Jazz, Rock, News, etc.) press SCAN for a brief sampling of
all available SIRIUS satellite channels within the selected Category.

SEEK/TRACK or turn the TUNE knob left/right to scroll

SEEK/TRACK to begin random play.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

25

Entertainment Systems

17. DIRECT: Press to access a
desired radio station, track, MP3
folder or SIRIUS satellite channel (if
equipped).
In radio mode, press DIRECT and then press the desired radio
frequency (i.e. 101.1) using the memory presets.
In CD mode, press DIRECT. The display will read DIRECT TRACK
MODE SELECT TRACK. Enter the desired track number using the
numbered controls. The system will then begin playing that track.
In MP3 folder mode, press DIRECT and the number of the desired
folder. The system will advance to that specific folder.
In satellite radio mode (if equipped), press DIRECT then enter the
desired channel (i.e. 002) using the memory presets. If you only enter
one digit, press OK and the system will go to that satellite channel. If
you enter three digits, the system will automatically go to that channel, if
available. You may cancel your entry by pressing DIRECT. If an invalid
station number is entered, INVALID CHANNEL will appear in the display
and the system will continue playing the current station.

18. LOAD: For a single CD
system, this control is not
operational. To load a CD, simply
insert the disc label side up into the CD slot.
For a CD6 system, press LOAD. When the display reads SELECT
SLOT, choose the desired slot number using memory presets 1–6. When
the display reads LOAD CD#, load the desired disc, label side up. If you
do not choose a slot within 5 seconds, the system will choose for you.
Once loaded, the first track will begin to play.
To auto load up to 6 discs, press and hold LOAD until the display
reads AUTOLOAD#. Load the desired disc, label side up. The system will
prompt you to load discs for the remaining available slots. Insert the
discs, one at a time, label side up, when prompted. Once loaded, the disc
in preset #1 will begin to play.

19. CD slot: For a single CD
system, insert a CD/MP3, label side
up.
For a CD6 system, press LOAD and select a CD slot using the memory
presets. When prompted by the system, insert a CD/MP3 label side up.

26

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

Auxiliary input jack

Your vehicle is equipped with an
Auxiliary Input Jack (AIJ). The
Auxiliary Input Jack provides a way
to connect your portable music
player to the in-vehicle audio
system. This allows the audio from a
portable music player to be played
through the vehicle speakers with
high fidelity. To achieve optimal
performance, please observe the
following instructions when
attaching your portable music
device to the audio system.

Required equipment:

1. Any portable music player designed to be used with headphones

2. An audio extension cable with stereo male 1/8 in. (3.5 mm)
connectors at each end

To play your portable music player using the auxiliary input jack:

1. Begin with the vehicle parked and the radio turned off.

2. Ensure that the battery in your portable music player is new or fully
charged and that the device is turned off.

3. Attach one end of the audio extension cable to the headphone output
of your player and the other end of the audio extension cable to the AIJ
in your vehicle.

4. Turn the radio on, using either a tuned FM station or a CD loaded into
the system. Adjust the volume to a comfortable listening level.

5. Turn the portable music player on and adjust the volume to 1/2 the
volume.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

27

Entertainment Systems

6. Press AUX on the vehicle radio repeatedly until LINE IN appears in
the display.
You should hear audio from your portable music player although it may
be low.

7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls.

Troubleshooting:

1. Do not connect the audio input jack to a line level output. Line level
outputs are intended for connection to a home stereo and are not
compatible with the AIJ. The AIJ will only work correctly with devices
that have a headphone output with a volume control.

2. Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio in your audio
system as this will cause distortion and will reduce sound quality. Many
portable music players have different output levels, so not all players
should be set at the same levels. Some players will sound best at full
volume and others will need to be set at a lower volume.

3. If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace or
recharge the batteries in the portable music player.

4. The portable music player must be controlled in the same way manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.

5. For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle is
in motion. The audio extension cable must be long enough to allow the
portable music player to be safely stored while the vehicle is in motion.

GENERAL AUDIO INFORMATION

Radio frequencies:

AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:

AM: 530, 540–1700, 1710 kHz
FM: 87.7, 87.9–107.7, 107.9 MHz

28

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

Radio reception factors:

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.

CD/CD player care

Do:

• Handle discs by their edges only.
(Never touch the playing
surface).

• Inspect discs before playing.

• Clean only with an approved CD

cleaner.

• Wipe discs from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods
of time.

• Clean using a circular motion.

CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical
incompatibility, certain recordable and re-recordable compact
discs may not function correctly when used in Ford CD players.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

29

Entertainment Systems

Do not use any irregular shaped
CDs or discs with a scratch
protection film attached.

CDs with homemade paper
(adhesive) labels should not be
inserted into the CD player as
the label may peel and cause the
CD to become jammed. It is
recommended that homemade
CDs be identified with
permanent felt tip marker rather
than adhesive labels. Ballpoint pens may damage CDs. Please
contact your authorized dealer for further information.

Audio system warranty and service

Refer to the Warranty Guide for audio system warranty information. If
service is necessary, see your dealer or qualified technician.

Satellite radio information (if equipped)

Satellite radio channels: SIRIUS broadcasts a variety of music, news,
sports, weather, traffic and entertainment satellite radio channels. For
more information and a complete list of SIRIUS satellite radio channels,
visit www.sirius.com in the United States, www.sirius-canada.ca in
Canada, or call SIRIUS at 1–888–539–7474.

Satellite radio reception factors: To receive the satellite signal, your
vehicle has been equipped with a satellite radio antenna located on the
roof of your vehicle. The vehicle roof provides the best location for an
unobstructed, open view of the sky, a requirement of a satellite radio
system. Like AM/FM, there are several factors that can affect satellite
radio reception performance:

• Antenna obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.

30

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

• Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is
a satellite radio signal interference. Your radio display may display NO
SIGNAL to indicate the interference.

SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription
based satellite radio service that broadcasts music, sports, news and
entertainment programming. A service fee is required in order to receive
SIRIUS service. Vehicles that are equipped with a factory installed
SIRIUS Satellite Radio system include:

• Hardware and limited subscription term, which begins on the date of
sale or lease of the vehicle.

• Online media player providing access to all 65 SIRIUS music channels
over the internet (U.S. customers only).

For information on extended subscription terms, contact SIRIUS at
1–888–539–7474.

Note: SIRIUS reserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you.
Ford Motor Company shall not be responsible for any such programming
changes.

Satellite Radio Electronic Serial Number (ESN): This 12–digit
Satellite Serial Number is needed to activate, modify or track your
satellite radio account. You will need this number when communicating
with SIRIUS. While in Satellite Radio mode, you can view this number on
the radio display by pressing AUX and Preset 1 control simultaneously.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

31

Entertainment Systems

Radio Display Condition Action Required

ACQUIRING Radio requires more

than two seconds to

produce audio for the

selected channel.

SAT FAULT Internal module or

system failure present.

INVALID CHNL Channel no longer

available.

UNSUBSCRIBED Subscription not

available for this

channel.

NO TEXT Artist information not

available.

NO TEXT Song title information

not available.

No action required. This

message should

disappear shortly.

If this message does not

clear within a short

period of time, or with an

ignition key cycle, your

receiver may have a

fault. See your

authorized dealer for

service.

This previously available

channel is no longer

available. Tune to

another channel. If the
channel was one of your
presets, you may choose
another channel for that

preset button.

Contact SIRIUS at

1–888–539–7474 to

subscribe to the channel

or tune to another

channel.

Artist information not

available at this time on

this channel. The system

is working properly.

Song title information not

available at this time on

this channel. The system

is working properly.

32

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

Radio Display Condition Action Required

NO TEXT Category information

not available.

NO SIGNAL Loss of signal from the

SIRIUS satellite or

SIRIUS tower to the

vehicle antenna.

UPDATING Update of channel

programming in

progress.

CALL SIRIUS
1–888–539–7474

Satellite service has
been deactivated by

SIRIUS Satellite Radio.

Category information not

available at this time on

this channel. The system

is working properly.

You are in a location that

is blocking the SIRIUS

signal (i.e., tunnel, under

an overpass, dense

foliage, etc). The system

is working properly.

When you move into an

open area, the signal

should return.

No action required. The

process may take up to

three minutes.

Call SIRIUS at

1–888–539–7474 to

re-activate or resolve

subscription issues.

NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a Navigation System. Refer to the
Navigation supplement for further information.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

33

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

Fan speed adjustment: Controls the volume of air circulated in

1.
the vehicle.

R

2.
defroster. Refer to Rear window defroster later in this chapter for more
information.

3.
vents and demister vents. Can be used to clear the windshield of fog and
thin ice. The system will automatically provide outside air to reduce
window fogging. Press this button again to return to the previous air flow
selection.

4.
vents, floor vents and rear seat floor vents. The system will automatically
provide outside air to reduce window fogging.

5.
When the system is off, outside air is shut out.

6.

7. : Distributes air through the instrument panel vents, demister
vents, floor vents and rear seat floor vents.

8.
seat floor vents.

Rear defroster: Press to activate/deactivate the rear window

Defrost: Distributes outside air through the windshield defroster

: Distributes air through the windshield defroster vents, demister

Power: Press to activate/deactivate the climate control system.

: Distributes air through the instrument panel vents.

: Distributes air through the demister vents, floor vents and rear

34

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Climate Controls

9. Temperature control: Controls the temperature of the airflow in the
vehicle.

10.
activate/deactivate the passenger heated seat. See Heated seats in the
Seating and Safety Restraints chapter.

11.
recirculation in the vehicle. Recirculated air may reduce the amount of
time needed to cool down the interior of the vehicle and may also help
reduce undesired odors from reaching the interior of the vehicle.
Recirculated air engages automatically when MAX A/C is selected or can
be engaged manually in any airflow mode except
Recirculated air may turn off automatically in all airflow modes except
MAX A/C. When the ignition switch is turned off and back on, the
climate system will return to the recirculated air mode only if the A/C
button LED is illuminated and the air distribution selection is either

(panel) or (panel/floor).

12. MAX A/C: Distributes recirculated air through the instrument panel
vents to cool the vehicle. This re-cooling of the interior air is more
economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle. Press the MAX A/C button
again for normal A/C operation.

13. A/C: Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. Engages

automatically in MAX A/C,

Passenger heated seat control (if equipped): Press to

Recirculated air: Press to activate/deactivate air

(defrost).

(defrost) and (floor/defrost).

14. Driver heated seat control (if equipped): Press to
activate/deactivate the driver heated seat. See Heated seats in the
Seating and Safety Restraints chapter.

Outside temperature (if equipped): The outside temperature will
appear in the display and is labeled EXT TEMP.

Operating tips

• To reduce fog build up on the windshield during humid weather,
select

• To reduce humidity build up inside the vehicle, do not drive with the
system off or with

• Do not put objects under the front seats that will interfere with the
airflow to the back seats.

(defrost) or (floor/defrost).

(recirculated air) engaged and A/C off.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

35

Climate Controls

• Remove any snow, ice or leaves from the air intake area at the base of
the windshield.

• To improve the A/C cool down, drive with the windows slightly open
for 2-3 minutes after start up or until the vehicle has been “aired out.”

For maximum cooling performance in MAX A/C mode:

1. Select MAX A/C.

2. Move temperature control selector to the coolest setting.

3. Set the fan to the highest speed initially, then adjust to maintain

comfort.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.

.

Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.

36

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Climate Controls

DUAL AUTOMATIC TEMPERATURE CONTROL (IF EQUIPPED)

1. AUTO/Driver temperature: Press to engage full automatic

operation. The system will automatically determine fan speed, airflow
distribution, A/C on or off, and outside or recirculated air, to heat or cool
the vehicle to reach the desired temperature. Turn to increase/decrease
the temperature on the driver side of the vehicle. The control also
adjusts the passenger side temperature when PASS TEMP is disengaged.
The recommended initial setting is between 72°F (22°C) and 75°F
(24°C), then adjust for comfort. The driver side temperature setting will
appear in the upper left corner of the display.

R

2.

defroster. Refer to Rear window defroster later in this chapter for more
information.

3.

vents and demister vents. Can be used to clear the windshield of fog and
thin ice. The system will automatically provide outside air to reduce
window fogging. Press this button again to return to the previous air flow
selection.

4.

vents, floor vents and rear seat floor vents. The system will automatically
provide outside air to reduce window fogging.

Rear defroster: Press to activate/deactivate the rear window

Defrost: Distributes outside air through the windshield defroster

: Distributes air through the windshield defroster vents, demister

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

37

Climate Controls

5. Power/ : Press to activate/deactivate the climate control

system. When the system is off, outside air is shut out. Turn to manually
increase/decrease the fan speed. The manual fan speed setting will
appear on the left side of the display. To return to automatic fan
operation, press AUTO.

: Distributes air through the instrument panel vents.

6.

7.

vents, floor vents and rear seat floor vents.

8.

seat floor vents.

9. Passenger temperature: Press to engage/disengage separate

passenger side temperature control. Turn to increase/decrease the
temperature on the passenger side of the vehicle. The recommended
initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for
comfort. The passenger side temperature setting will appear in the upper
right corner of the display.

10.

activate/deactivate the passenger heated seat. See Heated seats in the
Seating and Safety Restraints chapter.

11.

recirculation in the vehicle. Recirculated air may reduce the amount of
time needed to cool down the interior of the vehicle and may also help
reduce undesired odors from reaching the interior of the vehicle.
Recirculated air engages automatically when MAX A/C is selected or can
be engaged manually in any airflow mode except
Recirculated air may turn off automatically in some airflow modes to
reduce fog potential. When the ignition switch is turned off and back on,
the climate system will return to the recirculated air mode only if the
A/C button LED is illuminated and the air distribution selection is either

AUTO,

12. MAX A/C: Distributes recirculated air through the instrument panel

vents to cool the vehicle. This re-cooling of the interior air is more
economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle. Press the MAX A/C button
again for normal A/C operation.

: Distributes air through the instrument panel vents, demister

: Distributes air through the demister vents, floor vents and rear

Passenger heated seat control (if equipped): Press to

Recirculated air: Press to activate/deactivate air

(defrost).

(panel) or (panel/floor).

38

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Climate Controls

13.

A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages
automatically in AUTO, MAX A/C,

14. Driver heated seat control (if equipped): Press to

activate/adjective the driver heated seat. See Heated seats in the
Seating and Safety Restraints chapter.

Outside temperature: The outside temperature will appear in the
display and is labeled EXT TEMP.

Temperature conversion: To switch between Fahrenheit and Celsius: If
your vehicle is equipped with a message center, refer to Setup menu in
the Message center section of the Driver Controls chapter.

Operating tips

• To reduce fog build up on the windshield during humid weather,
select

• To reduce humidity build up inside the vehicle, do not drive with the
system OFF or with

• Do not put objects under the front seats that will interfere with the
airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of
the windshield.

• To improve the A/C cool down, drive with the windows slightly open
for 2-3 minutes after start up or until the vehicle has been “aired out.”

For maximum cooling performance:

• Automatic operation:

1. Press AUTO for full automatic operation.

2. Do not override A/C or

3. Set the temperature to 60°F (16°C).

• Manual operation:

1. Select MAX A/C.

2. Select

(defrost) or (floor/defrost).

(recirculated air) engaged and A/C off.

or .

(defrost) and (floor/defrost).

(recirculated air).

3. Select

4. Set the temperature to 60°F (16°C).

5. Set highest fan setting initially, then adjust to maintain comfort.

(recirculated air) to provide colder airflow.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

39

Climate Controls

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.

.

Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.

REAR WINDOW DEFROSTER

The rear defroster control is located on the climate control panel and
works to clear the rear window of fog and thin ice.

The engine must be running to operate the rear window defroster.

R

Press
the button will illuminate when active. The rear window defroster turns
off automatically after a predetermined amount of time, if a low battery
condition is detected or when the ignition is turned to the 1 (LOCK) or
2 (ACC) position. To manually turn off the rear window defroster at any
time, press the control again.

If your vehicle is equipped with both rear defroster and heated mirrors,
the same button will activate both. Refer to Heated outside mirrors in
the Driver Controls chapter.

Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside or the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.

to turn the rear window defroster on. An indicator light on

R

40

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

HEADLAMP CONTROL

Rotate the headlamp control to the
first position
parking lamps. Rotate to the second
position
headlamps.

Autolamp control (if equipped)

The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.

The autolamp system is factory
programmed to keep the lights on
for 20 seconds after the ignition
switch is turned to off. This delay
can be programmed, using the
procedure listed below, to any value
up to 180 seconds. If equipped, this
delay can also be programmed through the message center

• To turn autolamps on, rotate the control counterclockwise.

• To turn autolamps off, rotate the control clockwise to OFF.

Note: If the vehicle is equipped with autolamps it will have the

headlamps on with windshield wipers feature. If the windshield
wipers are turned on (for a fixed period of time) the exterior lamps will
turn on with headlamp control in the Autolamp position.

to turn on the

to turn on the

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

41

Lights

Autolamp delay system (if equipped)

If your vehicle is equipped with autolamps, you can set the delay time to
keep the headlights on for up to three minutes after the key is turned
OFF. The delay time is set to 20 seconds at the factory, but the delay
time may be changed by following the steps below (Steps 1 through 6
must be done within 10 seconds):

1. Turn the key to the 1 (LOCK)

position.

2. Rotate the headlamp control to

the autolamp position.

3. Rotate the headlamp control to

the OFF position.

4. Turn the key to the 3 (RUN)

position.

5. Turn the key back to the 1

(LOCK) position.

6. Turn the headlamp control to the autolamp position (the headlights

should turn on).

7. Turn the headlamp control to the OFF position when the desired

delay time (up to 3 minutes) has been reached.

Foglamp control (if equipped)

The headlamp control also operates
the foglamps. The foglamps can be
turned on when the headlamp

control is in the
positions and the high beams are

not turned on.
Pull headlamp control towards you

to turn foglamps on. The foglamp
indicator light

, or

will illuminate.

42

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

High beams

Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.

Flash to pass

Pull toward you slightly to activate
and release to deactivate.

Daytime running lamps (DRL) (if equipped)

Turns the lowbeam headlamps on with a reduced output.

To activate:

• the ignition must be in the 3 (RUN) position.

• the headlamp control must be in the OFF, parking lamps or autolamp

position.

• with automatic transmission, the transmission is not in P (Park),

• with manual transmission, the parking brake must be released.

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Lamp (DRL) system
does not activate the tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

43

Lights

PANEL DIMMER CONTROL

Use to adjust the brightness of the
instrument panel and all applicable
switches in the vehicle during
headlamp and parklamp operation.

Move the control to the full upright
position, past detent, to turn on the
interior lamps.

Rotate to full down position (past
detent) to prevent interior lamps
from illuminating when the doors
are opened.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident the alignment of your headlamps
should be checked by your authorized dealer.

Vertical aim adjustment

1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

2. Measure the height from the
center of your headlamp to the
ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this
height (a piece of masking tape works well). The center of the lamp is
marked by a 3.0 mm circle on the headlamp lens.

3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood. Cover the left-hand headlamp with an opaque cloth.

44

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

4. On the wall or screen you will
observe a light pattern with a
distinct horizontal edge of high
intensity light towards the right. If
this edge is not at the horizontal
reference line, the beam will need to
be adjusted.

5. Locate the vertical adjuster on
the headlamp, then usea4mm
socket to turn the adjuster either
counterclockwise (to adjust up) or
clockwise (to adjust down) aligning
the upper edge of the light pattern
to the horizontal line.

6. Move the opaque cloth to cover
the right-hand headlamp and repeat
Steps 4 and 5 for the left-hand
headlamp.

7. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.

8. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL

• Push down to activate the left
turn signal.

• Push up to activate the right turn
signal.

INTERIOR LAMPS

Dome lamps and map lamps

The front dome lamp is located overhead between the driver and
passenger seats.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

45

Lights

The dome lamp control has three
positions:

• OFF: In this position, the lamp
will not illuminate.

• DOOR: In this position, the dome
lamp will illuminate only when a
door is opened and will remain
illuminated for 25 seconds after
the door is shut.

• ON: In this position, the lamp will remain illuminated.

The map lamp controls (without
moon roof) are located on the dome
lamp. Press the button on either
side of each map lamp to illuminate
the lamps. Push the button again to
turn off the lamps.

For models equipped with a moon
roof, the map lamps are located on
the moon roof control panel. Press
the button on either side of each
map lamp to illuminate the lamps.
Push the button again to turn off
the lamps.

The map lamps will illuminate
whenever a door is opened. After
the door is shut, the lamps will remain illuminated for 25 seconds.

Cargo and dome lamp

Rear cargo lamp equipped with an
ON/OFF/DOOR control will light
when:

• the doors are closed and the
control is in the ON position.

• the control is in the DOOR
position and any door is open.

When the control is in the OFF position, it will not illuminate when you
open the doors.

46

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

Interior lighting battery saver

The interior lamps will automatically extinguish after 10 minutes when
the ignition key is in OFF/LOCK position, a door has been left open or
the interior lamp controls are in the ON position.

BULB REPLACEMENT

Headlamp Condensation

The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.

Function Number of bulbs Trade number

Headlamps (high and low
beams)

Park/turn lamps (front) 2 3457 NAK (amber)
Side marker (front) 2 194
Rear stop/tail/sidemarker 2 4157K
Backup lamp 2 921
Foglamp (front) 2 PS24WFF
Center High-mount stop

lamp
Rear license plate lamp 2 168
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer

2

5

H13

W5WL

Replacing the interior bulbs

Check the operation of all bulbs frequently.

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

47

Lights

Replacing headlamp bulbs

1. Make sure that the headlamp control is in the OFF position.

2. Open the hood.

3. Reach over the front bolster.

4. Remove the bulb by turning it

counterclockwise and then pulling it
straight out.

5. Disconnect the electrical

connector from the bulb.

Handle a halogen headlamp

bulb carefully and keep out
of children’s reach. Grasp the bulb
only by its plastic base and do not
touch the glass. The oil from your
hand could cause the bulb to
break the next time the
headlamps are operated.

6. Connect the electrical connector on the new bulb.

7. Insert the glass end of the new bulb into the headlamp assembly.
When the grooves in the plastic base are aligned, turn the new bulb
clockwise to install.

Replacing front parking lamp/turn signal bulbs

1. Make sure that the headlamp control is in the OFF position.

2. Open the hood.

3. Reach over the front bolster.

4. Rotate the bulb socket
counterclockwise and remove from
the lamp assembly.

48

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

5. Carefully pull the bulb out of the
socket and push in the new bulb.

6. Install the bulb socket into the
lamp assembly and rotate clockwise.

Replacing front sidemarker bulbs

For bulb replacement, see your authorized dealer.

Replacing tail/stop/turn/backup lamp bulbs

The tail/stop/turn/sidemarker/backup lamp bulbs are located in the same
portion of the tail lamp assembly, one just below the other. Follow the
same steps to replace either bulb:

1. Make sure the headlamp switch is
in the OFF position and then open
the liftgate to expose the lamp
assembly screws.

2. Remove the two screws from the
lamp assembly.

3. Carefully remove the lamp
assembly away from the vehicle by
pulling the assembly straight out to
expose the bulb socket. DO NOT
TIP THE LAMP ASSEMBLY SIDEWAYS.

4. Rotate the bulb socket counterclockwise and remove from lamp
assembly.

5. Pull bulb straight out of socket and push in the new bulb.

6. Install the bulb socket into the lamp assembly and rotate clockwise.

7. Carefully install the tail lamp assembly on the vehicle and secure with
two screws.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

49

Lights

Replacing high-mount brake lamp bulbs

1. Remove the two screws and move
the lamp assembly away from the
liftgate.

2. Remove the bulb holder from the
lamp assembly by depressing the
snaps.

3. Pull the bulb straight out of the
socket and push in the new bulb.

Install the new bulbs in reverse
order.

Replacing license plate lamp bulbs

1. Make sure the headlamp switch is
in the OFF position.

2. Depress the lever and carefully
pry the license plate lamp assembly
(located above the license plate)
from the liftgate.

3. Rotate the bulb socket
counterclockwise and remove from
lamp assembly.

50

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

4. Pull bulb straight out of socket
and push in the new bulb.

5. Install the bulb socket into the
lamp assembly and rotate clockwise.

6. To install, carefully press the
lamp assembly into liftgate.

Replacing foglamp bulbs (if equipped)

1. Make sure the foglamp switch is
in the OFF position.

2. From underneath the vehicle,
remove the harness/bulb assembly
from the lamp assembly.

3. Carefully disconnect the bulb
from the harness assembly via the
two snap clips.

Install the new bulb in reverse order.

Lights

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

51

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.

Windshield washer: Push the end
of the stalk:

• briefly: causes a single swipe of
the wipers without washer fluid.

• a quick push and hold: the wipers
will swipe three times with
washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.

Courtesy wipe feature: One extra wipe will happen a few seconds
after washing the front window to clear any water that is dripping down
from the top of the windshield caused by the washing.

Note: Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.

Windshield wiper features (if equipped with Autolamp feature)

The exterior lamps will turn on with the ignition on, headlamp control in
the Autolamp position and the windshield wipers are turned on (for a
fixed period of time).

52

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Rear window wiper/washer controls

For rear wiper operation, rotate the
rear window wiper and washer
control to the desired position.
Select:

INT 2 — Normal speed operation of
rear wiper.

INT 1 — Intermittent operation of
rear wiper.

OFF — Rear wiper and washer off.

For rear wash cycle, rotate (and hold as desired) the rear wiper/washer
control to either

From either position, the control will automatically return to the INT 2
or OFF position.

TILT STEERING WHEEL

To adjust the steering wheel:

1. Pull down the steering column tilt

lever.

2. Move the steering wheel up or

down until you find the desired
location.

position.

3. Push the steering column tilt

lever up. This will lock the steering
wheel in position.

Never adjust the steering
wheel when the vehicle is

moving.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

53

Driver Controls

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the
visor mirror lamps.

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to
your option package.

Storage compartment (if equipped)

Press the release on the door to
open the storage compartment.

The storage compartment may be
used to secure sunglasses or a
similar object.

CENTER CONSOLE

Your vehicle is equipped with a variety of console features. These
include:

1. Cupholders

2. Utility compartment console lid

has a CD holder, a business card
holder and two pen holders. The
utility compartment has a removable
bin with coin holder slots, a sliding
tray, a cell phone holder and CD
holders

3. Rear power point

4. Rear cupholders

5. Small storage trays

54

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Use only soft cups in the cupholders. Hard objects can injure
you in a collision.

The tray and inside bin can be
removed to open up space to fit a
laptop computer, MP3 players, CDs
or handbags. To remove, open the
console lid and pull the bin straight
up and out from the console
housing.

The sliding tray and inside bin can
be hooked on the side or rear of the
console for extra storage.

Driver Controls

AUXILIARY POWER POINT (12VDC)

Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.

55

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

The auxiliary power point is located
in the instrument panel.

A second auxiliary power point is
located on the rear side of the
center console.

Do not use the power point for
operating the cigarette lighter
element (if equipped).

To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of 12 VDC/180W. If the power point or
cigar lighter socket is not working, a fuse may have blown. Refer to
Fuses and Relays in the Roadside Emergencies chapter for information
on checking and replacing fuses.

To prevent the battery from being discharged, do not use the power
point longer than necessary when the engine is not running.

Always keep the power point caps closed when not being used.

Cigar/Cigarette lighter (if equipped)

Do not plug optional electrical accessories into the cigarette lighter
socket.

Do not hold the lighter in with your hand while it is heating, this will
damage the lighter element and socket. The lighter will be released from
its heating position when it is ready to be used.

Improper use of the lighter can cause damage not covered by your
warranty.

POWER WINDOWS

Do not leave children unattended in the vehicle and do not let
children play with the power windows. They may seriously injure

themselves.

When closing the power windows, you should verify they are free
of obstructions and ensure that children and/or pets are not in

the proximity of the window openings.

56

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Press and pull the window switches
to open and close windows.

• Push down (to the first detent)
and hold the switch to open.

• Pull up (to the first detent) and
hold the switch to close.

One touch down

Allows the driver’s window to open
fully without holding the control
down. Push the switch completely
down to the second detent and
release quickly. The window will
open fully. Momentarily press the
switch to any position to stop the
window operation.

Window lock

The window lock feature allows only
the driver to operate the power
windows.

To lock out all the window controls
except for the driver’s press the
right side of the control. Press the
left side to restore the window
controls.

Driver Controls

A

U

T

O

Accessory delay

With accessory delay, the window switches, moon roof (if equipped) and
audio system may be used for up to ten minutes after the ignition switch
is turned to the OFF position or until either front door is opened.

INTERIOR MIRROR

The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.

Do not adjust the mirror while the vehicle is in motion.

57

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Automatic dimming rear view mirror (if equipped)

Your vehicle may be equipped with
an inside rear view mirror which has
an auto-dimming function. The
electronic day/night mirror will
change from the normal (high
reflective) state to the non-glare
(darkened) state when bright lights (glare) reach the mirror. When the
mirror detects bright light from behind the vehicle, it will automatically
adjust (darken) to minimize glare.

The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) (when the mirror is on) to ensure a
bright clear view when backing up.

Do not block the sensors on the front and back of the inside rear
view mirror since this may impair proper mirror performance.

Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.

Electronic compass (if equipped)

The compass heading is displayed as one of N, NE, E, SE, S, SW, W and
NW in the center stack display.

The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antenna. Magnetic
or metallic objects placed in, on or near the vehicle may also affect
compass accuracy.

Usually, when something affects the compass readings, the compass will
correct itself after a few days of operating your vehicle in normal
conditions. If the compass still appears to be inaccurate, a manual
calibration may be necessary. Refer to Compass zone adjustment.

Most geographic areas (zones) have a magnetic north compass point that
varies slightly from the northerly direction on maps. This variation is four
degrees between adjacent zones and will become noticeable as the
vehicle crosses multiple zones. A correct zone setting will eliminate this
error. Refer to Compass calibration adjustment.

58

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Compass zone adjustment

1. Determine which magnetic zone

you are in for your geographic
location by referring to the zone
map.

2. Turn ignition to the ON position.

3. Locate the reset button on top of

the compass sensor mounted behind
the mirror.

4. Press and hold the reset button

on the compass module for
approximately 5 seconds until ZONE
XX appears in the center stack
display.

5. Continue to press the reset button until the correct zone appears in

the center stack display.

6. The direction will display after

the button is released. The zone is
now updated.

4

5

123

6 7 8 9 1011

15

14
13

12

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

59

Driver Controls

Compass calibration adjustment

Perform compass calibration in an open area free from steel structures
and high voltage lines. For optimum calibration, turn off all electrical
accessories (heater/air conditioning, wipers, etc.) and make sure all
vehicle doors are shut.

1. Start the vehicle.

2. Locate the reset button on the compass sensor mounted on the base

of mirror.

3. To calibrate, press and hold the

reset button on the compass module
for approximately ten seconds until
CAL appears. Release the button.

4. Slowly drive the vehicle in a

circle (less than 3 mph [5 km/h]) until the CAL display changes to the
direction value. It may take up to five circles to complete calibration.

5. The compass is now calibrated.

EXTERIOR MIRRORS

Power side view mirrors

To adjust your mirrors:

1. Rotate the control clockwise to

adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to

lock mirrors in place.

60

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Fold-away mirrors

Fold the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.

Driver Controls

Heated outside mirrors

Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.

Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.

SPEED CONTROL (IF EQUIPPED)

With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.

Do not use the speed control in heavy traffic or on roads that
are winding, slippery or unpaved.

Setting speed control

The controls for using your speed
control are located on the steering
wheel for your convenience.

1. Press the ON control and release

it.

2. Accelerate to the desired speed.

(if equipped)

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

61

Driver Controls

3. Press the SET + control and

release it.

4. Take your foot off the accelerator

pedal.

5. The indicator light

instrument cluster will turn on.

Note:

• Vehicle speed may vary momentarily when driving up and down a
steep hill.

• If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.

• If the vehicle speed decreases to 30 mph (48 km/h) or less, your
speed control will disengage

Disengaging speed control

To disengage the speed control:

• Depress the brake pedal

Disengaging the speed control will not erase previous set speed.

Note: When you use the clutch pedal to disengage the speed control,
the engine speed may briefly increase, this is normal.

on the

Resuming a set speed

Press the RESUME control and
release it. This will automatically
return the vehicle to the previously
set speed.

62

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Increasing speed while using speed control

There are three ways to set a higher
speed:

• Press and hold the SET + control
until you get to the desired
speed, then release the control.

• Press and release the SET +
control to operate the Tap-Up
function. Each tap will increase
the set speed by 1 mph
(1.6 km/h).

• Use the accelerator pedal to get to the desired speed. When the
vehicle reaches that speed press and release the SET + control.

Reducing speed while using speed control

There are three ways to reduce a
set speed:

• Press and hold the CST - control
until you get to the desired
speed, then release the control.

• Press and release the CST ­control to operate the Tap-Down
function. Each tap will decrease
the set speed by 1 mph
(1.6 km/h).

• Depress the brake pedal or the
clutch pedal (if equipped) until
the desired vehicle speed is
reached, press the SET + control.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

63

Driver Controls

Turning off speed control

There are two ways to turn off the
speed control:

• Press the speed control OFF
control.

• Turn OFF the ignition.

Note: When you turn off the speed
control or the ignition, your speed
control set speed memory is erased.

STEERING WHEEL CONTROLS (IF EQUIPPED)

These controls allow you to operate some audio control features.

Radio control features

Press MEDIA to select:

• AM, FM1, FM2, or CD

• LINE IN (Auxiliary input jack)

(if equipped)

In Radio mode:

• Press
next/previous preset station.

In CD mode:

• Press
next track on the disc.

64

to access the

to listen to the

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

In any mode:

• Press VOL + or - to adjust the
volume.

MOON ROOF (IF EQUIPPED)

Do not let children play with the moon roof or leave children
unattended in the vehicle. They may seriously hurt themselves.

When closing the moon roof, you should verify that it is free of
obstructions and ensure that children and/or pets are not in the

proximity of the moon roof opening.

To operate the moon roof:

• The moon roof is equipped with
an automatic, one-touch, express
opening feature. Press and
release the rear portion of the
control. To stop motion at any
time during the one-touch
opening, press the control again.

• To close, press and hold the front
portion of the control until the moon roof comes to a complete stop
then release the control.

To operate the moon roof vent position:

• To open, press and hold the front portion of the control. This will
open the vent.

• To close, press and hold the rear portion of the control until the moon
roof comes to a complete stop then release the control.

Note: If the battery is disconnected, discharged, or a new battery is
installed, the moon roof needs to be opened to the vent position to reset
the moon roof positions.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

65

Driver Controls

If you open and close the moon roof repeatedly, the moon roof motor
may overheat and shut down for 45 seconds while the motor cools.

MESSAGE CENTER (IF EQUIPPED)

With the ignition in the RUN
position, the message center,
located on your instrument cluster,
displays important vehicle
information through a constant
monitor of vehicle systems. You
may select display features on the message center for a display of status.
The system will also notify you of potential vehicle problems with a
display of system warnings followed by a long indicator chime.

Selectable features

Reset

Press this control to select and reset
functions shown in the INFO menu
and SETUP menu.

Info menu

This control displays the following
control displays:

• Trip Odometer A or B

• Distance to Empty

• Average Fuel Economy

• Instantaneous Fuel Economy

• Blank (odometer off)

Odometer/Trip odometer

Refer to Gauges in the Instrument Cluster chapter.

66

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Distance to empty (DTE)

Selecting this function from the
INFO menu will give you an
estimate of how far you can drive
with the fuel remaining in your tank
under normal driving conditions.
Remember to turn the ignition OFF
when refueling your vehicle. Otherwise, the display will not show the
addition of fuel for a few miles (kilometers). DTE will vary according to
your driving habits.

Average fuel economy (AFE)

Select this function from the INFO
menu to display your average fuel
economy in miles/gallon or
liters/100 km.

If you calculate your average fuel
economy by dividing miles traveled by gallons of fuel used (liters of fuel
by used 100 kilometers traveled), your figure may be different than
displayed for the following reasons:

• your vehicle was not perfectly level during fill-up

• differences in the automatic shut-off points on the fuel pumps at

service stations

• variations in top-off procedure from one fill-up to another

• rounding off the displayed values to the nearest 0.1 gallon (liter)

1. Drive the vehicle at least 8 km (5 miles) with the speed control

system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to press the RESET control after setting the speed
control to get accurate highway fuel economy readings.

Instantaneous fuel economy

Select this function from the INFO
menu to display your instantaneous
fuel economy. This will display your
fuel economy as a Bar Graph
ranging from

to

excellent economy.

poor economy

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

67

Driver Controls

Your vehicle must be moving to calculate instantaneous fuel economy.
When your vehicle is not moving, this function shows
illuminated. Instantaneous fuel economy cannot be reset.

Setup menu

Press this control for the following
displays:

• Reset to English (if in another
language)

• System Check

• Oil Life

• Units (English/Metric)

• Autolamp Delay (if equipped)

• Autolock (if equipped)

• Autounlock (if equipped)

• Language

Reset to English (if in another language)

When entering the SETUP MENU
and a non-English language has
been selected, “PRESS RESET FOR
ENGLISH” will be displayed to
change back to English.

Press the RESET control to change back to English.

System check

Selecting this function from the
SETUP menu causes the message
center to cycle through each of the
systems being monitored. For each
of the monitored systems, the
message center will indicate either
an OK message or a warning message for three seconds.

Pressing the RESET control cycles the message center through each of
the systems being monitored.

The sequence of the system check report is as follows:

1. Oil life

2. Brake system

, one or no bars

68

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

3. Liftgate and glass

4. DTE/Fuel level

Oil life

An oil change is required whenever indicated by the message center.
USE ONLY RECOMMENDED ENGINE OILS.

To reset the oil monitoring system to 100% after each oil change
[approximately 7,500 miles (12,000 km) or 12 months] perform the
following:

1. Press and release the SETUP

control to display “OIL LIFE =
XXX% HOLD RESET = NEW”.

2. Press and hold the RESET

control for 2 seconds and release.
Oil life is set to 100% and “OIL LIFE
SET TO 100%” is displayed.

3. While “OIL LIFE SET TO 100%”

is displayed, if a lower oil life start
value is desired, press and release the RESET control to reduce the start
value. Each press of the RESET control reduces the value by 10 percent.

Note: Oil life start value of 100% equals 7,500 miles (12,000 km) or 12
months. For example, setting oil life start value to 60% sets the oil life
start value to 4,500 miles (7,200 km) and 108 days.

Units (English/Metric)

1. Select this function from the

SETUP menu for the current units
to be displayed.

2. Press the RESET control to

change from English to Metric.

Autolamp delay

This feature keeps your headlights on for up to three minutes after the
ignition is switched off.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

69

Driver Controls

1. To disable/enable the autolamp

delay feature, select this function
from the SETUP control for the
current display mode.

2. Press the RESET control to select

the new Autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180
seconds.

Autolock

This feature automatically locks all vehicle doors when the vehicle is
shifted into any gear, putting the vehicle in motion.

1. To disable/enable the autolock

feature, select this function from the
SETUP control for the current
display mode.

2. Press the RESET control to turn

the autolock ON or OFF.

Autounlock

This feature automatically unlocks all vehicle doors when the driver’s
door is opened within 10 minutes of the ignition being turned off.

1. To disable/enable the autounlock

feature, select this function from the
SETUP control for the current
display mode.

2. Press the RESET control switch

to turn the autounlock ON or OFF.

Language

1. Select this function from the

SETUP menu for the current
language to be displayed.

2. Waiting 4 seconds or pressing the

RESET control cycles the message
center through each of the language choices.

Selectable languages are English, Spanish, or French.

3. Press and hold the RESET control for 2 seconds to set the language

choice.

70

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

System warnings

System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.

In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.

The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
RESET control and clearing the warning message.

Warning messages that have been reset are divided into two categories:

• They will reappear on the display ten minutes from the reset.

• They will not reappear until an ignition OFF-ON cycle has been

completed.

This acts as a reminder that these warning conditions still exist within
the vehicle.

Warnings Status

Driver door ajar Warning cannot be reset
Passenger door ajar
Rear left door ajar
Rear right door ajar
Park brake engaged Warning returns after 10 minutes if
XXX miles (km) to empty fuel

level low
Liftgate/Glass ajar Warning returns after the ignition key
Service brake system
Low brake fluid
Low tire pressure
Tire pressure monitor fault
Tire pressure sensor fault
XX% oil life change soon
Oil change required

DRIVER DOOR AJAR. Displayed when the driver door is not
completely closed.

PASSENGER DOOR AJAR. Displayed when the passenger door is not
completely closed.

condition still exists

is turned from OFF to RUN.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

71

Driver Controls

REAR LEFT DOOR AJAR. Displayed when the rear left door is not
completely closed.

REAR RIGHT DOOR AJAR. Displayed when the rear right door is not
completely closed.

PARK BRAKE ENGAGED. Displayed when the manual park brake is
set, the engine is running and the vehicle is driven more than 3 mph
(5 km). If the warning stays on after the park brake is released, contact
your authorized dealer as soon as possible.

XXX MILES TO EMPTY FUEL LEVEL LOW. Displayed as an early
reminder of a low fuel condition.

LIFTGATE/GLASS AJAR. Displayed when the liftgate or liftgate glass
is not completely closed. Press RESET to reset display.

SERVICE BRAKE SYSTEM. Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.

LOW BRAKE FLUID. Indicates the brake fluid level is low and the
brake system should be inspected immediately. Refer to Brake fluid
reservoir in the Maintenance and Specifications chapter.

LOW TIRE PRESSURE. Displayed when one or more tires on your
vehicle have low tire pressure. Refer to Inflating Your Tires in the
Tires, Wheels and Loading chapter.

TIRE PRESSURE MONITOR FAULT. Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.

TIRE PRESSURE SENSOR FAULT. Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to

Understanding Your Tire Pressure Monitoring System in the Tires,
Wheels and Loading chapter. If the warning stays on or continues to

come on, have the system inspected by your authorized dealer

XX% OIL LIFE CHANGE SOON/OIL CHANGE REQUIRED.

Displayed when the engine oil life remaining is 10% or less. When oil life
left is between 10% and 0%, the XX% OIL LIFE CHANGE SOON
message will be displayed. When oil life left reaches 0%, the OIL
CHANGE REQUIRED message will be displayed.

72

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

LIFTGATE

• To open the liftgate window,
unlock the liftgate (with the
power door locks or the remote
entry) and push the right side
control button under the license
plate lamp shield.

• To open the liftgate, unlock the
liftgate (with the power door
locks or the remote entry) and
push the middle control button
under the license plate lamp
shield.

To lock the liftgate and the liftgate window, use the power door locks.

Do not open the liftgate or liftgate glass in a garage or other enclosed
area with a low ceiling. If the liftgate glass is raised and the liftgate is
also opened, both liftgate and glass could be damaged against a low
ceiling.

Do not leave the liftgate or liftgate glass open while driving. Doing so
could cause serious damage to the liftgate and its components as well as
allowing carbon monoxide to enter the vehicle.

Make sure that the liftgate door and/or window are closed to

prevent exhaust fumes from being drawn into the vehicle.
Exhaust fumes contain carbon monoxide which can injure your lungs
and cause drowsiness and even death. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate door or window open, keep the vents open so outside air comes
into the vehicle.

CARGO AREA FEATURES

Cargo shade (if equipped)

If your vehicle has a cargo shade, you can use it to cover items in the
cargo area of your vehicle.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

73

Driver Controls

To install the shade:

• Insert the ends of the cargo
shade into the mounting features
located behind the rear seat on
the rear trim panels.

To operate the shade:

1. Grasp the rear edge of the cargo

shade and pull rearward.

2. Secure both ends of the support

rod into the retention slots located
on the rear quarter trim panels.

Ensure that the posts are properly latched in mounting features.
The cover may cause injury in a sudden stop or accident if it is

not securely installed.

Do not place any objects on the cargo area shade. They may
obstruct your vision or strike occupants of vehicle in the case of

a sudden stop or collision.

Cargo management system (if equipped)

The cargo management system consists of two storage compartments
located in the floor of the rear cargo area.

1. The larger, rearward,

compartment is for customer
storage.

• To open, lift the lid with the pull

latch. The lid can be removed to
allow for flexible storage.

• To close, lower the lid and press

down at the latch area until you
hear the latch engage. A pad lock or
combination lock can be applied to
use the lockable storage feature on
the large customer storage bin.

74

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

2. The smaller compartment contains the jack kit. There is also extra

storage space for customer use. The lid on the small compartment is
accessible and secured by two snap features.

This storage compartment is not designed to restrain objects
during a collision with the lid removed.

LUGGAGE RACK

Your vehicle is equipped with a roof
rack. The maximum load for the
roof rack is 100 lbs (44 kg), evenly
distributed on the cross-bars. If it is
not possible to evenly distribute the
load, position it in the center or as
far forward on the cross-bars as
possible.

Do not use the vehicle’s door
handles as tie down loops. Use
the tie-down loops on the
thumbwheels to secure load.

To adjust the cross-bar (if equipped) position:

1. Loosen the thumbwheel at both

ends of the cross-bar (both
cross-bars are adjustable).

2. Slide the cross-bar to the desired

location.

3. Tighten the thumbwheel at both

ends of the cross-bar.

To remove the cross-bar assembly (if equipped) from the roof rack side rails:

1. Loosen the thumbwheel at both

ends of the cross-bar (both
cross-bars are adjustable).

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

75

Driver Controls

2. Slide the cross-bar to the end of

the rail.

3. Use a long, flat object to depress

the tongue in the endcaps on both
sides of the cross-bar.

4. Slide the cross-bar assembly off

the end of the rail.

To reinstall the cross-bar assembly (if equipped) to the roof rack side rails:

1. Ensure that both cross-bar

assemblies are installed with the F
(front) arrow facing towards the
front of the vehicle.

2. Use a long, flat object to depress

the tongue in the endcaps on both
sides of the cross-bar.

3. Slide the cross-bar assemblies

over the end cap tongue and into
the side rails.

76

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

4. Tighten thumbwheel at both ends

of the cross-bar.

Driver Controls

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

77

Locks and Security

KEYS

Your vehicle is equipped with two
Integrated Keyhead Transmitters
(IKTs). The IKT functions as both a
programmed ignition key that
operates all the locks and starts the
vehicle, and a remote keyless entry
transmitter.

Your IKTs are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your authorized dealer
supplied IKTs, replacement IKTs are available through your authorized
dealer. Standard SecuriLock娂 keys without remote entry transmitter
functionality can also be purchased from your authorized dealer if
desired.

Always carry a spare key with you in case of an emergency.

For more information regarding programming replacement IKTs, refer to
the SecuriLock娂 passive anti-theft system section later in this chapter.

Note: Your vehicle’s IKTs were
issued with an adhesive security
label on them that provides
important vehicle key cut
information. It is recommended that
you maintain the label in a safe
place for future reference, such as
the inside front cover of this

Owner’s Guide.

78

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

RECOMMENDED HANDLING OF THE INTEGRATED KEYHEAD TRANSMITTER (IKT)

To avoid inadvertently activating the remote entry functions of your
vehicle, it is recommended that the Integrated Keyhead Transmitter
(IKT) be handled properly when starting and turning off your vehicle.

When inserting the IKT into the
ignition cylinder, place your thumb
on the center thumb rest of the IKT
and forefinger on the logo badge on
the opposite side.

To gain more leverage when rotating
the IKT in the ignition lock cylinder,
you can readjust the location of
your thumb to grasp the IKT on the
outer edge next to the

control.

Likewise, when rotating the IKT to
the 1 (LOCK) position in the
ignition lock cylinder, the bottom
edge of the IKT adjacent to the
control can be utilized.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

79

Locks and Security

POWER DOOR LOCKS

• Press the
doors.

• Press the
doors.

Door key unlocking/locking

Unlocking the doors

Turn the key in the door cylinder to unlock the driver’s door only. All
other doors will remain locked.

Locking the doors

Turn the key in the door cylinder to lock the driver’s door only.

Autolock

The autolock feature will lock all the doors, liftgate and liftgate window
when:

• all doors are closed,

• the ignition is in the 3 (ON) position,

• you shift into any gear putting the vehicle in motion, and

• the vehicle attains a speed greater than 12 mph (20 km/h).

The autolock feature repeats when:

• any door is opened then closed while the ignition is in the 3 (ON)
position and the vehicle speed is 9 mph (15 km/h) or lower, and

• the vehicle attains a speed greater than 12 mph (20 km/h).

Deactivating/activating autolock

Your vehicle comes with the autolock feature enabled. There are four
methods to enable/disable this feature:

• Through your authorized dealer, or

• Performing the power door lock control procedure, or

• Performing the keyless entry key pad (if equipped) procedure, or

• Performing the message center (if equipped) procedure.

control to unlock all

control to lock all

80

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

Note: The autolock feature can be activated/deactivated independently
of the autounlock feature.

Before following the activation or deactivation procedures, make sure
that the anti-theft system is not armed, ignition is in the 1 (OFF/LOCK)
position, and all vehicle doors, liftgate and liftgate window are closed.

Power door unlock/lock procedure

You must complete Steps 1-5 within
30 seconds or the procedure will
have to be repeated. If the
procedure needs to be repeated,
you must wait 30 seconds. Note:
All doors must be closed and
remain closed throughout the
configuration process.

1. The ignition must be off to begin sequence.

2. Turn the ignition to the 3 (ON) position.

3. Press the power door unlock control three times.

4. Turn the ignition from the 3 (ON) to the 1 (OFF/LOCK) position.

5. Press the power door unlock control three times.

6. Turn the ignition back to the 3 (ON) position. The horn will chirp.

7. Press the unlock control, then press the lock control. The horn will

chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.

8. Turn the ignition to the 1 (OFF/LOCK) position. The horn will chirp

once to confirm the procedure is complete.

Keyless entry key pad procedure

1. Turn the ignition to the 1 (OFF/LOCK) position.

2. Close all doors, the liftgate and liftgate window.

3. Enter 5–digit entry code

4. Press and hold the 3 • 4. While holding the 3 • 4pressthe7• 8.

5. Release the 7 • 8.

6. Release the 3 • 4.

The user should receive a horn chirp to indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

81

Locks and Security

Message center procedure

For information on activating/deactivating the autolock feature using the
vehicle’s message center (if equipped), refer to Message center
information in the Driver Controls chapter.

Autounlock

The autounlock feature will unlock all the doors when:

• the ignition is in the 3 (RUN) position, all the doors are closed, and
the vehicle has been in motion at a speed greater than 12 mph
(20 km/h);

• the vehicle has then come to a stop and the ignition is turned to the 1
(OFF/LOCK) or 2 (ACC) position; and

• the driver door is opened within 10 minutes of the ignition being
transitioned to the 1 (LOCK) or 2 (ACC) position.

Note: The doors will not autounlock if the vehicle has been
electronically locked before the driver door is opened.

Deactivating/activating autounlock

Your vehicle comes with the autounlock feature activated. There are four
methods to enable/disable this feature:

• Through your authorized dealer, or

• by using the power door unlock/lock sequence,

• Performing the keyless entry key pad procedure (if equipped), or

• by using the instrument cluster message center (if equipped). Refer to

Message center in the Driver Controls chapter.

Note: The autounlock feature can be activated/deactivated
independently of the autolock feature.

Power door lock switch autounlock enable/disable procedure

Before starting, ensure the ignition
is in the 1 (LOCK) position and all
vehicle doors are closed. You must
complete Steps 1–5 within 30
seconds or the procedure will have
to be repeated. If the procedure
needs to be repeated, wait a
minimum of 30 seconds before
beginning again.

1. Place the key in the ignition and turn the ignition to the 3 (RUN)

position.

82

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

2. Press the power door unlock control on the door panel three times.

3. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.

4. Press the power door unlock control on the door panel three times.

5. Turn the ignition back to the 3 (RUN) position. The horn will chirp

one time to confirm programming mode has been entered and is active.

6. To enable/disable the autounlock feature, press the lock control, then

press the unlock control. The horn will chirp once if autounlock was
deactivated or twice (one short and one long chirp) if autounlock was
activated.

7. Turn the ignition to the 1 (LOCK) position. The horn will chirp once

to confirm the procedure is complete.

Keyless entry key pad autounlock enable/disable procedure

1. Turn the ignition to the 1 (LOCK) position.

2. Close all doors.

3. Enter factory–set 5–digit entry code.

4. Press and hold the 3 • 4. While holding the 3 • 4, press and release

the 7 • 8. While still holding the 3 • 4, press and release the 7 • 8a
second time.

5. Release the 3 • 4.

The user should receive a horn chirp to indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.

Message center procedure

For information on activating/deactivating the autounlock feature using
the vehicle’s message center (if equipped), refer to Message center
information in the Driver Controls chapter.

Smart unlocking feature

The smart unlocking feature helps prevent you from locking yourself out
of the vehicle. With the key in any ignition position, the driver’s door will
automatically unlock if it is locked using the power lock control on the
driver’s door panel while the driver’s door is open.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

83

Locks and Security

CHILDPROOF DOOR LOCKS

When these locks are set, the rear
doors cannot be opened from the
inside. The rear doors can be
opened from the outside when the
doors are unlocked.

The childproof locks are located on
rear edge of each rear door and
must be set separately for each
door.

NOTE: Setting the lock for one
door will not automatically set the
lock for both doors so you must set
each child lock on each door
separately.

Insert the key and turn in the direction of arrow shown on the door to
engage the child proof lock. Turn in the opposite direction to disengage
childproof locks.

REMOTE ENTRY SYSTEM (IF EQUIPPED)

The Integrated Keyhead Transmitter (IKT) complies with part 15 of the
FCC rules and with RSS-210 of Industry Canada. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

84

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

The typical operating range for your
IKT is approximately 33 feet
(10 meters). A decrease in
operating range could be caused by:

• weather conditions,

• nearby radio towers,

• structures around the vehicle, or

• other vehicles parked next to

your vehicle.

The IKT allows you to:

• remotely unlock the vehicle
doors.

• remotely lock all the vehicle
doors.

• remotely open the power liftgate glass.

• activate the personal alarm.

• operate the illuminated entry feature.

The remote entry lock/unlock feature operates in any ignition position
except while the key is held in the 4 (START) position. The panic
feature operates with the key in the 1 (LOCK) position.

If there are problems with the remote entry system, make sure to take
ALL Integrated Keyhead Transmitters with you to the authorized
dealer in order to aid in troubleshooting the problem.

Two step door unlocking

1. Press and release to unlock the driver’s door. Note: The interior

lamps will illuminate if the control on the overhead lamp is in the DOOR
position.

2. Press

passenger doors, the liftgate and liftgate glass.

One step door unlocking

If the one step door unlocking feature is activated, press
once to unlock all of the doors, the liftgate and liftgate glass. Note: The
interior lamps will illuminate (refer to the Illuminated entry feature
later in this section), if the control on the overhead lamp is in the DOOR
position.

and release again within three seconds to unlock the

and release

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

85

Locks and Security

Switching from two step to one step door unlocking

Unlocking can be switched between two step and one step door
unlocking by pressing and holding both
simultaneously on the remote entry transmitter for approximately 4

seconds. The turn signal will flash twice to indicate that the vehicle has
switched to one step unlocking. Repeat the procedure to switch back to
two step unlocking.

Locking the doors

1. Press and release to lock all the doors. Assuming all vehicle doors

and the liftgate are properly closed, the park/turn lamps will flash once.

2. Press

doors and liftgate are closed and locked. Note: The doors will lock again
and the horn will chirp once.

If any of the doors or the hood are not properly closed, the horn will
chirp twice and park/turn lamps will not flash when the
pressed.

Opening the liftgate (if equipped)

Press twice within 3 seconds to open the liftgate glass.

Car finder

Press
will flash. It is recommended that this method be used to locate your
vehicle, rather than using the panic alarm.

and release again within three seconds to confirm that all the

twice within 3 seconds. The horn will chirp and the turn lamps

and buttons

control is

Sounding a panic alarm

Press and hold
the feature, press the control again, turn the ignition to the 3 (RUN) or 4
(START) position, or wait for the alarm to time out in approximately 3
minutes.

Note: The panic alarm will only operate when the ignition is in the 1
(LOCK) position.

Replacing the battery

The Integrated Keyhead Transmitter uses one coin type three-volt
lithium battery CR2032 or equivalent.

86

for 1.5 seconds to activate the alarm. To deactivate

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

To replace the battery:

1. Twist a thin coin in the slot of the

IKT near the key ring in order to
remove the battery cover.

2. Do not wipe off any grease on the

battery terminals on the back
surface of the circuit board.

3. Remove the old battery. Note: Please refer to local regulations when

disposing of transmitter batteries.

4. Insert the new battery. Refer to the instructions inside the IKT for the

correct orientation of the battery. Press the battery down to ensure that
the battery is fully seated in the battery housing cavity.

5. Snap the battery cover back onto the key.

Note: Replacement of the battery will not cause the IKT to become
deprogrammed from your vehicle. The IKT should operate normally after
battery replacement.

Replacing lost Integrated Keyhead Transmitters (IKTs)

If you would like to have your Integrated Keyhead Transmitters
reprogrammed because you lost one, or would like to buy additional
IKTs, you can either reprogram them yourself, or take all IKTs to your
authorized dealer for reprogramming.

How to reprogram your Integrated Keyhead Transmitters (IKTs)

To program a new Integrated Keyhead Transmitter yourself, refer to
Programming spare keys in the SecuriLock娂 passive anti-theft
section of this chapter. Note: At least two IKTs are required to perform
this procedure yourself.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

87

Locks and Security

Illuminated entry

The interior lamps and puddle lamps (if equipped) illuminate when the
Integrated Keyhead Transmitter or the keyless entry system keypad is
used to unlock the door(s).

The illuminated entry system will turn off the interior lights if:

• the ignition is turned to the 3 (RUN) position, or

• the Integrated Keyhead Transmitter lock control is pressed, or

• the vehicle is locked using the keyless entry keypad (if equipped), or

• after 25 seconds of illumination.

The inside lights will not turn off if:

• they have been turned on with the dimmer control, or

• any door is open.

Perimeter lamps illuminated entry

With the Integrated Keyhead Transmitter system, the following items will
illuminate when the

• Head lamps

• Park lamps

• Tail lamps

The lamps will automatically turn off:

• if the ignition switch is turned to the 3 (RUN) position, or

• the IKT

• after 25 seconds of illumination.

Note: On some vehicles, the perimeter lamps illuminated entry feature
will not activate in daylight conditions.

Deactivating/activating perimeter lamps illuminated entry

You may enable/disable this feature by having your vehicle serviced by
your authorized dealer.

You may also perform the following power door lock sequence to
enable/disable the perimeter lamps feature. Note: Before starting, ensure
the ignition is in the 1 (LOCK) position and all vehicle doors are closed.
You must complete Steps 1–5 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, wait a
minimum of 30 seconds before beginning again.

(lock) control is pressed, or

(unlock) control on the transmitter is pressed:

88

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

1. The ignition must be OFF to

begin the sequence.

2. Place the key in the ignition and

turn the ignition to the 3 (RUN)
position.

3. Press the power door unlock

control on the door panel three
times.

4. Turn the ignition from the 3

(RUN) position to the 1 (LOCK)
position.

5. Press the power door unlock control on the door panel three times.

6. Turn the ignition back to the 3 (RUN) position. The horn will chirp

one time to confirm programming mode has been entered and is active.

7. Press the power door unlock control twice within 5 seconds.

Note: The horn will chirp once to indicate the perimeter lighting feature
has been deactivated. The horn will chirp once and honk once (one short
and one long) to indicate the perimeter lighting feature has been
activated.

8. Turn the ignition to the 1 (LOCK) position to exit the procedure.

Note: The horn will chirp once to confirm the procedure is complete.

Illuminated exit

• The interior lights will illuminate when the key is removed from the
ignition.

The lamps automatically turn off after 25 seconds. The dome and cargo
lamp controls must not be set to the OFF position for the illuminated
exit system to operate.

KEYLESS ENTRY SYSTEM (IF EQUIPPED)

You can use the keyless entry keypad to:

• lock or unlock the doors without using a key,

• activate or deactivate the Autolock and Autounlock feature if

equipped

• release the liftgate glass,

The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create your own
5–digit personal entry code.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

89

Locks and Security

When pressing the controls on the keyless entry keypad, press the
middle of the controls to ensure a good activation.

Programming your own personal entry code

To create your own personal entry code:

1. Enter the factory set code.

2. Within five seconds press the 1 • 2 on the keypad.

3. Enter your personal 5–digit code.

Each number must be entered
within five seconds of each other.

4. Three unique personal entry

codes can be stored:

• Pressing 1 • 2 assigns driver 1 settings.

• Pressing 3 • 4 assigns driver 2 settings.

• Pressing 5 • 6, 7 • 8, or 9 • 0 assigns Driver 3 settings.

5. The doors will again lock then unlock to confirm that your personal

keycode has been programmed to the module.

• Do not use five numbers in sequential order.

• The factory set code will work even if you have set your own personal

code.

Erasing personal code

1. Enter the factory set 5–digit code.

2. Within five seconds, press the 1 • 2 on the keypad and release.

3. Press and hold the 1 • 2 for two seconds. This must be done within

five seconds of completing Step 2.
Your personal code is now erased and only the factory set 5–digit code

will work.

Anti-scan feature

If the wrong code has been entered 7 times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash.

The anti-scan feature will turn off after:

• one minute of keypad inactivity,

• pressing the UNLOCK control on the remote entry transmitter,

• or the ignition position changes.

90

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

Unlocking and locking the doors and liftgate using keyless entry

To unlock the driver’s door, enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate.

To unlock all doors and liftgate, press the 3 • 4 control within five
seconds.

To lock all doors and liftgate, press the 7 • 8 and the 9 • 0atthe
same time. Note: The driver’s door must be closed. You do not need to
enter the keypad code first.

To open the liftglass, press the 5 • 6.

SECURILOCK姟 PASSIVE ANTI-THEFT SYSTEM

SecuriLock娂 passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless a coded Integrated Keyhead Transmitter (IKT)
programmed to your vehicle is used. The use of the wrong type of
coded key may lead to a “no-start” condition.

Your vehicle comes with two coded Integrated Keyhead Transmitters;
additional coded IKTs may be purchased from your authorized dealer.
Standard SecuriLock娂 keys without remote entry transmitter
functionality can also be purchased from your authorized dealer if
desired. The authorized dealer can program your spare IKTs to your
vehicle or you can program the IKTs yourself. Refer to Programming
spare Integrated Keyhead Transmitters for instructions on how to
program the coded key.

Note: The SecuriLock娂 passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.

Note: Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded IKT while starting the engine. These
objects will not cause damage to the coded IKT, but may cause a
momentary issue if they are too close to the IKT when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded IKT and restart the engine.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

91

Locks and Security

Anti-theft indicator

The anti-theft indicator is located in the instrument panel cluster.

• When the ignition is in the 1
(LOCK) position, the indicator
will flash once every 2 seconds to
indicate the SecuriLock娂 system
is functioning as a theft deterrent.

• When the ignition is in the 3 (RUN) position, the indicator will glow
for 3 seconds to indicate normal system functionality.

If a problem occurs with the SecuriLock娂 system, the indicator will flash
rapidly or glow steadily when the ignition is in the 3 (RUN) position. If
this occurs, the vehicle will not start and should be taken to an
authorized dealer for service.

Automatic arming

The vehicle is armed immediately after switching the ignition to the 1
(LOCK) position.

The theft indicator will flash every
two seconds to act as a theft
deterrent when the vehicle is
armed.

Automatic disarming

The vehicle is disarmed immediately after the ignition is turned to the 3
(RUN) position.

The theft indicator will illuminate for three seconds and then go out. If
the theft indicator stays on for an extended period of time or flashes
rapidly, have the system serviced by your authorized dealer.

Replacement Integrated Keyless Transmitters (IKT) and coded keys

Note: Your vehicle comes equipped with two Integrated Keyhead
Transmitters (IKTs). The IKT functions as both a programmed ignition
key that operates all the locks and starts the vehicle, as well as a remote
keyless entry transmitter. A maximum of eight coded keys can be
programmed to your vehicle; only four of these eight keys can be IKTs
with remote entry functionality.

If your IKTs or standard SecuriLock娂 coded keys are lost or stolen and
you don’t have an extra coded key, you will need to have your vehicle
towed to an authorized dealer. The key codes need to be erased from
your vehicle and new coded keys will need to be programmed.

92

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.

Programming spare keys

You can program your own Integrated Keyhead Transmitters or standard
SecuriLock娂 coded keys to your vehicle. This procedure will program
both the engine immobilizer keycode and the remote entry transmitter
portion of the IKT to your vehicle. Note: A maximum of eight coded
keys can be programmed to your vehicle; only four of these eight can be
IKTs with remote entry functionality.

Tips:

• Only use Integrated Keyhead Transmitters (IKTs) or standard
SecuriLock娂 keys.

• You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.

• If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.

Please read and understand the
entire procedure before you begin.

1. Insert the first previously

programmed coded key into the
ignition.

2. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position.

Keep the ignition in the 3 (RUN) position for at least three seconds, but
no more than 10 seconds.

3. Turn the ignition to the 1 (LOCK) position and remove the first coded

key from the ignition.

4. Within ten seconds of turning the ignition to the 1 (LOCK) position,

insert the second previously coded key into the ignition.

93

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

5. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position.

Keep the ignition in the 3 (RUN) position for at least three seconds, but
no more than 10 seconds.

6. Turn the ignition to the 1 (LOCK) position and remove the second

previously programmed coded key from the ignition.

7. Within twenty seconds of turning the ignition to the 1 (LOCK)

position and removing the previously programmed coded key, insert the
new unprogrammed key (new key/valet key) into the ignition.

8. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position.

Keep the ignition in the 3 (RUN) position for at least six seconds.

9. Remove the newly programmed coded key from the ignition.

If the key has been successfully programmed it will start the vehicle’s
engine and will operate the remote entry system (if the new key is an
Integrated Keyhead Transmitter). The theft indicator light will illuminate
for three seconds and then go out to indicate successful programming.

If the key was not successfully programmed, it will not start your
vehicle’s engine and/or will not operate the remote entry features. The
theft indicator light may flash on and off. Wait 20 seconds and you may
repeat Steps 1 through 8. If failure repeats, bring your vehicle to your
authorized dealer to have the new key(s) programmed.

To program additional new unprogrammed key(s), wait twenty seconds
and then repeat this procedure from Step 1.

94

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Seating and Safety Restraints

FRONT SEATS

Notes:

Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the

event of a collision.

Do not pile cargo higher than the seatbacks to reduce the risk of
injury in a collision or sudden stop.

Before returning the seatback to its original position, make sure

that cargo or any objects are not trapped behind the seatback.
After returning the seatback to its original position, pull on the
seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.

Adjustable head restraints

The purpose of these head restraints is to help limit head motion in the
event of a rear collision. To properly adjust your head restraints, lift the
head restraint so that it is located directly behind your head or as close
to that position as possible.

The head restraints can be moved
up and down.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

95

Seating and Safety Restraints

Push side control and push down on
head restraint to lower it.

Adjusting the front manual seat (if equipped)

Lift handle to move seat forward or
backward.

Pull lever up to adjust seatback.

Adjusting the front power seat (if equipped)

Never adjust the driver’s seat or seatback when the vehicle is

moving.

96

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Seating and Safety Restraints

Do not pile cargo higher than the seatbacks to avoid injuring

people in a collision or sudden stop.

Always drive and ride with your seatback upright and the lap

belt snug and low across the hips.

Reclining the seatback can cause an occupant to slide under the

seat’s safety belt, resulting in severe personal injuries in the
event of a collision.

Sitting improperly out of position or with the seat back reclined

too far can take off weight from the seat cushion and affect the
decision of the passenger sensing system, resulting in serious injury or
death in a crash. Always sit upright against your seatback, with your
feet on the floor.

To reduce the risk of possible serious injury: Do not hang objects

off seat back or stow objects in the seatback map pocket (if
equipped) when a child is in the front passenger seat. Do not place
objects underneath the front passenger seat or between the seat and
the center console (if equipped). Check the “passenger airbag off” or
“pass airbag off” indicator lamp for proper airbag status. Refer to Front
passenger sensing system section for additional details. Failure to
follow these instructions may interfere with the front passenger seat
sensing system.

The control is located on the outboard side of the seat cushion.
Press to raise or lower the front

portion of the seat cushion.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

97

Seating and Safety Restraints

Press to raise or lower the rear
portion of the seat cushion.

Press the control to move the seat
forward, backward, up or down.

Heated seats (if equipped)

To operate the heated seats:

• Push the button located on the
instrument panel to activate.

• Push again to deactivate.

The heated seats will activate when the ignition is in the RUN position
and the engine is running.

The system automatically shuts off after 10 minutes.

REAR SEATS

Head restraints

The purpose of these head restraints is to help limit head motion in the
event of a rear collision. To properly adjust your head restraints, lift the
head restraint so that it is located directly behind your head or as close
to that position as possible.

98

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

Seating and Safety Restraints

The head restraints can be moved
up and down. Lift the head restraint
so that it is located directly or as
close as possible behind your head.

Push control to lower or remove
head restraint.

Folding down rear seats

1. Raise the rear seat head restraint

and remove.

2. Place the head restraint under

the front seat for storage.

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)

99

Seating and Safety Restraints

3. Pull the seat release control.

Note: Make sure the floor is clear of all objects before folding the seat.

4. Flip seat forward.

Attach the safety belt web snap
button to the quarter trim panel
snap button. This will ensure that
safety belt does not get caught by
staying out of the seat back folding
path.

100

2008 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)
