Introduction

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

WARNING: Fuel pump shut-off: In the event of an accident

this feature will automatically cut off the fuel supply to the engine. It can also be activated through sudden vibration (e.g. collision when parking). To restart your vehicle, refer to Fuel pump shut-off in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Introduction

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, safety belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Introduction

Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the section Airbag Supplemental Restraint System (SRS) in the Seating and Safety Restraints

chapter. Failure to follow the specific warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Introduction

Event Data Recording

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were

buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or the brake pedal; and

• How fast the vehicle was travelling; and

• Where the driver was positioning the steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Introduction

Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC威 supplement for more information.

Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Introduction

CELL PHONE USE

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required

information and warnings.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Anti-Lock Brake System Parking Brake System

Brake Fluid Non-Petroleum Based

Stability Control System Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Parking Aid System

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Service Engine Soon Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Jack

Low Tire Pressure Warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

Base instrument cluster with standard measure shown– metric similar

OFF

100

120

100

120

180

200

160

140

220

km/h

MPH

Optional instrument cluster with standard measure shown– metric similar

120

100

140

160

140

180

200

220

km/h

MPH

140

OFF

Warning lights can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Many lights will illuminate when you start your vehicle to make sure the indicators work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

Note: Some warning lights are reconfigurable telltale (RTT) indicators. These indicators display in the message center and function the same as a warning light but does not display on startup.

Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned on to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon light blinks eight times, it means that the vehicle is not ready for I/M testing. See the

Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.

Solid illumination after the engine is started indicates the on-board diagnostics system (OBD-II) has detected a malfunction. Refer to On-board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and contact your authorized dealer as soon as possible.

WARNING: Under engine misfire conditions, excessive exhaust

temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Powertrain malfunction/reduced power (RTT): Illuminates when a

powertrain or an AWD fault has been detected. Contact your authorized dealer as soon as possible.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned on when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned on. If the brake system warning light does not illuminate at this time, contact your authorized dealer as soon as possible. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction. Contact your authorized dealer as soon as possible.

WARNING: Driving a vehicle with the brake system warning

light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Contact your authorized dealer as soon as possible. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected. Contact your authorized dealer as soon as possible. Normal braking is still functional unless the brake warning light also is illuminated.

Airbag readiness: If this light fails to illuminate when the ignition is turned on, continues to flash or remains on, contact your authorized dealer as soon as possible. A chime will sound when there is a malfunction in the indicator light.

Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature.

BRAKE

ABS

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Charging system (RTT):

Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component.

Engine oil pressure (RTT):

Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter.

AdvanceTrac威: Displays when the AdvanceTrac威/Traction control is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information.

AdvanceTrac威 off light:

Illuminates when AdvanceTrac威/Traction control has been disabled by the driver. Refer to the Driving chapter for more information.

Low tire pressure warning:

Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for 3 seconds to ensure the indicator is working. If the light does not turn on or begins to flash, contact your authorized dealer as soon as possible. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter.

Low fuel (RTT): Illuminates when the fuel level in the fuel tank is at or near empty. Refer to Fuel gauge in this chapter.

OFF

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Grade assist (RTT) (if equipped): Illuminates when grade

assist is turned on.

Speed control (RTT): The speed control system indicator light changes color to indicate what mode the system is in:

• On (gray light): Illuminates when the speed control system is turned on. Turns off when the speed control system is turned off.

• Engaged (green light): Illuminates when the speed control system is engaged. Turns off when the speed control system is disengaged.

Adaptive cruise control (RTT) (if equipped): The speed control

system indicator light changes color to indicate what mode the system is in:

• On (gray light): Illuminates when the adaptive cruise control system is turned on. Turns off when the speed control system is turned off.

• Engaged (green light): Illuminates when the adaptive cruise control system is engaged. Turns off when the speed control system is disengaged.

Door ajar (RTT): Displays when the ignition is on and any door is not completely closed.

Low washer fluid (RTT):

Illuminates when the windshield washer fluid is low.

Engine coolant temperature (RTT): Illuminates when the engine

coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

WARNING: Never remove the coolant reservoir cap while the engine is running or hot.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

Heads up display (if equipped):

A red beam of lights will illuminate on the windshield in certain instances when using adaptive cruise control and/or the collision warning system. It will also illuminate momentarily when you start your vehicle to make sure the display works. See Using adaptive cruise control in the Driving chapter for more information.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

Parking brake on chime: Sounds when the parking brake is left on and the vehicle is driven. If the warning stays on after the park brake is off, contact your authorized dealer as soon as possible.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

GAUGES

Base cluster shown in standard measure – metric similar

100

120

100

120

140

180

200

160

140

220

km/h

MPH

1. Tachometer: Indicates the engine speed in revolutions per minute.

Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

2. Multifunction display: This displays the engine coolant temperature,

AWD display (if equipped), odometer and trip meter. This is also used to configure different vehicle personalization options and display the status of various vehicle functions and vehicle status information. See Base message center in this chapter for more information.

• Engine coolant temperature gauge (if enabled): Indicates

engine coolant temperature. At normal operating temperature, the level indicator will be in the normal range. The indicator will change colors indicating blue for cool, gray for normal and red for hot. If the engine coolant temperature exceeds the normal range, stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

The engine coolant temperature gauge can be enabled or disabled. See Base message center in this chapter for information on changing the display settings.

• AWD gauge (if equipped and

enabled): displays power

distribution between the front and rear wheels. More power to either front or rear wheels will be displayed by more area filled in.

See All-Wheel Drive (Awd) system in the Driving chapter for information.

3. Speedometer: Indicates the current vehicle speed.

4. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The fuel icon and arrow indicates which side of the vehicle the fuel filler door is located.

Optional cluster shown in standard measure– metric similar

120

100

140

160

120

140

180

200

220

km/h

MPH

1 3

1. Multifunction display: This displays the fuel gauge, tachometer, engine coolant temperature, odometer/trip meter and other vehicle features. This is also used to configure different vehicle personalization options and display the status of various vehicle functions. See Optional message center in this chapter for more information.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

2. Speedometer: Indicates the current vehicle speed.

3. Infotainment display: This display is used for the entertainment,

phone, navigation and climate systems. See the MyFord Touch™ supplement for more information.

BASE MESSAGE CENTER (IF EQUIPPED)

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.

Your vehicle’s message center is capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with informational messages and/or warnings.

The message center is also used to program/configure the different features of your vehicle. The message center display is located in the instrument cluster.

Use the left steering wheel controls to navigate through the message center.

• Press the up/down arrow buttons to move up/down through the message center choices.

• Press the left/right arrow buttons to move left/right through the message center choices.

• Press the OK button to select highlighted options and confirm choices/messages.

km/h

MPH

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Main menu

Scroll up/down to highlight one of the options, then press the right arrow key or OK to enter into that menu option. Press the left arrow key as needed to exit back to the main menu.

*Trip1or2

Trip Odometer — shows the accumulated trip distance. Trip Timer — shows the elapsed trip time. This timer will stop when

the vehicle is turned off and will restart when the vehicle is restarted. Distance to E — shows the approximate distance the vehicle can travel

before running out of fuel. Inst Fuel Econ — shows instantaneous fuel usage. Average Fuel — shows the average distance traveled per unit of fuel

used for a given trip. Fuel Used — shows the amount of fuel used for a given trip.

Press and hold OK to reset the current trip, distance time, average MPG, and fuel used.

*Note: Some items are optional and may not appear.

*Information

AWD Gauge. Displays power distribution between the front and rear wheels. More power to either front or rear wheels will be displayed by more area filled in. Refer to All-Wheel Drive (AWD) system in the Driving chapter.

MyKey威 Distance (if MyKey威 is programmed) MyKey威 Information (number of MyKeys and admin keys programmed) Coolant Temperature. The indicator will change colors indicating: blue

for cool, gray for normal and red for hot. If the engine coolant temperature exceeds the normal range, stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

*Note: Some items are optional and may not appear.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

*Settings

Driver Assist Traction Control

Blind Spot Collision Warning Sensitivity High, Normal or

Low

Chimes (not selectable if using a MyKey)

Warning (not selectable if using a

MyKey) Cross Traffic Rear Park Aid Trailer Sway

Display Language English, Español or Français

Units Distance Miles and

Gallons or Km and Liters

Temperature Fahrenheit (°F)

or Celsius (°C)

Convenience Autolamp Delay Off or number of seconds

Compass (if equipped)

Determine which magnetic zone you are in for your geographic location by referring to the zone map.

Display

Calibrate (if

equipped)

Zone (1–15) (if equipped) See the

diagram below to determine your

magnetic zone.

123

HoldOKto Calibrate

14 13

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

6 7 8 9 1011

Convenience

(cont’d)

Instrument Cluster

*Settings (cont’d)

DTE Calculation Normal or Towing Easy Entry/Exit Locks Autolock

Autounlock Remote Unlock All Doors or

Driver First Oil life Reset Set XXX% Power Liftgate Switch Enabled or Disabled Remote Start Climate Control Heater – A/C

Auto or Last

Setting

Climate Control Steering Wheel

AutoorOff

Climate Control Front Defrost

AutoorOff

Climate Control Rear Defrost

AutoorOff

Climate Control Driver Seat

AutoorOff

Climate Control Passenger Seat

AutoorOff

Duration (5, 10 or

15 minutes)

Quiet Start System

Wipers Courtesy Wipe

Rain Sensing Reverse Wiper

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

*Settings (cont’d)

MyKey Create MyKey Hold OK to Create MyKey

Traction Control Always On or User Selectable Max Speed 80 MPH (130 km/h) or Off Speed Warning 45 mph (75 km/h), 55 mph

(90 km/h), 65 mph (105 km/h) or

Off Volume Limiter Clear MyKeys Hold OK to Clear MyKeys

System Reset Hold OK to

Reset System to Factory Default

*System Check

Oil Life Washer Fluid Doors Liftgate Blind spot Cross Traffic Brakes Fuel

The number of warnings will be listed first. All active warnings will display first if applicable. The system check menu may appear different based upon equipment options and current vehicle status. Use the up/down arrow buttons to scroll through the list; press the right arrow button to display specific information on the highlighted warning.

*Note: Some items are optional and may not appear.

Factory Default

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

System warnings and status messages

See System warning and status messages later in this chapter for more information.

OPTIONAL MESSAGE CENTER (IF EQUIPPED)

WARNING: Driving while distracted can result in loss of vehicle

Your vehicle’s message center is capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with informational messages and/or warnings.

The message center is also used to program/configure the different features of your vehicle.

The message center display is located in the instrument cluster. Use the left steering wheel controls to navigate through the message

center.

• Press the up/down arrow buttons to move up/down through the message center choices.

• Press the left/right arrow buttons to move left/right through the message center choices.

• Press the OK button to select highlighted options and confirm choices/messages.

km/h

MPH

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Main menu

From the main menu screen you can choose from the following categories:

Display Mode

Trip1&2

Fuel Economy

Settings

Information

Scroll up/down to highlight one of the categories, then press the right arrow key or OK to enter into that category.

Menu Control: You can choose a different menu control operation to suit your needs. In any screen which shows these category icons (other than the Main menu screen) and:

• Standard is set– then scrolling up and down will scroll through the main categories.

• Memory on is set– then scrolling up and down will scroll through the last selected sub-category/screen within a main category.

To change the Menu Control between Standard or Memory On, refer to Vehicle and Menu Control found in the table under the Settings section later in this chapter.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Display Mode

Press the right arrow on the left steering wheel mounted button when Display Mode is selected. The boxes in the upper right corner of the screen indicate that there are multiple screens that you can navigate through. Each press of the right arrow will navigate to the next screen until the last screen is reached. The white highlighted box indicates which of the screens you are currently viewing:

Note: Regardless of display mode chosen, when SST is activated, the cluster will change to the tachometer if not already selected, and the M will light up in the shift select indicator and also in the message center. Refer to Automatic transmission operation in the Driving chapter.

Distance to empty (DTE) + Fuel gauge + Bar tachometer

• Distance to empty (DTE): Shows approximate fuel level before the fuel tank reaches empty. The value is dynamic and can change (raise or lower) depending on driving style.

• Fuel gauge: Indicates approximately how much fuel is left in the fuel tank. The fuel gauge may vary slightly when the vehicle is in motion or on a grade. When the fuel level becomes low (50 miles [80 km] to empty), the level indicator will change to amber. When the fuel level becomes critically low (0 miles [0 km] to empty), the level indicator will change to red. Note: When a MyKey威 is in use, low fuel warnings will display earlier .

• Bar tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Note: You can also choose to have only the fuel gauge show in this mode. Refer to Display > Gauge Display found in the table under the Settings section later in this chapter.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Round analog tachometer + Fuel gauge

01234.5mi

For descriptions of the tachometer and fuel gauge, see the description listed previously.

Round analog tachometer + Fuel gauge + Engine coolant temperature gauge

For descriptions of the tachometer and fuel gauge, see the description listed previously.

• Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating

01234.5mi

temperature, the level indicator will be in the normal range. If the engine coolant temperature exceeds the normal range, stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Intelligent AWD (if equipped) + other gauges

Intelligent AWD

For a description of the other gauges, see the descriptions listed previously.

• Intelligent AWD: displays power distribution between the front and rear wheels. More power to either front or rear wheels will be

01234.5mi

displayed by more area filled in. Refer to All-Wheel Drive (AWD) system in the Driving chapter.

RPM

1000

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

SelectShift Automatic™ transmission (SST)

This feature allows you to manually shift gears. If your vehicle is equipped with this feature it will be denoted by an M instead of an L located in the shift selector indicator.

Regardless of display mode chosen, when SST is activated, the cluster will change to the tachometer if not already selected, and the M will light up in the shift select indicator and also in the message center. Refer to Automatic transmission operation in the Driving chapter.

The selected gear will be displayed at the bottom of the vertical bar tachometer (if selected).

The selected gear will be displayed within the full analog tachometer (if selected).

RPM

1000

Trip1&2

Press the right arrow on the left steering wheel mounted button when trip1&2isselected.Theboxes in the upper right corner of the screen indicate that there are multiple screens that you can navigate through. Each press of the right arrow will navigate to the next screen until the last screen is reached. The white highlighted box indicates which of the screens you are currently viewing:

Choose the standard or enhanced display. See the Settings chart following to reach the trip display settings.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Standard trip display

Trip 1

139.5 mi

00:58:44

01234.5mi

RPM

1000

• Trip distance — shows the accumulated trip distance.

• Elapsed trip time — timer stops when the vehicle is turned off and

restarts when the vehicle is restarted.

Enhanced trip display

Trip 1

01234.5mi

139.5 mi

MPG

28.5

300.5 GAL

00:58:44

RPM

1000

• Trip distance — shows the accumulated trip distance.

• Average fuel economy — shows the average fuel economy for a given

trip.

• Estimated amount of fuel consumed — shows the amount of fuel used for a given trip.

• Elapsed trip time — timer stops when the vehicle is turned off and restarts when the vehicle is restarted.

Press OK to pause the Trip 1 or 2 screen. Press again to un-pause. Press and hold OK to reset the currently displayed trip information.

Fuel Economy

Press the right arrow on the left steering wheel mounted button when fuel economy is selected. The boxes in the upper right corner of the screen indicate that there are multiple screens that you can navigate through. Each press of the right arrow will navigate to the next screen

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

until the last screen is reached. The white highlighted box indicates which of the screens you are currently viewing:

Inst. Fuel Economy

Shown with vertical bar tachometer enabled

• This display shows a visual graph of your instantaneous fuel economy. Press the right arrow to reach the other fuel displays and press the left arrow once to return to the previous display.

Press and hold OK to reset the currently displayed fuel information.

XX Min Fuel History

Shown with vertical bar tachometer enabled

• This display shows a bar chart of your fuel history, configurable to 5, 10 or 30 minutes. To configure the fuel history, press the right arrow button when in this screen.

Press and hold OK to reset the currently displayed fuel information.

If you calculate your average fuel economy by dividing miles traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons:

• Your vehicle was not perfectly level during fill-up.

• Differences in the automatic shut-off points on the fuel pumps at

service stations.

• Variations in top-off procedure from one fill-up to another.

• Rounding of the displayed values to the nearest 0.1 gallon (liter).

To determine your average highway fuel economy, do the following:

1. Drive the vehicle at least 5 miles (8 km) with the speed control

system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to reset fuel economy after setting the speed control to get accurate highway fuel economy readings.

Inst. Fuel Economy

01234.5mi

XX Min Fuel History

01234.5mi

RPM

1000

RPM

1000

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

For more information refer to Essentials of good fuel economy in the Maintenance and Specifications chapter.

Settings/Vehicle Settings

In this mode, you can configure different driver setting choices. Press the right arrow key (when in the Settings menu) to reach the listed modes below:

Note: Some items are optional and may not appear.

Driver Assist

Traction Control On (default setting) / Off Blind Spot On (default on key cycle) / Off Collision Warning Sensitivity High / Normal / Low

Chimes On (default on key cycle) / Off

Warn On (default on key cycle) / Off Cross Traffic On (default on key cycle) / Off Cruise Control Adaptive or Normal Rear Park Aid On (default on key cycle) / Off Trailer Sway On (default on key cycle) / Off

Vehicle

Autolamp Delay Off, 10 / 20 (default setting) / 30 / 60 / 90 / 120 /

180 seconds Easy Entry/Exit On / Off Fuel DTE Calculation Normal, Towing Locks Autolock, On / Off

Autounlock On / Off

Remote

Unlocking Menu Control Standard / Memory On Oil Life Reset Set to XXX % Power Liftgate Enable / Disable

All doors / Driver’s door

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Vehicle

Climate Control (using this feature allows you to select different climate control modes

Remote Start

Wipers

Create MyKey Press and hold OK to create MyKey Traction Control Always On / User Selectable Max Speed Set to 80 MPH (130 km/h) / Off Speed Warning 45 mph (72 km/h), 55 mph (89 km/h), 65 mph

Volume Limiter On / Off Clear MyKeys Hold OK to Clear All MyKeys

*Some MyKey items will only appear if a MyKey is set.

when the vehicle is started using the remote start feature) Duration 5 / 10 /15 minutes

Quiet Start On / Off System Enable / Disable Courtesy Wipe On / Off Rain Sensing On / Off Reverse Wiper On / Off

(105 km/h), Off

Heater – A/C Auto / Last

Settings

Front Defrost Auto / Off

Rear Defrost Auto / Off

Driver Seat Auto / Off

Passenger Seat Auto / Off

*MyKey

Display

Gauge Display Fuel Gauge / Fuel + Tach Trip Display Standard / Enhanced

Language

English / Español / Français

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Units

Distance Miles & Gal / Km & Liters Temperature Fahrenheit (°F) / Celsius (°C)

Restore Defaults

Hold OK to Restore Settings to Factory Defaults

Information

In this mode, you can view different vehicle system information and perform a system check.

Warnings

XX Warnings Displays the number of warnings that need

immediate attention in amber. You can only view the

warnings form the System Check menu. View them

immediately by pressing OK and then OK again to

enter system check. Use the up/down arrows to

scroll through the warnings.

MyKey

Admin Keys (Number of admin keys) MyKeys (Number of MyKeys programmed) MyKey Miles (km) (Distance traveled using a programmed MyKey)

System Check*

Warnings display first (only displays if warnings are present) Oil Life Wash Fluid Doors Liftgate Blind spot Cross Traffic Brakes Fuel (distance to empty)

*Some items will only display during a system check if a problem has been detected.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

System warnings and status messages

See System warning and status messages later in this chapter for more information.

SYSTEM WARNINGS AND STATUS MESSAGES

System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.

Note: Depending on the vehicle options equipped with your vehicle, not all of the messages will display or be available. Some messages may read differently also, depending on the options your vehicle has.

In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds.

The message center will display the last selected feature if there are no more warning messages.

Types of messages and warnings:

• Some messages will appear briefly to inform you of something you may need to take action on or be informed of.

• Some messages will appear once and then again when the vehicle is restarted.

• Some messages will reappear after clearing or being reset if a problem or condition is still present and needs your attention.

• Some messages can be acknowledged and reset by pressing OK. This allows you to use the full message center functionality by clearing the message.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Adaptive Cruise

Control Messages ADAPTIVE CRUISE MALFUNCTION ADAPTIVE CRUISE NOT AVAILABLE ADAPTIVE CRUISE

NOT AVAILABLE SENSOR BLOCKED SEE MANUAL

CRUISE CONTROL AUTOMATIC BRAKING TURNED OFF

AdvanceTrac威 /

Traction Control

Messages SERVICE ADVANCETRAC

TRACTION CONTROL OFF

TRAILER SWAY REDUCE SPEED

Action / Description

Displayed when a radar malfunction is preventing the ACC from engaging.

Displayed when conditions exist such that the adaptive cruise cannot function properly.

Displayed when the radar is blocked because of poor radar visibility due to bad weather or ice/mud/water in front of radar. Driver can typically clean the sensor to resolve.

Displayed when adaptive cruise control automatic braking is turned off.

Action / Description

Displayed when the AdvanceTrac威 system has detected a condition that requires service. Contact your authorized dealer as soon as possible.

Displayed when the traction control has been disabled by the driver. Refer to the Driving chapter for more information.

Displayed when the trailer sway control has detected trailer sway. For more information, refer to the Driving chapter for more information.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Alarm/Security

Messages STARTING SYSTEM FAULT

TO STOP ALARM START VEHICLE

AWD Messages Action / Description

AWD OFF

CHECK AWD

This message is displayed when there is a problem with your vehicle’s starting security system; your vehicle will not be able to start. See your authorized dealer for service.

Displayed when the perimeter alarm system is armed and the vehicle is entered using the key on the driver’s side door. In order to prevent the perimeter alarm system from triggering, the ignition must be turned to start or on before the 12 second chime expires. See

Perimeter alarm system in the Locks and security chapter.

Displayed when the AWD system has been automatically disabled to protect itself. This is caused by operating the vehicle with the compact spare tire installed or if the system is overheating. The AWD system will resume normal function and clear this message after driving a short distance with the road tire re-installed or after the system is allowed to cool.

Displayed in conjunction with the Throttle Control/Transmission/AWD the AWD system is not operating properly. If

the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

Action / Description

light when

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Battery and

Charging System

Messages CHECK CHARGING SYSTEM

TURN POWER OFF TO SAVE BATTERY

TRANSPORT MODE CONTACT DEALER FACTORY MODE CONTACT DEALER

BLIS威 Messages Action / Description

BLIND SPOT NOT AVAILABLE SENSOR BLOCKED

BLIND SPOT SYSTEM FAULT

Displayed when the charging system needs servicing. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

Displayed when the battery management system determines that:

• the battery is at a low state of charge or,

• the ignition has been in accessory position

or on position with the engine off for approximately 45 minutes. Turn the ignition off as soon as possible to protect the battery. This message will clear once the vehicle has been started and the battery state of charge has recovered. Turning off unnecessary electrical loads will allow faster battery state-of-charge recovery.

Contact your authorized dealer as soon as possible.

Displayed when the blind spot information system/cross traffic alert system sensors are blocked. See Blind Spot Information System

(BLIS威) with Cross Traffic Alert in the Driving chapter.

Displayed when a fault with the blind spot information system has occurred. Contact your authorized dealer as soon as possible.

Action / Description

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

BLIS威 Messages Action / Description

CROSS TRAFFIC NOT AVAILABLE SENSOR BLOCKED

CROSS TRAFFIC SYSTEM FAULT

VEHICLE COMING FROM LEFT VEHICLE COMING FROM RIGHT

Displayed when the blind spot information system/cross traffic alert system sensors are blocked. See Blind Spot Information System

(BLIS威) with Cross Traffic Alert in the Driving chapter.

Displayed when a fault with the cross traffic alert system has occurred. Contact your authorized dealer as soon as possible.

Displayed when the blind spot information system with cross traffic alert (CTA) system is operating and senses a vehicle. See Blind Spot

Information System (BLIS威) with Cross Traffic Alert in the Driving chapter.

Brake System

Messages BRAKE FLUID LEVEL LOW

CHECK BRAKE SYSTEM

PARK BRAKE ENGAGED

Action / Description

Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter.

Displayed when the brake system needs servicing. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

Displayed when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Collision Warning

System Messages

COLLISION WARN NOT AVAILABLE

COLLISION WARNING NOT AVAILABLE SENSOR BLOCKED SEE MANUAL

COLLISION WARNING MALFUNCTION

Door Messages Action / Description

X DOOR AJAR

LIFTGATE AJAR

Fuel Messages Action / Description CHECK FUEL FILL INLET

FUEL LEVEL LOW XXX MI TO E

Displayed when there is a system malfunction with the collision warning system. The system will be disabled.

Displayed when the collision warning system radar is blocked because of poor radar visibility due to bad weather or ice/mud/water in front of the radar. Driver can typically clean the sensor to resolve.

Displayed when there is a system malfunction with the collision warning system. The system will be disabled.

Displayed when a door is not completely closed.

Displayed when the liftgate is not completely closed.

Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel威 “no cap”

fuel system in the Maintenance and Specifications chapter.

Displayed as an early reminder of a low fuel condition.

Action / Description

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

General Messages Action / Description

SHIFT TO PARK

STEERING LOCK TURN WHEEL TO UNLOCK

Displayed when the engine is turned off with the shift select lever in any position other than P (Park).

Displays when you need to turn the steering wheel in order to disengage the steering lock.

Keys and Intelligent

Access Messages

NO KEY DETECTED Displayed if the intelligent access key is not

KEY PROGRAMMED 3 KEYS TOTAL

KEY PROGRAMMED 4 KEYS TOTAL

MAX NUMBER OF KEYS LEARNED

PRESS BRAKE TO START

detected by the system in the following three scenarios:

•When the start/stop button is pressed in an attempt to either start the engine or cycle through the ignition states.

•When the engine is running and a door is opened then closed.

•When the vehicle’s speed exceeds 10 mph (16 km/h) for the first time after starting. Refer to Push button start system in the Driving chapter for more information.

Displayed during spare key programming, when a third intelligent access key is programmed to the system.

Displayed during spare key programming, when a fourth intelligent access key is programmed to the system.

Displayed during spare key programming when the maximum number of keys have been programmed.

Displayed when the start/stop button is pressed without the brake pedal being applied. This is a reminder that the brake pedal must be applied when the start/stop button is pressed in order to start the engine. Refer to Push button start system in the Driving chapter for more information.

Action / Description

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Keys and Intelligent

Access Messages

RESTART NOW OR KEY IS NEEDED

ACCESSORY POWER ACTIVE

Maintenance

Messages

LOW ENGINE OIL PRESSURE

CHANGE ENGINE OIL SOON

OIL CHANGE REQUIRED

ENGINE COOLANT OVER TEMP

WASHER FLUID LEVEL LOW

Action / Description

Displayed when the start/stop button is pressed to shut off the engine and a Intelligent Access Key is not detected inside the vehicle. Refer to Push button start system in the Driving chapter for more information.

Displayed when the vehicle is in the accessory ignition state.

Action / Description

Stop the vehicle as soon as safely possible, turn off the engine. Check the oil level. See

Checking the engine oil in the Maintenance and Specifications chapter. If the warning

stays on or continues to come on with your engine running, contact your authorized dealer as soon as possible.

Displayed when the engine oil life remaining is 10% or less.

Displayed when the oil life left reaches 0%.

Displayed when the engine coolant temperature is excessively high.

Indicates the washer fluid reservoir is less than one quarter full. Check the washer fluid level. Refer to Windshield washer fluid in the Maintenance and Specifications chapter.

MyKey威 Messages Action / Description MYKEY ACTIVE DRIVE SAFELY MYKEY NOT CREATED SPEED LIMITED TO 80 MPH

Displayed when MyKey威 is active.

Displayed during key programming when MyKey威 cannot be programmed.

Displayed when starting the vehicle and MyKey威 is in use and the MyKey speed limit is on. Refer to MyKey威 in the Locks and Security chapter for more information.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

MyKey威 Messages Action / Description

VEHICLE AT TOP SPEED OF MYKEY SETTING

VEHICLE NEAR TOP SPEED

CHECK SPEED DRIVE SAFELY

BUCKLE UP TO UNMUTE AUDIO

COULD NOT PROGRAM INTEGRATED KEY

COULD NOT PROGRAM KEY

Displayed when a MyKey威 is in use and the MyKey speed limit is on and the vehicle speed is 80 mph (130 km/h). Refer to MyKey威 in the Locks and Security chapter for more information.

Displayed when a MyKey威 is in use and the MyKey speed limit is on and the vehicle speed is approaching 80 mph (130 km/h). Refer to MyKey威 in the Locks and Security chapter for more information.

Displayed when a MyKey威 is in use and the optional setting is on and the vehicle exceeds a preselected speed. Refer to MyKey威 in the Locks and Security chapter for more information.

Displayed when a MyKey威 is in use and Belt-Minder威 is activated. Refer to MyKey威 in the Locks and Security chapter for more information.

Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey威 in the Locks and Security chapter for more information.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Park Aid Messages Action / Description

CHECK PARK AID

CHECK REAR PARK AID REAR PARK AID ON OFF

Displayed when the transmission is in R (Reverse) and the park aid is disabled.

Displays the rear park aid status.

Passenger Sensing

System Message

REMOVE OBJECTS NEAR PASSENGER SEAT

Tire Messages Action / Description LOW TIRE PRESSURE

TIRE PRESSURE MONITOR FAULT

TIRE PRESSURE SENSOR FAULT

Displayed when objects are by the passenger seat. After the objects are moved away from the seat, if the warning stays on or continues to come on contact your authorized dealer as soon as possible.

Displayed when one or more tires on your vehicle have low tire pressure. Refer to

Inflating Your Tires in the Tires, Wheels and Loading chapter.

Displayed when the Tire Pressure Monitoring System is malfunctioning. If the warning stays on or continues to come on, have the system inspected by your authorized dealer.

Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to

Understanding Your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning

stays on or continues to come on, contact your authorized dealer as soon as possible.

Action / Description

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

MYFORD™ SYSTEM (IF EQUIPPED)

WARNING: Driving while distracted can result in loss of vehicle

Vol (Power/Volume): Press to turn the system on/off and turn to

increase/decrease the volume levels.

Maneuvering the screens: When using your system, information will appear in the display screen. You can make selections and maneuver the screens a few different ways:

1. Use the soft keys beneath the screen to select the function directly above them.

2. You can press some of the hard buttons to access their respective menus.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

3. Use the center control in the same manner you would a joystick

— press / to move up/down in menus or press

out of or into a menu. When these options are available, icons will appear on the screen.

4. Press OK on the center control to make or confirm selections. Note: You can also use the OK and

arrow buttons on the right side of your steering wheel to make the same selections you would with the center control.

Setting the Clock

• Press CLOCK.

• Use the center controls to move

between the options and to increase/decrease.

/ to move

Note: You can also access this screen by pressing: Menu > Clock. Language setting

To access/adjust the language setting, press MENU > Display Settings > Language.

Listening to music

Radio

Press RADIO to access the radio screen. From this screen you can:

• Press RADIO repeatedly to cycle through AM, AM2-AST, FM1, FM2, FM3-AST frequency bands.

• Select the Tune soft key then scroll through the frequencies by using

/ or the tune knob.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

• Select the Mute soft key to mute the playing media. Press again to return to the playing media.

• Press

• Select the AST (Autostore) soft key to activate the auto store feature.

Autostore allows you to store the 10 strongest local stations available from the AM and FM frequency band. Press and hold the AST soft key and follow the screen prompts. When the search is complete, the sound will return and the 10 strongest stations will be stored in the memory presets (and overwrite any stations previously stored in the AST band).

• To save a station in a memory preset, tune to the desired station. Press and hold the desired preset. The sound will briefly mute and then return indicating the station has been saved.

• View and access your saved presets by pressing access a list of your saved presets. The display will indicate the preset

# the station was saved to. To exit, wait until the menu times out (approximately eight seconds) or press the RADIO hard button.

Note: You can also manually store stations in the AST band. When the AST band is active, simply tune to the desired station and press and hold a memory preset. The new station will be saved and will override the previously saved station.

Audio settings

To make adjustments to the sound settings, press MENU > Audio Settings to access:

• Spd. Comp. Vol.: Scroll to select Speed Compensated Volume and press OK to enter the menu. This feature automatically adjusts the system’s volume to compensate for speed and wind noise. You can set the system between off and +7. Press OK to confirm and close.

• Sound: Press OK to enter and scroll using the center control to select from Treble, Bass, Middle, Balance, Fade. Use the center controls to make adjustments and press OK to confirm and close.

Radio options

To access more options in radio mode, press MENU > Radio and select from:

• Scan: Select to hear a brief sampling of all available radio stations.

• Set Category: Select to choose a specific music category in FM

mode. You can then search for stations only playing this kind of music. Note: RBDS/RDS text must be turn on before “Set Category” will appear.

/ to seek to the previous/next station.

/ or to

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

• RBDS/RDS Text: Select to turn Radio Broadcast Digital Signal text on to view additional broadcast data. Note: This feature defaults to off, but it must be turned on in order for you to choose and set a category. When this feature is activated, all of your text will scroll on one line. To see all of your text, press the Info soft key.

Radio reception factors:

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

SIRIUS姞 satellite radio (if equipped)

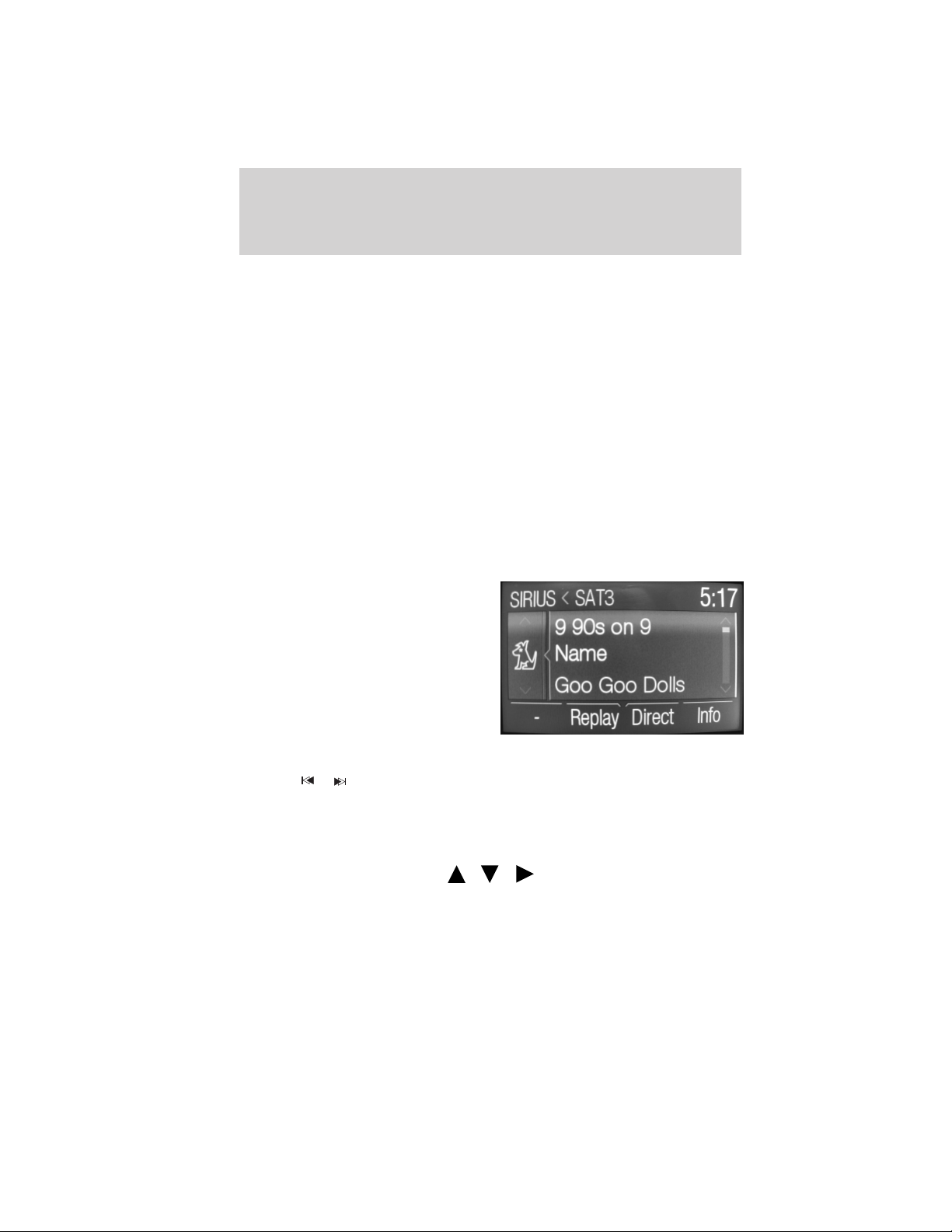

Press SIRIUS to access the satellite radio screen. From this screen you can:

• Press SIRIUS repeatedly to cycle between SAT1, SAT2 and SAT3 presets.

• Select the ‘Direct’ soft key to enter the channel you desire via the on 0–9 keypad. Enter in the number of the desired satellite radio channel and press Enter for quick access.

• Select the ‘Info’ soft key to view additional information about the current channel.

• Press selected category.

• To save a channel as a preset, acquire the desired channel and then press and hold the desired memory preset (0–9). A pop-up screen will confirm when it is saved.

• To view your presets, press presets. The display will also indicate the presets to which the stations

are saved.

• Select the ‘Replay’ soft key to replay audio on the current channel. You can replay approximately 45 minutes of audio as long as you have

/ to seek to the previous/next channel within the

/ / for a list of your saved

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

remained tuned to the current station. If you change stations, the previous audio will be erased. While in replay mode, you can:

• Press and release song .

• Press and hold / to advance to reverse or fast forward

in the current track.

• Press

• Select ‘Exit & Play Live’ to return to live audio if you had been

using the replay feature to replay audio.

Audio settings

To make adjustments to the sound settings, press MENU > Audio Settings to access:

• Spd. Comp. Vol: Scroll to select Speed Compensated Volume (SCV) and press OK to enter the menu. This feature automatically adjusts the system’s volume to compensate for speed and wind noise. You can set the system between off and +7. Press OK to confirm and close.

• Sound: Press OK to enter and scroll using the center control to select from Treble, Bass, Middle, Balance, Fade. Use the center controls to make adjustments and press OK to confirm and close.

SIRIUS威 options

To access other options in SIRIUS mode, press MENU > SIRIUS.

• Scan: Select for a brief sampling of all available channels.

• Show ESN: Select to view your Satellite Radio Electronic Serial

Number (ESN). You will need this number when communicating with SIRIUS威 to activate, modify or track your satellite radio account.

• Channel Guide: Select to view a listing of available satellite radio channels. Press OK or through available channels. In this guide, you can choose to Tune Channel, Skip Channel or Lock Channel by pressing the OK button when the desired channel is selected. Once a channel has been skipped or locked, you can only access those channels by pressing Direct and entering in the channel number. Locking or unlocking a channel also requires you to enter your PIN.

• Set Category: Select to scroll through a list of available SIRIUS威 channel categories (Pop, Rock, News, etc.) Note: If you select a category, the seek and scan functions will only stop on channels in that category.

/ to play / pause the audio.

/ to advance to the previous /next

to enter the Channel Guide and then scroll

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

• Alerts: Select this to create an alert for a particular song or artist or team. The system will then alert you when it is playing on another channel. From this screen you can also maintain alerts, enable/disable and delete alerts from your list. You can save up to 20 alerts. If you attempt to save an alert and your list is full, the system will prompt you to delete one.

• Unlock All Stations: Select this and use your PIN to unlock all previously locked channels (from the parental lock feature).

• Skip No Stations: Select this feature and use to ‘unskip’ all channels you previously selected to skip.

• Parental Lock (PIN): Select to create a PIN which will allow you to lock or unlock certain channels. Note: Your initial PIN is 1234.

Satellite radio information (if activated)

SIRIUS威 satellite radio service:

SIRIUS威 satellite radio is a subscription based satellite radio service that broadcasts a variety of music, sports, news, weather, traffic and entertainment programming. Your factory installed SIRIUS威 satellite radio system includes: hardware and a limited subscription term which begins on the date of sale or lease of the vehicle. Refer to your authorized dealer for availability.

For more information on extended subscription terms (a service fee is required), the online media player and a complete list of SIRIUS威 satellite radio channels, and other features, please visit www.sirius.com in the United States, www.siriuscanada.ca in Canada, or call SIRIUS威 at 1–888–539–7474.

Satellite radio reception factors

• Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.

• Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

You will hear an audio mute when there is a satellite radio signal interference. Your display may show Acquiring...to indicate the interference.

Satellite radio electronic serial number (ESN): You will need your ESN to activate, modify or track your satellite radio account. The ESN is found on the System Information Screen (SR ESN:XXXXXXXXXXXX).

To access your ESN, press MENU > SIRIUS >Show ESN or tune to channel 0.

Note: SIRIUS威 reserves the unrestricted right to change, rearrange, add

or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.

Troubleshooting tips

Radio Display Condition Possible action

Acquiring Radio requires more

than two seconds to

produce audio for the

selected channel.

SIRIUS威 system failure

Invalid Channel Channel no longer

Unsubscribed Channel Subscription not

Internal module or

system failure

present.

available.

available for this

channel.

No action required.

This message should

disappear shortly.

If this message does

not clear within shortly,

or with an ignition key

cycle, your receiver

may have a fault. See

your authorized dealer

for service.

Tune to another

channel or choose

another preset.

Contact SIRIUS威 at 1–888–539–7474 to

subscribe to the

channel, or tune to

another channel.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

Radio Display Condition Possible action

No Signal Loss of signal from

the SIRIUS威 satellite

or SIRIUS威 tower to the vehicle antenna.

Updating Update of channel

programming in

progress.

Call SIRIUS威 1–888–539–7474

No Channels Available All the channels in

Subscription Updated SIRIUS威 has updated

Playing a disc

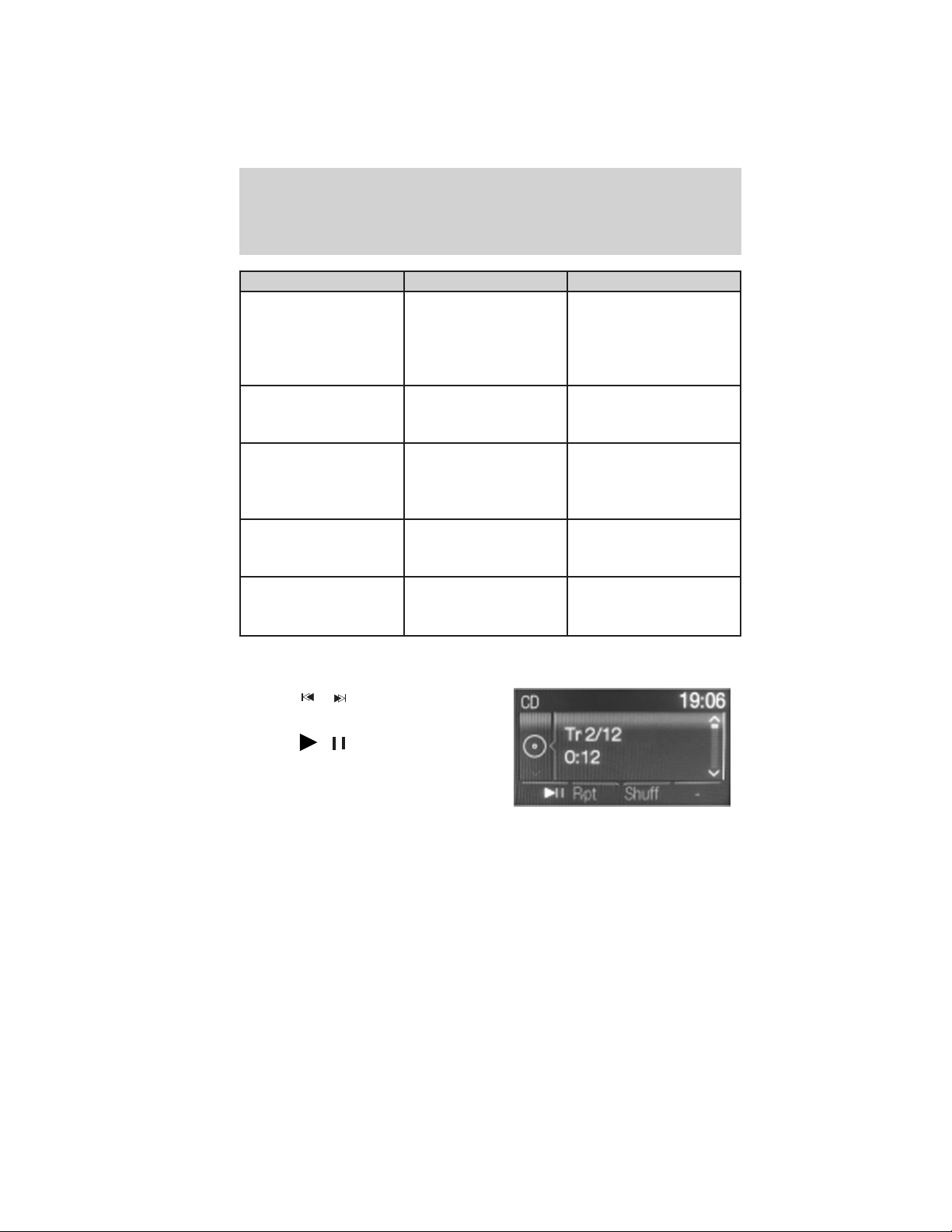

Press CD to access the disc screen. From this screen you can:

• Press previous/next track.

• Press track.

• Select the Repeat soft key to repeat the current song.

• Select the Shuffle soft key to shuffle the songs on the current disc.

CD Options

Press MENU > CD Options to access:

• Scan All: Press to hear a brief selection of all tracks on the current disc.

• Scan Folder: Available when playing an MP3 disc. Select for a brief sampling of all the music in the current folder.

/ to access the

/ to play/pause a

Satellite service has been deactivated by

SIRIUS威 Satellite

Radio.

the selected category

are skipped or locked.

the channels available

for your vehicle.

The signal is currently

being blocked. When

you move into an open

area, the signal should

return.

No action required. The

process may take up to

three minutes.

Call SIRIUS威 at

1–888–539–7474 to

re-activate or resolve

subscription issues.

Using the channel

guide, unlock or unskip

the channels.

No action required.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

• CD compression: Brings soft and loud CD passages together for a more consistent listening level.

Audio settings

Press MENU > Audio Settings to access:

• Spd. Comp. Vol: Scroll to select Speed Compensated Volume and press OK to enter the menu. This feature automatically adjusts the system’s volume to compensate for speed and wind noise. You can set the system between off and +7. Press OK to confirm and close.

• Sound: Press OK to enter and scroll using the center control to select from Treble, Bass, Middle, Balance, Fade. Use the center controls to make adjustments and press OK to confirm and close.

CD tips

• Handle discs by their edges only.(Never touch the playing surface).

• Inspect discs before playing.

• Clean only with an approved CD cleaner.

• Wipe discs from the center out.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• Do not clean using a circular motion.

Note: CD units are designed to play commercially pressed 4.75 in (12 cm)

audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached. CDs with homemade paper

(adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is

recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

Auxiliary input jack (line in)

WARNING: Driving while distracted can result in loss of vehicle

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

The auxiliary input jack (AIJ) provides a way to connect and play music from your portable music player over the vehicle speakers. To access:

1. Plug in one end of the cable into the AIJ (located in your center console).

2. Listen to an FM station or a CD first to adjust the volume to a comfortable listening level.

3. Turn your portable music player on and adjust the volume to 1/2 of full volume.

4. Press AUX repeatedly until Auxiliary audio active or Line in active appears.

5. Now adjust the volume on your portable music player until it matches that of the FM station or the CD you were listening to previously.

Troubleshooting tips

• Don’t connect the AIJ to a line level output. These are intended for connection to a home stereo and are not compatible.

• Don’t set the volume on your portable music player higher than necessary as this may cause distortion and reduce sound quality.

• If the music sounds distorted at lower listening levels, turn the volume on the portable music player down and check to see if you need to replace or recharge the batteries.

• The AIJ doesn’t provide control over your portable music player. You still need to use the controls on the player for functions such as play, pause, etc.

• For safety reasons, you should not connect or adjust your portable music player while the vehicle is moving. The portable music player should have a long enough extension cable to allow it to be stored in a secure location, (such as the center console or the glove box) when the vehicle is in motion.

Phone

PHONE: If your vehicle is equipped with this audio system and SYNC威, press PHONE to access SYNC phone features. Refer to your SYNC威 supplement for more information. If your vehicle is not equipped with SYNC威, press PHONE to mute the playing media. Press again to return to the playing media.

If your vehicle is equipped with a touchscreen system, refer to the MyFord Touch™ / MyLincoln Touch™ supplement for further information.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

USB port (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

Your vehicle may be equipped with a USB port located in the center console. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. If it is a single USB port, refer to the SYNC威 supplement for more information. If there are two USB ports (and you have a touch screen system), refer to the MyFord Touch™ supplement for more information.

Media hub (if equipped)

If your vehicle is equipped with the MyFord Touch™ touchscreen system, your media hub is located in your center console and will contain the following:

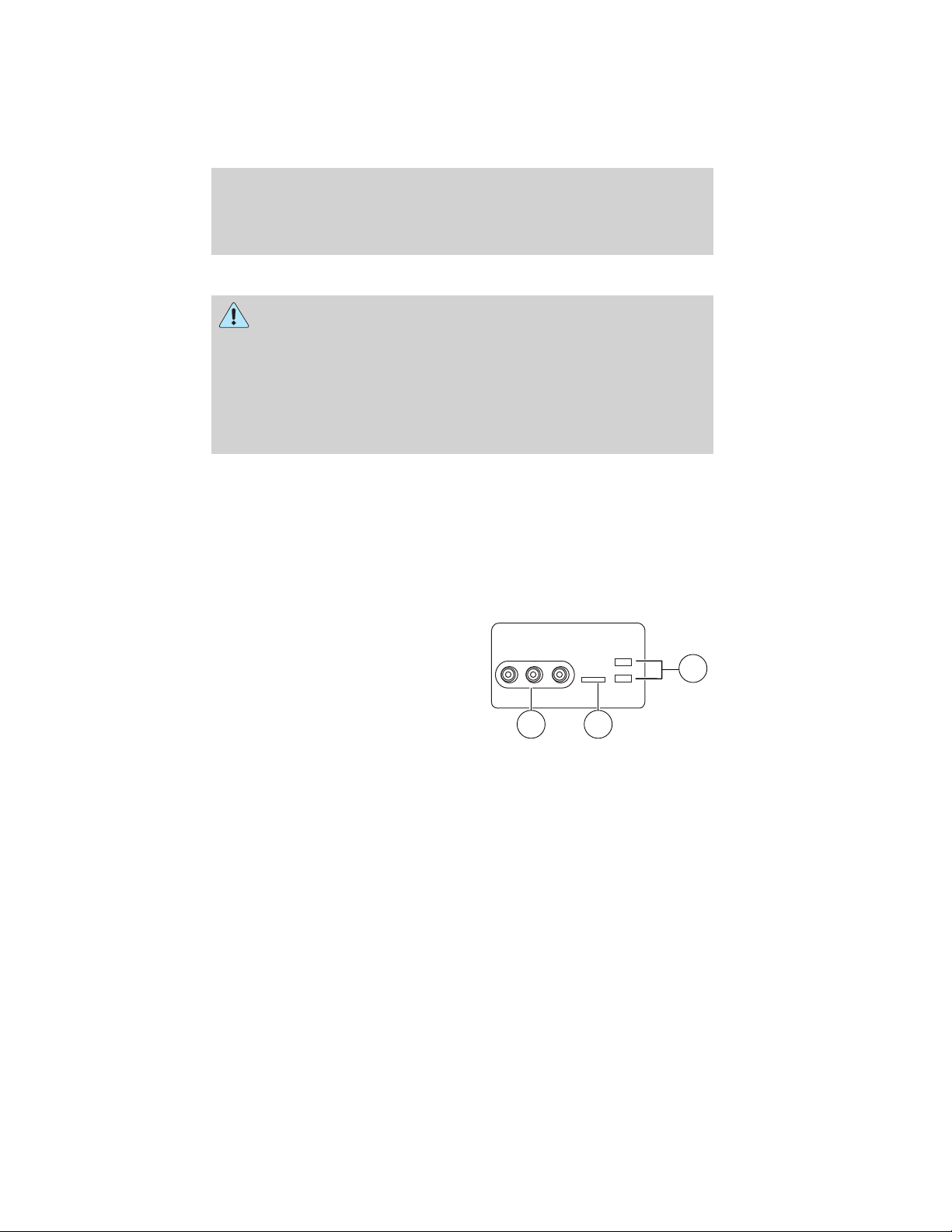

3 2

1. USB ports

2. SD card slot

3. AV inputs

For more information on these components, please refer to the Media chapter of your MyFord Touch™ supplement.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

MYFORD TOUCH ™ (IF EQUIPPED)

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving, encourage the use of voice-operated systems when possible and that you become aware of applicable state and local laws that may affect the use of electronic devices while driving.

Your vehicle may be equipped with an infotainment system which utilizes a four corner strategy and dynamic menu listings to provide quick access to vehicle features and settings.

For complete information on this system, please refer to your MyFord

Touch™ / MyLincoln Touch™ Supplement.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

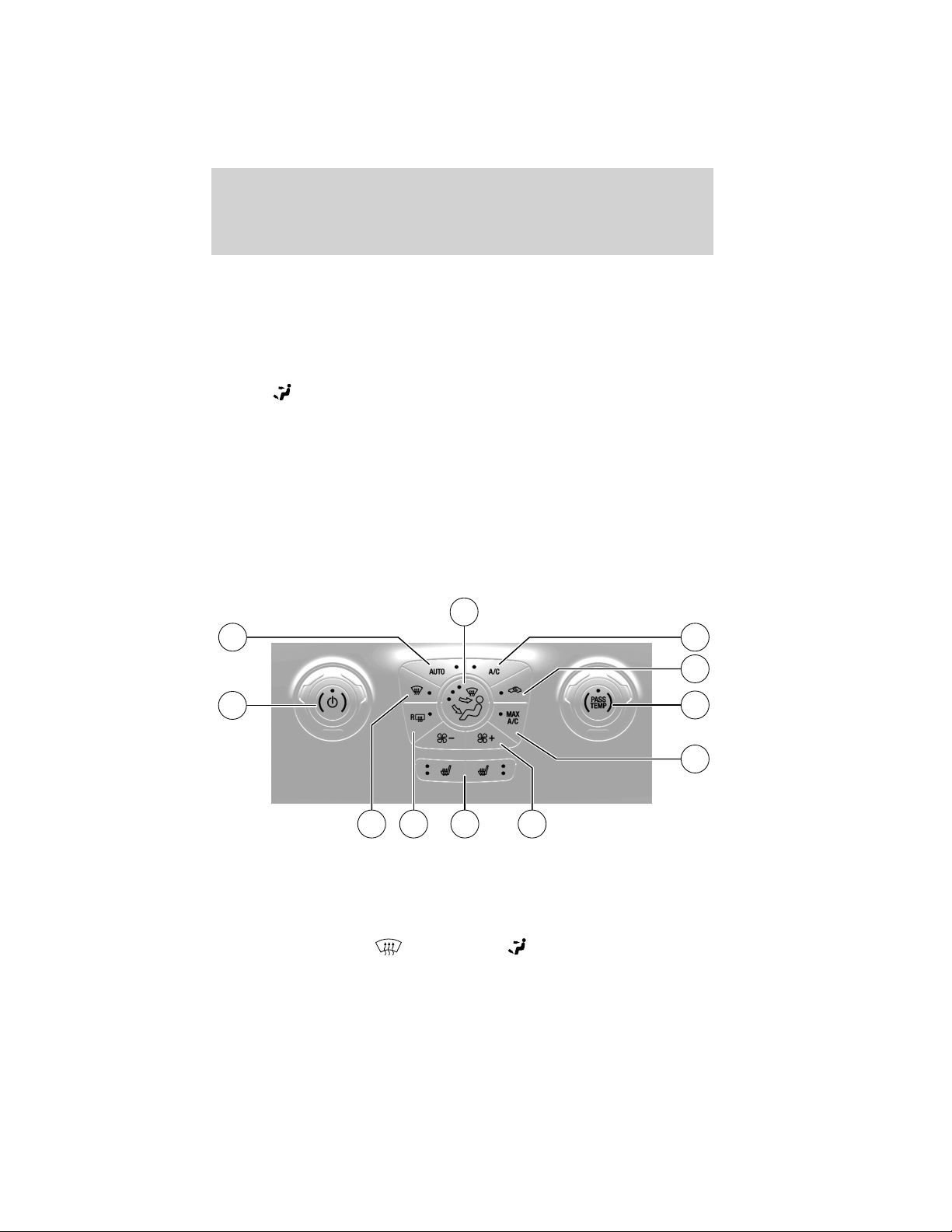

SINGLE ZONE MANUAL CLIMATE CONTROL (IF EQUIPPED)

Temperature conversion: To switch between Fahrenheit and Celsius: Press MENU > Display Settings > Temp. Setting.

1. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C,

and

2. in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except automatically in all airflow modes except MAX A/C to reduce fog potential.

3. Temperature control: Controls the temperature of the airflow in the vehicle.

4. MAX A/C (if equipped): Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient than normal A/C mode. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.

(floor/defrost).

(Recirculated air): Press to activate/deactivate air recirculation

(defrost). Recirculated air may turn off

(defrost)

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

5. (Multifunction control): Press repeatedly to toggle through the settings and manually choose one of the following air distribution modes:

•

6. defroster. This button will also activate/deactivate the heated mirrors (if equipped). Refer to Rear window defroster later in this chapter for more information.

8. defroster vents and demister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.

9. When the system is off, outside air is prevented from entering the

vehicle through the vents.

: Distributes air through the windshield defroster vents, de-mister

vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

: Distributes air through the instrument panel vents.

: Distributes air through the instrument panel vents, demister

vents, floor vents and rear seat floor vents.

: Distributes air through the demister vents, floor vents and rear

seat floor vents.

(Rear defroster): Press to activate/deactivate the rear window

(Fan speed adjustment): Turn to select the desired fan speed.

(Defrost): Distributes outside air through the windshield

(Power): Press to activate/deactivate the climate control system.

Operating tips

• To reduce fog build-up on the windshield during humid weather, select

• To reduce humidity build-up inside the vehicle, do not drive with the system off or with

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

• To improve the time to reach comfort in hot weather, drive with the windows slightly open for 2-3 minutes after start-up or until the vehicle has been “aired out.”

• A small amount of air may be felt from the floor vent regardless of the air distribution setting that is selected.

(defrost) or (floor/defrost).

(recirculated air) engaged and A/C off.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

For maximum cooling performance in MAX A/C mode:

1. Select MAX A/C.

2. Move temperature control selector to the coolest setting.

3. Set the fan to the highest speed initially. As the interior starts to cool down, adjust the fan speed to maintain comfort.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents toward the side windows. To increase airflow to the outer instrument panel vents, close the vents

located in the middle of the instrument panel.

AUTOMATIC TEMPERATURE CONTROL SYSTEMS

Dual Automatic Temperature Control (DATC) system with and without heated seats (if equipped)

(panel/floor).

110

8 6

Temperature conversion: To switch between Fahrenheit and Celsius: Press MENU > Display Settings > Temp. Setting, or refer to Settings in the Message Center section of the Instrument Cluster chapter.

1. A/C control: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages

automatically in AUTO,

(defrost) and (floor/defrost).

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

2. (Recirculated air): Press to activate/deactivate air recirculation

in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except

automatically in all airflow modes except MAX A/C to reduce fog potential.

3. PASS TEMP: Press to activate dual zone (separate passenger

temperature control) and turn the dial to increase/decrease the temperature for the passenger side of the vehicle. Press again to deactivate passenger temperature control and return to single zone temperature control where the driver settings control the temperature for the entire vehicle.

4. MAX A/C: Distributes recirculated air through the instrument panel

vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.

(Fan speed control): Press to manually increase or decrease the

fan speed.

(Heated seats, if equipped): Press to activate/deactivate the driver or passenger heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.

7. This button will also activate/deactivate the heated mirrors (if equipped).

Refer to Rear window defroster later in this chapter for more information.

8. defroster vents and demister vents. Can be used to clear the windshield of fog and thin ice. Press this button again to return to the previous air flow selection. To return to full automatic control, touch AUTO.

9. activate/deactivate the climate control system. When the system is off, outside air is prevented from entering the vehicle through the vents. Turn to adjust the temperature for either the driver side of the vehicle (dual zone) or the entire vehicle cabin (single zone) if the passenger side temperature is not activated.

10. AUTO: Press to engage full automatic operation. Select the desired temperature using the temperature control. The system will

(Rear defroster): Press to activate/deactivate the rear defroster.

(Defrost): Distributes outside air through the windshield

(Power/Driver temperature control): Press to

(defrost). Recirculated air may turn off

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

automatically determine fan speed, airflow distribution, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

11. Manual override controls: Press repeatedly to toggle through the settings and manually choose one of the following air distribution modes:

•

Dual Automatic Temperature Control (DATC) Sony system (if equipped)

: Distributes air through the windshield defroster ducts, demister outlets, and the front and rear seat floor vents. The system will automatically provide outside air to reduce window fogging

: Distributes air through the instrument panel vents, demister vents, and the front and rear seat floor vents.

: Distributes air through the demister vents and front and rear

seat floor vents.

: Distributes air through the instrument panel and center console

vents.

Note: Your climate control system is touch sensitive. You need only lightly touch the control graphic to activate the feature.

Note: Your vehicle is also equipped with touchscreen climate control features. To access, press the lower right corner ( touchscreen. Refer to your MyFord Touch™ / MyLincoln Touch™ supplement for more information.

)ofthe

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

Temperature conversion: To access the temperature setting, press Menu on the touchscreen. Then press Settings > System > Temperature. Select to view the temperature in either Fahrenheit and Celsius.

1. A/C control: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages

automatically in AUTO,

2. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.

3. in the vehicle. Recirculated air may reduce the amount of time to cool

down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except

automatically in all airflow modes except MAX A/C to reduce fog potential.

4. DUAL: Press to activate dual zone (separate passenger temperature control). Press again to deactivate and return to single zone temperature control (where the driver settings control the temperature for the entire vehicle).

5. Passenger temperature control: Press to activate dual zone temperature and to increase (+) or decrease (-) the temperature on the passenger side of the vehicle.

6. (-) the fan speed.

7. Driver temperature control: Press to increase (+) or decrease (-) the temperature on the driver side of the vehicle. If the passenger temperature controls are not activated (dual zone), the driver’s settings will determine the temperature setting for the entire vehicle cabin.

8. When the system is off, outside air is prevented from entering the vehicle through the vents.

9. AUTO: Press to engage full automatic operation. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow distribution, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

(Recirculated air): Press to activate/deactivate air recirculation

(Fan speed control): Press to manually increase (+) or decrease

(Power): Press to activate/deactivate the climate control system.

(defrost) and (floor/defrost).

(defrost). Recirculated air may turn off

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

10. defroster. This button will also activate/deactivate the heated mirrors (if equipped). Refer to Rear window defroster later in this chapter for more information.

11. defroster vents and demister vents. Can be used to clear the windshield of fog and thin ice. Press this button again to return to the previous air flow selection. To return to full automatic control, touch AUTO.

Dual Automatic Temperature Control (DATC) system with MyTemp (if equipped)

(Rear defroster): Press to activate/deactivate the rear

(Defrost): Distributes outside air through the windshield

57 6 4 3

Note: Your climate control system is touch sensitive. You need only lightly touch the control graphic to activate the feature.

Note: Your vehicle is also equipped with touchscreen climate control features. To access, press the lower right corner touchscreen. Refer to your MyFord Touch™ / MyLincoln Touch™ supplement for more information.

Temperature conversion: To access the temperature setting, press Menu on the touchscreen. Then press Settings > System > Temperature. Select to view the temperature in either Fahrenheit and Celsius.

1. Passenger temperature control: Touch to activate dual zone temperature and to increase (+) or decrease (-) the temperature on the passenger side of the vehicle. DUAL: Touch to activate dual zone (separate passenger temperature control). Touch again to deactivate and return to single zone temperature control (where the driver settings control the temperature for the entire vehicle).

)ofthe

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

2. (Recirculated air): Touch to activate/deactivate air recirculation in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except automatically in all airflow modes except MAX A/C to reduce fog potential.

3. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Touch MAX A/C again for normal A/C operation.

4. A/C control: Touch to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages

automatically in MAX A/C,

/ (Power/Fan control): Touch to activate/deactivate the

5. climate control system. When the system is off, outside air is prevented

from entering the vehicle through the vents. Turn to increase or decrease fan speed.

6. AUTO: Touch to engage full automatic operation. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow distribution, A/C on or off, and outside or recirculated air, to heat or cool the vehicle in order to reach the desired temperature.

(Rear defroster): Touch to activate/deactivate the rear defroster.

7. This button will also activate/deactivate the heated mirrors (if equipped). Refer to Rear window defroster later in this chapter for more information.

8. defroster vents and demister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Touch this button again to return to the previous air flow selection. To return to full automatic control, touch AUTO.

9. Driver temperature control: Touch to increase (+) or decrease (-) the temperature on the driver side of the vehicle. If the passenger temperature controls are not activated (dual zone), the driver’s settings will determine the temperature setting for the entire vehicle cabin.

(Defrost): Distributes outside air through the windshield

(defrost). Recirculated air may turn off

(defrost) and (floor/defrost).

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

MyTemp: Touch and hold to save the desired temperature for MyTemp. To access this setting again, simply touch the indicator. The MyTemp feature can be used to store and recall a preset driver’s temperature. This feature is provided so this temperature can be quickly adjusted to a frequently used setting with a single button touch. To save a new preset temperature for the active user, manually adjust the driver’s temperature to the desired value then touch and hold the MyTemp button for at least two seconds. Any subsequent touch of the MyTemp button will automatically change to this set temperature for this user.

Operating tips

• To reduce fog build-up on the windshield during humid weather, select

• To reduce humidity build-up inside the vehicle: do not drive with the system off or with recirculated air engaged.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

• To improve the A/C cool down, drive with the windows slightly open for 2–3 minutes after starting the vehicle or until the vehicle has “aired out.”

• A small amount of air may be felt from the floor vent regardless of the air distribution setting that is selected.

During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in MAX A/C, reduce blower fan speed from the highest setting and put the vehicle’s transmission in P (Park) to continue to receive cool air from your A/C system.

For maximum cooling performance (MAX A/C):

1. Press MAX A/C. The system will default to single-zone operation and

set the temperature to 60°F (16°C).

2. A/C,

3. Fan speed will be determined by the vehicle’s internal temperature,

but can be adjusted as desired.

(defrost).

and will be selected.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

To aid in side window defogging/demisting in cold weather:

1. Select .

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan to the highest speed.

5. Direct the outer instrument panel vents toward the side windows. To increase airflow to the outer instrument panel vents, close the vents

located in the middle of the instrument panel.

Touchscreen features

If your vehicle is equipped with a touchscreen system, you can access climate features via the touchscreen and voice commands. Refer to the Climate Control chapter in your MyFord Touch™ supplement for more information.

REAR WINDOW DEFROSTER

The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice.

The engine must be running to operate the rear window defroster.

Press

to turn the rear window defroster on. An indicator light on the button will illuminate when active. The rear window defroster turns off automatically after a predetermined amount of time, if a low battery condition is detected or when the ignition is turned to the off or accessory position. To manually turn off the rear window defroster at any time, press the control again.

If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both. Refer to Heated outside mirrors in the Driver Controls chapter.

Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

REMOTE START CLIMATE OPERATION (IF EQUIPPED)

The climate control system will condition the cabin temperature during remote start based on the outside temperature. Engine idle may increase to help with adjusting the cabin temperature.

Note: No climate control adjustments will be recognized during remote start operation and none of the climate function indicators will be illuminated while the vehicle is in remote start. Once the ignition is cycled to the on position, the climate control system will return to the previous settings (last ignition-on cycle) and adjustments can be made normally. If the previous setting was off, the climate control system will turn off. If you previously had any of the following activated: heated seats (if equipped), cooled seats (if equipped), heated mirrors (if equipped), or rear defrost, they will not return to their previous settings (on) when the ignition is turned on and will need to be re-activated if desired.

For more information on remote start climate settings and options, refer to Message Center in the Instrument Cluster chapter.

Manual climate control

For hot weather conditions:

• The climate control system will be set to MAX A/C. For cold weather conditions:

• The climate control system will be set to provide maximum heating in

• Rear defrost/heated mirrors (if equipped) will be activated.

For moderate weather conditions:

• The interior cabin will be heated, cooled or off, based upon the previous operating state (last ignition-on cycle).

• Rear defrost/heated mirrors (if equipped) will be deactivated.

Automatic climate control

For hot weather conditions:

• The interior cabin will be set to 72°F (22°C).

• The cooled seats (if equipped and if the feature is selected to AUTO

in the message center) will be set to high.

(floor/defrost) mode.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Climate Controls

For cold weather conditions:

• The interior cabin will be set to 72°F (22°C).

• The heated seats (if equipped and if the feature is selected to AUTO

in the message center) will be set to high.

• Rear defrost/heated mirrors (if equipped) will be activated. For moderate weather conditions:

• The interior cabin will be heated, cooled, or off, based upon the previous operating state (last ignition-on cycle).

• Heated/cooled seats (if equipped) will be deactivated.

• Rear defrost/heated mirrors (if equipped) will be deactivated.

CABIN AIR FILTER

Your vehicle is equipped with a cabin air filter, located behind the glove box. The particulate air filtration system is designed to reduce the concentration of airborne particles such as dust, spores and pollen in the air being supplied to the interior of the vehicle. This system provides the following benefits:

• Improves driving comfort by reducing particle concentration.

• Improves the interior compartment cleanliness.

• Protects the climate control components from particle deposits.

Note: A cabin air filter must be installed at all times to prevent foreign objects from entering the system. Running the system without a filter in place could result in degradation or damage to the system.

For replacement intervals, refer to the Scheduled Maintenance chapter. For more information regarding your filter, see your authorized dealer.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control (if equipped)

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

• To turn autolamps on, rotate the

control to

• To turn autolamps off, rotate the

control from the autolamp position.

The autolamp system also keeps the lights on for a predetermined amount of time after the ignition switch is turned to off. You can change the amount of time the lamps stay on by using the programming procedure that follows:

Note: If the vehicle is equipped with autolamps, it will have the headlamps on with windshield wipers feature. If the windshield wipers are turned on, the exterior lamps will turn on with the headlamp control in the autolamp position.

Autolamp delay system (if equipped)

If your vehicle is equipped with autolamps, you can set the delay time to keep the headlights on for up to three minutes after the key is turned off. The delay time is set to 20 seconds at the factory, but the delay time may be changed by following the steps below (Steps 1 through 6 must be done within 10 seconds):

1. Turn the vehicle off.

2. Rotate the headlamp control to the autolamp position.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

3. Rotate the headlamp control to the off position.

4. Turn the vehicle on.

5. Turn the vehicle off.

6. Turn the headlamp control to the autolamp position (the headlights should turn on).

7. Turn the headlamp control to the off position when the desired delay time (up to three minutes) has been reached.

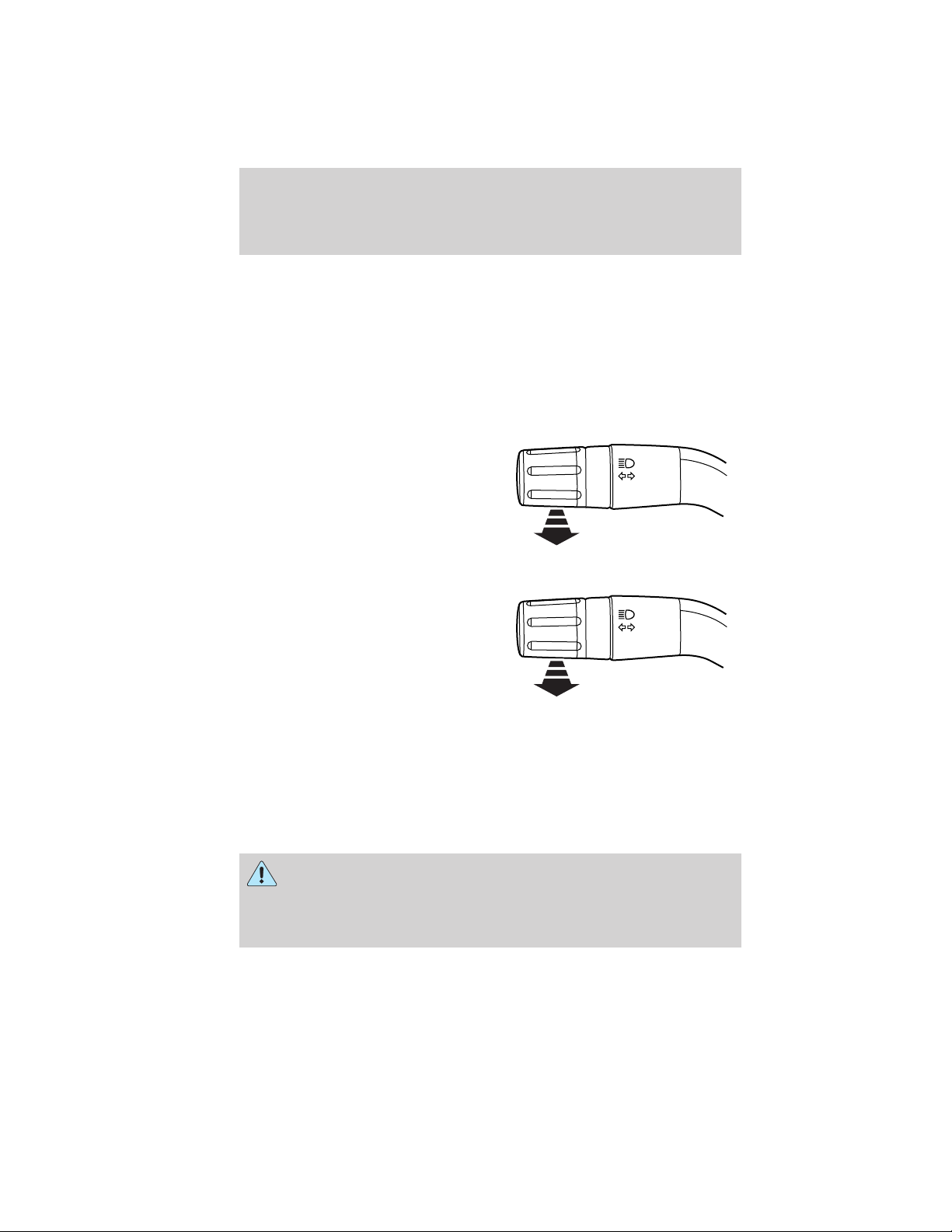

High beams

Pull the lever fully past the detent to activate. Pull the lever fully again to deactivate.

Flash-to-pass

Pull toward you slightly to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced intensity output. To activate:

• the ignition must be in the on position and

• the headlamp control must be in the off, autolamps or parking lamps

position.

WARNING: Always remember to turn on your headlamps at

dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable lit components in the vehicle during headlamp and parking lamp operation.

• Tapthetoporbottomofthe control to brighten/dim all interior lit components incrementally, or

• Press and hold the top or bottom of the control until the desired lighting level is reached.

Note: In the uplevel message center only, a message will pop up that will show incrementally where the dimmer is in relation to the dimming steps. These steps will also vary for daytime and night time dimming.

Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer control requires re-calibration. Press the dimmer control from the full dim position to the full on position to reset. This will ensure that your displays are visible under all lighting conditions.

Dome lamp control

Use to manually turn the dome lamp on.

• Press the control. This will turn on the interior courtesy lights. The lights will remain on until the control is pressed again.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by your authorized dealer.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

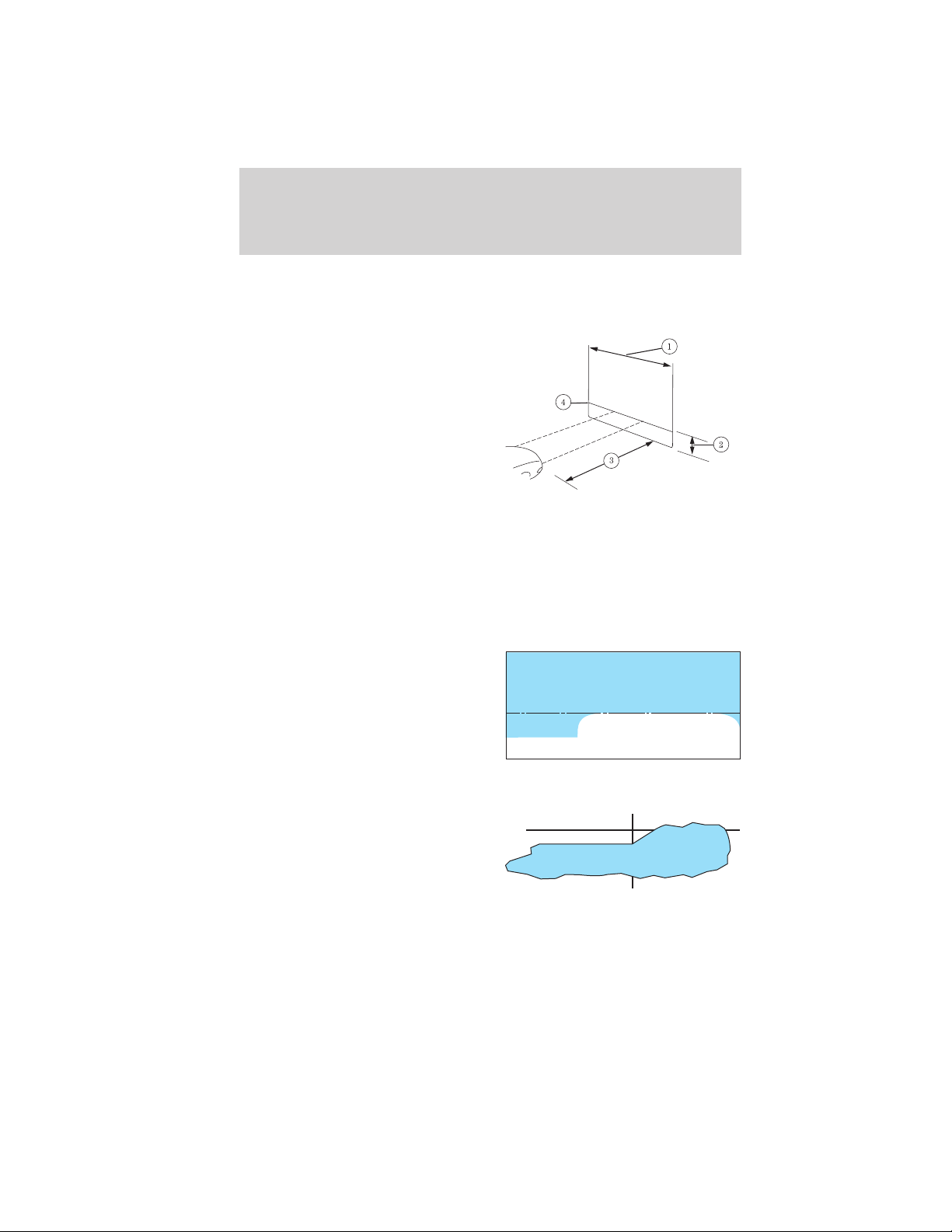

Vertical aim adjustment

1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height.

3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood.

To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.

For vehicles with halogen headlamps:

On the wall or screen you will observe a flat zone of high intensity light located at the top of the right hand portion of the beam pattern. If the top edge of the high intensity light zone is not at the horizontal reference line, the headlamp will need to be adjusted.

For vehicles with HID headlamps:

There is a distinct cut-off (change from light to dark) in the left portion of the beam pattern. The top edge of this cut-off should be positioned 2 inches (5 cm) below the horizontal reference line.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

4. Locate the vertical adjuster on

each headlamp. Using a Hex head driver, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line.

5. Close the hood and turn off the lamps.

HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

TURN SIGNAL CONTROL

The turn signal lever does not mechanically lock in the upward or downward position when activated. The turn signal control activation and cancellation is electronic.

• To operate the left turn signal, push the lever down until it stops and release.

• To operate the right turn signal, push the lever up until it stops and release.

• To manually cancel turn signal operation, push the lever again in either direction.

Lane change

To indicate a left or right lane change:

• Push the lever up/down to the first stop position and release. The turn signals will flash three times and stop.

• Push the lever up/down to the first stop position and hold. The turn signals will flash for as long as the lever is held in this position.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

INTERIOR LAMPS

Front row map lamps (if equipped)

To turn on the map lamps, press the outer edge of the clear lens. The front row map lamp lights when:

• any door is opened.

• the dome lamp button on the

instrument panel is activated.

• the remote entry controls are pressed and the ignition is off.

Map/dome lamp (if equipped)

The dome lamp lights when:

• any door is opened.

• the dome lamp button on the

instrument panel is activated.

• any of the remote entry controls are pressed and the ignition is off.

The map lamps are activated by pressing the controls on either side of the lens.

Rear courtesy lamp

Located in the rear cargo area, the courtesy lamp lights when:

• any door is opened.

• any of the remote entry controls

are pressed and the ignition is off.

The courtesy lamp can also be turned on and off manually by pressing the lens depression.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

BULB REPLACEMENT

Lamp assembly condensation

Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a thin film of mist can form on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions.

Examples of acceptable condensation are:

• Presence of thin mist (no streaks, drip marks or droplets)

• Fine mist covers less than 50% of the lens

Examples of unacceptable moisture (usually caused by a lamp water leak) are:

• Water puddle inside the lamp

• Large water droplets, drip marks or streaks present on the interior of

the lens

Take your vehicle to a dealer for service if any of the above conditions of unacceptable moisture are present.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Number of bulbs

Headlamp high/low beam (halogen)

* HID (high intensity discharge) headlamp

* Front sidemarker lamp N/A LED

Front park/turn signal lamp 2

2 HIR2

2 D3S

Trade

number

3457NAK

(amber)

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

Function Number of bulbs

Rear turn lamp 2

Stop/tail/sidemarker lamp 4

Backup lamp 2 921 License plate lamp 2 168 * High-mount brake lamp N/A LED Map lamp 2 W5W Second row dome/reading lamp 3 578 Rear courtesy lamp 1 578 Visor vanity lamp 2 37 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer. * To replace these lamps - see your authorized dealer.

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Replacing headlamp bulbs

Check the operation of all bulbs frequently.

1. Make sure that the headlamp control is in the off position.

2. Open the hood.

3. Remove the bulb cover.

Trade

number

3757NAK

(amber)

3157K LCP

or 3157K

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

4. Turn the bulb holder counterclockwise and remove it.

5. Disconnect the electrical connector.

WARNING: Handle a halogen headlamp bulb carefully and keep

out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

6. Reverse the procedure to install the new bulb.

Replacing HID headlamp bulbs (if equipped)

The low beam headlamps on your vehicle use a “high intensity discharge” source. These lamps operate at a high voltage. When the bulb is burned out, the bulb and starter capsule assembly must be replaced by your authorized dealer.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

Replacing front parking lamp/turn signal bulbs

1. Make sure that the headlamp control is in the off position.

2. Open the hood.

3. Reach over the front bolster.

4. Rotate the bulb socket counterclockwise and remove from the lamp assembly.

5. Carefully pull the bulb out of the socket and push in the new bulb.

6. Install the bulb socket into the lamp assembly and rotate clockwise.

Replacing tail/stop/turn/sidemarker/backup lamp bulbs

The tail/stop/turn/sidemarker/backup lamp bulbs are located in the same area of the tail lamp assembly, one below the other. Follow the same steps to replace these bulbs:

1. Make sure the headlamp switch is in the off position, then open the liftgate to expose the lamp assembly bolts.

2. Remove the two bolts from the lamp assembly.

3. Carefully remove the lamp assembly away from the vehicle by pulling the assembly straight out to expose the bulb socket.

4. Rotate the bulb socket counterclockwise and remove from lamp assembly.

5. Pull bulb straight out of socket and snap in the new bulb.

6. Install the bulb socket into the lamp assembly and rotate clockwise. 78

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Lights

7. Carefully install the tail lamp assembly on the vehicle by securing the lamp assembly with two bolts.

Replacing high-mount brake lamp bulbs

Your vehicle is equipped with an LED center high-mount stop lamp. It is designed to last the life of the vehicle. If replacement is required, see your authorized dealer.

Replacing license plate lamp bulbs

1. Make sure the headlamp switch is in the off position.

2. Press the lever and carefully pry the license plate lamp assembly (located above the license plate) from the liftgate.

3. Rotate the bulb socket counterclockwise and remove from lamp assembly.

4. Pull bulb straight out of socket and push in the new bulb.

5. Install the bulb socket into the lamp assembly and rotate clockwise.

6. To install, carefully press the lamp assembly into the liftgate.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

WINDSHIELD WIPERS

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Speed dependent wipers (if equipped): When the wiper control

is set to any of the interval settings except the longest pause setting, the pause time between wiping will automatically adjust with the vehicle speed. The faster your vehicle is travelling the shorter the pause time between wipes will become.

Rain-sensing wipers (if equipped): The rain-sensing wipers, designated with AUTO on the control, will automatically activate when moisture is present on the windshield and the control is set to one of five auto/interval moisture sensitivity settings. Rotate the end of the control toward the windshield to increase the sensitivity. The speed of the rain-sensing wipers will vary based on the amount of moisture detected on the windshield and the auto/interval setting. There are no interval (intermittent wipe) settings on vehicles with rain-sensing wipers. The wipers will continue to wipe as long as the presence of moisture is detected on the windshield. More or less wiping may occur depending on humidity, mist or light rain, or road spray.

This feature can be enabled/disabled through the message center. Refer to Message center in the Instrument Cluster chapter.

Keep the outside of the windshield clean, especially the area around the rear view mirror where the sensor is located or rain sensor performance may be affected.

Note: During winter driving conditions with ice, snow or a salty road mist, inconsistent or unexpected wiping or smearing may occur. In these conditions, you can lower the sensitivity to reduce the amount of smearing or override the feature by selecting low- or high-speed wiping or turning the wiper system off.

Note: The rain-sensing wiper feature must be turned off before entering a car wash.

2 1

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

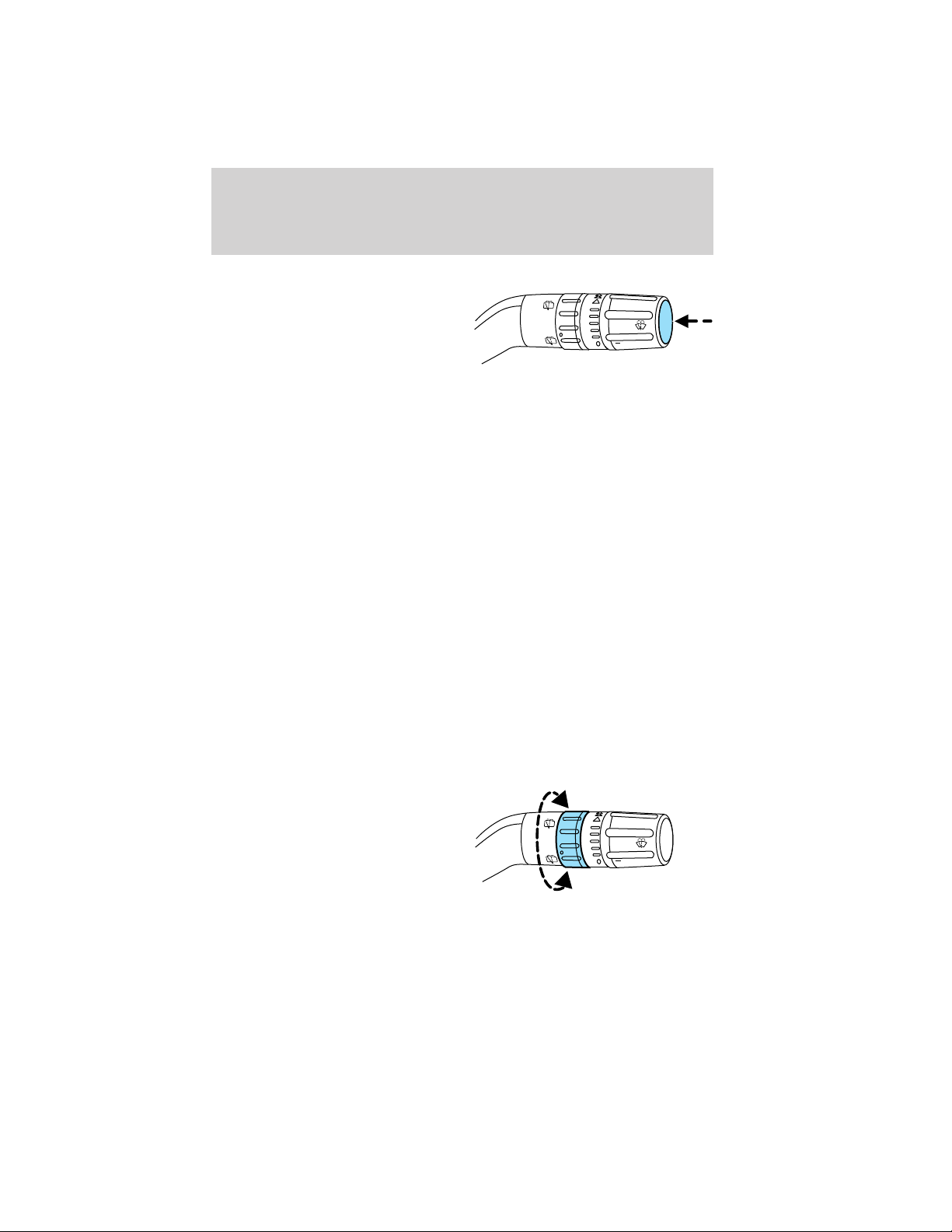

Windshield washer: Press the end of the stalk:

• briefly: causes the wipers to swipe three times with washer fluid.

• a long press and hold: the wipers and washer fluid will be activated for up to ten seconds.

Mist wipe: Press the stalk down and release for a single swipe of the wipers without washer fluid.

Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.

Courtesy wipe feature: One extra wipe will occur a few seconds after washing the front window to clear any excess washer fluid remaining on the windshield. This feature can be enabled/disabled through the message center. Refer to Message center in the Instrument Cluster chapter.

Windshield wiper rainlamp feature (if equipped with autolamp)

When the windshield wipers are turned on during daylight, and the headlamp control is in the autolamp position, the exterior lamps will turn on after a brief delay and will remain on until the wipers are turned off.

2 1

Rear window wiper/washer controls

For rear wiper operation, rotate the rear window wiper and washer control to the desired position. Select:

2 — Intermittent operation (shortest pause between wipes).

1 — Intermittent operation (longest pause between wipes).

O (off) — Rear wiper and washer off.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

2 1

Driver Controls

For rear wash cycle, rotate (and hold as desired) the rear wiper/washer control to either position.

From either position, the control will automatically return to the 2 or O (off) position.

Reverse wiper feature: The rear wiper will be automatically activated in an intermittent setting when shifting into R (Reverse) if the front wipers are activated. This feature may be enabled/disabled through the message center. Refer to Message center in the Instrument Cluster chapter.

TILT/TELESCOPE STEERING WHEEL

To adjust the steering wheel:

1. Pull the lever down to unlock the steering column.

2. While the lever is in the down position, move the steering wheel up or down and in or out until you find the desired position.

3. While holding the steering wheel in place, pull the lever up to its original position to lock the steering column.

WARNING: Never adjust the steering wheel when the vehicle is moving.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

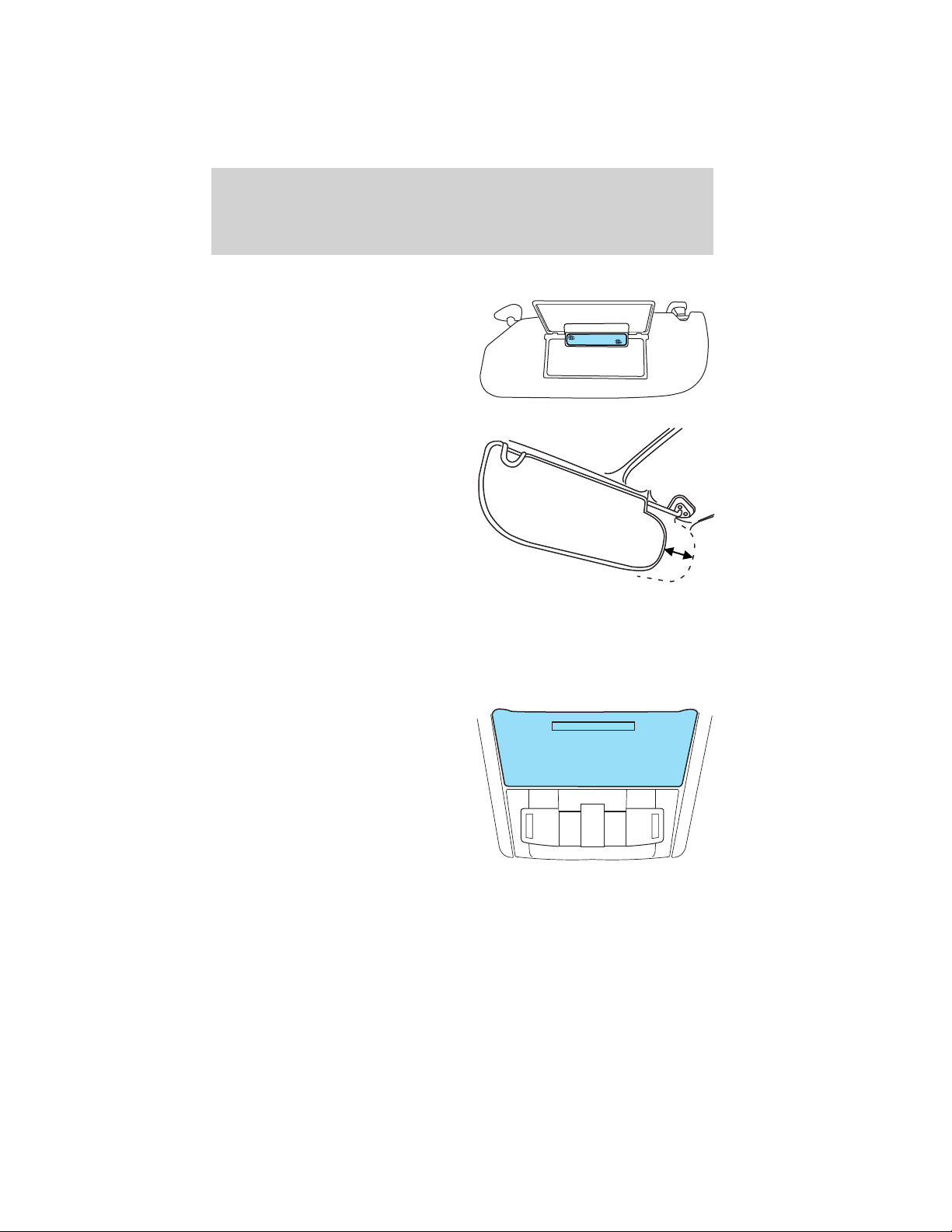

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the visor mirror lamp.

Slide-on-rod feature

Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.

Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.

OVERHEAD CONSOLE

The appearance of your vehicle’s overhead console will vary according to your option package.

Storage compartment

The storage compartment may be used to store a pair of sunglasses. Press the release area on the rear edge of the bin door to open the storage compartment. The door will open to the full open position.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

1. Cupholders

2. Two pen/pencil holders, travel tissue pack holder, and business card/paper holder.

3. Rear power point

4. Utility compartment with in-bin power point, media hub, removable coin holder tray (two grooves on tray slide onto tracks in main bin) and intelligent access key slot.

WARNING: Use only soft cups in the cupholder. Hard objects can injure you in a collision.

AUXILIARY POWER POINT (12V DC)

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

Auxiliary power points can be found in the following locations:

• On the passenger side of the center console near the instrument panel

• In the center console storage compartment

• On the rear side of the center console, accessible from the rear seats

• On the left rear quarter panel, accessible from the liftgate or behind

the rear seat

Do not use the power point for operating the cigarette lighter element (if equipped).

Note: Do not plug optional electrical accessories into the cigarette lighter socket (if equipped). Improper use of the lighter can cause damage not covered by your warranty, and can result in fire or serious injury.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12V DC/180W. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.

To have full capacity usage of your power point, the engine is required to be running to avoid unintentional discharge of the battery. To prevent the battery from being discharged:

• do not use the power point longer than necessary when the engine is not running,

• do not leave battery chargers, video game adapters, computers and other devices plugged in overnight or when the vehicle is parked for extended periods.

Always keep the power point caps closed when not being used.

POWER WINDOWS

WARNING: Do not leave children unattended in the vehicle and do not let children play with the power windows. They may

seriously injure themselves.

WARNING: When closing the power windows, you should verify they are free of obstructions and ensure that children and/or

pets are not in the proximity of the window openings.

Press and pull the window switches to open and close windows.

• Press down (to the first detent) and hold the switch to open.

• Pull up (to the first detent) and hold the switch to close.

Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise. This noise can be alleviated by lowering a front window approximately 2–3 inches (5–8 cm).

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

One-touch up or down (driver’s window only)

This feature allows the driver’s window to open or close fully without holding the control down.

To operate one-touch down, press the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation.

To operate one-touch up, pull the switch completely up to the second detent and release quickly. The window will close fully. Momentarily press the switch to any position to stop the window operation.

Bounce-back

When the window is moving upward and an obstacle or a rough road condition interferes with the window’s movement, the window will automatically reverse direction and move down. This is known as “bounce-back”. If the ignition is turned off (without accessory delay being active) during bounce-back, the window will move down until the bounce-back position is reached.

Security override

To override a bounce-back condition, within two seconds after the window reaches the bounce-back position, pull and hold the switch up and the window will travel up with no bounce-back or pinch protection. If the switch is released before the window is fully closed, the window will stop. For example, this can be used to overcome the resistance of ice on the window or seals.

Window lock

The window lock feature allows only the driver and front passenger to operate the power windows.

To lock out all the window controls (except for the driver and front passenger) press the right side of the control. Press the left side to restore the window controls.

Accessory delay

With accessory delay, the window switches, audio system and moon roof (if equipped) may be used for up to 10 minutes after the ignition is turned off or until either front door is opened.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

INTERIOR MIRROR

The interior rearview mirror has two pivot points on the support arm which lets you adjust the mirror up or down and from side to side.

WARNING: Do not adjust the mirror while the vehicle is in motion.

Automatic dimming interior rear view mirror (if equipped)

The interior rear view mirror has an auto-dimming function. The electronic day/night mirror will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the mirror. When the mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare.

The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up.

Do not block the sensors on the front and back of the interior rear view mirror since this may impair proper mirror performance.

Note: A rear center passenger and/or raised rear center headrest (if

equipped) may also block the light from reaching the sensor.

Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

EXTERIOR MIRRORS

Power side view mirrors

WARNING: Do not adjust the mirror while the vehicle is in motion.

To adjust your mirrors:

1. Rotate the control clockwise to

adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

Memory mirrors (if equipped)

The power side view mirror positions are saved when doing a memory set and can be recalled along with the vehicle personality features when a memory position is selected through the remote entry transmitter, keyless entry keypad or memory switch on the driver’s door. Refer to Front seats in the Seating and Safety Restraints chapter.

Heated outside mirrors

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

Fold-away mirrors

Fold the side mirrors in carefully when driving through a narrow space, like an automatic car wash.

Signal indicator mirrors (if equipped)

When the turn signal is activated, the outer portion of the appropriate mirror housing will blink. This provides an additional warning to other drivers that your vehicle is about to turn.

(if equipped)

Blind spot mirrors (if equipped)

Your vehicle may be equipped with blind spot mirrors or a blind spot information system. Refer to Blind spot mirrors or Blind spot

information system (BLIS威) with cross traffic alert (CTA) in the Driving chapter.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

SPEED CONTROL (IF EQUIPPED)

With speed control set, you can maintain a set speed without keeping your foot on the accelerator pedal.

WARNING: Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.

Using speed control

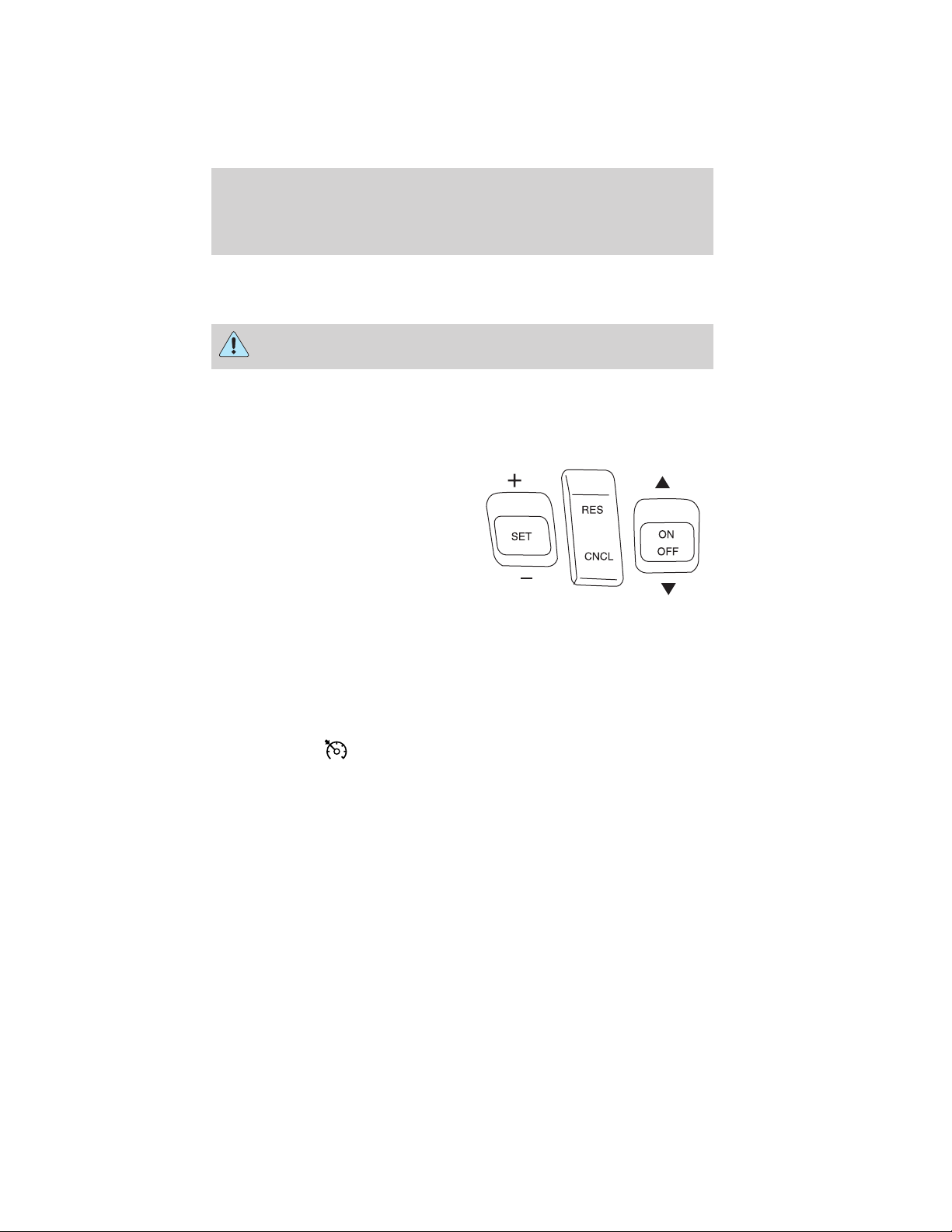

The speed controls are located on the steering wheel. The following buttons work with speed control:

SET: Press to set a speed or to increase or decrease the set speed.

RES (Resume): Press to resume the set speed.

CNCL (Cancel): Press to cancel the set speed.

ON/OFF: Press to turn speed control on or off.

Setting speed control

To set speed control:

1. Press ON upward and release.

2. Accelerate to the desired speed.

3. Press SET upward and release.

4. Take your foot off the accelerator pedal.

5. The indicator

Note:

• Vehicle speed may vary momentarily when driving up and down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.

Disengaging speed control

To disengage the speed control, press the brake pedal or press and release CNCL. Disengaging the speed control will not erase the previous set speed.

light on the instrument cluster will turn on.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

Resuming a set speed

Press and release RES. This will automatically return the vehicle to the previously set speed.

Increasing speed while using speed control

To set a higher speed:

• Press SET upward and hold until you get to the desired speed, then release. You can also use SET to operate the tap-up function. Press SET upward and release to increase the vehicle set speed in 1 mph (1.6 km/h) increments.

• Use the accelerator pedal to get to the desired speed then press SET upward and release.

Reducing speed while using speed control

To reduce a set speed:

• Press SET downward and hold until you get to the desired speed, then release. You can also use SET to operate the tap-down function. Press SET downward and release to decrease the vehicle set speed in 1 mph (1.6 km/h) increments.

• Press the brake pedal until the desired vehicle speed is reached then press SET downward and release.

Turning off speed control

To turn off the speed control, press OFF downward or turn off the ignition.

Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

ADAPTIVE CRUISE CONTROL (ACC) (IF EQUIPPED)

Adaptive cruise control (ACC) is much like speed control, only this system is designed to automatically adjust your speed to maintain a proper distance between you and the vehicle in front of you in the same lane. The driver can select from one of four GAP settings, the controls are located on the steering wheel.

At startup, the system sets the gap to the last selected setting. Once activated, the driver can deactivate the system at any time by pressing the brake pedal, pressing the steering wheel ON/OFF control or pressing the RES/CNCL control. In

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

addition, the driver can temporarily increase the vehicle speed above the current speed by manually pressing on the accelerator pedal.

WARNING: Always pay close attention to changing road

conditions, especially when using adaptive cruise control. Adaptive cruise control cannot replace attentive driving. Failing to follow any of the warnings below or failing to pay attention to the road may result in a collision, serious injury or death.

WARNING: Adaptive cruise control is not a collision warning or

avoidance system. Additionally, adaptive cruise control will not detect:

• Stationary or slow moving vehicles below 6 mph (10 km/h).

• Pedestrians or objects in the roadway.

• Oncoming vehicles in the same lane.

WARNING: Do not use the adaptive cruise control when

entering or leaving a highway, in heavy traffic or on roads that are winding, slippery or unpaved.

WARNING: Do not use in poor visibility, specifically fog, rain,

spray or snow.

Using adaptive cruise control

Note: It is the drivers responsibility to stay alert, drive safely and be in control of the vehicle at all times.

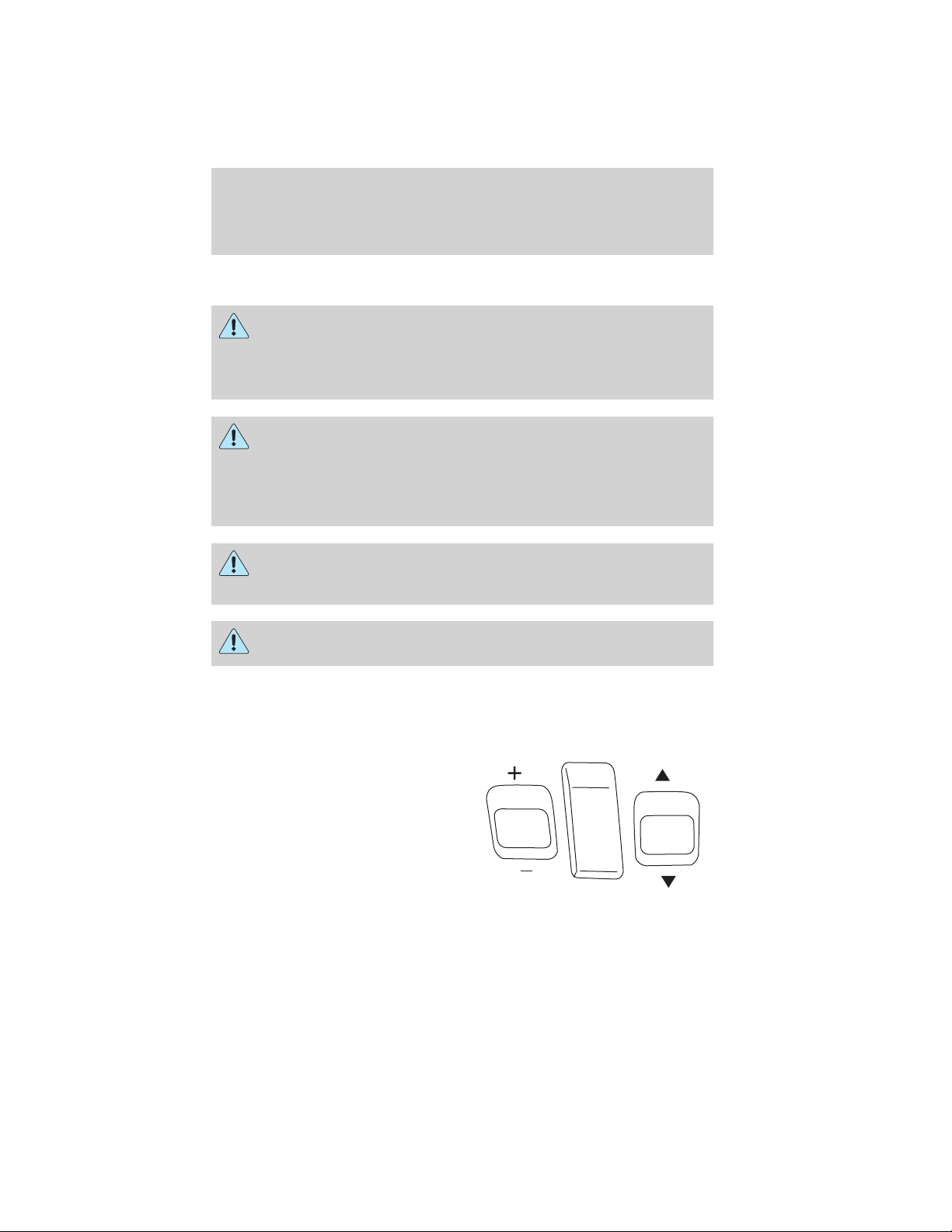

The controls for using your cruise control are located on the steering wheel.

SET: Press to set a speed or to change the set speed.

SET

RES/CNCL (Resume/cancel):

Press to resume or cancel a set speed.

ON/OFF: Press to turn the system on or off.

GAP: Press to change the distance between your vehicle and the vehicle in front of you.

RES

CNCL

OFF

GAP

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

Setting adaptive cruise control

1. Press and release ON. The message center will display the gray gap setting and SET.

2. Accelerate to the desired speed.

3. Press SET upward and release. The vehicle speed will be stored in the memory and the message center will display a green desired set speed.

4. Take your foot off the accelerator pedal.

5. A lead vehicle graphic will illuminate if there is a vehicle detected in front of you.

Following a vehicle

always decelerate quickly enough to avoid a collision without driver intervention. Always apply the brakes when necessary. Failing to do so may result in a collision, serious injury or death.

ACC indicator light, current

ACC indicator light, current gap setting and

WARNING: When following a vehicle in front of you, the vehicle will not decelerate automatically to a stop, nor will the vehicle

When a vehicle ahead of you enters the same lane or a slower vehicle is ahead in the same lane, the vehicle speed will adjust automatically to maintain a preset gap distance. The distance setting is adjustable, refer to Setting the gap distance in this section.

The lead vehicle graphic will be illuminated. The vehicle will maintain a constant distance between the vehicle ahead

until:

• The vehicle in front of you accelerates to a speed above the set speed.

• The vehicle in front of you moves out of your lane or out of view.

• The vehicle speed falls below 16 mph (26 km/h).

• A new gap distance is set.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

The vehicle brakes will be automatically applied to slow the vehicle to maintain a safe distance between the vehicle in front. The maximum braking which is applied by the ACC system is limited and can be overridden by the driver applying the brakes.

If the ACC system predicts that its maximum braking level will not be sufficient, an audible warning will sound while the ACC continues to brake. This is accompanied by a heads-up display; a red warning bar illuminating on the windshield. The driver should take immediate action.

Note: The brakes may emit a sound when they are being modulated by the adaptive cruise control system.

WARNING: Adaptive cruise control only warns of vehicles

detected by the radar sensor. In some cases there may be no warning or the warning may be delayed. The driver should always apply the brakes when necessary. Failing to do so may result in a collision, serious injury or death.

Setting the gap distance

The distance between your vehicle and the vehicle in front of you can be decreased or increased by pressing the GAP control up or down. The selected gap will be displayed in the message center as shown by the bars in the graphic. Four gap distance settings are available.

Graphic

display (bars

between

vehicles)

1 bar 1 second 29 yards (28 m) Sporty 2 bars 1.5 seconds 44 yards (42 m) Normal 3 bars 1.9 seconds 56 yards (53 m) Normal 4 bars 2.3 seconds 66 yards (64 m) Comfort

Each time the vehicle is restarted, the last chosen gap for the current driver will be automatically selected.

Following

distance

Following

distance at

60 mph

(100 km/h)

Dynamic behavior

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

Note: It is the driver’s responsibility to select a gap appropriate to the driving conditions.

Disengaging adaptive cruise control

Press the brake pedal or press CNCL to disengage the adaptive cruise control. The last set speed will be displayed with a strikethrough.

Disengaging the adaptive cruise control will not erase your previous set speed.

Overriding adaptive cruise control

WARNING: Whenever the driver is overriding the ACC by pressing the accelerator pedal, the ACC will not automatically

apply the brakes to maintain separation from any vehicle ahead.

The set speed and gap distance can be overridden by pressing the accelerator pedal.

When the driver is overriding ACC, the green illuminated, and the follow vehicle is not displayed in the message center. When the accelerator is released, the ACC function will operate again and vehicle speed will decrease to the set speed, or a lower speed if following a slower vehicle.

Changing the set speed

There are three ways to change the set speed:

• Accelerate or brake to the desired speed and press SET upward and release.

• Increase or decrease the speed by holding SET upward or downward until the desired set speed is shown on the message center. The vehicle speed will gradually change to the selected speed.

• Increase or decrease the speed in increments of 1 mph (2 km/h) by briefly pressing the SET upward or downward.

The ACC may apply the brakes to slow the vehicle down to the new set speed. The set speed will display continuously in the message center while ACC is active.

Resuming the set speed

Press and release RES/CNCL. This will automatically return the vehicle to the previously set speed. The set speed will display continuously in the message center while ACC is active.

Note: Resume should only be used if the driver is aware of the set speed and intends to return to it.

ACC light is

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

Low speed automatic cancellation

ACC is not functional at vehicle speeds below 16 mph (26 km/h). Once the vehicle speed drops below 16 mph (26 km/h), an audible alarm will sound and the automatic braking will be released.

Hilly condition usage

It is recommended that the driver select a lower gear position when ACC is active in situations such as prolonged downhill driving on steep grades (i.e., driving in mountainous areas). In these situations, additional engine braking is needed to reduce the load on the vehicle’s regular brake system to prevent them from overheating. For more information, reference Automatic transmission operation in the Driving chapter.

Note: If ACC is applying brakes for an extended period of time, an audible alarm will sound and ACC will shut down. This is to allow the brakes to cool down. When the brakes have cooled down, the ACC will again function normally.

Turning off cruise control

Press OFF to turn off the cruise control.

Note: When you turn off the cruise control or the ignition, your cruise control set speed memory is erased.

Detection issues

The radar sensor has a limited field of vision. In some situations it may not detect vehicles at all or detect a vehicle later than expected.

Detection issues can occur:

• When driving on a different line than the vehicle in front.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

• With vehicles that edge into your lane. These vehicles can only be detected once they have moved fully into your lane.

• There may be issues with the detection of vehicles in front when driving into and coming out of a bend or curve in the road.

In these cases ACC may brake late or unexpectedly. The driver should stay alert and intervene when necessary.

If the front end of the vehicle is hit or damaged, the radar sensing zone may be altered causing missed or false vehicle detections. Check with your authorized dealer to have the ACC radar checked for proper coverage and operation.

ACC Not Available

Several conditions exist which can cause ACC to deactivate or prevent ACC from activating when requested. These conditions include:

• The sensor is blocked, refer to Blocked sensor in this section.

• Brake temperature is high, refer to Hilly condition usage in this

section.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

• A failure has occurred in the ACC system or related system.

Blocked sensor

If a message regarding a blocked sensor is displayed, the radar signals from the sensor have been obstructed. The sensor is located behind a fascia cover near the driver side of the lower grille. When the radar signals are obstructed, a vehicle ahead cannot be detected and the ACC will not function. The following table lists possible causes and actions for this message being displayed.

Cause Action

The surface of the radar in the grille is dirty or obstructed in some way

The surface of the radar in the grille is clean but the message remains in the display

Heavy rain or snow is interfering with the radar signals

Swirling water, or snow or ice on the surface of the road may interfere with the radar signals

Desert / remote area with no other vehicles and no roadside objects

Due to the nature of radar technology, it is possible to get a blockage warning and not be blocked. This can happen, for example, when driving in sparse rural or desert environments. A false blocked condition will either self clear or clear after a key cycle.

Clean the grille surface in front of the radar or remove the object causing the obstruction

Wait a short time. It may take several minutes for the radar to detect that it is no longer obstructed

Do not use ACC in these condition because it may not detect, warn, or respond to potential collisions.

Wait a short time or switch to normal cruise control.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

WARNING: Do not use ACC when towing a trailer with brake

controls. Aftermarket trailer brakes will not function properly when ACC is activated because the brakes are electronically controlled. Failing to do so may result in loss of vehicle control, which could result in serious injury.

WARNING: Do not use tires sizes other than those

recommended because this can affect the normal operation of ACC. Failing to do so may result in a loss of vehicle control, which could result in serious injury.

Switching to normal cruise control

You can manually change from adaptive cruise control (ACC) to normal cruise control through the message center. Refer to Message center in the Instrument Cluster chapter. If normal cruise control is selected, the ACC indicator light will be replaced with a light. The gap setting will not be displayed, the system will not automatically respond to lead vehicles and automatic braking will not be activated. The system will default to ACC when the engine is started.

WARNING: Normal cruise control will not brake due to slower

vehicles. Always be aware of which mode is selected and apply the brakes when necessary.

cruise control indicator

STEERING WHEEL CONTROLS

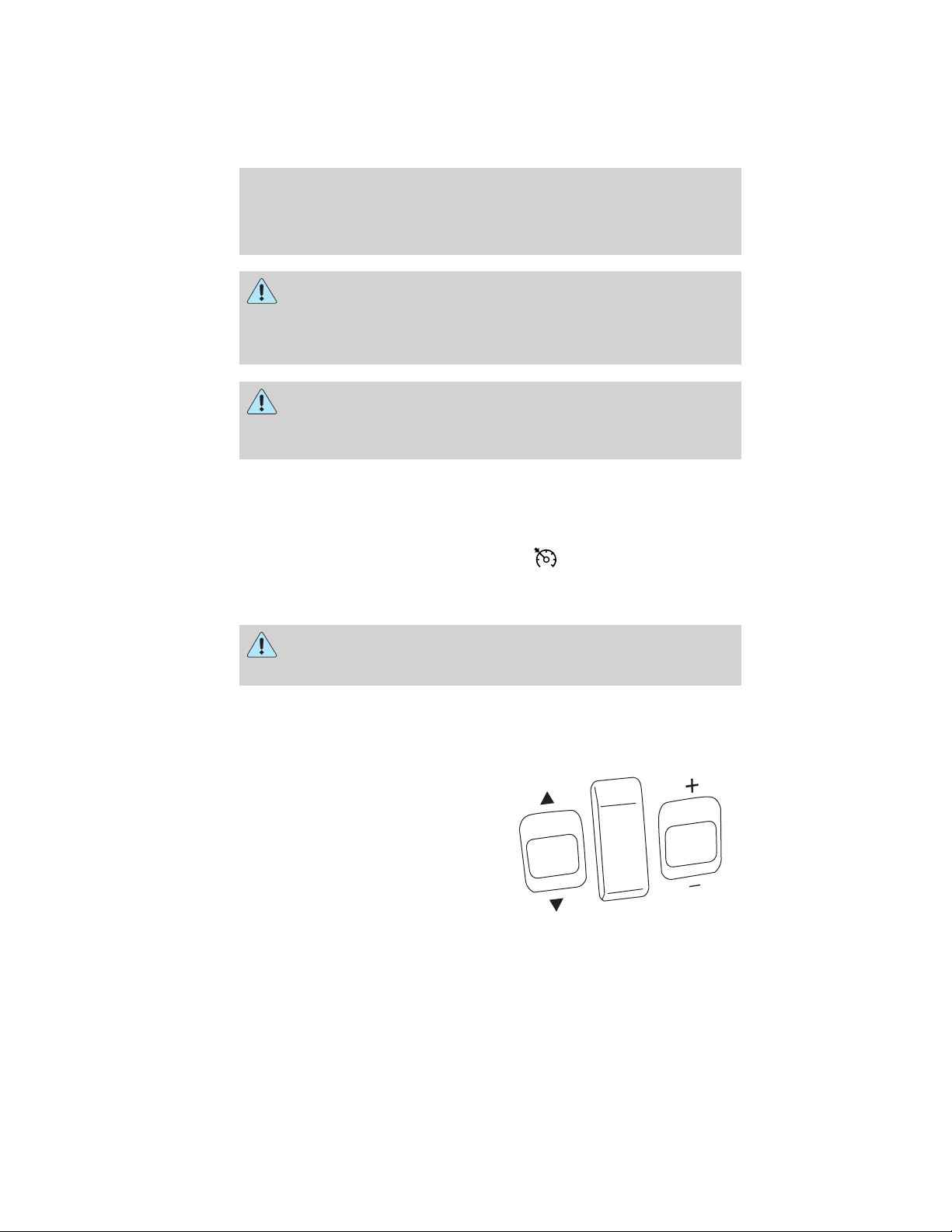

Audio control features

SEEK: Press up or down to select the next/previous radio station preset, CD track or satellite radio (if equipped) channel preset depending on which media mode you are in.

MEDIA: Press repeatedly to scroll through available audio modes.

MUTE: Press to silence the radio. VOL (Volume): Press up or down

to increase or decrease the volume.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

Navigation/SYNC威 system hands-free control features (if equipped)

Press recognition feature. Refer to Voice

recognition feature in the MyFord Touch™ / MyLincoln Touch™

supplement.

Press Refer to Phone features in the

MyFord Touch™ / MyLincoln Touch™ supplement.

Cluster display control features

If equipped with the MyFord™ system, this control functions the same as the center control on the faceplate. Refer to MyFord system in the Entertainment Systems chapter.

If equipped with the MyFord™ Touch system, use this control to adjust the right side of the cluster display. Navigate through the screen and press OK to select. The following features are available:

• Entertainment

• Change audio source

• Limited play list

• Navigation (if equipped)

• Redundant center stack display

• Routed map

• Phone

• Redundant center stack display

• Favorite contacts

• Climate

• On

• Fan speed

• Temperature

Refer to the MyFord Touch™ / MyLincoln Touch™ supplement.

to active the voice

to access phone features.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

Driver Controls

PANORAMIC VISTA ROOF™ AND POWER SUNSHADES (IF EQUIPPED)

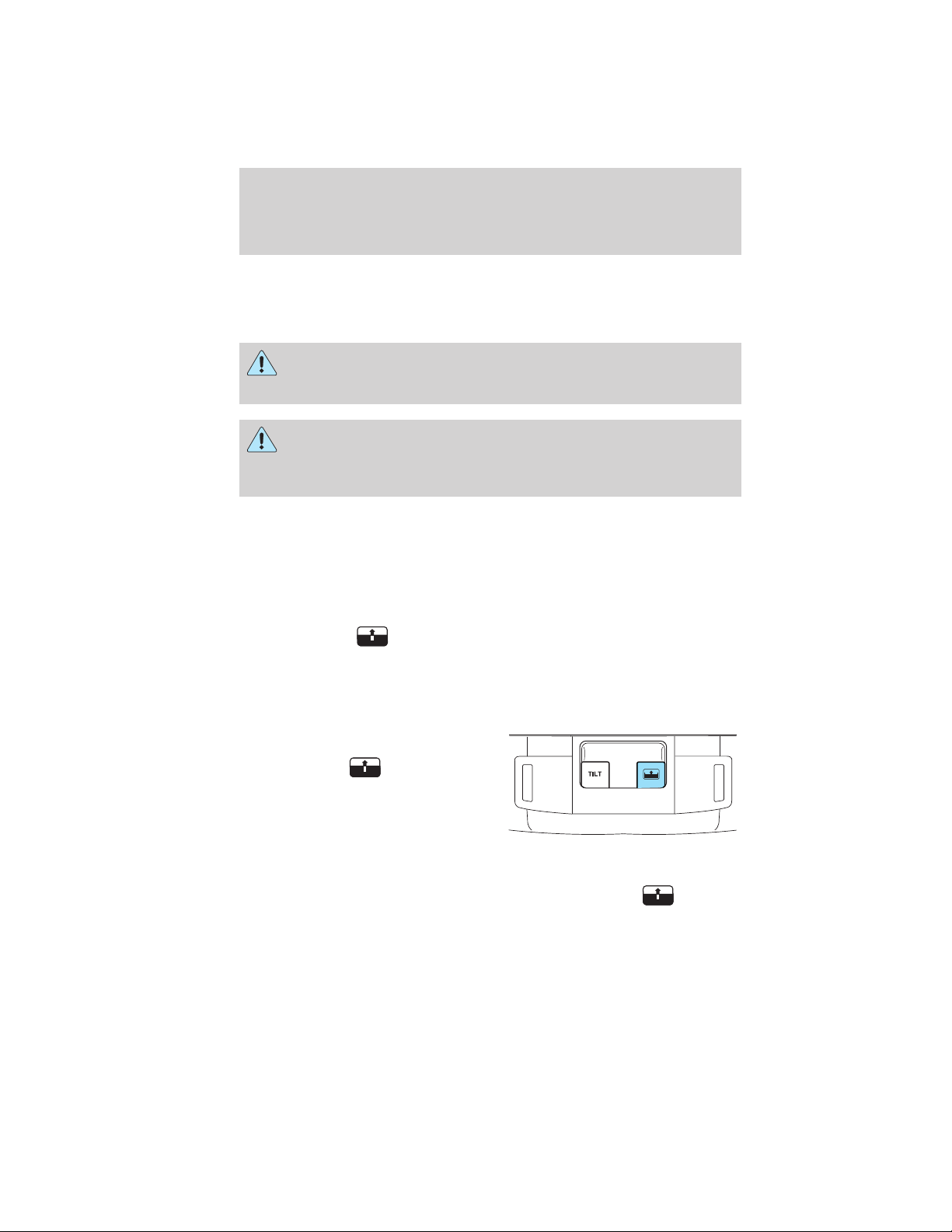

The panoramic Vista Roof™ and power sunshade controls are located on the overhead console.

WARNING: Do not let children play with the panoramic Vista

Roof™ and power sunshade or leave children unattended in the vehicle. They may seriously hurt themselves.

WARNING: When closing the panoramic Vista Roof™ and

power sunshade, you should verify that it is free of obstructions and ensure that children and/or pets are not in the proximity of the panoramic Vista Roof™ and power sunshade opening.

Note: Do not attempt to move the panoramic power sunshades manually or sunshade damage or malfunction may occur. The sunshade track clips are designed to release the sunshade crossbar in order to prevent damage to the system. If this occurs the sunshade crossbar ends may just need to be slid back into position to regain proper function. See your authorized dealer for proper panoramic Vista Roof™ or sunshade operating, diagnostic or repair instructions.

Note: The same panoramic Vista Roof™.

The panoramic Vista Roof™ and power sunshade are equipped with an automatic, one-touch, express opening feature. To stop motion at any time during the one-touch operation, press the control a second time.

To open power sunshades and panoramic Vista Roof™: Press

and release the open the sunshade. The front and rear sunshades open simultaneously.

Note: Vista Roof™ will only open after power sunshades are completely open. Power sunshades will only close after Vista Roof™ is completely closed.

To open the panoramic Vista Roof™ press and release the The panoramic Vista Roof™ will open to the “comfort” position. Press and release the control again to fully open. To stop the one-touch open feature press the control again.

100

control operates both the sunshades and the

control to

control.

2012 Edge (edg) Owners Guide, 1st Printing USA (fus)

FORD Edge 2012 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

CONGRATULATIONS

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

Warning symbols on your vehicle

Protecting the environment

PERCHLORATE MATERIAL

BREAKING-IN YOUR VEHICLE

SPECIAL NOTICES

New Vehicle Limited Warranty

Special instructions

DATA RECORDING

Service Data Recording

Event Data Recording

CELL PHONE USE

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

Instrument Cluster

WARNING LIGHTS AND CHIMES

GAUGES

Base cluster shown in standard measure – metric similar

Optional cluster shown in standard measure– metric similar

BASE MESSAGE CENTER (IF EQUIPPED)

Main menu

System warnings and status messages

OPTIONAL MESSAGE CENTER (IF EQUIPPED)

Main menu

SelectShift Automatic™ transmission (SST)

Settings/Vehicle Settings

Information

System warnings and status messages

SYSTEM WARNINGS AND STATUS MESSAGES

Entertainment Systems

MYFORD™ SYSTEM (IF EQUIPPED)

Listening to music

Radio

Satellite radio information (if activated)

Playing a disc

Auxiliary input jack (line in)

Phone

USB port (if equipped)

Media hub (if equipped)

MYFORD TOUCH ™ (IF EQUIPPED)

Climate Controls

SINGLE ZONE MANUAL CLIMATE CONTROL (IF EQUIPPED)

Operating tips

AUTOMATIC TEMPERATURE CONTROL SYSTEMS

Dual Automatic Temperature Control (DATC) system with and without heated seats (if equipped)

Dual Automatic Temperature Control (DATC) Sony system (if equipped)

Dual Automatic Temperature Control (DATC) system with MyTemp (if equipped)

Operating tips

Touchscreen features

REAR WINDOW DEFROSTER

REMOTE START CLIMATE OPERATION (IF EQUIPPED)

CABIN AIR FILTER

Lights

HEADLAMP CONTROL

Autolamp control (if equipped)

Autolamp delay system (if equipped)

High beams

Flash-to-pass

Daytime running lamps (DRL) (if equipped)

PANEL DIMMER CONTROL

AIMING THE HEADLAMPS

Vertical aim adjustment

TURN SIGNAL CONTROL

INTERIOR LAMPS

Front row map lamps (if equipped)

Map/dome lamp (if equipped)

Rear courtesy lamp

BULB REPLACEMENT

Lamp assembly condensation

Using the right bulbs

Replacing exterior bulbs

Replacing headlamp bulbs

Replacing HID headlamp bulbs (if equipped)
