Page 1

OPERATION MANUAL

HVS-XT100/100OU HVS-XT110

Digital Video Switcher

1st Edition

Page 2

Edition Revision History

Edit.

Rev.

Date

Description

Section, Page

1 2013/08/30

1st edition

Page 3

Precautions

Operate unit only on the specified supply voltage.

Disconnect power cord by connector only. Do not pull on cable portion.

Do not place or drop heavy or sharp-edged objects on power cord. A damaged cord can cause fire or electrical shock hazards. Regularly check power cord for excessive wear or damage to avoid possible fire / electrical hazards.

Ensure unit is properly grounded at all times to prevent electrical shock hazard.

Do not ground the unit to gas lines, units, or fixtures of an explosive or dangerous nature.

Ensure power cord is firmly plugged into AC outlet.

Do not operate unit in hazardous or potentially explosive atmospheres. Doing so

could result in fire, explosion, or other dangerous results.

Do not allow liquids, metal pieces, or other foreign materials to enter the unit. Doing so could result in fire, other hazards, or unit malfunction.

If foreign material does enter the unit, turn power off and disconnect power cord immediately. Remove material and contact authorized service representative if damage has occurred.

Handle with care to avoid shocks in transit. Shocks may cause malfunction. When you need to transport the unit, use the original packing materials or alternate adequate packing.

Stop

Caution

Hazard

MHazard

Caution

Hazard

Caution

Important Safety Warnings [Power]

[Grounding]

[Operation]

[Transportation]

Page 4

[Circuitry Access]

Do not remove covers, panels, casing, or access circuitry with power applied to the

unit! Turn power off and disconnect power cord prior to removal. Internal servicing / adjustment of unit should only be performed by qualified personnel.

Do not touch any parts / circuitry with a high heat factor. Capacitors can retain enough electric charge to cause mild to serious shock, even after power is disconnected. Capacitors associated with the power supply are especially hazardous. Avoid contact with any capacitors.

Unit should not be operated or stored with cover, panels, and / or casing removed. Operating unit with circuitry exposed could result in electric shock / fire hazards or unit malfunction.

If abnormal smells or noises are noticed coming from the unit, turn power off immediately and disconnect power cord to avoid potentially hazardous conditions. If problems similar to above occur, contact authorized service representative before attempting to again operate unit.

To rack mount or ground the unit, or to install rubber feet, do not use screws or materials other than those supplied. Otherwise, it may cause damage to the internal circuits or components of the unit. If you remove the rubber feet attached on the unit, do not reinsert the screws securing the rubber feet.

The consumables used in unit must be replaced periodically. For further details on which parts are consumables and when they should be replaced, refer to the specifications at the end of the Operation Manual. Since the service life of the consumables varies greatly depending on the environment in which they are used, they should be replaced at an early date. For details on replacing the consumables, contact your dealer.

Caution

Hazard

Stop

Caution

[Potential Hazards]

[Rack Mount Brackets, Ground Terminal, and Rubber Feet]

[Consumables]

Page 5

Upon Receipt

ITEM

QTY

REMARKS

HVS-XT110

AC Adaptor

1 set

Quick Setup Guide

CD-ROM

Operation manual (PDF)

HVS-XT100ARC

Arcnet I/F Card

HVS-XT100ED

Editor Control Software

HVS-XT110PSM

Redundant Power Supply Unit

Rack Mount Brackets

1 set

EIA standard type

ITEM

QTY

REMARKS

HVS-XT100

Switcher Main Unit (MU)

AC cable

1 set

Retaining clips included

Quick Setup Guide

CD-ROM

Operation manual (PDF)

Rack Mount Brackets

1 set

EIA standard type

HVS-XT100ARC

Arcnet I/F Card

HVS-XT100ED

Editor Control Software

HVS-XT100PSM

MU Redundant Power Supply Unit

HVS-XT100DI

Digital Input Card

HVS-XT100PCI

1-2

VGA/HDMI Input Card

HVS-XT100AI

1-2

Analog Input Card

HVS-XT100DO

1-2

Digital Output Card

HVS-XT100PCO

1-2

VGA/HDMI Output Card

HVS-XT100AO

1-2

Analog Output Card

Unpacking

HANABI Series switchers and their accessories are fully inspected and adjusted prior to shipment. Operation can be performed immediately upon completing all required connections and operational settings. Check your received items against the packing lists below. Check to ensure no damage has occurred during shipment. If damage has occurred, or items are missing, inform your supplier immediately.

HVS-XT110 Packing List

Options

HVS-XT100 Packing List

 HVS-XT100 (MU) Box

Options

Options (planned for future support)

Page 6

 HVS-XT100OU Box

ITEM

QTY

REMARKS

HVS-XT100OU

Switcher Control Panel (OU)

LAN cable

For HVS-XT100 connection, 10m

AC Adaptor

1 set

AC cable and retaining clip included

HVS-XT100PSO

1 set

OU Redundant Power Supply Unit

Rack Mount Brackets

1 set

EIA standard type

ITEM

QTY

REMARKS

HVS-30RU

Remote Control Unit (via RS-422)

HVS-AUX8

Up to 5 total

AUX bus Control Boxes (HVS-XT100ARC is required)

HVS-AUX16

HVS-AUX32

HVS-AUX8RK or HVS-AUXRK

---

Remote Kit for Aux bus Control Boxes

HVS-TALR20/32

Up to 3 total Tally Control Unit

(Relay type) (via RS-422)

HVS-TALOC20/32

Tally Control Unit (Open Collector type) (via RS-422)

Control Cable

BNC cable for ARCNET connection (10 m) , (BNC 5C2V 75Ω)

Options

HANABI Series Options

About This Manual

This manual is intended to help the user easily operate Hanabi series switchers and make full use of their functions during operation. Before configuring or operating your system, read this operation manual thoroughly to ensure you understand the product. Afterwards, it is important to keep this manual in a safe place and available for future reference.

Font Conventions

The following conventions are used throughout this manual:

 Boxed text (for example KEY1) is used to indicate control panel buttons.  Bold text (such as SIGNAL, TYPE and COLOR) is used to indicate setting parameters in

menus and important words.

 Shaded text (such as ON and 50.0) is used to indicate menu setting values.  Text enclosed by square brackets (such as [SETUP - SYSTEM]) indicate menu names.

A "double-press" is the act of quickly pressing a control panel button twice in this manual.

Page 7

Table of Contents

1. Prior to Starting ......................................................................................................................... 15

1-1. About HVS-XT100 Series Switchers ................................................................................. 15

1-2. Features ............................................................................................................................ 15

2. Panel Descriptions .................................................................................................................... 16

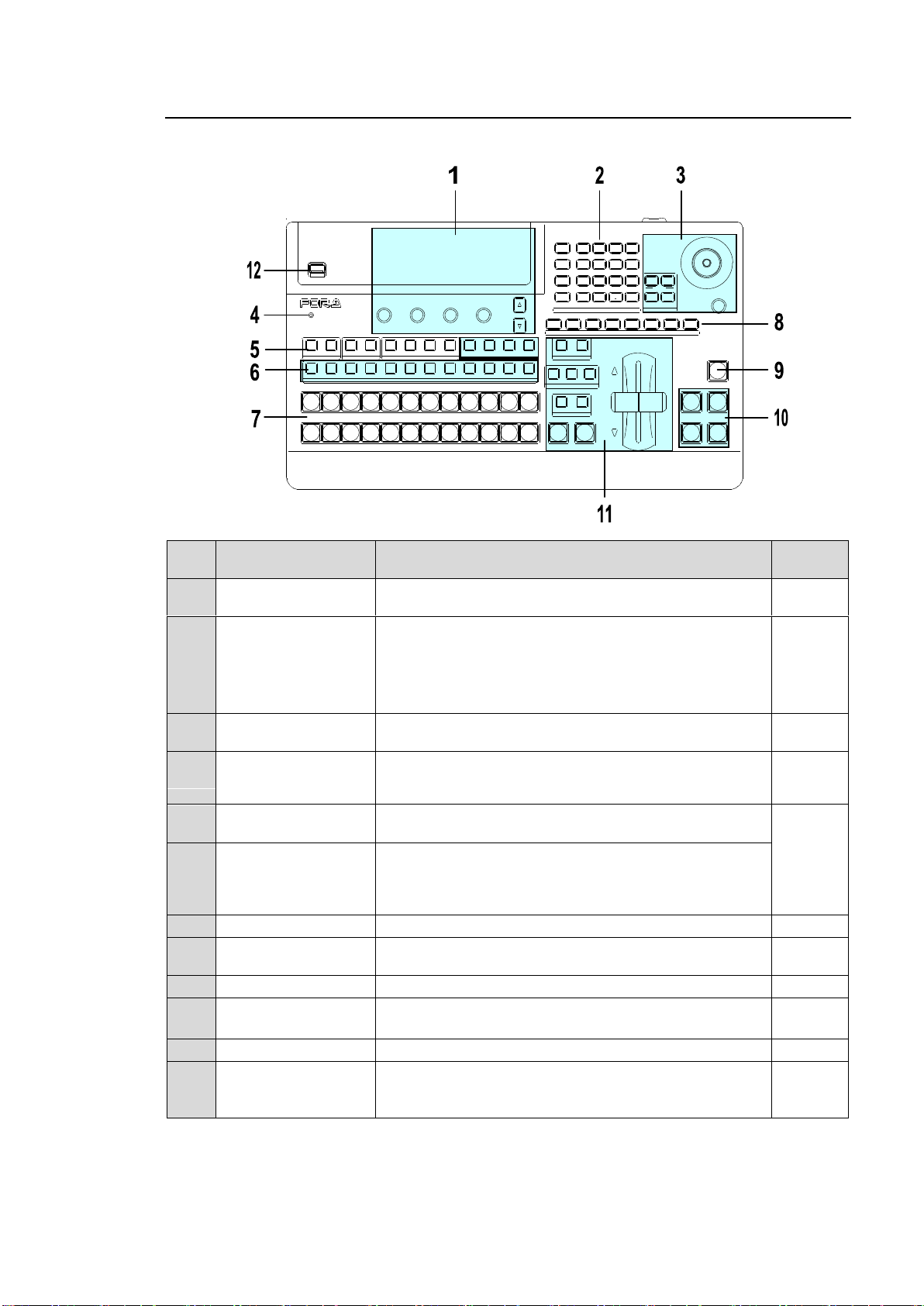

2-1. HVS-XT100OU .................................................................................................................. 16

2-2. HVS-XT100 ....................................................................................................................... 17

2-3. HVS-XT110 ....................................................................................................................... 19

2-4. Interfaces ........................................................................................................................... 21

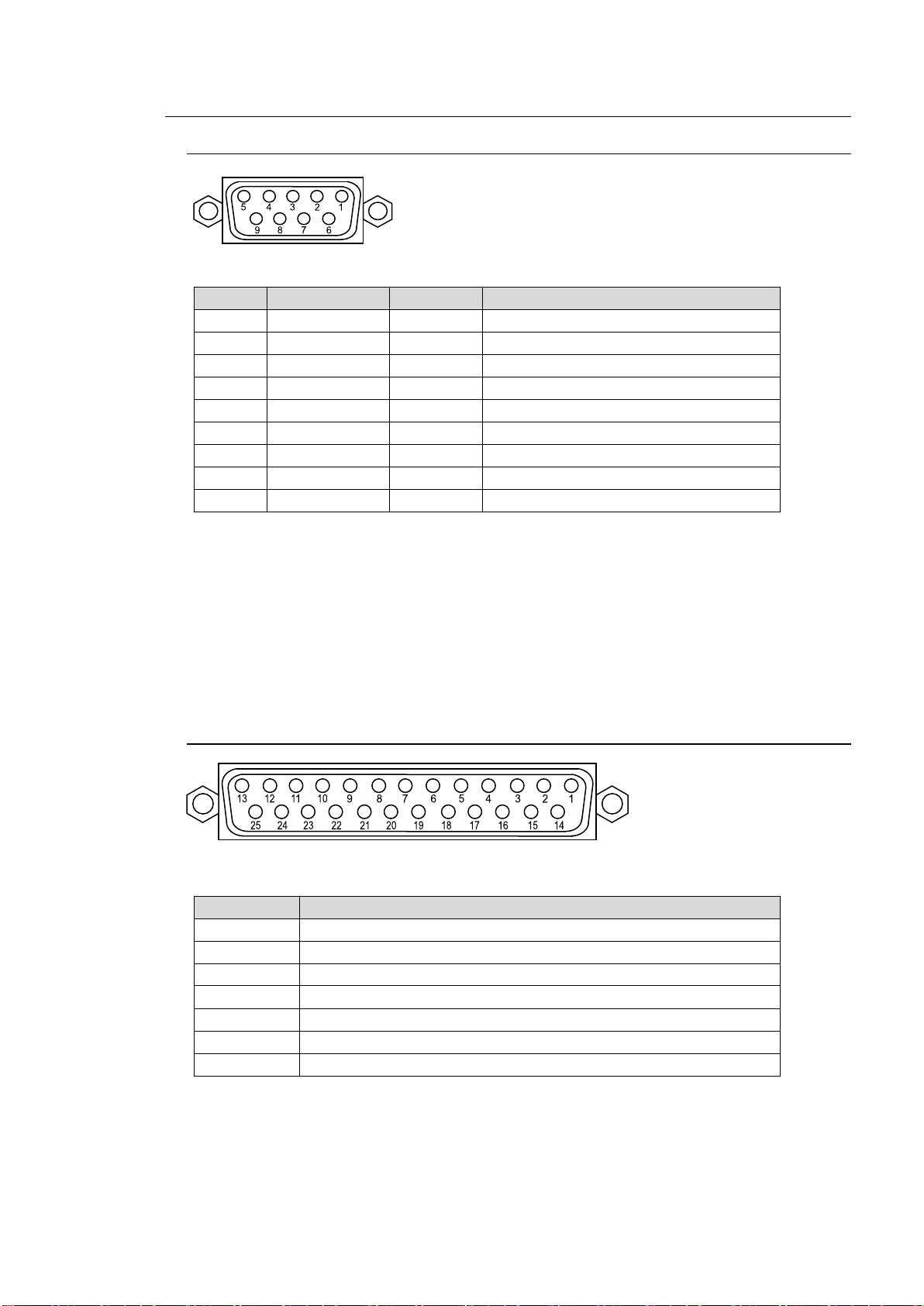

2-4-1. RS-422 Connector 1-2 ............................................................................................... 21

2-4-2. GPI IN/TALLY OUT Connector .................................................................................. 21

3. Connection ................................................................................................................................ 22

3-1. HVS-XT100 / XT100OU .................................................................................................... 22

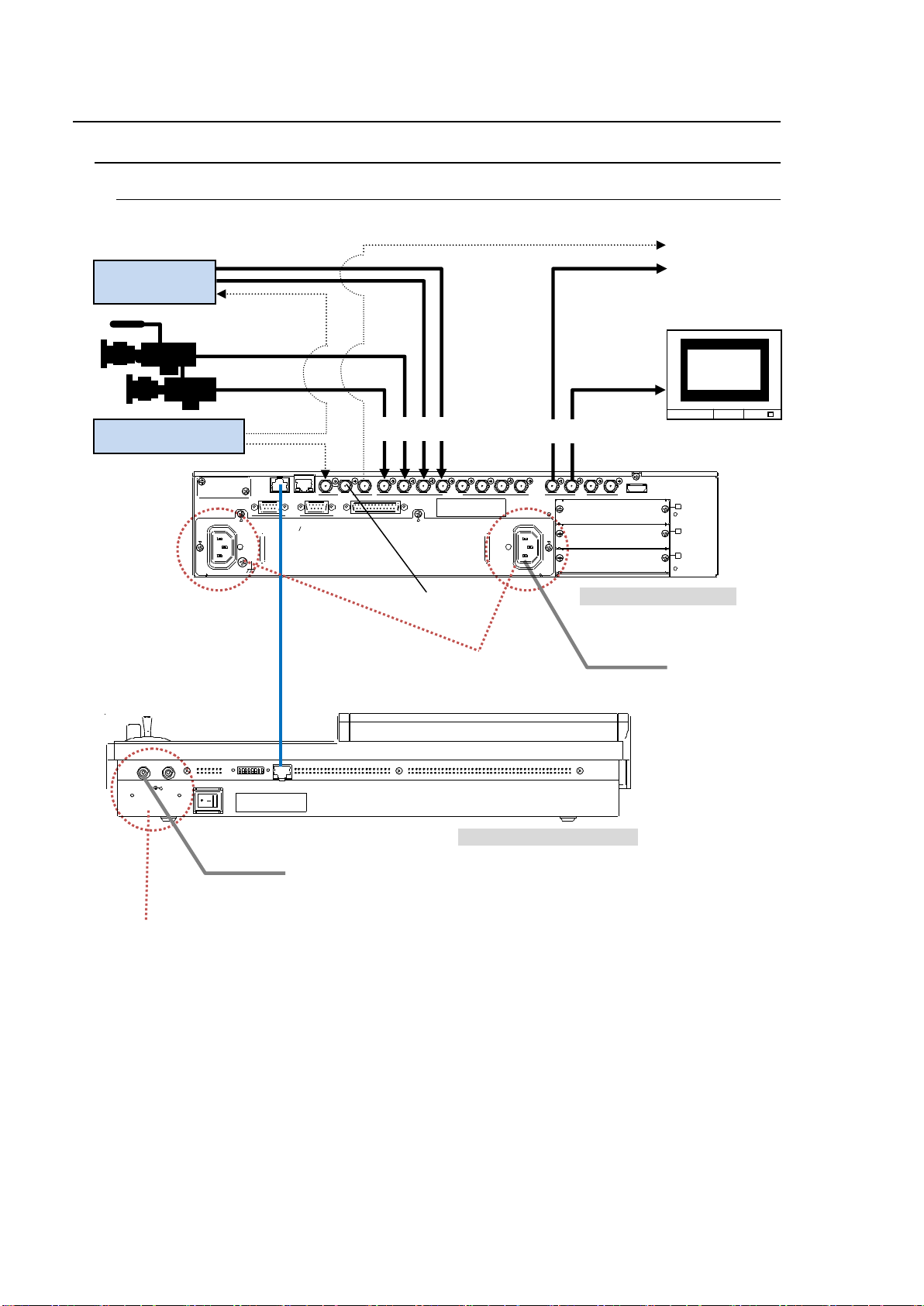

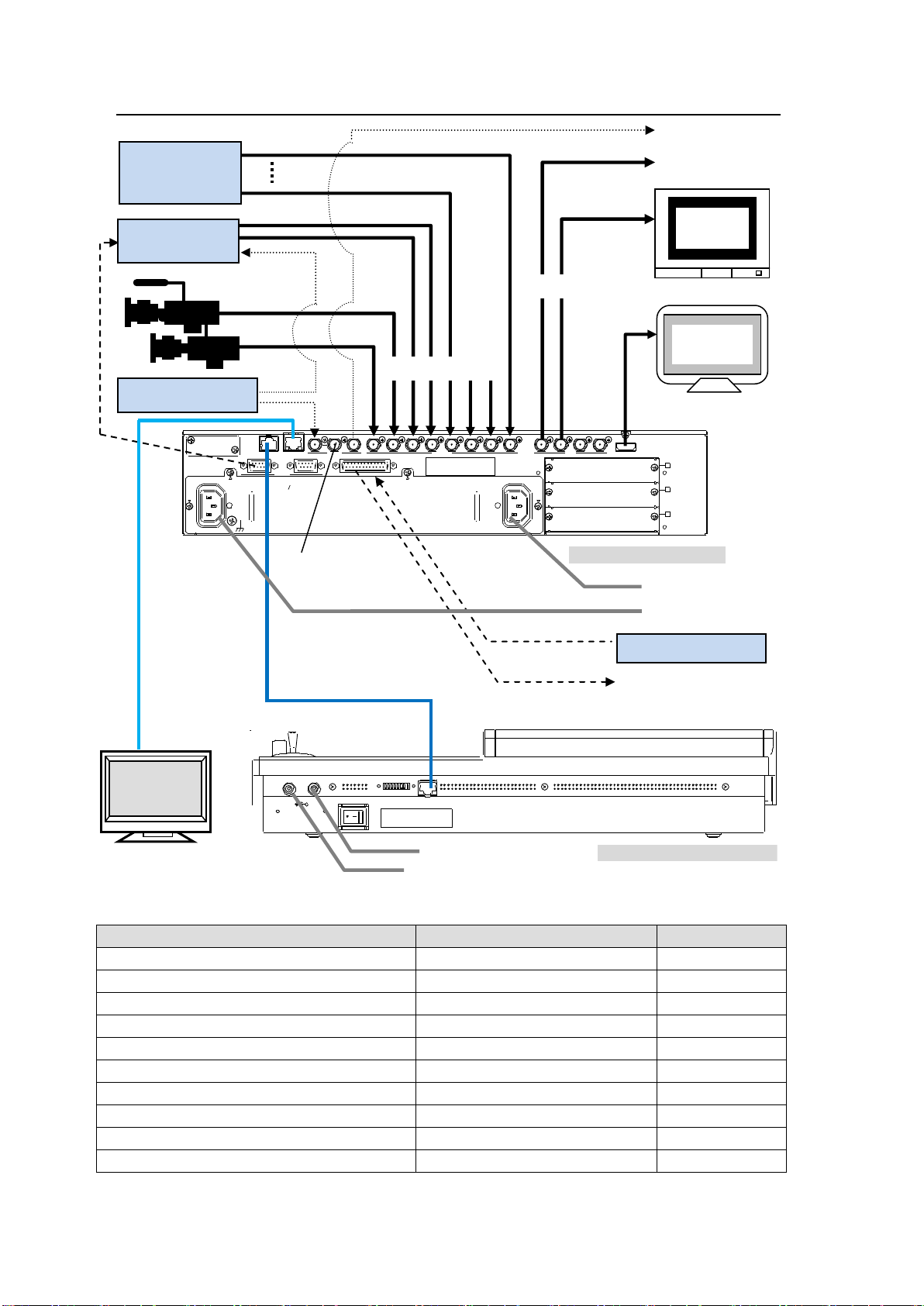

3-1-1. Basic Configuration .................................................................................................... 22

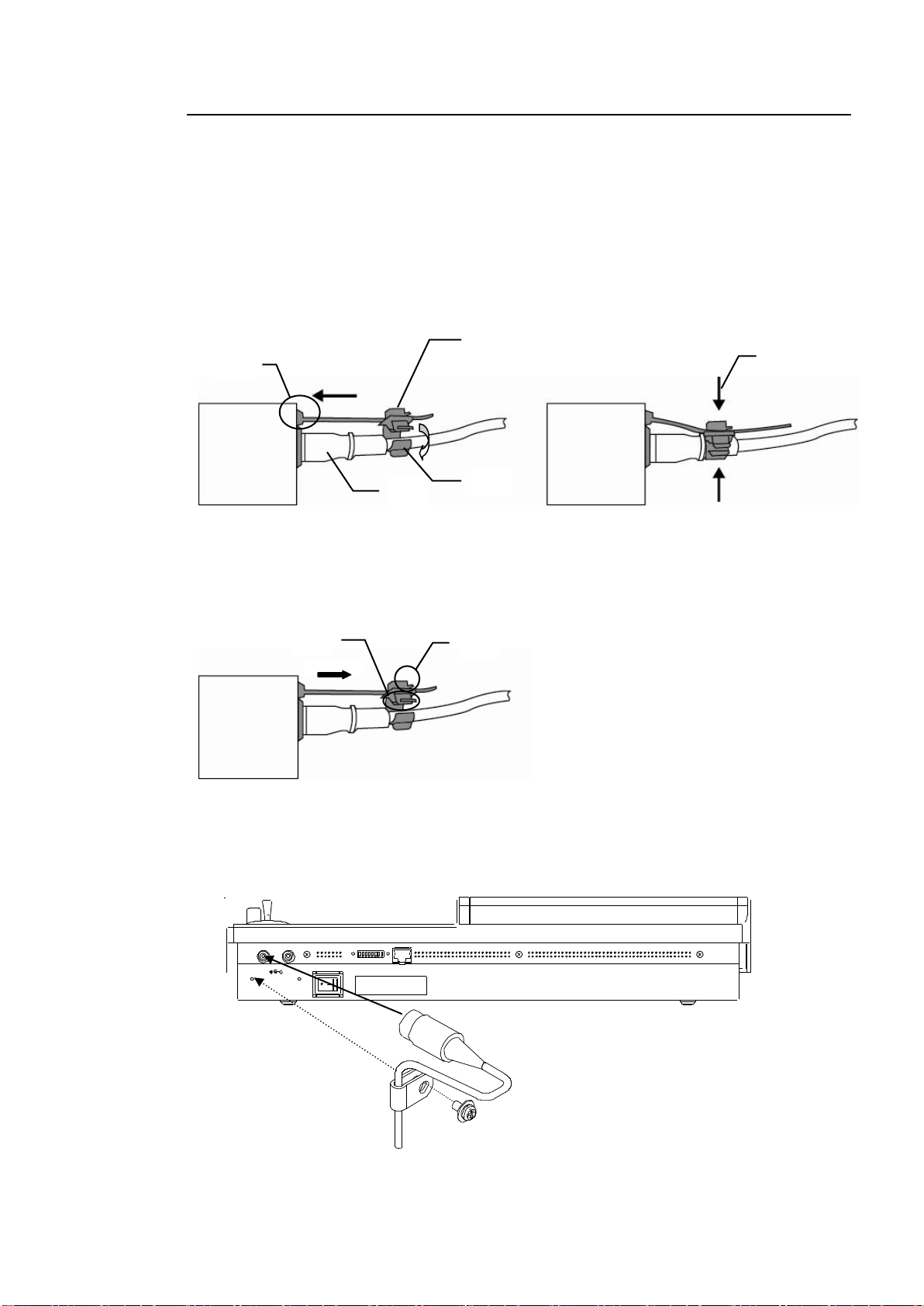

3-1-2. Installing the Power Cord Retaining Clamp ............................................................... 23

3-1-3. Optional Configuration ............................................................................................... 24

3-2. HVS-XT110 ....................................................................................................................... 25

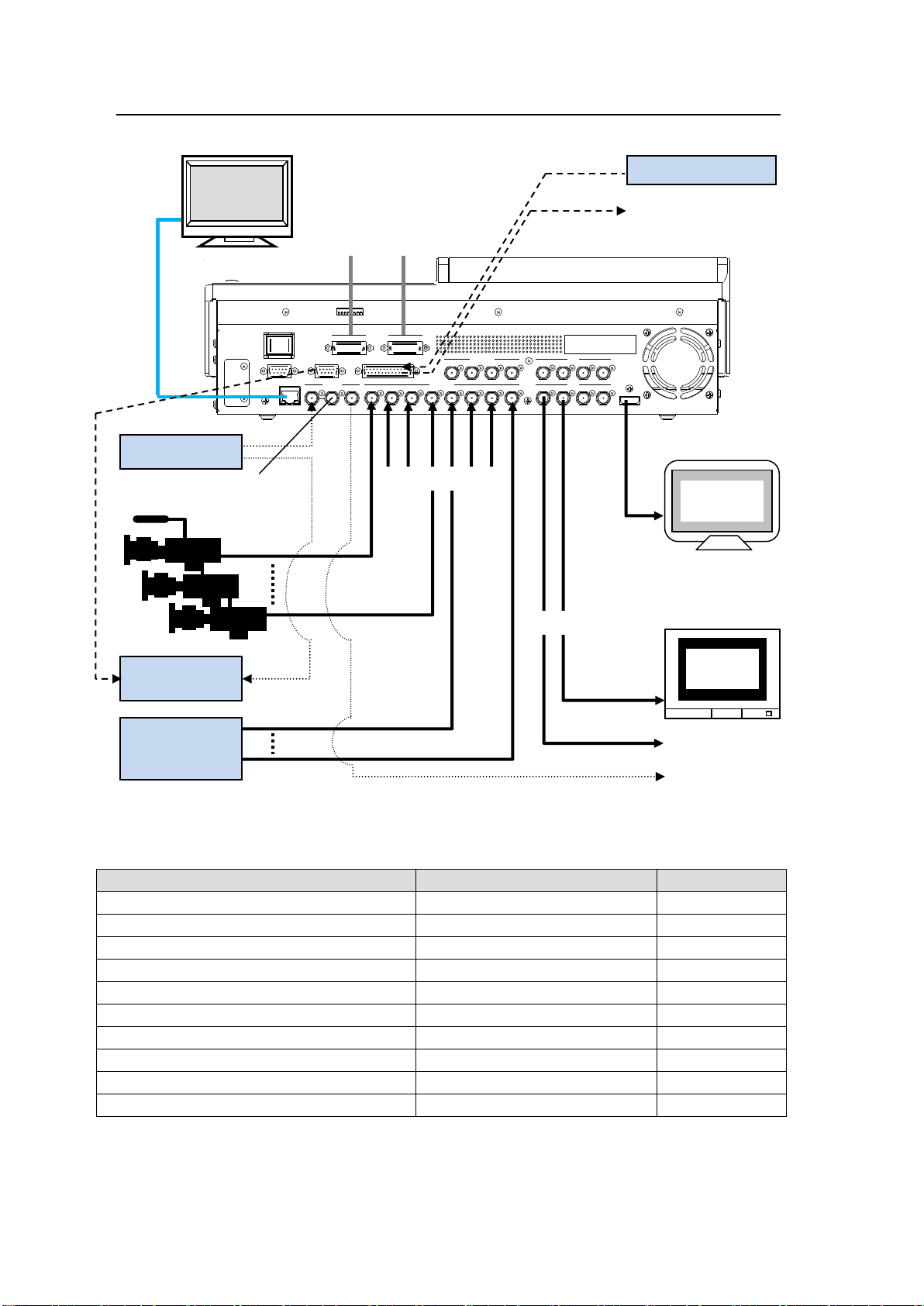

3-2-1. Basic Configuration .................................................................................................... 25

3-2-2. Optional Configuration ............................................................................................... 26

3-3. Power ON .......................................................................................................................... 27

3-3-1. HVS-XT100/XT100OU ............................................................................................... 27

3-3-2. HVS-XT110 ................................................................................................................ 27

3-4. System Signal Format Selection at Initial Use .................................................................. 28

3-5. Setting Date, Time and Time Zone at Initial Use .............................................................. 29

4. Menu Operation ........................................................................................................................ 30

4-1. How to Access Menus ....................................................................................................... 30

4-1-1. Menu Access Buttons ................................................................................................ 30

4-1-2. Other Menu Access Buttons ...................................................................................... 31

4-1-3. USER Buttons (Menu Shortcut) ................................................................................. 31

4-2. How to Set Values ............................................................................................................. 32

4-2-1. Displaying Parameters ............................................................................................... 32

4-2-2. Changing Settings or Values Using F1 to F4............................................................. 33

4-2-3. Changing Settings or Values Using the Numeric Keypad ......................................... 34

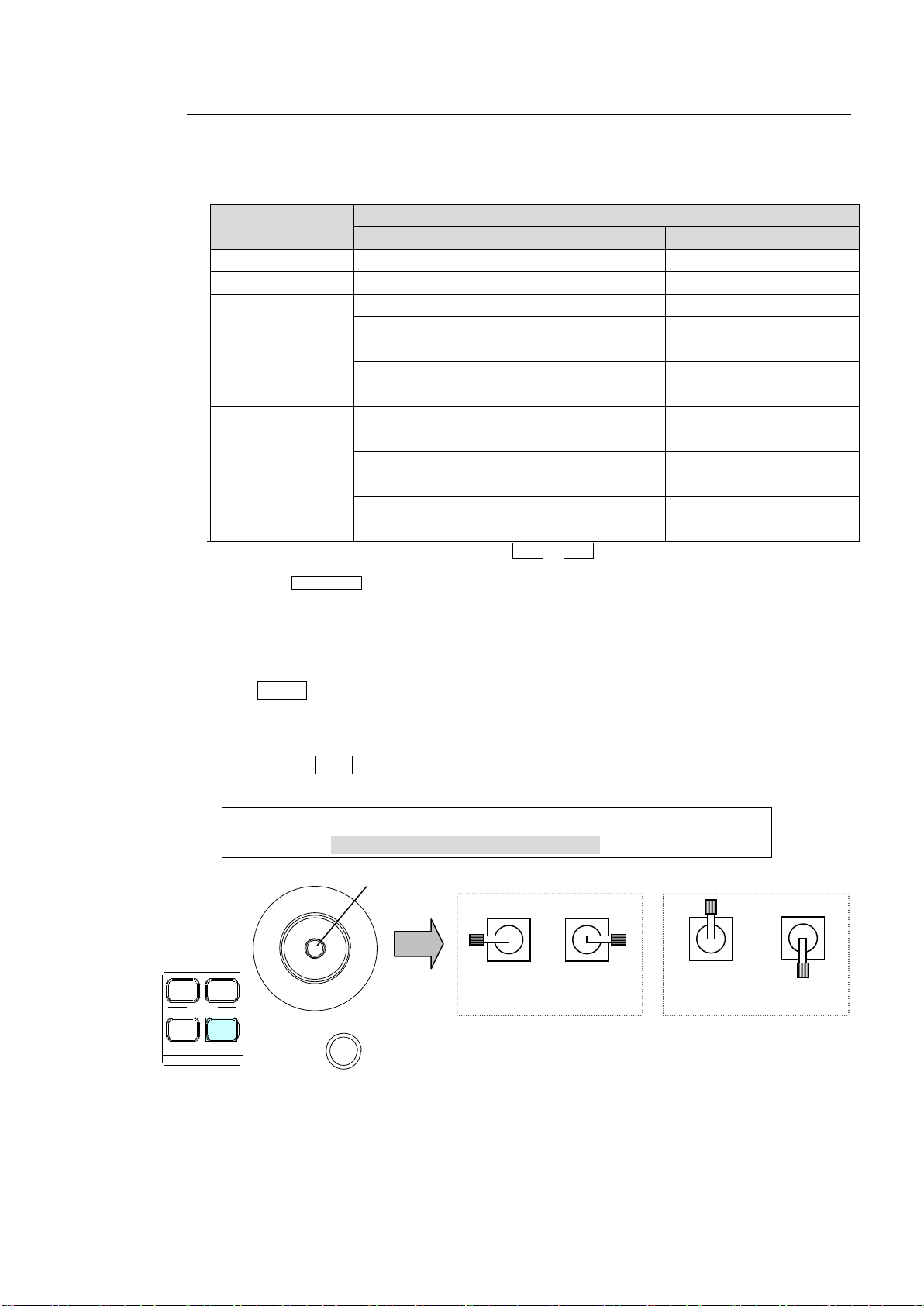

4-2-4. Changing Settings or Values Using the Joystick ....................................................... 35

4-3. How to Return Settings to Default ..................................................................................... 36

4-3-1. Returning Parameters to Default ............................................................................... 36

4-3-2. Returning Menus to Default ....................................................................................... 36

4-4. How to Back up Settings ................................................................................................... 36

5. Video Sources .......................................................................................................................... 37

5-1. How to Assign User Names to Sources ............................................................................ 37

5-2. How to Assign Sources to Bus Buttons ............................................................................ 38

5-3. Resize Function ................................................................................................................. 39

5-4. INPUT STILL (Freezing Input Video) ................................................................................ 40

5-5. Changing the Side Panel Image ....................................................................................... 41

5-6. XPT DELAY ....................................................................................................................... 41

5-7. Frame Synchronizer .......................................................................................................... 42

Page 8

5-8. Adjusting Video Signal Levels............................................................................................ 43

5-8-1. Proc Amp .................................................................................................................... 43

5-8-2. Video Level Clip .......................................................................................................... 43

5-9. Bus Matte ........................................................................................................................... 44

5-9-1. Setting the Matte Color ............................................................................................... 44

5-9-2. Setting the Gradient Matte .......................................................................................... 44

6. Video Outputs ............................................................................................................................ 46

6-1. Aux Outputs ....................................................................................................................... 46

6-1-1. Selecting Video via Bus Buttons ................................................................................. 46

6-1-2. Selecting Video from Menu Selection ......................................................................... 46

6-1-3. AUX Video Switching with Effects .............................................................................. 47

6-2. Preview Set Up .................................................................................................................. 48

6-2-1. Preview Bus Monitoring .............................................................................................. 48

6-2-2. Setting Up Preview Images ........................................................................................ 48

6-3. Clean Set Up ...................................................................................................................... 49

6-4. KEY OUT Set Up ............................................................................................................... 49

6-5. HDMI Output ...................................................................................................................... 50

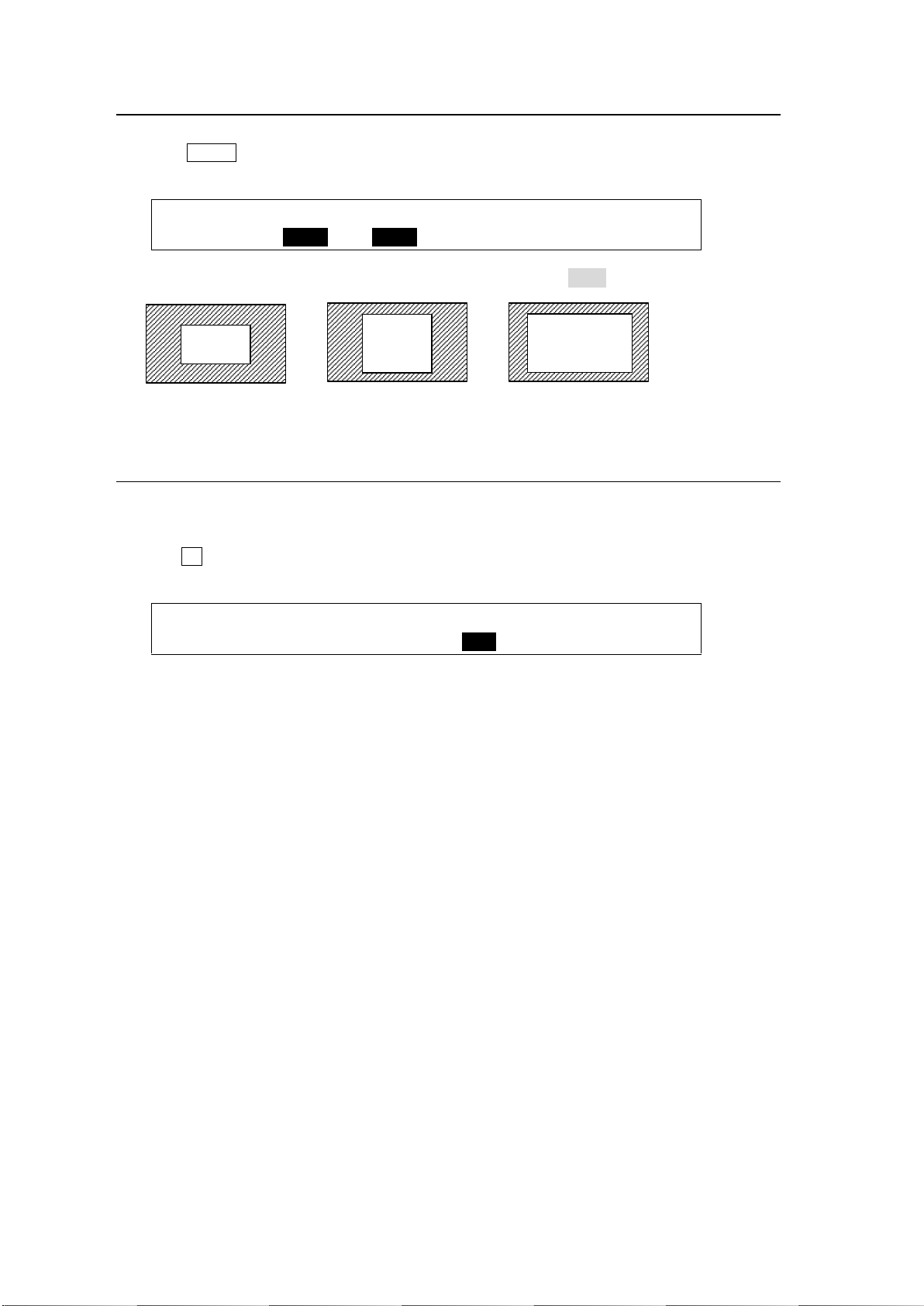

6-6. Safety Area Markers .......................................................................................................... 51

6-7. Ancillary Data ..................................................................................................................... 52

6-7-1. Passing Incoming Ancillary Data on-through to AUX Outputs ................................... 52

6-7-2. Ancillary Data in PGM and PREV Bus Signals .......................................................... 52

6-8. AUX LINK ........................................................................................................................... 53

6-8-1. Creating AUX Output Link Groups ............................................................................. 53

6-8-2. Creating Signal Link Groups ....................................................................................... 53

6-8-3. Enabling AUX LINK ..................................................................................................... 54

7. Bus Operation ........................................................................................................................... 55

7-1. Selecting Video Sources .................................................................................................... 55

7-1-1. Selecting Video Sources on the PGM/PST ................................................................ 55

7-1-2. Selecting Video Sources for AUX1 to AUX4 .............................................................. 56

7-1-3. Selecting Video Sources for KEY and DSK................................................................ 56

7-2. Button Switching Mode in the M/E Bus .............................................................................. 57

7-3. Setting-up and Using the SHIFT Function ......................................................................... 57

7-3-1. Assigning the SHIFT Function to a Bus Button: ......................................................... 57

7-3-2. Using the SHIFT Function .......................................................................................... 58

8. Transitions ................................................................................................................................. 59

8-1. Transition Block Description .............................................................................................. 60

8-2. Quick Reference for Available Transitions ........................................................................ 60

8-3. Background Transitions ..................................................................................................... 61

8-4. KEY Transitions ................................................................................................................. 63

8-5. DSK Transitions ................................................................................................................. 65

8-5-1. Where DSK Images Appear ...................................................................................... 65

8-6. Simultaneous BKGD and Key Transitions ......................................................................... 66

8-7. Black Transitions ................................................................................................................ 66

8-8. Pattern (WIPE/DVE) Transitions ........................................................................................ 67

8-8-1. Selecting a Pattern ...................................................................................................... 67

8-8-2. Use Limitations for Pattern Transitions ....................................................................... 68

8-8-3. Direct Pattern Function ............................................................................................... 69

Page 9

8-8-4. Other Transition Settings ........................................................................................... 71

8-9. Modifying Patterns ............................................................................................................. 72

8-9-1. WIPE Type (No. 0-99) ................................................................................................ 72

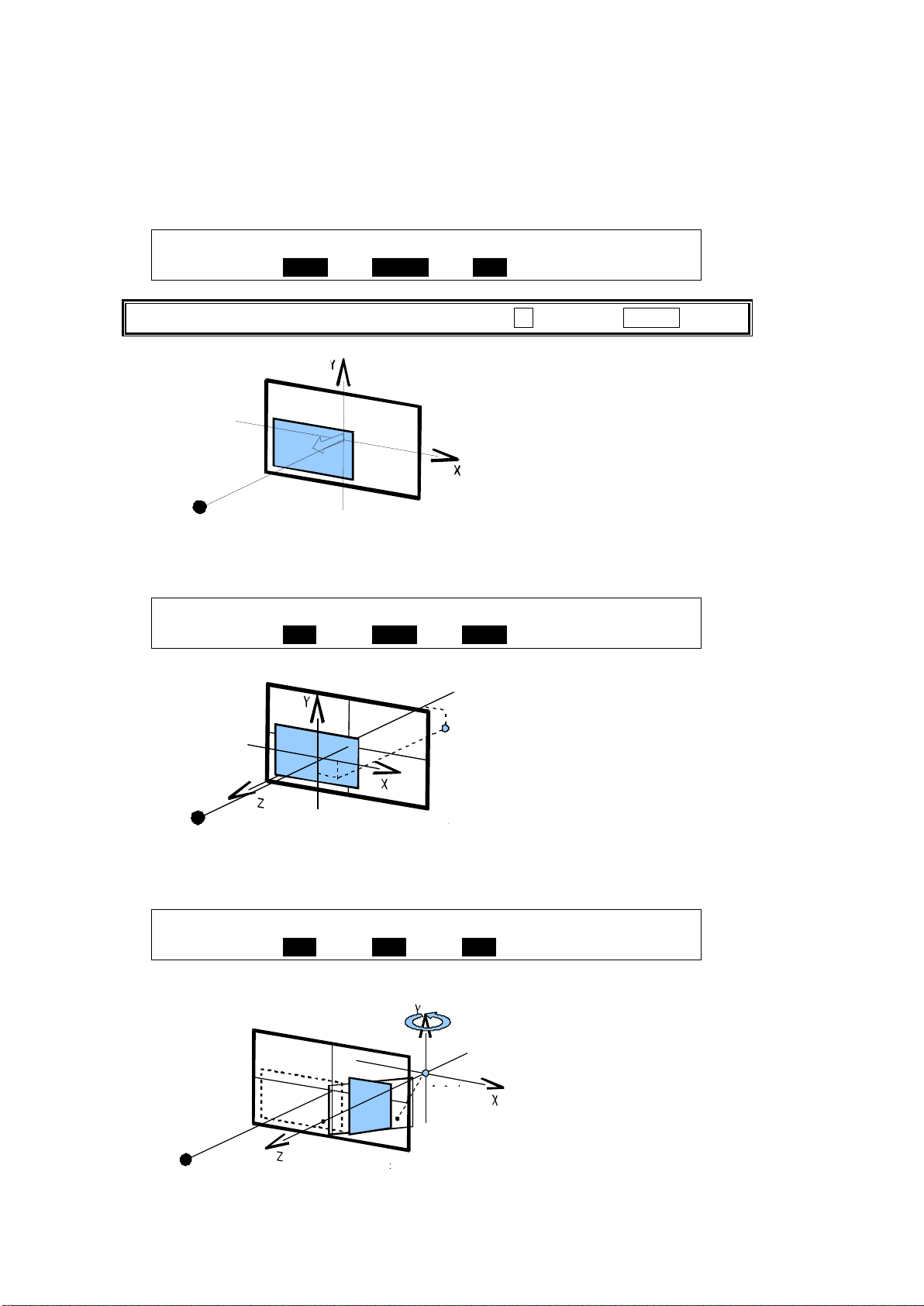

8-9-2. DVE Type (No. 100-137)............................................................................................ 74

8-10. KEY/DSK Transitions ...................................................................................................... 76

8-10-1. Setting the KEY/DSK Transition Button Function .................................................... 76

8-10-2. USER Transitions ..................................................................................................... 77

8-11. Transition Settings ........................................................................................................... 78

8-11-1. TRANS Menu ........................................................................................................... 78

8-11-2. Transition Rate ......................................................................................................... 78

8-11-3. Transition Limit ......................................................................................................... 79

8-11-4. Adjusting the Fader Offset ....................................................................................... 79

8-11-5. Endpoint Processing for DVE Transitions ................................................................ 79

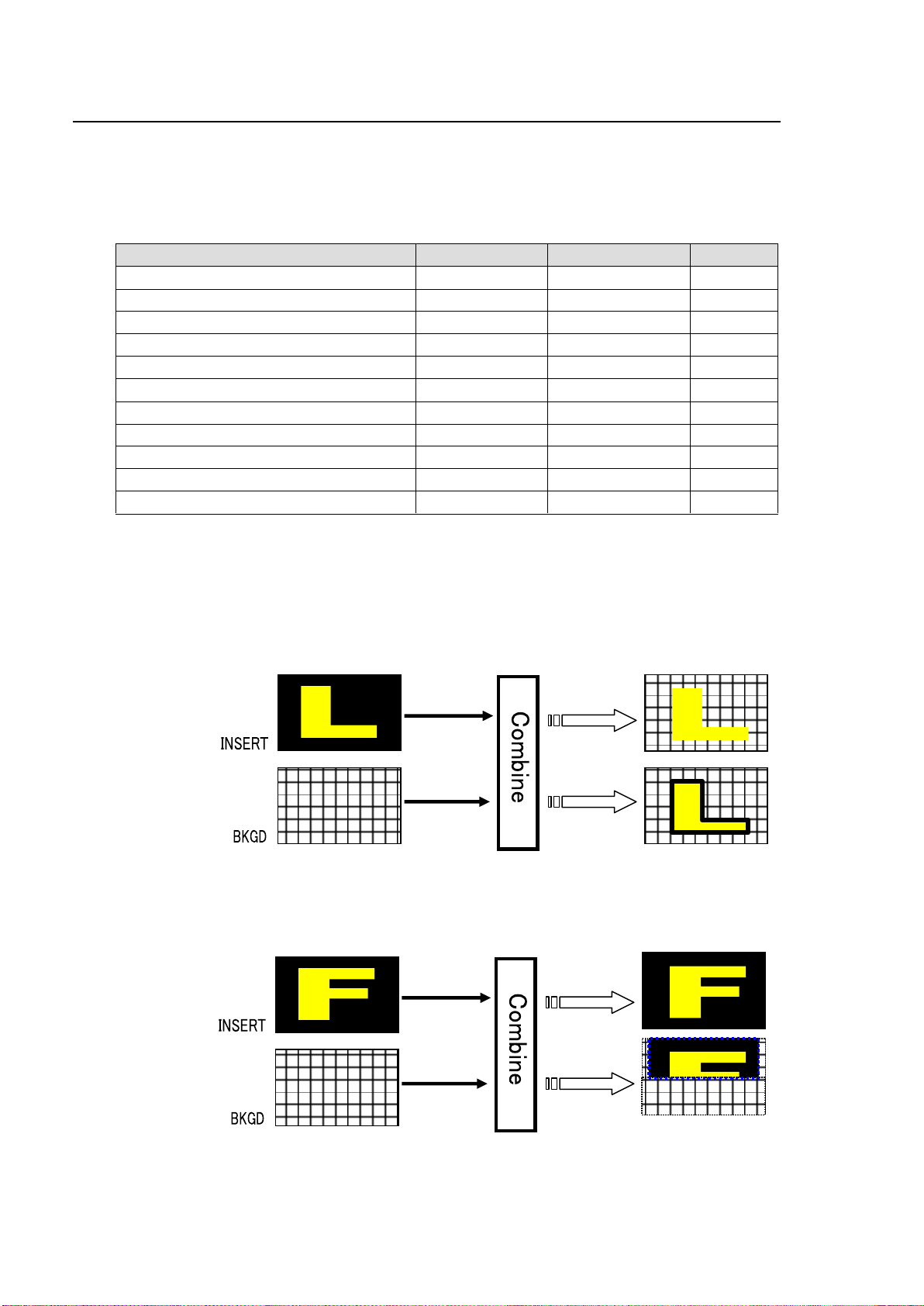

9. KEY/DSK .................................................................................................................................. 80

9-1. Luminance Key .................................................................................................................. 81

9-2. Full Key .............................................................................................................................. 82

9-3. Bus Key ............................................................................................................................. 82

9-3-1. Key Link ...................................................................................................................... 83

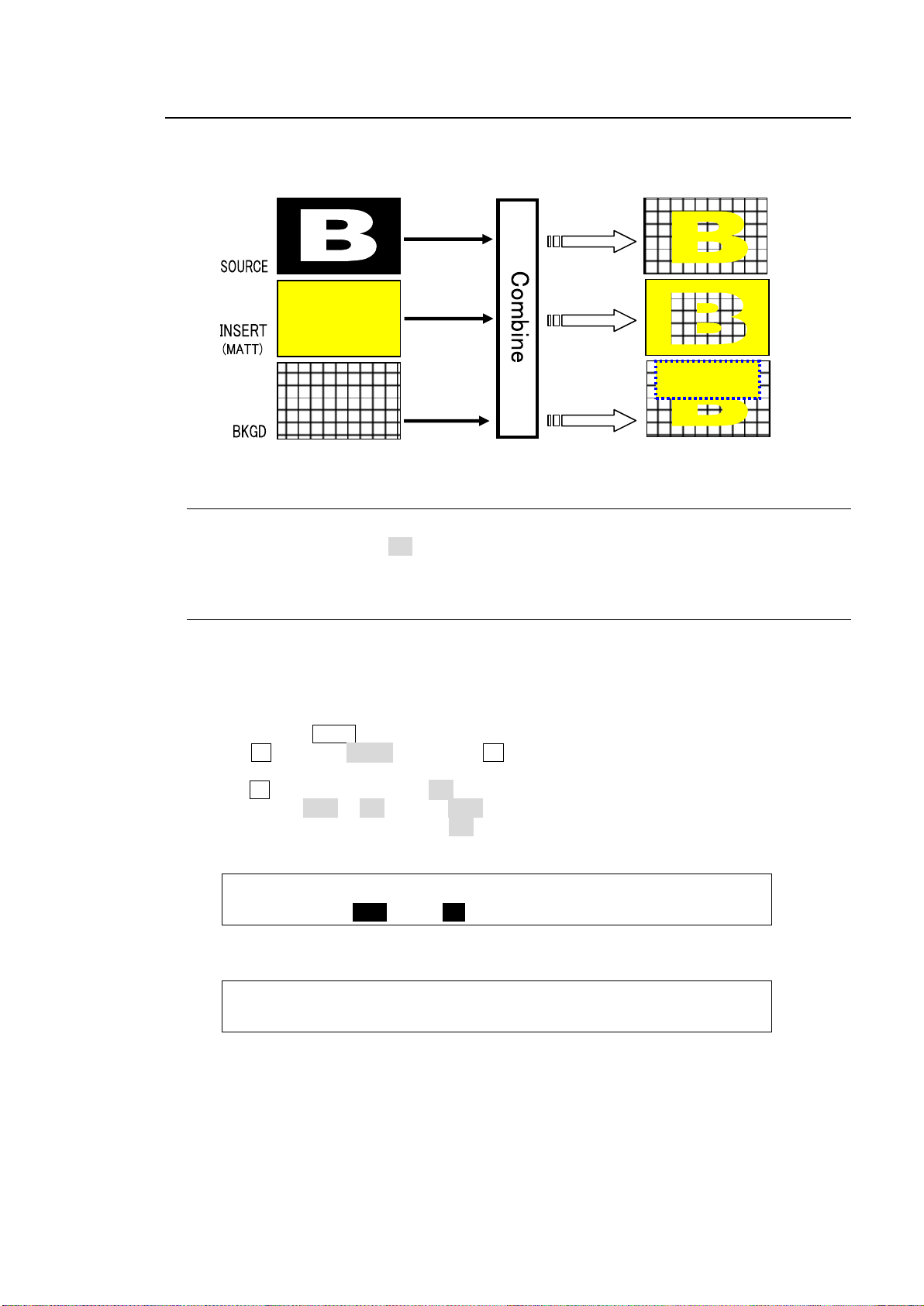

9-3-2. KEY INSERT MATT ................................................................................................... 83

9-4. Adjusting the Key Signal ................................................................................................... 84

9-5. Changing KEY or DSK Layer Order .................................................................................. 84

9-6. Mask and Invert ................................................................................................................. 85

9-6-1. Inverting Key and Background ................................................................................... 85

9-6-2. Key Masks .................................................................................................................. 85

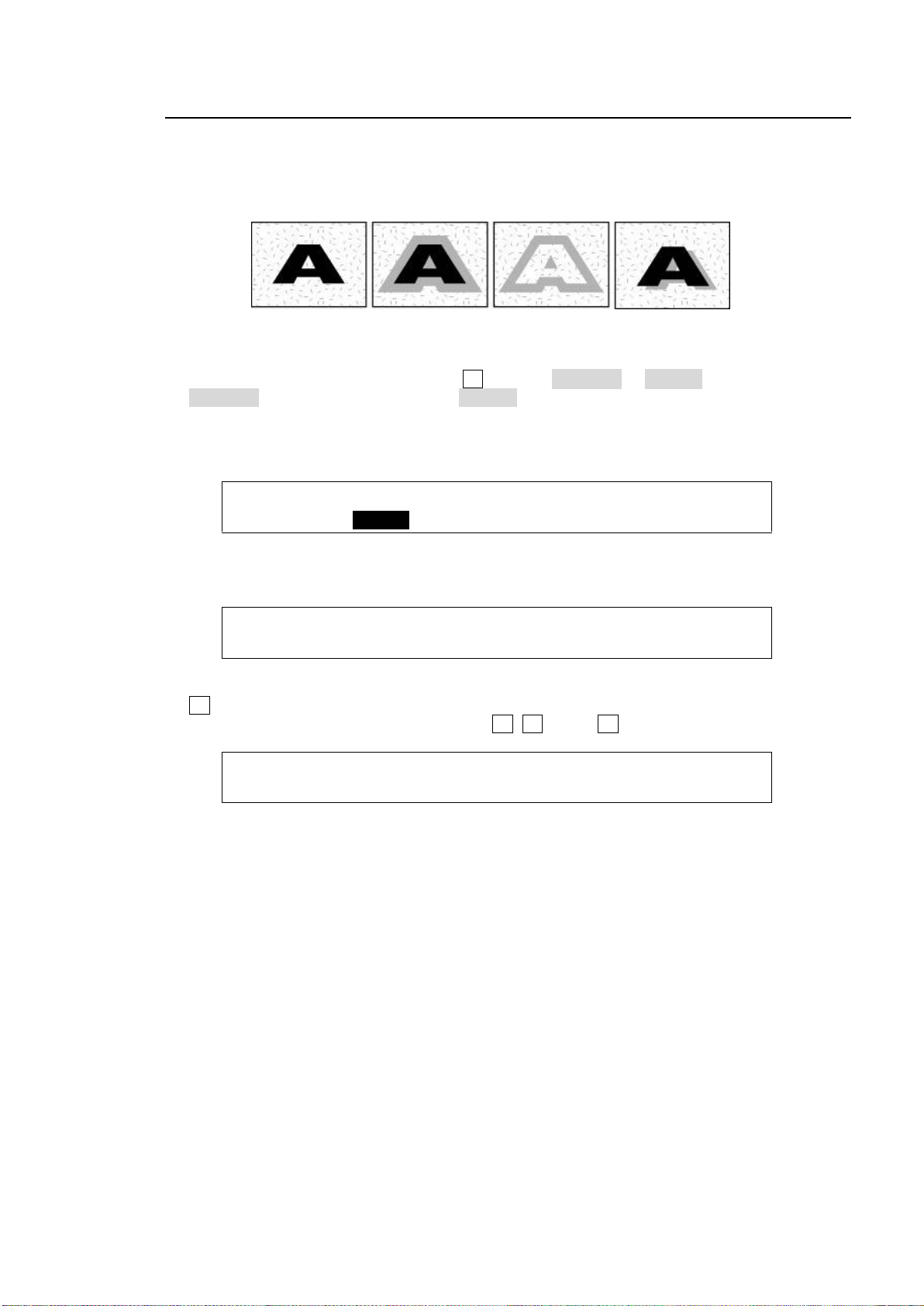

9-7. Key Edge ........................................................................................................................... 87

9-8. DVE Effects on KEY/DSK ................................................................................................. 88

9-8-1. How to Enable 2D DVEs ............................................................................................ 88

9-8-2. Changing Position and Size ....................................................................................... 89

9-8-3. Changing the Aspect Ratio ........................................................................................ 90

9-8-4. FADE .......................................................................................................................... 90

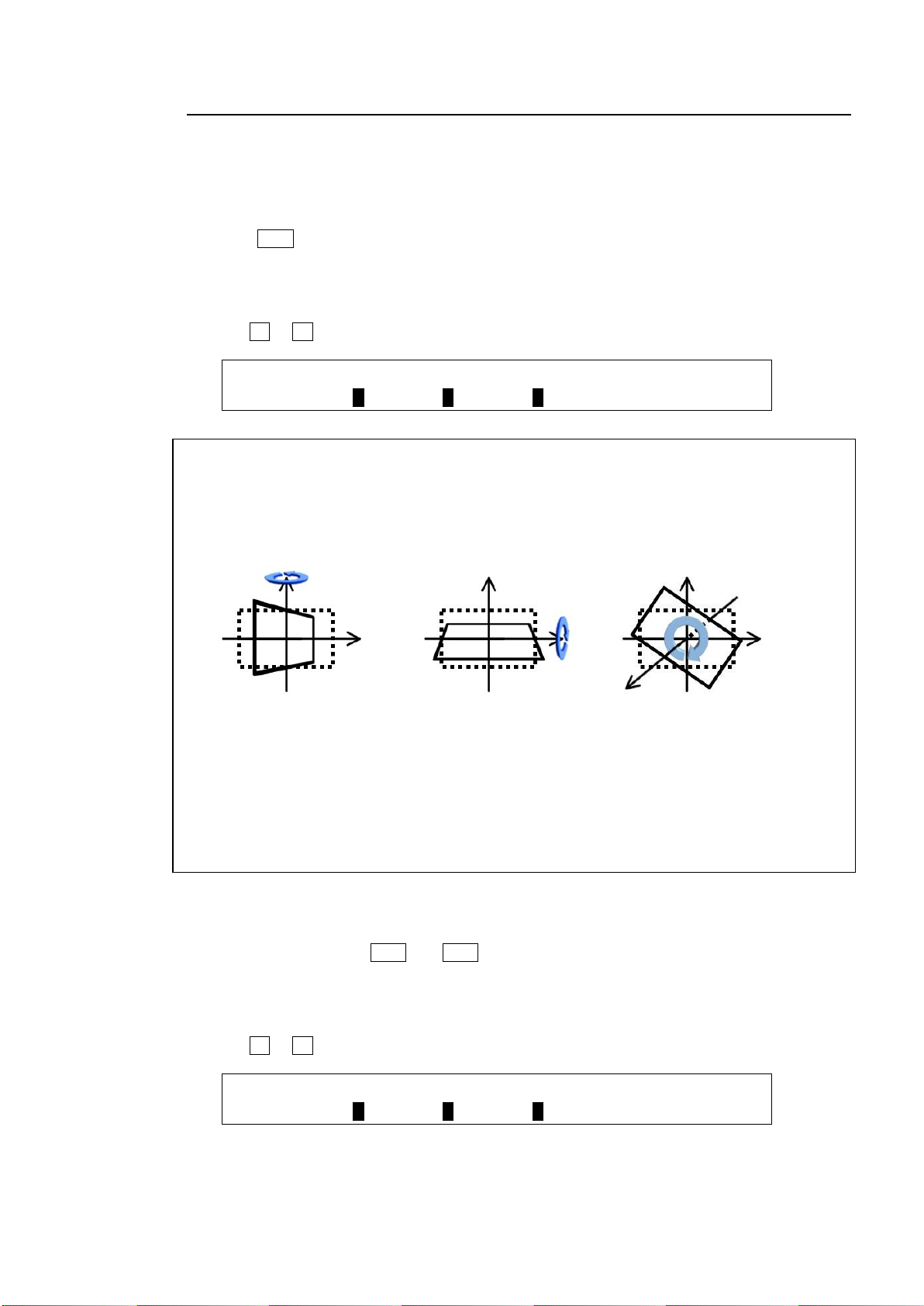

9-8-5. Rotation ...................................................................................................................... 91

9-8-6. CROP ......................................................................................................................... 93

9-8-7. BORDERS .................................................................................................................. 94

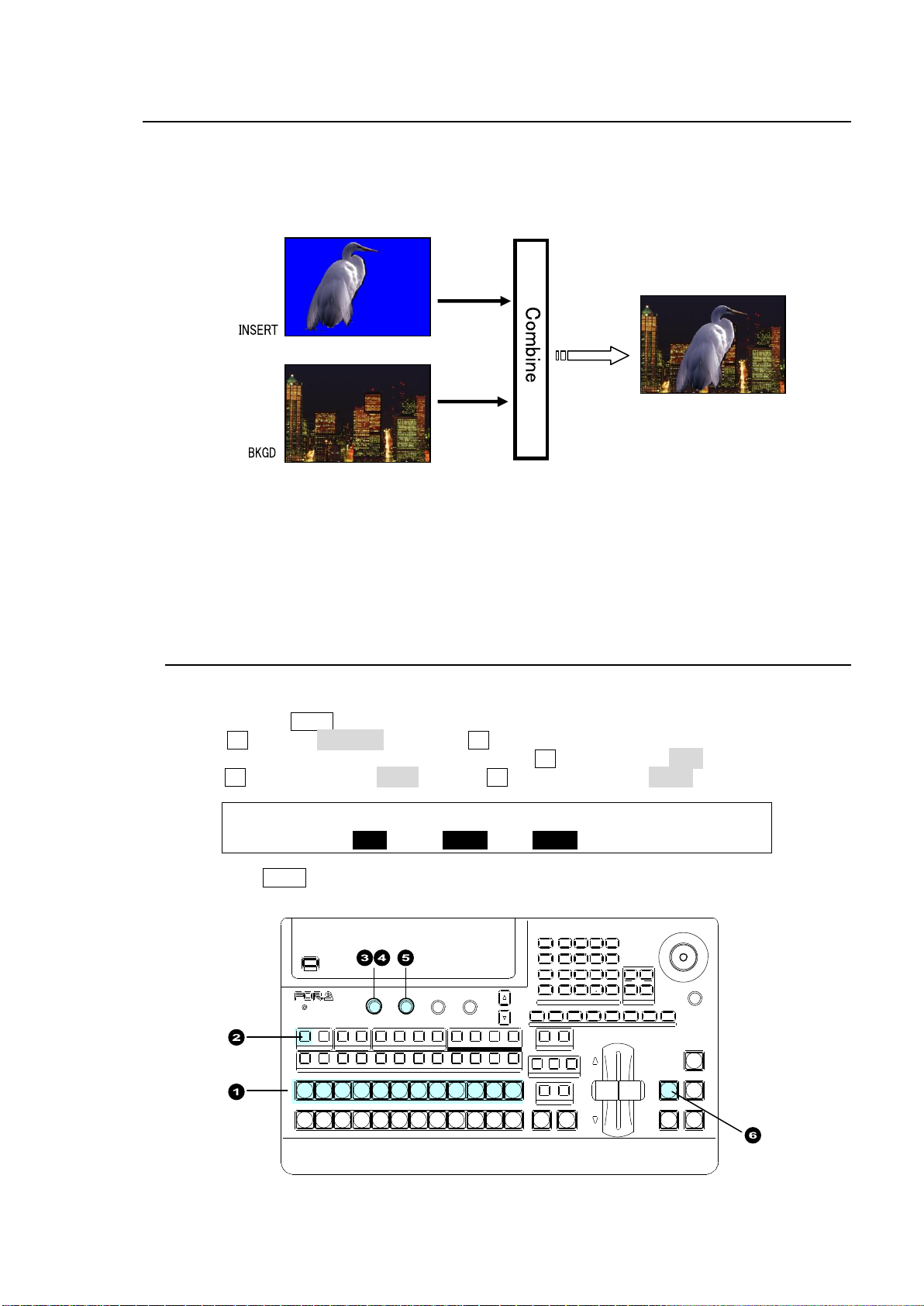

10. Chromakey ............................................................................................................................. 95

10-1. Creating a Chromakey .................................................................................................... 95

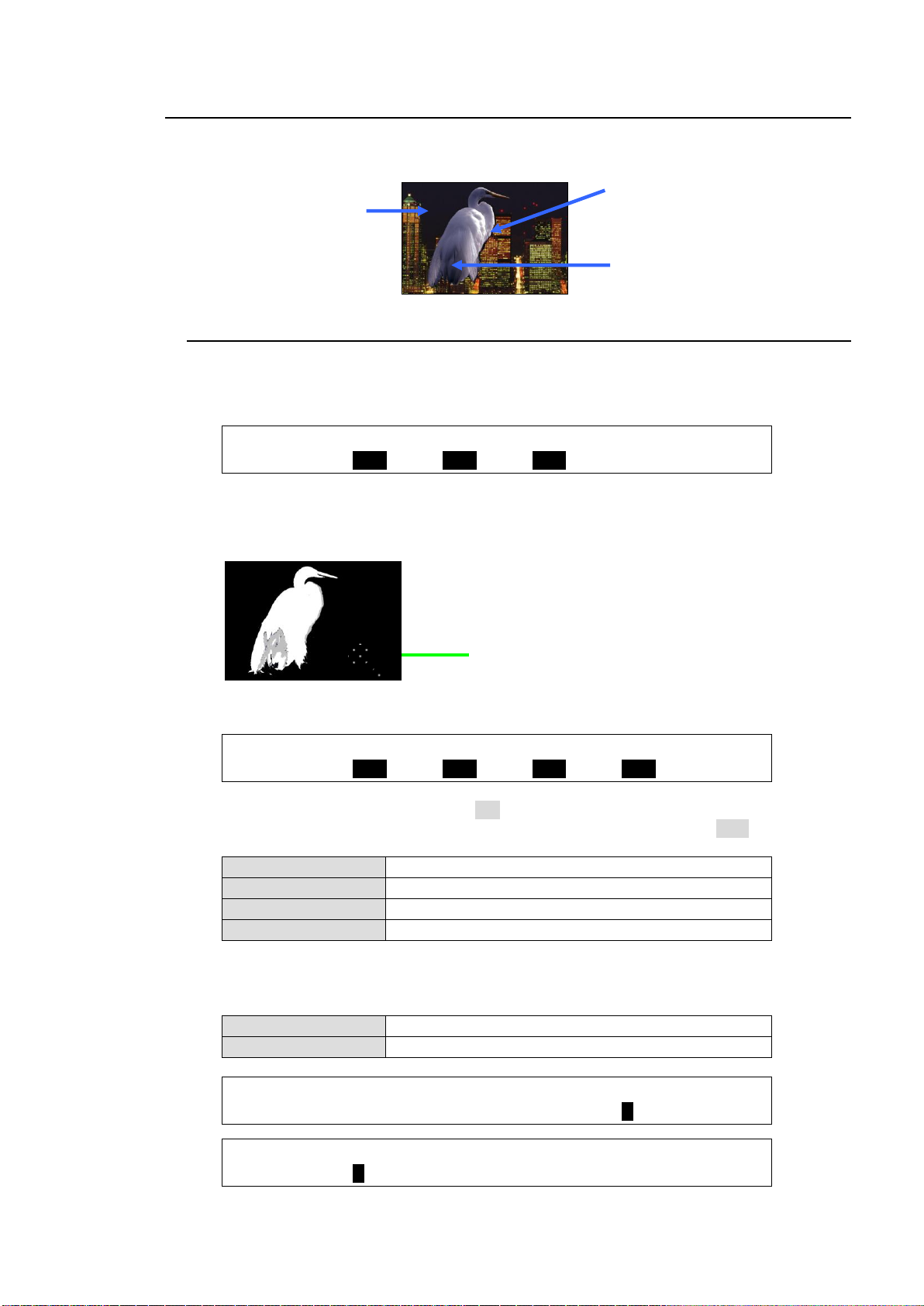

10-2. Adjusting Chromakey ...................................................................................................... 97

10-2-1. Adjusting Key Levels ................................................................................................ 97

10-2-2. Adjusting the Foreground Image (Chromakey Color) .............................................. 98

10-2-3. Adjusting Edges ....................................................................................................... 99

10-3. Chromakey Menu .......................................................................................................... 100

10-3-1. [CHR KEY - ADJUST] Menu .................................................................................. 100

10-3-2. [CHR KEY - MATT] Menu ...................................................................................... 101

10-3-3. [CHR KEY - FORGND] Menu ................................................................................ 102

10-3-4. Resetting Chromakey Settings .............................................................................. 102

10-4. Assigning the Chromakey to Another KEY or DSK ...................................................... 103

10-5. Sending Chromakey Signals to Other Devices ............................................................. 103

11. SUB EFFECT Channel ......................................................................................................... 104

Page 10

11-1. Selecting a SUB EFFECT Channel and Source Signal ................................................ 104

11-2. MONO COLOR .............................................................................................................. 104

11-3. DEFOCUS ...................................................................................................................... 104

11-4. PAINT COLOR ............................................................................................................... 105

11-5. FREEZE, STROBE, NEGA, MOSAIC ........................................................................... 105

12. Still and Clip Store ................................................................................................................. 106

12-1. Managing Still Images .................................................................................................... 106

12-1-1. Saving Stills............................................................................................................. 106

12-1-2. Displaying Still Images ............................................................................................ 106

12-1-3. Backing-up Stills ..................................................................................................... 107

12-2. Managing Clips .............................................................................................................. 108

12-2-1. Clip Recording ........................................................................................................ 108

12-2-2. Playing Clips ........................................................................................................... 110

12-2-3. Clearing Clip Data ................................................................................................... 111

12-3. Backing-up Still and Clip Data using USB Flash Drive .................................................. 112

12-3-1. Structure for Backing Up Still and Clip Data ........................................................... 112

12-3-2. Setting Automatic Backup to ON ............................................................................ 113

12-3-3. Manually Loading Backup Data .............................................................................. 113

12-3-4. Deleting Backup Data ............................................................................................. 114

12-3-5. Automatic Loading at Startup ................................................................................. 114

12-4. Transferring Image Files ................................................................................................ 115

12-4-1. LAN Connection ...................................................................................................... 115

12-4-2. Image files ............................................................................................................... 116

12-4-3. Sending / Receiving Still Images ............................................................................ 118

12-4-4. Sending Images to Clip Memory ............................................................................ 119

12-5. CG WIPE ........................................................................................................................ 120

12-5-1. CG WIPE Operation Example 1 ............................................................................. 121

12-5-2. Saving CG WIPE Settings ...................................................................................... 122

12-5-3. CG WIPE Menu Quick Reference .......................................................................... 122

13. Multiviewer ............................................................................................................................ 123

13-1. Assigning the Multiviewer to an Output Bus .................................................................. 123

13-2. Selecting the Split-screen Type ..................................................................................... 123

13-3. Video Signal Mapping .................................................................................................... 124

13-4. Setting Up Each Split Area ............................................................................................ 125

13-4-1. Titles ........................................................................................................................ 125

13-4-2. Audio Level Meter ................................................................................................... 126

13-4-3. Safety Area ............................................................................................................. 126

13-4-4. Frame Border .......................................................................................................... 127

13-4-5. On-air Tally.............................................................................................................. 127

13-5. Saving / Loading Screen Layouts .................................................................................. 128

13-5-1. Saving a Screen Layout .......................................................................................... 128

13-5-2. Loading a Screen Layout ........................................................................................ 128

13-5-3. Deleting Screen Layout Data .................................................................................. 128

14. USER Buttons ....................................................................................................................... 129

14-1. USER Button Operation ................................................................................................. 129

14-2. Triggering User Buttons ................................................................................................. 133

15. Event Memory ....................................................................................................................... 135

Page 11

15-1. Storing Events ............................................................................................................... 135

15-2. Recalling Events ............................................................................................................ 136

15-3. Protecting / Deleting Event Data ................................................................................... 137

15-4. Event Data ..................................................................................................................... 138

15-4-1. Data Not Saved in Events ...................................................................................... 138

15-4-2. Detailed Data Selection for Saving Events ............................................................ 138

15-4-3. Setting the User Default Menu when Storing an Event ......................................... 139

15-4-4. Detailed Data Selection for Loading Events .......................................................... 139

15-5. Transitions Using Event Recall ..................................................................................... 140

15-6. Loading an Event at Start-up ........................................................................................ 141

16. Macros .................................................................................................................................. 142

16-1. Recording Macros ......................................................................................................... 142

16-2. Executing Macros .......................................................................................................... 143

16-2-1. Operation Example 1 ............................................................................................. 143

16-2-2. Operation Example 2 ............................................................................................. 144

16-2-3. Operation Example 3 (Using KEY/AUX Bus Buttons) ........................................... 144

16-2-4. Operation Example 4 (Using Macro Attach Buttons) ............................................. 144

16-3. Macro Memory Operation ............................................................................................. 145

16-3-1. Overwrite Protection ............................................................................................... 145

16-3-2. Naming Macros ...................................................................................................... 145

16-3-3. Deleting Macros ..................................................................................................... 146

16-4. Macro Execution Buttons .............................................................................................. 147

16-4-1. Changing KEY/AUX Bus Buttons to Macro EXE Buttons ...................................... 147

16-4-2. Macro Attach and Macro Detach ........................................................................... 148

17. File Operation ....................................................................................................................... 149

17-1. USB Flash Drive ............................................................................................................ 149

17-2. Available Files ............................................................................................................... 149

17-3. Saving Data to USB Flash Drives ................................................................................. 150

17-4. Loading Data from USB Flash Drives ........................................................................... 151

17-4-1. Loading Setting Data .............................................................................................. 151

17-4-2. Downloading Image Files ....................................................................................... 151

17-5. Moving between USB Flash Drive Directories .............................................................. 152

17-6. Deleting Files from USB Flash Drives ........................................................................... 153

17-7. Renaming Files in USB Flash Drives ............................................................................ 153

18. System Setup Settings ......................................................................................................... 154

18-1. Selecting System Signal Format ................................................................................... 154

18-2. Crosspoint Switch Timing .............................................................................................. 154

18-3. Selecting a Reference Signal ........................................................................................ 155

18-3-1. To Set Reference Input .......................................................................................... 155

18-3-2. To Set Reference Output ....................................................................................... 155

18-4. Setting Date, Time and Time Zone ............................................................................... 155

18-4-1. Setting Time Using SNTP (Time) Server ............................................................... 156

18-5. Buzzer, Brightness and Screen Saver .......................................................................... 157

18-6. Status Information ......................................................................................................... 158

18-6-1. Checking Alarm Status........................................................................................... 158

18-6-2. Verifying Versions .................................................................................................. 159

18-6-3. Installed Options .................................................................................................... 159

Page 12

18-7. Upgrading an Operational Version ................................................................................ 160

18-7-1. Upgrade Procedure................................................................................................. 160

18-7-2. Upgrading the Switcher .......................................................................................... 161

18-7-3. Loading Setting Data .............................................................................................. 161

19. Reboot and Initialize .............................................................................................................. 162

19-1. Rebooting System .......................................................................................................... 162

19-2. System Initialization ....................................................................................................... 162

20. External Device Connection .................................................................................................. 163

20-1. GPI IN/OUT and Tally Outputs ...................................................................................... 163

20-1-1. GPI IN/TALLY OUT Connector ............................................................................... 163

20-1-2. Pin Assignment Examples ...................................................................................... 164

20-1-3. Sending Tally Signals to Tally Units ....................................................................... 167

20-1-4. GPI / Tally Function List .......................................................................................... 168

20-2. VTR / VDCP Control ...................................................................................................... 172

20-2-1. RS-422 Port Settings (VTR/VDCP) ........................................................................ 172

20-2-2. Controlling the VTR ................................................................................................. 173

20-2-3. Playback and Recording ......................................................................................... 174

20-2-4. VDCP Operation ..................................................................................................... 175

20-3. Router Control ................................................................................................................ 180

20-3-1. RS-422 Port Settings .............................................................................................. 180

20-3-2. Setting MFR Link .................................................................................................... 181

20-3-3. Crosspoint Switches Using the Menu ..................................................................... 181

20-3-4. Crosspoint Switches with Control Buttons (Setup) ................................................. 182

20-3-5. Crosspoint Switches with Control Buttons (Execution) .......................................... 183

20-3-6. Displaying Destination / Source Settings................................................................ 183

20-3-7. Saving and Loading Crosspoints ............................................................................ 184

20-3-8. Simultaneous Switching Using Take ...................................................................... 185

20-4. Editor Control (HVS-XT100ED) ..................................................................................... 186

20-4-1. RS-422 Port Settings .............................................................................................. 186

20-4-2. Editor Control Settings ............................................................................................ 186

20-4-3. Editor ON/OFF ........................................................................................................ 187

20-5. AUX Bus Control Box (HVS-AUX8/16/32) ..................................................................... 188

20-5-1. Connecting AUX Boxes .......................................................................................... 188

20-6. Remote Panel (HVS-30RU) ........................................................................................... 189

20-6-1. RS-422 Port Settings (HVS-30RU) ......................................................................... 189

20-6-2. Assigning Sources to PGM/PST Bus Buttons ........................................................ 189

20-6-3. Setting USER Buttons............................................................................................. 190

21. Web-based Control ............................................................................................................... 191

21-1. System Setup ................................................................................................................. 191

21-2. HOME ............................................................................................................................. 192

21-3. TRANS ........................................................................................................................... 193

21-4. BUS TRANS ................................................................................................................... 193

21-5. WIPE PATTERN ............................................................................................................ 194

21-5-1. WIPE PATTERN - WIPE/DVE/Other ...................................................................... 194

21-5-2. WIPE PATTERN - DIRECT .................................................................................... 194

21-6. WIPE MODIFY ............................................................................................................... 195

21-7. KEY and DSK ................................................................................................................. 196

Page 13

21-8. COPY SWAP (Web Control Only)................................................................................. 197

21-9. CHROMAKEY ............................................................................................................... 198

21-10. SUB EFF ..................................................................................................................... 199

21-11. STILL ........................................................................................................................... 200

21-11-1. Still Store and Still Capture .................................................................................. 200

21-11-2. Play Clips ............................................................................................................. 201

21-11-3. Backing Up/Loading Stills .................................................................................... 202

21-11-4. Backing-up Still and Clip Data using USB Flash Drive ........................................ 202

21-12. MATTE ........................................................................................................................ 204

21-13. EVENT ......................................................................................................................... 205

21-14. MACRO ....................................................................................................................... 206

21-14-1. To Execute Macros .............................................................................................. 206

21-14-2. To Edit Macros (Web Control Only) ..................................................................... 206

21-15. SETUP ......................................................................................................................... 207

21-15-1. SETUP - SYSTEM ............................................................................................... 207

21-15-2. SETUP - INPUT ................................................................................................... 208

21-15-3. SETUP - OUTPUT ............................................................................................... 209

21-15-4. SETUP - PANEL .................................................................................................. 211

21-15-5. SETUP - GPI/TLY ................................................................................................ 212

21-15-6. SETUP - FUNCTION ........................................................................................... 213

21-16. STATUS ...................................................................................................................... 213

21-17. EXT IF ......................................................................................................................... 214

21-17-1. EXT IF - EDITOR (Option) ................................................................................... 214

21-17-2. EXT IF - TSL TLY ................................................................................................. 214

21-17-3. EXT IF - VTR/VDCP ............................................................................................. 214

21-17-4. EXT I/F - ROUTER ............................................................................................... 218

21-18. Pop-up Menu Operation .............................................................................................. 221

21-18-1. Menu Shortcuts .................................................................................................... 221

21-18-2. Executing User Buttons ....................................................................................... 221

21-18-3. Setting Parameters to Default .............................................................................. 222

21-19. Backing Up Settings .................................................................................................... 222

22. Specifications and Dimensions ............................................................................................ 223

22-1. Specifications ................................................................................................................ 223

22-1-1. HVS-XT100 ............................................................................................................ 223

22-1-2. HVS-XT100OU ....................................................................................................... 224

22-1-3. HVS-XT110 ............................................................................................................ 225

22-2. External Dimensions ..................................................................................................... 227

22-2-1. HVS-XT100 ............................................................................................................ 227

22-2-2. HVS-XT100OU ....................................................................................................... 228

22-2-3. HVS-XT110 ............................................................................................................ 229

Appendix 1. Available Files for Saving and/or Loading ............................................................. 230

Appendix 2. Transition Pattern List ............................................................................................ 231

Index

Page 14

Page 15

1. Prior to Starting

1-1. About HVS-XT100 Series Switchers

HVS-XT100 series HANABI switchers are powerful and compact 1M/E video switchers that are easy to use. They can be used in all types of locations, including at live and sporting events, in news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative ideas of video creators.

1-2. Features

<HVS-XT100>

 Compact HD/SD 1M/E switcher: Main Unit 2U in height  Switcher Processor (Main Unit) and separate Control Panel  HD/SD-SDI 8-input/4-output and single HDMI output  Redundant Power Supply (with HVS-XT100PSM and HVS-XT100PSO options)

<HVS-XT110>

 Compact HD/SD 1M/E switcher (3U)  Switcher Processor and integrated Control Panel  HD/SD-SDI 12-input/8-output and single HDMI output  Redundant Power Supply (with HVS-XT110PSM option)

<HVS-XT100/XT110>

 Frame synchronizer on IN01 to IN08  Resizing engine on IN05 to IN08  Built-in multiviewer output, supporting various multi-view layouts with title, tally and audio

meter display

 2-Key and 2-DSK channels  Chromakey generator  More than 130 of transition patterns including 2D DVE  4-channel DVE for Background, Keys and DSKs  Two upstream effect channels  Transition effects using event-load or AUX-signal switch  Two still stores and two clip stores (approx. 7.5 sec on HD) with backup and data transfer

capabilities

 Safety area markers  Internal color-bar generator  Various interfaces

-VTR, Router, Editor and/or Tally Unit connection (RS-422)

-Aux Bus Control Box connection (Arcnet LAN)

-Windows PC, Mac computer, tablet, etc. connection for Web-based control and image data

transfer (Ethernet LAN)

 Optional Remote Panel (HVS-30RU)

Page 16

2. Panel Descriptions

No.

Name

Description

Refer to

sec.

Menu Control Block

Composed of the menu display, menu control push-buttons (F1 to F4) and page up/down buttons.

SELECT/KEYPAD Block

Multi-function keypad. Four control buttons (MENU, DIRECT PATT, EVENT, and MACRO) on the left side change the keypad operation mode, in which 12 buttons are used for menu display and input, transition pattern selection, event and macro operations.

4-1-1 4-2-3 8-8-3 15 16

JOYSTICK Block

Used to set position, size or color settings in the specific menu parameters.

4-2-4

ALARM indicator

Indicates fan alarm status. Normally unlit, the indicator blinks red when an alarm occurs. In such case, power off the system and consult your FOR-A supplier. (It also blinks red when a power supply does not work in redundant configuration.)

18-6-1

BUS SELECT Block

Used to select a bus, then to select a video in the KEY/AUX bus (No 7).

6 7 9 13-1

KEY/AUX Bus

Used to select video for the bus selected in the BUS SELECT block (No. 6).

The video can be selected from KEY/AUX bus buttons, PGM, PREV, CLEAN and MV.

PGM/PST (M/E) Bus

Used to select video for the background.

USER BUTTON

User assignable buttons. Menu shortcuts or functions can be assigned to these buttons.

BLACK TRANS

Used to perform black transitions.

8-6

KEY/DSK Transition Block

Used to perform Key/DSK transitions.

8-4 8-5

Transition Block

Used to perform background and key transitions.

‚o‚n‚r‚h‚s‚h ‚n‚m

DIGITAL VIDEO SWI TCHER HVS-

7 8 9

4 5 6

DIRECT

PATT

STILL MATT F ILE

KEY2 DSK1 DSK2

1 2 3±

EVENT

MACRO CLEAR

RECALL STORE

ENTER

POS ROT

2D DVE

WIPE POS

CK EFFECT

TRANS RATE WIPE

SELECT/KEYPA D JOYSTICK

SIZE

(PUSH to DEF)

1 2 3 4 5 6 7 8

USER BUTTON

REV NOR/REV

DIRECTION

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

TRANSITION TYPE

CUT

KEY1 KEY2

DSK1 D SK2

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

PGM PREV CLEAN MV

KEYER DSK AUX

KEY/AUX

ALARM

F1 F2 F3 F4

PAGE

TRANS

BLACK

AUTO

SETUP

KEY1

ATTACH

DETACH

2-1. HVS-XT100OU

 Control Panel

Page 17

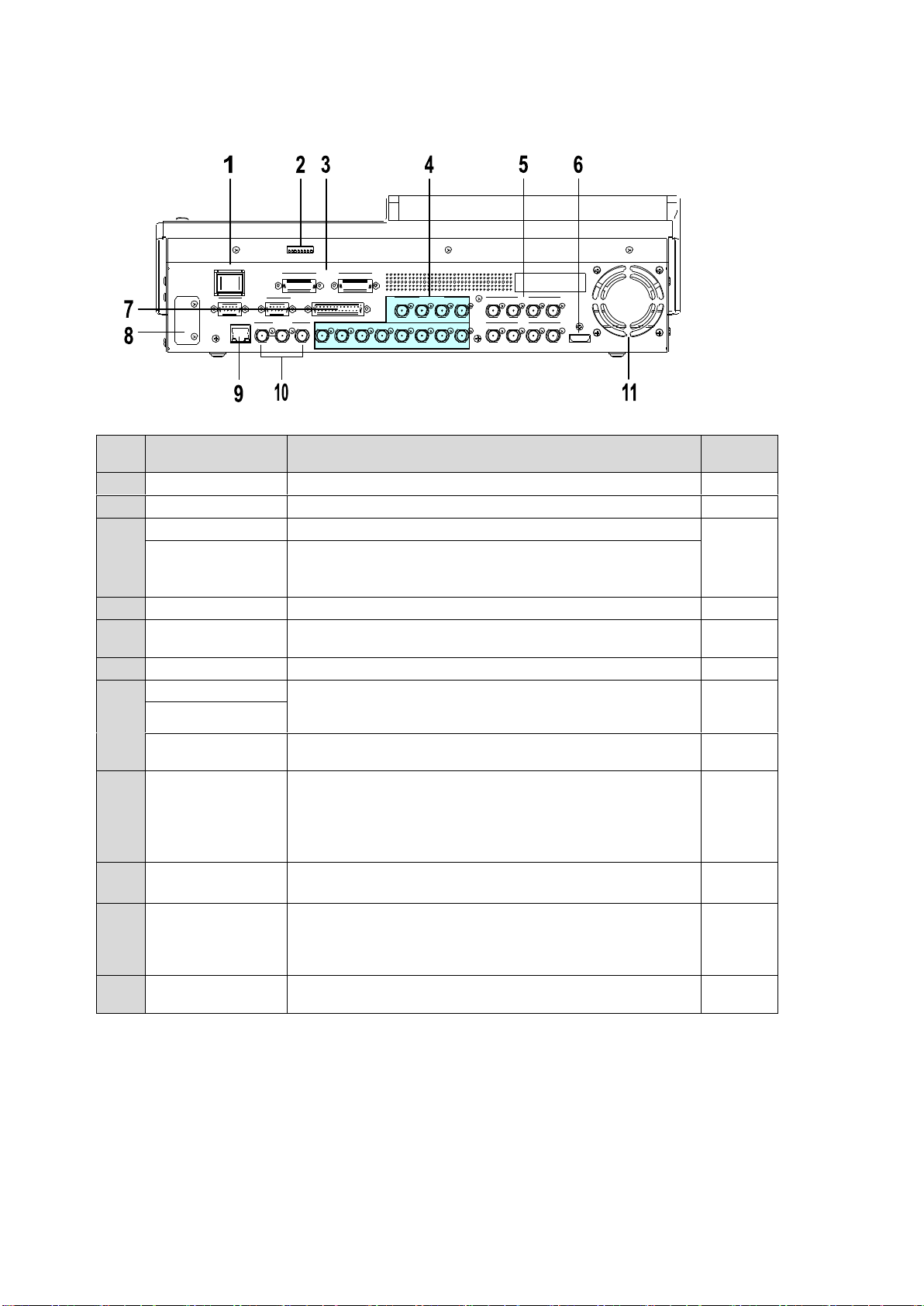

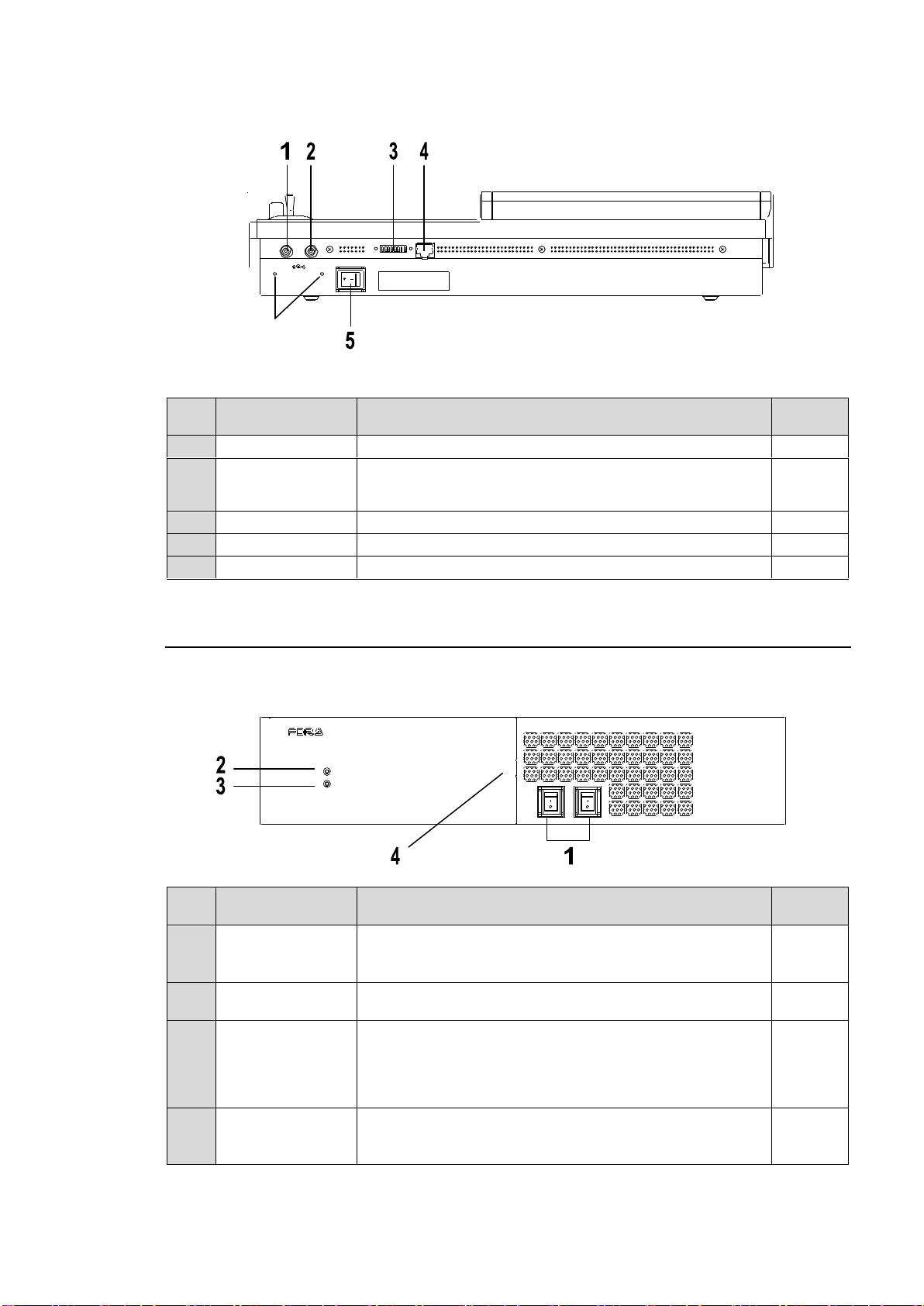

 Rear Panel

No.

Name

Description

Refer to

sec.

DC IN1

Supply power (12 V DC) using the supplied AC adaptor.

3-1-2

DC IN2

Optional power supply (HVS-XT110PSM) for power redundancy. Supply power (12 V DC) using the supplied AC adaptor.

3-1-2

MODE SW

For maintenance use. Do not change.

TO MU

Power Switch

Switch used to turn unit power ON / OFF.

No.

Name

Description

Refer to

sec.

Power switch1 Power switch2

Switch used to turn unit power ON / OFF. Set both switches to ON if redundant power supply is

configured.

POWER indicator

Power indication is lit green when power switch is set to ON and power is applied to unit.

ALARM indicator

Indicates fan alarm status. Normally unlit, the indicator blinks red when an alarm

occurs. In such case, power off the system and consult your FOR-A supplier. (It also blinks red when a power supply does not work in redundant configuration.)

18-6-1

USB MEMORY

Used to connect a USB flash drive for image file import / export or system setting backup.

(USB1.1, Type-A)

12-3 17

POWE R 2

OFF

DIGITAL VIDEO SWITCH ER

POWER

ALARM

POWE R 1

USB

HVS-XT100

DC12V

1 2

POWER

OFF ON

MODE SW TO MU

Holes for securing

cables with clamps

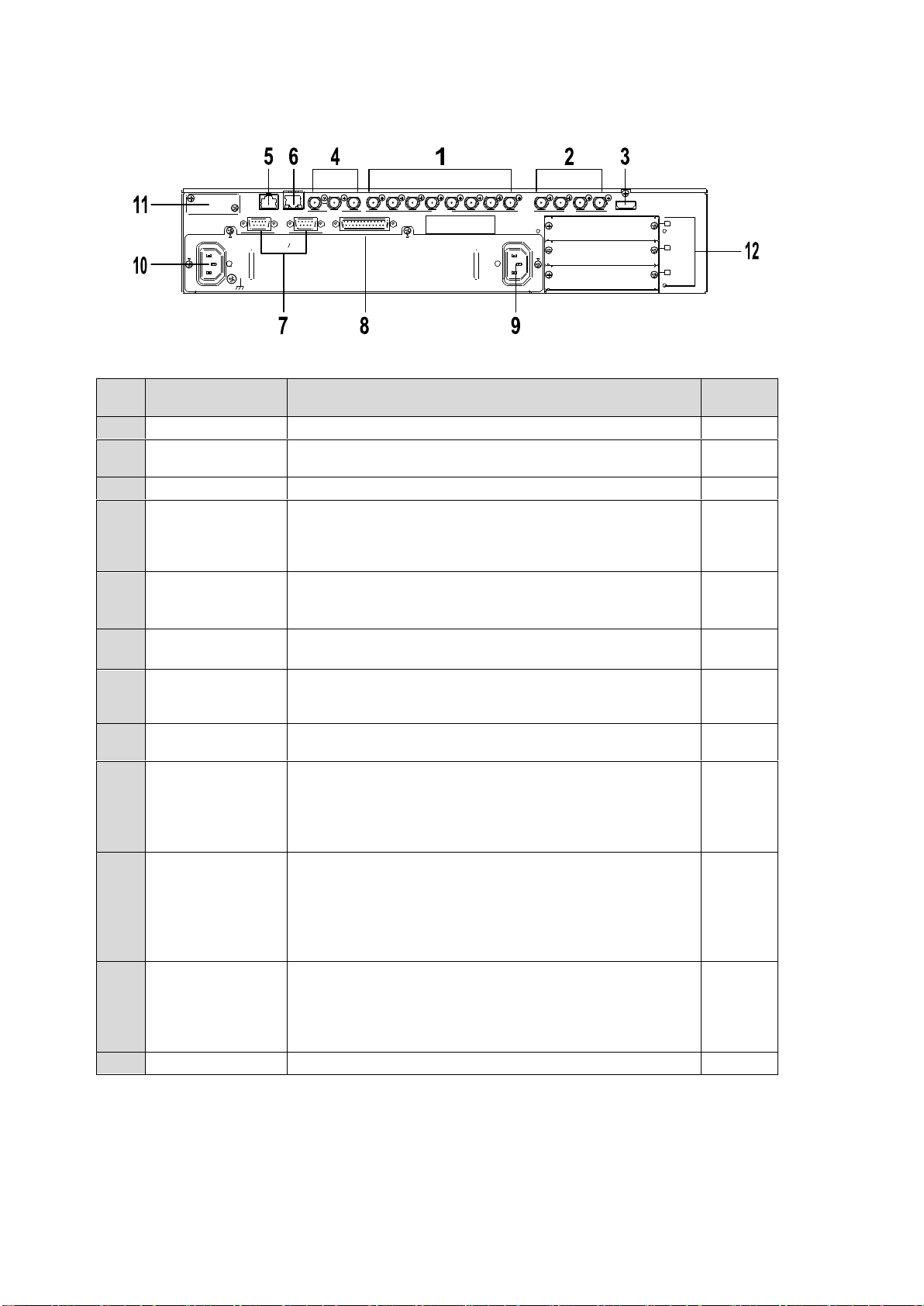

2-2. HVS-XT100

 Front Panel

Page 18

 Rear Panel

No.

Name

Description

Refer to

sec.

SDI INPUT

Used to input HD/SD SDI video signal. 8 inputs (BNC)

SDI OUTPUT

Used to output HD/SD SDI video signal. 4 outputs (AUX1-4) (BNC)

HDMI

Used to output an HDMI output. (Type A connector)

6-5

GENLOCK (REF IN REF OUT)

Used to input and output a genlock signal; tri-level sync or black burst. (BNC)

The center terminal is used for loopthrough connection. It must be 75-ohm terminated if not looped-through.

18-3

TO OU

LAN port , used for HVS-XT100OU connection (RJ-45) Use the supplied LAN cable with the HVS-XT100OU to

connect the HVS-XT100 and HVS-XT100OU.

LAN

Ethernet port used for image transport and web control 100BASE-TX/1000BASE-T (RJ-45)

12-4-1 21

RS-422 (1) RS-422 (2)

Used to connect peripheral devices such as HVS-30RU,VTR/VDCP devices, Routers. (9-pin D-sub, female)

2-4-1

GPI IN/ TALLY OUT

Used for GPI input/output and Tally output. (25-pin D-sub, female)

20-1-1

AC IN1

Used for connection to AC power source via supplied accessory cord. (AC 100V-240V 50/60Hz)

Be sure to ground the protective earth terminal before turning on power to the system to prevent electrical shock.

Use the attached cord clamp to secure the power cord.

AC IN2

Optional power supply for power redundancy. Used for connection to AC power source via supplied

accessory cord. (AC 100V-240V 50/60Hz) Be sure to ground the protective earth terminal before

turning on power to the system to prevent electrical shock. Use the attached cord clamp to secure the power cord.

ARCNET

Optional Arcnet LAN port (HVS-XT100ARC). One port is used for HVS-AUX bus Control Box

connection. The other port is used for loopthrough connection. It must

be 75-ohm terminated if not looped-through.

20-5-1

Option card slots

Used for installing input /output expansion cards.

REF OUT 112 3 4 5 6 7 8

2 3 4

REF IN

1 2

AC100-240V 50/60Hz INAC100-240V 50/60Hz IN

TO OU

LAN GENLOCK SDI INPUT

RS-422 GPI IN/TALLY OUT

HDMI OUTAUX

Page 19

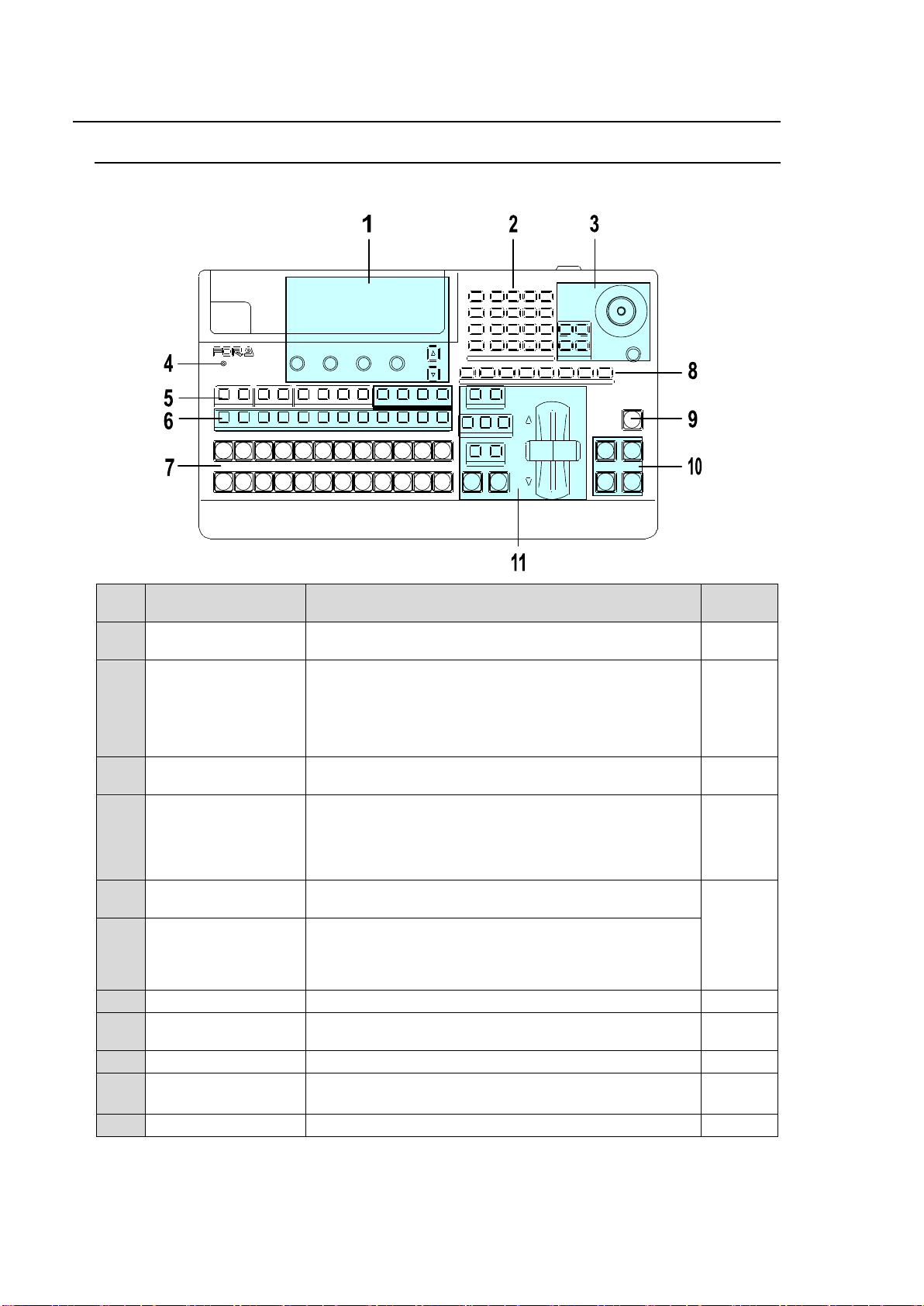

2-3. HVS-XT110

No.

Name

Description

Refer to

sec.

Menu Control Block

Composed of the menu display, menu control push-buttons (F1 to F4) and page up/down buttons.

SELECT/KEYPAD Block

4-1-1 4-2-3 8-8-3 15 16

JOYSTICK Block

Used to set position, size or color settings in the specific menu parameters.

4-2-4

ALARM indicator

Indicates fan alarm status. Normally unlit, the indicator blinks red when an alarm occurs. In such case, power off the system and consult your FOR-A supplier.

18-6-1

BUS SELECT Block

Used to select a bus, then to select a video in the KEY/AUX bus (No 7).

6 7 9 13-1

KEY/AUX Bus

Used to select video for the bus selected in the BUS SELECT block (No. 6).

The video can be selected from KEY/AUX bus buttons, PGM, PREV, CLEAN and MV.

PGM/PST (M/E) Bus

Used to select video for the background.

USER BUTTON

User assignable buttons. Menu shortcuts or functions can be assigned to these buttons.

BLACK TRANS

Used to perform black transitions.

8-6

KEY/DSK Transition Block

Used to perform Key/DSK transitions.

8-4 8-5

Transition Block

Used to perform background and key transitions.

USB MEMORY

Used to connect a USB flash drive for image file import / export or system setting backup.

(USB1.1, Type-A)

12-3 17

USB MEMORY

DIGITAL VIDEO SWITCHER HVS-

SIZE

(PUSH to DEF)

1 2 3 4 5 6 7 8

USER BUTTON

REV NOR/REV

DIRECTION

BLACK TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION T YPE

AUTO CUT DSK1 DSK2

ALARM

F1 F2 F3 F4

PAGE

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV CLEAN MV

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

MENU ATTACH

DIRECT

PATT

DETACH

SETUP

KEY1

POSITION

POS ROT

2D DVE

WIPE POS

JOYSTICK

8 9

4 5 6

STILL M ATT FILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFFECT

TRANS RATE WIPE

SELECT/KEYPAD

 Control Panel

Page 20

 Rear Panel

No.

Name

Description

Refer to

sec.

Power Switch

Switch used to turn unit power ON / OFF.

2 MODE SW

For maintenance use. Do not change.

3 DC IN1

Supply power (12 V DC) using the supplied AC adaptor.

3-3 DC IN2

Optional power supply (HVS-XT110PSM) for power redundancy.

Supply power (12 V DC) using the supplied AC adaptor.

SDI INPUT

Used to input HD/SD SDI video signal. 12 inputs (BNC)

SDI OUTPUT

Used to output HD/SD SDI video signal. 8 outputs (AUX1-8) (BNC)

HDMI

Used to output an HDMI output. (Type A connector)

6-5

RS-422 (1)

Used to connect peripheral devices such as HVS-30RU,VTR/VDCP devices, Routers. (9-pin D-sub, female)

2-4-1 RS-422 (2)

GPI IN/ TALLY OUT

Used for GPI input/output and Tally output. (25-pin D-sub, female)

20-1-1

ARCNET

Optional Arcnet LAN port (HVS-XT100ARC). One port is used for HVS-AUX bus Control Box

connection. The other port is used for loopthrough connection. It must

be 75-ohm terminated if not looped-through.

20-5-1

LAN

Ethernet port used for image transport and web control 100BASE-TX/1000BASE-T (RJ-45)

12-4-1 21

GENLOCK (REF IN REF OUT)

Used to input and output a genlock signal; tri-level sync or black burst. (BNC)

The center terminal is used for loopthrough connection. It must be 75-ohm terminated if not looped-through.

18-3

Cooling Fan

Used to air cool the unit to prevent overheating. Do not block the ventilation openings.

18-6-1

REF OUT 1 12 3 4 5 6 7 8 2 3 4REF IN

HDMI OUT

AUX

5 6 7 8

AUX

LAN

SDI INPUT

9 10 11 12

SDI INPUT

GPI IN/TA LLY OUT

DC12V IN

1 2

MODE SW

POWER

OFF ON

GENLOCK

RS-422

1 2

Page 21

2-4. Interfaces

Pin No.

Signal Name

In/Out

Description

FG Frame ground

R-

Receive data (-)

T+

Out

Transmit data (+)

SG Signal ground

NC Not used

SG Signal ground

R+

Receive data (+)

T-

Out

Transmit data (-)

FG Frame ground

Pin No.

Description

BKGD AUTO TRANS (input) (default setting)

KEY1 AUTO TRANS (input) (default setting)

KEY2 AUTO TRANS (input) (default setting)

DSK1 AUTO TRANS (input) (default setting)

DSK2 AUTO TRANS (input) (default setting)

6-24

Unassigned (default setting)

Frame ground

2-4-1. RS-422 Connector 1-2

 Pin Assignment Table (9-pin D-sub ,female, with inch screws)

RS-422 ports are used for the following device connections. See the related chapters to

configure the connections.

HVS-30RU: See section 20-6. "Remote Panel (HVS-30RU)."

Tally Units: See section 20-1-3. "Sending Tally Signals to Tally Units."

VTR/VDCP devices: See section 20-2. "VTR / VDCP Control."

Routers: See section 20-3. "Router Control."

Editor: See section 20-4 "Editor Control."

2-4-2. GPI IN/TALLY OUT Connector

 Pin Assignment Table (25-pin D-sub, female, with inch screws)

 See section 20-1-1. "GPI IN/TALLY OUT Connector" for more details.

Page 22

3. Connection

DC12V

1 2

POWER

OFF ON

MODE SW TO MU

HVS-XT100OU rear panel

Supplied LAN cable

75Ω-terminator

PGM(AUX1)

To AC power source

Video server,

VTR, etc.

TSG (REF signal)

HD/SD SDI

Preview

(AUX2)

HVS-XT100 rear panel

REF OUT 112 3 4 5 6 7 8

2 3 4

REF IN

1 2

AC100-240V 50/60Hz INAC100-240V 50/60Hz IN

TO OU

LAN GENLOCK SDI INPUT

RS-422 GPI IN/TALLY OUT

HDMI OUTAUX

REF signal

To AC adaptor

Secure the power cord with the attached

AC cord clamp. (See the next page.)

Secure the power cord with the supplied

DC cord clamp. (See the next page.)

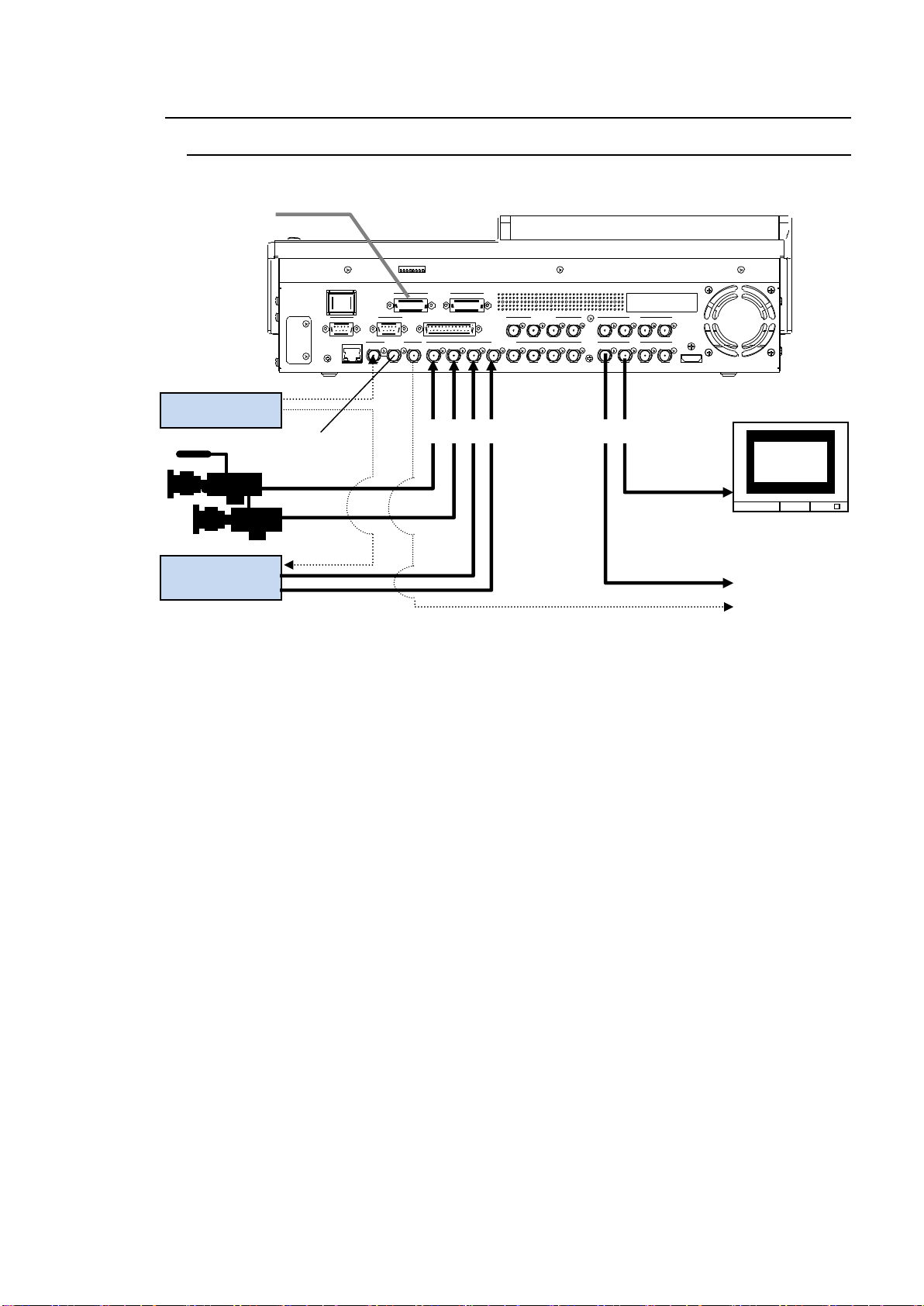

3-1. HVS-XT100 / XT100OU

3-1-1. Basic Configuration

 See section 18-3. "Selecting a Reference Signal" for details on setting a reference signal.  See section 6-2. "Preview Set Up" for details on displaying preview image.

Page 23

3-1-2. Installing the Power Cord Retaining Clamp

DC12V

1 2

POWER

OFF ON

MODE SW TO MU

 AC cord clamp

Installation

1) Wrap the retaining clamp around the AC cord (with the anchor of the ladder strap toward the unit).

2) Insert the anchor into the hole next to the AC IN socket.

3) Lightly fasten the clamp around the AC cord.

4) Plug in the power cord.

5) Slide the clamp on the ladder strap toward the plug.

6) Fasten the clamp tightly.

7) Gently pull on the AC cord to ensure it is secured.

Uninstallation

1) Push the tab on the retaining up to unfasten the clamp.

2) Push the tab on the ladder strap up and slide the clamp back.

3) Unplug the AC cord.

 DC Cord Clamp Installation Insert the DC cord into the DC IN connector, then secure the cord with the DC cord clamp attached to the hole as shown in the figure.

Page 24

3-1-3. Optional Configuration

Device / Signal

Connection / Interface

Refer to sec.

Multiviewer output

SDI (BNC) or HDMI

GPI in/out, Tally out

GPI IN/TALLY OUT

20-1

Tally unit

RS-422

20-1-3

VTR

RS-422

20-2

Router

RS-422

20-3

Editor

RS-422 (with software option)

20-4

AUX bus control boxes (HVS-AUX8/16/32)

ARCNET LAN (optional)

20-5

Remote Panel (HVS-30RU)

RS-422

20-6

PC (Web browser control)

Ethernet

PC (Image transport)

Ethernet

12-4

GPI OUT TALLY OUT

GPI Controller

Web-based control

Image file transfer

Router

Multiview

(HDMI)

DC12V

1 2

POWER

OFF ON

MODE SW TO MU

HVS-XT100OU rear panel

Supplied LAN cable

75Ω-terminator

PGM(AUX1)

To AC power source

Video Server,

VTR, etc.

TSG (REF signal)

HD/SD SDI

Preview

(AUX2)

HVS-XT100 rear panel

REF OUT 112 3 4 5 6 7 8

2 3 4

REF IN

1 2

AC100-240V 50/60Hz INAC100-240V 50/60Hz IN

TO OU

LAN GENLOCK SDI INPUT

RS-422 GPI IN/TALLY OUT

HDMI OUTAUX

REF signal

HD/SD SDI

To AC power source

To AC adaptor

External Device Connections

Page 25

3-2. HVS-XT110

REF OUT 1 12 3 4 5 6 7 8 2 3 4REF IN

HDMI OUT

AUX

5 6 7 8

AUX

LAN

SDI INPUT

9 10 11 12

SDI INPUT

GPI IN/TA LLY OUT

DC12V IN

1 2

MODE SW

POWER

OFF ON

GENLOCK

RS-422

1 2

75Ω terminator

PGM(AUX1)

AC adaptor

Video Server,

VTR, etc.

TSG (reference)

HD/SD SDI

REF signal

HD/SD SDI

Preview

(AUX2)

3-2-1. Basic Configuration

 See section 18-3. "Selecting a Reference Signal" for details on setting a reference signal.  See section 6-2. "Preview Set Up" for details on displaying preview image.

Page 26

3-2-2. Optional Configuration

Device / Signal

Connection / Interface

Refer to sec.

Multiviewer output

SDI (BNC) or HDMI

GPI in/out, Tally out

GPI IN/TALLY OUT

20-1

Tally unit

RS-422

20-1-3

VTR

RS-422

20-2

Router

RS-422

20-3

Editor

RS-422 (with software option)

20-4

AUX bus control boxes (HVS-AUX8/16/32)

ARCNET LAN (optional)

20-5

Remote Panel (HVS-30RU)

RS-422

20-6

PC (Web browser control)

Ethernet

PC (Image transport)

Ethernet

12-4

REF OUT 1 12 3 4 5 6 7 8 2 3 4REF IN

HDMI OUT

AUX

5 6 7 8

AUX

LAN

GENLOCK SDI INPUT

9 10 11 12

SDI INPUT

EDITOR RS-422 GPI IN/TALLY OUT

DC12V IN

1 2

MODE SWPOWER

OFF ON

adaptor

GPI OUT TALLY OUT

GPI Controller

adaptor

75Ω-terminator

PGM(AUX1)

Video Server,

VTR, etc.

TSG (REF signal)

HD/SD SDI

Preview

(AUX2)

Multiview

(HDMI)

Router

Web-based control

Image file transfer

REF signal

HD/SD SDI

External Device Connections

Page 27

3-3. Power ON

IMPORTANT

Do not plug in or out of AC adaptors or power cords while the switcher is powered on.

IMPORTANT

Do not plug in or out of AC adaptors or power cords while the switcher is powered on.

Before powering on the system, verify that all system connections have been properly made according to the previous sections.

3-3-1. HVS-XT100/XT100OU

(1) Use the supplied LAN cable with the HVS-XT100OU to connect the TO OU connector on

the HVS-XT100 rear panel and the TO MU connector on the HVS-XT100OU rear panel.

(2) Use the supplied power cord to supply AC power to the HVS-XT100. Secure the power

cord with the attached cord clamp.  See section 3-1-2. "Installing the Power Cord Retaining Clamp."

(3) Use the supplied AC adaptor and power cord to supply power to the HVS-XT100OU.

Secure the DC cord to the HVS-XT100OU rear panel with the supplied cord clamp.  See section 3-1-2. "Installing the Power Cord Retaining Clamp."

(4) Turn on the power switches on the HVS-XT100 front panel and HVS-XT100OU rear

panel.

3-3-2. HVS-XT110

Supply DC power to the control panel using the provided AC adaptor and power cord and turn on the power switch located on the rear panel of the switcher. If redundant power is supplied using the HVS-XT110PSM, the power switch on both power units will turn on.

Page 28

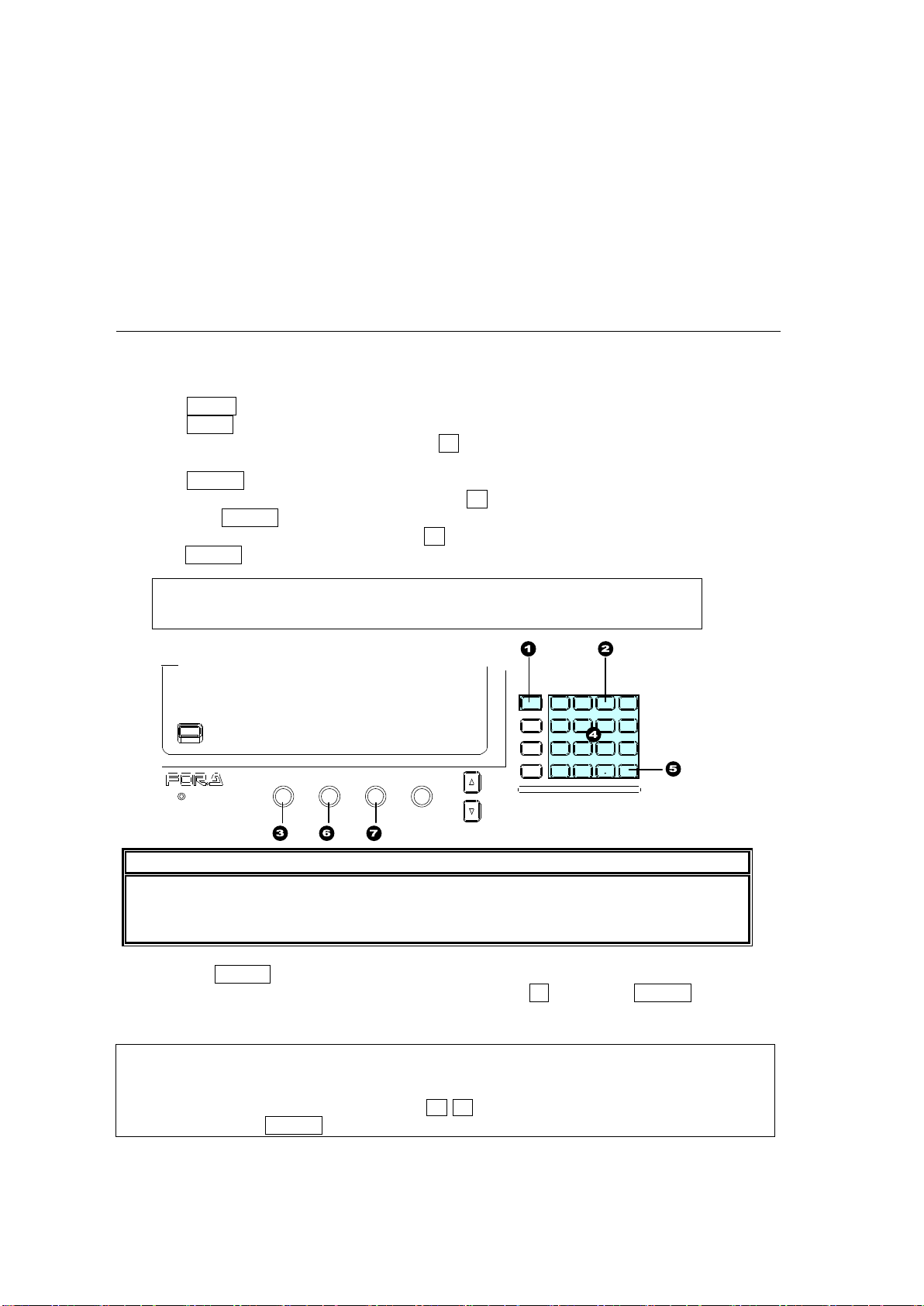

3-4. System Signal Format Selection at Initial Use

SETUP :>SYSTEM >INPUT >OUTPUT >PANEL

MENU :>GPI/TLY >FUNCTION>EXT I/F >STATUS

SETUP :>FORMAT >REF I/O >ARCNET >ETHERNET

SYSTEM :>RS-422 >TIME >INIT >REBOOT

SYSTEM : FORMAT :ASPECT :SW TMNG: 1/1

FORMAT : =1080/59.94i : =16:9 : =ODD :

SETUP :>FORMAT >REF I/O >ARCNET >ETHERNET

SYSTEM :>RS-422 >TIME >INIT >REBOOT

DIGITAL VIDEO SWITCHER

F1 F2 F3 F4

PAGE

MENU ATTACH

DIRECT

PATT

DETACH

SETUP

KEY1

8 9

4 5 6

STILL MATT FILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFFECT

TRANS RATE WIPE

SELECT/KEYPAD

F1-F4

When first switching your unit on, select a signal format as shown below. (1) The MENU button in the SELECT/KEYPAD block at the right of the menu display should

blink when powered ON. (2) Press MENU, then press SETUP. (3) The SETUP menu top page appears in the menu display. Turn F1 to select SYSTEM and

then press F1.

(4) The [SETUP - SYSTEM] menu as shown below appears. Turn F1 to select FORMAT and

then press F1.

(5) The [SETUP - SYSTEM - FORMAT] menu as shown below appears.

Turn F1 to select the signal format used in the switcher, then press F1. (6) Turn F3 to select the aspect ratio, then press F3.

For example, to use HD-SDI signals (1080i, 59.94Hz), set as shown below.

(7) Press the page up button to return to the [SETUP - SYSTEM] menu. (8) Turn F1 to select REBOOT and press F1. (9) Press ENTER in the SELECT/KEYPAD block to reboot the switcher

After restarting the switcher, the selected format and aspect are applied.

Page 29

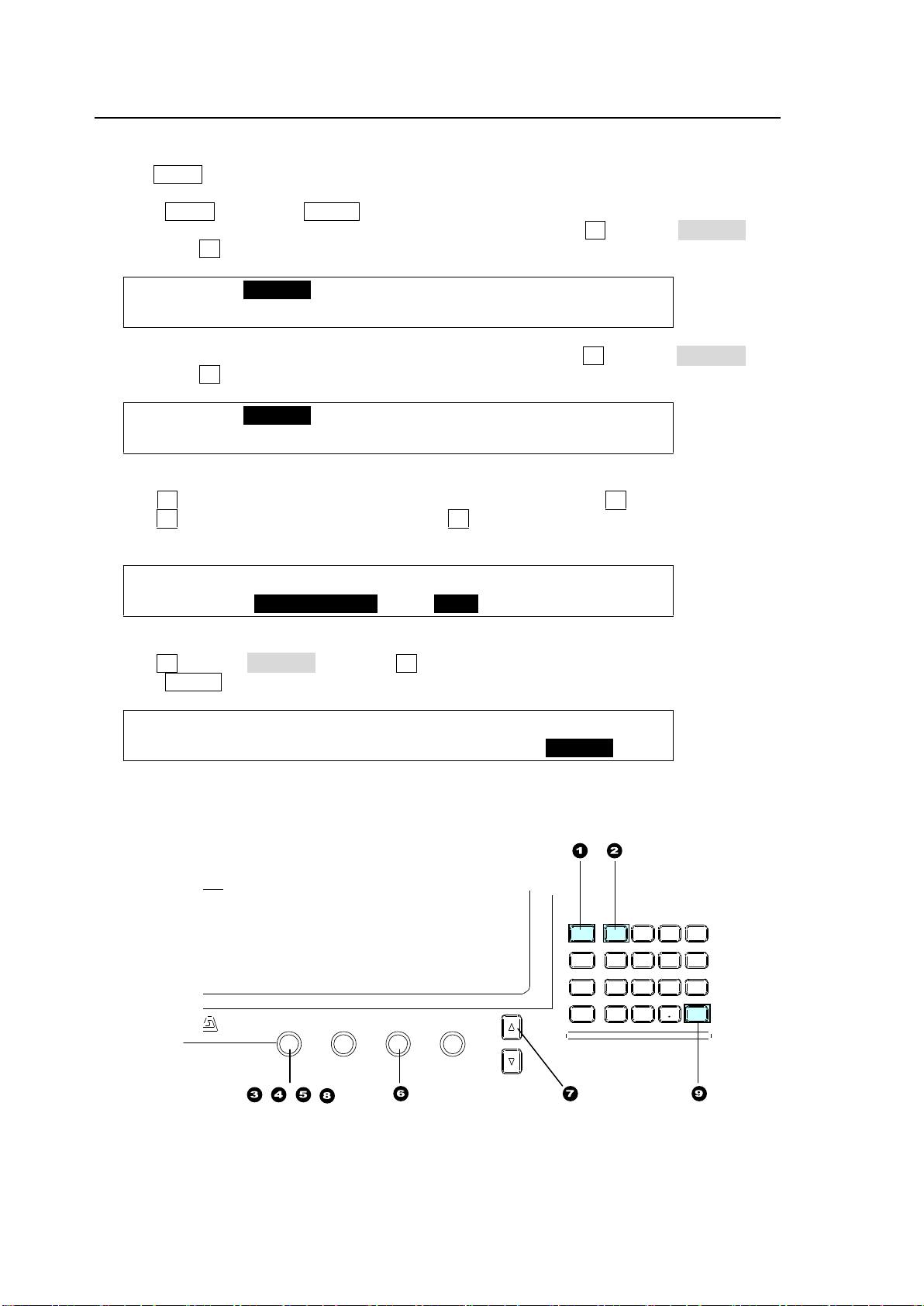

3-5. Setting Date, Time and Time Zone at Initial Use

SETUP :>FORMAT >REF I/O >ARCNET >ETHERNET

SYSTEM :>RS-422 >TIME >INIT >REBOOT

SYSTEM : DATE(mm/dd/yy):TIME[10:20:10] : 1/4

TIME : =SEP/01/13 : =10:20:20 :

SYSTEM :1st CHK:SUMMER :TIME ZONE : 2/4

TIME : =OFF : =OFF : =UTC[ 9:00] :

IMPORTANT

The date and time information are used for the multiviewer clock and when backing up image or setting files. Note that date and time information may be lost if the switcher is powered OFF for more than 100 hours (or less if it is not fully charged). In such case, reset the date and time.

When first switching your unit on, set the date, time and time zone as shown below. (1) Press MENU in the SELECT/KEYPAD block, then press SETUP to display the SETUP top

menu. Turn F1 to select SYSTEM, then press F1 or the page down button to open the [SETUP - SYSTEM] menu.

(2) Turn F1 to select TIME, then press F1 or the page down button to open the [SETUP -

SYSTEM - TIME] menu.

(3) If you need to change the date, press F1 to select Month, Day or Year, then turn F1 to

change the setting.

(4) If you need to change the time, press F3 to select Hour, Minute or Second, then turn F3 to

change the setting.

(5) Press the page down button to open PAGE 2. (6) Turn F3 to set the time zone offset value.

Page 30

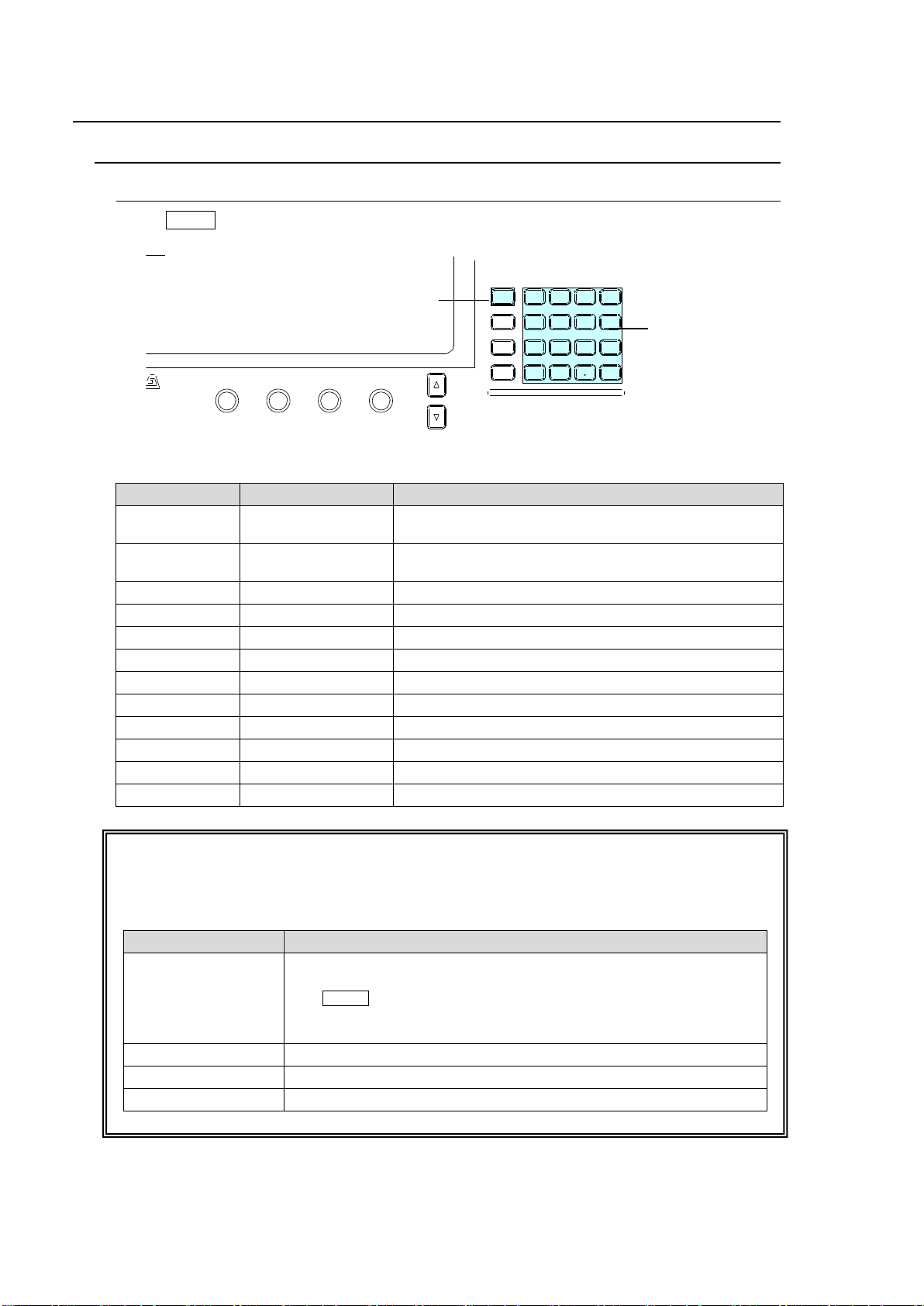

4. Menu Operation

Button

Accessed menu

Menu Description

SETUP

SETUP MENU

Accesses menu for the setups of system, panel, video input, video output and external interface settings.

STILL

STILL STORE

Accesses menu for operations with involving still images and video clips.

MATT

MATT COLOR

Accesses menu for matte color.

FILE

FILE TOP

Accesses menu for file operations using a USB.

KEY1

KEY1 SETUP

Accesses menu for KEY1 settings.

KEY2

KEY2 SETUP

Accesses menu for KEY2 settings.

DSK1

DSK1 SETUP

Accesses menu for DSK1 settings.

DSK2

DSK2 SETUP

Accesses menu for DSK2 settings.

CHR KEY SETUP

Accesses menu for chromakey settings.

EFFECT

EFFECT SETUP

Accesses menu for sub effect channel settings.

TRANS RATE

Accesses menu for transition settings.

WIPE

Accesses menu for WIPE pattern modification.

Mode Button

Function

Changes the keypad to menu access buttons. Pressing a button in the keypad displays the associated menu.

The MENU control button blinks if a parameter has changed and requires rebooting. In such case, reboot the switcher.

See section 19-1. "Rebooting System."

DIRECT PATT

Changes the keypad to direct pattern selection buttons.

EVENT

Changes the keypad to event memory buttons.

MACRO

Changes the keypad to macro control and memory buttons

DIGITAL VIDEO SWITCHER

F1 F2 F3 F4

PAGE

MENU ATTA CH

DIRECT

PATT

DETACH

SETUP

KEY1

8 9

4 5 6

STILL MATT FI LE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFFECT

TRANS RATE WIPE

SELECT/KEYPAD

KEYPAD block

MENU button

4-1. How to Access Menus

4-1-1. Menu Access Buttons

Press MENU on the left side of the SELECT/KEYPAD block, then press the buttons on the

keypad to access menus.

 KEYPAD Block

 SELECT / keypad Block

Four modes buttons on the left side of the SELECT/KEYPAD block change the keypad mode

as shown in the table below.

Page 31

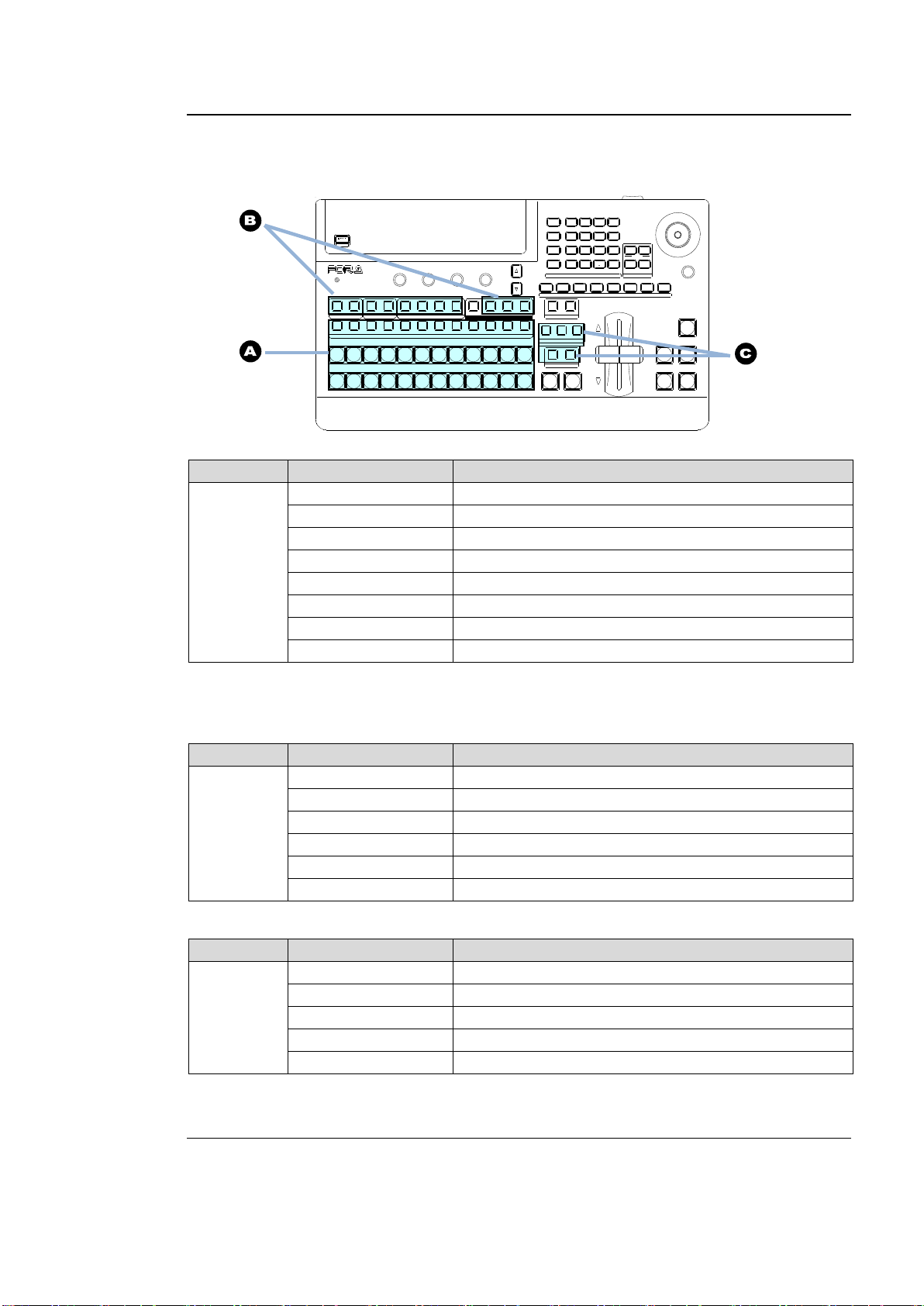

4-1-2. Other Menu Access Buttons

See Fig.

Button

Accessed Menu (Page)

MATT1-2

[MATT] menu

STL1-2

[STILL] menu

STK1-2

[STILL] menu

CKFIL

[CHR KEY - SETUP] menu

CKKEY

[CHR KEY - SETUP] menu

[SETUP - INPUT - COLRBAR] menu

EFF1-2

[EFFECT(1, 2)] menu

SHIFT

[SETUP-INPUT-ASSIGN](3/3) menu

Note that the buttons in this table represent the bus buttons assigned to MATT1, MATT2, STILL1, STILL2, and other signals respectively on the PGM/PST and KEY/AUX bus blocks. (Refer to section 5. "Video Sources.")

See Fig.

Button

Accessed Menu (Page)

KEY1, KEY2

[KEY (1, 2)- SETUP] menu

DSK1, DSK2

[DSK (1, 2)- SETUP] menu

AUX1 to AUX4

[SETUP - OUTPUT - OUT XPT](1/3) menu

[SET UP - OUTPUT - CLN/PREV] PREV menu

CLEAN

[SET UP - OUTPUT - CLN/PREV] CLEAN menu

[SETUP - OUTPUT - MV] menu

See Fig.

Button

Accessed Menu (Page)

BKGD

[TRANS](1/6) menu

KEY1

[TRANS](2/6) menu

KEY2

[TRANS](3/6) menu

MIX

[TRANS](1/6) menu

WIPE

[TRANS](1/6) menu

USB MEMORY

DIGITAL VIDEO SWITCHER

HVS-

SIZE

(PUSH to DEF)

1 2 3 4 5 6 7 8

USER BUTTON

REV NOR/REV

DIRECTION

BLACK TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TYPE

AUTO CUT DSK1 DSK2

ALARM

F1 F2 F3 F4

PAGE

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV CLEAN MV

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

MENU ATTACH

DIRECT PATT

DETACH

SETUP

KEY1

POSITION

POS ROT

2D DVE

WIPE POS

JOYSTICK

8 9

4 5 6

STILL MATT FILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFFECT

TRANS RATE WIPE

SELECT/KEYP AD

Asidefrom the menu buttons, the related menu pages can be displayed by pressing (buttons in C) or Double-pressing (quickly pressing twice) (buttons in A and B) specific buttons as shown in the tables below.

PGM/PST and KEY/AUX blocks

BUS SELECT and KEY/AUX blocks

Transition block

4-1-3. USER Buttons (Menu Shortcut)

User buttons can be assigned to specific menu pages and used as menu shortcuts.  See section 14. "USER Buttons" for details.

Page 32

4-2. How to Set Values

SETUP :>SYSTEM >INPUT >OUTPUT >PANEL

MENU :>GPI/TLY >FUNCTION>EXT I/F >STATUS

SETUP :>SYSTEM >INPUT >OUTPUT >PANEL

MENU :>GPI/TLY >FUNCTION>EXT I/F >STATUS

SETUP :>SIGNAL >PROC AMP>RENAME >ASSIGN

INPUT :>COLORBAR

INPUT :SELECT :LumGain: Setup :ENABLE : 1/3

PROC AMP: =IN04 : =10.00: =0 : =ON :

Menu title

Submenu title

The current selection is shown in reverse video.

Menu title

Parameters

Page / Total page

Values

F1 F2 F3 F4

PAGE

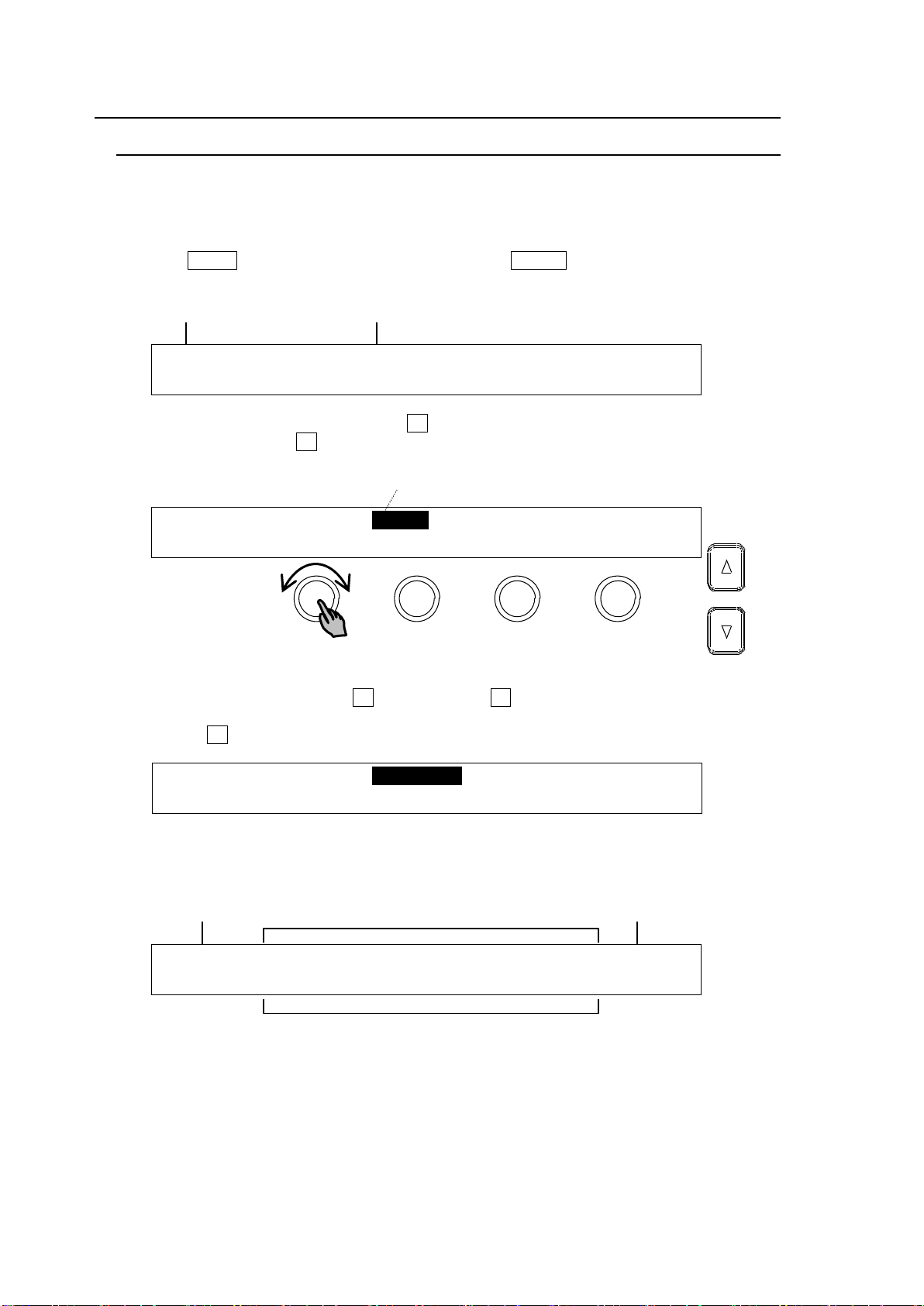

4-2-1. Displaying Parameters

See section 4-1. "How to Access Menus" to display a desired menu. If a menu has multiple

submenus such as the SETUP menu, navigate to submenus following the procedure below.

 Menu Navigation (Example for the SETUP menu)

(1) Press MENU in the SELECT/KEYPAD block, then SETUP to display the SETUP menu.

The SETUP menu top page will then appear on the display, as shown below.

(2) Select a submenu to open by turning F1 (The INPUT submenu is selected in the example

below.) Then press F1 or the page down button to the right to open the selected submenu.

(3)The [SETUP - INPUT] menu then opens. The [SETUP - INPUT] menu also has submenus.

Select a submenu by turning F1 and then press F1 or the page down button to open the submenu. A ">" in front of menu items indicates that a detail submenu can be accessed by pressing F1.

(4) The [SETUP - INPUT - PROC AMP] menu is displayed as shown below. Now users can

change the parameter values.

Page 33

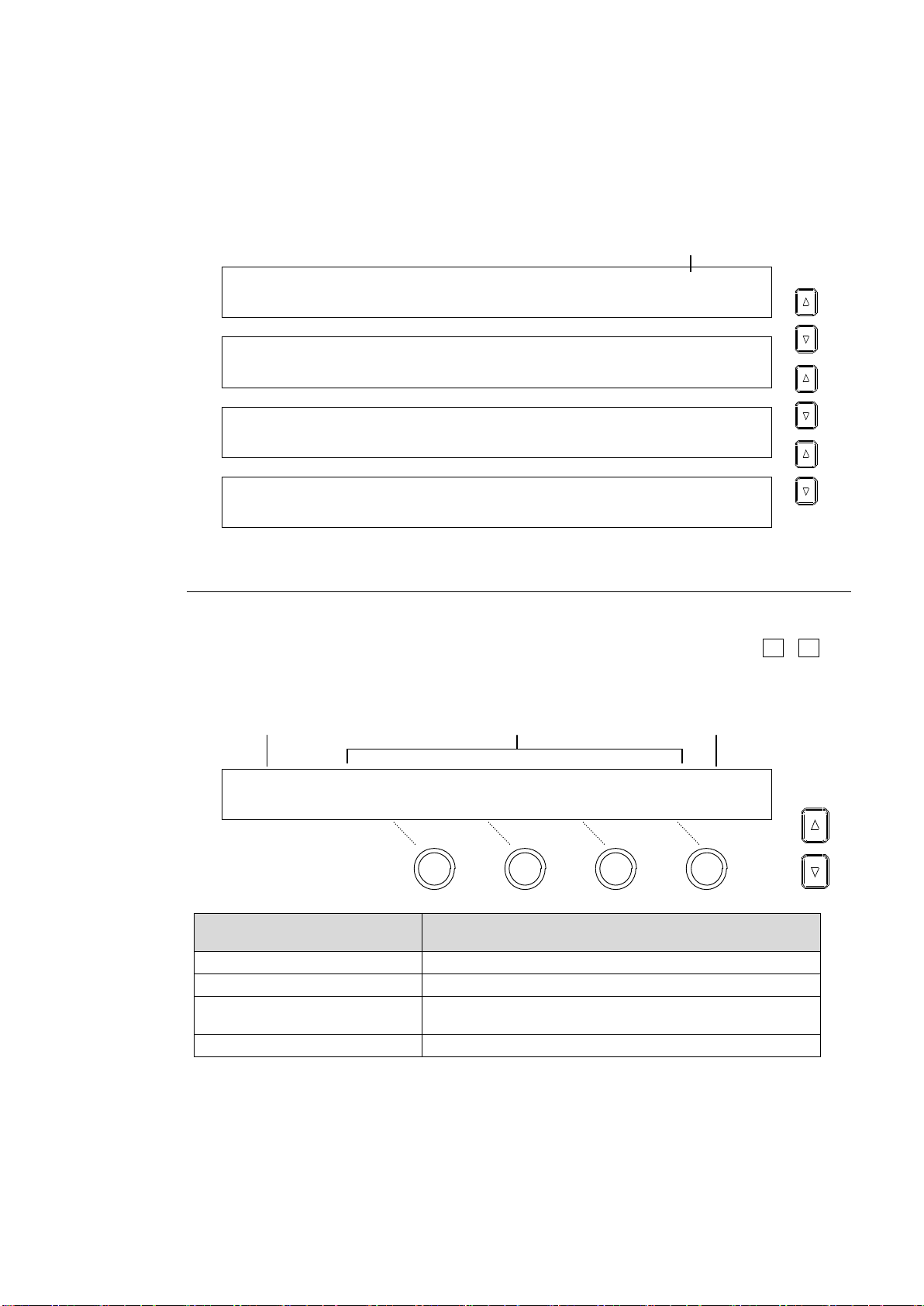

 Page Navigation

INPUT :SELECT :LumGain: Setup :ENABLE : 1/3

PROC AMP: =IN04 : =10.00: =0 : =ON :

INPUT :SELECT :ChmGain: Hue :ENABLE : 2/3

PROC AMP: =IN04 : =10.00: =0 : =ON :

INPUT :WHT-Lv :BLK-Lv :Chroma : : 3/3

CLIP : =1019 : =-70 : =1110 : :

SETUP :>SIGNAL >PROC AMP>RENAME >ASSIGN

INPUT :>COLORBAR

INPUT :SELECT :FORMAT :RESIZE : FS : 1/4

SIGNAL : =IN01 : =AUTO : =--- : =ON :

Menu Control Push-buttons

(F1 to F4)

Description

Turn clockwise

Increases value.

Turn counter-clockwise

Decreases value.

Press and hold down at least 1 sec.

Resets the parameter to its default value.

Turn while pressing

Quickly increases/decreases value.

Page no. / Total page

PAGE

Parameters (First line)

Settings (Second line)

Title

Page/Total page

F1 F2 F3 F4

PAGE

As shown in the example below, the [SETUP - INPUT - PROC AMP] submenu spreads across three pages. When first accessed, page 1 of 3 will be displayed. To go to page 2, simply press the page down button. Pressing the page up button returns you to page 1. Pressing the page up button when located on the first page brings you up one level in the menus. The same happens when pressing the page down button when located on the last page of a menu.

4-2-2. Changing Settings or Values Using F1 to F4

Once parameters appear in the display window, data is displayed over 2 lines. A maximum of four parameters can be displayed at a time. An "=" or ">" in front of a value indicates that it is possible to change a parameter setting by turning a menu control push-button (F1 - F4), or trigger an action by pressing it.

 System Parameters Requiring Confirmation For some system parameters, you will have to press menu control push-buttons after changing parameter settings by turning menu control push-buttons. This prevents users from making mistakes when important system settings are changed.

Page 34

 Parameters with the sign ">"

MATT1 : BUS MATT1 COLOR :RECALL : 1/4

COLOR :S=50.0 L=80.2 H=125.5: >GREEN:

IMPORTANT

When pressing a push-button, press down lightly and release it within 1 sec. Note that if you press and hold a control button for more than 1 sec., the associated settings will return to their default value and a beep will sound.

KEYPAD Operation in Numeric Input mode

The keypad can operate in multiple modes such as Menu, Direct Pattern, Macro and Event using the mode buttons on the left side of the keypad. To input menu settings using the keypad, display a desired parameter, press the menu control push-button located just below the parameter in the menu dsiplay (F1-F4), enter the value using the numeric keypad, then press ENTER on the KEYPAD.

USB MEMORY

DIGITAL VIDEO SWITCHER

ALARM

F1 F2 F3 F4

PAGE

MENU ATTACH

DIRECT

PATT

DETACH

SETUP

KEY1

8 9

4 5 6

STILL MATT FILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFFECT

TRANS RATE WIPE

SELECT/KEYPAD

Parameters with ">" sign in front of them are executable by pushing the relevant menu

control push-button. For example, pressing a menu control push-button initializes menus,

stores/recalls still images, clips or setting files.

 See section 4-3. "How to Return Settings to Default."

 See section 12. "Still and Clip Store."

 See section 17. "File Operation."

The relevant menu control push-button should be pressed to apply a preset color.

 See section 5-9. "Bus Matte")

4-2-3. Changing Settings or Values Using the Numeric Keypad

Users can also use the keypad to input numerical settings to a menu. A procedure example

for changing the matte color by using the keypad is as follows.

(1) Press MENU in the SELECT/KEYPAD block.

(2) Press MATT to display the [MATT COLOR] menu.

(3) To change the S (Saturation) item, press F1.

(4) Input a new setting from the keypad.

(5) Press ENTER to confirm the setting.

(6) To change the L (Luminance) setting, press F2, input the new setting from the keypad,

then press ENTER.

(7) To change the H (Hue) setting, press F3, input the new setting from the keypad, then

press ENTER.

 Pressing CLEAR cancels the changes just made.

 To enter a negative number, enter the number, press ± then press ENTER.

Page 35

4-2-4. Changing Settings or Values Using the Joystick

Parameter

Menu item

X-axis

Y-axis

SIZE

MATT1

BUS MATT1 COLOR

SAT

LUM

HUE

MATT2

BUS MATT2 COLOR1-2

SAT

LUM

HUE

KEY1, KEY2 DSK1, DSK2

BORDER COLOR

SAT

LUM

HUE

POSITION SIZE

(*1)

X Y SIZE

LOCAL ROTATION

(*1)

X Y Z

CENTER POSITION

(*1)

X Y Z

INSERT MATT COLOR

SAT

LUM

HUE

KEY1, KEY2

KEY EDGE COLOR

SAT

LUM

HUE

WIPE (0 to 99) BORDER COLOR

SAT

LUM

HUE

POSITION ANGLE

(*2)

POS-X

POS-Y

ANGLE

WIPE (100 to 137) BORDER COLOR

SAT

LUM

HUE

POSITION SIZE

(*2)

POS-X

POS-Y

SIZE

CHR KEY

AUTO CK

POS-X

POS-Y

SELECT

(*1) To open the associated menu, Double-press POS or ROT in the Joystick section.

See section 9-8." DVE Effects on KEY/DSK .")

(*2) Pressing WIPE POS on the Joystick block allows you to control parameters via the joystick without

opening the menu.

WIPE : BORDER COLOR :RECALL : 2/2

BORDER :S=66.3 L=5.4 H=3.5 : >BLUE :

Move down

(-Y)

Move up

(+Y)

Move left

(-X)

Move right

(+X)

Joystick operation

Joystick

SIZE control (to turn)

SIZE

(PUSH to DEF)

POSITION

POS ROT

2D DVE

WIPE

POS

JOYS TICK

Users can also use the joystick to set position, size and color settings to specific parameters. Menu pages controllable from the JOYSTICK block are shown in the table below.

 Controllable Parameters

How to Use the Joystick

Users can simultaneously perform up to three item settings using the joystick as below. (1) Open a menu page you want to set. (2) Press MENU in the joystick block. (3) Move the joystick to the desired direction to change three items simultaneously.

X-axis Moves the joystick left and right (for S item above). Y-axis Moves the joystick up and down (for L item above). Z-axis Turn SIZE clockwise or counterclockwise (for H item above).

FINE Control (using a user button)

Assign "JOYSTICK -FINE ENABLE" to a user button, then press the button. The button will turn on to allow the user to have finecontrol over the joystick.  See section 14. "USER Buttons."

Page 36

4-3. How to Return Settings to Default

Menu where INIT included

Menus to be returned to default settings

[SETUP - SYSTEM] menu

See section 19-2. "System Initialization."

[WIPE - MODIFY] menu

Each submenu in the [WIPE MODIFY] menu.

[KEY - SETUP] menu

Each submenu in a [KEY - SETUP] menu.

[CHR KEY - SETUP] menu

The [CHR KEY - SETUP] menu

[EFFECT - SETUP] menu

Each submenu in an [EFFECT - SETUP] menu

USB MEMORY

DIGITAL VIDEO SWITCHER HVS-

SIZE

(PUSH to DEF)

1 2 3 4 5 6 7 8

USER B UTTON

ALARM

F1 F2 F3 F4

PAGE

1 1 12 2 2 3 4

KEYER DSK AUX

PGM PREV CLEAN MV

MENU ATTA CH

DIRECT

PATT

DETACH

SETUP

KEY1

POSITION

POS ROT

2D DVE

WIPE POS

JOYSTICK

8 9

4 5 6

STILL MATT FILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFFECT

TRANS RATE WI PE

SELECT/KEYPAD

4-3-1. Returning Parameters to Default

Pressing and holding down Control Push-buttons

Press and hold the control push-button (F1 - F4) below each parameter to return the

resoectuve settings to their factory default.

Briefly pressing the DEF button

If you need to reset parameters that can be set by the joystick, display parameters and press

the SIZE control (PUSH TO DEF). The selected parameters will simultaneously reset to

factory default.

4-3-2. Returning Menus to Default

Using INIT parameters

Some menus have an INIT parameter in the menu top page. Selecting INIT and pressing the

control push-button returns all parameters in the menu to their default settings. Turn the

associated push-button to select ALL or a category you want to return to default if INIT can be

set, then press the push-button to reset the parameters.

4-4. How to Back up Settings

One of the following three operations allows users to back up and load panel settings automatically at startup. Any of the three operations is recommended after changing menu settings.

 Rebooting (Be sure to reboot the switcher instead of turning the power off then on.)

 See section 19-1. "Rebooting System."

 Moving to the top page in the SETUP menu.  Saving / loading an event.

Background and key settings can be automatically loaded to the panel at startup.  See section 15-6. "Loading an Event at Start-up" for details.

Page 37

5. Video Sources

SETUP :>SIGNAL >PROC AMP>RENAME >ASSIGN

INPUT :>COLORBAR

INPUT :SELECT :SHORT : LONG NAME(MV) : 1/1

RENAME : =IN04 : =IN04 : =INPUT04 :

SELECT

SHORT default setting

LONG NAME default setting

(*1)

Signal description

BLACK

BLAK

BLACK

Black signal

XT100

IN01 to IN08

INPUT01 to INPUT08

SDI video input to rear connectors 1-8

XT110

IN01 to IN12

INPUT01 to INPUT12

SDI video input to rear connectors 1-12

STILL1, STILL2

STL1, STL 2

STILL1, STILL2

Still images 1-2

STILK1, STILK2

STK1, STK2

STILLKEY1, STILLKEY2

Still KEYOUT (alpha channel) images1 -2

CKFIL

CKFL

CK FILL

Chromakey fill signal

CKKEY

CKKY

CK KEY

Chromakey key signal

MATT1, MATT2

MAT1, MAT2

MATTE1, MATTE2

BUS matte color 1 and 2

SBEF1, SBEF2

EFF1, EFF2

SUB EFF1, SUB EFF2

Sub effect channels

CLBAR

CLBR

COLOR BAR

Color bar

(*1) Long names are used for titles displayed on the multiviewer screen.

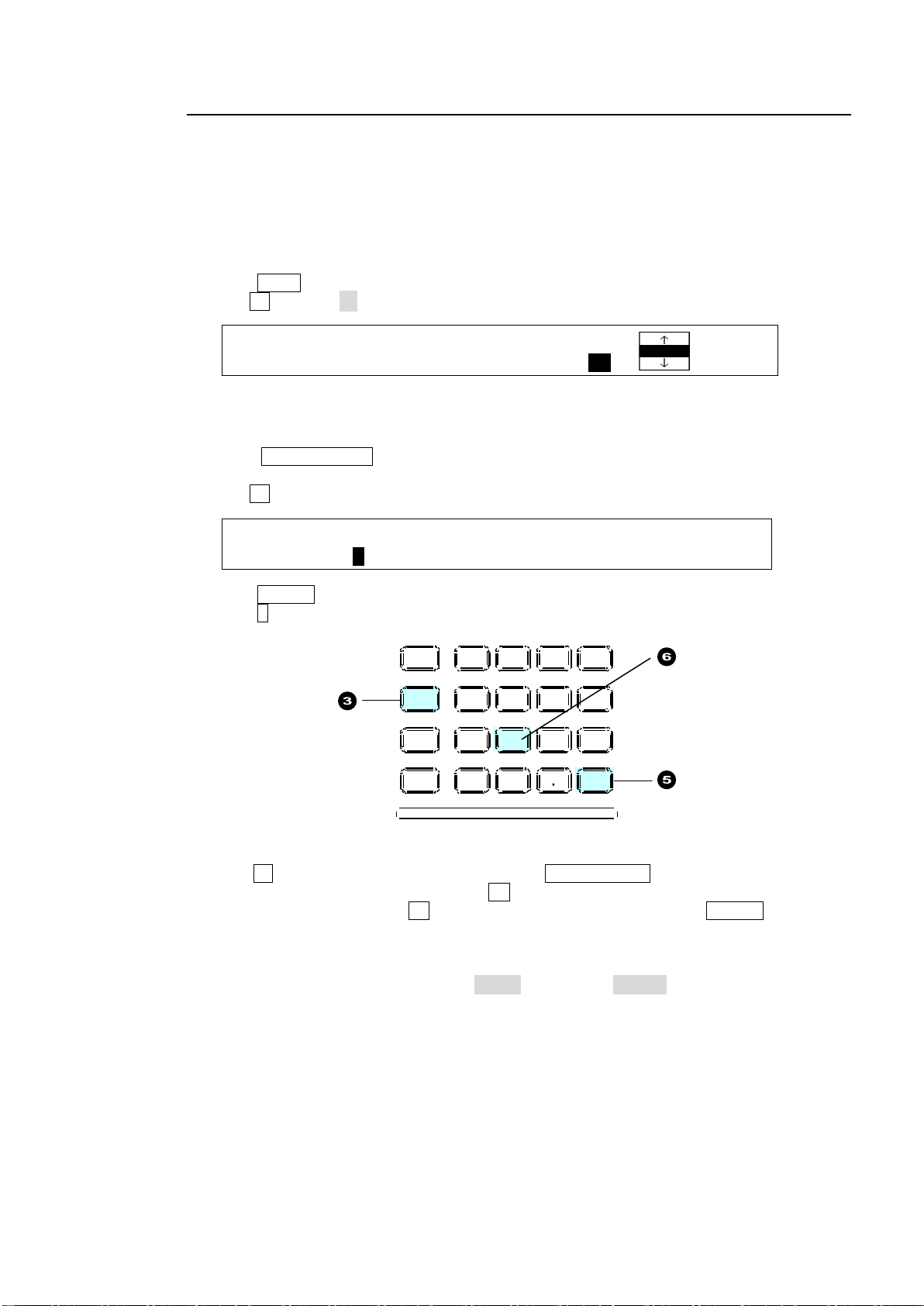

5-1. How to Assign User Names to Sources

Video inputs, Still1-2, StillKey1-2, Matte, Black and Color bar can be assigned user-specific names, to make them easier to identify for operators. User names can be given to input signals, internally generated black mattes and matte signals, and still pictures. Follow the procedure below to name a signal source.

(1) Press MENU in the SELECT/KEYPAD block, then press SETUP to display the SETUP menu

top page.

(2) Turn F1 to select INPUT. Then press F1 or the page down button to display the [SETUP -

INPUT] menu.

(3) Turn F1 to select RENAME. Press F1 or the page down button to display the [SETUP -

INPUT - RENAME] menu.

(4) Turn F1 to select a signal under SELECT. (See the table below.)

(5) To change the short name of a signal, use F2 to assign a name up to 4 characters in length,

entering the characters one by one. First, press F2 to highlight a character. When the latter is highlighted, turn F2 to change it. Alphanumeric characters and symbols (ASCII characters) can be used for names.

(6) To change the long name of a signal, use F3 to assign a name up to 8 characters in length,

entering the characters one by one. First, press F3 to highlight a character. When the latter is highlighted, turn F3 to change it. Alphanumeric characters and symbols (ASCII characters) can be used for names.

Page 38

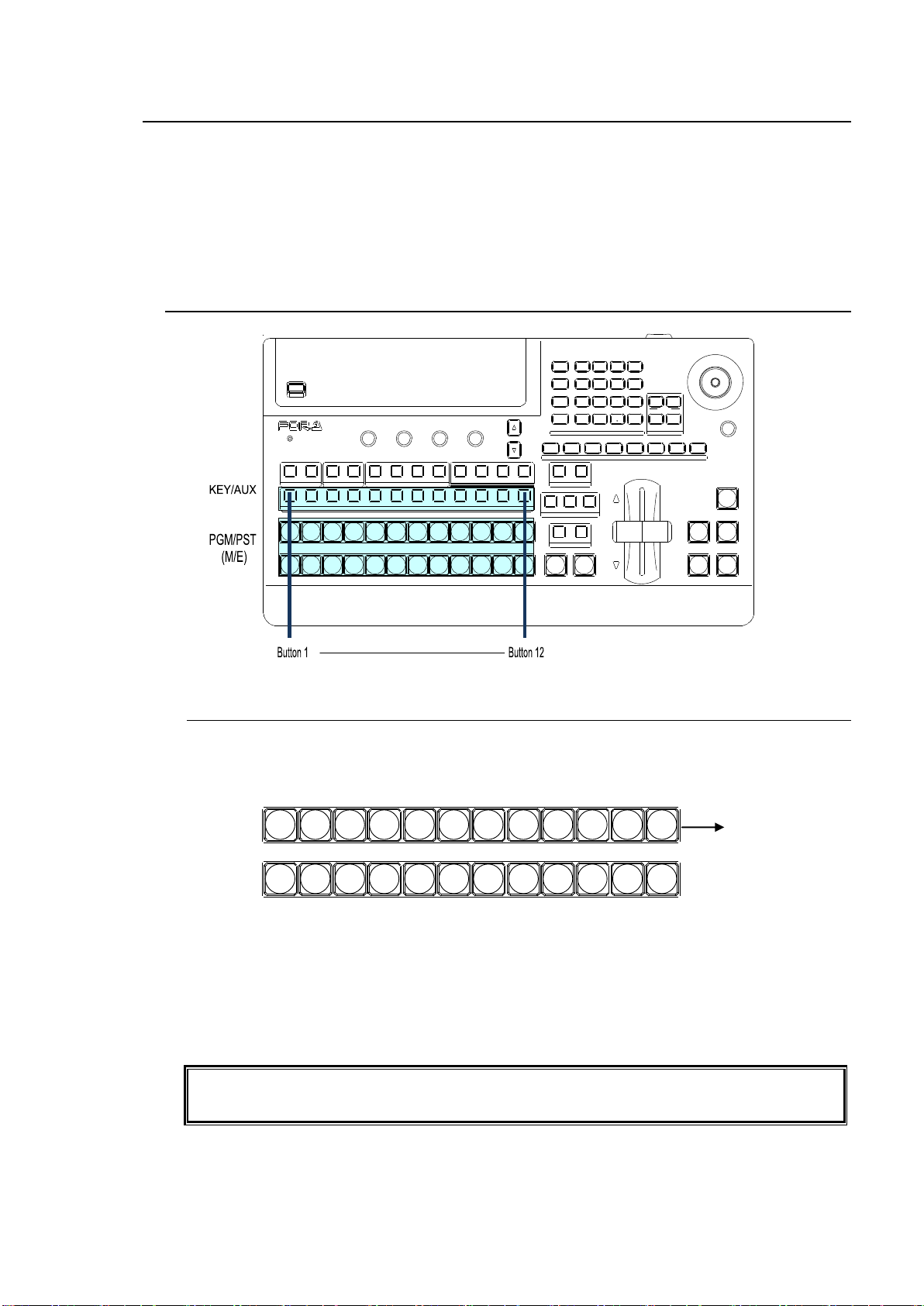

5-2. How to Assign Sources to Bus Buttons

INPUT :BUTTON : SIGNAL NAME :INHIBIT: 1/3

OU ASGN : =01 : =IN04 =IN04 : =OFF :

Submenu

Parameter

Default

Setting range

OU ASSIGN BUTTON

1-20, sft1-sft20 (shifted buttons)

SIGNAL NAME

IN01

(See the table below)

INHIBIT

OFF

OFF, ON

BUTTON

SIGNAL setting

Description

Refer to

01 to 12, sft01 to sft12

(shifted buttons)

NONE

No signal assignment

BLACK

Black signal

XT100

IN01 to IN08

Video input to rear connectors 1-8

XT110

IN01 to IN12

Video input to rear connectors 1-12

STIL1, STIL2

Still images 1 and 2

12-1

STILK1, STILK2

Still key (alpha channel) images 1 and 2

12-1

CKFIL

Chromakey fill signal

CKKEY

Chromakey key signal

SBEF1, SBEF2

Sub Effect channels

MATT1, MATT2

BUS MATT Color 1 and 2

5-9

CLBAR

Internally generated color bar signal

SHIFT

Shift button function

7-3

INPUT :BUTTON : SIGNAL NAME :INHIBIT: 1/3

OU ASGN : =01 : =IN04 : =IN04 : =ON :

INPUT :SELECT : SHIFT : LINK :INHIBIT: 3/3

ASSIGN : =OU : =NORML: =--- : =ENABL:

Primary and optional video inputs, internally generated signals (black, mattes, etc.), and captured stills can be freely assigned to bus buttons using the procedure below. Signal-to-Button mappings are shared on the PGM/PST and KEY/AUX bus.

(1) Press MENU, then SETUP to display the SETUP menu top page. (2) Turn F1 to select INPUT. Press F1 or the page down button to display the menu. (3) Turn F1 to select ASSIGN. Press F1 or the page down button to display the [SETUP - INPUT

- ASSIGN] (1/3) menu.

(4) Turn F1 to select a bus button under BUTTON. (5) Turn F2 to select the signal to be assigned under SIGNAL. Users can also select a signal by

turning F3 under NAME. SIGNAL and NAME are linked to each other.  See section 5-1. "How to Assign User Names to Sources" for more details.

To Disable Bus Button Operation

Users can inhibit operation of specific bus buttons. First, set INHIBIT to ON for a bus button on PAGE 1, and the selected bus button on the PGM/PST is set to INHIBIT. Next, set INHIBIT to ENABLE on PAGE 3 to enable the bus button inhibit function. Bus buttons, set to INHIBIT cannot select signals. The INHIBIT setting has no effect on the KEY/AUX bus.

Page 39

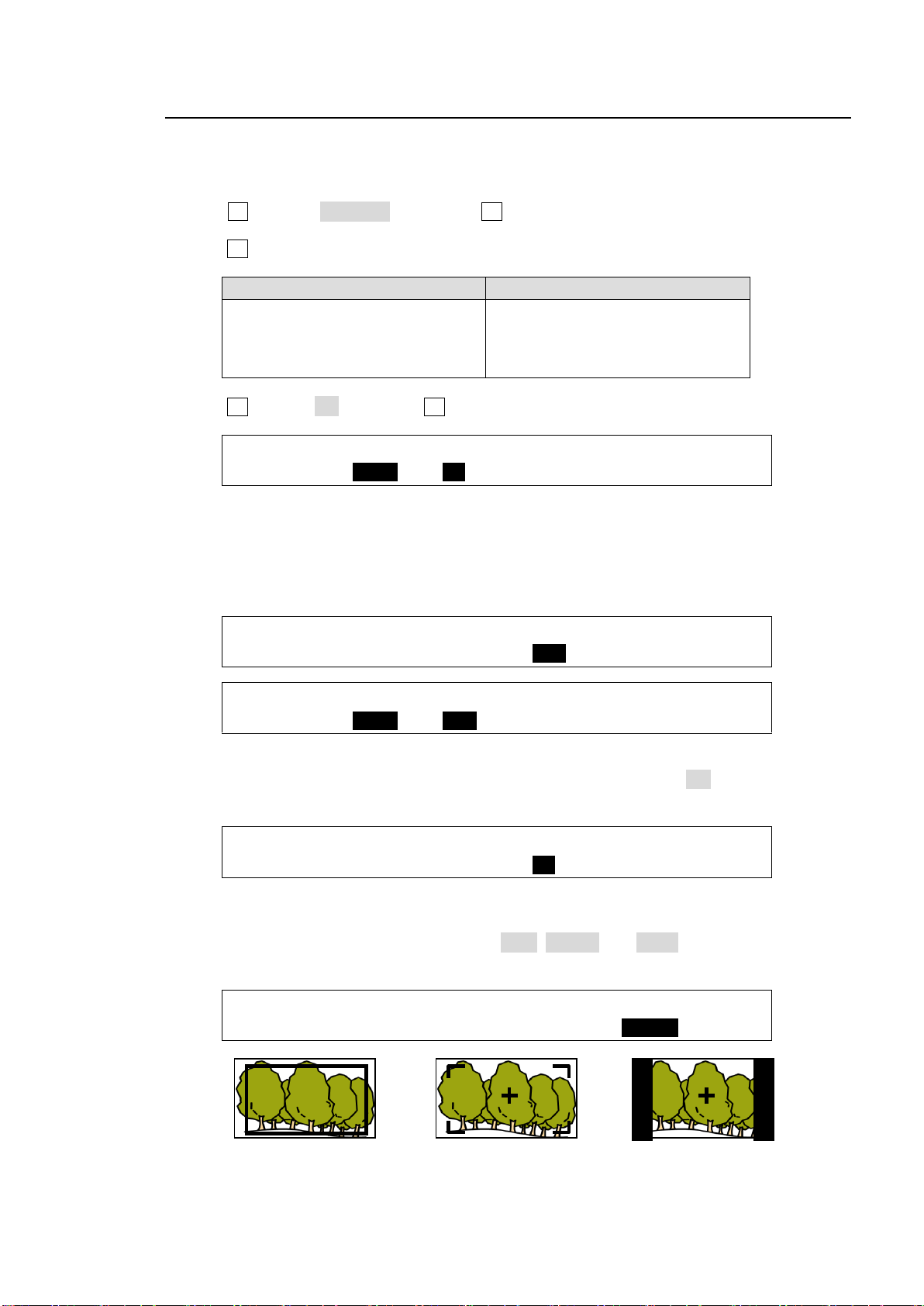

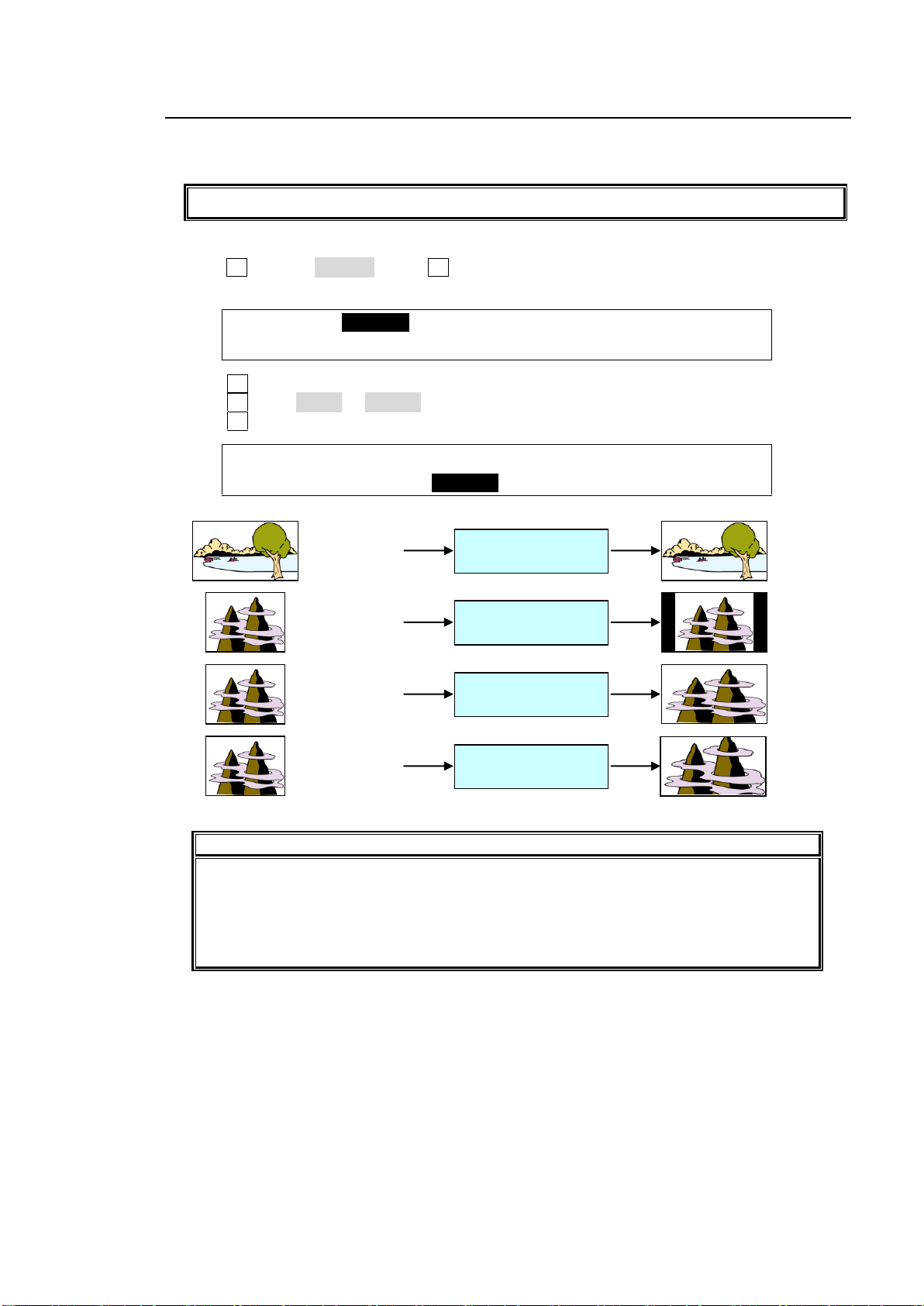

5-3. Resize Function

The Resize function is available on 4 inputs: IN05 to IN08.

SETUP :>SIGNAL >PROC AMP>RENAME >ASSIGN

INPUT :>COLORBAR

INPUT :SELECT :FORMAT :RESIZE : FS : 1/4

SIGNAL : =IN05 :=SD-SDI: =4:3 : =ON :

IMPORTANT

The Resize function is automatically enabled when SD signals are input to the switcher in HD mode, and FORMAT in the [SETUP - INPUT - SIGNAL] menu is set to SD-SDI. (Ensure the Resize function stays disabled if HD-SDI is set for FORMAT.)

The side panel color or image can be changed in 4:3 mode.  See section 5-5 "Changing the Side Panel Image."

IN01 (HD) (1080/59.94i)

FORMAT (AUTO)

RESIZE (OFF)

IN05 (SD) (525/59.94i)

FORMAT (SD-SDI)

RESIZE (4:3)

IN05 (SD) (525/59.94i)

FORMAT (SD-SDI)

RESIZE (SQUEEZE)

IN05 (SD) (525/59.94i)

FORMAT (SD-SDI)

RESIZE (LETTER)

A resize function allows users to input SD signals at the same frame-rate as that in HD mode, and enlarge them to use as HD images.

(1) Display the [SETUP - INPUT] menu. (2) Turn F1 to select SIGNAL. Press F1 or the page down button to display the [SETUP - INPUT

- SIGNAL] menu.

(3) Turn F1 to select an input signal for resizing. (4) Turn F2 to set AUTO or SD-SDI for FORMAT. (5) Turn F3 to select an aspect ratio under RESIZE.

Page 40

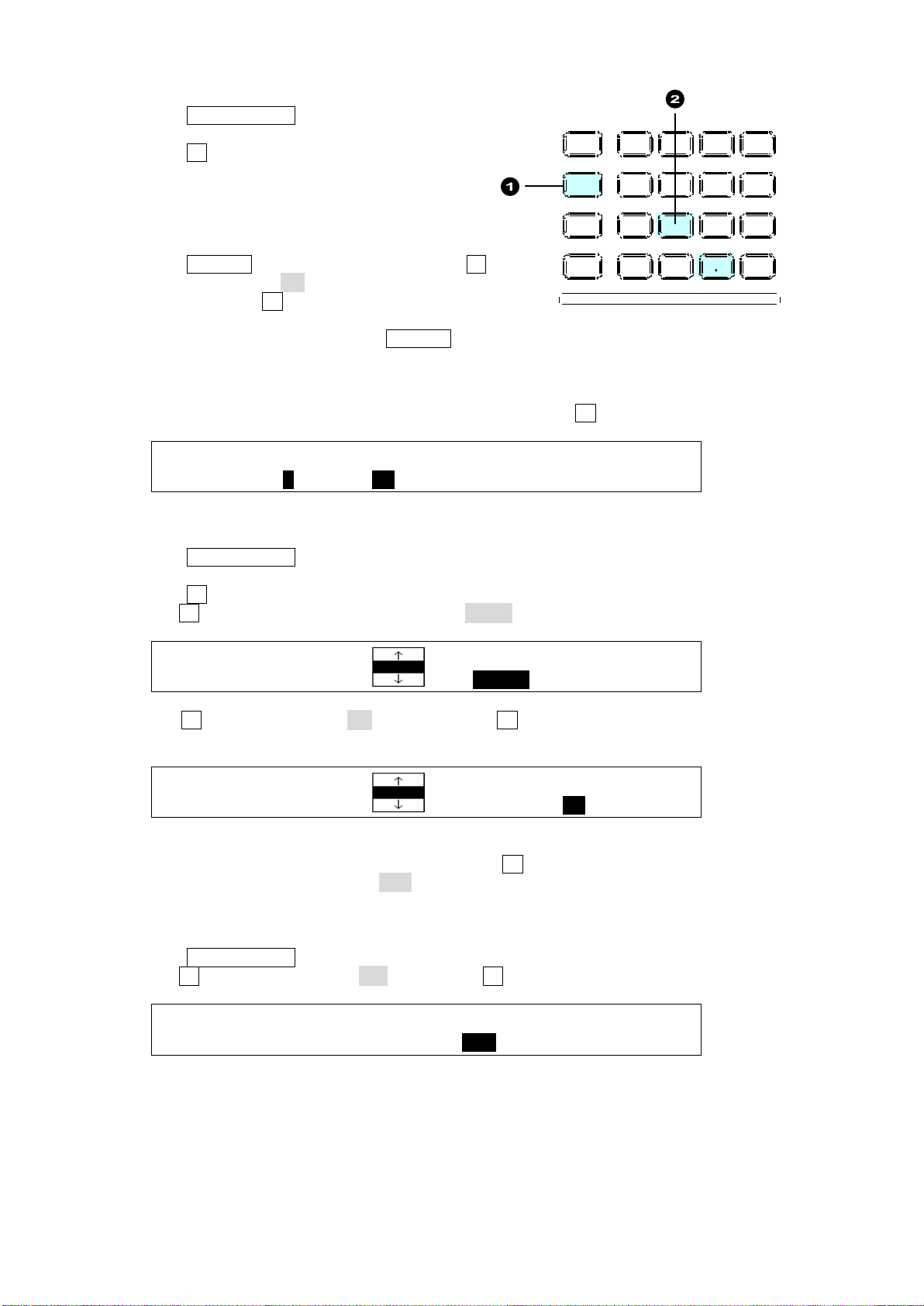

5-4. INPUT STILL (Freezing Input Video)

INPUT :SELECT :CONTROL:FREEZE : : 2/4

STILL : =IN01 : >GRAB : =FRAME: :

USER :SELECT : TYPE : FUNC(F3) : 1/2

BUTTON : =OU-1 : =STILL: =INPUT STILL STORE

IMPORTANT

INPUT STILLs use the frame synchronizer buffer memory. Therefore, the frame synchronizer will be inoperable while an INPUT STILL image is being displayed or enabled.

 See section 5-7. "Frame Synchronizer."

Video inputs (IN01 to IN08) can display frozen images (INPUT STILLs) by capturing video. Still images for INPUT STILLs can also be uploaded using the FILE menu.  See section 12-4-3. "Sending / Receiving Still Images.")

 To Freeze Input Video (1) Display [SETUP - INPUT - SIGNAL] menu PAGE 2. (2) Select an input under SELECT. (3) Turn F2 to select GRAB, then press F2. The input video will be displayed frozen. (4) Turn F3 to select a freeze type from ODD, EVEN and FRAME.

 Returning to the Input Video Display To display the input video again from the frozen image, turn F2 to select CLEAR, then press F2.

 To Freeze Input Video Using a User Button (Operation Example) <Assigning INPUT STILL STORE to USER 1> (1) Press MENU then SETUP in the SELECT/KEYPAD block to open the [SETUP] top menu. (2) Turn F1 to select PANEL, then press F1 or the page down button to display the submenu. (3) Turn F1 to select USER BTN, then press F1 or the page down button to display the [SETUP-

PANEL - USER BUTTON](1/2) menu. (4) Turn F1 to select OU-1 (OU USER 1). USER 1 will blink. (5) Turn F2 to select STILL. Turn F3 to select INPUT STILL STORE.

<Freezing IN01> (1) Holding down USER 1, press the KEY/AUX bus button to which IN01 is assigned. (For

example, press 1 , if IN01 is assinged to Bus Button 1.) (2) A still image for IN01 is automatically captured and saved to memory. Then the KEY/AUX

bus button will turn on and the IN01 output video will freeze (replaced with the captured still

image.) <Restoring the IN01 Input Video>

Holding down USER 1, press the KEY/AUX bus button to which IN01 is assigned. The frozen image for IN01 is cleared and the IN01 input video is restored and displayed on an output screen.

Page 41

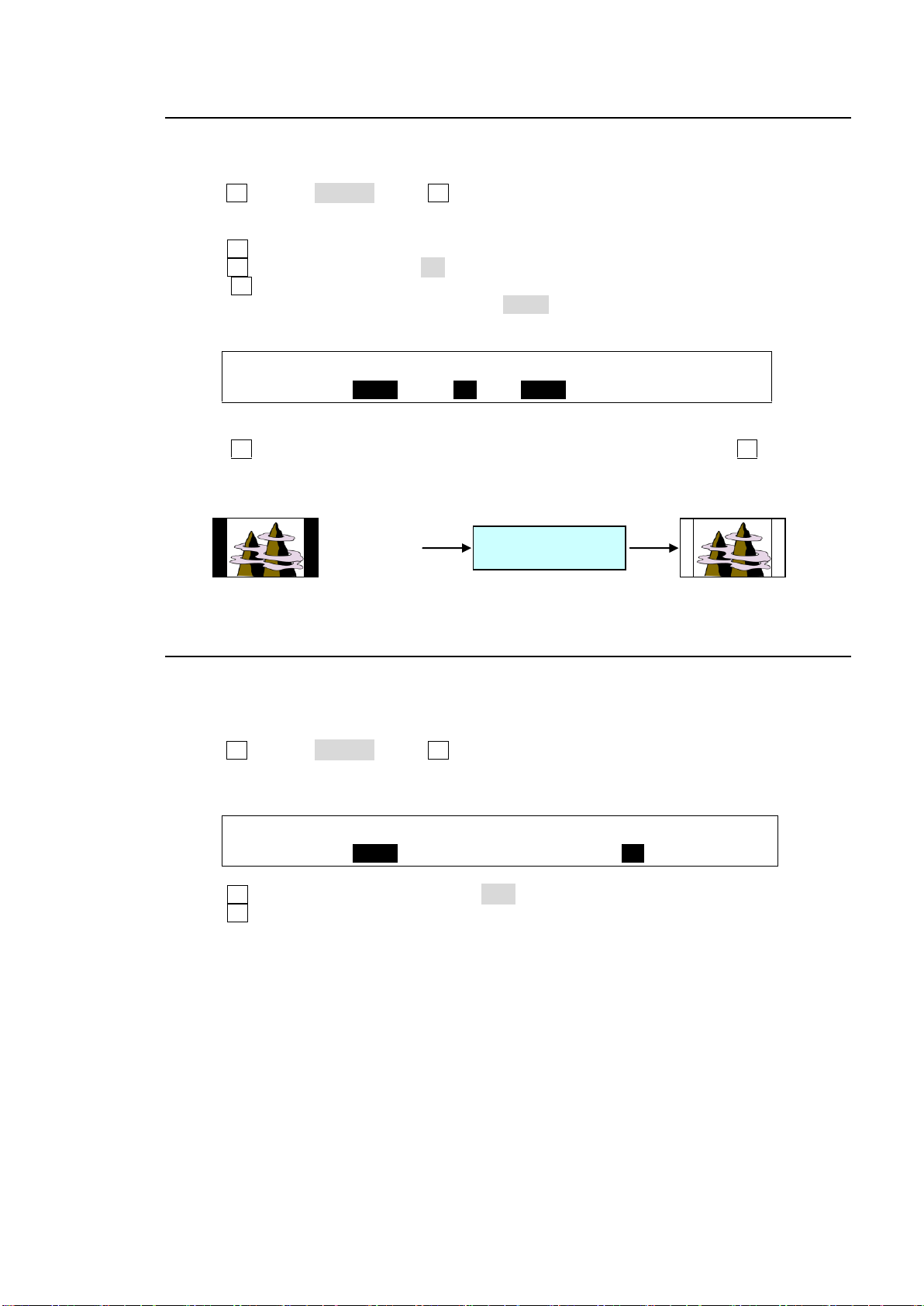

5-5. Changing the Side Panel Image

INPUT :SELECT : SIDE PANEL :XPT DLY: 3/4

SIDE PNL: =IN01 :En=ON S=SDMT : =0 :

INPUT :SELECT : SIDE PANEL :XPT DLY: 3/4

SIDE PNL: =IN01 :En=ON S=SDMT : =30 :

IN05 (SD) (525/59.94i)

COLOR=WHITE

The side panel image of 4:3 video can be changed as shown in the procedure below. (1) Display the [SETUP - INPUT] menu.

(2) Turn F1 to select SIGNAL. Press F1 or the page down button to display the [SETUP - INPUT

- SIGNAL] menu. (3) To change the side bar color for 4:3 images, press the page down button to go to PAGE3. (4 Turn F1 to select an input signal to which side panels are to be added. (5) Turn F2 to set the side panel to ON. (6) Turn F3 to select an input signal to be used for the side panel. Options are BLACK,

INPUT01-12, STILL1-2, and SDMT. Select SDMT (single color for side panel) for the signal in this example.

(7) Press the page down button to go to PAGE 4 to set the SDMT color. (8) Turn F4 to select a color from the following 8 standard colors. Then press F4 to apply the

setting. If you want to adjust the selected color or set the color by entering its HSL values.  See section 5-9. "Bus Matte" for details on how to set colors.

5-6. XPT DELAY

The XPT DELAY (crosspoint delay) feature allows you to add a time delay until a signal is changed after pressing a bus button. To enable the feature, proceed as follows:

(1) Display the [SETUP - INPUT] menu. (2) Turn F1 to select SIGNAL. Press F1 or the page down button to display the [SETUP - INPUT

- SIGNAL] menu. (3) Press the page down button to go to PAGE 3.

(4) Turn F1 to select an input signal. Select IN01 in this example. (5) Turn F4 to set a delay value in frames. (6) Press IN01 (the bus button to which IN01 is assigned) on the PGM bus. The PGM image is

switched to the IN01 image 30 frames after the bus button is pressed.

Page 42

5-7. Frame Synchronizer

INPUT :SELECT :FORMAT :RESIZE : FS : 1/4

SIGNAL : =IN02 : =AUTO : =16:9 : =ON :

USER :SELECT : TYPE : FUNC(F3) : 1/2

BUTTON : =OU-3 : =OTHER: =FS ENABLE

Ancillary data in input video cannot be passed through if FS (input frame synchronizer) is set to ON or RESIZE is enabled. To pass ancillary data, input the video synchronized with the genlock signal and set FS to OFF. Note that ancillary data in SD inputs cannot be used when the switcher operates in HD mode.

A video frame synchronizer is provided respectively for IN01 to IN08 and is used to synchronize asynchronous signals. Users can select whether to apply frame synchronization to input signals or not (for each signal) as shown in the procedure below.

(1) Display the [SETUP - INPUT - SIGNAL] menu. (2) Turn F1 to select an input signal for use. (3) Turn F4 to set FS to ON and activate the frame synchronizer.

 To Enable/Disable FS Using a User Button (Operation Example) <Assigning FS ENABLE to USER 3>

(1) Open the [SETUP - PANEL - USER BUTTON] (1/2) menu. (2) Turn F1 to select OU-3 (OU USER 3). USER 3 will blink. (3) Turn F2 to select OTHER. Turn F3 to select FS ENABLE.

<Enabling FS for IN01> While holding down USER 3, press a KEY/AUX bus button to which IN01 is assigned. (Press 1 , for example, if IN01 is assigned to Bus Button 1.) The frame synchronizer function for IN01 will be enabled.

<Disabling FS for IN01> While holding down USER 3, press a KEY/AUX bus button to which IN01 is assigned. The frame synchronizer function for IN01 will be disabled.

Page 43

5-8. Adjusting Video Signal Levels

INPUT :SELECT :LumGain: Setup :ENABLE : 1/3

PROC AMP: =IN04 : =1.00 : =0 : =ON :

INPUT :SELECT :ChmGain: Hue :ENABLE : 2/3

PROC AMP: =IN04 : =10.00: =0.0 : =ON :

INPUT :SELECT :LumGain: Setup :ENABLE : 1/3

PROC AMP: =IN04 : =1.00 : =0 : =ON :

INPUT :WHT-Lv :BLK-Lv :Chroma : : 3/3

CLIP : =1019 : =4 : =1100 : :

5-8-1. Proc Amp

The switcher provides the following Proc Amp features. (1) Press MENU in the SELECT/KEYPAD block, then press SETUP to display the SETUP

top menu. Turn F1 to select INPUT, then press F1 or the page down button to open the [SETUP - INPUT] menu.

(2) Turn F1 to select PROC AMP, then press F1 or the page down button to open the

[SETUP - INPUT - PROC AMP] menu. (3) Turn F1 to select the input to be adjusted. (4) Turn F4 to set ENABLE to ON to enable the PROC AMP feature. (5) You can adjust the luminance level under LumGain and the black level under Setup.

(6) Press the page down button to go to PAGE 2. (7) You can adjust the chrominance level under ChmGain and the color under Hue.

5-8-2. Video Level Clip

To maintain the desired signal level after adjusting video levels with the Proc Amp, use the Video Level Clip function to adjust the upper and lower limits of YPbPr color space. Note that Video Level Clip can be applied only when the Proc Amp is enabled.

(1) Open the [SETUP - INPUT - PROC AMP] menu.

 See section 5-8-1. "Proc Amp.") (2) Turn F1 to select an input signal to be corrected.

(3) Press the page down button twice to go to PAGE 3. (4) You can limit signal level settings under WHT-Lv, BLK-Lv and Chroma respectively.

Page 44

5-9. Bus Matte

MATT1 : BUS MATT1 COLOR :RECALL : 1/4

COLOR :S=50.0 L=80.2 H=125.5: >GREEN:

Parameter

Setting Range

Description

Joystick operation

S(Saturation)

0.0 to 100.0

Adjusts color saturation.

Moves Joystick horizontally (X -axis)

L (Luminance)

0.0 to 100.0

Adjusts color luminance.

Moves Joystick vertically (Y -axis)

H (Hue)

0.0 to 359.5

Adjusts color hue.

Turn SIZE cw or ccw. (Z -axis)

MATT2 : BUS MATT2 COLOR1 :RECALL : 2/4

COLOR1 :S=50.0 L=80.2 H=125.5: >GREEN:

MATT2 : BUS MATT2 COLOR2 :RECALL : 3/4

COLOR2 :S=50.0 L=80.2 H=125.5: >GREEN:

Matte signals can be assigned to any bus buttons for PGM, PST and KEY/AUX. (Default assignment: MAT1 to Button 12). Bus matte colors can be specified in the [MATT COLOR] menu.

5-9-1. Setting the Matte Color

(1) Press MENU then press MATT in the SELECT/KEYPAD block to display the MATT

menu.

(2) Turn F4 to select a color from the following 8 standard colors. Then press F4 to apply the

setting. WHITE, YELLOW, CYAN, GREEN, MAGENTA, RED, BLUE and BLACK If you want to adjust the selected color or set the color by entering its HSL values, turn F1,

F2 and F3 to enter these values or press F1, F2 and F3, enter a value from the keypad then press ENTER (from the keypad). Users can also set these three parameters via the JOYSTICK block.  See section 4-2-4. "Changing Settings or Values Using the Joystick."

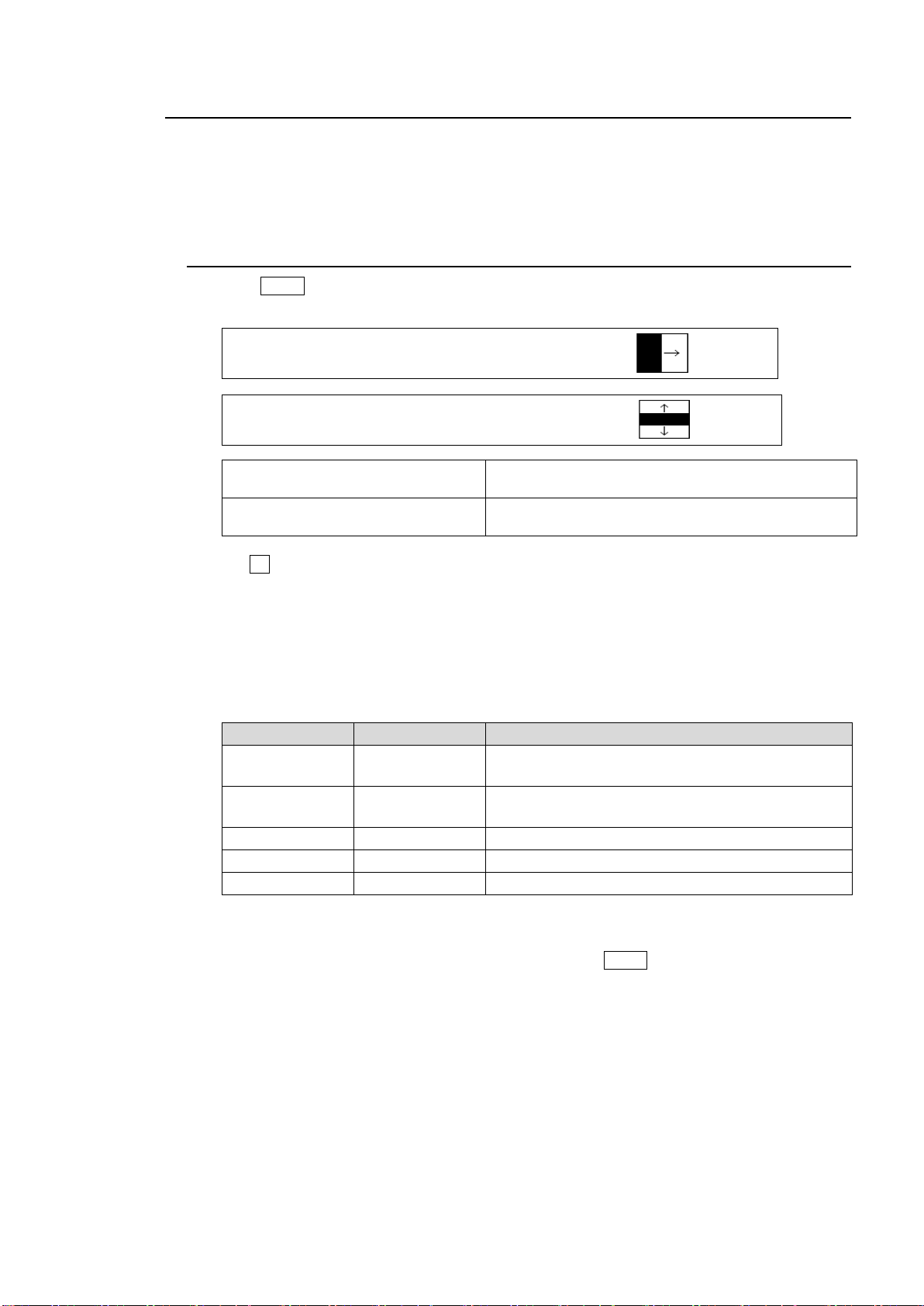

5-9-2. Setting the Gradient Matte

(1) Display [BUS MATT 2 COLOR] menu PAGE 2. (2) To select a start color for the gradient matte, turn F4 to select a color or enter the HSL

values to specify the color.

(3) Press the page down button to go to [MATT COLOR] menu PAGE 3. (4) To select an end color for the gradient matte, turn F4 to select a color or enter the HSL

values to specify the color.

(5) Press the page down button to go to [MATT COLOR] menu PAGE 4. (6) Turn F1 to select a pattern for the gradation matte. Set the position at POS and border

softness at SOFT.

Page 45

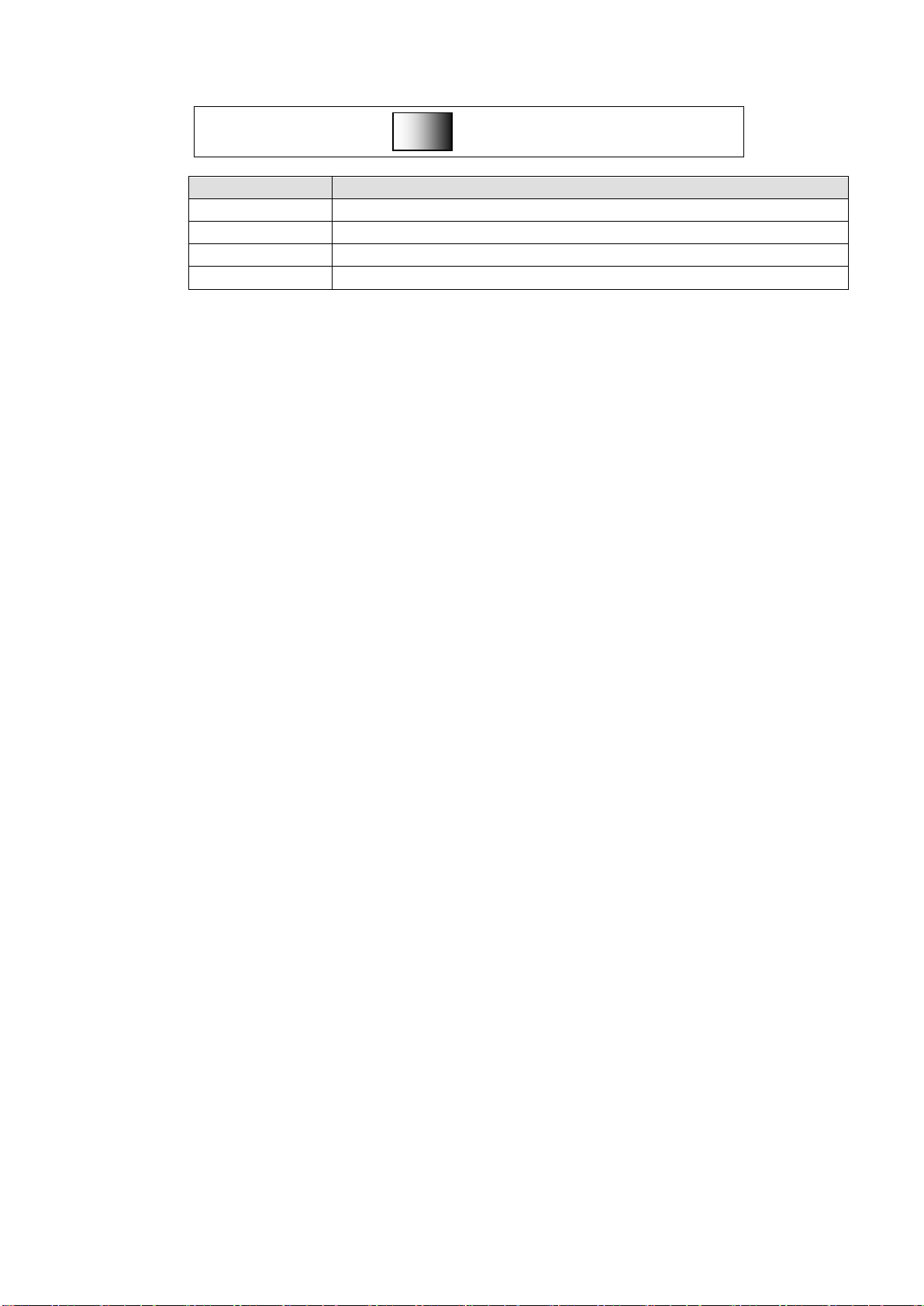

MATT2 :PATTERN : POS : SOFT : 4/4

GMAT : =H : =0 : =0 :

PATTERN setting

Description

COLOR1

Displays the matte color set at BUS MATT2 COLOR1.

Displays a horizontal gradient from COLOR1 to COLOR2.

Displays a vertical gradient from COLOR1 to COLOR2.

H/V

Displays a diagonal gradient from COLOR1 to COLOR2.

Page 46

6. Video Outputs

OUTPUT :SELECT : XPT : TRANS RATE : 1/3

OUT XPT : =AUX1 : =IN01 :En=OFF =OFF :

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV C LEAN MV

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV CL EAN MV

REF OUT 1 12 3 4 5 6 7 8 2 3 4REF IN

HDMI OUT

AUX

5 6 7 8

AUX

LAN

SDI INPUT

9 10 11 12

SDI INPUT

GPI IN/TALLY OUT

DC12V IN

1 2

MODE SW

POWER

OFF ON

GENLOCK

RS-422

1 2

REF OUT 112 3 4 5 6 7 8

2 3 4

REF IN

1 2

AC100-240V 50/60Hz INAC100-240V 50/60Hz IN

TO OU

LAN GENLOCK SDI INPUT

RS-422 GPI IN/TALLY OUT

HDMI OUTAUX

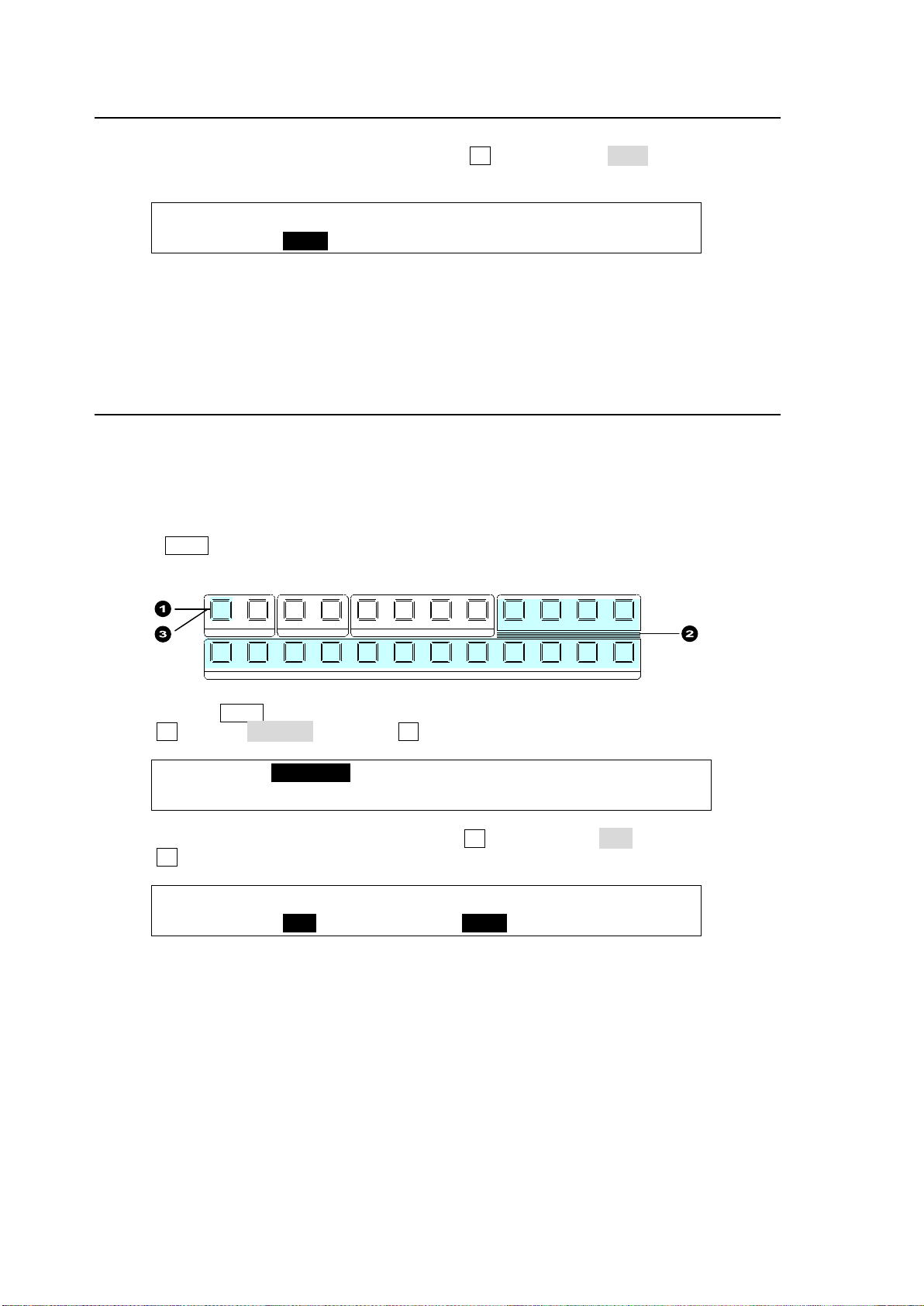

6-1. Aux Outputs

The switcher does not have any dedicated outputs for combined video such as Program or Preview images. Instead, eight user-assignable AUX ports are provided. AUX output signals can be selected from all bus sources (primary inputs, stills, mattes, etc.), program, preview, clean and key out signals. There are two signal selection procedures for auxiliary outputs: via bus buttons or from menu selection. If you want to select a signal easily and quickly, select the signal in the KEY/AUX bus. If you want to select a signal not assigned to bus buttons, select it in the menu.

6-1-1. Selecting Video via Bus Buttons

AUX1-4 outputs can select signals using the bus buttons. (1) Press an AUX button, from AUX1 to AUX4 indicated below.

(2) Press a button in the KEY/AUX bus section to select a signal for the selected AUX output.

AUX5 to AUX8 bus buttons can be assigned to USER buttons.  See section 14. "USER Buttons."

6-1-2. Selecting Video from Menu Selection

(1) Double-press an AUX button (AUX1 to AUX4) on the left side of the control panel to

display the [SETUP - OUTPUT - OUT XPT] menu. (2) Turn F1 to select an AUX bus. (3) Turn F2 to select a video signal.

Page 47

Available signal selections are as described below:

Button

Signal

Refer to

BLACK, IN01-08 (XT100)

IN01-12 (XT110), STILL1-2, STILLK1-2,

CKFIL, CKKEY, MATT1-2, CLBAR, EFF1-2

Signals assignable to M/E and KEY/AUX bus buttons

5-2

PGM

Program video

Preview video (next video with or without KEY1-2 and DSK1-2)

6-2

CLEAN

Clean video (program video with or without KEY1-2 and DSK1-2)

6-3

KEY

Key cut signal combined with Key, DSK and DVE

6-4

Multiviewer video

13-1

OUTPUT :M/E KEY: : AUX INHIBIT : 2/3

OUT XPT : =MEKEY: :S=AUX1 En=ON :

OUTPUT :SELECT : XPT : TRANS RATE : 1/3

OUT XPT : =AUX1 : =IN01 :En=ON =30 :

OUTPUT :SELECT : XPT : TRANS RATE : 1/3

OUT XPT : =AUX1 : =IN05 :En=ON =30 :

AUX bus transition effects are enabled when video input, matte, still or program signals are assigned to the AUX outputs. When multi-view images are assigned to AUX buses, however, video streams are switched using CUT.

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV CLEAN MV

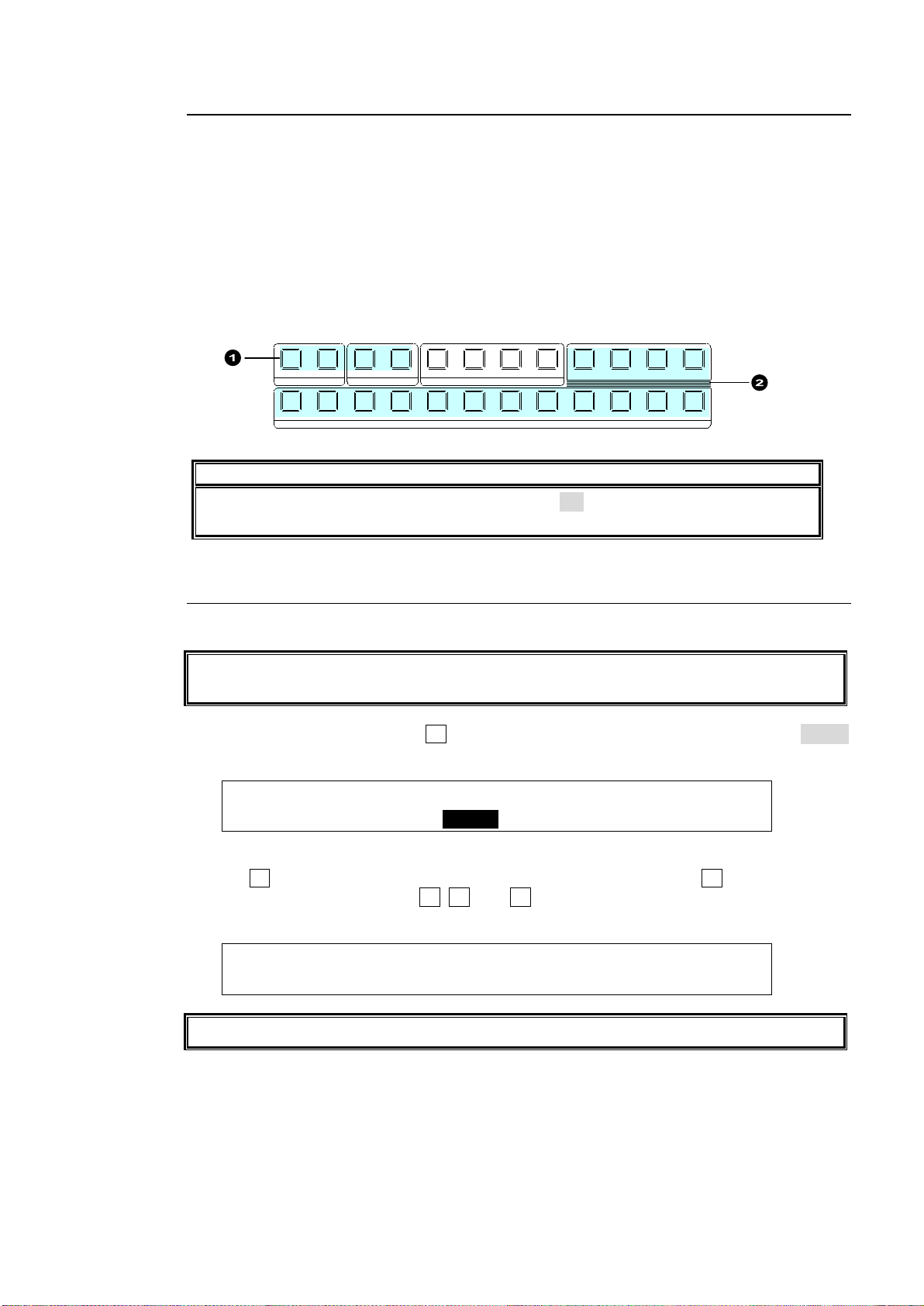

(4) To prevent operational errors, AUX signal selection via bus buttons can be disabled by

setting INHIBIT to ON in the [SETUP - OUTPUT - OUT XPT] (2/3) menu.

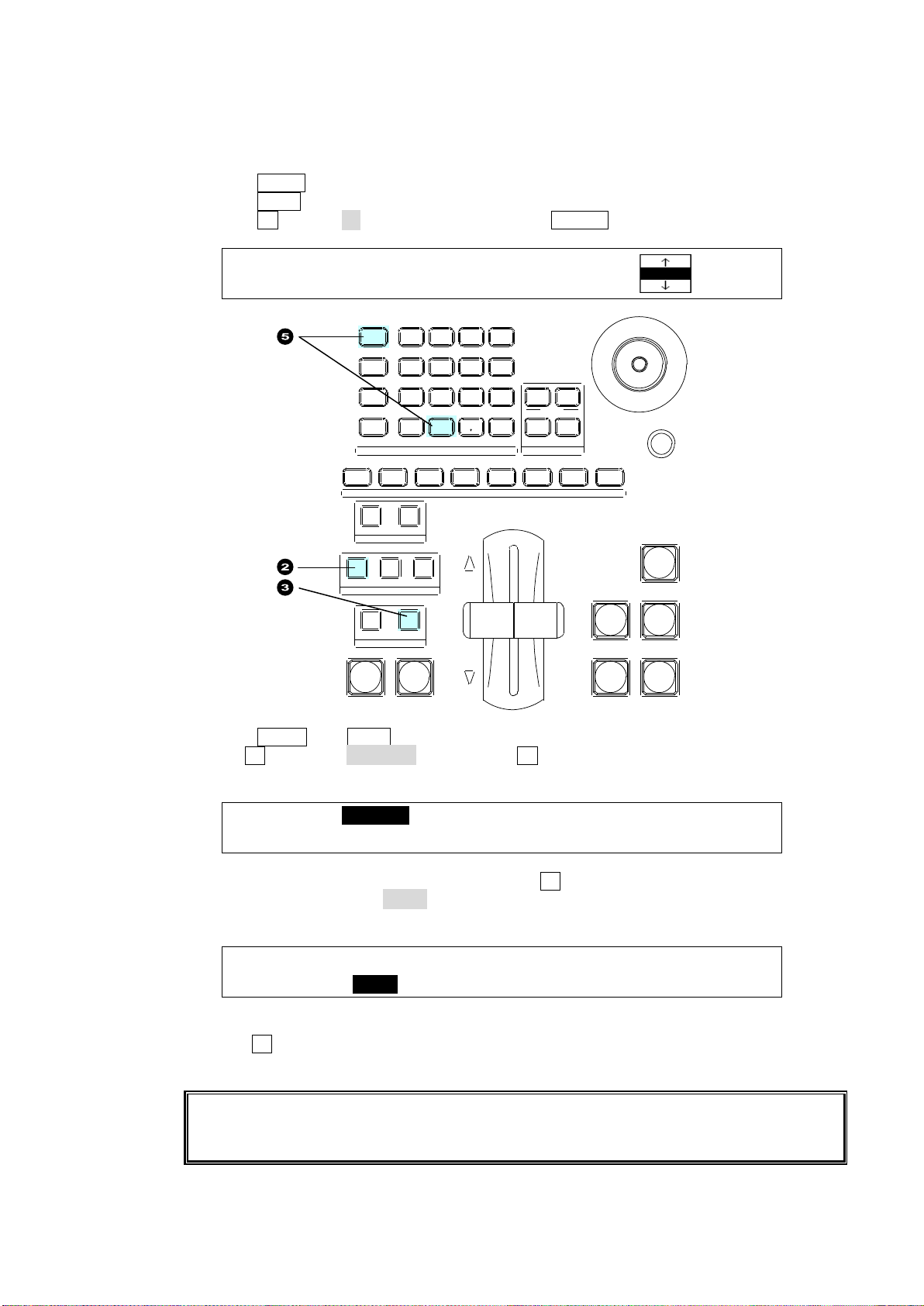

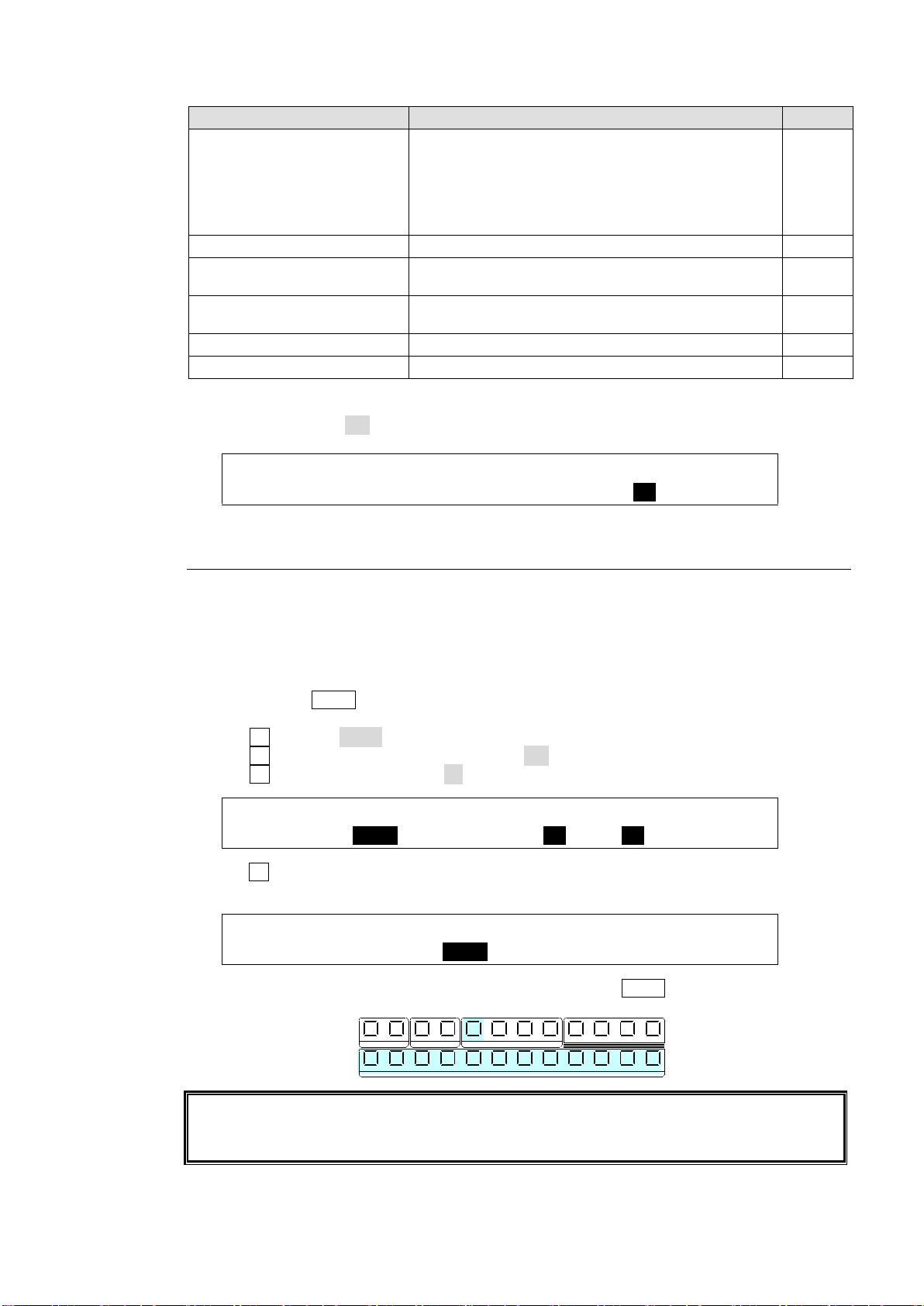

6-1-3. AUX Video Switching with Effects

The background video displayed on an AUX bus can be easily switched using effects. The auxiliary video can be changed using crossfade transitions. This chapter explains how to switch AUX video using an operational example.

Ex.) : Changes the AUX1 video in 30 frames using a crossfade. (1) Double-press AUX1 on the left side of the control panel to display the [SETUP - OUTPUT-

OUT XPT] (1/3) menu. (2) Turn F1 to select AUX1. (3) Turn F3 to set TRNS RATE En (Enable) to ON. (4) Turn F4 to set TRANS RATE to 30 frames.

(5) Turn F2 to select the next video. The current video will fade out and a new image will fade

into the screen in 30 frames.

(6) Let's change the AUX1 video on the control panel. Press AUX1 then select a video in the

KEY/AUX bus.

Page 48

6-2. Preview Set Up

OUTPUT :SELECT : XPT : TRANS RATE : 1/3

OUT XPT : =AUX1 : =PVW :En=OFF =0 :

OUTPUT : KEY1 : KEY2 : DSK1 : DSK2 : 2/2

M/E PRV : =ON : =ON : =OFF : =OFF :

Parameter

Setting

NEXT TRANSITION

KEY

On-Air/Off-Air

KEY1-2 on

PREVIEW images

PREVIEW OUT KEY1

KEY1 button ON

On-Air

Not displayed

KEY1 button OFF

On-Air

Displayed

PREVIEW OUT KEY2

KEY2 button ON

Off-Air

Displayed

KEY2 button OFF

Off-Air

Not displayed

PREVIEW OUT KEY1-2

OFF

---

Not displayed

Whether KEY images are displayed on the preview depends on both the PREVIEW OUT settings and KEY button status in the NEXT Transition block.

Parameter

Setting

DSK1-2 on

PREVIEW images

PREVIEW OUT - DSK1 PREVIEW OUT - DSK2

Displayed

OFF

Not displayed

The switcher does not have a dedicated PREVIEW output. A preview bus output can be assigned to, however, an AUX output. Users can also add key images to PREVIEW. This can be done as explained below:

6-2-1. Preview Bus Monitoring

Follow the procedure below to assign a preview video to an AUX output. AUX1 is used in the example below.

(1) Double-press AUX1 on the left side of the control panel to display the [SETUP - OUTPUT

- OUT XPT] (1/3) menu. (2) Turn F1 to select AUX1. (3) Turn F2 to select PVW.

6-2-2. Setting Up Preview Images

(1) Double-press PREV to display the [SETUP - OUTPUT - CLN/PREV] (2/2) menu. (2) Turn F1 to F4 to set whether the key images are to be displayed on the preview image,

then press the push-button to confirm the setting for each.

KEY1-2

DSK 1-2

Page 49

6-3. Clean Set Up

OUTPUT :SELECT : XPT : TRANS RATE : 1/3

OUT XPT : =AUX3 : =CLN :En=OFF =0 :

OUTPUT : KEY1 : KEY2 : DSK1 : DSK2 : 1/2

M/E CLN : =ON : =ON : =ON : =ON :

OUTPUT :M/E KEY: : AUX INHIBIT : 2/3

OUT XPT : =MEKEY: :S=AUX1 En=OFF :

Item

Setting

Description

M/E KEY

PGM

Key signal of PGM when using DVE

PST

Key signal of PST when using DVE

ME A

Key signal of M/E-A when using DVE

ME B

Key signal of M/E-B when using DVE

KEY1, KEY2

Key signal of each KEY1 or KEY2

DSK1, DSK2

Key signal of each DSK1 or DSK2

MEKEY

Key signal of program including KEY1-2 and DSK1-2

The switcher can output CLEAN video (background video of the program signal) via an auxiliary output. Users can also add KEY or DSK images to CLEAN. Follow the procedure below to assign the clean video to an AUX output. AUX3 is used in this example.

Outputting the Clean Video from AUX 3

(1) Double-press AUX1 to display the [SETUP - OUTPUT- OUT XPT](1/3) menu. (2) Turn F1 to select AUX3. (3) Turn F2 to select CLN.

Displaying KEY1-2 and DSK1-2 Images on the Clean Video

(1) Double-press CLEAN to display the [SETUP - OUTPUT - CLN/PREV] (1/2) menu. (2) Turn F1 to set KEY1 to ON. Then press F1 to confirm the setting. (3) Set KEY2 and DSK1-2 in the same way.

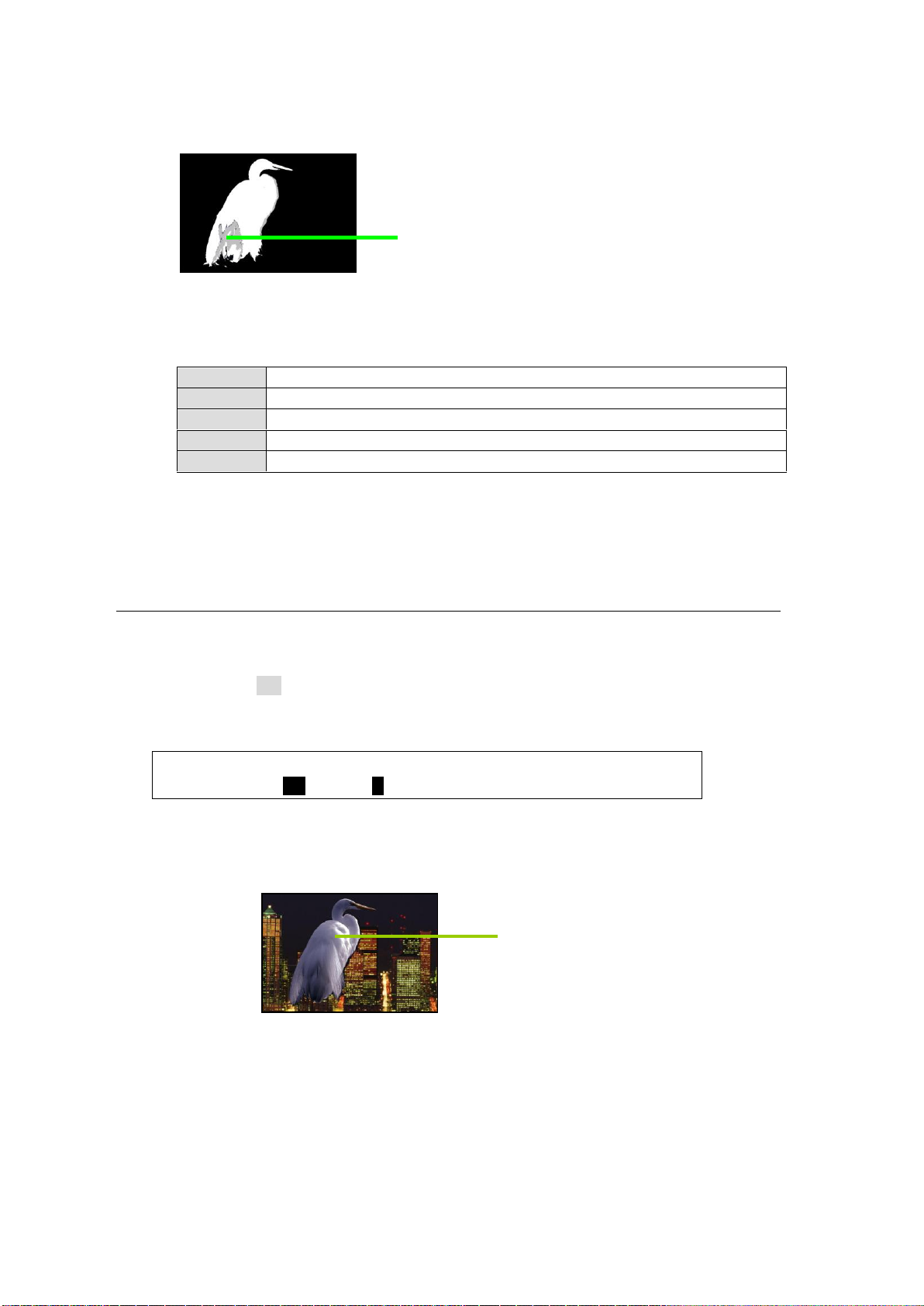

6-4. KEY OUT Set Up

The KEY OUT signal, switcher processed key cut signal (alpha channel), can be assigned to AUX outputs. Various kinds of key cut signals can be used for KEY OUT sources.

(1) Open [SETUP - OUTPUT - OUT XPT] menu PAGE 2.

(3) Turn F1 to select a KEY OUT signal. Various types of KEY OUT signals are available as

shown in the table below. Press F1 or ENTER to confirm the setting.

Page 50

6-5. HDMI Output

System Format

Output signal format

1080i

HDTV (1920 x 1080)

720p

HDTV (1280 x 720)

SDTV (720 x 480)

OUTPUT : XPT : : 3/3

HDMI OUT: =PGM : :

OUTPUT : XPT : : 3/3

HDMI OUT: =AUX1 : :

OUTPUT : XPT : : 3/3

HDMI OUT: =MV : :

Video output through the HDMI port can be selected from an M/E program, preview, clean or key out video, to AUX1-8 and MV.

(1) Double-press AUX1 on the left side of the control panel to display the [SETUP - OUTPUT

- OUT XPT] (1/3) menu. (2) Press the page down button to go to PAGE 3. (3) Turn F1 to select a video to be output from the HDMI port.

Available options are: PGM, PREV, CLEAN, MEKY and AUX1-8 and MV

Signals are output at the same frequency as that of the system format.

 Ex. 1

Switcher System Format: 1080/59.94i To Output the PGM video (at 1920 x 1080 resolution):

 Ex. 2

Switcher System Format: 720/50p To Output the AUX1 video (at 1280 x 720 resolution):

 Ex. 3

Switcher System Format: SD PAL (625/50) To Output the MV SDTV video:

Page 51

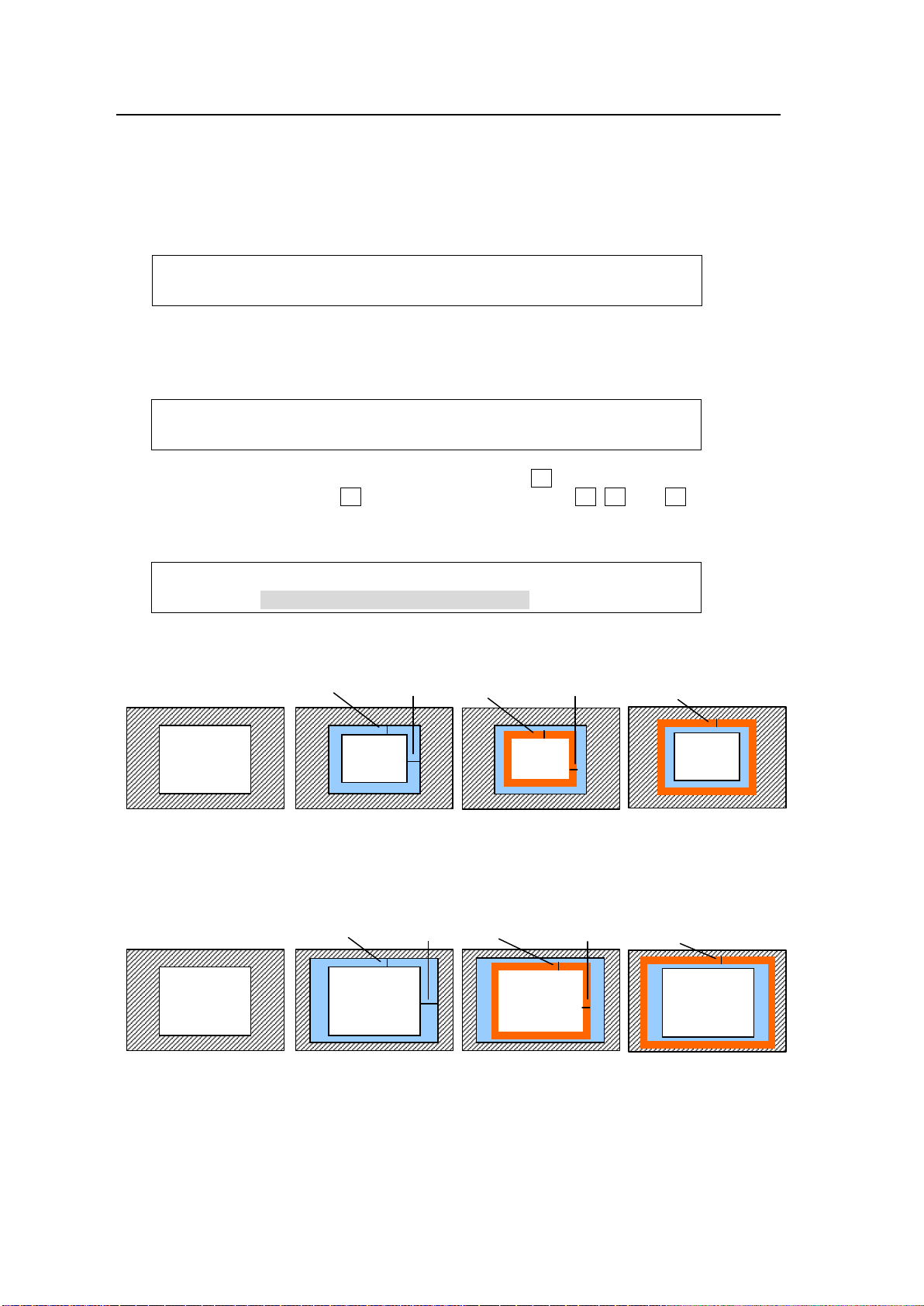

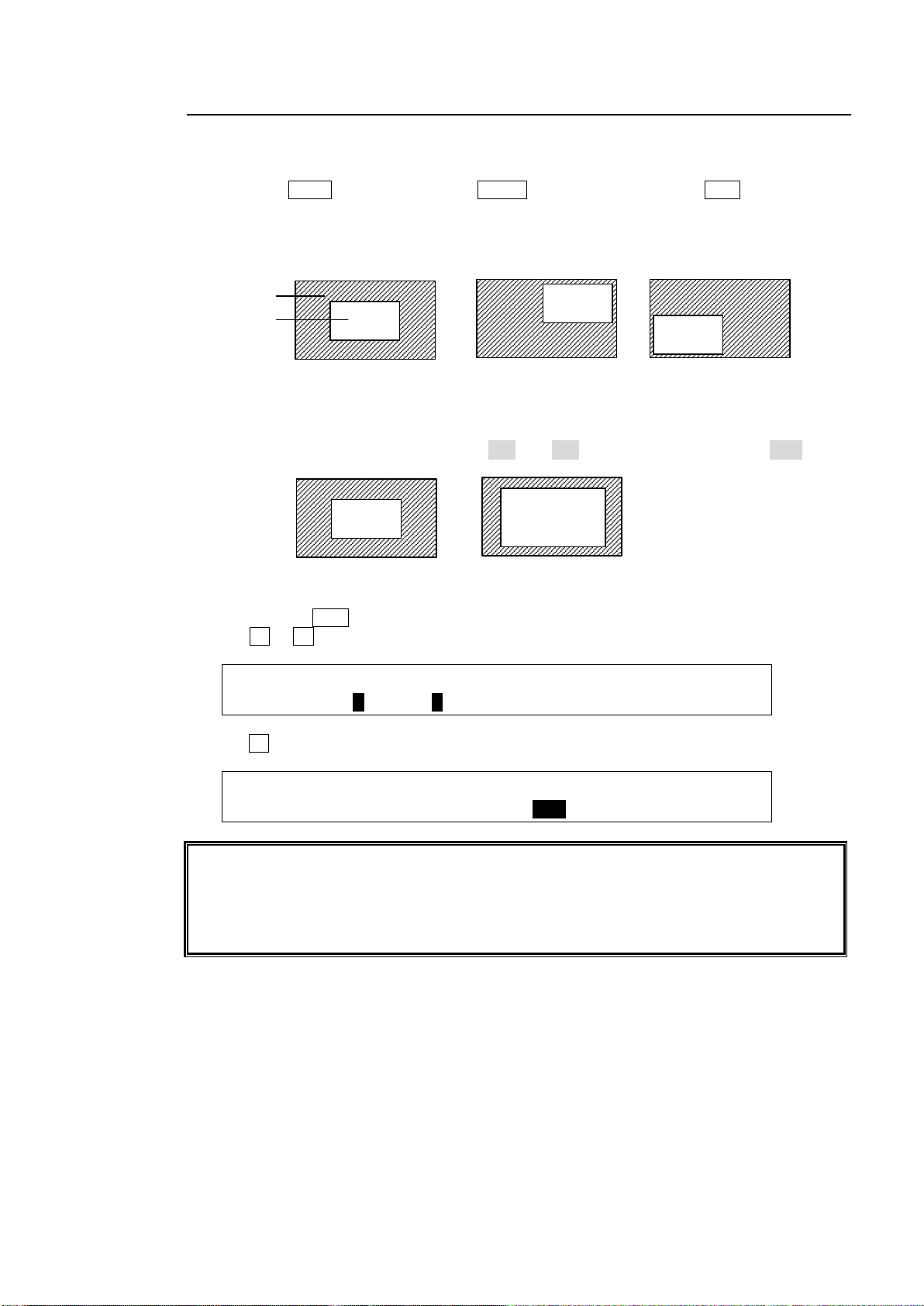

6-6. Safety Area Markers

XT100

XT110

AUX1 to AUX4 B-Ch1, B-Ch2 (Support planned) C-Ch1, C-Ch2(Support planned) HDMI

AUX1 to AUX8 HDMI (HDMI OUTPUT)

OUTPUT :SELECT :ENABLE :MARKER :SIDECUT: 1/2

MARKER : =AUX1 : =ON : =BOX : =OFF :

OUTPUT :SELECT :ENABLE :MARKER :SIDECUT: 1/2

MARKER : =AUX1 : =ON : =BOX : =OFF :

OUTPUT :ASPECT : SIZE :CENTER : : 2/2

MARKER : =16:9 : =85% : =ON : :

OUTPUT :ASPECT : SIZE :CENTER : : 2/2

MARKER : =16:9 : =85% : =ON : :

OUTPUT :SELECT :ENABLE :MARKER :SIDECUT: 1/2

MARKER : =AUX1 : =ON : =OFF : =BLACK:

MARKER: BOX ASPECT: 16:9 SIZE: 85%

MARKER: HOOK ASPECT: 16:9 SIZE: 85% CENTER: ON

MARKER: OFF SIDECUT: BLACK CENTER: ON

Various markers indicating the safety area, screen center and aspect ratio can be displayed on the desired output.

(1) Open the [SETUP - OUTPUT] menu. (2) Turn F1 to select MARKER, then press F1 or the page down button to open the [SETUP -

OUTPUT - MARKER] menu.

(3) Turn F1 to select a video output.

(4) Turn F2 to set to ON then press F2 to enable the Marker function.

Safety Area Marker

To display a safety area marker in the selected output, first select the type of marker under the MARKER item in the [SETUP - OUTPUT - MARKER] menu from BOX and HOOK. (See the figures at the bottom of the page.) Then go to PAGE 2, select an aspect ratio, and set the marker size.

Center Marker

To display the center marker in the selected output, set CENTER to ON in PAGE 2 of the [SETUP - OUTPUT - MARKER] menu. (See the figures at the bottom of the page.)

Side Cut Display

To display a Side Cut image converting the aspect ratio from 16:9 to 4:3, select the display type under the SIDECUT item. Available types are LINE, BLACK and HALF. (See the figures at the bottom of the page.)

Page 52

6-7. Ancillary Data

 See section 5-3. "Resize Function" and section 5-7. "Frame Synchronizer." Note that ancillary data in SD inputs cannot be used when the switcher operates in HD

mode.

OUTPUT :SELECT :ENABLE : : 2/2

ANCI THR: =AUX1 : =ON : :

OUTPUT : M/E PGM SWAP :PREV SW: : 1/2

ANCI SWP: =EACH Lv=50 : =OFF : :

OUTPUT : M/E PGM SWAP :PREV SW: : 1/2

ANCI SWP: =AUX1 Lv=50 : =OFF : :

OUTPUT : M/E PGM SWAP :PREV SW: : 1/2

ANCI SWP: =AUX1 Lv=50 : =EACH : :

Ancillary data does not pass through all outputs as the factory default setting. The switcher can be set to pass or blank the ancillary data in the AUX outputs using the menu. The switcher also allows users to pass or substitute ancillary data in the Program (Clean) and Preview video. Ancillary data in the current video stream is once cleared, then the same or different data inserted. Ancillary data operation is set in the [SETUP - OUTPUT - ANCI] menu.

6-7-1. Passing Incoming Ancillary Data on-through to AUX Outputs

(1) Open the [SETUP - OUTPUT - ANCI] menu PAGE 2. (2) Turn F1 to select an output, then turn F2 to set to ON (pass).

6-7-2. Ancillary Data in PGM and PREV Bus Signals

 Program (Clean) bus To Pass Through Ancillary Data

Turn F1 to select EACH. The Lv (level) item selects the point at which the new data is to be inserted, from 0-100. Setting Lv to 50 passes ancillary data through from the halfway point of the background transition.

To Replace Ancillary Data with Data in an AUX bus signal

Turn F1 to select AUX1. Ancillary data in the program bus signal is replaced with ancillary data in AUX1 video. (Note that the Lv setting is ignored.)

 Preview bus Ancillary data in the Preview bus signal can be processed in the same way as that for the program bus under PREV SW.

Page 53

6-8. AUX LINK

SETUP :>M/E_KEY >VIRTUAL >AUX LINK

FUNCTION:

FUNCTION:ENABLE : : 1/3

AUX LINK: =OFF : :

FUNCTION:SELECT:MASTER: SLAVE SEL/AUX : 2/3

AUX GRP : =1 : =AUX1:1=AUX2 2=AUX3 3=AUX4

Master Output

AUX1-8, PGM, PST ABUS, BBUS, KEY1, KEY2, DSK1, DSK2

Slave Output (Normal link)

Same options as Master Output. Note that video set as Master cannot be selected for the Slave.

FUNCTION:SELECT:MASTER: SLAVE SEL/AUX : 3/3

LINK GRP: =1 : =IN01:1=IN02 2=IN03 3=IN04

Available Signals

BLK, IN01 to 12, STL1, STL2, STK1, STK2, CKFL, CKKY, EFF1, EFF2, CB, MAT1, MAT2

(If AUX1-8 is selected for the MASTER or SLAVE bus)

PGM, PVW, CLN, MEKY, MV

In the AUX-LINK function, the auxiliary outputs are grouped, and the master and slave outputs are set to allow all slave output signals to be switched simultaneously by simply selecting the master output signal. A group consists of one master output and up to three slave outputs. Seven auxiliary output groups can be set. Examples of AUX LINK settings and operation are shown below.

6-8-1. Creating AUX Output Link Groups

(1) Open the [SETUP - FUNCTION] menu. Turn F1 to select AUX LINK. Press F1 or the

page down button to display the AUX LINK menu.

(2) Press the page down button again to go to the [AUX LINK - AUX GRP] menu page.

(3) Turn F1 to select a group to be set from 1-7 (4) Turn F2 to set the auxiliary output serving as the MASTER. Available outputs are shown

below.

(5) Select the auxiliary outputs (up to three) serving as the SLAVE linking to the MASTER

output. Available outputs are shown below. Press F3 and then turn F3 to select an output for Slave 1. Press F3 and then turn F3 to select an output for Slave 2. Select an output for Slave 3 in the same way.

The A or B bus cannot be set for Slave when the Program or Preset bus is selected for Master. In the same way, the Program or Preset bus cannot be set for Slave output when the A or B bus is selected for Master.

6-8-2. Creating Signal Link Groups

(1) Press the page down button to go to the [AUX LINK - LINK GRP] menu.

Page 54

(2) Turn F1 to select an AUX LINK group to be set in the LINK GROUP menu (up to 20

NOTE

The same MASTER output signal cannot be selected twice. SLAVE output signals can be selected multiple times.

FUNCTION:ENABLE : : 1/3

AUX LINK: =ON : :

:SELECT:MASTER: SLAVE SEL/AUX : 2/3

AUX GRP : =1 : =AUX1 :1=AUX2 2=AUX3 3=AUX4 : =2 : =AUX7 :1=AUX8 2=OFF 3=OFF : =3 : =PGM :1=KEY1 2=KEY2 3=OFF : =4 : =ME-A :1=ME-B 2=OFF 3=OFF : =5 : =OFF :1=--- 2=--- 3=--- : ... : ... : ...

:SELECT:MASTER: SLAVE SEL/AUX : 3/3

LINK GRP: =1 : =IN01 :1=IN02 2=IN03 3=IN04 : =2 : =PGM :1=PREV 2=OFF 3=OFF : =3 : =IN05 :1=STL1 2=STL2 3=OFF : =4 : =IN06 :1=IN07 2=OFF 3=OFF : =5 : =OFF :1=--- 2=--- 3=--- : ... : ... : ...

groups). (3) Turn F2 to select a signal to be set for MASTER (4) To set the SLAVE output signals (up to three) that link to the MASTER output signal, press

F3 and then turn F3 to select a signal for Slave 1. Press F3 and then turn F3 to select a

signal for Slave 2. Select a signal for Slave 3 in the same way.

6-8-3. Enabling AUX LINK

(1) Display the [SETUP - FUNCTION - AUX LINK] menu. (2) Turn F1 to set ENABLE to ON. This activates all AUX LINK groups.

 Operation examples: Assume that the AUX output link groups and their signal link groups were set as shown below.

Press AUX1 in the BUS SELECT-AUX block and select IN01 on the AUX/KEY bus: >> IN02 is assigned to AUX2, IN03 to AUX3 and IN04 to AUX4.

Press AUX7 in the BUS SELECT-AUX block and select PGM: >> PREV is assigned to AUX8.

Select IN05 in PGM bus: >> STL1 is assigned to KEY1-INSERT and STL2 to KEY2-INSERT.

Select IN06 in M/E- A bus: >> IN07 is assigned to M/E-B bus

Page 55

7. Bus Operation

Users can change the M/E bus mode from PGM/PST to A/B.  See section 7-2. "Button Switching Mode in M/E Bus."

USB MEMORY

DIGITAL VIDEO SWITCHER HVS-

SIZE

(PUSH to DEF)

1 2 3 4 5 6 7 8

USER BUTTON

REV NOR/REV

DIRECTION

BLACK

TRANS

BKGD KEY1 KEY2

NEXT TRANSITIO N

MIX WIPE

KEY1 KEY2

TRANSITION T YPE

AUTO CUT DSK1 DSK2

ALARM

F1 F2 F3 F4

PAGE

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DS K AUX

KEY/AUX

PGM PREV CLEAN MV

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

MENU ATTACH

DIRECT

PATT

DETACH

SETUP

KEY1

POSITION

POS ROT

2D DVE

WIPE

POS

JOYSTICK

8 9

4 5 6

STILL MATT FILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFFECT

TRANS RATE WIPE

SELECT/KEYPAD

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

PGM row PST row

PGM output

Video signals that are input to the switcher are assigned to the bus buttons on the control panel for usage. The assigned signals are shared by the M/E(PGM/PST) and KEY/AUX bus sections. As factory default settings, video inputs, Stills and Mattes are assigned to the bus buttons. The video source assignments are freely changeable. To prevent accidental button operation, the Button Inhibit function is also available.  See section 5-2. "How to Assign Sources to Bus Buttons."

7-1. Selecting Video Sources

7-1-1. Selecting Video Sources on the PGM/PST

Press the desired bus button on the PGM bus. The button light will turn red and the video signal assigned to the selected bus button is displayed on the program output screen.

Press the desired bus button on the PST bus. The button light will turn orange and the video signal assigned to the selected bus button is displayed on the preview output screen. Then move the fader lever from end to end to check how the button indication changes as the signals are switched. Once the transition is complete, the selected signals on PGM and PST are switched (flip-flop). The switcher's primary operation is to select the next video on the PST bus and send it to air via transition. And to repeat the process over and over.

Page 56

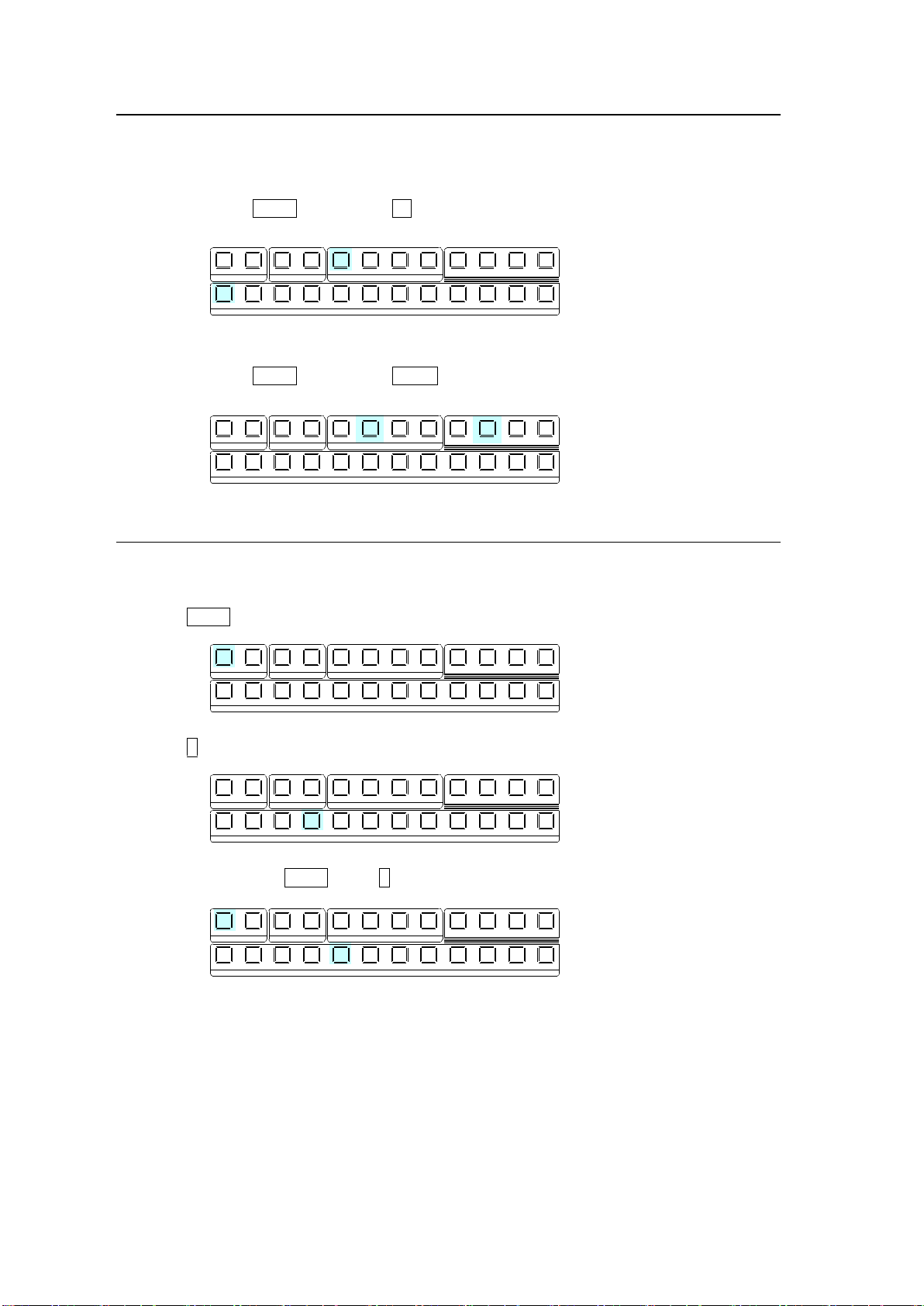

7-1-2. Selecting Video Sources for AUX1 to AUX4

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV C LEAN MV

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV C LEAN MV

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV C LEAN MV

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV C LEAN MV

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV C LEAN MV

(1) Press the desired AUX button. (2) Press a desired button on the KEY/AUX bus.

Ex.1) To Select IN1 for AUX1

Press AUX1. Then press 1 (IN01) on the KEY/AUX.

Ex. 2) To Select PREV for AUX2

Press AUX2. Then press PREV on the KEY/AUX.

7-1-3. Selecting Video Sources for KEY and DSK

To select the bus button 4 video for KEY1 Insert (fill) and the bus button 5 video for KEY1 Source (key), proceed as follows.

(1) Press KEY1.

(2) Press 4 in the KEY/AUX bus to select the KEY1 Insert signal.

(3) While holding down KEY1, press 5 in the KEY/AUX bus to select the KEY1 Source signal.

Once insert and source signals are selected for a key or DSK, they are stored as a key pair and when a key or DSK then selects an insert signal, the paired source signal is automatically set.  See section 9-3-1. "Key Link."

Page 57

7-2. Button Switching Mode in the M/E Bus

PANEL :BUSTYPE: : FADER OFFSET : 1/1

M/E CTRL: =A/B : :U=1.00 L=1.00 :

SETUP :>SIGNAL >PROC AMP>RENAME >ASSIGN

INPUT :>COLORBAR

INPUT :BUTTON : SIGNAL NAME :INHIBIT: 1/3

OU ASGN : =12 : =SHIFT =SHIFT : =OFF :

Users can change the button switching mode for the M/E bus from P/P (PGM/PST) to A/B. In P/P mode (default), the source selections in the PGM and PST buses are switched when transitions occur and users can always select the next background signal from the PST bus (the bottom row). In A/B mode, the source selections in the PGM and PST buses do not switch when transitions occur and the next signal selection takes place in the different bus after each transition.

To Change the Switching Mode to A/B:

(1) Press MENU then SETUP in the SELECT/KEYPAD block to display the SETUP menu top

page. Turn F1 to select PANEL. Press F1 or the page down button to display the [SETUP PANEL] menu.

(2) Turn F1 to select TRS CTRL. Press F1 or the page down button to display the [SETUP -

PANEL - M/E CTRL] menu.

(3) Turn F1 to select A/B. Press F1 or ENTER on the keypad to confirm the setting.

7-3. Setting-up and Using the SHIFT Function

Users can select a video signal from 12 sources on the control panel, because each bus row has 12 buttons. The SHIFT function can also be assigned to a bus button in the same way video sources can. The SHIFT button allows users to select a video signal among 22 sources on the panel. (The SHIFT button is also available on the KEY/AUX bus.) The SHIFT function is not assigned to a button by default. To use the SHIFT function, assign it to a bus button as shown in the procedure below.

7-3-1. Assigning the SHIFT Function to a Bus Button:

(1) Press MENU then SETUP in the SELECT/KEYPAD block to display the SETUP menu top

page. Turn F1 to select INPUT. Press F1 or the page down button to display the [SETUP

- INPUT] menu.

(2) Turn F1 to select ASSIGN. Press F1 or the page down button to display the [SETUP -

INPUT - ASSIGN] menu.

(3) Turn F1 to select a bus button for use. (4) Turn F2 or F3 to select SHIFT under SIGNAL.

Page 58

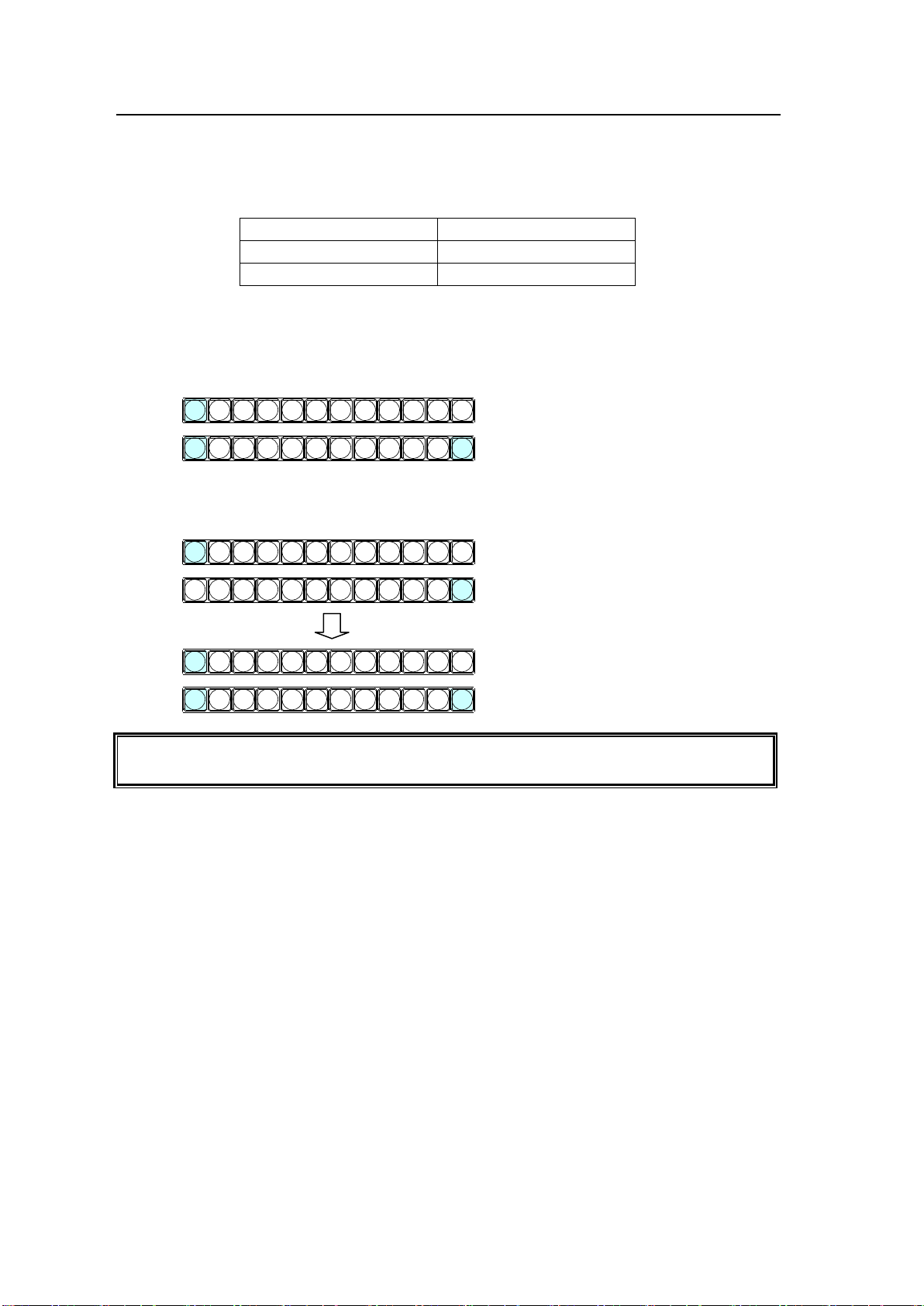

7-3-2. Using the SHIFT Function

Bus button 1

IN01

Bus button 1 (shifted)

STILL1

Bus button 12

SHIFT function

The SHIFT setting (NORMAL or TOGGLE) can be selected in the [SETUP - INPUT ASSIGN] (3/3) menu.

Press 1 while holding down 12 (SHIFT) to select STILL1.

Press 1 to select IN01.

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

Press 1 to select IN01.

Press 12 (SHIFT).

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

Press 1 to select STILL 1.

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

Once the SHIFT function has been assigned to a bus button, an additional 11 buttons are available for signal selection. This chapter explains how to select signals with the SHIFT button. Assume that video sources and the shift function are assigned to bus buttons as shown in the table below:

Now, let's select IN01 on PGM and STILL1 on PST.

When SHIFT works in NORMAL mode:

Shifted buttons are enabled while holding down SHIFT.

When SHIFT works in TOGGLE mode:

To select shifted buttons, press SHIFT then press a bus button.

Page 59

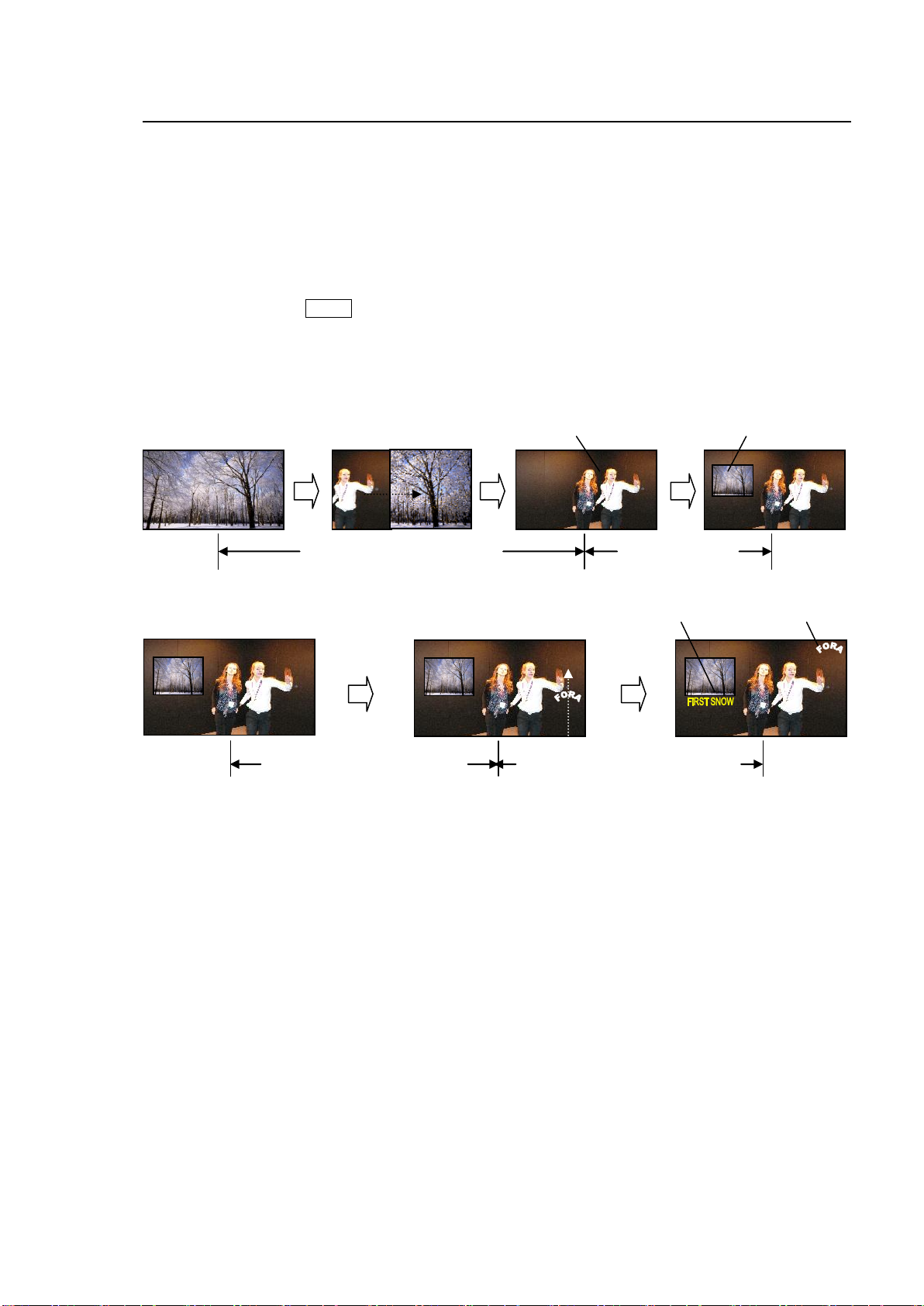

8. Transitions

Logo (DSK1) sliding in

Caption (DSK2)

Logo (DSK1)

Caption (DSK2) cutting in

Background pattern transition

KEY2 cutting in

KEY2

KEY1 (chromakey)

Available Transitions on the M/E (PGM/PST) bus

 BLACK transition: MIX  Background: CUT, MIX and Pattern transitions  KEY1 and 2: CUT, MIX and Pattern transitions

SLIDE (4-direction), SCALER and WIPE (4-direction) transitions

 DSK1 and 2: CUT and MIX transitions

SLIDE (4-direction), SCALER and WIPE (4-direction) transitions

-Transitions setup by next transition bus selection

-Transitions using the AUTO button or fader lever

-More than 130 types of various preset patterns

-Simultaneous background and key pattern transitions

 Transition Example

Other Transitions

 AUX crosspoint switching with effects

 See section 6-1-3. "AUX Video Switching with Effects."

 Transitions using Event Recall

 See section15-5. "Transitions Using Event Recall."

Page 60

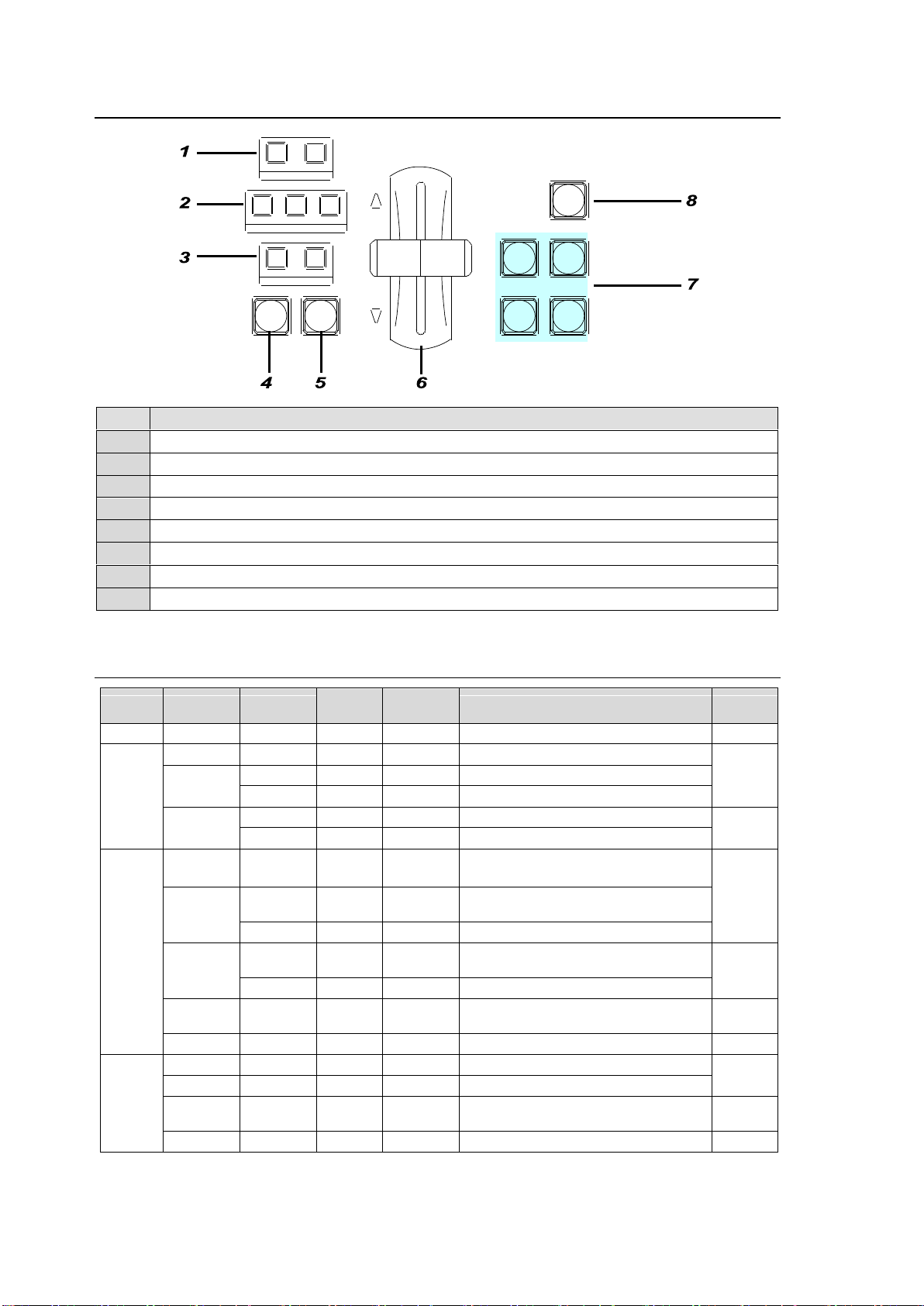

8-1. Transition Block Description

No.

Description

Pattern transition direction setting buttons

Next transition bus selection buttons

Transition type selection buttons for BKGD, KEY1 and KEY2

AUTO transition button for BKGD and KEY1 and KEY2

CUT transition button for BKGD and KEY1 and KEY2

Fader lever for performing BKGD, KEY1 and KEY2 transitions

KEY1, KEY2, DSK1 and DSK2 transition buttons

Black transition button

Bus

Type

Rate

Transitio

n Limit

Pattern

Direction

Transition Execute Button or Tool

Refer to

BLACK

Available

BLACK TRANS button

8-6

BKGD

CUT

Available

BKGD >> CUT button

8-3

MIX

Available

BKGD >> MIX >> AUTO button

Available

BKGD >> MIX >> Fader lever

WIPE

Available

NOR/REV

BKGD >> WIPE >> AUTO button

8-3 8-8

Available

NOR/REV

BKGD >> WIPE >> Fader lever

KEY1 KEY2

CUT

Available

KEY >> CUT button KEY1 and KEY2 transition buttons

8-4

MIX

Available

KEY >> MIX >> AUTO (KEY1 and KEY2 transition buttons)

Available

NOR/REV

BKGD >> MIX >> Fader lever

WIPE

Available

NOR/REV

KEY >> WIPE>> AUTO (KEY1 and KEY2 transition buttons)

8-4 8-8

Available

NOR/REV

KEY >> WIPE>> Fader lever

USER

TRANS

Available

Function-assigned user buttons

8-10

PRIORITY

－－－

Function-assigned user button

DSK1 DSK2

CUT

Available

DSK1 and DSK2 transition buttons

8-4

MIX

Available

DSK1 and DSK2 transition buttons

USER

TRANS

Available

Function-assigned user buttons

8-10

PRIORITY

－－－

Function-assigned user button

REV NOR/REV

DIRECTION

BLACK

TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TYPE

AUTO CUT DSK1 DSK2

8-2. Quick Reference for Available Transitions

Page 61

8-3. Background Transitions

If the light of the WIPE button does not turn on, a WIPE channel is already being used for KEY1 or KEY2. In such case, change the KEY1 or KEY2 type to MIX, then press the WIPE button again for the BKGD bus.

REV NOR/REV

DIRECTION

BLACK TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIP E

KEY1 KEY2

TRANSITION TYPE

AUTO C UT DSK1 DSK2

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

REV NOR/REV

DIRECTION

BLACK TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIP E

KEY1 KEY2

TRANSITION TYPE

AUTO C UT DSK1 DSK2

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

REV NOR/REV

DIRECTION

BLACK TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIP E

KEY1 KEY2

TRANSITION TYPE

AUTO C UT DSK1 DSK2

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

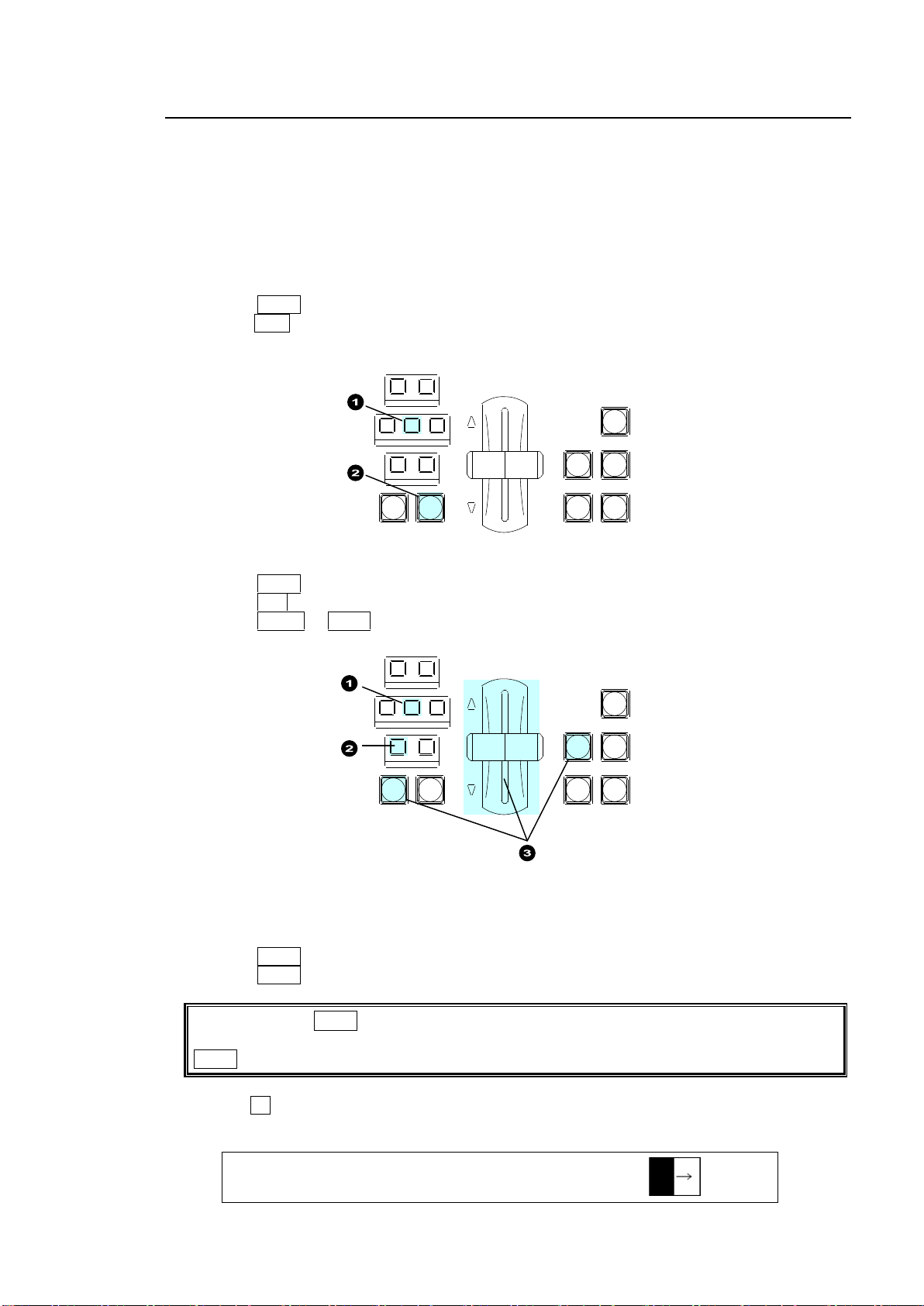

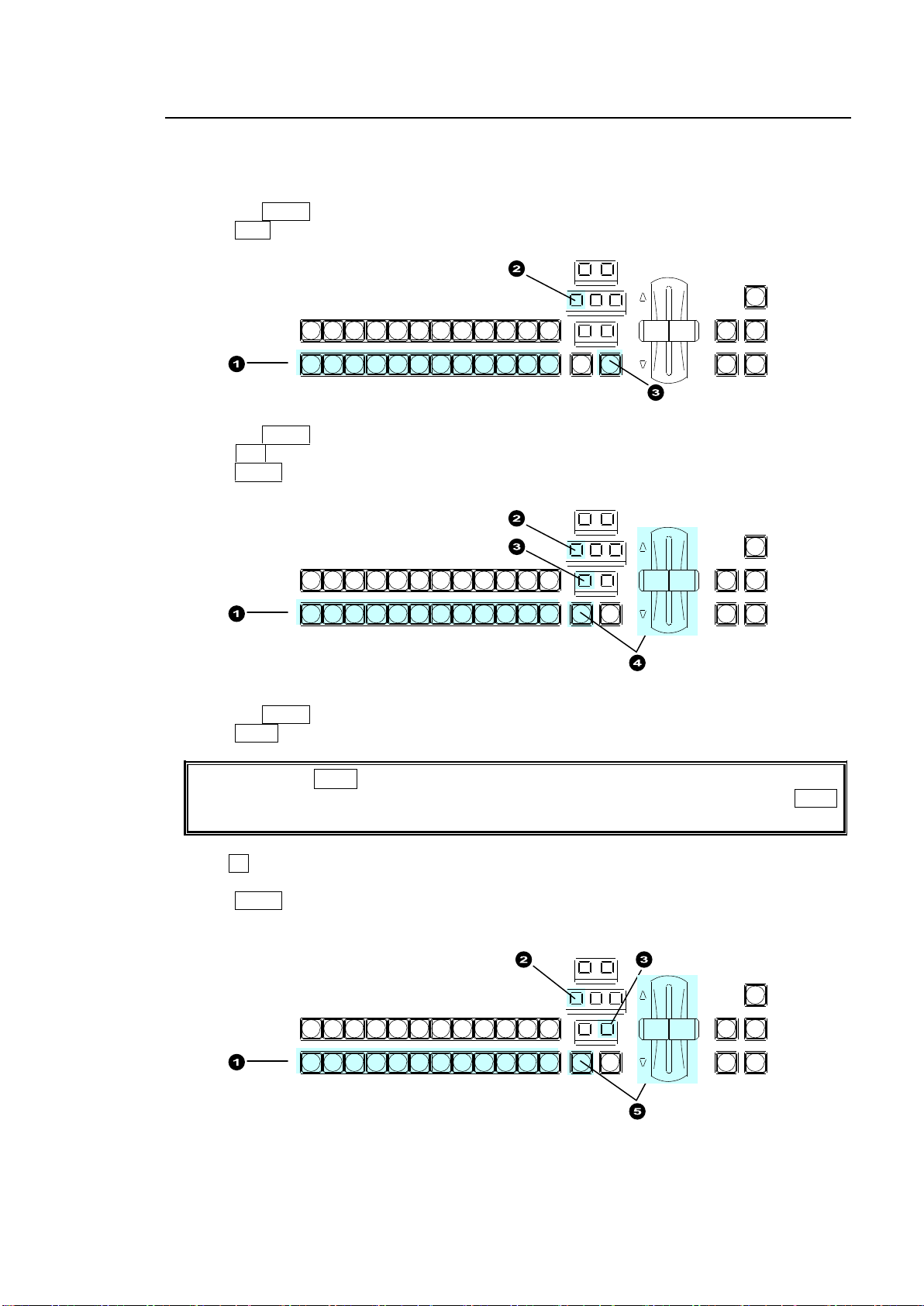

This chapter explains how to perform background transitions.

CUT Transition

(1) Select a video source in the PST bus block. (2) Press the BKGD button in the NEXT TRANSITION block. (3) Press CUT to perform the background CUT transition.

MIX Transition

(1) Select a video source in the PST bus block. (2) Press the BKGD button in the NEXT TRANSITION block. (3) Press MIX in the TRANSITION TYPE block. (4) Press AUTO or move the fader lever to perform the background MIX transition.

WIPE Transition

(1) Select a video source in the PST bus block. (2) Press the BKGD button in the NEXT TRANSITION block. (3) Press WIPE in the TRANSITION TYPE block. The [TRANS] (1/6) menu is displayed.

(4)Turn F4 to select a desired pattern. (MIX, FAM and NAM transition types can be also

selected using Patterns 200 to 202.")

(5) Press AUTO or move the fader lever to perform the background WIPE transition.

Page 62

 See section 8-8. "Pattern (WIPE) Transitions" for the WIPE transition details.  See section 8-11-2. "Transition Rate" for the transition rate.  See section 8-11-3. "Transition Limit" for the transition limit.

To Check Next Video:

To check the Preview video, assign the Preview video to an AUX bus to display the image.  See section 6-2. "Preview Set Up."

To check the clean video, assign the Clean video to an AUX bus to display the program video clear signal.  See section 6-3. "Clean Set Up."

Page 63

8-4. KEY Transitions

If the light of the WIPE button does not turn on, a WIPE channel is already being used for BKGD or KEY2. In such case, change the BKGD or KEY2 type to MIX, then press the

WIPE button again for KEY1.

TRANS : RATE :TRANS LIMIT :PAT NO : 1/6

BKGD : =30 :=100.0 =OFF : =0 :

REV NOR/REV

DIRECTION

BLACK

TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TYPE

AUTO CUT DSK1 DSK2

REV NOR/REV

DIRECTION

BLACK

TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TYPE

AUTO CUT DSK1 DSK2

Key images are displayed on the M/E (background) output screen. This chapter explains how to perform key transitions using KEY1 as an example.

1. Perform key setup for KEY1.  See section 9. "KEY/DSK."

2. Perform a desired transition referring to the below procedures.

CUT Transition

(1) Press KEY1 in the NEXT TRANSITION block. (2)Press CUT to perform a key CUT transition. KEY1 will be inserted onto the program video.

Press the button again to remove KEY1 from the screen.

MIX Transition

(1) Press KEY1 in the NEXT TRANSITION block. (2) Press MIX in the TRANSITION TYPE block. (3) Press AUTO or KEY1 or move the fader lever to perform the KEY1 MIX transition.

Pattern transition

(1) Press KEY1 in the NEXT TRANSITION block. (2) Press WIPE in the TRANSITION TYPE block. The [TRANS](1/6) menu is displayed.

(3) Turn F4 to select a desired pattern. (Note that only one pattern can be set at the same

time.)

Page 64

The KEY1 transition button behaves the same as the AUTO button when selecting KEY1 for the next transition. For example, if MIX is set as the KEY1 transition type under the NEXT TRANSITION, the KEY1 mix transition is performed when KEY1 is pressed and a KEY1 wipe transition is performed if WIPE is set as the transition type.

Note that when performing pattern transitions with a DVE pattern (No. 100 -137) for KEY1 or KEY2, all 2D DVE menu settings are disabled.

 See section 9-8 "DVE Effect on KEY/DSK."

REV NOR/REV

DIRECTION

BLACK

TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TYPE

AUTO CUT DSK1 DSK2

(4) Press AUTO or KEY1, or move the fader lever to perform the pattern transition.

 See section 8-8. "Pattern (WIPE) Transitions" for details on WIPE transitions.  See section 8-11-2. "Transition Rate" for details on the transition rate.  See section 8-11-3. "Transition Limit" for details on the transition limit.

USER Transition

Press a user button, to which a KEY1 effect transition (scaler, slide in/out, etc.) is assigned, to insert the KEY1 image on the M/E program video.  See section 8-10-2. "USER Transitions" for details.

Page 65

8-5. DSK Transitions

FUNCTION:TRSEDGE:KEY LNK: DSK ASSIGN : 1/1

M/E KEY : =ON : =ON :1=AUX1 2=M/E :

REV NOR/REV

DIRECTION

BLACK

TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TY PE

AUTO CUT DSK1 DSK2

DSK images are displayed on the M/E (background) or an AUX output screen. This chapter explains how to perform DSK transitions using DSK1 as an example.  See section 8-5-1. "Where DSK Images Appear."

1. Perform key setup for the DSK1.  See section 9. "KEY/DSK."

2. Perform a desired transition referring to the below procedures.

MIX Transition

Press DSK1.

The transition rate can be set.  See section 8-11-2. Transition Rate."

CUT transitions are also available.  See section 8-10. "KEY/DSK Transitions."

The DSK1 button can also perform CUT transitions by changing the button function in the menu.  See section 8-10-1."Setting the KEY/DSK Transition Button Function."

USER Transition

Press a user button, to which a DSK1 effect transition (scaler, slide in/out, etc.) is assigned, to insert the DSK1 image on the M/E program video.  See section 8-10-2. "USER Transitions" for details.

8-5-1. Where DSK Images Appear

The DSK1 and DSK2 images appear on the program screen as a factory default setting. Users can change the destination of DSK images to AUX1 to 8. To do this, follow the procedure below.

(1) Press MENU, then SETUP in the SELECT/KEYPAD block to display the [SETUP] menu. (2) Turn F1 to select FUNCTION, and press F1 to open the [SETUP - FUNCTION] menu. (3) Turn F1 to select M/E_KEY, and press F1 to open the [SETUP - FUNCTION - M/E KEY]

menu.

(4) To display the DSK1 image on the AUX1 program video, turn F3 to select AUX1 and then

press F3. Select the destination for DSK2 in the same way.

Page 66

8-6. Simultaneous BKGD and Key Transitions

TRANS : RATE :ENABLE : : 6/6

BLACK : =30 : =ON : :

REV NOR/REV

DIRECTION

BLACK

TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TYPE

AUTO CUT DSK1 DSK2

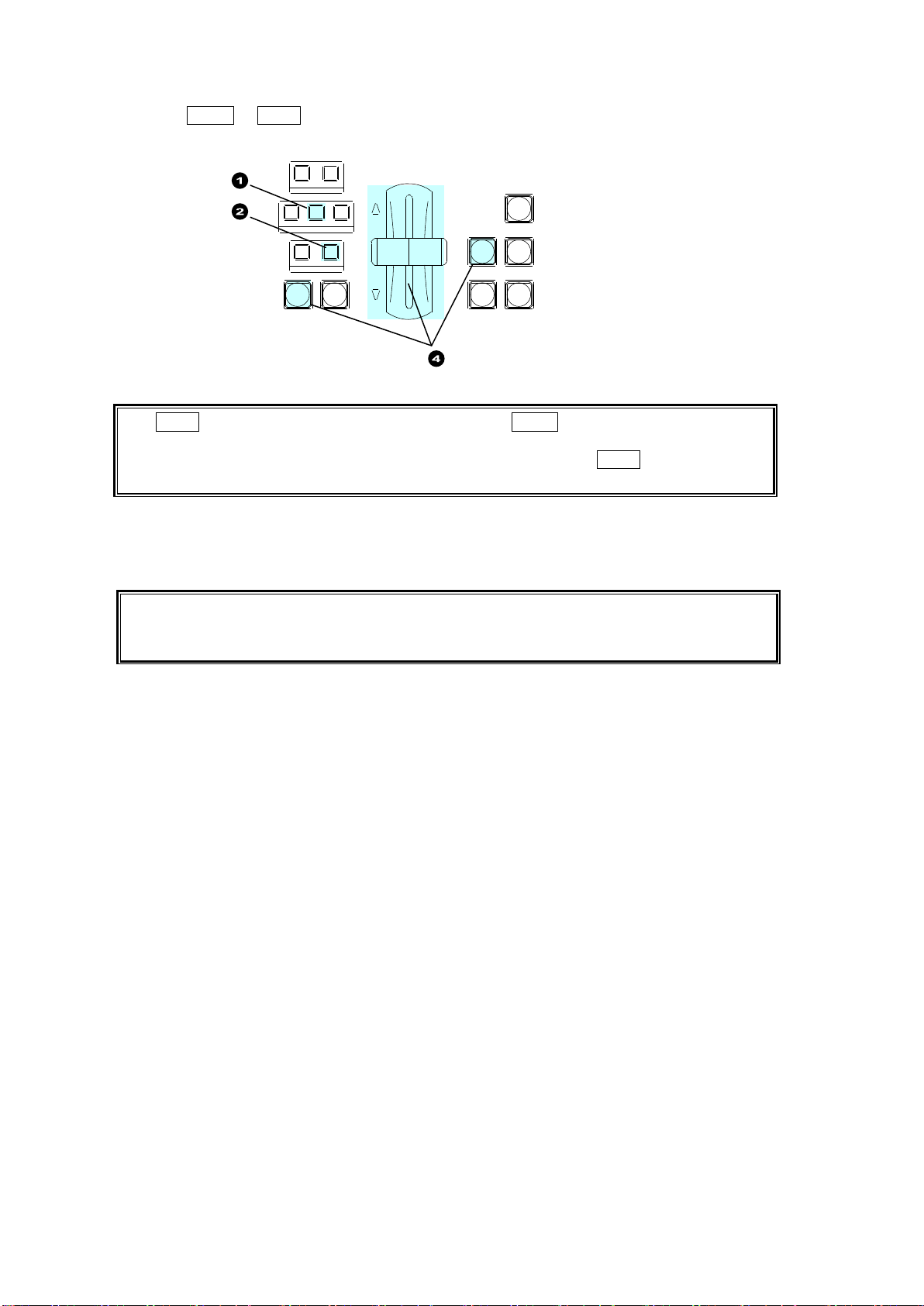

Background and key transitions can be performed simultaneously. This chapter explains how to perform simultaneous BKGD, KEY1 and KEY2 transitions as an example.

(1) Set transition types for the background, KEY1 and KEY2 to MIX or WIPE, respectively.

Select a pattern using the menu if set to WIPE. (2) Set the transition rate or direction, if necessary. (3) Press BKGD, KEY1 and KEY2 simultaneously to turn on the button lights. (4) Press AUTO, or move the fader lever to perform a simultaneous transition.

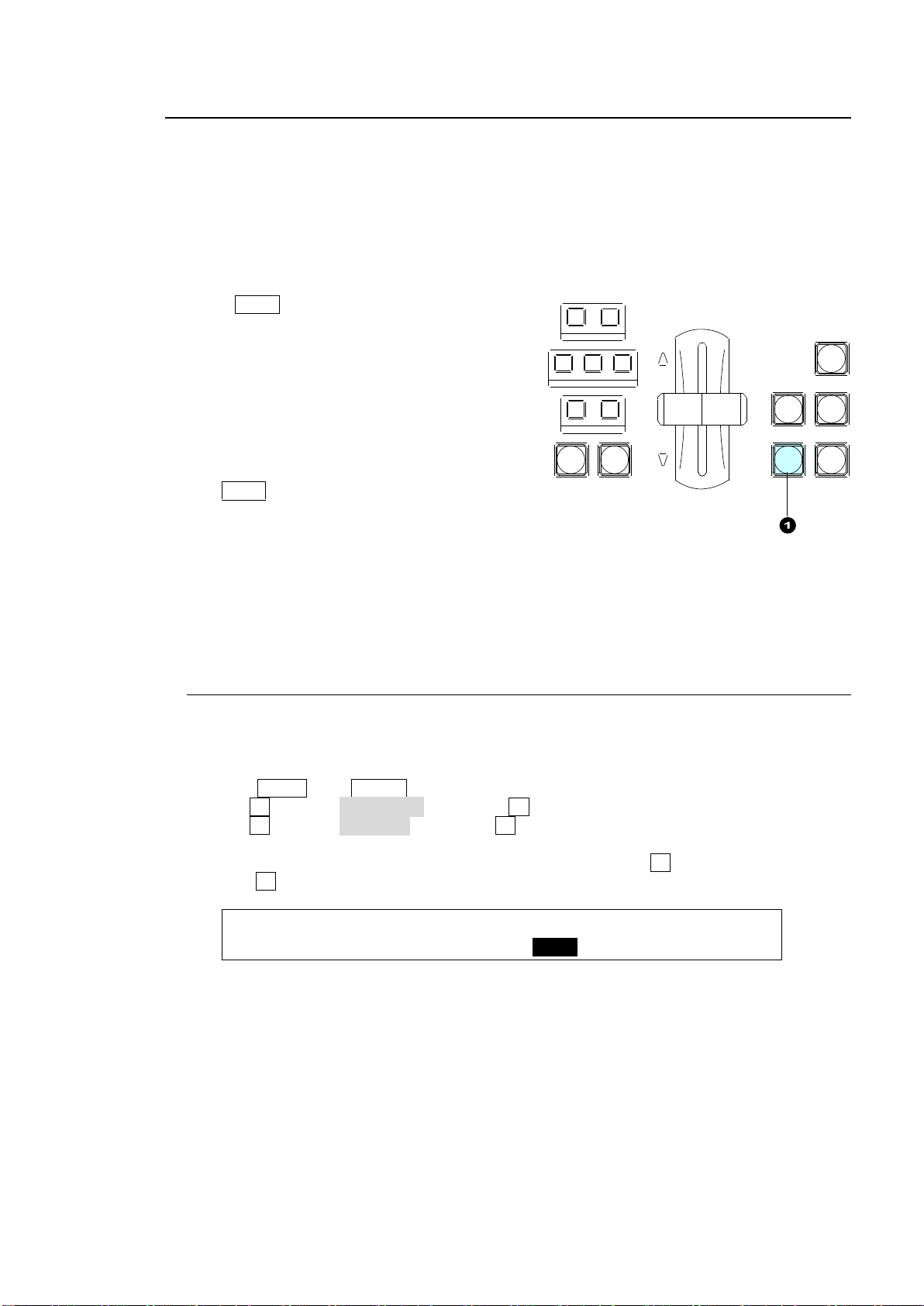

8-7. Black Transitions

Pressing the BLACK TRANS button allows BLACK transitions to be performed. Pressing the button initiates a fade to black of whichever source is currently on air (program output). Pressing the button again starts another fade from black to the previous video. BLACK transitions can be performed on the PGM output.

To Set the Black Transition Rate

(1) Press MENU then TRANSITION RATE in the SELECT/KEYPAD block to display the

[TRANS] menu. (2) Press the page down button to go to PAGE 6. (3) Turn F1 to set the transition rate in frames for BLACK transitions.

To Disable the BLACK TRANS button:

Set the ENABLE item in the [TRANS] (6/6) menu above to OFF. (The default setting is ON.)

Page 67

8-8. Pattern (WIPE/DVE) Transitions

TRANS : RATE :TRANS LIMIT :PAT NO : 1/6

BKGD : =30 :=100.0 =OFF : =0 :

TRANS : RATE :TRANS LIMIT :PAT NO : 1/6

BKGD : =30 :=100.0 =OFF := M20 :

Numbers starting with the letter M:

Indicates modified patterns.  See section 8-9. "Modifying Patterns."

Numbers starting with the letter C:

Indicates the pattern is being used by CG WIPE.  See section 12-5. "CG WIPE."

Pattern No.

Type of Group

Available modification settings

0 to 99

WIPE

2D border, multi, 2D position, 2D size, etc.  See "Appendix 2."

100 to 137

DVE (2D DVE)

2D border, 2D position, 2D size, crop, etc.  See "Appendix 2."

200

MIX

Performs MIX transitions.

201

FAM

Performs Full-Additive Mix transitions.

202

NAM

Performs Non-Additive Mix transitions.

Pattern transitions are available for Background, KEY1 and KEY2.

 See section 8-3. "Background Transitions."  See section 8-4. "KEY Transitions."

This chapter explains details on the pattern selection method and transition direction.

8-8-1. Selecting a Pattern

(1) Press WIPE in the transition block to display the [TRANS] (1/6) menu. The pattern

number and thumbnail will be displayed as shown in the menus below.

(2) Turn F4 to select a pattern. The Direct Pattern function allows users to select patterns quickly.

 See section 8-8-3. "Direct Pattern Function."

Available Patterns are: There are two types of preset patterns: WIPE and DVE. MIX, FAM or NAM can also be elected as pattern types.

Only one pattern can be selected for all BKGD, KEY1 and KEY2 buses. Note that if WIPE is set for a bus, WIPE cannot be set for another bus. In such case, cancel WIPE by selecting MIX for the current bus, then press the WIPE button again for the desired bus.

Page 68

8-8-2. Use Limitations for Pattern Transitions

 When using a WIPE type pattern (0-99):

Pattern transitions cannot be simultaneously performed both on KEY1 and KEY2.

If both KEY1 and KEY2 pattern transitions are performed, one transition is automatically

changed to MIX.

 When using a DVE type pattern (100-137):

Either BKGD, KEY1 or KEY2 bus can perform pattern transitions.

If the WIPE type cannot be set, a DVE pattern must be assigned to another bus. Deselect

WIPE in another bus and set WIPE again for the bus.

Note that 2D DVE menu settings are all disabled while a pattern transition is being performed

on KEY1 or KEY2.

 See section 9-8. "DVE Effects on KEY/DSK."

If 2D DVE is enabled on all four key buses, KEY1, KEY2, DSK1 and DSK2, BKGD pattern

transitions cannot be performed. In such case, set 2D DVE to OFF on any bus. Then press

WIPE again for BKGD.

 See section 9-8-1. "How to Enable 2D DVEs."

 When using FAM (Pattern 201) or NAM (Pattern 202):

FAM or NAM transitions cannot be performed on KEY1 and KEY2. If selecting Pattern 201 or

202 for a key, transitions are performed with MIX instead FAM or NAM.

Page 69

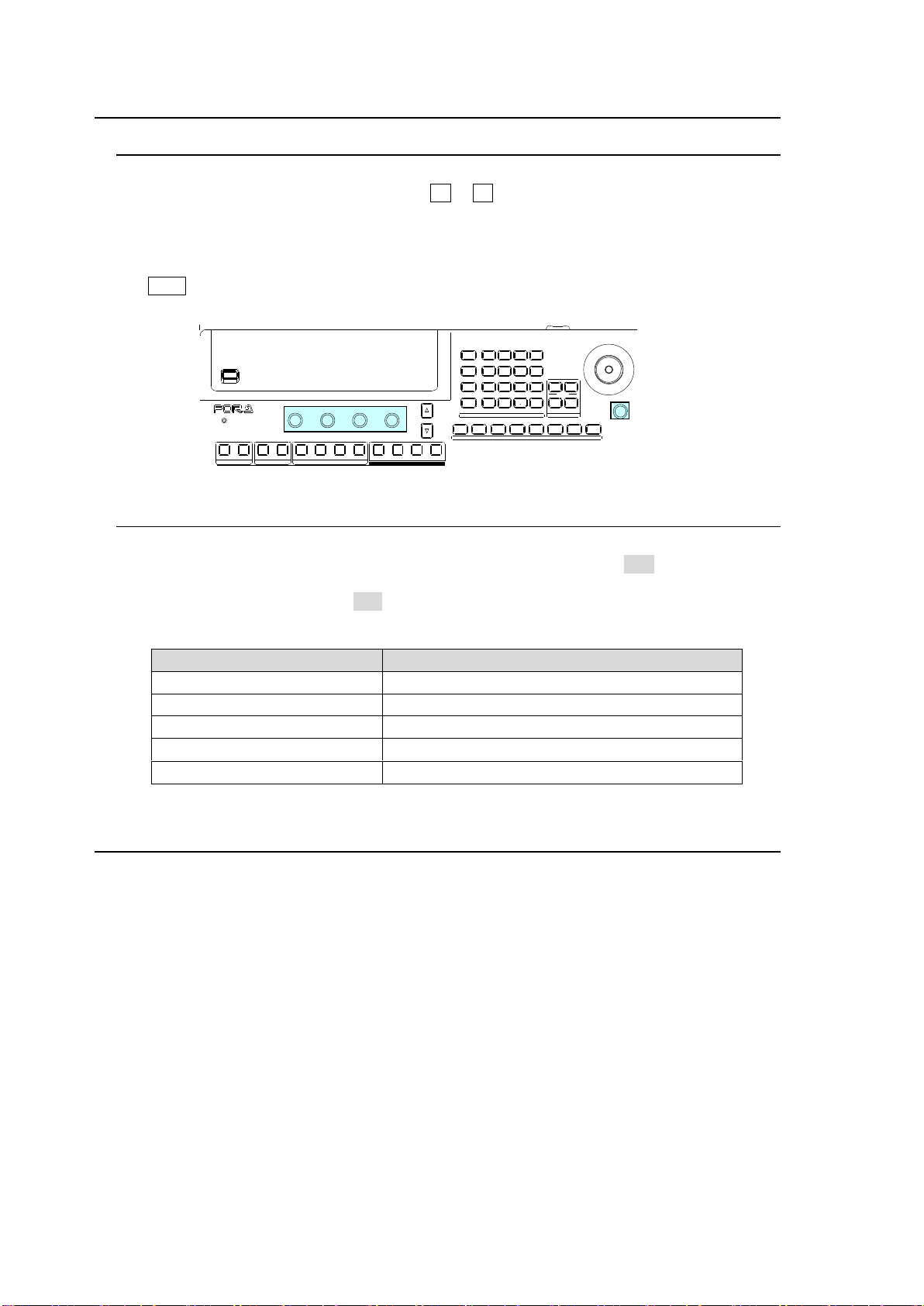

8-8-3. Direct Pattern Function

TRANS : RATE :TRANS LIMIT :PAT NO : 1/6

BKGD : =30 :=100.0 =OFF : =20 :

DIRECT : PAGE :DIRECT :CLEAR : : 1/1

PATTERN : =0 : =ON : >OFF : :

MENU ATTACH

DIRECT

PATT

DETACH

SETUP

KEY1

8 9

4 5 6

STILL MATT F ILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL ST ORE

ENTER

CK EFF ECT

TRANS RAT E WIPE

SELECT /KEYPAD

The Direct Pattern Selection feature allows users to select a pattern easily and quickly. The feature uses the number buttons on the keypad (0-9), to which WIPE patterns previously registered can be recalled at the touch of a button. Up to 20 patterns can be registered as direct patterns under two pages (PAGE 0 and PAGE 1). As an operational example, let's save Pattern 20 to the Direct Pattern memory and load it to a WIPE transition.

To Register Pattern 20 to Button 1 (PAGE 0):

(1) Press WIPE in the transition block to display the [TRANS] (1/6) menu. (2) Turn F4 to select 20.

Modify the pattern, if necessary.  See section 8-9 "Modifying Patterns."

(3) Press DIRECT PATT on the left side of the SELECT/KEYPAD block to display the

[DIRECT PATTERN] menu. The keypad also changes to DIRECT PATTERN mode.

(4) Turn F1 to select PAGE 0, if it is not selected.

(5) Press STORE in the Keypad. (6) Press 1 in the Keypad.

If a Pattern is already Saved to Button 1:

If Button 1 is lit in the keypad when pressing the DIRECT PATT button, another pattern has already been saved to the button. Press 1 . The button will blink. To overwrite the current pattern with Pattern 20, press 1 again. To cancel the overwrite, press STORE. To save to another button, press an unregistered button.

If users cannot overwrite a number button (lit red), cancel the operation and change the OVER WR (overwrite) parameter from DISBL (disable) to ENABL (enable) in the [DIRECT RECALL] menu. The [DIRECT RECALL] menu is automatically displayed when the number button to which a pattern is stored on the keypad is pressed.

Page 70

To Select Pattern 20:

DIRECT : PAGE :DIRECT :CLEAR : : 1/1

PATTERN : =0 : =ON : >OFF : :

DIRECT :PATTERN :OVER WR:DELETE : 1/1

RECALL : =020 : =DISBL: >OFF :

DIRECT :PATTERN :OVER WR:DELETE : 1/1

RECALL : =020 : =ENABL: >ON :

DIRECT : PAGE :DIRECT :CLEAR : : 1/1

PATTERN : =0 : =OFF : >ALL : :

MENU ATTACH

DIRECT

PATT

DETACH

SETUP

KEY1

8 9

4 5 6

STILL MATT F ILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL ST ORE

ENTER

CK EFF ECT

TRANS RAT E WIPE

SELECT /KEYPAD

(1) Press DIRECT PATT to change the keypad

to DIRECT PATTERN mode.

(2) Press 1 on the Keypad. Pattern 20 will be

selected and the transition type is automatically switched to WIPE.

If Pattern 20 is not selected…

Press RECALL on the keypad after pressing 1 . If DIRECT is set to ON in the [DIRECT PATTERN] menu by turning F2,Direct Recall mode is enabled and patterns can be recalled by pressing number buttons (without pressing RECALL.)

If another pattern is selected… PAGE 1 is assumed to be selected. Select PAGE 0 in the [DIRECT PATTERN] menu by turning F1.

To Set Overwrite Protection or Delete the Data

(1) Press DIRECT PATT to change the keypad mode.

(2) Verify that PAGE0 is selected.

(3) Press 1 on the Keypad. The [DIRECT RECALL] menu will be displayed.

(4) Turn F3 to change OVER WR (Overwrite) to DISBL (Disable) to set overwrite protection.

Turn F4 to set DELETE to ON and then press F4. The data will be deleted from the button.

In the procedure above, Pattern 20 is recalled when 1 is pressed. To prevent the pattern,

from being recalled, set DIRECT to OFF in the menu before recalling the event, then press

the number button.

To Clear All Direct Pattern Registrations

(1) Press DIRECT PATT to change the keypad mode.

(2) Turn F3 to change CLEAR to ALL. Then press F3 to clear all direct patterns.

Page 71

8-8-4. Other Transition Settings

Transition direction

NOR/REV button

REV button

Always Normal

Unlit

Always Reverse

Unlit

Lit

Normal at Normal/Reverse operation

Lit

Unlit

Reverse at Normal/Reverse operation

Lit

Transition Direction

Two direction buttons (NOR/REV, REVERSE) are used to set the pattern transition direction as shown in the table below.

Transition Rate

The AUTO transition duration (Transition Rate) can be set in the menu.  See section 8-11-2. "Transition Rate."

Transition Limit

When performing transitions there may be times when you want the transition to the next signal to only complete to a certain degree instead of fully switching from one picture to another. In such case, change the Transition Limit setting in the menu.  See section 8-11-3. "Transition Limit."

Page 72

8-9. Modifying Patterns

Pattern No.

Type of Group

Available modification settings

0 to 99

WIPE

2D border, multi, 2D position, 2D size, etc.

100 to 137

DVE (2D DVE)

2D border, 2D position, 2D size, crop, etc.

TRANS : RATE :TRANS LIMIT :PAT NO : 1/6

BKGD : =30 :=100.0 =OFF : =M0 :

WIPE :>BORDER >POS/ANGL>MULTI >CG WIPE

No.0XX :>INIT

WIPE :SIGNAL : WIDTH : SOFT : : 1/2

BORDER : =MATT : =0.0 : =0.0 : :

WIPE : BORDER COLOR :RECALL : 2/2

BORDER :S=66.3 L=5.4 H=3.5 : >WHITE:

WIPE : POSITION : ANGLE :ASPECT : 1/1

POS/ANGL:X=0 Y=0 : =0.0 : =0.0 :

WIPE : MULTI : : 1/1

MULTI :X=1 Y=1 : :

WIPE : INIT : : 1/1

INIT : >OFF : :

Preset patterns can be modified using the WIPE menu. Two pattern types are available: WIPE and DVE. Each type has its own menu pages.

If a pattern is modified, the pattern number starts with the letter "M" in the [TRANS](1/6) menu as shown below.

The following chapters explain how to modify patterns using the background and KEY1 as examples.

8-9-1. WIPE Type (No. 0-99)

 WIPE menu

The pattern number is displayed instead of "0XX" in the top page of the submenu.

 See section 12-5-3. "CG WIPE Menu Quick Reference" for details on CG WIPE pages.

Page 73

 Modify Pattern 20

TRANS : RATE :TRANS LIMIT :PAT NO : 1/6

BKGD : =30 :=100.0 =OFF := 20 :

WIPE :>BORDER >POS/ANGL>MULTI >CG WIPE

No.020 :>INIT

WIPE :SIGNAL : WIDTH : SOFT : : 1/2

BORDER : =MATT : =5.0 : =2.0 : :

Modified pattern data is lost when the switcher is powered off. In addition, any modified data is fully or partly lost when another pattern is selected. It is recommended that important modified patterns be registered to Direct Patterns.

SIZE

(PUSH to DEF)

1 2 3 4 5 6 7 8

USER BUTTON

REV NOR/REV

DIRECTION

BLACK

TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TY PE

AUTO CUT DSK1 DSK2

MENU AT T ACH

DIRECT

PATT

DETACH

SETUP

KEY1

POSITION

POS ROT

2D DVE

WIPE

POS

JOYSTICK

8 9

4 5 6

STILL MA TT FI LE

KEY2 DS K1 DSK 2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFF ECT

TRANS RATE WIPE

SELECT/KEYPAD

This modification example adds a border to the background transitions using Pattern 20. (1) Select a desired signal on the PST bus.

(2) Press BKGD in the NEXT TRANSITION block. (3) Press WIPE. The [TRANS] (1/6) menu is displayed. (4) Press F4 to enter 20 in the keypad, then press ENTER.

(5) Press MENU,then WIPE in the SELECT/KEYPAD block to display the [WIPE] menu. (6) TurnF1 to select BORDER, then press F1 or the page down button to display the

submenu.

(7) The [WIPE - BORDER] menu appears. Turn F1 to select the signal used for the border

under SIGNAL. Select MATT in this example. Set the border width under WIDTH and border softness under SOFT.

(8) Press the page down button to go to PAGE 2. (9) Turn F4 to select a border color among eight standard colors.

 See section 5-9-1. "Setting the Matte Color" for details on color setting.

Page 74

To Register the Modified Pattern to a Direct Pattern:

TRANS : RATE :TRANS LIMIT :PAT NO : 1/6

BKGD : =30 :=100.0 =OFF := M20 :

WIPE :>BORDER >POS/ASP >CROP >CG WIPE

No.1XX :>INIT

WIPE : INSIDE : OUTSIDE : 1/3

BORDER :X=0 Y=0 :X=0 Y=0 :

WIPE : INSIDE :OUTSIDE: : 2/3

BDR SOFT:X=0 Y=0 : =0 : :

WIPE : BORDER COLOR :RECALL : 3/3

BDR COL :S=0.0 L=100.0 H=0.0 : >WHITE:

WIPE : POSITION : SIZE : : 1/2

POS/SIZE:X=0 Y=0 : =1000 : :

WIPE : ASPECT :FADE LV: : 2/2

ASPT/FAD:X=1000 Y=1000 : =0.0 : :

WIPE : CROP POSITION : 1/1

CROP :T=0.0 B=0.0 L=0.0 R=0.0 :

WIPE : INIT : : 1/1

INIT : >OFF : :

 Refer to section 8-8-3. "Direct Pattern Function" to save a modified pattern to a direct

pattern.

To Reset the Modified Pattern:

(1) Press WIPE in the transition block to display the [TRANS] (1/6) menu. The letter "M"

(Modified) will be displayed in front of 20.

(2) Press and hold down F4. Pattern 20 will be reset to its default settings.

8-9-2. DVE Type (No. 100-137)

 WIPE menu

The pattern number is displayed instead of "1XX" in the top page of the submenu.

 See section 12-5-3 "CG WIPE Menu Quick Reference" for details on CG WIPE pages.

Page 75

 Modify Pattern 117

TRANS : RATE :TRANS LIMIT :PAT NO 1/6

BKGD : =30 :=100.0 =OFF := 117

WIPE : INSIDE : OUTSIDE : 1/3

BORDER :X=20 Y=50 :X=0 Y=0 :

WIPE : INSIDE :OUTSIDE: : 2/3

BDR SOFT:X=3 Y=3 : =0 : :

WIPE : INIT : : 1/1

INIT :>BORDER: :

This modification example also adds a border effect to KEY1 transitions using Pattern 117. However Pattern 117 has different border settings than Pattern 20, and can be used for both inside and outside border effects.

(1) Set up KEY1.

 See section 9. "KEY/DSK." (2) Press KEY1 in the NEXT TRANSITION block. (3) Press WIPE. The [TRANS](1/6) menu is displayed. (4) Press F4, enter 117 and press ENTER in the Keypad.

(5) Press MENU, then WIPE in the SELECT/KEYPAD block to display the [WIPE] menu.

Select BORDER. Press F1 or the page down button. (6) An inside border is added in this example. To add a border, set the border width under

INSIDE X and Y.

(7) Press the page down button to go to PAGE 2. Set the softness for the inside border under

INSIDE X and Y.

(8) Press the page down button to go to PAGE 3 and set the border color.

 See section 5-9-1. "Setting the Matte Color."

To Register the Modified Pattern to a Direct Pattern:

 Refer to section 8-8-3. "Direct Pattern Function" to save the modified pattern to a direct

pattern.

To Fully or Partly Reset the Modified Pattern:

The INIT parameter allows the user to reset a submenu respectively in the WIPE menu. (1) Display the [WIPE - INIT] menu.

(2) Turn F1 to select the parameter group you want to reset. Press and hold down F1 to reset

the selected parameter values.

Page 76

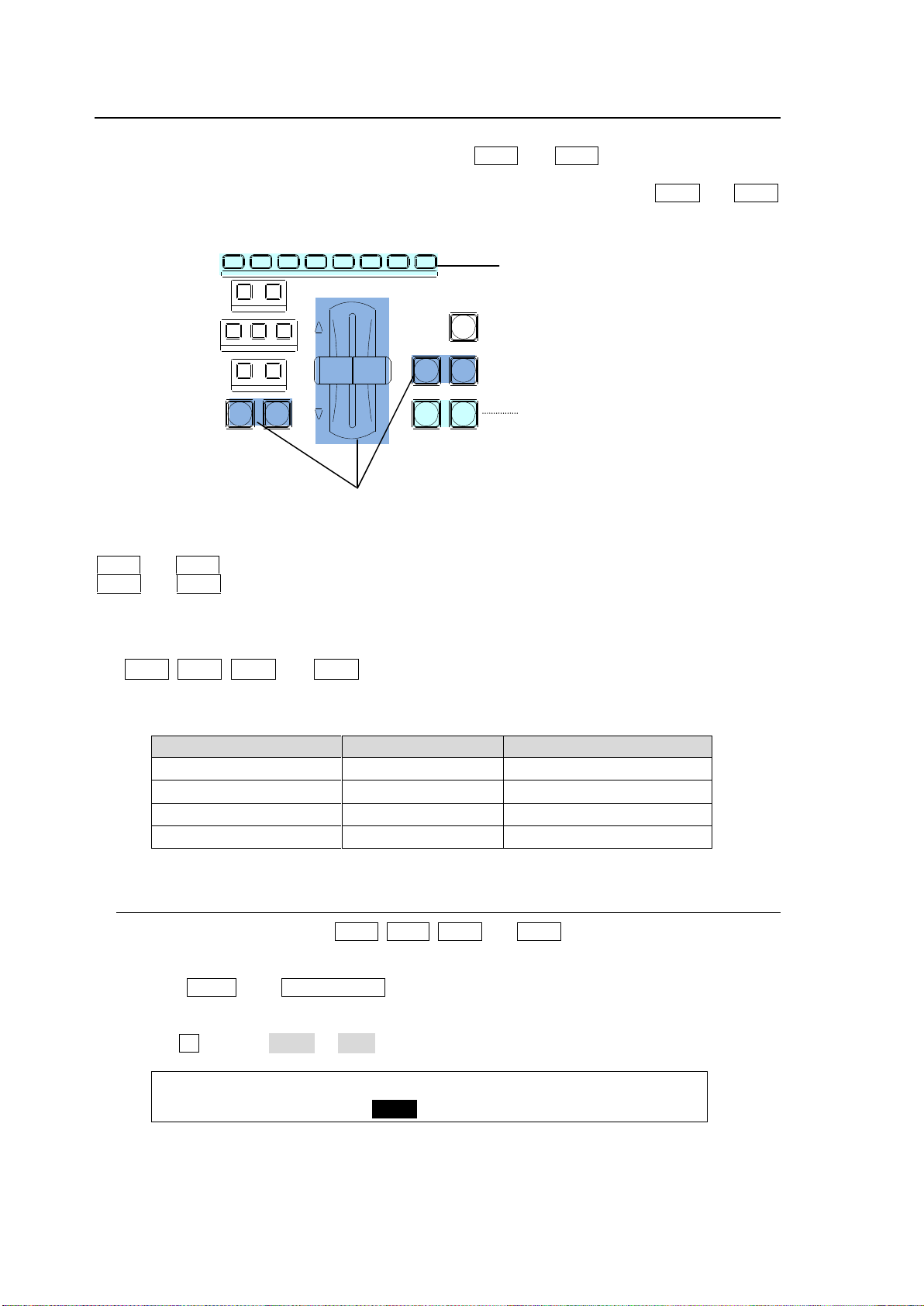

8-10. KEY/DSK Transitions

Transition state

Output bus

Transition button indication

On-Air

M/E

Lit red

On-Air (DSK1-2)

AUX1-8

Lit green

Transition

---

Flashing

Off-Air

---

Unlit

TRANS : RATE :ADV CTL: TRANS LIMIT : 2/6

KEY1 : =30 : =AUTO : =100.0En=OFF :

For KEY1 and KEY2 transitions

For DSK1 and DSK2 transitions

KEY1-2 and DSK1-2 transitions possible if transition functions are assigned.

1 2 3 4 5 6 7 8

USER BUTTON

REV NOR/REV

DIRECTION

BLACK TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TYPE

AUTO CUT DSK1 DSK2

KEY1 and KEY2 transitions can be performed not only through the BKGD AUTO button and fader lever, but also through key transition buttons (KEY1 and KEY2 in the transition section) and user buttons, to which key transition functions are assigned. DSK1 and DSK2 transitions can be performed through DSK transition buttons (DSK1 and DSK2 in the transition section) and user buttons, to which DSK transition functions are assigned.

KEY1 and KEY2 transition buttons can perform CUT and AUTO (MIX and WIPE) transitions. DSK1 and DSK2 transition buttons can perform CUT and MIX transitions. Key or DSK transitions such as CUT, MIX, SCALER, SLIDE (4 types) and WIPE (4 types) can be assigned to user buttons.

 KEY1, KEY2, DSK1 and DSK2 Transition Button Light Indications The transition buttons turn on while On-Air and turn off when Off-Air. The light-up color of DSK buttons indicates the output destination (M/E or AUX bus).

8-10-1. Setting the KEY/DSK Transition Button Function

Transition button functions for KEY1, KEY2, DSK1 and DSK2 are set in the menu as shown below.

(1) Press MENU, then TRANS RATE in the SELECT/KEYPAD block to display the [TRANS]

(1/6) menu. (2) Press the page down button to go to PAGE 2 in case of KEY1. (3) Turn F2 to select AUTO or C/AT.

Page 77

The buttons are set to AUTO as factory default. The transition buttons function as shown in

Parameter

Setting

Description

ADV CTL

AUTO (default)

KEY1 KEY2

Always performs AUTO transitions regardless of how long the button is pressed.

DSK1 DSK2

Always performs MIX transitions regardless of how long the button is pressed.

C/AT KEY1 KEY2

Performs Cut transitions when button is briefly pressed. Performs AUTO transitions when button is pressed and held down.

DSK1 DSK2

Performs Cut transitions when button is briefly pressed. Performs MIX transitions when button is pressed and held down.

OFF

Disables the button function.

Note that users can perform key transitions by pressing AUTO as well as KEY1 or KEY2.  See section 8-4. "KEY Transitions."

USER :SELECT : TYPE : FUNC(F3) : 1/2

BUTTON : =OU-3 : =USTRS: =DSK1 SCALER

TYPE Setting

FUNC Setting

Description

USTRS (User Transition)

CUT

Cuts images in or out.

SCALER

Scales up to insert images or scales down to remove images.

SLIDE RIGHT/LEFT

Slides in to insert images or slides out to remove images.

SLIDE TOP/BOTTOM

WIPE RIGHT/LEFT

Wipes images in or out. WIPE TOP/BOTTOM

the table below.

The transition time can be set under RATE in each [TRANS] menu.  See section 8-11-2. "Transition Rate" for details.

8-10-2. USER Transitions

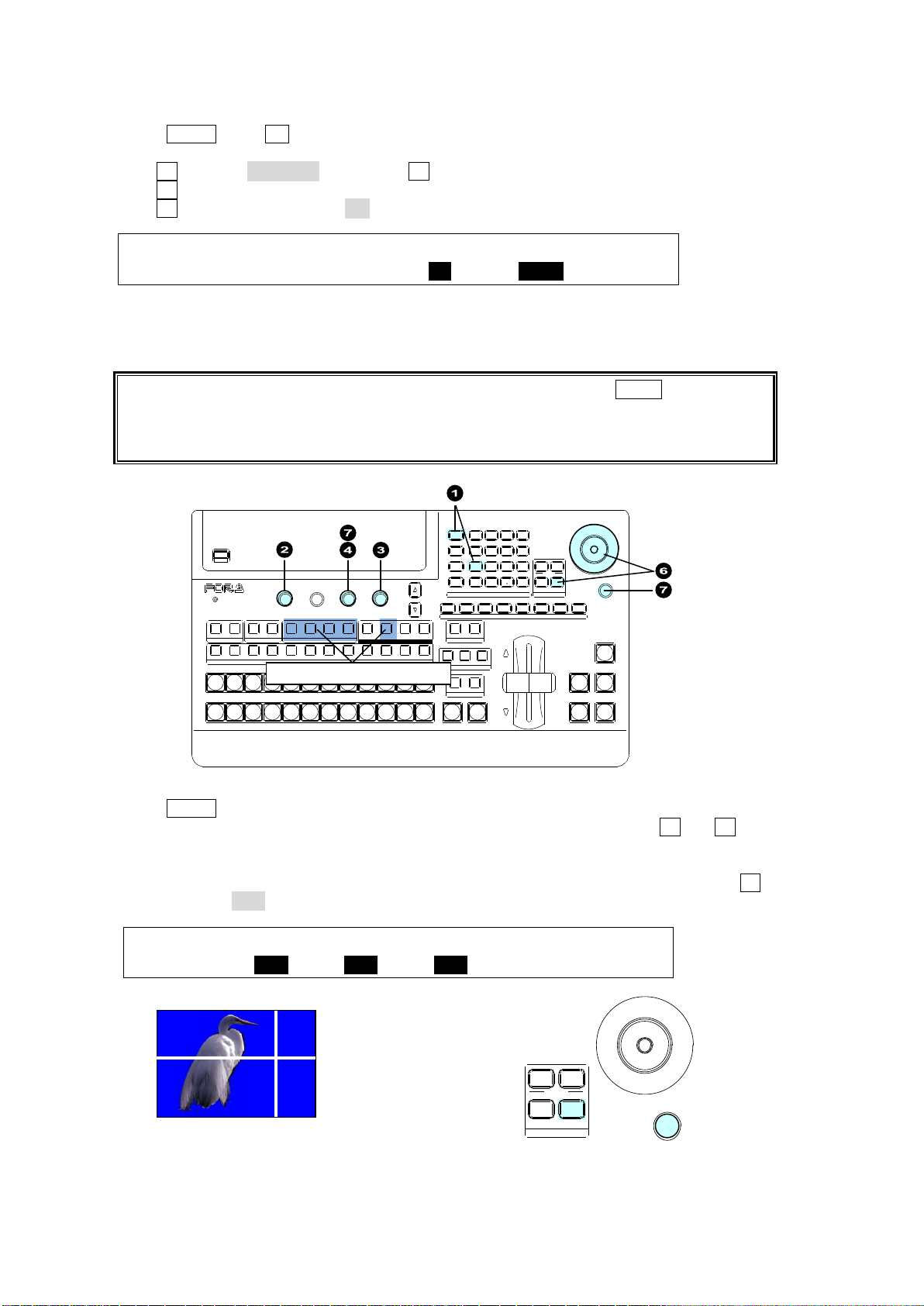

The Key and DSK transition functions can be assigned to user buttons. This chapter explains how to assign functions to buttons by assigning DSK1 SCALER to USER BUTTON 3 as an example.

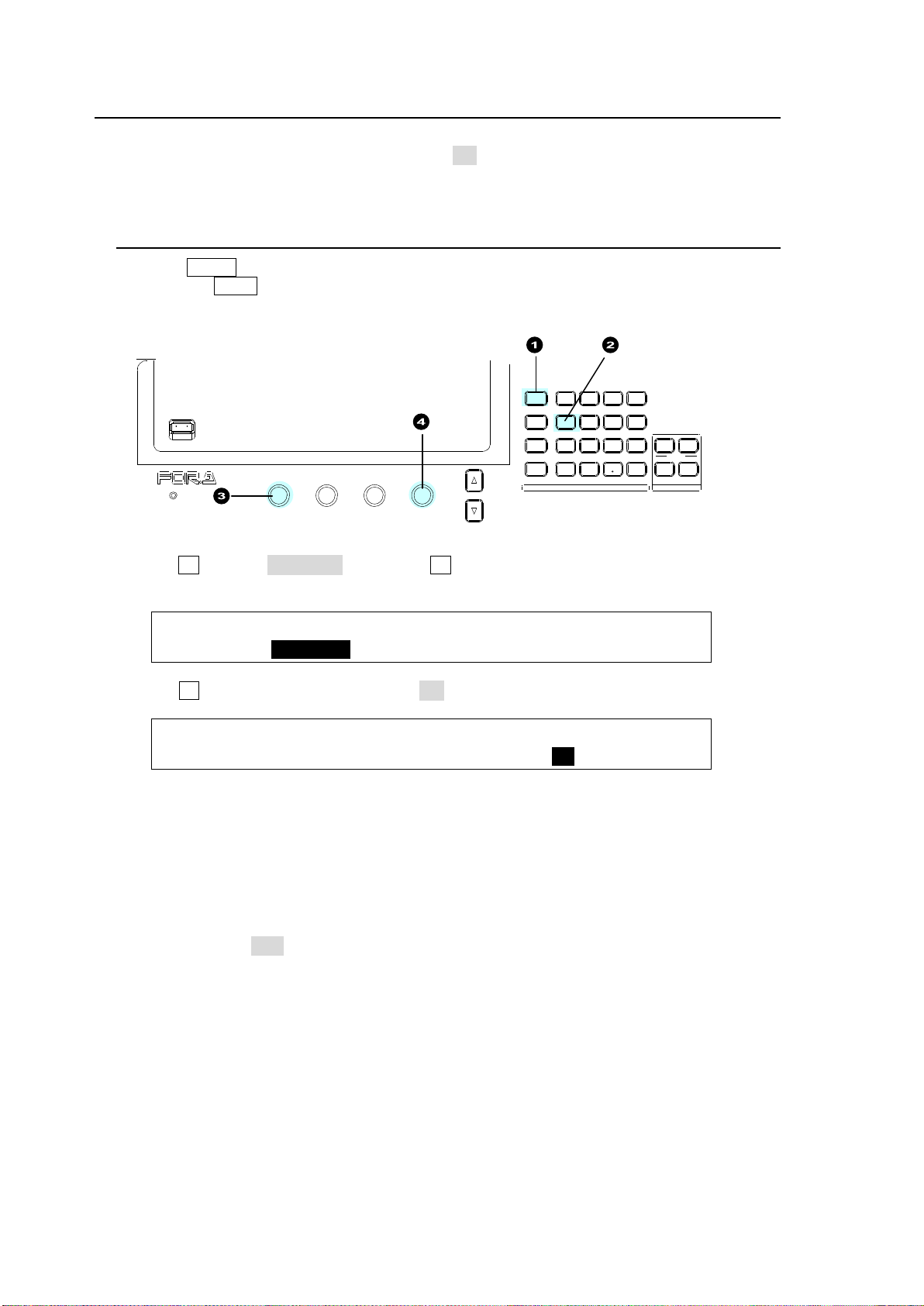

(1) Press MENU, then SETUP in the SELECT/KEYPAD block to display the menu. (2) Turn F1 to select PANEL, then press F1 to display the [SETUP - PANEL] menu. (3) Turn F1 to select USER BTN, then press F1 to display [SETUP - PANEL - USER

BUTTON] (1/2) menu. (4) Turn F1 to select OU-3 (USER BUTTON 3). (5) Turn F2 to select USTRS (User Transition), then press F2. (6) Turn F3 to select DSK1 SCALER, then press F3.

(7) Press USER BUTTON 3 to perform the DSK1 transition.

Avilable User Transitions

See section 14. "User Buttons."

Page 78

8-11. Transition Settings

Parameter

Description

Refer to sec.

RATE

Sets the transition rate for each bus.

8-11-2

TRANS LINIT

Sets the transition limit for each bus.

8-11-3

ADV CTL

Sets the transition function for the KEY1, KEY2, DSK1 and DSK2 transition buttons (to the right side of the fader)

8-10-1

PAT NO (PAGE 1)

Selects a pattern for the BKGD, KEY1 and KEY2 pattern transitions.

8-8-1

ENABLE (PAGE 6)

Enables/Disables the BLACK TRANSITION button.

8-7

TRANS : RATE :TRANS LIMIT :PAT NO : 1/6

BKGD : =30 :=100.0 =OFF : =0 :

TRANS : RATE :ADV CTL: TRANS LIMIT : 2/6

KEY1 : =30 : =AUTO : =100.0En=OFF :

TRANS : RATE :ADV CTL: TRANS LIMIT : 3/6

KEY2 : =30 : =AUTO : =100.0En=OFF :

TRANS : RATE :ADV CTL: TRANS LIMIT : 4/6

DSK1 : =30 : =AUTO : =100.0En=OFF :

TRANS : RATE :ADV CTL: TRANS LIMIT : 5/6

DSK2 : =30 : =AUTO : =100.0En=OFF :

TRANS : RATE :ENABLE : : 6/6

BLACK : =30 : =ON : :

8-11-1. TRANS Menu

To display the [TRANS] menu, press MENU, then TRANS RATE in the SELECT/KEYPAD block. The [TRANS] menu consists of six pages for each bus. Use the page down or up button to move between pages.

Pressing the following buttons in the transition block can also open the related TRANS menu page.

BKGD, KEY1, KEY2 (NEXT TRANSITION butons on the left side of the fader) MIX, WIPE (TRANSITION TYPE buttons)

8-11-2. Transition Rate

The transition rate setting determines how long the transition takes in frames to complete. (1) Open the desired [TRANS] menu page.

(2) Turn F1 to set the transition rate. To enter the rate in the KEYPAD, press F1, enter the

rate using the keypad, then press ENTER in the keypad to store the new transition rate. The setting range is 0 to 999 on a frame basis.

Page 79

8-11-3. Transition Limit

TRANS : RATE :TRANS LIMIT :PAT NO : 1/6

BKGD : =30 :=90.0 =ON : =0 :

PANEL :BUSTYPE: : FADER OFFSET : 1/1

M/E CTRL: =P/P : :U=1.00 L=1.00 :

Parameter

Description

FADER OFFSET

Sets the upper edge offset.

Sets the bottom edge offset.

FUNCTION:TRSEDGE:KEY LNK: DSK ASSIGN : 1/1

M/E KEY : =OFF : =ON :1=M/E 2=M/E :

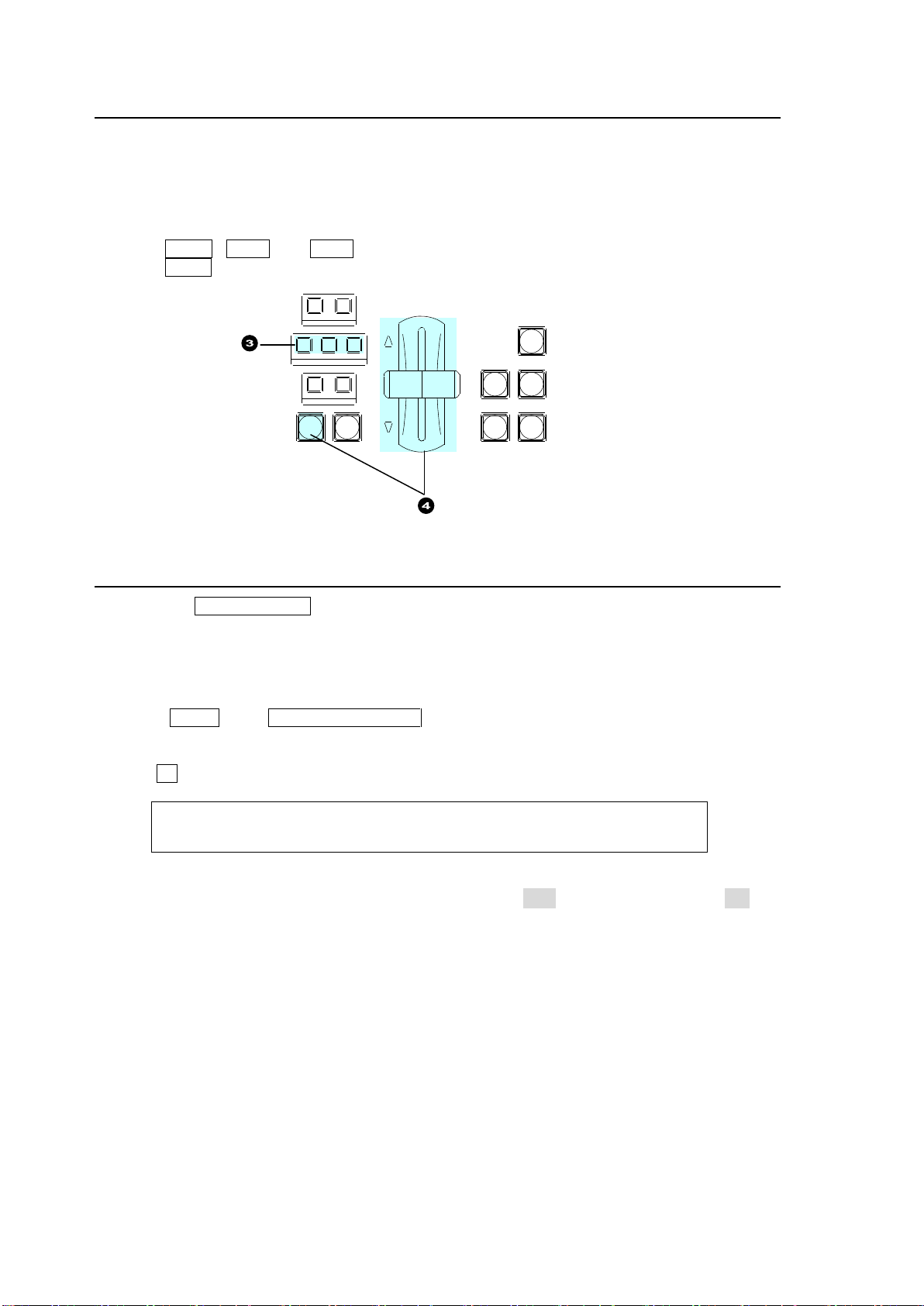

The Transition Limit setting determines how far your transition can proceed. When performing transitions (mix or other) there may be times when you want the transition to the next signal to only complete to a certain degree instead of fully switching from one picture to another. To perform background transitions that do not fully switch pictures, proceed as follows.

(2) Turn F2 to set to 90.0. Turn F3 to set to ON under TRANS LIMIT.

(3) Let's perform background MIX or WIPE transitions by pressing AUTO or moving the fader

lever. The transition must be completed before the background pictures are fully switched. The default settings are 100.0 and OFF. With this setting, the transition is complete with fully

switching pictures. In the following menu pages, the transition limit for KEY1-2 and DSK1-2 can be set in the same way

8-11-4. Adjusting the Fader Offset

The fader offset range can also be adjusted in the [SETUP - PANEL - TRS CTRL] menu. Turn F3 and F4 to adjust the fader OFFSET.

8-11-5. Endpoint Processing for DVE Transitions

In DVE operations, differences in video delay times when entering and exiting DVE effects can cause the video to appear choppy. This choppiness can be reduced by menu setting so that the DVE effect always exits at the transition start and end points (TRS EDGE to OFF in the [SETUP - FUNCTION - M/E_KEY] menu).

Page 80

9. KEY/DSK

Feature

KEY1 and KEY2

KEY3 and KEY4

Refer to

Luminance key

Available

9-1

Full key

Available

9-2

Bus key

Available

9-3

Key invert

Available

9-6-1

Box mask, signal mask

Available

9-6-2

Preset mask

Available

9-6-2

Edge effect

Available

9-7

Pattern transition

Available

8-8

2D DVE

Available

9-8

IN/OUT effects

Available

8-10

AUX output

Available

8-5-1

Luminance Key

Edge

Full Key

BOX(AND)

mask

The key feature enables you to superimpose titles and images onto background signals. With the switcher, four key channels are provided: KEY1-2 and DSK1-2. Three key types are available in all keyers: Luminance Key, Full Key and Bus Key. Key Invert, Mask and 2D DVE effects can also be added to keys. Furthermore, Edge effects can be used in KEY1 and KEY2.

KEY1, KEY2, DSK1 and DSK2 Features

The following section describes key setup and adjustment using KEY1 as an example.

 Luminance Key

Luminance Key, also called Self Key, uses the same image for Key Source and Key Insert. This image is selected from Key Insert.

 Full Key

Full Key displays the key insert signal full-screen.

Page 81

 Bus Key

KEY1 :>INS/SRC >EDGE >MASK

SETUP :>POS/SIZ >BORDER >INIT

KEY1 : TYPE :INSERT :SOURCE :INVERT : 1/4

INS/SRC : =LUM : =IN01 : =IN01 : =OFF :

Bus key

BOX(OR)

mask

INVERT

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV CLEAN MV

Bus Key, also called External Key, uses different images for Key Source and Key Insert. The background signal is cut out using Key Source and Key Insert fills in the cut-out part of the signal.

9-1. Luminance Key

(1) PressKEY1 above the KEY/AUX bus. (2) Select a signal for Key Insert in the KEY/AUX bus.

(3) Double-press KEY1 above the KEY/AUX bus to display the [KEY1 SETUP] menu. (4) Turn F1 to select INS/SRC, and press F1 or the page down button.

(5) The [KEY1 - INS/SRC] menu is displayed. Turn F1 to set TYPE to LUM. The insert signal can

also be selected at INSERT.

 See section 8-4. "KEY Transitions" and 8-10. "KEY/DSK IN/OUT Effects" for details on

transitions.

 See section 9-4. "Adjusting Key Signal" for details on making fine adjustments. Edge (KEY1

and 2 only), Invert, Mask and 2D DVE effects can be applied to Luminance keys.

Page 82

9-2. Full Key

KEY1 : TYPE :INSERT :SOURCE :INVERT : 1/4

INS/SRC : =FULL : =IN01 : =IN01 : =OFF :

KEY1 :>INS/SRC >EDGE >MASK

SETUP :>POS/SIZ >BORDER >INIT

KEY1 : TYPE :INSERT :SOURCE :INVERT : 1/4

INS/SRC : =BUS : =IN01 : =IN02 : =OFF :

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV CLEAN MV

(1) Follow Step (1) to (4) in "Luminance Key" above. (2) The [KEY1 - INS/SRC] menu is displayed. Turn F1 to set TYPE to FULL. The insert signal

can also be selected at INSERT.

 See section 8-4. "KEY Transitions" and 8-10. "KEY/DSK IN/OUT Effects" for details on

transitions.

 See section 9-4. "Adjusting Key Signal" for details on making fine adjustments. Edge (KEY1

and 2 only), Invert, Mask and 2D DVE effects can be applied to Luminance keys.

9-3. Bus Key

Bus Key uses different signals for Key Insert and Key Source. To create a Bus Key, select a Key Insert signal and a Key Source signal in the menus. Since selecting a signal in the menu takes time, the switcher has a KEY LINK function, which enables you to select a key source and insert using only a source button.  See section 9-3-1. "Key Link" for details.

(1) Press KEY1 above the KEY/AUX bus. (2) Select a signal for Key Insert in the KEY/AUX bus.

(3) Double-press KEY1 above the KEY/AUX bus to display the [KEY1 SETUP] menu. (4) Turn F1 to select INS/SRC, and press F1 or the page down button.

(5) The [KEY1 - INS/SRC] menu is displayed. Turn F1 to set TYPE to BUS. (6) Turn F3 to select a signal for Key Source in SOURCE.

 See section 8-4. "KEY Transitions" and 8-10. "KEY/DSK IN/OUT Effects" for details on

transitions.

 See section 9-4. "Adjusting Key Signal" for details on making fine adjustments. Edge (KEY1

and 2 only), Invert, Mask and 2D DVE effects can be applied to Luminance keys.

Page 83

9-3-1. Key Link

NOTE

If key links do not work properly, set LINK to ON in the [SETUP- FUNCTION M/E_KEY] menu.

KEY INSERT MATT is a dedicated matte signal for keys and it is not the same as BUS MATT. The different colors can be set in KEY INSERT MATT for each key.

KEY1 : TYPE :INSERT :SOURCE :INVERT : 1/4

INS/SRC : =BUS : >InMAT: =IN02 : =OFF :

KEY1 : MATT COLOR :RECALL : 4/4

INS MATT:S=67.3 L=15.8 H=257.5: >RED :

Key Links cannot be applied to KEY MATT.

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV CLEAN MV

A Key Source signal can be selected concurrently when a Key Insert signal is selected if KEY LINK is on. The INSERT/SOURCE signal pairs for Bus keys are automatically set once they are selected for a key. To change signal assignment, select the INSERT/SOURCE signal pair again for the key or another key. The same assignments are shared among all keys of KEY1-2 and DSK1-2.

When Using the Key Link:

(1) Select a key among KEY1-2 and DSK1-2. (2) Select a signal for KEY INSERT in the KEY/AUX. This allows users to set a key signal

pair: KEY INSERT and KEY SOURCE signals.

9-3-2. KEY INSERT MATT

In addition to the bus matt signal, the internally generated MATT can be used as key fill.

(1) Set up a Bus Key, then press F2 in the [KEY1 - INS/SRC] menu to set INSERT to InMAT

(Insert Matt).

(2) Press the page down button to go to PAGE 4. (3) Turn F4 and select a color among eight standard colors, then press F4.

To use a different color, turn F1, F2, and F3 to adjust the color.

 See section 5-9-1. "Setting the Matte Color."

Page 84

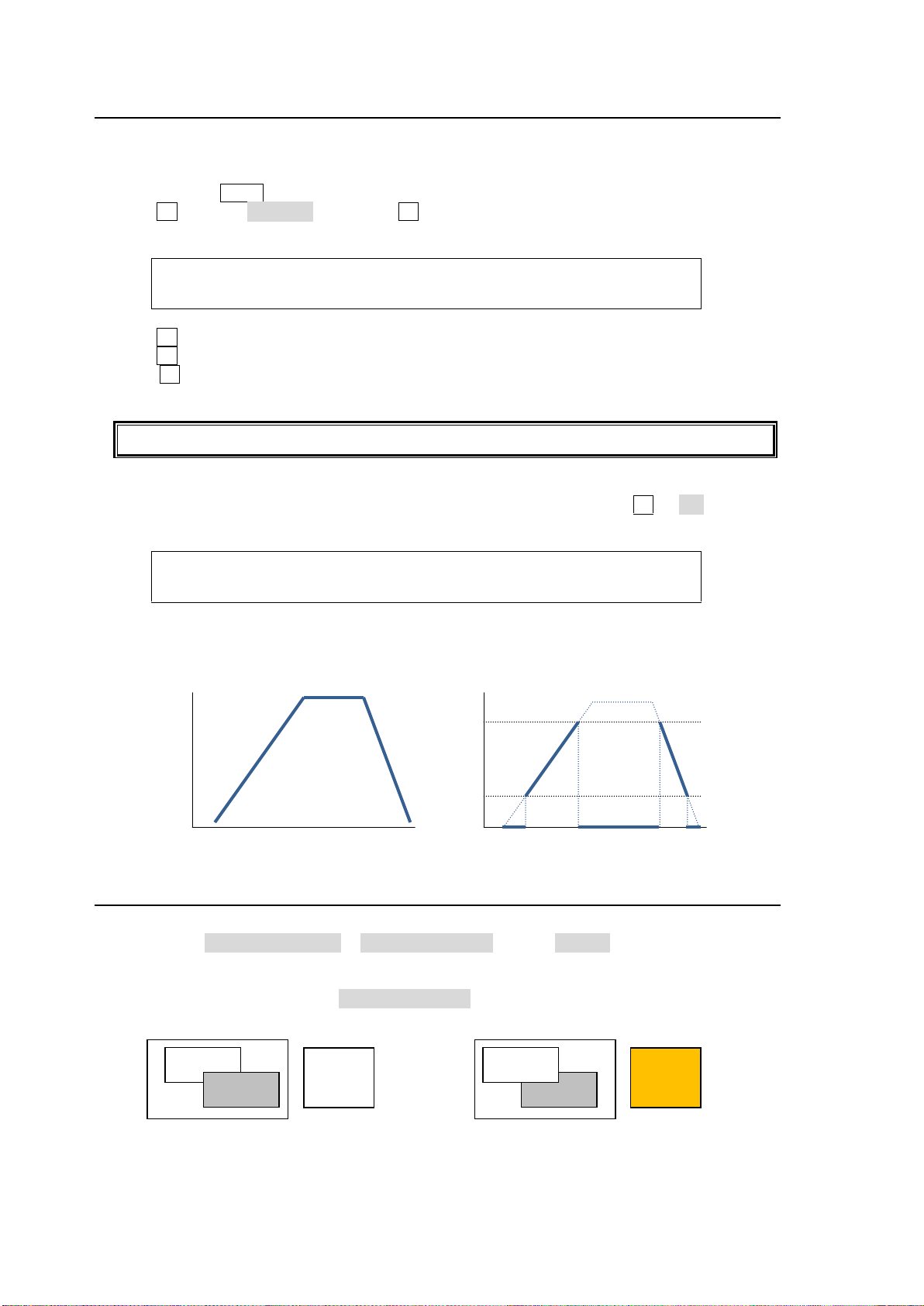

9-4. Adjusting the Key Signal

KEY1 : GAIN : CLIP :TRANSP :FAM : 2/4

ADJUST : =1.0 : =6.2 : =0.0 : =OFF :

Clip thresholds of key signals can be set for Bus and Luminance keys.

KEY1 :CLIP-H :CLIP-L :ENABLE : : 3/4

KEY CLIP: =100.0: =0.0 : =ON : :

100.0%

Pixel

0.0%

CLIP-H

CLIP-L

Key

luminance

level

100.0%

Pixel

0.0%

USER button

lit orange

USER button

lit white

KEY1

KEY2

KEY1

Clip and Gain allows users to adjust the key signal and its composition over the background. KEY transparency can also be adjusted.

(1) Double-press KEY1 above the KEY/AUX bus to display the [KEY1 SETUP] menu. (2) Turn F1 to select INS/SRC, and press F1 or the page down button. (3) The [KEY1 - INS/SRC] menu is displayed. Press the page down button to go to PAGE2.

(4) Turn F1 to adjust GAIN (5) Turn F2 to adjust CLIP for adjusting the key. (6) Turn F3 to set the level of key transparency. Increasing the value makes the key more

transparent.

(7) Go to PAGE 3. (8) Set key luminance thresholds levels under CLIP-H and CLIP-L. Turn F3 to ON to enable

these limits.

 Clip Example Original Key signal Clipped Key signal

9-5. Changing KEY or DSK Layer Order

Layer order between KEY1 and KEY2, and DSK1 and DSK2 can be changed using a USER button. Assign KEY1/2PRIORITY or DSK1/2PRIORITY (TYPE: KEYER) to a USER button.  See section 14. "USER Buttons."

Press the USER button, to which KEY1/2PRIORITY is assigned. KEY1 appears in front of KEY2.

The DSK layer order can be changed in the same way as that of KEY order. Also note that two DSK layers are always placed in front of two KEY layers.

Page 85

9-6. Mask and Invert

KEY1 : TYPE :BOX MSK:MASK(EXT/PST) : 1/5

MASK : =AND : =ON : S=OFF :INV=OFF:

KEY1 : BOX MASK POSITION : 2/5

MASK POS:T=0 B=0 L=0 R=0 :

Bus key

BOX(OR)

mask

INVERT

Mask and Invert can be used for all keys. Preset masks are available only for KEY1 and KEY2.

9-6-1. Inverting Key and Background

Setting Invert to ON inverts the key image and the background image. Set INVERT in the [KEY1 - INS/SRC] menu to ON. The key signal is then inverted.

9-6-2. Key Masks

 BOX Mask Box-shaped masks can be applied to keys. They can also be inverted so that the keyed area inside the box becomes invisible.

(1) Create KEY1. (2) Double-press KEY1 above the KEY/AUX block to display the [KEY1 SETUP] menu. (3) Turn F1 to select MASK, and press F1 or the page down button to open the [KEY1 -

MASK] menu. (4) Turn F2 to set BOX MASK to ON in PAGE 1 of the [KEY1 - MASK] menu. (5) Set TYPE to AND or OR. If set to AND, the area where Key Source and Box Mask overlap

is used as the key signal. If set to OR, both Key Source and Box Mask are used as the key

signal.

(6) Set the horizontal and vertical mask width on PAGE 2 in the MASK menu.

Page 86

 Signal Mask

KEY1 : TYPE :BOX MSK:MASK(EXT/PST) : 1/5

MASK : =AND : =OFF : S=AUX5:INV=ON :

KEY1 : TYPE :BOX MSK:MASK(EXT/PST) : 1/5

MASK : =AND : =OFF : S=PST :INV=ON :

KEY1 :PATTERN : :LEVEL : 3/5

WIP PTRN: =51 : : =50.0 :

KEY1 : POSITION : ANGLE :ASPECT : 4/5

WIP POS :X=0 Y=0 : =0.0 : =0.0 :

KEY1 : MULTI : SOFT : : 5/5

WIP MULT:X=1 Y=1 : =0.0 : :

Video inputs can be used for mask signals instead of Box. Inputs used for masks must be assigned to AUX1 to AUX8. Combined video signals such as program or multi-view cannot be used.

(1) Open [KEY1 - MASK] menu PAGE 1. (See the previous page.) (2) Turn F3 to select a mask signal. (3) If you want to invert a key signal, turn F4 to ON. (4) Set TYPE to AND or OR.

 Preset Mask WIPE patterns can be used for mask signals for KEY1 and KEY2.

(1) Open the [KEY1 - MASK] menu PAGE 1. (See the previous page.) (2) Turn F3 to select PST (PRESET). (3) If you want to invert a key signal, turn F4 to ON. (4) Set TYPE to AND or OR.

(5) Press PAGE DOWN to go to PAGE 3. (6) Turn F1 to select a wipe pattern. (7) Turn F4 to change the pattern shape.

(8) Mask patterns can be modified referring to PAGE 4 and 5

Page 87

9-7. Key Edge

KEY1 : TYPE : SOFT :TRANSP : WIDTH : 1/3

EDGE : =O_LIN: =0 : =0 : =1 :

KEY1 : POSITION : : 2/3

EDGE POS:X=0 Y=0 : :

KEY1 : EDGE COLOR :RECALL : 3/3

EDGE COL:S=0.0 L=0.0 H=0.0 : >BLACK:

No edge, no shadow

Normal edge

Outline edge

Shadow

The EDGE function allows users to add border type edges on KEY1 and KEY2. Two types of edges are available: Normal and Outline. The width, transparency, and color can be set for the edges. Shadow effects can also be added by changing the position of edges. This chapter shows how to add a key edge using KEY1 as an example.

(1) Go to the [KEY1 - EDGE] menu. Turn F1 to select NORMAL or O_LINE for TYPE. Selecting

NORMAL allows users to add edges. O_LINE allows users to display outlines without key fill images.

(2) The SOFT parameter is for setting softness, TRANSP is for transparency, and WIDTH is for

edge width.

(3) Press the page down button to go to PAGE2. Change the X and Y values to set the edge

position.

(4) Press the page down button to go to PAGE3. The edge color can be set on this page. Turn

F4 to select a color among eight standard colors. If you wish to use a color other than the standard eight, adjust the color by turning F1, F2 and/or F3.

Page 88

9-8. DVE Effects on KEY/DSK

KEY1 :>INS/SRC >EDGE >MASK

SETUP :>POS/SIZ >BORDER >INIT

KEY1 : POSITION : SIZE :2D DVE : 1/5

POS/SIZE:X=0 Y=0 : =1000 : =ON :

USB MEMORY

DIGITA L VIDEO SWITCHER

ALARM

F1 F2 F3 F4

PAGE

MENU ATTACH

DIRECT

PATT

DETACH

SETUP

KEY1

POSITION

POS ROT

2D DVE

WIPE POS

JOYSTICK

8 9

4 5 6

STILL MATT FILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFFECT

TRANS RATE WIPE

SELECT/KEYPAD

Dedicated 2D-DVE(2.5D) effects are available for each key in the standard configuration. 2D-DVE is available just by setting 2D DVE to ON in each key menu. As an example, this section explains how to add a 2D-DVE effect on KEY1.

9-8-1. How to Enable 2D DVEs

(1) Press MENU in the SELECT/KEYPAD block. (2) Press the KEY1 button to display the [KEY1 SETUP] menu.

(3) Turn F1 to select POS/SIZE, then press F1 or the page down button to display the [KEY1

- POS/SIZE] menu

(4) Turn F4 to set 2D DVE in the menu to ON.

The 2D DVE function is enabled for KEY1, and therefore the POS/SIZE and BORDER menus for KEY1 become available.

If 2D DVE cannot be set to ON:

Up to 4 channels of DVE can be assigned to BKGD, KEY1-2 and DSK1-2. If no free DVE channels remain, 2D DVE cannot be enabled. In such case, deselect the assigned DVE channels as shown below to create free channels.

Set 2D DVE to OFF (for KEY and DSK)  See section 9-8-1. "How to Enable 2D DVEs."

Change transitions from WIPE (pattern: 100-137) to MIX (for KEY and BKGD):  See section 8-3. "Background Transitions" and section 8-4. "KEY Transitions."

Page 89

9-8-2. Changing Position and Size

KEY1 : POSITION : SIZE :2D DVE : 1/5

POS/SIZE:X=0 Y=0 : =500 : =ON :

KEY1 : POSITION : SIZE :2D DVE : 1/5

POS/SIZE:X=0 Y=0 : =500 : =ON :

The original base POSITION of a key is at the center of the output screen. You can set the position of the key images by specifying X and Y coordinates, with the origin of the axes located at the center of the screen.

Setting the size allows users to change the size of key images while retaining aspect ratios. If the value is 1,000, the key images will be full-screen size.

POSITION(0,0)

POSITION(200,200)

POSITION(-200,-200)

Background KEY1 image

SIZE(500)

SIZE(750)

The position and size of key images can be changed using the menu or joystick as follows:

Using the Joystick:

(1) Press the KEY1 menu button (with MENU lit) while holding down POS in the joystick

block. (2) Change the KEY1 position by moving the joystick up, down, left and right.

Change the key size by turning the SIZE control in the joystick block. The figures below are examples of SIZE=500 and 750 when POSITION is set to (0, 0).)

Using the Menu

(1) Double-press POS in the joystick block to display [KEY1 - POS/SIZE] menu PAGE1. (2) Turn F1 or F2 to set the position of the KEY1 image.

(3) Turn F3 to set the size of the KEY1 image.

Page 90

9-8-3. Changing the Aspect Ratio

KEY1 : ASPECT :FADE LV: : 2/5

ASPECT :X=1000 Y=1000 : =0.0 : :

KEY1 : ASPECT :FADE LV: : 2/5

ASPECT :X=1000 Y=1000 : =0.0 : :

(500, 500)

(500, 750)

(750, 750)

(1) Go to the [KEY1 - POS/SIZE] menu PAGE 2. (2) Press MENU in the joystick block. (3) Change the KEY1 ASPECT values by moving the joystick up, down, left and right.

(The figures below are examples when POSITION is set to (0, 0).)

9-8-4. FADE

FADE allows users to add an effect to make backgrounds transparent. (1) Go to the [KEY1 - POS/SIZE] menu PAGE 2.

(2) Turn F3 to set the FADE level for the KEY1 image. Increasing the value makes the

background transparent.

Page 91

9-8-5. Rotation

KEY1 : LOCAL ROTATION : : 3/5

ROTATION:X=0 Y=0 Z=0 : :

KEY1 : CENTER POSITION : : 4/5

ROTATION:X=0 Y=0 Z=0 : :

X-Rotation

LOCAL ROTATION

(100,0,0)

Y-Rotation

LOCAL ROTATION

(0,100,0)

Z-Rotation

LOCAL ROTATION

(0,0,100)

In addition to positional and size changes, users can add a rotation effect to key images.

 Specifying the Rotation Angle (Number of Rotation) Using the Joystick

(1) Press ROT for 2D DVE in the joystick block. (2) Move the joystick (X/Y-axes) and SIZE control (Z-axis) to change the rotation angles.

Using the Menu

(1) Go to PAGE 3 of the [KEY1 - POS/SIZE] menu. (2) Turn F1 to F3 to change rotation angles in the X, Y and Z directions.

The LOCAL ROTATION values allow the key image around the base point to rotate up to approximately eight times in the positive or negative direction.

X-Rotation: Rotates around the Y-axis.

Y-Rotation: Rotates around the X-axis.

Z-Rotation: Rotates around the origin.

In the factory default setting, the base point coordinates (0,0,0) coincide with the center point of the key image. The figure examples above show them rotating around the base point (0, 0,

0). Changing the CENTER POSITION values in the menu allows the base point to move.

 Moving the Center of Rotation

Using the Joystick

(1) Simultaneously press POS and ROT for 2D DVE in the joystick block to turn them on. (2) Move the joystick (X/Y-axes) and SIZE control (Z-axis) to move the center of rotation.

Using the Menu

(1) Go to PAGE 4 of the [KEY1 - POS/SIZE] menu. (2) Turn F1 to F3 to move the center of rotation.

Page 92

 Setting Example

KEY1 : POSITION : SIZE :2D DVE : 1/5

POS/SIZE:X=-200 Y=-200 : =500 : =ON :

To enter a negative number, enter the number, press ± , then press ENTER.

KEY1 : CENTER POSITION : : 4/5

ROTATION:X=150 Y=-200 Z=-400 : :

KEY1 : LOCAL ROTATION : : 3/5

ROTATION:X=100 Y=100 Z=100 : :

POSITION(-200,-200) SIZE 500

Point of view

Screen surface

POSITION(-200,-200) SIZE 500 CENTER POSITION (150,-200,-400)

Center of rotation

Point of view

Screen surface

POSITION (-200,-200) SIZE 500 CENTER POSITION (150,-200,-400) ROTATION (100,0,0)

Point of view

Screen surface

Center of rotation

(1) Set the key position and size on PAGE 1 of the [KEY1 - POS/SIZE] menu. Note that the

position is two-dimensional and its origin is placed on (0, 0), which coincides with the center of the screen. The position values represent the distance between the origin and the center of the KEY1 images. These values will be positive if the center of the key image is above the origin and negative if it is below the origin.

(2)Change the center of rotation on PAGE4 of the [KEY1 - POS/SIZE] menu. To rotate the

key image at the current POSITION, leave CENTER POSITION (0, 0, 0) unchanged.

(3) Set the rotation value on PAGE3 of the [KEY1 - POS/SIZE] menu.

[Example 1] X-axis Rotation

Page 93

KEY1 : CROP POSITION : 5/5

CROP :T=0 B=0 L=0 R=0 :

POSITION (-200,-200) SIZE 500 CENTER POSITION (150,-200,-400) LOCAL ROTATION (0,0,100)

Point of view

Screen surface

Center of rotation

Key image

Crops from top and bottom.

Crops from right and left.

POSITION (-200,-200) SIZE 500 CENTER POSITION (150,-200,-400) ROTATION (0,0,100)

Point of view

Screen surface

Center of rotation

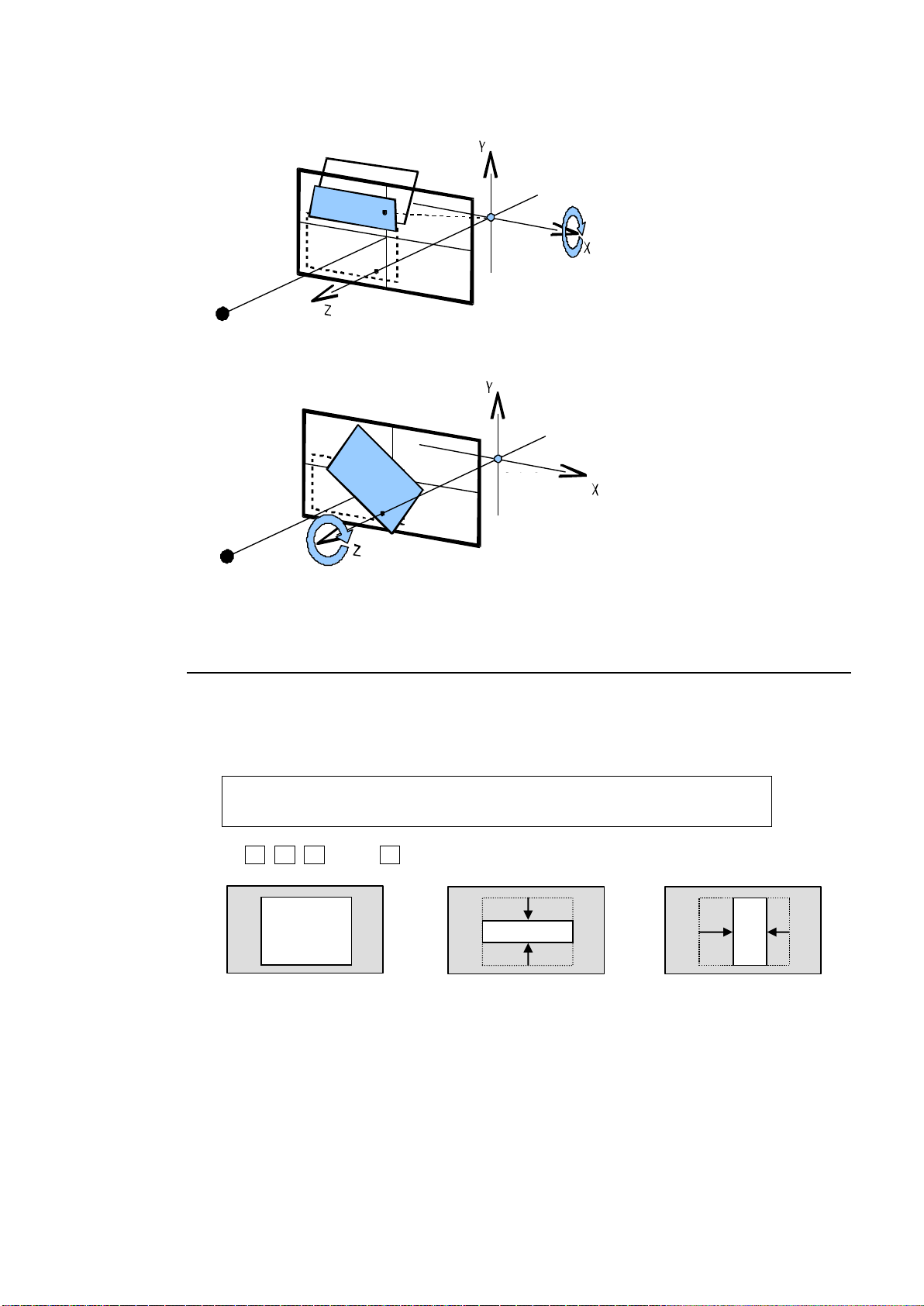

[Example 2] Y-axis Rotation

[Example 3] Z-axis Rotation

9-8-6. CROP

CROP allows users to trim a key image from all four directions. The background image then only remains visible in the cropped area.

(1) Go to PAGE5 of the [KEY1 - POS/SIZE] menu.

(2) Use F1, F2, F3 and/or F4 to crop the KEY1 image.

Page 94

9-8-7. BORDERS

KEY1 : INSIDE : OUTSIDE : 1/3

BORDER :X=0 Y=0 :X=0 Y=0 :

KEY1 : INSIDE :OUTSIDE: : 2/3

BDR SOFT:X=0 Y=0 : =0 : :

KEY1 : BORDER COLOR :RECALL : 3/3

BDR COL :S=66.3 L=5.4 H=3.5 : >BLUE :

W/ border Inner half

softness

SOFT-Y

SOFT-X

Key image

W/ border Outer half

softness

EDGE SOFT

Key image

W/o border

Key image

W/ border

Key image

W/o border

Key image

W/ border Inner half

softness

SOFT-Y

SOFT-X

Key image

W/ border

Key image

W/ border Outer half

softness

EDGE SOFT

Borders can be added to key images. Inside borders and outside borders can be adjusted independently.

(1) Go to the [KEY1 - BORDER] menu. (2) To use the inside border, set the width on the INSIDE X and Y. To use the outside border,

set the width on the OUTSIDE X and Y.

(3) Press the page down button to go to PAGE2. In this menu, border softness can be

adjusted. INSIDE X and Y allow users to set softness for the inner half of a set border. The softness of the outer half of the border is set at OUTSIDE.

(4) Press the page down button to go to PAGE3. Turn F4 to select a color among eight

standard colors, then press F4 . To use a different color, turn F1, F2, and F3 to adjust the color.  See section 5-9-1. "Setting the Matte Color."

Inside Border

Outside Border

Page 95

10. Chromakey

KEY1 : TYPE :INSERT :SOURCE :INVERT : 1/4

INS/SRC : =BUS : >CKFL : =CKKY : =OFF :

Chromakey

USB MEMORY

DIGITAL VIDEO SWITCHER HVS-

SIZE

(PUSH to DEF)

1 2 3 4 5 6 7 8

USER BUTTON

REV NOR/REV

DIRECTION

BLACK TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TYPE

AUTO CUT DSK1 D SK2

ALARM

F1 F2 F3 F4

PAGE

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV CLEAN MV

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

MENU AT TA CH

DIRECT

PATT

DETACH

SETUP

KEY1

POSITION

POS R OT

2D DVE

WIPE

POS

JOYSTICK

8 9

4 5 6

STILL MATT FILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFFECT

TRANS RATE WIPE

SELECT/KEYPAD

The chromakey method of key signal creation, which uses a chroma component instead of a luminance component, is mostly used to composite moving subjects such as a person inside a virtual background environment. For example, to place a person over a virtual background, first film the person standing in front of a background such as a blue screen. The blue part of the filmed image is detected and will be used to create the key signal.

The switcher has a single chromakey generator, which generates chromakey Fill and Key

signals by specifying a video signal and chromakey color. The Fill and Key signals can be output respectively from AUX outputs, and assigned to any KEY or DSK on the switcher to display the output onto the background video.

This chapter explains how to create and combine a chromakey with background video and adjust the appearance using KEY1 as an example .

10-1. Creating a Chromakey

Setting Up KEY1

(1) Select a signal to be used as a background on the PGM bus. (2) Double-press KEY1 above the KEY/AUX block to display the [KEY1 SETUP] menu (3) Turn F1 to select INS/SRC, and press F1 or the page down button. (4) The [KEY1 - INS/SRC] menu is displayed. Turn F1 to set TYPE to BUS. (5)Turn F2 to set INSERT to CKFL and turn F3 to set SOURCE to CKKY.

(6) Press the KEY1 transition button in the bottom right of the control panel to display KEY1 on

the PGM image.

Page 96

CHR KEY : POSITION :SELECT :SIGNAL : 1/2

AUTO CK :X=0 Y=0 : =ON : =IN01 :

If the preview picture is not displayed, press an AUX button, then PREV to display the preview picture on the screen. If you need to have a crosshair cursor also appear on the PGM screen, set PGM OUT to ON in the [CHR KEY - AUTO CK] (2/2) menu.

CHR KEY : POSITION :SELECT :SIGNAL : 1/2

AUTO CK :X=100 Y=400 : =OFF : =IN01 :

USB MEMORY

DIGITAL VIDEO SWITCHER HVS-

SIZE

(PUSH to DEF)

1 2 3 4 5 6 7 8

USER BUTTON

REV NOR/REV

DIRECTION

BLACK TRANS

BKGD KEY1 KEY2

NEXT TRANSITION

MIX WIPE

KEY1 KEY2

TRANSITION TYPE

AUTO CUT DSK1 D SK2

ALARM

F1 F2 F3 F4

PAGE

1 1 1

2 2 2 3 4

2 3 4 5 6 7 8 9 10 11 12

KEYER DSK AUX

KEY/AUX

PGM PREV CLEAN MV

PGM

PST

1 2 3 4 5 6 7 8 9 10 11 12

MENU AT TA CH

DIRECT

PATT

DETACH

SETUP

KEY1

POSITION

POS R OT

2D DVE

WIPE

POS

JOYSTICK

8 9

4 5 6

STILL MATT FILE

KEY2 DSK1 DSK2

EVENT

MACRO

1 2 3

CLEAR

RECALL STORE

ENTER

CK EFFECT

TRANS RATE WIPE

SELECT/KEYPAD

Display the PREV iamge

SIZE

(PUSH to DEF)

POSITION

POS ROT

2D DVE

WIPE

POS

JOYSTICK

Move the crosshair with the joystick along the X-Y axes and twist the SIZE control counter-clockwise to create a Chroma key.

Preview screen

Creating a Chromakey

(1) Press MENU, then CK in the SELECT/KEYPAD block to display the [CHR KEY SETUP]

menu. (2) Turn F1 to select AUTO CK, then press F1 to display the [CHR KEY - AUTO CK] menu. (3) Turn F4 to select a signal used for chromakey under SIGNAL. (4) Turn F3 to change SELECT to ON to activate the Auto Chroma key.

(5) KEY1 is displayed on the topmost layer of the Preview image and a cross hair cursor

appears. The current position of the cursor is displayed at POSITION X and Y in the [CHR

KEY - AUTO CK] menu.

(6) Press MENU in the joystick block. Move the joystick up, down left and right to move the

crosshair cursor onto the desired color. To precisely adjust the position, turn F1 and F2 to set

POSITION X and Y. Selecting a darker color makes adjustment easier. (7) To create a chromakey, turn the SIZE control in the joystick counter-clockwise. Or, turn F3 to

set SELECT to OFF.

Page 97

10-2. Adjusting Chromakey

CHR KEY : SAT : LUM : HUE : : 1/5 BKGND : =0.0 : =0.0 : =0.0 : :

CHR KEY : LUM : RED : GREEN : BLUE : 3/3 CORING : =OFF : =OFF : =OFF : =OFF :

LUM CORING

Effective for areas illuminated un-uniformly.

GREEN CORING

Effective for areas that are colored green unevenly.

BLUE CORING

Effective for the areas that are colored blue unevenly.

RED CORING

Effective for the areas that are colored red unevenly.

WHITE

Effective for bright walls and flooring

BLACK

Effective for dark walls and flooring.

CHR KEY :DENSITY:SOLDNES: : WHITE : 2/5 DENSITY : =0 : =0 : : =0 :

CHR KEY : BLACK : RED : GREEN : BLUE : 3/5 DENSITY : =0 : =0 : =0 : =0 :

Remove noises while monitoring the key cut image.

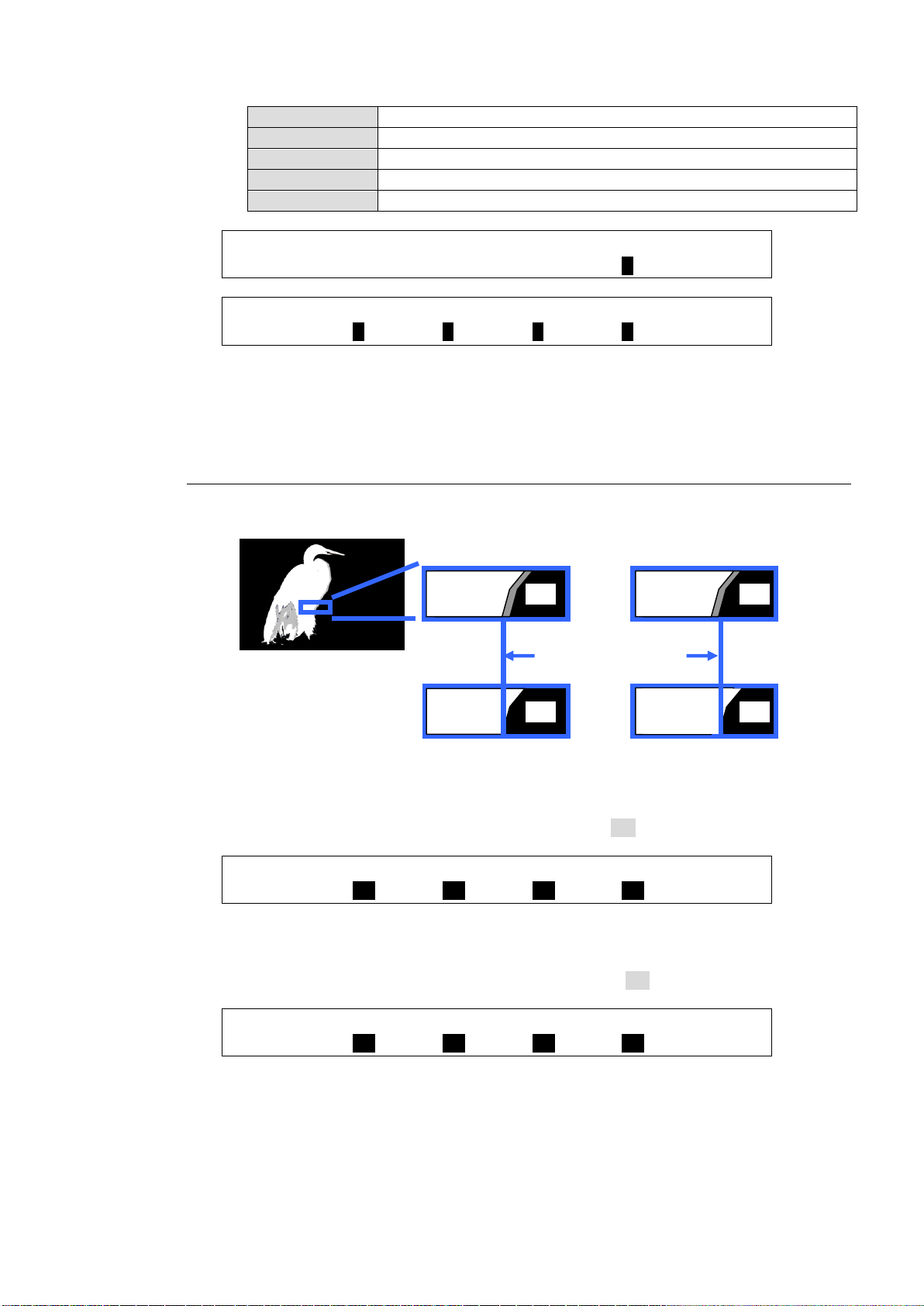

Use EDGE SHRINK and EDGE REPLACE to smooth chroma key edges.  See section 10-2-3.

Use COLOR CANCEL and SUPPRESSION to eliminate or reduce color noise on the bird.  See section 10-2-2.

Adjust key levels to make the background clear.  See section 10-2-1.

If the desired result is not achieved using the automatic chromakey generation procedure, fine adjustments can be made as follows:

10-2-1. Adjusting Key Levels

(1) Adjusting the Chromakey Color

Open the [CHR KEY - ADJUST] (1/5) menu. Finely adjust the chromakey color using the SAT, LUM and HUE parameters.

(2) Adjusting the KEY Cut Signal (Background)

Remove unwanted noise from the background areas (blue or green wall and floor) following the procedure below.

(a) Open the [CHR KEY - MATTE] (3/3) menu.

Set the following 4 parameters to ON one by one and check the chromakey image. If not noticeable changes appear in the image, return the setting to OFF.

(b) Reduce the WHITE or BLACK value in [CHR KEY - ADJUST] menu PAGE 2 or 3.

If not noticeable changes appear in the image, return the setting to the previous value.

Page 98

(3) Adjusting the KEY Cut Signal (Foreground)

WHITE

Effective for blue or green reflections on white hair, skin or clothes.

BLACK

Effective for blue or green reflections on black hair, skin or clothes.

RED

Effective for blue or green reflections on the reddish hair, skin or clothes.

GREEN

Effective for strong green reflections.

BLUE

Effective for strong blue reflections.

CHR KEY :SELECT :SUPPRES:SOLDNES: WHITE : 4/5 SUPPRES : =ON : =0 : =0 : =0 :

Remove noises while monitoring the key cut image.

Reduce the background reflections while monitoring the mixed image.

Remove unwanted noise from foreground areas (figures or objects) following the procedure below.

(a) Use the parameters in the [CHR KEY - ADJUST] menu PAGE 2 and 3 to decrease the

level one by one and check the chromakey image. If not noticeable changes appear in the image, return the setting to the previous value.

(4) If the key level of the Foreground is not high enough:

Gradually increase the SOLIDNESS value (about 10 for each) in PAGE 2 and repeat Steps (2) and (3).

10-2-2. Adjusting the Foreground Image (Chromakey Color)

(1) Foreground (FILL) Coarse Adjustment

Adjust the foreground image coarsely following the procedure below. Set SELECT to ON in the [CHR KEY - ADJUST] (4/5) menu.

Increase the SUPPRESSION value to reduce the blue or green reflections. At this moment, you may substantially suppress reflections until unnecessary areas are affected.

(2) Foreground (FILL) Fine Adjustment

Finely reduce background reflections on the foreground image following the procedure below.

Use the parameters in [CHR KEY - ADJUST] menu PAGE 4 and 5 (shown in the next page) to reduce reflections.

Page 99

WHITE

Effective for reflections on white hair, skin or clothes.

BLACK

Effective for reflections on black hair, skin or clothes.

RED

Effective for reflections on reddish hair, skin or clothes.

BLUE

Effective for strong blue reflections.

GREEN

Effective for strong green reflections.

CHR KEY :SELECT :SUPPRES:SOLDNES: WHITE : 4/5 SUPPRES : =ON : =0 : =0 : =0 :

CHR KEY : BLACK : RED : GREEN : BLUE : 5/5 SUPPRES : =0 : =0 : =0 : =0 :

CHR KEY : EDGE SHRINK : 1/3 CK ADJT :T=ON B=ON L=ON R=ON :

CHR KEY : EDGE REPLACE : 2/2 FOREGND :T=ON B=ON L=ON R=ON :

EDGE SHRINK

EDGE REPLACE

(3) If the Color is not restored:

Gradually decrease the SOLIDNESS value (about 10 levels for each setting) and repeat Step (2).

10-2-3. Adjusting Edges

EDGE SHRINK and EDGE REPLACE parameters allow users to adjust chromakey edges.

 To Shrink Foreground Edges by Replacing them with the Background Video (EDGE

SHRINK)

Open the [CHR KEY - MATTE] (1/3) menu. Set EDGE SHRINK (TOP, BOTTOM, LEFT, RIGHT) to ON.

 To Replace Background Edges with the Foreground Video (EDGE REPLACE)

Open the [CHR KEY - FOREGND] (2/2) menu. Set EDGE REPLACE (TOP, BOTTOM, LEFT, RIGHT) to ON.

Page 100

10-3. Chromakey Menu

CHR KEY :>AUTO CK >ADJUST >MATT >FORGRND

SETUP :>INIT

CHR KEY : SAT : LUM : HUE : : 1/5 BKGND : =0.0 : =0.0 : =0.0 : :

Parameter

Default

Setting range

Description

SAT

0.0

0.0-100.0

Finely adjusts the chromakey reference color using these three parameters.

LUM

0.0

0.0-100.0

HUE

0.0

0.0-359.9

CHR KEY :DENSITY:SOLDNES: : WHITE : 2/5 DENSITY : =0 : =0 : : =0 :

CHR KEY : BLACK : RED : GREEN : BLUE : 3/5 DENSITY : =0 : =0 : =0 : =0 :

Parameter

Default

Setting range

Description

DENSITY

-100 to 100

Reduces edge spills (reflections) between foreground and background adjusting the density or solidness of the reference color.

SOLIDNESS

-100 to 100

WHITE

-100 to 100

Finely adjusts DENSITY of the referece color.

BLACK

-100 to 100

RED

-100 to 100

GREEN

-100 to 100

BLUE

-100 to 100

CHR KEY :SELECT :SUPPRES:SOLDNES: WHITE : 4/5 SUPPRES : =OFF : =0 : =0 : =0 :

CHR KEY : BLACK : RED : GREEN : BLUE : 5/5 SUPPRES : =0 : =0 : =0 : =0 :

Parameter

Default

Setting range

Description

SELECT

OFF

OFF, ON

Sets Color Suppression ON/OFF. If set to OFF, all other parameters in

PAGE 4 and 5 are disabled.

SUPPRESSION

-100 to 100

Applied when creating the foreground (FILL) video.

This can be used to reduce background reflections on the foreground.

SOLIDNESS

-100 to 100

Adjusts the color boundaries applied to Color Suppression.

To display the Chromakey menu, press MENU, then CK in the SELECT/KEYPAD block. To create and adjust a Chromakey, go to each submenu and set or adjust parameters.

10-3-1. [CHR KEY - ADJUST] Menu

100
