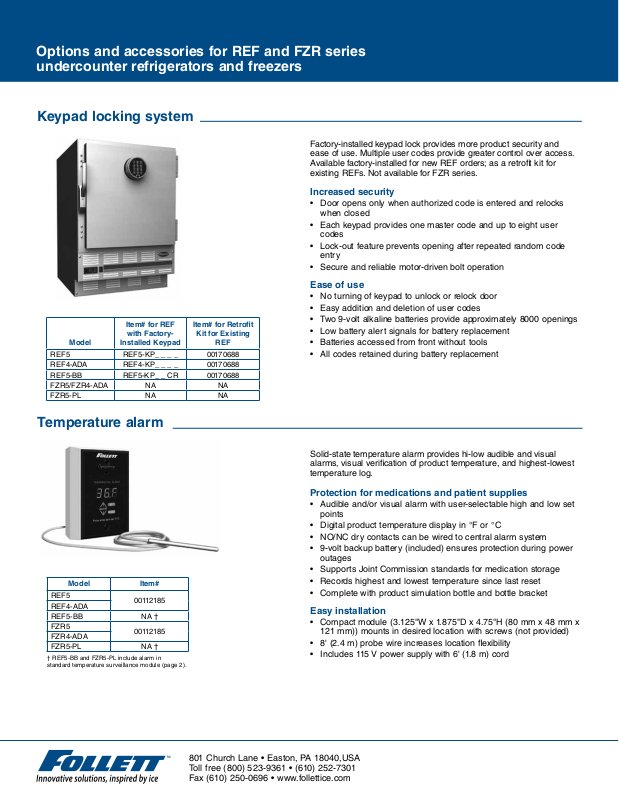

Options and accessories for REF and FZR series
undercounter refrigerators and freezers

Keypad locking system

Factory-installed keypad lock provides more product security and
ease of use. Multiple user codes provide greater control over access.
Available factory-installed for new REF orders; as a retrot kit for
existing REFs. Not available for FZR series.

Increased security

• Door opens only when authorized code is entered and relocks
when closed

• Each keypad provides one master code and up to eight user
codes

• Lock-out feature prevents opening after repeated random code
entry

• Secure and reliable motor-driven bolt operation

Ease of use

• No turning of keypad to unlock or relock door

• Easy addition and deletion of user codes

Item# for REF

Model

REF5 REF5-KP_ _ _ _ 00170688
REF4-ADA REF4-KP_ _ _ _ 00170688
REF5-BB REF5-KP_ _ CR 00170688
FZR5/FZR4-ADA NA NA
FZR5-PL NA NA

with Factory-

Installed Keypad

Item# for Retrot

Kit for Existing

REF

• Two 9-volt alkaline batteries provide approximately 8000 openings

• Low battery alert signals for battery replacement

• Batteries accessed from front without tools

• All codes retained during battery replacement

Temperature alarm

Model Item#

REF5
REF4-ADA
REF5-BB NA †
FZR5
FZR4-ADA
FZR5-PL NA †

† REF5-BB and FZR5-PL include alarm in
standard temperature surveillance module (page 2).

00112185

00112185

Solid-state temperature alarm provides hi-low audible and visual
alarms, visual verication of product temperature, and highest-lowest
temperature log.

Protection for medications and patient supplies

• Audible and/or visual alarm with user-selectable high and low set
points

• Digital product temperature display in °F or °C

• NO/NC dry contacts can be wired to central alarm system

• 9-volt backup battery (included) ensures protection during power
outages

• Supports Joint Commission standards for medication storage

• Records highest and lowest temperature since last reset

• Complete with product simulation bottle and bottle bracket

Easy installation

• Compact module (3.125"W x 1.875"D x 4.75"H (80 mm x 48 mm x
121 mm)) mounts in desired location with screws (not provided)

• 8' (2.4 m) probe wire increases location exibility

• Includes 115 V power supply with 6' (1.8 m) cord

801 Church Lane • Easton, PA 18040,USA
Toll free [phone] • [phone]
Fax [phone] • www.follettice.com

Options and accessories for REF and FZR series
undercounter refrigerators and freezers

Temperature surveillance module

All-in-one temperature surveillance module provides extra security for
critical product storage.

Monitor product temperatures with condence

• Audible and/or visual alarm with user-selectable high and low
setpoints

• Compact chart recorder with easy-to-read 6" (153 mm) 7-day chart

• Digital product temperature display

• LED power status indicator

• Remote contacts for connecting to central alarm system

• 9-volt backup battery ensures protection during power outages

• Includes product simulating bottle and box of (60) 7-day charts
(-50 to 50)

Easy installation

Model Item#

REF5
REF4-ADA
REF5-BB included as standard
FZR5
FZR4-ADA
FZR5-PL included as standard

00168674

00168674

• 15' (4.6 m) probe wire with immersible stainless tip

• 6' (1.8 m) power cord and AC adapter

• Compact (7.56" x 7.56" x 3.25" (192 mm x 192 mm x 83 mm)),
surface or wall mount ready

Replacement charts and pens

• Replacement charts (box of 60, 7-day, -50 to 50) (item# 00162099)

• Replacement pens (box of 6, red) (item# 00162081)

Medication system compatibility brackets

door bracket

Model Pyxis – Item# Omnicell – Item#

REF5
REF4-ADA
REF5-BB NA NA
FZR5
FZR4-ADA
FZR5-PL NA NA

00114702 00158014

00114702 00158014

Door brackets allow Follett ® refrigerators and freezers to be used with
Pyxis* and Omnicell* automated medication dispensing systems.

• Bracket installation must be performed by authorized Pyxis or
Omnicell* installer

• Follett brackets are not required for MedSelect* and AcuDose-Rx*
compatibility. Appropriate brackets are available thru MedSelect and
AcuDose-Rx supplier.

• Undercounter installations require side clearances for lock boxes.
Check with your medication dispensing system representative.

* Pyxis is a registered trademark of Cardinal Health in the United States and other countries.
* Omnicell is a registered trademark of Omnicell, Inc. in the United States.
* MedSelect is a registered trademark of the AmerisourceBergen Technology Group.
* AcuDose-Rx is a registered trademark of McKesson.

Additional shelves

item# 00131748 shown

Model Item #

REF5
REF4-ADA
REF5-BB NA
FZR5
FZR4-ADA
FZR5-PL NA

00131748

00159699

Options and accessories for REF and FZR series

undercounter refrigerators and freezers

REF series cut out shelf

• Epoxy-coated wire shelf has cut-out to t around evaporator drain

• Provides additional 2.4 sq. ft (0.22 sq m) of shelf storage space

• Allows storage to each side and in front of evaporator housing

FZR series full size shelf

• Epoxy-coated wire shelf

• Provides additional 2.3 sq. ft (0.21 sq m) of shelf storage space

Stacking kit

Must be ordered with equipment.

Refrigerator and / or freezer not included.

Brackets and wall anchor hardware maximize oor space by allowing
any combination of Follett undercounter refrigerators and freezers to
be stacked. Order item# 00926618.

Kit includes

• Stainless steel back brackets to secure units together

• Stainless wall brackets to anchor stacked conguration to wall

• Installation instructions

Pedestal base

Must be ordered with equipment.

Options and accessories for REF and FZR series

undercounter refrigerators and freezers

17" (432 mm) tall stainless steel base elevates any Follett
undercounter refrigerator or freezer height allowing easy access.
Order item# 00931154.

• Same footprint as REF or FZR – 23.75" wide x 24" deep
(603 mm x 610 mm)

• All stainless construction

• Leveling feet with plastic glides

• Ships in separate carton

• Shipping weight 63 lbs (29 kg)

pedestal base

Refrigerator and / or freezer not included.

Controller programming keys

Controller keys allow facilities to quickly change controller temperature
displays from factory settings to different scales (˚F or ˚C) or to upload
customized settings to multiple refrigerators or freezers.

• No limit to number of times keys may be used or reprogrammed

• All keys can be overridden by downloading any temperature
setting and scale conguration from a refrigerator or freezer
to the key

• All keys plug into 5 pin connection in controller back

• Note – FZR, REF, REF-BB, and FZR5-PL keys are not
interchangeable

• Contact factory for key specic to your model and application
