Follett DEV1080SG60LP, DEV1350SG56LP, DEV1160SG56LP, DEV1300SG48BG, DEV1175SG48LP User Manual

Ice•DevIce

™

Ice Management Systems

Order parts online
www.follettice.com

Installation, Operation & Parts Manual

Ice•DevIce with SmartCART™ 75

801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com

207897R09

2

Contents

Welcome to Follett. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Before you begin .........................................................................4

Product descriptions ........................................................................4

Installation .................................................................................6

A. Removing lower door assembly (if needed) ...................................................6

B. Reinstalling door assembly ...............................................................6

C. Installing base section ...................................................................7

D. Installing single section bin ...............................................................7

E. Installing two-section bins ................................................................7

F. Installing bin section .....................................................................8

G. Installing 8" (204mm) plastic chute .........................................................9

H. Installing 4" (102mm) plastic chute .........................................................9

I. Installing icemaker drain ..................................................................9

J. Installing icemaker tie-downs ..............................................................9

K. Final connections (for all models) ..........................................................9

Bin operation ..............................................................................10

General operation of unit ..................................................................10

Adjusting SmartGATE .....................................................................10

Using tools .............................................................................11

Cleaning Ice•DevIce ........................................................................11

Exterior care ............................................................................11

Interior care .............................................................................11

Technical assistance available toll free ........................................................11

Assembly, operation and cleaning of Ice•DevIce carts and accessories .............................12

SmartCART 75 ..........................................................................12

SmartCART 125 .........................................................................14

Cambro ICS125L Cart ....................................................................15

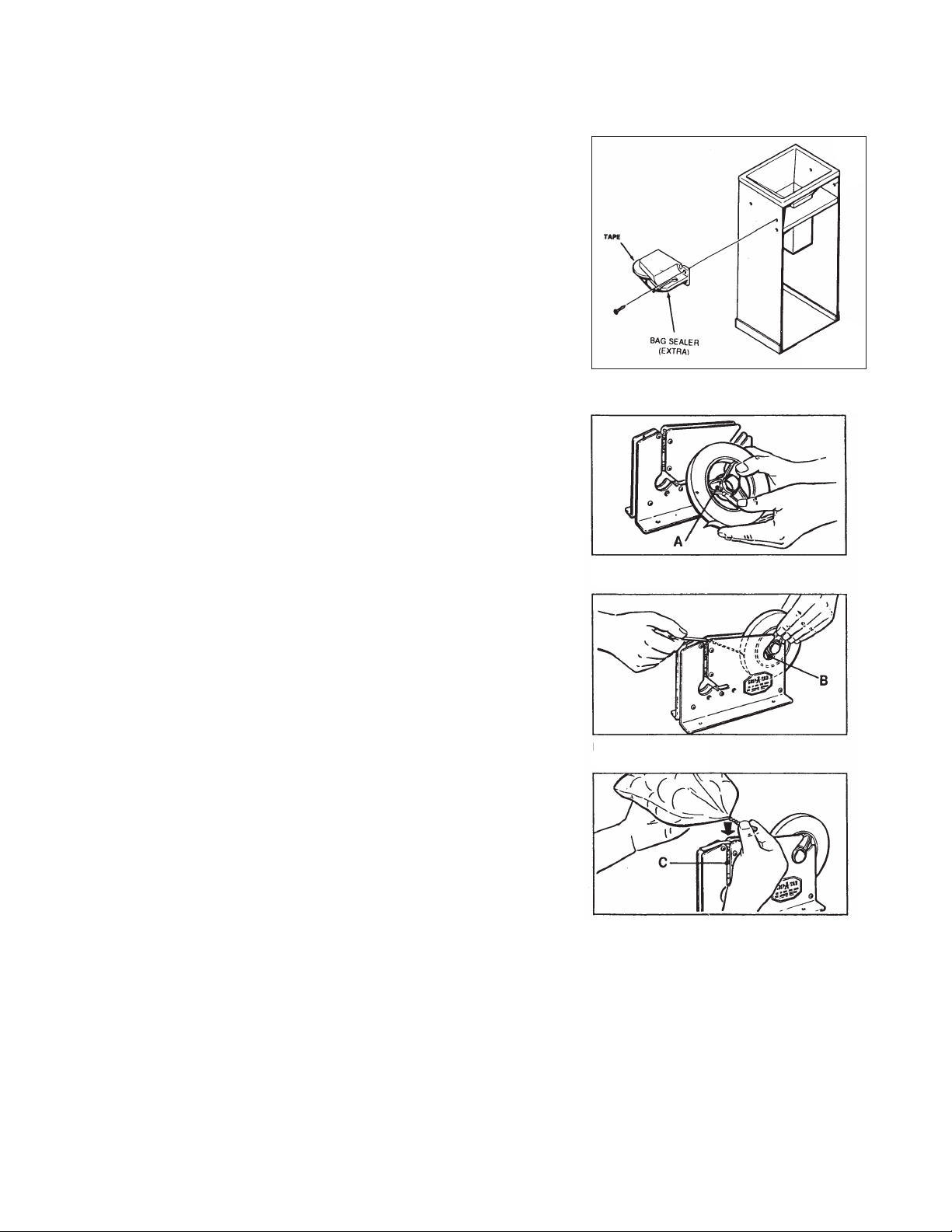

Bagger Accessory ........................................................................16

Totes ice carrier for low-prole Ice•DevIce unit .................................................17

Replacement parts .........................................................................18

Bin replacement parts ....................................................................18

Bin door replacement parts ................................................................19

COR accessory package replacement parts – Ice•DevIce with elevated base for correctional facilities .....20

SmartCART 75 replacement parts (stainless drain tray base) .....................................20

New SmartCART 75 replacement parts (roto-molded drain tray base) ...............................21

SmartCART 125 and Cambro ICS125 replacement parts .........................................21

Manual bagger replacement parts ...........................................................22

3

Welcome to Follett

Follett ice storage bins enjoy a well-deserved reputation for excellent performance, long-term reliability and
outstanding labor-saving and sanitation benets. To ensure that your ice management system delivers this same
degree of service, please read this manual carefully before installing or operating the system. If you have any
questions or require technical help at any point, please call our technical service group at [phone], or
[phone].

Before you begin

After uncrating, remove all packing material and inspect the ice management system and accessories for shipping
damage. If damage is found, notify the shipper immediately and contact Follett so that we can help in the ling of a
claim, if necessary.

Product descriptions

Check your paperwork and enclosed accessories to determine which ice management system you have. Follett
numbers are designed to provide information about the type and capacity of Follett products. Following is an
explanation of the different variations in the Ice•DevIce Ice Management Systems series.

DEV1010SG-48-75

Cart or
accessory type: 75 = SmartCART 75 LP = Low Prole
125 = SmartCART 125 BG = Bagger accessory
ICS125 = Cambro ICS125L Cart

Width of bin in inches

Unit equipped with inner SmartGATE

Approximate maximum bin capacity in lbs

Designates Ice•DevIce

Verify that all parts have been shipped. You should have received the following:

DEV_ _ _ _ SG- _ _ -BG
Ice•DevIce with

bagger accessory:

• Ice storage bin

• 24" (610mm) high base

• 4" (102mm) plastic ice chute

• Bagger accessory kit

• Ice probe and rake tools

DEV_ _ _ _ SG- _ _ -LP
Low-prole Ice•DevIce

• Ice storage bin

• 10" (254mm) legs

• 4" (102mm) plastic ice chute

• 1 Totes ice carrier

• Ice probe and rake tools

™

DEV_ _ _ _ SG- _ _
Ice•DevIce for correctional
facilities with accessory
#00917054

• Ice storage bin

• 37" (940mm) high base

• 8" (204mm) plastic ice chute

• Ice probe and rake tools

4

!

DEV _ _ _ _ SG-_ _-75
Ice•DevIce with
SmartCART 75:

• Ice storage bin

• 24" (610mm) high base

• 8" (203mm) plastic ice chute

• Ice cart with three Totes ice
carriers

• Ice probe and rake tools

DEV _ _ _ _ SG-_ _-125
Ice•DevIce with
SmartCART 125:

• Ice storage bin

• 24" (610mm) high base

• 4" (102mm) plastic ice chute

• Insulated plastic ice transport
cart with hinged lid

• Ice probe and rake tools

DEV _ _ _ _ SG-_ _-ICS125
Ice•DevIce with
Cambro ICS125L:

• Ice storage bin

• 24" (610mm) high base

• 4" (102mm) plastic ice chute

• Insulated plastic ice transport
cart with hinged lid

• Ice probe and rake tools

Important cautions and operating rules

Read this manual completely before assembling or operating the ice
management system and follow cautions and instructions listed below.

To avoid damage to ice management system and injury during operation:

• Top is NOT fastened to bin

• Do not move ice management system once icemaker has been installed

• Anchor anged feet to oor as instructed

• Base section must be bracketed to wall

• Use only tools provided to assist ice ow

• Use cart only to transport ice

To avoid injury during operation of unit:

• Keep entire body clear of bin when breaking up ice

• Keep head and face away from tools when breaking up ice

• Keep oor around bin free of ice and water

• Always operate cart at a slow, reasonable speed

For best operation and to ensure delivery of clean, sanitary ice:

• Be sure bin is level in both directions to provide proper drainage

• Position cart, Totes ice carrier or bagger below chute before operating chute door

• Install a charcoal water lter on inlet water for icemaker

• Hang tools in supplied bracket after each use

• Keep tools clean and in good repair to avoid ice contamination

• Follow instructions in this manual for proper cleaning and maintenance

5

Installation

If unit does not t through door, lower door assembly can be removed (see steps A and B below). If door removal
is not necessary, proceed to step C.

A. Removing lower door assembly (if needed)

1. With lower access door closed remove Phillips head screw and washer from hinge on each side of
lower access door.

2. Insert screwdriver between door and hinge bracket on one side of door and gently push against bracket
to provide room for door stud to clear bracket.

3. Remove access door.

4. Disengage stop latch on right side of SmartGATE

5. Remove 4 screws (3 screws for 27" (686mm) snout) on hood above door assembly.

6. Pull forward on assembly to remove.

B. Reinstalling door assembly

1. Reinstall lower door assembly in bin opening. (Do not disturb gasket around opening.)

2. Reinstall four (4) screws (3 screws for 27" (686mm) snout) in hood at top of door assembly.

3. Reinstall SmartGATE in side panel tracks and push down to seat.

4. With door closed insert one door stud through hinge bracket, install washer, screw and tighten.

Note: For proper operation the access door must be reinstalled in the closed position.

5. On other side, insert screwdriver between door and hinge bracket and gently push against bracket to
provide room for door stud to clear bracket.

6. Reinstall washer and screw in lift door and tighten.

7. Check door to ensure proper operation.

™

and pull up on gate to remove.

access door

SmartGATE

lower door assembly

ice chute gate

ice chute

side panel

6

C. Installing base section

(Ice•DevIce models with SmartCART 75, 125, Cambro* ICS125, bagger accessory or correctional
package)

1. Remove screws holding base to skid and remove skid.

2. Position base in intended position and adjust feet to level in both directions.

3. For models with SmartCART 75: Adjust feet and level base so that there is no interference between
base and cart when cart is rolled under base with lid closed.

4. Mark position of each anged foot anchoring hole.

5. Move base section out of the way and install anchors for 1/4" bolts in oor (supplied by others).

6. Reposition unit in its intended position.

7. Anchor base unit to oor through anged feet.

8. Anchor base to wall using brackets and fasteners (supplied by others).

9. Use holes in side of base section to connect brackets.

10. Mark hole locations on wall.

11. Drill holes if needed.

12. Fasten brackets to base and wall.

D. Installing single section bin

(for Ice•DevIce models with SmartCART 75, 125, Cambro ICS125 or bagger accessory)

1. Remove all packaging material from bin.

2. Remove any accessories packed inside bin.

3. Remove top from bin.

4. Lay bin on its back being careful to protect nish, and remove bolts holding skid to bin.

5. Install bin section on base.

6. Place supplied 1-3/4" washers on supplied bolts and install bolts up through base and into bin at each
corner. Do not use skid bolts.

7. For model DEV2250 only, use supplied plugs to close bolt holes in bin back to prevent contamination of
insulation.

8. Remove protective covering from exterior.

9. Reinstall top onto bin.

10. Use supplied screws with power driver to install tool bracket in holes on either side of Ice•DevIce.

11. Mount icemaker(s) on top of bin section in accordance with icemaker manufacturer's instructions.

12. For models COR base must be bracketed to wall.

E. Installing two-section bins

(for Ice•DevIce models with SmartCART 75, 125, Cambro ICS125 or bagger accessory)

1. Remove all packing material from both sections

of bin.

2. Remove any accessories packed inside lower section
of bin.

3. Set lower section upright and remove bolts holding
skid to back of bin.

4. To prevent contamination of insulation, use supplied
plugs to close bolt holes in bin back.

5. Install bin on base.

6. Place supplied 1-3/4" washers on supplied bolts and
install bolts up through base and into bin at each
corner. Do not use skid bolts.

7. Remove protective covering from stainless steel
surfaces.

8. Using provided caulking gun and one of two (2) 10
oz tubes of sealant provided, run a 1/8" (3mm) bead of silastic sealant over center of each band of
gasketing on lower section, including over brackets (Fig.1).

9. Remove bolts holding skid to upper section back and close holes with supplied plugs.

10. Position upper section over lower section.

* Cambro is a registered trademark of Cambro Manufacturing Company in the United States and other countries.

7

Fig. 1

gasket

upper

section

lower

section

bead of sealant

gasket

!

Follow Steps 11 - 15 to anchor upper and lower sections of all two-section upright

!

bins. Brackets must be installed to avoid possible injury should unit move.

11. Lower upper section onto lower section, taking care not to disturb gasketing material and sealant beads.

12. Remove protective covering from stainless steel surfaces.

13. Install icemaker according to manufacturer’s instructions.

14. From inside bin (access can be gained through lower door assembly) seal entire perimeter of seam
between upper and lower sections with General Electric RTV 180 sealant provided (Figs. 2, 3).

15. Install supplied screws on side H-bracket and tighten, then seal entire perimeter of H-bracket with silastic.

Fig. 2 – Cross Section, Side View

bin exterior

upper section

bead of sealant

screw

H-bracket

lower section

Completely cover gasket material with sealant. Failure to properly seal sections may
result in leakage and/or ice contamination, and will void warranty.

16. Use supplied screws with a power driver to install tool bracket in holes on either side of Ice•DevIce.

17. Insert short side of inspection window through notch in upper and lower track and continue to rear groove.
Repeat with second window only to front groove.

18. Remove any remaining protective covering or temporary fastenings from doors and outside of bin.

bin interior

Seal entire inside
of upper and lower
section seams and
entire perimeter
of H-bracket with
silastic provided.

Fig. 3 – Bin Cutaway

F. Installing bin section

(for low-prole Ice•DevIce models only)

1. Remove all packing material from bin.

2. Remove set of four legs and any other accessories packed inside bin.

3. Remove top from bin.

4. Lay bin on its back being careful to protect nish and remove bolts holding skid to bin.

5. Screw legs into tapped holes in bin bottom and tighten to seat legs well against bottom.

6. Set bin upright.

7. Remove protective covering from exterior.

8. Move bin to permanent location.

9. Adjust “foot” at bottom of each leg to level bin in both directions.

10. Mark position of each anged foot anchoring hole.

11. Move base section out of the way and install anchors

for 1/4" bolts in oor (supplied by others).

12. Reposition unit in its intended position.

13. Anchor base unit to oor through anged feet.

14. Mount ice maker.

8

G. Installing 8" (204mm) plastic chute

!



(for Ice•DevIce models with SmartCART 75, COR package)

1. Orient stainless chute bracket with open end of bracket tabs facing
down.

2. Insert supplied 1/2" 1/4-20 carriage head bolts through bracket and
base and hand tighten only.

3. Gently push on sides of plastic chute to t inside bracket, inserting
bracket tabs into slots in plastic chute.

4. Push up on plastic chute to align holes and secure with supplied
thumbscrew.

5. Tighten carriage bolts holding bracket.

Fig. 4

chute

bracket

H. Installing 4" (102mm) plastic chute

(for Ice•DevIce models with SmartCART 125, 240 or bagger accessory, and low-prole units)

1. Orient stainless steel chute bracket with open end of bracket tabs facing down.

2. Loosely fasten bracket with two thumbscrews provided through holes into lower door assembly.

3. Install plastic chute into bracket, making sure screw hole is oriented at top.

4. Align hole in chute and bracket with threaded hole in lower door assembly and fasten with thumbscrew.

5. Tighten all thumbscrews.

Fig. 5

I. Installing icemaker drain

Required for some icemakers only. For these machines Follett predrills hole
and provides 3/4" straight threaded drain tting to be installed through hole.
To install tting:

1. Remove plastic nut on tting.

2. From inside (liner side) bin, insert threaded portion through hole
provided in side of bin.

3. Replace plastic nut on threaded portion and tighten against outside
of bin.

4. Connect supplied tubing to icemaker drain connection after

installing icemaker.

J. Installing icemaker tie-downs

Required for some icemaker applications only. If this tting is included with

your bin, proceed as follows:

1. Align icemaker back ush with bin back.

2. Using center of vertical slot as template, drill through icemaker
wall with a 15/64 drill.

3. Fasten straps to icemaker and bin (bin holes are predrilled) with
#14 x 1/2 sheet metal screws and washers provided.

K. Final connections (for all models)

Avoid excessive tightening when connecting to this tting.

1. Install supplied 1" elbow into drain tting under bin.

2. Connect customer supplied length of vinyl tube to barb end and route to either side or rear of bin (so not
to interfere with cart movement).

3. Make nal connections to icemaker.

9

Bin operation

General operation of unit

Ice in the hopper section of the ice management system falls through the ice chute in front of the bin and into the
cart, Totes ice carrier or bag when the chute gate is pulled up. The ow of ice is stopped by pushing down on the
chute gate. The SmartGATE restricts the ow of ice into the hopper area and can be adjusted and locked at one of
several levels to accommodate the ow characteristics of different types of ice.

inspection window

(not visible)

lift door

SmartGATE

lower door frame

assembly

ice chute gate

Totes ice carrier

cart

SmartGATE catch

hopper area

ice chute

cart drain handle

Adjusting SmartGATE

The bin is shipped with the inner SmartGATE in the full down position, the best position for slippery cubes which
ow well into the hopper through the cut-out in the bottom of the gate. For less slippery ices, the SmartGATE can
be raised and locked in a higher position for better ow or when more access is needed.

1. Use full-length handle at top of SmartGATE to pull gate up.

(Loose ice will cascade into hopper.)

2. If adequate ice has moved into hopper, push gate back down.

3. To lock gate at a higher level, pull up and hold gate at correct

level (catch will automatically release when you pull up), and

push tapered end of catch into nearest hole in gate.

4. To release catch, pull up on gate.

Note: SmartGATE and ice chute gate must both be in full
down position before access door can be closed.

10

Pull up on SmartGATE handle to

adjust SmartGATE level

Using tools

!

!

Two tools — a paddle and a rake — ship with the Ice•DevIce and should be mounted for
easy access on either side of the bin in the bracket provided.

Using paddle

If there is adequate ice in Ice•DevIce but hopper is not lled with ice, it may be that

ice has congealed behind SmartGATE and cannot ow into hopper. This can often be
remedied by simply opening and closing SmartGATE several times (see adjusting
SmartGATE, above.) If problem continues, the paddle can be inserted through rectangular
openings in SmartGATE and moved back and forth to break bridge.

Using rake

When Ice•DevIce is almost empty of ice, there will not be enough ice piled in hopper area

to allow chute to work. In this case, rake can be used to pull ice forward into hopper area.

Use tools only as described. To avoid possible injury, keep head and face clear of hopper area
and tools at all times. Do not use tools for other purposes.

Cleaning Ice•DevIce

Interior of bin must be cleaned and sanitized prior to use. A regular schedule of cleaning
maintenance is recommended following installation to ensure cleanliness of delivered ice.

Exterior care

The stainless steel exterior of the bin can be cleaned with a stainless cleaner such as 3M* Stainless Steel
Cleaner & Polish or equivalent.

Interior care

The polyethylene liner should be cleaned and sanitized periodically with any product suitable for use in a food
zone.

Technical assistance available toll free

Should you have any questions concerning the installation or maintenance of Follett ice storage bins, please call
our technical service department at [phone] or [phone] between 8 a.m. and 5 p.m. Eastern
time.

* 3M is a trademark of 3M Company.

11

Assembly, operation and cleaning of Ice•DevIce carts and accessories

!

The following assembly, operation and cleaning instructions have been divided into ve parts. Use the section
pertaining to the carts and accessories purchased with your Ice•DevIce unit.

SmartCART 75

Assembly

1. Remove installation hardware from poly bag taped to Totes ice carrier.

2. Place cart handle ends along holes at the back of cart base. Align handle end holes with small holes in
sides of cart.

3. Tighten bolts securely.

4. Position lid onto cart in between handles. From outside cart
handle, insert 1.5" pivot pins through handle and lid bushings.

5. Push down on L-shaped cart drain handle and conrm that it seats
in hole in cart bottom.

6. Arrange plastic Totes ice carriers in cart (longer dimension parallel
with cart handle) and check that lid clears ice carriers when in
down position.

Operation

1. A cart drain allows any melt water or cleaning solutions to be

drained easily from cart. (Fig. 1)

Each Totes ice carrier holds approximately 25lbs (11.34kg) of ice

(Fig. 3).

2. The three-wheeled cart maneuvers easily in limited space, can be
turned tightly and goes up and down different oor levels without
difficulty (Fig. 2).

3. Molded base protect xtures and walls.

Use cart only for transport of ice. To avoid possible injury, do not ride in or on cart.
Do not use cart to transport other items.

Fig. 1 – Drain

Pull up on drain handle to
open. Push down to close.

Fig. 2 – Uneven ooring

Tip cart onto back wheels
to go up or down different
oor levels.

12

Fig. 3 – Lift ice carrier

Lift Totes ice carrier
straight up from cart
and return to cart when
empty.

Filling Totes ice carriers

!

1. Lift lid. Position ice carrier closest to cart handle under ice chute.

2. Open lift door and conrm there is ample ice in hopper area. If not,
see previous sections on adjusting SmartGATE and using tools.)

3. Pull chute gate up to start ow of ice into ice carrier.

4. When ice carrier is almost full, push chute gate down to stop ow.
(Some ice will continue to fall as chute gate closes. Leave room in
ice carrier for this in-ight ice to avoid spillage.)

5. Pull cart forward until next ice carrier is under chute and repeat steps
3 and 4.

6. Check that cart drain is closed and wheel cart to usage area.

Note: For better cart stability when removing Totes ice carriers:
remove ice carrier closest to cart handle rst, then proceed to middle
ice carrier, ending with ice carrier farthest from cart handle.

Pull up on chute gate to allow ice to
ow into ice carrier

Cleaning

The polyethylene Totes ice carrier should be cleaned and sanitized periodically with any product suitable for use

in a food zone.

The Totes ice carrier must be cleaned and sanitized prior to use. A regular schedule of
cleaning maintenance is recommended following installation to ensure cleanliness of
delivered ice. Do not run ice carrier through any dishwashing system.

13

SmartCART 125

!

Assembly

The cart will arrive to you fully assembled. Check that the drip shelf inside
the cart is horizontal, with the hole oriented toward the front.

Operation

1. The cart is highly maneuverable with two swivel casters in front.

2. The polyethylene construction is resistant to damage
from normal use, and prevents it from marring walls and xtures.

3. A hand valve at the front of the cart allows melt water or cleaning
solutions to be easily drained from the cart. The valve has a
threaded tting, allowing a hose to be connected, if desired.

4. The cart is capable of holding approximately 125 lbs (56.7kg) of ice.

Filling cart

1. Open cart lid and position cart directly under ice chute.

2. Open lift door and conrm that there is enough ice in hopper area. (If not, see previous sections on
“adjusting SmartGATE” and “using tools”.)

3. Pull chute gate up to start ow of ice into cart.

4. When cart is almost full, push gate down to stop ow. (Some ice will continue to fall as chute gate closes.
Leave room in cart for this in-ight ice to avoid spillage.)

5. Check that drain valve is closed.

6. Wheel cart to usage area. Lock caster before unloading

Cleaning

1. The cart can be cleaned using a mild detergent and a soft brush, taking care not to mark the surface.

2. If stains appear, a mild cleaning compound can be used.

3. Periodic cleaning and sanitizing should be done with any product
suitable for use in a food zone.

4. Remove and clean faucet regularly. Use a small brush to access faucet body and spout. Replace

faucet properly to avoid leaks.

Clean and sanitize cart interior prior to use and on regular schedule as needed thereafter
to ensure cleanliness of delivered ice.

14

Cambro ICS125L Cart

!

Assembly

The cart will arrive to you fully assembled. Check that the drip shelf inside the
cart is horizontal, with the hole oriented toward the front.

Operation

1. The cart is highly maneuverable with two swivel casters in front.

2. The polyethylene construction is resistant to damage

from normal use, and prevents it from marring walls and xtures.

3. A hand valve at the front of the cart allows melt water or cleaning

solutions to be easily drained from the cart. The valve has a
threaded tting, allowing a hose to be connected, if desired.

4. The cart is capable of holding approximately 125 lbs (56.7kg) of ice.

Filling cart

1. Open cart lid and position cart directly under ice chute.

2. Open lift door and conrm that there is enough ice in hopper area. (If not, see previous sections on

“adjusting SmartGATE” and “using tools”.)

3. Pull chute gate up to start ow of ice into cart.

4. When cart is almost full, push gate down to stop ow. (Some ice will continue to fall as chute gate closes.

Leave room in cart for this in-ight ice to avoid spillage.)

5. Check that drain valve is closed.

6. Wheel cart to usage area. Lock caster before unloading

Cleaning

1. The cart can be cleaned using a mild detergent and a soft brush, taking care not to mark the surface.

2. If stains appear, a mild cleaning compound can be used.

3. Periodic cleaning and sanitizing should be done with any product
suitable for use in a food zone.

4. Remove and clean faucet regularly. Use a small brush to access faucet body and spout. Replace

faucet properly to avoid leaks.

Clean and sanitize cart interior prior to use and on regular schedule as needed thereafter
to ensure cleanliness of delivered ice.

15

Bagger Accessory

Assembly

1. Attach tape dispenser to left side of bagger assembly for

right-handed users using two screws provided.
For left-handed users, attach to right side.

2. Center tape roll on tape drum Fig. 7, as shown, to dispense

tape with adhesive side up.

3. Place tape drum with tape in slot Fig. 8 and pull tape lead end

forward to front edge of bag sealer.

For ease of use, the bagger assembly can be attached to the bin

using a Velcro strip that has been provided on the back of the
bagger. Clean the front of the base under the chute of all dirt and
oil, peel the backing off the Velcro strip to expose the adhesive,
and press the bagger assembly against the base.

Operation

1. The bagger accessory is used to ll 10 lb (4.65kg) bags of ice

easily and with minimal spillage (optional 8 lb (363kg) bags
are also available when reordering).

2. A “ag” type of seal, using the enclosed tape dispenser, is

formed by a single strip of pressure-sensitive tape that
encircles the neck of the bag.

Fig. 6

Fig. 7

Filling bags with ice and sealing:

1. Position bagger assembly in front of bin below ice chute.

2. Hang wicket with bag on bracket behind white plastic funnel of

bagger accessory.

3. Pull one bag open under white funnel.

4. Open bin door and pull up on ice chute gate to dispense ice.

5. Begin to close gate when bag is about half full.

6. To seal ice bag, twist neck of bag to be sealed and position at

90-degree angle over bag slot Fig 9., as shown.

7. Move bag neck downward to bottom of slot and pull sideways

to remove sealed bag neck from bag sealer.

Cleaning

1. The plastic funnel should be cleaned and sanitized periodically

with any product suitable for use in a food zone.

2. The aluminum stand can be cleaned with mild detergent.

Fig. 8

Fig. 9

16

Totes ice carrier for low-prole Ice•DevIce unit

Assembly

The Totes ice carrier requires no assembly.

Operation

1. The polyethylene construction of the ice carrier makes it light and
very resistant to damage from normal use.

2. The handle makes it convenient to transport up to 25 lbs (11.34kg)
of ice and the shape of the ice carrier makes pouring easy.

Filling Totes ice carrier

1. Position ice carrier under ice chute.

2. Open lift door and conrm there is enough ice in hopper area.
(If not, see previous sections on “adjusting SmartGATE” and “using
tools”.)

3. Pull ice chute gate up to start ow of ice into ice carrier.

4. When ice carrier is almost full, push chute gate down to stop ow. (Some ice will continue to fall as chute
gate closes. Leave room in ice carrier for this in-ight ice to avoid spillage.)

5. Close lift door and carry ice carrier to usage area.

The polyethylene ice carrier should be cleaned and sanitized periodically with any product suitable for use in a
food zone. DO NOT RUN ICE CARRIER THROUGH A DISHWASHER.

Note: If you purchased a SmartCART 75 for use with your low-prole Ice•DevIce, see pages 11 and 12 for
assembly, operation and cleaning instructions.

17

Replacement parts

Bin replacement parts

4

2

7

8

6

9

Part # Description Reference number

502176 Door, outer lift, 28" (686mm), (includes door hinges and hardware) 1
502177 Door, outer lift, 45" (1067mm), (includes door hinges and hardware) 1
502180 Hinges, pair (includes mounting hardware) 2
502218 Retainer, SmartGATE (includes shoulder screw) 3
502237 (2) Inspection windows 21.125" x 8.625" (537mm x 220mm) 4
502264 (2) Inspection windows 12.5" x 9" (318mm x 229mm) 4
501100 Thumbscrews, plastic chute 5
502373 Chute, plastic, long, 8" (204mm) 6
502554 Chute, plastic, short, 4" (102mm) Not shown
502374 Chute bracket (includes hardware), long, 8" (204mm) 7
502555 Chute bracket (includes hardware), short, 4" (102mm) Not shown
502281 Hardware, chute bracket, long, 8" (204mm) 8
502556 Hardware, chute bracket, short, 4" (102mm) Not shown
502196 Flanged foot (one) 9
502639 Probe, ice, 36" (915mm) Not shown
502952 Rake, ice, 36" (915mm) Not shown
502872 Bracket, ice rake Not shown
502557 Legs, 10" (254mm), low-prole (set of 4) Not shown
502064 Bracket, hanging, ice probe Not shown
00109538 Elbow, bottom drain Not shown

1

3

5

18

Bin door replacement parts

1

5

2

8

7

Part # Description Reference number

502178 Hinge assembly, left-hand (mounts to lift door) 1
502179 Hinge assembly, right-hand (mounts to lift door) Not shown
502185 Locking catch, SmartGATE (includes shoulder screw) 2
01161074 Ice chute gate, 28" (712mm) wide door 3
01161082 Ice chute gate, 45" (1143mm) wide door 3
502367 SmartGATE, 28" (712mm) wide door 4
502363 SmartGATE, 45" (1143mm) wide door 4
502176 Lift door, 28" (712mm) wide (includes 502178 & 502179) 5
502177 Lift door, 45" (1143mm) wide (includes 502178 & 502179) 5
502371 Lower door frame assy (for use with 28" (712mm) door frame assembly) 7
502372 Lower door frame assy (for use with 45" (1143mm) door frame assembly) 7
502180 Hinges, pair (includes mounting hardware) 8

4

3

19

COR accessory package replacement parts – Ice•DevIce with elevated base for
correctional facilities

Part # Description Reference number

00111377 45” poly door prison package Not shown
00111385 28” poly door prison package Not shown
00111393 Door, upper lock bracket (left and right set) Not shown
00111401 End panel prison package (left and right set) Not shown

SmartCART 75 replacement parts (stainless drain tray base)

1

4

2

3

7

Part # Description Reference number

502197 Handle, cart 1
502198 Screws, cart handle mounting Not shown
502203 Lid, cart (includes mounting hardware) 2
502204 Stud, pivot (1 pair), cart lid 3
502263 Totes ice carrier, non-draining (one) 4
502097 Handle, Totes ice carrier 5
502201 Wheel, front, cart 6
502200 Wheel, rear, cart 7
502572 Drain tray 8
502199 Bumper, cart (pair) Not shown
502202 Drain assembly, cart Not shown

5

8

6

20

New SmartCART 75 replacement parts (roto-molded drain tray base)

2

1

10

3

4

5

7

6

Part # Description Reference number

00115634 Handle with hardware 1
00115642 Lid with hardware 2
502204 Stud, pivot (1 pair), cart lid 3
00115659 Drain assembly, cart 4
00115667 Axle with cotter pins and washers 5
00115683 Plate, axle (2 required) 6
00134908 6" wheel with cotter pin and washer 7
502569 Wheel, front of cart 8
502263 Totes ice carrier, non draining (one) 9
502097 Handle, Totes ice carrier 10

9

8

SmartCART 125 and Cambro ICS125 replacement parts

For replacement parts contact Follett technical service group, [phone] or [phone].

Manual bagger replacement parts

For replacement parts, tape and bags contact:
The Ice Box Company at [phone].

21

Rejestracja gwarancji i ocena sprzętu

Dziękujemy za zakup urządzenia firmy Follett. Mamy nadzieję, że nasze urządzenia spełniają i przekraczają Państwa oczekiwania, gdyż
naszym celem jest dostarczenie klientom wysoce wartościowych produktów i usług, zasługujących na ich pełne uznanie.

Prosimy zapoznać się z załączoną instrukcją instalacji i obsługi. Istotne jest przeprowadzenie instalacji zgodnie z wymogami producenta, co
zapewni działanie urządzenia z maksymalną wydajnością.

Follett LLC nie będzie ponosić odpowiedzialności za szkody wtórne, wydatki, koszty podłączania lub odłączania lub jakiekolwiek straty
wynikające z wady urządzenia.

Aby uzyskać szczegółowe informacje na temat warunków gwarancji, prosimy odwiedzić naszą strone internetową www.follettice.com/
productwarranties.

Rejestracja gwarancji i ocena urządzenia to istotne czynności, ułatwiające nam utrzymanie aktualnych danych o miejscach instalacji naszych
urządzeń i o ich działaniu. Prosimy o zarejestrowanie gwarancji na nabyte urządzenie firmy Follett na naszej witrynie www.follettice.com/
support, gdzie należy wybrać Warranty Registration (Rejestracja gwarancji) i Equipment Evaluation (Ocena urządzenia). Jest to łatwe
i nieskomplikowane, prosimy o znalezienie na to paru minut jeszcze dzisiaj. Na formularzu jest również miejsce na przekazanie nam
komentarzy i informacji zwrotnych. Proszę podzielić się z nami swoimi wrażeniami, abyśmy mogli wykorzystać je w naszych ciągłych
dążeniach do usprawnień.

Jesteśmy dumni z naszych znakomitych urządzeń i staramy się usilnie wspierać je znakomitą obsługą klienta i wsparciem technicznym.
Chcielibyśmy wiedzieć, w jaki jeszcze sposób moglibyśmy Państwu pomóc. Z przyjemnością odpowiemy na Państwa pytania.

Registro de Garantía y Evaluación del Equipo

Gracias por haber elegido este producto Follett ®. Esperamos que nuestro equipo cumpla o supere sus expectativas porque es nuestro objetivo
ofrecer productos y servicios de gran valor que se ganen su plena confianza.

Le rogamos consulte el manual de instalación y de instrucciones adjunto, ya que es muy importante que la instalación se realice según las
especificaciones de fábrica para que el equipo funcione a su máxima eficiencia.

Follett LLC no se hace responsable de los daños indirectos, costos, gastos por conexión y desconexión o pérdidas por causa de defecto de la
máquina.

Si desea una información más completa sobre la garantía, visite nuestro sitio web www.follettice.com/productwarranties.
Las operaciones de registro de la garantía y evaluación del equipo son importantes para que podamos realizar un seguimiento de nuestro

equipo y registrar el rendimiento de la maquinaria. Por favor, registre las garantías del equipo Follett en nuestro sitio web www.follettice.
com/support y seleccione Registro de la Garantía y Evaluación del Equipo. Es muy sencillo, solo le llevará un momento realizar hoy mismo
el registro. En el formulario incluimos un espacio en blanco para sus comentarios y opiniones. Infórmenos sobre su experiencia para que
podamos incorporarla a nuestros continuos esfuerzos de mejora.

Nos enorgullecemos de producir un equipo excepcional y trabajamos duro para respaldarlo con un soporte técnico y un servicio de atención
al cliente de primera. Le rogamos nos indique qué más podemos hacer para ayudarle. Estaremos encantados de responder a sus dudas.

Enregistrement de la garantie et évaluation de l’équipement

Merci d’avoir acheté un équipement Follett®. Notre objectif étant d’offrir des produits et des services de grande valeur vous satisfaisant
pleinement, nous espérons que celui-ci satisfera, voire dépassera, vos attentes !

Veuillez consulter le manuel d’installation et d’exploitation. Il est important que l’installation soit réalisée conformément aux spécifications
de l’usine, de sorte que votre équipement fonctionne à son rendement maximum.

Follett LLC n’est pas responsable de tout dommage consécutif, de toute dépense, de tout frais de raccordement ou de déconnexion, ni de
toute perte liée à un défaut de la machine.

Pour lire la garantie dans son ensemble, visitez notre site Internet www.follettice.com/productwarranties.
L’enregistrement de la garantie et l’évaluation de l’équipement sont importants pour nous aider à suivre notre équipement et pour enregistrer

les performances de la machine. Nous vous demandons donc d’enregistrer la garantie de votre équipement Follett sur notre site Internet,
www.follettice.com/support, dans la section Warranty Registration and Equipment Evaluation. Cette opération est simple ; veuillez prendre
un moment pour la réaliser aujourd’hui.

Le formulaire contient également un espace pour nous faire parvenir vos commentaires et un retour d’informations. Veuillez nous faire part
de votre expérience pour que nous puissions prendre appui dessus pour poursuivre nos efforts constants d’amélioration.

Nous sommes fiers de produire des équipements exceptionnels et nous travaillons avec acharnement pour y associer une assistance à la
clientèle et technique exceptionnelle. N’hésitez pas à nous indiquer dans quelle mesure nous pouvons vous aider. Nous serions ravis de
répondre à vos questions.

Garantieregistrierung und Produktbeurteilung

Vielen Dank, dass Sie sich für ein Follett®-Produkt entschieden haben. Wir hoffen, dass unser Produkt Ihre Erwartungen erfüllen oder
sogar übertreffen wird, weil wir uns zum Ziel gesetzt haben, hochwertige Produkte und Leistungen anzubieten, die Ihre uneingeschränkte
Anerkennung verdienen werden!

Lesen Sie sich bitte die beiliegende Installations- und Betriebsanleitung durch. Es ist wichtig, dass die Installation entsprechend den
Werksangaben erfolgt, damit Ihr Produkt mit maximalem Wirkungsgrad arbeiten kann.

Follett LLC ist nicht für Folgeschäden, Ausgaben, Gebühren für Anschluss oder Abschaltung oder Verluste aufgrund eines Defekts der
Maschine haftbar.

Vollständige Garantieinformationen finden Sie auf unserer Website unter www.follettice.com/productwarranties.

22

Garantieregistrierung und Produktbeurteilung sind wichtig, damit wir einen Überblick über unsere Produkte behalten und ihre Effizienz
bewerten können. Wir möchten Sie bitten, Garantien für Follett-Produkte auf unserer Website www.follettice.com/support zu registrieren und
den Punkt „Garantieregistrierung und Produktbeurteilung” zu wählen. Es ist ganz einfach. Nehmen Sie sich bitte einen Moment Zeit, um
die Registrierung heute vorzunehmen. Auf dem Formular ist auch Platz für Kommentare und Feedback vorhanden. Teilen Sie uns bitte Ihre
Erfahrungen mit unseren Produkten mit, damit wir sie für unsere fortlaufenden Produktverbesserungen verwenden können.

Wir sind stolz darauf, dass wir besondere Produkte herstellen, und wir bemühen uns, unsere Produkte mit besonderem Kundendienst zu
unterstützen. Lassen Sie uns bitte wissen, was wir noch für Sie tun können. Wir werden Ihre Fragen gerne beantworten.

Registrazione della garanzia e valutazione dell’attrezzatura

Grazie per aver acquistato un dispositivo Follett®. Ci auguriamo che il nostro prodotto soddisfi o superi le Sue aspettative, in quanto il
nostro obiettivo è quello di offrire prodotti e servizi di alta qualità che soddisfino pienamente le vostre esigenze!

La preghiamo di leggere attentamente il manuale per l’installazione e per l’uso allegato. È infatti importante che l’installazione sia effettuata
secondo le specifiche di fabbrica in modo tale che il dispositivo operi con la massima efficienza.

La Follett LLC non si assume alcuna responsabilità per danni conseguenti, spese, costi di collegamento o scollegamento o eventuali perdite
dovute ad un difetto della macchina.

Per visualizzare i dettagli completi relativi alla garanzia, recarsi alla pagina www.follettice.com/productwarranties.
La registrazione della garanzia e la valutazione dell’attrezzatura sono importanti per aiutarci a tenere traccia dei nostri dispositivi e a

registrare le prestazioni della macchina. Le chiediamo dunque di registrare le garanzie relative al dispositivo Follett sul nostro sito Web alla
pagina www.follettice.com/support scegliendo Registrazione della garanzia e Valutazione dell’attrezzatura. Farlo è semplice; dedichi pochi
minuti a registrare il prodotto oggi stesso. Sul modulo è inoltre previsto uno spazio in cui potrà fornirci i Suoi commenti e il Suo riscontro.
Ci faccia sapere della Sua esperienza in modo che possiamo farne tesoro per il nostro continuo miglioramento.

Siamo orgogliosi di produrre macchinari di ottima qualità e lavoriamo sodo per offrire un servizio di assistenza clienti e tecnico di qualità
altrettanto elevata. Ci faccia sapere come possiamo esserle di aiuto. Saremo lieti di rispondere a tutte le Sue domande.

Registo da garantia e avaliação do equipamento

Obrigado por ter adquirido equipamento Follett®. Fazemos votos de que o nosso equipamento cumpra ou exceda as suas expectativas, dado
que temos por objetivo fornecer produtos e serviços de elevado valor que mereçam a sua total satisfação!

Pedimos-lhe que leia o manual de instalação e operações em anexo. É importante que a instalação seja levada a cabo de acordo com as
especificações da fábrica, para que o seu equipamento funcione com a eficiência máxima.

A Follett LLC não assume a responsabilidade por quaisquer prejuízos indiretos, despesas, custos de ligação ou desligação ou quaisquer outras
perdas decorrentes de um defeito na máquina.

Para consultar os dados da garantia, visite o nosso website www.follettice.com/productwarranties.
O registo da garantia e a avaliação do equipamento são importantes para nos ajudar a estar a par do nosso equipamento e registar o

desempenho da máquina. Pedimos-lhe que registe as garantias de equipamento Follett no nosso website www.follettice.com/support, em
“Warranty Registration and Equipment Evaluation”. É muito simples; tire uns minutos para fazer o registo hoje mesmo. O formulário inclui
também espaço para os seus comentários e feedback. Conte-nos a sua experiência para que possamos usá-la nos nossos esforços contínuos de
melhoria.

Temos muito orgulho em produzir equipamento excecional e empenhamo-nos em proporcionar um apoio técnico e um apoio ao cliente
igualmente excecionais. Diga-nos o que mais podemos fazer para o ajudar. Teremos todo o prazer em responder às suas perguntas.

Registrering af garanti og evaluering af udstyr

Tak for dit køb af Follett ®-udstyr. Forhåbentlig synes du, at vores udstyr lever op til eller overstiger dine forventninger, for vores
målsætning er at levere produkter og serviceydelser af høj kvalitet, som du er fuldstændig tilfreds med!

Gennemlæs venligst den vedlagte installations- og driftsmanual. Det er vigtigt at installationen udføres i henhold til fabriksspecifikationerne,
så dit udstyr kan fungere med maksimal effektivitet.

Follett LLC hæfter ikke for følgeskader, udgifter, tilslutnings- eller frakoblingsomkostninger eller nogen form for tab, der skyldes en
maskindefekt.

Du kan læse de fulde oplysninger om garantien på vores website www.follettice.com/productwarranties.
Registrering af garantien og evaluering af udstyret er vigtigt for at hjælpe os med at følge op på vores udstyr og registrere maskinens

ydelse. Vi beder dig registrere garantier på Follett-udstyr på vores website www.follettice.com/support og vælge Warranty Registration and
Equipment Evaluation (Registrering af garanti og evaluering af udstyr). Det er nemt at gøre, så vi beder dig bruge et øjeblik på at registrere
dig i dag. Formularen har også plads til, at du kan give os kommentarer og feedback. Fortæl os om dine erfaringer, så vi kan bruge dem i
vores fortsatte bestræbelser på at forbedre os.

Vi sætter en ære i at fremstille udstyr i særklasse og arbejder hårdt på at kunne bakke udstyret op med fremragende kundeservice og teknisk
support. Fortæl os, hvad vi ellers kan gøre for at hjælpe dig. Vi svarer gerne på dine spørgsmål.

23

Registratie van garanties en beoordeling van apparatuur

Gefeliciteerd met uw aankoop van Follett ®-apparatuur. We hopen dat onze apparatuur uw verwachtingen invult of zelfs overstijgt, omdat we
ernaar streven om hoogwaardige producten en diensten te leveren die u uitermate tevreden stellen!

Lees de bijgevoegde installatie- en bedieningshandleiding zorgvuldig door. Het is belangrijk dat de installatie uitgevoerd wordt volgens de
fabrieksspecificaties, zodat uw apparatuur zo efficiënt mogelijk werkt.

Follett LLC is niet aansprakelijk voor enige gevolgschade, uitgaven, montage- of demontagekosten of enige door een defect van de machine
geleden verliezen.

Bezoek onze website www.follettice.com/productwarranties voor alle garantiegegevens.
De registratie van garanties en de beoordeling van apparatuur is belangrijk voor ons om onze apparatuur te helpen traceren en de prestaties

van de machine te registreren. We verzoeken u dan ook om garanties van Follett-uitrusting te registreren op onze website www.follettice.
com/support en om “Warranty Registration” (Registratie van garanties) en “Equipment Evaluation” (Beoordeling van apparatuur) te kiezen.
Gelieve hier even tijd voor vrij te maken. Het is namelijk zeer eenvoudig. Er is op het formulier ook plaats om opmerkingen en feedback te
geven. Breng ons gerust op de hoogte over uw ervaring met onze apparatuur, zodat we ons kunnen blijven verbeteren.

We zijn trots op onze productie van uitstekende apparatuur en werken hard om dit bij te staan door een voortreffelijke klantendienst en
technische ondersteuning. Aarzel echter niet om enige andere bijstand te vragen. We zullen uw vragen met plezier beantwoorden.

Garantiregistrering och utvärdering av utrustning

Tack för att du köpt utrustning från Follett ®. Vi hoppas att du ska tycka att den uppfyller eller överträffar dina förväntningar, då vårt mål är
att leverera produkter och tjänster av högt värde som gör dig helt nöjd!

Studera medföljande installations- och bruksanvisning. Det är viktigt att installationen genomförs enligt fabrikens anvisningar så att din
utrustning arbetar med högsta effektivitet.

Follett LLC ansvarar inte för följdskador, kostnader, avgifter eller förluster som orsakats av fel på maskinen.
Fullständiga garantivillkor finns på vår hemsida www.follettice.com/productwarranties.
Garantiregistrering och utvärdering av utrustning är viktig för oss så att vi kan följa upp vär ultrustning och dess funktion. Vi vill att du

registrerar Folletts utrustningsgaranti på vår hemsida www.follettice.com/support, där du väljer Garantiregistrering och produktutvärdering.
Det är enkelt att göra, så ta dig tid en minut och registrera dig idag. Det finns också utrymme på blanketten för kommentarer och synpunkter.
Berätta för oss vad du tycker så att vi kan använda det i våra ansträngningar att alltid bli bättre.

Vi är stolta över att producera överlägsen utrustning och vi arbetar hårt med att stötta den med överlägset kundansvar och tekniskt stöd. Tala
om för oss vad vi kan göra mer för att hjälpa dig. Vi svarar gärna på dina frågor.

Warranty Registration and Equipment Evaluation

Thank you for purchasing Follett ® equipment. We hope you find that our equipment meets or exceeds your expectations, as our goal is to
deliver high value products and services that earn your complete satisfaction!

Please review the enclosed installation and operations manual. It is important that the installation be performed to factory specifications, so
your equipment operates to its maximum efficiency.

Follett LLC will not be liable for any consequential damages, expenses, connecting or disconnecting charges or any losses resulting from a
defect of the machine.

For full warranty details, visit our website www.follettice.com/productwarranties.
Warranty registration and equipment evaluation is important to help us keep track of our equipment and to record the machine’s performance.

We request that you register Follett equipment warranties on our website www.follettice.com/support and choose Warranty Registration and
Equipment Evaluation. It’s simple to do; please take a moment to register today. There is also space on the form to provide us with comments
and feedback. Please let us know about your experience so we can capture it for our continuous improvement efforts.

We pride ourselves on producing outstanding equipment and we work hard to back it up with outstanding customer and technical support.
Please let us know what else we can do to assist you. We would be happy to answer your questions.

Ice•DevIce, SmartCART, SmartGATE, and Totes are trademarks of Follett LLC.
Chewblet and Follett are registered trademarks of Follett LLC, registered in US.

801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com

207897R09

© Follett LLC 4/18
