Flexi-Tops™ Installation Instructions

for Follett single door upright bins and Ice•DevIce™ systems

801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
Fax [phone] • www.follettice.com

00158303

Welcome to Follett

Follett ice storage and bins enjoy a well-deserved reputation for excellent performance and long-term reliability. To
ensure that your equipment delivers this same degree of service, please read this manual carefully before installing
components. If you have questions, please call our technical service group at (

Before you begin

After uncrating, remove all packing material and inspect equipment for shipping damage. If damage is found, notify
shipper immediately and contact Follett.

Materials

Flexi-Top, Flexi-Panels for your application (see reference drawings)

gasket material, and silastic sealant.

800) 523-9361 or [phone].

Follett Corporation
Equipment Return Policy

Follett equipment may be returned for credit under the following conditions:

1. The equipment is new and unused.

2. A return authorization number has been issued by Follett customer service within 30 days after shipment.

3. Follett receives the equipment at the factory in Easton, PA within 30 days after issuance of the return authorization number.

4. The equipment must be returned in Follett packaging. If the packaging has been damaged or discarded, Follett will forward, at the customer’s expense,
new packaging.

Note: Return freight charges are the responsibility of the customer. If equipment is returned and is damaged because of improper packaging, Follett

Corporation will not be held responsible.

Credit will be issued when:
The equipment has been inspected by Follett and deemed suitable to be returned to stock.

Note: A 15% restocking charge will be deducted from the credit. If the cost to return the product to stock exceeds 15%, the actual cost will be deducted.

2

Overview

Installation of Flexi-Top kits consist of inserting a combination
of Flexi-Panel(s) to accommodate specific icemaker model,
and application of an inner gasket and an outer gasket.*

*Note: some icemakers will not require the use of a
Flexi-Panel™, and will require only the gasket procedure.

Flexi-Panel and gasket specifications

Refer to the charts on pages 4 and 5 to find the Flexi-Panel
combination for your application and corresponding figure
drawing (pages 6 - 12). Figure drawings will indicate number
of panels used.

For your convenience, the underside of each Flexi-Panel
is etched with a number to correspond to the Flexi-Panel
number(s) noted in the appropriate figure drawing.

➋

➌

➊

General procedure –
Flexi-Panel and gasket application

• Bin top should be clean and free of dirt or residue so that
panels will adhere properly.

• Position Flexi-Panel(s) according to location noted
on appropriate figure drawing. Measure carefully from
edge of bin top and make a mark ➊ to align edge of
Flexi-Panel.

• Peel paper backing from adhesive portion of Flexi-Panel

➋ and apply to bin top ➌. If more than one Flexi-Panel is

needed, repeat 1, 2 & 3.

• Apply inner gasket to ice drop opening and Flexi-Panel
edges ➍. Gasket may be spliced as needed, but do not
overlap.

• Position outer gasket according to location noted on
appropriate figure drawing. Measure carefully from
edges of bin top ➎ to be sure icemaker wil be properly
positioned.

• Use silastic sealant or equivalent to seal all gasket
joints ➏.

• Prior to installing icemaker, be sure to thoroughly clean
bin interior and surrounding surfaces.

➍

➏

➎

NOTE: All measurements are taken from edge of bin top.

3

Flexi-Top specifications

Flexi-Tops are shipped in four standard configurations. Use the charts below to find the correct Flexi-Top and Flexi­Panel combination for the icemaker and bin used.

Top A - 48" wide bin

20-1/8"

Icemaker

Manufact.

Ice-o-matic EMF2300 1 3

Ice-o-matic ICE0250 1 1
Ice-o-matic ICE0400 1 1
Ice-o-matic ICE0500 1 1
Ice-o-matic ICE606 1 1
Ice-o-matic ICE806 1 1
Ice-o-matic ICE1006 1 1
Ice-o-matic ICE1506 1 2
Ice-o-matic ICE1406 1 4
Ice-o-matic ICE1806 1 4
Ice-o-matic ICE2106 1 4

Manitowoc Q-320 2*† 5

Manitowoc Q-420 2*† 5
Manitowoc Q-280 1 8
Manitowoc Q-400 1 8
Manitowoc Q-600 1 8
Manitowoc Q-800 1 8
Manitowoc Q-1000 1 8
Manitowoc Q-1300 1 10
Manitowoc Q-1400 1 9
Manitowoc Q-1600 1 10
Manitowoc Q-1800 1 10
Manitowoc QC-700 2*† 6
Manitowoc Q-Dual2C 1 9
Manitowoc Q-Dual4C 1 9
Manitowoc QF-800 2*† 6
Manitowoc QF-2396 1 8
Manitowoc S-300 1 11
Manitowoc S-320 2*† 7
Manitowoc S-400 1 11
Manitowoc S-420 2*† 7
Manitowoc S-500 1 11
Manitowoc S-600 1 11
Manitowoc S-800 1 11
Manitowoc S-1000 1 11

* Less than Manitowoc's recommended clearance between machines.
† Accommodates (2) machines only.

44-15/16"

Flexi-Top A - 48"

Model
Series

# Ice-

makers Fig.

Top B - 48" wide bin

23-9/16"

28-1/8"

Icemaker

Manufact.

Manitowoc S-1200 1 11

Manitowoc S-1400 1 12
Manitowoc S-1600 1 12
Manitowoc S-1800 1 12
Manitowoc SN-450 2*† 7
Manitowoc SN-600 2*† 7
Manitowoc SN-950 7

Scotsman C630 1 16

Scotsman C830 1 16
Scotsman C1030 1 16
Scotsman C1448 1 13
Scotsman C1848 1 13
Scotsman C2148 1 13
Scotsman CME256 1 15
Scotsman CME506 1 15
Scotsman CME656 1 15
Scotsman CME806 1 15
Scotsman CME1056 1 15
Scotsman CME1356 1 13
Scotsman CME1386 1 16
Scotsman CME1656 1 13
Scotsman CME1686 1 16
Scotsman CME1856 1 13
Scotsman CME2086 1 16
Scotsman CME2106 1 13
Scotsman FME804 2† 17
Scotsman FME1204 2† 17
Scotsman FME1504 1 15
Scotsman FME2400 1 14
Scotsman FME3004 1 14
Scotsman NME654 2† 17
Scotsman NME954 2† 17
Scotsman NME1254 1 15
Scotsman NME1850 1 14
Scotsman NME2504 1 14

Top C - 60" wide bin

20-1/8"

Flexi-Top A - 48"

Model
Series

# Ice-

makers Fig.

44-3/4"

Top D - 60" wide bin

23-9/16"

44-3/4"

Flexi-Top B - 48"

Icemaker

Manufact.

Hoshizaki F-450M 1 21

Hoshizaki F-650M 1 21
Hoshizaki F-801 1 21
Hoshizaki F-1001M 1 21
Hoshizaki F-1500M 1 19
Hoshizaki F-2000M 1 19
Hoshizaki KM-280M 1 22
Hoshizaki KM-320M 1 22
Hoshizaki KM-450M 1 22
Hoshizaki KM-500M 1 22
Hoshizaki KM-501M 1 22
Hoshizaki KM-630M 1 22
Hoshizaki KM-800M 1 19
Hoshizaki KM-900M 1 19
Hoshizaki KM-1200M 1 19
Hoshizaki KM-1200S 1 18
Hoshizaki KM-1300M 1 19
Hoshizaki KM-1300S 1 18
Hoshizaki KM-1340M 1 19
Hoshizaki KM-1600M 1 19
Hoshizaki KM-1600S 1 18
Hoshizaki KM-1601M 1 19
Hoshizaki KM-1601S 1 18
Hoshizaki KM-1800S 1 18
Hoshizaki KM-2000S 1 18
Hoshizaki KM-2400S 1 18
Hoshizaki KML-200M 1 20
Hoshizaki KML-250 1 20
Hoshizaki KML-350 1 20
Hoshizaki KML-400M 1 20
Hoshizaki KML-450M 1 20
Hoshizaki KML-451M 1 20
Hoshizaki KML-600M 1 20

Model
Series

# Ice-

makers Fig.

4

Flexi-Top C - 60"

Icemaker

Manufact.

Ice-o-matic EMF2300 1 28

Ice-o-matic ICE0250 1 32
Ice-o-matic ICE0400 1 32
Ice-o-matic ICE0500 1 32
Ice-o-matic ICE606 1 32
Ice-o-matic ICE806 1 32
Ice-o-matic ICE1006 1 32
Ice-o-matic ICE1406 1 24
Ice-o-matic ICE1506 1 36
Ice-o-matic ICE1806 1 24
Ice-o-matic ICE2106 1 24

Manitowoc Q-280 1 38

Manitowoc Q-320 2*† 35
Manitowoc Q-400 1 38
Manitowoc Q-420 2*† 35
Manitowoc Q-600 1 38
Manitowoc Q-800 1 38
Manitowoc Q-1000 1 28
Manitowoc Q-1300 1 26
Manitowoc Q-1400 1 39

Model
Series

# Ice-

makers Fig.

Icemaker
Manufact.

Scotsman CME656 1 33

Scotsman CME806 1 33
Scotsman CME1056 1 33
Scotsman CME1356 1 25
Scotsman CME1386 1 37
Scotsman CME1656 1 25
Scotsman CME1686 1 37
Scotsman CME1856 1 25
Scotsman CME2086 1 37
Scotsman CME2106 1 25
Scotsman FME804 2† 23
Scotsman FME1204 2† 23
Scotsman FME1504 1 33
Scotsman FME2400 1 29
Scotsman FME3004 1 29
Scotsman NME654 2† 23
Scotsman NME954 2† 23
Scotsman NME1254 1 33
Scotsman NME1850 1 29
Scotsman NME2504 1 29

Manitowoc Q-1600 1 26
Manitowoc Q-1800 1 26
Manitowoc QC-700 2*† 31
Manitowoc Q-Dual2C 1 39
Manitowoc Q-Dual4C 1 39
Manitowoc QF-800 2*† 31
Manitowoc QF-2396N 1 38
Manitowoc S-300 1 34
Manitowoc S-320 2*† 27
Manitowoc S-400 1 34
Manitowoc S-420 2*† 27
Manitowoc S-500 1 34
Manitowoc S-600 1 34
Manitowoc S-800 1 34
Manitowoc S-1000 1 34
Manitowoc S-1200 1 34
Manitowoc S-1400 1 30
Manitowoc S-1600 1 30
Manitowoc S-1800 1 30
Manitowoc SN-450 2*† 27
Manitowoc SN-600 2*† 27
Manitowoc SN-950 27

Scotsman C630 1 37

Scotsman C830 1 37
Scotsman C1030 1 37
Scotsman C1448 1 25
Scotsman C1848 1 25
Scotsman C2148 1 25
Scotsman CME256 1 33
Scotsman CME506 1 33

* Less than Manitowoc's recommended clearance between machines.
† Accommodates (2) machines only.

Icemaker
Manufact.

Hoshizaki F-450M 1 41

Hoshizaki F-450M 2 43
Hoshizaki F-650M 1 41
Hoshizaki F-650M 2 43
Hoshizaki F-800 2 42
Hoshizaki F-801M 1 41
Hoshizaki F-801M 2 43
Hoshizaki F-1001 2 43
Hoshizaki F-1001M 1 41
Hoshizaki F-1500 2 46
Hoshizaki F-2000 2 46
Hoshizaki F-4000 1 44
Hoshizaki KM-280M 1 41
Hoshizaki KM-280M 2 42
Hoshizaki KM-320M 1 41
Hoshizaki KM-320M 2 42
Hoshizaki KM-450M 1 41
Hoshizaki KM-450M 2 42
Hoshizaki KM-451M 1 45
Hoshizaki KM-500M 1 41
Hoshizaki KM-500M 2 42
Hoshizaki KM-501M 1 41
Hoshizaki KM-501M 2 42
Hoshizaki KM-630M 1 41
Hoshizaki KM-630M 2 42

Flexi-Top C - 60"

Model
Series

Flexi-Top D - 60"

Model
Series

# Ice-

makers Fig.

# Ice-

makers Fig.

Flexi-Top D - 60"

Icemaker

Manufact.

Model
Series

# Ice-

makers Fig.

Hoshizaki KM-800M 1 44

Hoshizaki KM-900M 1 44
Hoshizaki KM-1200M 1 44
Hoshizaki KM-1200M 2 46
Hoshizaki KM-1200S 1 40
Hoshizaki KM-1300M 1 44
Hoshizaki KM-1300M 2 46
Hoshizaki KM-1300S 1 40
Hoshizaki KM-1340M 1 44
Hoshizaki KM-1340M 2 46
Hoshizaki KM-1500M 1 44
Hoshizaki KM-1600M 1 44
Hoshizaki KM-1600M 2 46
Hoshizaki KM-1600S 1 40
Hoshizaki KM-1601M 1 44
Hoshizaki KM-1601M 2 46
Hoshizaki KM-1601S 1 40
Hoshizaki KM-1800S 1 40
Hoshizaki KM-2000S 1 40
Hoshizaki KM-2400S 1 40
Hoshizaki KML-200M 1 45
Hoshizaki KML-200M 2 47
Hoshizaki KML-250 2 45
Hoshizaki KML-250M 2 47
Hoshizaki KML-350 2 45
Hoshizaki KML-350M 2 47
Hoshizaki KML-400M 1 45
Hoshizaki KML-400M 2 47
Hoshizaki KML-450M 1 45
Hoshizaki KML-451M 1 45
Hoshizaki KML-451M 2 47
Hoshizaki KML-600 1 45
Hoshizaki KML-600M 2 47

Flexi-Top D - 60" Hoshizaki

Left / Right icemaker combinations

Model Series

# Ice-

makers Fig.

F-800M (L) 2 48
F-1001M (L) 2 48
KM-1300M (R) 2 48
KM-1600M (R) 2 48
KM-1340M (R) 2 48
KM-1601M (R) 2 48
KM-1300M (L) 2 49
KM-1600M (L) 2 49
KM-1340M (R) 2 49
KM-1601M (R) 2 49
F-800M (R) 2 49
F-1000M (R) 2 49

5

/4"

/4"

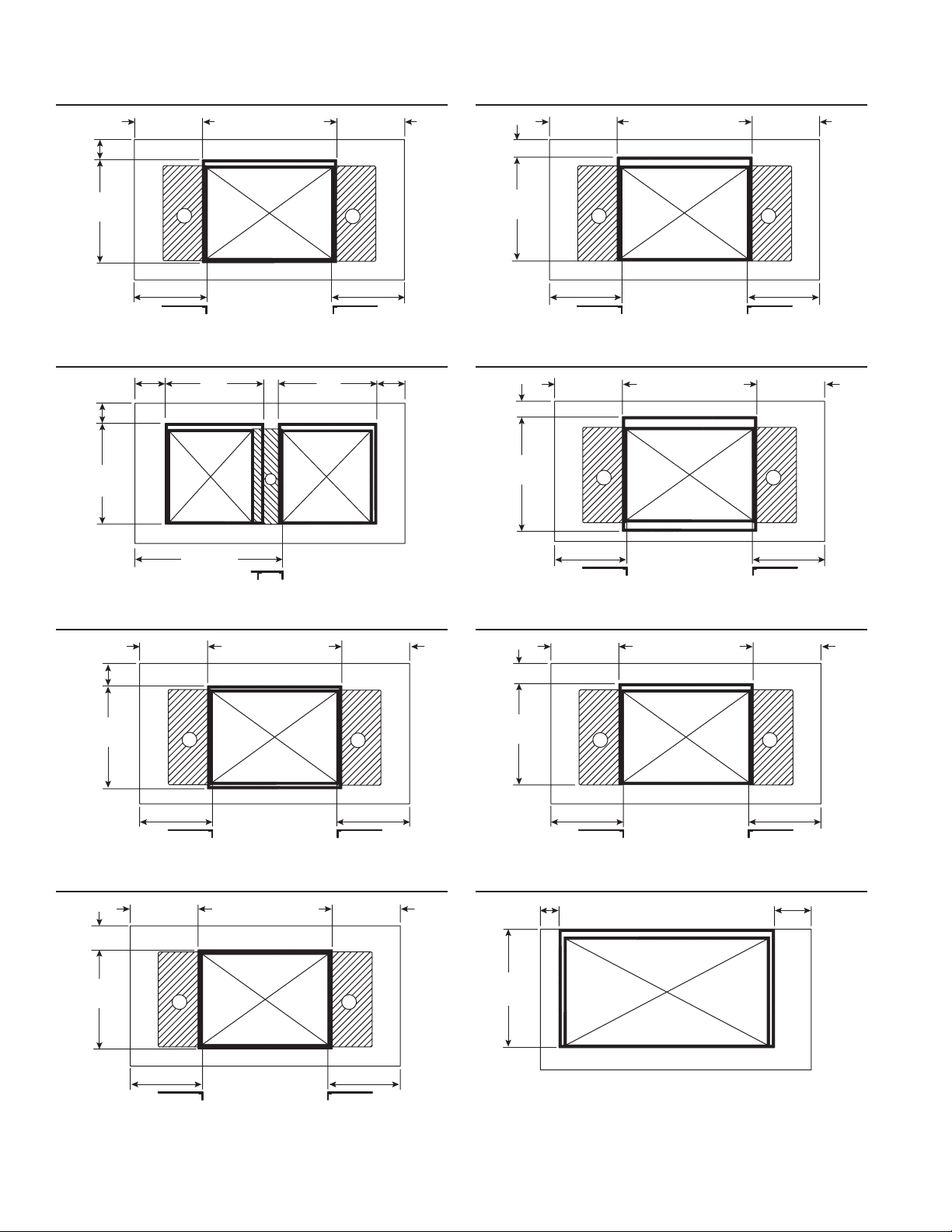

NOTE: All dimensions shown are from edge of bin top.

Fig. 1 Fig. 2

4-1/2"

outer gasket

9-1/4"
outer gasket

9-1/4"

outer gasket

outer gasket

3-3/8"

9-1
outer gasket

9-1

outer gasket

22-5/8"

outer gasket

10-5/16"

panel

Fig. 3

(no Flexi-Panels needed)

outer gasket

5"

23"

outer gasket

2

3/16"
outer gasket

ice drop
opening

ice drop
opening

10-5/16"

panel

outer gasket

2

Fig. 4

1/4"

outer gasket

Fig. 5 Fig. 6

outer gasket

4-1/2"

outer gasket

1"

22"

outer gasket

22"

outer gasket

outer gasket

25-5/8"

outer gasket

10-5/16"

panel

2

(no Flexi-Panels needed)

3/16"

3-3/4"

23-3/8"

outer gasket

5-1/8"

outer gasket

22"

outer gasket

ice drop
opening

ice drop
opening

10-5/16"

panel

outer gasket

outer gasket

2

1/4"

22"

22-5/8"

outer gasket

ice

drop

opening

1

ice

drop

opening

21-3/8"

panel

Fig. 7 Fig. 8

3-7/8"

outer gasket

outer gasket

23-1/4"

22-1/8"

outer gasket

ice

drop

opening

1

22-1/8"

outer gasket

ice

drop

opening

21-3/8"

panel

outer gasket

22-1/2"

outer gasket

4-9/16"

22-9/16"

outer gasket

10-5/16"

panel

opening

2

drop

ice

9-3/16"
outer gasket

1

outer gasket

ice drop
opening

opening

9-5/16"

10-5/16"

panel

ice

drop

21-3/8"

panel

2

6

NOTE: All dimensions shown are from edge of bin top.

Fig. 9 Fig. 10

5-1/4"

outer gasket

outer gasket

22-1/8"

10-5/16"

panel

2

9-1/4"
outer gasket

ice drop
opening

9-1/4"

outer gasket

10-5/16"

panel

4/1/2"

outer gasket

2

Fig. 11 Fig. 12

3-7/8"

outer gasket

outer gasket

23-1/4"

2

9-3/16"
outer gasket

ice drop
opening

9-3/16"

outer gasket

3-7/8"

outer gasket

2

(no Flexi-Panels needed)

1/2"
outer gasket

22-5/8"

outer gasket

(no Flexi-Panels needed)

3/8"
outer gasket

23-1/4"

outer gasket

ice drop
opening

ice drop
opening

Fig. 13

5-1/8"

outer gasket

outer gasket

10-5/16"

panel

(no Flexi-Panels needed)

1/4"
outer gasket

23-3/8"

ice drop
opening

10-5/16"

panel

outer gasket

1/4"

Fig. 14

4-7/8"

outer gasket

Fig. 15 Fig. 16

4-5/8"

outer gasket

outer gasket

23"

2

9-1/4"
outer gasket

ice drop
opening

9-1/4"

outer gasket

4-7/8"

outer gasket

2

23"

outer gasket

7-1/2"

panel

23"

outer gasket

1

2

42" outer gasket

9-1/4"
outer gasket

ice drop
opening

ice drop
opening

outer gasket

9-1/4"

2

10-5/16"

panel

10-5/16"

panel

10-5/16"

panel

10-5/16"

panel

7

NOTE: All dimensions shown are from edge of bin top.

Fig. 17 Fig. 18

outer gasket

4-1/2"

outer

gasket

23"

outer gasket

Fig. 19

26-3/8"

outer gasket

3/4"

21"

outer gasket

ice

drop

opening

(no Flexi-Panels needed)

8-13/16"
outer
gasket

ice drop
opening

1

9-11/16"

outer

gasket

21"

outer gasket

ice

drop

opening

21-1/4"

panel

3/4"
outer
gasket

26-3/8"

outer gasket

Fig. 20

1"

outer

gasket

26-3/8"

outer gasket

(no Flexi-Panels needed)

1/4"
outer gasket

ice drop
opening

(no Flexi-Panels needed)

8-13/16"
outer
gasket

ice drop
opening

outer gasket

9-11/16"

outer

gasket

1/4"

Fig. 21 Fig. 22

26-3/8"

outer gasket

18"

panel

17-1/2"

outer gasket

3

outer gasket

ice drop
opening

9"

outer gasket

Fig. 23 Fig. 24

6-3/4"
outer
gasket

3-13/16"

outer

gasket

outer gasket

23-3/8"

outer gasket

4-5/8"

outer

gasket

23"

outer gasket

6-3/4"

21"

outer gasket

ice

drop

opening

1

21"

outer gasket

ice

drop

opening

8-1/4"

ice drop
opening

(no Flexi-Panels needed)

6-1/8"
outer gasket

19"

panel

outer gasket

ice drop
opening

18-1/4"

3

outer gasket

6-1/8"

33-1/16" panel

8

NOTE: All dimensions shown are from edge of bin top.

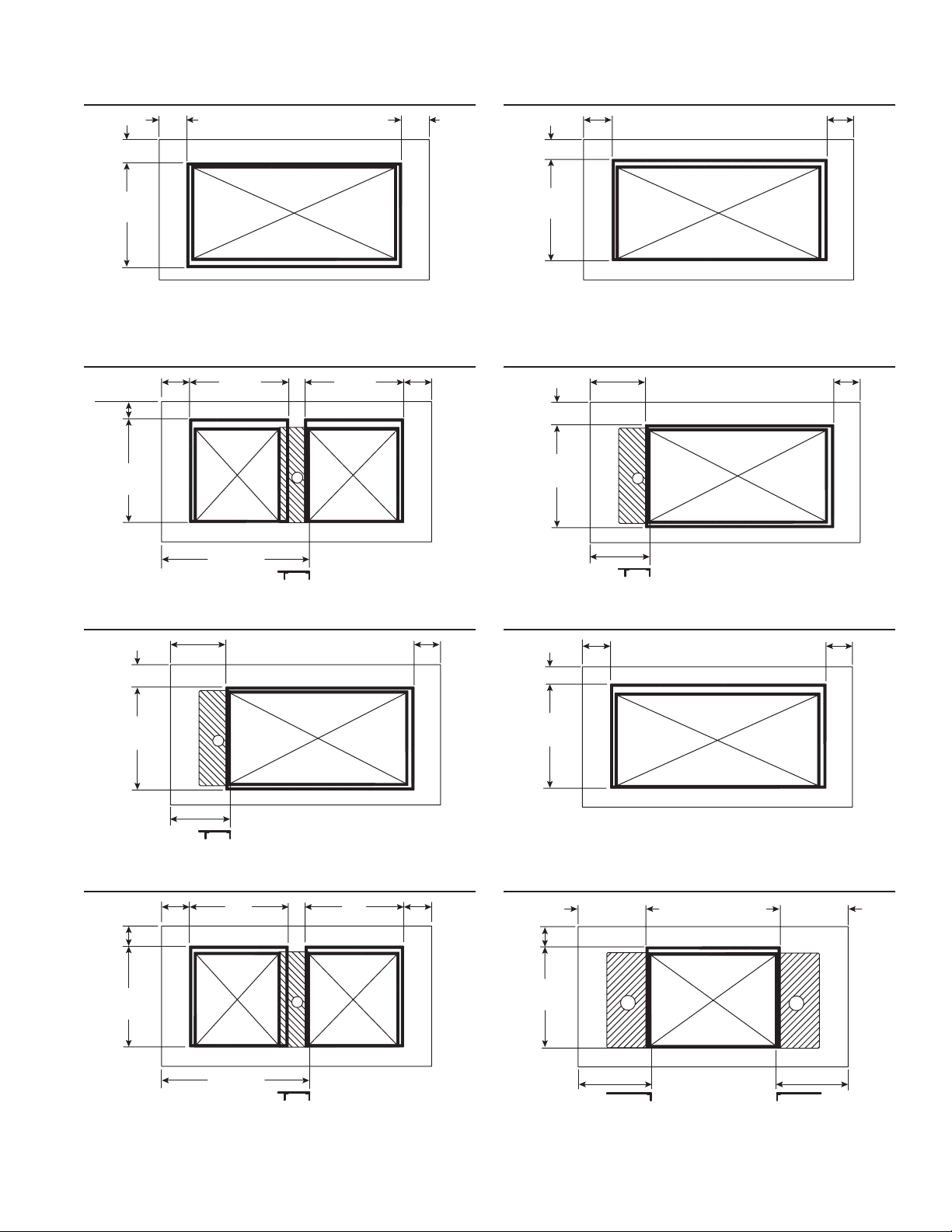

Fig. 25

5-3/16"

(no Flexi-Panels needed)

outer

gasket

23-3/8"

outer gasket

6-1/8"
outer gasket

ice drop
opening

6-1/8"

outer gasket

Fig. 26

4-7/16"

outer

gasket

22-5/8"

outer gasket

Fig. 27 Fig. 28

outer gasket

3-7/8"

outer

gasket

23-1/8"

outer gasket

6-1/4"

22-1/8"

outer gasket

ice

drop

opening

1

22-1/8"

outer gasket

ice

drop

opening

4-15/16"

outer

gasket

outer gasket

(no Flexi-Panels needed)

6-3/8"
outer gasket

12-3/8"
outer gasket

23"

1

ice drop
opening

ice drop
opening

5-7/8"

outer gasket

5-15/16"

outer gasket

33" panel

Fig. 29 Fig. 30

5-15/16"

outer gasket

3-7/8"

outer

gasket

23-1/4"

outer gasket

4-15/16"

outer

gasket

outer gasket

23"

13-3/8"

panel

12-3/8"
outer gasket

1

ice drop
opening

Fig. 31 Fig. 32

outer gasket

4-1/2"

outer

gasket

22-1/2"

outer gasket

6-1/4"

22"

outer gasket

ice

drop

opening

1

22"

outer gasket

ice

drop

opening

6-1/4"
outer
gasket

4-1/2"

outer

gasket

22-5/8"

outer gasket

13-3/8"

panel

(no Flexi-Panels needed)

6-1/4"
outer gasket

15-1/8"

outer gasket

2

ice drop
opening

ice drop
opening

5-15/16"

outer gasket

15-1/8"

outer gasket

2

33" panel

16-1/4"

panel

16-1/4"

panel

9

NOTE: All dimensions shown are from edge of bin top.

Fig. 33 Fig. 34

4-7/16"

outer

gasket

15-1/8"

outer gasket

15-1/8"

outer gasket

3-7/8"

outer

gasket

15-1/16"

outer gasket

15-1/16"

outer gasket

23"

outer gasket

16-1/4"

panel

2

ice drop
opening

16-1/4"

panel

2

23-3/16"

outer gasket

16-1/8"

Fig. 35 Fig. 36

outer gasket

4-1/2"

outer

gasket

22-1/2"

outer gasket

6-3/4"

22"

outer gasket

ice

drop

opening

33" panel

1

22"

outer gasket

ice

drop

opening

6-5/16"
outer
gasket

3-7/16"

outer

gasket

25-5/8"

outer gasket

Fig. 37 Fig. 38

4-15/16"

outer

gasket

15-1/8"

outer gasket

15-1/8"

outer gasket

4-1/2"

outer

gasket

panel

16-1/8"

panel

15-1/8"

outer gasket

15-1/8"

outer gasket

ice drop
opening

ice drop
opening

16-1/8"

panel

16-1/8"

panel

22

15-1/8"

outer gasket

22

15-1/8"

outer gasket

23"

outer gasket

16-1/4"

panel

2

ice drop
opening

16-1/4"

panel

2

22-1/2"

outer gasket

Fig. 39 Fig. 40

5-3/8"

outer

gasket

22-1/8"

outer gasket

16-1/8"

panel

15-1/8"

outer gasket

2

ice drop
opening

16-1/8"

panel

15-1/8"

outer gasket

2

26-3/8"

outer gasket

16-1/8"

panel

(no Flexi-Panels needed)

4-1/8"
outer gasket

ice drop
opening

ice drop
opening

16-1/8"

panel

8-1/8"

outer gasket

22

10

NOTE: All dimensions shown are from edge of bin top.

Fig. 41 Fig. 42

19-1/8"

outer gasket

19-1/8"

outer gasket

22"

outer gasket

22"

outer gasket

9"
outer
gasket

26-3/8"

outer gasket

20-1/8"

panel

3

ice drop
opening

3

19-1/2"

panel

26-3/8"

outer gasket

Fig. 43 Fig. 44

4-5/8"

outer

gasket

26-3/8"

outer gasket

22"

outer gasket

44

22"

outer gasket

26" panel

4-1/2"
outer
gasket

26-3/8"

outer gasket

Fig. 45 Fig. 46

outer

gasket

1"

15-1/8"
outer gasket

15-1/8"

outer gasket

drop

opening

21-1/4"

panel

3

16-1/8"

panel

outer gasket

ice

15-1/8"
outer gasket

30"

4

ice drop
opening

15-1/8"

outer gasket

outer gasket

30"

3

18"

panel

26-3/8"

outer gasket

3

16-1/8"

panel

ice drop
opening

3

18"

panel

26-3/8"

outer gasket

Fig. 47 Fig. 48

1"

outer

gasket

26-3/8"

outer gasket

30"

outer gasket

ice

drop

opening

21-3/16"

panel

4

30"

outer gasket

ice drop
opening

5/16"
outer

gasket

26-3/8"

outer gasket

ice

drop

opening

21-3/16"

panel

22"

outer gasket

FLAKER CUBER

ice

drop

opening

21-13/16"

panel

44

44

ice drop
opening

30"

outer gasket

ice drop
opening

11

NOTE: All dimensions shown are from edge of bin top.

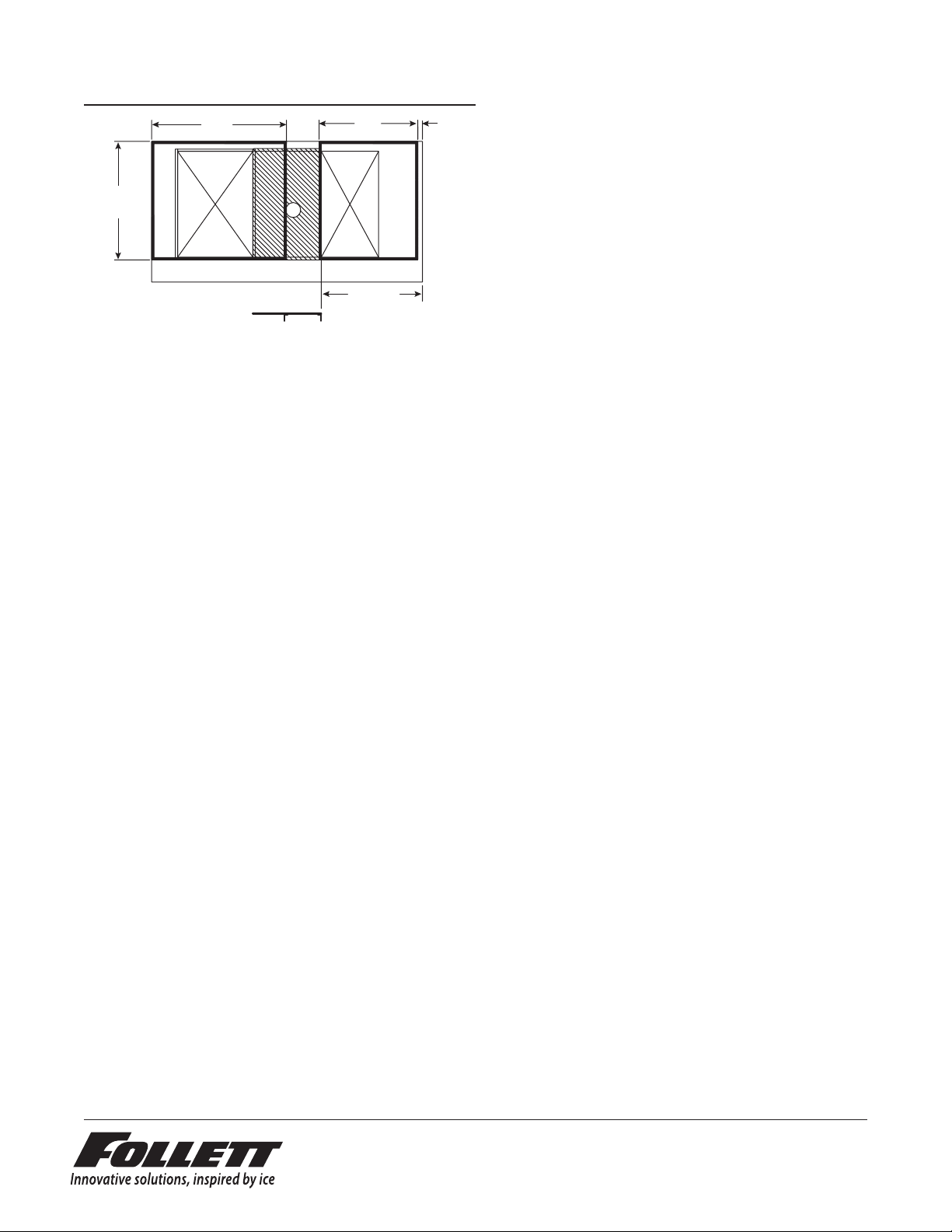

Fig. 49

22"

outer gasket

FLAKERCUBER

ice

drop

opening

22-1/2"

panel

26-3/8"

outer gasket

30"

outer gasket

ice

drop

opening

3

1"
outer
gasket

801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
Fax [phone] • www.follettice.com

00158303R00

1/07
