Follett DB650SA User Manual

Ice dispensing system

Ice
storage
capacity Voltage Item number

650 lb
(295kg)

220 V/60/1 DB650SA

230 V/50/1 EDB650SA

™

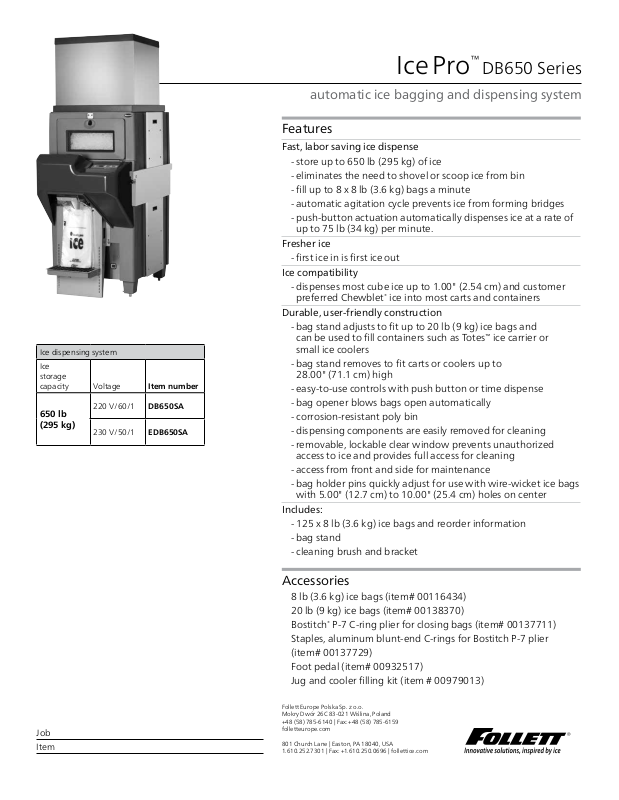

Ice Pro

DB650 Series

automatic ice bagging and dispensing system

Features

Fast, labor saving ice dispense

- store up to 650 lb (295 kg) of ice

- eliminates the need to shovel or scoop ice from bin

- fill up to 8 x 8 lb (3.6 kg) bags a minute

- automatic agitation cycle prevents ice from forming bridges

- push-button actuation automatically dispenses ice at a rate of
up to 75 lb (34 kg) per minute.

Fresher ice

- first ice in is first ice out

Ice compatibility

- dispenses most cube ice up to 1.00" (2.54 cm) and customer
preferred Chewblet® ice into most carts and containers

Durable, user-friendly construction

- bag stand adjusts to fit up to 20 lb (9 kg) ice bags and
canbeused to fill containers such as Totes™ ice carrier or
smallice coolers

- bag stand removes to fit carts or coolers up to

28.00" (71.1 cm) high

- easy-to-use controls with push button or time dispense

- bag opener blows bags open automatically

- corrosion-resistant poly bin

- dispensing components are easily removed for cleaning

- removable, lockable clear window prevents unauthorized
access to ice and provides full access for cleaning

- access from front and side for maintenance

- bag holder pins quickly adjust for use with wire-wicket ice bags
with 5.00" (12.7 cm) to 10.00" (25.4 cm) holes on center

Includes:

- 125 x 8 lb (3.6 kg) ice bags and reorder information

- bag stand

- cleaning brush and bracket

Job
Item

Accessories

8 lb (3.6 kg) ice bags (item# 00116434)
20 lb (9 kg) ice bags (item# 00138370)
Bostitch® P-7 C-ring plier for closing bags (item# 00137711)
Staples, aluminum blunt-end C-rings for Bostitch P-7 plier
(item# 00137729)
Foot pedal (item# 00932517)
Jug and cooler filling kit (item # 00979013)

Follett Europe Polska Sp. z o.o.
Mokry Dwór 26C 83-021 Wiślina, Poland
[phone] | Fax: [phone]
folletteurope.com

801 Church Lane | Easton, PA 18040, USA

1.610.252.7301 | Fax: [phone] | follettice.com

Specification

Maximum bin capacity 650 lb (295 kg)
Cubic capacity 20 cu ft (0.57 cu m)

W1 Width 33.75" (85.7 cm)
W2 Width, bin top 30.38" (77.1 cm)
D1 Depth, without bag stand 46.75" (118.7 cm)
D2 Depth, bin top 31.25" (79.4 cm)
D3 Depth, with bag stand 48.25" (122.6 cm)
H1 Height 66.50" (168.9 cm) adjustable
W3 Drip tray width 16.75" (42.5 cm)
D4 Drip tray depth 10.12" (25.7 cm)
L1 Dispense clearance 28.00" (71.1 cm)
L2 Bag stand dispense clearance 26.00" (66.0 cm)

Installation clearance 34.25" (87.0 cm) wide door access
Service clearance 12.00" (30.5 cm) right side
C1 Electrical

220 V/60/1
C2 Electrical

230 V/50/1

L3 Drain 1.00" FPT
Dispense rate up to 75 lb (34 kg) per minute
Ice compatibility non-flake up to 1.00" (2.54 cm)

Shipping weight 460 lb (205 kg)
NOTES: For indoor use only

SHORT FORM SPECIFICATION (Choose one): Automatic ice storage and dispensing
system to be Follett ________ 220 V/60 Hz DB650SA or ________ 230/50 Hz
EDB650SA with elevated bin and base. Bin to hold up to 650 lb (295kg) of ice.
Dispense rate to be approximately 75 lb (34 kg)/min. Two position ice discharge
chute with selector lever allows filling of bags or other containers. Lockable clear
inspection window shall have interlock switch to prevent operation if window is
removed. Hopper to be constructed of double wall rotationally molded
polyethylene insulated with non-CFC polyurethane foam. Heavy-duty agitation
system includes two stainless steel agitators and motors. Dispense auger to be
rotationally molded plastic, driven by 1/4 HP motor. Activation of the dispensing
function shall be controlled by push-button. Dispenser shall be equipped with
holding pins for bags, time dispense, and blower function for automatically
opening bags. DB650SA is NSF, UL and cUL listed. EDB650SA is CE listed.

Notes:

1

Computed on cubic volume of bin. Does not reflect voids that can

occur due to pyramiding.

2

C1, C2 – within 7' (2.1 m) from right rear corner.

3

Follett recommends installation of a floor drain with grate with all

ice storage bins.

Local food regulations vary. Please check with your local authorities

for requirements for packaged ice.

Warranty:

Follett LLC warrants to the original end user that all parts shall be free from defects in material
and workmanship under normal use and service for a period of 2 years from the date of
installation. Date of installation shall not exceed 90 days from date of shipment. Parts and labor
for repair within this 2year period are covered under this warranty. Removal of ice machine to
service bin and any labor costs incurred are expressly excluded from this warranty.

2.5 amps, max. fuse 15 amps. 7'
(2.1m) cord with NEMA 6-15 plug.

2.4amps, max. fuse 15 amps.
Cordonly. Wire in accordance with
all local codes.

square

Dimensional drawing

D1

D2

L2

L1

W3

8.62"

(21. 89 cm)

Bostitch is a registered trademark of Stanley Black and Decker.
Ice Pro and Totes are trademarks of Follett LLC.
Chewblet and Follett are registered trademarks of Follett LLC, registered in the US.
Follett reserves the right to change specifications at any time without obligation. Certifications may
vary depending on country of origin.

W1
W2

D4

13.62"

(34.59 cm)

D3

C1

H1

L3

C2

Form #3630 07/16
© Follett LLC

230 V

models only
