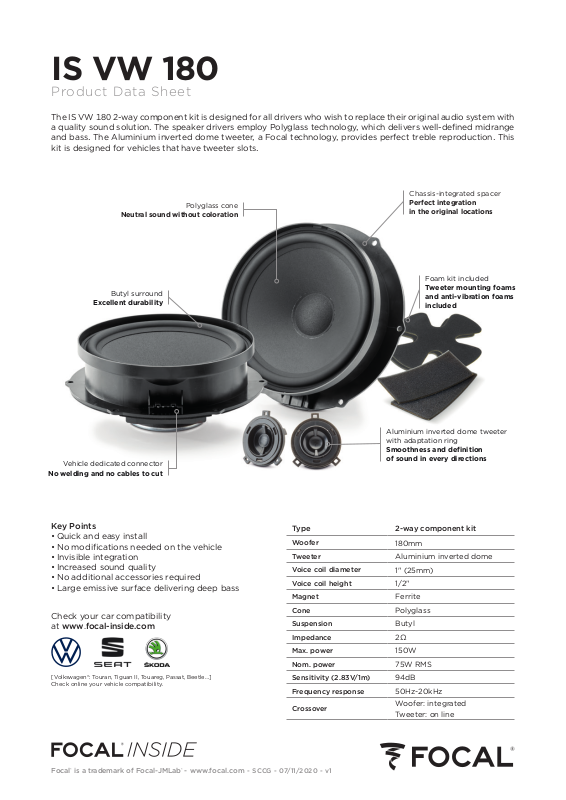

IS VW 180
Product Data Sheet
The IS VW -way component kit is designed for all drivers who wish to replace their original audio system with
a quality sound solution The speaker drivers employ Polyglass technology which delivers well-defined midrange
and bass The Aluminium inverted dome tweeter a Focal technology provides perfect treble reproduction This
kit is designed for vehicles that have tweeter slots
Chassis-integrated spacer
Neutral sound without coloration
Polyglass cone
Butyl surround
Excellent durability
Perfect integration
in the original locations
Foam kit included
Tweeter mounting foams
and anti-vibration foams
included
Vehicle dedicated connector
No welding and no cables to cut
Key Points
• Quick and easy install
• No modifications needed on the vehicle
• Invisible integration
• Increased sound quality
• No additional accessories required
• Large emissive surface delivering deep bass
Check your car compatibility
at www.focal-inside.com
[Volkswagen®: Touran, Tiguan II, Touareg, Passat, Beetle…]
Check online your vehicle compatibility.
Aluminium inverted dome tweeter
with adaptation ring
Smoothness and definition
of sound in every directions
Type 2-way component kit
Woofer
Tweeter
Voice coil diameter
Voice coil height
Magnet
Cone
Suspension
Impedance
Max. power
Nom. power
Sensitivity (2.83V/1m)
Frequency response
Crossover
180mm
Aluminium inverted dome
1" (25mm)
1/2"
Ferrite
Polyglass
Butyl
2Ω
150W
75W RMS
94dB
50Hz-20kHz
Woofer: integrated
Tweeter: on line
Focal® is a trademark of Focal-JMLab® - www.focal.com - SCCG - 07/11/2020 - v1
