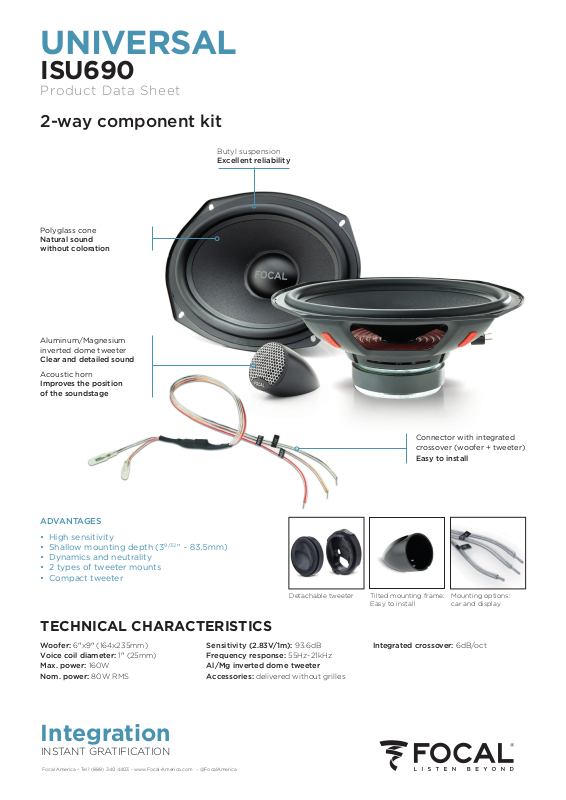

Page 1
UNIVERSAL
ISU690
Product Data Sheet
2-way component kit
Butyl suspension
Excellent reliability
Polyglass cone
Natural sound
without coloration
Aluminum/Magnesium
inverted dome tweeter
Clear and detailed sound
Acoustic horn
Improves the position
of the soundstage
ADVANTAGES
• High sensitivity
• Shallow mounting depth (3
• Dynamics and neutrality
• 2 types of tweeter mounts
• Compact tweeter
9/32
Detachable tweeter
Connector with integrated
crossover (woofer + tweeter)
Easy to install
Tilted mounting frame:
Easy to install
Mounting options:
car and display
TECHNICAL CHARACTERISTICS
Woofer: 6"x9" (164x235mm)
Voice coil diameter: 1" (25mm)
Max. power: 160W
Nom. power: 80W RMS
Sensitivity (2.83V/1m): 93.6dB
Frequency response: 55Hz-21kHz
Al/Mg inverted dome tweeter
Accessories: delivered without grilles
Integration
INSTANT GRATIFICATION
Focal America - Tel 1 (888) 340 4403 - www.Focal-America.com - @FocalAmerica
Integrated crossover: 6dB/oct
