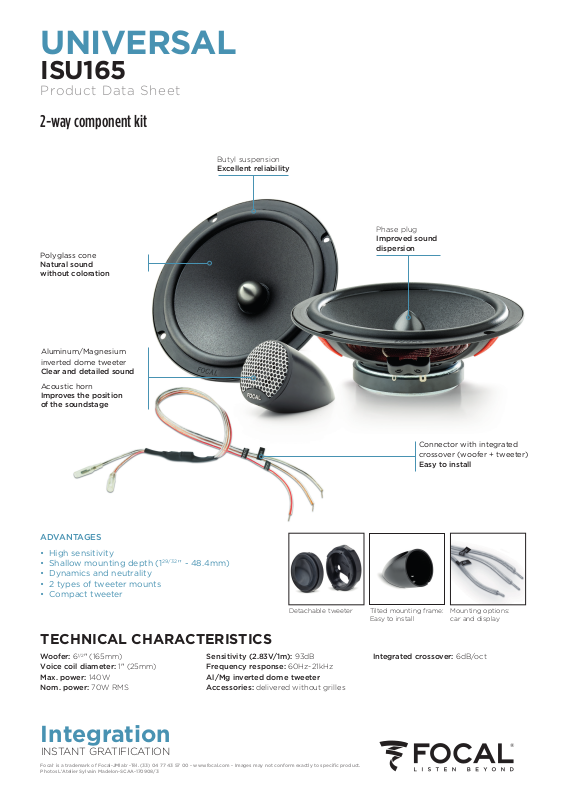

Focal ISU 165 User Manual

UNIVERSAL

ISU165

Product Data Sheet

2-way component kit

Butyl suspension

Excellent reliability

Polyglass cone

Natural sound
without coloration

Phase plug

Improved sound
dispersion

Aluminum/Magnesium
inverted dome tweeter

Clear and detailed sound

Acoustic horn

Improves the position
of the soundstage

ADVANTAGES

• High sensitivity

• Shallow mounting depth (1

• Dynamics and neutrality

• 2 types of tweeter mounts

• Compact tweeter

29/32

 - 48.4mm)

Detachable tweeter

Connector with integrated
crossover (woofer + tweeter)

Easy to install

Tilted mounting frame:
Easy to install

Mounting options:
car and display

TECHNICAL CHARACTERISTICS

Woofer: 6
Voice coil diameter: 1" (25mm)
Max. power: 140W
Nom. power: 70W RMS

1/2

" (165mm)

Sensitivity (2.83V/1m): 93dB
Frequency response: 60Hz-21kHz
Al/Mg inverted dome tweeter
Accessories: delivered without grilles

Integration

INSTANT GRATIFICATION

Focal® is a trademark of Focal-JMlab® -Tél. [phone] - www.focal.com - Images may not conform exactly to specific product.
Photos L’Atelier Sylvain Madelon-SCAA-170908/3

Integrated crossover: 6dB/oct
