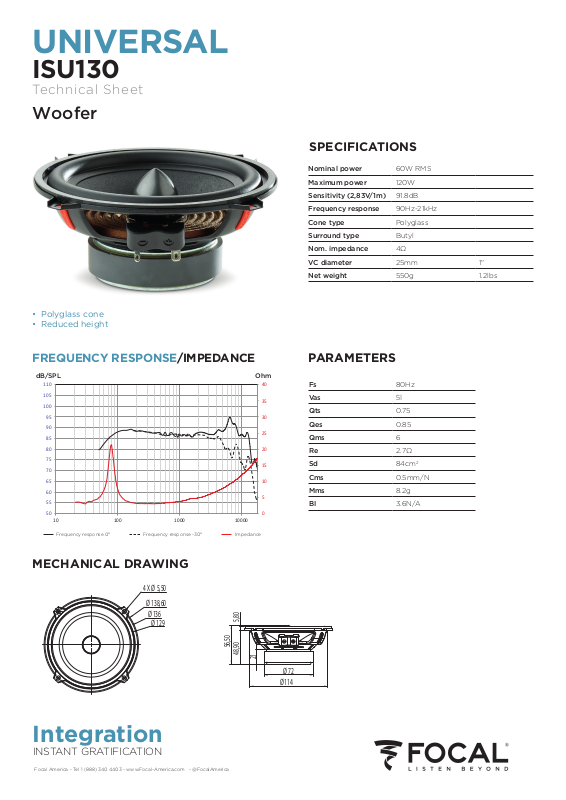

Focal ISU130 Specification Sheet

40

110

Impedance (Ohm)

UNIVERSAL

ISU130

Technical Sheet

Woofer

• Polyglass cone

• Reduced height

SPECIFICATIONS

Nominal power 60W RMS

Maximum power 120W

Sensitivity (2,83V/1m) 91.8dB

Frequency response 90Hz-21kHz

Cone type Polyglass

Surround type Butyl

Nom. impedance 4Ω

VC diameter 25mm 1"

Net weight 550g 1.2lbs

FREQUENCY RESPONSE/IMPEDANCE

dB/SPL Ohm

105

100

95

90

85

80

75

70

65

60

55

50

10 100 1000 10000

Frequency response 0° Frequency response -30° Impedance

MECHANICAL DRAWING

4 X

Ø 5,50

Ø 138,60

Ø 136

Ø 129

PARAMETERS

Fs 80Hz

35

30

25

20

15

10

5

0

Vas

Qts 0.75

Qes 0.85

Qms 6

Re 2.7Ω

Sd 84cm

Cms 0.5mm/N

Mms 8.2g

BI 3.6N/A

2

Integration

INSTANT GRATIFICATION

Focal America - Tel [phone] - www.Focal-America.com - @FocalAmerica

56,50

48,90 5,80

21

Ø 72

Ø 114
