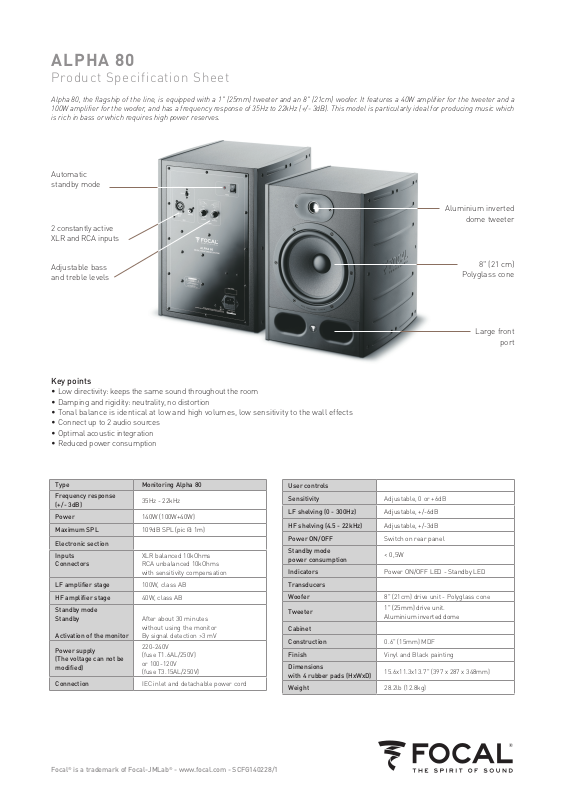

Focal ALPHA-80 Datasheet

ALPHA 80

Product Specification Sheet

Alpha 80, the flagship of the line, is equipped with a 1" (25mm) tweeter and an 8" (21cm) woofer. It features a 40W amplifier for the tweeter and a
100W amplifier for the woofer, and has a frequency response of 35Hz to 22kHz (+/- 3dB). This model is particularly ideal for producing music which
is rich in bass or which requires high power reserves.

Automatic
standby mode

Aluminium inverted

2 constantly active
XLR and RCA inputs

dome tweeter

Adjustable bass
and treble levels

Key points

•

Low directivity: keeps the same sound throughout the room

• Damping and rigidity: neutrality, no distortion

• Tonal balance is identical at low and high volumes, low sensitivity to the wall effects

• Connect up to 2 audio sources

• Optimal acoustic integration

• Reduced power consumption

Type Monitoring Alpha 80

Frequency response
(+/- 3dB)

Power 140W (100W+40W)

Maximum SPL 109dB SPL (pic @ 1m)

Electronic section

Inputs
Connectors

LF amplifier stage 100W, class AB

HF amplifier stage 40W, class AB

Standby mode
Standby

Activation of the monitor

Power supply
(The voltage can not be
modified)

Connection IEC inlet and detachable power cord

35Hz - 22kHz

XLR balanced 10kOhms
RCA unbalanced 10kOhms
with sensitivity compensation

After about 30 minutes
without using the monitor
By signal detection >3 mV

220-240V
(fuse T1.6AL/250V)
or 100-120V
(fuse T3.15AL/250V)

User controls

Sensitivity Adjustable, 0 or +6dB

LF shelving (0 - 300Hz) Adjustable, +/-6dB

HF shelving (4.5 - 22kHz) Adjustable, +/-3dB

Power ON/OFF Switch on rear panel

Standby mode
power consumption

Indicators Power ON/OFF LED - Standby LED

Transducers

Woofer 8" (21cm) drive unit - Polyglass cone

Tweeter

Cabinet

Construction 0.6" (15mm) MDF

Finish Vinyl and Black painting

Dimensions
with 4 rubber pads (HxWxD)

Weight 28.2lb (12.8kg)

8" (21 cm)

Polyglass cone

Large front

port

< 0,5W

1" (25mm) drive unit.
Aluminium inverted dome

15.6x11.3x13.7" (397 x 287 x 348mm)

Focal® is a trademark of Focal-JMLab® - www.focal.com - SCFG140228/1
