FNW PTS User Manual

Figure PTS
Gauges & Thermometers
PIG TAIL SYPHON

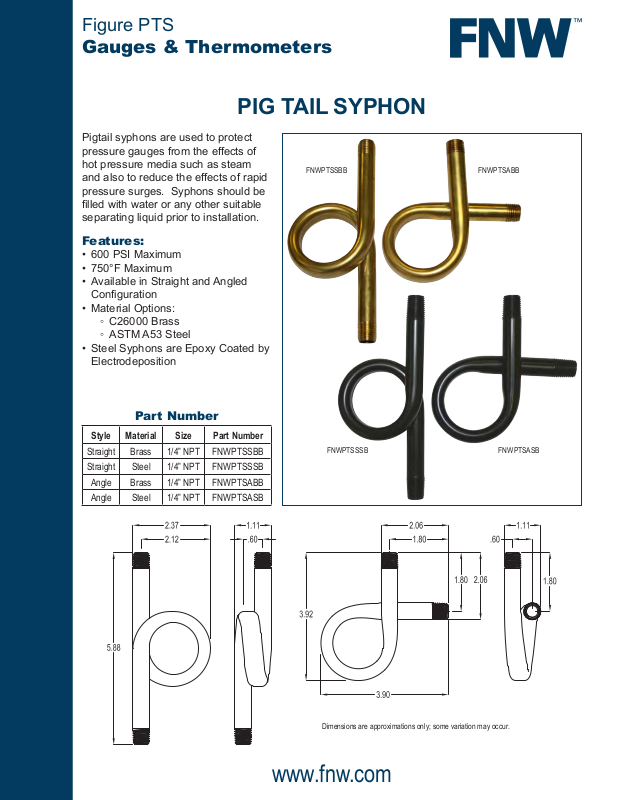

Pigtail syphons are used to protect pressure gauges from the effects of hot pressure media such as steam and also to reduce the effects of rapid pressure surges. Syphons should be lled with water or any other suitable separating liquid prior to installation.
Features:
• 600 PSI Maximum
• 750°F Maximum
• Available in Straight and Angled Configuration
• Material Options:
◦ C26000 Brass ◦ ASTM A53 Steel
• Steel Syphons are Epoxy Coated by Electrodeposition
FNWPTSSBB
FNWPTSABB
Part Number
Style Material Size Part Number
Straight Brass 1/4” NPT FNWPTSSBB
Straight Steel 1/4” NPT FNWPTSSSB
Angle Brass 1/4” NPT FNWPTSABB
Angle Steel 1/4” NPT FNWPTSASB
FNWPTSSSB
FNWPTSASB
Dimensions are approximations only; some variation may occur.
