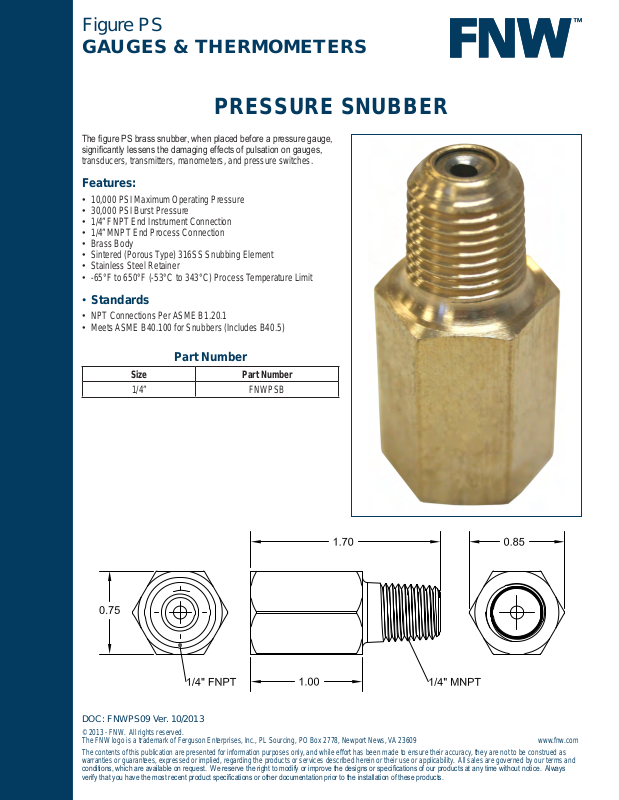

Figure PS
GAUGES & THERMOMETERS
PRESSURE SNUBBER
The gure PS brass snubber, when placed before a pressure gauge,
signicantly lessens the damaging effects of pulsation on gauges,
transducers, transmitters, manometers, and pressure switches.
Features:
• 10,000 PSI Maximum Operating Pressure
• 30,000 PSI Burst Pressure
• 1/4” FNPT End Instrument Connection
• 1/4” MNPT End Process Connection
• Brass Body
• Sintered (Porous Type) 316SS Snubbing Element
• Stainless Steel Retainer
• -65°F to 650°F (-53°C to 343°C) Process Temperature Limit
• Standards
• NPT Connections Per ASME B1.20.1
• Meets ASME B40.100 for Snubbers (Includes B40.5)
Part Number
Size Part Number
1/4” FNWPSB
DOC: FNWPS09 Ver. 10/2013
© 2013 - FNW. All rights reserved.
The FNW logo is a trademark of Ferguson Enterprises, Inc., PL Sourcing, PO Box 2778, Newport News, VA 23609 www.fnw.com
