FNW LFG User Manual
Figure LFG
GAUGES & THERMOMETERS

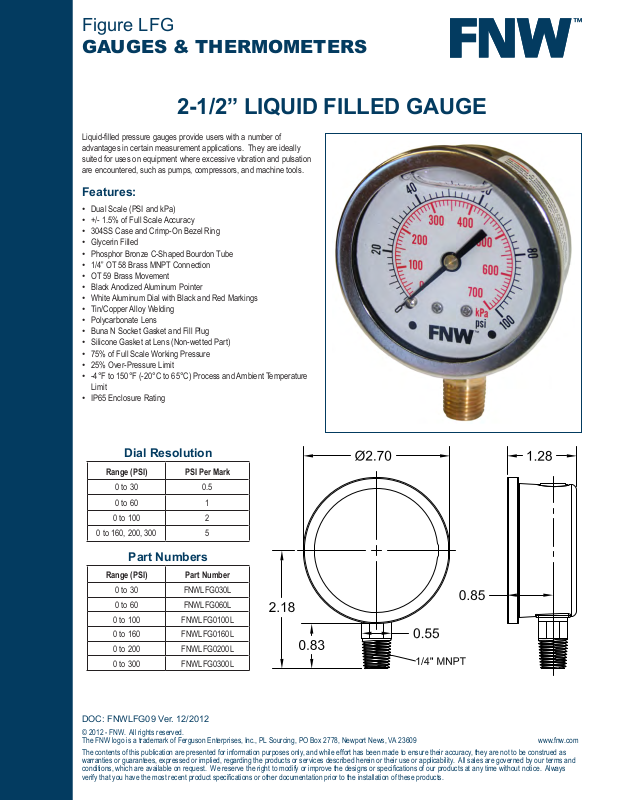

2-1/2” LIQUID FILLED GAUGE
Liquid-lled pressure gauges provide users with a number of
advantages in certain measurement applications. They are ideally
suited for uses on equipment where excessive vibration and pulsation
are encountered, such as pumps, compressors, and machine tools.
Features:
• Dual Scale (PSI and kPa)
• +/- 1.5% of Full Scale Accuracy
• 304SS Case and Crimp-On Bezel Ring
• Glycerin Filled
• Phosphor Bronze C-Shaped Bourdon Tube
• 1/4” OT 58 Brass MNPT Connection
• OT 59 Brass Movement
• Black Anodized Aluminum Pointer
• White Aluminum Dial with Black and Red Markings
• Tin/Copper Alloy Welding
• Polycarbonate Lens
• Buna N Socket Gasket and Fill Plug
• Silicone Gasket at Lens (Non-wetted Part)
• 75% of Full Scale Working Pressure
• 25% Over-Pressure Limit
• -4°F to 150°F (-20°C to 65°C) Process and Ambient Temperature
Limit
• IP65 Enclosure Rating
Dial Resolution
Range (PSI) PSI Per Mark
0 to 30 0.5
0 to 60 1
0 to 100 2
0 to 160, 200, 300 5
Part Numbers
Range (PSI) Part Number
0 to 30 FNWLFG030L
0 to 60 FNWLFG060L
0 to 100 FNWLFG0100L
0 to 160 FNWLFG0160L
0 to 200 FNWLFG0200L
0 to 300 FNWLFG0300L
