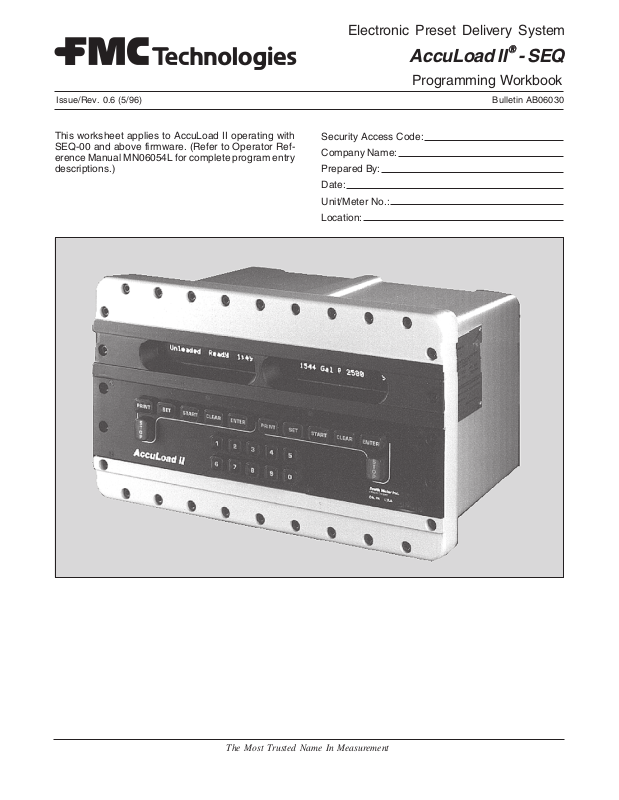

Page 1
Electronic Preset Delivery System
®®
®
®®
AccuLoad II - SEQ
Programming Workbook
Issue/Rev. 0.6 (5/96) Bulletin AB06030
This worksheet applies to AccuLoad II operating with
SEQ-00 and above firmware. (Refer to Operator Reference Manual MN06054L for complete program entry
descriptions.)
Security Access Code:
Company Name:
Prepared By:
Date:
Unit/Meter No.:
Location:
The Most Trusted Name In Measurement
Page 2
Table of Contents
System Directories.................................................................................................................................................2
System Configuration Directory................................................................................................................2
System General Purpose Directory.......................................................................................................... 8
System Flow Control Directory...............................................................................................................11
System Volume Accuracy Directory.......................................................................................................14
System Temperature & Density Directory ..............................................................................................17
System Pressure Directory ...................................................................................................... ..............18
System Read Only Directory..................................................................................................................19
System Communication Directory ..........................................................................................................19
System Input/Output Directory...............................................................................................................27
System Diagnostic Directory..................................................................................................................31
Product Directories ..............................................................................................................................................33
Product General P ur pos e Dir ec tory ........................................................................................................33
Product Flow Cont r ol Dir ec tory ..............................................................................................................33
Volume Accuracy Directory....................................................................................................................34
Temperature & Dens ity Directory ...........................................................................................................35
Pressure Directory.................................................................................................................................37
Read Only Directory ...............................................................................................................................39
Communications Directory.....................................................................................................................39
Inputs & Outputs Director y..................................................................................................................... 40
Diagnostics Direct or y .............................................................................................................................40
Blend Recipe Directories ......................................................................................................................................41
Blend Recipe # __ Directory...................................................................................................................41
ii
Page 3

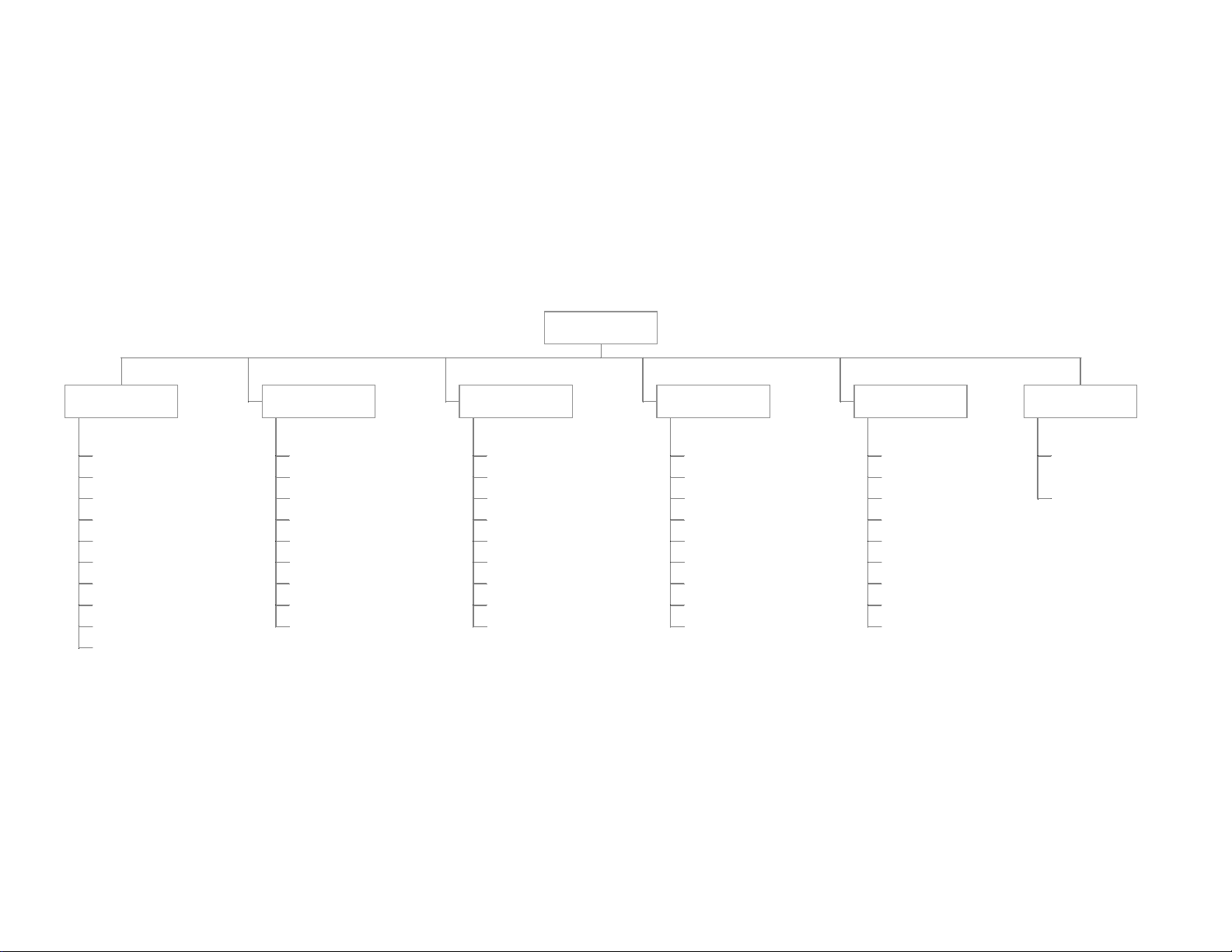

Directories
System
Configuratio n
General Purpose
Flow Control
Volume Accuracy
Temp. & Density
Pressure
Read Only
Communications
Input/Output
Configuration
Product 1
General Purpose
Flow Control
Volume Accuracy
Temp & Density
Pressure
Read Only
Communications
Input/Output
Diagnostics
Product 2
General Purpose
Flow Control
Volume Accu rac y
Temp. & Density
Pressure
Read Only
Communications
Input/Output
Diagnostics
Product 3
General Purpose
Flow Control
Volume Accu racy
Temp. & Dens ity
Pressure
Read Only
Communications
Input/Output
Diagnostics
Product 4
General Purpose
Flow Control
Volume Accuracy
Temp. & Density
Pressure
Read Only
Communications
Input/Output
Diagnostics
Blend Re cipe
Recipe 1
through
Recipe 24
Page 4
Program Program
Code Function Code Description Entry Code
System Director ies
000 System Configuration Directory 000
001 Number of Product s Enter: "1" One (1) Pr oduc t 001
"2" Two (2) Pr oduc ts
"3" Three (3) P r oduc ts
"4" Four (4) P r oduc ts __
002 Number of Additive Enter: "0" No Additive I njec tors 002
Injectors "1" One (1) Additive Injector
"2" Two (2) Additive Injectors
"3" Three (3) A dditive Injectors
"4" Four (4) A dditive Injectors
"5" Five (5) A dditive Injectors
"6" Six (6) Additive Injectors
"7" Seven (7) Additive Injectors __
003 A/C Output Relay 1 Enter: "00" No Assignment (NAS) 003
Terminals 89 & 90 "01" Alarm Relay (A LR)
(Position #1) "02" Additive Relay 1 ( A DD1)
Terminals 124 & 125 "03" Additive Relay 2 ( A DD2)
(Position #2) "04" Additive Relay 3 ( A DD3)
"05" Additive Relay 4 ( A DD4)
"06" Additive Relay 5 ( A DD5)
"07" Additive Relay 6 ( A DD6)
"08" Additive Relay 7 ( A DD7)
"09" Block Valve Relay 1 (BVR1)
"10" Block Valve Relay 2 (BVR2)
"11" Block Valve Relay 3 (BVR3)
"12" Block Valve Relay 4 (BVR4)
"13" General Relay (GEN)
"14" First Trip Indicator ( FTR) __ __
Note:
1. Option "14" First Trip Indicator of this code applies to SEQ-06 and above firmware.
2. When using a Smart Additive Subsystem, op tions 02 through 08 (Additive Relays) are not available for selection.
004 A/C Output Relay 2 Enter: "00" No Assignment (NAS) 004
Terminals 91 & 92 "01" Alarm Relay (A LR)
(Position #1) "02" Additive Relay 1 ( A DD1)
Terminals 126 & 127 "03" Additive Relay 2 ( A DD2)
(Position #2) "04" Additive Relay 3 ( A DD3)
"05" Additive Relay 4 ( A DD4)
"06" Additive Relay 5 ( A DD5)
"07" Additive Relay 6 ( A DD6)
"08" Additive Relay 7 ( A DD7)
"09" Block Valve Relay 1 (BVR1)
"10" Block Valve Relay 2 (BVR2)
"11" Block Valve Relay 3 (BVR3)
"12" Block Valve Relay 4 (BVR4)
"13" General Relay (GEN)
"14" First Trip Indicator ( FTR) __ __
Note:
1. Option "14" First Trip Indicator of this code applies to SEQ-06 and above firmware.
2. When using a Smart Additive Subsystem, op tions 02 through 08 (Additive Relays) are not available for selection.
2 AB06030 Rev. 0.6 5/ 96
Page 5
Program Program
Code Function Code Description Entry Code
005 A/C Output Relay 3 Enter: "00" No Assignment (NAS) 005
Terminals 93 & 94 "01" Alarm Relay (A LR)
(Position #1) "02" Additive Relay 1 ( A DD1)
Terminals 128 & 129 "03" Additive Relay 2 ( A DD2)
(Position #2) "04" Additive Relay 3 ( A DD3)
"05" Additive Relay 4 ( A DD4)
"06" Additive Relay 5 ( A DD5)
"07" Additive Relay 6 ( A DD6)
"08" Additive Relay 7 ( A DD7)
"09" Block Valve Relay 1 (BVR1)
"10" Block Valve Relay 2 (BVR2)
"11" Block Valve Relay 3 (BVR3)
"12" Block Valve Relay 4 (BVR4)
"13" General Relay (GEN)
"14" First Trip Indicator ( FTR) __ __
Note: 1. Option "14" First Trip Indicator of this code applies to SEQ-06 and above firmware.
2. When using a Smart Additive Subsystem, op tions 02 through 08 (Additive Relays) are not available for selection.
006 A/C Output Relay 4 Enter: "00" No Assignment (NAS) 006
Terminals 95 & 96 "01" Alarm Relay (A LR)
(Position #1) "02" Additive Relay 1 ( A DD1)
Terminals 130 & 131 "03" Additive Relay 2 ( A DD2)
(Position #2) "04" Additive Relay 3 ( A DD3)
"05" Additive Relay 4 ( A DD4)
"06" Additive Relay 5 ( A DD5)
"07" Additive Relay 6 ( A DD6)
"08" Additive Relay 7 ( A DD7)
"09" Block Valve Relay 1 (BVR1)
"10" Block Valve Relay 2 (BVR2)
"11" Block Valve Relay 3 (BVR3)
"12" Block Valve Relay 4 (BVR4)
"13" General Relay (GEN)
"14" First Trip Indicator ( FTR) __ __
Note: 1. Option "14" First Trip Indicator of this code applies to SEQ-06 and above firmware.
2. When using a Smart Additive Subsystem, op tions 02 through 08 (Additive Relays) are not available for selection.
007 A/C Output Relay 5 Enter: "00" No Assignment (NAS) 007
Terminals 87 & 88 "01" Alarm Relay (A LR)
(Position #1) "02" Additive Relay 1 ( A DD1)
Terminals 121 & 122 "03" Additive Relay 2 ( A DD2)
(Position #2) "04" Additive Relay 3 ( A DD3)
"05" Additive Relay 4 ( A DD4)
"06" Additive Relay 5 ( A DD5)
"07" Additive Relay 6 ( A DD6)
"08" Additive Relay 7 ( A DD7)
"09" Block Valve Relay 1 (BVR1)
"10" Block Valve Relay 2 (BVR2)
"11" Block Valve Relay 3 (BVR3)
"12" Block Valve Relay 4 (BVR4) __ __
Note: When using a Smart Additive Subsystem, options 02 through 08 (Additive Relays) are not available for selection.
AB06030 Rev. 0.6 5/ 96 3
Page 6
Program Program
Code Function Code Description Entry Code
008 D/C Output Relay 1 Enter: "00" No Assignment (NAS) 008
W/O Quad OPV "01" Pulse Output (POT)
Terminals 9 & 10 "02" Additive Relay 1 ( A DD1)
(Position #1) "03" Additive Relay 2 ( A DD2)
Terminals 57 & 58 "04" Additive Relay 3 ( A DD3)
(Position #2) "05" Additive Relay 4 ( A DD4)
"06" Additive Relay 5 ( A DD5)
W/Quad OP V "07" Additive Relay 6 ( A DD6)
Terminals 11 & 10 "08" Additive Relay 7 ( A DD7)
(Position #1) "09" Block Valve Relay 1 (BVR1)
Terminals 15 & 14 "10" Block Valve Relay 2 (BVR2)
(Position #2) "11" Block Valve Relay 3 (BVR3)
"12" Block Valve Relay 4 (BVR4) __ __
Note: When using a Smart Additive Subsystem, options 02 through 08 (Additive Relays) are not available for selection.
009 D/C Output Relay 2 Enter: "00" No Assignment (NAS) 009
W/Quad OP V "01" Pulse Out put (POT)
Terminals 13 & 12 "02" Additive Relay 1 ( A DD1)
(Position #1) "03" Additive Relay 2 ( A DD2)
Terminals 17 & 16 "04" Additive Relay 3 ( A DD3)
(Position #2) "05" Additive Relay 4 ( A DD4)
"06" Additive Relay 5 ( A DD5)
"07" Additive Relay 6 ( A DD6)
"08" Additive Relay 7 ( A DD7)
"09" Block Valve Relay 1 (BVR1)
"10" Block Valve Relay 2 (BVR2)
"11" Block Valve Relay 3 (BVR3)
"12" Block Valve Relay 4 (BVR4) __ __
Note: 1. This code is only available for use if the Quad OPV option has been purchased w ith the AccuLoad II. The terminals listed for this
code are located on the Quad OPV board.
2. When using a Smart Additive Subsystem, op tions 02 through 08 (Additive Relays) are not available for selection.
010 A/C Input 1 Enter: " 00" No Assignment (NAS) 010
Terminals 98 & 101 "01" Additive F eedbac k 1 ( A FB1)
(Position #1) "02" Additive F eedbac k 2 ( A FB2)
Terminals 106 & 109 "03" Additive F eedbac k 3 ( A FB3)
(Position #2) "04" Additive F eedbac k 4 ( A FB4)
"05" Additive F eedbac k 5 ( A FB5)
"06" Additive F eedbac k 6 ( A FB6)
"07" Additive F eedbac k 7 ( A FB7)
"08" Block Valve Feedback 1 (BVF1)
"09" Block Valve Feedback 2 (BVF2)
"10" Block Valve Feedback 3 (BVF3)
"11" Block Valve Feedback 4 (BVF4)
"12" First /Second High Flow (FS C)
"13" Printer Tray Switch (P TS) *
"14" Permissiv e 1 Contact (PRC1)
"15" Permissiv e 2 Contact (PRC2)
"16" Valve Power (VPW)
"17" Valve Stem (VST) __ __
Note: 1. Or can be used for Master Reset.*
2. When using a Smart Additive Subsystem, op tions 01 through 07 (Additive Feedbacks) are not available for selection.
4 AB06030 Rev. 0.6 5/ 96
Page 7
Program Program
Code Function Code Description Entry Code
011 A/C Input 2 Enter: " 00" No Assignment (NAS) 011
Terminals 99 & 101 "01" Additive F eedbac k 1 ( A FB1)
(Position #1) "02" Additive F eedbac k 2 ( A FB2)
Terminals 107 & 109 "03" Additive F eedbac k 3 ( A FB3)
(Position #2) "04" Additive F eedbac k 4 ( A FB4)
"05" Additive F eedbac k 5 ( A FB5)
"06" Additive F eedbac k 6 ( A FB6)
"07" Additive F eedbac k 7 ( A FB7)
"08" Block Valve Feedback 1 (BVF1)
"09" Block Valve Feedback 2 (BVF2)
"10" Block Valve Feedback 3 (BVF3)
"11" Block Valve Feedback 4 (BVF4)
"12" First /Second High Flow (FS C)
"13" Printer Tray Switch (P TS) *
"14" Permissiv e 1 Contact (PRC1)
"15" Permissiv e 2 Contact (PRC2)
"16" Valve Power (VPW)
"17" Valve Stem (VST) __ __
Note: 1. Or can be used for Master Reset.*
2. When using a Smart Additive Subsystem, op tions 01 through 07 (Additive Feedbacks) are not available for selection.
012 A/C Input 3 Enter: " 00" No Assignment (NAS) 012
Terminals 100 & 101 "01" Additive F eedbac k 1 ( A FB1)
(Position #1) "02" Additive F eedbac k 2 ( A FB2)
Terminals 108 & 109 "03" Additive F eedbac k 3 ( A FB3)
(Position #2) "04" Additive F eedbac k 4 ( A FB4)
"05" Additive F eedbac k 5 ( A FB5)
"06" Additive F eedbac k 6 ( A FB6)
"07" Additive F eedbac k 7 ( A FB7)
"08" Block Valve Feedback 1 (BVF1)
"09" Block Valve Feedback 2 (BVF2)
"10" Block Valve Feedback 3 (BVF3)
"11" Block Valve Feedback 4 (BVF4)
"12" First /Second High Flow (FS C)
"13" Printer Tray Switch (P TS) *
"14" Permissiv e 1 Contact (PRC1)
"15" Permissiv e 2 Contact (PRC2)
"16" Valve Power (VPS)
"17" Valve Stem (VST) __ __
Note: 1. Or can be used for Master Reset.*
2. When using a Smart Additive Subsystem, op tions 01 through 07 (Additive Feedbacks) are not available for selection.
AB06030 Rev. 0.6 5/ 96 5
Page 8
Program Program
Code Function Code Description Entry Code
013 A/C Input 4 Enter: " 00" No Assignment (NAS) 013
Terminals 103 & 105 "01" Additive F eedbac k 1 ( A FB1)
(Position #1) "02" Additive F eedbac k 2 ( A FB2)
Terminals 110 & 112 "03" Additive F eedbac k 3 ( A FB3)
(Position #2) "04" Additive F eedbac k 4 ( A FB4)
"05" Additive F eedbac k 5 ( A FB5)
"06" Additive F eedbac k 6 ( A FB6)
"07" Additive F eedbac k 7 ( A FB7)
"08" Block Valve Feedback 1 (BVF1)
"09" Block Valve Feedback 2 (BVF2)
"10" Block Valve Feedback 3 (BVF3)
"11" Block Valve Feedback 4 (BVF4)
"12" First /Second High Flow (FS C)
"13" Printer Tray Switch (P TS) *
"14" Permissiv e 1 Contact (PRC1)
"15" Permissiv e 2 Contact (PRC2)
"16" Valve Power (VPS)
"17" Valve Stem (VST) __ __
Note: 1. Or can be used for Master Reset.*
2. For "Remote Start" operation this code must be programmed " 14" (Permissive C ontact #1), code 806 must be programmed "5"
(Remote Start) and jumpers must be installed as shown in the Installation Manual (MN06037).
3. When using a Smart Additive Subsystem, op tions 01 through 07 (Additive Feedbacks) are not available for selection.
014 A/C Input 5 Enter: " 00" No Assignment (NAS) 014
Terminals 104 & 105 "01" Additive F eedbac k 1 ( A FB1)
(Position #1) "02" Additive F eedbac k 2 ( A FB2)
Terminals 111 & 112 "03" Additive F eedback 3 ( A FB3)
(Position #2) "04" Additive F eedbac k 4 ( A FB4)
"05" Additive F eedbac k 5 ( A FB5)
"06" Additive F eedbac k 6 ( A FB6)
"07" Additive F eedbac k 7 ( A FB7)
"08" Block Valve Feedback 1 (BVF1)
"09" Block Valve Feedback 2 (BVF2)
"10" Block Valve Feedback 3 (BVF3)
"11" Block Valve Feedback 4 (BVF4)
"12" First /Second High Flow (FS C)
"13" Printer Tray Switch (P TS) *
"14" Permissiv e 1 Contact (PRC1)
"15" Permissiv e 2 Contact (PRC2)
"16" Valve Power (VPS)
"17" Valve Stem (VST) __ __
Note: 1. Or can be used for Master Reset.*
2. For "Remote Stop" operation this code mus t be programmed "15" (Permissive 2 Contact), code 810 mus t be programmed "5"
(Remote Stop) and jumpers must be installed as shown in the Installation Manual (MN06037).
3. When using a Smart Additive Subsystem, o ptions 01 through 07 (Additive Feedbacks) are not available for selection.
6 AB06030 Rev. 0.6 5/ 96
Page 9
Program Program
Code Function Code Description Entry Code
015 A/C Input 6 Enter: " 00" No Assignment (NAS) 015
Terminals 73 & 74 "01" Additive F eedbac k 1 ( A FB1)
(Position #1) "02" Additive F eedbac k 2 ( A FB2)
Terminals 75 & 76 "03" Additive F eedbac k 3 ( A FB3)
(Position #2) "04" Additive F eedbac k 4 ( A FB4)
"05" Additive F eedbac k 5 ( A FB5)
"06" Additive F eedbac k 6 ( A FB6)
"07" Additive F eedbac k 7 ( A FB7)
"08" Block Valve Feedback 1 (BVF1)
"09" Block Valve Feedback 2 (BVF2)
"10" Block Valve Feedback 3 (BVF3)
"11" Block Valve Feedback 4 (BVF4)
"12" First /Second High Flow (FS C)
"13" Printer Tray Switch (P TS) *
"14" Permissiv e 1 Contact (PRC1)
"15" Permissiv e 2 Contact (PRC2)
"16" Valve Power (VPW)
"17" Valve Stem (VST)
Note: 1. Or can be used for Master Reset.*
2. When using a Smart Additive Subsystem, op tions 01 through 07 (Additive Feedbacks) are not available for selection.
016-039 Unassigned at Present 016- 039
040 Print Enter: P r es s ‘E NTER’ to Print 040
Configuration Configuration Report.
Note: Configuration Report will print for both preset positions.
041 Additive System Enter: "0" Piston Injectors 041
and Pacing Control "1" Titan w/Pulse
Selection "2" Titan w/Com m
"3" Gate Cit y w/Pulse
"4" Gate Cit y w/Comm __
Note: This code applies to SEQ-13 and above firmware.
042-089 Unassigned at Present 042- 089
090 Input/Output Enter: "1" One Product 090
Configuration "2" Two Products
"3" Three Produc ts
"4" Four Produc ts __
Note: Entering the above number will program the AccuLoad II to a typical Input and Output configuration for the number of products selected.
Refer to manual MN06054L for input & output assignments when using this method of configuring the AccuLoad II - SEQ.
Caution: This code will override anything that is currently programmed in the configuration directory. Do
not use this code i f you have alread y configured the unit.
091-099 Unassigned at Present 091- 099
AB06030 Rev. 0.6 5/ 96 7
Page 10
Program Program
Code Function Code Description Entry Code
100
System General P urpose Direct ory
100
101 System Alarm Check/Reset Read only, Press E to clear None 101
Available Alarms
AC: Additive Communications** L5: Additive 5 Pulse**
A2: Print Cover Open L6: Additive 6 Pulse**
A4: Print Cover Open L7: Additive 7 Pulse**
B2: Buffer Overflow M1: Too Many Pulses Additive 1**
B4: Buffer Overflow M2: Too Many Pulses Additive 2**
CL: Clean Line M3: Too Many Pulses Additive 3**
CM: Communication M4: Too Many Pulses Additive 4**
DA: EEProm Bad M5: Too Many Pulses Additive 5**
DA: Ram Bad M6: Too Many Pulses Additive 6**
DA: Rom Uxx Bad M7: Too Many Pulses Additive 7**
DA: Watchdog Alarm N1: No Pulses Detected Address 1**
DA: Display Error N2: No Pulses Detected Address 2**
DA: Data Retention N3: No Pulses Detected Address 3**
DA: Display Boot Required N4: No Pulses Detected Address 4**
DA: Control Module N5: No Pulses Detected Address 5**
DA: Security Code N6: No Pulses Detected Address 6**
DA: Software Version N7: No Pulses Detected Address 7**
DA: Internal Temperature OA: Overrun
DA: Program Code O2: Printer Paper Out
DP: Down Pulse Error O4: Printer Paper Out
DR: Density Transducer PA: Power Fail*
D2: Printer De selected PC: Pulse Collision
D4: Printer Deselected PR: Pressure Transducer
E2: Printer Error PS: Pulse Security
E4: Printer Error PT: Pulse Transmission
F1: Add 1 Feedback P2: Printer Communication
F2: Add 2 Feedback P4: Printer Communication
F3: Add 3 Feedback R1: Additive 1 Frequency**
F4: Add 4 Feedback R2: Additive 2 Frequency**
F5: Add 5 Feedback R3: Additive 3 Frequency**
F6: Add 6 Feedback R4: Additive 4 Frequency**
F7: Add 7 Feedback R5: Additive 5 Frequency**
H2: Printer Hardware R6: Additive 6 Frequency**
H4: Printer Hardware R7: Additive 7 Frequency**
IA: Injector Alarm** SF: Storage Full
I2: Printer Not Responding SP: Shared Printer
I4: Printer Not Responding TK: Ticket Alarm
K1: Low Additive 1** TP: Temperature Probe
K2: Low Additive 2** TT: Temperature Transducer
K3: Low Additive 3** U1: Unauthorize Command Failed Additive 1**
K4: Low Additive 4** U2: Unauthorize Command Failed Additive 2**
K5: Low Additive 5** U3: Unauthorize Command Failed Additive 3**
K6: Low Additive 6** U4: Unauthorize Command Failed Additive 4**
K7: Low Additive 7** U5: Unauthorize Command Failed Additive 5**
L1: Additive 1 Pulse** U6: Unauthorize Command Failed Additive 6**
L2: Additive 2 Pulse** U7: Unauthorize Command Failed Additive 7**
L3: Additive 3 Pulse** VF: Valve Fault
L4: Additive 4 Pulse** ZF: Zero Flow*
Note:
* These alarms apply to SEQ-11 and above firmware.
** These alarms apply to SEQ-13 and above firmware.
8 AB06030 Rev. 0.6 5/ 96
Page 11
Program Program
Code Function Code Description Entry Code
102 Product 1 Alarm Chec k /Reset Read only, Press E to c lear None 102
Available Alarms
BH: Blend High HP: High P r es s ur e
BL: Blend Low HT: High Temperature
BP: Back Pr es s ur e LD: Low Density
BV: Block Valv e Fault LF: Low Flow
HD: High Density LP: Low Pressure
HF: Excess High Flow LT: Low Temperature
103 Product 2 Alarm Chec k /Reset Read only, Press E to c lear None 103
Available Alarms
BH: Blend High HP: High P r es s ur e
BL: Blend Low HT: High Temperature
BP: Back Pr es s ur e LD: Low Density
BV: Block Valv e Fault LF: Low Flow
HD: High Density LP: Low Pressure
HF: Excess High Flow LT: Low Temperature
104 Product 3 Alarm Chec k /Reset Read only, Press E to c lear None 104
Available Alarms
BH: Blend High HP: High P r es s ur e
BL: Blend Low HT: High Temperature
BP: Back Pr es s ur e LD: Low Density
BV: Block Valv e Fault LF: Low Flow
HD: High Density LP: Low Pressure
HF: Excess High Flow LT: Low Temperature
105 Product 4 Alarm Chec k /Reset Read only, Press E to c lear None 105
Available Alarms
BH: Blend High HP: High P r es s ur e
BL: Blend Low HT: High Temperature
BP: Back Pr es s ur e LD: Low Density
BV: Block Valv e Fault LF: Low Flow
HD: High Density LP: Low Pressure
HF: Excess High Flow LT: Low Temperature
106 Blend Alarms Check/Reset Read only, Press E to clear None 106
Available Alarms
DA: Program Code
107 Transaction Alar m s To be read only None 107
108 Ready Mode Alarms To be read only None 108
AB06030 Rev. 0.6 5/ 96 9
Page 12
Program Program
Code Function Code Description Entry Code
109 Set Time Ent er : Five (5) digits. Two (2) digits 109
for hours, T wo ( 2) digits for minutes
and one (1) to indicate military,
time, AM or P M . The last digit will
be "0" = AM, "1" = PM and
"2" = Militar y ( e.g., 01:130) __ __ __ __ __
110 Set Date Enter: Six (6) digits. Two (2) digits for 110
month followed by two ( 2) digits for
day, followed by (2) digits for
year (e.g., 011288) __ __ __ __ __ __
111 Dynamic Display Enter: Two (2) digits in sec onds 111
Time-out of time-out (e.g., 15)
"00" Display will remain t ill
the "CLEAR" key is pr es s ed __ __
112-139 Unassigned at Present 112- 139
140 Protection of P r ogr am Enter: "0" for Weights and Measures Mode 140
Codes 180-189 "1" for Program M ode __
141 Local Mode Alarm Enter: One ( 1) digit from one (1) t o 141
Clearing nine (9) indic ates the number
of alarms that can be cleared
during a transaction when
in the Run & Ready Mode. (e.g., 3) __
142 Decimal or Comma Enter: "0" Decimal 142
Selection "1" Comma __
143 Alarm Relay Enter: "0" Alarm Relay on Valv e Fault 143
"1" Alarm Relay on Any Fault
"2" No Alarm Relay __
144 Run & Ready Mode Enter: "0" Englis h 144
Initialization "1" Not Used
"2" Spanish __
Note: Entry "1" is reserved for future use and is not allowed by the AccuLoad II.
Note: This code applies to SEQ-09 and above firmware.
145 Ready/Run Mode Enter: The number of the alar m that is to 145
Clearable Alarms to be changed (see Appendix f or the
Selection alarms, associat ed numbers and recording
entries.) W hen the alarm is displayed
enter a "0" if the alarm is allowed to be
cleared in the Ready/Run Mode. Enter a "1"
if the alarm is not allowed to be cleared
in the Ready/Run Mode.
Note: 1. If code 141 is set to "0" the message "No Alarm Clearing" will be displayed and no entries will be allowed.
2. This code applies to SEQ-11 and above firmware.
146-179 Unassigned at Present 146- 179
180 Programming Access Enter: Four digit number permits 180
Code entry in to the Program or Weights
and Measures Mode (e.g., 1234) __ __ __ __
10 AB06030 Rev. 0.6 5/ 96
Page 13
Program Program
Code Function Code Description Entry Code
181 Transaction Sec ur ity Enter: Eight (8) digit t r ans ac tion 181
ID ID number (e.g. , 12345678)
"00000000" disables this feature.
__ __ __ __ __ __ __ __
182 Transaction Sec ur ity Enter: Up to twenty (20) c har ac ters 182
Prompt Message for a prompt message
(e.g., Enter ID Number)
____________________
183 Auto Reset Tim er Enter: Two (2) digit number in 183
minutes that the AccuLoad I I
will remain in the a mode of
operation before autom atically
returning to the Ready M ode ( e.g., 05)
"00" disables this feature. __ __
184 Ready Mode Enter: Up t o Fifteen (15) char ac ters 184
Message for a prom pt message
(e.g., Load Arm #1) _________________
185 Run & Ready Mode Enter: The number of the display 185
Customized Display that you want t o c hange.
Press ‘ENTER’. The default
display will appear for that
number or you can scroll through
the displays by press ing the
‘ENTER’ key. The display can
be changed using the charact er s et
resident in the AccuLoad II. (See
Appendix for entry num ber s and
to record trans lation.)
Note: This code applies to SEQ-09 and above firmware.
186 Power-fail Alarm Enter: "0" Power-fail A lar m Dis abled 186
"1" Power-fail A lar m E nabled __
Note: This code applies to SEQ-11 and above firmware.
187-189 Unassigned at Present 187- 189
190 Meter Position Enter: "0" Meter Enabled 190
Disable "1" Met er Dis abled __
191-199 Unassigned at Present 191- 199
200
System Flow Control Directory
200
201 Low Flow Start V olum e Enter: Four (4) digits in whole 201
units (e.g., 0100) __ __ __ __
202 Low Flow Start Rate Enter: Four (4) digits in whole 202
units per minute (e.g., 0150)
"0000" entry will not allow
the valve to open. __ __ __ __
203 Low Flow Start Enter: "0" Low Flow Star t always after 203
"START" is pr es s ed.
"1" Low Flow Star t at beginning
of batch only. ___
AB06030 Rev. 0.6 5/ 96 11
Page 14
Program Program
Code Function Code Description Entry Code
204 Zero Flow Timer Enter: Two (2) digits in seconds (e.g., 15) 204
"00" disables this option __ __
205 Overrun Alarm Lim it Enter: Two (2) digits in whole 205
units (e.g., 15)
"00" disables the alarm __ __
206 Start Delay After Stop Enter: Three (3) digits in whole 206
seconds of delay tim e
(e.g., 020) __ __ __
207 Pump Relay Time Enter: Two (2) digits in 207
Delay seconds of delay time
(e.g., 09) __ __
208 Valve Delay To Open Enter: Two (2) digits in s ec onds 208
of delay time. ( e.g., 07)
"00" disables option __ __
209 PT/VF Time Delay Enter: Two (2) digits in sec onds 209
of time delay (e. g., 15)
Entry must not be "00" __ __
210 Flow Control Valve Enter: "0" for a Digital Valve 210
"1" for a Two- s tage Valve __
211 Zero Flow Alarm Enter: "0" Zero Flow Alarm Disabled 211
"1" Zero Flow A lar m E nabled __
Note: This code applies to SEQ-11 and above firmware.
212-239 Unassigned at Present 212- 239
240 Protection of P r ogr am Enter: "0" for Weights and Measures Mode 240
Codes 280-289 "1" for Program M ode __
241 Flow Control Valve Enter: "0" for No S ec ur ity 241
Security "1" for Security __
242-279 Unassigned at Present 242- 279
280 Clean Line Product Enter: "1" for Produc t 1 280
"2" for Produc t 2
"3" for Produc t 3
"4" for Produc t 4 __
281 Clean Line Volume Ent er : Three (3) digits in whole 281
units of product to be left
in the line at the end of
the batch. (e.g., 050) __ __ __
Note: The Clean Line Volume is always subtracted from 1st product in the recipe
282 Clean Line Alarm Enter: Two (2) digits in volum e 282
Limit of under delivery of the
clean line volume allowed.
(e.g., 10) __ __
12 AB06030 Rev. 0.6 5/ 96
Page 15
Program Program
Code Function Code Description Entry Code
283 Block Valve Enter : "0" Valv e off SP & ET 283
Position "1" Valve on SP, off ET
"2" Valve off S P , on ET
"3" Valve on SP & E T __
Note: ET = End of Transaction and SP = Stop is Pressed
284-299 Unassigned at Present 284- 299
AB06030 Rev. 0.6 5/ 96 13
Page 16
Program Program
Code Function Code Description Entry Code
300
System Volu me Accuracy Directory
300
301 Transaction Cont r ol Enter: "0" Local Tray S witch 301
"1" Print Key
"2" Remote
"3" Master Res et __
302 Maximum Preset Enter: Five (5) digit s in whole units 302
Volume (e.g., up to 99, 999 units)
"00000" disables option __ __ __ __ __
303 Minimum Preset Enter: Five (5) digits in whole unit s 303
Volume (e.g., up to 99, 999 units)
"00000" disables option __ __ __ __ __
304 Auto Preset Enter : Five (5) digits in whole units 304
(e.g., 99, 999 units)
"00000" disables option __ __ __ __ __
305 Auto Preset Increment Enter: Four (4) digits in whole units 305
to increment t he auto preset.
(e.g., 0100 unit s )
"0000" disables option __ __ __ __
306 Blank Downcounter Enter: " 0" Downc ounter to be Displayed 306
"1" No Downcounter Display ed __
307 Volumes for Local Enter: Five (5) digit number indicating 307
Storage the v olum es that will be stored in
local storage.
Note:
A maximum of three (3) volumes will be stored.
1st digit - Raw Volumes ( RW)
2nd digit - Gross Volumes ( GR)
3rd digit - Gros s at Standard Temper ature
Volumes (GT)
4th digit - Net Volumes (NT)
5th digit - Mass Totals (MA)
A zero (0) in the digit indic ates that
the volume will not be saved in loc al
storage, a (1) indic ates the volume
will be saved in local storage. __ __ __ __ __
308-339 Unassigned at Present 308- 339
340 Protection of P r ogr am Enter: "0" for Weights and Measures Mode 340
Codes 380-389 "1" for Program M ode __
14 AB06030 Rev. 0.6 5/ 96
Page 17
Program Program
Code Function Code Description Entry Code
341 Dual Pulse Error Enter: Three (3) digits indicating 341
Count the number of error c ounts
from the Dual Pulse Com par ator
prior to alarming. ( e.g., 050) __ __ __
Note: "000" disables the error counting.
342 Dual Pulse Error Enter: "0" No DPC Error Reset 342
Reset "1" Reset at the E nd of Transaction Only
"2" Reset Upon Power- up Only
"3" Reset Upon Power- up and
at the End of Eac h Transaction __
343 Dual Pulse Flow Enter: T hr ee ( 3) digits defining 343
Rate Cutoff the flow rate that the
Dual Pulse errors will begin
to be counted. __ __ __
344 Display Units Enter: Three (3) charact er m es s age 344
identifying the display units
(e.g., G A L) __ __ __
345 Corrected Display Enter: "0" No Corr ec tion 345
"1" Correct Deliv er y Dis play
"2" Corrected P r es et Display
"3" Corrected Deliv er y & P r es et __
346 Pulse #1 Enter: "0" Raw Pulse Out 1 346
Output "1" Gross Pulse Out 1
"2" Gst Pulse Out 1
"3" Net Pulse O ut 1
"4" Mass Pulse Out 1 __
347 Pulse #1 Output Enter : Four (4) digits defining 347
Resolution the pulse output resolution
(units/pulse) in tenth units,
"0000" Disables this feature
(e.g., 010. 0) __ __ __ . __
Note: Input pulses must be 2.5 times greater than the output pulses (e.g., 100 output pulses/unit volume requires at least 250 input
pulses/unit volume).
348 Pulse #2 Enter: "0" Raw Pulse Out 2 348
Output "1" Gross Pulse Out 2
"2" Gst Pulse Out 2
"3" Net Pulse O ut 2
"4" Mass Pulse Out 2 __
AB06030 Rev. 0.6 5/ 96 15
Page 18
Program Program
Code Function Code Description Entry Code
349 Pulse #2 Output Enter : Four (4) digits defining 349
Resolution the puls e output resolution
(units/pulse) in tenth units,
"0000" Disables this feature
(e.g., 010. 0) __ __ __ . __
Note: Input pulses must be 2.5 times greater than the output pulses (e.g., 100 output pulses/unit volume requires at least 250 input pulses /unit
volume).
350 Display Resolution Enter: "0" Whole Unit Display 350
"1" Tenth Unit Dis play
"2" Hundredth Unit Dis play
"3" Tens Unit Dis play __
351 Input Resolution Enter: Four (4) digit num ber r epr es enting 351
the number of pulses per unit of
registration (e.g., 0100)
Entry must be between 0025
and 9999 __ __ __ __
352 Proving Modes Enter: "0" Not P r ov ing 352
"1" Weights and M eas ur es P r ov ing
"2" High Speed Proving __
353 Proving Output Enter: "0" No Pr ov er Output 353
"1" Meter #1 Prover Output
"2" Meter #2 Prover Output __
354 Proving Output Units Enter: "0" Raw P r ov er Output (Raw) 354
"1" Gross Prover (Grs)
"2" Gross P r ov er at Standard Temper ature (Gst)
"3" Gross P r ov er at Standard Temperature
and Pressure Preset (Net)
"4" Mass Pres et (Whole Units) __
355 Blend Tolerance Ent er : Two (2) digits in tenths of a 355
(Percentage) percentage for the tolerance
allowed for all delivered
blends. (e.g., 5.0 = 5 %) __ __
Note: The larger of the tolerances as calculated us ing the percentage entered in this c ode or the volume enter ed in c ode 357 will be used to
determine when a blend alarm should be triggered.
356 Blend Tolerance Ent er : Three (3) digits of Volume for 356
(Volume) Blend Toler anc e in tenths of units .
(e.g., 10. 0) __.__
Note: The larger of the tolerances as programmed in this code or calculated in c ode 356 will be used to determine w hen a blend alarm will be
triggered.
357 Blend Correction Enter: "0" No Blend Correction 357
"1" Self-cor r ec ted Blend
"2" Self-cor r ec ted/Complete Blend __
16 AB06030 Rev. 0.6 5/ 96
Page 19
Program Program
Code Function Code Description Entry Code
358 Recipes Per Enter: "0" Single Recipe/T r ans ac tion 358
Transaction "1" Multiple Recipes/ Transaction __
359 Auto Proving Select Enter: "0" Auto P r ov ing Dis abled 359
"1" Auto Prov ing E nabled
"2" Auto Prov ing A lway s __
Note: This code applies to SEQ-12 and above firmware.
360-389 Unassigned at P r es ent 360- 389
390 Input Pulse Ty pe Enter: "0" Active P uls e Input 390
"1" Contact Type Input __
391 Input Pulse Doubler Enter: "0" Pulses Times One 391
"1" Pulses Times Two __
392 Transmitt er Type Enter : "0" Single Channel 392
"1" Single and Inverted
"2" Dual Channel
"3" Dual and Invert ed __
393-399 Unassigned at Present 393- 399
400
System Temperatu re & Density Directory
400
401-439 Unassigned at Present 401- 439
440 Protection of P r ogr am Enter: "0" for Weights and Measures Mode 440
Codes 480-489 "1" for Program M ode __
441 Temperature Unit s E nter: " 0" No Temperature Probe 441
"1" Fahrenheit
"2" Celsius __
442 Reference Enter: Four (4) digit reference 442
Temperature temper ature in tenth degrees
(e.g., 060. 0) __ __ __ . __
443 Temperature Offset Enter: Three (3) digits. First digit 443
must be "0" or " 1" ( 0 = positive,
1 = negative). S ec ond and third
digits represent the offset temperature
in tenth degrees (e. g., 10.5 entered
will display as -0.5 degrees offset) __ __ . __
444 Density or Enter: "0" Density Input 444
Temperature I nput "1" Temperat ur e Input __
Note: If Temperature is selected Acc uLoad II w ill ignore the R TD c hannel. To ac c ept r eadings from the R TD c hannel this entr y must be selected
for density input.
445 Density Units Enter: "0" No Densitometer Installed 445
"1" Lbs/Ft
"2" Kgs/M
3
.
3
.__
AB06030 Rev. 0.6 5/ 96 17
Page 20
Program Program
Code Function Code Description Entry Code
446 Minimum Density Enter: Five (5) digits . For 446
OR Minimum minimum density at 4 m A in
Temperature tent h units (e.g., 0100.0).
as selected in For minimum Temperatur e at 4 mA the
code 444 f ir s t digit indicates t he polar ity.
First digit " 0" = Positive
First digit " 1" = Negative
The last four digits indicate the
temperature in t enth degrees.
(e.g., 0030. 0 = +030.0)
Temperature unit s as s elec ted
in code 441. __ __ __ __ . __
447 Maximum Density Enter: Five (5) digit s . For 447
OR Maximum maximum density at 20 mA in
Temperature tent h units (e.g., 1600.0).
as selected For maximum Temperature at 4 mA the
in code 444 first digit indicates the polarity.
First digit " 0" = Positive
First digit " 1" = Negative
The last four digits indicate the
temperature in t enth degrees.
(e.g., 0100. 0 = +100.0)
Temperature unit s as s elec ted
in code 441. An entry of -999.9
(Temperature) or 0000.0 (Density)
will disable this featur e. __ __ __ __ . __
448 Volume/Mass Enter: "0" Gallons per Dens ity Units 448
Conversion "1" Dekaliters per Density Unit s
"2" Liters per Dens ity Units
"3" Barrels per Dens ity Units
"4" Cubic Meters per Dens ity Units __
449 Mass Units Enter: Three (3) character message 449
identifying the mas s units
(e.g., Lbs) __ __ __
450-499 Unassigned at Present 450- 499
500
501-539 Unassigned at Present 501- 539
540 Protection of P r ogr am Enter: "0" for Weights and Measures Mode 540
Codes 580-589 "1" for Program M ode __
541 Pressure Units Enter: "0" No Pressure Transducer Installed 541
542 Minimum Pressure Enter: Four (4) digits in tenth 542
Units units for minimum pr es s ur e
System Pressure Directory
"1" Psi
"2" Bar
"3" Kgcm __
at 4 mA. (e. g., 1600 = 160.0)
Units dependent on select ion
in code 541. __ __ __ . __
500
18 AB06030 Rev. 0.6 5/ 96
Page 21
Program Program
Code Function Code Description Entry Code
543 Maximum Pressur e Enter: Four (4) digits in tenth 543
Units units for maximum pr es s ur e
at 20 mA. (e. g., 4500 = 450.0)
Units dependent on select ion
in code 541. "0000" indicat es
no pressure transduc er ins talled. __ __ __ . __
544-599 Unassigned at Present 544- 599
600
System Read Only Directory
600
601 Injector 1 To be read only None 601
Non-resettable
Totals
602 Injector 2 To be read only None 602
Non-resettable
Totals
603 Injector 3 To be read only None 603
Non-resettable
Totals
604 Injector 4 To be read only None 604
Non-resettable
Totals
605 Injector 5 To be read only None 605
Non-resettable
Totals
606 Injector 6 To be read only None 606
Non-resettable
Totals
607 Injector 7 To be read only None 607
Non-resettable
Totals
608 Local Storage To be read only None 608
Transactions
609-639 Unassigned at Present 609- 639
640 Protection of P r ogr am Enter: "0" for Weights and Measures Mode 640
Codes 680-689 "1" for Program M ode __
641-699 Unassigned at Present 641- 699
700
System Communication Directory
700
701 EIA-232 Enter: "0" No Communications 701
Communication "1" for EI A Type Terminal
Type "2" for EI A Type Minicomputer
"3" Gate City Additive Syst em __
Note:
Option "3" applies to SEQ-13 and above firmware.
702 EIA-232 Enter: "0" for Poll Only 702
Communication "1" for Poll and Authorize
Control "2" for Remote Control
"3" for Auto Out
"4" for Shared Auto Out
"5" Smart A dditives __
Note:
Option "5" applies to SEQ-13 and above firmware.
AB06030 Rev. 0.6 5/ 96 19
Page 22
Program Program
Code Function Code Description Entry Code
703 EIA-232 Baud Rate Enter: "0" for 110 B aud 703
"1" for 150 Baud
"2" for 300 Baud
"3" for 600 Baud
"4" for 1200 Baud
"5" for 2400 Baud
"6" for 3600 Baud
"7" for 4800 Baud
"8" for 7200 Baud
"9" for 9600 Baud __
704 EIA-232 Data F or m at Enter: " 0" E IA-232 7 Bits Ev en 704
"1" EIA-232 7 B its Odd
"2" EIA-232 7 B its None
"3" EIA-232 8 B its Even
"4" EIA-232 8 B its Odd
"5" EIA-232 8 B its None __
705 EIA-485 Enter: "0" No Communications 705
Communication "1" EIA T y pe Terminal
Type "2" EIA T y pe M inic om puter
"3" Gate City Additive Syst em __
Note: Option "3" applies to SEQ-13 and above firmware.
706 EIA-485 Enter: "0" for Polling only 706
Communication "1" for Poll and Authorize
Control "2" for Remote Control
"3" for Auto Out
"4" for Shared Auto Out
"5" Smart A dditives __
Note: Option "5" applies to SEQ-13 and above firmware.
707 EIA-485 Baud Rate Enter: "0" for 110 B aud 707
"1" for 150 Baud
"2" for 300 Baud
"3" for 600 Baud
"4" for 1200 Baud
"5" for 2400 Baud
"6" for 3600 Baud
"7" for 4800 Baud
"8" for 7200 Baud
"9" for 9600 Baud __
708 EIA-485 Data F or m at Enter: " 0" E IA-485 7 Bits Ev en 708
"1" EIA-485 7 B its Odd
"2" EIA-485 7 B its None
"3" EIA-485 8 B its Even
"4" EIA-485 8 B its Odd
"5" EIA-485 8 B its None __
709 Communication Enter: Two (2) digit number to 709
Address identify the unit loc ation
for communicat ions , range
01 to 99 (e.g., 25) __ __
20 AB06030 Rev. 0.6 5/ 96
Page 23
Program Program
Code Function Code Description Entry Code
710 Printer Out put Enter: Up to t wenty (20) charact er s 710
Message #1 for printer message
(e.g., Sm ith Meter Inc.)____________________
711 Printer Out put Enter: Up to t wenty (20) charact er s 711
Message #2 for printer message
(e.g., P. O. Box 10428)
____________________
712 Printer Out put Enter: Up to t wenty (20) charact er s 712
Message #3 for printer message
(e.g., 1602 W agner A v e.) __
713 Printer Out put Enter: Up to t wenty (20) charact er s 713
Message #4 for printer message
(e.g., Er ie, Pa.) ____________________
714 Printer Out put Enter: Up to t wenty (20) charact er s 714
Message #5 for printer message
(e.g., Er ie Terminal) ____________________
715 Prompt Message #1 Enter: Up to twent y ( 20) c har ac ters 715
for prompt mes s age
(e.g., Enter Driver ID) ____________________
716 Prompt Message #2 Enter: Up to twent y ( 20) c har ac ters 716
for prompt mes s age
(e.g., Enter Company ID)____________________
717 Prompt Message #3 Enter: Up to twent y ( 20) c har ac ters 717
for prompt mes s age
(e.g., Enter Trailer No) ____________________
718 Prompt Message #4 Enter: Up to twent y ( 20) c har ac ters 718
for prompt mes s age
(e.g., Enter Carrier ID) ____________________
719 Prompt Message #5 Enter: Up to twent y ( 20) c har ac ters 719
for prompt mes s age
(e.g., Connect Ground)____________________
720 Meter ID Enter: Up to twenty (20) c har ac ters 720
for meter ident ification
(e.g., Meter XX12) ____________________
721 Print Summary Enter: "0" Summary w/Report 721
"1" No Summary w/Report
"2" Summary Only
"3" User Configured Repor t __
Note: Option 3 of this code applies to SEQ-05 and above firmware.
722 Delivery Report T o be r ead only . Displays the curr ent 722
setup of the Deliver y Repor t.
Note: This code applies to SEQ-05 and above firmware.
723-739 Unassigned at Present 723- 739
740 Protection of P r ogr am Enter: "0" for Weights and Measures Mode 740
Codes 780-789 "1" for Program M ode __
AB06030 Rev. 0.6 5/ 96 21
Page 24
Program Program
Code Function Code Description Entry Code
741 Communication Link Enter : "0" f or No P r ogr am Code V alues 741
Programming "1" for Progr am V alues Only
"2" for Progr am and Weights and
Measures Values
"3" for Alarm Res et Only __
742 Communications Enter: Three (3) digits in s ec onds 742
Time-out that communication polling may
be absent (e.g., 060)
"000" disables the Comm unic ations
Alarm Mode __ __ __
743 Communications Enter: "0" Standby M ode 743
Alarm Mode "1" Communications A lar m M ode
"2" Standby and Comm unic ations
Alarm Mode __
744 Prompt Time- out E nter: Three (3) digits in sec onds 744
of time-out allowed with each
prompt (e.g. , 015) __ __ __
Note: Minimum time-out is 10 seconds.
745 Prompt Data Entry #1 Ent er : Two (2) digits representing 745
the prompt data r es pons e.
First digit " 0" = Displayed
First digit " 1" = Hidden Display
Second digit "0 - 9" = Digits for
prompt entry ( e.g., 04) __ __
746 Prompt Data Entry #2 Ent er : Two (2) digits representing 746
the prompt data r es pons e.
First digit " 0" = Displayed
First digit " 1" = Hidden Display
Second digit "0 - 9" = Digits for
prompt entry ( e.g., 15) __ __
747 Prompt Data Entry #3 Ent er : Two (2) digits representing 747
the prompt data r es pons e.
First digit " 0" = Displayed
First digit " 1" = Hidden Display
Second digit "0 - 9" = Digits for
prompt entry ( e.g., 15) __ __
748 Prompt Data Entry #4 Ent er : Two (2) digits representing 748
the prompt data r es pons e.
First digit " 0" = Displayed
First digit " 1" = Hidden Display
Second digit "0 - 9" = Digits for
prompt entry ( e.g., 16) __ __
22 AB06030 Rev. 0.6 5/ 96
Page 25
Program Program
Code Function Code Description Entry Code
749 Prompt Data Entry #5 Ent er : Two (2) digits representing 749
the prompt data r es pons e.
First digit " 0" = Displayed
First digit " 1" = Hidden Display
Second digit "0 - 9" = Digits for
prompt entry ( e.g., 16) __ __
750 Start Key Enter : "0" Start Key Enabled 750
Enable/Disable "1" St ar t Key Disabled __
751 Shared Printer Enter: "0" for No S P A lar m 751
Out Alarm "1" for Local SP A lar m
"2" for Program SP Alarm __
752 Shared Printer O ut Enter: Two (2) digits in minutes 752
Timer of tim e that the AccuLoad II
will wait before Alarming. __ __
753 EIA-232 Print er Enter: "0" No 232 Security 753
Security "1" XON/XOFF
"2" DEC Protocol
"3" PTB - FX Protocol
"4" PTB - LQ Protocol __
Note: Options 3 and 4 of this code apply to SEQ-07 and above firmware.
754 EIA-485 Print er Enter: "0" No 485 Security 754
Security "1" XON/XOFF
"2" DEC Protocol
"3" PTB - FX Protocol
"4" PTB - LQ Protocol __
Note: Options 3 and 4 of this code apply to SEQ-07 and above firmware.
755 Shared Printer Enter: "0" No Security Alarm 755
Security Alarm "1" Local Security Alarm
"2" Prg Security Alarm __
Note: Used with DEC Securi ty.
AB06030 Rev. 0.6 5/ 96 23
Page 26
Program Program
Code Function Code Description Entry Code
756 Select Volumes t o Enter: Fiv e ( 5) digit number indicating 756
Print the totals t hat will be printed
on the Product Receipt Ticket.
1st digit - Raw Totals
2nd digit - Gross Totals
3rd digit - Gros s at Standard
Temperature T otals
4th digit - Net Totals
5th digit - Mass Totals
A zero (0) in the digit indic ates
the total will not be pr inted,
a one (1) indicates the total
will be printed. (e.g., 01100
indicates that Gross totals
and the Gross at S tandard
Temperature will be printed
on the Product Receipt Ticket. ) __ __ __ __ __
Note: The current load ticket c an hav e all fiv e of the v olumes printed on it. H ow ever , any repr int of that load tic k et w ill only c ontain the v olumes
that have been selected for local storage in code 307 and in this program code.
24 AB06030 Rev. 0.6 5/ 96
Page 27
Program Program
Code Function Code Description Entry Code
757 Select Load Averages Enter: Two ( 2) digit number indicating 757
to Print the load averages that will be printed
on the Product Receipt Ticket.
1st digit - Load Aver age Temperature
2nd digit - Load Average Densit y
A zero (0) in the digit indic ates
the load average will not be print ed,
a one (1) indicates the load av er age will
be printed. (e.g., 11 indicates t hat the
Load Average Temperat ur e and the Load
Average Density will be printed on the
Product Receipt Ticket.) __ __
758 Select the Addit iv e Enter: Sev en ( 7) digit number indicating 758
Volumes to Print the additive volumes that will be printed
on the Product Receipt Ticket.
1st digit - Addit iv e V olum e #1
2nd digit - Additive Volume #2
3rd digit - Additiv e V olum e #3
4th digit - Additive Volume #4
5th digit - Additive Volume #5
6th digit - Additive Volume #6
7th digit - Additive Volume #7
A zero (0) in the digit indic ates
the additive volume will not be pr inted,
a one (1) indicates the additive volume will
be printed. (e.g., 1010000 indicates
that Additive V olum e #1 and A dditive
Volume #3 will be printed on the Pr oduc t
Receipt Ticket .) __ __ __ __ __ __ __
AB06030 Rev. 0.6 5/ 96 25
Page 28
Program Program
Code Function Code Description Entry Code
759 Define Delivery E nter: E ight digits in the for m of 759
Report three digits for the curr ent line
(000), two digits for the column
number that the data will start at
(00), and the item that will be
printed (000) on the deliver y
report.
(e.g., 134, 16, 135) __ __ __, __ __, __ __ __
Note: To delete information from the delivery report move to the entry number field by pressing "ENTER" and enter a zero and press "ENTER"
Note: This code applies to SEQ-05 and above firmware.
again.
760 Additive 1 Address Enter: Three digit comm unic ation address 760
to identify t his additive if a
Smart Additive System is being used
(e.g., 001) __ __ __
Note: This code applies to SEQ-13 and above firmware.
761 Additive 2 Address Enter: Three digit comm unic ation address 761
to identify t his additive if a
Smart Additive System is being used
(e.g., 002) __ __ __
Note: This code applies to SEQ-13 and above firmware.
762 Additive 3 Address Enter: Three digit comm unic ation address 762
to identify t his additive if a
Smart Additive System is being used
(e.g., 003) __ __ __
Note: This code applies to SEQ-13 and above firmware.
763 Additive 4 Address Enter: Three digit comm unic ation address 763
to identify t his additive if a
Smart Additive System is being used
(e.g., 004) __ __ __
Note: This code applies to SEQ-13 and above firmware.
764 Additive 5 Address Enter: Three digit comm unic ation address 764
to identify t his additive if a
Smart Additive System is being used
(e.g., 005) __ __ __
Note: This code applies to SEQ-13 and above firmware.
765 Additive 6 Address Enter: Three digit comm unic ation address 765
to identify t his additive if a
Smart Additive System is being used
(e.g., 006) __ __ __
Note: This code applies to SEQ-13 and above firmware.
766 Additive 7 Address Enter: Three digit comm unic ation address 766
to identify t his additive if a
Smart Additive System is being used
(e.g., 007) __ __ __
Note: This code applies to SEQ-13 and above firmware.
26 AB06030 Rev. 0.6 5/ 96
Page 29
Program Program
Code Function Code Description Entry Code
767-779 Unassigned at Present 767- 779
780 Number of Prompt s Enter: One (1) digit between 0 780
and 5 representing the number of
prompts used in the S tandby Mode (e.g., 4)
"0" Disables prompt s in the Standby Mode __
781 Print Transac tion Enter: Three (3) digit Tr ans ac tion 781
Number to print t he transaction
data desired. (e. g., 010 will
print the tent h transaction back
from the curr ent transaction.) __ __ __
782 Prompts Printed Enter: "0" Standby Blank 782
"1" Standby Pr int
"2" Always Print __
783-799 Unassigned at Present 783- 799
800
System Input/Output Directory
800
801 Additive Inject or S top Enter: "0" Additive stop at end 801
of batch (Injec tor Option 1)
"1" Additive stop at First
trip point with no
recalculation (Injec tor Option 2)
"2" Additive stop at First
trip point with rec alc ulation
(Injector O ption 3)
"3" Additive stop at Additive I njec tor
stop volume with no rec alc ulation
of additive (Injec tor Option 4)
"4" Additive Stop at Additive I njec tor
stop volume with rec alc ulation
of additive (Injec tor Option 5) __
Note:
1. Selection 2 (Injector Option 3) applies to SEQ-02 and above firmware.
2. Selections 3 and 4 (Injector Options 4 and 5) apply to SEQ-13 and above firmware.
802 Additive Inject or Enter: "0" for Raw Output 802
Output "1" for Gross Output
"2" for Gst Output
"3" for Net Output __
803 Manual/Auto Enter: " 0" for Auto Injectors 803
Additive Inject or "1" for Manual I njec tors
Selection when in the Standby Mode.
"2" for Manual I njec tors
per transaction.
"3" for Manual I njec tors
per batch. __
804 Restart Af ter Enter: "0" M anual V alv e S tart 804
Valve Power "1" Auto Valve St ar t __
Restored
805 Valve Power Sense Enter: Up to twenty (20) c har ac ters 805
Permissive Message for prompt message
(e.g., Per m is s iv e Not Met) ____________
AB06030 Rev. 0.6 5/ 96 27
Page 30
Program Program
Code Function Code Description Entry Code
806 Permissive #1 Enter: "0" No Permissive 1 806
"1" Permissiv e 1 Transaction St ar t Only
"2" Permissiv e 1 Continuously
"3" Start Permissive 1
"4" Batch Permissive 1
"5" Remote St ar t __
Note: Option 5 requires hardware jumpers (see Installation Manual MN06037).
807 Permissive #1 Enter: Up to twenty (20) c har ac ters 807
Message for prom pt message
(e.g., Connect Ground) ___________
808 Restart Af ter Enter: "0" M an P er m . 1 Start 808
Permissive Met "1" Auto Perm. 1 Start __
809 Prompt Message Enter: Up to twenty (20) charact er s 809
for prompt mes s age if no
ac power is detected on the
ac input programmed f or
Printer Tray S witch (e.g.,
Please Insert Ticket) ____________
810 Permissive #2 Enter: "0" No Permissive 2 810
"1" Permissiv e 2 Transaction St ar t Only
"2" Permissiv e 2 Continuously
"3" Start Permissive 2
"4" Batch Permissive 2
"5" Remote St op __
Note: Option 5 requires hardware jumpers (See Installation Manual MN06037).
811 Permissive #2 Enter: Up to twenty (20) c har ac ters 811
Message for prom pt message
(e.g., Connect Vapor) ___________
812 Restart Af ter Enter: "0" M an P er m . 2 Start 812
Permissive "1" Auto Perm. 2 Start __
813 Additive Feedback Enter : Up to twenty characters for an 813
Alarm Message additive feedback alarm mes s age.
This message will be displayed at
the end of the batc h if code 864
is programmed "1" ( e.g., Additiv e
Failure). ____________________
Note: This code applies to SEQ-05 and above firmware.
814 Additive Inject or Enter: Three digits in whole units 814
Stop Volume of remaining volum e
to be loaded when the additive
injectors will be stopped ( e.g., 75) __ __ __
Note: This code applies to SEQ-13 and above firmware.
815-839 Unassigned at Present 815- 839
840 Protection of P r ogr am Enter: "0" for Weights and Measures Mode 840
Codes 880-889 "1" for Program M ode __
28 AB06030 Rev. 0.6 5/ 96
Page 31
Program Program
Code Function Code Description Entry Code
841 Additive Inject or #1 Enter: "0" No Injector 1 Feedback 841
Feedback "1" Injector 1 F eedbac k /Control
"2" INJ1 Feedbac k Only __
842 Additive Inject or #1 Enter: Six (6) digits def ining 842
Volume t he v olum e of additive to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
Note: Only one decimal place for Smart Additive Injectors.
843 Additive Inject or #2 Enter: "0" No Injector 2 Feedback 843
Feedback "1" Injector 2 F eedbac k /Control
"2" Injector 2 Feedback Only __
844 Additive Inject or #2 Enter: Six (6) digits def ining 844
Volume t he v olum e of additive to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
Note: Only one decimal place for Smart Additive Injectors.
845 Additive Inject or #3 Enter: "0" No Injector 3 Feedback 845
Feedback "1" Injector 3 F eedbac k /Control
"2" Injector 3 Feedback Only __
846 Additive Inject or #3 Enter: Six (6) digits def ining 846
Volume t he v olum e of additive to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
Note: Only one decimal place for Smart Additive Injectors.
847 Additive Inject or #4 Enter: "0" No Injector 4 Feedback 847
Feedback "1" Injector 4 F eedbac k /Control
"2" Injector 4 Feedback Only __
848 Additive Inject or #4 Enter: Six (6) digits def ining 848
Volume t he v olum e of additive to be
injected for each Additive Injector
cycle (e.g., 010.000) __ __ __ . __ __ __
Note: Only one decimal place for Smart Additive Injectors.
849 Additive Inject or #5 Enter: "0" No Injector 1 Feedback 849
Feedback "1" Injector 1 F eedbac k /Control
"2" INJ1 Feedbac k Only __
850 Additive Inject or #5 Enter: Six (6) digits def ining 850
Volume t he v olum e of additive to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
Note: Only one decimal place for Smart Additive Injectors.
851 Additive Inject or #6 Enter: "0" No Injector 2 Feedback 851
Feedback "1" Injector 2 F eedbac k /Control
"2" Injector 2 Feedback Only __
852 Additive Inject or #6 Enter: Six (6) digits def ining 852
Volume t he v olum e of additive to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
Note: Only one decimal place for Smart Additive Injectors.
AB06030 Rev. 0.6 5/ 96 29
Page 32
Program Program
Code Function Code Description Entry Code
853 Additive Inject or #7 Enter: "0" No Injector 3 Feedback 853
Feedback "1" Injector 3 F eedbac k /Control
"2" Injector 3 Feedback Only __
854 Additive Inject or #7 Enter: Six (6) digits def ining 854
Volume t he v olum e of additive to be
injected for each Additive Injector
cycle (e.g., 001.000) __ __ __ . __ __ __
Note: Only one decimal place for Smart Additive Injectors.
855 Injector Units Enter: Three (3) character message 855
identifying the injector units
(e.g., O z s ) __ __ __
Note: This code not used with Smart Additive Subsystems.
856 Additive Inject or Enter: Two (2) digits defining 856
Feedback Errors the number of errors before alarming __ __
Note: This code not used with Smart Additive Subsystems.
857 Injector #1 Feedbac k Enter: Three (3) digits in s ec onds 857
Delay allowed between feedbacks before
an alarm. __ __ __
Note: This code not used with Smart Additive Subsystems.
858 Injector #2 Feedbac k Enter: Three (3) digits in s ec onds 858
Delay allowed between feedbacks before
an alarm. __ __ __
Note: This code not used with Smart Additive Subsystems.
859 Injector #3 Feedbac k Enter: Three (3) digits in s ec onds 859
Delay allowed between feedbacks before
an alarm. __ __ __
Note: This code not used with Smart Additive Subsystems.
860 Injector #4 Feedbac k Enter: Three (3) digits in s ec onds 860
Delay allowed between feedbacks before
an alarm. __ __ __
Note: This code not used with Smart Additive Subsystems.
861 Injector #5 Feedbac k Enter: Three (3) digits in s ec onds 861
Delay allowed between feedbacks before
an alarm. __ __ __
Note: This code not used with Smart Additive Subsystems.
862 Injector #6 Feedbac k Enter: Three (3) digits in s ec onds 862
Delay allowed between feedbacks before
an alarm. __ __ __
Note: This code not used with Smart Additive Subsystems.
863 Injector #7 Feedbac k Enter: Three (3) digits in s ec onds 863
Delay allowed between feedbacks before
an alarm. __ __ __
Note: This code not used with Smart Additive Subsystems.
30 AB06030 Rev. 0.6 5/ 96
Page 33
Program Program
Code Function Code Description Entry Code
864 Additive Feedback Enter : "0" Additive Feedback Alarm with 864
Alarm Shut-down.
"1" Additive F eedbac k A lar m M es s age
at the End of t he B atch with No
Shut-down. __
Note: This code applies to SEQ-05 and above firmware.
865 Additive Totals Enter: "0" Gallons 865
Units " 1" Liters __
Note: 1. This code applies to SEQ-13 and above firmware.
2. If a Smart Additive Subsystem is selected, this code will be used rather than 855.
866-879 Unassigned at Present 866- 879
880 Additive Inject or Enter: Three (3) digit s in whole units 880
Pulser No. 1 defining the amount of mainstream
product for each injection cycle.
(e.g., 040) __ __ __
881 Additive Inject or Enter: Three (3) digit s in whole units 881
Pulser No. 2 defining the amount of mainstream
product for each injection cycle.
(e.g., 040) __ __ __
882 Additive Inject or Enter: Three (3) digit s in whole units 882
Pulser No. 3 defining the amount of mainstream
product for each injection cycle.
(e.g., 040) __ __ __
883 Additive Inject or Enter: Three (3) digit s in whole units 883
Pulser No. 4 defining the amount of mainstream
product for each injection cycle.
(e.g., 040) __ __ __
884 Additive Inject or Enter: Three (3) digit s in whole units 884
Pulser No. 5 defining the amount of mainstream
product for each injection cycle.
(e.g., 040) __ __ __
885 Additive Inject or Enter: Three (3) digit s in whole units 885
Pulser No. 6 defining the amount of mainstream
product for each injection cycle.
(e.g., 040) __ __ __
886 Additive Inject or Enter: Three (3) digit s in whole units 886
Pulser No. 7 defining the amount of mainstream
product for each injection cycle.
(e.g., 040) __ __ __
887-899 Unassigned at Present 887- 899
900
System Diagnostic Directory
900
901 Diagnostic Display Test None 901
902 Diagnostic Keypad Test None 902
903 Diagnostic RTD Test None 903
904 Diagnostic 4 - 20 mA Channel 1 None 904
905 Diagnostic 4 - 20 mA Channel 2 None 905
906 Diagnostic Internal T em per ature None 906
907 Diagnostic Power Supply Tes t None 907
AB06030 Rev. 0.6 5/ 96 31
Page 34
Program Program
Code Function Code Description Entry Code
908 Diagnostic Firmware Ver s ion None 908
909 Diagnostic AccuLoad II Model Number Read Only 909
910 Diagnostic ACM Model Number Read Only 910
911 Diagnostic System Messages 911
912 Diagnostic Calibration Event Counter None 912
Note: This code applies to SEQ-14 and above firmware.
913 Diagnostic Configuration Ev ent Counter None 913
Note: This code applies to SEQ-14 and above firmware.
914-939 Unassigned at Present 914- 939
940 Protection of P r ogr am Enter: "0" for Weights and Measures Mode 940
Codes 980-989 "1" for Program M ode __
941 Diagnostic Communication T est - EIA-232 None 941
No Echo Back
942 Diagnostic Communication T est - EIA-232 None 942
With Echo
943 Diagnostic Communication T est - EIA-485 None 943
No Echo Back
944 Diagnostic Communication T est - EIA-485 None 944
With Echo
945 Diagnostic SINGL CH-INV-1X-ACT-U None 945
946 Diagnostic SINGL CH-INV-2X-ACT-U None 946
947 Diagnostic DUAL CH-INV-1X-ACT-U None 947
948 Diagnostic DUAL CH-INV-1X - CTA-U None 948
949 Diagnostic DUAL CH-INV-2X-ACT-U None 949
950 Diagnostic DUAL CH-INV-1X-ACT-U None 950
951 Diagnostic DUAL CH-INV-1X-ACT-D None 951
952 Diagnostic Contact I nput Test None 952
953 Diagnostic High Speed Prover None 953
954 Diagnostic Ticket P r int 1 Test None 954
955 Diagnostic Ticket P r int 2 Test None 955
956 Diagnostic Clear Local Storage None 956
957 Diagnostic Contact O utput None 957
958 Diagnostic Clear Configurable Report None 958
Note: This code applies to SEQ-08 and above firmware.
959-990 Unassigned at Present None 959-990
991 Diagnostic Relay Test None 991
992 Diagnostic Ram Test None 992
993 Diagnostic Power-up Diagnostic s None 993
994 Diagnostic See Service Manual None 994
995 Diagnostic See Service Manual None 995
996 Diagnostic Watchdog None 996
997 Diagnostic Relay Select T es t None 997
998 Diagnostic Copies Codes (Side #1 to S ide #2) None 998
999 Diagnostic Programs EEPROM/Default Paramet ers None 999
32 AB06030 Rev. 0.6 5/ 96
Page 35
Program
Code Function Code Description Prod 1 Prod 2 Prod 3 Prod 4
Product Dir ector ies
100
101-139 Unassigned at Present
140 Protection of P r ogr am Enter: "0" for Weights and Measures Mode
Codes 180 - 189 "1" f or P r ogr am M ode __ __ __ __
141 Product Select ion Enter: "0" f or P r oduc t in Use
142-179 Unassigned at Present
180 Product Message Enter: Up to nine (9) characters
181-199 Unassigned at Present
200
201 Excess Flow Rate Enter: Two (2) digit s as a percent age
Product General Purpose Directory
"1" for Produc t Not in Use __ __ __ __
for meter or pr oduc t
identifier (e.g., Regular) Prod 1___________________________
Prod 2___________________________
Prod 3___________________________
Prod 4___________________________
Product Flow Control Directory
(e.g., 10) " 00" Disables the High
Flow Alarm __ __ __ __ __ __ __ __
202 Minimum Flow Rate Enter: Three (3) digits in whole unit s
(e.g., 080) __ __ ____ __ ____ __ __ __ __ __
203 Block Valve Type Enter: " 0" Hy dr aulic B loc k V alv e
"1" Electric B loc k V alv e __ __ __ __
204 First High Flow Rate Enter : Four (4) digits in whole units
(e.g., 0600) " 0000" Entry will not
allow the valve to open _____ _____ _____ _____
205 Flow Tolerance Enter: One (1) digit as a perc entage of
First High Flow Rate (e.g., 7) __ __ __ __
206 Second High Flow Enter: Four (4) digits in whole units
Rate (e.g., 0300) "0000" Entry will not
allow the valve to open if
configured for 1st/2nd High Flow. _____ _____ _____ _____
207 First Tr ip V olum e Enter : Four (4) digits in whole units
(e.g., 0050) _____ _____ _____ _____
208 Final (Second) Tr ip Enter: Three (3) digits in tenth units
Volume (e.g., 01.0) ___. _ ___._ ___. _ ___._
209 Final (Second) Tr ip Enter: One (1) digit which def ines
Auto Adjust the number of runs t o av er age.
(e.g., 3) __ __ __ __
210 Low Flow Rate Alarm Enter: Three (3) digits in whole
Limit units per minute (e.g., 050)
"000" disables the alarm ____ ____ ____ ____
211 Block Valve Delay E nter: Two (2) digits in
to Close seconds of delay time
(e.g., 05) ___ ___ ___ ___
AB06030 Rev. 0.6 5/ 96 33
Page 36
Program
Code Function Code Description Prod 1 Prod 2 Prod 3 Prod 4
212 Block Valve Delay E nter: Two (2) digits in
to Open seconds of delay time
(e.g., 05) ___ ___ ___ ___
213-239 Unassigned at Present
240 Protection of P r ogr am Enter: "0" for Weights and Measures Mode
Codes 280-289 "1" for Program M ode __ __ __ __
241 Block Valve Security Enter: "0" for No Security
"1" for Security __ __ __ __
242-299 Unassigned at Present
300
Volume Accu racy Directory
301 Minimum Batch Enter : Five (5) digits in
Volume whole unit s ( e.g., up
to 99,999 units) ____________________________
302-339 Unassigned at Present
340 Protection of P r ogr am Enter: "0" for Weights and Measures Mode
Codes 380-389 "1" for Program M ode __ __ __ __
341 Flow Rate for Enter: Four (4) digits in whole units
Meter Fact or #1 per minute (e. g., 0600) _____ _____ _____ _____
342 Meter Fact or #1 Enter: Five (5) digits as one (1) whole
number followed by four ( 4)
decimals (e.g., 1.0033) _._____ _._____ _._____ _._____
343 Flow Rate for Enter: Four (4) digits in whole units
Meter Fact or #2 per minute (e. g., 0400) _____ _____ _____ ______
Note:
If the flow rate is set at zero the AccuLoad II will ignore codes 344 through 348.
344 Meter Fact or #2 Enter: Five (5) digits as one (1) whole
number followed by four ( 4)
decimals (e.g., 1.0040) _._____ _._____ _._____ _._____
345 Flow Rate for Enter: Four (4) digits in whole units
Meter Fact or #3 per minute (e. g., 0150) _____ _____ _____ _____
Note:
If the flow rate is set at zero the AccuLoad II will ignore codes 346 through 348.
346 Meter Fact or #3 Enter: Five (5) digits as one (1) whole
number followed by four ( 4)
decimals (e.g., 1.0048) _._____ _._____ _._____ _._____
347 Flow Rate for Enter: Four (4) digits in whole units
Meter Fact or #4 per minute (e. g., 0080) _____ _____ _____ _____
Note:
If the flow rate is set at zero the AccuLoad II will ignore code 348.
348 Meter Fact or #4 Enter: Five (5) digits as one (1) whole
number followed by four ( 4)
decimals (e.g., 1.0058) _._____ _._____ _._____ _._____
349 Meter Fact or % Enter: Fiv e ( 5) digits representing
Change/Deg. the meter factor per c ent change
per degree of unit tem per ature in
percentage, (e. g., 0.0012) _._____ _._____ _._____ _._____
34 AB06030 Rev. 0.6 5/ 96
Page 37
Program
Code Function Code Description Prod 1 Prod 2 Prod 3 Prod 4
350 Meter Fact or Enter: Four (4) digits repr es enting
Reference the temperature that the percent
Temperature meter factor variat ion was determined,
Three (3) whole units and one
(1) decimal in degrees (i. e., 120.1) _____._ _____._ _____._ _____. _
351-389 Unassigned at Present
390 Master Meter Factor Enter: Five (5) digits as one ( 1)
whole number followed by
four (4) decimals ( e.g., 1.0040)
Restricts meter factors 1
through 4, Program c odes 353, 355
357, and 359 to +/- 2% of this
entry. Ent er 0.0000 to disable
this feature. _._____ _._____ _._____ _._____
391 Linearized Factor Enter: Thr ee ( 3) digits in a percentage,
Deviation one (1) whole number f ollowed by two
(2) decimals (e.g., 3.40). Res tricts
deviation between adjacent m eter
factors. E nter 0.00 to disable
this feature. _.___ _. ___ _.___ _.___
392 Meter Factor Variation Enter: "0" No Meter Factor Variation
"1" Yes Meter Factor Variat ion __ __ __ __
393-399 Unassigned at Present
400
401-439 Unassigned at Present
440 Protection of P r ogr am Enter: "0" for Weights and Measures Mode
Codes 480-489 "1" for Program M ode __ __ __ __
441 API Table & Pr oduc t Enter: "00" No API T able " 12" A P I Table 24A
442 Reference Density Enter : Five (5) digit density
Temperature & Den sity Directory
"01" API T able 5A " 13" A P I Table 24B
"02" API T able 5B " 14" A P I Table 24D
"03" API T able 5D " 15" A P I Table 53A
"04" API T able 6A " 16" A P I Table 53B
"05" API T able 6B " 17" A P I Table 53D
"06" API T able 6C " 18" A P I Table 54
"07" API T able 6D " 19" A P I Table 54A
"08" API T able 23A " 20" A P I Table 54B
"09" API T able 23B " 21" A P I Table 54C
"10" API T able 23D " 22" A P I Table 54D
"11" API T able 24 ___ ___ ___ ___
with floating decimal.
(e.g., 0999. 9 to 0.9999
depending on selection in
code 441). _____________________ _______
AB06030 Rev. 0.6 5/ 96 35
Page 38
Program
Code Function Code Description Prod 1 Prod 2 Prod 3 Prod 4
443 Low Temperature Enter: Four (4) digits. The
Alarm f ir s t digit indicates polarity.
First digit " 0" = Positive
First digit " 1" = Negative
The last three ( 3) digits
indicate temperat ur e in whole
degrees. (e.g. , 0020 = + 020)
Temperature unit s ar e dependent
on entry made in code 441.
An entry of -999 will dis able
this feature. _____ _____ _____ _____
444 High Temperature Enter: Four (4) digits. The
Alarm f ir s t digit indicates polarity.
First digit " 0" = Positive
First digit " 1" = Negative
The last three ( 3) digits
indicate temperat ur e in whole
degrees. (e.g. , 0250 = + 250)
Temperature unit s ar e dependent
on entry made in code 441.
An entry of 0999 (+999) will
disable this featur e. _____ _____ _____ _____
445 Maintenance Temperature E nter: Five (5) digits. The
first digit indic ates polarity.
First digit " 0" = Positive
First digit " 1" = Negative
The last four ( 4) digits
indicate temperat ur e in tenths
of degrees. An ent r y of -999.9
will disable this featur e.
(e.g., 0085. 0 = + 85.0) ______._______._______._______._
Note: Any entry other than -999.9 will override the R TD or 4- 20 mA Temperatur e Input and will be us ed in all c alc ulations us ing the temperature
factor.
446 Low Density Alarm E nter: Four (4) digits. The
range is from 0000 to 9999.
Density units are dependent
on entry made in code 445
of the Systems Directory.
An entry of 0000 will disable
this feature. _____ _____ _____ _____
447 High Density Alarm Enter: Four (4) digit s . The
range is from 0000 to 9999.
Density units are dependent
on entry made in code 445
of the Systems Directory.
An entry of 0000 will disable
this feature. _____ _____ _____ _____
448-499 Unassigned at Present
36 AB06030 Rev. 0.6 5/ 96
Page 39
Program
Code Function Code Description Prod 1 Prod 2 Prod 3 Prod 4
500
Pressure Directory
501 Minimum Back Enter: Four (4) digits t o s elec t
Pressure Flow the minimum flow rate allowed
Rate Setting during back pressure operat ion in
whole units per minute. ( e.g., 0100)
"0000" disables the alarm _____ _____ _____ _____
502 Differential Pr es s ur e Enter: Three (3) digits of differ ential
pressure in units of ps ia, bars, or
2
that is to be maintained above
kg/cm
the vapor pressure or bac k pr es s ur e
(e.g., 060). Unit selection is
made in code 541 of the Systems
Directory. ____ ____ ____ ____
503 Minimum Back Enter: Two (2) digits in seconds
Pressure Flow Rat e to achieve a des ir ed flow rate
Timer Setting (e.g., 20).
"00" disables this m inim um
flow rate timer and the back
pressure reduction in c ode 504. ___ ___ ___ ___
504 BP Reduction E nter: Two (2) digits in % reduction of flow
rate for back pr es s ur e flow control and
AFO (e.g., 80, Range 50% - 90%)
___ ___ ___ ___
505 Low Pressure Alarm Enter: Four (4) digits indic ating
the pressure reading t hat will
generate a low pressure alarm .
The range is from 0000 to 9999.
Pressure units ar e dependent
on entry made in code 541
of the Systems Directory.
An entry of 0000 will disable
this feature. _____ _____ _____ _____
506 High Pressure Alarm Enter : Four (4) digits indicating
the pressure reading t hat will
generate a high pressure alarm .
The range is from 0000 to 9999.
Pressure units ar e dependent
on entry made in code 541
of the Systems Directory.
An entry of 0000 will disable
this feature. _____ _____ _____ _____
507-539 Unassigned at Present
540 Protection of P r ogr am Enter: "0" for Weights and Measures Mode
Codes 580-589 "1" for Program M ode __ __ __ __
541 Compressibility F ac tor E nter: Five (5) digit compr es s ibility factor
used in calculating the CPL
(e.g., 39600 ent er ed
represents 0.000039600) _____________________ _______
542 Vapor Pressure Enter: "0" Straight Line A ppr ox im ation
Calculation "1" GPA T able TP-15 __ __ __ __
AB06030 Rev. 0.6 5/ 96 37
Page 40
Program
Code Function Code Description Prod 1 Prod 2 Prod 3 Prod 4
543 Low Vapor (P1) Enter: F our ( 4) digits indicating
Pressure the low vapor pres s ur e in P S IA, Bars
or kg/cm
2
in tenths of pres s ur e
units, (e.g., 006.0).
Pressure units ar e dependent
on entry made in code 541
of Systems Directory. ____._ ____._ ____._ ____._
544 Low Product Vapor E nter: Four (4) digits in Degrees C
Pressure (P1) or Degrees F that c or r es ponds
Temperature to t he low v apor pr es s ur e in
code 543.
First digit " 0" = Plus Degrees
First digit " 1" = Minus Degrees
(e.g., 1150= - 150) . Temperature units are
dependent on entry made in code 441
of the Systems Directory. _____ _____ _____ _____
545 Middle Vapor Enter: Four (4) digits indic ating
Pressure (P2) the middle vapor pressur e in P S IA, Bars
or kg/cm
2
in tenths of pres s ur e
units, (e.g., 020.0).
Pressure units ar e dependent
on entry made in code 541
of the Systems Directory. ____._ ____._ ____._ ____._
Note: This entry must exceed the entry made is 543 or it will be ignored.
546 Middle Product Vapor Enter: Four (4) digits in Degr ees
Pressure (P2) C or Degrees F that c or r es ponds
Temperature to t he m iddle v apor pr es s ur e
in code 545.
First digit " 0" = Plus Degrees
First digit " 1" = Minus Degrees
(e.g., 0030 = +030). Tem per ature units are
dependent on entry made in code 441
of the Systems Directory. _____ _____ _____ _____
547 High Vapor Enter: Four (4) digits indicating
Pressure (P3) the high vapor pressure in P S IA, Bars
or kg/cm
2
in tenths of pres s ur e
units, (e.g., 100.0).
Pressure units ar e dependent
on entry made in code 541
of the Systems Directory. ____._ ____._ ____._ ____._
Note: This entry must not exceed the entry made in 545 or it will be ignored.
548 High Product Vapor Enter: Four (4) digits in Degrees
Pressure (P3) C or Degrees F that c or r es ponds
Temperature to t he high v apor pr es s ur e
in code 546.
First digit " 0" = Plus Degrees
First digit " 1" = Minus Degrees
(e.g., 0600 = +060). Tem per ature units are
dependent on entry made in code 441
of the Systems Directory. _____ _____ _____ _____
38 AB06030 Rev. 0.6 5/ 96
Page 41
Program
Code Function Code Description Prod 1 Prod 2 Prod 3 Prod 4
549 Maintenance Pressur e Enter: Four (4) digit m aintenance
pressure to be used when a pres s ur e
transducer is not ins talled,
in tenths of unit s ( e.g., 150.0)
Pressure units dependent on
selection made in code 541
of the Systems Directory.
"0000" disables this feature. _____._______._______._______.__
550-599 Unassigned at Present
600
601 Raw Non-resettable To be read only None
Totals
602 Gross Non-resettable To be read only None
Totals
603 Gross at Standard To be read only None
Temp. Non-resettable
Totals
604 Net Non-resett able To be read only None
Totals
605 Mass Non-resettable To be read only None
Totals
606 Load Average To be read only None
Temperature
607 Load Average To be read only None
Pressure
608 Load Average Density To be read only None
609-639 Unassigned at Present
640 Protection of P r ogr am Enter: "0" for Weights and Measures Mode
Codes 680-689 "1" for Program M ode __ __ __ __
Read Only Directory
641-699 Unassigned at Present
700
701 HM Classification Enter: Fir s t 20 characters of
702 HM Classification Enter: Second 20 c har ac ters of
703 HM Classification Enter: Last 20 c har ac ters of
704-739 Unassigned at Present
Communications Directory
the classification.
Prod1______________________________
Prod2______________________________
Prod3______________________________
Prod4______________________________
the classification.
Prod1______________________________
Prod2______________________________
Prod3______________________________
Prod4______________________________
the classification.
Prod1______________________________
Prod2______________________________
Prod3______________________________
Prod4______________________________
AB06030 Rev. 0.6 5/ 96 39
Page 42
Program
Code Function Code Description Prod 1 Prod 2 Prod 3 Prod 4
740 Protection of P r ogr am Enter: "0" for Weights and Measures Mode
Codes 780-789 "1" for Program M ode __ __ __ __
741-799 Unassigned at Present
800
801-839 Unassigned at Present
840 Protection of P r ogr am Enter: "0" for Weights and Measures Mode
Codes 880-889 "1" for Program M ode __ __ __ __
841-899 Unassigned at Present
900
901-939 Unassigned at Present
940 Protection of P r ogr am Enter: "0" for Weights and Measures Mode None
Codes 980-989 "1" for Program M ode __ __ __ __
941-999 Unassigned at Present
Inputs & Outputs Directory
Diagnostics Directory
40 AB06030 Rev. 0.6 5/ 96
Page 43
Program Program
Code Function Code Description Entry Code
Blend Recipe Director ies
__00
__01 Blend Recipe Enter: "0" Recipe Not Used __01
__02 Blend Recipe Name Enter : Up to nine (9) c har ac ters for __02
__03 Product using Enter : Four (4) digit number indicating __03
Injector #1 the products this injector
Blend Recipe # __ Directory
"1" Manual Recipe
"2" Auto Recipe __
meter or product identifier. _______________
is used with.
1st digit - Produc t 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero (0) in the digit indic ates
the injector will not be us ed
with that product, a one (1)
indicates the inject or will be
used with that produc t. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
__00
__04 Product using Enter : Four (4) digit number indicating __04
Injector #2 the products this injector
is used with.
1st digit - Produc t 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero (0) in the digit indic ates
the injector will not be us ed
with that product, a one (1)
indicates the inject or will be
used with that produc t. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
AB06030 Rev. 0.6 5/ 96 41
Page 44
Program Program
Code Function Code Description Entry Code
__05 Product using Enter : Four (4) digit number indicating __05
Injector #3 the products this injector
is used with.
1st digit - Produc t 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero (0) in the digit indic ates
the injector will not be us ed
with that product, a one (1)
indicates the inject or will be
used with that produc t. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
__06 Product using Enter : Four (4) digit number indicating __06
Injector #4 the products this injector
is used with.
1st digit - Produc t 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero (0) in the digit indic ates
the injector will not be us ed
with that product, a one (1)
indicates the inject or will be
used with that produc t. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
__07 Product using Enter : Four (4) digit number indicating __07
Injector #5 the products this injector
is used with.
1st digit - Produc t 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero (0) in the digit indic ates
the injector will not be us ed
with that product, a one (1)
indicates the inject or will be
used with that produc t. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
42 AB06030 Rev. 0.6 5/ 96
Page 45
Program Program
Code Function Code Description Entry Code
__08 Product using Enter : Four (4) digit number indicating __08
Injector #6 the products this injector
is used with.
1st digit - Produc t 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero (0) in the digit indic ates
the injector will not be us ed
with that product, a one (1)
indicates the inject or will be
used with that produc t. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
__09 Product using Enter : Four (4) digit number indicating __09
Injector #7 the products this injector
is used with.
1st digit - Produc t 1
2nd digit - Product 2
3rd digit - Product 3
4th digit - Product 4
A zero (0) in the digit indic ates
the injector will not be us ed
with that product, a one (1)
indicates the inject or will be
used with that produc t. (e.g., 0100
indicates that this injector is used
with product 2 only). __ __ __ __
__10 Recipe Raw Non-res ettable T o be r ead only __10
Totals
__11 Recipe Gr os s Non- r es ettable To be read only None __11
Totals
__12 Recipe Gr os s at Standard To be read only None __12
Temp. Non-resettable Totals
__13 Recipe Net Non- r es ettable To be read only None __13
Totals
__14 Recipe Mass Non- r es ettable To be read only None __14
Total
AB06030 Rev. 0.6 5/ 96 43
Page 46
Program Program
Code Function Code Description Entry Code
__15 HM Classification Ent er : "1" Produc t 1 __15
"2" Product 2
"3" Product 3
"4" Product 4 __
__16 Minimum P r es et To be read only __16
__17-__39 Unassigned at Present __17-__39
__40 Prot ec tion of Program Enter: " 0" for Weights and Meas ur es M ode __40
Codes __80-__89 "1" for Progr am M ode __
__41 Blend Pres et Display Enter: "0" Raw Preset (Raw) __41
"1" Gross Preset (Grs)
"2" Gross P r es et at Standard T em per ature (Gst)
"3" Gross P r es et at Standard T em per ature
and Pressure (Net)
"4" Mass Preset __
__42 Blend Deliver Dis play Enter: "0" Raw Deliv er y ( Raw) __42
"1" Gross Deliv er y ( Grs)
"2" Gross Deliv er y at Standard Temper ature (Gst)
"3" Gross Deliv er y at Standard Temper ature
and Pressure (Net)
"4" Mass Delivery __
__43 Firs t Component Enter: "0" Not Used __43
Number to Deliver "1" Product 1
"2" Product 2
"3" Product 3
"4" Product 4 __
__44 Firs t Component Enter: Four (4) digit s in tenth __44
Percentage of a percent (e.g., 050.0). __ __ __ __
Note: Codes _42, _44, _46, _48 and _50 must add up to 100%.
__45 Second Component Enter: "0" Not Used __45
Number to Deliver "1" Product 1
"2" Product 2
"3" Product 3
"4" Product 4 __
__46 Second Component Enter: Four (4) digits in tenth __46
Percentage of a percent (e.g., 050.0). __ __ __ __
Note: Codes _42, _44, _46, _48 and _50 must add up to 100%.
__47 Third Com ponent Enter: " 0" Not Used __47
Number to Deliver "1" Product 1
"2" Product 2
"3" Product 3
"4" Product 4 __
__48 Third Com ponent Enter: F our ( 4) digits in tenth __48
Percentage of a percent (e.g., 050.0). __ __ __ __
Note: Codes _42, _44, _46, _48 and _50 must add up to 100%.
44 AB06030 Rev. 0.6 5/ 96
Page 47
Program Program
Code Function Code Description Entry Code
__49 Fourth Component Enter : "0" Not Us ed __49
Number to Deliver "1" Product 1
"2" Product 2
"3" Product 3
"4" Product 4 __
__50 Fourth Component Enter : Four (4) digits in tenth __50
Percentage of a percent (e.g., 050.0). __ __ __ __
Note: Codes _42, _44, _46, _48 and _50 must add up to 100%.
__51 Fif th Component Enter: "0" Not Used __51
Number to Deliver "1" Product 1
"2" Product 2
"3" Product 3
"4" Product 4 __
__52 Fif th Component Enter: Four (4) digit s in tenth __52
Percentage of a percent (e.g., 050.0). __ __ __ __
Note: Codes _42, _44, _46, _48 and _50 must add up to 100%.
AB06030 Rev. 0.6 5/ 96 45
Page 48
Code Recipe 1 Recipe 2 Recipe 3 Recipe 4
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__04 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__05 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__06 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__07 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__08 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 Read Only Read Only Read Only Read Only
__11 Read Only Read Only Read Only Read Only
__12 Read Only Read Only Read Only Read Only
__13 Read Only Read Only Read Only Read Only
__14 Read Only Read Only Read Only Read Only
__15 __ __ __ __
__16 Read Only Read Only Read Only Read Only
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ __
__44 __ __ __ . __ __ __ __ .__ __ __ __ . __ __ __ __ . __
__45 __ __ __ __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __
__48 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__49 __ __ __ __
__50 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__51 __ __ __ __
__52 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
46 AB06030 Rev. 0.5 11/ 95
Page 49
Code Recipe 5 Recipe 6 Recipe 7 Recipe 8
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__04 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__05 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__06 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__07 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__08 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 Read Only Read Only Read Only Read Only
__11 Read Only Read Only Read Only Read Only
__12 Read Only Read Only Read Only Read Only
__13 Read Only Read Only Read Only Read Only
__14 Read Only Read Only Read Only Read Only
__15 __ __ __ __
__16 Read Only Read Only Read Only Read Only
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ __
__44 __ __ __ . __ __ __ __ .__ __ __ __ . __ __ __ __ . __
__45 __ __ __ __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __
__48 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__49 __ __ __ __
__50 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__51 __ __ __ __
__52 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
AB06030 Rev. 0.6 5/ 96 47
Page 50
Code Recipe 9 Recipe 10 Recipe 11 Recipe 12
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__04 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__05 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__06 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__07 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__08 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 Read Only Read Only Read Only Read Only
__11 Read Only Read Only Read Only Read Only
__12 Read Only Read Only Read Only Read Only
__13 Read Only Read Only Read Only Read Only
__14 Read Only Read Only Read Only Read Only
__15 __ __ __ __
__16 Read Only Read Only Read Only Read Only
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ __
__44 __ __ __ . __ __ __ __ .__ __ __ __ . __ __ __ __ . __
__45 __ __ __ __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __
__48 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__49 __ __ __ __
__50 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__51 __ __ __ __
__52 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
48 AB06030 Rev. 0.6 5/ 96
Page 51
Code Recipe 13 Recipe 14 Reci pe 15 Recipe 16
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__04 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__05 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__06 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__07 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__08 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 Read Only Read Only Read Only Read Only
__11 Read Only Read Only Read Only Read Only
__12 Read Only Read Only Read Only Read Only
__13 Read Only Read Only Read Only Read Only
__14 Read Only Read Only Read Only Read Only
__15 __ __ __ __
__16 Read Only Read Only Read Only Read Only
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ __
__44 __ __ __ . __ __ __ __ .__ __ __ __ . __ __ __ __ . __
__45 __ __ __ __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __
__48 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__49 __ __ __ __
__50 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__51 __ __ __ __
__52 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
AB06030 Rev. 0.6 5/ 96 49
Page 52
Code Recipe 17 Recipe 18 Reci pe 19 Recipe 20
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__04 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__05 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__06 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__07 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__08 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 Read Only Read Only Read Only Read Only
__11 Read Only Read Only Read Only Read Only
__12 Read Only Read Only Read Only Read Only
__13 Read Only Read Only Read Only Read Only
__14 Read Only Read Only Read Only Read Only
__15 __ __ __ __
__16 Read Only Read Only Read Only Read Only
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ __
__44 __ __ __ . __ __ __ __ .__ __ __ __ . __ __ __ __ . __
__45 __ __ __ __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __
__48 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__49 __ __ __ __
__50 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__51 __ __ __ __
__52 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
50 AB06030 Rev. 0.6 5/ 96
Page 53
Code Recipe 21 Recipe 22 Reci pe 23 Recipe 24
__01 __ __ __ __
__02 _____________ ______________ _____________ _____________
__03 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__04 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__05 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__06 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__07 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__08 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__09 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
__10 Read Only Read Only Read Only Read Only
__11 Read Only Read Only Read Only Read Only
__12 Read Only Read Only Read Only Read Only
__13 Read Only Read Only Read Only Read Only
__14 Read Only Read Only Read Only Read Only
__15 __ __ __ __
__16 Read Only Read Only Read Only Read Only
__40 __ __ __ __
__41 __ __ __ __
__42 __ __ __ __
__43 __ __ __ __
__44 __ __ __ . __ __ __ __ .__ __ __ __ . __ __ __ __ . __
__45 __ __ __ __
__46 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__47 __ __ __ __
__48 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__49 __ __ __ __
__50 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
__51 __ __ __ __
__52 __ __ __ . __ __ __ __ . __ __ __ __ . __ __ __ __ . __
AB06030 Rev. 0.6 5/ 96 51
Page 54
Appendix I
SEQ Display Customization E ntr y Table
Entry
Number
*001 Alarm - See Manager 22
*002 Alarm Press " CLE A R" 22
*003 Alarm Press " P RINT" 22
*004 Alarm - Remove Tic k et 22
005 ** Rem ov e Ticket ** 24
006 P leas e Wait 24
007 Repor t Pending to Print 24
008 No Loc al S tart Allowed 24
009 M eter Position Not Us ed 24
010 P r es s Clear to Continue. 24
011 P r es s S tart to Continue 24
012 ** Error Press CLEAR ** 24
013 P r es et Completed 24
Entry Descript ion Translat ion O utput
Length
**014 Restart In 11
**015 Valve Delay = 14
016 ** Not Authorized ** 24
017 Flow = 7
018 Flow*= 7
019 /Min 4
020 /Hr 3
**021 Temperature= 15
**022 Ref Density 12
**023 Rel Density = 18
**024 Meter Factor = 18
025 Raw Transaction 15
026 Grs Transaction 15
027 Gst Transac tion 15
028 Net Transaction 15
029 M as Transaction 15
**030 Inj1 Trans 14
52 AB06030 Rev. 0.6 5/ 96
Page 55
Appendix I
Entry
Number
**031 Inj2 Trans 14
**032 Inj3 Trans 14
**033 Inj4 Trans 14
**034 Inj5 Trans 14
**035 Inj6 Trans 14
**036 Inj7 Trans 14
037 Inj1 Total 10
038 Inj2 Total 10
039 Inj3 Total 10
040 Inj4 Total 10
041 Inj5 Total 10
042 Inj6 Total 10
043 Inj7 Total 10
Entry Descript ion Translat ion O utput
Length
044 Dens ity 7
045 Total 5
**046 Valve Requested 16
047 Open 4
048 Clos ed 6
049 Loc k 4
**050 Load Avg Tmp 15
051 No Alarms Present 17
**052 Avg Pres 8
**053 Avg Den 7
054 Off 3
055 On 3
056 Secs. 5
057 S elec t Injector# 16
058 Injs. On= # 10
059 No Injectors Selected 24
060 Inj 3
061 P r og 4
062 Cal 3
063 Raw 3
AB06030 Rev. 0.6 5/ 96 53
Page 56
Appendix I
Entry
Entry Descript ion Translat ion O utput
Number
064 Grs 3
065 Gst 3
066 Net 3
067 M as 3
068 Temp 7
069 Gross 5
070, 071, 072 Preset batch volume exceeds
the maximum permitted.
073, 074, 075 Preset batch volume is below
the minimum required.
076, 077, 078 The pres et volume will cause
the max transac tion volume
to be exceeded.
079, 080 Invalid I.D. number. Press
CLEAR to enter.
Length
3 * 24
3 * 24
3 * 24
2 * 24
081 No Rec ipes A v ailable 24
082 S elec t Recipe 21
**083 Recipe No 10
084, 085 The minimum preset for this
recipe is
086 Mass 4
087 Prv Err 7
088, 089, 090, 091 * Attention: A n out of blend
condition has developed.
Press ENTER to continue.
*092, 093 * Select one of the f ollowing
options:
094 1 = Terminate Deliv er y 24
095 2 = Complete to Pr es et 24
096, 097 3 = Blend Correct by
Adjusting Preset
***098 T o 4
2 * 24
4 * 24
2 * 24
2 * 24
* 099, 100 *Blend Action Selection is 2 * 24
101, 102 Press SET to confirm,
CLEAR to re-select
103 Opened 6
54 AB06030 Rev. 0.6 5/ 96
2 * 24
Page 57
Appendix I
Entry
Number
104 Close 5
105 * Batch Limit Reached * 24
106 * Delivery Terminated * 24
**107 Flow 5
108 Flow* 5
109 Dynamic Batch No = 18
110 Tmp Lav 7
111 Additive 1 = 12
112 Additive 2 = 12
113 Additive 3 = 12
114 Additive 4 = 12
115 Additive 5 = 12
116 Additive 6 = 12
Entry Descript ion Translat ion O utput
Length
117 Additive 7 = 12
118 Trans 5
**119 Ld 3
120 Av Dn 5
121, 122 Fatal: E ntry is out of spec ified
range.
123, 124, 125 Recipe selected is not
available. Press CLEAR to
continue.
126 Program Error 13
127, 128,
129, 130,
131, 132,
133
**134 Dyn Display 12
135 System 6
Warning: Premature batch
termination may result in out
of blend delivery. If you
desire to terminate anyway,
press ENTER. Otherwise,
press CLEAR to continue.
2 * 24
3 * 24
7 * 24
136 Recipe 6
137 Product 7
138 Batch 5
139 Summary 7
AB06030 Rev. 0.6 5/ 96 55
Page 58
Appendix I
Note: * An entry number flagged with an asterisk (*), designates that the entry description should have a leading space in the message. This will
allow for display concatenation without running words together.
Note: ** An entry number flagged with two asterisks (**), designates that the entry description should have a trailing s pac e in the mes sage. This
will allow for display concatenation without running words together.
Note: *** An entry number flagged with three asterisks (***), designates that the entry description should hav e a leading and trailing s pac e in the
message. This will allow for display concatenation without running words together.
Note: The output length of each table entry signifies that max imum number of c harac ters allowable for that particular mes s age ev en though the
default message may not take up all spaces allowed.
Note: Entry numbers s hown gr ouped together are 24 c har ac ter mes s ages c onc atenated together to for m a scrolling message. The total length
of these messages are found by multiplying the output lengths together.
Note: Some literal strings that have been abbreviated to 2 or 3 characters will not be concatenated with other strings.
56 AB06030 Rev. 0.6 5/ 96
Page 59
Appendix II
Ready/Run Mode Clearable Alarms
Entry Alarm 0 = Clearable
1 = Not Clearable
1 CM: Communications
2 T K: T icket
3 TP: Temperature Probe
4 O A: O verrun
5 PT: Pulse Transmission
6 VF: Valve Fault
7 PR: Pressure Transducer
8 PC: Pulse Collision
9 PS: Pulse Security
10 DP: Down Pulse
11 DR: Density Transducer
12 TT: Temperature Transducer
13 SP: Set at entry 751 (S har ed P r inter)
14 SF: S torage Full
15 F1: Additive Feedback 1
16 F2: Additive Feedback 2
17 F3: Additive Feedback 3
18 F4: Additive Feedback 4
19 F5: Additive Feedback 5
20 F6: Additive Feedback 6
21 F7: Additive Feedback 7
22 H2: Set at entry 755 (232 Printer Hardware)
23 O2: Set at entry 755 (232 P aper Out)
24 A2: Set at entry 755 (232 Cover Open)
25 P2: Set at entry 755 (232 Communic ations)
26 B2: Set at entry 755 (232 Buf fer OverFlow
27 D2: Set at entry 755 (232 Deselected)
28 E2: Set at ent ry 755 (232 General Error)
29 I2: Set at entry 755 (232 No Res pons e)
30 H4: Set at entry 755 (485 Printer Hardware)
31 O4: Set at entry 755 (485 P aper Out)
AB06030 Rev. 0.6 5/ 96 57
Page 60
Appendix II
Entry Alarm 0 = Clearable
1 = Not Clearable
32 A4: Set at entry 755 (485 Cover Open)
33 D4: Set at entry 755 (485 Deselected)
34 B4: Set at entry 755 (485 Buf fer OverFlow)
35 P4: Set at entry 755 (485 Communic ations)
36 E4: Set at ent ry 755 (485 General Error)
37 I4: Set at entry 755 (485 No Res pons e)
38 CL: Clean Line
39 PA: Power - fail
40 ZF: Zero Flow
41 HT: High T em per ature
42 LT: Low T em per ature
43 HP: High Pres s ur e
44 LP: Low Pres s ur e
45 HD: High Density
46 LD: Low Density
47 BP: Back Pressure
48 LF: Low F low
49 HF: High F low
50 BV: Block Valve
51 BH: Blend High
52 BL: Blend Low
53 AC: Addit iv e Com m unic ations
Note: Applies to SEQ-13 and above firmware.
54 IA: Injector Alarm
Note: Applies to SEQ-13 and above firmware.
55 R1: Additiv e 1 Frequency
Note: Applies to SEQ-13 and above firmware.
56 R2: Additiv e 2 Frequency
Note: Applies to SEQ-13 and above firmware.
57 R3: Additiv e 3 Frequency
Note: Applies to SEQ-13 and above firmware.
58 R4: Additiv e 4 Frequency
Note: Applies to SEQ-13 and above firmware.
59 R5: Additiv e 5 Frequency
Note: Applies to SEQ-13 and above firmware.
60 R6: Additiv e 6 Frequency
58 AB06030 Rev. 0.6 5/ 96
Page 61
Appendix II
Entry Alarm 0 = Clearable
1 = Not Clearable
Note: Applies to SEQ-13 and above firmware.
61 R7: Additiv e 7 Frequency
Note: Applies to SEQ-13 and above firmware.
62 L1: Additiv e 1 P uls e
Note: Applies to SEQ-13 and above firmware.
63 L2: Additiv e 2 P uls e
Note: Applies to SEQ-13 and above firmware.
64 L3: Additiv e 3 P uls e
Note: Applies to SEQ-13 and above firmware.
65 L4: Additiv e 4 P uls e
Note: Applies to SEQ-13 and above firmware.
66 L5: Additiv e 5 P uls e
Note: Applies to SEQ-13 and above firmware.
67 L6: Additiv e 6 P uls e
Note: Applies to SEQ-13 and above firmware.
68 L7: Additiv e 7 P uls e
Note: Applies to SEQ-13 and above firmware.
69 N1: No Pulses Detected Add1
Note: Applies to SEQ-13 and above firmware.
70 N2: No Pulses Detected Add2
Note: Applies to SEQ-13 and above firmware.
71 N3: No Pulses Detected Add3
Note: Applies to SEQ-13 and above firmware.
72 N4: No Pulses Detected Add4
Note: Applies to SEQ-13 and above firmware.
73 N5: No Pulses Detected Add5
Note: Applies to SEQ-13 and above firmware.
74 N6: No Pulses Detected Add6
Note: Applies to SEQ-13 and above firmware.
75 N7: No Pulses Detected Add7
Note: Applies to SEQ-13 and above firmware.
76 M1: Too M any P uls es A dd1
Note: Applies to SEQ-13 and above firmware.
77 M2: Too M any P uls es A dd2
Note: Applies to SEQ-13 and above firmware.
78 M3: Too M any P uls es A dd3
Note: Applies to SEQ-13 and above firmware.
79 M4: Too M any P uls es A dd4
Note: Applies to SEQ-13 and above firmware.
80 M5: Too M any P uls es A dd5
Note: Applies to SEQ-13 and above firmware.
81 M6: Too M any P uls es A dd6
Note: Applies to SEQ-13 and above firmware.
82 M7: Too M any P uls es A dd7
AB06030 Rev. 0.6 5/ 96 59
Page 62
Appendix II
Entry Alarm 0 = Clearable
1 = Not Clearable
Note: Applies to SEQ-13 and above firmware.
83 K1: Low Addit iv e 1
Note: Applies to SEQ-13 and above firmware.
84 K2: Low Addit iv e 2
Note: Applies to SEQ-13 and above firmware.
85 K3: Low Addit iv e 3
Note: Applies to SEQ-13 and above firmware.
86 K4: Low Addit iv e 4
Note: Applies to SEQ-13 and above firmware.
87 K5: Low Addit iv e 5
Note: Applies to SEQ-13 and above firmware.
88 K6: Low Addit iv e 6
Note: Applies to SEQ-13 and above firmware.
89 K7: Low Addit iv e 7
Note: Applies to SEQ-13 and above firmware.
90 U1: Unauth F ailed 1
Note: Applies to SEQ-13 and above firmware.
91 U2: Unauth F ailed 2
Note: Applies to SEQ-13 and above firmware.
92 U3: Unauth F ailed 3
Note: Applies to SEQ-13 and above firmware.
93 U4: Unauth F ailed 4
Note: Applies to SEQ-13 and above firmware.
94 U5: Unauth F ailed 5
Note: Applies to SEQ-13 and above firmware.
95 U6: Unauth F ailed 6
Note: Applies to SEQ-13 and above firmware.
96 U7: Unauth F ailed 7
Note: Applies to SEQ-13 and above firmware.
Note: 1. Alarms that have the statement "Set at entry ???" are programmable in their respective program codes as to whether they are
clearable or not clearable in the Run and Ready Mode of operation
2. Alarms 1 through 40 are System Alarms, alarms 41 through 52 are Product Alarms, alarms 53 through 96 are Smart Additive Alarms.
60 AB06030 Rev. 0.6 5/ 96
Page 63
Related Publications
The following literature can be obtained from the FMC Measurement Solutions Literature Fulfillment Department at
[email protected] or at www.fmctechnologies.com/measurementsolutions. When requesting literature from Literature Fulfillment, please reference the appropriate bulletin number and title.
AccuLoad II - SEQ
Specifications ................................................................................................................................ Bulletin SS06014
Installation ......................................................................................................................................Bulletin MN06037
Operator Guide ............................................................................................................................... Bulletin MN06053
Operator Reference .......................................................................................................................Bulletin MN06054L
Programming Workbook .................................................................................................................. Bulletin AB06030
Communications .......................................................................................................................... Bulletin MN06055L
Load Printer
Specifications ................................................................................................................................. Bulletin SS06004
Installation/Operation ......................................................................................................................Bulletin MN06010
Service ........................................................................................................................................... Bulletin MN06009
Valves
Model 210 Specifications ................................................................................................................ Bulletin SS03009
Model 210 Installation/Operation..................................................................................................... Bulletin MN03010
Model 215 Specifications ................................................................................................................ Bulletin SS03010
Model 215 Installation/Operation..................................................................................................... Bulletin MN03006
Model 215 Service .......................................................................................................................... Bulletin MN03007
Revisions included in AB06030 Issue/Rev. 0.6 (5/96)
1. Converted file from WordPerfect to Microsoft Word
2. Miscellaneous Editorial Revisions
The specifications contained herein are subject to change without notice and any user of said specifications should verify from the manufacturer that the
specifications are currently in effect. Otherwise, the manufacturer assumes no responsibility for the use of specifications which may have been changed and are
no longer in effect.
Headquarters:
1803 Gears Road, Houston, TX 77067 USA, Phone: 281/260-2190, Fax: 281/260-2191
Gas Measurement Products:
Erie, PA USA Phone 814/898-5000
Thetford, England Phone (44) 1842-82-2900
Kongsberg, Norway Phone (47) 32/286-700
Buenos Aires, Argentina Phone 54 (11) 4312-4736
Integrated Measurement Systems:
Corpus Christi, TX USA Phone 361/289-3400
Kongsberg, Norway Phone (47) 32/286-700
San Juan, Puerto Rico Phone 787/274-3760
United Arab Emirates, Dubai Phone 971 +4/331-3646
Liquid Measurement Products:
Erie, PA USA Phone 814/898-5000
Los Angeles, CA USA Phone 661/702-8660
Slough, England Phone (44) 1753-57-1515
Ellerbek, Germany Phone (49) 4101-3040
Barcelona, Spain Phone (34) 93/201-0989
Moscow, Russia Phone (7) 495/564-8705
Melbourne, Australia Phone (61) 3/9807-2818
Beijing, China Phone (86) 10/6500-2251
Singapore Phone (65) 6861-3011
Chennai, India Phone (91) 44/450-4400
Visit our website at www.fmctechnologies.com
Printed in U.S.A. © 5/96 FMC Technologies Measurement Solutions, Inc. All rights reserved. AB06030 Issue/Rev. 0.6 (5/96)
Loading...
