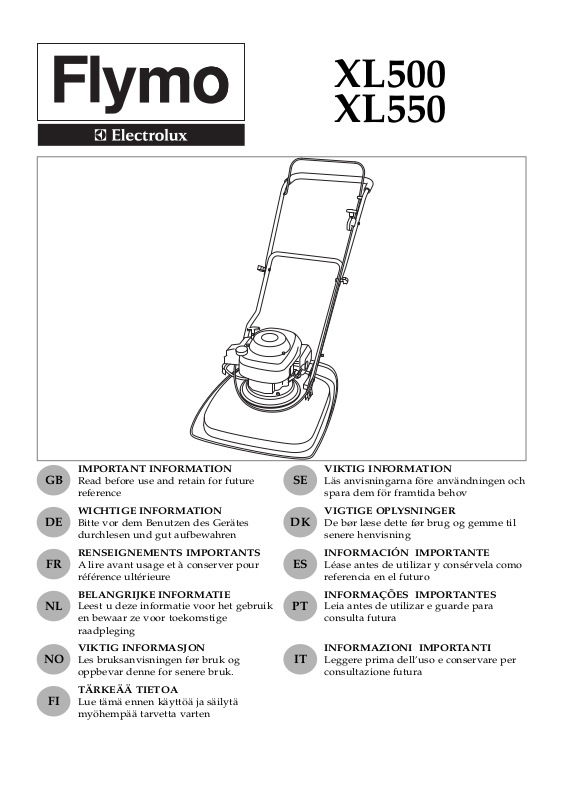

Flymo XL500, XL550 User Manual

GB

IMPORTANT INFORMATION

Read before use and retain for future
reference

DE

WICHTIGE INFORMATION

Bitte vor dem Benutzen des Gerätes
durchlesen und gut aufbewahren

FR

RENSEIGNEMENTS IMPORTANTS

A lire avant usage et à conserver pour
référence ultérieure

NL

BELANGRIJKE INFORMATIE

Leest u deze informatie voor het gebruik
en bewaar ze voor toekomstige
raadpleging

NO

VIKTIG INFORMASJON

Les bruksanvisningen før bruk og
oppbevar denne for senere bruk.

SE

VIKTIG INFORMATION

Läs anvisningarna före användningen och
spara dem för framtida behov

DK

VIGTIGE OPLYSNINGER

De bør læse dette før brug og gemme til
senere henvisning

ES

INFORMACIÓN IMPORTANTE

Léase antes de utilizar y consérvela como
referencia en el futuro

PT

INFORMAÇÕES IMPORTANTES

Leia antes de utilizar e guarde para
consulta futura

IT

INFORMAZIONI IMPORTANTI

Leggere prima dell’uso e conservare per
consultazione futura

FI

TÄRKEÄÄ TIETOA

Lue tämä ennen käyttöä ja säilytä
myöhempää tarvetta varten

XL500
XL550

D

A

90

0

B

G

H

1

3

1

2

3

4

5

1

2

1

2

3

4

2

1

2

3

5

4

1

2

3

C

1

3

2

F

E

1

2

J K

L M N

P

4

3

2

1

9

8

7

5

6

Q

1

2

3

4

5

GB - XL500/550

1. Operator Presence Control

2. Choke Control Lever

3. Upper Handle

4. Cable Tie Wrap x 2

5. Handle Knob x 2

6. Washer x 2

7. Bolt x 2

8. Lower Handle

9. Hook Assembly

10.Lower Handle Retaining Clip x2

11.Lower Handle Pin x2

12.Starting Handle

13.Fuel Tank Cap

14.Oil Filler Cap

15.Fuel Tap

16.Spark Plug Lead

17.Rating Label

18.Warning Label

19.Instruction Booklet

GB - Wheel Frame

20.Lower Handle

21.Wheels x 2

22.Upper telescopic tubes

23.Telescopic tube pin

24.Telescopic tube retaining clip

25.Lower telescopic tubes

26.Wheel retaining clips

27.Wheel frame

28.Hook Assembly

29.Lower handle bolt x 2

30.Small washer x 2

31.Lower handle pin x 2

32.Large washer x 2
33 Locknut x 2

DE - XL500/550

1. Bedienerpräsenz-Kontrollvorrichtung

2. Chokeschalthebel

3. Oberer Griff

4. Kabelhalter x 2

5. Griffknopt x 2

6. Unterlegscheibe x 2

7. Bolzen x 2

8. Unterer Griff

9. Hakeneinheit

10.Halteklammer, unterer Griff, x2

11.Stift, unterer Griff, x2

12.Starterseil

13.Tankkappe

14.Öleinfüllverschluss

15.Kraftstoffhahn

16.Zündkerzenzuleitung

17.Produkttypenschild

18.Warnetikett

19.Bedienungsanleitung

DE - Zum Radgestell gehörende Teile

20.Unterer Griff

21.Räder x 2

22.Obere Teleskoprohre

23.Teleskoprohrstift

24.Telekoprohr-Halteklammer

25.Untere Teleskoprohre

26.Radhalteklammern

27.Radgestell

28.Hakeneinheit

29.Bolzen, unterer Griff, x2

30.Kleine Unterlegscheibe x 2

31.Stift, unterer Griff, x2

32.Große Unterlegscheibe x2

33.Sicherungsmutter x2

FR - XL500/550

1. Arceau de sécurité (CPO) (Contrôle
de Présence de l’Opérateur)

2. Manette de starter

3. Poignée supérieure

4. Cable Tie Wrap x 2

5. Bouton de Guidon x 2

6. Rondelle x 2

7. Boulons x 2

8. Guidon inferieur

9. Montage du crochet

10.Attache de câble x 2

11.Boulon de poignée inférieure x 2

12.Poignée de démarrage

13.Bouchon du réservoir d’ essence

14.Bouchon de remplissage d'huile

15.Robinet à essence

16.Fil de bougie

17.Plaquette d’identification

18.Etiquette d’avertissement

19.Manuel d’instructions

FR - Chariot de transport

20.Guidon inferieur

21.Roues x 2

22.Tubes télescopiques – partie
supérieure

23.Goupille de tube télescopique

24.Clip de retenue de tube télescopique

25.Tubes télescopiques – partie
inférieure

26.Clips de retenue des roues

27.Cadre des roues

28.Montage du crochet

29.Boulon de poignée inférieure x 2

30.Petite rondelle x 2

31.Goupille de poignée inférieure x 2

32.Grosse rondelle x 2

33.Contre-écrou x 2

NL - XL500/550

1. Operator Presence Control (OPC
of Veiligheids hendel)

2. Regelhendel choke

3. Bovenste duwboom

4. Kabelklem (2 stuks)

5. Knop voor duwboom x 2

6. Ring x 2

7. Bout x 2

8. Onderstuk van duwboom

9. Haak

10.Borgclip onderste handgreep (2 stuks)

11.Bout voor onderste handgreep
(2 stuks)

12.Starthendel

13.Dop voor benzinetank

14.Oil Filler Cap

15.Fuel Tap

16.Bougiekabel

17.Productlabel

18.Waarschuwingsetiket

19.Handboek

NL - Wielframe

20.Onderstuk van duwboom

21.Wielen (2 stuks)

22.Bovenste uitschuifbare buizen

23.Pen voor uitschuifbare buis

24.Borgclip voor uitschuifbare buis

25.Onderste uitschuifbare buizen

26.Borgclips voor wielen

27.Wielframe

28.Haak

29.Bout voor onderste handgreep
(2 stuks)

30.Kleine pasring (2 stuks)

31.Pen voor onderste handgreep (2
stuks)

32.Grote pasring (2 stuks)

33 Borgmoer (2 stuks)

NO - XL500/550

1. Start/Stopp bryter

2. Chokens kontrollspak

3. Øvre håndtak

4. Kabelfeste x 2

5. Vingemutter (2 stk)

6. Skiver (2 stk)

7. Bolt (2 stk)

8. Nedre håndtak

9. Krokmontering (Hakemontering)

10.Låseklemme x 2 til nedre
håndtak

11.Bolt x 2 til nedre håndtak

12.Starthåndtak/snor

13.Bensintanklokk

14.Oljelokk

15.Bensinkran

16.Ledning/hette for tennplugg

17.Typeetiketten

18.Advarselsetikett

19.Bruksanvisning

NO - Hjulramme

20.Nedre håndtak

21.Hjul x 2

22.Øvre teleskopiske rør

23.Låsepinne til teleskopisk rør

24.Låseklemme til teleskopisk rør

25.Nedre teleskopiske rør

26.Låseklemmer til hjulene

27.Hjulramme

28.Krokmontering (Hakemontering)

29.Bolt x 2 til nedre håndtak

30.Liten skive x 2

31.Låsepinne x 2 til nedre håndtak

32.Stor skive x 2

33.Låsemutter x 2

FI - XL500/550

1. Käynnistys/pysäytys-katkaisin

2. Ryypytyksen säätövipu

3. Ylävarsi

4. Johdonpidike x 2

5. Kahvan nuppi x 2

6. Pultin välirengas x 2

7. Pultti x 2

8. Alempi kahva

9. Koukku

10.Alemman kahvan pidike x 2

11.Alemman kahvan pultti x2

12.Käynnistyskahva

13.Polttoainesäiliön korkki

14.Öljyntäyttöaukon korkki

15.Polttoainehana

16.Sytytystulpan johdin

17.Tuotteen arvokilpi

18.Varoitusnimike

19.Käyttöohjeet

FI - Pyörän runko

20.Alempi kahva

21.Pyörä x 2

22.Ylemmät teleskooppivarret

23.Teleskooppivarren sokka

24.Teleskooppivarren pidike

25.Alemmat teleskooppivarret

26.Pyörän pidikkeet

27.Pyörän runko

28.Koukku

29.Alemman kahvan pultti x 2

30.Pieni aluslaatta x 2

31.Alemman kahvan sokka x 2

32.Iso aluslaatta x 2

33 Lukkomutteri x 2

SE - XL500/550

1. Motorbromsbygel

2. Kontrollspak för choke

3. Övre handtag

4. Kabelklämma x 2

5. Knopp för hantag x 2

6. Bricka x 2

7. Bult x 2

8. Nedre handtag

9. Hakenhet

10.Fasthållningsklämma för nedre
handtag x 2

11.Bult för nedre handtag x 2

12.Starthandtag

13.Tanklock

14.Lock för oljepåfyllningshål

15.Tanklock

16.Tändkabel

17.Identifieringsetikett

18.Varningsetikett

19.IInstruktionsbok

SE - Hjulram

20.Nedre handtag

21.Hjul x 2

22.Övre teleskopiska rör

23.Sprint för teleskopiskt rör

24.Fasthållningsklämma för
teleskopiskt rör

25.Nedre teleskopiska rör

26.Fasthållningsklämmor för hjul

27.Hjulram

28.Hakenhet

29.Bult för nedre handtag x 2

30.Liten mellanläggsbricka x 2

31.Sprint för nedre handtag x 2

32.Stor mellanläggsbricka x 2

33.Låsmutter x 2

DK - XL500/550

1. Start/stopkontakt

2. Chokerbetjeningsgreb

3. Øvre håndtag

4. Kabelbåndsholder x 2

5. Håndtagsknop

6. Spændskive x 2

7. Bolt x 2

8. Nedre håndtag

9. Krogsamling

10.Clips til nederste håndtag x 2

11.Bolt til nederste håndtag x 2

12.Starthåndtag

13.Benzindæksel

14.Oliepåfyldningsdæksel

15.Brændstofhane

16.Tændrørsledning

17.Produktmærkat

18.Advarselsmœrkat

19.Brugsvejledning

DK - Hjulstel

20.Nedre håndtag

21.Hjul x 2

22.Øverste teleskoprør

23.Teleskoprørsstift

24.Teleskoprørsclips

25.Nederste teleskoprør

26.Hjulclips

27.Hjulstel

28.Krogsamling

29.Bolt til nederste håndtag x 2

30.Lille spændeskive x 2

31.Stift til nederste håndtag x 2

32.Stor spændeskive x 2

33.Låsemøtrik x 2

ES - XL500/550

1. Interruptor de contacto

2. Palanca de control del
estrangulador

3. Manillar superior

4. Sujetadores de cable x 2

5. Manija de empuñadura x 2

6. Arandela x 2

7. Perno x 2

8. Empuñadura inferior

9. Montaje del enganche

10.Clips de retención del mango
inferior x2

11.Pernos del mango inferior x2

12.Manilla de arranque

13.Tapa del tanque de combustibles

14.Tapón de llenado de aceite

15.Tapón de combustible

16.Cable de la bujía

17.Etiqueta indicadora del producto

18.Etiqueta de Advertencia

19.Manual de Instrucciones

ES - Bastidor de las ruedas

20.Empuñadura inferior

21.Ruedas x 2

22.Tubos telescópicos superiores

23.Pasador del tubo telescópico

24.Clip de retención del tubo
telescópico

25.Tubos telescópicos inferiores

26.Clips de retención de las ruedas

27.Bastidor de las ruedas

28.Montaje del enganche

29.Pernos del mango inferior x 2

30.Arandelas pequeñas x 2

31.Pasadores del mango inferior x 2

32.Arandelas grandes x 2

33 Contratuercas x 2

PT - XL500/550

1. Interruptor de Ligar/Desligar

2. Alavanca de Controlo da
Válvula de Borboleta

3. Cabo Superior

4. Braçadeira de cabo x 2

5. Maçaneta x 2

6. Arruela x 2

7. Cavilha x 2

8. Guiador inferior

9. Conjunto do Gancho

10.Clipe de retenção da pega
inferior x 2

11.Parafuso da pega inferior x 2

12.Pega de Arranque

13 Tampa do Depósito de Combustível

14.Bujão de enchimento de óleo

15.Torneira de combustível

16.Fio da vela de ignição

17.Etiqueta de Especificações do
Producto

18.Etiqueta de Aviso

19.Manual de Instruções

PT - Armação das Rodas

20.Guiador inferior

21.Rodas x 2

22.Tubos telescópicos superiores

23.Pino do tubo telescópico

24.Clipe de retenção do tubo telescópico

25.Tubos telescópicos inferiores

26.Clipes de retenção das rodas

27.Armação das rodas

28.Conjunto do Gancho

29.Parafuso da pega inferior x 2

30.Anilha pequena x 2

31.Pino da pega inferior x 2

32.Anilha grande x 2

33.Porca de aperto x 2

IT - XL500/550

1. Leva comando/controllo

2. Leva di comando starter

3. Manico superiore

4. Fascette serrafilo x 2

5. Manopola dell’impugnatura x 2

6. Rondella x 2

7. Bullone x 2

8. Impugnatura inferiore

9. Gruppo gancio

10.fermi di ritenuta impugnatura
inferiore x2

11.Bulloni impugnatura inferiore x2

12.Maniglia di avviamento

13.Tappo serbatoio carburante

14.Tappo rifornimento olio

15.Rubinetto serbatoio carburante

16.Conduttore candela

17.Etichetta con dati prodotto

18.Etichetta di pericolo

19.Manuale d’istruzioni

IT - Telaio route

20.Impugnatura inferiore

21.Ruote x 2

22.Tubi telescopici superiori

23.Spina tubo telescopico

24.Fermo di ritenuta tubo
telescopico

25.Tubi telescopici inferiori

26.Fermi di ritenuta ruote

27.Telaio ruote

28.Gruppo gancio

29.Bulloni impugnatura inferiore x 2

30.Rondelle piccole x 2

31.Spine impugnatura inferiore x 2

32.Rondelle grandi x 2

33.Controdadi x 2

This product may have been purchased with a Wheel Assembly. Please
assemble your product in accordance with the relevant Instructions.
Wheel Assembly Kits are available from your local stockists.

GB

DE

FR

NL

NO

SE

DK

ES

PT

IT

FI

Falls dieser Rasenmäher mit einem Radgestell gekauft wurde,
müssen beim Zusammenbauen die entsprechenden Anweisungen
beachtet werden. Radgestelle sind von Ihrem Händler erhältlich.

Cette tondeuse peut être équipée d'un chariot de transport.
Veuillez la monter selon les instructions appropriées. Le chariot de
transport est en vente chez votre détaillant.

Het is mogelijk dat u met dit product ook een stel wielen hebt gekocht.
Zet het product volgens de van toepassing zijnde instructies in elkaar.
De wielen zijn verkrijgbaar bij uw plaatselijke wederverkoper.

Det er mulig at dette produktet er kjøpt med hjulmontering.
Vennligst sett sammen produktet i henhold til relevante
anvisninger. Hjulmontering er å få hos din lokale forhandler.

Tämä laite saattaa sisältää erilliset pyörät. Kokoa ohjeita
noudattaen.
Pyöriä on saatavana paikalliselta jälleenmyyjältä.

Denna produkt kan ha köpts med en hjulenhet. Montera produkter
i enlighet med tillämpliga instruktioner. Hjulenheter finns att köpa
hos din lokale Flymohandlare.

Dette produkt kan være købt med en hjulsamling. Saml produktet i
overensstemmelse med de relevante anvisninger. Hjulsamlinger
kan købes hos din lokale forhandler.

Este producto podría haber sido comprado con un montaje de ruedas.
Monte la máquina según se indica en las instrucciones adjuntas.
Podrá obtener el montaje de ruedas de su distribuidor local.

Questo prodotto potrebbe essere stato acquistato con un gruppo
ruote. Vi preghiamo di assemblare il prodotto in base alle istruzioni
fornite. I gruppi ruote sono reperibili presso il vostro fornitore di zona.

Este produto pode ter sido adquirido com um conjunto de rodas.
Monte o seu produto de acordo com as instruções pertinentes.
O conjunto de rodas existe à venda no seu retalhista local.

(GB) CARTON CONTENTS
(DE) KARTONINHALT
(FR) CONTENU DU CARTON
(NL) INHOUD

(NO) KARTONGENS INNHOLD
(FI) PAKETIN SISÄLTÖ
(SE) FÖRPACKNINGENS INNEHÅLL
(DK) KARTONINDHOLD

(ES) CONTENIDO DEL CARTON
(PT) LEGENDAS DOS DESENHOS
(IT) DE CARTONE

2

1

3

4

5

6

6

5

4

7

9

10

8

11

17

18

16

10

11

12

13

14

19

20

21

21

22

23

23

24

24

25

26

26

27

28

29

30

31

32

33

29

30

31

32

XL500
XL550

Wheel Frame (if applicable)
Zum Radgestell gehörende

Teile (falls zutreffend)
Chariot de transport (s'il y a lieu)

Wielframe (indien van
toepassing)

Hjulramme (om relevant)
Pyörän runko (jos käytössä)
Hjulram (där sådan finns)
Hjulstel (hvis relevant)
Bastidor de las ruedas (si

fuera aplicable)
Armação das Rodas (se

aplicável)
Telaio ruote (se in dotazione)

15

Safety Precautions

Explanation of Symbols on the XL500/XL550

Warning

Read the user instructions carefully
to make sure you understand all the
controls and what they do.

Always keep the lawnmower on the
ground when mowing. Tilting or lifting
the lawnmower may cause stones to
be thrown out

Keep bystanders away. Do not mow
whilst people especially children or
pets are in the mowing area

Beware of severing toes or hands.
Do not put hands or feet near a
rotating blade.

Disconnect the spark plug before
attempting any maintenance,
cleaning or adjustment, or if you are
going to leave the lawnmower
unattended for any period.

Blade continues to rotate after the
machine is switched off. Wait until all
machine components have completely
stopped before touching them.

General

1. Never allow children or people unfamiliar with
these instructions to use the mower. Local
regulations may restrict the age of the operator.

2. Only use the lawnmower in the manner and for
the functions described in these instructions.

3. Never operate the lawnmower when you are tired, ill
or under the influence of alcohol, drugs or medicine.

4. The operator or user is responsible for accidents
or hazards occurring to other people or their
property.

Fuel Safety
WARNING - Petrol is highly flammable

- Wear protective clothing when handling any fuels
and lubricants.

- Avoid contact with skin. If affected, wash
liberally with soap and water.

- Store fuel in a cool place in a container
specifically designed for the purpose.

- Use a fresh, clean, unleaded regular automotive
petrol

- Use 4-stroke automotive detergent oil. SAE
10W-30 is recommended for general use.

- Refuel outdoors only and do not smoke while
refuelling.

- Wipe dirt and grass clippings from the fuel tank
filler cap to avoid getting dirt into the fuel tank.

- Add fuel BEFORE starting the engine. Never
remove the cap of the fuel tank or add fuel while
the engine is running or when the engine is hot.

- If petrol is spilled, do not attempt to start the
engine but move the machine away from the
area of spillage and avoid creating any source of
ignition until petrol vapours have dissipated.

- Never use stale fuel left from last season or fuel
which has been stored for long periods.

- Replace all fuel tanks and container caps securely.

- Move the product away from the fuelling area
before starting.

- Fuel should be stored in a cool place away from
naked flames.

- Your carburettor is pre-set. Normally no further
adjustment is required.

Preparation

1. While using your product always wear
substantial footwear and long trousers.

2. The use of ear protection is recommended.

3. Make sure the area to be cut is clear of sticks,
stones, bones, wire and debris; they could be
thrown by the blade.

4. Before using the machine and after any impact, check
for signs of wear or damage and repair as necessary.

5. Replace worn or damaged blades together with their
fixings in sets to preserve balance.

6. Have faulty silencers replaced.

Use

1. Do not operate the engine in a confined space
where exhaust fumes (carbon monoxide) can collect.

2. Use the mower only in daylight or good artificial light.

3. Avoid operating your mower in wet grass, where
feasible.

4. Take care in wet grass, you may lose your footing.

5. On slopes, be extra careful of your footing and
wear non-slip footwear.

6. Mowing on banks and slopes can be dangerous.
Do not mow on banks

or steep slopes.

7. Do not walk backwards when mowing, you could
trip. Walk never run.

8. Never cut grass by pulling the mower towards you.

9. Release the Operator Presence control to stop
the engine before pushing the mower across
surfaces other than grass and when transporting
the lawnmower to and from the area to be mowed.

10.Never operate the lawnmower with damaged
guards or without guards in place.

11.Do not overspeed the engine or alter governor
settings. Excessive speed is dangerous and
shortens lawnmower life.

12.Keep hands and feet away from the cutting
means at all times and especially when
switching on the engine.

13. Do not tilt the mower when starting the engine, except
if the mower has to be tilted for starting. In this case,
do not tilt more than absolutely necessary and lift only
the part which is away from the operator. Always
ensure that both hands are in the operating position
before returning the appliance to the ground.

If not used properly this lawnmower can be dangerous! This lawnmower can cause serious
injury to the operator and others, the warnings and safety instructions must be followed to
ensure reasonable safety and efficiency in using this lawnmower. The operator is responsible
for following the warning and safety instructions in this manual and on the lawnmower.

ENGLISH - 1

STOP

Safety Precautions

14.Never pick up or carry a lawnmower while the
engine is running

15.Spark plug lead may be hot - handle with care.

16.Do not attempt any maintenance on your
lawnmower when the engine is hot.

17.Release the Operator Presence Control, to stop
the engine, and wait until the blade has stopped:

- before leaving the mower unattended for any period.

18.Release the Operator Presence Control, to stop
the engine, wait until the blade has stopped,
disconnect the spark plug lead and wait until the
engine has cooled:-

- before refuelling

- before clearing a blockage;

- before checking, cleaning or working on the appliance;

- if you hit an object. Do not use your lawnmower
until you are sure that the entire lawnmower is in
a safe operating condition;

- if the lawnmower starts to vibrate abnormally. Check
immediately. Excessive vibration can cause injury.

Maintenance and storage

1. Keep all nuts, bolts and screws tight to be sure
the lawnmower is in safe working condition.

2. Replace worn or damaged parts for safety.

3. Only use the replacement blade, blade bolt,
spacer and impeller specified for this product.

4. Never store the lawnmower with fuel in the tank
inside a building where fumes can reach an
open flame or spark.

5. Allow the engine to cool before storing in any
enclosure.

6. To reduce fire hazard, keep the engine, muffler
and fuel storage area free of grass, leaves or
excessive grease.

7. If the fuel tank has to be drained, this should be
done outdoors.

8. Be careful during adjustment of the machine to
prevent entrapment of the fingers between
moving parts and fixed parts of the machine.

Assembly (without wheels)

Fitting the Lower Handle to the Lawnmower

1. Feed the hook (A2) attached to the lower handle
(A1) halfway through the centre slot of the guide
(A3), in the direction indicated by the arrow (A4).

2. Maintaining the hook (A2) in the centre slot of
the guide (A3) turn the lower handle (A1)
clockwise through 90

0

to place both legs of the
lower handle in position between the hood
brackets (A5).

3. Insert the pins (B1) and secure with the retaining
clips (B2).

Fitting the Upper Handle to the Lower Handle
BEFORE

fitting the upper handle to the lower
handle, stabilize the lower handle by lifting the hook
(C1) to the 'parking' position (C2).

1. Ensure the Choke Control Lever is on the left

hand side when viewed from the rear.

2. Align the lower and upper handle (See fig D).

Locate the bolts (D1), washers (D2) and secure
with the handle knobs (D3).

3. Fit the cables to the handles with the cable ties

provided, making sure the cables are not
trapped between the upper and lower handles.

1. Fit the lower handle (E1) to the deck with the
lower handle pin (E2) as illustrated in Fig E.

2. Attach the wheels (F1) to the wheel frame (F2) with
the wheel retaining clips (F3) as illustrated in Fig F.

3. Fit the wheel frame (G1) to the deck with the lower
handle bolt (G2), small washer (G3), large washer
(G4) and locknut (G5) as illustrated in Fig G.

4. Locate the lower telescopic tubes (H1) inside the
upper telescopic tubes (H2) and secure with the pin

(H3) and retaining clip (H4) as illustrated in Fig H.

Fit the Upper Handle to the Lower Handle by
following the instructions above in ‘Assembly
(without wheels)’ section.

Assembly (with wheels)

Fuel

Use a fresh, clean, unleaded regular automotive
gasoline Do not fill the fuel tank in anenclosed area,

when the engine is hot orwhile you aresmoking or
near a naked flame. Thoroughly clean around the fuel
tank filler cap before filling, this will help to prevent dirt
being introduced into the fuel system. Fuel should be
stored in a cool place away from naked flames. Do
not fill the tank while the engine is running. Fill the fuel
tank through a funnel fitted with a fine filter. Never fill
fuel tank completely, only fill to the base of the filler
neck. When filling the fuel tank from empty, or when
the engine has previously run dry, a minimum of 400cc
of fuel must be added (to the level of the line
indicated in the diagram) to ensure correct priming of
the fuel pump to start the engine. Your carburettor is
pre-set. Normally no further adjustment is required.

The handle position can be adjusted using the
guide and hook assembly.

1. Lift hook (C1).

2. Position as required:

(C2) Parking position
(C3) Mowing position

Handle Position

ENGLISH - 2

Starting and Stopping

To Start your Lawnmower

1. Move the handle to the parking position (C2).

2. Connect the spark plug lead. (J).

3. Open the fuel tap (K).

4. Move the Choke control lever to the ‘Choke’
position (L) when starting from cold, and to the
‘Run’ position (N) when starting from hot.

5. Pull and firmly hold the Operator Presence
Control to the upper handle.

6. Place your right foot firmly on the deck and grasp the
top of the lower handle with your left hand. Tilt the
trimmer towards you (M). This ensures the product
is in a secure position when starting and also
prevents an unsightly ring being cut in your lawn.

7. Pull the starting handle gently until you feel a
resistance, return the starting handle slowly.

8. Pull the starting handle firmly towards you to its
full extent.

9. Allow the engine to reach its full running speed
then gently lower the lawnmower to the ground.

10.When the engine has warmed up make sure the
choke control lever is in the 'Run' (N) position.

To Stop your Lawnmower

• Blade continues to rotate after the machine has
switched off, rotating blades can cause injury.

1. Release the Operator Presence Control.

2. As the engine dies, tilt the lawnmower slightly.
This prevents a ring being cut in your lawn.

3. When the engine has stopped, lower the
lawnmower to the ground.

4. Put the handle in the Parking position (C2).

5. Close the fuel tap (K)

Adjusting the cutting height

Adjusting the Cutting Height

• Never use more than 2 cutting height spacers.

• Spacers can only be fitted between the blade

and the fan and never between blade and the
bolt (P).

1. Ensure the Operator Presence Control is
released, when the engine has stopped rotating

- disconnect the spark plug lead.

2. Close the fuel tap (K). Turn your lawnmower on its side.

3. Remove the blade bolt (P1) and blade (P2) as
described in ‘Removing the Blade and Fan’.

4. For a Lower Cut - Add spacers (P3) to a

maximum of 2.

5. For a Higher Cut - Take spacers (P3) away.

6. Refit the blade as described in ‘Fitting the

Blade and Fan’.

How to Mow

1. Place the handle in the mowing position (C3).

2. Mow twice a week in the growing season. Your
lawn will suffer if more than one third of its
length is cut at one time.

• Keep hands and feet away from the blade, a
rotating blade cannot be seen.

• Mowing on banks and slopes can be
dangerous. Do not mow on steep slopes.

• Always keep your feet on flat ground with the
mower below you on the slope and with the
spark plug uppermost to avoid lubricating oil
running into the cylinder.

• Do not use this mower on slopes which are
wet or more than 45

0

from horizontal.

• Never push the mower up the slope.

Removing & Fitting the Blade & Fan

Oil

Use 4-stroke automotive detergent oil. SAE
10W-30 is recommended for general use.

Fill with oil as instructed in your Engine Owners
Manual provided with your product.

AIR CLEANER

TIP
THIS
WAY
ONLY

Before any servicing to the
underside of your machine, close
the fuel tap, let the engine run
until it stops, disconnect the
spark plug lead and TIP THE
MACHINE ON ITS SIDE WITH
THE AIR CLEANER UPPERMOST.

IMPORTANT

WARNING

• Always handle the blade with care - sharp
edges could cause injury. USE GLOVES

• Spark plug lead may be hot - handle with
care.

Removing the Blade and Fan

• Renew your metal blade after 50 hours
mowing or 2 years whichever is the sooner ­regardless of condition.

• If the blade is cracked or damaged replace it
with a new one.

1. Ensure the Operator Presence Control is released,
when the engine has stopped and the blade has
stopped rotating - disconnect the spark plug lead.

2. Fully close the fuel tap (K).

3. Turn your lawnmower on its side with the air
cleaner uppermost (see pic above).

4. To remove the blade bolt (P1), hold the fan (P4)
firmly and with the spanner provided loosen the
blade bolt by turning it anti-clockwise.

5. Remove the blade bolt (P1), blade (P2), spacers
(P3) and fan (P4).

6. Inspect for damage and clean as necessary.

ENGLISH - 3

Fitting the Blade and the Fan

• Before using the lawnmower, always visually

inspect to see that blades and bolts are not
worn or damaged.

• Never use more than 2 cutting height

spacers.

• Spacers can only be fitted between the blade

and the fan and never between blade and the
bolt.

1. Ensure the fan is located correctly.

2. Place the spacers (P3) onto the fan ensuring the
pegs (P5) have located into the holes (P6).

3. Place the blade (P2) onto the spacers (P3)
ensuring the pegs (P7) have located into the
holes (P8) on the blade and ensuring the blade
is positioned as illustrated in Figure P.

4. Place the blade bolt (P1) through the centre hole
(P9) of the blade.

5. Tighten down clockwise by hand.

6. Hold the fan firmly and tighten the blade bolt
with the spanner provided.

Removing & Fitting the Blade & Fan

Caring for your Lawnmower

If you do not intend to use your lawnmower for
long periods it is advisable to follow this
procedure after use:

1. Stop the engine.

2. Fully close the fuel tap. (K)

3. Restart the engine.

4. As fuel runs out the engine will begin to stop, tilt
the lawnmower slightly.

5. Once the engine has stopped, release the
Operator Presence Control.

6. Disconnect the spark plug lead.

7. Remove all fuel from the fuel tank.

Cleaning - USE GLOVES

• Keep your lawnmower clean - grass clippings
left in any of the air intakes, around the
engine or under the deck could become a
potential fire hazard.

• Do not clean with chemicals, including petrol, or
solvents - some can destroy critical plastic
parts.

1. Remove grass from under the deck with a piece
of wood or similar.

2. Using a soft brush - remove grass clippings from
around the engine and from all air intakes.

3. Remove the fan, See 'Removing and Fitting
the Blade and Fan', and clean with a soft
brush.

4. Wipe over the surface of your lawnmower with a
dry cloth.

Transporting your Lawnmower

• Turn the fuel tap to the off position and transport
with the engine in a horizontal position.

• Never transport the lawnmower when it is
running.

Storing Your Lawnmower

Turn the fuel tap to the off position and store in a
cool, dry, damp-proof and safe place with the
engine in a horizontal position. Service your
lawnmower after the last cut of the year as follows:-

At the end of the Mowing Season

1. Stop the engine.

2. Fully close the fuel tap. (K)

3. Restart the engine.

4. As fuel runs out the engine will begin to stop, tilt
the lawnmower slightly.

5. Once the engine has stopped, release the
Operator Presence Control.

6. Disconnect the spark plug lead.

7. Remove all fuel from the fuel tank.

8. Remove the spark plug lead and spark plug. Pour
one teaspoon (5ml) of oil through the spark plug
hole. Pull the starting handle 2 or 3 times. This will
distribute oil on the internal surfaces of the engine.
Inspect, clean and replace the spark plug. If a new
spark plug is required contact your local approved
Electrolux Outdoor Products Service Centre/Dealer.

Do not re-connect the spark plug lead.

9. Clean the air filter. See 'Cleaning the Air Filter'.

10.Renew the blade if it is cracked, damaged or
bent. Renew the blade bolt if necessary. See

'Removing and Fitting the Blade and Fan' for
complete instructions.

11.Use only genuine Flymo parts and accessories
specified for this product.

12.Clean your lawnmower thoroughly See 'Cleaning'.

13.Your local approved Electrolux Outdoor
Products Service Centre/Dealer will carry out
any service or repairs required.

14.Store your lawnmower in a cool, dry, damp-proof
and safe place.

Cleaning the Air Filter

Q1 - Air Duct
Q2 - Air Cleaner Body
Q3 - Filter
Q4 - Latch Tabs
Q5 - Air Cleaner Cover

Never run the engine without a filter or with a dirty
filter. This will greatly reduce engine efficiency and
lead to engine damage.
Your lawnmower is fitted with an Air Cleaner, the
maintenance for which is as follows:-

• Check the filter before each use.

• Clean every 25 hrs or more frequently when
used in dusty areas.

• Replace filter every 200 hrs.

1. Press the latch tabs on the top of the air cleaner
cover and remove the cover.

2. Check the filter is clean and in good condition.

If the filter is dirty:-

Tap the air filter several times on a hard surface
to remove dirt, or blow compressed air through
the air filter from the clean side that faces the
engine. Never try to brush off dirt. Brushing will
force dirt into the fibers.

3. Wipe dirt from the air cleaner body and cover
using a moist rag. Be careful to prevent dirt
from entering the air duct that leads to the
carburetor.

4. Replace the filter and air cleaner cover.

Spark Plug

An oily or carboned spark plug makes starting
difficult and decreases the efficiency of the engine.
Periodically remove the spark plug and clean and
adjust when necessary.

Gap setting 0.028 - 0.031".
Do not remove spark plug when engine is hot. Do
not sand blast the spark plug to clean it.

ENGLISH - 4

Guarantee and Guarantee Policy

If any part is found to be defective due to faulty
manufacture within the guarantee period, Electrolux
Outdoor Products, through its Authorised Service
Repairers will effect the repair or replacement to the
customer free of charge providing:
(a) The fault is reported directly to the Authorised Repairer.
(b) Proof of purchase is provided.
(c) The fault is not caused by misuse, neglect or

faulty adjustment by the user.
(d) The failure has not occurred through fair wear and tear.
(e) The machine has not been serviced or repaired,

taken apart or tampered with by any person not

authorised by Electrolux Outdoor Products.
(f) The machine has not been used for hire.
(g) The machine is owned by the original purchaser.
(h) The machine has not been used outside of the

country for which it was specified.
(i) The machine has not been used commercially.
* This guarantee is additional to, and in no way

diminishes the customers statutory rights.
Failures due to the following are not covered,
therefore it is important that you read the instructions
contained in this Operator's Manual and understand
how to operate and maintain your machine:

Failures not covered by guarantee

* Replacing worn or damaged blades
* Failures as a result of not reporting an initial

fault.
* Failures as a result of sudden impact.
* Failures as a result of not using the product in

accordance with the instructions and

recommendations contained in this Operator's

Manual.
* Machines used for hire are not covered by this

guarantee.
* The following items listed are considered as

wearing parts and their life is dependent on

regular maintenance and are, therefore not

normally subject to a valid warranty claim:

Blades, belts, cables, recoil ropes, filters.
* Caution!

Electrolux Outdoor Products does not accept

liability under the warranty for defects caused in

whole or part, directly or indirectly by the fitting

of replacement parts or additional parts that are

not either manufactured or approved by

Electrolux Outdoor Products, or by the machine

having been modified in any way.

Environmental Information

Electrolux Outdoor Products are manufactured
under an Environmental Management System (ISO

14001) using, where practical, components
manufactured in the most environmentally
responsible manner, according to company
procedures, and with the potential for recycling at
the end of the products’ life.

• Packaging is recyclable and plastic components
have been labelled (where practical) for
categorised recycling.

• Awareness of the environment must be
considered when disposing of ‘end-of-life’
product.

• If necessary, contact your local authority for
disposal information.

DISPOSAL OF FUELS AND LUBRICA

TING OILS

• Wear protective clothing when handling any
fuels and lubricants.

• Avoid contact with skin.

• Remove petrol and engine oil before transporting
the product.

• Contact your local authority for information of
your nearest Recycling/Disposal Station.

• Do NOT dispose of used fuels/oils with
household waste

• Do NOT dispose of used fuels/oils to water.

• Waste fuels/oils are harmful, but can be
recycled and should be disposed of through
the recognised facilities.

• Do NOT incinerate

Service Recommendations

• Your product is uniquely identified by a silver and black product rating label.

• We strongly recommend that your product is serviced at least every twelve months, more often in
a professional application.

Fault Finding

Engine Will Not Start

1. Ensure that the Operator Presence Control is
gripped firmly to the upper handle.

2. Check that there is sufficient fuel in the fuel tank
and the fuel tap is open

3. Check that the choke control lever is in the
correct position:- 'Run’ position (N) - for a hot
engine, 'Choke’ position (L) - for a cold engine.

4. The engine may have flooded. Remove and dry
the spark plug.

5. Petrol may be stale, replace. Once the petrol
has been replaced, it may take a little time for
fresh petrol to filter through.

6. Check that the blade bolt is tight. A loose blade
bolt could cause difficult starting.

7. If the engine will still not start - disconnect the

spark plug lead and consult you local approved
Electrolux Outdoor Products Service
Centre/Dealer.

Poor Flotation or Lack of Power

1. Disconnect the spark plug lead.

2. Clean the underside of the hood, the air filter,
the fan, around the engine and the air intakes.

3. Check that the engine choke control lever is in
the 'Run' position. (N)

4. Petrol may be stale, replace. Once the petrol
has been replaced, it may take a little time for
fresh petrol to filter through.

5. If poor flotation or lack of power persists -

disconnect the spark plug lead and consult your
local approved Electrolux Outdoor Products
Service Centre/Dealer.

Excessive Vibration

1. Disconnect the spark plug lead.

2. Check that the blade is correctly fitted. 'See 'Fitting
and Removing the Blade and the Fan'.

3. If the blade is damaged or worn, renew the
blade.

4. If vibration persists - do not use - disconnect the

spark plug lead and consult your local approved
Electrolux Outdoor Products Service
Centre/Dealer.

ENGLISH - 5

I, the undersigned M. Bowden of Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham. DL5
6UP. Certify that the Lawnmower:-

Category........ Petrol Hover

Make.............. Electrolux Outdoor

Products

Conforms to the specifications of Directive
2000/14/EEC

I, the undersigned M. Bowden of Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham. DL5
6UP Certify that a sample of the above
product has been tested using directive
81/1051/EEC as a guide. The maximum A­weighted sound pressure level recorded at
operator position under free field semi
anechoic chamber conditions was :-

I, the undersigned M. Bowden of Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham. DL5
6UP Certify that a sample of the above
product has been tested using ISO 5349 as
a guide. The maximum weighted root mean
square value of vibration recorded at
operator’s hand position was:-

Type of Cutting Device... Rotary Blade

Identification of Series..... See Product Rating Label

Conformity Assesment Procedure....ANNEX VI

Notified Body....................I.T.S., Cleeve Road, Leatherhead,

Surrey. KT22 7SB England

Other Directives:-.............98/37/EEC, 89/336/EEC,

& applicable standards:-. EN836:1997, EN ISO14982:1998

Type............................................................................ A

Engine Manufacturer................................................... B

Width of Cut................................................................ C

Speed of Rotation of Cutting Device.......................... D

Guaranteed sound power level................................... E

Measured Sound Power Level.................................... F

Level............................................................................ G

Value........................................................................... H

Weight......................................................................... J

Ich, der Unterzeichner M. Bowden of
Electrolux Outdoor Products, Aycliffe
Industrial Park, NEWTON AYCLIFFE, Co.
Durham. DL5 6UP. bescheinige hiermit,
dass der Rasenmäher:-

Kategorie.... Benzinluftkissenmäher

Fabrikat....... Electrolux Outdoor Products

die Spezifikationen der Direktive
2000/14/EG erfüllt

Ich, der Unterzeichner M. Bowden, Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham, DL5 6UP,
bescheinige hiermit, daß eine Probe des obigen
Produkts getestet wurde und dabei Direktive
81/1051/EWG als Richtschnur verwendet wurde.
Der maximale A-gewichtete Schalldruckpegel, der
an der Bedienerposition unter Freifeld­Halbschalltot-Kammerbedingungen gemessen
wurde, betrug:-

Ich, der Unterzeichner M. Bowden, Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham, DL5 6UP,
bescheinige hiermit, daß eine Probe des obigen
Produkts getestet wurde und dabei ISO 5349 als
Richtschnur verwendet wurde. Der maximale
gewichtete Vibrationseffektivwert, der an der
Handposition des Bedieners gemessen wurde,
betrug:-

Schneidwerktyp................................. Rotierendes Messer

Identifizierung der reihe..................... Siehe Produkttypenschild

Konformitätsbestätigungsverfahren.ANNEX VI

Benachrichtigte Behörde.................. I.T.S., Cleeve Road, Leatherhead,

Surrey. KT22 7SB England

Andere Direktiven-............................. 98/37/EEC, 89/336/EEC,

und Normen:-..................................... EN836:1997, EN ISO14982:1998

Typ................................................................................ A

Motorhersteller.............................................................. B

Schnittbreite.................................................................. C

Umdrehungsgeschwindigkeit des Schneidwerks......... D

Garantierter Geräuschpegel..........................................E

Gemessener Geräuschpegel........................................ F

Höhe ............................................................................ G

Wert...............................................................................H

Gewicht......................................................................... J

Je soussigné M. Bowden of Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham. DL5
6UP. certifie que la tondeuse:-

Catégorie..... Coussin d’air à essence

Marque........ Electrolux Outdoor Products

est conforme aux spécifications de la
Directive 2000/14/EEC

Je soussigné M. Bowden, Electrolux Outdoor
Products, Aycliffe Industrial Park, NEWTON
AYCLIFFE, Co. Durham, DL5 6UP, Grande­Bretagne, certifie qu’un échantillon du produit ci­dessus a été essayé selon les indications de la
directive 81/1051/EEC. Le niveau maximum
pondéré de pression acoustique enregistré à la
position de l’opérateur en champ libre en
chambre demi-sourde était de:-

Je soussigné M. Bowden, Electrolux Outdoor
Products, Aycliffe Industrial Park, NEWTON
AYCLIFFE, Co. Durham, DL5 6UP, Grande­Bretagne, certifie qu’un échantillon du produit
ci-dessus a été essayé selon les indications
de la norme ISO 5349. La moyenne
quadratique pondérée des vibrations
enregistrées à la position de la main de
l’opérateur était de:-

Type d'outil de coupe............... Lame rotative

Identification de la serie........... Voir la Plaquette D’identification

Procédure d'évaluation de la conformité........ANNEX VI

Organisme notifié..................... I.T.S., Cleeve Road, Leatherhead,

Surrey. KT22 7SB England

Autres directives....................... 98/37/EEC, 89/336/EEC

et aux normes........................... EN836:1997, EN ISO14982:1998

Type...........................................................................A

Fabricant du moteur.................................................. B

Largeur de coupe...................................................... C

Vitesse de rotation de l'outil de coupe...................... D

Niveau garanti de puissance sonore......................... E

Niveau mesuré de puissance sonore........................ F

Niveau....................................................................... G

Valeur.........................................................................H

Poids......................................................................... J
