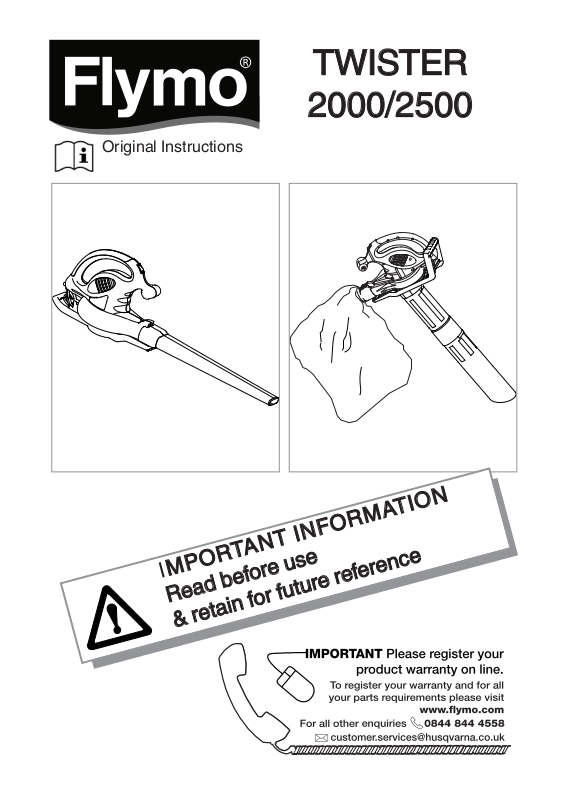

Flymo TWISTER 2500 User Manual
TWISTER
2000/2500
Original Instructions
IMPORTANT INFORMATION
Read before use
& retain for future reference
®
Carton Contents
IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new Flymo product.
I
F ANY PARTS ARE MISSING CONTACT:-Husqvarna UK Ltd. Customer Service Department direct
Telephone : 0844 844 4558 Fax : 01325 302530
Safety
If not used properly this product can be dangerous. The warnings and safety instructions must be followed to
ensure reasonable safety and efficiency in using this product. The operator is responsible for following the
warnings and instructions in this manual and on the product. Never use the product unless the guards provided by the manufacturer are in the correct position.
Explanation of Symbols on the product
Warning
Read the user instructions carefully to make
sure you understand all the controls and
what they do.
Do not operate in the rain or leave the
product outdoors while it is raining.
Switch off! Remove plug from mains before adjusting, cleaning or if cable is entangled or damaged.
The use of eye and ear protection is recommended.
Keep bystanders away.
impeller
guard
debris bag
blow tube
instruction manual
General
1. This product is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning the use of
the product by a person responsible for their safety. Children
should be supervised to ensure that they do not play with
the product. Local regulations may restrict the age of the operator.
2. Never allow children or people unfamiliar with these
instructions to use the product.
3.
Stop using the product while people, especially children, or pets are nearby.
4. Only use the product in the manner and for the func-
tions described in these instructions.
5. Never operate the product when you are tired, ill or under
the influence of alcohol, drugs or medicine.
6. The operator or user is responsible for accidents or hazards occurring to other people or their property.
Electrical
1. The British Standards Institute recommend the use of a
Residual Current Device (R.C.D.) with a tripping current of
not more than 30mA. Even with a R.C.D. installed 100%
safety cannot be guaranteed and safe working practice
must be followed at all times. Check your R.C.D. every
time you use it.
2. Before use, examine cable for damage, replace it if
there are signs of damage or ageing.
2 part
vacuum tube
electric cable
with moulded
on plug
start/stop switch
vacuum tube
adaptor
debris bag
adaptor
3. Do not use the product if the electric cables are damaged or worn.
4. Immediately disconnect from the mains electricity supply if
the cable is cut, or the insulation is damaged. Do not touch
the electric cable until the electrical supply has been disconnected. Do not repair a cut or damaged cable. Replace it
with a new one.
5. Your electric cable must be uncoiled, coiled cables can
overheat and reduce the efficiency of the product.
6. Do not pull cable around sharp objects.
7. Always switch off at the mains before disconnecting any
plug, cable connector or extension cable.
8. Switch off, remove plug from mains and examine
electric supply cable for damage or ageing before
winding cable for storage. Do not repair a damaged
cable, replace it with a new one. Use only genuine replacement cable.
9. Never carry the product by the cable.
10. Never pull on the cable to disconnect any of the plugs
11.Always wind cable carefully, avoiding kinking.
12.Use only on AC mains supply voltage shown on the
product rating label.
13.Our products are double insulated to EN60335.
Under no circumstance should an earth be connected
to any part of the product.
Preparation
1. While using your product always wear substantial
footwear and long trousers.
2. The use of eye protection is recommended.
3. The use of ear protection is recommended.
4. To prevent dust irritation, the wearing of a face mask
is recommended.
5. Do not wear loose clothing or jewellery that can be
drawn into the air inlet.
6. Do not wear clothing with attachments, i.e. toggles or
drawstrings that can be drawn into the air inlet.
7. Inspect your product before each use.
8. Do not use if any part is damaged or broken or if any
of the screws are loose. Have it repaired by an authorised repairer.
9. Always check your product is in a safe operating con-
dition before use.
Use
1. Use the product only in daylight or good artificial light.
2. Do not use the product when it is raining or in damp
and wet areas.
3. Never use the product in or near water or ponds.
4. Know how to stop the product quickly in an emergency.
5. On slopes, be extra careful of your footing and wear
non-slip footwear.
6. Do not walk backwards whilst operating your product,
you could trip. Walk, never run.
7. Always direct the cable to the rear, away from the product.
8. Keep children, pets and bystanders at a safe distance
when using your product.
9. Keep long hair away from air inlet.
10.Keep all inlets clear of debris.
11.Always remain alert.
12.Do not attempt to use your product without the fully
assembled debris bag fitted.
13.Never blow debris in the direction of bystanders.
14.Do not overreach. Keep proper footing and balance
at all times.
15.The impeller continues to rotate after your product
has been switched off.
16.Remove the plug from the mains :-
- before removing or replacing fully assembled debris
bag;
- before leaving the product unattended for any period;
- before clearing a blockage;
- before checking, cleaning or working on the product;
- if the product starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure the
product is in a safe working condition.
2. Replace worn or damaged parts for safety.
3. Use only genuine replacement parts and accessories
4. Inspect the debris bag regularly. If the debris bag becomes worn or damaged, replace.
5. Store in a cool dry place and out of reach of children.
Do not store outdoors.
CABLES
IMPORTANT
• Use only 1.00mm
2
size cable up to 40 metres
length maximum.
Maximum rating :
1.00mm
2
size cable, 10 amps 250 volts AC.
• YO UR PRODUCT IS SUPPLIED WITH CABLE
WIRED DIRECTLY INTO THE PRODUCT.
1. Flymo Mains Cables and Extension Cables are
available from your local Approved Service Centre.
2. Do not wire an extension cable directly to your
product yourself. Please contact your local Approved Service Centre for further information on the
connectors and kits available.
3. Only use extension cables specifically designed
for outdoor use.
CONNECTORS
IMPORTANT
• Flymo connectors are suitable for use with 2 core
cable only. Under no circumstances should these
connectors be used for earthed products.
• All Flymo connectors and cables are of splashproof
construction. They are not waterproof and must not be
left outside permanently nor should they be submerged or immersed in water. Do not let cable lay or
trail through pools of water or splashed with water from
hose pipes.
MAINS PLUG REPLACEMENT
IMPORTANT
• If the plug supplied is cut off it should be destroyed.
There is an electric shock hazard if a cut off plug is
inserted into a 13 amp socket.
1. No earth required. Flymo products are double insulated to EN60335 and under no circumstances
should an earth be connected to any part of the
product.
2. Ensure the mains voltage suits your product
3. IMPORTANT!
The wires in the mains lead are coloured in accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
The wire which is coloured BLUE must be connected to the Terminal which is marked with the
letter 'N' or coloured BLACK.
The wire which is coloured BROWN must be connected to the Terminal which is marked with the
letter 'L' or coloured RED.
4. It is important that the outer sheath is clamped
correctly into the 3-pin plug.
5. If in doubt consult your local Service Repairer or
qualified electrician before the machine is used.
6. A 13 Amp fuse must be fitted to the Mains Plug.
7. The normal plug fuse and household fuse only
protect the electrical equipment and are not a
safeguard against electrocution.
If the mains cable is damaged, it must be replaced
with the correct Flymo assembly from an Flymo Approved Service Dealer (see leaflet enclosed in product)
