Carton Contents
start/stop lever
electric cable
with moulded
on plug
spanner
spacers
IMPORTANT !
Please check the contents of the carton are correct BEFORE assembling your new Flymo product.
IF ANY PARTS ARE MISSING CONTACT:Husqvarna UK Ltd. Customer Service Department direct
Telephone : 0844 844 4558 UK 1800 882 350 ROI Fax : 01325 302530
Safety
If not used properly this lawnmower can be dangerous! This lawnmower can cause serious injury
to the operator and others. Read the instructions carefully. Be familiar with the controls and the
proper use of the lawnmower. The operator is responsible for following the warning and safety instructions in this manual and on the lawnmower. Never use the lawnmower unless the grassbox
or guards provided by the manufacturer are in the correct position.
Explanation of Symbols on your product.
Warning
Read the user instructions carefully to
make sure you understand all the controls and what they do.
Beware of sharp blades - remove plug
from mains before maintenance or if
cable is damaged.
Blades continue to rotate after the machine is switched off.
Always keep the lawnmower on the
ground when mowing. Tilting or lifting the
lawnmower may cause stones to be
thrown out
Keep bystanders away. Do not mow
whilst people especially children or pets
are in the mowing area
Keep the cable away from the blade.
General
1. This product is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the product. Local regulations may restrict the age of
the operator.
2. Never allow children or people unfamiliar with the instructions to use the machine.
3. Stop using the machine while people, especially
children, or pets are nearby.
4. Only use the lawnmower in the manner and for
the functions described in these instructions.
5. Never operate the lawnmower when you are tired, ill
or under the influence of alcohol, drugs or medicine.
6. The operator or user is responsible for accidents
or hazards occurring to other people or their property.
lectrical
E
1. We recommend the use of a Residual Current Device (R.C.D.) with a tripping current of not more than
30mA. Even with a R.C.D. installed 100% safety
cannot be guaranteed and safe working practice must
be followed at all times. Check your R.C.D. every time
you use it.
2. Before use, examine the cable for signs of damage or ageing. If the cable is found to be defective, take the product to an Authorised Service
Centre and have the cable replaced.
3. Do not use the lawnmower if the electric cables
are damaged or worn.
4. Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is
damaged. Do not touch the electric cable until
the electrical supply has been disconnected. Do
not repair a cut or damaged cable. Replace it
with a new one.
5. Your extension cable must be uncoiled, coiled cables
can overheat and reduce the efficiency of your mower.
6. Keep cable away from the blades, the blades can
cause damage to the cables and lead to contact
with live parts. Always work away from the power
point mowing up and down, never in circles.
7. Do not pull cable around sharp objects.
8. Always switch off at the mains before disconnecting
any plug, cable connector or extension cable.
9. Switch off, remove plug from mains and examine
electric supply cable for damage or ageing
before winding cable for storage. Do not repair a
damaged cable, have it replaced with a new one.
10. Always wind cable carefully, avoiding kinking.
11. Never carry the product by the cable.
12. Never pull on the cable to disconnect any of the plugs.
13. Use only on AC mains supply voltage shown on
the product rating label.
14. Our products are double insulated to EN60335.
Under no circumstance should an earth be connected to any part of the product.
reparation
P
1. While using your product always wear substantial
footwear and long trousers. Do not operate when
barefoot or wearing open sandals.
2. Make sure the lawn is clear of sticks, stones, bones,
wire and debris; they could be thrown by the blade.
3. Before using the machine and after any impact,
check for signs of wear or damage and repair as
necessary.
4. Replace worn or damaged blades together with
their fixings in sets to preserve balance.
se
U
1. Use the lawnmower only in daylight or good artificial light.
2. Avoid operating your lawnmower in wet grass,
where feasible.
3. Take care in wet grass, you may lose your footing.
4. On slopes, be extra careful of your footing and
wear non-slip footwear.
5. Mow across the face of slopes, never up and down.
6. Exercise extreme caution when changing direction on slopes. Walk never run.
7. Mowing on banks and slopes can be dangerous.
Do not mow on b
8. Do not walk backwards when mowing, you could trip.
9. Never cut grass by pulling the mower towards you.
10. Switch off if the product has to be tilted for transportation, when crossing surfaces other than
grass and when transporting the product to and
from the area to be mowed.
11. Never operate the lawnmower with damaged
guards or without guards in place.
12. Do not put hands or feet near or under rotating
parts, especially when switching on the motor.
13. Do not tilt lawnmower when the motor is running.
14. Never pick up or carry a mower when it is operating or still connected to the mains supply.
15. Remove the plug from the mains :
- before leaving the mower unattended for any period;
- before clearing a blockage;
- before checking, cleaning or working on the mower;
- if you hit an object. Do not use your lawnmower
until you are sure that the entire lawnmower is in
a safe operating condition.;
- if the lawnmower starts to vibrate abnormally. Check
immediately. Excessive vibration can cause injury.
aintenance and storage
M
1. Caution: Do not touch rotating blade.
2. Keep all nuts, bolts and screws tight to be sure
the lawnmower is in safe working condition.
3. Check the grassbox/grassbag frequently for wear
or deterioration.
4. Replace worn or damaged parts for safety.
5. Only use the replacement blade, blade bolt,
spacer and impeller specified for this product.
6. Be careful during adjustment of the lawnmower
to prevent entrapment of the fingers between
moving blades and fixed parts of the machine.
7. If during the life of the product, the belt begins to
slip. Return the product to an Authorised Service
Dealer for maintenance.
8. Store in a cool dry place and out of reach of children. Do not store outdoors.
9. Allow the product to cool for at least 30 minutes
before storing.
anks
or steep slopes.
Cables
CABLES - IMPORTANT
If you want to use an extension cable when operating
your product, only the following cable dimensions
should be used:
- 1.0 mm
- 1.5 mm
- 2.5 mm
M
1.00mm
• Y
1. If the supply cord is damaged, it must be replaced
2.Flymo Extension Cables are available from your
3.Do not wire an extension cable directly to your product
4.Only use extension cables specifically designed for
C
ONNECTORS - IMPORTANT
• Flymo connectors are suitable for use with 2 core
• All Flymo connectors and cables are of splashproof
2
: max length 40 m
2
: max length 60 m
2
inimum rating :
WIRED DIRECTLY INTO THE PRODUCT.
by your local Husqvarna UK Ltd. Approved Service
Centre or similarly qualified persons in order to avoid
a hazard.
local Husqvarna UK Ltd. Approved Service Centre.
yourself. Please contact your local Husqvarna UK Ltd.
Approved Service Centre for further information on the
connectors and kits available.
outdoor use and which conform to one of the following
specifications: Ordinary rubber (60245 IEC 53), Ordinary PVC (60227 IEC 53) or Ordinary PCP (60245
IEC 57)
cable only. Under no circumstances should these
connectors be used for earthed products.
construction. They are not waterproof and must not
: max length 100 m
2
OUR PRODUCT IS SUPPLIED WITH CABLE
size cable, 10 amps 250 volts AC.
be left outside permanently nor should they be submerged or immersed in water. Do not let cable lay or
trail through pools of water or splashed with water
from hose pipes.
AINS PLUG REPLACEMENT - IMPORTANT
M
• If the plug supplied is cut off it should be destroyed.
There is an electric shock hazar
serted into a 13 amp socket.
1.No earth required. Flymo products are double insulated to EN60335 and under no circumstances
should an earth be connected to any part of the product.
2. E
nsure the mains voltage suits your product
3. IMPORTANT!
The wires in the mains lead are coloured in accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
The wire which is coloured BLUE must be connected
to the Terminal which is marked with the letter 'N' or
coloured BLACK.
The wire which is coloured BROWN must be connected to the Terminal which is marked with the letter
'L' or coloured RED.
4.It is important that the outer sheath is clamped correctly into the 3-pin plug.
5.If in doubt consult your local Service Repairer or qualified electrician before the machine is used.
6.A
13 Amp fuse must be fitted to the Mains Plug.
7.The normal plug fuse and household fuse only protect
the electrical equipment and are not a safeguard
against electrocution.
d if a cut off plug is in-
A
B
D
Assembly
Preparing your lawnmower for use
• Your lawnmower is supplied with the upper handle
folded over the machine for packing and transportation.
H
andle in Operating Position
1. Lift handle as illustrated in figure A.
• Do not drop the handle.
• Make sure that the cable does not become trapped
between the handles
Starting and Stopping
1
C
1
To Start your Lawnmower
1. Connect plug to mains and switch on.
he switchbox is provided with a lock-off button (B1) to
T
prevent accidental starting.
2. Press and hold the lock-off button (B1) on the switch-
box, then squeeze one of the Start/Stop levers towards
the upper handle (
3. Continue to squeeze the start/stop lever towards the
upper handle and release the lock-off button.(
• NOTE: There are two start/stop levers fitted. Either one
can be used for starting the lawnmower. IMPORTANT:
Do not use the start/stop levers intermittently
To Stop your Lawnmower
1. Release the pressure on the Start/Stop lever.
C).
D)
.

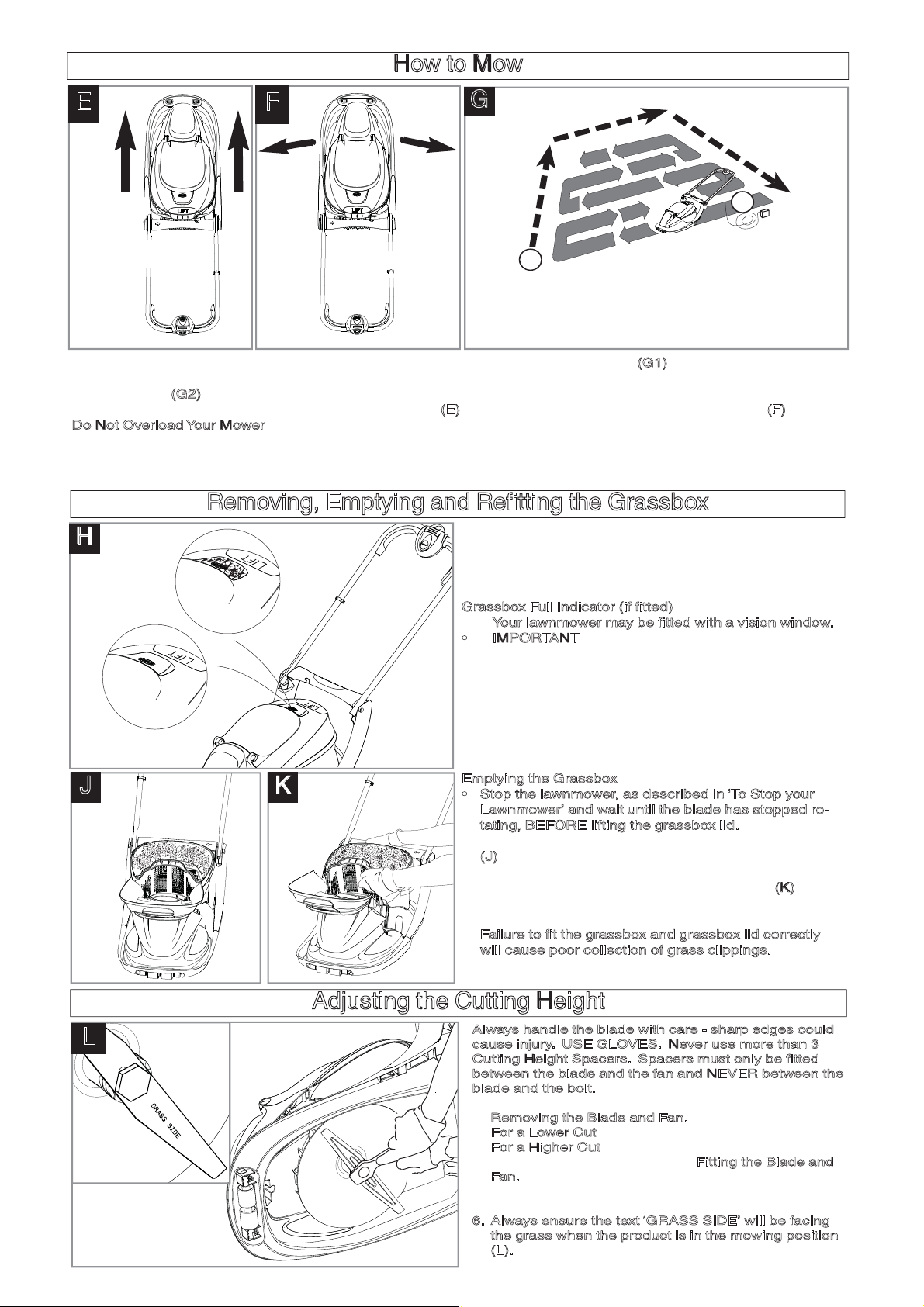

How to Mow
E
1. For the best results mow the outside edge of the lawn in a clockwise direction first. (G1)
2. Then start mowing the edge of the lawn nearest to the power point so the cable is laid out on the lawn you have
already cut. (
3. For best grass collection always mow in a straight line (E), do not swing the lawnmower from side to side (F)
Do Not Overload Your Mower
Mowing long thick grass may cause the motor speed to drop, you will hear a change in the motor sound. If the
motor speed drops you may overload your lawnmower which may cause damage. When mowing in long thick grass
a first cut with the cutting height set higher will help reduce the load. See Adjusting the Cutting Height.
G2)
F
x
G
2
1
Mow twice a week during the growing season, your lawn
will suffer if more than a third of its length is cut at one
time and this may also result in poor collection.
Removing, Emptying and Refitting the Grassbox
H
Grassbox Full Indicator (if fitted)
• Your lawnmower may be fitted with a vision window.
• IMPORTANT
When the window is full it is time to empty the grassbox.
mptying the Grassbox
J
K
E
• Stop the lawnmower, as described in ‘To Stop your
Lawnmower’ and wait until the blade has stopped rotating, BEFORE lifting the gr
1. Lift the grassbox lid and rest it against the motor cover
J).
(
2. Remove the grassbox using the moulded handle re-
cesses at the front and rear of the grassbox. (
3. Empty grassbox.
4 Replace grassbox and lid carefully.
ailure to fit the grassbox and grassbox lid correctly
• F
will cause poor collection of grass clippings.
assbox lid.
K).
Adjusting the Cutting Height
L
Always handle the blade with care - sharp edges could
cause injury. USE GLOVES. Never use more than 3
Cutting Height Spacers. Spacers must only be fitted
between the blade and the fan and NEVER between the
blade and the bolt.
1. Remove the blade bolt, and blade as described in
R
emoving the Blade and Fan.
2. For a Lower Cut - A
or a Higher Cut - Take spacers away.
3. F
4. Refit the blade as described in F
Fan.
5. For a healthy lawn, we recommend that you do not
cut below 25mm (Use more than 2 spacers).
6
. Always ensure the text ‘GRASS SIDE’ will be facing
the grass when the product is in the mowing position
(L).
dd spacers to a maximum of 3.
itting the Blade and
Removing and fitting the Blade and Fan
Switch off and remove the plug from the mains.
Removing the Blade and Fan. USE GLOVES.
1. To remove the blade bolt, hold the fan firmly and with
the spanner provided loosen the blade bolt by turning it
anti-clockwise (
2. Remove the blade bolt, blade, spacers and fan.(
3. Inspect for damage and clean as necessary.
enew your metal blade after 50 hours mowing or 2
• R
years whichever is the sooner - regardless of condition.
If the blade is cracked or damaged replace it with a new
one. Never use a blade bolt if the insulated head is
damaged cr
Fitting the Blade and Fan. USE GLOVES.
1. Ensure the fan (M4) is located correctly.
2. Place the spacers (
have located into the holes.
3. Place the blade (M2) onto the spacers ensuring the text
‘
GRASS SIDE’ (M5) will be facing the grass when the
product is in the mowing position. Ensure the pegs
have located into the holes on the blade and that the
blade is positioned as illustrated in F
4. Place the blade bolt (M1)through the centre hole of the blade.
5. Tighten down clockwise by hand.
6. Hold the fan firmly and tighten the blade bolt with the
spanner provided.
L).
M)
acked or missing.
M3) onto the fan ensuring the pegs
igure M
Caring for your Lawnmower
M
1
5
2
4
3
Cleaning
• IMPORTANT: It is very important that you keep your
lawnmower clean. Grass clippings left in any of the air
intakes or under the deck could become a potential fire
hazard.
SE GLOVES
• U
Switch off and remove the plug from the mains before
cleaning.
It is recommended that you clean your lawnmower
straight after mowing while the grass is still wet.
1. Remove grass from under the deck with the spanner/scraper tool. (
2. Using a soft brush - remove grass clippings from all air
intakes, the grassbox and the grassbox vision window.
P & Q)
(
3. Clean the impeller inlet with a soft brush. (R)
4. If jammed lever the roller out of position and clean with
a soft brush.(
5. Wipe over the surface of your lawnmower with a dry
• IMPOR
T)
cloth. (
mower. Do not clean with chemicals, including petrol,
or solvents - some can destroy critical plastic parts.
TANT: Never use water for cleaning your lawn-
N)
S).
N
Q
S
P
R
T
Caring for your Lawnmower
Storing the lawnmower
The handles can be folded to take up the minimum of space.
1. Hold onto the lower handle with your left hand (
2. Hold the upper handle with your right hand and push in
the direction of the arrow.
3. Move the handle slowly forward to rest it on the
lawnmower. Do not drop the handle.
• Ensure the switchbox cable is not trapped.
• Store in a dry place where your lawnmower is protected from damage.
T
ransporting the lawnmower.
• The lawnmower may be transported on its roller (W).
At the End of the Mowing Season
1. Replace blade and blade bolt, if necessary.
2. Clean your lawnmower thoroughly.
3. Ask your local Service Centre to clean the air filter
thoroughly and carry out any service or repairs required.
V).
Fault Finding Hints
V
W
Fails to Operate
1. Is the correct Starting procedure being followed? See
‘To Start your Lawnmower’
2. Is the Power Turned On?
3. Check the fuse in the plug, if blown replace.
4. Fuse continues to blow?
Immediately disconnect from the mains electricity
supply and consult your local approved Service Centre.
Poor Flotation
1. Disconnect from the mains electricity supply.
2. Clean the underside of the deck and the fan blades.
3. Raise to a higher height of cut. See ‘Adjusting the
Cutting Height’.
4. If poor flotation persists?
isconnect from the mains electricity supply and
D
consult your local approved Service Centre.
Service Recommendations
1. We strongly recommend that your product is serviced
at least every twelve months, more often in a
professional application.
2. Always use genuine Flymo Spare Parts.
3. Prepacked spares are available from most Husqvarna
Outdoor Products stockists.
4. Your product is uniquely identified by a silver and
black product rating label
5. If you have a problem with your machine contact your
local Approved Service Centre ensuring you have full
details of your product as described on the product
rating label.
. Should it be necessary for work to be carried out by
6
Poor Collection
1. Is the grassbox lid firmly closed?
2. Is the grassbox fitted correctly?
3. See “How to Mow”.
4. Check all air vents and openings are not obstructed.
5. Raise to a higher height of cut. See ‘Adjusting the
Cutting Height’.
6. If poor collection persists?
isconnect from the mains electricity supply and
D
consult your local approved Service Centr
Excessive Vibration
1. Disconnect from the mains electricity supply.
2. Check that the blade is fitted correctly?
3. If the blade is damaged or worn, replace it with a new
one.
4. If vibration persists?
Immediately disconnect from the mains electricity
supply and consult your local approved Service Centre.
your Service Centre, it is important to take your
complete machine including cable and any extension
cables used.
A network of specialist dealers can be found in your local
Yellow Pages.
To obtain service on your Flymo product simply
telephone or visit your local Service Centre.
Should you require service under the terms of our
guarantee the Service Centre will require proof of purchase.
A
ll of the centres listed stock genuine Flymo Spare Parts.
NOTE: Our Service Repairers act on their own behalf
and are not empowered to commit or legally bind
Husqvarna UK Ltd. in any manner whatsoever.
e.
Guarantee & Guarantee Policy
If any part is found to be defective due to faulty manufacture within the guarantee period, Husqvarna UK Ltd.,
through its Authorised Service Repairers will effect the
repair or replacement to the customer free of charge providing:
(a) The fault is reported directly to the Authorised Repairer.
(b) Proof of purchase is provided.
(c) The fault is not caused by misuse, neglect or faulty
adjustment by the user.
(d) The failure has not occurred through fair wear and
tear.
(e) The machine has not been serviced or repaired,
taken apart or tampered with by any person not au-
thorised by Husqvarna UK Ltd..
(f) The machine has not been used for hire.
(g) The machine is owned by the original purchaser.
(h) The machine has not been used commercially.
* This guarantee is additional to, and in no way dimin-
ishes the customers statutory rights.
Failures due to the following are not covered, therefore it
is important that you read the instructions contained in
this Operator's Manual and understand how to operate
and maintain your machine:
Replacement Parts
Blade :- EG300, EG300V
Reference no.: FLY004
P
art no.: 512762990
F
ailures not covered by guarantee
* Replacing worn or damaged blades
* Failures as a result of not reporting an initial fault.
* Failures as a result of sudden impact.
* Failures as a result of not using the product in accor-
dance with the instructions and recommendations
contained in this Operator's Manual.
* Machines used for hire are not covered by this guar-
antee.
* The following items listed are considered as wearing
parts and their life is dependent on regular maintenance and are, therefore not normally subject to a
valid warranty claim: Blades, Belt, Electric Mains
cable.
* C
aution!
Husqvarna UK Ltd. does not accept liability under
the warranty for defects caused in whole or part, directly or indirectly by the fitting of replacement parts
or additional parts that are not either manufactured
or approved by Husqvarna UK Ltd., or by the machine having been modified in any way
Blade :- EG330, EG330VX
Reference no.: FLY027
art no.: 511932390
P
Environmental Information
Husqvarna UK Ltd. are manufactured under an Environmental
Management System (ISO 14001) using, where practical,
components manufactured in the most environmentally responsible manner, according to company procedures, and
with the potential for recycling at the end of the products’ life.
• Packaging is recyclable and plastic components have
been labelled (where practical) for categorised recycling.
• Awareness of the environment must be considered
when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information.
The symbol on the product or on its packaging indicates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic
equipment.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you
purchased the product.
EC Declaration of Conformity
Husqvarna AB, 561 82, Huskvarna, Sweden
Declare under our sole responsibility that the product(s);
Category........................................ E
Model(s).........................................EG300, EG300V, EG330, EG330VX
Identification of Series................... See Product Rating Label
Year of Construction...................... See Product Rating Label
Complies with the essential requirements & provisions of the following EC Directives:
2
006/42/EC, 2004/108/EC, 2000/14/EC
based on the following EU harmonized standards applied:
E
N60335-1, EN60335-2-77, EN50366, EN55014-1, EN61000-3-2, EN61000-3-3,
The maximum A weighted sound pressure level L
corresponds to the L
The maximum hand / arm vibration weighted value measured according to EN ISO 20643 on a sample of the above
product(s) corresponds to the V
2000/14/EC: The Measured Sound Power L
Conformity Assessment Procedure.................. Annex VI
Notified Body.................................................... Intertek, Cleeve Road
Newton Aycliffe, 15/11/2011
M. Bowden,
Global R & D Director - Walk behind
Keeper of technical documentation
evel given in the table.
lectric Rotary Lawnmower
at the operator’s position, measured according to EN60335-2-77,
pA
alue ahgiven in the table.
& Guaranteed Sound Power LWAvalues are according to the tabulated figures.
WA
Leatherhead, Surrey
KT22 7SB, England
Type
Width of Cut (cm)
Speed of Rotation of Cutting Device (RPM)
Power (kW)
Measured Sound Power L
Guaranteed Sound Power L
L
evel (dB(A))
Uncertainty (dB(A))
alue
V
a
(m/s2)
h
Uncertainty K ah(m/s2)
Weight (kg)
WA
(dB(A))
(dB(A))
WA
EG300
30
4,300
1.30
89
91
80
2.5
3.56
1.5
8.5
EG300V
30
4,300
1.35
89
91
80
2.5
3.56
1.5
8.5
EG330
33
4,300
1.40
89
91
80
2.5
3.56
1.5
8.5
EG330VX
33
4,300
1.40
89
91
80
2.5
3.56
1.5
8.5
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice.
Copyright © 2011 Flymo S.A. All rights reserved. Flymo® and other product and feature names are registered or un-
registered trademarks of Flymo S.A.
Husqvarna AB,
561 82
Huskvarna,
5769982-02
Sweden
Loading...
