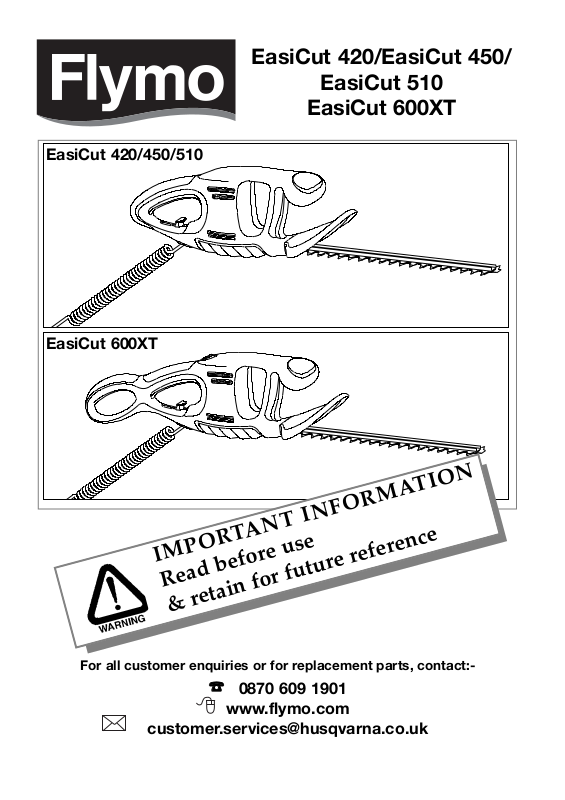

Flymo EasiCut 450, EasiCut 510, 600XT User Manual

For all customer enquiries or for replacement parts, contact:-
0870 609 1901
www.flymo.com
customer.services@husqvarna.co.uk
EasiCut 420/EasiCut 450/
EasiCut 510
EasiCut 600XT
Read before use
& retain for future reference
EasiCut 420/450/510
EasiCut 600XT

Carton Contents

IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new product. IF ANY P
ARTS ARE MISSING CONTACT:-
Husqvarna Outdoor Products Customer Service Department direct Telephone : 0870 609 1901 Fax : 0870 609 1902

Safety

If not used properly this product can be dangerous! This product can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure rea­sonable safety and efficiency in using this product. The operator is responsible for following the warning and safety instructions in this manual and on the product.
Explanation of Symbols on your product
Warning.
Read the user instructions carefully to make sure you understand all the controls and what they do.
Switch off! Remove plug from mains before adjusting, cleaning or if cable is entangled or damaged. Keep the cable
away from the blade.
Do not use in the rain or leave the product outdoors while raining.
The use of eye protection is recommend­ed.
instruction
manual
blade cover
Handguard
belt clip
instruction
manual
blade cover
Handguard
belt clip
EasiCut 420/450/510
EasiCut 600XT
General
1. Never allow children or people unfamiliar with these instructions to use the Hedgetrimmer. Local regula­tions may restrict the age of the operator.
2. Only use the Hedgetrimmer in the manner and for the functions described in these instructions.
3. Never operate the Hedgetrimmer when you are tired, ill or under the influence of alcohol, drugs or medicine.
4. The operator or user is responsible for accidents or hazards occurring to other people or their property.
Electrical
1. The British Standards Institute recommend the use of a Residual Current Device (R.C.D.) with a tripping current of not more than 30mA. Even with a R.C.D. installed 100% safety cannot be guaranteed and safe working practice must be followed at all times. Check your R.C.D. every time you use it.
2. Before use, examine cable for damage, replace it if there are signs of damage or ageing.
3. Do not use the Hedgetrimmer if the electric cables are damaged or worn.
4. Immediately disconnect from the mains electrici­ty supply if the cable is cut, or the insulation is damaged. Do not touch the electric cable until the electrical supply has been disconnected. Do not repair a cut or damaged cable. Replace it with a new one.
5. Your electric cable must be untangled, tangled cables can overheat and reduce the efficiency of your Hedgetrimmer.
6. Keep the cable clear of the cutting area and obstacles at all times.
7. Never carry the product by the cable.
8. Never pull on the cable to disconnect any of the plugs
9. Do not pull cable around sharp objects.
10. Always switch off at the mains before discon­necting any plug, cable connector or extension cable.
11. Switch off, remove plug from mains and exam­ine electric supply cable for damage or ageing
befor
e winding cable for storage. Do not repair
a damaged cable, replace it with a new one. Use only Flymo replacement cable.
12. Always wind cable carefully, avoiding kinking.
13. Use only on AC mains supply voltage shown on the product rating label.
14. Our products are double insulated to EN50144. Under no circumstances should an earth be con­nected to any part of the product.
Preparation
1. Always wear suitable clothing, gloves, and stout shoes. The use of safety glasses is recommend­ed. Do not wear loose clothing or jewellery which can be caught in moving parts.
2. Thoroughly inspect the area where the Hedgetrimmer is to be used and remove all wires and other foreign objects.
3. Before using the machine and after any impact, check for signs of wear or damage and repair as necessary.
4. Always ensure the hand guard supplied is fitted before using the Hedgetrimmer. Never attempt to use an incomplete Hedgetrimmer or one with an unauthorised modification.
Use
1. Use the Hedgetrimmer only in daylight or good artificial light.
2. Avoid operating your Hedgetrimmer on a wet hedge, where feasible.
3. Know how to stop the Hedgetrimmer quickly in an emergency.
4. Never hold the Hedgetrimmer by the guard.
5. Never operate the Hedgetrimmer with damaged guards or without guards in place.
6. Remove plug from mains befor
e passing
Hedgetrimmer to another person.
7. Avoid operating while people especially children are nearby.
8. Whilst using the Hedgetrimmer always be sure of a safe and secure operating position. Do not overreach.
9. Keep hands and feet away from the cutting means at all times and especially when switch­ing on the motor.
10. Do not use stepladders whilst operating the Hedgetrimmer.
11. Remove the plug from the mains :-
- before leaving the Hedgetrimmer unattended for any period;
- before clearing a blockage;
- before checking, cleaning or working on the appliance;
- if you hit an object. Do not use your Hedgetrimmer until you are sure that the entire Hedgetrimmer is in a safe operating condition;
- if the Hedgetrimmer starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.
- before passing to another person.
Maintenance and storage
1. Keep all nuts, bolts and screws secure to be sure the Hedgetrimmer is in safe working condition.
2. Replace worn or damaged parts for safety.
3. Be careful during adjustment of the Hedgetrimmer to prevent entrapment of the fin­gers between moving blades and fixed parts of the machine.
4. After use the Hedgetrimmer should be stored using the blade cover provided.

Safety

CABLES IMPORTANT
Use only 1.00mm
2
size cable up to 40 metres
length maximum.
Maximum rating :
1.00mm
2
size cable, 10 amps 250 volts AC.
YOUR HEDGETRIMMER IS SUPPLIED
WITH CABLE WIRED DIRECTLY INTO THE PRODUCT.
1. Mains Cables and Extension Cables are avail­able from your local Approved Service Centre.
2. Do not wire an extension cable directly to your product yourself. Please contact your local Approved Service Centre for further informa­tion on the connectors and kits available.
3. Only use extension cables specifically designed for outdoor use.
CONNECTORS IMPORTANT
Connectors are suitable for use with 2 core
cable only. Under no circumstances should these connectors be used for earthed prod­ucts.
All connectors and cables are of splashproof construction. They are not waterproof and must not be left outside permanently nor should they be submerged or immersed in water. Do not let cable lay or trail through pools of water or splashed with water from hose pipes.
MAINS PLUG REPLACEMENT IMPORTANT
• If the plug supplied is cut off it should be destroyed. There is an electric shock haz­ard if a cut off plug is inserted into a 13 amp socket.
1. No earth required. Our products are double insulated to EN50144 and under no circum­stances should an earth be connected to any part of the product.
2. Ensure the mains voltage suits your product
3. IMPORTANT! The wires in the mains lead are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE The wire which is coloured BLUE must be connected to the Terminal which is marked with the letter 'N' or coloured BLACK. The wire which is coloured BROWN must be connected to the Terminal which is marked with the letter 'L' or coloured RED.
4. It is important that the outer sheath is clamped correctly into the 3-pin plug.
5. If in doubt consult your local Service Repairer or qualified electrician before the machine is used.
6. A 13 Amp fuse must be fitted to the Mains
Plug.
7. The normal plug fuse and household fuse only protect the electrical equipment and are not a safeguard against electrocution.
If your product is hard wired i.e. non­detachable mains electric cable, a conver­sion kit and extension cable is available from all Approved Service Centres which can be found in your local Yellow Pages.
Assembly of Handguard.
1. Insert Handguard into slot as illustrated in
figure A, ensuring that it is securely locat­ed.
DO NOT USE THE PRODUCT WITH
-
OUT FITTING THE HANDGUARD

Assembly

A
To start your Hedgetrimmer EasiCut 420/450/510
1. There are three switch levers fitted to your Hedgetrimmer.
2. Main switch lever (E1) and one other switch lever need to be held in the operating position (E2 or
F1) for the product to start.
To start your Hedgetrimmer EasiCut 600XT
1. There are four switch levers fitted to your Hedgetrimmer.
2. To start, push forward the lock-off button (G1), squeeze the main switch lever (G2), release lock-off button.
3. Main switch lever (G2) and one other need to be held in the operating position (G3, H1 or J1) for the product to start.
To stop your Hedgetrimmer
• Move Hedgetrimmer away from cutting area before stopping.
1. To stop, release any switch lever.(K, L)

Starting and Stopping

B1 B2
D
E
K
G H
J
F
L
1
1
2

Before Use

B3
C1 C2
Before starting your Hedgetrimmer.
• Securing the cable in the Belt Clip helps keep the cable away from blade.
1. Push up the hook on the Belt Clip (B1)
2. Place the rear section of the Belt Clip behind your belt (B2)
3. Push down the hook on the Belt Clip to secure it onto your belt (B3)
4. Form a loop in the mains cable and push the loop through the hole in the Belt Clip (C1) ensuring the coil in the cable is close to the clip.
5. To secure, position the loop over the hook and pull back (C2).
6. Connect to mains and switch on
7. Remove blade cover (D).
2
1
3
1
1

How to Use

Caring for your Hedgetrimmer

• WARNING Disconnect from the mains electricity sup­ply, before attempting any maintenance or adjustment.
Cleaning (P)
1. Using a soft brush - remove debris from all
air intakes and cutting blade.
2. Wipe over surface of your hedgetrimmer
with a dry cloth.
• IMPORTANT
Never use water for cleaning your hed­getrimmer. Do not clean with chemicals, including petrol, or solvents - some can destroy critical plastic parts.
Lubricating the Cutting Blade
For easier operation and longer life, lubricate the cutter blades before and after use. Apply the oil so that it runs between the two blades. (R).
At the end of the Cutting Season.
1. Clean your Hedgetrimmer thoroughly.
2. Check that all nuts and bolts are secure.
3. Visually inspect the Hedgetrimmer for any worn
or damaged parts, contact your local Service Centre if any parts require replacement.
To store your Hedgetrimmer
Ensure the blade cover is fitted before
storage.
Store in a dry place where your
Hedgetrimmer is protected from damage.
P
R
How to Use your Hedgetrimmer
1. Inspect area to be cut before each use -
remove objects which can be thrown or become entangled in the cutting blades.
2. Always keep the Hedgetrimmer in front of your
body. Hold handle firmly with both hands and stand in a secure and stable position.
3. Allow the cutting blades to reach full speed
before entering the material to be cut.
4. Always work going away from people and solid
objects such as walls, large stones, trees, vehicles etc.
5. If blade stalls, immediately stop the
Hedgetrimmer. Disconnect the Hedgetrimmer from the power source and clear jammed debris from the cutting blades. Inspect blades and repair or replace as needed.
Top Cutting
Use a wide sweeping motion. (M) A slight down­ward tilt of the cutting blades in the direction of motion gives the best cutting results.
Side Cutting
When trimming the sides of the hedge, begin at the bottom and cut upwards (N), tapering the hedge inward at the top. This shape will expose more of the hedge, resulting in more uniformed growth.
M
N

Fault Finding Hints

Fails to Operate
1. Is the Power Turned On?
2. Check the fuse in the plug, if blown replace.
3. Fuse continues to blow?
Immediately disconnect from the mains electricity supply and consult your local approved Service Centre.
Cutting blade stops under load
1. Cut at a slower pace.
2. If cutting blade still stops under load?
Disconnect from the mains electricity sup­ply and consult your local approved Service Centre.
Fails to stop when one switch lever is released.
Immediately disconnect from the mains electricity supply and consult your local approved Service Centre.
Poor cut quality
1. Ensure the product is being used correctly (see How to Use)
2. Ensure blades are free from trapped debris
3. Damaged Blades?
Immediately disconnect from the mains electricity supply and consult your local approved Service Centre.
Excessive Vibration
Immediately disconnect from the mains electricity supply and consult your local approved Service Centre.
• Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information.
The symbol on the product or on its packag­ing indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative conse­quences for the environment and human health, which could otherwise be caused by inappropri­ate waste handling of this product. For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.
If any part is found to be defective due to faulty manufacture within the guarantee period, Husqvarna Outdoor Products, through its Authorised Service Repairers will effect the repair or replace­ment to the customer free of charge providing: (a) The fault is reported directly to the Authorised Repairer. (b) Proof of purchase is provided. (c) The fault is not caused by misuse, neglect or
faulty adjustment by the user. (d) The failure has not occurred through fair wear and tear. (e) The machine has not been serviced or repaired,
taken apart or tampered with by any person not
authorised by Husqvarna Outdoor Products. (f) The machine has not been used for hire. (g) The machine is owned by the original purchaser. (h) The machine has not been used outside of the
country for which it was specified. (i) The machine has not been used commercially. * This guarantee is additional to, and in no way
diminishes the customers statutory rights. Failures due to the following are not covered, there­fore it is important that you read the instructions con­tained in this Operator's Manual and understand how to operate and maintain your machine:
Failures not covered by guarantee
* Replacing worn or damaged blades * Failures as a result of not reporting an initial fault. * Failures as a result of sudden impact. * Failures as a result of not using the product in
accordance with the instructions and recommen­dations contained in this Operator's Manual.
* Machines used for hire are not covered by this guar-
antee.
* The following items listed are considered as
wearing parts and their life is dependent on regu­lar maintenance and are, therefore not normally subject to a valid warranty claim: Blades, Electric Mains cable.
* Caution!
Husqvarna Outdoor Products does not accept lia­bility under the warranty for defects caused in whole or part, directly or indirectly by the fitting of replacement parts or additional parts that are not either manufactured or approved by Husqvarna Outdoor Products, or by the machine having been modified in any way

Guarantee & Guarantee Policy

Environmental Information

Husqvarna Outdoor Products
Aycliffe Industrial Park
NEWTON AYCLIFFE
Co.Durham DL5 6UP
ENGLAND
Telephone - 0870 609 1901 Fax - 0870 609 1902
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice.
5107687-02

Service Recommendations

I, the undersigned M. Bowden of Husqvarna Outdoor Products, Aycliffe Industrial Park, NEWTON AYCLIFFE, Co. Durham. DL5 6UP. Certify that the product:-
Category........ Hedgetrimmer
Make.............. Husqvarna Outdoor
Products
Conforms to the specifications of Directive 2000/14/EC
I, the undersigned M. Bowden of Husqvarna Outdoor Products, Aycliffe Industrial Park, NEWTON AYCLIFFE, Co. Durham. DL5 6UP Certify the maximum weighted sound pressure level recorded on a sample of the above product at the operator position under free field conditions was: -
I, the undersigned M. Bowden of Husqvarna Outdoor Products, Aycliffe Industrial Park, NEWTON AYCLIFFE, Co. Durham. DL5 6UP Certify the maximum weighted root mean square value recorded on a sample of the above product at the operators hand position was: -
Newton Aycliffe, 20/11/2006 M. Bowden, Research & Development Director
1. We strongly recommend that your product is
serviced at least every twelve months, more often in a professional application.
2. Always use genuine Flymo Spare Parts.
3. Prepacked spares are available from most Flymo
Approved stockists.
4. Your product is uniquely identified by a silver and
black product rating label
5. If you have a problem with your machine contact
your local Approved Service Centre ensuring you have full details of your product as described on the product rating label.
6. Should it be necessary for work to be carried out by
your Service Centre, it is important to take your com-
plete machine including cable and any extension cables used.
A network of specialist dealers can be found in your local Yellow Pages. To obtain service on your product simply telephone or visit your local Service Centre. Should you require service under the terms of our guar­antee the Service Centre will require proof of purchase.
All of the centres listed stock genuine Flymo Spare Parts. NOTE: Our Service Repairers act on their own behalf and are not empowered to commit or legally bind Husqvarna Outdoor Products in any manner what­soever.

EC Declaration of Conformity

Type............................................... EC420 EC450 EC510 EC600
Blade Length................................ 42cm 45cm 51cm 60cm
Watts.............................................. 420 450 500 500
Guaranteed sound power level.. 99 dB (A) 105 dB (A) 106 dB (A) 97 dB (A) Measured Sound Power Level...97 dB (A) 97 dB (A) 99 dB (A) 96 dB (A)
Level............................................... 86 dB (A) 91 dB (A) 88 dB (A) 88 dB (A)
Value.............................................. 0.66 m/s
2
1.34 m/s20.79 m/s21.11 m/s
2
Weight............................................ 2.8 Kg 2.8 kg 2.9 kg 3.0 kg
Identification of Series......See Product Rating Label
Conformity Assessment Procedure....ANNEX VI
Notified Body................Intertek, Cleeve Road, Leatherhead,
Surrey. KT22 7SB England
Other Directives:-............. 98/37/EC, 89/336/EEC,
73/23/EEC
& applicable standards:-. EN61000-3-2, EN61000-3-3, EN55014-1, EN774, EN50144-1, EN50144-2-15, EN50366
Loading...
