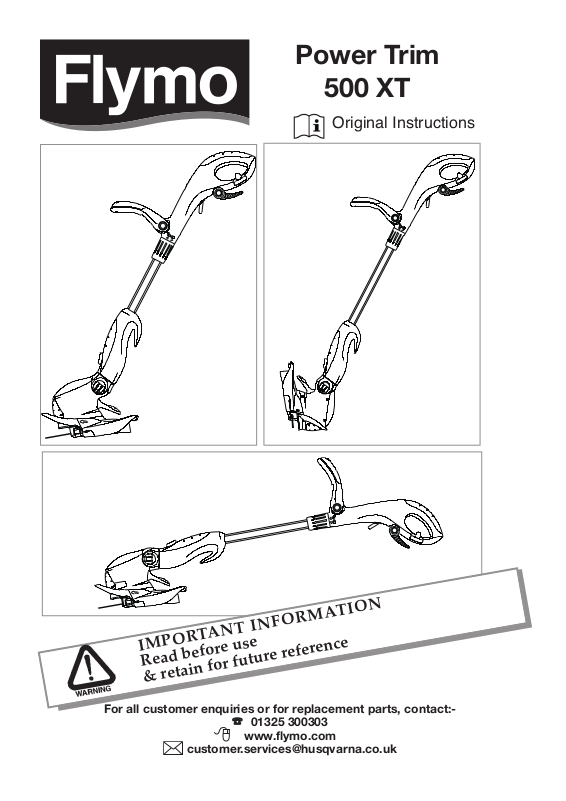

Flymo 500 XT User Manual
For all customer enquiries or for replacement parts, contact:-
01325 300303
www.flymo.com
customer.services@husqvarna.co.uk
Original Instructions
IMPORTANT INFORMATION
Read before use
& retain for future reference
Power Trim
500 XT
1
Carton Contents
IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new Flymo product.
IF ANY PARTS ARE MISSING CONTACT:-
Husqvarna UK Ltd. Customer Service Department direct
Telephone : 01325 300303 Fax : 01325 302530
Safety
General
1. This product is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning the
use of the product by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the product. Local regulations may restrict the
age of the operator.
2. Only use the trimmer in the manner and for the functions described in these instructions.
3. Never operate the trimmer when you are tired, ill or
under the influence of alcohol, drugs or medicine.
4. The operator or user is responsible for accidents or
hazards occurring to other people or their property.
Electrical
AVOID ACCIDENTAL STARTING. REMOVE PLUG FROM
MAINS AND KEEP FEET AWAY FROM THE SWITCH
LEVER WHEN:- CLEANING AROUND THE INSIDE OF THE
SAFETY GUARD, REMOVING OR REFITTING SPOOL CAP,
MANUALLY FEEDING OR REPLACING NYLON LINE.
1. The British Standards Institute recommend the use
of a Residual Current Device (R.C.D.) with a tripping
current of not more than 30mA. Even with a R.C.D.
installed 100% safety cannot be guaranteed and
safe working practice must be followed at all times.
Check your R.C.D . every time you use it.
2. Before use, examine cable for damage. If there are
signs of damage or ageing, it must be replaced by
the manufacturers service agent or a similar qualified
person to avoid hazard.
3. Do not use the trimmer if the electric cables are damaged or worn.
4. Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is damaged. Do
not touch the electric cable until the electrical supply
has been disconnected. Do not repair a cut or damaged cable. Replace it with a new one.
5. Your extension cable must be uncoiled, coiled cables
can overheat and reduce the efficiency of your trimmer.
6. Keep the cable clear of the cutting area and obstacles at all times.
If not used properly this trimmer can be dangerous! This trimmer can cause serious injury to the operator and others,
the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this trimmer.
The operator is responsible for following the warning and safety instructions in this manual and on the trimmer.
Explanation of Symbols on the product
Warning
Read the user instructions carefully to make
sure you understand all the controls and what
they do.
Keep bystanders away. Do not operate
whilst people especially children or pets
are in the area.
The use of eye protection is recommended to
protect against objects thrown by the cutting
parts.
Do not operate in the rain or leave the product outdoors while it is raining.
Switch off! Remove plug from mains before
adjusting, cleaning or if cable is entangled or
damaged.
Warn ing: The cutting line continues to rotate
after the machine has been switched off.
Switch Handle
Electric Cable with
moulded on plug
SafetyGuard
Instruction
Manual
Tube
Steady Handle
Trimmer Head
Plant and
Tree Guard
10m
360º
2
7. Do not pull cable around sharp objects.
8. Always switch off at the mains before disconnecting
any plug, cable connector or extension cable.
9. Never pull on the cable to disconnect any of the plugs.
10. Switch off, remove plug from mains and examine electric
supply cable for damage or ageing before
winding cable
for storage. Do not repair a damaged cable, replace it with
a new one. Use only Flymo replacement cable.
11.Always wind cable carefully, avoiding kinking.
12.Never carry the product by the cable.
13.Use only on AC mains supply voltage shown on the
product rating label.
14.Our products are double insulated to EN60335.
Under no circumstance should an earth be connected to any part of the trimmer.
Preparation
1. While using your product always wear substantial
footwear and long trousers.
2. Before using the machine and after any impact, check
for signs of wear or damage and repair as necessary.
3. Inspect the area to be cut before each use. Remove all objects
such as stones, broken glass, nails, wire, string etc, which can
be thrown or become entangled in the trimmer head.
4 . Before use, inspect the area for wildlife, especially hedge-
hogs.
5. Check that the cutting head is fitted correctly.
Use
1. Use the trimmer only in daylight or good artificial light.
2. Avoid operating your trimmer in wet grass, where feasible.
3. Take care in wet grass, you may lose your footing.
4. On slopes, be extra careful of your footing and wear
non-slip footwear.
5. Do not walk backwards when trimming, you could
trip. Walk never run.
6. Keep cutting head below waist level.
7. Switch off before pushing the trimmer over surfaces
other than grass.
8. Never operate the trimmer with damaged guards or
without guards in place.
9. Never fit metal cutting elements.
10.Keep hands and feet away from the cutting means at
all times and especially when switching on the motor.
11.Never pick up or carry a trimmer by the cable.
12.Do not lean over the trimmer guard - objects may be
thrown by the cutting line.
13. Beware of cut-off pieces of nylon line ejected during use.
14.Remove the plug from the mains :
- before leaving the trimmer unattended for any period;
- before clearing a blockage;
- before checking, cleaning or working on the appliance;
- if you hit an object. Do not use your trimmer until you are
sure that the entire trimmer is in a safe operating condition;
- if the trimmer starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure the
trimmer is in safe working condition.
2. Replace worn or damaged parts for safety.
3. Only use the replacement cutting line specified for
this product.
4. Only use replacement parts and accessories recommended by Husqvarna UK Ltd.
5. After any maintenance in dealing with the cutting line,
always return the product to its normal operating position before switching on.
6. Clean unit with a dry cloth. Never use metal objects
to clean the unit.
7. Inspect and maintain the trimmer regularly. Any repairs
must be carried out by an authorised repairer.
8. Store in a cool dry place and out of reach of children.
Do not store outdoors.
Cables
IMPORTANT
Use only 1.00mm
2
size cable up to 40 metres length maxi-
mum.
Maximum rating:
1.00mm2size cable, 10 amps 250 volts AC.
YOUR PRODUCT IS SUPPLIED WITH AN ELECTRIC
MAINS CABLE WIRED DIRECTLY INTO THE PRODUCT.
1.Flymo Mains Cables and Extension Cables are available from your local Approved Service Centre.
2.Do not wire an extension cable directly to your product yourself. Please contact your local Approved Service Centre for
further information on the connectors and kits available.
3.Only use extension cables specifically designed for
outdoor use.
CONNECTORS
Flymo connectors are suitable for use with 2 core cable
only. Under no circumstances should these connectors
be used for earthed products.
All Flymo connectors and cables are of splashproof construction. They are not waterproof and must not be left outside permanently nor should they be submerged or
immersed in water. Do not let cable lay or trail through
pools of water or splashed with water from hose pipes.
MAINS PLUG REPLACEMENT
• If the plug supplied is cut off it should be destroyed. There is an electric shock hazard if a cut
off plug is inserted into a 13 amp socket.
1.No earth required. Flymo products are double insulated
to EN60335 and under no circumstances should an earth
be connected to any part of the product.
2.Ensure the mains voltage suits your product.
3.IMPORTANT!
The wires in the mains lead are coloured in accordance
with the following code:
BLUE - NEUTRAL BROWN - LIVE
The wire which is coloured BLUE must be connected to the
Terminal which is marked with the letter ʻNʼ or coloured BLACK.
The wire which is coloured BROWN must be connected to the
Terminal which is marked with the letter ʻLʼ or coloured RED.
4.It is important that the outer sheath is clamped correctly into the 3-pin plug.
5.If in doubt consult your local Service Repairer or qualified electrician before the machine is used.
6.A 5 Amp fuse must be fitted to the Mains Plug.
7.The normal plug fuse and household fuse only protect
the electrical equipment and are not a safeguard
against electrocution.
If your product is hard wired i.e. non-detachable
mains electric cable, a conversion kit and extension
cable is available from all Approved Service Centres
which can be found in your local Yellow Pages.
Assembly Instructions
A1 A2
Assembly of Switch Handle to Tube (A1)
• Ensure that the internal cable is not twisted.
1. Insert the tube into the switch handle.
2. Push until it clicks into position.
• ENSURE THAT THE TUBE IS FULLY LOCATED BY
ATTEMPTING TO REMOVE IT.
Assembly of Trimmer Head to Tube (A2)
• Ensure that the internal cable is not twisted.
1. Insert the tube into the trimmer head.
2. Push until it clicks into position.
• ENSURE THAT THE TUBE IS FULLY LOCATED BY
ATTEMPTING TO REMOVE IT.
CLICK!
CLICK!
