Installing FlukeView

Installing the FlukeView Software

Chapter 1

FlukeView® software offers you simple mouse-controlled tools to
work with your ScopeMeter

The setup program installs the FlukeView software on PC’s
running Windows 95, 98, ME (Millennium Edition), NT 4, 2000,
and XP.

To install FlukeView, insert the CD ROM into the CD ROM drive,
or insert the first floppy in the appropriate floppy disk drive and
run SETUP.

The setup program starts up and prompts you for information to
complete the installation.

®

test tool.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

1

Running the FlukeView Software

Choose from Start - Programs - FlukeVi ew ­ScopeMeter 4.0 English to run the

FlukeView software.

Choose from Start - Programs - FlukeVi ew ­ScopeMeter 4.0 English to create a test

report in Word.

Note

To use the QREPORT template, copy the file
QREPORT.DOT to your Word template directory (or
folder).

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

2

Connecting the ScopeMeter Test Tool

The FlukeView software communicates with your ScopeMeter
test tool via the optically isolated RS-232 adapter/cable (see

Appendix) connected to a COM port of the PC.

During startup (except for the first time), the FlukeView software
automatically tries to make a connection with the instrument
according to the last valid connection.

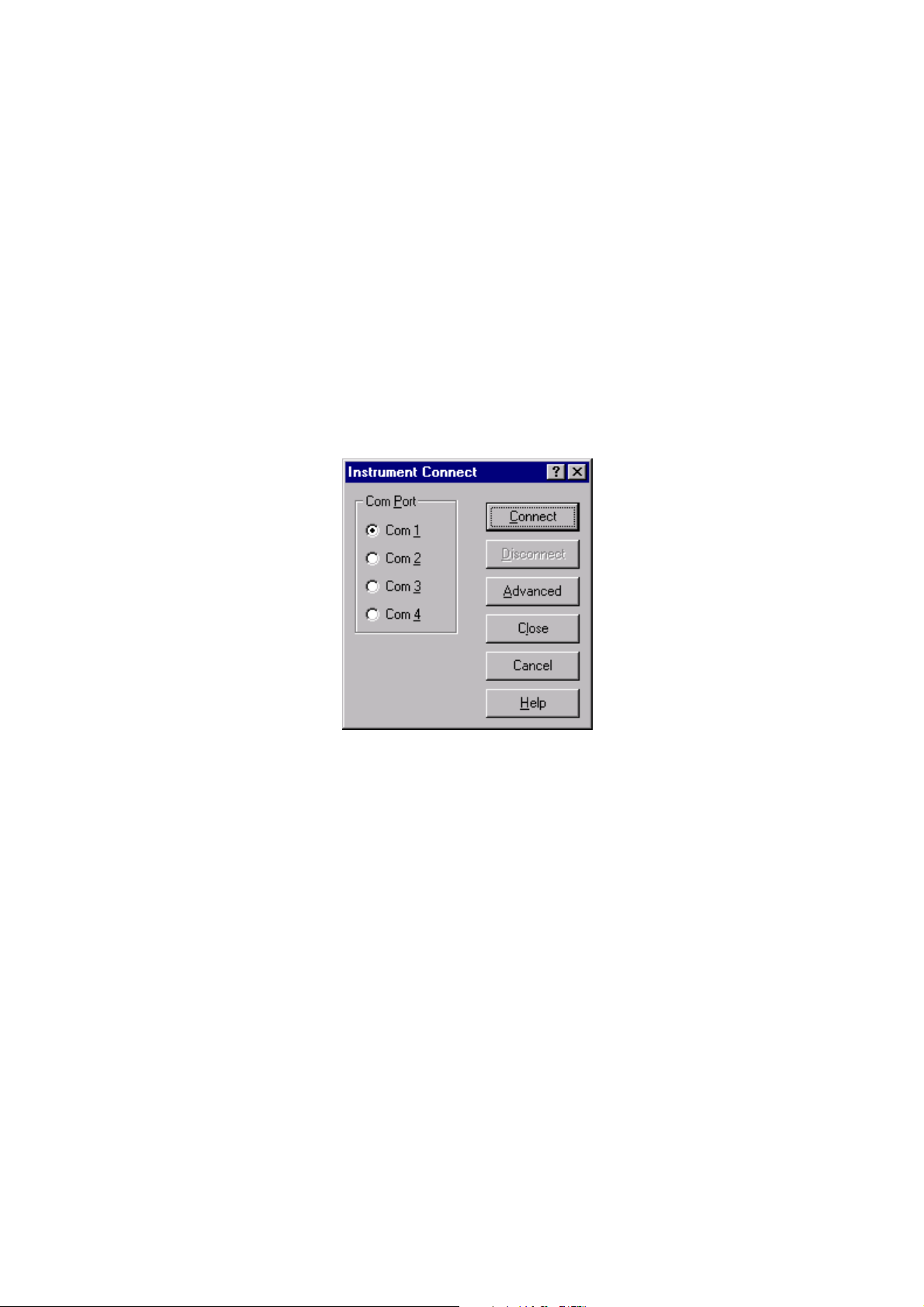

If automatic connection is not successful, the dialog box shown
below appears, allowing you to make a connection.

1 Select the Com Port that connects the instrument to the

PC.

2 Click Connect to establish a connection with the

instrument.

SW90W Users Manual

3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Chapter 2

Using FlukeView

Using Online Help

The FlukeView software offers you access to online help by

using the F1 key, a Help button, “What’s This?” help, or the
Help menu:

Press to get online help for the topic

or Shift+

or

that has the focus.

Click, move the mouse pointer on a
topic, and click again to get “What’s
This” help.

SW90W Users Manual

Click to get help in dialog and error
boxes.

For example:

Click Help - How To and

view the online manual
on the screen.

Click Help - Technical
Support to get access

to the Fluke home page.

4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Note

To show help items on a help page, do one of the
following:

• move the mouse pointer (changes to above a help

item);

• press Tab (changes the of a help item).

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5

p

play

Introducing the FlukeView Software

By clicking the following buttons on the toolbar, you can read
data directly from the ScopeMeter test tool:

screens

You can save, open, and print the data, or export it to other
programs.
FlukeView software enables you to read the following types of
data from the ScopeMeter test tool into a window on the PC
screen.

waveforms

setu

s readings

re

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

6

Instrument Screens

Type: bitmap graphics data from the instrument’s screen (in

pixel-format)

Use: to create documents and reports
Screen è Screen Window

SW90W Users Manual

7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Waveforms

Type: numerical waveform points to generate Y-t vector-

graphics data

Use: to analyze by zooming, scaling, or creating a spectrum

from

Waveformè Waveform Window

SW90W Users Manual

8

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Readings

Type: numerical values to log Y-X vector-graphics data
Use: to analyze by zooming, scaling, or creating a spectrum

from

Readingsè Waveform (Readings) Window

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

9

Instrument Setups

Type: binary settings data from the instrument
Use: to retrieve and send back instrument setups
Setup è

ç

[actual

ScopeMeter

settings]

Setup Window

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

10

Creating a Test Report

1 Choose from Start - Programs - FlukeVi ew

- ScopeMeter 4.0 English to create a test

report (using Word).

As a result, Word is started and the required macros are loaded.

In Word, select Enable Macros when requested.

2

3

4
5

6
7

Click predefined fields (Company, Contact, ...) and

type your text.

Click to insert the active ScopeMeter screen.

As a result, FlukeView is started, a connection is

made, and the active Instrument Screen is pasted

into the document.

Click the Description field and type your text.

Click to print your test report. See the next page for an
example of a test report.

Click to save your test report.

Exit Word to continue with the next section of this
manual.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

11

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

12

Documenting Screens

Displaying an Instrument Screen on the PC

1a

1b

To change the window to your preference:

Click to display the active ScopeMeter screen in a

screen window.

Click. A dialog box appears allowing you to select
specific ScopeMeter screens to display in screen
windows.

Tip

To specify conditions for transferring screens,

choose Instrument - Multiple Transfers.

2 Select Options - Add Description and type a description

in the text box below the window (max. 10 lines).

3 Select Options - Title to change the title of the window.
4 Select Options - Colors to change window colors.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

13

Each ScopeMeter screen appears in a separate screen window.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

14

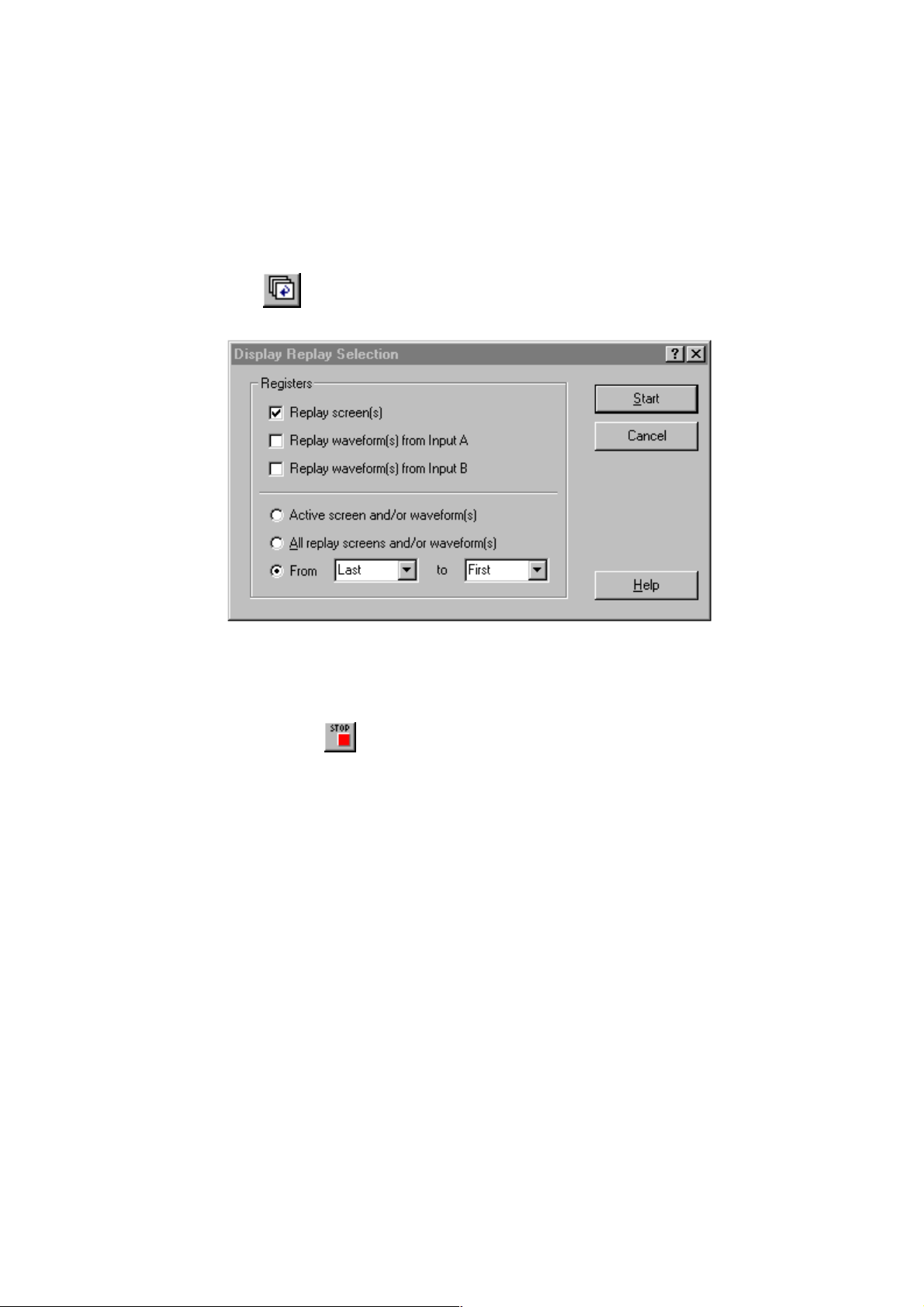

Replaying Screens

1

Click. A dialog box appears allowing you to make
the following selections:

2 Click Start to read and display the replay screens.

Note

To stop reading and displaying the replay sequence,
click

or press Esc.

3 If applicable, choose View - Ratio 4:3 to change the X:Y

ratio of the window.

SW90W Users Manual

15

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

To change the window to your preference:

4

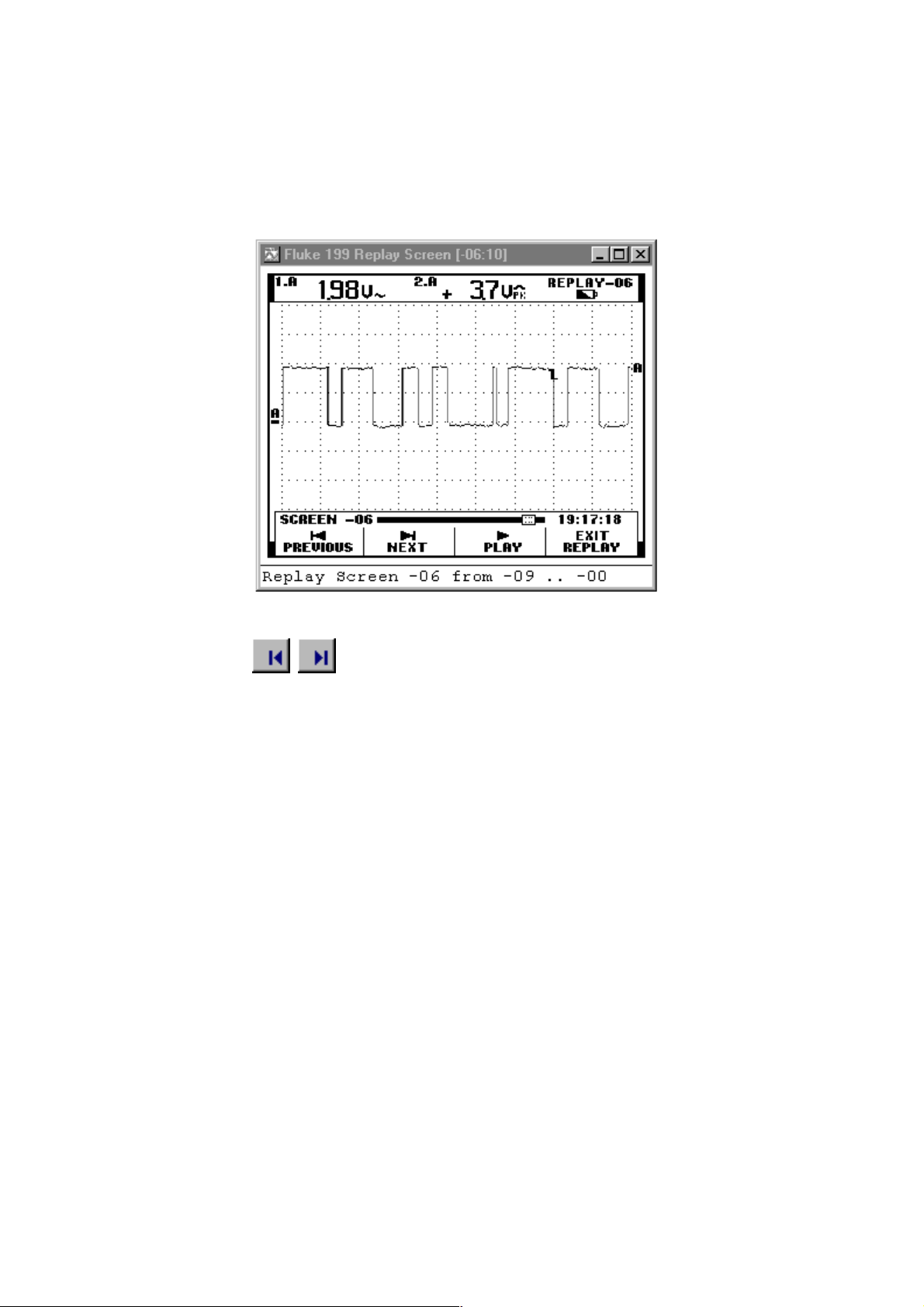

Click to view the previous or next replay
screen.

You can also choose View - Replay to scan

through the replay sequence of screens.

5 Select Options - Add Description and type a description

in the text box below the window (max. 10 lines).

6 Select Options - Title to change the title of the window.
7 Select Options - Colors to change window colors.

SW90W Users Manual

16

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Inserting Screens into a Document

1 Click on the screen window you want to insert.

2

To avoid losing resolution because of copying to the

clipboard, choose Windows – Default Size.

Click to copy the window to the clipboard.

Tip

3 Switch to a wordprocessor.
4 Open or create a document and place the cursor where

you want to insert the window.

5 Select Edit - Paste to insert the screen window into the

document.

6

In the same way, you can insert waveform and spectrum
windows into a document.

Click to save your document.

Note

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

17

Analyzing Waveforms

You can read numerical waveform samples from the ScopeMeter
test tool and display these samples in a waveform window. Up to
four waveforms can be displayed in a window.

To demonstrate this, a trace will be read from Input A and B.

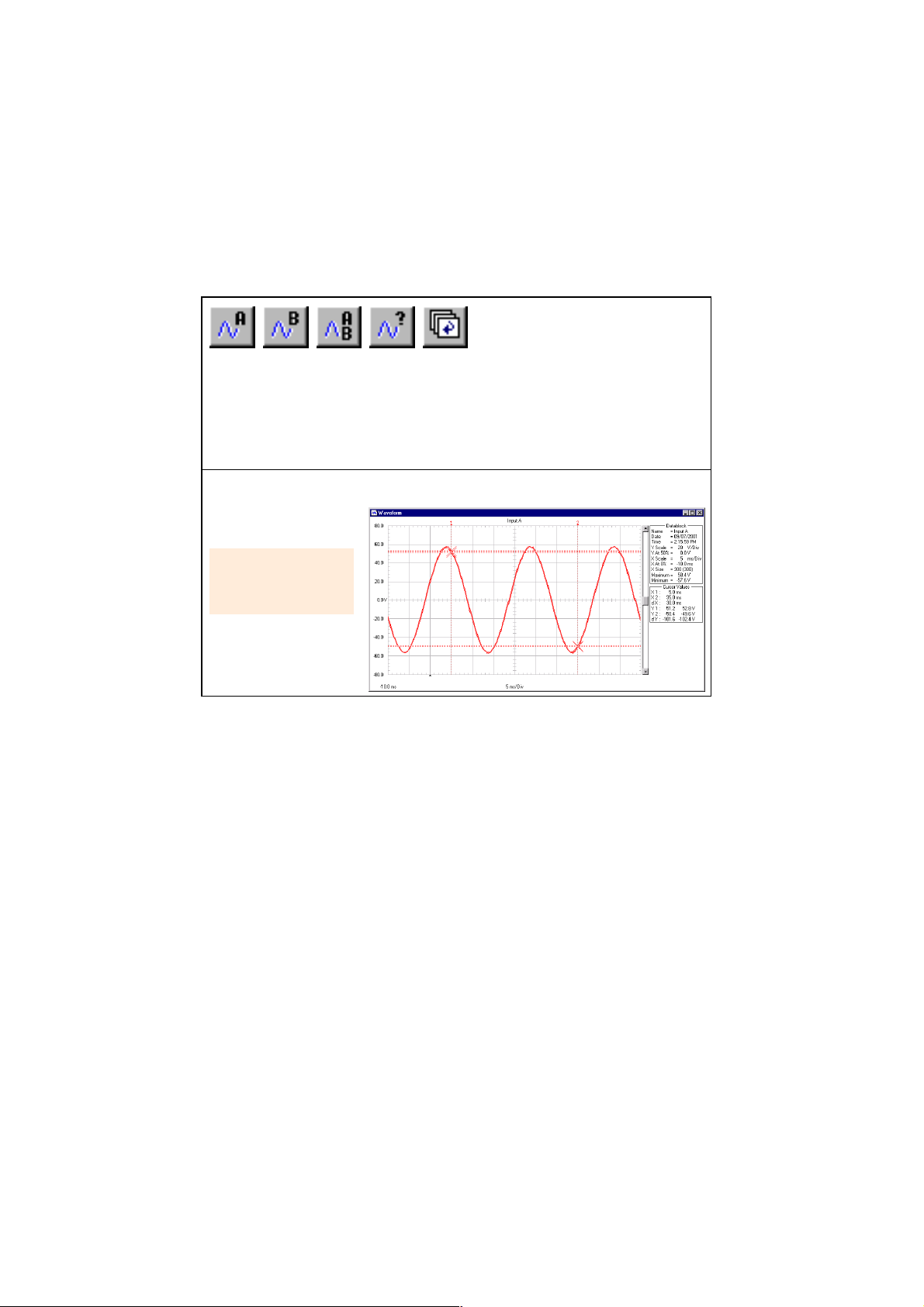

Displaying Waveforms on the PC

1

Click. A dialog box appears allowing you to select
the waveforms you want to read.

2 Choose Active waveform.
3 Choose Input A and Input B.
4 Click Start to read and display the selected waveforms.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

18

To change the window to your preference:

5 Select Options - Add Description and type a description

in the text box below the window (max. 10 lines).

6 Select View - Datablock to show the data block.
7 Select View - Cursors to show the cursors.
8 Select Options - Colors to change waveform colors.

See the next page for an example of a waveform window.

Tips

Click to quickly read the waveform from

INPUT A.

Click to quickly read the waveform from

INPUT B.

Click to quickly read the waveforms from

INPUT B.

and

INPUT A

• To specify conditions for transferring waveforms,

choose Instrument - Multiple Transfers.

• To change the scaling, select Options - Scales.

• To change window titles, select Options -

Titles.

• To show or hide the description, select View -

Description.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

19

Use the mouse or (Shift) ß

ß àààà keys to move the cursors.

ßß

Datablock Cursor Values

Name : Name of the

waveform
Date : Date of the waveform
Time : Time of the waveform

Y Scale : Vertical scale
Y At 50% : Vertical position

X Scale : Horizontal scale
X At 0% : Horizontal position
X Size : Shown (Total)

number of waveform

points
Maximum : Maximum value

Minimum : Minimum value

X1 : Time at cursor 1
X2 : Time at cursor 2
dX : X2 - X1

Y1 : Minimum and

maximum value at
cursor 1

Y2 : Minimum and

maximum value at
cursor 2

dY : Minimum and

maximum

Y2 - Y1

Notice that values apply to
the active waveform.

Note

The Date and Time formats depend on the W indow s
settings.

®

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

20

Zooming In and Out on a Waveform

Drag with the mouse in the graph to select and zoom in on the
part of the waveform you want to enlarge.

Click to zoom in on a waveform.

Use the scroll bar to select the part you want to view.

Click to zoom out on a waveform (undoes one ‘zoom in’
step).

Scaling a Waveform

If a waveform is not completely shown in a window, a scroll bar
is displayed. Use this scroll bar to select the part you want to
view.

Select Options - Scales, to change the following in the active

window:

• horizontal scaling (Time axis) of all waveforms

• vertical scaling (Y axis) of the active waveform

SW90W Users Manual

21

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Replaying Waveforms

1

Click. A dialog box appears allowing you to make the
following selections:

2 Choose Replay waveform(s) from Input A and Replay

waveform(s) from Input B.

3 Select the range of waveforms (From - to) you want to

display.

4 Click Start to read and display the replay waveforms.

To stop reading and displaying the replay sequence,
click

SW90W Users Manual

or press Esc.

Note

22

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

To change the window to your preference:

5

Click to view the previous or next replay
waveform.

You can also choose View - Replay to scan

through the replay sequence of waveforms.

6 Select Options - Add Description and type a description

in the text box below the window (max. 10 lines).

7 Select Options - Title to change the title of the window.
8 Select Options - Colors to change window colors.

SW90W Users Manual

23

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Generating an FFT-Spectrum from a Waveform

For spectrum calculations, a repetitive waveform or a waveform
that contains repetitive components is superposed of a fixed
offset value (DC component) and a number of sine waves. The
spectrum shows the amplitude and frequency of each sine wave
as a bar-graph. The value of the DC component is shown in the
datablock.

1 Select the waveform from which you want to generate a

spectrum.

In a multiple waveform window, select View - Active
Waveform or click with the mouse to choose the active

waveform.

2 Select Tools - Spectrum. The Spectrum is created and

displayed in a spectrum window.

To change the window to your preference:

3 Select Options - Add Description and type a description

in the text box below the window (max. 10 lines).

4 Select View - Datablock to show the data block.
5 Select View - Cursors to show the cursors.
6 Select Options - Colors to change spectrum colors.

See the next page for an example of a spectrum window.

Tips

• To change window titles, select Options - Titles

• To change the scaling, select Options - Scales

• To show or hide the description, select View -

Description

SW90W Users Manual

24

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Use the mouse or (Shift) ß

ß àààà keys to move the cursors.

ßß

Datablock Cursor Values

Name : Name of the spectrum
Date : Date of the waveform
Time : Time of the waveform

Fund : Fundamental frequency
RMS : Root Mean Square
Peak : Maximum value
DC : Direct Current value
THDr : Total Harmonic Distortion

(RMS)

THDf : Total Harmonic Distortion

(Fund)

KFact : K-factor

X1 : Frequency (or

Harmonic Number)
at cursor 1

X2 : Frequency (or

Harmonic Number)
at cursor 2

dX : X2 - X1
Y1 : Spectrum value at

cursor 1

Y2 : Spectrum value at

cursor 2

dY : Y2 - Y1

CF : Crest factor (Peak/RMS)

Note

The Date and Time formats depend on the W indow s
settings.

®

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

25

Automatic Spectrum Updates

To get continuous updates of a waveform and spectrum, do the
following:

1 Click to select and display the waveform from which

to create a spectrum.

2 Select Tools - Spectrum to create a spectrum from the

waveform.

3 Select Window - Auto Tile to tile the waveform and

spectrum window on the PC screen.

4 Select Instrument - Multiple Transfers. A dialog box

appears.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

26

5 Choose Continuous waveform update(s) and Overwrite

existing window(s).
Click Start to get continuous waveform and spectrum

6

updates.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

27

Logging Readings

Graphing Readings

You can transfer and graph readings taken by the ScopeMeter
test tool over a period of time. Up to four types of readings can
be displayed in a window.

To demonstrate this, four types of readings will be logged.

1

Click. A dialog box appears allowing you to select
the logging parameters.

2 Set Interval time to three seconds, and choose

Continuous logging, Overwri t e existing window(s), and
Multiple readings in one window.

3 Click Start. A dialog box appears allowing you to select the

type of readings you want to log.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

28

N

Click Start to start logging. The status bar shows the

4

logging progress.

Countdown of the interval time

5

To change the window to your preference:

Text showing the logging status

Click to stop logging.

umber of readings so far

6 Select View - Datablock to show the datablock.
7 Select View - Cursors to display the cursors.
8 Select Options - Add Description and type a description

in the text box below the window (max. 10 lines).

9 Select Options - Colors to change waveform colors.

See the next page for an example of logged readings in a
waveform window.

Tips

Click to zoom in on a part of a waveform.

• To change window titles, select Options - Titles.

• To show or hide the description, select View -

Description.

• To create a spectrum from a waveform of

readings, select Tools - Spectrum.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

29

Use the mouse or (Shift) ß

ß àààà keys to move the cursors.

ßß

Datablock Cursor Values

Name : Name of the waveform
Date : Date of the waveform
Time : Time of the waveform

Y Scale : Vertical scale
Y At 50% : Vertical position

X Scale : Horizontal scale
X At 0% : Horizontal position
X Size : Shown (Total) number

of waveform points

Maximum : Maximu m value

X1 : Time at cursor 1
X2 : Time at cursor 2
dX : X2 - X1

Y1 : Readings value at

cursor 1

Y2 : Readings value at

cursor 2

dY : Y2 - Y1

Notice that values apply
to the active waveform.

Minimum : Minimum value

Note

The Date and Time formats depend on the W indow s
settings.

®

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

30

Inserting Readings into a Spreadsheet

1 Click on the waveform of readings you want to insert.
2 Select Edit - Copy Data to copy the reading's data to the

clipboard.

3 Switch to a spreadsheet program.
4 Open or create a worksheet and place the cursor where

you want to insert the data.

5 Select Edit - Paste to insert the data into the worksheet

with the numerical readings arranged in columns.

6

You can insert waveform and spectrum points into a
spreadsheet in the same way.

Click to save your spreadsheet.

Note

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

31

Transferring Instrument Setups

Reading/Saving Setups from/to File

1

Click to read the active setup or setups from
ScopeMeter memories.

2 Select Options - Add Description and type a description

in the text box below the window (max. 10 lines).

3 Select Options - Title to change the title of the window.
4 Select View - Datablock to show the datablock.
5 Select Options - Colors to change window colors.

Each ScopeMeter setup appears in a separate setup window.

If available from the ScopeMeter test tool, the Setup Text box
shows setup information.

6

SW90W Users Manual

Click to send the setups from the selected setup
windows to ScopeMeter memories.

32

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Saving/Recalling the Active Setup to/from ScopeMeter

1 Select Instrument - Remote Control. A dialog box

appears.

2 Click Save Setup. A dialog box appears.
3 Click on the down arrow to display the list with setup

memories.

4 Click on the memory location in which you want to save

the active setup.

5 Click Save to send the setup to the selected memory.

The active ScopeMeter setup has been saved in a ScopeMeter
memory.

6 Click Recall Set u p. A dialog box appears.
7 Click on the down arrow to display the list with setup

memories.

8 Click on the memory location that contains the setup you

want to make active.

9 Click Recall to recall the new active setup.

The active ScopeMeter setup has been recalled from a
ScopeMeter memory.

Click Close to close the dialog box.

SW90W Users Manual

33

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Printing Windows

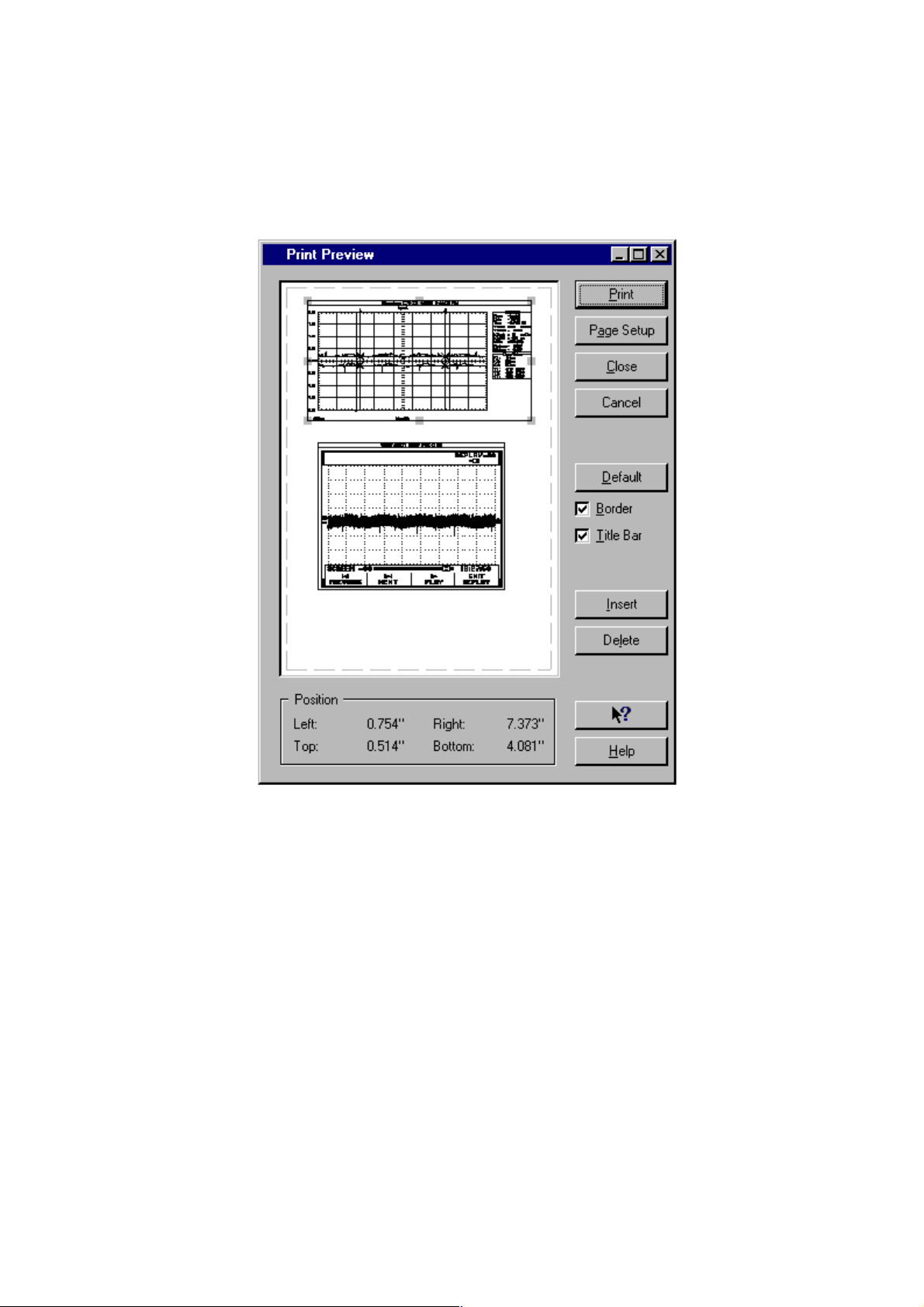

The Print Preview function enables you to preview any
combination of screen, waveform, readings, spectrum, and setup
windows on a page before printing.

1 Click on the window you want to print.
2

See next page for the window.

Click to preview the window on the page.

3 Choose Border to add a border around the active window.
4 Choose Title Bar to add the title of the active window.
5 Click Insert to add more windows on a page. A dialog box

appears allowing you to select another window.

6 Click Page Setup to change the page setup
7 Click Print to start printing the window(s).

To change printer settings, select File - Print Setup.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

34

SW90W Users Manual

35

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Saving Windows to a File

You can save any combination of screen, waveform, readings,
spectrum, and setup windows to an FVF file.

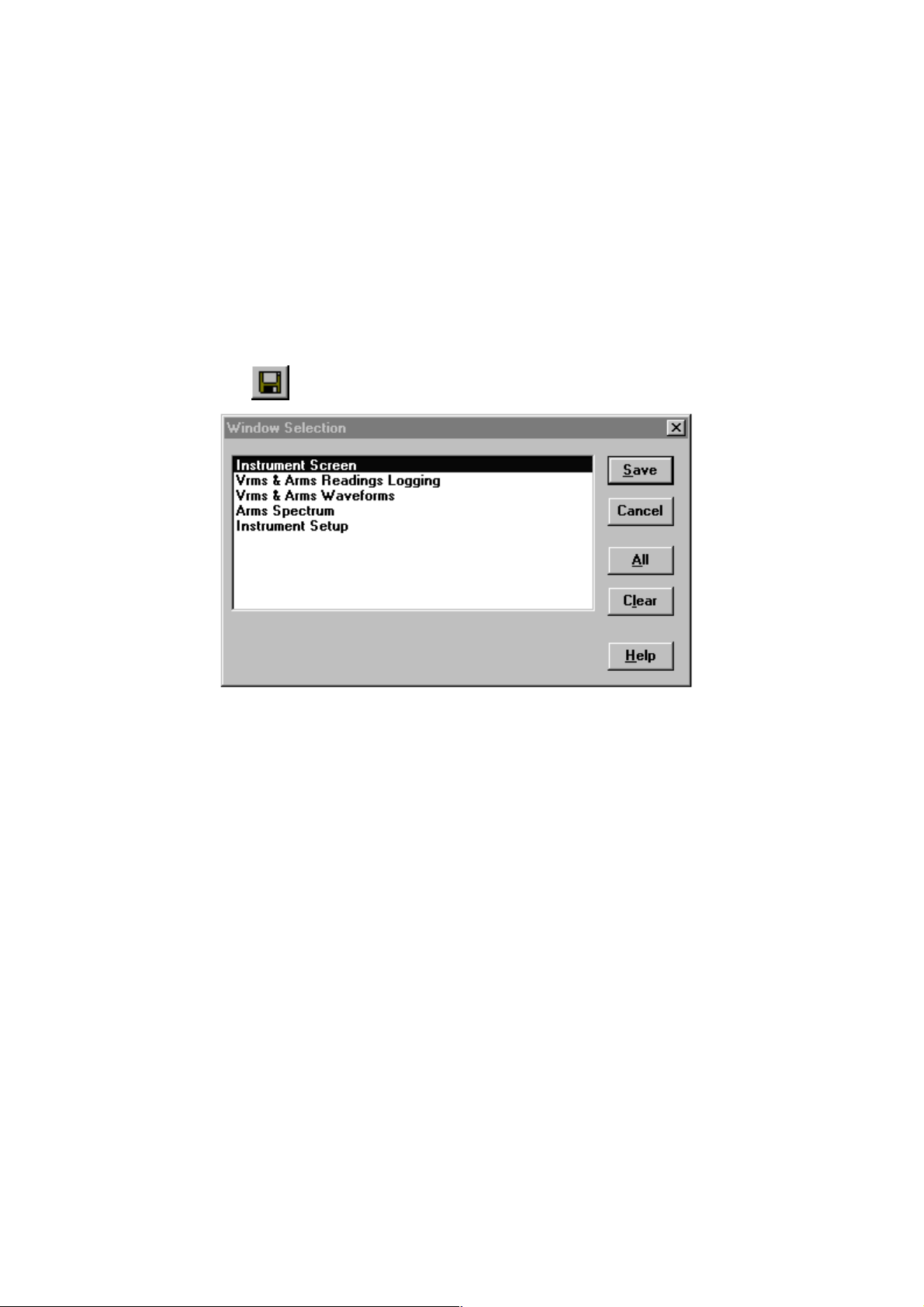

1 Click on the window you want to save.
2

If there are more windows, a dialog box appears.

3 Select the windows of your choice or click All to select all

windows.

Click Save. Another dialog box appears.

4 Enter a name for the file in the File Name box (FVF is

default file type).

5 Click OK to start saving the windows you selected to the

file.

For more information on saving to a file, select Index - File

Formats from the Help menu.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

36

Optically Isolated RS-232

Interface (optional)

Interface Connections

Appendix A

SW90W Users Manual

37

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Interface Specifications

Type of interface:

RS-232 / EIA-232-D, optically isolated

States:

• SPACE = 0 Light

• MARK = 1 No light

Wavelength = 800 nm

RXD signal levels:

• SPACE = +10V to +4V Max. input = +15V

• MARK = -4V to -10V Min. input = -15V

Other signal levels:

• SPACE = +12V to +7V Max. input = +15V

• MARK = -7V to -12V Min. input = -15V

Handshake method:

X

ON/XOFF, software handshake only

Environmental:

• Meets requirements of MIL-T-28800D Type III, Class 3

• Temperature: Operating = 0 °C to +50 °C
Storage = -20 °C to +70 °C

Mechanical:

• Cable length = 1.5 m

• Weight = 0.14 kg

SW90W Users Manual

38

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

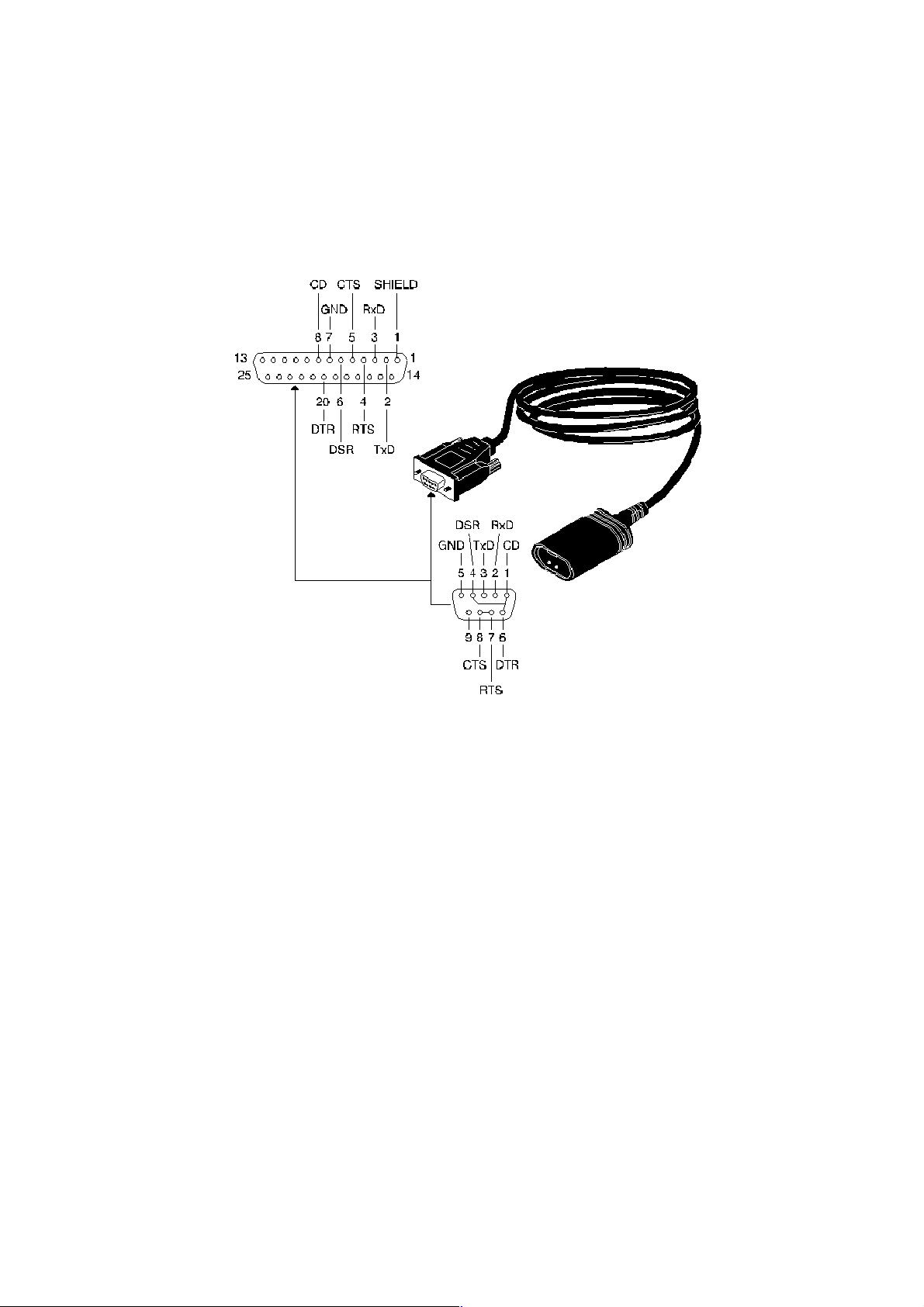

Interface Cable

SW90W Users Manual

39

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Warranty

LIMITED WARRANTY & LIMITATION OF LIABILITY

This Fluke product will be free from defects in material and
workmanship for three years from the date of purchase. This
warranty does not cover damage from accident, neglect, misuse
or abnormal conditions of operation or handling. Resellers are
not authorized to extend any other warranty on Fluke’s behalf.
To obtain service during the warranty period, send your defective
product to the nearest Fluke Authorized Service Center with a
description of the problem. Fluke warrants that software will
operate substantially in accordance with its functional
specifications for 90 days and that it has been properly recorded
on non-defective media. Fluke does not warrant that software
will be error free or operate without interruption.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER
WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT
LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM
ANY CAUSE OR THEORY.

Since some states or countries do not allow the exclusion or
limitation of an implied warranty or of incidental or consequential
damages, this limitation of liability may not apply to you.

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

40

Index

A

Active Waveform ..............................................................................24

Analyzing Waveforms.......................................................................18

Automatic Spectrum Updates...........................................................26

B

Bitmap-graphics.................................................................................. 7

C

Cable

RS-232..........................................................................................39

Colors ...........................................................13, 16, 19, 23, 24, 29, 32

COM Port............................................................................................3

Continuous Waveform and Spectrum Updates................................ 27

Continuous waveform update(s) ................................................ 27, 28

Crest-factor.......................................................................................25

Cursor Values.......................................................................20, 25, 30

Cursors ................................................................................. 19, 24, 29

D

Datablock...................................................... 19, 20, 24, 25, 29, 30, 32

DC ..............................................................................................24, 25

Description.................................................... 13, 16, 19, 23, 24, 29, 32

Document .........................................................................................17

F

FFT-Spectrum ..................................................................................24

Fundamental Frequency................................................................... 25

FVF File ............................................................................................36

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

41

G

Graphics............................................................................................. 7

Graphing Readings .......................................................................... 28

H

Help.................................................................................................... 4

I

Installing FlukeView ........................................................................... 1

Instrument Screen........................................................................ 7, 13

Instrument Setup........................................................................ 10, 32

Interface Cable................................................................................. 39

Interface Specifications .................................................................... 38

K

K-factor............................................................................................. 25

L

Logging Readings ............................................................................ 28

M

Meta-graphics .................................................................................... 8

More Windows on a Page ................................................................ 34

Multiple readings in one window ...................................................... 28

Multiple Transfers................................................................. 13, 19, 26

O

Online Help ........................................................................................ 4

Overwrite Existing Window ........................................................ 27, 28

SW90W Users Manual

42

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

P

Peak .................................................................................................25

Print Preview.....................................................................................34

Print Setup........................................................................................34

Printing Windows..............................................................................34

Print-Preview Window ......................................................................34

R

Ratio 4:3 ...........................................................................................15

Read Instrument Setups...................................................................32

Readings ......................................................................................9, 28

Readings Window ............................................................................ 30

Replay screens.................................................................................15

Replay waveforms ............................................................................ 22

RMS..................................................................................................25

RS-232 Cable ...................................................................................39

S

Saving Windows to a File .................................................................36

Scaling........................................................................................21, 24

Screen ..........................................................................................7, 13

Screen Window ................................................................................14

Selection Window .............................................................................36

Send Instrument Setups ...................................................................32

Serial Cable ......................................................................................39

Setup ..........................................................................................10, 32

Setup Window ..................................................................................32

Spectrum ..........................................................................................24

Spectrum Window ............................................................................25

Spreadsheet .....................................................................................31

T

Test Report.......................................................................................11

THDf .................................................................................................25

THDr .................................................................................................25

Titles .............................................................13, 16, 19, 23, 24, 29, 32

Tools.................................................................................................24

Type of Readings .............................................................................28

SW90W Users Manual

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

43

V

Vector-graphics .................................................................................. 8

View - Active Waveform ................................................................... 24

View - Replay ............................................................................. 16, 23

W

Waveform............................................................................... 8, 18, 28

Waveform Window........................................................................... 20

What’s This help ................................................................................ 4

Window

Waveform ..................................................................................... 20

Window

Print Preview ................................................................................ 34

Readings ...................................................................................... 30

Screen .......................................................................................... 14

Selection....................................................................................... 36

Setup ............................................................................................ 32

Spectrum ...................................................................................... 25

Wordprocessor................................................................................. 17

Worksheet........................................................................................ 31

X

X At 0% ...................................................................................... 20, 30

X Scale....................................................................................... 20, 30

X Size......................................................................................... 20, 30

Y

Y At 50% .................................................................................... 20, 30

Y Scale....................................................................................... 20, 30

Z

Zooming ........................................................................................... 21

SW90W Users Manual

44

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
