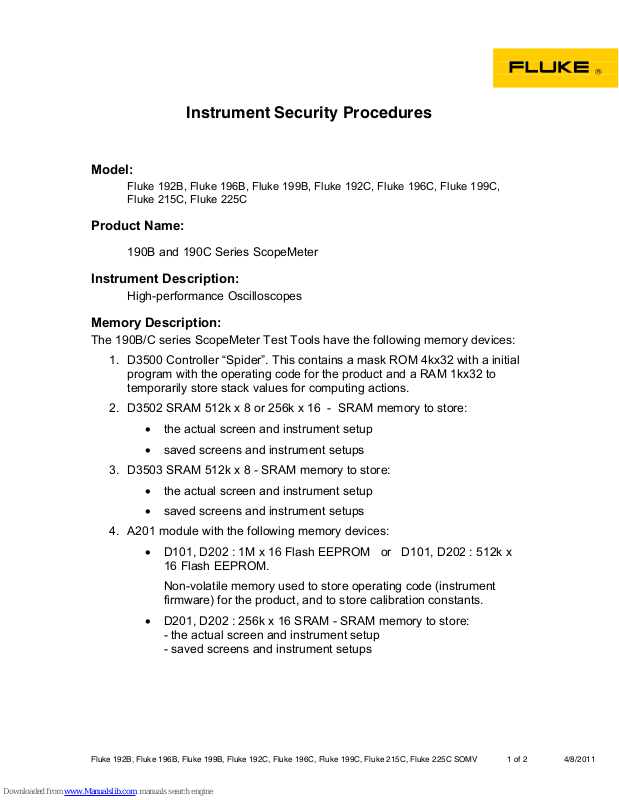

Instrument Security Procedures

Model:

Fluke 192B, Fluke 196B, Fluke 199B, Fluke 192C, Fluke 196C, Fluke 199C,
Fluke 215C, Fluke 225C

Product Name:

190B and 190C Series ScopeMeter

Instrument Description:

High-performance Oscilloscopes

Memory Description:

The 190B/C series ScopeMeter Test Tools have the following memory devices:

1. D3500 Controller “Spider”. This contains a mask ROM 4kx32 with a initial
program with the operating code for the product and a RAM 1kx32 to
temporarily store stack values for computing actions.

2. D3502 SRAM 512k x 8 or 256k x 16 - SRAM memory to store:

• the actual screen and instrument setup

• saved screens and instrument setups

3. D3503 SRAM 512k x 8 - SRAM memory to store:

• the actual screen and instrument setup

• saved screens and instrument setups

4. A201 module with the following memory devices:

• D101, D202 : 1M x 16 Flash EEPROM or D101, D202 : 512k x

16 Flash EEPROM.

Non-volatile memory used to store operating code (instrument
firmware) for the product, and to store calibration constants.

• D201, D202 : 256k x 16 SRAM - SRAM memory to store:

- the actual screen and instrument setup

- saved screens and instrument setups

Fluke 192B, Fluke 196B, Fluke 199B, Fluke 192C, Fluke 196C, Fluke 199C, Fluke 215C, Fluke 225C SOMV 1 of 2 4/8/2011

Security Summary:

The operating code (instrument firmware) stored in D101-D102 on the A201
module can be read using special remote interface commands. The instrument
firmware can be loaded using a dedicated Fluke software program.

Calibration constants stored in D101-D102 on the A201 module can be read
using special remote interface commands. The calibration constants are
generated when the meter is sent through its calibration process and are
fundamental to the test tool operation.

Memory Cleaning Instructions:

The procedure to clear all saved screens and instrument set-ups differs per the
firmware version held in the ScopeMeter Test Tool. The version can be read by
pressing ‘USER’, then ‘F3 = VERSION & CAL’.

Firmware releases up to and

including V6.xx

1. Press the SAVE_PRINT button

2. Push the softkey F1 = SAVE

3. Push the softkey F3 = DELETE ALL

4. Press the softkey F4 = YES

Firmware release V7.00 and beyond

1. Press the USER key

2. Press F1 = OPTIONS

3. Move the cursor to the field ‘Factory
Default’

4. Press F4 = ENTER to confirm this
selection

5. Press F4 = YES

The effectiveness of either of these procedures can be verified by checking the
status of the memories:

1. Press the SAVE_PRINT button

2. Press F1 = SAVE

The memory contents will show as ‘0 memory locations used’ or with all memory
number fields unfilled, confirming that all memories have been erased as
intended.

For all instrument versions mentioned and independent of the firmware release
that is installed, the test tool will also lose all data stored in SRAM in case the
instrument is not powered through its Power Adapter/Battery Charger and the
battery is removed for 10 minutes or longer.
