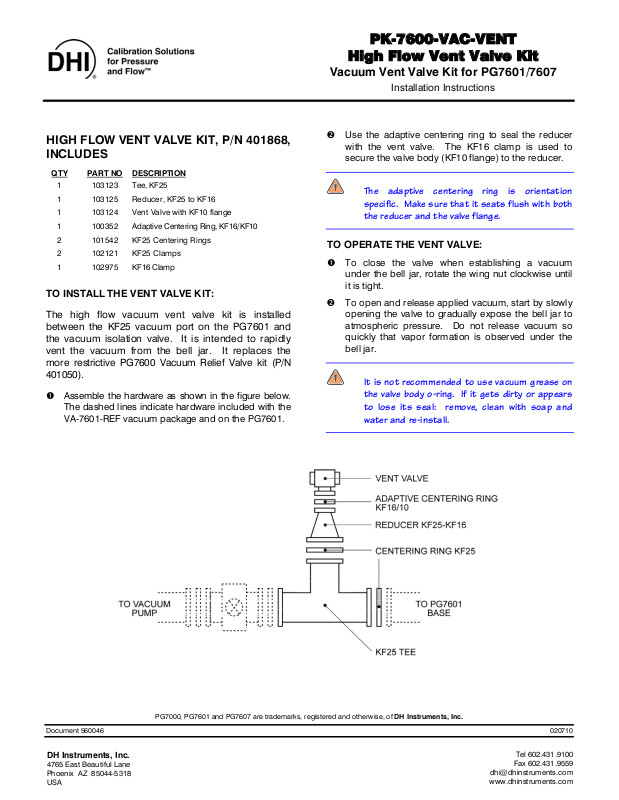

Fluke PK-7600-VAC-VENT Installation Instructions

PK-7600-VAC-VENT

High Flow Vent Valve Kit

Vacuum Vent Valve Kit for PG7601/7607

Installation Instructions

HIGH FLOW VENT VALVE KIT, P/N 401868,
INCLUDES

QTY PART NO DESCRIPTION

1 103123 Tee, KF25

1 103125 Reducer, KF25 to KF16

1 103124 Vent Valve with KF10 flange

1 100352 Adaptive Centering Ring, KF16/KF10

2 101542 KF25 Centering Rings

2 102121 KF25 Clamps

1 102975 KF16 Clamp

TO INSTALL THE VENT VALVE KIT:

The high flow vacuum vent valve kit is installed
between the KF25 vacuum port on the PG7601 and
the vacuum isolation valve. It is intended to rapidly
vent the vacuum from the bell jar. It replaces the
more restrictive PG7600 Vacuum Relief Valve kit (P/N

401050).

n Assemble the hardware as shown in the figure below.

The dashed lines indicate hardware included with the
VA-7601-REF vacuum package and on the PG7601.

Use the adaptive centering ring to seal the reducer

with the vent valve. The KF16 clamp is used to
secure the valve body (KF10 flange) to the reducer.

The adaptive centering ring is orientation

specific. Make sure that it seats flush with both
the reducer and the valve flange.

TO OPERATE THE VENT VALVE:

n To close the valve when establishing a vacuum

under the bell jar, rotate the wing nut clockwise until
it is tight.

To open and release applied vacuum, start by slowly

opening the valve to gradually expose the bell jar to
atmospheric pressure. Do not release vacuum so
quickly that vapor formation is observed under the
bell jar.

It is not recommended to use vacuum grease on

the valve body o-ring. If it gets dirty or appears
to lose its seal: remove, clean with soap and
water and re-install.

PG7000, PG7601 and PG7607 are trademarks, registered and otherwise, of DH Instruments, Inc.

Document 560046 020710
