Pressure Calibrator

Introduction

The Fluke 718 Series Pressure Calibrators do the following:

• Calibrate P/I (pressure to current) transmitters

• Measure pressure via a 1/8-inch NPT pressure fitting

and an internal pressure sensor or via a Fluke 700 Series Pressure Module

Source pressure

•

• Measure current up to 24 mA

• Simultaneously display pressure and current

measurements.

• Supply loop voltage

• Calculate mA percentage in Percent Mode

• Calculate mA error % in Percent Error Mode

The 718 Pressure Calibrators (hereafter, “the Calibrator”) include:

• 718 1G

• 718 30G

• 718 100G

• 718 300G

The Calibrator makes 5-digit pressure readings in the following units: psi, inH cmH2O at 4 °C, cmH2O at 20 °C, bar, mbar, kg/cm2, inHg, and mmHg.

Pressure sensor specifications are as listed under “Pressure Sensor Input”.

The Calibrator measures pressure sensor inputs in the units shown in Table 1.

For pressure modules, full scale readings for all pressure ranges can be made in psi, kPa, and inHg units. To avoid display overflow, full scale readings are limited to 1000 psi in cmH2O, mbar, and mmHg units, and 3000 psi in inH2O units. Pressures of at least 15 psi must be measured for meaningful readings in bar and kg/cm2 units.

Your Calibrator is supplied with a holster, two installed 9 V alkaline batteries, one set of TL75 test leads, one set of AC70A alligator clips, one 700-ILF In-Line Filter (to protect the pump), a Product Overview Manual, and a CD-Rom.

If the Calibrator is damaged or something is missing, contact the place of purchase immediately. Contact your Fluke distributor for information about accessories. See

O at 4 °C, inH2O at 20 °C, kPa,

Page 10

718 Series Users Manual

“How to Contact Fluke.” To order replacement parts or spares, see “Parts and Accessories.”

Table 1. Input Units

Displayed Pressure Units

psi inH2O at 4°C inH2O at 20°C cmH2O at 4°C cmH2O at 20°C bar mbar kPa inHg mmHg kg/cm2

Safety Information

Use the Calibrator only as specified in this Users Manual, otherwise the protection provided by the Calibrator may be impaired.

A Warning identifies conditions and actions that pose hazard(s) to the user; a Caution identifies conditions and actions that may damage the Calibrator or the equipment under test.

Page 11

Pressure Calibrator Safety Information

Table 2. Safety Information

XW Warning

To avoid possible electric shock or personal injury:

• Never apply more than 30 V between the mA terminals, or between either of the mA terminals and earth

ground.

• Do not use the Calibrator to make measurements in a CAT II, CAT III, or a CAT IV environment.

CAT I equipment is designed to protect against transient from high-voltage, low-energy sources, such as electronic circuits or a copy machine

• Remove the test leads from the Calibrator before you open the battery door.

• Make sure the battery door is closed and latched before you operate the Calibrator.

• Do not operate the Calibrator if it is damaged.

• Do not operate the Calibrator around explosive gas, vapor, or dust.

• When using probes, keep fingers behind the finger guards on the probes.

• Use only two 9 V batteries, properly installed in the Calibrator case, to power the Calibrator.

• Follow all equipment safety procedures.

• Turn off circuit power before connecting the Calibrator mA and COM terminals in the circuit. Place

Calibrator in series with the circuit.

• When servicing the Calibrator, use only specified replacement parts.

• Do not allow water inside the case.

Page 12

718 Series Users Manual

Table 2. Safety Information (cont.)

XW Warning

• To avoid false readings, which could lead to possible electric shock or personal injury, replace the

battery as soon as the battery indicator

• To avoid a violent release of pressure in a pressurized system, shut off the valve and slowly bleed off

the pressure before you attach or detach the internal pressure sensor or pressure module fitting to the pressure line.

• To avoid over pressure damages, do not apply pressure that exceeds the limits listed in the Pressure

Specifications table in the “Specifications” section.

• To avoid mechanically damaging the Calibrator, do not apply torque between the pressure fitting and

the Calibrator case. See Figure 1 for the proper use of tools.

• To avoid misleading readings, disconnect the pressure module connector at the Calibrator.

• To avoid damage to the pressure module, refer to the related Instruction Sheet.

• To avoid damage to the pump, use with dry air and non-corrosive gases only. Check test leads for

continuity before using. Inspect Calibrator for cracks or damage, do not use the probes if they are damaged or show high resistance.

appears.

Page 13

Pressure Calibrator Safety Information

Table 3. International Electrical Symbols

Symbol Meaning

Earth ground

Fuse

Battery

Refer to this instruction sheet for information about this feature.

Hazardous voltage. Risk of electric shock.

Double insulated

Conforms to relevant Canadian Standards Association directives.

Conforms to relevant European Union directives

Pressure

Hold in

fixed

position

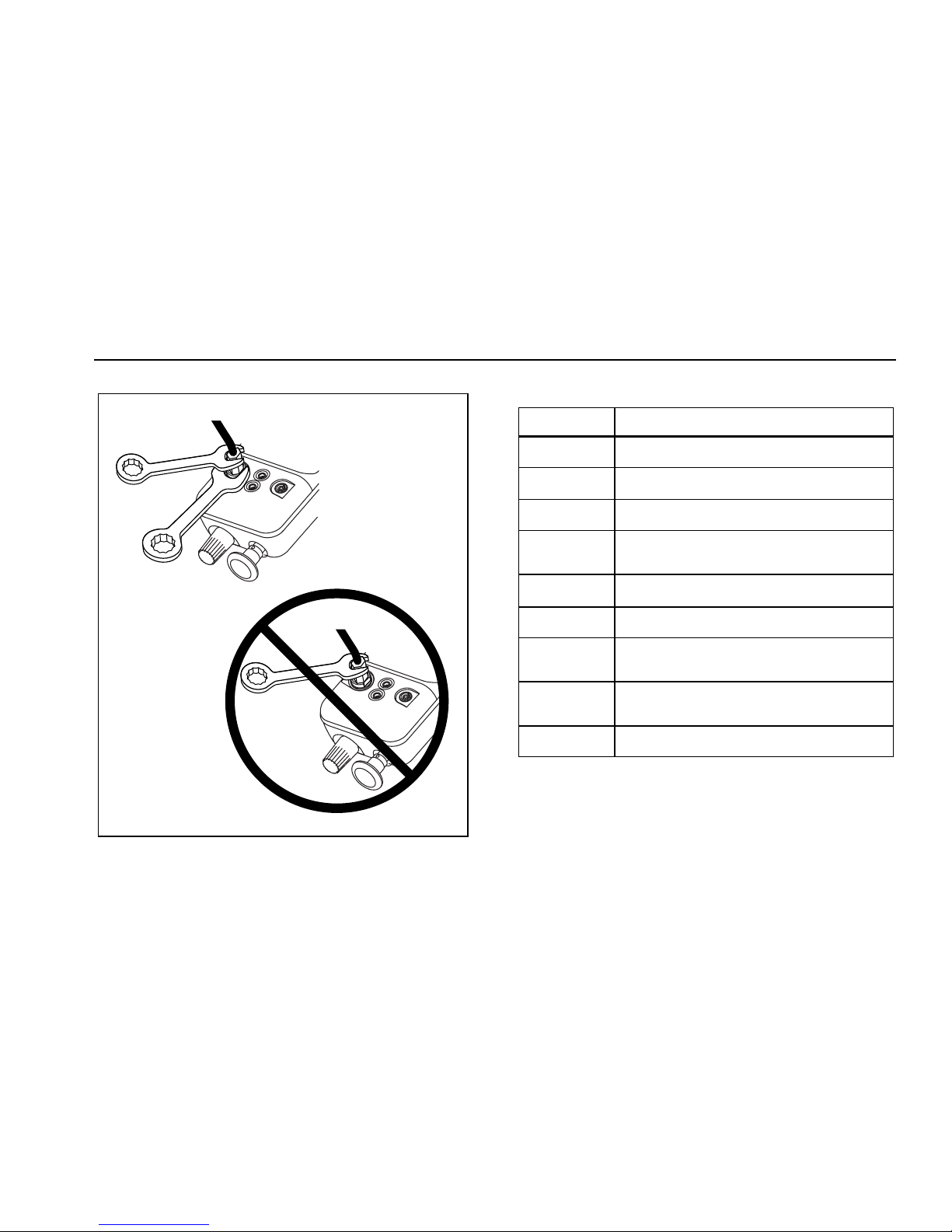

Figure 1. Connection Technique

wh001f.eps

J I M

)

Page 14

718 Series Users Manual

Getting Acquainted with the Calibrator

Press O to turn the Calibrator on and off. The Calibrator displays pressure and current measurements simultaneously. See Figure 2.

The upper part of the display shows the applied pressure or vacuum. (Vacuum is shown as a negative value.) Press

to select a different unit. When you cycle the power

off and on, the Calibrator retains the unit you last used. The lower part of the display shows the current (up to 24

mA) applied to the current (mA) inputs. To source loop voltage, press

U while pressing O on.

Pushbutton operation is described in Table 4. Pump features are shown in Figure 3 and described in Table 5.

Power Saver

The Calibrator automatically turns off after 30 minutes of inactivity. To reduce this time or disable this feature:

1. With the Calibrator OFF, press

2. P.S. xx is displayed, where xx is the turn-off time in minutes. OFF means the power saver is disabled.

3. Press

h (W) to decrease or a(X) to increase

the turn-off time.

4. To disable, press

h until the display shows OFF.

The Calibrator resumes normal operation after 2 seconds.

Current mA

measurement

On/Off Button

(Install filter here)

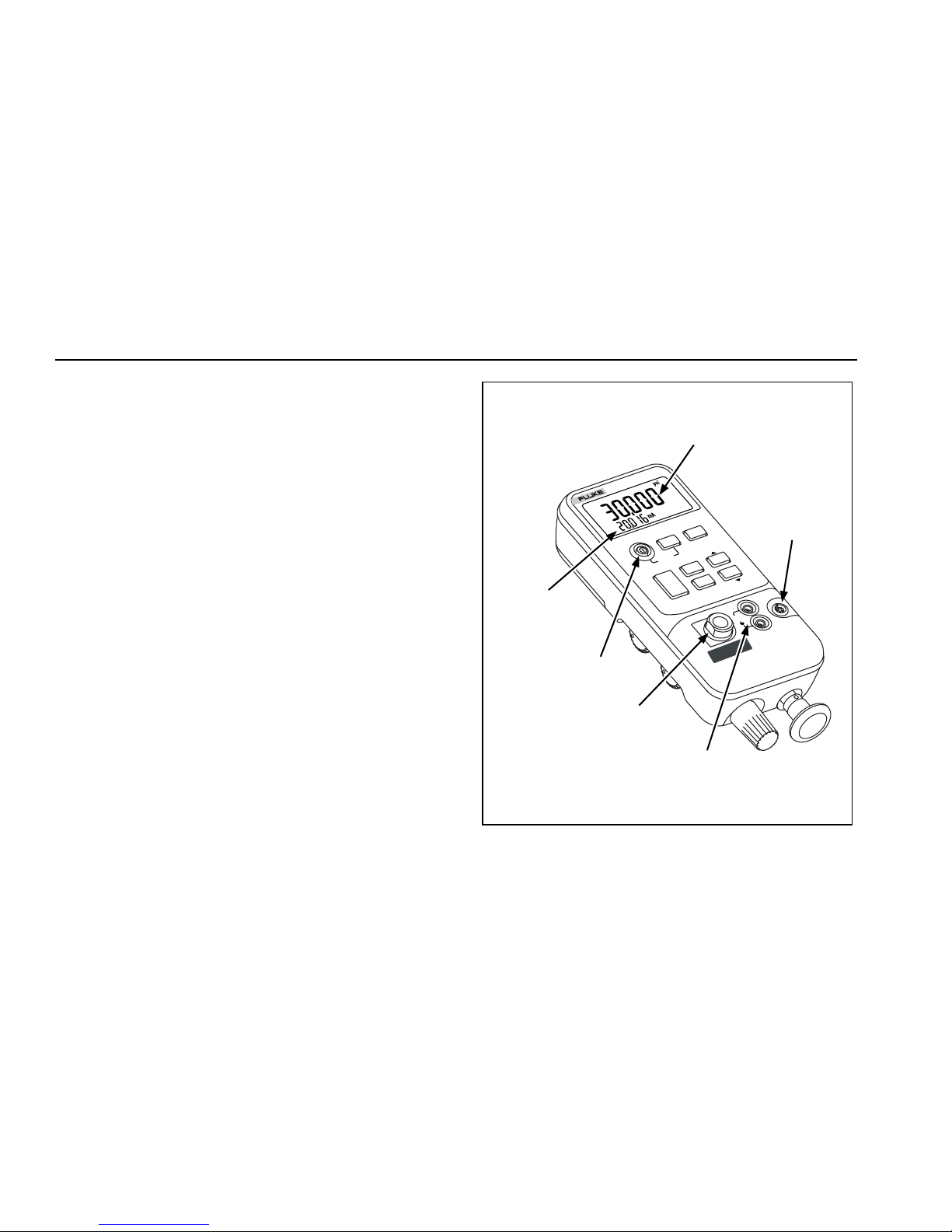

Figure 2. Front Panel Features

PRESSURE

CALIBRATOR

718

HOLD

Pressure

sensor input

Pressure

measurement

DAMP

UNITS

ENTER

MIN

MAX

SWITCH

TEST

RANGE

0-30psi 0-206kPa

RANGE

mA MODE

MAX 5 PSI 34.5

LOOP POWER

ZERO

Current

input

HOLD

-1 O 1 PSI

-7 O 7 kP

30V

MAX

Pressure

module input

COM

wh005f.eps

Page 15

Pressure Calibrator Getting Acquainted with the Calibrator

Table 4. Pushbutton Functions

Pushbutton Description

Press to select a different pressure unit. All units are available when the pressure sensor input is used. For

higher pressure module inputs, inappropriate (out-of-range) units are not available. Press pressing

to source loop voltage.

on while

Turns pressure reading damping on and off. With damping on, the Calibrator averages several measurements before displaying a reading. Press to confirm selection of 0% and 100% output parameters.

Press to zero the pressure display. Vent pressure to atmosphere before you press this pushbutton. With an Absolute Pressure Module, see special instructions below.

Press to read the minimum pressure and current readings since power was turned on or the registers were cleared. Press again to read the maximum pressure and current readings since power was turned on. Press and hold for 3 seconds to clear the MIN/MAX registers.

Press to perform switch test.

Press to toggle the mA display mode between mA, mA Percent, and mA Percent Error.

Press normal operation.

to freeze the display. The

symbol appears on the display. Press

again to resume

ENTER

Page 16

718 Series Users Manual

Switch Test

To perform a switch test, do the following:

Note

This example uses a normally closed switch. The procedure is the same for an open switch but the display reads OPEN instead of CLOSE.

1. Connect the Calibrator mA and COM terminals to the switch using the pressure switch terminals and connect an external pump between the Calibrator and the pressure switch. The polarity of the terminals does not matter.

Note

If using an external pump, connect the pump to the Calibrator and to the input of the switch using a tee fitting.

2. Make sure the vent on the pump is open and zero the Calibrator if necessary. Close the vent after zeroing the Calibrator.

3. Press

4. Apply pressure with the pump slowly until the switch

5. OPEN is displayed once the switch is open. Bleed the

6. Press

Hold any other key for 3 seconds to exit.

S to enter pressure switch test mode. The

Calibrator will display CLOSE instead of a mA measurement.

opens.

Note

In the switch test mode, the display update rate is increased to help capture changing pressure inputs. Even with the enhanced sample rate, pressuring the device under test should be done slowly to ensure accurate readings.

pump slowly until the pressure switch closes. RCL appears on the display.

S to read the pressure values for when the

swith opened, for when it closed, and for the deadband

S for 3 seconds to reset Switch Test mode; hold

Page 17

Pressure Calibrator Zeroing with Absolute Pressure Modules

Zeroing with Absolute Pressure Modules

For zeroing, adjust the Calibrator to read a known pressure. This can be barometric pressure, if it is accurately known, for all but the 700PA3 module. An accurate pressure standard can also apply a pressure within range for any Absolute Pressure Module. Adjust the Calibrator reading as follows:

1. Press and hold

2. Press

a(Z) to increase or

(Y) to decrease

the Calibrator reading to equal the applied pressure.

3. Release Press the

U button to convert to any convenient

to exit the zeroing procedure.

measurement display unit.

ZERO

Pressure/

Vacuum

Switch

Pressure/Vacuum

Release

Control

MIN MAX

SWITCH

TEST

RANGE

0-30psi 0-206kPa

RANGE

MODE

HOLD

30V

MAX

O 1 PSI

-7 O 7 kP

MAX 5 PSI

Fine

Adjustment

Knob

COM

Internal Pump

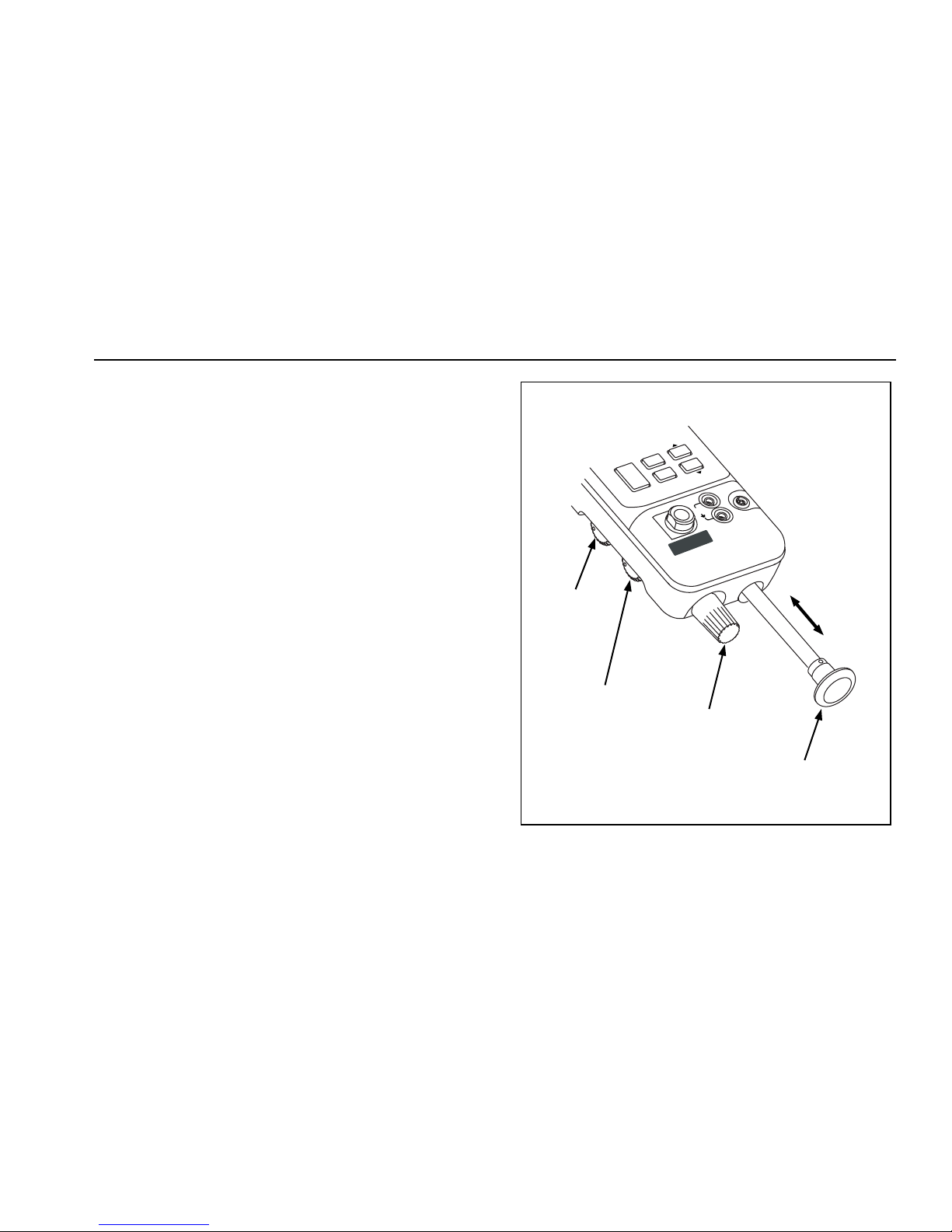

Figure 3. Pump Features

wh009f.eps

Page 18

718 Series Users Manual

Table 5. Pump Features

Item Description

Pressure Vacuum Switch

Pressure Vacuum Release Valve

Fine Adjustment Knob

Internal Pump

Rotate forward (clockwise) for pressure, backward (counter-clockwise) for vacuum.

Rotate fully backward (counterclockwise) to release all pressure or vacuum. (Rotate slightly for partial release.) Rotate fully forward (clockwise) to close valve.

Rotate either direction for precise adjustment of applied pressure or vacuum. Full rotation is about 30 turns.

Increase pressure on the inward stroke. In vacuum mode, decrease pressure on the outward stroke.

Calibrating a P/I Transmitter

To calibrate a P/I (pressure to current) transmitter, apply a pressure to the transmitter and measure the transmitter’s current loop output. You can apply pressure with the Calibrator’s internal pump or with an external pump.

XW Warning

To avoid a violent release of pressure or vacuum, always depressurize the system slowly using the pressure/vacuum release control before detaching any pressure line.

Using the Internal Pump

The internal pump can provide the rated pressure for all Model 718 Calibrators.

The preferred use for the internal pump is shown in Figure 4, where the Calibrator displays pressure measured with the internal sensor and provided by the internal pump.

The internal pump can also be used with certain Fluke 700 Series Pressure Modules. In this case, pressure measured by the Pressure Module is displayed by the Calibrator. Appropriate pressure modules for each Calibrator model are identified in Table 6 . Figure 5 shows the internal pump being used with a pressure module.

Page 19

Pressure Calibrator Calibrating a P/I Transmitter

XW Warning

If both a pressure module and the internal sensor are connected, the Calibrator displays ONLY the pressure module measurement.

To use the Calibrator’s internal pump, refer to Figure 3 and perform the following steps:

1. Depressurize and drain the line before connecting the Calibrator.

2. Connect the pressure transmitter to the Calibrator internal sensor as shown in Figure 4 (for internal pressure sensor measurements) or Figure 5 (for pressure module measurements.)

Note

To avoid leaks, use Teflon tape or similar sealant on all pressure connections.

3. Make sure the pressure/vacuum switch is in the desired position. Forward (clockwise) is for pressure; backward (counter-clockwise) is for vacuum.

4. Turn the pressure/vacuum release control backward (counter-clockwise) to vent pressure/vacuum from the pump.

6. Turn the fine adjustment knob to mid-range.

7. Turn the pressure/vacuum release control forward (clockwise) to close the release valve.

8. Work the pump handle in and out to apply incrementally larger pressure/vacuum changes. Shorten the stroke to apply smaller increments of pressure/vacuum change.

9. To make very small pressure/vacuum changes, use the fine adjustment knob.

Note

This knob adjusts a small internal reservoir to vary the total volume. With larger external pressure/vacuum volumes, this control will adjust pressure or vacuum within a smaller range.

10. Depressurize the system before disconnecting the pressure line.

5. Press

Z to zero the pressure display.

Page 20

718 Series Users Manual

PRESSURE

CALIBRATOR

718

HOLD

Black

DAMP

LOOP POWER

UNITS

ZERO

MIN

MAX

BAR

SWITCH

TEST

RANGE

0-30psi 0-206kPa

RANGE

mA MODE

MAX 5 PSI

ETR

IC AD

HOLD

O 1 PSI

-7 O 7 kP

30V

MAX

COM

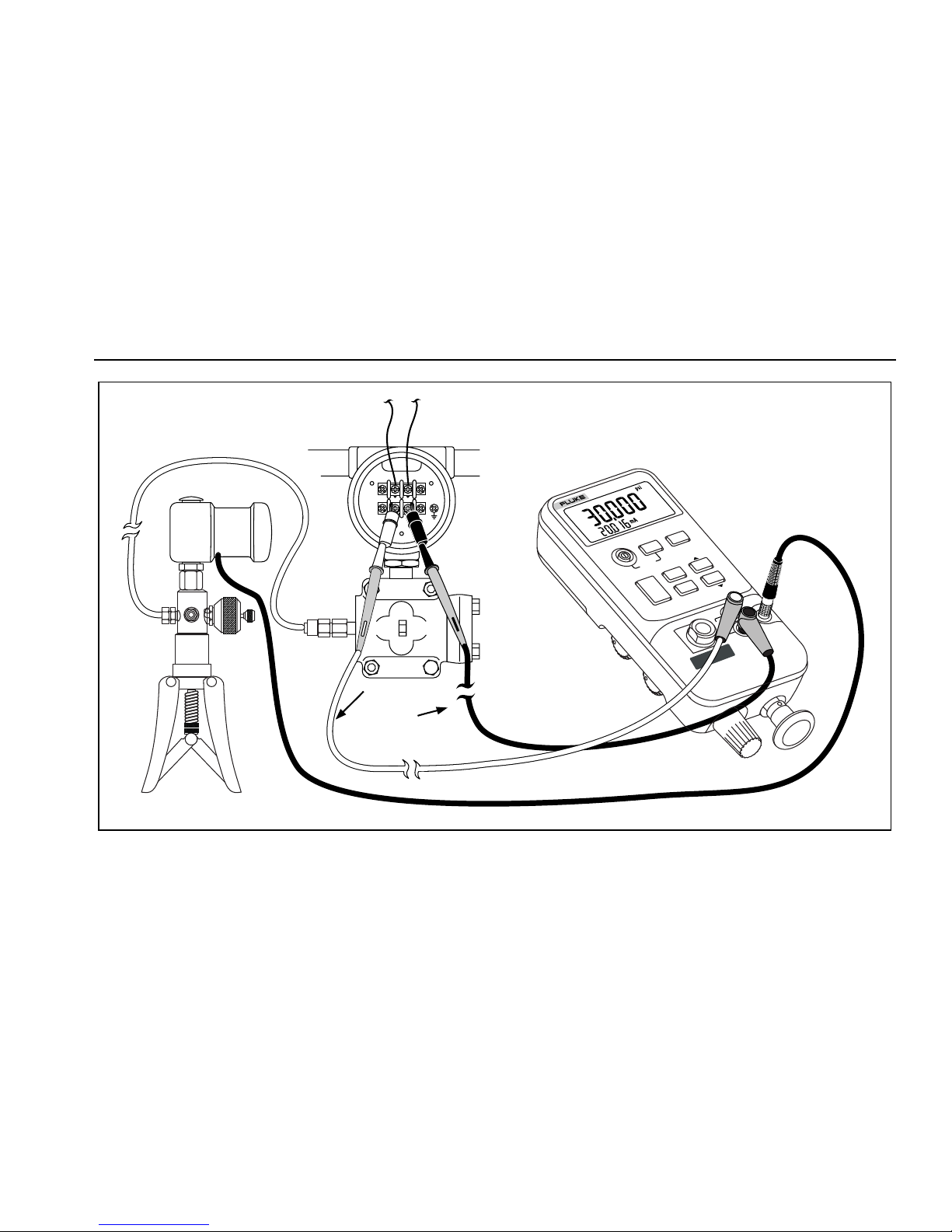

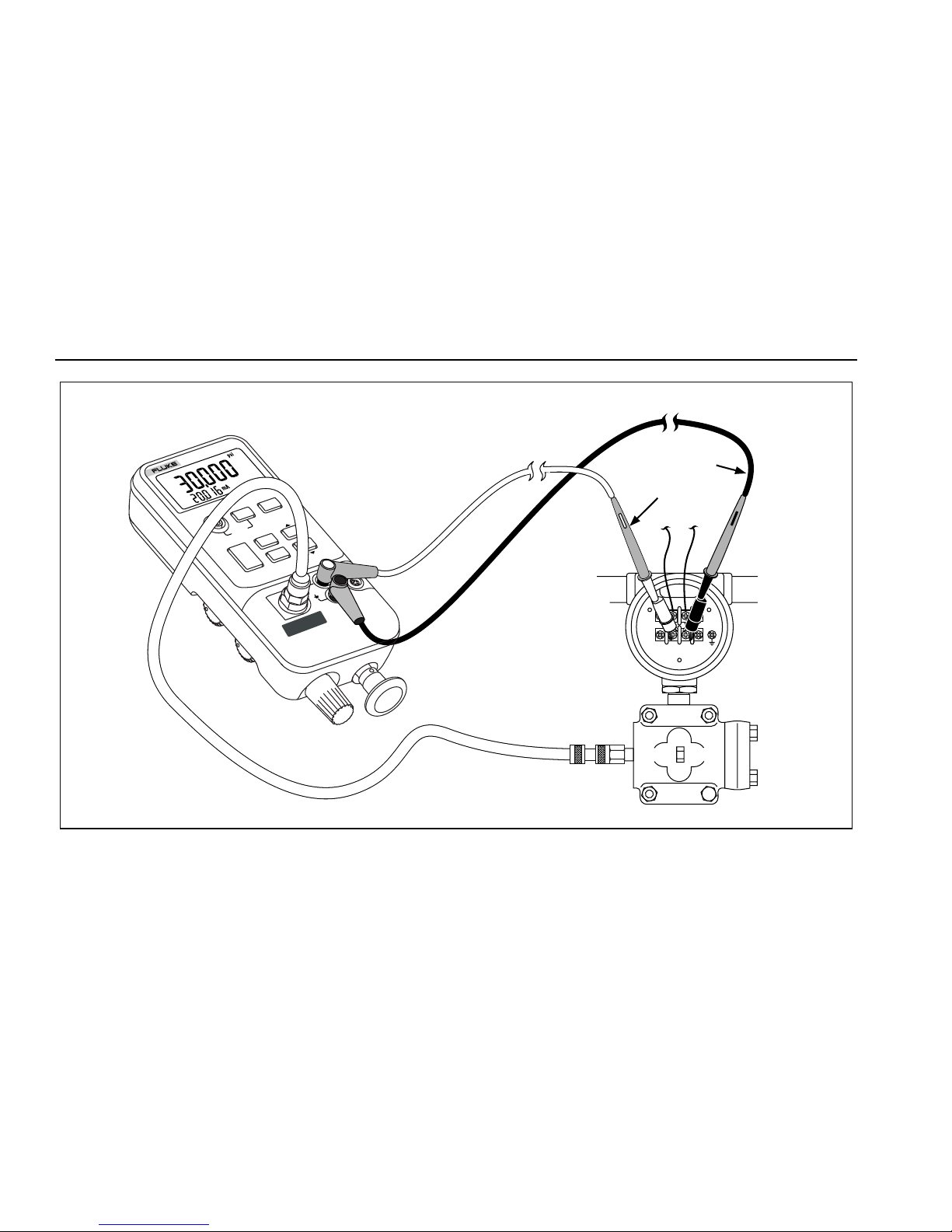

Figure 4. Internal Pressure Sensor with Internal Pump

Red

SIGNAL

TEST

–

wh002f.eps

Page 21

Pressure Calibrator Calibrating a P/I Transmitter

SIGNAL

718

PRESSURE

CALIBRATOR

HOLD

LOOP POWER

UNITS

ZERO

DAMP

MIN

MAX

SWITCH

TEST

RANGE

0-30psi 0-206kPa

RANGE

mA MODE

ETR

HOLD

-7 O 7 kP

MAX 5 PSI P

O 1 PSI

Pressure Module

30V

MAX

Red

Black

–

TEST

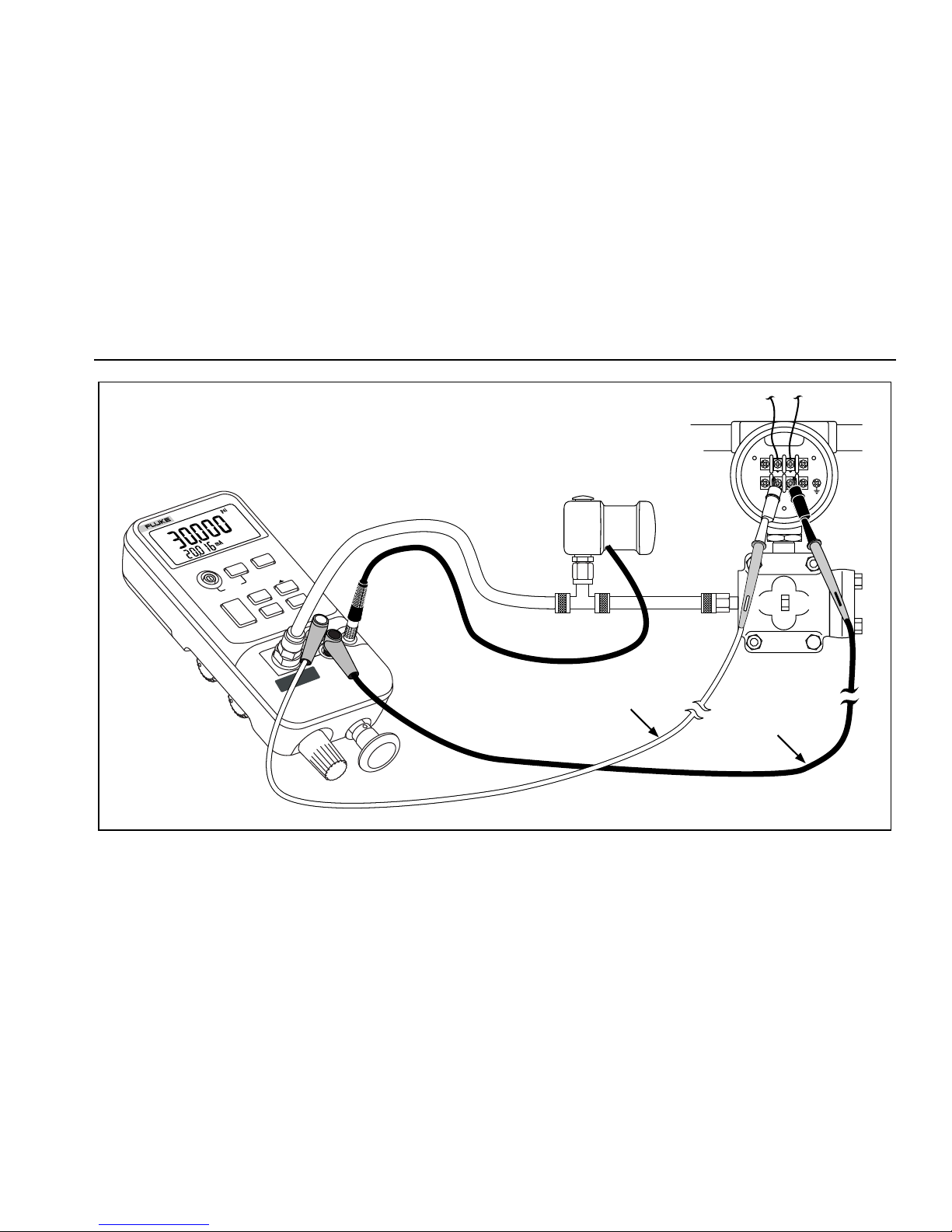

Figure 5. Pressure Module with Internal Pump

wh010f.eps

Page 22

718 Series Users Manual

Table 6. Recommended Pressure Modules

Pressure

Module

External

Pump

718

all models

718

Internal

718

30G

Pump

718

100G

700 P00 X X 700 P01 X X 700 P02 X X X X X 700 P22 X X X X X 700 P03 X X X X 700 P23 X X X X 700 P04 X X X X 700 P24 X X X X 700 P05 X X X X 700 P06 X X X 700 P27 X X 700 P07 X 700 P08 X 700 P09 X

718

300G

Pressure

Module

External

pump

All 718

models

718

Internal Pump

718

30G

718

100G

700 PA3 X X X X 700 PA4 X X X X 700 PA5 X X X X 700 PA6 X X X 700 PV3 X X X X 700 PV4 X X X X 700 PD2 X X X X X 700 PD3 X X X X 700 PD4 X X X X 700 PD5 X X X X 700 PD6 X X X 700 PD7 X X 700 D29 X 700 P30 X 700 P31 X

718

300G

Page 23

Pressure Calibrator Pump Valve Assembly Cleaning Instructions

Pump Valve Assembly Cleaning Instructions

1. Using a small screwdriver, remove the two valve retention caps located in the oval shaped opening on the underside of the Calibrator.

2. After the caps have been removed, gently remove the spring and o-ring assembly.

3. Set aside the valve assemblies in a safe area and clean out the valve body using a cotton swab soaked in IPA (isopropyl alcohol).

4. Repeat this process several times using a new cotton swab each time until there is no remaining sign of residue.

5. Pump the unit several times and check again for residue.

6. Clean the o-ring assembly and o-ring on the retention caps with IPA and inspect the o-rings closely for any cuts, nicks, or wear. Replace if needed.

7. Inspect the springs for wear or loss of tension. They should be approximately 8.6 mm long in the relaxed state. If they are shorter than this, they may not allow the o-ring to seat properly. Replace if needed.

8. Once all parts have been cleaned and inspected, reinstall the o-ring and spring assemblies into the valve body.

9. Reinstall the retention caps and gently tighten the cap.

10. Seal the output of the Calibrator and pump up the unit to at least 50 % its rated pressure.

11. Release the pressure and repeat several times to ensure that the o-rings seat properly.

The Calibrator is now ready for use.

Page 24

718 Series Users Manual

Using an External Pump

XW Warning

To avoid damage to the Calibrator and possible release of pressure, do not connect the internal sensor to an external pressure source that exceeds the maximum rated pressure.

To develop higher pressure or vacuum, use an external pump (such as the Fluke Model 700PTP). Use a Fluke Pressure Module connected to the pressure module input on the Calibrator. Pressure modules are listed in Table . Make overall connections as shown in Figure 6.

Refer to setup and operating instructions included with the pressure module and pump.

Page 25

Pressure Calibrator Using an External Pump

Pressure Module

SIGNAL

TEST

PRESSURE

CALIBRATOR

718

–

HOLD

DAMP

LOOP POWER

UNITS

ZERO

MIN

MAX

SWITCH

TEST

RANGE

0-30psi 0-206kPa

RANGE

mA MODE

ADJ.

ETRIC

HOLD

30V

MAX

O 1 PSI

O 7 kP

5 PSI

MAX

Red

Black

wh006f.eps

Figure 6. Pressure Module with External Pump

Page 26

718 Series Users Manual

External Fluke Pressure Module Compatibility

If inappropriate units are selected, the output of Fluke 700P Pressure Modules can cause the Calibrator display to overflow (OL), or displays values that are too low to be read. Refer to Table 7 for appropriate unit and range compatibility.

Table 7. Fluke Pressure Module Compatibility

Pressure Unit Module Compatibility

psi Available on all pressure ranges inH20 All ranges through 3000 psi cmH20 All ranges through 1000 psi bar 15 psi and above mbar All ranges through 1000 psi kPa Available on all pressure ranges inHg Available on all pressure ranges mmHg All ranges through 1000 psi kg/cm2 15 psi and above

Page 27

Pressure Calibrator Sourcing Loop Voltage

Sourcing Loop Voltage

The Calibrator can supply loop power at 24 V dc to a current transmitter that is disconnected from the system. Use the following procedure:

1. With power off, hold down on. The “Loop Power” icon appears in the display.

2. With the transmitter disconnected from normal loop power, connect the Calibrator mA (+) and COM (-) test leads in series with the instrument current loop as shown in Figure 7.

3. Measure loop current in the mA display.

4. Press

In addition to mA, the current can be displayed in two alternative modes:

• Percent Mode- The current is displayed as a

• Percent Error Mode- Transmitter current output error

1. Measure loop current in the mA measurement display.

2. Press

O off to deactivate the 24 V dc supply when

you are done sourcing loop voltage.

percentage based on a 4-20 mA scale.

is displayed. Error is calculated based on a configurable zero and span pressure and a 4-20 mA scale.

O OFF to deactivate the 24 V dc supply when

you are done sourcing loop voltage.

while pressing O

Percent Error Setup

Press and hold a. After 3 seconds the set icon and 0% appears on the lower display. Use WandXto adjust the 0% point for the Percent Error calculation, then press

D(ENTER) key to confirm selection. Press a. 100%

is displayed on the lower display. Use WandXto adjust the 100% point for the Percent Error calculation. Press

D(ENTER) to confirm the selection and to exit.

SIGNAL

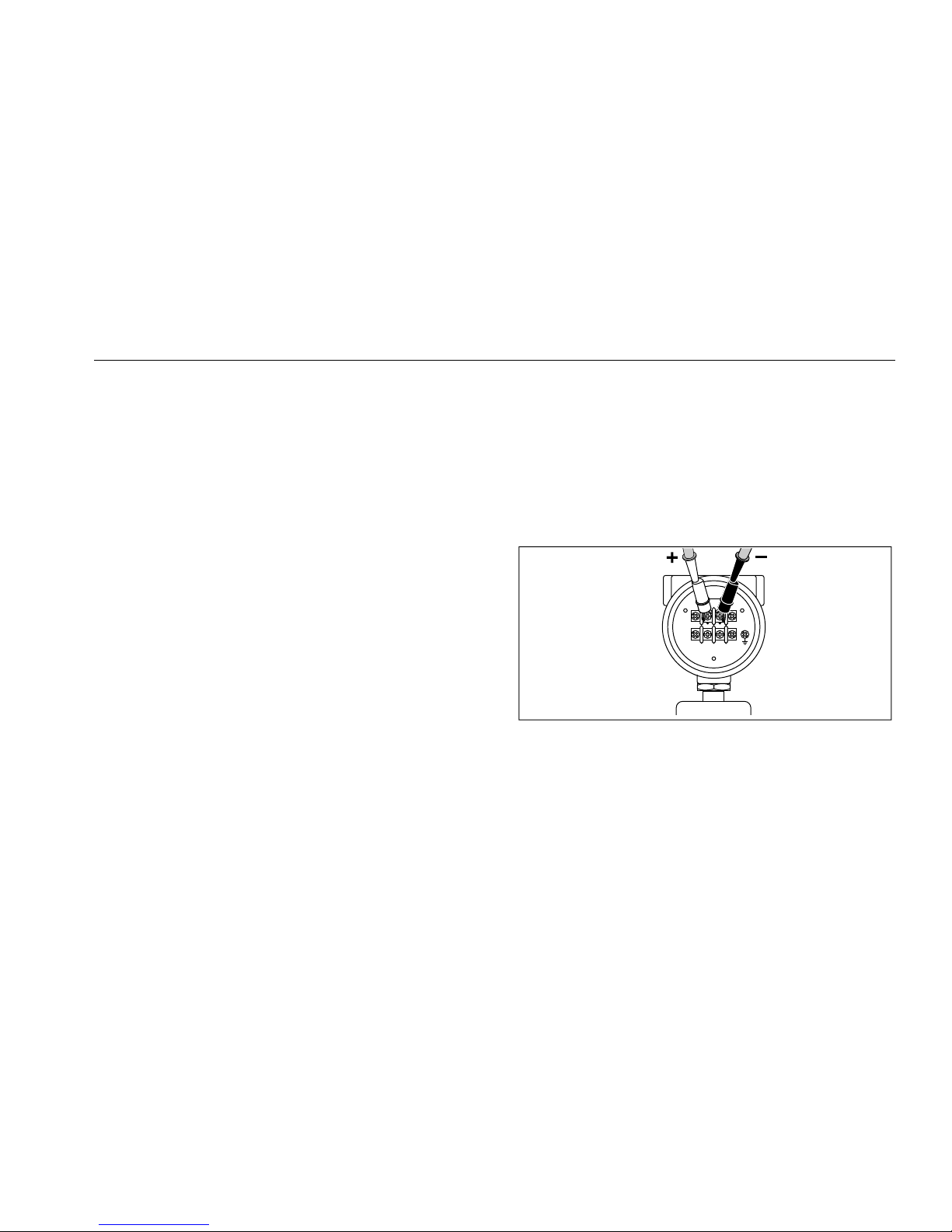

Figure 7. Sourcing Loop Voltage

–

TEST

qo007f.eps

Page 28

718 Series Users Manual

Maintenance

XWWarning

To avoid possible electric shock, personal injury, or sudden release of pressure, review “Safety Information” earlier in this manual before proceeding.

Remove test leads before opening.

For maintenance procedures not described in this instruction sheet, or if the Calibrator needs repair, contact a Fluke Service Center.

In Case of Difficulty

• Check the battery, test leads, pressure module, and

pressure tubing. Follow replacement and connection instructions properly.

• Review this instruction sheet to make sure you are

using the Calibrator correctly.

If the Calibrator needs repair, and the Calibrator is under warranty, see the warranty statement for terms. If the warranty has lapsed, the Calibrator can be repaired and returned for a fixed fee.

Cleaning

Periodically wipe the case with a damp cloth and detergent; do not use abrasives or solvents.

Calibration

Fluke recommends that you calibrate your Calibrator once a year to ensure that it performs according to its specifications. A calibration manual is available (PN

686540). Call 1-800-526-4731 from the U.S.A. and Canada. In other countries, contact a Fluke Service Center.

Page 29

Pressure Calibrator Maintenance

Replacing the Batteries

When the the two 9 V alkaline batteries. Refer to Figure 8.

symbol appears on the display, replace

XW Warning

To avoid false readings, which could lead to possible electric shock or personal injury, replace the batteries as soon as the battery indicator

appears.

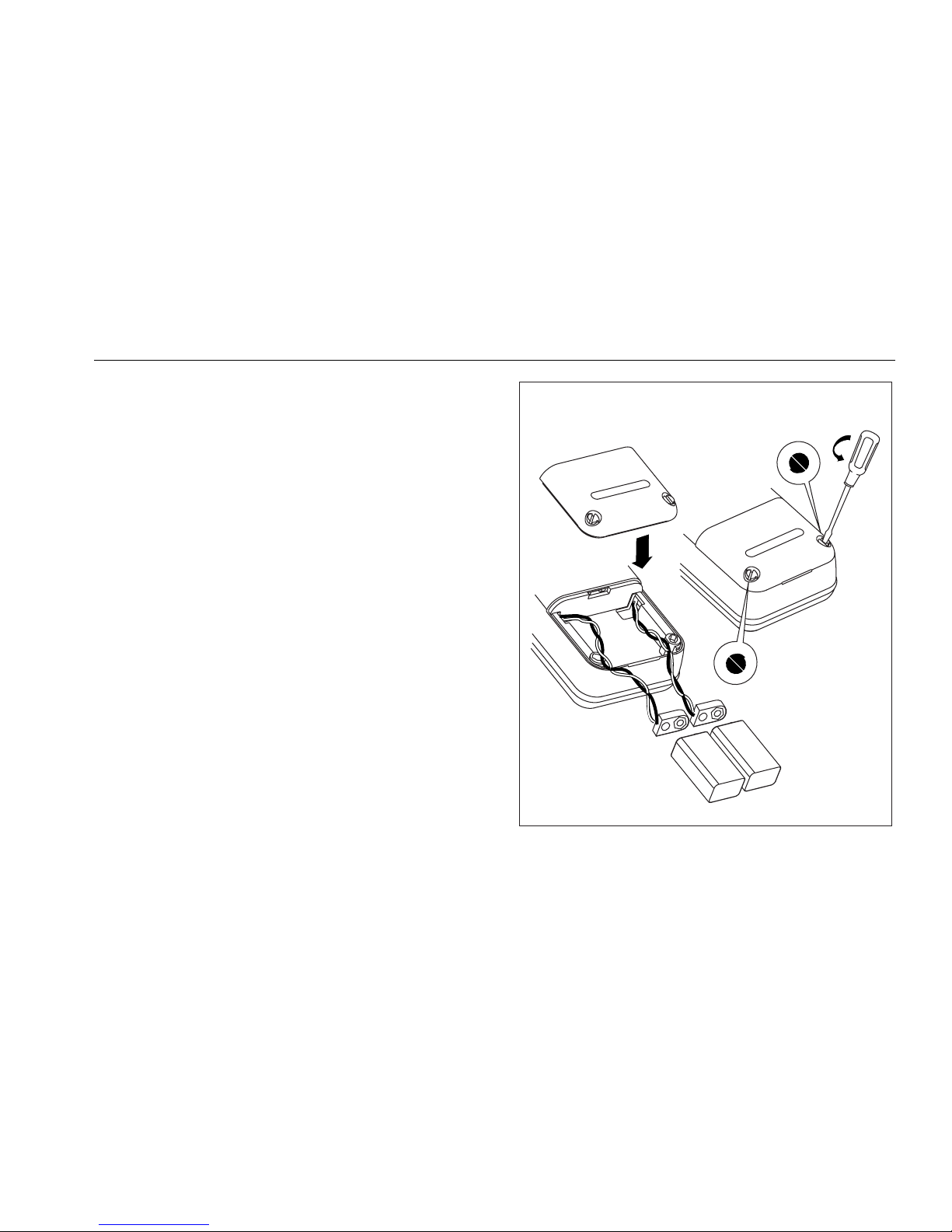

Figure 8. Battery Replacement

wh008f.eps

Page 30

718 Series Users Manual

Parts and Accessories

Refer to Table 8 and Figure 9.

Table 8. Replacement Parts

Item Description Part/ Mod. No. Qty

AC72

BT1, BT2 9 V battery, ANSI/NEDA 1604A or IEC 6LR61 614487 2 Holster Holster, Yellow 664182 1 H2, 3, 4 Case screw 832246 3 H5, 6 Battery door fasteners 948609 2 H7, 8 Bracket screw 641131 2 MP1 LCD bezel, 718 30G 664158 1 MP1 LCD bezel, 718 100G 664169 1 MP1 LCD bezel, 718 1G 2545047 1 MP1 LCD bezel, 718 300G 2545058 1 MP2 LCD 686482 1 MP3, 4 Pump retainer bracket 664201 2 MP5 Gasket 664208 1

MP6

MP7, 8 Selector knob 664193 2 MP9 Vernier adjust knob 664190 1

Alligator clip red Alligator clip black

1G pump 2571725 1 30G, 100G and 300G pump 2558508 1

1670641 1670652

1 1

Page 31

Pressure Calibrator Parts and Accessories

Table 8. Replacement Parts (cont.)

Item Description Part/ Mod. No. Qty

MP10 Pump handle knob 664185 1 MP11, 12, 13 O-ring 146688 3 MP14 Spacer 687449 1 MP85 Case top/connector, 718 1G, 30G, 100G, 300G 2546299 1 MP86 Case bottom 664174 1 MP89, 90 Non-skid foot 885884 2 MP92 Battery door 664177 1 S1 Keypad 2113087 1 TL20 Industrial test lead set 1639457 Opt TL75 Test lead set 855742 1 TM1 718 Product Overview Manual 1549632 1

- 718 CD-ROM (contains Users Manual) 1574463 1

- 71X Series Calibration Manual 686540 Opt

- Pump (with cleanout) rebuild kit 2553919 Opt

718 1G Top Case Decal 2546993 1 718 30G Top Case Decal 2547000 1 718 100G Top Case Decal 2547017 1 718 300G Top Case Decal 2547021 1

Page 32

718 Series Users Manual

MP11,12,13

MP7

MP8

MP86

MP9

MP10

H2,3,4

MP85

MP5

MP1

MP2

Holster

MP14

H7,8

MP3,4

MP6

TMI

BT1

BT2

MP92

H5,6

MP89,90

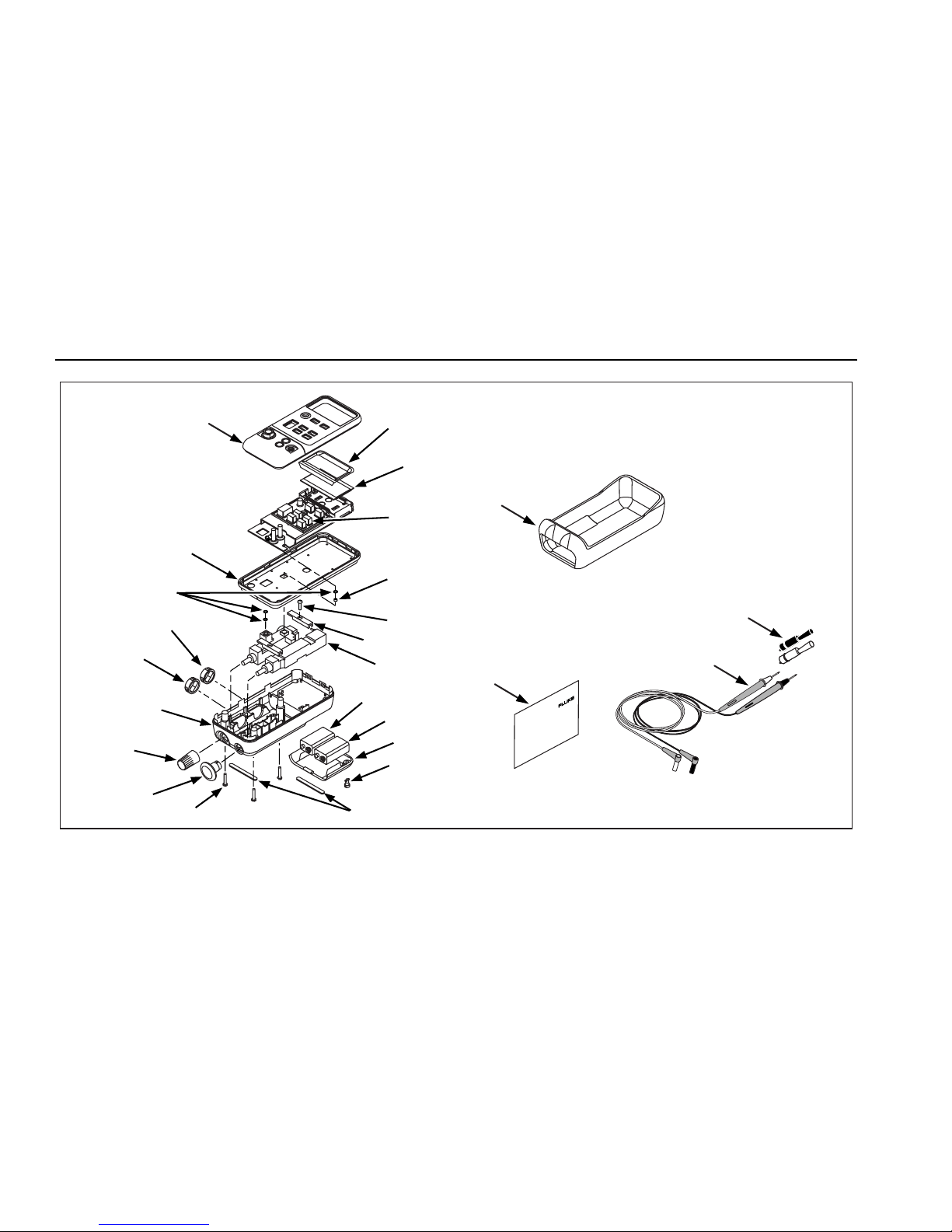

Figure 9. Replacement Parts

Alligator Clips

TL75

Test Lead Set

AC72

wh004f.eps

Page 33

Pressure Calibrator Specifications

Specifications

Specifications are based on a one year calibration cycle and apply for ambient temperature from +18 °C to +28 °C unless stated otherwise. “Counts” are the number of increments or decrements of the least significant digit.

Pressure Sensor Input

Max Non-

Model Range Accuracy

1G -1 to 1 PSI

(-7 to 8 kPa)

30G -12 to 30 PSI (-

83 to 207 kPa)

100G -12 to 100 PSI

(-83 to 690 kPa)

300G -12 to 300 PSI

(-83 to 2068 kPa)

Temperature coefficient: 0.01 % of range per °C for temperature ranges -10 °C to 18 °C and 28 °C to 55 °C

± 0.05 % of Range

destructive

Pressure

5 PSI (34.5 kPa)

60 PSI (413 kPa)

200 PSI (1.4 mPa)

375 PSI (2.6 mPa)

Pressure Module Input

Range Resolution Accuracy

(determined by Pressure Module)

DC mA Input

Range Resolution Accuracy, ±(% of

Reading + Counts)

24 mA 0.001 mA 0.015 + 2

Fuseless overload protection

Temperature coefficient: 0.005 % of range per temperature ranges -10 55

C to 18 °C and 28 °C to

Loop Supply

24 V dc nominal

C for

Page 34

718 Series Users Manual

General Specifications

Maximum voltage applied between either mA terminal and earth ground or between the mA terminals: 30 V

Storage temperature: -40 °C to 60 °C Operating temperature: -10 °C to 55 °C Operating altitude: 3000 meters maximum Relative humidity: 95 % up to 30 °C, 75 % up to 40 °C,

45 % up to 50 °C, and 35 % up to 55 °C Vibration: Random 2 g, 5 Hz to 500 Hz per MIL-PRF-

28800F Class 2

Shock: 1 meter drop test, per IEC 61010-1 Safety: Certified as compliant to ISA-82.02.01 (IEC

61010-1 Mod) CSA C22.2 No. 1010.1

Protection Class: Class 2, Double insulated Power requirements: Two 9 V batteries (ANSI/NEDA

1604A or IEC 6LR61) Size: 60 mm H x 87 mm W x 210 mm L (2.38 in H x 3.41

in W x 8.28 in L); with holster: 66 mm H x 94 mm W x 216 mm L (2.61 in H x 3.72 in W x 8.5 in L)

Weight: 737 g (26 oz); with holster: 992 g (35 oz)

Page 35

Pressure Calibrator How to Contact Fluke

LIMITED WARRANTY & LIMITATION OF LIABILITY

This Fluke product will be free from defects in material and workmanship for three years (one year for pump assembly) from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on Fluke’s behalf. To obtain service during the warranty period, send your defective Calibrator to the nearest Fluke Authorized Service Center with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.

How to Contact Fluke

To order accessories, receive operating assistance, or get the location of the nearest Fluke distributor or Service Center, call:

USA: 1-888-99-FLUKE (1-888-993-5853) Canada: 1-800-36-FLUKE (1-800-363-5853) Europe: +31 402-675-200 Japan: +81-3-3434-0181 Singapore: +65-738-5655 Anywhere in the world: +1-425-446-5500

Or, visit Fluke's Web site at www.fluke.com Address correspondence to:

Fluke Corporation Fluke Europe B.V. P.O. Box 9090, P.O. Box 1186, Everett, WA 98206-9090 5602 BD Eindhoven U.S.A. The Netherlands

Page 36

718 Series Users Manual
