Fluke 7108 User Manual

Via Acquanera, 29 22100 Como
tel. 031.526.566 (r.a.) fax 031.507.984

[e-mail] www.calpower.it

7108

Calibration Bath

PN 3729343
January 2014

© 2014 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.

User's Guide

Fluke Corporation

Fluke Europe B.V.

LIMITED WARRANTY AND LIMITATION OF LIABILITY

Each Fluke product is warranted to be fr ee from defects in material and workmanship under normal use and
service. The warranty period is one year and begins on the date of shipment. Parts, product repairs, and
services are warranted for 90 days. T hi s w arranty extends only to the original buyer or end-user customer of
a Fluke authorized reseller, and do es not apply to fuses, disposable batteries, or to any product which, in
Fluke's opinion, has been misused, alt ered, neglected, contaminated, or dam aged by accident or abnormal
conditions of operation or handling. Fluke warrants that software will operate substantially in accordance
with its functional specifications for 90 days and that it has been properly recorded on non-defective media.
Fluke does not warrant that software will be error free or operate without inter r uption.

Fluke authorized resellers shall extend this warranty on new and unused pr oducts to end-user customers
only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is
available only if product is purchas ed through a Fluke authorized sales outlet or Buyer has paid the
applicable international price. Fluke reserves the right to invoice Buyer for importation costs of
repair/replacement parts when product purchased in one country is submitted for repair in another country.

Fluke's warranty obligation is li mited, at Fluke's option, to refund of the purchase price, free of charge repair,
or replacement of a defective product which is returned to a Fluke authorized ser vice center within the
warranty period.

To obtain warranty service, contac t your nearest Fluke authorized servic e center to obtain return
authorization information, then send the product to that service center, wit h a description of the difficulty,
postage and insurance prepaid (FOB Destination). Fluke assumes no risk for damage in transit. Following
warranty repair, the product will be ret urned to Buyer, transportation prepa id (FOB Destination). If Fluke
determines that failure was caused by n eglect, misuse, contamination, alteration, accident, or abnormal
condition of operation or handling, including overvoltage failures c aused by use outside the product’s
specified rating, or normal wear and tear of mechanical components, Fluke wi ll provide an estimate of repair
costs and obtain authorization before commencing the work. Following repair, the product will be returned to
the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges
(FOB Shipping Point).

THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE
FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR LOSSES,
INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.

Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or
limitation of incidental or consequential damages, the limitations and ex c l usions of this warranty may not
apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court or other
decision-maker of competent jurisdi c tion, such holding will not affect the validity or enforceability of any other
provision.

P.O. Box 9090
Everett, WA 98206-9090
U.S.A.

11/99
To register your product online, visit register.fluke.com

P.O. Box 1186
5602 BD Eindhoven
The Netherlands

Table of Contents

Chapter Title Page

1 Before You Start .................................................................................. 1-1

1.1 Introduction ................................................................................ 1-1

1.2 Symbols Used............................................................................ 1-1

1.3 Safety Information ...................................................................... 1-2

1.3.1 WARNINGS ........................................................................... 1-2

1.3.2 CAUTIONS ............................................................................ 1-4

1.4 Authorized Service Centers ....................................................... 1-6

2 Specifications and Environmental Conditions ................................. 2-1

2.1 Specifications............................................................................. 2-1

2.2 Environmental Conditions .......................................................... 2-2

2.3 Warranty .................................................................................... 2-2

3 Quick Start ........................................................................................... 3-1

3.1 Unpacking .................................................................................. 3-1

3.2 Set Up ........................................................................................ 3-1

3.3 Power ........................................................................................ 3-2

3.4 Setting the Temperature ............................................................ 3-2

4 Installation ........................................................................................... 4-1

4.1 Bath Environment ...................................................................... 4-1

4.2 “Dry-out” Period ......................................................................... 4-1

4.3 Bath Preparation and Filling ...................................................... 4-2

4.4 Probe ......................................................................................... 4-2

4.5 Power ........................................................................................ 4-2

5 Bath Use ............................................................................................... 5-1

5.1 General ...................................................................................... 5-1

5.2 Comparison Calibration ............................................................. 5-2

5.3 Calibration of Multiple Probes .................................................... 5-2

i

7108

User's Guide

6 Parts and Controls .............................................................................. 6-1

6.1 Front Control Panel .................................................................... 6-1

6.2 Back Panel .................................................................................... 6-2

7 General Operation ............................................................................... 7-1

7.1 Switching to 230 V Operation .................................................... 7-1

7.2 Bath Fluid................................................................................... 7-1

7.2.1 Temperature Range ............................................................... 7-1

7.2.2 Viscosity ................................................................................. 7-2

7.2.3 Specific Heat .......................................................................... 7-2

7.2.4 Thermal Conductivity ............................................................. 7-2

7.2.5 Thermal Expansion ................................................................ 7-2

7.2.6 Electrical Resistivity ............................................................... 7-2

7.2.7 Fluid Lifetime ......................................................................... 7-2

7.2.8 Safety ..................................................................................... 7-3

7.2.9 Cost ....................................................................................... 7-3

7.2.10 Commonly Used Fluids .......................................................... 7-3

7.2.10.1 Water ................................................................................. 7-3

7.2.10.2 Ethylene Glycol .................................................................. 7-4

7.2.10.3 Methanol ............................................................................ 7-4

7.2.10.4 Mineral Oil .......................................................................... 7-4

7.2.10.5 Silicone Oils ....................................................................... 7-4

7.2.11 Fluid Characteristics Charts ............................................... 7-4

7.2.11.2 About the Graph ................................................................ 7-5

7.3 Stirring ....................................................................................... 7-7

7.4 Power ........................................................................................ 7-8

7.5 Heater/Cooling ........................................................................... 7-8

7.6 Fluid Drain ................................................................................. 7-8

7.7 Temperature Controller.............................................................. 7-8

8 Controller Operation ........................................................................... 8-1

8.1 Bath Temperature ...................................................................... 8-1

8.2 Temperature Set-point ............................................................... 8-1

8.2.1 Programmable Set-points ...................................................... 8-1

8.2.2 Set-point Value ...................................................................... 8-3

8.2.3 Set-point Vernier .................................................................... 8-3

8.3 Temperature Scale Units ........................................................... 8-4

8.4 Secondary Menu........................................................................ 8-5

8.5 Thermal Electric Devices (TEDs) ............................................... 8-5

8.6 Proportional Band ...................................................................... 8-6

8.7 Controller Configuration ............................................................. 8-7

8.8 Probe Parameters ...................................................................... 8-8

8.8.1 D0 .......................................................................................... 8-8

8.8.2 Dg .......................................................................................... 8-8

8.9 Serial Interface Parameters ....................................................... 8-8

8.9.1 Baud Rate .............................................................................. 8-8

8.9.2 Sample Period ....................................................................... 8-9

8.9.3 Duplex Mode .......................................................................... 8-9

8.9.4 Linefeed ................................................................................. 8-10

8.10 IEEE-488 Parameters ................................................................ 8-10

8.10.1 IEEE-488 Address ................................................................. 8-10

ii

Contents (continued)

9 Digital Communication Interface ....................................................... 9-1

9.1 Serial Communications .............................................................. 9-1

9.1.1 Wiring ..................................................................................... 9-1

9.1.2 Setup ..................................................................................... 9-1

9.1.2.1 Baud rate ........................................................................... 9-2

9.1.2.2 Sample Period ................................................................... 9-2

9.1.2.3 Duplex Mode ...................................................................... 9-2

9.1.2.4 Linefeed ............................................................................. 9-2

9.1.3 Serial Operation ..................................................................... 9-2

9.2 IEEE-488 Communication ......................................................... 9-2

9.2.1 Setup ..................................................................................... 9-3

9.2.1.1 IEEE-488 Interface Address .............................................. 9-3

9.2.2 IEEE-488 Operation ............................................................... 9-3

9.3 Interface Commands ................................................................. 9-4

10 Calibration Procedure ......................................................................... 10-1

11 Maintenance ......................................................................................... 11-1

11.1 Draining the Bath ....................................................................... 11-2

12 Troubleshooting .................................................................................. 12-1

12.1 Troubleshooting ......................................................................... 12-1

12.1.1 Master Reset Sequence ........................................................ 12-2

12.2 CE Comments ........................................................................... 12-3

12.2.1 EMC Directive ........................................................................ 12-3

12.2.2 Directive (Safety) ................................................................... 12-3

iii

7108

User's Guide

iv

List of Tables

Table Title Page

1. International Electrical Symbols ................................................................ 1-1

2. Specifications ............................................................................................ 2-1

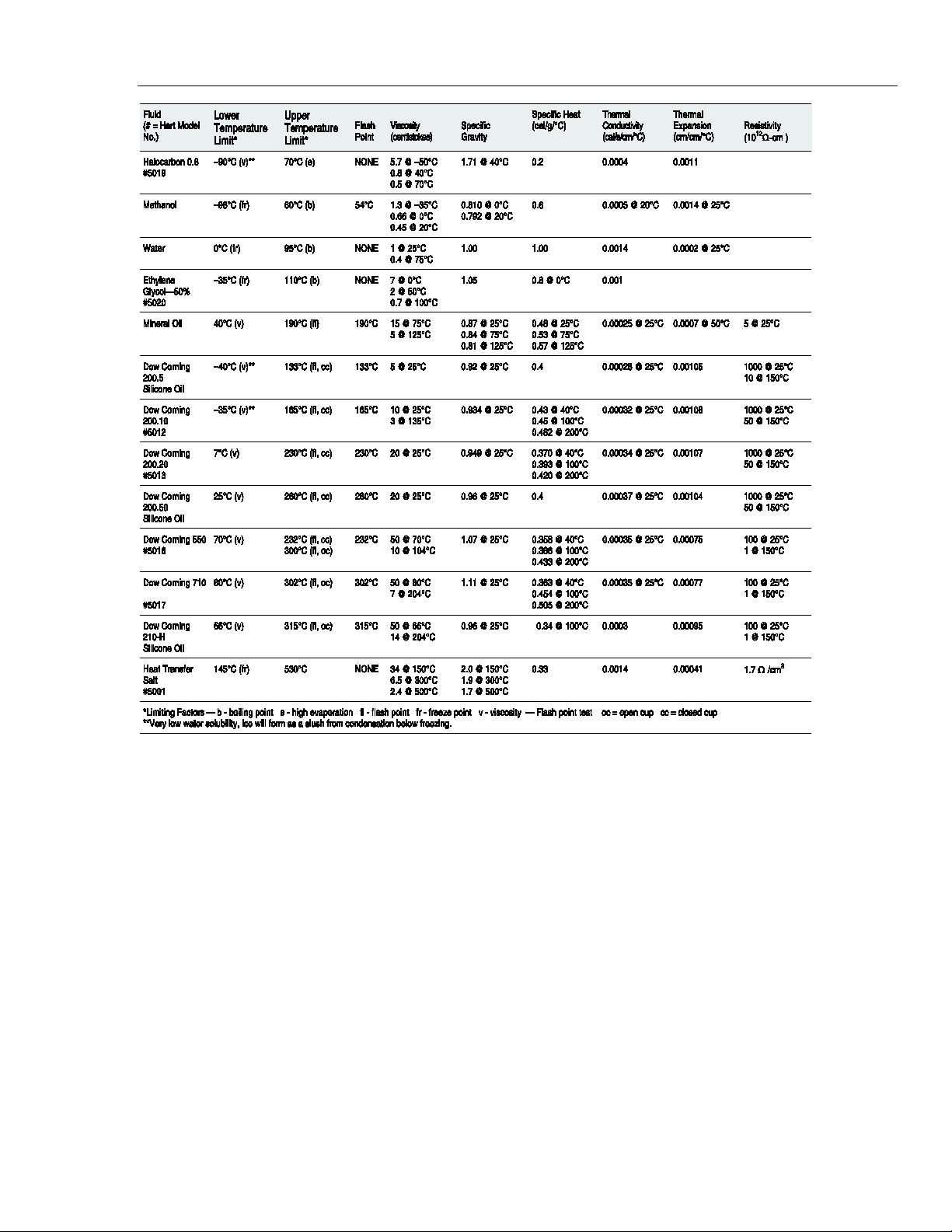

3. Table of various bath fluids and their properties ....................................... 7-7

4. Proportional Band — Fluid Table .............................................................. 8-7

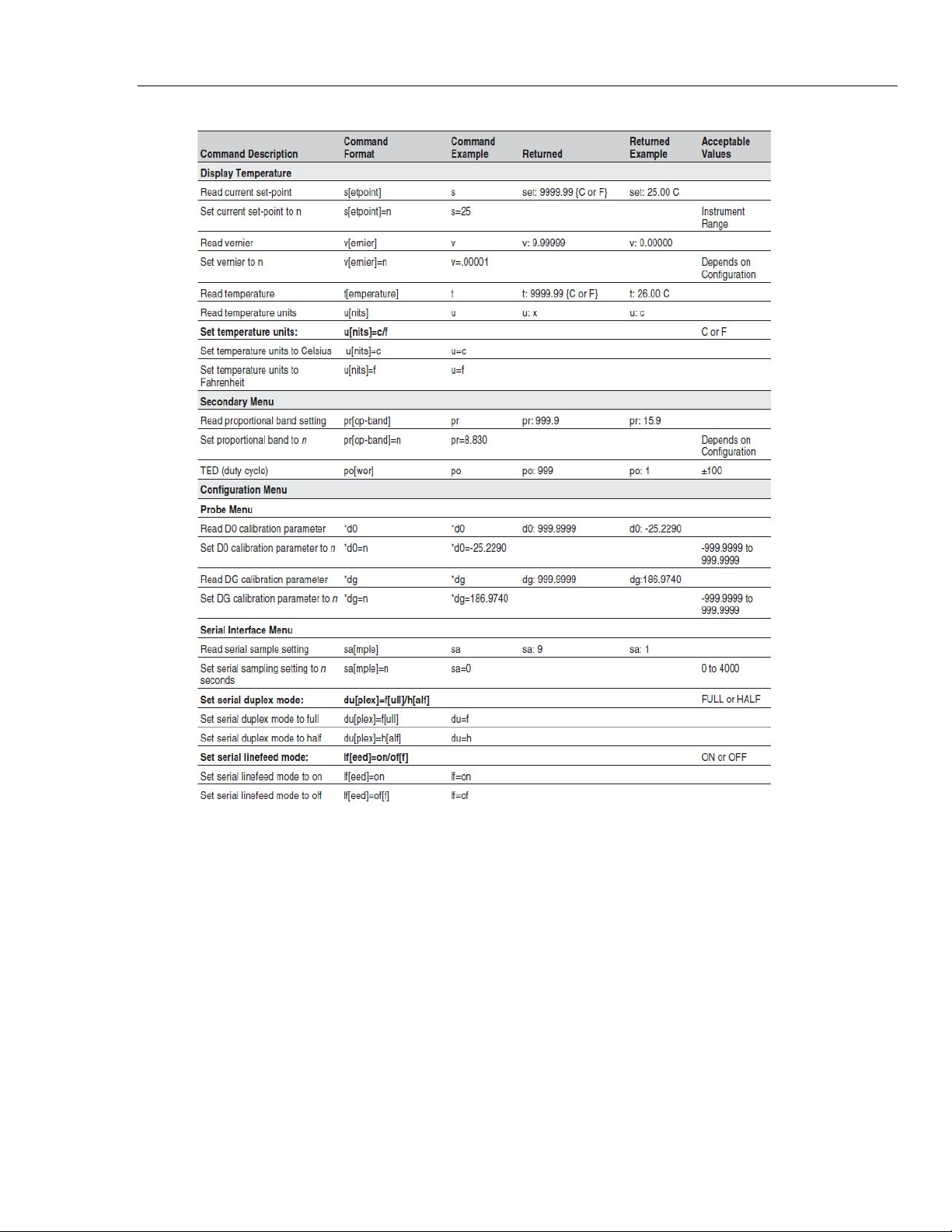

5. Interface Command Summary .................................................................. 9-5

6. Interface Command Summary continued .................................................. 9-5

v

7108

User's Guide

vi

List of Figures

Figure Title Page

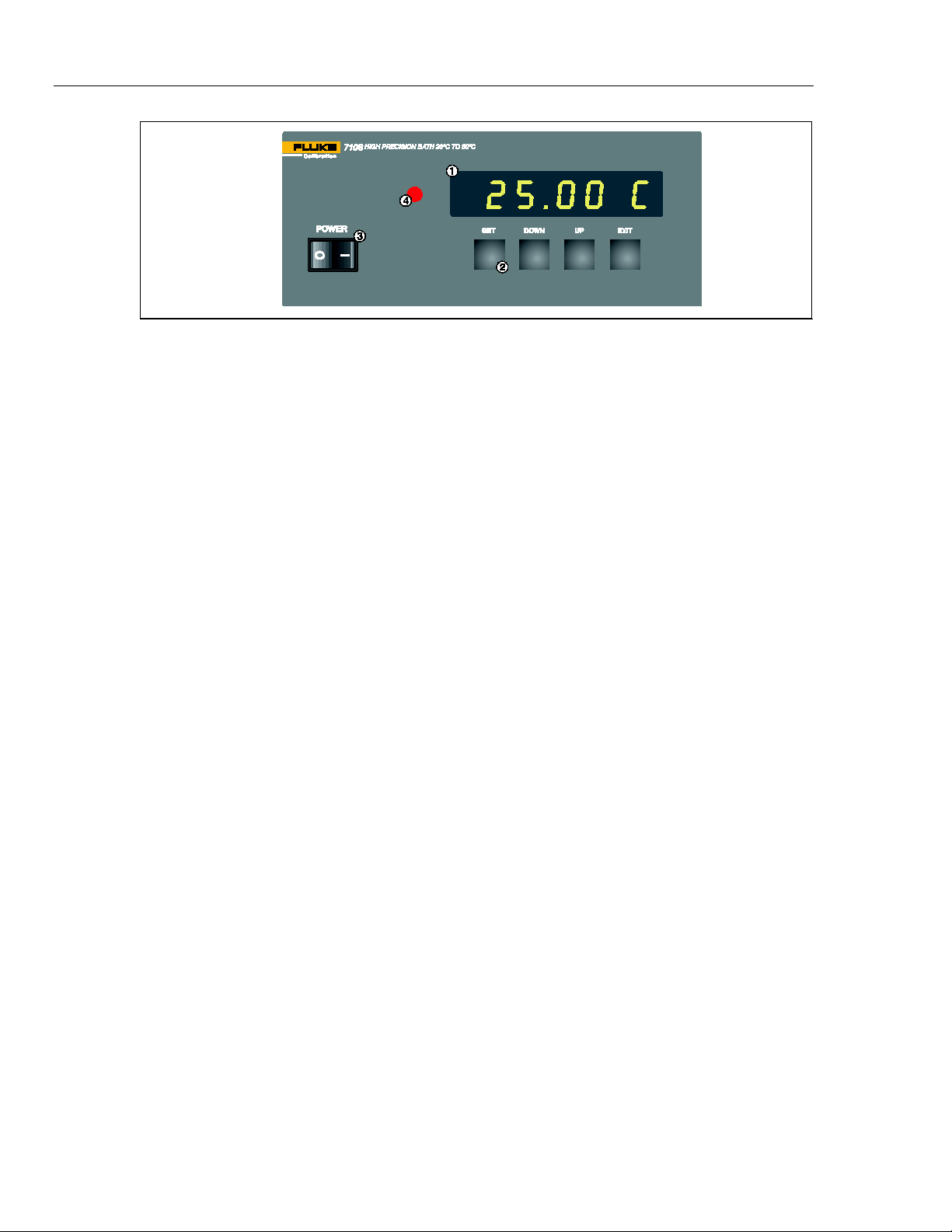

1. Front Panel ................................................................................................ 6-2

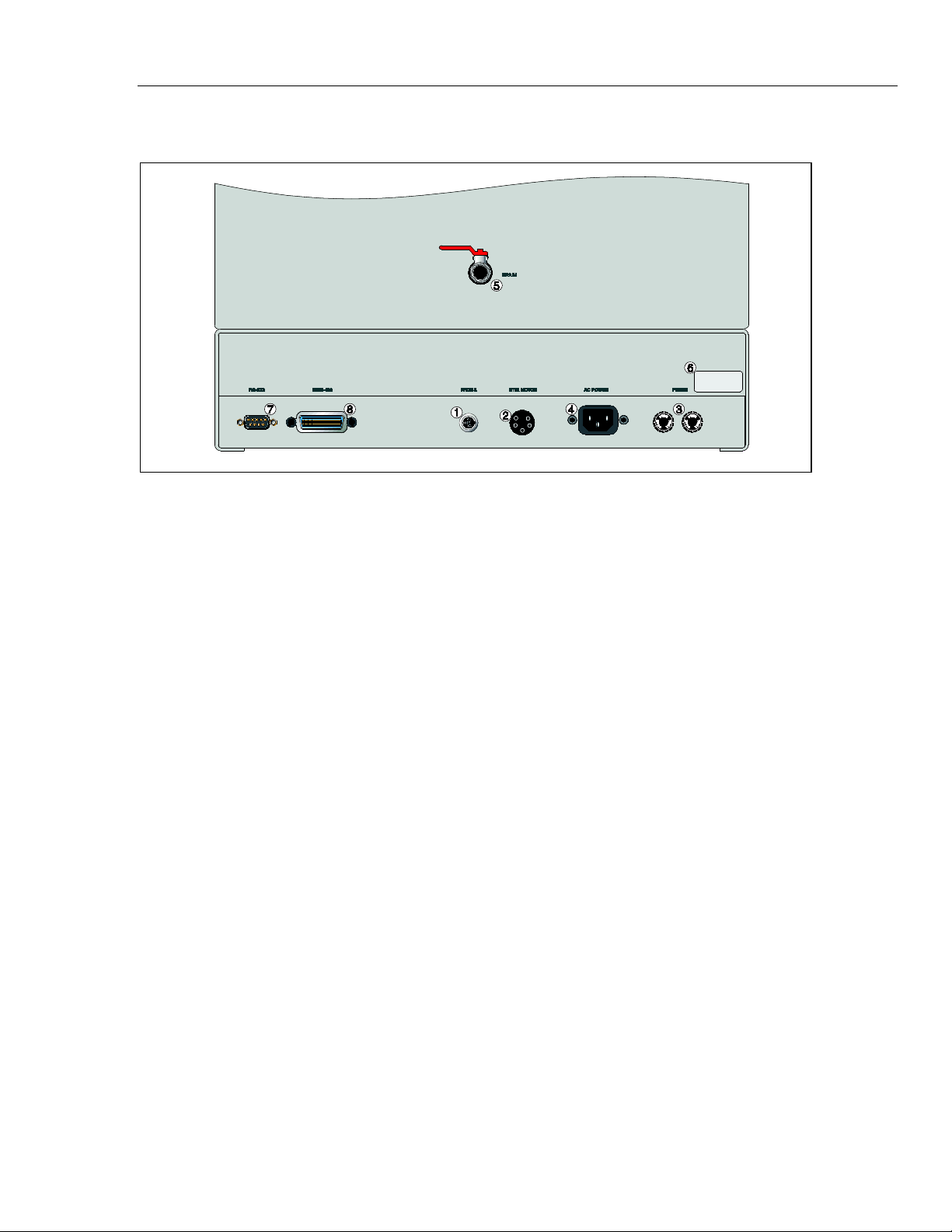

2. Back Panel ................................................................................................ 6-4

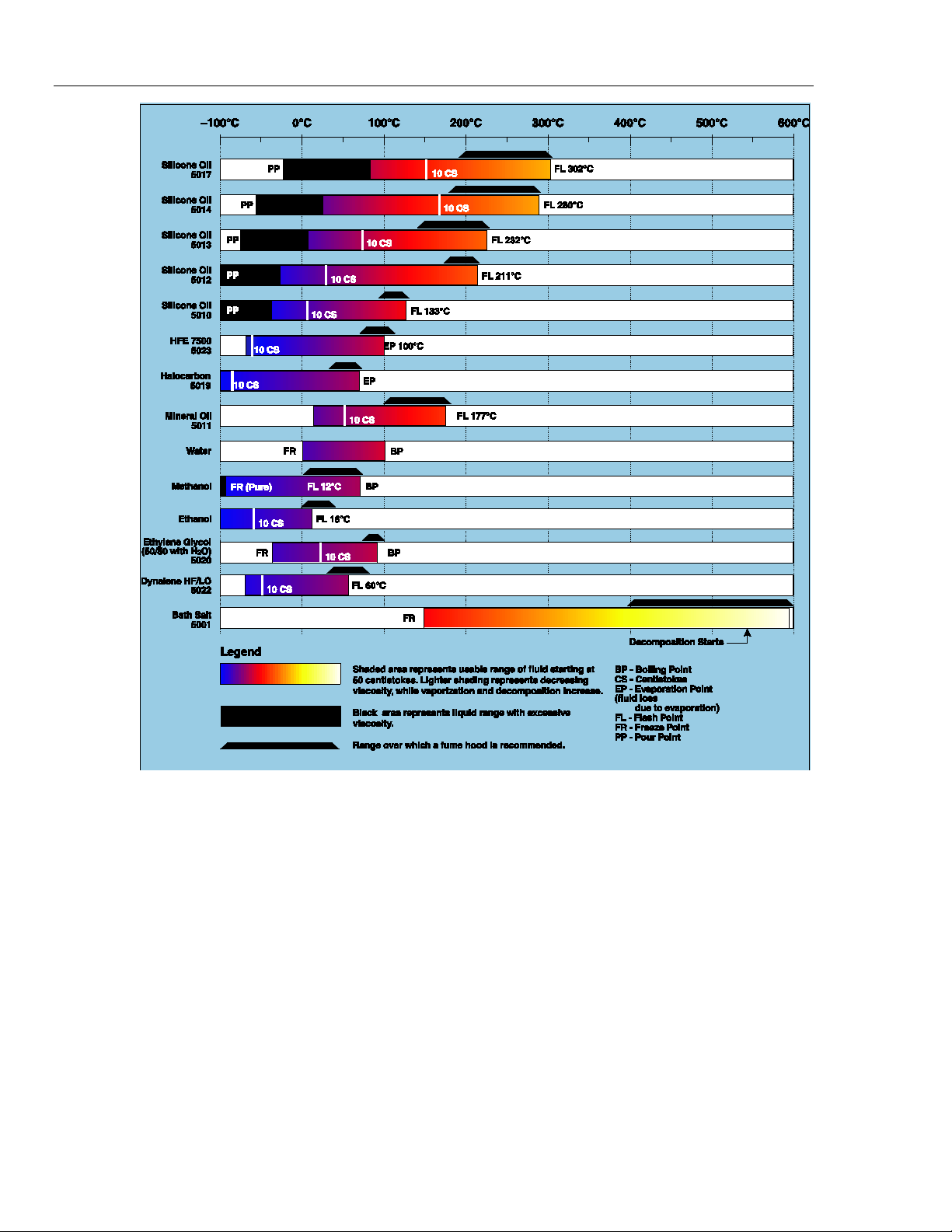

3. Chart of various bath fluids and their properties ........................................ 7-6

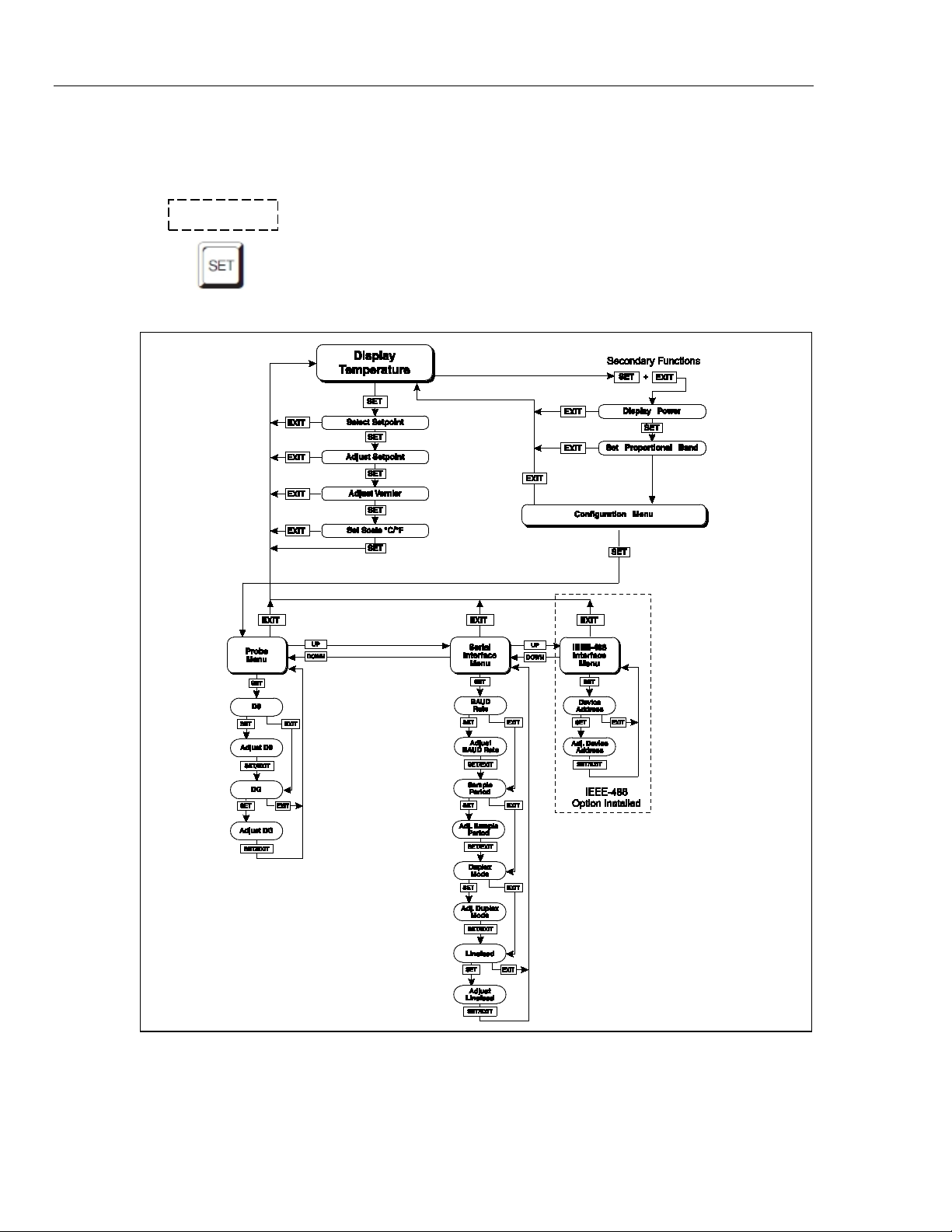

4. Controller Operation Flowchart ................................................................. 8-2

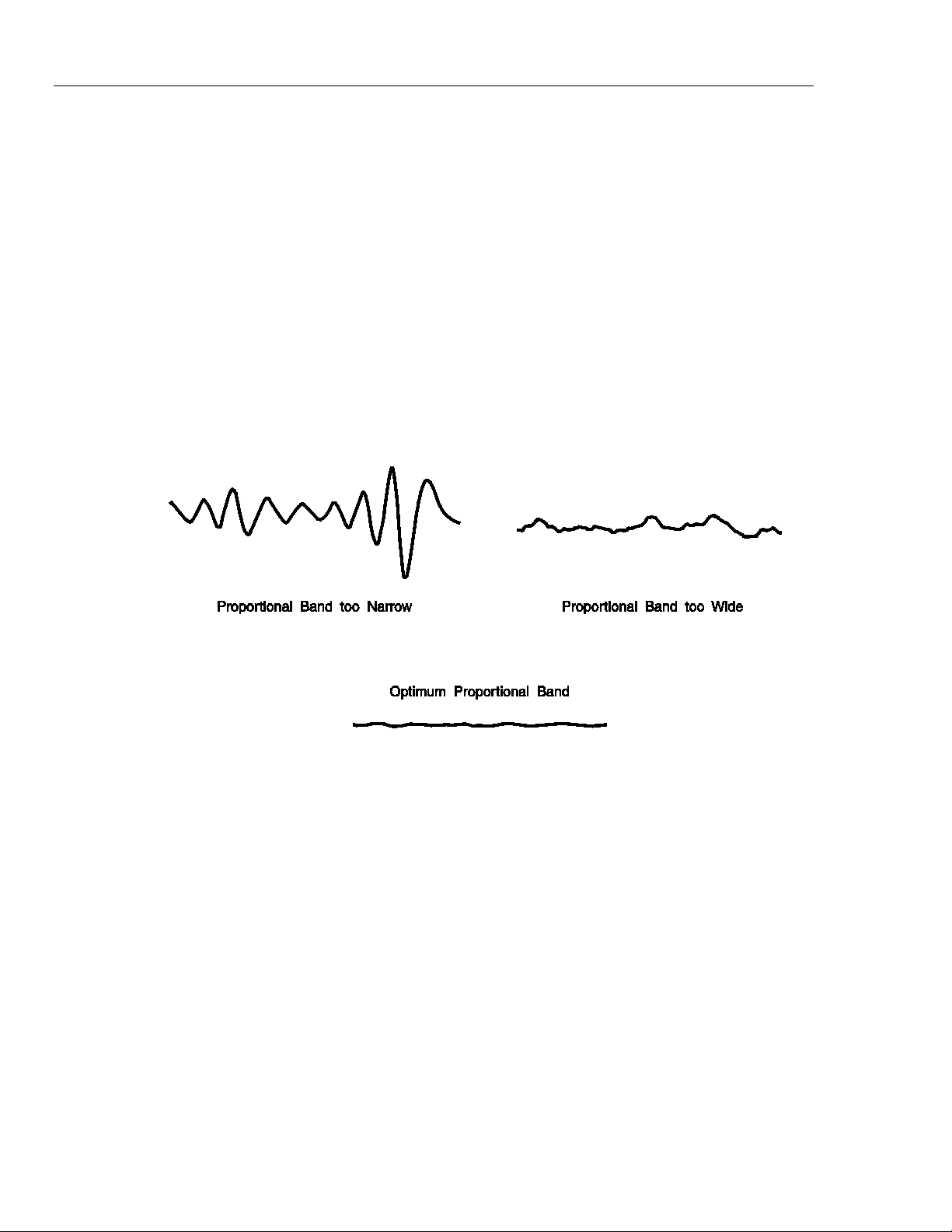

5. Bath temperature fluctuation at various proportional band settings .......... 8-6

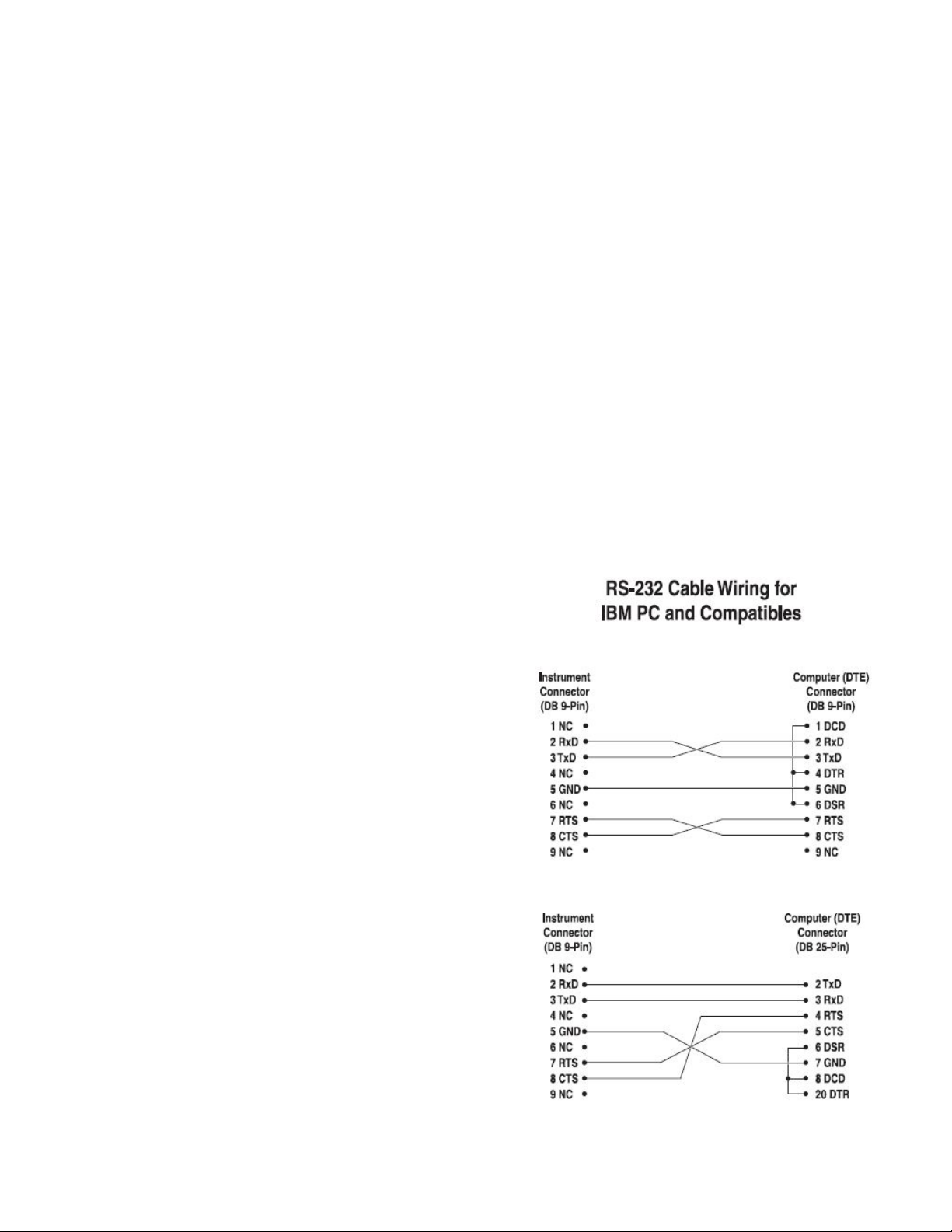

6. Serial Communications Cable Wiring ........................................................ 9-1

vii

7108

User's Guide

viii

O

1.1 Introduction

The Hart Scientific 7108 is a precise constant temperature bath. An innovative
state of the art solid-state temperature controller has been incorporated which
maintains the bath temperature with extreme stability. A lid to cover the bath
opening is required to reach the published stability. The controller uses a
microcontroller to execute the many operating functions.

User interface is provided by the 8-digit LED display and four buttons. Digital
remote communications is available with a RS-232 or optionally with a IEEE-488
interface.

Chapter 1

Before You Start

The tank for the 7108 is stainless steel and holds 13.2 gallons (51 liters).

1.2 Symbols Used

Table 1 lists the International Electrical Symbols. Some or all of these symbols
may be used on the instrument or in this manual.

Table 1 International Electrical Symbols

Symbol Description





















AC (Alternating Current)
AC-DC
Battery
CE Complies with European Union Directives
DC
Double Insulated
Electric Shock
Fuse
PE Ground
Hot Surface (Burn Hazard)



Read the User’s Manual (Important Inf ormation)
Off

1-1

7108

I

CAT II

Users Guide

On







Canadian Standards Association
OVERVOLTAGE (Installation) CATEGORY II, Pollution Degree

2 per IEC1010-1 refers to the level of Impulse Withstand Voltage
protection provided. Equipment of OVERVOLTAGE
CATEGORY II is energy-consuming equipment to be supplied
from the fixed installation. Exam pl es include household, office,
and laboratory appliances.

C-TIC Australian EMC Mark
The European Waste Electrical and Electronic Equipment

(WEEE) Directive
(2002/96/EC) mark.

1.3 Safety Information

Use this instrument only as specified in this manual. Otherwise, the protection
provided by the instrument may be impaired.

The following definitions apply to the terms “Warning” and “Caution”.

• “WARNING” identifies conditions and actions that may pose hazards to the
user.

• “CAUTION” identifies conditions and actions that may damage the instrument
being used.

1.3.1 WARNINGS

To avoid personal injury, follow these guidelines.
GENERAL

• DO NOT use the instrument for any application other than

calibration work. The instrument was designed for
temperature calibration. Any other use of the instrument
may cause unknown hazards to the user.

• DO NOT use the instrument in environments other than

those listed in the user’s guide.

• DO NOT overfill the bath. Overflowing extremely cold or hot

fluid may be harmful to the operator. See Section 4.3, Bath
Preparation and Filling, for specific instructions.

• Follow all safety guidelines listed in the user’s manual.

• Calibration Equipment should only be used by Trained

Personnel.

• If this equipment is used in a manner not specified by the

manufacturer, the protection provided by the equipment
may be impaired.

 WARNINGS

1-2

• Before initial use, or after transport, or after storage in

humid or semi-humid environments, or anytime the
instrument has not been energized for more than 10 days,
the instrument needs to be energized for a "dry-out" period
of 2 hours before it can be assumed to meet all of the
safety requirements of the IEC 1010-1. If the product is wet
or has been in a wet environment, take necessary
measures to remove moisture prior to applying power such
as storage in a low humidity temperature chamber
operating at 50

°C for 4 hours or more.

• Overhead clearance is required. Do not place the

instrument under a cabinet or other structure. Always leave
enough clearance to allow for safe and easy insertion and
removal of probes.

• The instrument is intended for indoor use only.

• The bath is a precision instrument. Although it has been

designed for optimum durability and trouble free operation,
it must be handled with care. Position the bath before the
tank is filled with fluid by rolling it into place. DO NOT
attempt to lift the bath. DO NOT move a bath filled with
fluid.

Before You Start

1.3 Safety Information1

BURN HAZARD

• Extremely cold temperatures may be present in this

equipment. Freezer burns and frostbite may result if
personnel fail to observe safety precautions.

• High temperatures may be present in this equipment.

Fires and severe burns may result if personnel fail to
observe safety precautions.

ELECTRICAL HAZARD

• These guidelines must be followed to ensure that the

safety mechanisms in this instrument will operate
properly. This instrument must be plugged into an AC
electric outlet of the appropriate voltage and frequency
(see Specifications). The power cord of the instrument is
equipped with a three-pronged grounding plug for your
protection against electrical shock hazards. It must be
plugged directly into a properly grounded three-prong
receptacle. The receptacle must be installed in
accordance with local codes and ordinances. Consult a
qualified electrician. DO NOT use an extension cord or
adapter plug.

• DO use a ground fault interrupt device. This instrument

contains a fluid. A ground fault device is advised in case
fluid is present in the electrical system and could cause
an electrical shock.

7108

Users Guide

• Always replace the power cord with an approved cord of

the correct rating and type. If you have questions,
contact an Authorized Service Center (see Section 1.3).

• High voltage is used in the operation of this equipment.

Severe injury or death may result if personnel fail to
observe the safety precautions. Before working inside
the equipment, turn off the power and disconnect the
power cord.

BATH FLUIDS

• Fluids used in this bath may produce noxious or toxic

fumes under certain circumstances. Consult the fluid
manufacturer’s MSDS (Material Safety Data Sheet).
Proper ventilation and safety precautions must be
observed.

• The instrument is equipped with a soft cutout (user

settable firmware) and a hard cutout (set at the factory).
Check the flash point, boiling point, or other fluid
characteristic applicable to the circumstances of the
bath operation. Ensure that the soft cutout is adjusted to
the fluid characteristics of the application. As a
guideline, the soft cutout should be set 10

°C to 15 °C
below the flash point of the bath fluid. See Section 7.2,
Heat Transfer Fluid, for specific information on bath
fluids and Section 9.8, Cutout.

1.3.2 CAUTIONS

• To avoid possible damage to the instrument, follow

these guidelines.

• Use only a grounded AC mains supply of the appropriate

voltage to power the bath. The bath requires 3 amps at
115 VAC (
[

• Always operate the bath in room temperatures between

5-45
leaving at least 6 inches of space between the bath and
nearby objects. Overhead clearance needs to allow for
safe and easy insertion and removal of probes for
calibration.

• The bath is equipped with operator accessible fuses. If a

fuse blows, it may be due to a power surge or failure of a
component. Replace the fuse once. If the fuse blows a
second time, it is likely caused by failure of a component
part. If this occurs, contact Hart Scientific Customer
Service. Always replace the fuse with one of the same
rating, voltage, and type. Never replace the fuse with one
of a higher current rating.

 CAUTIONS

±10 %), 50/60 Hz (1.6 amps at 230 VAC

±10 %], 50/60 Hz, switchable).

°C (41-113 °F). Allow sufficient air circulation by

1-4

• If a mains supply power fluctuation occurs, immediately

turn off the bath. Wait until the power has stabilized
before re-energizing the bath.

• The bath is a precision instrument. Although it has been

designed for optimum durability and trouble free
operation, it must be handled with care. The instrument
should not be operated in excessively dusty or dirty
environments. Do not operate near flammable materials.

• If the bath is operated at higher temperatures where fluid

vaporization is significant, a fume hood should be used.

• When filling the tank, ensure the immersion coils are

completely covered.

• DO NOT operate the bath without fluid.

• DO NOT overfill the bath. Overflowing fluid may damage

the electrical system. See Section 4.3, Bath Preparation
and Filling, for specific instructions.

• Read Section 5, Bath Use, before placing the bath into

service.

• DO NOT change the values of the bath calibration

constants from the factory set values. The correct
setting of these parameters is important to the safety
and proper operation of the bath.

Before You Start

1.3 Safety Information1

• The Factory Reset Sequence should be performed only

by authorized personnel if no other action is successful
in correcting a malfunction. You must have a copy of the
most recent Report of Test to restore the test
parameters.

• DO NOT operate this instrument in an excessively wet,

oily, dusty, or dirty environment.

• Most probes have handle temperature limits. Be sure

that the probe handle temperature limit is not exceeded
in the air above the instrument.

• The instrument and any thermometer probes used with it

are sensitive instruments that can be easily damaged.
Always handle these devices with care. Do not allow
them to be dropped, struck, stressed, or overheated.

• This bath is not designed to be portable. Therefore,

moving the bath once it has been installed should be
kept to a minimum. Never move a bath that is full of
fluid. This action could be extremely dangerous and
could result in personal injury to the person moving the
bath.

• If the bath must be moved, be sure to drain the fluid to

prevent any injury. To safely move the bath, two people
are required.

7108

Users Guide

1.4 Authorized Service Centers

Please contact one of the following authorized Service Centers to coordinate
service on your Hart product:

Fluke Corporation, Hart Scientific Division

799 E. Utah Valley Drive
American Fork, UT 84003-9775
USA
Phone: [phone]
Telefax: +1.801.763.1010
E-mail: [e-mail]

Fluke Nederland B.V.
Customer Support Services
Science Park Eindhoven 5108
5692 EC Son
NETHERLANDS
Phone: [phone]
Telefax: [phone]
E-mail: [e-mail]

Fluke Int'l Corporation

Service Center - Instrimpex
Room 2301 Sciteck Tower
22 Jianguomenwai Dajie
Chao Yang District
Beijing 100004, PRC
CHINA
Phone: [phone]
Telefax: [phone]
E-mail: [e-mail]

1-6

Before You Start

1.4 Authorized Service Centers1

Fluke South East Asia Pte Ltd.

Fluke ASEAN Regional Office
Service Center
60 Alexandra Terrace #03-16
The Comtech (Lobby D)
118502
SINGAPORE
Phone: [phone]
Telefax: [phone]
E-mail: [e-mail]

When contacting these Service Centers for support, please have the following
information available:

• Model Number

• Serial Number

• Voltage

• Complete description of the problem

7108

Users Guide

1-8

Specifications and Environmental

2.1 Specifications

See Table 2.

Table 2. Specifications

Specifications 7108

Operating Range 20 to 30 °C (68 to 86 °F)

Set-point Accuracy ±0.5 °C ( ±0.9 °F)
Display Resolution 0.01
Set-point Resolution 0.001
Vernier 0.000032
Ambient Temperature 5 to 45 °C (41 to 113 °F)
Typical short and long term temperature

stability
Temperature Gradients using Water ±0.005 °C ( ±0.009 °F)

Cooling capacity 100 watt thermoelectric
Controller Hybrid analog/digital controller with data retention
Over Temperature Control None
Power Requirements 115 VAC ( ±10 %), 50/60 Hz, 3 A (230 VAC

Work area 14"W x 8"H x 14"F–B

Tank Capacity 13.2 gallons (51 liters)
Exterior Dimensions 19.25“ W x 16.25"H x 25”D

Weight 75 lb. / 35 kg

Chapter 2

Conditions

with ambient temperature of 25 °C (77 °F)

Water at 25 °C: ±0.002 °C ( ±0.0036 °F)
Mineral Oil at 25 °C: ±0.004 °C ( ±0.0072 °F)

[ ±10 %], 50/60 Hz, 1.6 A,
optional), 350 W switchable

35.5 cm x 30.5 cm x 35.5cm

48.9 cm x 41.3 cm x 63.5 cm

2-1

7108

Users Guide

2.2 Environmental Conditions

Although the instrument has been designed for optimum durability and trouble­free operation, it must be handled with care. The instrument should not be
operated in an excessively dusty or dirty environment. Maintenance and cleaning
recommendations can be found in the Maintenance Section of this manual.

The instrument operates safely under the following conditions:

• temperature range: 5–45 °C (41–113 °F)

• ambient relative humidity: 15 – 50 %

• pressure: 75kPa–106kPa

• mains voltage within ±10 % of nominal

• vibrations in the calibration environment should be minimized

• altitude does not affect the performance or safety of the unit

2-2

 CAUTION:

Read section 5 entitled bath use before placing the bath in
service. Incorrect handling can damage the bath and void the
warranty.

This section gives a brief summary of the steps required to set up and operate
the 7108 bath. This should be used as a general overview and reference and not
as a substitute for the remainder of the manual. Please read Section4 through6
carefully before operating the bath.

Chapter 3

Quick Start

3.1 Unpacking

Unpack the bath carefully and inspect it for any damage that may have occurred
during shipment. If there is shipping damage, notify the carrier immediately.

Verify that all components are present:

• 7108 Bath

• Controller Probe

• Access Hole Cover

• Manual

If you are missing any item, please contact an Authorized Service Center (see
Section 1.4).

3.2 Set Up

Set up of the bath requires careful unpacking and placement of the bath, filling
the bath with fluid, installing the probe and connecting the power. Allow six
inches of space on both sides of the bath for proper airflow. Consult Section4 for
detailed instructions for proper installation of the bath. Be sure to place the bath
in a safe, clean and level location.

Fill the bath tank with an appropriate liquid. For operation at moderate bath
temperatures, clean distilled water works well. Carefully pour the fluid into the
bath tank through the large rectangular access hole above the tank avoiding
spilling any fluid. The fluid must not exceed a height of 1/2 inch below the bath
lid.

The control probe must be inserted through the lid into the bath and plugged into
the socket at the back of the bath.

3-1

7108

Users Guide

3.3 Power

Plug the bath power cord into a mains outlet of the proper voltage, frequency,
and current capability. Typically this will be 115 VAC ( ±10 %), 50/60 Hz, 3 A
(230 VAC [ ±10 %] 50/60 Hz, 1.6 A switchable). The bath will turn on and begin
to heat or cool to reach the previously programmed temperature set-point. The
front panel LED display will indicate the actual bath temperature.

3.4 Setting the Tempera t ur e

In the following discussion a solid box around the word SET, UP, EXIT or DOWN
indicates the panel button while the dotted box indicates the display reading.
Explanation of the button or display reading are to the right of each button or
display value.

To view or set the bath temperature set-point proceed as follows. The front panel
LED display normally shows the actual bath temperature.

24.68 C Bath temperature display
When “SET” is pressed the display shows the set-point memory that is currently

being used and its value. Eight set-point memories are available.

Access set-point selection

1. 25.0 Set-point 1, 25.0 °C currently used
Press “SET” to select this memory and access the set-point value.

Access set-point value

C 25.00 Current value of set-point 1, 25.00 °C
Press “UP” or “DOWN” to change the set-point value.

Increment display

C 30.00 New set-point value

3-2

Q uick Start

3.4 Setting the Temperature 3

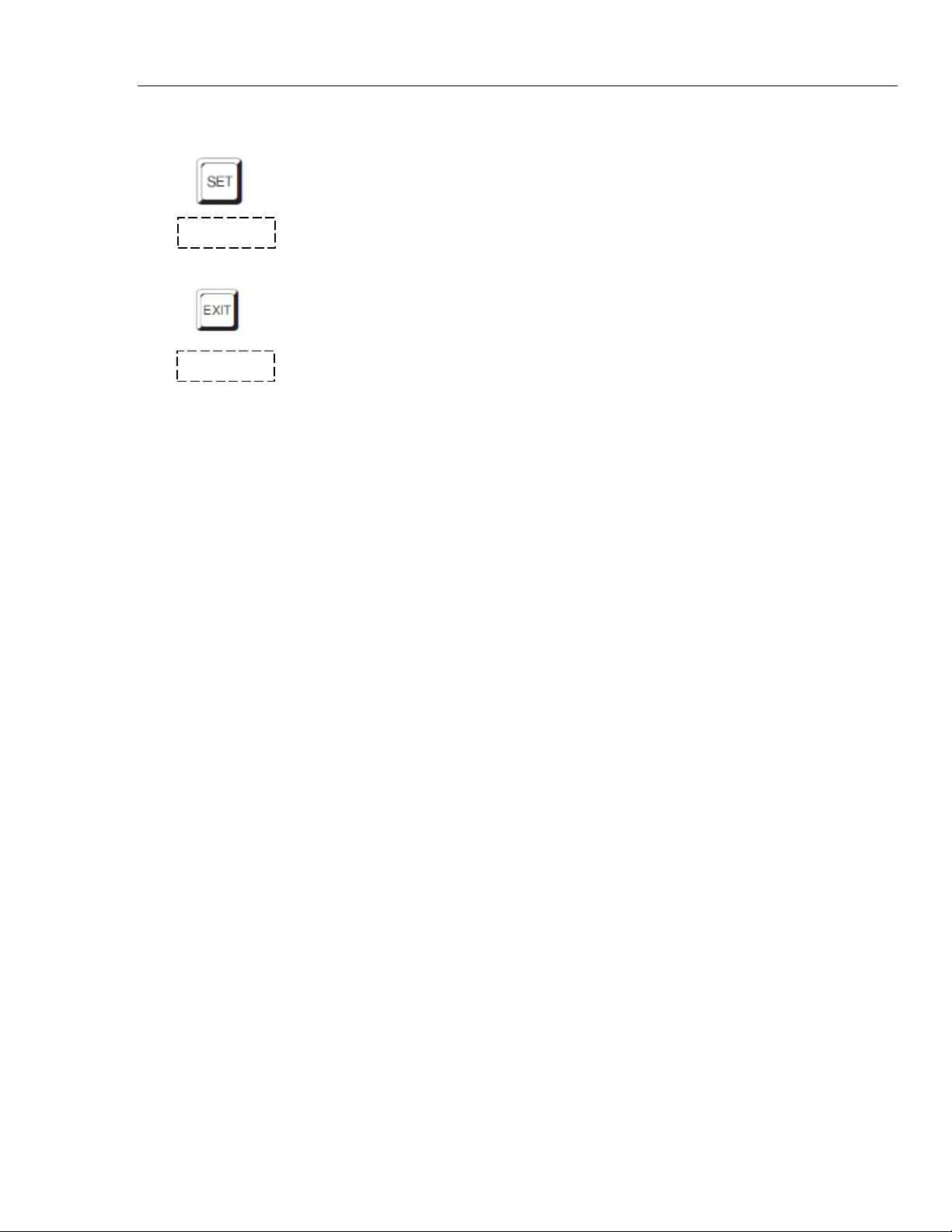

Press “SET” to accept the new value and display the vernier value. The bath
begins heating or cooling to the new set-point.

Store new set-point, access vernier

0.00000 Current vernier value
Press “EXIT” and the bath temperature is displayed again.

Return to the temperature display

24.73 C Bath temperature display
The bath heats or cools until it reaches the new set-point temperature.

To obtain optimum control stability adjust the proportional band as discussed in
Section 8.6.

3-3

7108

Users Guide

3-4

 CAUTION:

Read section 5 entitled bath use before placing the bath in
service. Incorrect handling can damage the bath and void the
warranty.

Chapter 4

Installation

This bath is not designed to be portable. Therefore, moving the
bath once it has been installed should be kept to a minimum.

Never move a bath that is full of fluid. This action could be
extremely dangerous and could result in personal injury to the
person moving the bath.

If the bath must be moved, be sure to drain the fluid to prevent
any injury. To safely move the bath, two people are required.

4.1 Bath Environment

The Model 7108 bath is a precision instrument which should be located in an
appropriate environment. The location should be free of drafts, extreme
temperatures and temperature changes, dirt, etc. The surface where the bath is
placed must be level.

If used at higher temperatures where fluid vaporization is significant, a fume hood
should be used.

4.2 “Dry-out” Period

Before initial use, after transport, and any time the instrument has not been
energized for more than 10 days, the bath will need to be energized for a “dry­out” period of 1-2 hours before it can be assumed to meet all of the safety
requirements of the IEC 1010-1.

 CAUTION:

4-1

7108

Users Guide

4.3 Bath Preparation and Filling

The Model 7108 bath is not provided with a fluid. Various fluids are available
from Hart Scientific and other sources. Depending on the desired temperature
range, any of the following fluids, as well as others, may be used in the bath:

• Water

• Ethylene Glycol/Water

• Methanol

• Mineral oil

• Silicone oil

Fluids are discussed in detail in Section 7.2.
Remove any access hole cover from the bath and check the tank for foreign

matter (dirt, remnant packing material, etc.). Use clean unpolluted fluid. Carefully
fill the bath through the large square access hole to a level that will allow for
stirring and thermal expansion. The fluid should never exceed a height of 1/2"
below the top of the tank. Carefully monitor the bath fluid level as the bath
temperature rises to prevent overflow or splashing. Remove excess fluid if
necessary and with caution if the fluid is hot.

Be careful to prevent bath fluid from spilling on the stirring motor while filling

Under filling may reduce bath performance and may possibly
damage the bath TEDs.

4.4 Probe

Inspect the bath controller probe. This probe should not be bent or damaged in
any way. Reasonable caution should be used in handling this probe as it
contains a precision thermistor sensor. If damaged, the probe can be replaced.
Contact Hart Scientific Customer Service for assistance.

Insert the probe into the 1/4 inch probe hole at the center of the stirrer motor
cover. The tip of the probe must be well immersed in the fluid. The probe
connector is plugged into the rear of the bath into the socket labeled “PROBE”.

4.5 Power

With the bath power switch off, plug the bath into an AC mains outlet of the
appropriate voltage, frequency, and current capacity. Normally this will be 115
VAC ( ±10 %), 50/60 Hz, 3 A (or 230 VAC [ ±10 %], 50/60 Hz, 1.6 A switchable).

Be sure the stirring motor power cord is plugged into the “STIRRER” socket at
the back of the bath.

 NOTE:

4-2

READ BEFORE PLACING THE BATH IN SERV ICE

Chapter 5

Bath Use

The information in this section is for general information only. It is not designed to
be the basis for calibration laboratory procedures. Each laboratory will need to
write their own specific procedures.

5.1 General

Be sure to select the correct fluid for the temperature range of the calibration.
Bath fluids should be selected to operate safely with adequate thermal properties
to meet the application requirements. Also, be aware that some fluids expand
and could overflow the bath if not watched. Refer to General Operation, section
7, for information specific to fluid selection and to the MSDS sheet specific to the
fluid selected. Generally, baths are set to one temperature and used to calibrate
probes only at that single temperature. This means that the type of bath fluid
does not have to change. Additionally, the bath can be left energized reducing
the stress on the system.

It is advisable to wipe the probe with a clean soft cloth or paper towel before
inserting it into another bath. This prevents the mixing of fluids from one bath to
another. If the probe has been calibrated in liquid salt, carefully wash the probe in
warm water and dry completely before transferring it to another fluid. Always be
sure that the probe is completely dry before inserting it into a hot fluid. Some of
the high temperature fluids react violently to water or other liquid mediums. Be
aware that cleaning the probe can be dangerous if the probe has not cooled to
room temperature. Additionally, high temperature fluids may ignite paper towels if
the probe has not been cooled.

For optimum accuracy and stability, allow the bath adequate stabilization time
after reaching the set-point temperature.

5-1

7108

Users Guide

5.2 Comparison Calibration

Comparison calibration involves testing a probe (unit under test, UUT) against a
reference probe. After inserting the probes to be calibrated into the bath, allow
sufficient time for the probes to settle and the temperature of the bath to stabilize.

One of the significant dividends of using a bath rather than a dry-well to calibrate
multiple probes is that the probes do not need to be identical in construction. The
fluid in the bath allows different types of probes to be calibrated at the same time.
However, stem effect from different types of probes is not totally eliminated. Even
though all baths have horizontal and vertical gradients, these gradients are
minimized inside the bath work area. Nevertheless, probes should be inserted to
the same depth in the bath liquid. Be sure that all probes are inserted deep
enough to prevent stem effect. From research at Hart Scientific, we suggest a
general rule-of-thumb for immersion depth to reduce the stem effect to a
minimum: 15 x the diameter of the UUT + the sensor length. Do not submerge
the probe handles. If the probe handles get too warm during calibration at high
temperatures, a heat shield could be used just below the probe handle. This heat
shield could be as simple as aluminum foil slid over the probe before inserting it
in the bath or as complicated as a specially designed reflective metal apparatus.

When calibrating over a wide temperature range, better results can generally be
achieved by starting at the highest temperature and progressing down to the
lowest temperature.

Probes can be held in place in the bath by using probe clamps or drilling holes in
the access cover. Other fixtures to hold the probes can be designed. The object
is to keep the reference probe and the probe(s) to be calibrated as closely
grouped as possible in the working area of the bath. Bath stability is maximized
when the bath working area is kept covered.

In preparing to use the bath for calibration start by:

• Placing the reference probe in the bath working area.

• Placing the probe to be calibrated, the UUT, in the bath working area as close

as feasibly possible to the reference probe.

5.3 Calibration of Multiple Probes

Fully loading the bath with probes increases the time required for the
temperature to stabilize after inserting the probes. Using the reference probe as
the guide be sure that the temperature has stabilized before starting the
calibration.

5-2

6.1 Front Control Panel

The following controls and indicators are present on the controller front panel
(see Figure 1 below): (1) the digital LED display, (2) the control buttons, (3) the
bath on/off power switch, and (4) the control indicator light.

(1) The digital display is an important part of the temperature controller because
it not only displays set and actual temperatures but also displays various bath
functions, settings, and constants. The display shows temperatures in values
according to the selected scale units °C or °F.

Chapter 6

Parts and Controls

(2) The control buttons (SET, DOWN, UP, and EXIT) are used to set the bath
temperature set-point, and to access and set other operating parameters.

A brief description of the functions of the buttons follows:
SET – Used to display the next parameter in a menu and to set parameters to

the displayed value.

DOWN – Used to decrement the displayed value of settable parameters.
UP – Used to increment the displayed value.
EXIT – Used to exit from a menu. When “EXIT” is pressed any changes made to

the displayed value are ignored.
(3) The on/off switch controls power to the entire bath assembly. It powers the

stirring motor and the bath controller/heater circuit.
(4) The control indicator is a two color light emitting diode. This indicator lets the

user visually see the ratio of heating to cooling. When the indicator is red, the unit
is heating. When the indicator is green the unit is cooling.

6-1

7108

Users Guide

6.2 Back Panel

The back panel has seven standard features and one optional features (see
Figure 2): 1) the probe connector, 2) the stirrer power outlet, 3) system fuses, 4)
the power cord, 5) the drain valve, 6) serial number notation, 7) the RS-232
interface connector, and 8) the IEEE-488 interface connector (optional).

1. The probe connector on the back panel is used for the temperature controller
probe.

Figure 1. Front Panel

fig_1.eps

2. The stirrer power is provided for the stirring motor (12 VDC).

3. The system fuses are 3 A for 115 VAC and 1.6 A for 230 VAC.

4. The power cord is rated at 115 VAC, 15 amps.

5. A drain valve is provided for ease of removing the fluid media from the bath.
Always use a container of adequate size to hold the FULL LOAD of fluid.
Some oils are more easily drained at higher temperatures. (See caution note
in next section.)

6. The serial number is located on the bottom right side of the back panel. When
calling Customer Service, use the serial number and model number.

7. A serial RS-232 interface cable attaches to the back of the bath at the
connector labeled “RS-232”.

8. If the bath is supplied with a GPIB IEEE-488 interface, the interface cable
attaches to the back of the bath at the connector labeled “IEEE-488”.

6-2

Parts and Controls

6.2 Back Panel 6

fig_2.eps

Figure 2. Back Panel

6-3

7108

Users Guide

6-4

7.1 Switching to 230 V Operation

The 9303JW is switchable from 115 V AC to 230 V AC 50/60 Hz. Switching the
voltage can change the calibration, so the unit should be calibrated after

changing the input voltage (see Section 10).

To change from 115 VAC to 230 VAC:

• Unplug the instrument.

• Remove the two screws from each side and from the front panel (six total).

Slide the front panel and electronic drawer out on foot. Next to the power
PCB is a label showing the configuration of the two switches.

Chapter 7

General Operation

• Remove the fuse holder located on the back of the bath. Replace the two
fuses (3 amp 250V) with 1.6 amp 250 V fuses.

• Slide the front panel and electronics drawer back in and secure with the sides
and front with the screws.

• Place a label above the power cord indicating the voltage.

7.2 Bath Fluid

Many fluids will work with a 7108 bath. Choosing a fluid requires consideration of
many important characteristics of the fluid. Among these are temperature range,
viscosity, specific heat, thermal conductivity, thermal expansion, electrical
resistivity, fluid lifetime, safety, and cost.

7.2.1 Temperature Range

One of the most important characteristics to consider is the temperature range of
the fluid. Few fluids work well throughout the complete temperature range of the
bath. The temperature at which the bath is operated must always be within the
safe and useful temperature range of the fluid. The lower temperature range of
the fluid is determined by the freeze point of the fluid or the temperature at which
the viscosity becomes too great. The upper temperature is usually limited by
vaporization, flammability, or chemical breakdown of the fluid. Vaporization of the
fluid at higher temperatures may affect temperature stability because of cool
condensed fluid dripping into the bath from the lid.

The bath temperature should be limited by setting the safety cut-out so that the
bath temperature cannot exceed the safe operating temperature limit of the fluid.

7-1

7108

Users Guide

7.2.2 Viscosity

Viscosity is a measure of the thickness of a fluid, how easily it can be poured and
mixed. Viscosity affects the temperature stability of the bath. With low viscosity,
fluid mixing is better which creates a more uniform temperature throughout the
bath. This improves the bath response time which allows it to maintain a more
constant temperature. For good control the viscosity should be less than 10
centistokes. 50 centistokes is about the upper limit of allowable viscosity.
Viscosities greater than this cause very poor control stability and may also
overheat or damage the stirring motor. With oils viscosity may vary greatly with
temperature.

When using fluids with higher viscosities the controller proportional band may
need to be increased to compensate for the reduced response time. Otherwise
the temperature may begin to oscillate.

7.2.3 Specific Heat

Specific heat is the measure of the heat storage ability of the fluid. Specific heat,
though to a lesser degree, also affects the control stability and the heating and
cooling rates. Generally, a lower specific heat causes slightly better control
stability and quicker heating and cooling. With fluids with higher specific heat the
controller may require a decreased proportional band to compensate for the
decrease in sensitivity of the bath temperature to heat input.

7.2.4 Thermal Conductivity

Thermal conductivity measures how easily heat flows through the fluid. Thermal
conductivity of the fluid affects the control stability, temperature uniformity, and
probe temperature settling time. Fluids with higher conductivity distribute heat
more quickly and evenly improving bath performance.

7.2.5 Thermal Expansion

Thermal expansion describes how the volume of the fluid changes with
temperature. Thermal expansion of the fluid used must be considered since the
increase in fluid volume as the bath temperature changes may cause overflow.
Excessive thermal expansion may also be undesirable in applications where
constant liquid level is important. Oils typically have significant thermal
expansion.

7.2.6 Electrical Resistivity

Electrical resistivity describes how well the fluid insulates against the flow of
electric current. In some applications, such as measuring the resistance of bare
temperature sensors, it may be important that little or no electrical leakage occur
through the fluid. In this case consider a fluid with very high resistivity.

7.2.7 Fluid Lifetime

Many fluids degrade over time because of vaporization, water absorption, gelling,
or chemical breakdown. Often the degradation becomes significant near the
upper temperature limit of the fluid.

7-2

General Operation

7.2 Bath Fluid 7

7.2.8 Safety

When choosing a fluid always consider the safety issues associated. Obviously,
where there are extreme temperatures there can be danger to personnel and
equipment. Fluids may also be hazardous for other reasons. Some fluids maybe
considered toxic. Contact with eyes, skin, or inhalation of vapors may cause
injury. A proper fume hood must be used if hazardous or bothersome vapors are
produced.

 WARNING:

Fluids at high temperatures. May pose danger from BURNS,
FIRE, and TOXIC fumes. Use appropriate caution and safety
equipment.

Fluids may be flammable and require special fire safety equipment and
procedures. An important characteristic of the fluid to consider is the flash point.
The flash point is the temperature at which there is sufficient vapor given off so
that when there is sufficient oxygen present and an ignition source is applied the
vapor will ignite. This does not necessarily mean that fire will be sustained at the
flash point. The flash point may be either of the open cup or closed cup type.
Either condition may occur in a bath situation. The closed cup temperature is
always the lower of the two. The closed cup represents the contained vapors
inside the tank and the open cup represents the vapors escaping the tank.
Oxygen and an ignition source will be less available inside the tank.

Environmentally hazardous fluids require special disposal according to applicable
federal or local laws after use.

7.2.9 Cost

Cost of bath fluids may vary greatly, from cents per gallon for water to hundreds
of dollars per gallon for synthetic oils. Cost may be an important consideration
when choosing a fluid.

7.2.10 Commonly Used Fluids

Below is a description of some of the more commonly used fluids and their
characteristics

7.2.10.1 Water

Water is often used because of its very low cost, availability, and excellent
temperature control characteristics. Water has very low viscosity and good
thermal conductivity and heat capacity which makes it among the best fluids for
control stability at low temperatures. Temperature stability is much poorer at
higher temperatures because water condenses on the lid, cools and drips into
the bath. Water is safe and relatively inert. The electrical conductivity of water
may prevent its use in some applications. Water has a limited temperature range,
from a few degrees above 0 °C to a few degrees below 100 °C. At higher
temperatures evaporation becomes significant. Water used in the bath should be
distilled or softened to prevent mineral deposits. Consider using an algicide
chemical in the water to prevent contamination.

7-3

7108

Users Guide

7.2.10.2 Ethylene Glycol

The temperature range of water may be extended by using a solution of 1 part
water and 1 part ethylene glycol (antifreeze). The characteristics of the ethylene
glycol-water solution are similar to water. Use caution with ethylene glycol since
the fluid is very toxic. Ethylene glycol must be disposed of properly.

7.2.10.3 Methanol

Methanol or methyl alcohol is often used at low temperatures below 0 °C.
Methanol is relatively inexpensive, has good control characteristics, and has a

low freeze point. Methanol is very toxic so care must be taken when using and
disposing of this fluid.

7.2.10.4 Mineral Oil

Mineral oil or paraffin oil is often used at moderate temperatures above the range
of water. Mineral oil is relatively inexpensive. At lower temperatures mineral oil is
quite viscous and control may be poor. At higher temperatures vapor emission
becomes significant. The vapors may be dangerous and a fume hood should be
used. As with most oils mineral oil will expand as temperature increases so be
careful not to fill the bath too full that it overflows when heated. The viscosity and
thermal characteristics of mineral oil is poorer than water so temperature stability
will not be as good. Mineral oil has very low electrical conductivity. Use caution
with mineral oil since it is flammable and may also cause serious injury if inhaled
or ingested.

7.2.10.5 Silicone Oils

Silicone oils are available which offer a much wider operating temperature range
than mineral oil. Like most oils, silicone oils have temperature control
characteristics which are somewhat poorer than water. The viscosity changes
significantly with temperature and thermal expansion also occurs. These oils
have very high electrical resistivity. Silicon oils are fairly safe. These oils are
relatively expensive.

7.2.11 Fluid Characteristics Charts

Table 3 and Figure 3 have been created to provide help in selecting a heat ex­change fluid media for your constant temperature bath. The charts provide both a
visual and numerical representation of most of the physical qualities important in
making a selection. The list is not all inclusive; many usable fluids may not have
been shown in this listing.

7.2.11.1 Limitations and Disclaimer

Every effort has gone into making these charts accurate; however, the data here
does not imply any guarantee of fitness of use for a particular application.
Working near the limits of a property such as the flash point or viscosity limit can
compromise safety or serviceability. Sources of information sometimes vary for
particular properties. Your company’s safety policies as well as personal
judgment regarding flash points, toxicity, etc. must also be considered. You are
responsible for reading the Material Safety Data Sheets and making a judgment
here. Cost may require some compromises as well. Hart Scientific cannot be
liable for the suitability of application or for any personal injury, damage to
equipment, product or facilities in using these fluids.

7-4

General Operation

7.2 Bath Fluid 7

The charts include information on a variety of fluids which are often used as heat
transfer fluid in baths. Because of the temperature range some fluids may not be
useful with your bath.

7.2.11.2 About the Graph

The fluid graph visually illustrates some of the important qualities of the fluids
shown.

Temperature Range: The temperature scale is shown in degrees Celsius. A
sense of the fluid’s general range of application is indicated. Qualities including
pour point, freeze point, important viscosity points, flash point, boiling point and
others may be shown.

Freezing Point: The freezing point of a fluid is an obvious limitation to stirring.
As the freezing point is approached high viscosity may also limit good stirring.

Pour Point: This represents a handling limit for the fluid.
Viscosity: Points shown are at 50 and 10 centistokes. Greater than 50

centistokes stirring is very poor and unsatisfactory for bath applications. At 10
centistokes and below optimum stirring can occur. These are rules of thumb
which have been useful for most applications.

Fume Point: The point at which a fume hood should be used. This point is very
subjective in nature and is impacted by individual tolerance to different fumes
and smells, how well the bath is covered, the surface area of the fluid in the bath,
the size and ventilation of the facility where the bath is located and others. We
assume the bath is well covered at this point. This is also subject to company
policy.

Flash Point: The point at which ignition may occur. See flash point discussion in
Section7.2.8. The point shown may be either the open or closed cup flash point.

Boiling Point: At the boiling point of the fluid the temperature stability is difficult
to maintain. Fuming is excessive. Excessive amounts of heater power may be
required because of the heat of vaporization.

7-5

7108

Users Guide

7-6

fig_3.eps

Figure 3. Chart of various bath fluids and their properties

Decomposition: All high temperature fluids may be reach a temperature point at

which decomposition of some form will begin. While it always begins slowly at
some lower temperature, the rate can increase to the point of danger or
impracticality at a higher temperature.

General Operation

7.3 Stirring 7

7.3 Stirring

Stirring of the bath fluid is very important for stable temperature control. The fluid
must be mixed well for good temperature uniformity and fast controller response.
The stirrer is precisely adjusted for optimum performance.

Table 3. Table of various bath fluids and their properties

table_3.eps

7-7

7108

Users Guide

7.4 Power

Power to the bath is provided by an AC mains supply of 115 VAC ( ±10 %), 60
Hz, 3 A [230 VAC ( ±10 %), 50 Hz, 1.6 A switchable]. Power to the bath passes

through a filter to prevent switching spikes from being transmitted to other
equipment.

To turn on the bath switch the control panel power switch to the ON position. The
stir motor will turn on, the LED display will begin to show the bath temperature,
and the heater will turn on or off until the bath temperature reaches the
programmed set-point.

When powered on the control panel display briefly shows a four digit number.
This number indicates the number of times power has been applied to the bath.
Also briefly displayed is data which indicates the controller hardware
configuration. This data is used in some circumstances for diagnostic purposes.

7.5 Heater/Cooling

The power to the bath is controlled by the temperature controller to maintain a
constant bath temperature. The heating and cooling is controlled by thermal
electric devices (TED).

7.6 Fluid Drain

The drain at the back of the bath (see Figure 2 on page 21) may be used to
remove fluid from the bath. During operation of the bath the drain must be
closed.

7.7 Temperature Controller

The bath temperature is controlled by Hart Scientific’s unique hybrid
digital/analog temperature controller. The controller offers the tight control
stability of an analog temperature controller as well as the flexibility and
programmability of a digital controller.

The bath temperature is monitored with a thermistor sensor in the control probe.
The signal is electronically compared with the programmable reference signal,
amplified, and then fed to a pulse-width modulator circuit which controls the
amount of power applied to the bath TEDs.

The controller allows the operator to set the bath temperature with high
resolution, adjust the proportional band, monitor the heater output power, and
program the controller configuration and calibration parameters. The controller
may be operated in temperature units of degrees Celsius or Fahrenheit. The
controller is operated and programmed from the front control panel using the four
key switches and digital LED display. The controller is equipped with a serial RS­232 or optionally with an IEEE-488 GPIB digital interface for remote operation.
Operation of the controller using the front control panel is discussed in Section 8.
Operation using the digital interfaces is discussed in Section 9.

7-8

When the controller is set to a new set-point the bath heats or cools to the new
temperature. Once the new temperature is reached the bath usually takes 10-15
minutes for the temperature to settle and stabilize. There may be a small over­shoot or undershoot of about 0.5 °C.

This section discusses in detail how to operate the bath temperature controller
using the front control panel. Using the front panel key switches and LED display
the user may monitor the bath temperature, set the temperature set-point in
degrees C or F, monitor the heater output power, adjust the controller
proportional band, and program the probe parameters, and serial and IEEE-488
interface configuration. Operation is summarized in Figure 4.

8.1 Bath Temperature

The digital LED display on the front panel allows direct viewing of the actual bath
temperature. This temperature value is what is normally shown on the display.
The units, C or F, of the temperature value are displayed at the right. For
example,

Chapter 8

Controller Operation

25.00 C Bath temperature in degrees Celsius
The temperature display function may be accessed from any other function by

pressing the “EXIT” button.

8.2 Temperature Set-point

The bath temperature can be set to any value within the range and with
resolution as given in the specifications. The temperature range of the particular
fluid used in the bath must be known by the operator and the bath should only be
operated well below the upper temperature limit of the liquid. In addition, the cut­out temperature should also be set below the upper limit of the fluid.

Setting the bath temperature involves three steps: (1) select the set-point
memory, (2) adjust the set-point value, and (3) adjust the vernier if desired.

8.2.1 Programmable Set-points

The controller stores 8 set-point temperatures in memory. The set-points can be
quickly recalled to conveniently set the bath to a previously programmed
temperature set-point.

8-1

7108

Users Guide

To set the bath temperature one must first select the set-point memory. This
function is accessed from the temperature display function by pressing “SET”.
The number of the set-point memory currently being used is shown at the left on
the display followed by the current set-point value.

25.00 C Bath temperature in degrees Celsius

Access set-point memory

8-2

Figure 4. Controller Operation Flowchart

fig_4.eps

1. 25.0 Set-point memory 1, 25.0 °C currently used
To change the set-point memory press “UP” or “DOWN”.

4. 27.0 New set-point memory 4, 27.0 °C
Press “SET” to accept the new selection and access the set-point value.

Accept selected set-point memory

8.2.2 Set-point Value

The set-point value may be adjusted after selecting the set-point memory and
pressing “SET”. The set-point value is displayed with the units, C or F, at the left.

C 27.00 Set-point 4 value in °C
If the set-point value need not be changed then press “EXIT” to resume

displaying the bath temperature. Press “UP” or “DOWN” to adjust the set-point
value.

Controller Operation

8.2 Temperature Set-point 8

C 28.00 New set-point value
When the desired set-point value is reached press “SET” to accept the new value

and access the set-point vernier. If “EXIT” is pressed instead then any changes
made to the set-point will be ignored.

Accept new set-point value

8.2.3 Set-point Vernier

The set-point value can only be set with a resolution of 0.000032 °C. The user
may want to adjust the set-point slightly to achieve a precise bath temperature.
The set-point vernier allows one to adjust the temperature below or above the
set-point by a small amount with very high resolution. Each of the 8 stored set­points has an associated vernier setting. The vernier is accessed from the set­point by pressing “SET”. The vernier setting is displayed as a 6 digit number with
five digits after the decimal point. This is a temperature offset in degrees of the
selected units, C or F.

8-3

7108

Users Guide

0.00000 Current vernier value in °C
To adjust the vernier press “UP” or “DOWN”. Unlike most functions the vernier

setting has immediate effect as the vernier is adjusted. “SET” need not be
pressed. This allows one to continually adjust the bath temperature with the
vernier as it is displayed.

0.00090 New vernier setting
Next press “EXIT” to return to the temperature display or “SET” to access the

temperature scale units selection.

Access scale units

8.3 Temperature Scale Units

The temperature scale units of the controller may be set by the user to degrees
Celsius ( °C) or Fahrenheit ( °F). These units are used in displaying the bath
temperature, set-point, vernier, and proportional band.

The temperature scale units selection is accessed after the vernier adjustment
function by pressing “SET”. From the temperature display function access the
units selection by pressing “SET” 4 times.

25.00 C Bath temperature

Access set-point memory

1. 25.0 Set-point memory

Access set-point value

C 25.00 Set-point value

Access vernier

8-4

0.00000 Vernier setting

Access scale units selection

Un= C Scale units currently selected
Press “UP” or “DOWN” to change the units.
Un= F New units selected
Press “SET” to accept the new selection and resume displaying the bath

temperature.

Set the new units and resume temperature display

8.4 Secondary Menu

Controller Operation

8.4 Secondary Menu 8

Functions which are used less often are accessed within the secondary menu.
The secondary menu is accessed by pressing “SET” and “EXIT” simultaneously
and then releasing. The first function in the secondary menu is the heater power
display.

8.5 Thermal Electric Devices (TEDs)

The temperature controller controls the temperature of the bath by supplying a
linear voltage to the TEDs. The total power being applied to the TED is
determined by the duty cycle. This value may be estimated by watching the
red/green control indicator light or read directly from the digital display. By
knowing the amount of power to the bath the user can tell if the bath is heating
up to the set-point, cooling down, or controlling at a constant temperature.
Monitoring the percent heater power will let the user know how stable the bath
temperature is. With good control stability the percent heating power should not
fluctuate more than ±1 % within one minute.

The percent power display is accessed in the secondary menu. Press “SET” and
“EXIT” simultaneously and release. The heater power will be displayed as a
percentage of full power.

+ Access percent power in secondary menu

12 Pct Power in percent
To exit out of the secondary menu press “EXIT”. To continue on to the

proportional band setting function press “SET”.

8-5

7108

Users Guide

8.6 Proportional Band

In a proportional controller such as this the heater output power is proportional to
the bath temperature over a limited range of temperatures around the set-point.
This range of temperature is called the proportional band. At the bottom of the
proportional band the heater output is 100 %. At the top of the proportional band
the heater output is 0. Thus as the bath temperature rises the heater power is
reduced, which consequently tends to lower the temperature back down. In this
way the temperature is maintained at a fairly constant temperature.

The temperature stability of the bath depends on the width of the proportional
band. See Figure 5. If the band is too wide the bath temperature will deviate
excessively from the set-point due to varying external conditions. This is because
the power output changes very little with temperature and the controller cannot
respond very well to changing conditions or noise in the system. If the
proportional band is too narrow the bath temperature may swing back and forth
because the controller overreacts to temperature variations. For best control
stability the proportional band must be set for the optimum width.

8-6

fig_5.eps

Figure 5. Bath temperature fluctuation at various proportional band settings

The optimum proportional band width depends on several factors among which
are fluid volume, fluid characteristics (viscosity, specific heat, and thermal
conductivity), heater power setting, operating temperature, and stirring. Thus the
proportional band width may require adjustment for best bath stability when any
of these conditions change. Of these, the most significant factors affecting the
optimum proportional band width are heater power setting and fluid viscosity. The
proportional band should be wider when the higher power setting is used so that
the change in output power per change in temperature remains the same. The
proportional band should also be wider when the fluid viscosity is higher because
of the increased response time.

Controller Operation

8.7 Controller Configuration 8

The proportional band width is easily adjusted from the bath front panel. The
width may be set to discrete values in degrees C or F depending on the selected
units. The optimum proportional band width setting may be determined by
monitoring the stability with a high resolution thermometer or with the controller
percent output power display. Narrow the proportional band width to the point at
which the bath temperature begins to oscillate and then increase the band width
from this point to 3 or 4 times wider. Table 4 lists typical proportional band
settings for optimum performance with a variety of fluids at selected
temperatures.

Table 4. Proportional Band — Fluid Table

Fluid Temperature Heater Setting

Water 25 °C Low 0.04 °C ±0.002 °C
Mineral Oil 25 °C Low 0.1 °C ±0.004 °C

Proportional

Band

Stability

The proportional band adjustment may be accessed within the secondary menu.
Press “SET” and “EXIT” to enter the secondary menu and show the heater
power. Then press “SET” to access the proportional band.

+ Access heater power in secondary menu

12 Pct Heater power in percent

Access proportional band

Pb=0.101C Proportional band setting
To change the proportional band press “UP” or “DOWN”.
Pb=0.060C New proportional band setting
To accept the new setting and access the cut-out set-point press “SET”. Pressing

“EXIT” will exit the secondary menu ignoring any changes just made to the
proportional band value.

Accept the new proportional band setting

8.7 Controller Configuration

The controller has a number of configuration and operating options and
calibration parameters which are programmable via the front panel. These are
accessed from the secondary menu by pressing “SET.” The configuration menu
consists of the probe parameters, serial interface parameters, and IEEE-488
interface parameters. The menus are selected using the “UP” and “DOWN” keys
and then pressing “SET”.

8-7

7108

Users Guide

8.8 Probe Parameters

The probe parameter menu is indicated by,
PrObE Probe parameters menu
Press “SET” to enter the menu. The probe parameters menu contains the

parameters, D0 and Dg, which characterize the resistance-temperature
relationship of the thermistor control probe. These parameters may be adjusted
to improve the accuracy of the bath. This procedure is explained in detail in
Section10.

The probe parameters are accessed by pressing “SET” after the name of the
parameter is displayed. The value of the parameter may be changed using the
“UP” and “DOWN” buttons. After the desired value is reached press “SET” to set
the parameter to the new value. Pressing “EXIT” will cause the parameter to be
skipped ignoring any changes that may have been made.

8.8.1 D0

This probe parameter refers to the resistance of the control probe at 0 °C.
Normally this is set for −25.2290 ohms.

8.8.2 Dg

This probe parameter refers to the average sensitivity of the probe between 0
and 100 °C. Normally this is set for 186.9740

8.9 Serial Interface Parameters

The serial interface parameters menu is indicated by,
SErIAL Serial RS-232 interface parameters menu
The serial interface parameters menu contains parameters which determine the

operation of the serial interface. The parameters in the menu are — BAUD rate,
sample period, duplex mode, and linefeed.

8.9.1 Baud Rate

The baud rate is the first parameter in the menu. The baud rate setting
determines the serial communications transmission rate.

The baud rate parameter is indicated by,
BAUd Serial baud rate parameter
Press “SET” to choose to set the baud rate. The current baud rate value will then

be displayed.

8-8

1200 b Current baud rate

The baud rate of the bath serial communications may be programmed to 300,
600, 1200, or 2400 baud. Use “UP” or “DOWN” to change the baud rate value.

2400 b New baud rate
Press “SET” to set the baud rate to the new value or “EXIT” to abort the

operation and skip to the next parameter in the menu.

8.9.2 Sample Period

The sample period is the next parameter in the serial interface parameter menu.
The sample period is the time period in seconds between temperature
measurements transmitted from the serial interface. If the sample rate is set to 5,
the bath transmits the current measurement over the serial interface
approximately every five seconds. The automatic sampling is disabled with a
sample period of 0. The sample period is indicated by,

SAmPLE Serial sample period parameter
Press “SET” to choose to set the sample period. The current sample period value

will be displayed.

Controller Operation

8.9 Serial Interface Parameters 8

SA= 1 Current sample period (seconds)
Adjust the value with “UP” or “DOWN” and then use “SET” to set the sample rate

to the displayed value.
SA= 60 New sample period

8.9.3 Duplex Mode

The next parameter is the duplex mode. The duplex mode may be set to full
duplex or half duplex. With full duplex any commands received by the bath via
the serial interface are immediately echoed or transmitted back to the device of
origin. With half duplex the commands are executed but not echoed. The duplex
mode parameter is indicated by,

dUPL Serial duplex mode parameter
Press “SET” to access the mode setting.
dUP=FULL Current duplex mode setting
The mode may be changed using “UP” or “DOWN” and pressing “SET”.
dUP=HALF New duplex mode setting

8-9

7108

Users Guide

8.9.4 Linefeed

The final parameter in the serial interface menu is the linefeed mode. This
parameter enables (on) or disables (off) transmission of a linefeed character (LF,
ASCII 10) after transmission of any carriage-return. The linefeed parameter is
indicated by,

LF Serial linefeed parameter
Press “SET” to access the linefeed parameter.
LF= On Current linefeed setting
The mode may be changed using “UP” or “DOWN” and pressing “SET”.
LF= OFF New linefeed setting

8.10 IEEE-488 Parameters

Baths may optionally be fitted with an IEEE-488 GPIB interface. In this case the
user may set the interface address within the IEEE-488 parameter menu. This
menu does not appear on baths not fitted with the interface. The menu is
indicated by,

IEEE IEEE-488 parameters menu
Press “SET” to enter the menu.

8.10.1 IEEE-488 Address

The IEEE-488 interface must be configured to use the same address as the
external communicating device. The address is indicated by,

AddrESS IEEE-488 interface address
Press “SET” to access the address setting.
Add= 22 Current IEEE-488 interface address
Adjust the value with “UP” or “DOWN” and then use “SET” to set the address to

the displayed value.
Add= 15 New IEEE-488 interface address

8-10

Digital Communication Interface

The 7108 bath is capable of communicating with and being controlled by other
equipment through the digital interface. The instrument comes standard with an
RS-232 serial interface or optionally with an IEEE-488 GPIB interface.

With a digital interface the bath may be connected to a computer or other
equipment. This allows the user to set the bath temperature, monitor the
temperature, and access any of the other controller functions, all using remote
communications equipment.

Chapter 9

9.1 Serial Communications

The bath is equipped with an RS-232
serial interface that allows serial digital
communications over fairly long
distances. With the serial interface the
user may access any of the functions,
parameters and settings discussed in
Section8 with the exception of the BAUD
rate setting. The serial interface uses 8
data bits, 1 stop bit, and no parity.

9.1.1 Wiring

The serial communications cable
attaches to the bath through the DB-9
connector at the back of the instrument.
Figure 6 shows the pin-out of this
connector and suggested cable wiring.
To eliminate noise, the serial cable
should be shielded with low resistance
between the connector (DB-9) and the
shield.

9.1.2 Setup

Before operation the serial interface of
the bath must first be set up by
programming the BAUD rate and other
configuration parameters. These
parameters are programmed within the
serial interface menu.

Figure 6. Serial Communications Cable Wiring

9-1

7108

Users Guide

To enter the serial parameter programming mode first press “EXIT” while
pressing “SET” and release to enter the secondary menu.

Press “SET” repeatedly until the display reads “ProbE”. This is the menu
selection. Press “UP” repeatedly until the serial interface menu is indicated with
“SErIAL”. Finally press “SET” to enter the serial parameter menu. In the serial
interface parameters menu are the BAUD rate, the sample rate, the duplex
mode, and the linefeed parameter.

9.1.2.1 Baud rate

The baud rate is the first parameter in the menu. The display will prompt with the
baud rate parameter by showing “BAUd”. Press “SET” to choose to set the baud
rate. The current baud rate value will then be displayed. The baud rate of the
7108 serial communications may be programmed to 300, 600, 1200, or 2400
baud. The baud rate is pre-programmed to 1200 baud. Use “UP” or “DOWN “to
change the baud rate value. Press “SET” to set the baud rate to the new value or
“EXIT” to abort the operation and skip to the next parameter in the menu.

9.1.2.2 Sample Period

The sample period is the next parameter in the menu and prompted with
“SAmPLE”. The sample period is the time period in seconds between
temperature measurements transmitted from the serial interface. If the sample
rate is set to 5, the 7108 transmits the current measurement over the serial
interface approximately every five seconds. The automatic sampling is disabled
with a sample period of 0. Press “SET” to choose to set the sample period.
Adjust the period with “UP” or “DOWN” and then use “SET” to set the sample
rate to the displayed value.

9.1.2.3 Duplex Mode

The next parameter is the duplex mode indicated with “dUPL”. The duplex mode
may be set to half duplex (“HALF”) or full duplex (“FULL”). With full duplex any
commands received by the thermometer via the serial interface are immediately
echoed or transmitted back to the device of origin. With half duplex the
commands are executed but not echoed. The default setting is full duplex. The
mode may be changed using “UP” or “DOWN” and pressing “SET”.

9.1.2.4 Linefeed

The final parameter in the serial interface menu is the linefeed mode. This
parameter enables (“On”) or disables (“OFF”) transmission of a linefeed
character (LF, ASCII 10) after transmission of any carriage-return. The default
setting is with linefeed on. The mode may be changed using “UP” or “DOWN”
and pressing “SET”.

9.1.3 Serial Operation

Once the cable has been attached and the interface set up properly the controller
immediately begins transmitting temperature readings at the programmed rate.
The set-point and other commands may be sent to the bath via the serial
interface to set the bath and view or program the various parameters. The
interface commands are discussed in Section9.3. All commands are ASCII
character strings terminated with a carriage-return character (CR, ASCII 13).

9-2

9.2 IEEE-488 Communication

The IEEE-488 interface is available as an option. Baths supplied with this option
may be connected to a GPIB type communication bus which allows many
instruments to be connected and controlled simultaneously. To eliminate noise,

Digital Communication Interface

9.2 IEEE-488 Communication 9

the GPIB cable should be shielded.

9.2.1 Setup

To use the IEEE-488 interface first connect an IEEE-488 standard cable to the
back of the bath. Next set the device address. This parameter is programmed
within the IEEE-488 interface menu.

To enter the IEEE-488 parameter programming menu first press “EXIT” while
pressing “SET” and release to enter the secondary menu. Press “SET”
repeatedly until the display reaches “PrObE”. This is the menu selection. Press
“UP” repeatedly until the IEEE-488 interface menu is indicated with “IEEE”. Press

“SET” to enter the IEEE-488 parameter menu. The IEEE-488 menu contains the
IEEE-488 address parameter.

9.2.1.1 IEEE-488 Interface Address

The IEEE-488 address is prompted with “AddrESS”. Press “SET” to program the
address. The default address is 22. Change the device address of the bath if
necessary to match the address used by the communication equipment by
pressing “UP” or “DOWN” and then “SET”.

9.2.2 IEEE-488 Operation

Commands may now be sent via the IEEE-488 interface to read or set the
temperature or access other controller functions. All commands are ASCII
character strings and are terminated with a carriage-return (CR, ASCII 13).
Interface commands are listed below.

9-3

7108

Users Guide

9.3 Interface Commands

The various commands for accessing the bath controller functions via the digital
interfaces are listed in this section (see Table 5). These commands are used with
both the RS-232 serial interface and the IEEE-488 GPIB interface. In either case
the commands are terminated with a carriage-return character. The interface
makes no distinction between upper and lower case letters, hence either may be
used. Commands may be abbreviated to the minimum number of letters which
determines a unique command. A command may be used to either set a
parameter or display a parameter depending on whether or not a value is sent
with the command following a “ =” character. For example “s” <CR> will return the
current set-point and “s =25.00” <CR> will set the set-point to 25.00 degrees.

In the following list of commands, characters or data within brackets, “[” and “]”,
are optional for the command. A slash, “/”, denotes alternate characters or data.
Numeric data, denoted by “n”, may be entered in decimal or exponential notation.
Characters are shown in lower case although upper case may be used. Spaces
may be added within command strings and will simply be ignored. Backspace
(BS, ASCII 8) may be used to erase the previous character. A terminating CR is
implied with all commands.

9-4

Digital Communication Interface

9.3 Interface Commands 9

Table 5. Interface Command Summary

9-5

7108

Users Guide

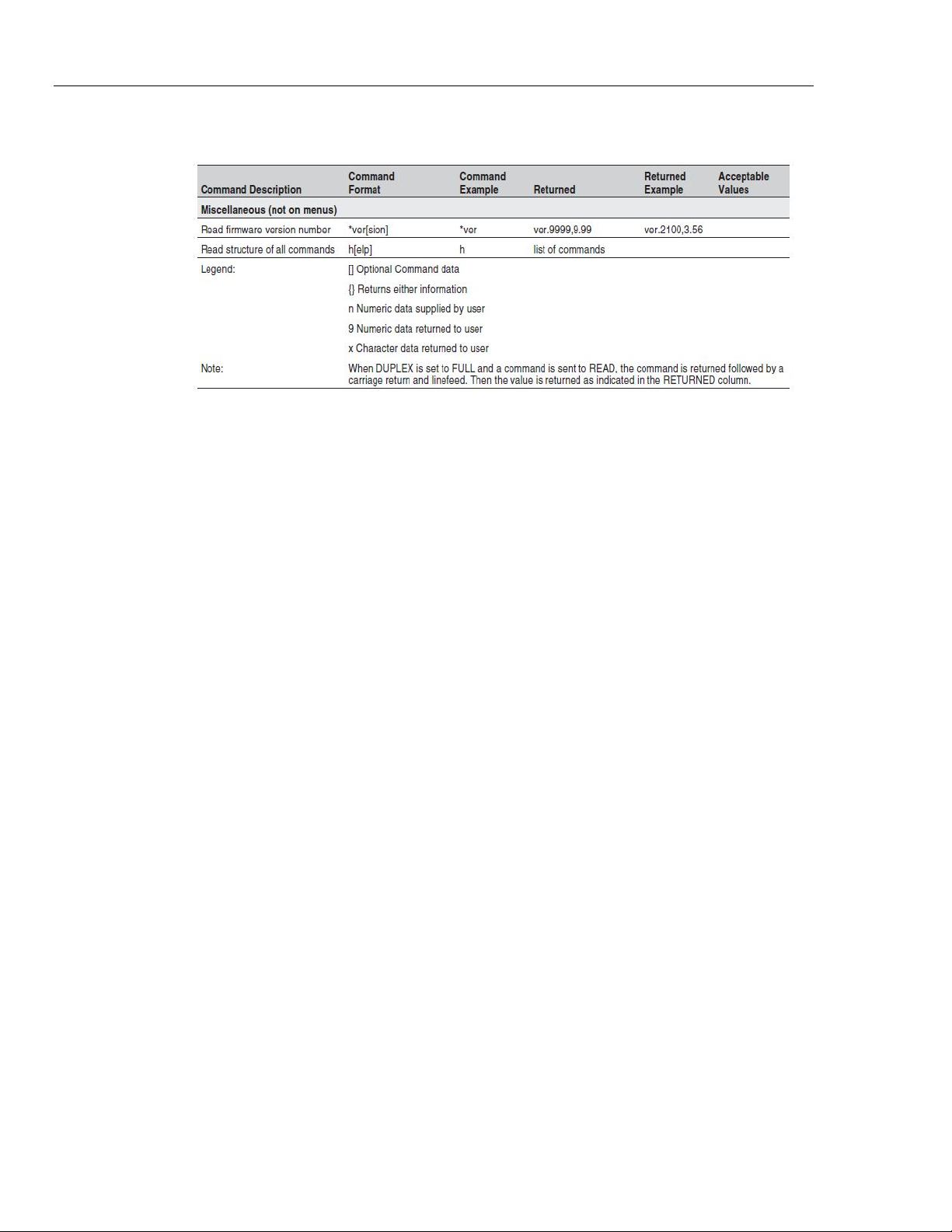

Table 6. Interface Command Summary continued

9-6

The user may want to calibrate the bath to improve the temperature set-point
accuracy. Calibration is done by adjusting the probe calibration constant D0 so
that the temperature of the bath as measured with a standard thermometer
agrees more closely with the bath set-point. The thermometer and any
associated display instrument must be able to measure the bath fluid
temperature with higher accuracy than the accuracy you desire from the bath.

Chapter 10

Calibration Procedure

The first step in the calibration procedure is to set the bath to the set-point at
which you want the best accuracy, 25 °C for example. Allow the bath to reach the
set-point and stabilize for at least 30 minutes.

The next step is to measure the temperature error. Insert the reference
thermometer into the bath and allow its temperature to stabilize. Note the error
which is the actual measured temperature of the bath minus the set-point
temperature. For example, if the bath is set for a set-point of 25 °C and the bath
stabilizes at a temperature of 24.782 °C then the error is −0.218 °C.

Next, calculate a new value for the D0 parameter. To do this you need to find
the present value of D0. You can find it in the Probe sub-menu in the Config
section of the secondary menu (see Section 9.8). The default value for this
parameter is −25.229. To calculate the new value for D0 add the measured
error, in degrees C, to it. For example, if D0 is now −25.229 and the measured
error was −0.218 °C the new value of D0 would be −25.447. Change the
controller's value of D0 to the new value you calculated.

Finally, check the bath for accuracy. Set the set-point again by pressing ENTER
three times and then pressing EXIT. The display should begin to read the
temperature you measured and then the bath will heat or cool until the display
reaches the set-point. At this point the actual temperature of the bath should
closely match the set-point. Verify this by measuring the temperature again after
the bath is stable.

10-1

7108

Users Guide

10-2

• The calibration instrument has been designed with the utmost care. Ease of

operation and simplicity of maintenance have been a central theme in the
product development. Therefore, with proper care the instrument should
require very little maintenance. Avoid operating the instrument in dirty or
dusty environments.

• The bath should be cleaned regularly to prevent a buildup of oil or dust.

• Use a paint safe cleaning agent on all painted surfaces. Solvents such as

• Trichloroethylene or Acetone may dull or dissolve the paint. The stainless

steel surfaces may be cleaned with solvents as necessary to remove oils.

Chapter 11

Maintenance

• The stirring motor should be clean to allow proper cooling. Normally only the

outside surfaces require any attention. If the inside of the motor has become
heavily loaded with oily dust, blow it out with compressed air. Follow normal
safety procedures when using pressurized gasses.

• Periodically check the fluid level in the bath to ensure that the level has not

dropped. A drop in the fluid level affects the stability of the bath. Changes in
fluid level are dependent upon several factors specific to the environment in
which the equipment is used. A schedule cannot be out-lined to meet each
environmental setting. Therefore, the first year the bath should be checked
weekly with notes kept as to changes in bath fluid. After the first year, the
user can set up a maintenance schedule based on the data specific to the
application.

• Heat transfer medium lifetime is dependent upon the type of medium and the

environment. The fluid should be checked at least every month for the first
year and regularly thereafter. This fluid check provides a baseline for
knowledge of bath operation with clean, usable fluid. Once some fluids have
become compromised, the break down can occur rapidly. Particular attention
should be paid to the viscosity of the fluid. A significant change in the
viscosity can indicate that the fluid is contaminated, being used out- side of its
temperature limits, contains ice particles, or is close to a chemical
breakdown. Once data has been gathered, a specific maintenance schedule
can be outline for the instrument. Refer to the General Operation section
(Section7) for more information about the different types of fluids used in
calibration baths.

11-1

7108

Users Guide

• If a hazardous material is spilt on or inside the equipment, the user is

responsible for taking the appropriate decontamination steps as outlined by
the national safety council with respect to the material. MSDS sheets
applicable to all fluids used in the baths should be kept in close proximity to
the instrument.

• If the mains supply cord becomes damaged, replace it with a cord with the

appropriate gauge wire for the current of the bath. If there are any questions,
call Hart Scientific Customer Service for more information.

• Before using any cleaning or decontamination method except those

recommended by Hart, users should check with Hart Scientific Customer

• Service to be sure that the proposed method will not damage the equipment.

• If the instrument is used in a manner not in accordance with the equipment

design, the operation of the bath may be impaired or safety hazards may
arise.

• The constant temperature bath depends upon the certain qualities of the fluid

medium in order to maintain a uniform and stable temperature environment.
Some oils change their characteristics or become dirty after a period of use.
Always remove any foreign materials from the bath.

• Silicone oils as well as others may evaporate off their lighter components

over a period of time leaving the very viscous components remaining. In
addition, some decomposition occurs which may impair the temperature
stability of the bath. When this happens, the fluid is generally very dark to
black and viscous. Vegetable oils polymerize (turn plastic like) after they have
been used for a time at high temperatures making them very difficult to
remove. When the oil has become unusable it should be changed. The
instructions for removing the oil is as follows.

11.1 Draining the Bath

The drain is located on the back of the bath. See Figure 2 on page 21. Locate the
drain plug on the end of the drain tube. This drain plug is to be fluid tight until the
time of draining. The following information is helpful when draining the bath.
Always use a container capable of holding the entire load of fluid. The use of an
adequate size, heat proof fluid container is extremely important. Use safety
equipment as appropriate.

For water and low viscosity fluids - drain at room temperature. Normal care must
be taken for fluids that may have corrosive or damaging effects on the
surrounding facility or equipment.

Extreme danger of BURNS and FIRE. Use safety equipment, use
proper equipment and have fire safety equipment standing by.

 WARNING:

11-2

If problems arise while operating the 7108, this section provides some
suggestions that may help you solve the problem. A wiring diagram is also
included.

12.1 Troubleshooting

Below are several situations that may arise followed by suggested actions to take
for fixing the problem. Some of the situations require the instrument to be reset
using the Master Reset Sequence. See Section 12.1.1 for the Master Reset
Sequence.

Chapter 12

Troubleshooting

Incorrect Temperature Reading

• Power the unit on and watch the display. If the first number displayed is less

than “-0005-”, the unit has been re-initialized. The instrument proportional
band, D0, and DG need to be re-programmed. These numbers can be found
on the Report of Calibration that was shipped with the unit.

The display is off

• Check the fuses.

• Check that the power cord is plugged in and connected to the unit.

Red LED on display is blank

• Check that there is power to the unit.

If the display flashes any error code

• Initialize the system by performing the master reset sequence. If the unit

repeats the error code, contact Hart Scientific Customer Support for a return
authorization and for instructions on returning the unit.

The displayed process temperature is in error and the controller remains in
the cooling or the heating state at any set-point value

• Possible causes may be either a faulty control probe or erroneous data in

memory. The probe may be disconnected, burned out, or shorted. Check that
the probe is connected properly. The probe may be checked with an
ohmmeter to see if it is open or shorted.

• If the problem is not the probe, erroneous data in memory may be the cause.

Re-initialize the memory using the Master Reset Sequence explained above.
If the problem remains, the cause may be a defective electronic component.
Contact Hart Scientific Customer Service for assistance.

12-1

7108

Users Guide

The controller controls or attempts to control at an inaccurate temperature

• The controller operates normally except when controlling at a specified set-

point. At this set-point, the temperature does not agree with that measured by
the user’s reference thermometer to within the specified accuracy. This
problem may be caused by an actual difference in temperature between the
points where the control probe and thermometer probe measure temperature,
by erroneous bath calibration parameters, or by a damaged control probe.

• Check that the bath has an adequate amount of fluid in the tank and that the

stirrer is operating properly.

• Check that the thermometer probe and control probe are both fully inserted

into the bath to minimize temperature gradient errors.

• Check that the calibration parameters are all correct according to the Report

of Calibration. If not then reprogram the constants. The memory backup
battery may be weak causing errors in data.

• Check that the control probe has not been struck, bent, or damaged. If the

cause of the problem remains unknown, contact an Authorized Service
Center for assistance.

The controller shows that the output power is steady but the process
temperature is unstable

If the bath temperature does not achieve the expected degree of stability when
measured using a thermometer, try adjusting the proportional band to a narrower
width as discussed in Section 8.6.

The controller alternately heats for a while then cools

This oscillation is typically caused by the proportional band being too narrow.
Increase the width of the proportional band until the temperature stabilizes as
discussed in Section 8.6.

The controller erratically heats then cools, control is unstable

If both the bath temperature and output power do not vary periodically but in a
very erratic manner, the problem may be excess noise in the system. Noise due
to the control sensor should be less than 0.001 °C. However, if the probe has
been damaged or has developed an intermittent short, erratic behavior may exist.
Check for a damaged probe or poor connection between the probe and bath.

Intermittent shorts in the heater or controller electronic circuitry may also be a
possible cause. Contact an Authorized Service Center for assistance.

12.1.1 Master Reset Sequence

Hold the “SET” and “EXIT” keys down at the same time while powering up the
unit. The screen will display “-init-”, the model number, and the version of the
software. The instrument proportional band, D0, and DG need to be re­programmed. These numbers can be found on the Report of Calibration that was
shipped with the unit.

12-2

Troubleshooting

12.2 CE Com me nt s 12

12.2 CE Comments

12.2.1 EMC Directive

Hart Scientific’s equipment has been tested to meet the European
Electromagnetic Compatibility Directive (EMC Directive, 89/336/EEC). Selection
of Light Industrial or Heavy Industrial compliance has been based on the
intended use of the instrument. Units designed for use in a calibration laboratory
have been tested to Light Industrial Standards. Units designed to be used in the
“field” have been tested to both Light Industrial and Heavy Industrial Standards.
The Declaration of Conformity for your instrument lists the specific standards to
which the unit was tested.

12.2.2 Directive (Safety)

In order to, comply with the European Low Voltage Directive (73/23/EEC), Hart
Scientific equipment has been designed to meet the IEC 1010-1 (EN 61010-1)
and IEC 1010-2-010 (EN 61010-2-010) standards.

12-3

7108

Users Guide

12-4
