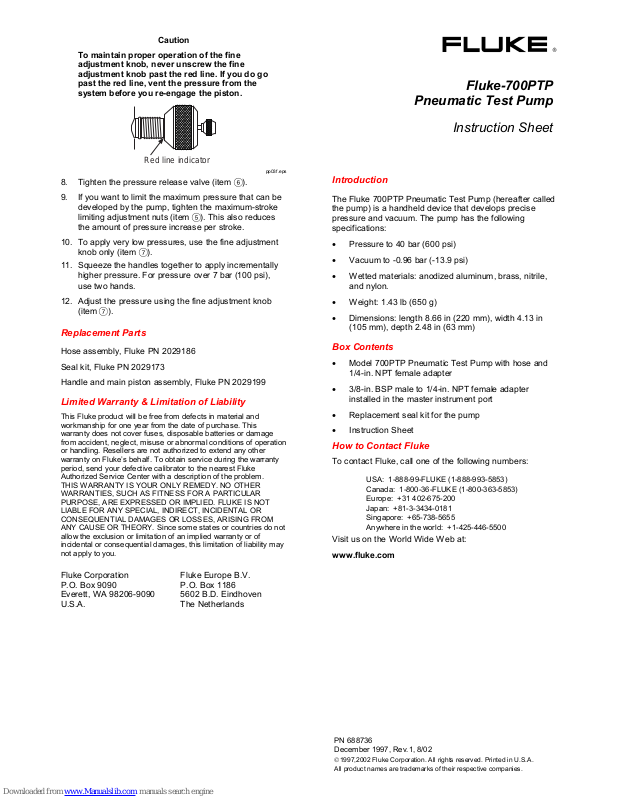

Page 1
PN 688736
December 1997, Rev.1, 8/02
1997,2002 Fluke Corporation. All rights reserved. Printed in U.S.A.
All product names are trademarks of their respective companies.

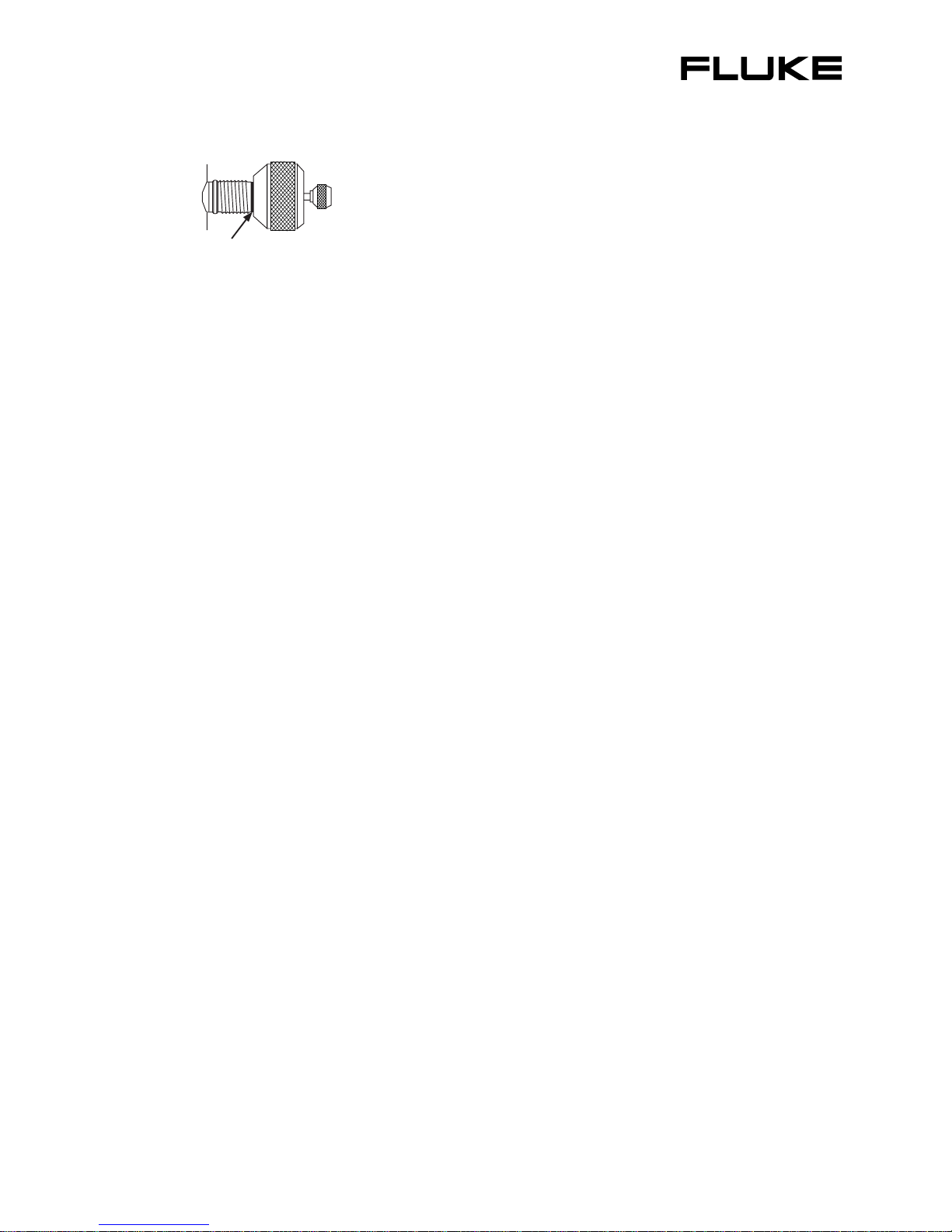

Caution
To maintain proper operation of the fine
adjustment knob, never unscrew the fine
adjustment knob past the red line. If you do go
past the red line, vent the pressure from the
system before you re-engage the piston.
Red line indicator
pp03f.eps
8. Tighten the pressure release valve (item .).
9. If you want to limit the maximum pressure that can be
developed by the pump, tighten the maximum-stroke
limiting adjustment nuts (item -). This also reduces
the amount of pressure increase per stroke.
10. To apply very low pressures, use the fine adjustment
knob only (item /).
11. Squeeze the handles together to apply incrementally
higher pressure. For pressure over 7 bar (100 psi),
use two hands.
12. Adjust the pressure using the fine adjustment knob
(item /).
Replacement Parts
Hose assembly, Fluke PN 2029186
Seal kit, Fluke PN 2029173
Handle and main piston assembly, Fluke PN 2029199
Limited Warranty & Limitation of Liability
This Fluke product will be free from defects in material and
workmanship for one year from the date of purchase. This
warranty does not cover fuses, disposable batteries or damage
from accident, neglect, misuse or abnormal conditions of operation
or handling. Resellers are not authorized to extend any other
warranty on Fluke’s behalf. To obtain service during the warranty
period, send your defective calibrator to the nearest Fluke
Authorized Service Center with a description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER
WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT
LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM
ANY CAUSE OR THEORY. Since some states or countries do not
allow the exclusion or limitation of an implied warranty or of
incidental or consequential damages, this limitation of liability may
not apply to you.
Fluke Corporation Fluke Europe B.V.
P.O. Box 9090 P.O. Box 1186
Everett, WA 98206-9090 5602 B.D. Eindhoven
U.S.A. The Netherlands
Introduction
The Fluke 700PTP Pneumatic Test Pump (hereafter called
the pump) is a handheld device that develops precise
pressure and vacuum. The pump has the following
specifications:
• Pressure to 40 bar (600 psi)
• Vacuum to -0.96 bar (-13.9 psi)
• Wetted materials: anodized aluminum, brass, nitrile,
and nylon.
• Weight: 1.43 lb (650 g)
• Dimensions: length 8.66 in (220 mm), width 4.13 in
(105 mm), depth 2.48 in (63 mm)
Box Contents
• Model 700PTP Pneumatic Test Pump with hose and
1/4-in. NPT female adapter
• 3/8-in. BSP male to 1/4-in. NPT female adapter
installed in the master instrument port
• Replacement seal kit for the pump
• Instruction Sheet
How to Contact Fluke
To contact Fluke, call one of the following numbers:
USA: 1-888-99-FLUKE (1-888-993-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: +31 402-675-200
Japan: +81-3-3434-0181
Singapore: +65-738-5655
Anywhere in the world: +1-425-446-5500
Visit us on the World Wide Web at:
www.fluke.com
®
Fluke-700PTP
Pneumatic Test Pump
Instruction Sheet
Page 2

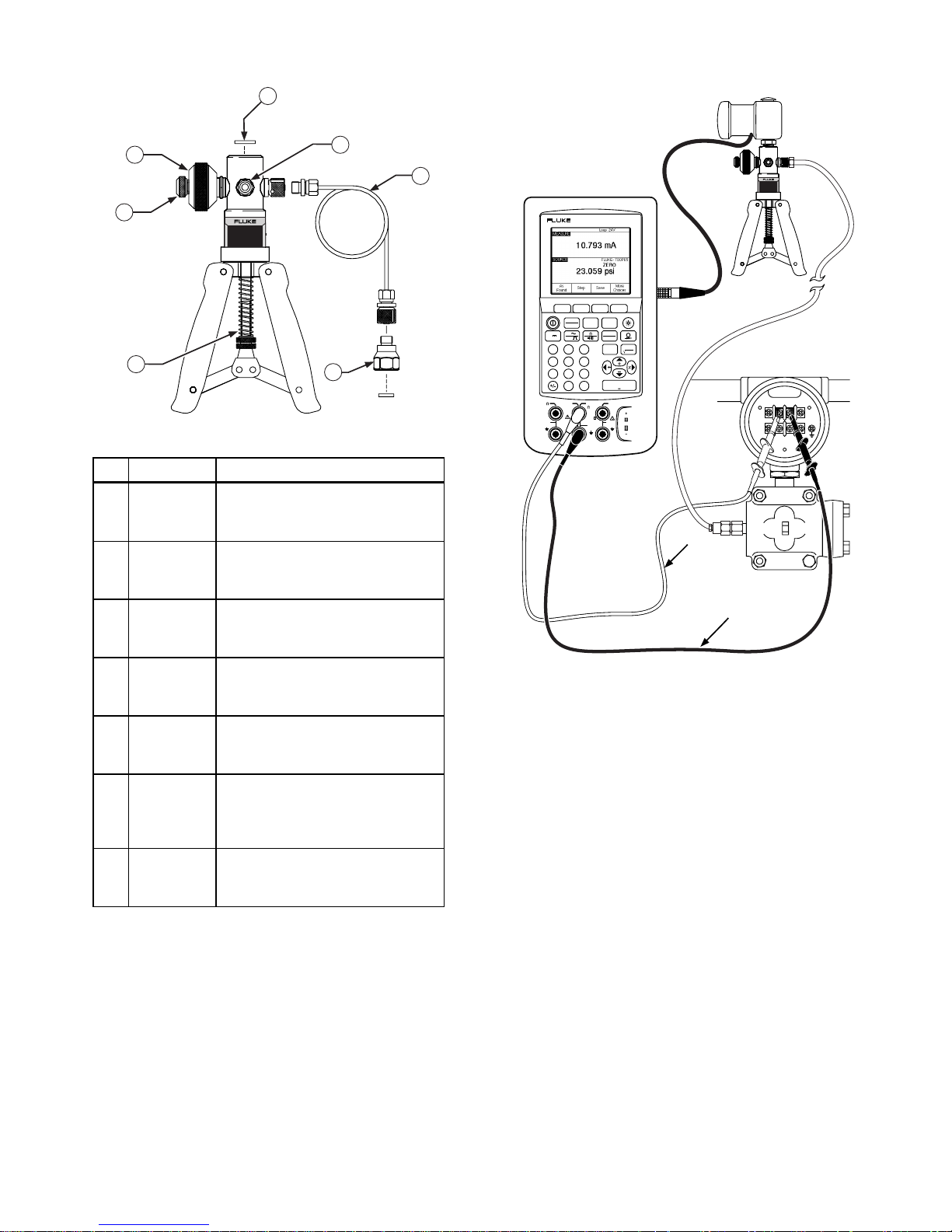

Features of the Test Pump
6
5
4
7
1
3
2
pp01f.eps
No. Item Function
) Master
instrument
port
Port for Fluke 700 Series Pressure
Module. Supplied with 3/8-in. BSP
to 1/4-in. NPT adapter installed.
* Pressure /
vacuum
button
Push in from this side for vacuum,
and from the other side for
pressure. Use a small screwdriver.
+ Test
pressure
port hose
Flexible hose to pressure
instrument under test.
, Test
pressure
port
1/4-in. NPT adapter
- Maximum
stroke
limiter
To limit the pressure from the hand
pump, tighten these nuts to shorten
the compression stroke.
. Pressure
release
valve
Unscrew to vent pressure from the
pump. Tighten the valve to close
the valve before you apply
pressure.
/ Fine
adjustment
knob
Allows you to precisely adjust the
applied pressure.
Using the Test Pump
TC
mA mA
VV
RTD
RTD
SOURCE
300V
MAX
30V
MAX
30V
MAX
30V
MAX
MEAS
CAT
743
DOCUMENTING PROCESS CALIBRATOR
MEAS
SOURCE
SETUP
mA
V
V
Hz
TC
RTD
789
456
123
0
.
SIGNAL
TEST
+
–
Red
Black
ENTER
CLEAR
(ZERO)
RANGE
Pressure
Module
pp02c.eps
Warning
To avoid a violent release of pressure, always
depressurize the system slowly using the pressure
release valve (item ...., left) before you detach any
pressure line from the pump. Do not connect the
pump to an external pressure source.
1. Attach a 700 Series Pressure Module (hereafter called
“pressure module”) to the master instrument port.
2. Connect the pressure module to the calibrator as
shown in the figure.
3. Connect the test pressure port hose (item +) to the
pressure input of the pressure instrument under test.
4. Make sure the pressure/vacuum button (item *) is in
the desired postion.
5. Unscrew the pressure release valve (item .) to vent
pressure from the pump.
6. Zero the pressure module. The zeroing procedure
depends on which pressure module and calibrator you
are using.
7. Turn the fine adjustment knob (item /) to mid-range.
