LIMITED WARRANTY AND LIMITATION OF LIABILITY
This Fluke product will be free from defects in material and
workmanship for one year from the date of purchase. This
warranty does not cover fuses, disposable batteries, or
damage from accident, neglect, misuse, alteration,
contamination, or abnormal conditions of operation or handling.
Resellers are not authorized to extend any other warranty on
Fluke’s behalf. To obtain service during the warranty period,
contact your nearest Fluke authorized service center to obtain
return authorization information, then send the product to that
Service Center with a description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER
WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT
LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM
ANY CAUSE OR THEORY. Since some states or countries do
not allow the exclusion or limitation of an implied warranty or of
incidental or consequential damages, this limitation of liability
may not apply to you.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
11/99
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands

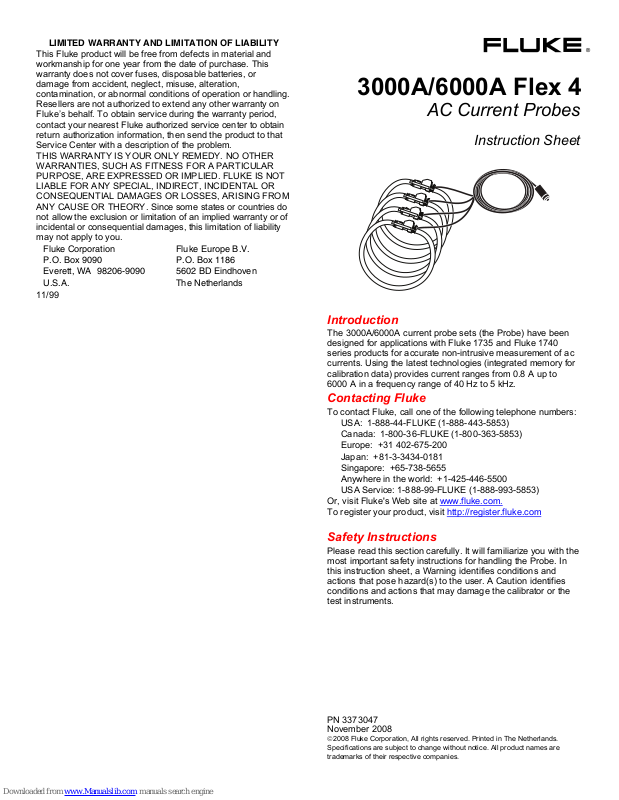

3000A/6000A Flex 4
AC Current Probes
Instruction Sheet
Introduction
The 3000A/6000A current probe sets (the Probe) have been
designed for applications with Fluke 1735 and Fluke 1740
series products for accurate non-intrusive measurement of ac
currents. Using the latest technologies (integrated memory for
calibration data) provides current ranges from 0.8 A up to
6000 A in a frequency range of 40 Hz to 5 kHz.
Contacting Fluke
To contact Fluke, call one of the following telephone numbers:
USA: 1-888-44-FLUKE (1-888-443-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: +31 402-675-200
Japan: +81-3-3434-0181
Singapore: +65-738-5655
Anywhere in the world: +1-425-446-5500
USA Service: 1-888-99-FLUKE (1-888-993-5853)
Or, visit Fluke's Web site at www.fluke.com.
To register your product, visit http://register.fluke.com
Safety Instructions
Please read this section carefully. It will familiarize you with the
most important safety instructions for handling the Probe. In
this instruction sheet, a Warning identifies conditions and
actions that pose hazard(s) to the user. A Caution identifies
conditions and actions that may damage the calibrator or the
test instruments.
PN 3373047
November 2008
©2008 Fluke Corporation, All rights reserved. Printed in The Netherlands.
Specifications are subject to change without notice. All product names are
trademarks of their respective companies.
®
Page 2
WX Warning
The Probe may only be used and handled by
qualified personnel. To avoid electric shock or
personal injury, follow these precautions:
• Do not apply to or remove from hazardous
live conductors without taking additional
protective measures.
• High voltages and currents may be present in
adjacent circuits under test.
• Do not use the Probe if damaged. Always
connect to display device before it is installed
around the conductor.
• Use the Probe only as specified in the
operating instructions; otherwise the safety
features may not protect you.
• Adhere to local and national safety codes.
Individual protective equipment must be used
to prevent the shock and arc blast injury
where hazardous live conductors are
exposed.
• Before each use, inspect the Probe. Look for
cracks or missing portions of the housing or
output cable insulation. Also look for loose or
weakened components.
• Use caution when working with voltages
above 60 V dc, 30 V ac rms or 42 V ac peak.
Such voltages pose a shock hazard.
• Equipment is considered to be used in 600 V
CAT IV and 1000 V CAT III environment.
CAT IV equipment is designed to be used at
the source of distribution system up to the
energy-meter within the installation. CAT III
equipment is designed to be used in
distribution panels, feeders and short branch
circuits, and the lighting system in large
buildings.
• Do not use Probe in damp or wet
environments or in locations that hazardous
gases exist.
Operating Instructions
1. Connect the Probe to the product current input jack.
2. Wear protective gloves or de-energize the circuit and
place the Probe around the conductor under test. Reenergize the circuit.
3. Observe and take measurements as required.
Positive output indicates that the current flow is in the
direction shown by the arrow on the Probe.
4. Wear protective gloves or de-energize the circuit
before removal of the Probe.
Cleaning
Clean the Probe periodically by wiping it with a damp cloth and
detergent. Do not use abrasive cleaners or solvents. Do not
immerse the Probe in liquids.
Symbols
Do not dispose of this product as unsorted municipal
~
waste. Go to Fluke’s website for recycling information.
-
W
X
)
P
Do not apply around or remove from HAZARDOUS LIVE
conductors, without using protective gloves.
Product is protected by double insulation.
T
Risk of Danger. Important information. See Instruction
Sheet.
Hazardous voltage.
Conforms to relevant Canadian Standards Association
directives.
Conforms to relevant European Union directives.
Electrical Characteristics
Input ranges II L1, L2, L3, N: 30 / 300 / 3000 / 6000 A AC
Measuring range: 0.8 A to 6000 A AC
Intrinsic error: <2 % of II
Position influence: max. ±2 % of m.v. for distance conductor
to measuring head >30 mm (1.18 in)
Stray field influence: <±2 A for Iext= 500 A AC and distance
to measuring head >200 mm (7.87 in)
Temperature coefficient: <0.05 % / K
Current transformer: ratio : ≤999 kA / ≤II
Ratio selection: by job programming for 174x series; by setup
menu for 1735
Connection: 3-phase, 3-phase + N; 2-phase L1 and L3
(2W-meter-method); 7 pole connector
Specifications
General Specifications
Cable length: 4 m (0.15 in)
Length of measuring head: 122 cm (48 in)
Operating temperature range: -10 °C to +70 °C
(14 °F to 158 °F)
Storage temperature range: -20 °C to +90 °C
(-4 °F to 198 °F)
Operating humidity (non-condensing): 10 % to 80 %
Weight: 1.5 kg (3.3 lb)
Reference Conditions
Environment temperature range: +18 °C to +26 °C
(64.4 °F to 78.8 °F)
Humidity: 20 to 75 % rh
Altitude: max. 2000 m (1.24 mi)
Current: nominal value In, sinusoidal waveform, 48 Hz to
65 Hz, distortion factor: <1 %, no DC component, stray field
<40 A/m, conductor centered within the Probe.
Safety Standards
IEC/EN61010-1:2001
IEC/EN61010-2-032:2002
IEC/EN61010-031:2002
Safety Specifications
Category Rating: 1000 V CAT III, 600 V CAT IV, pollution
degree 2. The application of the Probe on uninsulated
conductors is limited to 1000 V ac rms or dc to ground and
frequencies below 1 kHz.
EMC Standards: IEC/EN 61326-1:2006
