Fluke 561 CAL User manual

Download
Page 1
56x
Infrared Thermometers

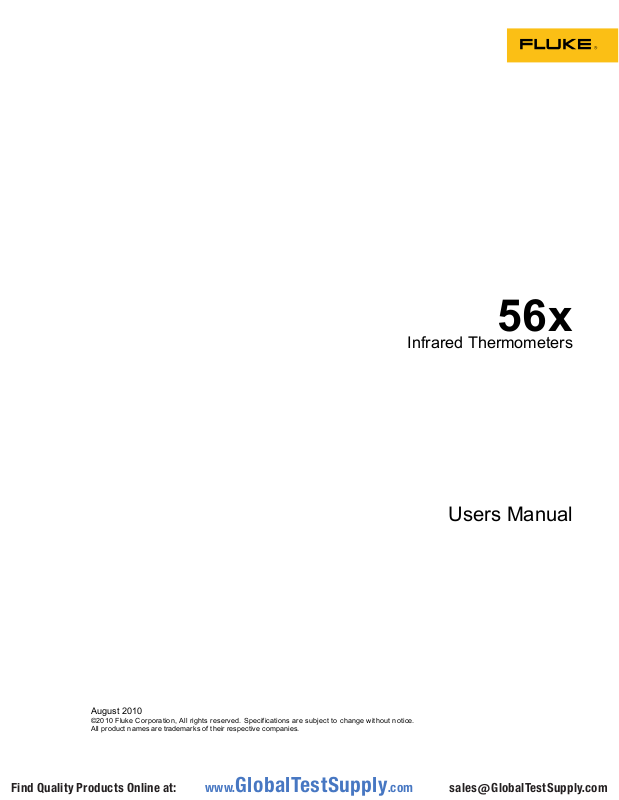

Users Manual

August 2010
©2010 Fluke Corporation, All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
www.GlobalTestSupply.com
Page 2
LIMITED WARRANTY AND LIMITATION OF LIABILITY
Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is two years and begins on the date of shipment. Parts, product repairs, and services are warranted for 90 days. This warranty extends only to the original buyer or end-user customer of a Fluke authorized reseller, and does not apply to fuses, disposable batteries, or to any product which, in Fluke's opinion, has been misused, altered, neglected, contaminated, or damaged by accident or abnormal conditions of operation or handling. Fluke warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media. Fluke does not warrant that software will be error free or operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price. Fluke reserves the right to invoice Buyer for importation costs of repair/replacement parts when product purchased in one country is submitted for repair in another country.
Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair, or replacement of a defective product which is returned to a Fluke authorized service center within the warranty period.
To obtain warranty service, contact your nearest Fluke authorized service center to obtain return authorization information, then send the product to that service center, with a description of the difficulty, postage and insurance prepaid (FOB Destination). Fluke assumes no risk for damage in transit. Following warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke determines that failure was caused by neglect, misuse, contamination, alteration, accident, or abnormal condition of operation or handling, including overvoltage failures caused by use outside the product’s specified rating, or normal wear and tear of mechanical components, Fluke will provide an estimate of repair costs and obtain authorization before commencing the work. Following repair, the product will be returned to the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges (FOB Shipping Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court or other decision-maker of competent jurisdiction, such holding will not affect the validity or enforceability of any other provision.
11/99
www.GlobalTestSupply.com
Page 3

Table of Contents

Title Page
Introduction........................................................................................................ 1
Contacting Fluke................................................................................................ 1
Safety Information ............................................................................................. 2
Features.............................................................................................................. 5
561 Display........................................................................................................ 6
566/568 Display................................................................................................. 7
566/568 Menu Overview............................................................................... 7
Save ............................................................................................................... 8
Light .............................................................................................................. 8
Memory ......................................................................................................... 9
Emissivity Menu............................................................................................ 9
°C and °F ....................................................................................................... 11
Min, Max, Avg, Differential.......................................................................... 11
Alarm............................................................................................................. 12
Trigger Lock.................................................................................................. 12
Laser .............................................................................................................. 12
Setup.............................................................................................................. 13
Backlight ................................................................................................... 13
Time/Date.................................................................................................. 13
Language................................................................................................... 14
Deleting Data................................................................................................. 14
Deleting All Data ...................................................................................... 14
Deleting Individual Data Records............................................................. 15
Buttons and Connector....................................................................................... 15
How the Thermometers Work ........................................................................... 16
Operating the Thermometer............................................................................... 16
Temperature Measurement............................................................................ 16
Locating a Hot or Cold Spot.......................................................................... 17
Distance and Spot Size .................................................................................. 18
Field of View................................................................................................. 19
Emissivity...................................................................................................... 19
HOLD............................................................................................................ 19
Storing Data................................................................................................... 20
Downloading Data......................................................................................... 20
External Contact Probe ...................................................................................... 21
Troubleshooting................................................................................................. 21
i
www.GlobalTestSupply.com
Page 4
56x
Users Manual
Maintenance....................................................................................................... 22
Battery Charge............................................................................................... 22
Changing the Batteries .................................................................................. 22
Cleaning the Lens .......................................................................................... 23
Cleaning the Housing .................................................................................... 23
User Replaceable Parts and Accessories............................................................ 23
User Replaceable Parts .................................................................................. 23
Accessories.................................................................................................... 24
Recommended Temperature Probes.............................................................. 24
Specifications..................................................................................................... 25
561 Accessory ............................................................................................... 26
566/568 Accessory ........................................................................................ 26
ii
www.GlobalTestSupply.com
Page 5

List of Tables

Table Title Page
1. Sy
2.
3. Surface Emissivity (561)........................................................................................ 10
4. Nominal Surface Emissivity (566/568).................................................................. 11
5. Buttons and Connector........................................................................................... 15
6. Troubleshooting ..................................................................................................... 21
7. Replaceable Parts ................................................................................................... 23
8. Recommended Temperature Probes....................................................................... 24
mbols..................................................................................................................
Top-Level Menu Description ................................................................................. 8
3
iii
www.GlobalTestSupply.com
Page 6

List of Figures

Figure Title Page
1. 561 Laser Safety Markings .................................................................................... 4
2.

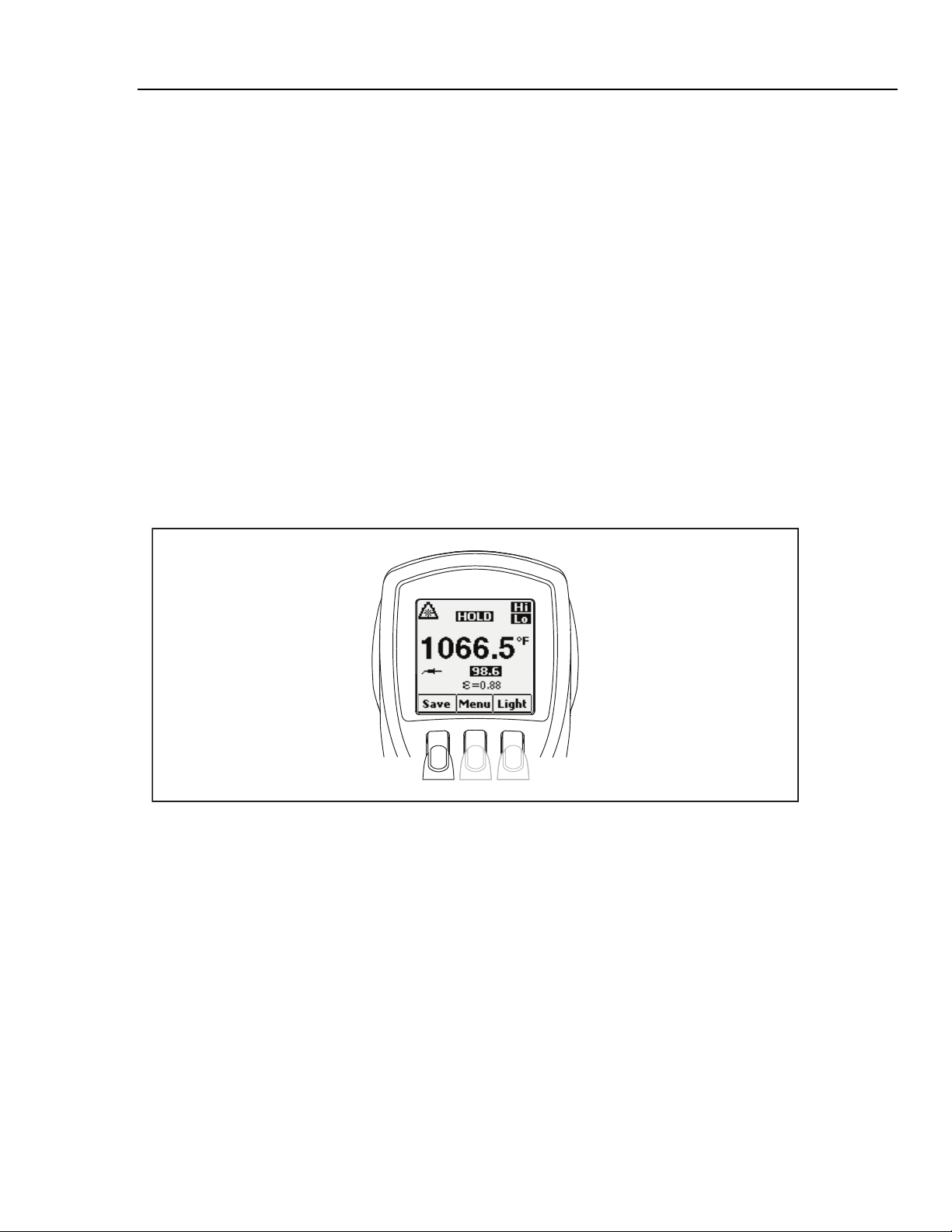

3. Thermometer Display............................................................................................. 6
4. Menu Navigation.................................................................................................... 7
5. How the Thermometer Works................................................................................ 16

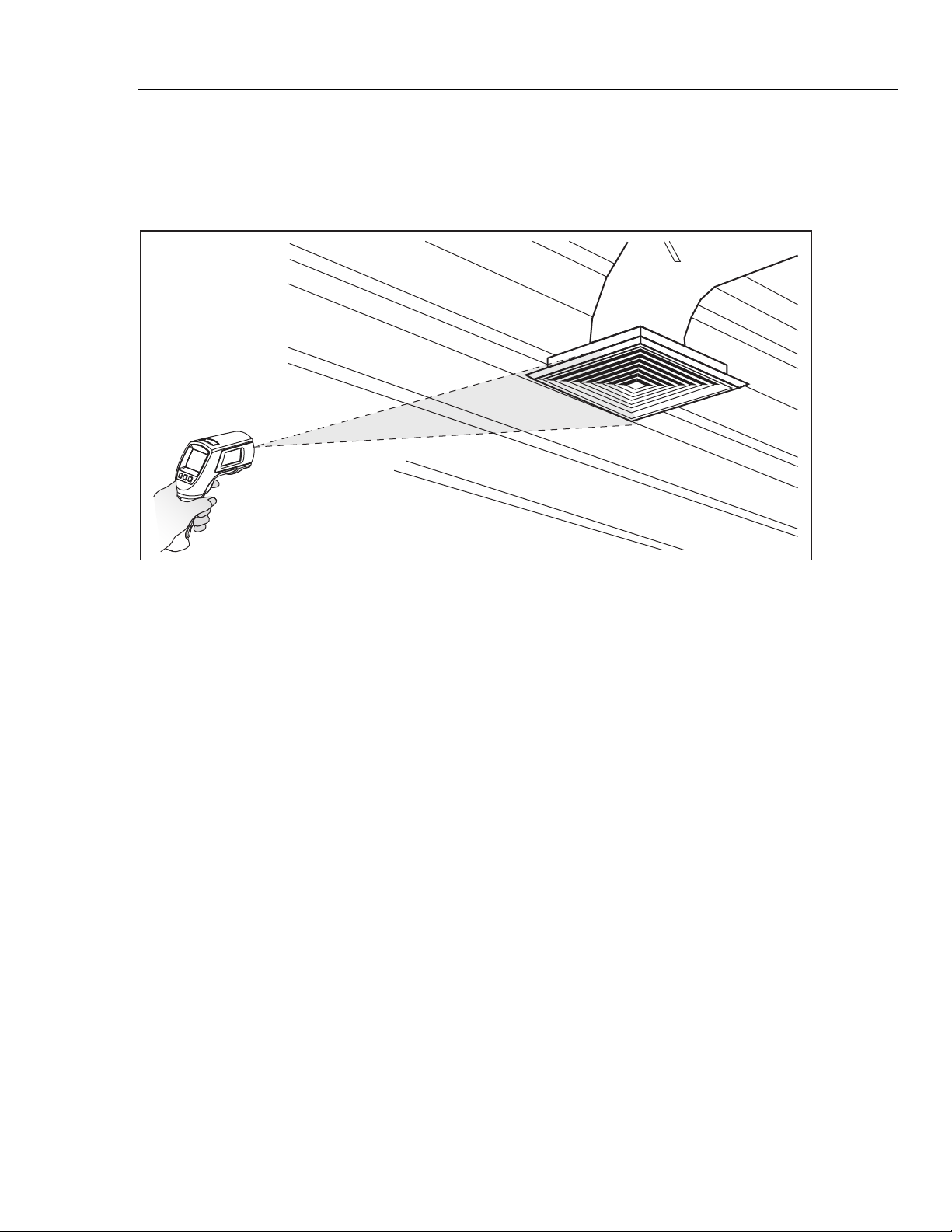

6. Locating a Hot or Cold Spot .................................................................................. 17

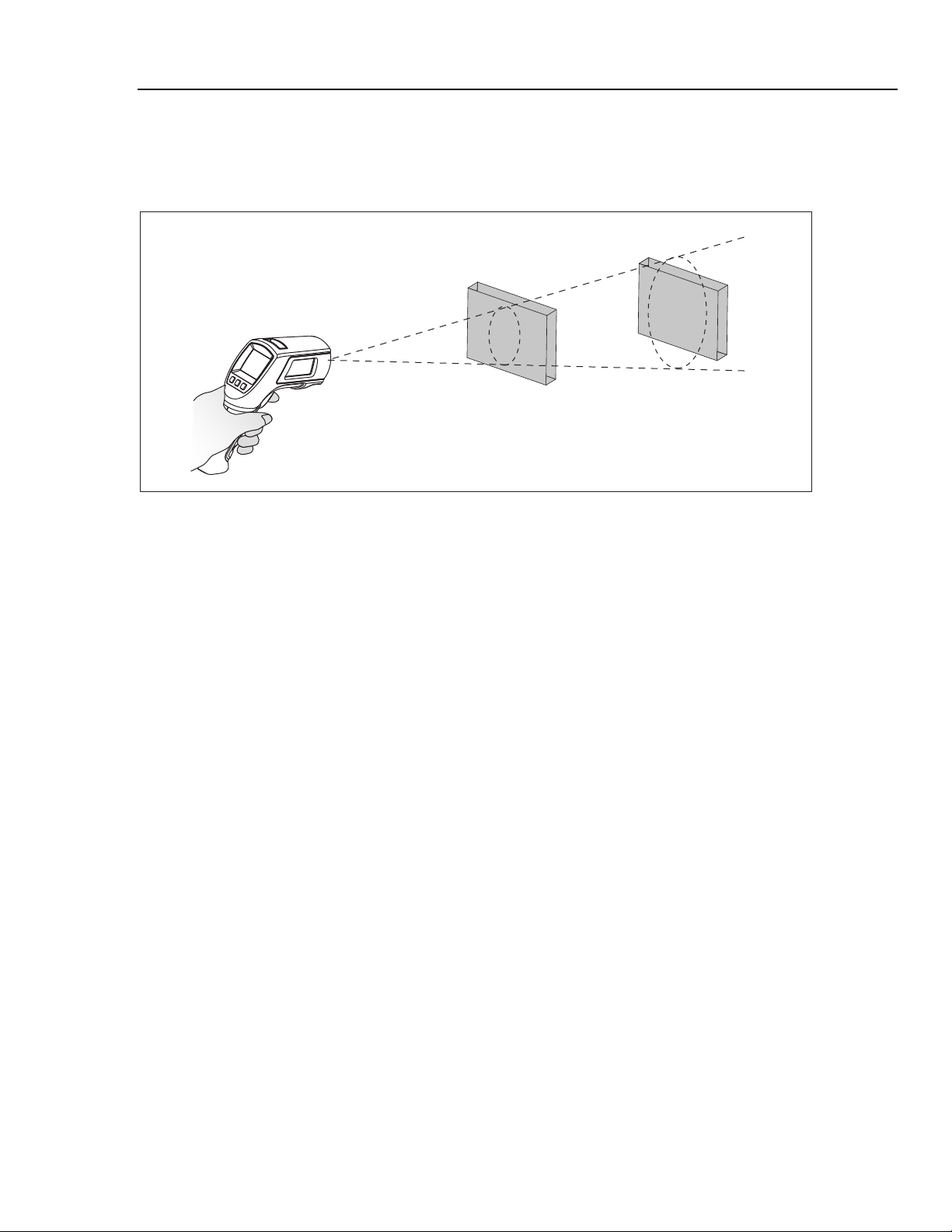

7. Distance and Spot Size........................................................................................... 18
8. Field of View.......................................................................................................... 19

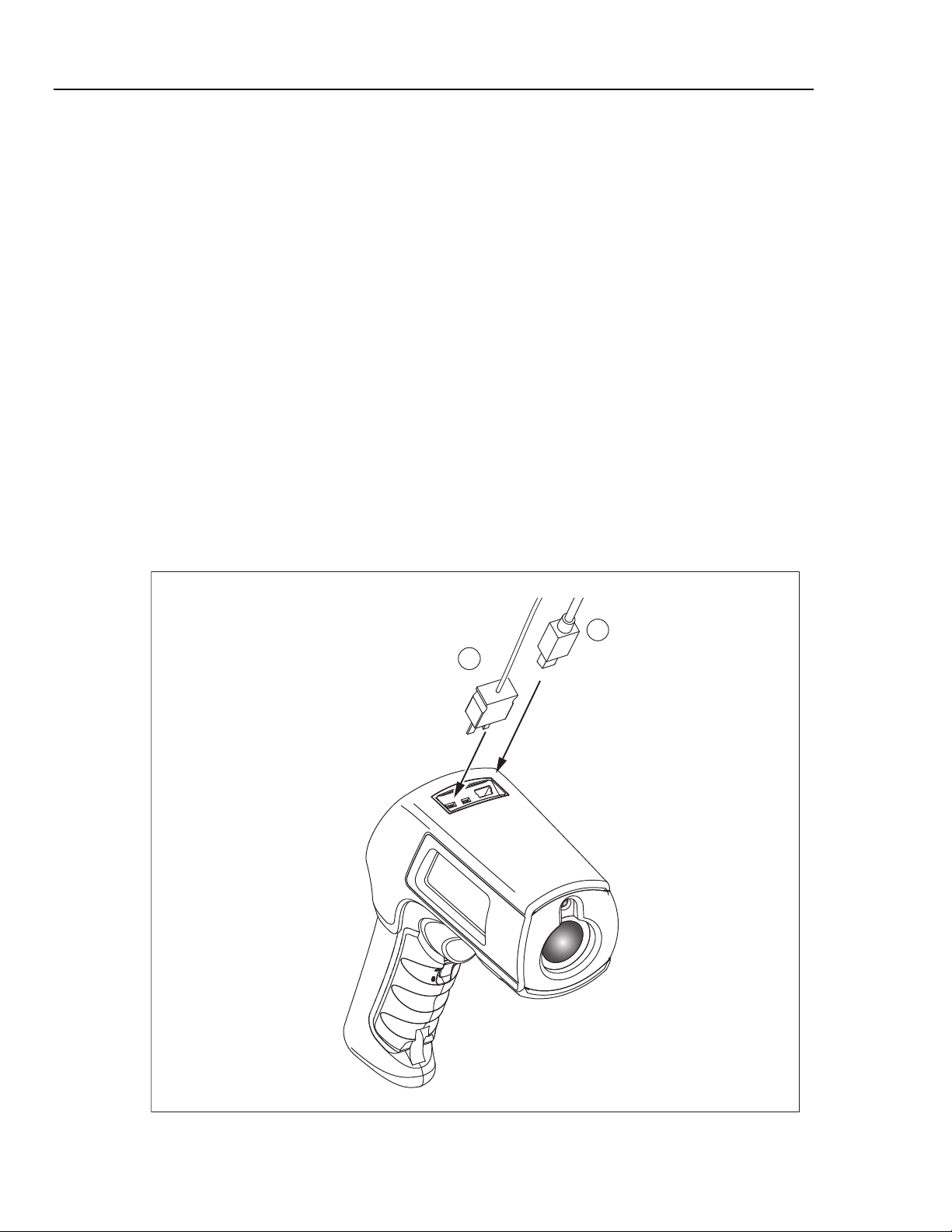

9. Thermocouple and USB Connections .................................................................... 20

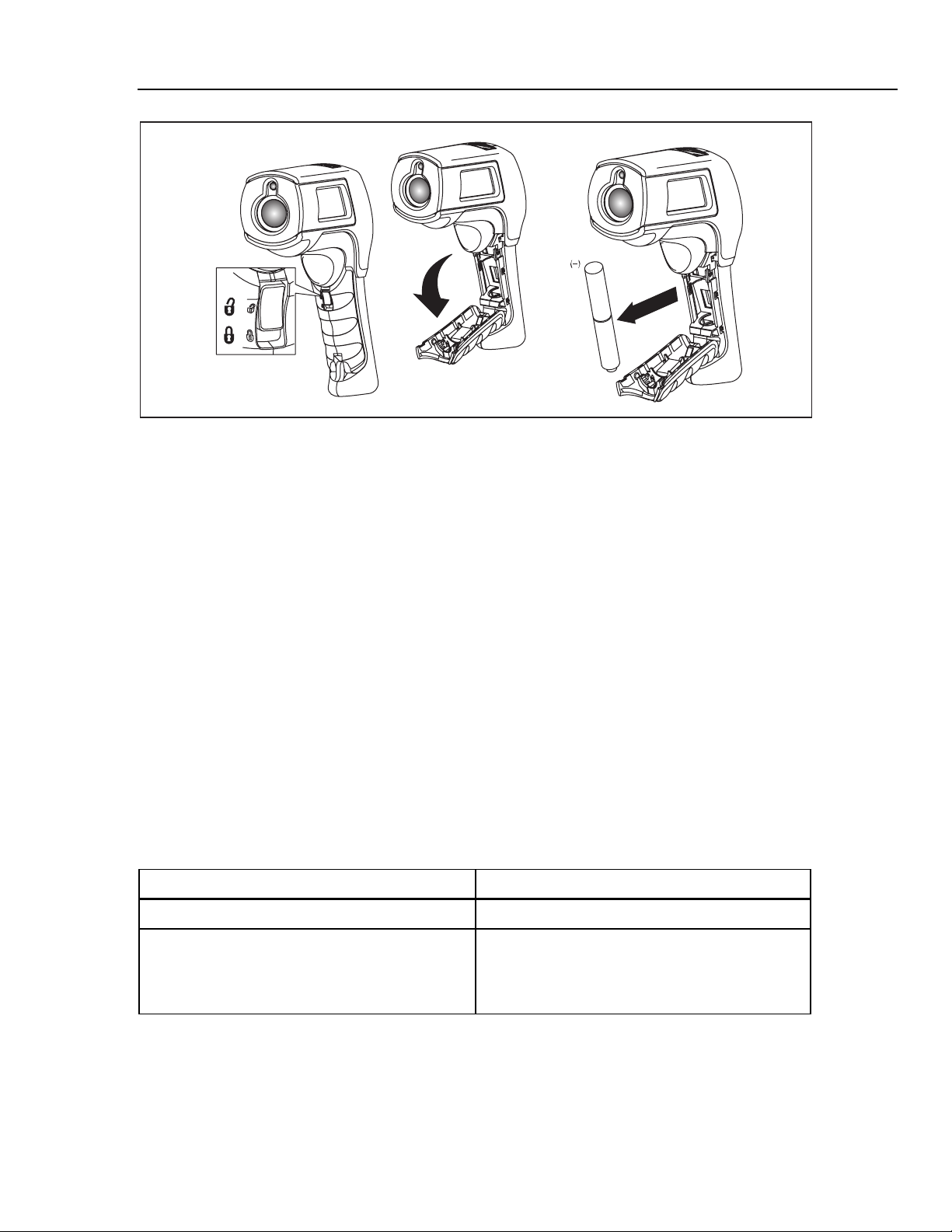

10. 566/568 Battery Replacement ................................................................................ 23
566/568 Laser Safety Markings ............................................................................. 4
v
www.GlobalTestSupply.com
Page 7

Introduction

The 561, 566 and 568 Infrared Thermometers (“the thermometers” or “the Product”) are for non-contact temperature measurement. These thermometers determine an object’s surface temperature by measuring the amount of infrared energy radiated by the object’s surface. The thermometers also support contact­temperature measurement via K-type thermocouple.
Note that the Japanese models indicate Celsius only.

Contacting Fluke

To contact Fluke, call one of the following telephone numbers:
Infrared Thermometers
1
www.GlobalTestSupply.com
Page 8
56x
Users Manual

Safety Information

A Warning identifies conditions and actions that pose hazard(s) to the user; A Caution identifies conditions and procedures that could cause Product damage,
equipment under test damage, or permanent loss of data.
Symbols used on the Product and in this manual are explained in Table 1 and Figures 1 and 2.
*WWarning
To prevent eye damage and personal injury:
• Read all safety Information before you use the
• Do not look directl
example, binoculars, telescopes, microscopes). Optical tools can focus the laser and be dangerous to the eye.
• Do not look into the laser. Do not p persons or animals or indirectly off reflective surfaces.
• Do not use laser viewing glasses as laser protection glasses. La visibility
• Do not open the Product. The laser beam is dangerous to e
yes. Have the Product repaired only thro
approved technical site.
• Replace the batteries w show
s to pr
• The battery operate the Product.
• Do not use the Product if it operates incorrectly.
• Do not use the Product around explosive gas, vapor, or
in damp or w
• Do not connect the optional external probe to live electrical circuits.
ser viewing glasses are used only
the laser in bright light.
of
event incorrect measurements.
door must be closed and locked before y
y into the laser with optical
hen the low battery in
environments.
et
oint laser directly
Product.
tools (for
at
for better
ugh an
dicator
ou
• See emissivity Reflective objects result in lower than actual temperature measurements. These objects pose a burn hazard.
• Do not leave the thermometer on or near objects of high temperature.
• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser radiation exposure.
• Use the Pro supplied by the Product can be compromised.
2
www.GlobalTestSupply.com
inform
duct only as
ation for actual temperatures.
specified, or the protection
Page 9
WCaution
To avoid damaging the thermometer or the equipment under test, protect them from the following:
Infrared Thermometers
Safety Information
• EMF (electro-magnetic fields) from arc weld induction heaters, etc.
• Static electricity
• Thermal shock (caused b
temperature changes- for highest accurac minutes for thermometer to stabilize before use).
Table 1. Symbols
Symbol Explanation
X W * P
°C
°F
M
Hazardous voltage. Risk of electrical shock.
Risk of danger. Important information.
Warning. Laser.
Conforms to requirements of European Union and European Free Trade Association (EFTA)
Celsius
Fahrenheit
Battery
y large
or abrupt ambient
ers,
y, allow
30
~
„
Do not dispose of this product as unsorted municipal waste. Go to Fluke’s web site for recycling information.
Battery
China metrology certification mark for measuring instruments manufactured in the Peoples Republic of China (PRC).
3
www.GlobalTestSupply.com
Page 10
56x
Users Manual
Laser
Aperture
AVOID EXPOSURE - LASER RADIATION IS EMITTED FROM THIS APERTURE
CAUTION
LASER RADIATION - DO NOT STARE INTO BEAM
OUTPUT < 1mW WAVELENGTH 630 - 670nm CLASS 2 (II) LASER PRODUCT
COMPLIES WITH FDA 21CFR
1040.10 AND 1040.11 COMPLIES WITH IEC 60825
AVOID EXPOSURE - LASER RADIATION
THIS APER
IS EMITTED FROM
CAUTION
LASER RADIATION - DO NOT STARE INT
VELENGTH 630 - 67
<
1mW WA
OUTPUT
)
(
LASER PRODUCT
II
CLASS 2
COMPLIES WITH FDA 21CFR
1040.10 AND 1040.11 COMPLIES WITH IEC 60825
TURE
O BEAM
0nm
Laser
Aperture

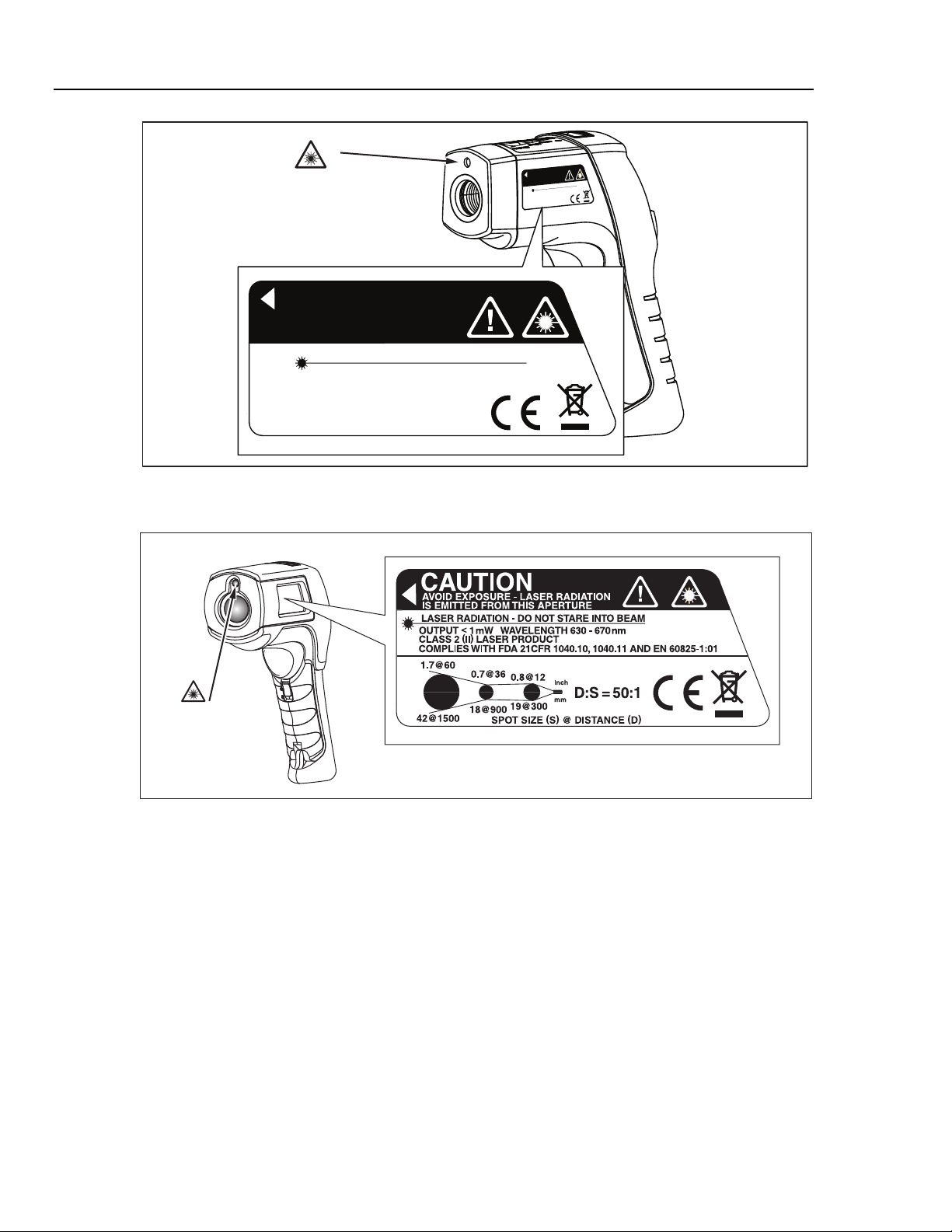

Figure 1. 561 Laser Safety Markings
efh010f.eps
eyl08b.eps
Figure 2. 566/568 Laser Safety Markings
4
www.GlobalTestSupply.com
Page 11

Features

561:
Infrared Thermometers
Features
• Single-spot laser sightin
• Backlit display
• Current Temperature plus MAX, MI
• Two AA batte
• Hard case
• 80PK-1 and 80PK-11 K-type thermocouple probe
• Adjustable emissivity and predefined
• Infrared and thermocouple temperature display
• Celsius or Fahrenheit temperature display
• Tripod mount
• Auto off
• Standard miniature K-type thermocouple connector input
• Printed 56x Getting Started Guide
•
56x Manuals CD
566 and 568 include items listed above plus:
• 12 or 24 hour clock
• Last reading Hold (20 seconds)
ries
g
N, DIF, AVG temperature displays
emissivity table
• Multi-language interface
• High and lo
• Data storage and review
• Trigger lock
• USB 2.0 computer interface cable (568)
• FlukeView Forms Documenting Software (568)
w alarm
5
www.GlobalTestSupply.com
Page 12
56x
Users Manual

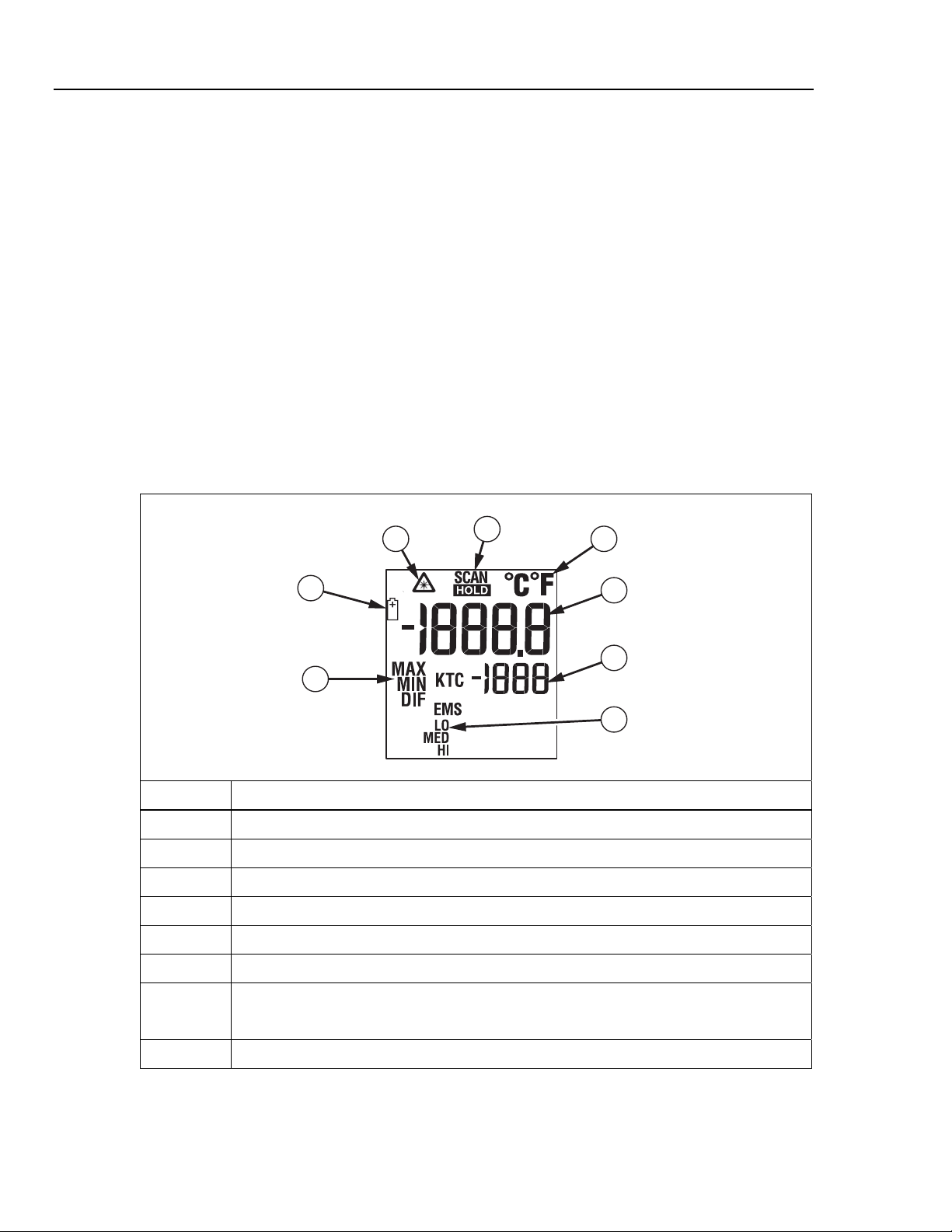

561 Display

The primary temperature display reports the current or last IR temperature read until the 7-second hold time elapses.
The secondary temperature display reports current thermocouple temperature when a type-K thermocouple is attached. When a thermocouple is not connected, the small temperature display reports a choice of maximum, minimum, or difference between maximum and minimum temperature.
You can toggle through the minimum, maximum, and difference IR temperatures anytime the display is on. The MIN, MAX, and DIF temperatures are constantly calculated and updated when the trigger is pressed. After the trigger is released, the MIN, MAX, DIF temperatures are held for 7 seconds.
Note
When the battery is low, appears on the display.
The last selection (MIN/MAX/DIF) is maintained on the secondary display even after the Thermometer has been turned off, providing the batteries have not failed. See Figure 3.
1
2
8
7
Number Description
Laser “On” symbol
SCAN or HOLD
°C/°F symbol (Celsius/Fahrenheit)
Primary temperature display
Secondary temperature display
Emissivity LO, MED, HI
3
4
5
6
efh01af.eps
Low Battery symbol. Appears when the battery charge is <25 %.
6
Temperature values for the MIN, MAX, DIF, KTC.
KTC indicates the thermocouple temperature.
Figure 3. 561 Thermometer Display
www.GlobalTestSupply.com
Page 13

566/568 Display

The 566/568 thermometers display can show data in the following languages:
•
English
• Spanish
• French
• German
• Portuguese
• Japanese
• Simplified Chinese
Infrared Thermometers
566/568 Display
To change t
566/568 M
There are many settings that can be easily changed by using the menu. Figure 4 shows the LCD and menu interface. Selecting the Menu softkey advances the menu to the next level. Table 2 is a top-level description of the menu.
he displayed language,
enu Overview
refer to “Setup”.
eyl01a.eps
Figure 4. Menu Navigation
7
www.GlobalTestSupply.com
Page 14
56x
Users Manual
Table 2. Top-Level Menu Description
Level
1 Save Save reading to memory Menu Light
2 Mem Review/delete memories Menu Set emissivity
3 MnMx Enables Min/Max Menu Avg Enable Avg/Diff
4 °C/°F Toggle between C and F Menu Alarm Set and enable alarms
5
6 Setup
Left
Softkey
Lock the thermometer on Menu Laser Toggle the laser on/off
(Lock)
- Turn off/on backlight
- Change Time/Date
- Change Language
Description
Center
Softkey
Menu - -
Right
Softkey
Description
Adjust backlight brightness
Each menu item and function is explained in greater detail in the following sections.

Save

To save readings:
1. Pull the trigger to take a measurement.

Light

2.
Release the trigger to stop taking the measurement.
3. Press
the Save softkey to enter the Save menu.
4. Press the Yes softkey to save the reading.
The reading is assigned a memory location and a time and date stamp.
The reading include
s:
• IR temperature
• Thermocouple temperature (if connected)
• Emissivity
• Min/Max/Avg/Dif (if either Min/Ma
x or Avg/Dif is enabled)
• Date/Time
You may also press the Cancel softkey to abort saving the reading.
The thermometers are equipped with a backlit display with two brightness levels. The Light softkey is used to adjust the backlight brightness. The backlight is on each time the trigger is pulled.
To toggle the backlight brightness, press the Light softkey.
The backlight can be disabled using the Setup menu. See “Setup” for more information.
8
www.GlobalTestSupply.com
Page 15

Memory

The thermometers can store measurement records including time, date, emissivity, and measurement record numbers (see “Save” for more information). The 566 can store 20 records and the 568 can store 99.
To access records stored in memory:
Infrared Thermometers
566/568 Display
1. Press
2. Press read.
Emissivity M
The Emissivity menu includes a list of pre-defined materials and lists their typical emissivity values, see Tables 3 and 4. For further information, see “Emissivity”.
To access the Emissivity menu:
1. Press function.
2. Press
The Emissivity list may be accessed typical emissivity may be entered manually by pressing the No. softkey.
• If the Emissivity table is accessed, a listing of materials and their suggested emissivity is shown.
1. Use the down arrow to navigate through the list.
2. Press
the Menu softkey until Mem appears as the left softkey
function.
the Mem softkey to access the Memory menu. Saved readings ca
enu
Note
Default emissivity is 0.95.
the Menu softkey until
the
softkey.
(emissivity) appears as the right softkey
by pressing the Table softkey or a material’s
the Enter softkey to choose the desired
material.
n be
•
To enter an
1. Press
2.
3. Press
emissivity value manually:
the No
. softkey.
Use the down or up arrow softkey to change the or down arrow softkey to increase t
the Done softkey when finished
he rate of ch
to return to the main menu.
entry. Hold down the up
ange.
9
www.GlobalTestSupply.com
Page 16
56x
Users Manual
Table 3. Surface Emissivity (561)
Materials
Aluminum Iron, Cast
Oxidized Low Oxidized High, Medium
Alloy A3003 Unoxidized Low
Oxidized Low Molten Low
Roughened Low Iron, Wrought
Brass Dull High
Burnished Low Lead
Oxidized Low Rough Low
Copper Oxidized Low, Medium
Oxidized Medium Molybdenum
Electrical Terminal Blocks
Haynes Nickel
Alloy Medium Oxidized Low
Inconel Platinum
Switch Setting Materials Switch Setting
Medium Oxidized Low, Medium
Oxidized High, Medium Black High
Sandblasted Medium Steel
Electoropolished Low Cold-Rolled High
Iron Ground Sheet Medium
Oxidized High, Medium Polished Sheet Low
Rusted Medium Zinc
Oxidized Low
10
www.GlobalTestSupply.com
Page 17
Table 4. Nominal Surface Emissivity (566/568)
Material Value Material Value
Default**** 0.95 Glass (plate) 0.85
Aluminum* 0.30 Iron* 0.70
Asbestos 0.95 Lead* 0.50
Asphalt 0.95 Oil 0.94
Brass* 0.50 Paint 0.93
Ceramic 0.95 Plastic** 0.95
Concrete 0.95 Rubber 0.95
Copper* 0.60 Sand 0.90
Food - Frozen 0.90 Steel* 0.80
Food - Hot 0.93 Water 0.93
Wood *** 0.94
* Oxidized ** Opaque, over 20 mils *** Natural **** Factory Setting Highlighted items may also be found in the emissivity table built into the thermometer.
Infrared Thermometers
566/568 Display
°
C and °F
To toggle between °C (Celsius) and °F (Fahrenheit) measurements, press the Menu softkey until °C or °F appears as the left softkey function. Press the corresponding softkey to change between the measurements.

Min, Max, Avg, Differential

The thermometers can measure minimum (MIN), maximum (MAX), average (AVG), or differential (Δ) temperatures each time a reading is taken. These values are not shown if a thermocouple is plugged into the thermometer.
To turn on the Min Max mode:
1. Press
the Menu softkey until MnMx (Min Max) appears as the
function.
2. Press
The display
the MnMx
shows the present reading, maximum and minimum readings, and
the emissivity setting.
To turn on the Avg/Dif mode:
1. Press the Menu softkey until Avg appears as the right softkey function.
2. Press the Avg
The display
softkey.
shows the present reading, average reading, the differential reading
between max and min (designated by Δ), and the emissivity setting.
left softkey
softkey.
11
www.GlobalTestSupply.com
Page 18
56x
Users Manual
Note
Min, Max, Avg, and Differential readings are saved as part of the saved data when either Min/Max or Avg/Dif mode is enabled.

Alarm

The thermometers have a programmable high and low alarm to designate high or low readings depending on the thresholds entered. When the alarm level is reached, an alarm will sound and the display will flash orange and white. To set either the high or low alarm:
1. Press
2. Press
3.
Press either the Hi or Lo softkey, depending on which alarm will be set.
4. Press
5. Press
6. Use
7. Use the down or up softkeys to change the alarm setting.
8.
Once the desired settings have been entered, press the Done

Trigger Lock

The thermometer trigger can be locked on for continuous measurement. To lock the trigger:
1. Press function.
2. Press display to d softkey changes to . Press this softkey to unlock the trigge

Laser

the Menu softkey until Alarm appears as the right softkey function
the Alarm softkey to access the Alarm me
the ON softkey to turn the alar
the OFF
softkey to turn the alarm off.
the Set softkey to access t
m on.
he Hi or Lo Alarm Set menu.
nu.
softkey.
the Menu softkey until the lock symbol () appears as t
the  softkey to lock the trigger. The lock symbol appe
he left softkey
ars on the
esignate a locked trigger. When the trigger is locked, the
r.
.
*WWarning
To prevent eye damage and personal injury:
• Do not look into the laser. Do not point laser directly persons or animals or indirectly off reflective surfaces.
The thermometer is equipped with a
laser used for aiming purposes only. The
laser turns off when the trigger is released.
To enable or disable the laser:
1. Press
2. Press
the Menu softkey until Laser appears as the right softkey function the Laser softkey to enable or disable the laser. * appears on the
display when the laser is enabled.
12
www.GlobalTestSupply.com
at
.
Page 19

Setup

From the Setup menu, the backlight, time and date, and display language can be changed.

Backlight

In normal use, the backlight is always on. Use this menu to change the backlight setting from on to off. Turning the backlight off conserves battery power.
Infrared Thermometers
566/568 Display
Tim
1. Press
2. Press
3.
Backlight has an indicator next to it. To enter the backlight menu, press the
the Menu softkey until Setup appears as t
the Setup
softkey.
Enter softkey.
4. Press
the OFF softkey to turn the backlight off, press the ON
on.
5. Press
the Back softkey to return to t
e/Date
To change the time on the thermometer:
1. Press
2. Press

Press the down arrow softkey to select Time/Date

3.
4. Press
5. Select
Select the desired time format softkey (24hr or 12hr
6.
7.
Use the up and down softkeys to change the selected hour to the desir
the Menu softkey until Setup appears as t
the Setup softkey to enter the Setup menu
the Enter
the Time
softkey.
softkey.
hour.
he left softkey function.
softkey to turn it
he Setup Menu.
he left softkey function.
.
.
).
ed
8. Press
9.
Use the up and down softkeys to change the selection to the desired
10.
When in 12 hour mode, press the Next softkey to highlight the am/pm
the Next softkey to select the
minutes.
parameter.
11.
Use the up and down softkey to change to am or pm
12. Press
the Done softkey when finished. The display reverts to the first pag
.
the Time/Date menu.
minute.
e of
13
www.GlobalTestSupply.com
Page 20
56x
Users Manual
To change the date on the thermometer:
From the main menu, press the Menu softkey until Setup appears as the
1. softkey function.
left
2. Press
3.
4. Press
5. Press
6.
7.
8. Press
9.
10. Press
11. Press

Language

To change t
1.
2. Press
the Setup
Press the down arrow softkey to select Time/Date
the Enter
the Date
softkey.
.
softkey.
softkey.
Select the date format: Day/Month/Year (dmy) or Month/Day/Year (mdy
Use the up and down softkeys to change the selected param
the Next softkey and the arrow softkeys to select the
eter.
month, date, or
year parameters.
Use the up and down softkeys to change the selected param
the Next softkey to move through each pa
rameter.
the Done softkey when finished. The display reverts to
eter.
the beginning of
the Time/Date menu.
he displayed language:
From the main menu, press the Menu softkey until Setup appears as the softkey function.
the Setup
softkey.
).
left
3.
Use the down arrow softkey to move the indicator to Language
4. Press
5.
Use the down arrow to move the indicator to the desired lang
6. Press Back softke

Deleting Data

To delete st menu softkey until Mem shows as the left softkey function. The last memory location appears on the display. To access the Delete menu, press the Delete softkey. From here, either all of the thermometer memory can be deleted or individual records.

Deleting All Data

To delete all of the records, press the All softkey. At the confirmation screen, press the Yes softkey.
.
the Enter
softkey.
uage.
the Enter softkey to complete the language selection
y to return to the Setup
menu.
or press the
ored data from the thermometer, from the main menu, press the
14
www.GlobalTestSupply.com
Page 21

Deleting Individual Data Records

To delete individual records, press the View softkey and then use the down and up arrow softkeys to access the desired record. Once the desired record is shown, press the Yes softkey to delete the record. To cancel data deletion, pull the trigger.

Buttons and Connector

Table 5 shows the buttons and connector used for the thermometers.
Table 5. Buttons and Connector
Infrared Thermometers
Buttons and Connector
Button/
Connector
(561)
(561)
Description
and then press
Press
Selects the emissivity setting. You can toggle between LO (0.3), MED (0.7), or HI (0.95) using
The  button is used to show the MIN, MAX, and DIF functions in the secondary display, whichever was pressed most recently.
K-type thermocouple probe used to make contact temperature measurement.
.
to toggle between the MIN, MAX, and DIF options.
15
www.GlobalTestSupply.com
Page 22
56x
Users Manual

How the Thermometers Work

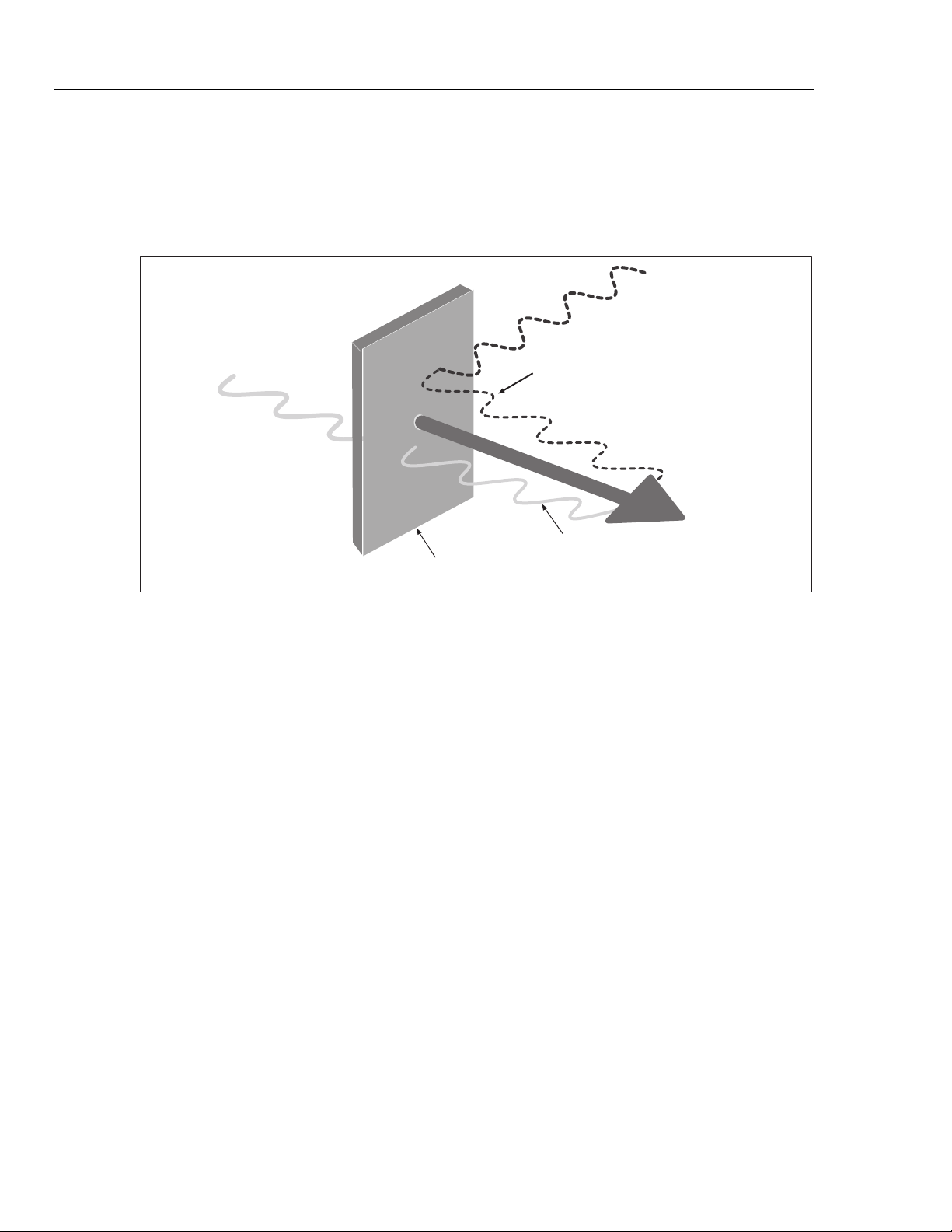

Infrared thermometers measure the surface temperature of an object. The thermometer’s optics sense emitted, reflected, and transmitted energy, which is collected and focused onto a detector. The unit’s electronics translate the signal into a temperature reading which the unit displays (see Figure 5).
Reflected energy
Target
Figure 5. How the Thermometer Works

Operating the Thermometer

Temperature Measurement

To measure temperature, point the thermometer at an object and pull the trigger. You can use the laser pointer to help aim the thermometer. You may also insert the K-type thermocouple probe for contact measurement. Be sure to consider distance-to-spot size ratio and field of view (see “Distance and Spot Size” and “Field of View”). The temperature appears on the display.
The laser is used for aiming purposes only and is not related to temperature measurement.
The thermometer features an auto off function that automatically powers down the thermometer after 20 seconds of inactivity. To turn the thermometer on, pull the trigger.
Note
Transmitted
energy
Emitted
Energy
eyl002f.eps
16
www.GlobalTestSupply.com
Page 23

Locating a Hot or Cold Spot

To find a hot or cold spot, aim the thermometer outside the desired area. Then, slowly scan across the area with an up and down motion until you locate the hot or cold spot (see Figure 6).
Infrared Thermometers
Operating the Thermometer
Figure 6. Locating a Hot or Cold Spot
eyl07.eps
17
www.GlobalTestSupply.com
Page 24
56x
Users Manual

Distance and Spot Size

As the distance (D) from the object being measured increases, the spot size (S) of the area measured by the unit becomes larger. The relationship between distance and spot size (D:S) for each unit is shown in Figure 7. The spot sizes indicate 90 % encircled energy.
D:S=12:1
561
38 mm @
300 mm
75 mm @
900 mm
1.5 " @ 12 "
132 mm @
1500 mm
3 " @ 36 "
5.3 " @ 60 "
S
D
568
eyl06a.eps

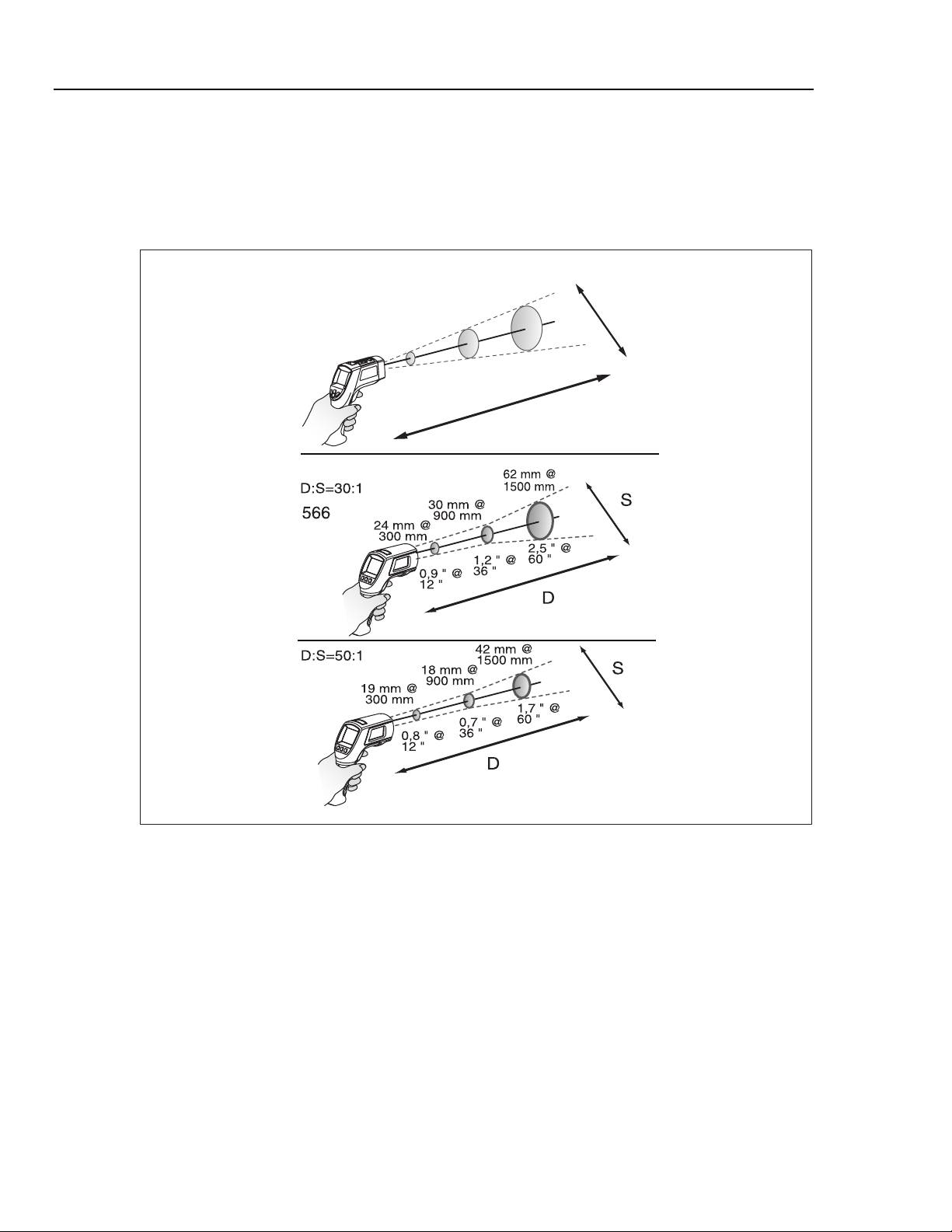

Figure 7. Distance and Spot Size
18
www.GlobalTestSupply.com
Page 25

Field of View

For accurate measurements, make sure that the target is larger than the unit’s spot size. The smaller the target, the closer you should be to it (see Figure 8).
Infrared Thermometers
Operating the Thermometer
Ye s No

Emissivity

Emissivity describes the energy-emitting characteristics of materials. Most organic materials and painted or oxidized surfaces have an emissivity of approximately 0.95, the default setting for the thermometer.
To compensate for inaccurate readings that may result from measuring shiny metal surfaces, you can cover the surface to be measured with electrical tape or flat black paint (<148 °C/300 °F) with emissivity set to 0.95. Allow time for the tape or paint to reach the same temperature as the surface beneath it. Measure the temperature of the tape or painted surface.
If you cannot paint or use tape, then you can improve the accuracy of your measurements by either numerically adjusting emissivity or by using the Emissivity Menu to access a table of some common materials. The thermometers have numerically adjustable emissivity from 0.10 to 1.00 that can be used in conjunction with the emissivities in Tables 3 and 4. Also, the thermometers have a built-in table of the most common materials that can be set from the Emissivity Menu. The built-in values are indicated in Tables 3 and 4.

HOLD

The display retains its last infrared measurement for twenty seconds when the trigger is released, with HOLD appearing on the display. With the probe inserted, the contact thermometer remains on. To freeze the infrared temperature when a probe is not inserted, release the trigger until HOLD appears on the display.
Figure 8. Field of View
eyl05.eps
19
www.GlobalTestSupply.com
Page 26
56x
Users Manual

Storing Data

The 566 thermometer can store up to 20 data records. The 568 thermometer can store up to 99 data records. The following information is stored in each record:
Record number
•
•
IR and probe temperature in °F or °
• Date/Time
• Em
• Max/Min/Avg/Dif Temperature (if en
For more information, see “Save”.
C
issivity
abled)
Downloadi
The stored data of the 568 can be downloaded to a personal computer (PC) via the included USB cable and the included FlukeView Forms Documenting Software. See the FlukeView Forms documentation for details. The USB input is located on the top of the thermometer next to the external probe input (see Figure 9).
ng Data
Note
To prevent incorrect readings, do not perform a temperature measurement of an earthed conductor while the 568 is connected to a PC that is earthed by a three-phase grounding plug.
2
1
Figure 9. Thermocouple and USB Connections
20
www.GlobalTestSupply.com
eyl03.eps
Page 27

External Contact Probe

To avoid electrical shock or personal injury, do not connect the external contact probe to live electrical circuits.
The thermometers come with a bead K-type thermocouple probe. The probes attach to the thermometers via the probe input located on the top of the thermometer (see Figure 9).
With the probe installed, the probe symbol () appears on the display. The probe can be used simultaneously while the thermometer is taking non-contact measurements. The probe readings are shown below the non-contact measurements. The thermometer will stay on when there is a probe inserted. When used with a personal computer and FlukeView Forms (568 only), the auto off feature is disabled.

Troubleshooting

See Table 6 for remedies to possible problems when using the thermometer.
Infrared Thermometers
External Contact Probe
XWWarning
Table 6. Troubleshooting
Symptom Cause Action
--- (on display)
Low batteries Replace Batteries
Blank display
Laser does not work
Failed communication via USB
Inaccuracy
Settings such as emissivity, date/time, F/C, and saved data lost
Target temperature is over or under range.
Thermometer is asleep
Possible dead batteries
Low or dead batteries
Ambient temperature is above 40 °C (104 °F)
Unit is off
FlukeView Forms is not running
Possible incorrect emissivity setting, field of view, or spot size
Battery dead or not replaced in <1 minute of removal
Select target within specifications
Pull trigger
Replace batteries
Replace batteries
Use in area with lower ambient temperature
Pull the trigger
Start FlukeView Forms
See “Emissivity”, “Field of View” and “Distance and Spot Size” sections.
Reset settings. Replace batteries as soon as low battery indicated; Exchange the batteries within one minute of removal. Refer to “Changing the Batteries”.
21
www.GlobalTestSupply.com
Page 28
56x
Users Manual

Maintenance

Battery Charge

Use the battery charge symbols to gauge the approximate level of charge left on the batteries.
Notes
When in low battery mode, the thermometer does not store values. “Err” appears on the display if attempted.

Changing the Batteries

Batteries contain hazardous chemicals that can cause burns or explode. If exposure to chemicals occurs, clean with water and get medical aid. To prevent injury and for safe operation and maintenance:
Remove all probes, test leads, and accessories before the
•
battery
• Do not disassemble the battery.
• Repair the Product before use if the battery leaks.
• Remove batteries to prevent battery
to the Product if it is not used for an extended period.
• Be sure that the battery
battery
• Do not short the battery
• Do not disassemble or crush battery
packs.
Batteries are at 5 %. Before taking further readings, the batteries must be changed.
doo
leak
WWarning
r is opened.
age.
polarity is
terminals
leakage
correct to prevent
together.
cells and battery
and damage
• Do not keep cells or batteries in a container where the
terminals can be shorted.
• Do not put battery
Do not put in sunlight.
The batterie removal to avoid manually re-initializing the thermometer clock and date.
To install or change the two AA batteries (see Figure 10):
Slide the locking tab on the battery door to the “unlock” po
1. open the handle.
2.
Insert the batteries noting their corre
3.
Close and lock the hand
22
s should be replaced in less than one minute after
www.GlobalTestSupply.com
cells and battery packs ne
Note
ct polarity.
le.
ar heat or fire.
sition and then
Page 29
Infrared Thermometers

User Replaceable Parts and Accessories

AA
(+)
Figure 10. Battery Replacement

Cleaning the Lens

Blow off loose particles using clean compressed air. Carefully wipe the surface with a water-moistened cotton swab.

Cleaning the Housing

Use soap and water on a damp sponge or soft cloth.
WCaution
To avoid damaging the thermometers, do NOT submerge them in water. Do not use abrasive cleaners, they will damage the case.
User Replaceable Parts and Accessories

User Replaceable Parts

See Table 7 for a list of replaceable parts.
Table 7. Replaceable Parts
eyl04.eps
Part Part Number
56x Manuals CD 3833037
56x Getting Started
(English, French, German, Spanish, Portuguese, Japanese, Simplified Chinese, Italian, Russian, Polish, Czech)
www.GlobalTestSupply.com
3833028
23
Page 30
56x
Users Manual

Accessories

Optional accessories for the thermometers are:
• Soft Carryin
g Case (H6)
• Calibration Certification
All Type-K Temperature Probes with standard mini-connector. See Table
•
for more information.
Recommended Temperature Prob
es
See Table 8 for a list of recommended temperature probes.
Table 8. Recommended Temperature Probes
Probe Usage
80PK-1
80PK-8
80PK-9
80PK-11
The general purpose bead probe is an alternative, for quick, accurate surface temperatures and air temperatures within ducts, vent temperatures.
Pipe clamp probes (2) are essential for tracking continuously changing temperature differentials on hydronic tubing and pipe loops, and good for quick, accurate refrigerant temperatures.
The insulation piercing probe provides a sharp tip to pierce pipe insulation and flat probe tip for good surface thermal contact, air temperatures within ducts, and vent temperatures.
Flexible Cuff Thermocouple Temperature Probe is a convenient way to attach a thermocouple to a pipe while keeping hands free.
8
80PK-25
80PK-26
The piercing probe is the most versatile option. Good for checking air temperature in ducts, surface temperature under carpets/pads, liquids, thermometer wells, vent temperatures, and for penetrating pipe insulation.
The tapered probe is a good general-purpose gas and surface probe, with a good length and low mass tip casing for faster reaction to surface and air temperatures.
24
www.GlobalTestSupply.com
Page 31
Infrared Thermometers

Specifications

Feature 561 566 568
IR Temperature Range
Accuracy
Repeatability
Display Resolution 0.1 °C / 0.1 °F
Spectral Response 8 to 14 μm
Response Time (95 %) <500 ms
K-Type Thermocouple Input Temperature Range
K-Type Thermocouple Input Accuracy
K-Type Thermocouple Resolution
Distance:Spot (90 % energy)
Laser sighting Single laser, output <1 mW Class II, wavelength 630 to 670 nm
Emissivity Lo, Med, Hi
Data storage - 20 points 99 points
Communication none USB 2.0
Operating Altitude 3000 meters above mean sea level
Storage Altitude 12,000 meters above mean sea level
Relative Humidity 10 % to 90 % RH non-condensing up to 30 °C (86 °F)
Operating Temperature
Storage Temperature
Vibration 2.5 G, IEC 68-2-6
Weight 0.322 kg (0.7099 lb)
Dimensions 17.69 cm (6.965 in) H x 16.36 cm (6.441 in) L x 5.18 cm (2.039 in) W
Power
Battery Life
CE Certification
-40 °C to 550 °C (-40 °F to 1022 °F)
<0 °C: ±(1.0 °C + 0.1 °/1 °C) >0 °C: ±1 % or ± 1.0 °C, whichever is greater (<32 F±2 °F ±0.1 °/1 °F) >32 °F: ±1 % or ±2 °F), whichever is greater
±0.5 % of reading or ±1 °C (2 °F),
whichever is greater.
0 °C to 100 °C (32 °F to 212 °F)
Input accuracy ±2.2 °C (±4 °F)
0.1 °C (0.1 °F) 0.1 °C/0.1 °F
12:1 30:1 50:1
0 °C to 50 °C (32 °F to 122 °F)
-20 °C to 65 °C (-4 °F to 149 °F)
2 AA /LR6 Batteries (alkaline or NiCD)
12 hours with laser and backlight on; 100 hours with laser and backlight off, at 100 % duty cycle (thermometer continuously on)
EN/IEC 61326-1:2006, Class B, Criteria A EN/IEC 61010-1:2001 EN/IEC 60825-1:2007
-40 °C to 650 °C (-40 °F to 1202 °F)
±0.5 % of reading or ±0.5 °C (1 °F), whichever is greater.
-270 °C to 1372 °C (-454 °F to 2501 °F)
-270 °C to -40 °C: ±(1 °C + 0.2 °/1 °C) (-454 °F to -40 °F: ±(2 °F + 0.2 °/1 °F))
-40 °C to 1372 °C: ±1 % or 1 °C (-40 °F to 2501 °F: ±1 % or 2 °F), whichever is greater
Digitally adjustable from 0.10 to 1.00 by 0.01 or via built-in table of common materials
0 °C to 50 °C (32 °F to 122 °F)
-20 °C to 60 °C (-4 °F to 149 °F)
-40 °C to 800 °C (-40 °F to 1472 °F)
2 AA /LR6 Batteries or USB connection when used with a PC
Specifications
25
www.GlobalTestSupply.com
Page 32
56x
Users Manual

561 Accessory

Feature K-Type Thermocouple Probe (Wrap Type)
Measurement Range 0 °C to 100 °C (32 °F to 212 °F)
Accuracy ±2.2 °C (4.0 °F)
Cable Length
505 mm (20 in) cable terminated with a Type K thermocouple inside a 495 mm (19.5 in) nylon cuff

566/568 Accessory

Feature K-Type Thermocouple Probe (Bead Type)
Measurement Range -40 °C to 260 °C (-40 °F to 500 °F)
Accuracy
Cable Length
±1.1 °C (±2.0 °F) from 0 °C to 260 °C (32 °F to 500 °F). Typically within 1.1 °C (2.0 °F) from -40 °C to 0 °C (-40 °F to 32 °F)
1 m (40 in) K-type thermocouple cable with standard miniature thermocouple connector and bead termination
26
www.GlobalTestSupply.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
