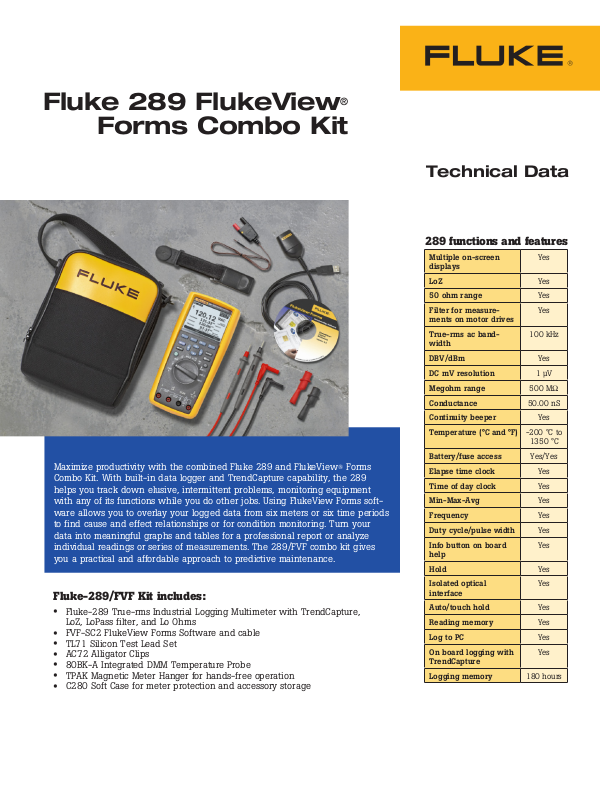

Fluke 289 FlukeView®
Forms Combo Kit
Maximize productivity with the combined Fluke 289 and FlukeView® Forms
Combo Kit. With built-in data logger and TrendCapture capability, the 289
helps you track down elusive, intermittent problems, monitoring equipment
with any of its functions while you do other jobs. Using FlukeView Forms software allows you to overlay your logged data from six meters or six time periods
to find cause and effect relationships or for condition monitoring. Turn your
data into meaningful graphs and tables for a professional report or analyze
individual readings or series of measurements. The 289/FVF combo kit gives
you a practical and affordable approach to predictive maintenance.
Fluke-289/FVF Kit includes:
Fluke-289 True-rms Industrial Logging Multimeter with TrendCapture,
•
LoZ, LoPass filter, and Lo Ohms
FVF-SC2 FlukeView Forms Software and cable
•
TL71 Silicon Test Lead Set
•
AC72 Alligator Clips
•
80BK-A Integrated DMM Temperature Probe
•
TPAK Magnetic Meter Hanger for hands-free operation
•
C280 Soft Case for meter protection and accessory storage
•
Technical Data
289 functions and features
Multiple on-screen
displays
LoZ Yes
50 ohm range Yes
Filter for measurements on motor drives
True-rms ac bandwidth
DBV/dBm Yes
DC mV resolution 1 µV
Megohm range
Conductance 50.00 nS
Continuity beeper Yes
Temperature (°C and °F) -200 °C to
Battery/fuse access Yes/Yes
Elapse time clock Yes
Time of day clock Yes
Min-Max-Avg Yes
Frequency Yes
Duty cycle/pulse width Yes
Info button on board
help
Hold Yes
Isolated optical
interface
Auto/touch hold Yes
Reading memory Yes
Log to PC Yes
On board logging with
TrendCapture
Logging memory 180 hours
Yes
Yes
100 kHz
500 MW
1350 °C
Yes
Yes
Yes
289 specifications
Function Range and resolution Basic accuracy
DC volts 50.000 mV,500.00 mV, 5.0000 V,
AC volts 0.4 % (true-rms)
50.000 V, 500.00 V, 1000.0V
DC current 500.00 µA, 5000.0 µA, 50.000 mA,
AC current 0.7%(true-rms)
Temperature
(excluding probe)
Resistance
400.00 mA, 5.0000 A, 10.000 A
-200.0 °C to 1350.0 °C (-328.0 °F
to 2462.0 °F)
50.000 W (289 only), 500.00 W,
5.0000 kW, 50.000 kW, 500.00 kW,
5.0000 MW, 50.00 MW, 500.0 MW
Capacitance 1.000 nF,10.00 nF 100.0 nF,
1.000 µF, 10.00 µF, 100.0 µF,
1000 µF, 10.00 mF, 100.00 mF
Frequency 99.999 Hz, 999.99 Hz, 9.9999 kHz,
99.999 kHz, 999.99 kHz
0.025 %
0.15 %
1.0 %
0.05 %
1.0 %
0.005 % + 1
Ordering
information
Fluke-289/FVF True-rms
Logging Multimeter Combo Kit
with TrendCapture
Fluke. Keeping your world
up and running.
Fluke Corporation
PO Box 9090, Everett, WA USA 98206
Fluke Europe B.V.
PO Box 1186, 5602 BD
Eindhoven, The Netherlands
For more information call:
In the U.S.A. (800) 443-5853 or
Fax (425) 446-5116
In Europe/M-East/Africa +31 (0) 40 2675 200 or
Fax +31 (0) 40 2675 222
In Canada (800)-36-FLUKE or
Fax (905) 890-6866
From other countries +1 (425) 446-5500 or
Fax +1 (425) 446-5116
Web access: http://www.fluke.com
©2007 Fluke Corporation. All rights reserved.
Specifications subject to change without notice.
Printed in U.S.A. 7/2007 3062469 D-EN-N Rev A
®
