Fluke 289 DMM Data Sheet
Trend recording
and analysis with the
Fluke 289 DMM
Establishing line voltage/mains stability
in a switched circuit
Application Note
Testing
Functions
Case
Study
Tools: Fluke 289 DMM
Tester: Gary Allen, Product
Validation Engineer
Tests: Voltage trending over time and
FlukeView Forms
The problem
Our test engineers needed to
verify the stability of switching
the Mains (line voltage) to an
Equipment Outlet (EO). In the
device under test (DUT) for this
case study, the Mains was routed
to the EO through relays, which
could potentially develop high
impedance connections, interfering with internal measurements
and cause overheating. Switching the Mains was necessary for
the product design, for testing
polarity and to protect individual
circuit conductors.
Electrical safety test standards
require reversing Hot and Neutral, and opening and closing
Neutral and ground individually.
We had to ensure that the relays
don’t develop high impedance
under normal workloads.
The proposed solution
We needed to monitor the Mains
for a period of time before entry
to the product, such as at the
wall receptacle. Once we established the baseline, we could
then repeat the process while
measuring at the EO. We wanted
to repeat the process several
times during the complete product test cycle: once at the beginning, once in the middle and
again at the end. That way we
could compare the data and look
for any overall degradation or
sudden instability introduced by
using the relays. A half hour for
each recording sessions seemed
like a good starting place to
establish base behavior and for
comparison sessions.
Procedure
1. Set up the Fluke 289 Digital
Multimeter (DMM) to measure
Mains voltage (Hot-to-Neutral)
at the incoming power cord of
the product every second for
30 minutes.
a. Select Vac
b. Push F2 “Save”
c. Select “Record” (Use
Arrow keys if necessary
to navigate until Record is
selected and then press F1)
d. Select “Set Sample Interval”
with the arrow keys and
then “Edit” (F1)
i. Configure a 1 second
recording interval with
the arrow keys and then
press “OK” (F1)
e. Select “Set Duration” with
the arrow keys and then
“Edit” (F1)
i. Configure the duration
for 30 minutes with the
arrow keys and then
press “OK” (F1)
f. When ready press “Start”
(F2)
2. In the ac Volts function, use
the Save button to save the
data when the session is complete. Choose a session name
that you will remember from
the available list on the 289.
3. Use the graphical view on the
289 screen to review the session to look for obvious instability in the incoming Mains
power.
a. From the normal Vac mode,
press “Save” (F2)
b. Select “View Memory” with
the arrow keys and then
press “View” (F1)
From the Fluke Digital Library @ www.fluke.com/library
c. Select “Recording” with the
arrow keys and then press
“View” (F1)
i. If multiple sessions are
saved, you can then
choose the session you
want to view...in this
case it will be the one
you just saved.
d. The session screen will
recall the configuration
data and number of samples collected.
e. Press “Trend” (F3) to show
a graphical plot of the data
points and a vertical cursor.
i. Move the cursor to
points of interest with
the arrow keys
ii. Note the voltage of that
data point and the timestamp
iii. Continue examining as
required
f. Return to the “Summary”
(F3) screen or “Close” (F4)
the session and return
to the main VAC function
menu
4. Attach a second DMM of equal
or greater accuracy and precision to the incoming Mains as
a moment-by-moment comparison tool for the next step.
5. Repeat the recording process,
now measuring at the EO.
6. Document the incoming Mains
voltage, monitored by the second DMM, at several points
during the second recording
session.
7. Observe the difference in
Mains voltage between the
incoming Mains connection
and the EO.
When the second recording
session is complete, import the
saved data into FlukeView Forms
(v3.3 or later) when the application prompts you, or from the FVF
menu if needed. Once the data
is imported, reexamine both sessions and look for inconsistencies
that might suggest instability or a
significant voltage drop between
the incoming Mains and the EO.
In this case, a visible fluctuation
from the baseline of more than a
couple of volts indicates a potential problem.
If needed, the data in FVF
can be exported to applications
like Microsoft Office “Excel” or
OpenOffice “Calc” for additional
graphical or numeric analysis.
Another approach would be to
perform both incoming Mains
and EO recording sessions at
the same time-- two Fluke 289
meters are required to accomplish that.
Meter configuration
The Fluke 289 is very easy to
configure for the tests identified
in this document. The recording
feature is very powerful and saving the results is a snap. The following screens help demonstrate
the convenience.
The results
After approximately two weeks
of heavy use of the device under
test, during which the EO was
switched repeatedly with heavy
current loads plugged in, we
documented no obvious degrada-
Fluke 289 recording setup.
tion of Mains voltage on the EO.
We concluded that none of the
switching relays were damaged.
Our test loads for robustness
testing included a high current
induction motor and a bank of
incandescent lamps connected
in parallel. We used an induction
motor to test the design’s resistance to damage from reverseEMF and lamp fixture in the
same way to test the design’s
resistance to damage from loads
with high inrush current.

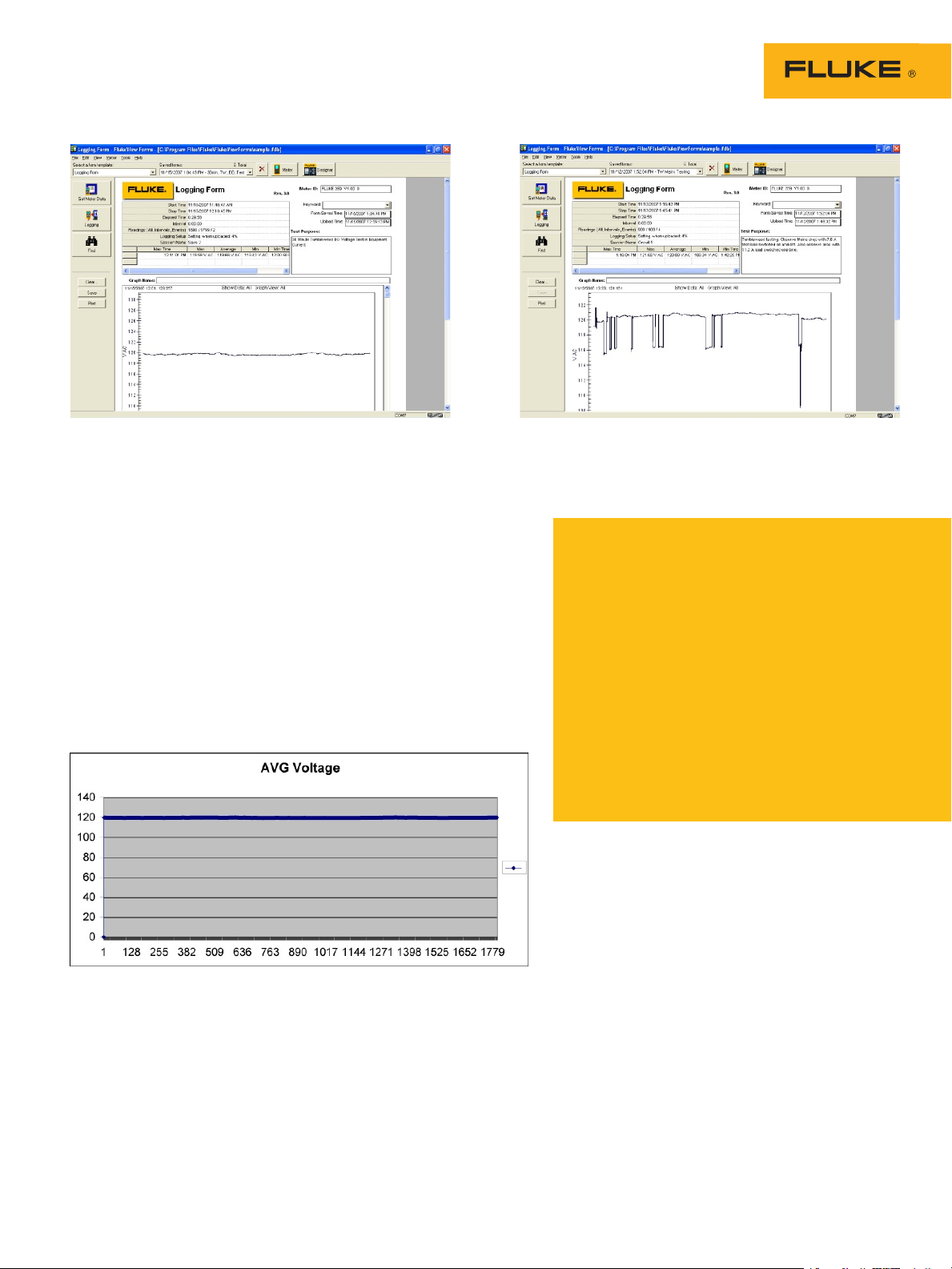

The following screen shots
from FlukeView Forms shows
a Mains voltage baseline and
voltage drops during switching.
The absence of large reverseEMF spikes from switching loads
with a lot of inductance and the
absence of enormous drops from
switching loads with very low
start-state resistance provide
confidence that the design is
adequately protected from damage by those potentially destructive dynamic loads.
Fluke 289 recording voltage data.
Fluke 289 recording complete.
2 Fluke Corporation Trend recording and analysis with the Fluke 289 DMM
Fluke 289 recording session summary.
