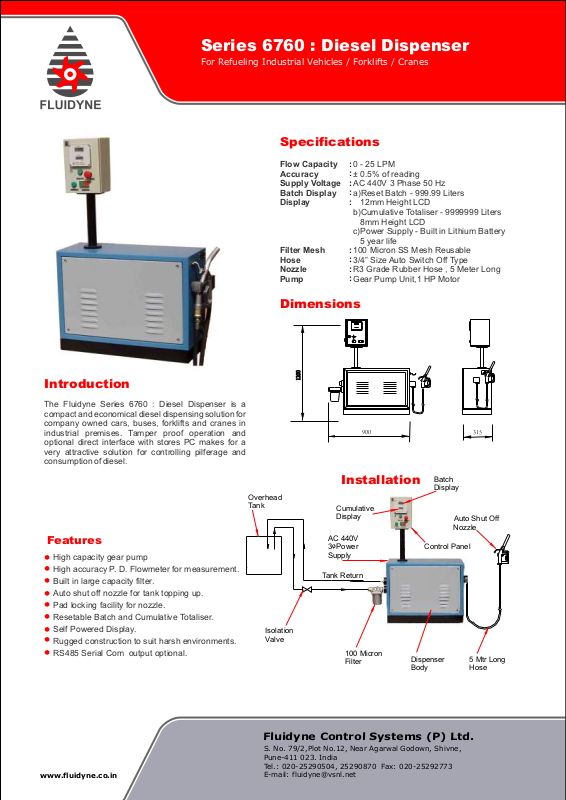

Series 6760 : Diesel Dispenser
For Refueling Industrial Vehicles / Forklifts / Cranes
Specifications
Introduction
The Fluidyne Series 6760 : Diesel Dispenser is a
compact and economical diesel dispensing solution for
company owned cars, buses, forklifts and cranes in
industrial premises. Tamper proof operation and
optional direct interface with stores PC makes for a
very attractive solution for controlling pilferage and
consumption of diesel.
Flow Capacity
Accuracy
Supply Voltage
Batch Display
Display
Filter Mesh
Hose
Nozzle
Pump
:
:
:
:
:
:
:
:
:
:
Dimensions
1200
0 - 25 LPM
± 0.5% of reading
AC 440V 3 Phase 50 Hz
a)Reset Batch - 999.99 Liters
12mm Height LCD
b)Cumulative Totaliser - 9999999 Liters
8mm Height LCD
c)Power Supply - Built in Lithium Battery
5 year life
100 Micron SS Mesh Reusable
3/4” Size Auto Switch Off Type
R3 Grade Rubber Hose , 5 Meter Long
Gear Pump Unit,1 HP Motor
900
315
Features
High capacity gear pump
·
High accuracy P. D. Flowmeter for measurement.
·
Built in large capacity filter.
·
Auto shut off nozzle for tank topping up.
·
Pad locking facility for nozzle.
·
Resetable Batch and Cumulative Totaliser.
·
Self Powered Display.
·
·
Rugged construction to suit harsh environments.
RS485 Serial Com output optional.
·
www.fluidyne.co.in
Installation
Overhead
Tank
Isolation
Valve
Fluidyne Control Systems (P) Ltd.
S. No. 79/2,Plot No.12, Near Agarwal Godown, Shivne,
Pune-411 023. India
Tel.: 020-25290504, 25290870 Fax: 020-25292773
E-mail: [email protected]
Cumulative
Display
AC 440V
o
/
3 Power
Supply
Tank Return
100 Micron
Filter
Control Panel
Dispenser
Body
Batch
Display
Auto Shut Off
Nozzle
5 Mtr Long
Hose
