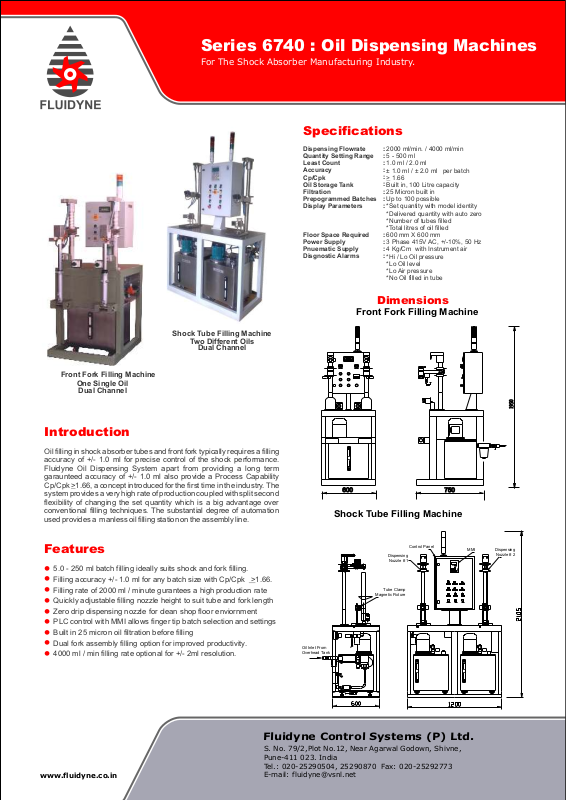

Series 6740 : Oil Dispensing Machines
For The Shock Absorber Manufacturing Industry.
Specifications
Dispensing Flowrate
Quantity Setting Range
Least Count
Accuracy
Cp/Cpk
Oil Storage Tank
Filtration
Prepogrammed Batches
Display Parameters
Floor Space Required
Power Supply
Pnuematic Supply
Disgnostic Alarms
:
2000 ml/min. / 4000 ml/min
:
5 - 500 ml
:
1.0 ml / 2.0 ml
:
± 1.0 ml / ± 2.0 ml per batch
:
> 1.66
:
Built in, 100 Litre capacity
:
25 Micron built in
:
Up to 100 possible
:
*Set quantity with model identity
*Delivered quantity with auto zero
*Number of tubes filled
*Total litres of oil filled
:
600 mm X 600 mm
:
3 Phase 415V AC, +/-10%, 50 Hz
:
4 Kg/Cm with Instrument air
:
*Hi / Lo Oil pressure
*Lo Oil level
*Lo Air pressure
*No Oil filled in tube
Dimensions

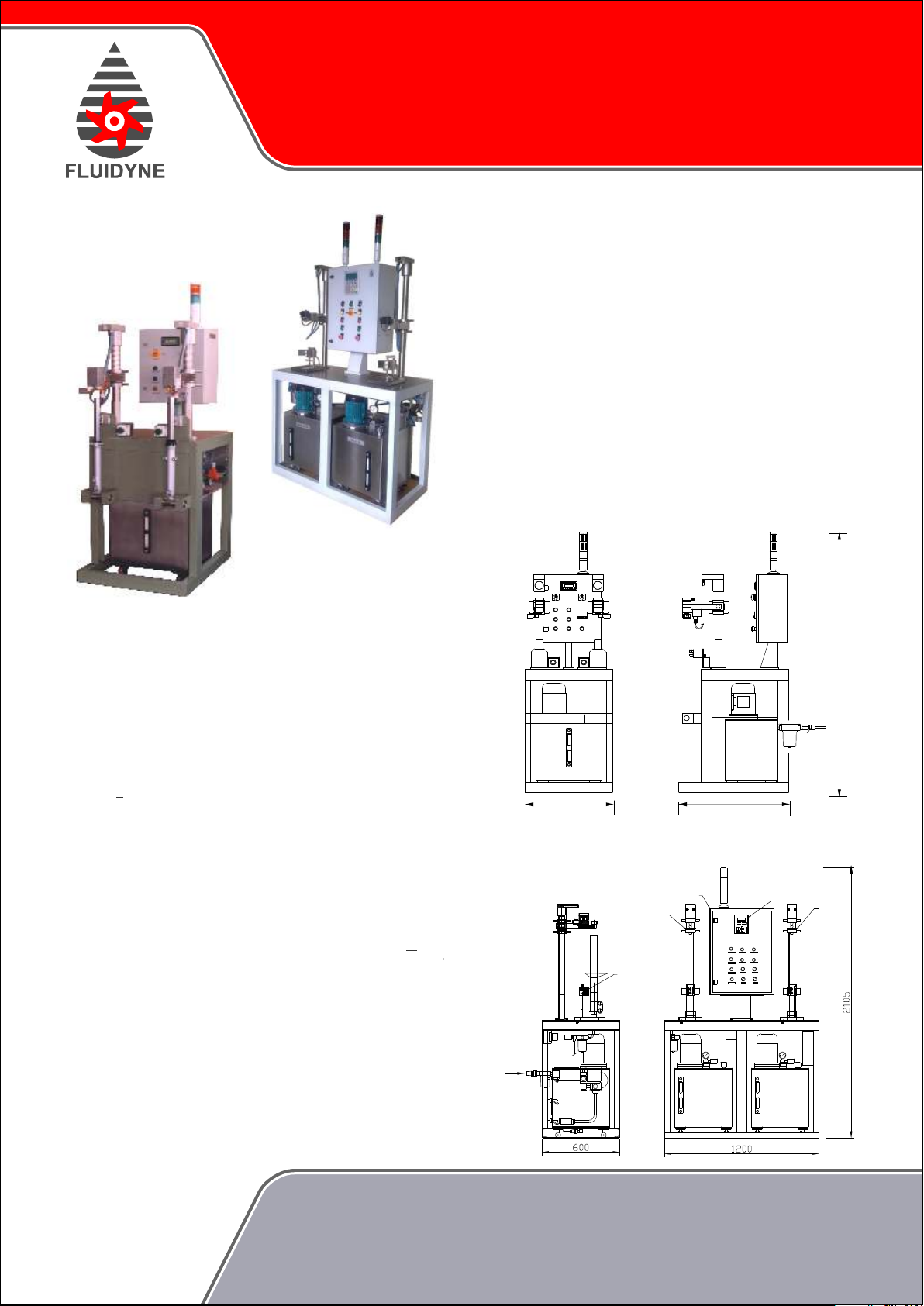

Front Fork Filling Machine
Shock Tube Filling Machine
Two Different Oils
Dual Channel
Front Fork Filling Machine
One Single Oil
Dual Channel
Introduction
Oil filling in shock absorber tubes and front fork typically requires a filling
accuracy of +/- 1.0 ml for precise control of the shock performance.
Fluidyne Oil Dispensing System apart from providing a long term
garaunteed accuracy of +/- 1.0 ml also provide a Process Capability
Cp/Cpk >1.66, a concept introduced for the first time in the industry. The
system provides a very high rate of production coupled with split second
flexibility of changing the set quantity which is a big advantage over
conventional filling techniques. The substantial degree of automation
used provides a manless oil filling station on the assembly line.
Features
5.0 - 250 ml batch filling ideally suits shock and fork filling.
·
Filling accuracy +/- 1.0 ml for any batch size with Cp/Cpk >1.66.
·
Filling rate of 2000 ml / minute gurantees a high production rate
·
Quickly adjustable filling nozzle height to suit tube and fork length
·
Zero drip dispensing nozzle for clean shop floor enviornment
·
PLC control with MMI allows finger tip batch selection and settings
·
Built in 25 micron oil filtration before filling
·
Dual fork assembly filling option for improved productivity.
·
4000 ml / min filling rate optional for +/- 2ml resolution.
·
# 1 # 2
600
Shock Tube Filling Machine
1950
750
