Liquid Inlet
Liquid Outlet
Pulse Output
Tank
FLUIDYNE
Series 6701
Flame Proof
Batch Controller

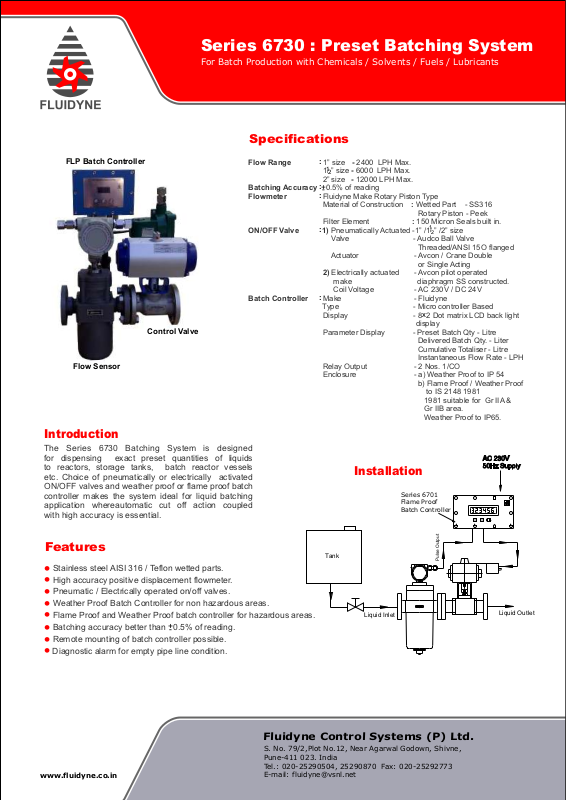

Series 6730 : Preset Batching System
For Batch Production with Chemicals / Solvents / Fuels / Lubricants
Specifications
FLP Batch Controller
Control Valve
Flow Sensor
Introduction
The Series 6730 Batching System is designed
for dispensing exact preset quantities of liquids
to reactors, storage tanks, batch reactor vessels
etc. Choice of pneumatically or electrically activated
ON/OFF valves and weather proof or flame proof batch
controller makes the system ideal for liquid batching
application whereautomatic cut off action coupled
with high accuracy is essential.
Flow Range 1” size - 2400 LPH Max.
1 ” size - 6000 LPH Max.
2” size - 12000 LPH Max.
Batching Accuracy 0.5% of reading
Flowmeter Fluidyne Make Rotary Piston Type
Material of Construction : Wetted Part - SS316
Rotary Piston - Peek
Filter Element : 150 Micron Seals built in.
ON/OFF Valve 1) Pneumatically Actuated -1” /1 ” /2” size
Valve - Audco Ball Valve
Threaded/ANSI 15O flanged
Actuator - Avcon / Crane Double
or Single Acting
2) Electrically actuated - Avcon pilot operated
make diaphragm SS constructed.
Coil Voltage - AC 230V / DC 24V
Batch Controller Make - Fluidyne
Type - Micro controller Based
Display - 8 2 Dot matrix LCD back light
display
Parameter Display - Preset Batch Qty - Litre
Delivered Batch Qty. - Liter
Cumulative Totaliser - Litre
Instantaneous Flow Rate - LPH
Relay Output - 2 Nos. 1/CO
Enclosure - a) Weather Proof to IP 54
b) Flame Proof / Weather Proof
to IS 2148 1981
1981 suitable for Gr IIA &
Gr IIB area.
Weather Proof to IP65.
:
1
/
2
:
+
-
:
1
:
:
/
2
x

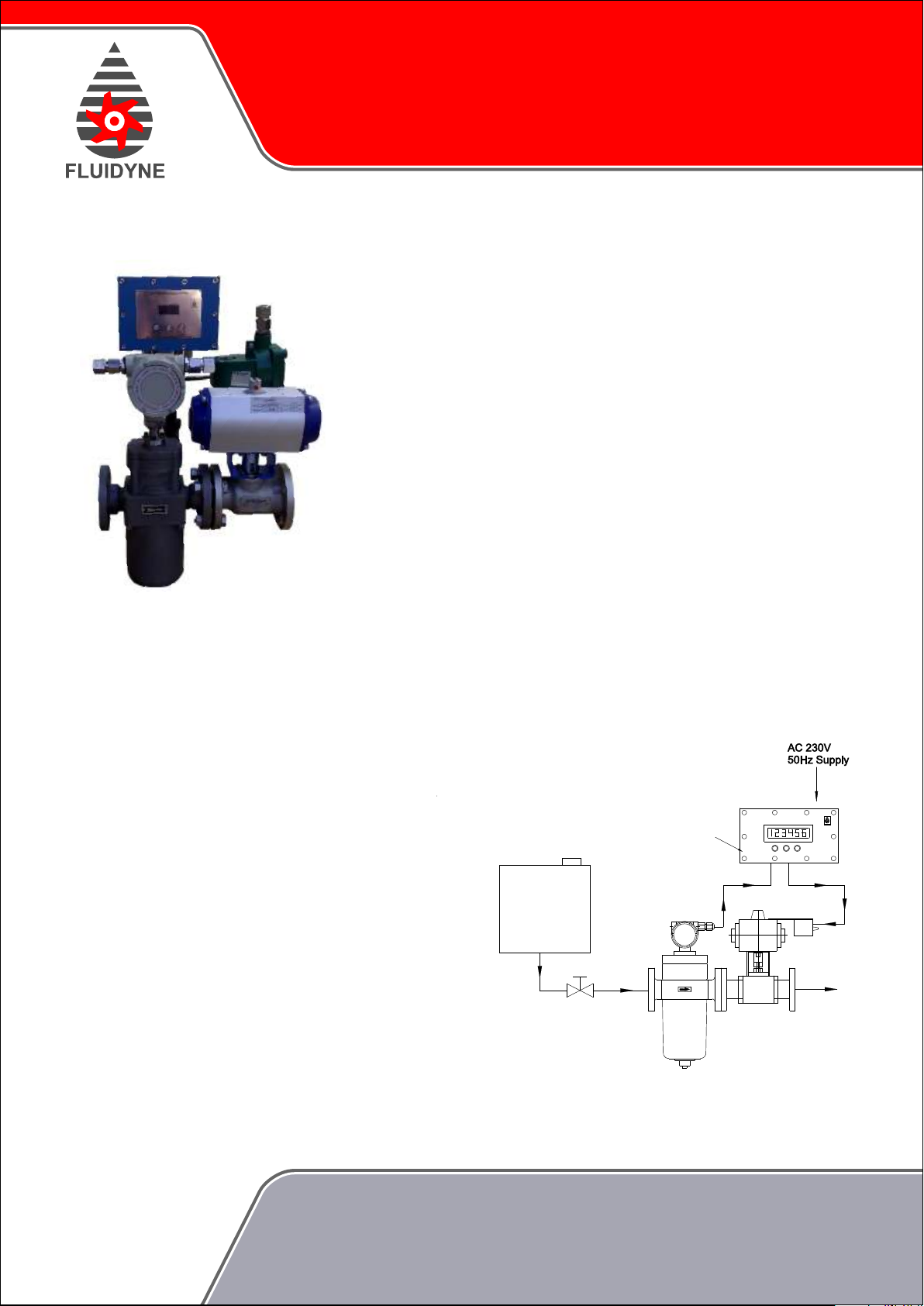

Installation
Features
Stainless steel AISI 316 / Teflon wetted parts.
·
High accuracy positive displacement flowmeter.
·
Pneumatic / Electrically operated on/off valves.
·
Weather Proof Batch Controller for non hazardous areas.
·
Flame Proof and Weather Proof batch controller for hazardous areas.
·
Batching accuracy better than 0.5% of reading.
·
Remote mounting of batch controller possible.
·
Diagnostic alarm for empty pipe line condition.
·
www.fluidyne.co.in
+
-
Fluidyne Control Systems (P) Ltd.
S. No. 79/2,Plot No.12, Near Agarwal Godown, Shivne,
Pune-411 023. India
Tel.: 020-25290504, 25290870 Fax: 020-25292773
E-mail: [email protected]
