LI40 Series Quick Start

PodView®)

Level%Indicator%

| 2 QS204260 Rev B

WELCOME TO THE PODVIEW® QUICK START

The PodView® Quick Start provides basic setup and use instructions for getting the PodView® up and
running quickly. If you have a non-standard installation or setup requirement that is not addressed here,
please refer to the PodView® Manual or support documentation at flowline.com.

WE DO YOUR LEVEL BEST™

Thank you for purchasing PodView®. The indicator provides a LCD display and push button interface with an
EchoPod® sensor. This Quick Start includes everything you’ll need to get the indicator up and running.

COMPONENTS

PodView® comes with a 4’ (1.2m) cable, flat gasket, locking nut and the Quick Start.

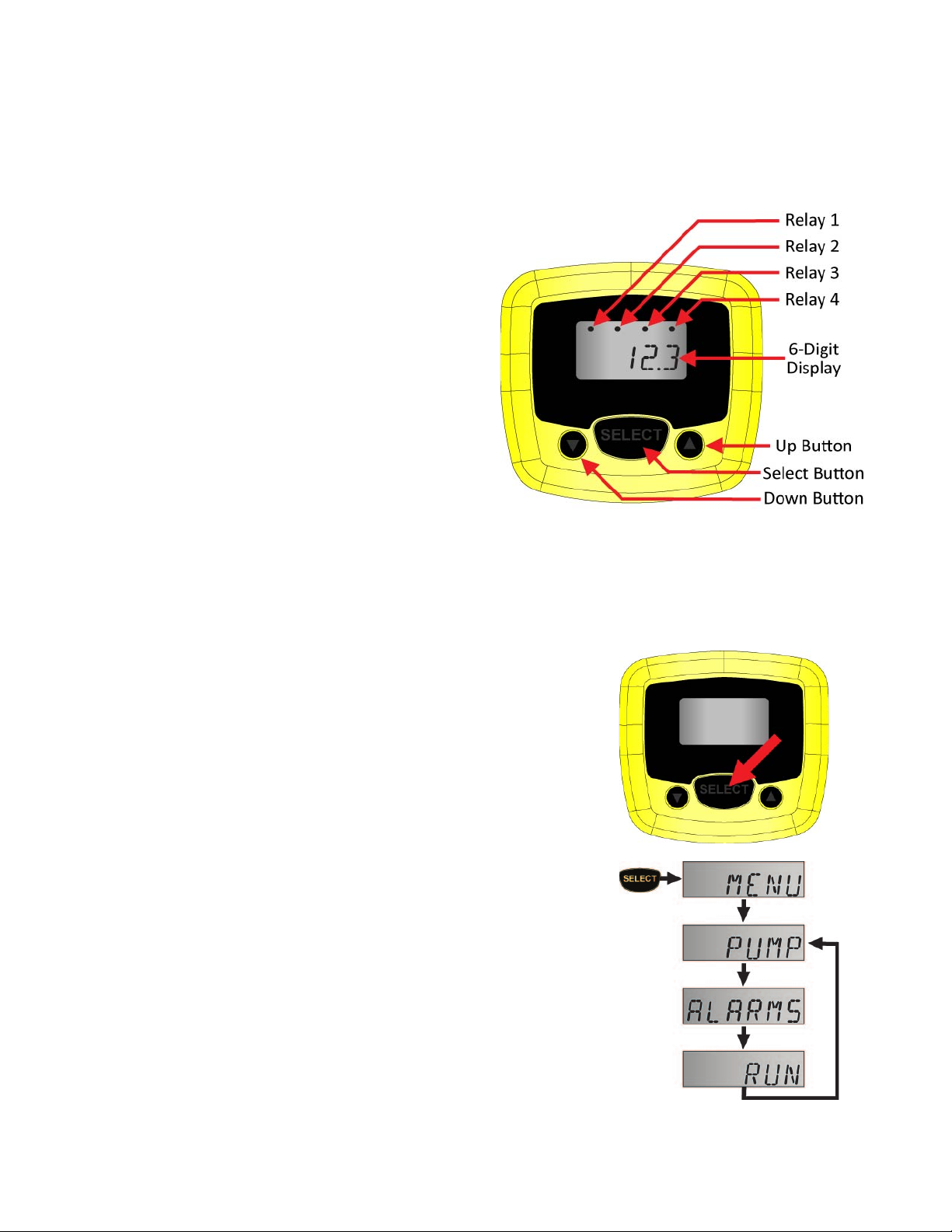

PodView® Front View

PodView® Side View

Enclosure

While the enclosure is liquid-resistant, PodView® is not designed to be submersed, and should be mounted in
such a way that the indicator does not come into contact with the application media under normal operational
conditions.

QS204260 Rev B 3 |

MOUNTING PODVIEW®

PodView® is designed for panel mount installations, either located within an instrument panel or through the
wall of a NEMA box enclosure.

Panel Installation

The maximum cable distance between PodView® and EchoPod® is 15’ (4.5m). Follow the below steps to
install the indicator in a panel or NEMA box enclosure located near EchoPod®.

1. Drill (1) large 0.75” (19.1mm) diameter hole in the panel for the cable and threaded nipple.

2. Drill (1) small 0.25” (6.4mm) diameter hole 0.83” (21.1mm) below the large hole that will prevent the
installed indicator from rotating off center.

3. From the front side of the panel, insert the indicator cable through the large diameter top hole.

4. Properly align the indicator with the flat gasket and holes on the panel, and press the indicator in place
against the panel.

5. From the rear side of the panel, insert the cable through the locking nut and tighten the locking nut
down over the threaded nipple.

6. Route the indicator cable for wiring termination.
