Flomatic BI-036-FL Installation Manual

Flomatic Brix Cup Instructions

CCOZ

OZ CC

45

40

35

30

25
20
15

10

5

1

11:1

5:1

225

8
7
6

5

5:1

RATIO

RATIO

4
3

2

1

4.75

11:1

200

175
150

125

100

75

50

50

5 oz. 1 oz.

RATIO

RATIO

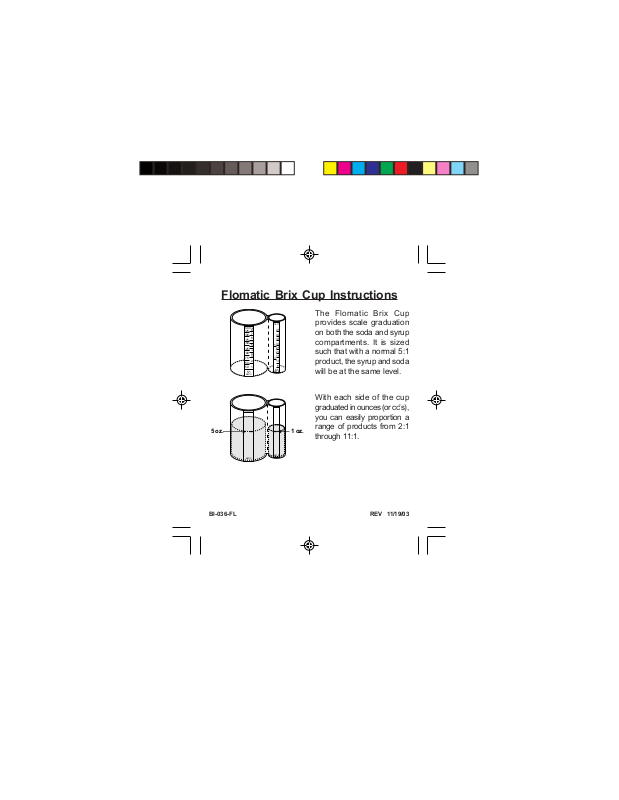

The Flomatic Brix Cup
provides scale graduation
on both the soda and syrup
compartments. It is sized
such that with a normal 5:1
product, the syrup and soda
will be at the same level.

With each side of the cup
graduated in ounces (or cc’s),
you can easily proportion a
range of products from 2:1
through 11:1.

BI-036-FL REV 11/19/03

Foodservice Group

4 oz.

1 oz.

RATIO

RATIO

8 oz.

1 oz.

RATIO

RATIO

Set the soda flow rate first,
then brix or adjust syrup top
the desired ratio. If you want
4:1, adjust the syrup flow­rate to have filled to the 1
oz. mark when you have
delivered 4 oz. of soda.

The diagram represents 4:1
and 8:1 but the cup will
easily accommodate
products from 2:1 to 11:1

Manitowoc Beverage Equipment
2100 Future Drive
Sellersburg, IN 47172-1868
Tel: [phone]
Fax: [phone]

www.manitowocbeverage.com
