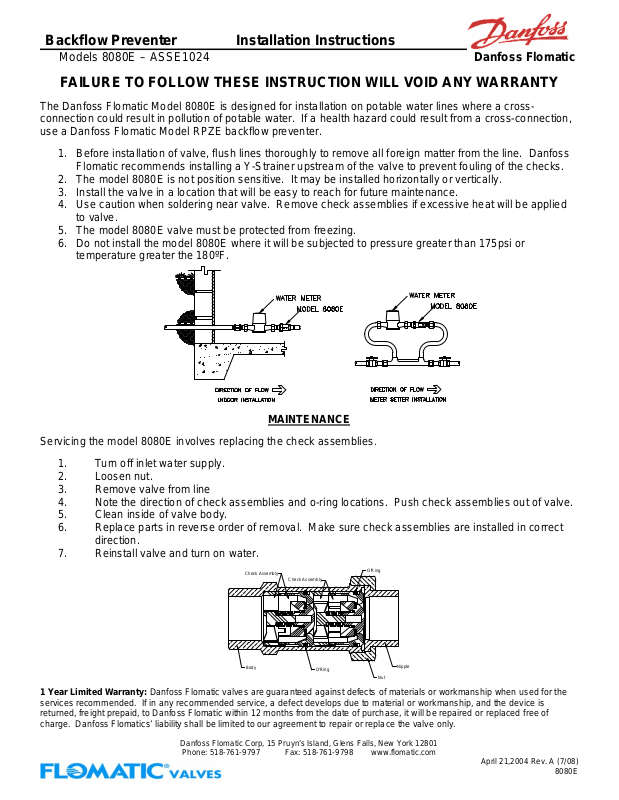

Flomatic 8080E Installation Manual

Backflow Preventer Installation Instructions

Models 8080E – ASSE1024

FAILURE TO FOLLOW THESE INSTRUCTION WILL VOID ANY WARRANTY

The Danfoss Flomatic Model 8080E is designed for installation on potable water lines where a cross­connection could result in pollution of potable water. If a health hazard could result from a cross-connection,
use a Danfoss Flomatic Model RPZE backflow preventer.

1. Before installation of valve, flush lines thoroughly to remove all foreign matter from the line. Danfoss
Flomatic recommends installing a Y-Strainer upstream of the valve to prevent fouling of the checks.

2. The model 8080E is not position sensitive. It may be installed horizontally or vertically.

3. Install the valve in a location that will be easy to reach for future maintenance.

4. Use caution when soldering near valve. Remove check assemblies if excessive heat will be applied
to valve.

5. The model 8080E valve must be protected from freezing.

6. Do not install the model 8080E where it will be subjected to pressure greater than 175psi or
temperature greater the 180ºF.

Servicing the model 8080E involves replacing the check assemblies.

1. Turn off inlet water supply.

2. Loosen nut.

3. Remove valve from line

4. Note the direction of check assemblies and o-ring locations. Push check assemblies out of valve.

5. Clean inside of valve body.

6. Replace parts in reverse order of removal. Make sure check assemblies are installed in correct

direction.

7. Reinstall valve and turn on water.

1 Year Limited Warranty: Danfoss Flomatic valves are guaranteed against defects of materials or workmanship when used for the
services recommended. If in any recommended service, a defect develops due to material or workmanship, and the device is
returned, freight prepaid, to Danfoss Flomatic within 12 months from the date of purchase, it will be repaired or replaced free of
charge. Danfoss Flomatics’ liability shall be limited to our agreement to repair or replace the valve only.

MAINTENANCE

Check Assembly

Body

Check Assembly

O'Ring

O'Ring

Nipple

Nut

Danfoss Flomatic

Danfoss Flomatic Corp, 15 Pruyn’s Island, Glens Falls, New York 12801

Phone: [phone] Fax: [phone] www.flomatic.com

April 21,2004 Rev. A (7/08)

8080E
